Designing variable reflection coefficient for upstream and downstream terminations to study their effect on flame thermoacoustics

Abstract

In this paper, the design, construction and results of experiments performed on a generic combustion system are presented. The setup is supplemented by various weakly frequency-dependent variable reflection coefficient (RC) devices as upstream and downstream acoustic terminations. The main objective of building such terminations is to provide a method to study burner/flame stability when it is placed between various acoustic configurations (RC: 0.1-0.9) and to determine the figure of merit of a burner based on the evaluation of its map of (in-)stability. Furthermore, burner design parameters such as the burner perforation pattern (holes diameter, pitch, perforation area, etc.) which will provide combustion stability for the widest range of burner's acoustic embedding conditions are identified. The experimental setup comprises of an upstream acoustic termination, a telescopic tube with adjustable length is placed after the upstream termination followed by the burner and the quartz tube. On the top of the quartz tube, the replaceable downstream terminations are installed. Nine downstream terminations are constructed by stacking plates of 0.25 mm thickness separated by spacers ranging from 0.1 to 1 mm thickness. Particularly, for the burners tested in this setup, the smallest hole diameter burner (with the largest perforation area) results in the largest stable region on the stability map in the parameter space. An increase in the flow velocity leads to an increase in the frequency of instability and makes a stable system tend to become unstable, while an increase in the equivalence ratio contributes to stabilizing system instability

Keywords

Variable reflection coefficient passive terminations telescopic tube thermoacoustics stability maps

Introduction

The operational range of combustion appliances is frequently limited by the phenomena of thermo-acoustic instabilities arising in the system. The appearance of instability is sensitive to the appliance operating conditions, the thermo-acoustic response of the burner, the acoustics of the gas path of the system and the installation parameters.¹ The physical nature of the instability lies in the mutual interaction of perturbations in acoustic pressure and velocity, which can cause perturbations of the heat released by the flame during combustion. In its turn, the unsteady heat release rate may excite the acoustic flow perturbations resulting in a closed-loop interaction with feedback.² The reflection of acoustic waves at the upstream and downstream of the burner with flame determines the feedback, which can either be positive (unstable) or negative (stable). Within this analysis framework, the flame is operating as an active subsystem and the acoustics of an appliance is performing as a passive subsystem (terminations). Active and passive subsystems are coupled in such a manner that the oscillations in one cause the oscillations in the other and vice versa. The result may lead to high pressure and velocity oscillations which can be problematic for the functioning of a combustion appliance,³ or plainly unacceptable from an end-user perception. Therefore, the practical and technological relevance of this problem garners the attention of the scientific community to combat and avoid/eliminate thermo-acoustic instability [e.g.^4–6].

Within the outlined conception, to approach the problem of thermo-acoustic instability, the behaviour of acoustic waves at the system boundaries (upstream and downstream subsystems to the burner) is characterized by their respective reflection coefficients. The acoustic wave transmission, reflection and amplification via the burner with flame as a “dependent source” subsystem can be defined by its transfer/scattering matrix as described by Polifke et al.⁷ and Manohar⁸. Subsequently, the entire system can be formulated in terms of forward (f) and backward (g) travelling acoustic waves. A closed feedback loop is formed when the acoustic wave reflection at the terminations perturb the flame on the burner which provides the energy for acoustics as schematically shown in Figure 1.

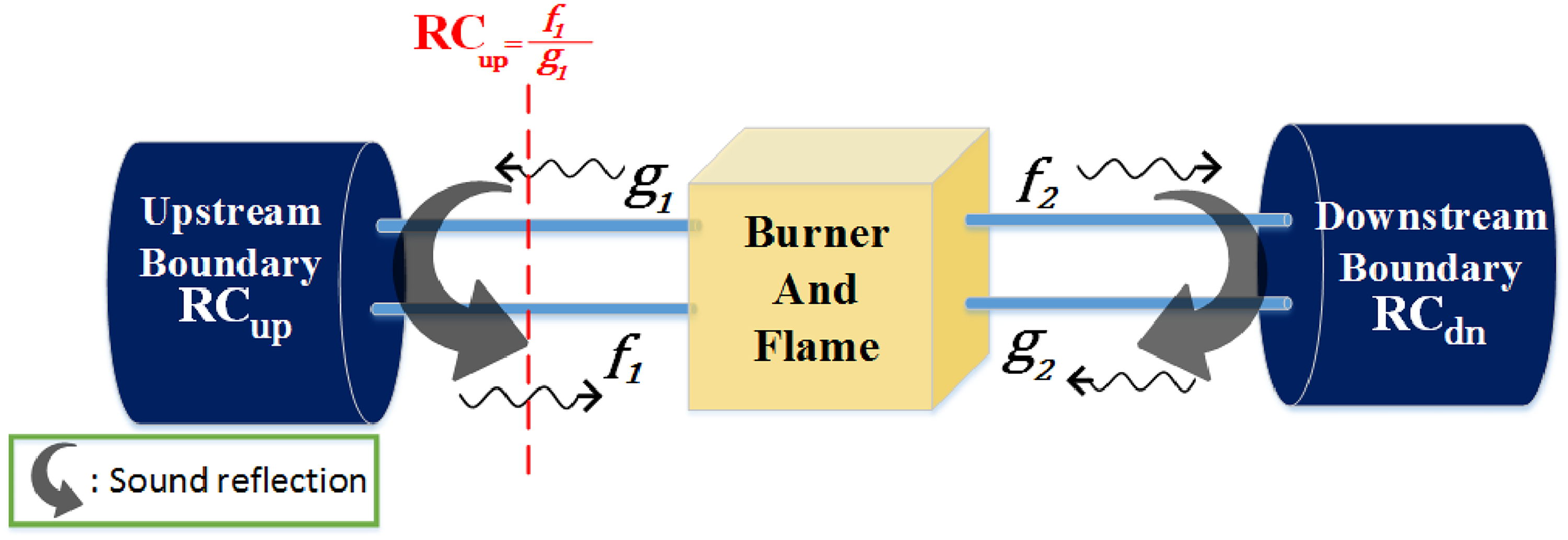

Figure 1.

Acoustic wave propagation and reflection at the boundaries of a system.

In this context, an analogy between the methods of analysis of thermo-acoustic phenomena and a deeply developed theory used for the analysis and synthesis of radio-frequency electronic circuits has been recognized. Consequently, the methods and notions of general system theory of two-port network, can be applied to the problem of combustion instability. Among multiple fruitful approaches and concepts developed within the system theory, the present contribution is inspired by a useful concept which is widely used in the micro-wave circuit theory, namely the notion of an amplifier figure of merit.

The present contribution describes one of the constituting parts of a broader research program, performed within the framework of system theory and aiming to establish a way to introduce the notion of the thermo-acoustic quality factor of a given burner with flame. The ultimate goal of this program is to elaborate the concept of the thermo-acoustic figure of merit (quality indicator) to enable a comparative characterization of burners with flames in respect to their thermo-acoustic properties. The availability of such a notion may allow comparing and ranking different burners with flames with respect to each other. Furthermore, the maximization of this indicator may serve as the target function for development that is dedicated to the optimization of a burner design for improving its acoustic stability of operation.

The principal idea of defining the burner’s figure of merit was proposed by Kornilov and De Goey⁹ and can be explained in the following manner: burner with flame “A” has higher thermo-acoustic quality in comparison to another burner with flame “B” if the probability of unstable operation of burner “A” is lower than the probability of instability of burner “B”. The probability of instability must be determined by comparing burner/flame stability based on tests performed with different acoustic embeddings (as if they are installed in different combustion appliances).

According to this definition, the figure of merit may be defined with respect to a certain class of (usually passive) acoustic embeddings which may reflect the typical properties (design features) of the appliances where the considered burners are used. In the broadest case, a field of arbitrary (but passive) acoustic embeddings can be considered to test the burners and determine their probability of instability.

An ideal burner with the maximum figure of merit would minimize the role of appliance/system boundaries. Therefore, such a burner would be the least problematic when incorporated in different appliances meaning at minimal risk to encounter an instability.

In literature the concrete implementations of the calculations of candidate parameters which promise to serve as the burner’s figure of merit are based either on theoretical derivations of indicators of the amplification factor,¹⁰ or on passivity indicators,¹¹ or on (un)-conditional stability factors,¹² or on methods which use direct numerical tests performed in the spirit of Monte-Carlo simulation methodology with the corresponding statistical (pre-)post-processing of the simulation data.^9,13

The proposition made by Polifke¹⁰ adheres to the evaluation of the maximum possible amplification factor for the acoustic energy leaving the burner/flame with respect to any combination of incoming acoustic waves. Accordingly, the burner which has the capability to generate the smallest amount of acoustic energy must be treated as the best. This approach is inherently related to the transfer matrix (TM) singularity values. Its drawbacks and limitations were discussed by Hoeijmakers.¹⁴

In another approach taken by Hoeijmakers et al.,¹⁵ a theory was developed which allows evaluation of the requirements (upper bound) for the adjoint acoustics when the flame TM is known. Particularly, the bound for the absolute values of upstream and downstream reflections was calculated, such that a given burner would be stable, irrespective of the phase of the reflection coefficients. In this way one may characterize the flame stability quality by comparing the requirements of unconditional stability imposed by the flame.

The third method to characterize the thermo-acoustic quality of a burner/flame represented by its transfer matrix was proposed by Kornilov and De Goey.⁹ The core idea was to rank different burners represented by their flame transfer functions with respect to each other by evaluating the value of probability of (in)stability when the reflection at the system boundaries was randomly varied using the Monte-Carlo methodology. This idea was carried forward by Saxena et al.¹³ where the reflection coefficient was formulated in terms of randomly selected strictly positive real functions (frequency dependent) instead of random constant values as in the former.

To the best of our knowledge no attempts have yet been made in literature to propose an experimental methodology where one can deduce some kind of estimate (indicator) of the burner’s thermo-acoustic figure of merit. The obvious difficulty of such an experimental method would be the need to arrange multiple tests of a given burner with flame in a broad field of variable acoustic embeddings of the system. This problem appears to be too tedious for practical implementation. However, the approach executed in the present research makes this task feasible. The developed experimental setup provides a viable solution for testing burners when they are integrated in a system with multiple, different, but well-defined acoustic environments.

The experimental setup can be seen in Figure 2 and the schematic of the setup can be seen in Figure 3(a). It is unique and its design uses a recently developed innovative technique to achieve a desirable reflection coefficient for an acoustic termination by Drolia¹⁶ and Kojourimanesh et al¹⁷.

Figure 2.

Experimental setup comprising of: 1. Cylindrical vessel with the upstream muffler placed inside it; 2. Telescopic tube with variable length; 3. Impedance tube incorporated with microphones; 4. Burner deck holder with water cooling channel; 5. Quartz tube placed on top of the burner deck holder and the burner under study and 6. Downstream termination placed on top of the quartz tube.

Figure 3.

Schematic of the experimental setup and a close up of the upstream termination including the location and working of the upstream muffler. (a) Schematic diagram of the experimental setup. (b) Schematic diagram of the upstream termination.

Therefore, the aim of the present contribution is to introduce the conceptual idea of the experimental setup, describe its components including a detailed overview of the technical specifications and construction features to the extent which makes it possible to reproduce the working principle of this new experimental technique in different laboratories. The main output of the testing procedure is the mapping of the (in-)stability of operation of a given burner with flame in the field of variable absolute value of almost frequency independent reflection coefficients of upstream and downstream terminations and include a variable phase delay by the upstream termination. Accordingly, the burner’s figure of merit can be defined as the ratio of tests with stable operation to the total number of test cases.

For the downstream (hot) termination the desired magnitudes of RC ranging from 0.1 to 0.9 were successfully obtained by making a set of separate devices/terminations for each value. This set includes nine downstream terminations and each termination represents a particular magnitude and phase of RC. Each termination was tuned via iterative optimization experiments.

The upstream termination is a combined device which provides a way to switch the magnitude of RC with the help of some shutters which are conveniently placed and can be opened or closed providing control over the reflection coefficient magnitude. The telescopic tube (Figure 2) with variable length helps in achieving variable phase delay for the upstream part.

The performance of the setup will be demonstrated using, as an example, a particular type of perforated burner. The test case here consists of a burner with multiple Bunsen-type conical flames which are anchored on the perforated surface of the burner. Accordingly, the figure of merit will be defined for 4 burners with different perforation pattern (hole diameter and pitch) and different combustion power (flow rate and mixture equivalence ratios). Furthermore, several ideas of possible methods for the data post processing and interpretation will be introduced.

This paper is organised in the following manner: The following section consists of an itemized description of the experimental setup, followed by the details regarding the measurement techniques used in this study. To explain the working principle of the setup, a test-case study is presented in the subsequent section, where the stability maps of 4 burners are explored in an in-depth manner. Instead of representing the results of mapping of the system operation regimes with just binary indicators: stable or unstable, the observed behaviour is qualitatively characterised by introducing two more indicators: pockets of stability and beats. The difference between the four indicators will be elaborated in the results and is used in the presentation of the experimental results.

Experimental Setup

This section describes the experimental setup in terms of its construction and the objective of each part of the setup is explained. As can be seen in Figure 3(a), the experimental setup consists of the following parts: upstream and downstream terminations (Reflection Coefficient represented by RC $_{u p}$ and RC $_{d n}$ respectively), a telescopic tube, an impedance tube, a burner deck holder and the burner under study with a quartz tube which is placed on top of the burner deck holder.

Upstream variable reflection coefficient termination

The prominent desired feature of the upstream termination was that it should provide an easy way to vary the magnitude of RC $_{u p}$ while keeping it frequency independent by employing some mechanical operations. This objective was achieved by creating a compact version of the plate-stack muffler and placing it inside a closed cylindrical vessel as can be seen in Figure 3(b). The upstream muffler device consists of 31 plates, each plate has the following dimensions: $75 \times 75 \times 0.25$ mm. The material of the plate is stainless steel EN 1.4301. Each of these 31 plates has a 50 mm diameter hole in the centre. Adjacent plates are separated by combination of spacers of thickness 0.1 mm and 0.07 mm as shown in Figure 4(a) and (b). The 31 plates along with the spacers are packed in between front and back plate of the upstream muffler, each of dimensions $100 \times 100 \times 10$ mm. The thin as well as the thick plates have sharp inner edges at the holes in the centre of the plate.

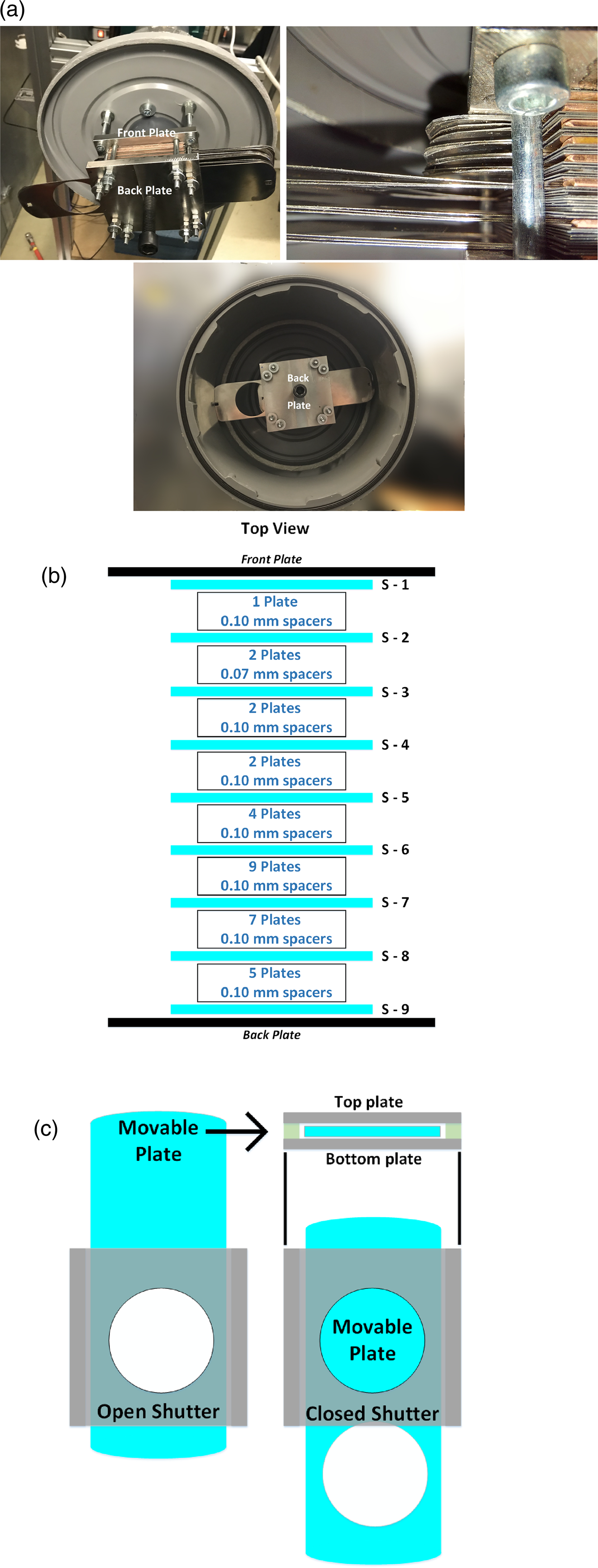

Figure 4.

Parts of Upstream termination. (a) Upstream termination: Muffler outside the cylindrical vessel; close up of the muffler;muffler inside the cylindrical vessel. (b) Schematic of the upstream muffler along with the information about the plates, the shutters (S-Number) location and spacers used. (c) Working of the shutter assembly: Open and closed configurations.

Furthermore, the thinner plates and spacers are interlaced with shutters. Each shutter is made up of 2 plates (top and bottom plate, not to be confused with front and back plate of the upstream muffler) which are attached to each other at two opposite edges. The gap/separation resulting from the attachment between the top and the bottom plate allows the motion of a longer third plate in between them.

Experiments were performed to determine the optimal thickness of the movable plate as well as the shutter assembly such that when a shutter is inserted in between the stack of plates, it performs as an acoustically closed wall. There are two possible configurations allowed for the third movable plate as shown in Figure 4(c), one is open and another is closed. In the open shutter configuration, the acoustic wave may propagate further in the stack. In the closed configuration the part of the stack delimited by the shutter performs as an acoustical wave termination.

Nine such shutters are placed at different locations within the stack of 31 plates as shown in Figure 4(b). When all the shutters are closed, the shortest portion (volume) of the muffler device with the smallest number of plates in the stack is working and the magnitude of RC $_{u p}$ close to 0.9 is obtained. On closing the subsequent shutter, while leaving the first shutter open, 0.8 is obtained. Similarly if the first two shutters are left open and the third shutter is in the closed configuration, 0.7 magnitude is obtained for RC $_{u p}$ . As the shutters are kept on being opened, the magnitude of RC $_{u p}$ keeps decreasing and a larger fraction of the stack of plates is involved in the operation. A more comprehensive view of the upstream muffler can be observed in Figure 5. The process of optimization of the combination of plates and the placement of the shutters required iterative experiments to obtain the desired results.

Figure 5.

Working of upstream muffler with respect to shutters (S-Number). (a) Open Shutter 1 (S-1) and Shutter 2 (S-2) result in volume up to Closed Shutter 3 (S-3) working to reduce the absolute value of Reflection coefficient (0.7). (b) Closed Shutter 2 (S-2) results in volume up to S-2 working to achieve the absolute value of Reflection coefficient (0.8).

To prevent leakage of the combustible mixture, the upstream muffler is installed inside a sealed cylindrical vessel, in other words the cylinder seen in the bottom of Figure 4(a) is closed and it acts similar to a plenum chamber while the experiments are performed. The dimensions of the vessel were chosen in a manner so that the RC $_{u p}$ magnitude and phase remained unaffected by the presence or absence of the vessel.

Downstream variable reflection coefficient terminations

While the upstream termination is one combined and compact setup/device, the possibility of constructing the same for the downstream termination was discarded for the simple reason that the hot exhaust gases and high temperature downstream would make it impossible to design a robust construction as well as forbid any motion of the third movable plates in the shutters, which is the main method to vary the value of RC $_{u p}$ . Therefore, separate terminations were constructed.

Each termination was made up of a different stack of plates and adjacent plates within a stack were separated by spacers of different thickness. Each stack represents a unique downstream termination and thus has a unique RC $_{d n}$ magnitude. Stainless steel plates of $100 \times 100$ mm and thickness of 10 mm were taken as the front and back plates. While the back plate provides a closed end wall condition, the front plate has a hole of diameter 50 mm. Between these two plates, stacks of $75 \times 75 \times 0.25$ mm plates, each having a hole of 50 mm were positioned such that the hole in a stack of plates is perfectly aligned with the hole in the front plate as shown in Figure 6.

Figure 6.

Parts of Downstream terminations. (a) Downstream termination; Arrangement of spacers in between 2 adjacent plates. (b) All of the 9 downstream terminations.

After various trial and error experiments, frequency-independent, reflection devices with almost constant magnitude of RC $_{d n}$ were achieved. The process of identifying the number of plates and the thickness of spacers required to achieve a desired magnitude of RC $_{d n}$ was guided by the knowledge of the trend followed by the magnitude of RC as the number of plates is increased or a change is made in the spacer thickness.¹⁷ The arrangement of spacers was similar to the one shown in Figure 6(a). Figure 6(b) shows all the nine downstream terminations. The details regarding the plates and spacers are mentioned in Table 1.

Table 1.

Downstream terminations.

RC Magnitude	Number of Plates	Thickness of Spacers
		mm
0.1	75	0.10
0.2	55	0.12
0.3	37	0.15
0.4	43	0.18
0.5	25	0.20
0.6	22	0.25
0.7	12	0.35
0.8	10	0.45
0.9	4	1.00

Change in telescopic tube (TT) length

Since this experimental setup is a modification of the test rig from Saxena et al.,¹⁸ the placement of the telescopic tube remained the same. The purpose of this tube was to allow variation in the phase of RC $_{u p}$ with no change in its magnitude. As can be seen in Figures 2 and 3(a), a tube of outer diameter 56 mm was positioned inside a tube of inner diameter of 57 mm. Measures were taken to prevent any gas leakage between these tubes. The motion of the inner tube inside the outer tube results in the telescopic tube length variation from a minimum length of 82.5 cm to a maximum length of 152.5 cm. The upstream setup was placed on a movable platform, thus any motion of TT has no effect on the RC $_{u p}$ magnitude and it is purely responsible for the phase change. As the initial value of 82.5 cm remains constant for both extremes (minimum length: 82.5 cm, maximum length: 82.5 $+$ 70 $=$ 152.5 cm), the results are shown in terms of change in the TT length instead of the actual measure of the TT length. Hence, 82.5 cm is depicted by 0 cm change in the TT length and 152.5 cm is represented by 70 cm change in the TT length.

Burners under study and quartz tube

The TT is followed by an impedance tube equipped with microphones. However, in the present study the results of the pressure measurement have not been incorporated and therefore it can simply be considered as a long tube of constant length before the burner deck holder.

The water-cooled burner deck holder aides in maintaining the same temperature of the burner throughout an experiment. The burners are made of circular brass plates of 1 mm thickness with multiple holes (perforations) arranged in a hexagonal pattern as can be seen in Figure 7. These brass plates are referred to as burners in this paper. The burners were placed on top of the burner deck holder shown in Figure 2. Burners with hole diameters of 1.5 mm, 2 mm and 3 mm have been used in the present study. The details of the burners are shown in Table 2.

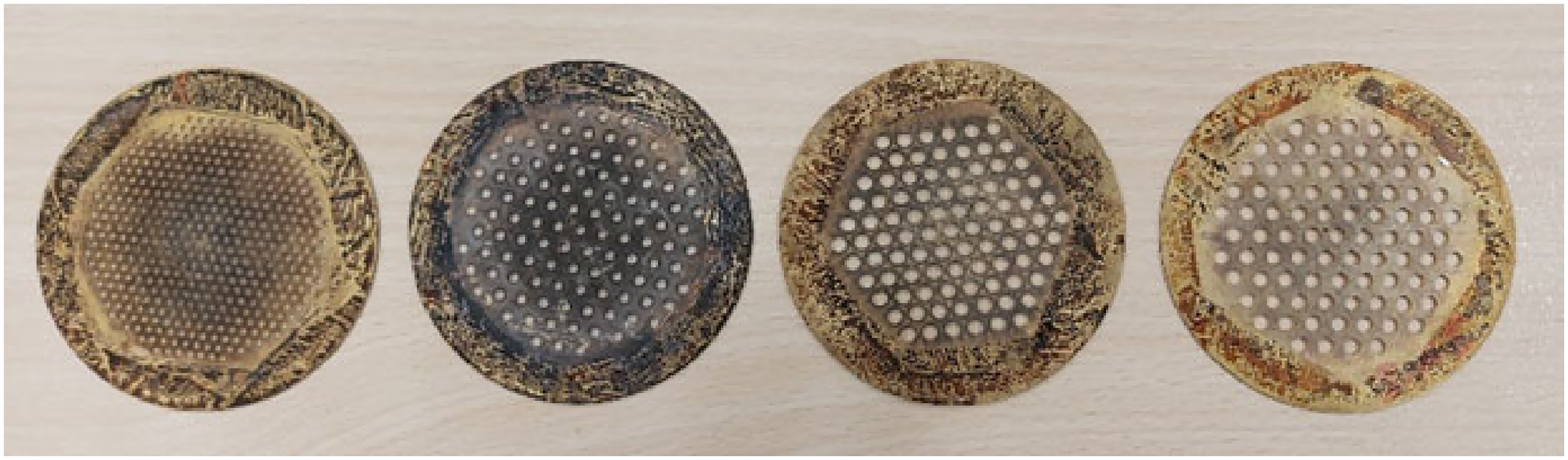

Figure 7.

Burners under study (Burners B $_{15}$ , B $_{2}$ , B $_{3 a}$ and B $_{3 b}$ from left to right).

Table 2.

Burner configuration.

	Hole Diameter	Pitch	Perforation Area
	mm	mm	mm $^{2}$
Burner Index
B $_{15}$	1.5	2.0	764.78
B $_{2}$	2.0	4.5	342.26
B $_{3 a}$	3.0	4.5	642.92
B $_{3 b}$	3.0	5.0	600.50

A quartz tube with length of 110 mm and inner diameter of 50 mm is placed on the top of the burner to observe the flame. The inner part of the front plate of a downstream termination perfectly fits and rests on the top of this tube. The total length of the upstream part of the setup (i.e. excluding the quartz tube and downstream termination) is 305 cm when the length of the TT is fixed at 82.5 cm.

Applied measurement techniques and operating conditions under study

Reflection Coefficient measurement

The classic multi-microphone method, developed by Jang and Ih,¹⁹ has been used to determine the reflection coefficient of different terminations. For the application of this method, 6 calibrated microphones (BSWA MPA416) are placed at an equal-distance from each other and are installed on an impedance tube of 1 m length. On one end of the impedance tube, a loudspeaker is positioned and on the other end, the sample whose reflection coefficient is to be measured is placed.

Excitations in the form of pure tone sine waves of a particular frequency are provided by the loudspeaker, resulting in acoustic pressure distribution along the impedance tube. When a sample is placed on the other end, the reflection of the acoustic wave varies the pressure distribution in the impedance tube. This new distribution is captured by the microphones, the data is collected using DAQ and controlled/processed using a LabVIEW program. The measured range of excitation frequencies is from 40 Hz to 800 Hz with a step increment of 20 Hz.

Finally, the collected time series data from all the microphones is post-processed to identify the incident and reflected acoustic waves. The acoustic pressure field is reconstructed using a MatLAB code and the reflection coefficient of the sample is obtained. The frequency-dependent reflection coefficient is the ratio of reflected to incident waves.

Process of observation and frequency measurement at system instability

Before supplying a mixture of methane and air to the experimental setup, a particular RC $_{u p}$ is chosen by opening and closing certain shutters, and one of the extremal positions of the TT is selected. Then the gas mixture is provided and the premixed flames are ignited. On the top of the quartz tube, a RC $_{d n}$ termination is placed. All the measurements are recorded after the system is fully thermally equalized which requires $\sim$ 15 min of continuous operation.

In case the system is unstable, an external microphone is used to collect the data regarding the frequency of instability. The sampling length (bin size), rate and inbuilt FFT algorithm used by the external microphone leads to a frequency resolution of 3 Hz. The TT length is slowly changed and the corresponding effect on the system stability is noted. In the next step, the RC $_{d n}$ is changed and the measurements are repeated by changing the TT length (keeping RC $_{u p}$ constant). Once all the nine RC $_{d n}$ terminations and the case with open end downstream (without a downstream termination) are tested, the RC $_{u p}$ magnitude is changed and the steps mentioned above were repeated. These steps are iteratively done for various values of mixture flow velocities and equivalence ratios. With the collected data, the stability maps of the different burners are plotted. The range of operating conditions considered are listed in Table 3.

Table 3.

Operating Conditions.

	Minimum	Step	Maximum
Flow Velocity (m/s)	1	0.10	1.8
Equivalence Ratio ( $ϕ$ )	0.8	0.05	0.9

Results and Discussion

RC $_{u p}$ and RC $_{d n}$ measurement results

The upstream termination (cylindrical vessel with the upstream muffler) was placed on the impedance tube setup, and the corresponding RC $_{u p}$ values were measured. As mentioned before, was measured, then the first shutter was opened while the consecutive shutters remained closed and again the RC $_{u p}$ was measured. These steps were repeated till the last shutter was opened (all shutters would be open in this configuration) and Figure 8(a) shows the plot of respective values for RC $_{u p}$ when the device (stack of plates and shutters) was placed inside the cylindrical vessel. One can see that the resulting magnitude of RC $_{u p}$ is weakly dependent on the excitation frequency and maintains close to the constant desired value for the range of frequencies under study. These values of magnitude and phase of RC $_{u p}$ do not change in the presence of a mean gas flow with velocity typical for combustion experiments.

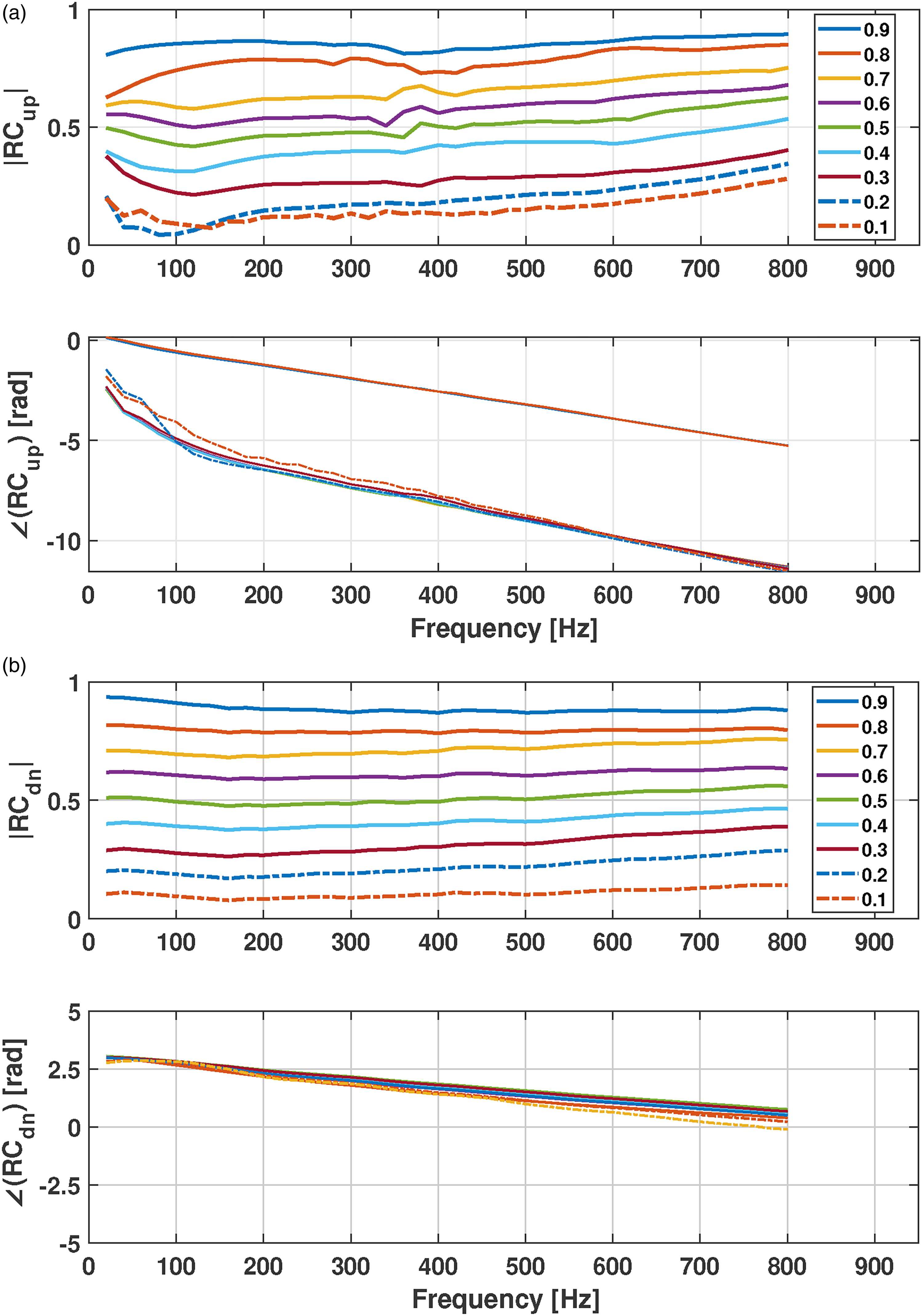

Figure 8.

Upstream and downstream reflection coefficient. (a) Reflection Coefficient of Upstream termination: Magnitude and phase of the reflection coefficient for varying numbers of open shutters from all closed (0.9) to 8 shutters open (0.1). (b) Reflection Coefficient of Downstream terminations: Magnitude of the reflection coefficient (0.1-0.9) corresponds to individual termination (9 terminations in total).

Downstream terminations which were constructed separately are also almost frequency independent. The results of the measured magnitude and phase of RC $_{d n}$ are shown in Figure 8(b). (a) Reflection Coefficient of Upstream termination: Magnitude and phase of the reflection coefficient for varying numbers of open shutters from all closed (0.9) to 8 shutters open (0.1). (b) Reflection Coefficient of Downstream terminations: Magnitude of the reflection coefficient (0.1-0.9) corresponds to individual termination (9 terminations in total).

Demonstration of the experimental setup: Comparison of burners with respect to their stability maps

The methodology followed to measure the unstable frequency of a burner with flames for various combinations of upstream and downstream terminations has been explained in detail before. The remaining part of this contribution contains details regarding the demonstration of the experimental setup utilizing four different burners. The dimension of the explored space of varied parameters is 3 (RC $_{u p}$ , RC $_{d n}$ and length of TT). To represent the data on a 2D map and still retain a certain qualitative information about the system dynamics, while moving along the third coordinate in the space of parameters, a set of symbols that reflects different encountered situations is introduced.

Case 1 (green filled circle) is when the flame was initially stable (when the TT length is 0 cm) and stayed stable as the TT length was varied from 0 to 70 cm.

Case 2 (black asterisk) is when the flame is stable for some range(s) of TT length and unstable for another range(s). This situation will be referred to as the presence of ‘pockets of stability’. The unstable frequency oscillations maybe tonal or having beats containing 2 or more frequencies. Noiray et al.²⁰ noticed this difference in widths of unstable combustion region for 2 different burner thicknesses (3 mm and 30 mm) as a function of upstream resonant duct depth. Since the Burners B $_{15}$ , B $_{2}$ , B $_{3 a}$ and B $_{3 b}$ all have the same thickness (1 mm), the appearance of pockets of stability (width of stable combustion region) is not affected by burner thickness in the present study.

Case 3 (black square) is when the flame is unstable from 0 cm of the TT length to 70 cm, without any pocket of stability, and produces only a tonal sound of a certain frequency, generally referred to as steady-state limit cycle cases.

Case 4 (black triangle) is when the flame is unstable, similar to Case 3 but instead of producing only tonal sound, there is also a range(s) of the TT length where beats are observed. The reason for distinguishing the Case 3 and Case 4 is to retain information about the way the limit cycle of instability would behave when the upstream or downstream RC magnitude is varied in more detail and obtain a trend that maybe followed by the flames.

Figure 9 shows the stability maps of Burners B $_{15}$ , B $_{2}$ , B $_{3 a}$ and B $_{3 b}$ in terms of cases and symbol coding mentioned above. Note that the cases with RC $_{u p} >>$ RC $_{d n}$ experience extreme instability in the presence of 2 or more oscillation modes with different frequencies. In many cases the flame was unable to stabilize on the burner and quenched or flashed back. Therefore, it can be assumed that for all cases with a fixed RC $_{u p}$ , for RC $_{d n}$ values below Case 4 (black triangle), the system was unstable in these stability maps.

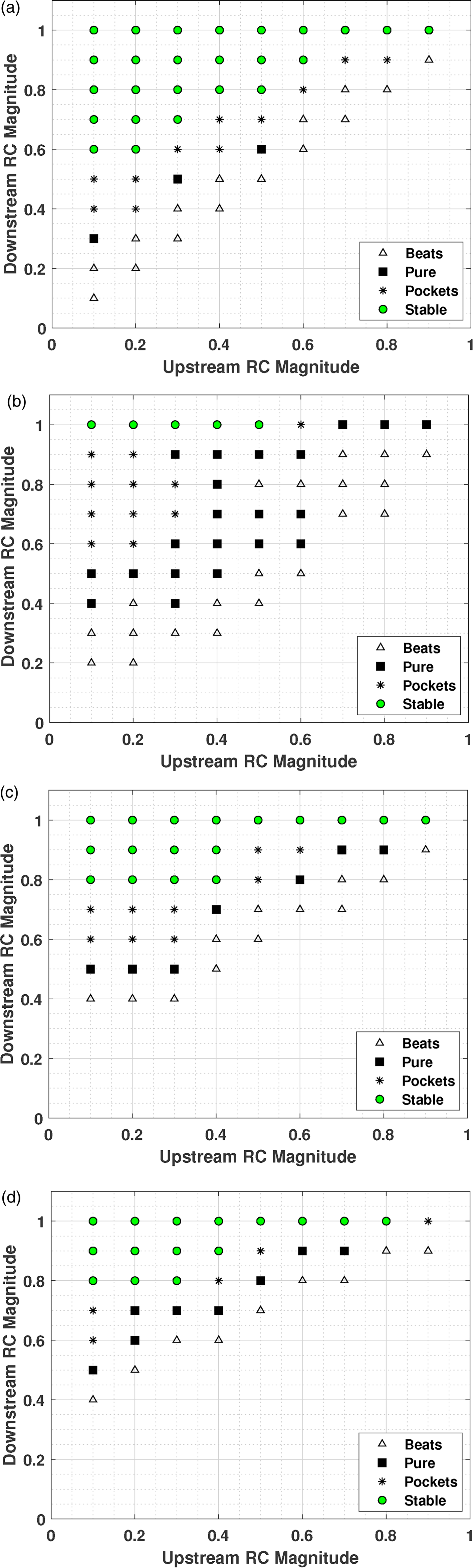

Figure 9.

Symbols for the stability maps are as follows: Green filled circle: Case 1 (stable for all values of TT length); black asterisk: Case 2 (having pockets of stability); black square: Case 3 (tonal frequency) and black triangle: Case 4 (beats phenomenon). Measurements were made at main approaching flow velocity of 1.2 m/s and at equivalence ratio of 0.8. (a) Stability map of Burner B15. (b) Stability map of Burner B2. (c) Stability map of Burner B3a. (d) Stability map of Burner B3b.

Analysing the maps one may notice that, at the given flow setting (inlet flow velocity of 1.2 m/s and at equivalence ratio of 0.8), the burner B $_{15}$ had the widest region of points of stable flame operation (Case 1) and thus has the highest figure of merit. If only stable points are counted on the 2D projection of the stability map (in field of RC $_{u p}$ and RC $_{d n}$ ), that is excluding the effect of a particular TT length, then 25 points out of the 90 operating points are completely stable for all variations of TT length (0–70 cm). Therefore, the figure of merit for Burners B $_{15}$ can be assigned the value, $25 / 90 = 0.28$ .

The development of an experimental technique which would allow measurement of a burner’s stability in the space of parameters (characterized by the acoustic embedding) and consequently help in evaluating a burner’s figure of merit was the main objective of the present contribution and it is successfully achieved. When this experimental technique is compared to theoretically proposed indicators, the advantages of the setup standout. The novel experimental methodology and results presented in this paper provide a quantitative value for the figure of merit for the tested burners which was yet to be determined experimentally. The results from this paper can further be used to validate the models proposed before which depend on statistically evaluating the figure of merit using Monte-Carlo simulation.^9,13 By constructing a setup, where the reflection coefficient is weakly dependent on frequency and testing all the data points in stability map (RC $_{u p}$ and RC $_{d n}$ : 0.1 – 0.9), this contribution allows to negate the need for frequency dependent bounds on reflection coefficient to achieve a stable flame.¹⁵ However, the obtained stability maps allow more detailed analysis of the thermo-acoustic behaviour of the chosen burners and their respective flames when the acoustic embeddings are changed.

Below a few examples of possible directions for further analysis are presented.

It is interesting to note the trend followed by the operation dynamics when the RC $_{u p}$ is constant but the RC $_{d n}$ is varied. For instance let’s focus on Burner B $_{15}$ , the case when the RC $_{u p}$ magnitude is 0.1 and monitor what happens as the RC $_{d n}$ is decreased from open end condition (no termination placed on top of the quartz tube, RC $_{d n}$ magnitude is $\sim$ 1) to RC $_{d n}$ representing a close to anechoic termination embedding (RC $_{d n}$ magnitude is around 0.1) as shown in Figure 9(a). Initially the burner flame is stable (Case 1) till the RC $_{d n}$ magnitude is decreased to 0.6, for all values of TT length (0–70 cm). Next pockets of stability (Case 2) are encountered till the RC $_{d n}$ is 0.4 (i.e. flame is stable for some values of TT length and unstable for others values). This is followed by the case where an unstable operation with a tonal frequency (Case 3) is present and RC $_{d n}$ is 0.3. Here the flame is unstable for all values of TT length. And finally, the case where the flame produces beats (Case 4) is observed and any change in the TT length doesn’t make the system stable anymore. This trend is visible in the maps for all of the tested burners in the mentioned operating conditions. Case 2 may be considered, as an intermediate case before the system becomes stable when the RC $_{u p}$ is fixed and RC $_{d n}$ is increased. Therefore, one can conclude that as the reflection coefficient of downstream termination increases in magnitude, the system equipped with the given burners tends to become stable.

Now if the same trend is followed for the Burner B $_{2}$ , but the RCs are interchanged, i.e. the RC $_{d n}$ is kept constant at 0.7 and RC $_{u p}$ magnitude is decreased from 0.9 to 0.1, as shown in Figure 9(b), the exact opposite trend as compared to the previous analysis is observed. Namely, as the RC $_{u p}$ magnitude decreases, the system initially has beats of different frequencies due to the presence of multiple oscillation modes. Further decrease of RC $_{u p}$ leads to disappearance of beats and appearance of a tonal frequency limit cycle. If RC $_{u p}$ is further decreased, pockets of stability are encountered. For this particular burner, the system becomes stable only for an open end downstream boundary condition i.e. RC $_{d n} = 1$ (when RC $_{u p} < 0.6$ ). Observing all the stability maps, it can be concluded that for the 4 burners considered in this study for the purpose of demonstration, as the reflection coefficient of upstream termination increases in magnitude, the system tends to become unstable.

Using these stability maps, the effect of burner configurations on the system stability can also be traced. For example, the Burners B $_{2}$ and B $_{3 a}$ have the same pitch but different hole diameter. Therefore, the comparison between stability maps of Burner B $_{2}$ and B $_{3 a}$ could allow inferring the effect of the burner hole diameter on the flame stability. As can be observed, the Burners B $_{2}$ has the least of the measured figure of merit (0.055) and also the least area of perforation. While nothing concrete can be concluded about the effect of variation of the hole diameter and/or pitch (comparison between the stability maps of Burners B $_{3 a}$ and B $_{3 b}$ ), the correlation with burner’s perforation area on the system stability is clearly visible. The larger the perforation area, the higher is the figure of merit of the burner (B $_{15} (0.28) >$ B $_{3 a} (0.19) >$ B $_{3 b} (0.17) >$ B $_{2} (0.055)$ ). Comparison between Figure 9(c) and (d) for stable cases shows that even a slight difference of perforation area (brought about by the difference in pitch (4.5 mm and 5 mm), can impact the figure of merit of burners having the same hole diameter (B $_{3 a}$ and B $_{3 b}$ : it is 3 mm for both).

As the magnitude of RC $_{u p}$ is decreased from 0.9 to 0.1, the influence of upstream duct length decreases, and the length of the downstream duct dominates the system stability for the magnitude of RC $_{d n} >$ RC $_{u p}$ . However, for the cases with a minimum magnitude of reflection coefficients both at the upstream and downstream terminations (RC $_{u p} \sim$ 0.1 and RC $_{d n} \sim$ 0.1), there is maximum acoustic loss at the boundaries. The presence of combustion instability at close to anechoic terminations suggests that the root cause of this phenomenon may be the burner-intrinsic thermo-acoustic instability of the flame.

The essence of the burner intrinsic thermo-acoustic instability mode is that even if the losses at the boundaries are high and external acoustic feedback (waves propagating to the burner from upstream and downstream directions) is absent, the internal feedback makes the flame on the burner perform as a source of waves. This mode can be stabilized by embedding the burner in-between certain terminations. In the above-mentioned case of Burner B $_{15}$ , this mode starts to disappear when the magnitude of RC $_{d n}$ is increased from 0.1 to 0.6. The flame becomes stable when the downstream is no longer anechoic (RC $_{d n} \sim 0.6$ ) while the upstream is still close to anechoic conditions (RC $_{u p} \sim 0.1$ ) as can be seen in Figure 9(a). This kind of behaviour was first observed by Hoeijmakers et al.,⁴ where they used an analytical model to evaluate the effect of upstream and downstream reflection coefficient on the system stability and the flame was represented by an n- $τ$ model.

The available data can also be analysed to reveal trends when the third parameter of the parametric space is varied. Particularly, to analyse the effects of change in the TT length, one may consider the RC $_{u p}$ and RC $_{d n}$ as constants (i.e. select one point in the stability map figure) and plot the dominant frequency as a function of change in TT length as shown in Figure 10. As it can be anticipated, it was observed that the unstable frequency decreases with increase in the TT length (as the wavelength of the acoustic wave increases), until a pocket of stability is encountered. Since in our experimental setup, the downstream duct is much shorter than the upstream duct, the acoustic time scale of downstream duct is also smaller than that of the upstream part. By increasing the TT length, the upstream acoustic time-scale is further increased resulting in the observed decrease in frequency.

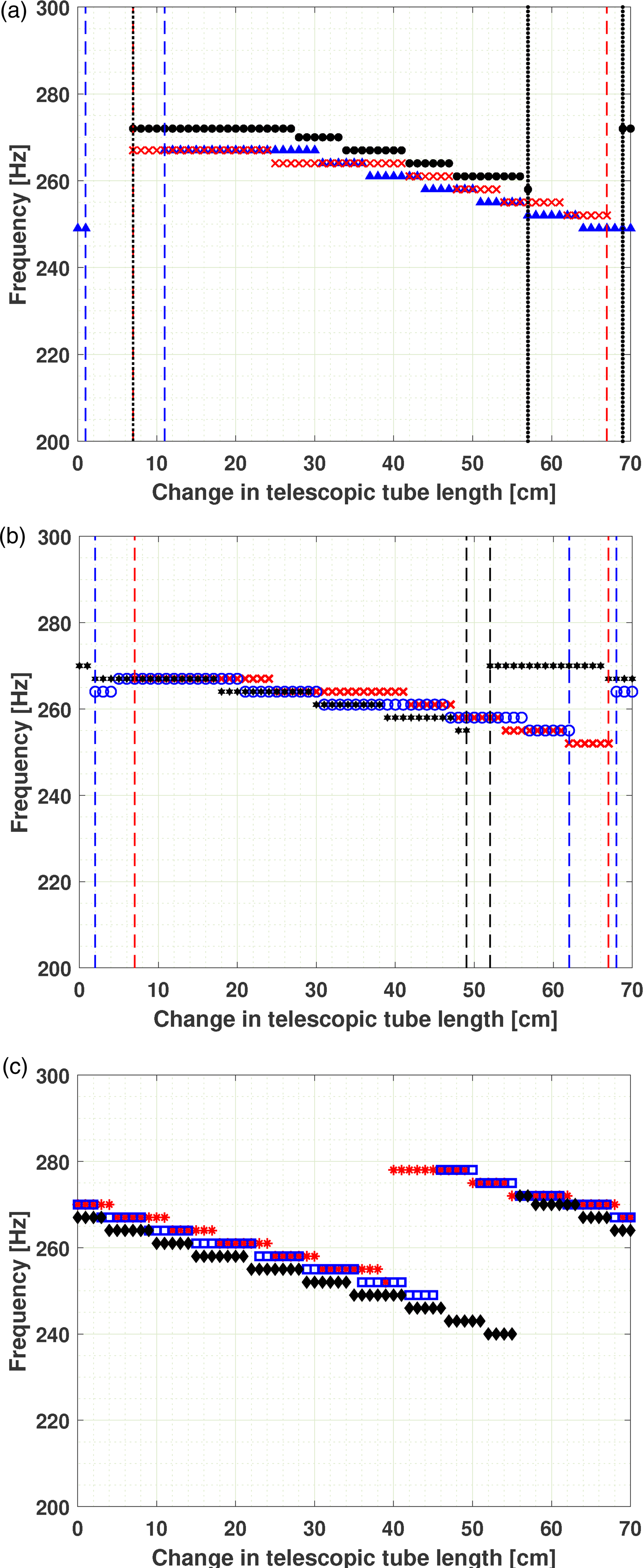

Figure 10.

Variation of frequency of instability with respect to change in telescopic tube length for Burner B $_{2}$ ; Measurements were performed at inlet flow velocity of 1.2 m/s and at equivalence ratio of 0.8. (a) RCup is kept constant at 0.1; RCdn: 0.6 (blue triangle); 0.7 (red cross); 0.8 (black circle). (b) RCdn is kept constant at 0.7; RCup: 0.1 (red cross); 0.2 (blue circle); 0.3 (black hexagon). (c) RCdn is kept constant at 0.7; RCup: 0.4 (red asterisk); 0.5 (blue square); 0.6 (black diamond).

For Burner B $_{2}$ , in Figure 10(a), it can be observed that at RC $_{u p}$ : 0.1, an increase in RC $_{d n}$ from 0.6 to 0.8 resulted in a slight increase of unstable frequency, while the occurrence of pockets of stability doesn’t have any particular trend with respect to change in RC $_{d n}$ magnitude. Contrary to the previous case, for constant value of RC $_{d n}$ : 0.7, an increase in RC $_{u p}$ from 0.1 to 0.3 resulted in a decrease of unstable frequency unless a mode shift was encountered (for example at change in TT length: 53 cm (for RC $_{d n}$ : 0.7 and RC $_{u p}$ : 0.3) in Figure 10(b)). It must be noted from Figure 10(a) and (b), a mode shift is always followed by pocket of stability for each case with increase in length of TT. If the RC $_{u p}$ is further increased (RC $_{d n}$ : 0.7; RC $_{u p}$ : 0.4 $-$ 0.6), the pockets of stability present before the mode shift in unstable frequency disappear as can be seen in Figure 10(c).

A similar analysis on the effect of change in the TT length can be done for any/all points in the stability maps shown in Figure 9. After performing this kind of analysis for the burners considered above, it can be hypothesized that the pocket of stability is the precursor of upcoming switch of the dominant modes of unstable frequency as the tendency described above was observed for the stability maps of all the burners.

Effects of change in inlet velocity and equivalence ratio on flame stability

For consistency all the above mentioned studies were performed keeping the flow operating conditions constant. The inlet flow velocity of fuel and air mixture in the perforation holes was kept at 1.2 m/s and the equivalence ratio ( $ϕ$ ) was fixed at 0.8. In the following part the effect of changes in the inlet velocity and $ϕ$ as mentioned in Table 3 are shown. For cases where the inlet velocity is varied, the equivalence ratio is kept constant and vice versa.

Results of the experiments show that an increase in the inlet velocity results in an increase in frequency of instability at a fixed value of the TT length as shown in Figure 11(a), for example, when the length of the telescopic tube is fixed at 20 cm, and the inlet velocity is increased from 1.2 m/s to 1.5 m/s, the unstable frequency increases from 267 Hz to 281 Hz. Further increase in inlet velocity to 1.8 m/s results in an increase in unstable frequency to 302 Hz. There were also cases when a stable flame became unstable due to increase in velocity. Inlet velocity change showed no hysteresis, and the results were repeatable. In the cases where the system experienced beats phenomenon (Case 4), the increase/decrease in velocity lead to the disappearance of beats and tonal sound was produced by the flame. The pockets of stability also tend to disappear with increase in the inlet flow velocity.

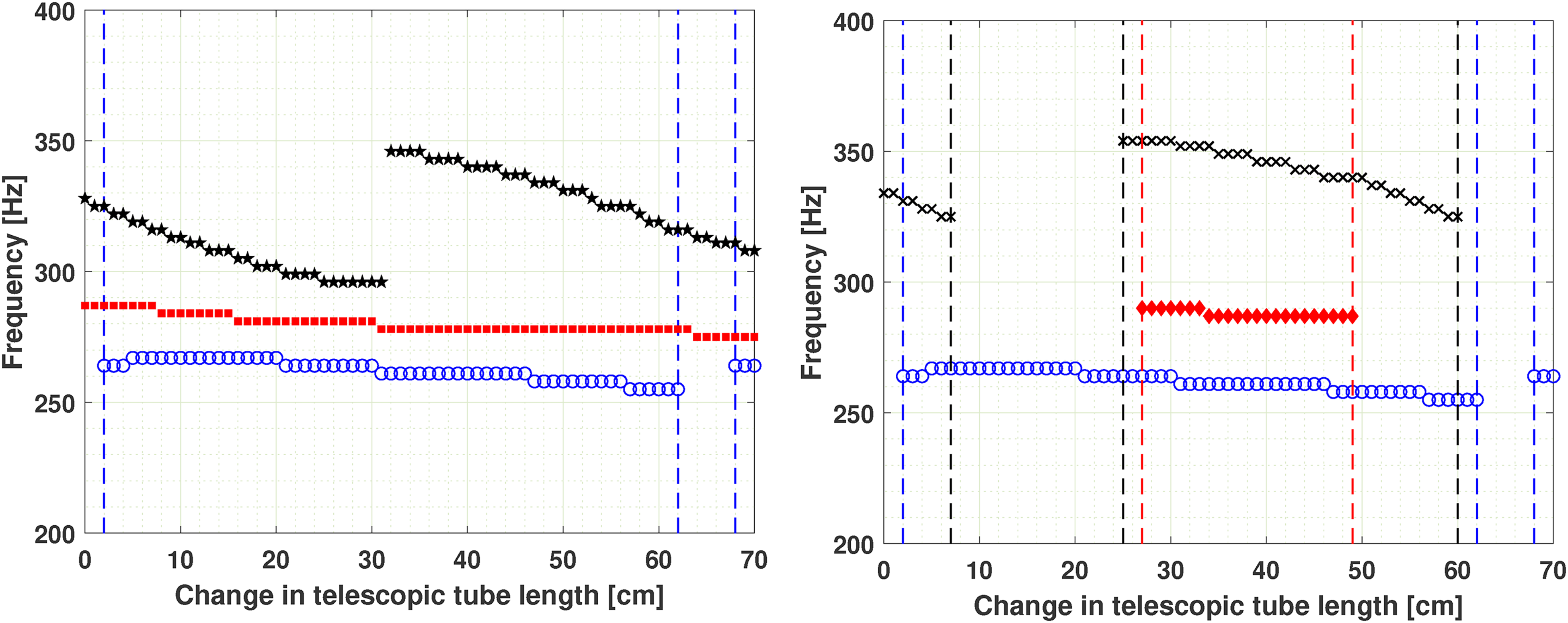

Figure 11.

Variation of frequency of instability with respect to change in telescopic tube length for Burner B $_{2}$ : RC $_{u p}$ is kept constant at 0.2 and RC $_{d n}$ is kept constant at 0.7.(a)ϕ is kept constant at 0.8; Inlet flow velocity is varied as follows: 1.2 m/s (blue circle); 1.5 m/s (red square); 1.8 m/s (black pentagon). b) Inlet flow velocity is kept constant at 1.2 m/s; ϕ: 0.8 (blue circle); 0.85 (red diamond); 0.9 (black cross).

The effect of increasing $ϕ$ at a fixed inlet velocity showed interesting trends in the alteration of the (dis-)appearance of above mentioned 4 cases (especially pockets of stability). An increase in $ϕ$ lead to an increase in unstable frequency. For the zones in the stability maps where the flame produced beats phenomenon, an increase in $ϕ$ resulted in the disappearance of the beats and the system produced pure tonal frequency of a limit cycle acoustic oscillations. Further increase in $ϕ$ lead to shift in unstable oscillation mode. Consider Figure 11(b), the case with $ϕ$ : 0.8 (blue circle), there is a pocket of stability from 0 cm to 2 cm and 62 cm to 68 cm, and as $ϕ$ is increased to 0.85 (red diamond), a stable pocket appears from 0 cm to 26 cm and 50 cm to 70 cm.

Conclusions

In the present contribution, the design, construction and usage of a new setup which allows testing the phenomena of thermo-acoustic instabilities in a combustion device are introduced. The unique feature of the setup is the possibility to vary the reflection coefficients at the acoustic boundaries of a burner/flame. The magnitude of the reflection coefficients are almost frequency independent in a wide range of frequencies (including the low frequency limit). Furthermore, the setup allows independent variation of the phase of the upstream reflection.

The achieved variation range of magnitudes of reflection coefficients is from 0.1 to 0.9 for both upstream and downstream terminations in the frequency range 40–800 Hz. The additional option to vary the length of the TT (0–70 cm) provides further flexibility to control the phase of the burner upstream reflection. The paper contains a detailed overview of the setup, which makes it possible to assemble the setup at another laboratory and perform experiments of the similar kind.

The idea behind the setup is to allow an experimental mapping of stability-instability regions for given burners/flames in the space of reflection coefficients as the parameters of the burner acoustic embeddings. The mapping is then used to evaluate the thermo-acoustic behaviour of several burners with flames and different burners/flames are compared with each other in respect to their figure of merit. Therefore, the notion of the burner/flame figure of merit is evaluated experimentally.

The usage of the setup is demonstrated for four burners which have some similarity in terms of their burner geometry parameters.

The performed analysis of the (in-)stability maps of the flames under various operating conditions demonstrates a possibilities to elucidate correlations which may provide an extra understanding regarding the burner’s thermo-acoustic properties and its figure of merit particularly.

Since the results produced are promising, further study can be performed using multiple burners, incorporating the impedance tube placed on the setup to study the modes of the encountered unstable regimes of operation of different burners. Moreover, this setup will also provide ways to validate analytical models and thus result in achieving a wider range of applications.

Footnotes

Acknowledgements

This work is part of the Marie Skłodowska-Curie Initial Training Network Pollution Know-How and Abatement (POLKA). We gratefully acknowledge the financial support from the European Commission under call H2020-MSCA-ITN-2018 (project number: 813367).

The authors gratefully acknowledge our teammate, Mohammad Kojourimanesh, for his help in preparing the test setup.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

ORCID iD

Vertika Saxena

References

Zinn

Lieuwen

. Combustion Instabilities: Basic Concepts, in Combustion Instabilities in Gas Turbine Engines-Operational Experience, Fundamental Mechanisms, and Modelling (Lieuwen TC and Yang V, eds.). American Institute of Aeronautics and Astronautics Inc., 2005, pp.3–26.

Candel

. Combustion Dynamics and Control: Progress and Challenges. Proc Combust Inst 2002; 29(1): 1–28.

Lieuwen

McManus

. Introduction: Combustion Dynamics in Lean-Premixed Prevaporized (LPP) Gas Turbines. J Propuls Power 2003; 19(5): 721.

Hoeijmakers

PGM

Kornilov

Lopez Arteaga

et al. Intrinsic Instability of Flame–acoustic Coupling. Combust Flame 2014; 161(11): 2860–2867.

De Goey

LPH

Van Oijen

Kornilov

et al. Propagation, Dynamics and Control of Laminar Premixed Flames. Proc Combust Inst 2011; 33(1): 863–886.

Schuller

Poinsot

Candel

. Dynamics and Control of Premixed Combustion Systems Based on Flame Transfer and Describing Functions. J Fluid Mech 2020; 894: P1-1–P1-95.

Polifke

Poncet

Paschereit

et al. Reconstruction of Acoustic Transfer Matrices by Instationary Computational Fluid Dynamics. J Sound Vib 2001; 245(3): 483–510.

Manohar. Thermo-acoustics of bunsen type premixed flames. PhD thesis, Eindhoven University of Technology, The Netherlands, 2011.

Kornilov

De Goey

LPH

. Approach to evaluate statistical measures for the thermo-acoustic instability properties of premixed burners. In: Proceedings of the 7th European Combustion Meeting, Budapest, Hungary, 30 March – 2 April 2015, pp.1–6.

10.

Polifke

. Thermo-acoustic instability potentiality of a premix burner. In: Proceedings of the 5th European Combustion Meeting, Cardiff, UK, 27 June – 1 July 2011, pp.1–6.

11.

Kornilov

De Goey

LPH

. Approach to evaluate statistical measures for the thermo-acoustic instability properties of premixed burners. In: Proceedings of the 8th European Combustion Meeting, Dubrovnik, Croatia, 18 April – 21 April 2017, pp.1–6.

12.

Kojourimanesh

Kornilov

de Goey

LPH

et al. Mobius transformation between reflection coefficients at upstream and downstream sides of flame in thermoacoustics systems. In: 27th International Congress on Sound and Vibration, Prague, Czech Republic, 11 July – 16 July 2021, paper no. 1524, pp.1–8.

13.

Saxena

Kornilov

Lopez Arteaga

. Determining thermo-acoustic stability of a system whose boundary conditions are represented by strictly positive real transfer functions. In: Proceedings of the 10th European Combustion Meeting, Napoli, Italy, 14 April – 15 April 2021, pp.1392–1397.

14.

Hoeijmakers

PGM

. Flame-acoustic coupling in combustion instabilities. PhD thesis, Eindhoven University of Technology, The Netherlands, 2014.

15.

Hoeijmakers

PGM

Kornilov

Lopez Arteaga

et al. Flames in Context of Thermo-acoustic Stability Bounds. Proc Combust Inst 2015; 35(1): 1073–1078.

16.

Drolia

. Experimental study of a passive semi-anechoic termination device to control thermo-acoustic instabilities in a domestic boiler. Master Thesis, Eindhoven University of Technology, The Netherlands, 2016.

17.

Kojourimanesh

Cosgun

Kornilov

et al. Compact anechoic duct termination for the low frequency range. Submitted to J. Sound Vib.

18.

Saxena

Kojourimanesh

Kornilov

et al. Designing an acoustic termination with a variable reflection coefficient to investigate the probability of instability of thermo-acoustic systems. In: 27th International Congress on Sound and Vibration, Prague, Czech Republic, 11 July - 16 July 2021, paper no. 304, pp.1–8.

19.

Jang

. On the Multiple Microphone Method for Measuring in-duct Acoustic Properties in the Presence of Mean Flow. J Acoust Soc 1998; 103(3): 1520–1526.

20.

Noiray

Durox

Schuller

. Self-induced Instabilities of Premixed Flames in a Multiple Injection Configuration. Combust Flame 2006; 145: 435–446.
