Propulsion performance investigation of bio-inspired nano rotor base on fluid

Abstract

In this paper, the bio-inspired blade motion is introduced to improve the propulsive performance of nano rotor at an ultra-low Reynolds number. However, the complex flow interacts with the flexible composite blade structure resulting in the change of nano rotor propulsion performance and the vibration of blade structure. A composite nano rotor with blade-pitch motion is investigated computationally with a computational solvers based on fluid–structure interaction. The finite element model for the composite rotor is created and verified with a non-contact modal test. It is found that the simulation results matched well with the experimental results. Successively, the propulsive performance of a rigid nano rotor is studied. The propulsive performance of the nano rotor is analysed at different bio-inspired pitch frequencies. The results show that the figure of merit of the bio-inspired pitch rotor increases because of the bio-inspired blade pitch motion. And it is also found that the improvement of the propulsive performance of the nano rotor varies with the pitch frequency. The propulsive performance of the flexible bio-inspired nano rotor is also studied with by using fluid–structure interaction method. It is found that the computational results for flexible nano rotor are lower than that for rigid nano rotor. It is evident that it is necessary to consider the flexibility of the composite nano rotor when investigating the propulsion performance of bio-inspired nano rotor. And the response of blade structure is also studied. Structural dynamic analysis shows that the blade structure vibrates with small amplitude. And two peak values are found at the rotation frequency and the fundamental frequency of the nano rotor structure.

Keywords

Bio-inspired nano rotor flexible blade fluid–structure interaction propulsion performance low Reynolds number

Introduction

Rotary-wing nano air vehicle (NAV) is a kind of small unmanned air vehicle powered with one or several rotors. NAV which has a maximum size of 7.5 cm and a minimum payload of 2 g is able to enter buildings, penetrate narrow entries, and transmit data without being detected at a low speed.^1–3 The nano rotor operating at a Reynolds number of lower than 20,000 is the main propulsion component of the rotary-wing NAV. At such a low Reynolds number, the aerodynamic performance of the nano rotor degrades and the figure of merit (FM) of the nano rotor drops as a result.⁴ Liu et al.⁵ measure the hovering performance of the propeller U-80 with diameter of 8 cm. Results show that the FM of the propeller is about 0.45 which is far lower than that of the full-scale helicopter. Therefore, how to improve the propulsion performance of the nano rotor is an important issue for the NAV design. However, the traditional method using the steady aerodynamic theory to optimize the propeller can only improve the propulsion performance in a limited manner.

A flying insect, whose size is comparable to an NAV, has a high aerodynamic efficiency. Lots of research show that the unsteady mechanics induced by the flapping wing is the reason. The high-lift unsteady aerodynamic mechanisms include the clap-Fling, delayed stalled, rotational circulation and wake capture.^6–8 Some research is carried out on the rotor to improve its aerodynamic efficiency by applying the high-lift unsteady mechanisms.^9,10 Fitchett¹⁰ experimentally studied a conventional rotor, a rotor with powered blade flapping, and a freely rotating rotor with powered blade flapping. Results show that the maximum thrust increases by up to 15% and the torque required is reduced by up to 30% with conventional rotation plus powered blade flapping at up to 8 per rotor revolution at a reduced frequency of 0.6. Great enhancement can be found due to the blade flapping motion, but flapping motion requires more power to overcome the inertial force and aerodynamic load on the rotor blade due to the high rotational velocity. Koratkar and Chopra¹¹ tested the blade pitch motion of a 22 cm-diameter two-bladed micro rotor system, featuring piezoelectrically actuated controllable twist rotor blades, to investigate the improvement in aerodynamic performance of micro rotors. The blade is motivated by two piezo-electrical beams allowing changing of the collective angle of blade. A ${2.3}^{°}$ blade unsteady tip twist deformation is found resulting in an improvement of up to 11% at $24^{°}$ rotor collective pitch. Results show that the blade pitch motion has an impact on the thrust once the stall onsets at the airfoil section of the rotor blades. However, the crossing piezo-electrical beams limit the amplitude of oscillation. Ellington¹² found that the attached LEV is one of the reasons of high lift for flying animals. The attached LEV induces the higher stall angle and delays the stall of the wing. As the nano rotor blade size is comparable to that of flying insect, the bio-inspired blade motion can be introduced to improve the aerodynamic performance of nano rotor. The blade pitch motion can be employed along the longitudinal axis of blade to keep the leading edge vortex.

As the weight of NAV is limited, it is required that the nano rotor is light and thin enough.¹³ Carbon composite laminate is used to fabricate the rotor blade. Because the composite blade is thin and light, the blade is flexible.¹⁴ Due to the unsteady aerodynamic force, centrifugal force and the gravity, the flexible blade suffers deformation and vibration which influences the flow field of the nano rotor. The coupling between structure and fluid has an effect on the propulsive performance of the bio-inspired rotor. Therefore, the blade cannot be treated as a rigid body but a flexible one. The fluid–structure interaction shall be taken into account when studying the propulsive performance of the bio-inspired nano rotor. Research on the nano rotor with FSI method is scarcely reported. But the full-scale rotor is well studied based on FSI using experimental or numerical methods in recent years.^15–19 When we study the propulsive performance of the bio-inspired nano rotor with FSI method, the first step is to obtain an accurate finite-element structural model of the composite nano rotor. However, the fabrication error and the difference of material parameters will introduce non-determinacy in the structural model. The modal experiment is usually carried out to validate the structural model. Yang et al.,²⁰ Luo²¹ and Mohammad et al.²² adopted hammer to excite rotors and measured the structural response by means of acceleration sensors onto the structure surface. However, because traditional contact modal test methods will introduce additional mass and change the boundary conditions, they are not suitable for thin, small and flexible nano rotor. Non-contact modal test methods, for instance acoustic excitation and laser vibrometer, are widely used by simple and large size structures.^23,24 Therefore, a non-contact modal test method is necessary. Since there are three different motions for the bio-inspired rotor, i.e. the rotation around the hub, the bio-inspired pitch motion, and the deformation due to the aerodynamic force, centrifugal force and the gravity force, the method to describe the coupling motions is another important issue for the study of the bio-inspired rotor. Sliding mesh method (SMM) and multiple references frame (MRF) method are widely used to study the rotating rotor. Compared with SMM, MRF greatly reduces calculation time and has enough precision.²⁵ As we focus more on the propulsive performance of the bio-inspired nano rotor in this research, MRF is used to describe both the rotation motion and the bio-inspired motion. The deformation of the structure is related to local change of the solid surface, and hence the SMM and MRF fail to describe it. Therefore, the deforming grid method is used. To study the bio-inspired rotor with the FSI method, a weak coupling method is used by transfer data at the interface of the structural model and the fluid model for the bio-inspired nano rotor. The interpolation method for FSI during the simulation is important.^26,27 The radial basis function (RBF) method constructs an RBF and uses it to obtain the unknown parameters at the interface. It is simple and can be used for complex mesh. Therefore, RBF interpolation method is a useful method for this study.

In summary, the bio-inspired unsteady mechanisms are mainly used on flapping wing NAV and scarcely on rotary-wing NAV. And the propulsive performance of the bio-inspired nano rotor is scarcely studied with FSI method. In this study, the bio-inspired unsteady mechanism is introduced to improve the aerodynamic performance of the nano rotor. A non-contact modal test experimental platform is built based on sound excitation instrument and laser vibrometer, and a modal test of the nano rotor is carried out. Successively, the finite element model of the nano rotor is established and verified with the modal test. Then, the propulsive performance of the bio-inspired nano rotor is analysed at different bio-inspired pitch frequencies, and the response of the blade structure is also analysed with the fluid–structure interaction method.

Computational methodologies and experimental setup

Governing equations

The blade tip velocity of the nano rotor is lower than 0.1 Mach. The low-speed performance is extremely poor for compressible NS equations because of stiffness of governing equations which is caused by the small ratio of the convective speed to the speed of sound. Therefore, the preconditioning techniques are introduced to eliminate the disparity between the particle and acoustic wave speeds at low speed. Considering that the temperature change is small, the energy equation is ignored. The preconditioned governing equations can be rewritten as follows.²⁸

\begin{array}{l} Γ \frac{\partial}{\partial t} \underset{V}{∭} q d V + ∯_{\partial V} (E - E_{v}) \cdot n_{x} d S \\ + ∯_{\partial V} (F - F_{v}) \cdot n_{y} d S + ∯_{\partial V} (G - G_{v}) \cdot n_{z} d S = 0 \end{array}

(1)

\begin{array}{l} E = [\begin{array}{l} ρ u_{r} \\ ρ (u_{r} u + u u_{1}) + p \\ ρ (u_{r} v + u v_{1}) \\ ρ (u_{r} w + u w_{1}) \end{array}], F = [\begin{array}{l} ρ v_{r} \\ ρ (v_{r} u + v u_{1}) \\ ρ (v_{r} v + v v_{1}) + p \\ ρ (v_{r} w + v w_{1}) \end{array}], \\ G = [\begin{array}{l} ρ w_{r} \\ ρ (w_{r} u + w u_{1}) \\ ρ (w_{r} v + w v_{1}) \\ ρ (w_{r} w + w w_{1}) + p \end{array}], \end{array}

(2)

\begin{array}{l} \vec{v_{r}} = [u_{r}, v_{r}, w_{r}], \vec{v} = [u, v, w], \\ \vec{u_{r}} = \vec{ω} \times \vec{r} = \vec{v} - \vec{v_{r}} = [u_{1}, v_{1}, w_{1}] \end{array}

(3)

Here, Γ is the preconditioning matrix, q is the primitive component of u, v and ω. n is the direction vector of S. E, F and G termed vector of convective fluxes are related to the convective transport of quantities in the fluid. E_v, F_v and G_v termed vector of viscous fluxes contain the viscous stresses τ_ij. In the formula, $\vec{v_{r}}$ is the relative velocity (the velocity viewed from the moving frame), $\vec{v}$ is the absolute velocity (the velocity viewed from the stationary frame), $\vec{u_{r}}$ is the velocity of the moving frame relative to the inertial reference frame. $\vec{r}$ is the position vector and $\vec{ω}$ is the angular velocity. The equations were solved with finite volume method and $Roe' s$ flux scheme was employed. The preconditioned density-based solver of commercial software Fluent is used.

Structural dynamic equations

The finite element method (FEM) formulations can be established on the basis of the finite deformation theory. Assuming that the composite material of nano rotor is linearly elastic and orthotropic, by taking into account the three loads, the corresponding kinetic equation of nano rotor can be written as follows.²⁹

[M] {\ddot{x}} + [C] {\dot{x}} + [K] {x} = {F_{c e}} + {F_{g}} + {F_{h}}

(4)

where

\ddot{x}

represents node acceleration, x is the node displacement, M is the mass matrix, C is the damping matrix, K is the stiffness matrix F_ce, F_g and F_h are centrifugal force, gravity and aerodynamic force, respectively.

Fluids–structure interaction method

A loose-coupling method is used in the FSI simulation. Because the FEM mesh is different from the CFD mesh, the data shall be transferred at the interface. In this paper, a RBF-based $Wendland' s$ C2²⁷ is used to implement the data transfer of the coupling interface. The function value at x can be written as

\begin{array}{l} s (x) = \sum_{i + 1}^{N} α_{i} ϕ (‖ x - x_{i} ‖) + p (x) \end{array}

(5)

The basis function based $Wendland' s$ C2 is

\begin{array}{l} ϕ (r) = {\begin{array}{l} {(1 - r)}^{4} (4 r + 1) if, r \leq r_{0} \\ 0 if, r > r_{0} \end{array} \end{array}

(6)

where

\begin{array}{l} r = ‖ x - x_{i} ‖ = {[{(x - x_{i})}^{2} + {(y - y_{i})}^{2} + {(z - z_{i})}^{2}]}^{\frac{1}{2}} \end{array}

(7)

In this paper, the r₀ is defined as 0.1 R so that less control points are required. $p (x)$ are linear polynomials. With the known information from the wall, the coefficients $α_{i}$ and $p (x)$ can be obtained.

\begin{array}{l} s (x_{i}) = g_{i}, i = 1, 2, \dots, N \end{array}

(8)

The deforming grid method is used in the CFD solver. In the paper, MRF method was verified by comparing with the experiments from Bohorquez et al.,¹⁵ the rotor is a nano rotor with straight blade. By changing the angle of attack (α) at the rotational velocity of 10,000 r/min, we calculated the propulsive performance of the nano rotor and compared with the experimental results as shown in Figure 1. Results showed that the computational results match well with the experimental results except at two small angles of attack. It is considered that it is because of the experimental error since the thrust and torque of the nano rotor are very low at the low angle of attack so that is not easy to measure them. Therefore, MRF method can be used in the study and the computational model is considered reliable. The preconditioned Roe scheme is reconstructed with using the Roe-averaged values in this computation. For the preconditioned system, a LUSGS-τts dual time-stepping scheme is employed by introducing a pseudo time-derivative with preconditioning matrix. With the preconditioning method, the numerical flux and dissipation item in the x direction is written with primitive variables as

\begin{array}{l} E_{i + 1 / 2} = \frac{1}{2} {[\tilde{E} (q_{L}) + \tilde{E} (q_{R}) - Γ | {\tilde{A}}_{Γ} | (q_{R} - q_{L})]}_{i + 1 / 2} \end{array}

(9)

Figure 1.

α vs. FM at 10,000 r/min for nano rotors.

The governing equation is discretized in an implicit mode with a three-point backwards difference in time as follows.

\begin{array}{l} [\frac{Γ}{Δ τ} + \frac{3}{2 Δ t} M_{q}] Δ q = {- R^{m} + \frac{[3 Q^{m} - 4 Q^{n} + Q^{n - 1}]}{2 Δ t}} \end{array}

(10)

Because of the introduction of preconditioning technique, the dual-time-stepping scheme might be written with the matrixes L, D and U.

\begin{array}{l} L D^{- 1} U Δ q^{m} = - \frac{3 Q^{m} - 4 Q^{n} + Q^{n - 1}}{2 Δ t} - {\hat{R}}^{m} \end{array}

(11)

Hereafter, the preconditioning parameter can be controlled by the pseudo time. When $τ \to \infty$ , the above equations are equivalent to non-preconditioning LU-SGS time marching scheme, and the effect of preconditioning increases with decreasing τ. However, the iteration steps increase as a result. Time-marching method is a sequential coupling method. The aerodynamic force is firstly calculated with CFD solver. Then, the aerodynamic force together with gravity and centrifugal force will be interpolated on the FEM mesh with which the structural dynamic response can be calculated with the FEM solver. The node displacement will be transferred to the CFD solver and the mesh will be updated with displacement. Then, the flow field will be calculated again and the aerodynamic force will be obtained. In this paper, the time step mainly depends on the frequency range of the structural vibration to be analysed and the unsteady flow field of the bio-inspired rotor. The maximum frequency to be analysed is 2500 Hz in this paper. Therefore, the time step shall be smaller than 4.0E-4 second. On the other hand, it takes 2.56E-05 second for the rotor to rotate one degree. Therefore, time step is chosen as 2.56E-05 second. In order to ensure the accuracy and convergence of the simulation results, the time step is taken to rotate one degree according to the literature and calculation experience,³⁰ and the maximum iteration is 50 times per time step. The solver will keep on repeating the above calculation. Laminar flow model is used in this study. According to the Y+ principle, the mesh size near the blades is 0.5 mm. The grid independent study was carried out with the CFD solver and results indicated that the same simulation results were obtained when the grid number reached 8 million, suggesting that the mesh used in the study was reliable.

Bio-inspired pitch motion

Figure 2 shows a schematic of the motion for the nano rotor. Two blades rotate around the central axis and pitch around the 1/4 chord along the blade. To describe the motion of the nano rotor, two coordinate systems are introduced. The first coordinate system O – XYZ is an inertial coordinate system which keeps motionless and the other coordinate system $O' - X' Y' Z'$ is a co-moving coordinate which rotates with the rotor blade. The origin of the coordinate systems is located on the centre of the 1/4 chord along the blade. The pitch angle, the flapping angle, and the roll angle are defined as θ, $ϕ$ and γ. At the beginning, the coordinate system $O' - X' Y' Z'$ coincides with the coordinate system O – XYZ. But it changes with the rotation and pitch for the blade. The transform matrix between the coordinate system O – XYZ and the coordinate system $O' - X' Y' Z'$ can be written as

[\begin{matrix} x \\ y \\ z \end{matrix}] = [\begin{array}{l} - \sin θ \cos γ \sin θ \sin γ \cos θ \\ \cos θ \cos γ \cos θ \sin γ \sin θ \\ \sin γ \cos γ - \sin θ \end{array}] [\begin{matrix} x' \\ y' \\ z' \end{matrix}]

(12)

Figure 2.

Blades chord and twist distribution of nano rotor.

The rotational speed of the nano rotor is 6500 r/min. Then, the pitch motion of the blade is defined as a sine function

θ (t) = θ_{0} \cdot \sin (2 π f_{p} t) + θ_{bias}

(13)

where

θ (t)

is the pitch angle varying with the time. θ₀ is the amplitude of the pitch motion which is

5 °

in this study. f_p is the pitch frequency. θ_bias is the initial pitch angle which is zero.

Modal test experimental setup

A nano rotor with diameters of 7.5 cm was designed based on low Reynolds number aerodynamics and minimum induced loss theory to minimize energy loss. The rotor has a mean chord c of 0.31 R as shown in Figure 3. Traditional contact-type modal test method cannot be adopted because extra mass and stiffness will be introduced. In this study, a non-contact modal experiment platform for nano rotor was established based on sound excitation instrument and laser vibrometer as shown in Figure 4. This test platform includes supporter of the nano rotor, sound excitation instrument, and laser vibrometer. The full frequency speaker was excited by broadband white noise signal, which was also input into the Polytec laser vibrometer system as a reference signal. The SPL of the sound generated is from 100 to 110 dB. A two-dimensional modal test was performed for the rotor. Seventy to eighty laser scanning points were set on the surface of nano rotor and their vibration displacements were measured by virtue of Doppler Effect. All the measured signals were processed to filter the useless signals and reduce the noise so as to ultimately obtain the accurate frequency spectrum and vibration modes of nano rotor.

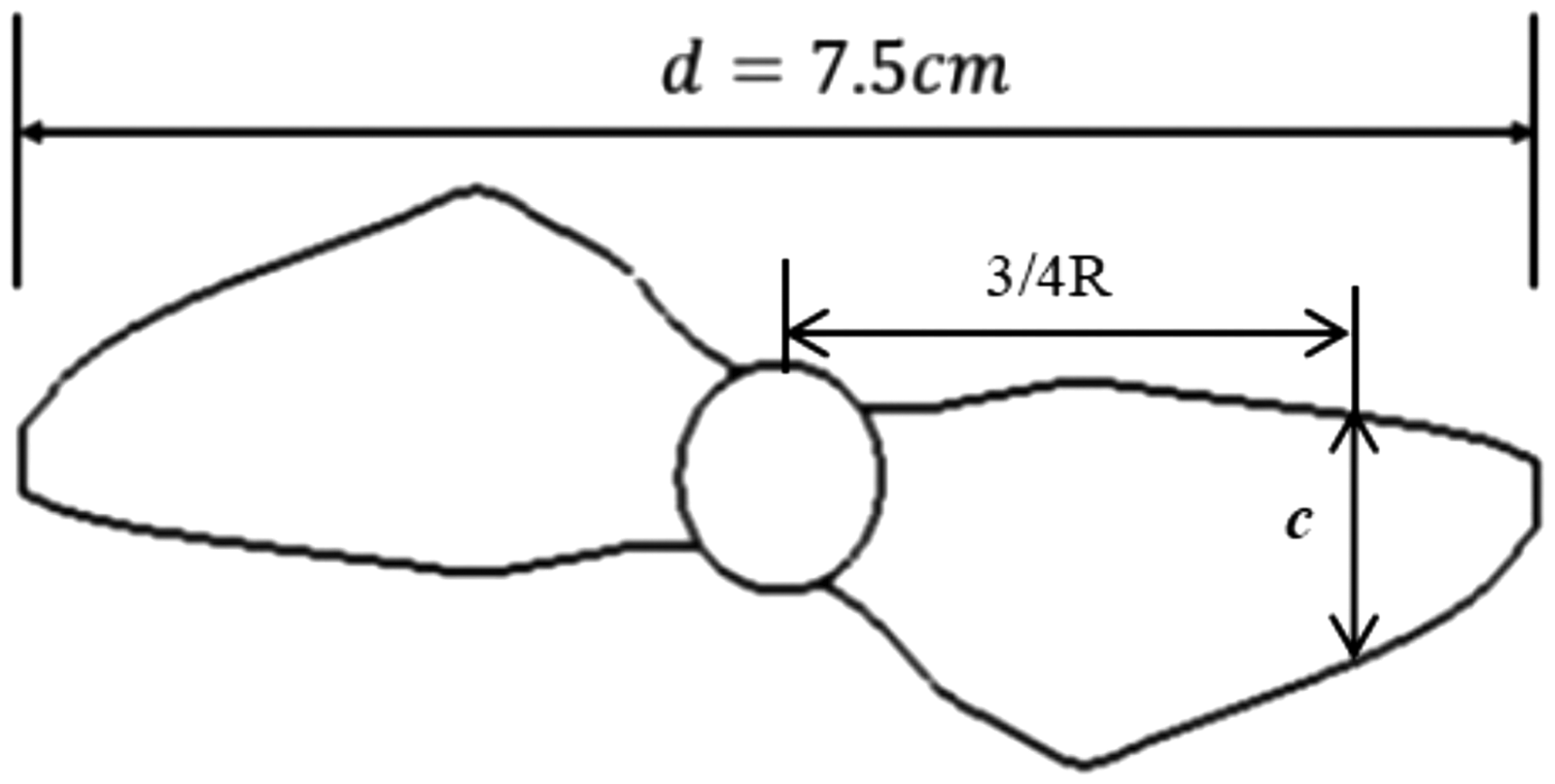

Figure 3.

Schematic of rotor size and shape.

Figure 4.

Modal test bench for nano rotor.

Results and discussion

Dynamic characteristics analysis of nano rotor

The nano rotor used for the computation modal test was laminated by a six-layered unidirectional fibre composite, and the stacking sequence in Figure 5 was [0/90/0/90/0/90]. The hexahedron mesh was used for the structure dynamics and the elements were liner C3D8I. The thickness of each layer was $0.085 mm$ and the total thickness of the rotor was $0.51 mm$ . The platform adopted the method of acoustic excitation and laser vibration measurement technology. Five natural frequencies and vibration modes were obtained.

Figure 5.

FE model of nano rotor.

When comparing the experimental results and computational results, it is found that the two groups of vibration modes are extremely similar in flapping, bending, and torsion according to the similar vibration modes. The corresponding natural frequencies are also compared in Table 1. It is found that the relative errors for them are lower than 4%. The first two natural frequencies are also comparable to the rotating frequency of the nano rotor, which shall be paid more attention to during the design of the NAV to avoid the resonance. Because the maximum relative error of simulation is lower than 4% and the minimum relative error is even lower than 1%, the finite element model is thought to be capable of reflecting the main structural feature of nano rotor.

Table 1.

Comparison of natural frequencies between experiment and computation.

Order	Natural frequency of experiment (Hz)	Natural frequency of simulation (Hz)	Relative error (%)
1	303.10	294.45	2.84
2	310.90	304.77	1.96
3	1131.30	1176.1	3.96
4	2743.70	2816.8	2.66
5	3181.30	3202.4	0.6

Propulsive performance of bio-inspired rigid nano rotor

MRF is used to describe the rotation and the pitch motion in this study. The flow field is composed of a static block, a rotation block, and a pitch block as shown in Figure 6. An unstructured grid is used in moving block and a structured grid is used in the static region. The pitch block which contains two blades is a cylinder with a radius of $0.5 R$ and a height of $1.2 R$ . The rotation block located outside of the pitch block is also a cylinder with a radius of $2.4 R$ and a height of $1.6 R$ . The static block is a cone with an upper radius of 6 R and a lower radius of 8 R. The structure mesh is used for static block and the unstructured mesh is used for both the rotation block and the pitch block. The total number of the mesh is about 8 million.

Figure 6.

Computation zone of rotor for CFD.

The rotational speed of nano rotor is 6500 r/min and the rotation frequency of the rotor is f₀. Three cases are calculated including case 1 in which there is no pitch motion, case 2 in which the pitch frequency $f_{p} = f_{0}$ , and the pitch case 3 with frequency $f_{p} = 2 f_{0}$ . The simulation is carried out on a HP station with 64GB RM and 40 cores.

Figure 7 shows the thrust and the torque of the nano rotor varying with the azimuth. It is found that the curves of thrust and the torque resemble sine or cosine function. And the periods of the curves corresponds with that of the pitching motion. The frequency of the curve increases with the pitching frequency. The amplitude of the thrust and torque increases with the frequency as well. For the non-pitching case, the value of the thrust and the torque keeps as an equilibrium value.

Figure 7.

Lift and torque curves of pitching rigid rotor in one cycle (a) thrust and (b) torque.

In order to describe the propulsion performance of the rotor more intuitively and quantitatively, FM is applied for the analysis. It is a certain ratio between the rotor thrust coefficient and the power factor (also called torque coefficient). The simple thrust coefficient and power factor are difficult to objectively describe the performance of the rotor in terms of energy utilization. Therefore, the FM is used to measure the hovering efficiency of the rotor. It is shown as follows.

F M = \frac{C_{T}^{3 / 2}}{\sqrt{2} \cdot C_{Q}}

(14)

where C_T is the thrust coefficient, C_Q is the torque coefficient.

The average value in a cycle for the thrust coefficient, the torque coefficient, and the FM are summarized in Table 2. It is found that the thrust coefficient increase with the pitching frequency. The non-pitching case obtains the minimum FM. And the maximum FM is achieved by the pitching case with high pitching frequency. It is indicated that the propulsive performance of the nano rotor is improved with the bio-inspired pitching motion.

Table 2.

Propulsive performance for different cases.

Cases	Thrust coefficient	Torque coefficient	FM
Case 1	0.0450	0.0109	0.625
Case 2	0.0454	0.0108	0.633
Case 3	0.0455	0.0108	0.635

FM: figure of merit.

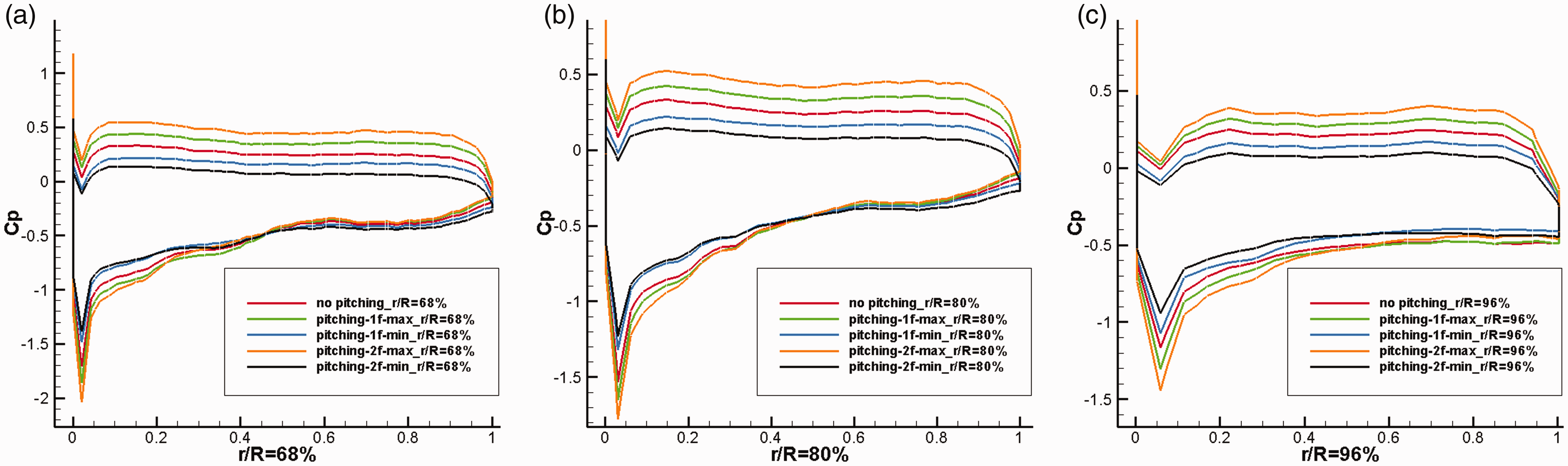

Figure 8 shows the pressure coefficient varying with chord at the sections of $r / R = 68 %$ , 80%, and 96% along the blade for the three case. It is found that the difference of the pressure coefficient at the suction surface and press surface increases with the pitching angle and pitching frequency. At the high pitching angle, the pressure coefficient at the press surface for case 2 and case 3 is higher than that for case 1. The variation of the pressure coefficient with the pitching angle indicates that the pitching motion changes the velocity of the LEV shedding. At high pitching angle, LEV attaches on the surface which induces high pressure coefficient difference. However, the pressure coefficient curve varies from the other at the section of $r / R = 96 %$ due to the blade tip vortex.

Figure 8.

Comparison of pressure coefficient curves among different cases at blade stations: (a) r/R = 68%, (b) r/R = 80% and (c) r/R = 96%.

Figure 9 shows iso-surface and shear layer of the magnitude of vorticity when the lift is maximum. At high pitching angle, the biggest iso-surface is shown, which indicates that the vorticity is the strongest. The pitching motion influences the vorticity and propulsive performance of the nano rotor as a result.

Figure 9.

Iso-surface (a) and shear layer (b) of vorticity for the non-pitch and the pitching nano rotor.

Propulsive performance of bio-inspired flexible nano rotor

The bio-inspired flexible nano rotor with pitching frequency of $f_{p} = 2 f_{0}$ is also studied with FSI method. Figure 10 shows the thrust and the torque varying with azimuth in one cycle for both flexible rotor and rigid rotor. It is found that the thrust of the flexible nano rotor is slightly lower than that of the rigid one. However, the torque of the flexible nano rotor approximates that of the rigid one. The average thrust coefficient and torque coefficient of both flexible Nano rotor and rigid nano rotor are also shown in Table 3. Results show that both the thrust coefficient and torque coefficient are lower than that of the rigid nano rotor. As the thrust coefficient of the flexible rotor drops more, its FM is lower than that of rigid one. It is indicated that the propulsive performance of nano rotor degrades with the flexibility of nano rotor, and it is necessary to carry out the FSI method when we investigate the propulsive performance of the nano rotor.

Figure 10.

Thrust and torque varying with the azimuth for both flexible and rigid nano rotor (a) thrust and (b) torque.

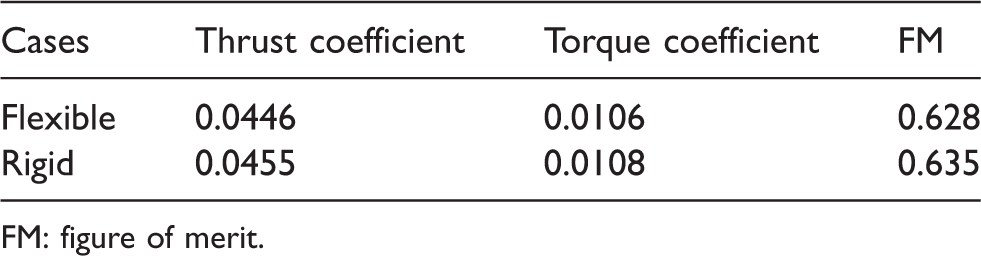

Table 3.

Propulsive performance for flexible and rigid nano rotor.

Cases	Thrust coefficient	Torque coefficient	FM
Flexible	0.0446	0.0106	0.628
Rigid	0.0455	0.0108	0.635

FM: figure of merit.

Figure 11 shows the pressure coefficient at different blade stations for both flexible and rigid bio-inspired nano rotor when the rotor achieves the maximum thrust coefficient. It is found that the curve of the pressure coefficient for the flexible nano rotor nearly locates inside of that for the rigid nano rotor at all the blade stations except at $r / R = 96 %$ . The deformation of the nano rotor at the blade tip is large which might induce the difference.

Figure 11.

Thrust and torque varying with the azimuth for both flexible and rigid nano rotor (a) r/R = 68%, (b) r/R = 80% and(c) r/R = 96%.

Structural response of bio-inspired flexible nano rotor

Figure 12 shows displacement and stress contour of the nano rotor. At the beginning, the maximum displacement vibrates irregularly. The maximum amplitude is as high as 0.2 mm. Then, it begins to vibrate regularly. Results show that the maximum of the displacement is about 0.118 mm at the blade tip. The maximum stress is found at the blade root. The two blades tilt due to the aerodynamic force.

Figure 12.

Displacement and stress contour of the nano rotor (a) displacement contour and (b) stress contour.

The amplitude spectrum of displacement at the blade tip is shown in Figure 13. There are two peak values at frequency of 211.9 Hz and 605.46 Hz. When comparing with the modal test results, it is found that the first frequency is close to the rotational frequency. And the second frequency is close to the fundamental frequency of the nano rotor.

Figure 13.

Amplitude spectrum of the displacement at the blade tip.

Conclusion

In this paper, the bio-inspired composite nano rotor is studied with FSI method. Blade pitch motion is introduced to improve the propulsive performance of the nano rotor performance. A non-contact modal experimental platform is firstly established using sound excitation instrument and laser vibrometer. The structural characteristics of the composite nano rotor are measured. It is found that the natural frequencies are very close for the first two orders. The finite element model of composite rotor is created accordingly. The model is studied computationally with FEM solver. It is found that the simulation results match well with the experimental results which verified the correctness of the finite element model. The CFD model is established and the propulsive performance of the rigid bio-inspired nano rotor motion is studied at different pitch frequencies. Results show that the thrust and torque for the bio-inspired pitching rotor are higher than those for the rotor without bio-inspired motion. And the propulsive performance for the nano rotor with bio-inspired pitching frequency of two times of that rotation frequency is higher than that with only one time pitching frequency. It is evident that the improvement enhanced with the increase of the pitching frequency. The flexible bio-inspired nano rotor is then investigated with FSI method. The results show that the propulsive performance of the flexible nano rotor is lower than that of the rigid nano rotor. It is evident that it is necessary to consider the flexibility of the composite nano rotor when investigating the propulsion performance of bio-inspired nano rotor. Then, the response of blade structure is also analysed. The results show that the blade structure vibrates at small amplitudes.

In general, it is found that the bio-inspired pitching motion can improve the performance of nano rotor. In the future, the experiment will carry out to verify the computational results.
