IL-12/IL-23p40 identified as a downstream target of apremilast in ex vivo models of arthritis

Abstract

Background:

Apremilast (Otezla^®) is a phosphodiesterase 4 (PDE4) inhibitor approved for the treatment of psoriasis and psoriatic arthritis (PsA), but the reason why apremilast shows clinical effect is not fully understood. The objective of this study was to study the downstream effects of apremilast on cells of inflamed joints in immune-mediated inflammatory arthritis.

Methods:

Synovial fluid was obtained from patients with active rheumatoid arthritis (RA), PsA or peripheral spondyloarthritis (SpA; n = 18). The in vitro models consisted of synovial fluid mononuclear cells (SFMCs) or fibroblast-like synovial cells (FLSs) cultured for 48 h, SFMCs cultured for 21 days, an osteoclast pit formation assay, and a mineralization assay.

Results:

In SFMCs cultured for 48 h, apremilast decreased the production of interleukin (IL)-12/IL-23p40 (the shared subunit of IL-12 and IL-23), colony-stimulating factor 1, CD6, and CD40 and increased the production of C-X-C motif chemokine 5 dose-dependently. Apremilast had a very different response signature compared with the tumor necrosis factor alpha inhibitor adalimumab with a substantially greater inhibition of IL-12/IL-23p40. In SFMCs cultured for 21 days, apremilast increased the secretion of IL-10. In FLS cultures, apremilast decreased matrix metalloproteinase-3 production. Apremilast decreased osteoclastogenesis but did not affect mineralization by human osteoblasts.

Conclusion:

This study reveals the downstream effects of apremilast in ex vivo models of arthritis with a strong inhibition of IL-12/IL-23p40 by SFMCs. Our findings could explain some of the efficacy of apremilast seen in IL-12/IL-23-driven immune-mediated inflammatory diseases such as psoriasis and PsA.

Keywords

apremilast cyclic adenosine monophosphate PALACE phosphodiesterase 4 psoriatic arthritis rheumatoid arthritis spondyloarthritis

Introduction

Rheumatoid arthritis (RA), psoriatic arthritis (PsA) and spondyloarthritis (SpA) are chronic immune-mediated inflammatory diseases characterized by inflammation in synovial joints. The pathogenesis involves increased levels of proinflammatory cytokines such as tumor necrosis factor alpha (TNFα), interleukin (IL)-6, IL-23 and IL-17 and inadequate anti-inflammatory responses including insufficient secretion of IL-10.^1–3 In particular, in PsA and SpA, the IL-23–T helper (Th)17 axis is believed to play a significant role. This is explained by the finding of pathogenic Th17 cells in the inflammatory sites and illustrated by the clinical efficacy seen with therapeutic inhibition of the IL-12/IL-23p40 subunit (the shared subunit of IL-12 and IL-23), IL-23 and IL-17 in these diseases.⁴ In contrast, therapeutic inhibition of TNFα has shown clinical efficacy in both RA, PsA and SpA indicating differences in downstream effects associated with inhibition of different cytokines. Immune-mediated inflammatory arthritis is also characterized by dysregulation of bone homeostasis.¹ Arresting osteoclast activity is the main way to treat systemic bone loss and the periarticular osteolysis of immune-mediated inflammatory arthritis.²

Apremilast (Otezla^®) is a small molecule phosphodiesterase 4 (PDE4) inhibitor showing efficacy in the treatment of psoriasis and PsA.⁵ Inhibition of PDE4 in peripheral blood mononuclear cells with apremilast results in modulation of gene transcription, including decreases in genes encoding TNFα, IL-12A, and IL-23A, resulting in suppression of inflammatory responses in vitro and in vivo.⁶ By blocking PDE4 enzymatic activity, apremilast increases intracellular cyclic adenosine monophosphate (AMP) levels, resulting in activation of the PKA-CREB pathway and inhibition of nuclear factor kappa B (NF-κB) transcriptional activity.⁷ In patients with PsA, treatment with apremilast (30 mg twice daily) has been shown to decrease plasma levels of proinflammatory cytokines, including TNFα, IL-6, IL-8, MIP-1β, monocyte chemoattractant protein (MCP)-1, ferritin, IL-17 and IL-23, and increase plasma levels of the anti-inflammatory cytokines IL-10 and IL-1R antagonist. However, the time course of these pharmacodynamics shows a biphasic response, with the initial phase observed during weeks 4–16 characterized primarily by a decrease in TNFα which was significantly associated with clinical improvement [American College of Rheumatology (ACR)20 response criteria], and a second phase observed at week 40, characterized by a decrease in the Th17 pathway cytokines IL-23 and IL-17.⁸ The nature of this biphasic pharmacodynamic response has not been explained. Furthermore, the specific effects of apremilast in the inflamed joint have not been described, due to the lack of data from analysis of synovial biopsies.⁹ A number of studies have previously examined the effects of PDE4 inhibitors on osteoclasts and osteoblasts, but with inconsistent results. In a phase II clinical trial apremilast (30 mg twice daily) significantly reduced serum receptor activator of NF-κB ligand (RANKL) levels in ankylosing spondylitis patients after 12 weeks.¹⁰

The objective of this study was to analyze the downstream effects of apremilast on cells of the inflamed joint in immune-mediated inflammatory arthritis. First, we tested the effect of apremilast on the secretion of several cytokines, chemokines and growth factors by synovial fluid mononuclear cells (SFMCs) ex vivo. Then, we tested whether apremilast affect factors involved in structural changes by studying fibroblast-like synovial cells (FLSs), osteoclasts, and osteoblasts.

Methods

Study participants

SFMCs were obtained from a study population consisting of patients with chronic RA, PsA or peripheral SpA with at least one swollen joint (for obtaining synovial fluid; n = 18). The group consisted of 10 patients with RA, 3 patients with PsA, and 5 patients with human leukocyte antigen B27-associated peripheral SpA. Median C-reactive protein (CRP) was 31.5 mg/l [interquartile range (IQR) 10.0–66.5 mg/l] and median disease activity score 28 CRP (DAS28CRP) was 3.9 (IQR 3.2–4.8; Table 1). Not all patient samples were used in all experiments and the concentrations were below the detection limit for some of the analytes. The exact number of patients in each experiment has been stated in the figure legends.

Table 1.

Patient characteristics.

Characteristic
Diagnosis
PsA patients	3
Peripheral SpA	5
RA	10
Disease activity
CRP (mg/l)	31.5(10.0–66.5 mg/l)
DAS28CRP (0–10)	3.9(3.2–4.8)

Data are expressed as the median with IQR.

CRP, C-reactive protein; DAS28CRP, disease activity score 28 based on CRP; IQR, interquartile range; PsA, psoriatic arthritis; RA, rheumatoid arthritis; SpA, spondyloarthritis.

Culture conditions

Apremilast (Otezla^®, Celgene Summit, NJ, USA) was used at three-fold dilutions from 1000 nM (111 nM, 333 nM, and 1000 nM) or 10-fold dilutions from 10,000 nM (100 nM, 1000 nM, and 10,000 nM). Untreated cells and cells treated with dimethyl sulfoxide (DMSO) were used as controls. Cells treated with adalimumab (Humira, Abbvie, Lake Bluff, Illinois, USA) at 5 μg/ml, the bisphosphonate alendronate (CalBiochem, Billerica, MA, USA) at 10 μM, sulfasalazine (Sigma, St. Louis, Missouri, USA) at 30 μM were used for comparison. Adalimumab is a fully humanized monoclonal antibody neutralizing TNFα. The concentration of 5 μg/ml was chosen because this concentration is the preferred steady-state trough concentration and has been used previously for in vitro experiments.^11–13 Supernatants were harvested after centrifugation of the culture plates at 1200 rpm for 5 min and stored at −80°C for later analysis.

SFMC 48-hour ex vivo model

The 48-hour culture is an in vitro model of immune-mediated inflammatory arthritis dominated by lymphocytes and monocytes.^11,14 SFMCs were isolated by conventional Ficoll–Paque (GE Healthcare, Chicago, Illinois, USA) density-gradient centrifugation and cryopreserved at −135°C. The cells were then thawed and seeded at a concentration of 10⁶ cells/ml and kept in a humidified incubator at 37°C and 5% CO₂ as done previously. Culture supernatants were analyzed using the Olink Proseek Multiplex interferon I panel. All samples passed the quality control. A total of 45/92 proteins were detected in >75% of the samples. Proseek Multiplex uses relative quantification. Thus, even if two different proteins have the same normalized protein expression (NPX) values, their actual concentration may differ. An increase in one NPX corresponds to a doubling of the concentration.

SFMC 21-day ex vivo model

The 21-day culture is a model of low-grade inflammatory osteoclastogenesis also containing macrophage-like synovial cells.^12,15,16 SFMCs were cultured in Dulbecco’s modified Eagle’s medium, 10% fetal calf serum, penicillin, streptomycin and glutamine for 21 days. Cultures were seeded with a cell density of 10⁶ cells/ml and kept in a humidified incubator at 37°C and 5% CO₂ changing medium every 2–3 days and adding fresh compounds as previously described. Culture supernatants were analyzed for the concentration of IL-10 and MCP-1 by enzyme-linked immunosorbent assays (ELISAs; Biolegend, San Diego, California, USA) and for enzyme activity of tartrate-resistant acid phosphatase (TRAP) positive by an enzymatic assay (B-bridge International, Santa Clara, California, USA) following the instructions of the manufacturer.

Osteoclastogenesis assay

Human bone marrow mononuclear cells (Lonza, Walkersville, MA, USA) were cultured in 10% heat-inactivated fetal bovine serum (Life Technologies, Carlsbad, California, USA) in minimal essential medium-α (Life Technologies) in a final count of 8.51 × 0⁵ cells/ml and differentiated into osteoclasts using 10 nM dexamethasone and 10 nM vitamin D for 7 days. Apremilast or other test compounds were added along with fresh medium on days 0 and 3. Cells were rinsed and fixed with 4% para-formaldehyde for 5 min. Osteoclasts were stained for TRAP using the TRAP5 staining kit (B-bridge International). ImageQuant TL (GE Healthcare, Piscataway, NJ, USA) Colony Count software was used to count total cell numbers and number of osteoclasts.

Osteoclast pit formation

RAW 264.7 mouse macrophages were plated in 24-well Osteo Surface plates (Corning, NY, USA) and incubated for 2 h to allow attachment. RANKL (50 ng/ml) was added and plates were incubated at 5% CO₂, 37°C for 7 days, changing the media every 3 days and adding fresh compounds. Cells were removed with bleach and pictures of the wells were taken to assess osteoclast activity. ImageJ software (National Institutes of Health, Bethesda, MD, USA) was used for image analysis.

FLS 48-hour ex vivo model

FLSs were grown from SFMCs as previously described.^17,18 Briefly, SFMCs were cultured in 25 cm² tissue culture flasks for 2–3 weeks changing the medium every 2–3 days. FLSs were then loosened using trypsin/ethylenediaminetetraacetic acid (EDTA) and transferred to a new tissue culture flask. When the cell layer in the new tissue culture flask was 70% confluent, the FLSs were passaged by trypsin/EDTA treatment again. This was repeated and the FLSs were used for analyses at passage 4–5 as described previously.¹⁷ Culture supernatants were analyzed for the concentration of matrix metalloproteinase 3 (MMP3) by ELISA (R&D Systems, Minneapolis, Minnesota, USA) following the instructions of the manufacturer.

Osteoblast mineralization assay

Human osteoblasts were purchased, and mineralization assay was used according to the manufacturer’s instructions as previously described.¹⁹ Osteoblasts were cultured for 14 days changing the medium every 2–3 days.

Statistics

Olink Proseek Multiplex data were presented as NPX values, which is an arbitrary unit on log₂ scale. First, the NPX of DMSO samples was subtracted from all other samples and then the data were analyzed using linear regression looking for dose-dependent differences and with the Student’s t-test to compare the top concentration of apremilast with DMSO and adalimumab. The p values were adjusted for multiple testing using the Bonferroni correction. All other data were transformed to ratios by dividing the value of the samples with the value of DMSO samples. Data were then analyzed with repeated measures one-way analysis of variance or the paired Student’s t-test depending on the number of groups. In all tests, the level of significance was a two-sided p value of less than 0.05. Statistical analyses were performed using GraphPad Prism for Mac (GraphPad Software, San Diego, California, USA) and Stata (StataCorp College Station, Texas, USA).

Results

Apremilast potently decreases the secretion of IL-12/IL-23p40 by SFMCs cultured for 48 h

We first tested whether apremilast affect the secretion by SFMCs of a large panel of cytokines, chemokines and growth factors to evaluate the immune-modulatory effects of apremilast. SFMCs cultured for 48 h predominantly consisted of lymphocytes and monocytes. In these cultures, apremilast decreased the production of IL-12/IL-23p40 (p < 0.00001) colony-stimulating factor 1 (CSF1; also known as M-CSF; p = 0.009), CD6 (p = 0.03), CD40 (p = 0.04), and increased the production of C-X-C motif chemokine 5 (CXCL5; p = 0.003) dose-dependently (Table 2). Only the decrease in IL-12/IL-23p40 passed the Bonferroni correction (p = 0.0001). Also, the apremilast induced decrease in IL-12/IL-23p40 was significantly greater compared with adalimumab [p = 0.012; Figure 1(a)]. Many other cytokines and chemokines were decreased less potently with apremilast compared with adalimumab. We then tested whether the effect of apremilast was different in SFMCs isolated from PsA patients compared with non-PsA patients (RA and SpA patients). Apremilast at 1000 nM decreased the normalized protein expression of IL-12/IL-23p40 with a value of 1.1 [standard deviation (SD) 0.34, p < 0.03] in SFMCs isolated form PsA patients and with a value of 0.74 (SD 0.78, p = 0.03) in non-PsA patients.

Table 2.

Changes in the Olink Proseek Multiplex IFN I panel in SFMCs cultured for 48 h with DMSO control, apremilast or adalimumab.

Protein	Apremilast dose-response			Apremilast versus DMSO			Apremilast versus adalimumab
	p.value	Bonf.adj.p	R value	p.value	Bonf.adj.p	R value	p.value	Bonf.adj.p	R value
IL-12B	<0.00001	0.0001	−0.27	0.0067	0.14	−0.71	0.012	0.039	−0.48
CXCL5	0.0026	0.06	0.19	0.028	0.22	0.51	0.0001	0.0012	1.19
CSF-1	0.0088	0.14	−0.12	0.047	0.22	−0.50	0.0073	0.029	0.38
CD6	0.026	0.32	−0.06	0.35	0.67	−0.08	0.10	0.17	−0.08
CD40	0.045	0.43	−0.08	0.72	0.93	0.04	0.0087	0.030	0.22
MIP-1α	0.055	0.44	−0.09	0.22	0.60	−0.35	0.0039	0.020	0.54
CCL19	0.073	0.44	−0.08	0.014	0.14	−0.32	0.22	0.32	0.12
CCL4	0.073	0.44	−0.08	0.12	0.44	−0.35	0.0023	0.014	0.56
TWEAK	0.11	0.50	−0.07	0.13	0.44	0.14	0.0084	0.030	−0.27
OPG	0.12	0.50	−0.07	0.96	0.98	−0.01	0.036	0.091	0.22
IL-18R1	0.13	0.50	−0.05	0.15	0.45	−0.12	0.12	0.19	−0.11
TNFSF14	0.13	0.50	−0.05	0.48	0.75	−0.06	0.58	0.63	0.04
TNFB	0.14	0.50	−0.04	0.045	0.22	−0.21	0.060	0.13	0.08
Flt3L	0.15	0.51	−0.06	0.98	0.98	0.00	0.087	0.16	−0.13
MMP-1	0.22	0.69	−0.19	0.50	0.75	0.35	0.44	0.52	0.35
CXCL9	0.25	0.71	−0.07	0.79	0.95	−0.04	0.0013	0.012	0.76
CD244	0.25	0.71	−0.03	0.74	0.93	0.02	0.55	0.62	−0.03
IL-8	0.31	0.77	−0.02	0.75	0.93	0.01	0.0001	0.0012	0.46
OSM	0.32	0.77	−0.04	0.50	0.75	−0.11	0.0015	0.012	0.38
EN-RAGE	0.36	0.77	−0.05	0.30	0.61	0.12	0.42	0.52	−0.06
MCP-1	0.37	0.77	−0.04	0.30	0.61	−0.20	0.056	0.13	0.35
IL-4	0.37	0.77	0.03	0.24	0.60	0.10	0.32	0.43	0.07
CXCL10	0.38	0.77	−0.06	0.87	0.98	0.04	0.0024	0.014	0.98
DNER	0.40	0.77	−0.02	0.53	0.77	0.03	0.42	0.52	−0.04
CD5	0.40	0.77	−0.03	0.38	0.67	0.10	0.92	0.92	−0.01
TGFα	0.42	0.77	−0.03	0.25	0.61	0.08	0.029	0.081	0.14
CCL20	0.44	0.78	−0.03	0.55	0.77	−0.14	0.0057	0.025	0.42
CCL23	0.48	0.78	−0.02	0.96	0.98	0.00	0.21	0.31	0.10
uPA	0.50	0.78	−0.03	0.27	0.61	0.11	0.13	0.21	0.10
IL-6	0.52	0.78	0.04	0.88	0.98	0.04	0.020	0.059	0.41
LAP-TGFβ1	0.53	0.78	−0.02	0.47	0.75	−0.06	0.068	0.14	0.12
FGF-21	0.55	0.78	−0.02	0.12	0.44	0.12	0.73	0.78	0.02
CASP-8	0.55	0.78	−0.02	0.23	0.60	0.09	0.50	0.57	−0.05
CXCL1	0.55	0.78	0.03	0.30	0.61	0.19	0.0008	0.010	0.56
CXCL11	0.61	0.82	−0.02	0.64	0.87	0.07	0.031	0.081	0.48
HGF	0.61	0.82	−0.02	0.015	0.14	0.46	0.0008	0.010	−0.83
MCP-3	0.63	0.82	−0.02	0.76	0.93	0.03	0.086	0.16	0.16
IL-18	0.66	0.84	−0.01	0.88	0.98	−0.01	0.30	0.40	0.04
STAMPB	0.77	0.92	0.01	0.059	0.26	0.06	0.83	0.85	−0.01
CXCL6	0.77	0.92	0.01	0.010	0.14	0.11	0.28	0.39	0.08
ADA	0.79	0.92	−0.01	0.045	0.22	0.18	0.80	0.83	0.01
MCP-2	0.84	0.95	−0.01	0.98	0.98	0.00	0.0042	0.020	0.76
TNFRSF9	0.86	0.95	0.01	0.14	0.44	0.11	0.091	0.16	0.13
TRAIL	0.88	0.95	0.00	0.91	0.98	0.00	0.37	0.48	−0.04
CDCP1	0.89	0.95	0.00	0.41	0.70	0.04	0.45	0.52	−0.04
VEGF-A	0.94	0.96	0.00	0.044	0.22	0.16	0.045	0.11	0.14
4E-BP1	0.94	0.96	0.00	0.0078	0.14	0.30	0.062	0.13	0.16
IL-10	1.00	1.00	0.00	0.37	0.67	−0.08	0.18	0.28	0.08

Bold numbers; p < 0.05.

4E-BP1, 4E-binding protein 1; ADA, adenosine deaminase; Bonf.adj.p; Bonferroni adjusted p value; CASP-8, caspase-8; CDCP1, CUB domain-containing protein 1; CSF-1, colony-stimulating factor 1; DNER, Delta and Notch-like epidermal growth factor-related receptor; EN-RAGE, extracellular newly identified receptor for advanced glycation end products (RAGE)-binding protein; FGF-21, fibroblast growth factor-21; Flt3L, FMS-like tyrosine kinase 3 ligand; HGF, hepatocyte growth factor; IL, interleukin; LAP-TGFβ1, latency-associated peptide-transforming growth factor beta; MCP, monocyte chemoattractant protein; MIP-1α, macrophage inflammatory protein 1 alpha; OPG, osteoprotegerin; OSM, oncostatin M; STAMPB, signal-transducing adaptor molecule-binding protein; TGFα, transforming growth factor alpha; TNFβ, tumor necrosis factor beta; TNFRSF9, tumor necrosis factor receptor superfamily member 9; TNFSF14, TNF superfamily member 14; TRAIL, TNF-related apoptosis-inducing ligand; TWEAK, tumor necrosis factor-like weak inducer of apoptosis; uPA, urokinase-type plasminogen activator; VEGF-A, vascular endothelial growth factor A.

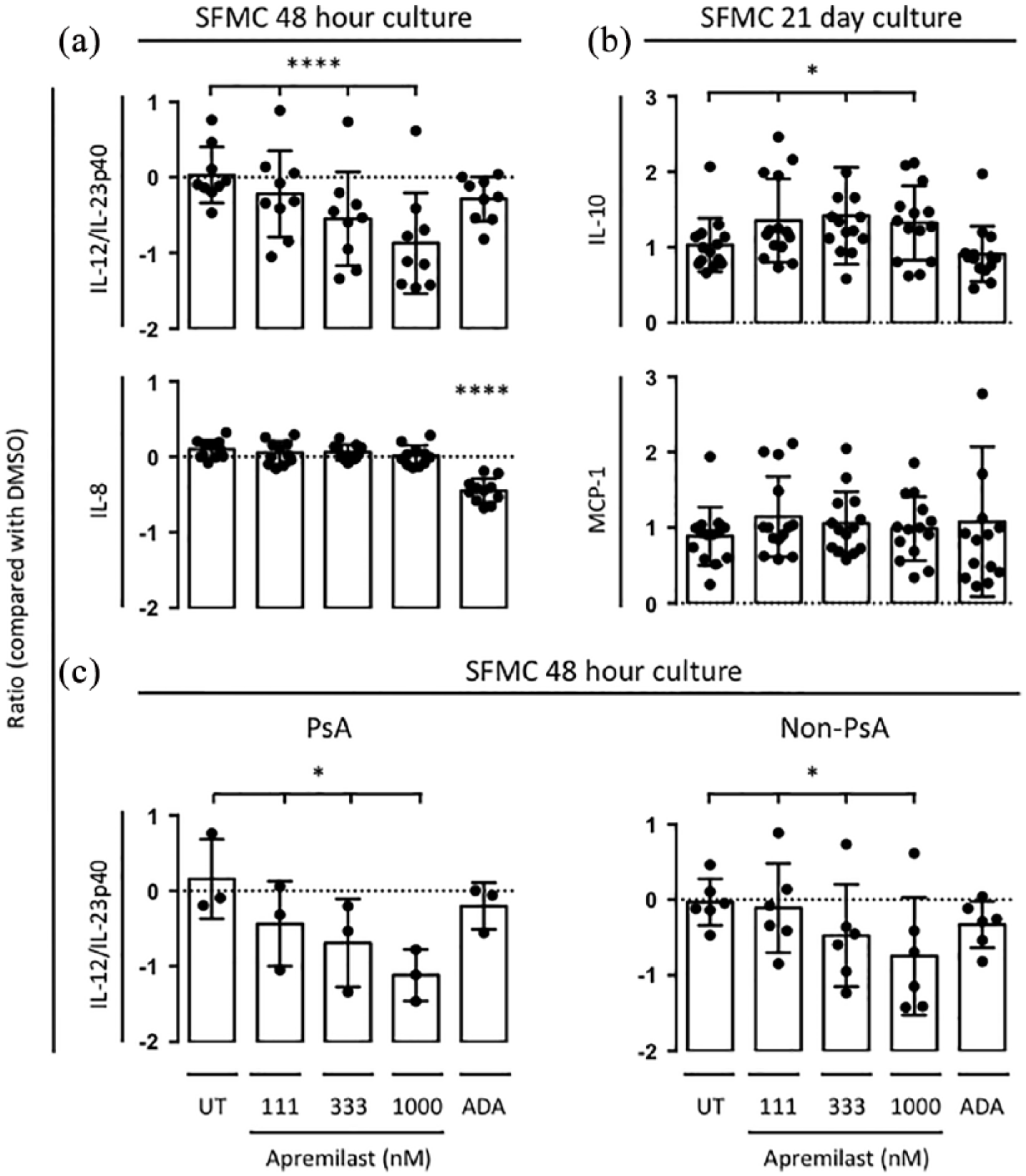

Figure 1.

(a) Secretion of IL-12/IL-23p40 (n = 9) and IL-8 (n = 11) by SFMCs cultured for 48 h untreated (UT) or treated with DMSO control, apremilast or ADA. Data were presented as NPX values, which is an arbitrary unit on log₂ scale. A decrease in one NPX corresponds to a two-fold decrease of the concentration. (b) Secretion of IL-10 (n = 14) and MCP-1 (n = 14) by SFMCs cultured for 21 days untreated (UT) or treated with DMSO control, apremilast or ADA. Data were normalized to untreated cultures and expressed as a ratio. (c) Secretion of IL-12/IL-23p40 by PsA (n = 3) and non-PsA (n = 6) SFMCs cultured for 48 h untreated (UT) or treated with DMSO control, apremilast or ADA. Data were presented as NPX values, which is an arbitrary unit on log₂ scale. Boxes and bars indicate mean and SD. * p < 0.05. ** p < 0.01. *** p < 0.001. **** p < 0.0001.

Apremilast increases the production of IL-10 in SFMCs cultured for 21 days

Next, the effect of apremilast on the secretion of MCP-1 and IL-10 by SFMCs cultured for 21 days was studied to evaluate the immune-modulatory capacity of apremilast in cultures with more macrophage-like synovial cells. Apremilast increased the secretion of anti-inflammatory IL-10 (p = 0.04) but did not change the secretion of MCP-1 [p = 0.5; Figure 1(b)]. This increase in IL-10 production was not seen with adalimumab treatment.

Apremilast inhibits osteoclast differentiation and pit formation

Then, to evaluate the potential role of apremilast in preventing structural damage we then studied the effect of apremilast on osteoclasts, FLSs, and osteoblasts. First, the effects of apremilast was tested on osteoclasts derived from human bone marrow mononuclear cells treated with vitamin D and dexamethasone for 7 days. The number of TRAP-positive (TRAP+) osteoclasts was reduced by apremilast at 0.1 μM, 1 μM and 10 μM by 21%, 49%, and 73%, respectively. The number of TRAP+ osteoclasts was also reduced by alendronate but not by sulfasalazine [Figure 2(a)]. Apremilast, alendronate and sulfasalazine all reduced the total cell counts [Figure 2(b)]. In contrast, apremilast did not change TRAP secretion by SFMC 21-day cultures [Figure 2(c)]. This is a model of low-grade inflammation leading to osteoclastogenesis. In order to study the effect of apremilast on osteoclast activity, a bone resorption assay was performed. The RAW264.7 mouse macrophage cell line was stimulated with RANKL for 7 days on a synthetic inorganic bone mimetic surface. Surface pitting was visually assessed and measured by image quantitation. Apremilast at 10 μM significantly inhibited osteoclast pit formation by 22% [Figure 2(d) and (e)].

Figure 2.

(a,b) Human bone marrow mononuclear cells (n = 6) were plated and incubated with vitamin D (VitD), dexamethasone (Dex) and compounds for 7 days. TRAP-positive cells and total cells were counted. (c) SFMCs were cultured for 21 days untreated (UT), or treated with DMSO, apremilast or ADA and TRAP (n = 11) secretion was measured. (d) RAW264.7 mouse macrophages were stimulated with RANKL and compounds for 7 days and surface pitting was measured. (e) Representative photographs of osteoclast pit formation. (f) Secretion of MMP3 by FLSs were cultured for 48 h untreated (UT) or treated with DMSO control or apremilast (n = 6). (g) Human osteoblasts were cultured for 14 days untreated (UT) or treated with DMSO control or apremilast and mineralization was assessed (n = 5). Boxes and bars indicate mean and SD. * p < 0.05. ** p < 0.01. **** p < 0.0001.

Apremilast decreases the secretion of MMP3 by FLSs but shows no effect on osteoblast mineralization

Finally, the effect of apremilast on FLS and osteoblast cultures was tested. The highest concentration of apremilast decreased the secretion of MMP3 from FLSs [p = 0.005; Figure 2(f)]. Apremilast did not change osteoblast mineralization [Figure 2(g)].

Discussion

Apremilast is now a common treatment option in psoriasis and PsA and is being tested in other immune-mediated inflammatory diseases.^20,21 This study reveals IL-12/IL-23p40 as a major downstream target of apremilast in the inflamed joint of immune-mediated inflammatory arthritis.

RA, PsA and SpA are all characterized by inflammation of the synovial joints. Further, several cytokines are expressed at the same level in these diseases.²² However, the underlying pathobiology of the inflamed synovial membrane is very heterogeneous both between these diseases and within each diagnostic entity. This is best illustrated by the distinct responses to different medications seen in individual patients. Most notably inhibition of IL-6 is only effective in patients with RA while inhibition of IL-23 and IL-17 seems to have stronger efficacy in psoriasis, PsA and SpA.^1,4,23

The molecular target of apremilast is PDE4. Inhibition of PDE4 results in an increase in intracellular cyclic adenosine monophosphate (cAMP) dampening proinflammatory signaling.⁷ In cell cultures of healthy peripheral blood mononuclear cells, apremilast has shown selectivity in downstream effects with inhibition of interferon-γ-inducible protein 10, interferon-γ, monokine induced by gamma interferon, TNFα, IL-12p70, macrophage inflammatory protein 1-α, MCP-1 and granulocyte-macrophage CSF, but not IL-8, IL-1β, RANTES (regulated on activation, normal T-cell expressed and secreted), IL-10 and IL-6 production.⁶ In synovial membrane cell cultures, apremilast reduces TNFα.²⁴ However, the effects of apremilast on cytokine secretion by synovial cells using multiplex systems and the specific effects of apremilast on cells involved in structural changes in arthritis had previously not been studied.

In this study, apremilast showed a robust decrease in IL-12/IL-23p40 secretion by SFMCs cultured for 48 h. Supporting this, the expression of IL-12/IL-23p40 is known to be inhibited by the cAMP analog 8-Br-cAMP.²⁵ Further, decreased IL-12/IL-23p40 and IL-23 have been reported in lipopolysaccharide (LPS)-stimulated monocytes,²⁶ lesional skin from patients with psoriasis²⁷ and in plasma from patients with PsA⁸ treated with apremilast. This supports inhibition of IL-12/IL-23p40 as a crucial target of apremilast in immune-mediated inflammatory arthritis and this could explain some of the efficacy of apremilast seen in IL-12/IL-23-driven immune-mediated inflammatory diseases.

In SFMCs cultured for 21 days to resemble spontaneous differentiation of macrophages, apremilast increased the production of IL-10. This is in line with previous studies finding no change or an increase in IL-10 in response to apremilast treatment in vitro and in vivo.⁸ IL-10 is an anti-inflammatory cytokine produced by monocytes and regulatory T and B-cells with multiple effects such as suppression of cytokine secretion, antigen presentation and CD4+ T-cell activation. Therefore, increased IL-10 could also be part of the clinical efficacy seen with apremilast.

Finally, we studied the role of apremilast in models of potential structural changes in immune-mediated inflammatory arthritis. Apremilast decreased the production of MMP3 by FLSs and inhibited osteoclastogenesis at clinically relevant concentrations (0.1–1 μM). This indicates that apremilast may inhibit cartilage and bone destruction in diseases such as RA, PsA, and ankylosing spondylitis by inhibiting MMP3 production and osteoclast development. However, apremilast did not change the development of TRAP-secreting osteoclasts in SFMCs cultured for 21 days resembling low-grade spontaneous inflammatory osteoclastogenesis.¹⁵ This is in line with a number of previous studies on the effects of PDE4 inhibitors on osteoclasts showing inconsistent results. For example, the PDE4 inhibitor rolipram was reported to induce osteoclastogenesis in mouse bone marrow cells cocultured with calvarial osteoblasts, through a mechanism involving increased RANKL expression.²⁸ In this system, PDE4 inhibition was further shown to promote parathyroid hormone-induced osteoclast formation via increased cyclooxygenase-2 expression.²⁹ However, others have reported that PDE4 inhibition reduces osteoclastogenesis induced by prostaglandin E2 in RAW 264.7 mouse macrophages, through a mechanism involving increased cell cycle arrest.³⁰ Taken together, this suggests that apremilast might not have a substantial direct effect on structural changes in immune-mediated inflammatory arthritis. However, prevention of structural changes with apremilast as a consequence of decreased inflammation in vivo seems plausible.

There are both limitations and strengths of this study. First, the ex vivo study design is favorable for detecting direct effects on cells activated in vivo. Further, several components of the pathobiology of immune-mediated inflammatory arthritis were assessed using SFMCs, FLSs, and osteoclastogenesis and mineralization assays. However, it is obviously never possible to directly translate in vitro findings into clinical practice. Second, the apremilast top concentrations of 1000 nM might not be sufficient to suppress all the immunological reactions in the in vitro cultures. Thus, it has previously been reported that some T-cell cytokines are suppressed with a half maximal inhibitory concentration (IC₅₀) around 1–4 μM and that B-cell differentiation and antibody production requires substantially higher concentrations.²⁶ However, we chose concentrations around the mean steady-state apremilast Cmax of 450 nM³¹ to best possible resemble in vivo conditions. Third, separation of SFMCs does not completely exclude contamination with granulocytes. Therefore, some of the results could have been influenced by leftover granulocytes in the SFMC cultures. Finally, the cohort of 18 patients was too small to justify subgroup analyses.

Conclusion

This study reveals the downstream effects of apremilast in ex vivo models of arthritis with a strong inhibition of IL-12/IL-23p40. Further, apremilast induced IL-10 production in synovial macrophages and decreased MMP3 in FLS cultures. Our findings could explain the efficacy of apremilast seen in psoriasis and PsA and holds promise for testing apremilast in other IL-12/IL-23-driven immune-mediated inflammatory diseases.
