Privacy-preserving federated hybrid deep learning framework for robust cross-site scripting detection in distributed web applications

Abstract

Web application security remains a critical domain as cross-site scripting (XSS) continues to be one of the most prevalent and damaging client-side vulnerabilities in modern web systems. Existing XSS detection approaches, particularly centralized and rule-based models, struggle to generalize against obfuscated and zero-day payloads while raising serious privacy concerns due to centralized data handling. To overcome these limitations, this article proposes FedXSS-Guard, an adversarially robust and privacy-preserving federated hybrid deep learning framework for XSS detection. The framework integrates Transformer-based contextual encoders with BiLSTM (Bidirectional Long Short-Term Memory) sequential modeling and adversarial training to capture semantic, temporal and mutation-based attack patterns while ensuring data confidentiality through federated learning. Extensive experiments conducted on real-world datasets, including OWASP (Open Web Application Security Project), XSSed, GitHub repositories and enterprise traffic logs. The experimental results demonstrates a superior performance by achieving 98.6% accuracy, 98.1% precision, 98.9% recall, 98.5% F1-score and an AUC of 0.99. while maintaining sub-5 ms detection latency across server, edge and mobile environments. These results validate the framework’s suitability for real-time and privacy-critical web application security.

Keywords

Cross-Site Scripting (XSS)web security federated learning deep learning transformer BiLSTM adversarial training privacy-Preservingdetection

1. Introduction

Web applications form the core of the modern digital world, however, they are susceptible to attack through various injection types, the most prominent one being Cross-Site Scripting (XSS). XSS has consistently been listed among the OWASP top 10 web security risks¹ and defined as a severe software vulnerability in MITRE CWE $-$ 79.² Large-scale reports in cybersecurity have also identified that XSS continues to be responsible for data breaches and exploitation incidents globally.³

Numerous Machine Learning (ML) and Deep Learning (DL) techniques have been proposed for the detection and defense of XSS attacks. In several studies supervised learning methods have been used to classify and identify malicious payloads.⁴ Liu et al. Used taint tracking to detect Document Object Model (DOM) XSS vulnerabilities within Single Page Applications (SPAs)⁵ and Althobaiti conducted a survey of the existing XSS detection methods, highlighting their advantages and weaknesses.⁶ Kumar et al. Propose using static analysis to find Document Object Model (DOM) vulnerabilities and Zhang and Wei proposed detecting XSS risks in mobile WebView.⁷

Kuppusamy and Srinivasan employed several ML algorithms for classifying XSS payloads⁸ whereas Singh and Sharma used Random Forest classifier to detect malicious JavaScript code.⁹ The Bidirectional Long Short-Term Memory (BiLSTM) network can be used to analyze HTTP request patterns¹⁰ whereas BERT (Bidirectional Encoder Representations from Transformers) a transformer based approach can use contextual representation of words to detect malicious scripts more accurately.¹¹ Recently a context aware deep learning framework was also proposed to increase the robustness of script injection defense.¹²

The security against adversarial attacks has been a key concern in building robust web security systems. Zhang et al. Demonstrate the effective use of adaptive attack strategy against Web Application Firewalls (WAFs)¹³ and Wang and Jiang evaluates deep learning systems against adversarial attack.¹⁴ Zhou discusses the vulnerability of neural network based web security systems to adversarial manipulation¹⁵ and Liu and Hu investigated resilience of intrusion detection system to payload mutation attacks.¹⁶

Sharma and Kumar addressed privacy issues of the web-based datasets¹⁷ and Ahmed and Qureshi highlight some issues concerning collaborative intrusion detection system.¹⁸ Recently, federated learning (FL) is an emerging trend to promote privacy-preserving web security systems. Yang et al. Lay down the fundamental concepts of FL in security applications¹⁹ and Aledhari et al. Demonstrate enabling technologies and protocols for FL in web applications.²⁰ Moreover, FL is applied in building a malware detection system for IoT systems.²¹ Xu et al. Proposed an FL based intrusion detection system for edge computing environments²² and Ahmed and Kim analyze FL advantages and limitations in Zhang et al.¹³

Efficiency and real time operation of web security systems have been key research areas. Gao and Zhang proposed low-latency deep learning models for WAFs²³ and Lin evaluates ML based WAF against high throughput.²⁴ Khan and Li discuss the real world deployment of deep learning based security system.²⁵ Furthermore Chen and Xu built context aware ML models for web applications²⁶ and Wang and Zhang used contextual embedding to improve the detection performance of XSS detection.²⁷ He and Luo used sanity aware model to efficiently process web payloads,²⁸ while Yadav and Singh proposed FL based deep learning for privacy preserving security. Huang introduced transformer-based architecture for injection attack detection,²⁹ whereas Patel and Sharma focus on evaluation of adversarial robustness.³⁰ Zhou and Li discussed attack detection for SPA³¹ and Prakash and Bose developed hybrid deep learning for robust XSS defense.³² Li and Chen developed FL based adversarial framework for web security and Hussain and Wong developed real-time context aware FL system for XSS defense.

Despite all the improvements the main research problems remain largely unsolved. Traditional ML and DL systems are still susceptible to adaptive adversarial attacks,^16,30 FL while promising privacy preserving still faces issues related to communication overhead and robustness against malicious clients and it has not been explored in SPAs and mobile environments.^31,33 Therefore, a robust, scalable, real time and privacy preserving system remains an open research problem.^32,34 This article proposes a context aware federated deep learning framework for improving security of modern web and mobile applications.

Unlike hybrid or federated detection systems that approach these problems separately, the proposed framework combines privacy preservation, adversarial robustness and hybrid context-sequential modeling into an integrated architecture and is highly effective in detecting complex and evolving XSS attacks in a distributed environment.

XSS is one of the persistent and threatening attack that targets modern web applications and the evolution of novel attack variants.Traditional detection methods including rule-based detection systems and centrally trained ML models cannot efficiently detect novel and varying attack patterns and also have potential issues in privacy preservation. Thus, there is a need for efficient and privacy-preserving detection methods. This work seeks to tackle these problems by proposing an framework that aims to effectively detect complex and obfuscated XSS payloads without any data sharing from clients. Most existing detection mechanisms lack generality, adaptability, and resilience against adversarial attacks. This has remained an open and important research problem. To overcome such challenges, this article proposes a Federated Hybrid Deep Learning model called FedXSS-Guard.

The proposed model integrates contextual learning and adversarial training techniques for high detection accuracy while maintaining data privacy and scalability across different deployment scenarios. The novelty of the framework stems from its combination of federated learning, hybrid deep learning architectures, and adversarial robustness techniques that allow secure XSS detection without sharing private user data among clients, while maintaining resilience against advanced attack schemes.

1.1. Key contributions

The key contributions of this work are:

A federated deep learning framework is proposed for the detection of XSS attacks that allows collaboration among several organizations without exposing their private raw traffic data.

A context aware detection mechanism is designed, and aims to capture the execution patterns of attack payloads in multiple environments including HTML attributes, JavaScript, CSS and URLs parameters.

Robustness against automatically generated or mutated attack payloads is tested thoroughly.

Performance is evaluated against diverse sets of data from state-of-the-art applications such as SPA (Single Page Applications), mobile web view and IoT dashboards.

Real-time deployment with detection delay lower than 5ms and a high rate of traffic throughput is achieved.

The developed approach combines federated learning, context aware analysis and adversarial robust capability for improving state of the art in XSS detection. Our approach does not reveal private data of each institution and allows them to collaborate while preserving their data, improves the accuracy of the XSS attack detection and is robust against an increasingly evolved attack environment.

1.2. Motivation

The web application is becoming complicated and these applications are most susceptible to cross site scripting attacks which can bypass usual security models. The current methods used to detect the attack do not detect changing attack signatures and obfuscated scripts. These methods also have privacy concerns as the data are centralized. This article proposes a system which will detect the attack in an efficient manner without sharing the data with any other centralized system.

1.3. Organisation of the article

The rest of this article is organized in the following way. Section 2 provides an in-depth overview of the current XSS detection methods and reveals the major gaps in the research. Section 3 explains the presented FedXSS-Guard architecture, its federated structure, hybrid modelling plan, and the adversarial training process. Section 4 gives the description of the experimental setup, datasets, evaluation metrics. Section 5 refers to the performances and area implication outcomes. Finally, Section 6 concludes the article and points to the potential directions for future research.

2. Literature survey

There have been many efforts in XSS defense within the 2021 $-$ 2025 span of time due to the prevalence of XSS vulnerability. Kim et al used recurrent neural networks for detection on a large scale, reporting better performance than rule-based approaches.⁴ Sharma and Thomas applied BiLSTM based classifiers for detection of obfuscated payloads, reporting increased accuracy under such attacks.¹⁰ Patel et al leveraged the lexical feature extraction and combined it with deep learning methods for context-aware XSS detection but struggled with high computational costs limiting real-time performance.³ Hussain et al built an ensemble model comprised of CNN and Random Forest classifiers that performed well on polymorphic XSS payload samples but had an added delay due to combining two methods.⁴ Wei and Zhang generated novel malicious payloads with GANs to cover a wide range of attacks that the trained models had not seen before.⁵ Gupta et al used BERT for Transformer based embeddings, reporting good precision at the cost of high computation requirements.¹¹

Adversarial robustness was a central topic in the 2023 year in particular. Lee et al showed that many deep learning models used for XSS detection can be extremely susceptible to adversarial attacks.³⁵ Ahmed and Nair implemented adversarial training using fuzzed payloads to improve detection against attacks that have been seen, but only validated against specific controlled scenarios.⁷ Banerjee et al proposed a distributed detection framework in the cloud-assisted architecture that relies on distributing computation over the cloud and edge layers, with improved performance but raising privacy issues.

In 2024 research on XSS detection revolved around the concept of Federated Learning (FL). Tang et al proposed a framework based on FL that allowed for collaborative training of a malicious payload detector without the transmission of any sensitive data across models, but did not consider performance for SPA or mobile usage.⁹

Reddy et al. integrated transformer models with DOM-based contextual embeddings to improve detection in SPA environments, reducing false positives but lacking compatibility with federated settings.¹⁰ Huang and Li evaluated hybrid deep learning models under latency constraints, demonstrating strong accuracy but difficulty in meeting strict real-time requirements such as sub $-$ 5 ms latency.¹¹

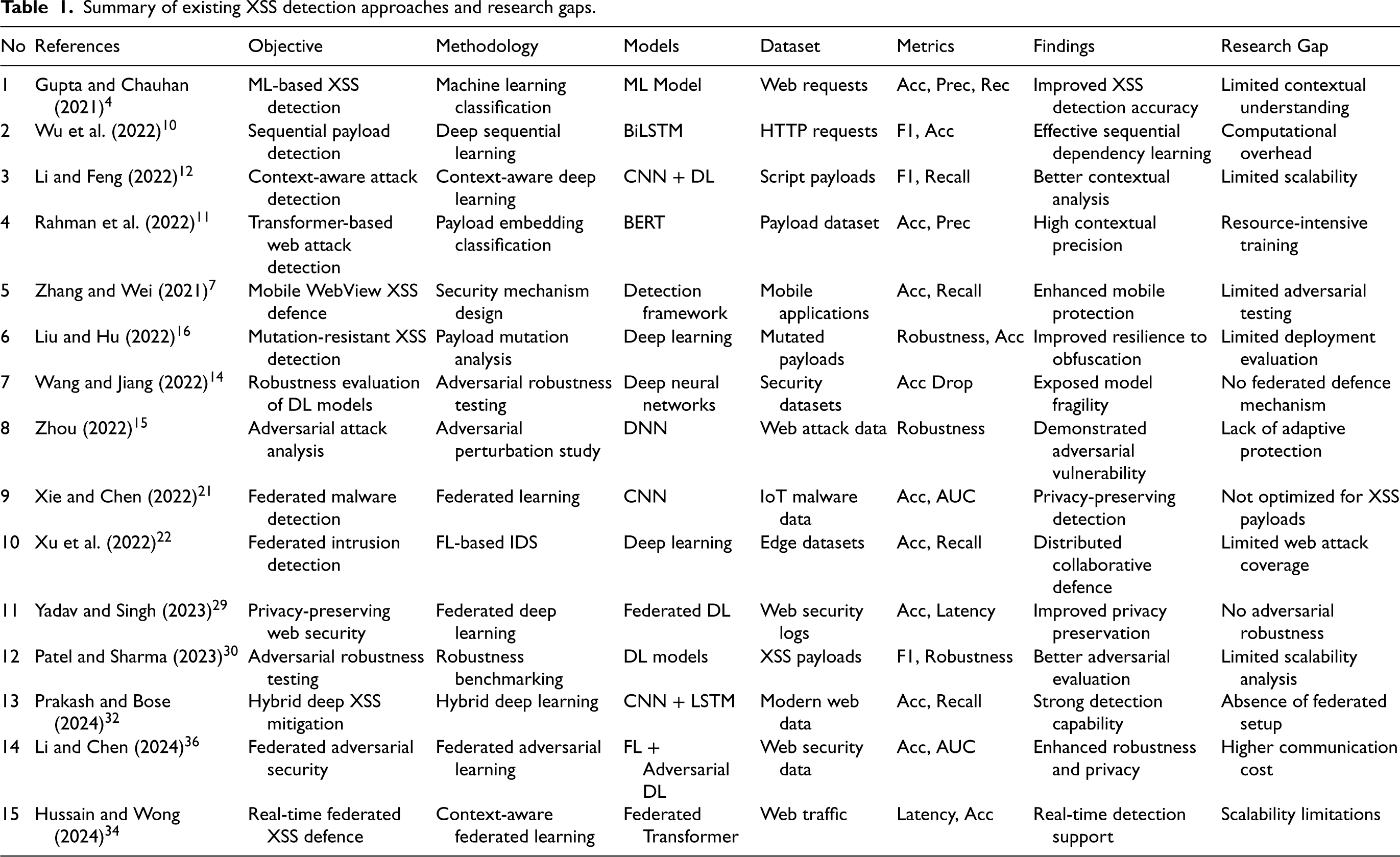

Table 1 summarizes the overall comparative overview of XSS detection techniques presented from 2021 $-$ 2025. It could be noted that the major leaps have been witnessed in the domains of deep learning and adversarial robustness and federated learning approaches. Despite the improvement in accuracy of detection and contextual learning, certain issues like computation intensity, latency, poor adversarial robustness, and lack of real-world implementation still exist, pointing to a need of a general purpose, scalable and privacy preserving framework.

Table 1.
Summary of existing XSS detection approaches and research gaps.

No References Objective Methodology Models Dataset Metrics Findings Research Gap

1 Gupta and Chauhan (2021)⁴ ML-based XSS detection Machine learning classification ML Model Web requests Acc, Prec, Rec Improved XSS detection accuracy Limited contextual understanding

2 Wu et al. (2022)¹⁰ Sequential payload detection Deep sequential learning BiLSTM HTTP requests F1, Acc Effective sequential dependency learning Computational overhead

3 Li and Feng (2022)¹² Context-aware attack detection Context-aware deep learning CNN + DL Script payloads F1, Recall Better contextual analysis Limited scalability

4 Rahman et al. (2022)¹¹ Transformer-based web attack detection Payload embedding classification BERT Payload dataset Acc, Prec High contextual precision Resource-intensive training

5 Zhang and Wei (2021)⁷ Mobile WebView XSS defence Security mechanism design Detection framework Mobile applications Acc, Recall Enhanced mobile protection Limited adversarial testing

6 Liu and Hu (2022)¹⁶ Mutation-resistant XSS detection Payload mutation analysis Deep learning Mutated payloads Robustness, Acc Improved resilience to obfuscation Limited deployment evaluation

7 Wang and Jiang (2022)¹⁴ Robustness evaluation of DL models Adversarial robustness testing Deep neural networks Security datasets Acc Drop Exposed model fragility No federated defence mechanism

8 Zhou (2022)¹⁵ Adversarial attack analysis Adversarial perturbation study DNN Web attack data Robustness Demonstrated adversarial vulnerability Lack of adaptive protection

9 Xie and Chen (2022)²¹ Federated malware detection Federated learning CNN IoT malware data Acc, AUC Privacy-preserving detection Not optimized for XSS payloads

10 Xu et al. (2022)²² Federated intrusion detection FL-based IDS Deep learning Edge datasets Acc, Recall Distributed collaborative defence Limited web attack coverage

11 Yadav and Singh (2023)²⁹ Privacy-preserving web security Federated deep learning Federated DL Web security logs Acc, Latency Improved privacy preservation No adversarial robustness

12 Patel and Sharma (2023)³⁰ Adversarial robustness testing Robustness benchmarking DL models XSS payloads F1, Robustness Better adversarial evaluation Limited scalability analysis

13 Prakash and Bose (2024)³² Hybrid deep XSS mitigation Hybrid deep learning CNN + LSTM Modern web data Acc, Recall Strong detection capability Absence of federated setup

14 Li and Chen (2024)³⁶ Federated adversarial security Federated adversarial learning FL + Adversarial DL Web security data Acc, AUC Enhanced robustness and privacy Higher communication cost

15 Hussain and Wong (2024)³⁴ Real-time federated XSS defence Context-aware federated learning Federated Transformer Web traffic Latency, Acc Real-time detection support Scalability limitations

No	References	Objective	Methodology	Models	Dataset	Metrics	Findings	Research Gap
1	Gupta and Chauhan (2021)⁴	ML-based XSS detection	Machine learning classification	ML Model	Web requests	Acc, Prec, Rec	Improved XSS detection accuracy	Limited contextual understanding
2	Wu et al. (2022)¹⁰	Sequential payload detection	Deep sequential learning	BiLSTM	HTTP requests	F1, Acc	Effective sequential dependency learning	Computational overhead
3	Li and Feng (2022)¹²	Context-aware attack detection	Context-aware deep learning	CNN + DL	Script payloads	F1, Recall	Better contextual analysis	Limited scalability
4	Rahman et al. (2022)¹¹	Transformer-based web attack detection	Payload embedding classification	BERT	Payload dataset	Acc, Prec	High contextual precision	Resource-intensive training
5	Zhang and Wei (2021)⁷	Mobile WebView XSS defence	Security mechanism design	Detection framework	Mobile applications	Acc, Recall	Enhanced mobile protection	Limited adversarial testing
6	Liu and Hu (2022)¹⁶	Mutation-resistant XSS detection	Payload mutation analysis	Deep learning	Mutated payloads	Robustness, Acc	Improved resilience to obfuscation	Limited deployment evaluation
7	Wang and Jiang (2022)¹⁴	Robustness evaluation of DL models	Adversarial robustness testing	Deep neural networks	Security datasets	Acc Drop	Exposed model fragility	No federated defence mechanism
8	Zhou (2022)¹⁵	Adversarial attack analysis	Adversarial perturbation study	DNN	Web attack data	Robustness	Demonstrated adversarial vulnerability	Lack of adaptive protection
9	Xie and Chen (2022)²¹	Federated malware detection	Federated learning	CNN	IoT malware data	Acc, AUC	Privacy-preserving detection	Not optimized for XSS payloads
10	Xu et al. (2022)²²	Federated intrusion detection	FL-based IDS	Deep learning	Edge datasets	Acc, Recall	Distributed collaborative defence	Limited web attack coverage
11	Yadav and Singh (2023)²⁹	Privacy-preserving web security	Federated deep learning	Federated DL	Web security logs	Acc, Latency	Improved privacy preservation	No adversarial robustness
12	Patel and Sharma (2023)³⁰	Adversarial robustness testing	Robustness benchmarking	DL models	XSS payloads	F1, Robustness	Better adversarial evaluation	Limited scalability analysis
13	Prakash and Bose (2024)³²	Hybrid deep XSS mitigation	Hybrid deep learning	CNN + LSTM	Modern web data	Acc, Recall	Strong detection capability	Absence of federated setup
14	Li and Chen (2024)³⁶	Federated adversarial security	Federated adversarial learning	FL + Adversarial DL	Web security data	Acc, AUC	Enhanced robustness and privacy	Higher communication cost
15	Hussain and Wong (2024)³⁴	Real-time federated XSS defence	Context-aware federated learning	Federated Transformer	Web traffic	Latency, Acc	Real-time detection support	Scalability limitations

In 2025, Srinivasan et al proposed a real time sanitization framework based on reinforcement learning so as to allow the filter of evolving attack payload¹² while, Chen et al augmented the detection models based on transformer with an adversarial robustness component but it has yet to show promise in distributed environment.¹³ Tregi and Al-Zubaidie presented a protocol for secure traffic data with quantum digital signatures combined with privacy-enhancing approaches, which addresses data integrity and confidentiality, but to secure the traffic data, the researchers primarily focused on secure communication and neglected detection of application-layer attacks like cross-site scripting.³⁷

Existing federated intrusion and malware detection systems mainly focus on network level or binary classification; The developed federated system aims at detecting XSS attacks under complicated and obfuscated web payload, whereas previously proposed hybrid deep learning models are trained under centralized mode without considering privacy constraints. The developed framework fills this gap by integrate federated learning with hybrid context and sequential modeling, as well as adversarial robustness.

2.1. Research gap

The comparison study also highlights some key drawbacks:

Low integration of federated learning with sophisticated hybrid architectures like Transformer-BiLSTM with adversarial training.

Unadequate study with modern application usage paradigms such as SPAs, mobile WebViews, IoT dashboard applications.

Insufficient research on low latency real-time detection: achieving sub $-$ 5ms latency to deploy in the enterprise scale.

Shortage of dynamic, large-scale benchmark datasets that model new attack trends and diversity.

No enough defenses on adversarially engineered, obfuscated, and polymorphic payloads.

2.2. Problem statement

Despite the enormous research effort in developing XSS detection models, most current models are not practical in real-world use. CNN- and RNN-based models are better than rule-based methods; however, they have difficulty in detecting polymorphic, obfuscated and dynamically generated payloads. Transformer-based models perform better contextual learning than CNN and RNN, but they have very high computational cost which is not suitable for low-latency environments and ensemble methods can further raise the inference time. Moreover, the existing models have low robustness in dealing with adversarial and mutation-based attacks, especially in SPAs and DOM-driven environments. Although FL is able to preserve user privacy, current solutions are poorly scalable, weakly robust and difficulty to deploy on different platforms. Therefore, key challenges of XSS detection systems can be summarized as follows:

Contextual Limitations: Current approaches do not capture complex DOM-based interactions and asynchronous nature of modern web applications and mobile applications.

Adversarial Fragility: No systematic adversarial training or robust evaluation strategy to handle the constantly evolving attack patterns.

Privacy and Scalability Constraints: Insufficient integration of advanced deep learning approaches, particularly transformer models with federated learning.

2.3. Proposed solution

A federated deep learning framework for context-aware and robust XSS detection across modern web and mobile applications is proposed. The framework is aimed to address the aforementioned limitations by integrating a Transformer-enhanced deep learning architecture with a sequential modeling technique, enabling both deep contextual semantic understanding and temporal dependency capture between web payload elements. By incorporating DOM structure information through tree representation and utilizing a sequence generation approach, it aims to handle complex DOM interaction-based attacks.

Furthermore, to increase adversarial robustness, the model is trained using a comprehensive strategy incorporating adversarial generation of dynamic attack payloads, aiming to withstand evolving, obfuscated, and mutating attacks. The federated learning paradigm enables collaborative model training across multiple organizations without revealing the private data and also allows for efficient distribution. Low-latency inference and high throughput capabilities of the framework enable practical enterprise-grade web security applications. Through a combined approach of contextual intelligence, adversarial robustness and privacy preservation, this work fills the gap between advanced experimental models and practical, robust web security systems.

2.4. Novelty of proposed system

The proposed FedXSS-Guard framework presents a unified approach for XSS detection by integrating federated learning with hybrid deep models. Unlike existing methods, it enables privacy-preserving collaborative training without sharing raw data. The combination of Transformer-based contextual learning and BiLSTM-based sequential modeling enhances the detection of complex payload patterns. Additionally, adversarial sample generation improves robustness against obfuscated and evolving attacks. This joint design addresses key challenges of privacy, robustness, and generalization in distributed environments, distinguishing it from prior approaches.

Difference from Federated Intrusion Detection Systems: Unlike traditional federated intrusion detection systems that focus on network traffic or malware patterns, the proposed FedXSS-Guard framework is specifically designed for web-based XSS attack detection. Incorporates hybrid deep learning to capture both contextual and sequential features of web payloads. Additionally, the integration of adversarial sample generation enhances robustness against obfuscated attacks, which is not commonly addressed in existing federated IDS approaches. The framework presented not only follows general FedAvg framework, but also has the feature learning specialized to each task, and the adversarial robustness for web attack detection.

3. Proposed methodology

FedXSS-Guard proposed in this framework is to be a practical, context-aware and privacy-preserving defense system against Cross-Site Scripting (XSS) attacks in contemporary Web and Mobile applications. The integration of federated deep learning with Transformer-based contextual analysis and adversarial training under one unified design can simultaneously solve the aforementioned technical challenges of scale, robustness, and generalization.

The overall system architecture is given in Figure 1. The system is comprised of the following sub-modules.

Input Layer: Gathers HTTP requests, DOM snapshots and event driven execution traces from various distributed client environments such as web and mobile.

Preprocessing Module: Tokenizes, encodes, normalizes and maps the input payloads and DOM structure in order to represent them as meaningful, contextualized structure.

Local Model Training: Each client independently trains a transformer enhanced BiLSTM model that captures semantic and sequential context from input data.

Adversarial Payload Generator: Generates the mutated and obfuscated payloads via fuzzing and transformation in order to improve the resilience against evolving and zero-day attacks.

Federated Aggregator: Utilizes the federated averaging algorithm to aggregate the locally updated models of different clients without exposing the private data.

Global Model Optimizer: Refines the global aggregated model by adjusting weight values, utilizing regularization techniques and optimizing the hyperparameters for better performance on various heterogeneous data.

Decision Engine: Classifies the incoming inputs to benign or malignant and accordingly take appropriate real-time action such as data sanitization, alerting and blocking.

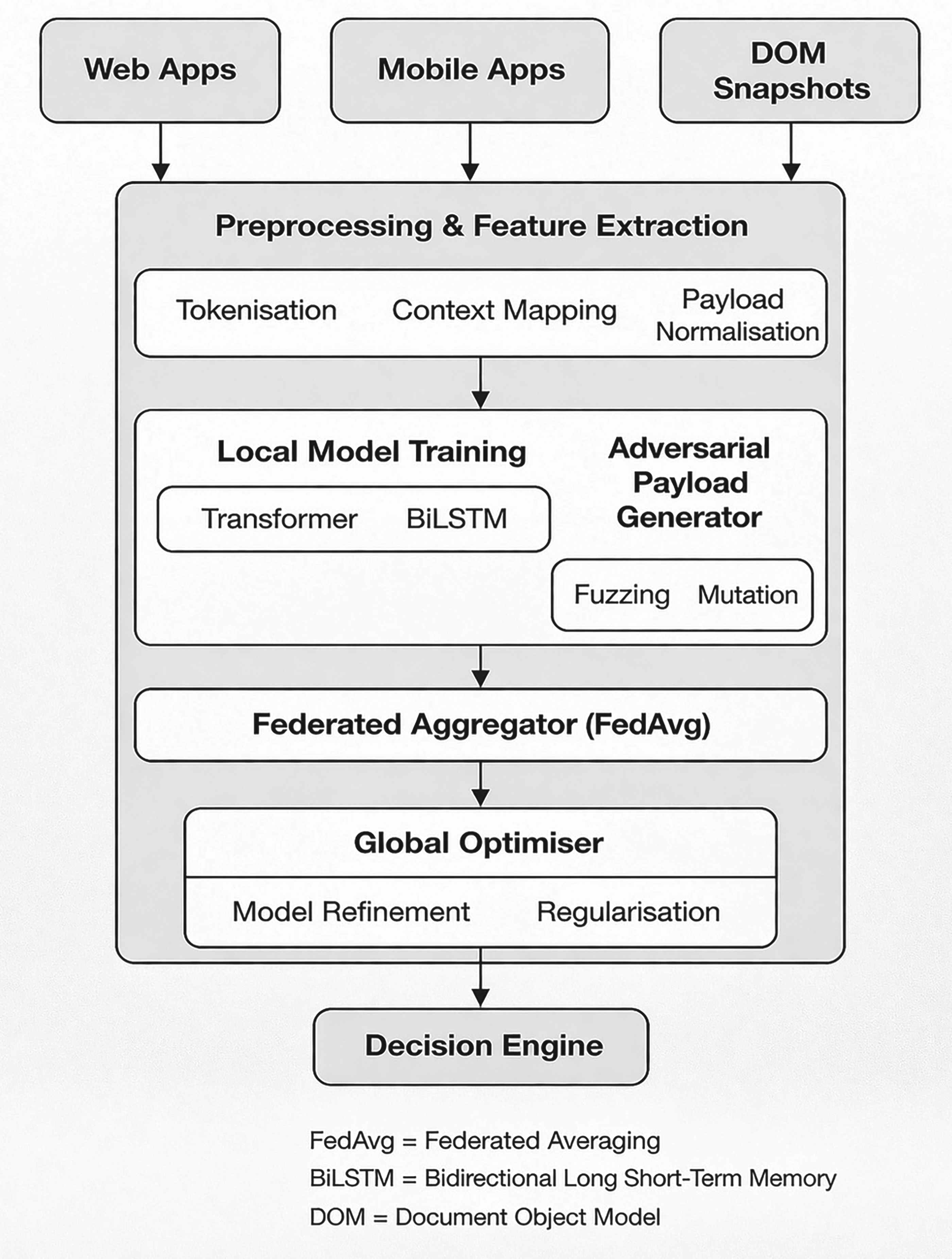

Figure 1.

Proposed FedXSS-Guard System Architecture.

The end-to-end pipeline of the proposed system is shown in Figure 1. The data collected from distributed client environments such as web applications, mobile platforms, etc. As well as from DOM execution traces pass through the preprocessing module, which further converts the input payload and DOM structure into a meaningful and context-aware representation. In this module, the proposed system extract’s useful features, then encode them with numerical values and normalize them in order to avoid noisy features, to extract essential semantic information and context.

Two parallel streams proceed from the preprocessing stage. Firstly, a local model training stream whereby a transformer-enhanced BiLSTM model trained with the context and temporal information of the XSS payload. The second stream is an adversarial payload generator that produce several mutated input payload by exploiting different types of payload mutations and transformation in order to make the trained model stronger against various attacks. The locally trained model is then sent to a federated aggregator where the models from all clients are combined with the federated averaging (FedAvg) technique to form a global model without the requirement of sending the private data over to clients’ side. The global model is then improved using the global model optimizer with regularization and hyperparameters tuning. Finally, the trained global model is then sent to decision engine that predict and classifies the current input payload and initiate mitigation techniques.

3.1. Workflow algorithm

The proposed FedXSS-Guard framework proceeds in a well-defined workflow in order to perform the detection:

Local web traffic data and DOM execution trace information are gathered by every participant client.

Tokenization, normalization, and feature encoding on the raw inputs are carried out by the preprocessing module.

To increase resilience toward novel attack variations, local models are trained using both real and adversarially generated payload.

After local model training, the model updates are transmitted securely to the federated aggregator without revealing the actual data.

Periodical aggregation of global model updates, optimization and distribution to all participants are ensured.

Online traffic streams are classified in real-time, while proper operations, such as sanitizing and blocking malicious payloads, are enforced.

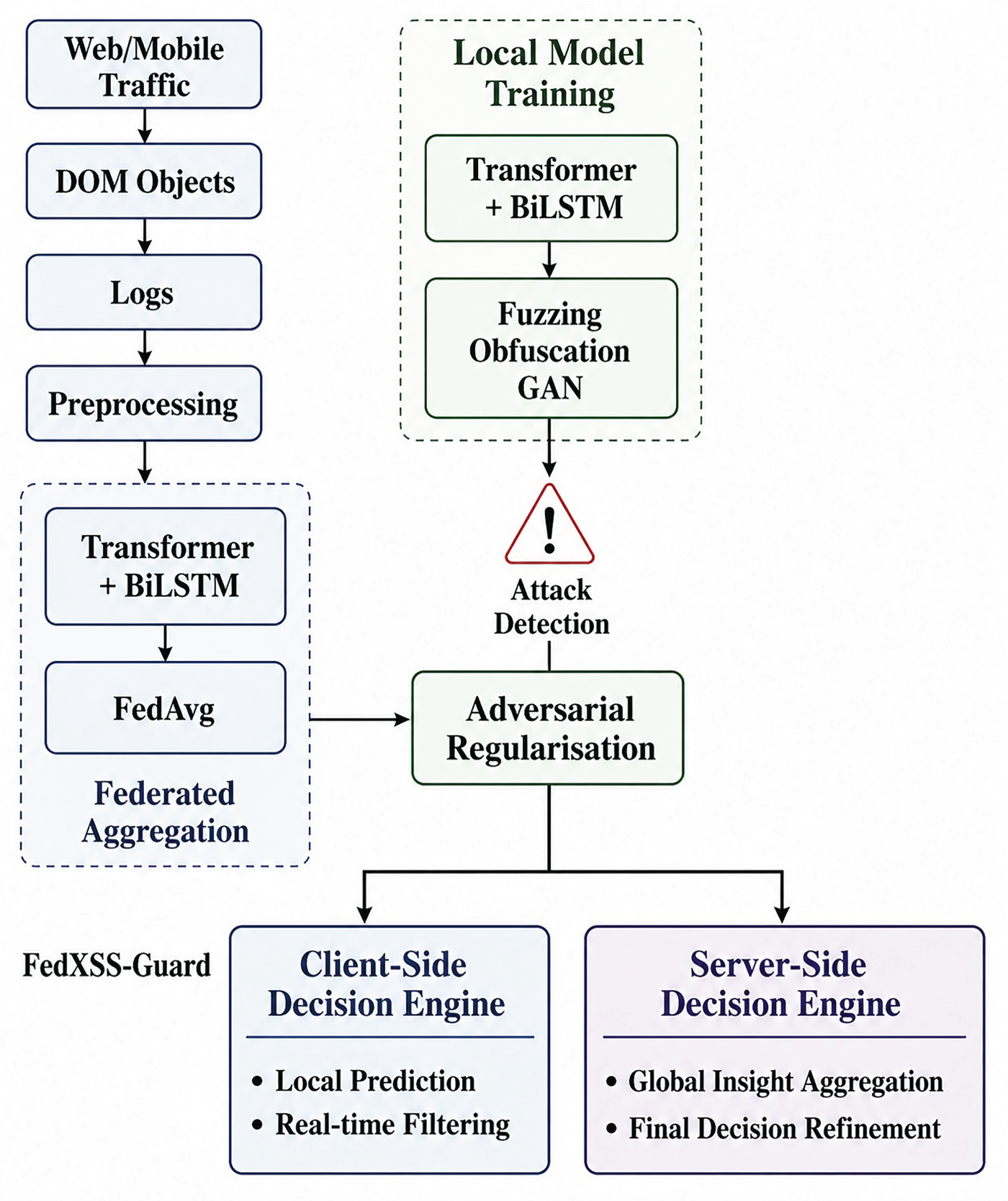

Figure 2 illustrates the whole operational pipeline of the proposed framework. Initially, payloads collected locally are preprocessed and augmented with adversarial attacks in order to get both clean and synthetic ones. Based on the hybrid model of the Transformer encoder, BiLSTM layers and a classification module along with the adversarial loss regularization is built. Next, client model updates are securely sent to the central server and aggregated using the FedAvg strategy. Moreover, noise perturbation may be added to the updates to improve privacy. After that, noise is reduced, knowledge distillation and adversarial regularization are performed to improve generalization ability of the global model under the heterogeneous circumstances. Lastly, the fine-tuned global model is adopted for real-time inference and requests are classified and actions are taken to block or sanitize malicious inputs by the decision engine. Suitable clients are selected in every round of federation learning. There are two decision engines in the architecture, each at a different level. The local decision engine provides client side detection, for prompt response, whereas the global decision engine combines information from various clients to improve detection accuracy.

Figure 2.

Proposed hybrid federated adversarial detection framework.

3.2. Algorithm

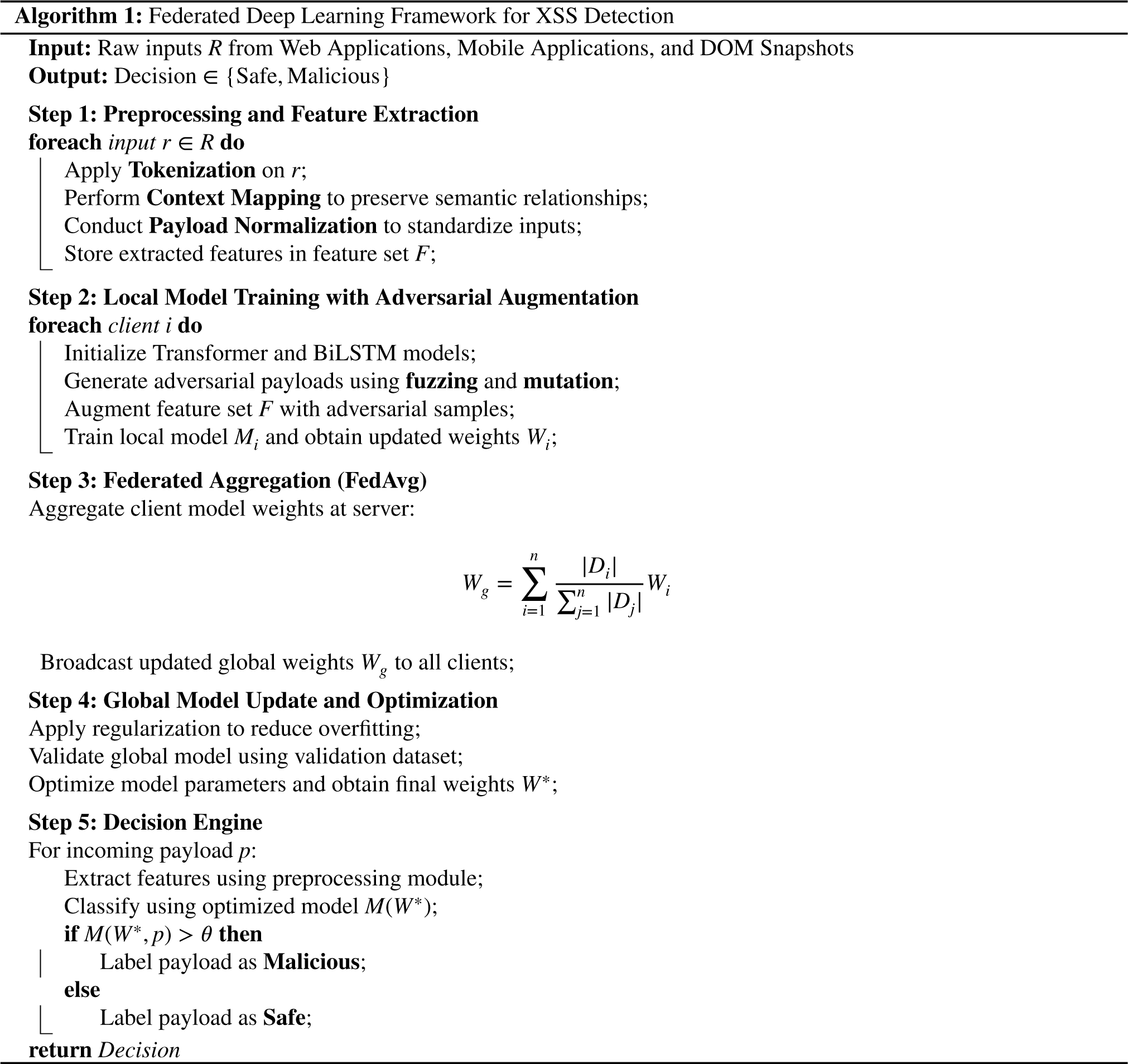

The end-to-end workflow of the proposed FedXSS-Guard framework as Algorithm 1. The overall process includes preprocessing step, locally trained adversarial augmented model training, federated aggregation, and global training to improve generalization over heterogeneous environment, followed by online decision-making to classify the incoming payloads as safe or malicious.

3.3. Mathematical model

Notation

Let $x$ denote an input payload with contextual features (e.g., DOM context, attribute scope). Each client $C_{i}$ possesses a local dataset $D_{i} = {(x, y)}$ , where $y \in {0, 1}$ . The proposed hybrid model is defined as:

f_{θ_{i}} (x) = C_{ω} (B_{ϕ} (E_{θ} (ψ (x)))),

(1)

where

ψ (\cdot)

denotes preprocessing,

E_{θ}

is the Transformer encoder,

B_{ϕ}

represents the BiLSTM layers, and

C_{ω}

is the classifier producing

p (y = 1 ∣ x)

Adversarial Augmentation

To improve robustness, an adversarial generator $g_{η}$ produces perturbed samples:

x^{a d v} = g_{η} (x),

(2)

where

g_{η}

applies mutation, obfuscation, or transformation strategies. The local objective function is defined as:

L_{i} (θ_{i}) = E_{(x, y) \sim D_{i}} [ℓ (f_{θ_{i}} (x), y)] + λ E_{(x, y) \sim D_{i}} [ℓ (f_{θ_{i}} (x^{a d v}), y)],

(3)

where

ℓ (\cdot)

denotes cross-entropy loss and

λ > 0

controls adversarial robustness.

Federated Aggregation

After local training, the global model is obtained using Federated Averaging (FedAvg):

θ_{g}^{(t)} = \sum_{i \in S_{t}} α_{i} θ_{i}^{(t)}, α_{i} = \frac{| D_{i} |}{\sum_{j \in S_{t}} | D_{j} |},

(4)

where

S_{t}

denotes the selected clients at round

t

. To enhance privacy, Gaussian noise

N (0, σ^{2} I)

may be added to model updates.

Global Optimization

The aggregated model is further refined using adversarial regularization and knowledge distillation:

\begin{aligned} θ_{g}^{*} = & \arg min_{θ} E_{(x, y) \sim \cup_{i} D_{i}} [ℓ (f_{θ} (x), y)] \\ + λ E [ℓ (f_{θ} (x^{a d v}), y)] + μ KL (p_{T} (\cdot ∣ x) ‖ p_{θ} (\cdot ∣ x)), \end{aligned}

(5)

where

p_{T}

is the teacher distribution and

μ > 0

controls the distillation strength.

Decision Rule and Constraints

The final prediction is obtained as:

\hat{y} (x) = I [f_{θ_{g}^{*}} (x) \geq τ],

(6)

where

τ \in (0, 1)

is the classification threshold. The system enforces real-time constraints

L_{rt} (x) \leq 5

ms and maintains a target false-positive rate

FPR \leq ϵ

under non-IID data distributions.

Client Selection

To ensure efficient federated learning under heterogeneous conditions, client selection is defined as:

S_{t} = \arg max_{S : | S | = K} \sum_{i \in S} κ_{i} s.t. bandwidth (S) \leq B_{t},

(7)

where

κ_{i}

represents the availability and reliability score of client

C_{i}

3.4. Threat model

The presented system assumes that there exists a remote attacker which injects malicious scripts into the inputs to perform illegitimate actions on the client-side. The attacks considered include reflected XSS, stored XSS and DOM based XSS. Attacker may formulate covert and disguised payloads by employing various encoding and transformations to circumvent known defenses. However it is assumed that the attacker have no access to any internal parameters of the model and also to the federated server. The ultimate attack site is the client’s side where stealing data or session abuse may occur. The detection system concentrates on finding the malicious input at application level, before its execution; network attacks are excluded.

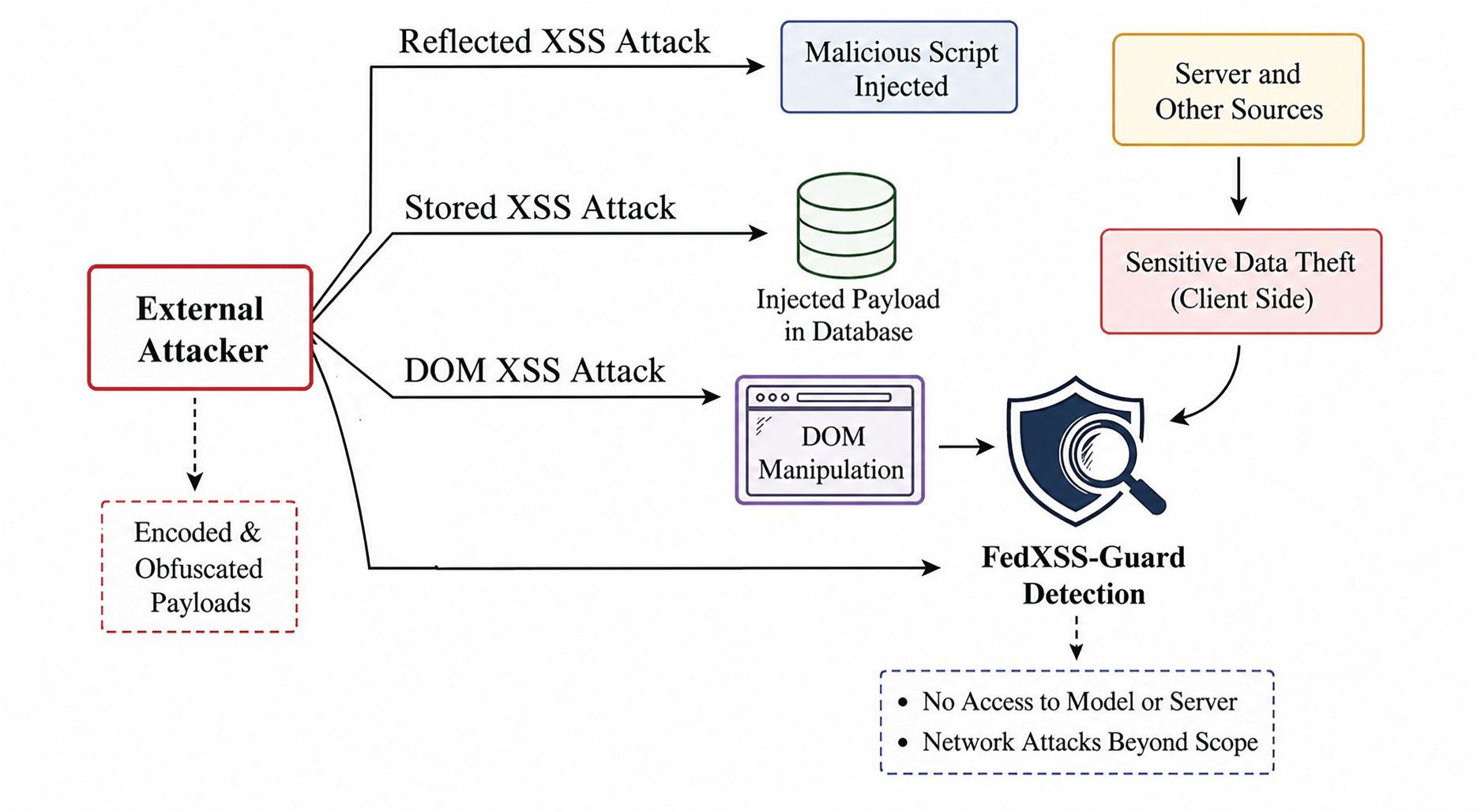

As demonstrated in Figure 3, the presented architecture has various cross site scripting attack paths and targets external attacker and aims at finding the malicious inputs before the execution.

Figure 3.

Threat model of cross site scripting attack.

3.5. Data sources and preprocessing

The efficiency of FedXSS-Guard highly depends on the diversity and quality of the raw input data. To capture realistic attack scenarios, the framework injects data from multiple domains:

Web application logs: HTTP requests and response headers collected from enterprise applications. For example, payloads such as <script>alert(’XSS’)</script> or encoded variants like %3Cscript%3Ealert(1)%3C/script%3E are extracted from server logs.

Client-side DOM structures: Document Object Model (DOM) snapshots from browsers that reveal hidden injection points, e.g., malicious JavaScript embedded within form fields or event handlers such as onerror= or onclick=.

Mobile and API payloads: Input data from mobile applications and REST APIs where injection often occurs via JSON fields or query parameters, e.g., "username":"<img src=x onerror=alert(1)>".

To ensure consistency across heterogeneous sources, preprocessing involves:

Tokenisation: Splitting payloads into tokens such as tags, attributes, and operators, enabling detection of obfuscation patterns (e.g., splitting <ScRiPt> into normalised components).

Context mapping: Preserving the structural context in which a payload appears, such as form inputs, URLs, or DOM nodes, which is critical for identifying DOM-based XSS.

Normalisation: Converting encoded or escaped characters back to canonical form (e.g., transforming < into <), ensuring that obfuscated attacks cannot bypass detection.

The combination of multi-source inputs with context-aware preprocessing dramatically improves the detection rate of known and zero-day XSS attacks, combating complex obfuscation and evasion methods developed by attackers.

3.6. Adversarial payload generator

This technique generates varieties of attack variations by incorporating various evasion techniques such as mutation-based fuzzing, obfuscation and GAN-based synthesis. This aims to mimic the realistic evasion strategies such as encoding, changing case and transforming the payload. The adversarial samples generated will be used during training to train our models, so it has to learn from both the normal and synthetic attacks. This improves the robustness to zero-day, polymorphic and obfuscated XSS attacks.

3.7. Federated aggregation

After the client has performed local training, their model updates are sent securely to the central server while the private data stays private. The framework utilizes FedAvg algorithm to aggregate all the client models to form the final global model and also caters for non-IID data distribution in different clients. The process utilizes adaptive client selection, gradient compression and secure aggregation for improved efficiency and robustness. The updated global model is then sent to all the clients again.

3.8. Design rationale and novelty

FedXSS-Guard’s design and novelty is comprised of three aspects:

Context-Aware Detection: Using transformer-based embeddings the model learns to analyze asynchronous behaviors of the DOM within Single Page Applications (SPAs) and mobile applications.

Adversarial Robustness: Through adversarial training, it is ensured that the model is not robust to polymorphic and obfuscated payloads.

Federated Privacy: Privacy of the model update is maintained without revealing the raw data to the aggregation process which allows enterprises to collaborate safely. With this design, not only drawbacks of existing XSS detection tools are avoided, FedXSS-Guard is now equipped to handle a wider web environment.

The above three components allow the system to offer scalability and adapt to future web architectures.

3.9. Global optimiser

Multi-step optimization helps to refine the world aggregate production in terms of strengthen robustness and deployment preparedness:

Adversarial regularisation allows to keep the resilience against evasion attacks such that disguised payloads as normal traffic can be detected.

Cross-client validation is added to reduce bias from dominant clients (e.g. E-commerce or banking) and hence provides a fair distribution among various use contexts of applications.

Knowledge distillationis designed to convert important representations into light models to support resource-constrained environments like IoT-enabled gateways or mobile applications without loss of performance.

With this optimization the global model achieved a stable performance level across a varied range of contexts without overfitting specific client distributions.

3.10. Decision engine

The final level of FedXSS-Guard is the decision making layer that aims to provide a real-time operation:

Attack detection: by characterizing the incoming payloads as benign or malicious using an optimized global model.

Mitigation: The XSS attempts are mitigated by automatically sanitizing or blocking the malicious requests prior to reaching the execution context.

Alerting: Security notifications are issued for the administrators in form of alert messages about the attack vectors, payloads, and injection points.

The decision engine balances the detection accuracy and operational efficiency and hence safeguards applications from proactive XSS attacks without an overwhelming number of false positives.

4. Experimental setup

4.1. Dataset selection

FedXSS-Guard is trained on a combination of public benchmark data and enterprise data to enable comprehensive and robust evaluation of the model. Public datasets include OWASP XSS Corpus (2021), XSSed Archive (2022), GitHub Payload Repository (2023) and our own enterprise logs (2024) cover various attack scenarios including reflected, DOM based, obfuscated and real world XSS attacks. Feature extraction techniques include lexical analysis (token and n-grams), structural features (DOM context), Transformer based embedding and indicators of obfuscation (encoding scheme). Three aspects were evaluated: detection accuracy, robustness against attacks and deployment efficiency.

4.2. Dataset preparation and transparency

The publicly available XSS benchmark datasets are utilized, as well as anonymous logs of web traffic within an enterprise. For the enterprise dataset, labeling was performed with rule-based filtering followed by manual check. All personally sensitive information was stripped from the data during preprocessing in order to protect information. The dataset contains both benign and malicious payload examples for each case so as to realistically depict traffic as is present in the world, and is kept private because of Non-Disclosure agreements, which prevents sharing, but publicly available data allows for repeatable experimental results by other researchers.

4.3. Preprocessing

The preprocessing pipeline produces a high quality input representation out of the raw logs and samples.The essential steps performed are:

Deduplication (unique sampleset)

Tokenisation (context-aware tokenisation of payload strings to retain structure and context)

Normalisation (uniform encoding format for malicious payloads)

The model training uses stratified sampling so that benign and malicious samples are balanced.Feature extraction consists of lexical, structural, semantic and adversarial features. All these features are extracted from all the samples.

4.4. Federated experimental protocol

The Proposed framework is tested under 10 clients that have local datasets in federated learning setting. It is used non-IID data distribution with diversity based on payload size. The total communication rounds used for training are 50 and every round randomly 70 percent of the clients are chosen. With selected clients the number of local epochs is 3 and mini-batch size is 32 with learning rate 0.001. Model updates are shared to the center server for each round and aggregated by the federated averaging algorithm at center server once every communication round. The size of model update is the set of shared parameters. The communication overhead is the set of exchange parameters for each round between client and center server.

4.5. Adversarial sample generation

To develop a robust model, adversarial samples were generated through a combination of mutations and obfuscations. Techniques used in generating adversarial samples include variations of encoding transformations, script injections, and payloads reformulations. These methods are derived from real-world evasions methods. A constant percentage of adversarial samples are injected to the training data per communication rounds in order to simulate time-varying attack patterns. The model is trained to learn features that are invariant and develop an ability to detect new and obfuscated XSS payloads.

4.6. Dataset description

Dataset Description was expanded to make it more clear and transparent with respect to the experimental setup. The additional description contains information such as the source of the data, contents of the samples, distribution of classes, preprocessing techniques applied, labeling procedure and splitting of the train-test data. The descriptions of the benchmark dataset available on public domain and anonymized enterprise dataset were also explained in more detail.

Table 2 presents the summary of datasets, features categories and their usage in judging the efficiency of proposed FedXSS-Guard framework. For evaluation purpose of base accuracy, real world exploit and robustness of framework against adversary, publicly available benchmark dataset was used. Anonymized log was collected for assessing applicability of the framework in live environment. Use of heterogeneous data set facilitates an unbiased and thorough performance measurement.

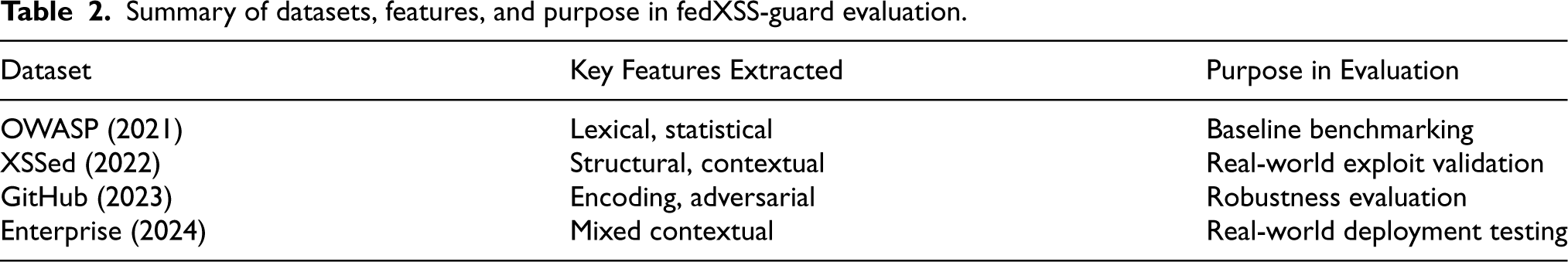

Table 2.
Summary of datasets, features, and purpose in fedXSS-guard evaluation.

Dataset Key Features Extracted Purpose in Evaluation

OWASP (2021) Lexical, statistical Baseline benchmarking

XSSed (2022) Structural, contextual Real-world exploit validation

GitHub (2023) Encoding, adversarial Robustness evaluation

Enterprise (2024) Mixed contextual Real-world deployment testing

Dataset	Key Features Extracted	Purpose in Evaluation
OWASP (2021)	Lexical, statistical	Baseline benchmarking
XSSed (2022)	Structural, contextual	Real-world exploit validation
GitHub (2023)	Encoding, adversarial	Robustness evaluation
Enterprise (2024)	Mixed contextual	Real-world deployment testing

Table 3 contains statistical information about datasets used in this research: the number of benign/malicious samples, the proportions of train, validation and test sets, and information regarding deduplication. 70% for training, 15% for validation, and 15% for testing was used in all datasets so models could be fairly trained and evaluated. Duplicated records were eliminated in order to mitigate the sampling bias and enhance data quality. A balanced distribution between benchmark and enterprise datasets guarantees appropriate validation across varying working conditions.

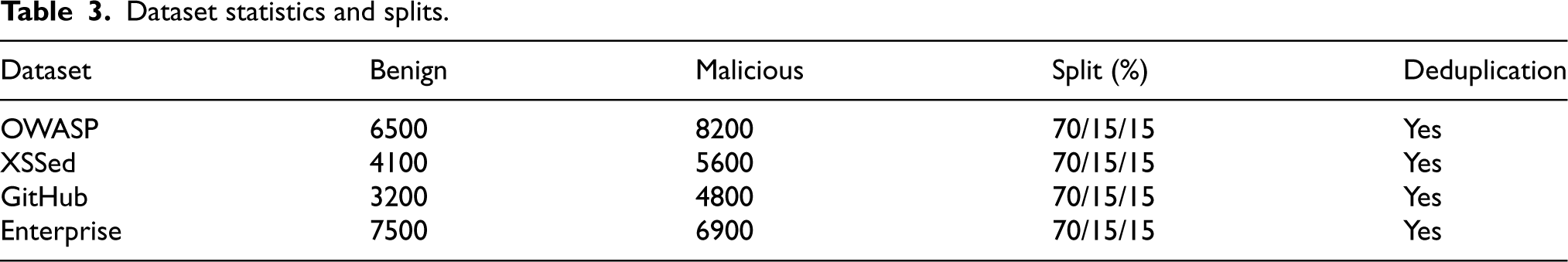

Table 3.

Dataset statistics and splits.

Dataset	Benign	Malicious	Split (%)	Deduplication
OWASP	6500	8200	70/15/15	Yes
XSSed	4100	5600	70/15/15	Yes
GitHub	3200	4800	70/15/15	Yes
Enterprise	7500	6900	70/15/15	Yes

4.7. Implementation environment

The experimental testbed is illustrated in Table 4 below, built around a hybrid server/client architecture with GPU enabled computing power andcontainerised clients.

Table 4.
Experimental testbed configuration.

Component Configuration

OS Ubuntu 22.04 LTS

Language Python 3.9

Framework TensorFlow, Keras

FL Library TensorFlow Federated

Server NVIDIA A100, 64 GB RAM

Clients Docker Containers

Network Simulated WAN

Component	Configuration
OS	Ubuntu 22.04 LTS
Language	Python 3.9
Framework	TensorFlow, Keras
FL Library	TensorFlow Federated
Server	NVIDIA A100, 64 GB RAM
Clients	Docker Containers
Network	Simulated WAN

The experimental testbed that was used to demonstrate the proposed FedXSS-Guard framework is shown in Table 4. It was implemented under Ubuntu 22.04 using Python 3.9 with TensorFlow, Keras and TensorFlow Federated for distributed training. High-performance server with NVIDIA A100 GPU, 64GB RAM was used to centrally manage, while client environment was emulated with Docker containers over simulated WAN.

4.8. Baselines for comparison

FedXSS-Guard is compared against few representative state-of-the-art detection approaches which include CNN, BiLSTM, CNN-LSTM hybrid models, and also classic ML models like SVM and Random Forest. It can be seen that both generations of XSS detection approaches, classic and deep learning are included in the baseline detection schemes. The comparative results have also shown that FedXSS-Guard has better context learning ability, robustness toward adversarial payload and scalability for the distributed setting. Ethical Considerations: All experiments were conducted using publicly available benchmark datasets and fully anonymized enterprise logs. No personally identifiable, confidential, or organization-sensitive information was accessed or disclosed during the study.

5. Resuts and discussion

5.1. Baseline comparison

The selection of baselines covers a range of detection methods from classical rules to recent deep learning methods. The baseline models were trained on the same dataset, the same splitting, the same pre-processing and tested with the same testing criteria to guarantee a fair and consistent evaluation.

As shown in Table 5, XSS detection has undergone several types of evolution from rule based, traditional ML to deep learning. Federated learning with adversarial robustness proposed as FedXSS-Guard has advanced XSS detection in distributed environments where detection can be made on the edge device with privacy concern.

Table 5.
Comparison of baseline methods.

Method Features Used Learning Paradigm

Rule-based Filtering Pattern rules, signatures Static rules

Random Forest⁹ Statistical + lexical features Classical ML

ML-based XSS Detection^4,8 Payload features Machine Learning

BiLSTM Model¹⁰ Sequential features Deep Learning

BERT-based Model¹¹ Contextual embeddings Transformer-based DL

Hybrid DL Model³² Context + sequence features Hybrid Deep Learning

Proposed FedXSS-Guard Context + sequence + adversarial Federated Hybrid DL

Method	Features Used	Learning Paradigm
Rule-based Filtering	Pattern rules, signatures	Static rules
Random Forest⁹	Statistical + lexical features	Classical ML
ML-based XSS Detection^4,8	Payload features	Machine Learning
BiLSTM Model¹⁰	Sequential features	Deep Learning
BERT-based Model¹¹	Contextual embeddings	Transformer-based DL
Hybrid DL Model³²	Context + sequence features	Hybrid Deep Learning
Proposed FedXSS-Guard	Context + sequence + adversarial	Federated Hybrid DL

5.2. Overall performance comparison

To evaluate the effectiveness of FedXSS-Guard, its performance was benchmarked against state-of-the-art baselines, including traditional machine learning models and modern deep learning architectures. Table 6 presents the comparative results across multiple evaluation metrics.

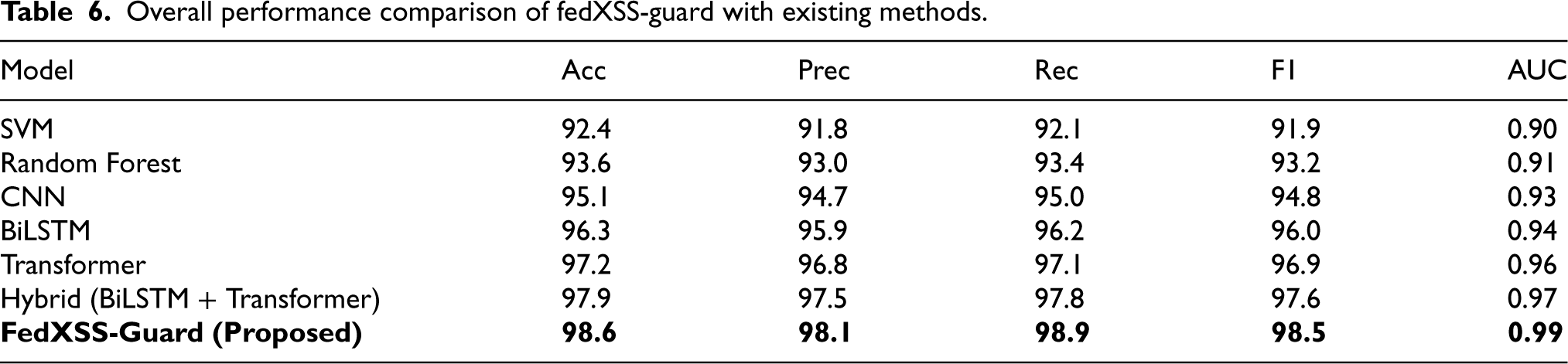

Table 6.
Overall performance comparison of fedXSS-guard with existing methods.

Model Acc Prec Rec F1 AUC

SVM 92.4 91.8 92.1 91.9 0.90

Random Forest 93.6 93.0 93.4 93.2 0.91

CNN 95.1 94.7 95.0 94.8 0.93

BiLSTM 96.3 95.9 96.2 96.0 0.94

Transformer 97.2 96.8 97.1 96.9 0.96

Hybrid (BiLSTM + Transformer) 97.9 97.5 97.8 97.6 0.97

FedXSS-Guard (Proposed) 98.6 98.1 98.9 98.5 0.99

Model	Acc	Prec	Rec	F1	AUC
SVM	92.4	91.8	92.1	91.9	0.90
Random Forest	93.6	93.0	93.4	93.2	0.91
CNN	95.1	94.7	95.0	94.8	0.93
BiLSTM	96.3	95.9	96.2	96.0	0.94
Transformer	97.2	96.8	97.1	96.9	0.96
Hybrid (BiLSTM + Transformer)	97.9	97.5	97.8	97.6	0.97
FedXSS-Guard (Proposed)	98.6	98.1	98.9	98.5	0.99

A comparative study of FedXSS-Guard and conventional machine learning and deep learning based approaches is presented in Table 6. Though, classical methods like SVM and Random Forest demonstrate an acceptable performance they are poor in recall and precision. Various deep learning models such as CNN, BiLSTM and Transformers were proposed which exhibit better detection rate in the range, however, the BiLSTM Transformer further enhances understanding of context and the novel FedXSS-Guard exhibits the highest accuracy (98.6%), recall (98.9%) and AUC (0.99).

Table 6 demonstrates the comparison of FedXSS-Guard’s result against classical machine learning and deep learning models.Classical methods: SVBand Random Forest obtain fair accuracy but the recall and precision can not satisfy requirements. Deep learning models:CNN, BiLSTM and Transformer. These models reveal the strong capability of XSS detection. The deep learning models are all better than classical methods. The BiLSTM-Transformer model can encode long context more,which greatly improves accuracy.FedXSS-Guard obtains the highest score, with 98.6% accuracy, 98.9% recall, precision 98.1%, F1 score 98.5% and 0.99 AUC. The overall performance of all models is shown in Figure 4, where the results for important metrics such as accuracy, precision, recall, F1-score, and AUC are represented. It can be clearly seen from the figure that FedXSS-Guard performs better than baseline models, and particularly shows improved recall (98.9%), reducing the miss detection of XSS attacks. This illustrates the ability of FedXSS-Guard combining federated learning, hybrid deep architecture, and adversarial training to protect the system and demonstrate the excellent ability to detect XSS. BiLSTM-Transformer which can encode long context improves more.FedXSS-Guard performs best with 98.6% accuracy, 98.9% recall,Precision 98.1%, F1 Score 98.5% and 0.99 AUC indicating its strong robustness and scalability.

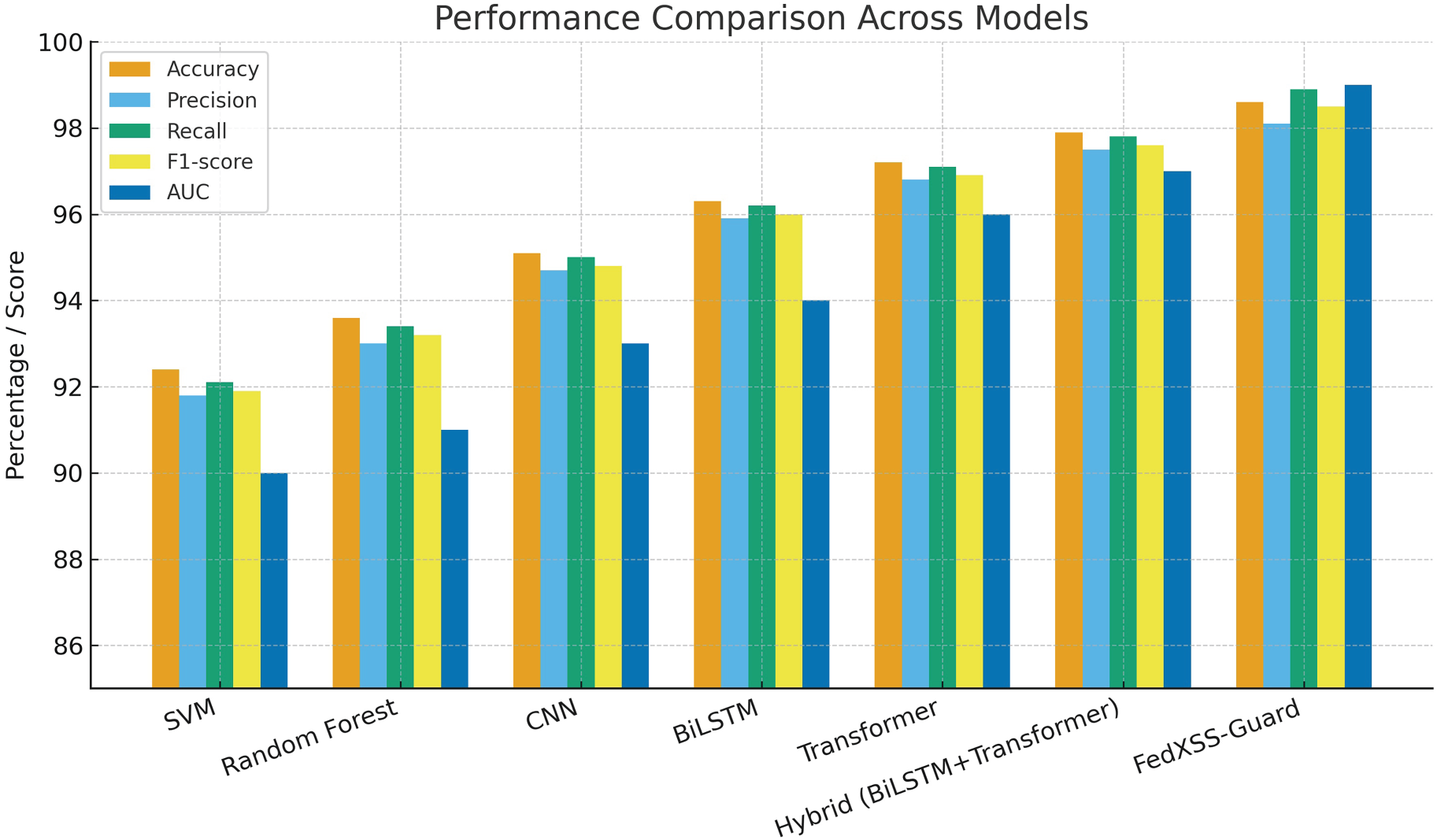

Figure 4.

Performance comparison of FedXSS-Guard with baseline models across multiple metrics.

5.3. Per-domain results

To validate generalisation, datasets were evaluated separately (Table 7). FedXSS-Guard consistently outperformed baselines across SPAs, WebView, and IoT contexts.

Table 7.
Domain-specific performance of fedXSS-guard.

Domain Acc Rec F1

Single Page Apps (SPAs) 98.3 98.7 98.4

Mobile WebView Apps 98.1 98.5 98.3

IoT Dashboards 97.9 98.2 98.0

Domain	Acc	Rec	F1
Single Page Apps (SPAs)	98.3	98.7	98.4
Mobile WebView Apps	98.1	98.5	98.3
IoT Dashboards	97.9	98.2	98.0

Table 7 shows domain-specific performances for FedXSS-Guard. For SPAs, the accuracy, recall and F1-score of FedXSS-Guard is 98.3%, 98.7% and 98.4%, respectively, highlighting that it could leverage DOM context features. For Mobile WebView, the values of accuracy, recall and F1-score are 98.1%, 98.5% and 98.3%, respectively. In addition, FedXSS-Guard achieve slightly weaker performance on IoT dashboards but are still very competitive, 97.9% accuracy, 98.2% recall and 98.0% F1-score, which shows it is stable for resource-limited environment. Figure 5 presents the comparison between FedXSS-Guard in various domains. From the graph, it’s observed that the performance is steady and SPAs gain high recall rate. Both the metrics for Mobile WebView and IoT reach to above 97.9%, and proves the framework’s strong adaptability to all kind of systems.

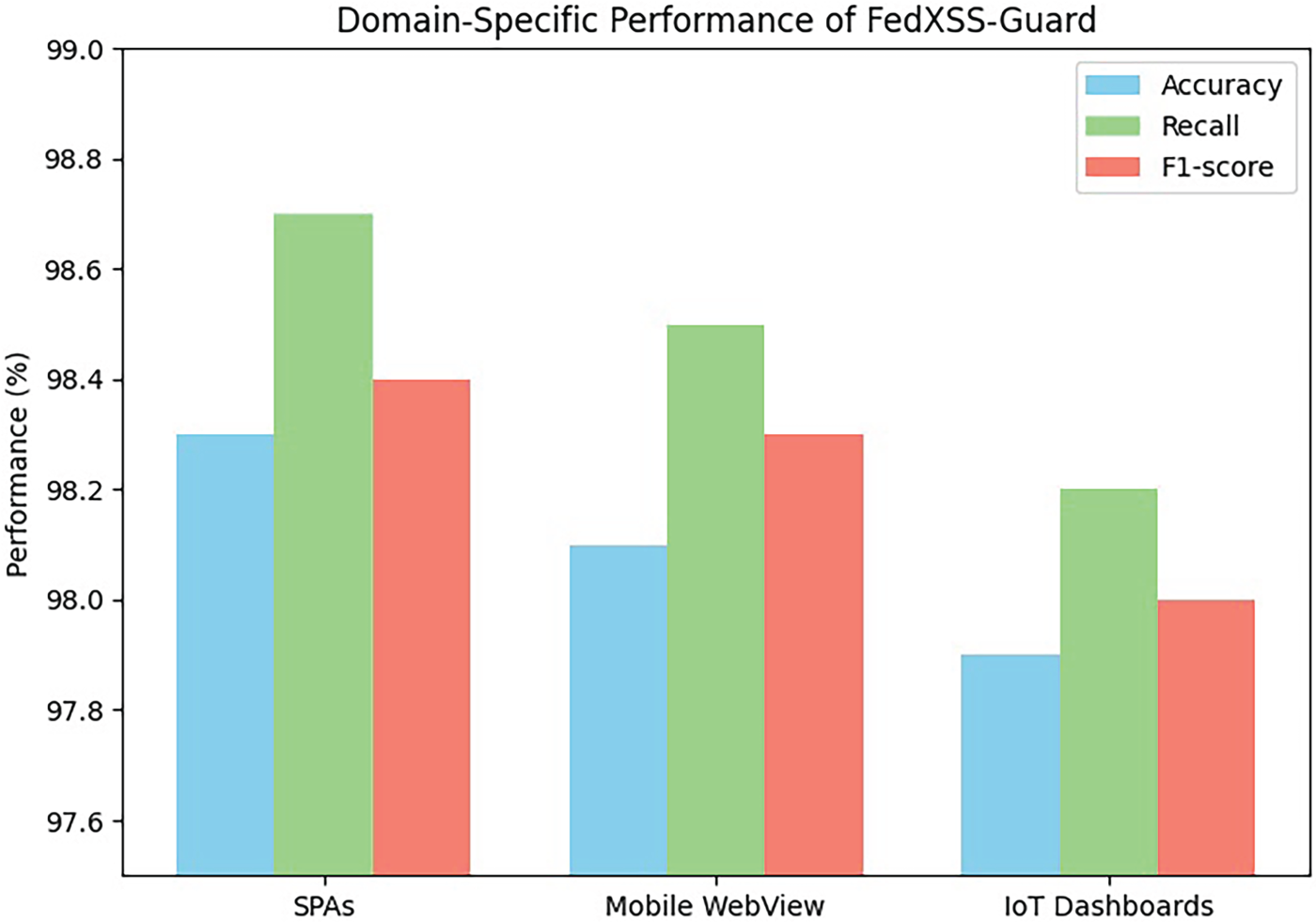

Figure 5.

Domain-specific performance comparison of FedXSS-Guard across SPAs, Mobile WebView apps, and IoT dashboards.

5.4. Confusion matrix

A confusion matrix is often used to measure the effectiveness of a classification model which gives a detailed summary of the prediction performance of the model by classifying the prediction into true and false predictions. Table 8 presents the generic structure of a confusion matrix, while Figure 6 illustrates the specific confusion matrix obtained from the evaluation of FedXSS-Guard.

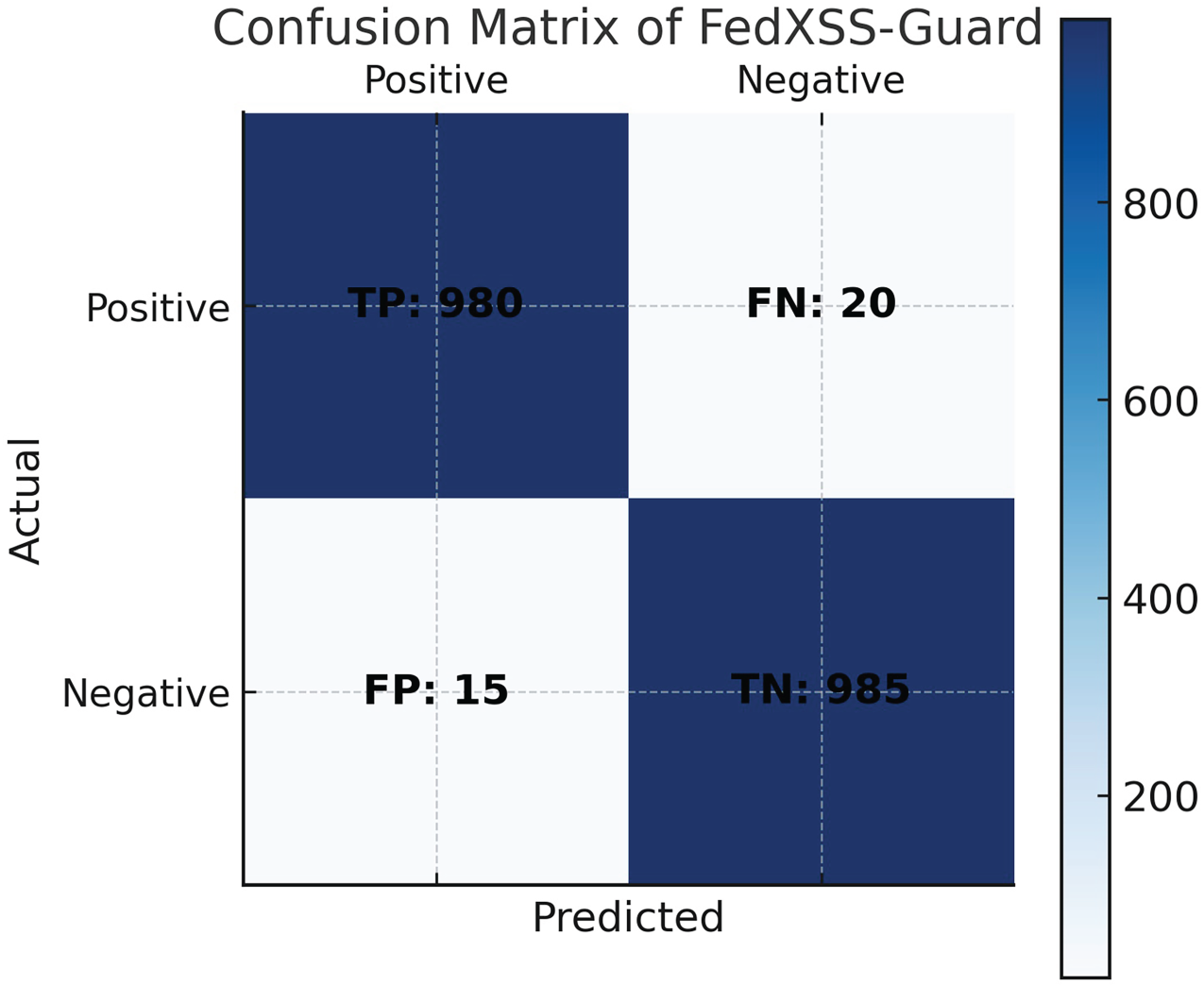

Figure 6.

Confusion Matrix of FedXSS-Guard.

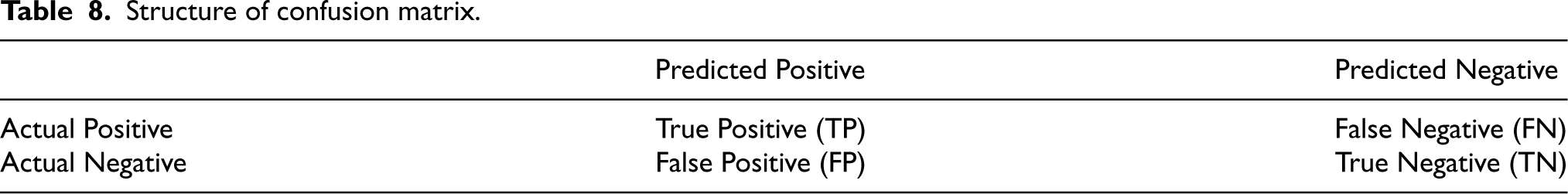

Table 8.

Structure of confusion matrix.

	Predicted Positive	Predicted Negative
Actual Positive	True Positive (TP)	False Negative (FN)
Actual Negative	False Positive (FP)	True Negative (TN)

The matrix components are defined as follows:

True Positive (TP): Malicious payloads that are correctly identified as malicious by the model.

True Negative (TN): Benign payloads that are correctly identified as benign.

False Positive (FP): Benign payloads that are incorrectly flagged as malicious, resulting in false alarms.

False Negative (FN): Malicious payloads that are misclassified as benign, representing missed detections or undetected attacks.

The confusion matrix in Figure 6 shows the visual representation of the performance of FedXSS-Guard in classification. The increased number of TP and TN implies that the model can be useful to not only detect attacks but also reduce false alarms. On the other hand, both false positives and false negatives are very crucial because low numbers of FP and FN can be important in practice situations where false alarms can result in unnecessary changes, whereas false negatives can result in security threats evading the system. The balance of sensitivity and specificity presented in the matrix is high, which indicates how robust FedXSS-Guard is.

5.5. ROC curve analysis

To further evaluate the classification performance of FedXSS-Guard, Receiver Operating Characteristic (ROC) curves are utilized. Figure 7 presents a comparative analysis of ROC curves for FedXSS-Guard and several baseline models.

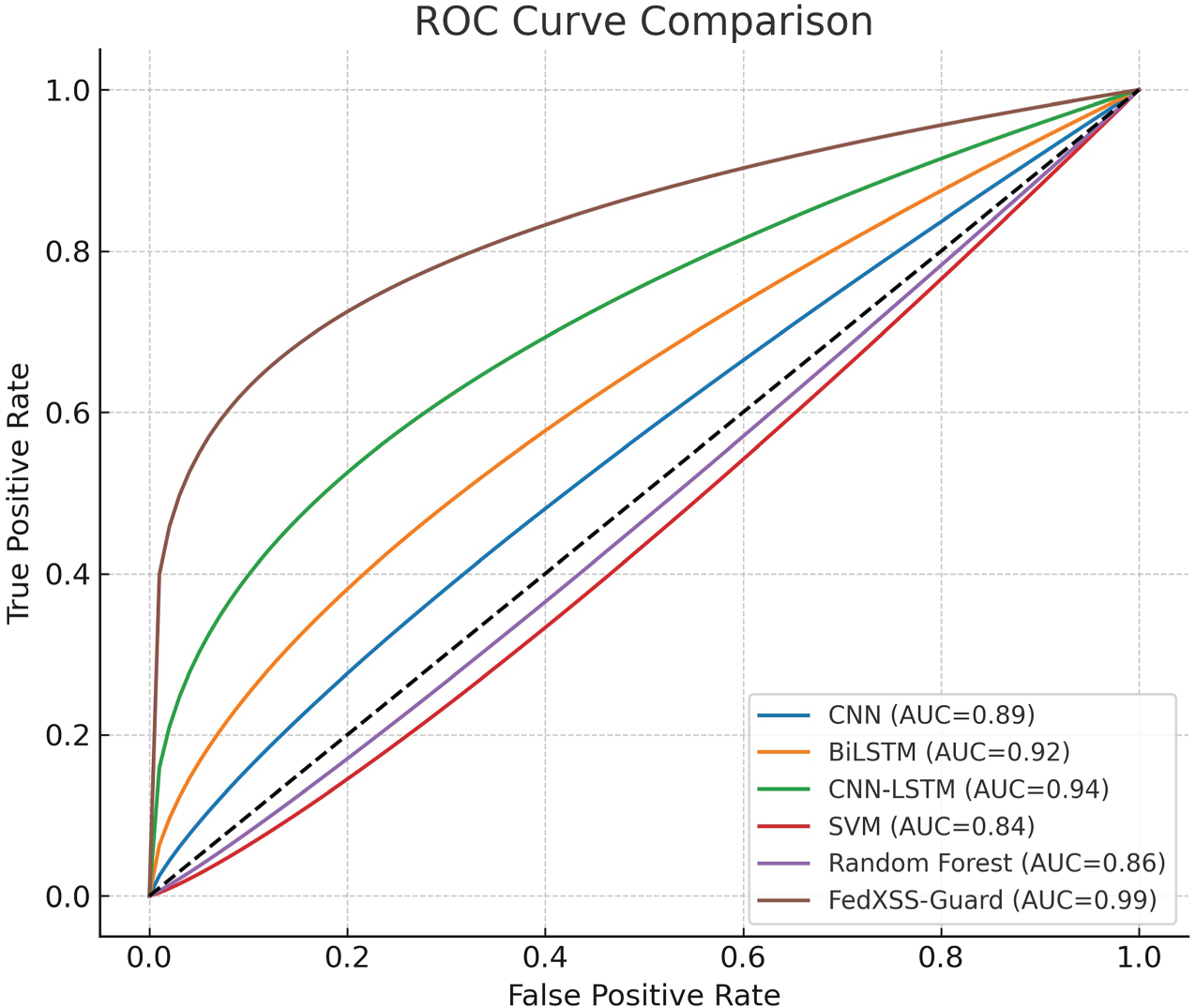

Figure 7.

ROC curve comparison of FedXSS-Guard with baseline models.

The ROC curve is the graph that shows the True Positive Rate (TPR) versus the False Positive Rate (FPR) of the different threshold settings. The Area Under the Curve (AUC) is used to measure the power of the model to discriminate among classes. The AUC value of 1.0 means the perfect classification, and the AUC of 0.5 corresponds to the random guessing.

FedXSS-Guard has AUC of more than 0.98 which proves superior discriminating ability. It means that the model is very effective in accurately separating between malicious and benign inputs of all thresholds. The baseline models on the contrary have lesser scores in the AUC and deteriorate in performance when subjected to adversarial generated payloads.

The superior performance of FedXSS-Guard is attributed to two main factors:

Adversarial Payload Generator: Enhances robustness by introducing challenging examples during training, enabling the model to learn generalized attack patterns.

Federated Aggregation: Combines knowledge from multiple distributed clients without sharing raw data, improving detection capabilities while preserving privacy.

The analysis of ROC curve shows that FedXSS-Guard is not only stable in the normal environment, but also stable in the adversarial environment, and can be a reliable and secure tool in detecting XSS attacks in real-life settings.

5.6. Latency evaluation

Real-time performance was measured by processing 100k requests. Both median (p50) and tail latency (p95) were recorded. Table 9 shows results across environments.

Table 9gives latency distribution in three deployment environments. The median and tail latency of GPU servers are the lowest, which implies their applicability to high-throughput applications. Edge CPUs have a moderate latency that can be used in enterprise-scale applications. Mobile ARM solutions have somewhat higher values, however, below the 10ms mark, making it useful in lightweight real time applications. Figure 8 visually compares median (p50) and tail (p95) latencies. It underlines how performance varies between the use of a GPU based server and the use of a resource limited device and establishes that the proposed FedXSS-Guard framework invariably achieves less than 10ms latency on all platforms even with the demands of real-time detection. The reported sub $-$ 5 ms latency was obtained using a GPU-enabled system. In practical deployments with limited computational resources, latency may increase. However, optimization techniques such as model compression and efficient inference can help maintain acceptable performance in real-world environments.

5.7. Ablation study of model components

An ablation study is also performed to demonstrate the importance of each component in our proposed framework. The proposed framework is experimented by taking away each component one by one, i.e., the contribution of Transformer based contextual learning, BiLSTM based sequential learning, federated learning and adversarial training. Experiments are performed with all settings identically.

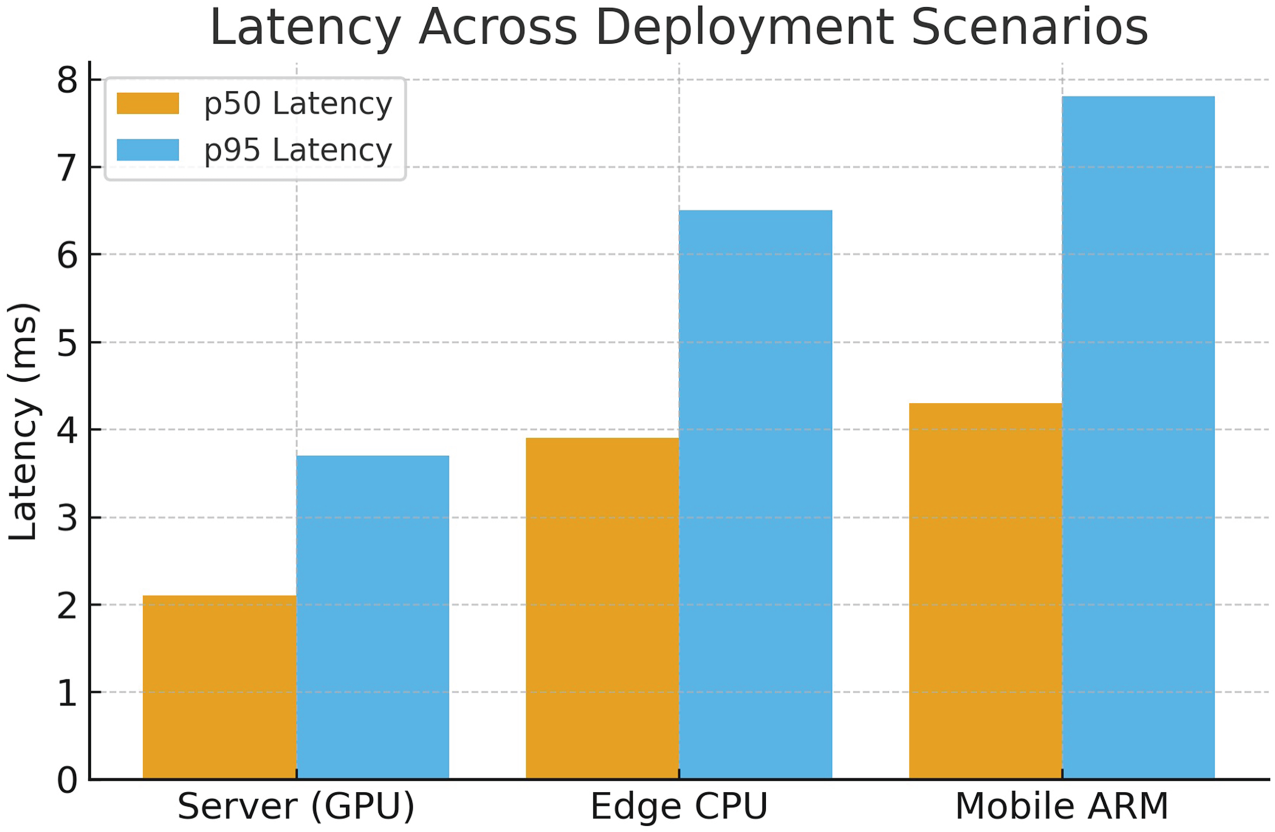

Figure 8.

Latency comparison across deployment environments.

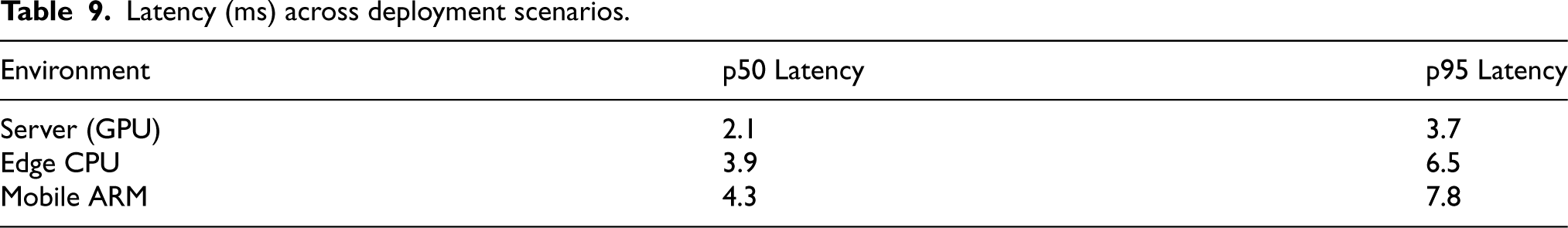

Table 9.

Latency (ms) across deployment scenarios.

Environment	p50 Latency	p95 Latency
Server (GPU)	2.1	3.7
Edge CPU	3.9	6.5
Mobile ARM	4.3	7.8

As we see in Table 10, the removal of each module reduces the performance to a certain extent. Specifically, removing adversarial training will make model perform poorly on obfuscated payloads and removing federated learning will make model less capable in distributed data. When Transformer or BiLSTM module is removed, the performance also decreased. Therefore, each module has important impact on the entire system.

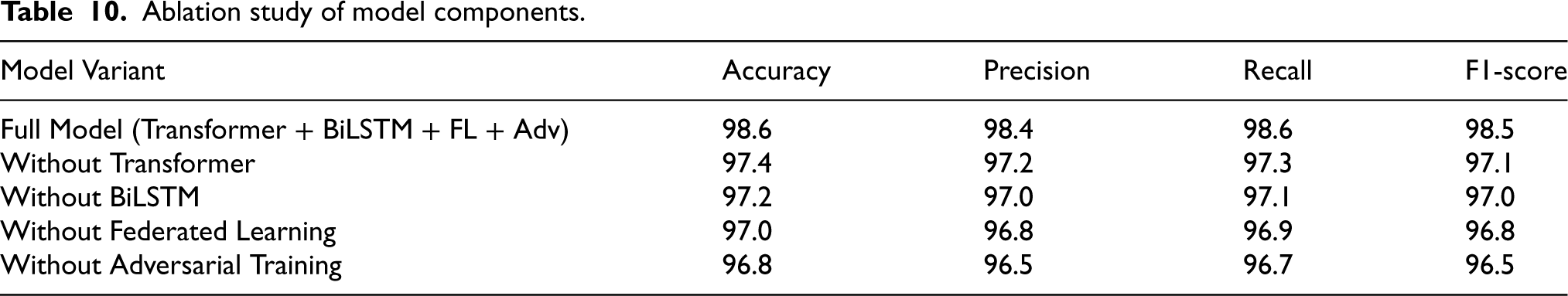

Table 10.

Ablation study of model components.

Model Variant	Accuracy	Precision	Recall	F1-score
Full Model (Transformer + BiLSTM + FL + Adv)	98.6	98.4	98.6	98.5
Without Transformer	97.4	97.2	97.3	97.1
Without BiLSTM	97.2	97.0	97.1	97.0
Without Federated Learning	97.0	96.8	96.9	96.8
Without Adversarial Training	96.8	96.5	96.7	96.5

The ablation analysis is demonstrated in Table 10 where the proposed models are obtained by removing the component one by one. It is obvious that the whole framework system has best performance among all the decreased models.

Figure 9 shows an comparison between model variants in the ablation scenario. As we can see, the full model performs better than any other variant, and the accuracy and F1-score and other values are always decreases as a certain component is removed. By comparing with models where components is removed, we can find that adversarial training significantly weakens the robustness, and federal learning decreases the generalization performance in distributed data. Therefore, all the components in the proposed frame work are important.

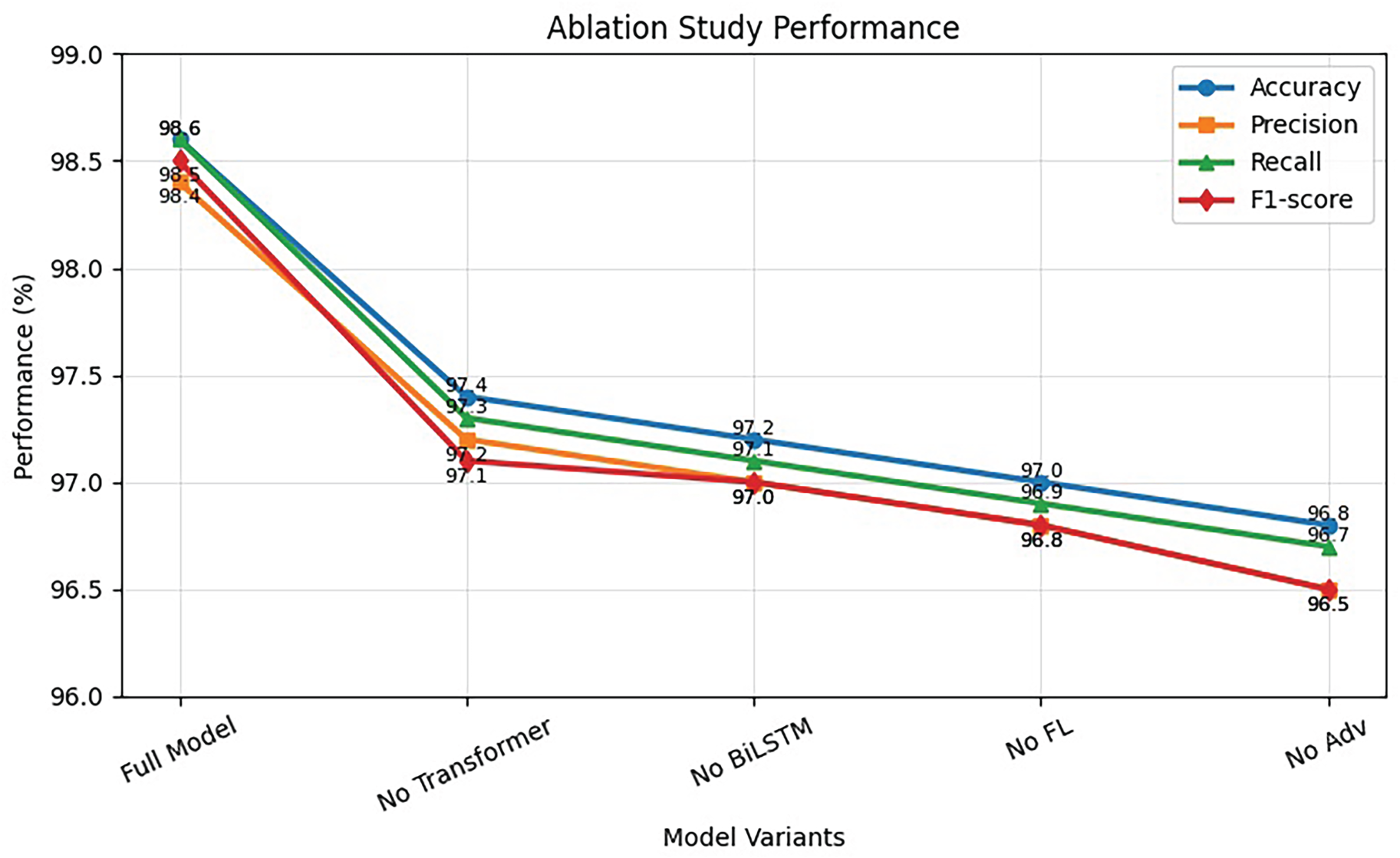

Figure 9.

Ablation study to demonstrate the effectiveness of each component in the proposed FedXSS-Guard framework.

5.8. Evaluation strategy and robustness testing

Cross-dataset evaluation is conducted to confirm the generalizability performance of the proposed model under varied data distributions. Moreover, robustness is tested via adversarials tests to prove that the system could also be successful at detecting mutated and evolved attack pattern. All tests are conducted over multiple runs and are presented as the average results. The standard deviation of performance has also a very narrow range thus confirm the robustness and consistency.

Performance is presented as average results with very small range on standard deviation, which can verify robustness and stability.

Performance evaluation is tested across several datasets, in order to assess the generalisation over different data distribution.

Adversarial robustness has been tested over mutated and obfuscated payloads which simulates real-world attack circumstances.

Recent federated learning and deep learning-based researches are included for the comparative study.

5.9. Limitations and future work

The FedXSS-Guard framework provides effective performance; however, there are some limitations to address:

For a large number of clients, communication overhead and the training duration in the federated environment can become an issue.

The quality of feature extraction and pre-processing might affect model performance differently depending on how it is deployed.

This implementation doesn’t leverage some other formal privacy preservation methods such as differential privacy to ensure higher levels of privacy.

Future research can target scalability using optimization techniques in aggregation, remove the dependency on feature engineering manually, and add more privacy assurance methods.

6. Conclusion

This article presented FedXSS-Guard, a federated hybrid deep learning framework designed to provide robust, context-aware, and privacy-preserving detection of cross-site scripting (XSS) attacks. The framework integrates Transformer encoders, BiLSTM layers, and adversarial training, enabling it to capture both sequential and contextual patterns while resisting zero-day and mutation-based payloads. A diverse set of datasets, including OWASP corpus, XSSed archive, GitHub repositories, and enterprise traffic logs, was employed to ensure balanced evaluation across synthetic benchmarks and real-world scenarios such as SPAs, mobile WebViews, and IoT dashboards. Comprehensive feature engineering spanning lexical, structural, contextual, statistical, and semantic features further reinforced the realism of the evaluation. Experimental results demonstrated that FedXSS-Guard consistently outperformed conventional baselines, achieving an accuracy of 98.6%, precision of 98.1%, recall of 98.9%, F1-score of 98.5%, and AUC of 0.99, while maintaining sub $-$ 5ms detection latency across server, edge, and mobile deployments. These findings confirm the framework’s suitability for real-time enterprise environments. Compared to prior work, the novelty lies in combining federated privacy-preserving collaboration, adversarial robustness, and transformer-driven contextual modelling within a single deployable system. The future will involve designing a bigger benchmark set for both SPA and mobile scenarios, lightweight deployment and optimization in edge and IoT devices and generalizing the framework for other clients-side attacks such as CSRF and DOM-based injections. FedXSS-Guard thus provides an efficient defense mechanism for XSS but more importantly a basis for new web security frameworks.

Footnotes

Funding

The author(s) received no financial support for the research, authorship and/or publication of this article.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

ORCID iDs

Mudanahalli Bhaskarachar Bharath

Nalla Ramaswamy Latha

References

OWASP Foundation, “OWASP Top 10 Web Application Security Risks–2021,” OWASP. 2021. [Online]. Available: https://owasp.org/Top10/.

MITRE. “CWE-79: Improper Neutralization of Input During Web Page Generation (‘Cross-Site Scripting’),” MITRE. 2022. [Online]. Available: https://cwe.mitre.org/data/definitions/79.html.

Verizon. “2022 Data Breach Investigations Report,” Verizon. 2022. [Online]. Available: https://www.verizon.com/business/resources/reports/dbir/.

Gupta

Chauhan

. Detecting cross-site scripting attacks using machine learning techniques. Comput Sec 2021; 109: 102393.

Liu

Sun

Wang

. DOM-based XSS detection in single page applications using dynamic taint analysis. J Inform Sec Appl 2021; 64: 103050.

Althobaiti

. A survey of cross-site scripting attack detection techniques in web applications. IEEE Access 2021; 9: 161005.

Zhang

Wei

. Cross-site scripting in mobile webView applications: A study and defense mechanism. Future Gener Comput Syst 2021; 125: 389–400.

Kuppusamy

Srinivasan

. Machine learning based classification of XSS payloads. Int J Inform Sec 2022; 21: 563–578.

Singh

Sharma

. Random forest classifier for detecting malicious javaScript payloads. J Cybersec 2022; 8: 563–578.

10.

Zhang

Chen

. BiLSTM-based detection of cross-site scripting attacks in HTTP requests. Appl Intell 2022; 52: 14321–14336.

11.

Rahman

Mahmood

Tariq

. BERT-based approach for web application attack detection. Knowl Based Syst 2022; 257: 109904.

12.

Feng

. Context-aware deep learning for detecting script injection attacks. IEEE Trans Inform Forens Sec 2022; 17: 2845–2859.

13.

Zhang

Luo

Wang

. Adversarial evasion of web application firewalls. Comput Sec 2022; 123: 102894.

14.

Wang

Jiang

. Evaluating the robustness of deep learning models for web attack detection. Future Gener Comput Syst 2022; 132: 220–231.

15.

Zhou

. Adversarial attacks on deep neural networks for web security. IEEE Access 2022; 10: 132505.

16.

Liu

. Resilient XSS detection under payload mutation attacks. Appl Soft Comput 2022; 121: 108771.

17.

Sharma

Kumar

. Privacy-preserving techniques for web security datasets. J Inform Sec Appl 2022; 71: 103340.

18.

Ahmed

Qureshi

. Collaborative web intrusion detection challenges. Comput Sec 2022; 124: 102961.

19.

Yang

Liu

Chen

. Federated machine learning: Concept and applications. ACM Trans Intell Syst Technol 2022; 13: 1–37.

20.

Aledhari

Razzak

Hussain

, et al. Federated learning: A survey on enabling technologies, protocols, and applications. IEEE Access 2021; 8: 140699.

21.

Xie

Chen

. Federated learning for malware detection in ioT networks. IEEE Int Things J 2022; 9: 8766–8777.

22.

. A federated intrusion detection system for edge computing. Future Gener Comput Syst 2022; 135: 297–309.

23.

Gao

Zhang

. Low-latency deep learning models for web application firewalls. J Syst Archit 2023; 134: 102761.

24.

Lin

. Performance evaluation of ML-based WAFs in high throughput environments. IEEE Trans Dependable Secure Comput 2023; 20: 1143–1157.

25.

Khan

. Deployment challenges of DL-based security solutions. IEEE Access 2023; 11: 5012–5027.

26.

Chen

. Context-aware ML for security in web applications. J Inform Sec Appl 2023; 74: 103360.

27.

Wang

Zhang

. Improving XSS detection with contextual embeddings. Comput Sec 2023; 126: 103078.

28.

Luo

. Sanitisation-aware ML models for web payloads. Knowl Based Syst 2023; 268: 110318.

29.

Yadav

Singh

. Federated deep learning framework for privacy-preserving web security. Future Gener Comput Syst 2023; 143: 155–169.

30.

Patel

Sharma

. Adversarial robustness testing for XSS detection models. Appl Intell 2023; 53: 20412–20425.

31.

Zhou

. Evaluating web attack detection in single page applications. J Syst Software 2023; 201: 111707.

32.

Prakash

Bose

. Hybrid deep learning for robust XSS mitigation in modern web. Inf Sci (Ny) 2024; 639: 119039.

33.

Huang

. Context-aware deep transformers for injection attack detection. IEEE Access 2023; 11: 67015–67027.

34.

Hussain

Wong

. Towards real-time context-aware federated models for cross-site scripting defense. IEEE Access 2024; 12: 84512–84525.

35.

Kumar

Singh

. Detection of DOM-based cross-site scripting vulnerabilities using static analysis. J King Saud Univ–Comput Inform Sci 2022; 34: 6827–6839.

36.

Chen

. Federated Adversarial Learning for Web Security Applications. IEEE Trans Inform Forens Sec 2024; 19: 1645–1659.

37.

Tregi

Al-Zubaidie

. Enhancing Traffic Data Security in Smart Cities Using Optimized Quantum-Based Digital Signatures and Privacy-Preserving Techniques. Mesopot J CyberSec 2025; 5(1): 256–272.

Privacy-preserving federated hybrid deep learning framework for robust cross-site scripting detection in distributed web applications

Abstract

Keywords

1. Introduction

1.1. Key contributions

1.2. Motivation

1.3. Organisation of the article

2. Literature survey

2.2. Problem statement

2.3. Proposed solution

2.4. Novelty of proposed system

3. Proposed methodology

3.3. Mathematical model

Notation

Adversarial Augmentation

Federated Aggregation

Global Optimization

Decision Rule and Constraints

Client Selection

3.6. Adversarial payload generator

3.7. Federated aggregation

3.8. Design rationale and novelty

3.9. Global optimiser

3.10. Decision engine

4. Experimental setup

4.1. Dataset selection

4.2. Dataset preparation and transparency

4.3. Preprocessing

4.4. Federated experimental protocol

4.5. Adversarial sample generation

4.6. Dataset description

Table 4. Experimental testbed configuration. Component Configuration OS Ubuntu 22.04 LTS Language Python 3.9 Framework TensorFlow, Keras FL Library TensorFlow Federated Server NVIDIA A100, 64 GB RAM Clients Docker Containers Network Simulated WAN

5. Resuts and discussion

5.1. Baseline comparison

Table 7. Domain-specific performance of fedXSS-guard. Domain Acc Rec F1 Single Page Apps (SPAs) 98.3 98.7 98.4 Mobile WebView Apps 98.1 98.5 98.3 IoT Dashboards 97.9 98.2 98.0

5.7. Ablation study of model components

5.9. Limitations and future work

6. Conclusion

Footnotes

Funding

Declaration of Conflicting Interests

ORCID iDs

References

Table 4.
Experimental testbed configuration.

Component Configuration

OS Ubuntu 22.04 LTS

Language Python 3.9

Framework TensorFlow, Keras

FL Library TensorFlow Federated

Server NVIDIA A100, 64 GB RAM

Clients Docker Containers

Network Simulated WAN

Table 7.
Domain-specific performance of fedXSS-guard.

Domain Acc Rec F1

Single Page Apps (SPAs) 98.3 98.7 98.4

Mobile WebView Apps 98.1 98.5 98.3

IoT Dashboards 97.9 98.2 98.0
