Body Composition Prediction—BOMP: A New Tool for Assessing Fat and Lean Body Mass

Abstract

Background:

Pragmatic and easy-to-use alternatives to estimating body composition, such as lean body mass and fat mass, could be valuable tools for assessing the risk of diabetes or other metabolic diseases. Previous work has shown how demographic and anthropometric data could be used in a neural network to estimate body composition with high precision. However, there is still a need for a publicly available and user-friendly format before these results can have clinical impact.

Methods:

We used data from 18 430 NHANES participants and stepwise linear regression with inclusion of linear, interactions, and quadratic terms to model lean body and fat mass. HTML and Javascript was used to develop a webapp as a frontend of the model.

Results:

The models had a correlation cofficent R = 0.99-0.98 (P < .001) withstandard error of estimate [SEE] = 2.07-2.05.

Conclusions:

The results indicate that it is possible to develop a “white-box” model with high precision.

The proof of concept webapp is available as open source under the MIT license.

Keywords

diabetes prediction lean body mass fat mass body composition

Introduction

Body mass index (BMI), a commonly and widely used measure of adiposity in clinical practice and research, has been criticized for its lack of ability to differentiate body composition.^1,2 In individuals with the same BMI, fat mass (FM) and lean body mass (LBM) may be considerably different. Body composition with excessive FM is associated with an increased risk of morbidity, such as type 2 diabetes and cardiovascular disease.^3-6 Estimating body composition is relevant in prediabetes and diabetes disease management, such as drug administration and risk assessment of morbidity/mortality. Several methods are available to obtain accurate estimations of the FM and LBM, such as DXA or imaging techniques.⁷ Nevertheless, it is generally infeasible to use direct measures such as computed tomography (CT) and magnetic resonance imaging (MRI) due to cost, exposure to ionizing radiation, and availability, especially in larger research studies. Also, in places where a DXA is not available (eg, remote communities, developing countries) or for persons where it is not appropriate (eg, pregnancy, children), a need for an easy to access and inexpensive alternative is needed. To evade these limitations, an effort has been made to develop and test practical prediction models that can estimate body composition based on easily available data such as demographic and anthropometric data.⁸ Recently, we published data, based on 18 430 adults and children from the US population, showing that it is possible to predict body composition with high precision using machine learning (neural networks).⁹ In shorts, the results showed that there was a correlation of R = 0.98-0.99 and standard error of estimate (SEE)=1.13-1.91 kg between the predicted and the reference (DXA).

However, the proposed model still needs further work before it can be used in clinical practice. Questions were raised regarding the use of a “black-box” model (artificial neural network), the potential for optimization in relation to practical usage, and the lack of a publicly available and user-friendly format.¹⁰ We therefore sought to investigate the potential for further development of the concept such that a transparent, simple, and ready-to-use model could be released to the public domain. An easy-to-use algorithm using readily available and cheap measures may save both time, money, exposure to ionizing radiation, and increase availability in remote areas compared with say whole-body DXA.

Methods

The cohort used for modeling was derived from individuals who were enrolled in the cross-sectional study National Health and Nutrition Examination Survey 1999-2006 (NHANES). The study sample included participants aged 8 to 69 years who underwent a whole-body DXA scan examination, underwent a body measurement assessment (anthropometric assessment), and answered the demographic questionnaire. The cohort characteristics can be seen in Table 1 and are described in detail in a previous publication.⁹

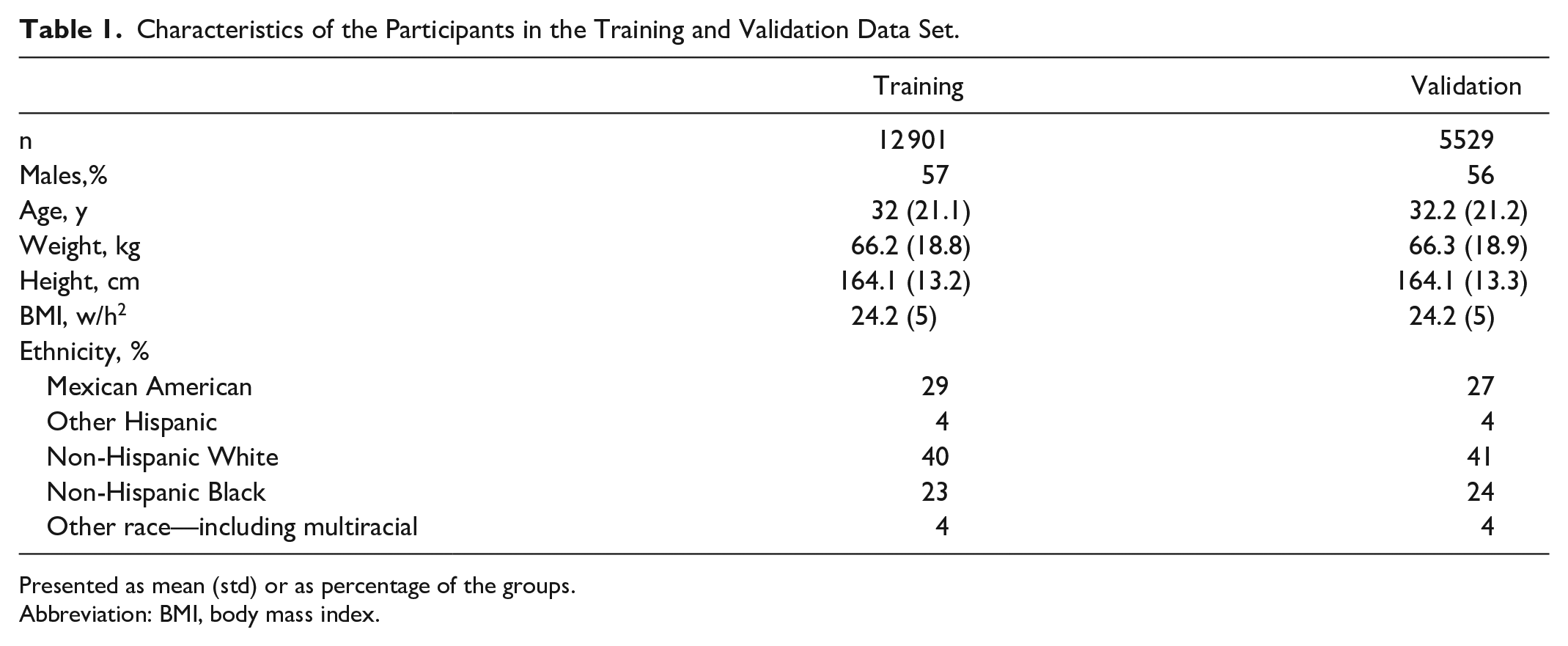

Table 1.

Characteristics of the Participants in the Training and Validation Data Set.

	Training	Validation
n	12 901	5529
Males,%	57	56
Age, y	32 (21.1)	32.2 (21.2)
Weight, kg	66.2 (18.8)	66.3 (18.9)
Height, cm	164.1 (13.2)	164.1 (13.3)
BMI, w/h²	24.2 (5)	24.2 (5)
Ethnicity, %
Mexican American	29	27
Other Hispanic	4	4
Non-Hispanic White	40	41
Non-Hispanic Black	23	24
Other race—including multiracial	4	4

Presented as mean (std) or as percentage of the groups.

Abbreviation: BMI, body mass index.

The original study comprised 14 features for predicting body composition: age, sex, ethnicity, height, weight, BMI, upper leg length, maximal calf circumference, upper arm length, arm circumference, waist circumference, thigh circumference, triceps skinfold, and subscapular skinfold. To support the need for an applicable clinical prediction model with as few inputs as possible, for practical reasons, we included features that were shown to substantially improve the SEE.⁹ The seven included features were sex, age, weight, height, BMI, waist circumference, and triceps skinfold.

The primary outcomes were predicted LBM in kilograms and body FM in kilograms compared with DXA-measured LBM and FM. The similarity between the predicted and measured LBM/FM was assessed using statistical measures: Pearson correlation coefficient (R), SEE, and Bland-Altman analysis.¹¹

Two models were trained on 70% of the cohort and tested on the remaining 30%: one model for predicting LBM and one model for predicting FM. To accommodate the request of a transparent model that could easily be implemented in practice, we choose to explore whether stepwise linear regression with inclusion of linear, interactions, and quadratic terms could solve the problem and keep some of the complexity of the artificial neural network, which leads to a precise prediction. For inclusion of terms, we choose a low P value threshold (P < .0001) from the F test of the change in the sum of squared error that results from adding or removing terms. Matlab R2016b (The Mathworks Inc., Natick, Massachusetts) was used to train and test the model.

Proof of Concept Implementation

Furthermore, to make the prediction of body composition operable, we implemented the models in a simple and easy-to-use web app (MIT licensed). The code is published on GitHub, and a demo can be accessed, https://git.io/JRw3g.¹² To make the application easier to use, the input from BMI is calculated automatically from weight and height (weight [kg]/(height [cm]/100)²), and age is also automatically converted from years to months (mth = age [years]*12). This means that only six manual inputs are needed, and four of those require simple anthropometric measurements. A screenshot of the web app can be seen in Figure 1.

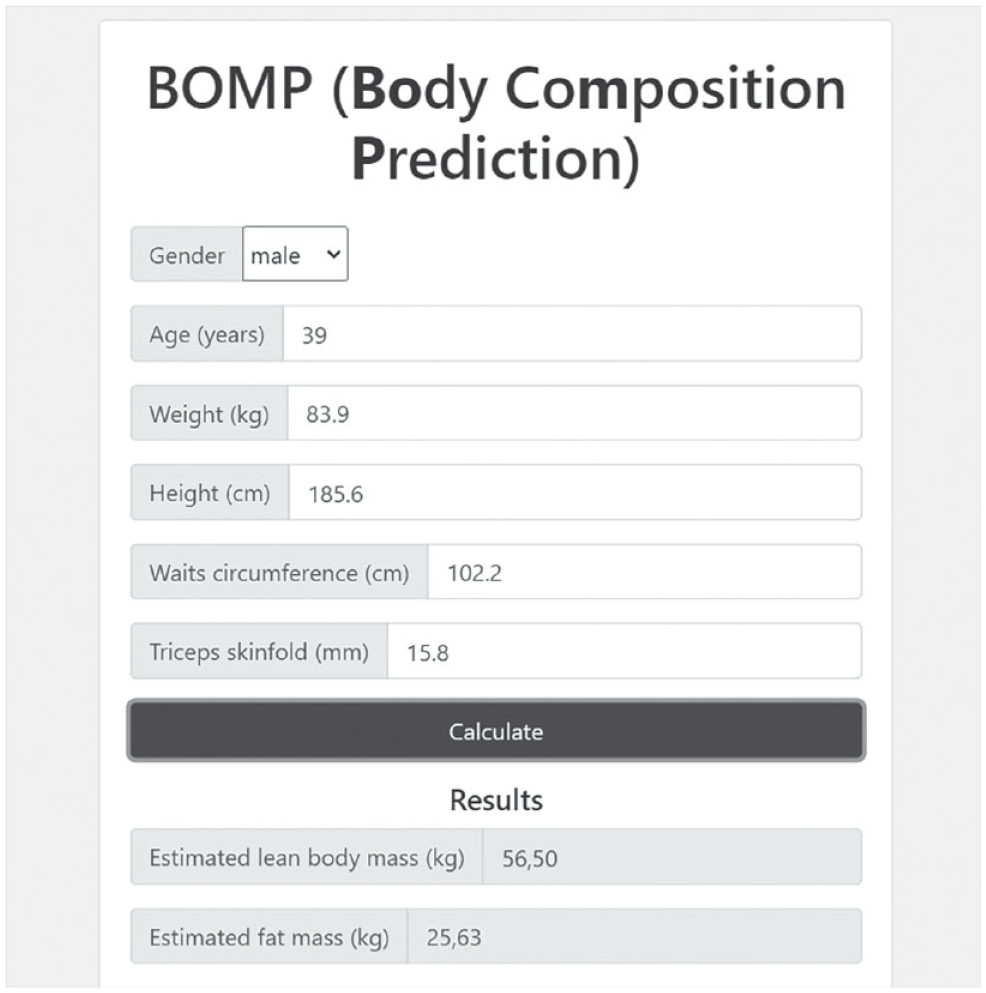

Figure 1.

Screenshot from the implemented proof-of-concept web application.

Results

Participants were randomly partitioned on an individualized level into 70% training (n = 12 901) data and 30% validation (n = 5529) data. All seven features were included as linear terms; in addition, several interactions between the features and quadratic terms were also included in the finalized models. The model for LBM prediction had a correlation coefficient R = 0.99 (SEE 2.05 kg) compared with the reference value. The model for the prediction of FM had a correlation coefficient R = 0.98 (SEE 2.07 kg). The correlation and Bland-Altman plot can be seen in Figures 2 and 3. The Bland-Altman plot illustrates that for low values the bias between the predicted and reference is lower. However, in the remaining spectrum there is no substantial indication of heteroscedasticity. Furthermore, the mean differences are small (±0.04 kg) and we observe a significant difference (P < .01)—this is expected due to the large n, which will make small differences statistically significant.

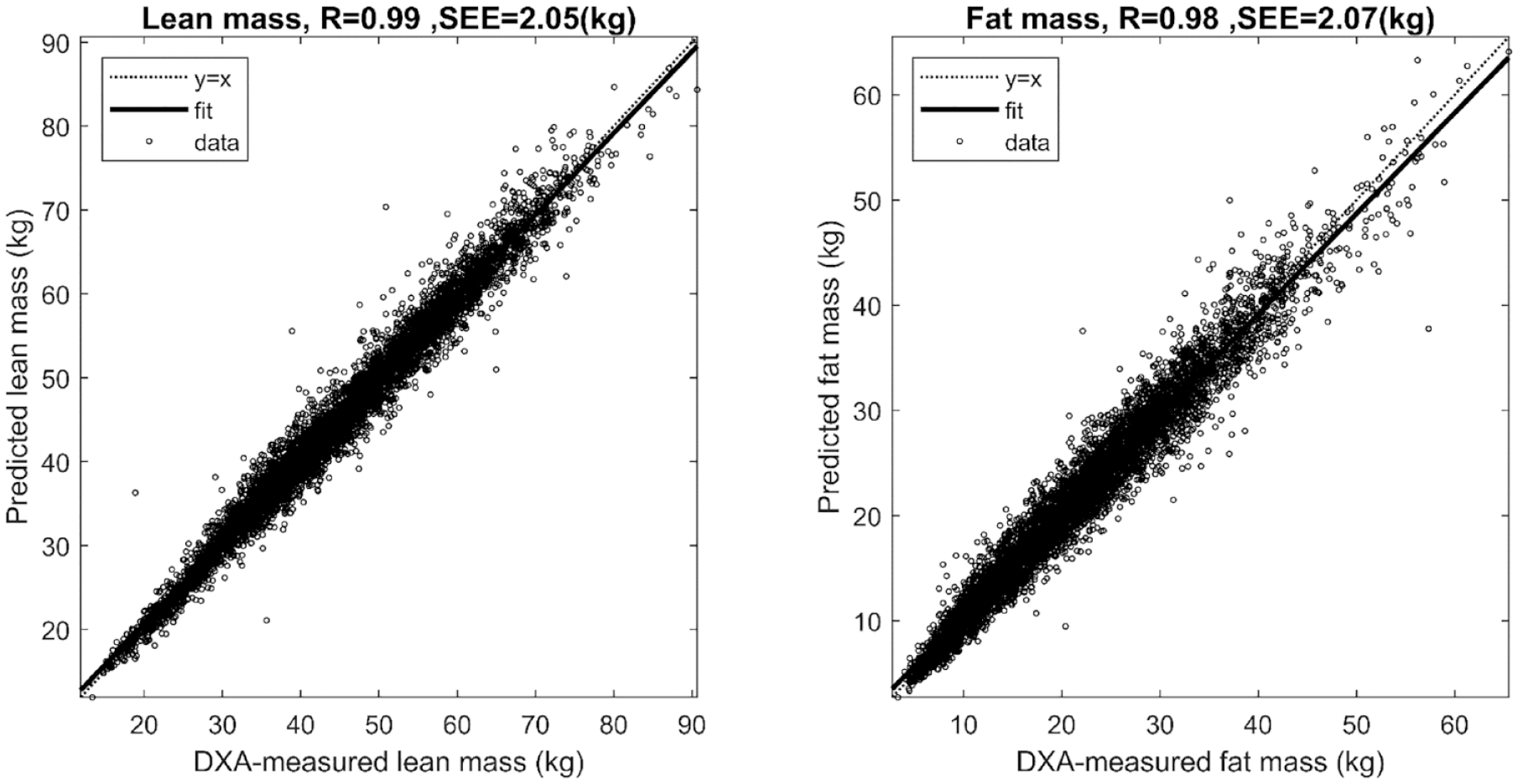

Figure 2.

Regression plot for predicted lean mass and fat mass compared with DXA-measured lean and fat mass. Abbreviation: DXA, dual-energy x-ray absorptiometry.

Figure 3.

Bland-Altman plot for predicted lean mass and fat mass compared with DXA-measured lean and fat mass. The limits are mean ± 1.96SD. Abbreviation: DXA, dual-energy x-ray absorptiometry.

As an example, we can calculate the estimated LBM and FM from a male subject (39 years, weight of 83.9 kg, height of 185.6 cm, BMI 24.4 kg/m², waist circumference(WC) of 102.2 cm and triceps skinfold measure of 15.8) by combining the terms in Table 2. This would yield an estimated LBM of 56.5 kg and FM of 25.6 kg. In comparison, the DXA-measured LBM is 57.3 kg and FM is 25.0 kg.

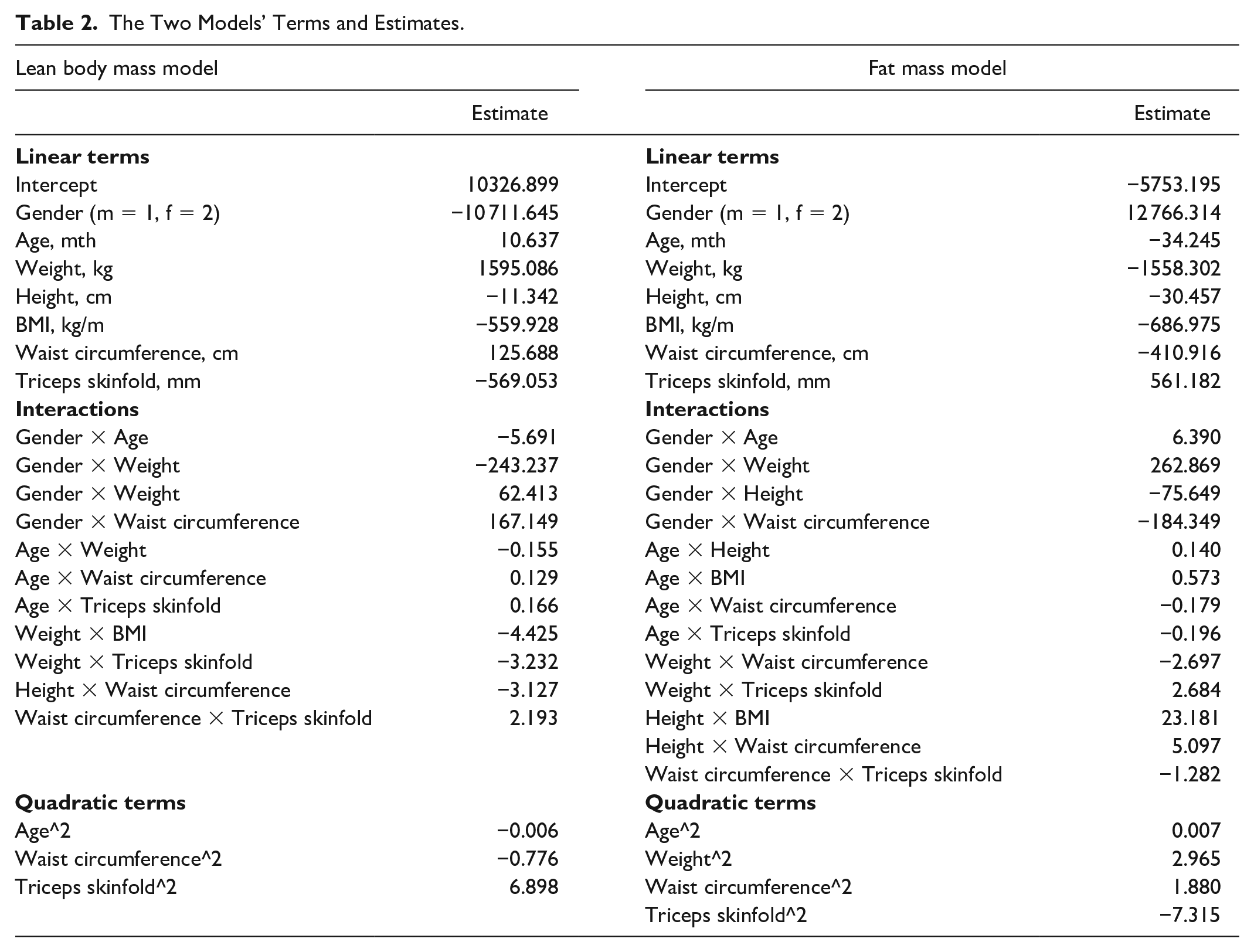

Table 2.

The Two Models’ Terms and Estimates.

Lean body mass model		Fat mass model
	Estimate		Estimate
Linear terms		Linear terms
Intercept	10326.899	Intercept	−5753.195
Gender (m = 1, f = 2)	−10 711.645	Gender (m = 1, f = 2)	12 766.314
Age, mth	10.637	Age, mth	−34.245
Weight, kg	1595.086	Weight, kg	−1558.302
Height, cm	−11.342	Height, cm	−30.457
BMI, kg/m	−559.928	BMI, kg/m	−686.975
Waist circumference, cm	125.688	Waist circumference, cm	−410.916
Triceps skinfold, mm	−569.053	Triceps skinfold, mm	561.182
Interactions		Interactions
Gender × Age	−5.691	Gender × Age	6.390
Gender × Weight	−243.237	Gender × Weight	262.869
Gender × Weight	62.413	Gender × Height	−75.649
Gender × Waist circumference	167.149	Gender × Waist circumference	−184.349
Age × Weight	−0.155	Age × Height	0.140
Age × Waist circumference	0.129	Age × BMI	0.573
Age × Triceps skinfold	0.166	Age × Waist circumference	−0.179
Weight × BMI	−4.425	Age × Triceps skinfold	−0.196
Weight × Triceps skinfold	−3.232	Weight × Waist circumference	−2.697
Height × Waist circumference	−3.127	Weight × Triceps skinfold	2.684
Waist circumference × Triceps skinfold	2.193	Height × BMI	23.181
		Height × Waist circumference	5.097
		Waist circumference × Triceps skinfold	−1.282
Quadratic terms		Quadratic terms
Age^2	−0.006	Age^2	0.007
Waist circumference^2	−0.776	Weight^2	2.965
Triceps skinfold^2	6.898	Waist circumference^2	1.880
		Triceps skinfold^2	−7.315

Discussion

We developed a transparent, simple, and ready-to-use model with an additional web interface that was released to the public domain. The results show that it was possible to transformer the complexity of the previously used neural network⁸ for the prediction of body composition into a transparent format using stepwise linear regression with linear, interactions, and quadratic terms. This transformation makes it straightforward to calculate the predicted LBM or FM from summarizing the terms in the equations. We made further steps toward the implementation of the prediction models in clinical practice by releasing a web interface¹² that can be accessed by a computer or mobile browser. It is now open to everyone to test and use the proposed models. The sample used to train and test the models was extracted from the NHANES and contains a representative and multiethnic cohort of people from the United States. However, using the predictions in another cohort outside the limits of the NHANES is of course encumbered with some uncertainty. Therefore, the models could benefit from additional validation in other countries. The results indicate that the predictions are robust in the obesity range. This is important as this is a major risk factor for developing type 2 diabetes mellitus. However, it could be valuable to test the models in estimating changes in body composition in longitudinal and interventional studies. With this work conducted, we may be able to estimate an individual’s risks of developing diabetes and other metabolic diseases using easy-to-conduct anthropometric measurements when advanced body composition methods, such as DXA scanning, are not available.

A limitation is that these are cross-sectional data. Prediction of body composition could potentially direct therapy in say type 2 diabetes toward reducing insulin resistance using say biguanides and physical activity in the case of high FM. In case of low FM, insulin deficiency and perhaps decreased muscle utilization of glucose may be a cause of the type 2 diabetes. Change in body composition over time could also aid in the monitoring of the effects of say physical activity and diet.
