Registration and Real-Life Studies on Automated Insulin Delivery Systems *

Introduction

This article is part of a collection of publications to commemorate the 75th Anniversary of the NIDDK.

More than 40 years ago, management of type 1 diabetes (T1D) usually consisted of two to three insulin injections administered subcutaneously daily. ¹ Importantly, targets for treatment were debated with questions of whether achievement of lower glucose levels, based on a hemoglobin A1c (HbA1c), would be advantageous for people with diabetes. The Diabetes Control and Complications Trial (DCCT), sponsored by the National Institute of Diabetes and Digestive and Kidney Diseases (NIDDK), concluded in 1993 and revolutionized the care of individuals with diabetes. The DCCT clearly showed that intensive insulin treatment (IIT) using multiple daily injections (MDI) or insulin delivery via continuous subcutaneous insulin delivery (CSII; insulin pump) along with frequent self-monitoring of blood glucose (SMBG) improves glycemic control as measured by HbA1c. ² In addition, the group randomized to IIT had significant reductions in long-term microvascular complications including diabetic kidney disease (DKD), diabetic retinopathy, and diabetic peripheral neuropathy which are all commonly associated with T1D. Indeed, the results were so compelling that the study was discontinued early because it would be unethical to continue the current standard of care.^2,3 At the conclusion of the DCCT in 1993, the tools used to manage diabetes were rather rudimentary compared to today’s methods. At that time, insulin pumps had fewer features and continuous glucose monitors (CGMs) to adjust insulin dosing were not available.

In people without diabetes, the beta-cells of the pancreas release insulin continuously (as well as in response to rising blood glucose levels) in a pulsatile form directly to the liver through portal circulation. For delivery of exogenous insulin, it is not possible to deliver this insulin directly to the liver, thus it is typically injected subcutaneously via MDI or CSII. To better mimic the physiological delivery of insulin, 40 years ago, MiniMed, Inc. (Northridge, CA) introduced the first wearable small insulin pump, MiniMed 502, in 1983. ⁴ From the inception of this device, Alfred Mann (1925-2016), then CEO of MiniMed, had a vision of creating an artificial pancreas (AP) system. ⁵

Nearly a quarter a century ago, CGMs were approved by the Food and Drug Administration (FDA) as adjunctive to SMBG; however, their accuracy was sub-optimal (Mean Absolute Relative Difference; MARD > 15%-20%).^6,7 Over the next 10 years, CGMs became more accurate, smaller, and stand-alone. ⁶ Eventually they were deemed by regulatory agencies to be safely used non-adjunctively. During a similar time frame, multiple pump companies (including Accu-Chek^®, Animas^®, Beta Bionics^®, Disetronic^®, Insulet^®, MiniMed^®, Sequel^®, SOOIL^®, Tandem^®, and Ypsomed^®) improved their insulin delivery devices.^8,9 At the same time, most of them developed or licensed different algorithms to automatically activate or halt insulin delivery based on sensor glucose values.^5,10 Multiple studies were conducted to demonstrate the safety of sensor-augmented pumps (SAPs) that could suspend insulin delivery (low glucose suspend [LGS], threshold suspend [TS]) after hypoglycemia, or in advance of predicted hypoglycemia (predictive LGS/TS systems).^11-15 These advances were followed by studies that included automatic delivery/stoppage of insulin based on sensor glucose concentrations in the clinic/research settings. The first automated insulin delivery (AID) system (Medtronic 670G) was approved by the FDA in 2016. ¹⁶ Since then, many more AID systems have been approved by the FDA and/or European Medicine Agency (EMA) including Medtronic 780G, Tandem Control-IQ, Omnipod 5, iLet Bionic Pancreas, do-it-yourself (DIY) Loop, and CamAPS FX. In this review, we will focus on registration and real-life studies on these approved AID systems.

Methods

We conducted a systematic literature search using the MEDLINE (PubMed) database using keywords of FDA-approved AID, hybrid closed-loop (HCL) systems, and T1D. We only reported the studies with the longest duration and/or highest participant numbers. Randomized controlled trials (RCTs) were prioritized over single-arm studies; however, if we found no RCTs, then single-arm or cross-over trials were included. Tables 1 and 2 show the summary of registration and real-life studies of AID systems respectively. Figure 1 illustrates each AID system with its own registration and real-life study results where available.

OPEN IN VIEWER

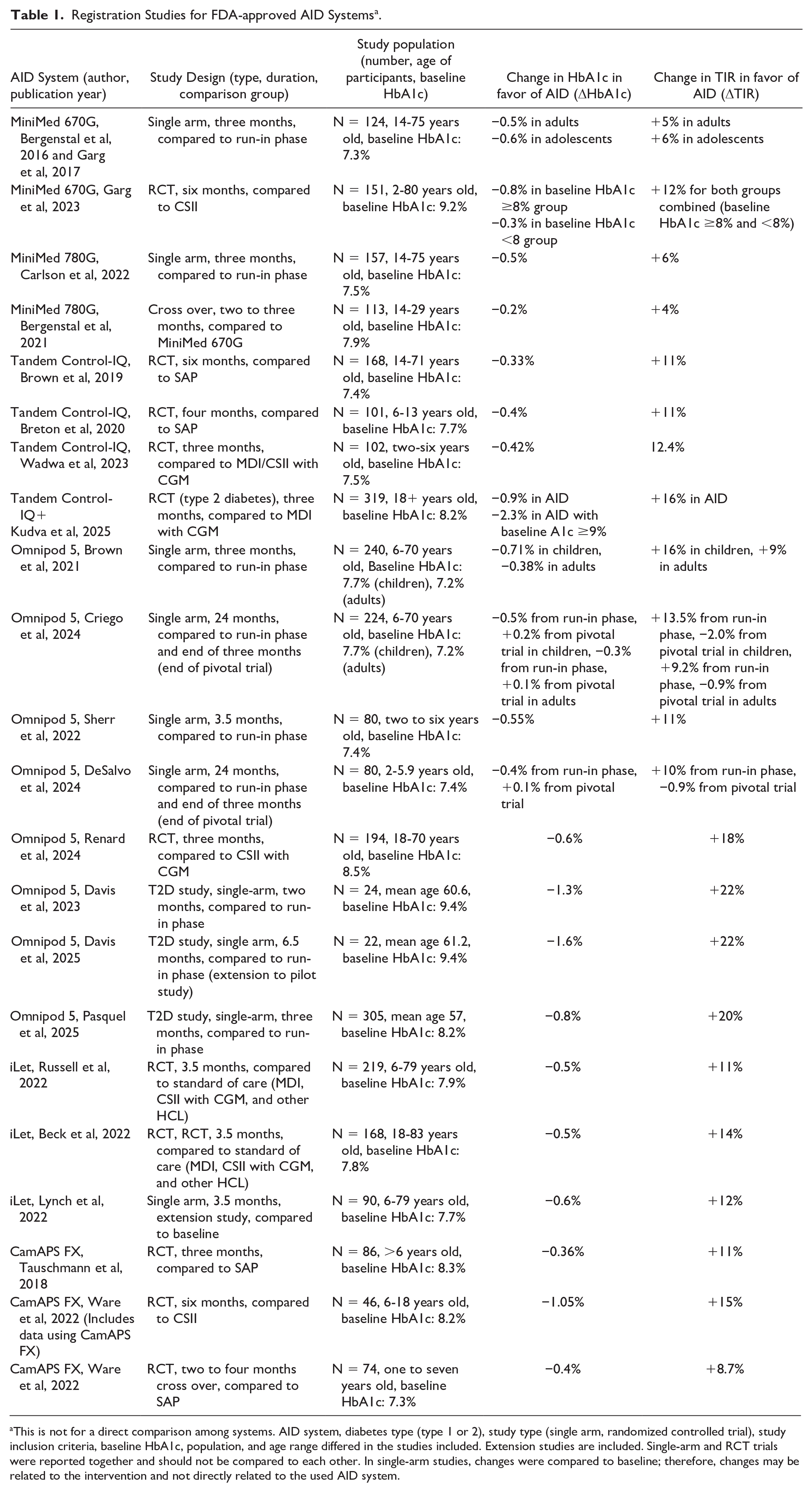

Table 1.

Registration Studies for FDA-approved AID Systems ^a .

AID System (author, publication year)	Study Design (type, duration, comparison group)	Study population (number, age of participants, baseline HbA1c)	Change in HbA1c in favor of AID (ΔHbA1c)	Change in TIR in favor of AID (ΔTIR)
MiniMed 670G, Bergenstal et al, 2016 and Garg et al, 2017	Single arm, three months, compared to run-in phase	N = 124, 14-75 years old, baseline HbA1c: 7.3%	−0.5% in adults −0.6% in adolescents	+5% in adults +6% in adolescents
MiniMed 670G, Garg et al, 2023	RCT, six months, compared to CSII	N = 151, 2-80 years old, baseline HbA1c: 9.2%	−0.8% in baseline HbA1c ≥8% group −0.3% in baseline HbA1c <8 group	+12% for both groups combined (baseline HbA1c ≥8% and <8%)
MiniMed 780G, Carlson et al, 2022	Single arm, three months, compared to run-in phase	N = 157, 14-75 years old, baseline HbA1c: 7.5%	−0.5%	+6%
MiniMed 780G, Bergenstal et al, 2021	Cross over, two to three months, compared to MiniMed 670G	N = 113, 14-29 years old, baseline HbA1c: 7.9%	−0.2%	+4%
Tandem Control-IQ, Brown et al, 2019	RCT, six months, compared to SAP	N = 168, 14-71 years old, baseline HbA1c: 7.4%	−0.33%	+11%
Tandem Control-IQ, Breton et al, 2020	RCT, four months, compared to SAP	N = 101, 6-13 years old, baseline HbA1c: 7.7%	−0.4%	+11%
Tandem Control-IQ, Wadwa et al, 2023	RCT, three months, compared to MDI/CSII with CGM	N = 102, two-six years old, baseline HbA1c: 7.5%	−0.42%	12.4%
Tandem Control-IQ+ Kudva et al, 2025	RCT (type 2 diabetes), three months, compared to MDI with CGM	N = 319, 18+ years old, baseline HbA1c: 8.2%	−0.9% in AID −2.3% in AID with baseline A1c ≥9%	+16% in AID
Omnipod 5, Brown et al, 2021	Single arm, three months, compared to run-in phase	N = 240, 6-70 years old, Baseline HbA1c: 7.7% (children), 7.2% (adults)	−0.71% in children, −0.38% in adults	+16% in children, +9% in adults
Omnipod 5, Criego et al, 2024	Single arm, 24 months, compared to run-in phase and end of three months (end of pivotal trial)	N = 224, 6-70 years old, baseline HbA1c: 7.7% (children), 7.2% (adults)	−0.5% from run-in phase, +0.2% from pivotal trial in children, −0.3% from run-in phase, +0.1% from pivotal trial in adults	+13.5% from run-in phase, −2.0% from pivotal trial in children, +9.2% from run-in phase, −0.9% from pivotal trial in adults
Omnipod 5, Sherr et al, 2022	Single arm, 3.5 months, compared to run-in phase	N = 80, two to six years old, baseline HbA1c: 7.4%	−0.55%	+11%
Omnipod 5, DeSalvo et al, 2024	Single arm, 24 months, compared to run-in phase and end of three months (end of pivotal trial)	N = 80, 2-5.9 years old, baseline HbA1c: 7.4%	−0.4% from run-in phase, +0.1% from pivotal trial	+10% from run-in phase, −0.9% from pivotal trial
Omnipod 5, Renard et al, 2024	RCT, three months, compared to CSII with CGM	N = 194, 18-70 years old, baseline HbA1c: 8.5%	−0.6%	+18%
Omnipod 5, Davis et al, 2023	T2D study, single-arm, two months, compared to run-in phase	N = 24, mean age 60.6, baseline HbA1c: 9.4%	−1.3%	+22%
Omnipod 5, Davis et al, 2025	T2D study, single arm, 6.5 months, compared to run-in phase (extension to pilot study)	N = 22, mean age 61.2, baseline HbA1c: 9.4%	−1.6%	+22%
Omnipod 5, Pasquel et al, 2025	T2D study, single-arm, three months, compared to run-in phase	N = 305, mean age 57, baseline HbA1c: 8.2%	−0.8%	+20%
iLet, Russell et al, 2022	RCT, 3.5 months, compared to standard of care (MDI, CSII with CGM, and other HCL)	N = 219, 6-79 years old, baseline HbA1c: 7.9%	−0.5%	+11%
iLet, Beck et al, 2022	RCT, RCT, 3.5 months, compared to standard of care (MDI, CSII with CGM, and other HCL)	N = 168, 18-83 years old, baseline HbA1c: 7.8%	−0.5%	+14%
iLet, Lynch et al, 2022	Single arm, 3.5 months, extension study, compared to baseline	N = 90, 6-79 years old, baseline HbA1c: 7.7%	−0.6%	+12%
CamAPS FX, Tauschmann et al, 2018	RCT, three months, compared to SAP	N = 86, >6 years old, baseline HbA1c: 8.3%	−0.36%	+11%
CamAPS FX, Ware et al, 2022 (Includes data using CamAPS FX)	RCT, six months, compared to CSII	N = 46, 6-18 years old, baseline HbA1c: 8.2%	−1.05%	+15%
CamAPS FX, Ware et al, 2022	RCT, two to four months cross over, compared to SAP	N = 74, one to seven years old, baseline HbA1c: 7.3%	−0.4%	+8.7%

a

This is not for a direct comparison among systems. AID system, diabetes type (type 1 or 2), study type (single arm, randomized controlled trial), study inclusion criteria, baseline HbA1c, population, and age range differed in the studies included. Extension studies are included. Single-arm and RCT trials were reported together and should not be compared to each other. In single-arm studies, changes were compared to baseline; therefore, changes may be related to the intervention and not directly related to the used AID system.

OPEN IN VIEWER

Table 2.

Real-life Studies for FDA-approved AID Systems ^a .

AID system (author, publication year)	Study design (type, duration, comparison group)	Study population (number, age of participants)	Change in HbA1c in favor of AID (ΔHbA1c)	Change in TIR in favor of AID (ΔTIR)
Minimed 670G, Akturk et al, 2020	Retrospective, six months, compared to baseline	N = 127, 21-68 years old	−0.4%	+11%
MiniMed 780G, Arrieta et al, 2022	Retrospective, up to six months, compared to baseline	N = 12 870, age range not reported	No ΔHbA1c reported	No ΔTIR reported. Achieved 74% in all, 79% in optimal settings <15 years old, 76.5% in all, 81% in optimal settings >15 years old
MiniMed 780G, Choudhary et al, 2024	Retrospective, up to 12 months, compared to baseline	N = 101 629, age range not reported	No ΔHbA1c reported	No ΔTIR reported. Achieved 72.3% in all, and 78.8% when optimal settings were consistently used.
Tandem Control-IQ, Breton et al, 2021	Retrospective, 12 months, compared to PLGS	N = 9451, 6-91 years old	−0.3% ΔGMI	+10%
Tandem Control-IQ, Forlenza et al, 2022	Retrospective, >30 days post HCL, compared to baseline	N = 5575, mean age 56.7	−0.3% ΔGMI in Medicare patients, −0.4% ΔGMI in Medicaid patients	+11% in Medicare patients, +14% in Medicaid patients
Tandem Mobi, Akturk et al, 2024	Retrospective, six weeks, compared to baseline	N = 1280, mean age 35.1	−0.1% ΔGMI in prior-Control IQ patients Achieved 7% GMI in prior MDI and non-Tandem AID patients	+2.5% in prior-Control-IQ patients Achieved 72.1% in prior MDI patients, 72.5% in non-Tandem AID patients
Omnipod 5, Forlenza et al, 2024	Retrospective, ≥90 days of data	N = 69 902, median age 30	Achieved 7.3% GMI in children, 7.2% GMI in adults	Achieved 64.4% in children, 68.8% in adults, 67.7% for overall in optimal settings
CamAPS FX, Alwan et al, 2023	Retrospective, >30 days of data	N = 1805, median age 30.2	Achieved 6.9% GMI	Achieved 72.6%
Loop, Lum et al, 2021	Prospective, six months, compared to baseline	N = 558, 1-71 years old	−0.3%	+7%

a

This is not for direct comparison among systems. AID system, baseline HbA1c, methodology, population, and age range differed in the studies included.

OPEN IN VIEWER

Figure 1.

Time in range (70-180 mg/dL) AID system from registration and real-life studies in people with type 1 diabetes^a.

Medtronic MiniMed 670G/780G

MiniMed 670G, the first AID system approved by the US FDA was evaluated in 124 adolescents and adults (14-75 years old) with T1D in a multicenter single-arm pivotal study.^17,18 The primary aim of the study was to evaluate the safety of the HCL system in patients with T1D. The 670G system was used during a two-week run-in phase without HCL or Auto Mode (control period). ¹⁷ Auto Mode was enabled during a three-month study phase. ¹⁷ From the beginning of baseline run-in to the end of the study phase at three months, HbA1c levels decreased significantly from 7.7% ± 0.8% to 7.1% ± 0.6% and from 7.3% ± 0.9% to 6.8% ± 0.6% (P < .001) in adolescents and adults respectively. ¹⁷ Time in range (TIR; 70-180 mg/dL) increased significantly from 60.4% ± 10.9% to 67.2% ± 8.2% in adolescents and from 68.8% ± 11.9% to 73.8% ± 8.4% in adults (P < .001). ¹⁷ In another study, Minimed 670G was compared to CSII in a six-month RCT in 151 children, adolescents, and adults (2-80 years old) with T1D. ¹⁹ Participants were grouped according to their baseline HbA1c levels. For participants with high baseline HbA1c (>8%), there was a significant mean [95% confidence interval (CI)] difference in HbA1c change in the HCL group (−0.8% [−1.1% to −0.4%], P < .0001). ¹⁹ For individuals with lower baseline HbA1c values (<8%), there was also a significant decrease in HbA1c of −0.3% [−0.5% to −0.1%] favoring HCL group (P < .0001). ¹⁹ The TIR difference was 12% [8.8%-15.1%] in favor of 670G system. ¹⁹ Time below range (TBR; <70 mg/dL) decreased significantly in both high HbA1c (−2.2% [−3.6% to −0.9%]) and low HbA1c groups (−4.9% [−6.3% to −3.6%]; P < .0001 for both). ¹⁹

In a real-life study with Minimed 670G involving 127 adults with T1D (21-68 years old), TIR significantly increased from 59.5% ± 1.1% to 70.2% ± 1.2% and 70.1% ± 1.1% at three and six months, respectively (P < .001). ²⁰ Several patients discontinued using 670G due to the need for many calibrations and multiple alarms especially at night. ²¹

Minimed 780G is commonly referred to as the advanced hybrid closed-loop system (AHCL) that gives auto-correction micro-boluses up to every five minutes when the maximum basal rate is reached and sensor glucose is above >120 mg/dL. ⁹ The 780G system was evaluated in a three-month single-arm pivotal trial with 157 patients with T1D (14-75 years old). ²² The 780G use was compared to a run-in phase in which patients used SAP +/- PLGS or Auto Basal enabled for ∼14 days. ²² Compared to run-in phase, in the AHCL phase, HbA1c significantly decreased from 7.5% ± 0.8% to 7.0% ± 0.5%, TIR increased from 68.8% ± 10.5% to 74.5% ± 6.9%, and TBR decreased from 3.3% ± 2.9% to 2.3% ± 1.7% in three months (P < .001 for all). ²² Using the glucose target setting of 100 mg/dL and an active insulin time of two hours, the TIR further increased to 78.8% without a change in the TBR. The system was evaluated in a cross-over trial of two 12-week comparisons of AHCL (780G) to Minimed 670G in 113 patients with T1D (14-29 years old). ²³ The mean HbA1c level was 7.9% ± 0.7% prior to randomization and significantly decreased to 7.6% ± 0.6% by the end of the study period in the 670G arm and 7.4% ± 0.8% in the AHCL arm (P = .03). TIR increased significantly from the baseline 57% ± 12% to 63% ± 8% in the 670G group and to 67% ± 8% in the AHCL group (P < .001). ²³

Most of the early real-life study data from 780G is available from Europe due to delay in FDA approval in the United States. In a large real-life study, data from 101 629 users (34 countries) was analyzed. ²⁴ The mean duration of the observation period post-AHCL initiation was 287 days. ²⁴ The mean TIR achieved was 72.3% and increased to 78.8% when optimal settings (glucose target of 100 mg/dL and active insulin time of two hours) were consistently used. The mean Glucose Management Indicator (GMI) was 7% without an increase in TBR. ²⁴

In another real-life study with AHCL in the United States, individuals with T1D were grouped by age (≤15-year-old and >15-year-old). ²⁵ Those who were ≤ 15 years old (N = 3211) achieved a TIR of 73.9% ± 8.7%, and those who were >15 years old (N = 8874) achieved a TIR of 76.5% ± 9.4% after HCL initiation without an increase in TBR. ²⁵ Participants maintained time in AHCL > 94% at six months in both groups. ²⁵ In a subgroup analysis, patients using recommended settings achieved TIR of 78.9% and 81.3% in the ≤15 years old group and >15 years old group, respectively, with no significant difference in TBR. ²⁵

Tandem t: slim X2 insulin pump/Tandem Mobi with Control-IQ+ Technology

The Tandem Control-IQ+ system algorithm works by automatically adjusting the programmed basal insulin delivery rate every five minutes based on 30-minute predicted glucose. In addition, it can also administer an autobolus when glucose levels are predicted to exceed 180 mg/dL in the next 30 minutes. ⁹ A six-month RCT compared Control-IQ to SAP in 168 patients with T1D (14-71 years old). ²⁶ The two groups started with an identical mean HbA1c of 7.4%. The difference in HbA1c after six months was −0.33% (95% CI [−0.53 to −0.13]; P = .001). TIR increased from 61% ± 17% at baseline to 71% ± 12% at six months in the Control-IQ group and remained unchanged at 59% ± 14% in the control group (P < .001). ²⁶ A 16-week RCT compared Control-IQ to SAP in 101 children with T1D (6-13 years old). TIR increased from 53% ± 17% at baseline to 67% ± 10% in the Control-IQ group and from 51% ± 16% to 55% ± 13% in the control group (P < .001). ²⁷ Extended use for 12 weeks ²⁸ and use for over three years in a similar cohort in France showed continued HbA1c reduction and TIR improvements. ²⁹ A 13-week RCT compared Control-IQ to the standard of care (MDI or CSII with CGM) in 102 children with T1D (two-six years old). ³⁰ The HbA1c difference at 13 weeks was −0.42% (Control-IQ 7.0% and control 7.5%, 95% CI [−0.62 to −0.22]; P < .001). TIR increased from 56.7% ± 18.0% at baseline to 69.3% ± 11.1% after 13 weeks (P < .001). The standard care group had similar TIR at 13 weeks (54.9% ± 14.7% to 55.9% ± 12.6%). ³⁰

A meta-analysis of these three RCTs included 369 participants with T1D (2-72 years old) compared Control-IQ to various control groups all of whom, by design, were using CGM. ³¹ In the Control-IQ group (n = 256), TIR increased from 57% ± 17% at baseline to 70% ± 11%, and in the control group (n = 113), TIR increased from 56% ± 15% at baseline to 57% ± 14% (P < .001). ³¹

In a real-life study in the United States with 9451 individuals (6-91 years old) with T1D using Control-IQ, TIR increased from 63.6% at baseline (IQR: 49.9%-75.6%) to 73.6% (IQR: 64.4%-81.8%) at 12 months. ³² Notably, the increase in TIR was noted shortly after adoption of Control-IQ and was sustained over the one-year period of data that was analyzed. Another real-life study evaluated 4243 Medicare and 1332 Medicaid patients with T1D using Control-IQ. ³³ In Medicare patients, TIR increased from 64% at baseline to 74%, and GMI decreased from 7.3% to 7.0% (P < .0001). ³³ In Medicaid patients, TIR increased from 46% at baseline to 60%, and GMI decreased from 7.9% to 7.5% (P < .0001). ³³

Tandem Mobi is the smallest durable tubed AID system that uses the Control-IQ algorithm and offers multiple wear options including an on body sleeve. ³⁴ In a six-week real-life study of Mobi with 1280 participants with T1D, prior MDI users (n = 235) achieved a median (interquartile range) GMI of 7.0% (6.6%-7.4%) and a TIR of 72.1% (62.5%-83.8%). Prior non-Tandem users (n = 208) achieved a GMI of 7.0% (6.6%-7.3%), and a TIR of 72.5% (65.0%-81.3%). ³⁵ Prior Tandem pump users (n = 837) had a non-significant decrease in GMI from 7.0% (6.7%-7.4%) to 6.9% (6.6%-7.3%), and TIR increased significantly from 70.5% (60.5%-79.0%) to 73.0% (63.8%-81.3%) (P < .001 for both). ³⁵

The updated Control-IQ+ algorithm, now on the Tandem Mobi and t: slim X2 insulin pump, expands the weight and TDI range, and is cleared for use in children down to age two years of age with T1D, and for adults with type 2 diabetes (T2D). In a recent pivotal RCT in T2D, ³⁶ a total of 319 patients underwent randomization. Glycated hemoglobin levels decreased by 0.9 percentage points (from 8.2% ± 1.4% at baseline to 7.3% ± 0.9% at week 13) in the AID group and by 0.3 percentage points (from 8.1% ± 1.2% to 7.7% ± 1.1%) in the control group (mean adjusted difference, −0.6 percentage points; 95% CI [−0.8 to −0.4]; P < .001). The frequency of CGM-measured hypoglycemia was low in both groups.

Omnipod 5

Omnipod 5 is the only FDA-cleared tubeless AID system in the United States that adjusts insulin delivery every five minutes based on the pre-set target glucose (110-150 mg/dL), which can be varied by time of the day. ³⁴ OP5 was evaluated in a three-month, single-arm prospective study with 240 participants with T1D (6-70 years old). ³⁷ HbA1c decreased in children by 0.71% (7.67% ± 0.95% to 6.99% ± 0.63%) and in adults by 0.38% (7.16% ± 0.86% to 6.78% ± 0.68%, P < .0001 for both). ³⁷ TIR increased from standard therapy by 15.6% ± 11.5% in children and 9.3% ± 11.8% in adults (P < .0001 for both). ³⁷ In an extension study (to a three-month initial study plus up to an additional 21 months for a total of up to 24 months), 224 patients (95% of the participants) with T1D opted to continue Omnipod 5. ³⁸ “The reduction in HbA1c observed in the pivotal trial was maintained at 7.2% ± 0.7% in children and 6.9% ± 0.6% in adolescents and adults after 15 months (P < .0001). ³⁸ The increase in TIR observed in the pivotal trial was maintained to 65.9% ± 8.9% in children and 72.9% ± 11.3% in adolescents and adults during the extension phase (P < .0001). ³⁸ Another single-arm prospective study evaluated Omnipod 5 in 80 young children (two-six years old) with T1D in 13 weeks. ³⁹ HbA1c decreased by 0.55% and TIR increased by 10.9%, (P < .0001 for both). ³⁹ In an extension study that lasted up to two years with the initial three-month pivotal trial, 80 participants (100% of the participants) opted to continue Omnipod 5. ⁴⁰ The reduction in HbA1c observed in the pivotal trial was maintained to 7.0% ± 0.7% after 15 months (P < .0001). The increase in TIR observed in the pivotal trial was maintained to 67.2% ± 9.3% during the extension phase (P < .0001). OP5 was compared to CSII with CGM (open-loop) in 194 adults with T1D (18-70 years old) in a 13-week RCT. ⁴¹ There was a greater decrease in HbA1c from baseline compared with the control group (−1.24% ± 0.75% vs −0.68% ± 0.93%, respectively; P < .0001), and TIR increased from 43.9% ± 14.0% baseline to 61.2% ± 11.2% in the intervention group and from 41.3% ± 14.6% to 43.8% ± 14.5% in the control group in 13 weeks, with an adjusted mean difference of 17.5% (95% CI [14.0%-21.1%]; P < .0001). ⁴¹

A real-world study with Omnipod 5 involving 69 902 individuals with T1D showed TIR of 68.8%, 61.3%, and 53.6% for users with glucose targets of 110, 120, and 130 to 150 mg/dL, respectively. ⁴² For the group with a glucose target of 110 mg/dL, the median TIR was 65% in children and adolescents (2-17 years) and 69.9% in adults (≥18 years). ⁴² Users with Medicaid insurance (n = 1064; median age 21 years) and Medicare insurance (n = 1503; median age 67 years) using target glucose of 110 mg/dL had TIR of 62.2% and 72.3%, respectively, after six months. ⁴²

Omnipod 5 recently received FDA clearance for use in people with insulin-requiring T2D. OP5 was evaluated in an eight-week small pilot study in 24 people with T2D. ⁴³ Prior to enrollment, participants had baseline HbA1c of ≥ 8% and were using either basal-only or basal-bolus insulin injections, with or without CGM. ⁴³ HbA1c decreased by 1.3% ± 0.7% and TIR increased by 21.9% ± 15.2% (P < .0001 for both). ⁴³ In an extension phase of this study, 22 participants continued using Omnipod 5 for another 26 weeks. ⁴⁴ HbA1c decreased by 1.6% ± 1.2% and TIR increased by 22.4% ± 19.2% (P < .0001, for both) at the end of the extension phase. ⁴⁴ The SECURE-T2D trial evaluated OP5 in 305 participants with T2D using basal-only insulin injections, MDI, or CSII. After 14 days of standard therapy, the study participants used Omnipod 5 for 13 weeks. HbA1c decreased from 8.2% to 7.4% and TIR increased from 45% to 66%. ⁴⁵ In patients with T2D there was a significant decrease in the insulin dose at the end of the study.

iLet Bionic Pancreas

The iLet Bionic Pancreas is an AID system with three adaptive algorithms that collectively automate 100% of all insulin doses, and do not require carbohydrate counting by the user. The system is initialized with only the user’s weight. The user only needs to announce the type of meal as “Breakfast,” “Lunch,” or “Dinner,” and the size of the meals as “Usual for me,” “More,” or “Less” than usual. ³⁴ In a 13-week pivotal RCT, supported by the NIDDK, iLet (n = 219) using insulin aspart or insulin lispro was compared to standard of care (n = 107) (including other HCL systems) in participants with T1D (6-79 years old). ⁴⁶ HbA1c decreased from 7.9% at baseline to 7.3% in the iLet group at 13 weeks however it did not change (7.7% at both time points) in the standard care group. ⁴⁶ The mean baseline adjusted between-group difference in the HbA1c at 13 weeks was −0.5% (95% CI [−0.6 to −0.3]; P < .001). ⁴⁶ The baseline-adjusted between-group difference was −0.5% separately for both children 6 to 17 years old (95% CI [−0.7 to −0.2]; P < .001) and adults 18 years and older (95% CI [−0.6 to −0.3]; P < .001).^46-48 The baseline-adjusted between-group difference in TIR was +11% (95% CI [9-13]; P < .001), with TIR increasing from a baseline of 51% ± 20% in both groups to 65% ± 9% in the iLet group and 54% ± 17% in the standard-care group. The baseline-adjusted between-group difference in TIR was +10% (to 60%) over 13 weeks in the iLet group in children 6 to 17 years old (95% CI [+7 to +13]; P < .001) and +11% (to 69%) over 13 weeks in the iLet group in adults aged 18 years and older (95% CI [+8 to +13]; P < .001).^46-48 In addition, there was no increase in hypoglycemia (% <54 mg/dL). In a single-arm extension study for 13 weeks immediately following the RCT, 90 of 107 patients in the standard of care group used the iLet system. ⁴⁹ HbA1c decreased from 7.7% ± 1.0% at baseline to 7.1% ± 0.6% at 13 weeks (mean change –0.55% ± 0.72%, P < .001), TIR increased by 12.0% ± 12.5% (from 53% ± 17% to 65% ± 9%, P < .001). ⁴⁹ Concurrently in the pivotal RCT, 114 adults 18 years and older used the iLet with fast-acting insulin aspart and had glycemic improvement similar to that of the iLet with insulin aspart or insulin lispro. The baseline-adjusted between-group difference in HbA1c vs standard of care was −0.5% (95% CI [−0.7 to −0.3]; P < .001).^46-48 The baseline-adjusted between-group difference in TIR was +14% (to 71%) over 13 weeks in the iLet group with fast-acting insulin aspart (95% CI [+11 to +17]; P < .001). To date, no real-life data has been published on the use of this system.

CamAPS FX

The CamAPS FX algorithm was recently approved by the FDA, but currently it is not yet commercially available in the United States. The glucose target is customizable from 80 to 198 mg/dL. ⁹ It is the only FDA-approved AID system for use during pregnancy in the United States.^50-52 In a three-month RCT, the CamAPS FX algorithm was compared to SAP in 86 participants with T1D (>6 years old) with elevated HbA1c. ⁵³ HbA1c decreased from 8% ± 0.6% at baseline to 7.4% ± 0.6% in the CamAPS FX group and from 7.8% ± 0.6% at baseline to 7.7% ± 0.5% in the SAP group (mean difference in change 0.36%, 95% CI [0.19-0.53]; P < .0001). ⁵³ TIR was higher in the CamAPS FX group (65% ± 8%) compared to the SAP group (54% ± 9%) at the end of the study. ⁵³ Another study compared closed loop insulin delivery to usual care with CSII in a six-month RCT. In 46 children with T1D (6-18 years old) with elevated baseline HbA1c, using CamAPS FX ⁵⁴ HbA1c decreased from 7.9% ± 0.9% at baseline to 6.8% ± 0.5% in the CamAPS FX group and from 8.0% ± 0.6% at baseline to 7.9% ± 0.8% in the SAP group (mean difference in change 1.05%, 95% CI [0.04-0.59]; P = .02). ⁵⁴ TIR was higher in the CamAPS FX group (63% ± 9%) compared to the SAP group (49% ± 13%) at the end of the study (15%, 95% CI [8-22.1]; P = .0001) ⁵⁴ In a two 16 weeks cross over RCT with 74 children (one-seven years old), CamAPS FX was compared to SAP. ⁵⁵ TIR was 8.7% (95% CI [7.4-9.9]) higher, HbA1c was 0.4% (95% CI [−0.5 to −0.3]) lower in CamAPS FX group. ⁵⁵

In a real-life study with 1805 participants with T1D, TIR was 72.6% ± 11.5% for all users and increased by age from 66.9% ± 11.7% for users ≤6 years old to 81.8% ± 8.7% for users ≥65 years old. ⁵⁶

Loop

Open-source automated insulin dosing algorithms (also known as DIY) run on a Smartphone and are largely designed, maintained, and curated by people with diabetes and their loved ones. ⁵⁷ There are two main available algorithms, the OpenAPS algorithm and the Loop algorithm. Both have been implemented on a variety of platforms. Tidepool Loop, a variant of Loop was recently approved by the FDA in the United States. A prospective real-world observational study was conducted with 558 participants with T1D (1-71 years old) who initiated Loop and provided data for six months. ⁵⁸ HbA1c decreased from 6.8% ± 1.0% at baseline to 6.5% ± 0.8% at six months (mean difference 0.33%, 95% CI [0.26-0.4], P < .001). ⁵⁸ TIR increased from 67% ± 16% at baseline to 73% ± 13% at six months (mean difference 6.6%, 95% CI [5.9%-7.4%]; P < .001). ⁵⁸

Discussion

In the last three decades, several advances in therapies including newer insulin analogs, and technologies like CGMs, CSII, and AID systems have facilitated achievement of more targeted glucose levels for many individuals with T1D and have simultaneously reduced the burden of this chronic medical condition. Publications prior to widespread adoption of more advanced diabetes technologies have demonstrated individuals with T1D have only a decade less life because of increased mortality.^59,60 Whether these gaps will be closed by technological advances remains to be seen. In addition, T1D prevalence is increasing, with the diagnosis being made more frequently in adults. ⁶¹

Unfortunately, today nearly two-third of the patients in the United States with T1D are overweight or obese.^62,63 Weight gain was first reported in the IIT group > 30 years ago from the DCCT trial. ³ Excessive weight gain results in features of T2D, commonly referred to as double-diabetes. Excessive weight gain adds risk for insulin resistance, cardiovascular disease, and DKD. ⁶⁴ The exact reasons for weight gain in patients with T1D are speculative (potentially including lifestyle changes, higher insulin dose secondary to IIT, etc.). ⁶² Unlike for T2D, there is no effective adjunctive therapy besides insulin approved by the FDA for people with T1D.

A recent study reported an exponential increase in the off-label use of sodium-glucose cotransporter-2 (SGLT2) inhibitors and glucagon-like peptide-1 receptor agonist (GLP-1RA) analogs in patients with T1D, especially those with cardiovascular disease and DKD. ⁶⁵ Several recent off-label uses of GLP-1RA and SGLT2 inhibitors in people with T1D have shown promising results in improving glucose control and cardio-renal biomarkers.^66-71 A small study even reported using GLP-1RA in new-onset antibody positive patients with T1D. ⁷² While a highly selected group, these individuals were noted after one year of GLP-1RA therapy showed significant reduction and/or elimination of the need for prandial and even basal insulin. ⁷² Studies to quantify how these agents may be used are critical, ⁷³ however, we do not endorse stopping insulin at any time in people with T1D.

Use of SGLT2 inhibitors in patients with T1D from several registration studies have reported higher risk of diabetic ketoacidosis (DKA) especially in those on insulin pumps and thus none of them have been approved by the FDA for people with T1D due to safety concerns.^66,74-76 Unless proper mitigation of DKA can be shown with the use of SGLT2 inhibitors, the regulators in the United States are unlikely to approve their use for people with T1D. Newer technologies like continuous ketone monitors may be used in addition to DKA mitigation plans to support an indication in the T1D population.^77,78 While minimal weight loss (2%-4%) was reported with SGLT2 inhibitors in participants with T1D from registration studies, whether these agents could afford other cardio-protective and renal protective benefits demonstrated in those with T2D remains to be seen. ⁶⁶

The use of newer weekly GLP-1RAs in patients with T1D has been reported to cause significant weight loss ranging from 25 to 60 pounds (15%-25% of baseline body weight) over one to two years.^67-70 The expected weight loss from GLP-1RA results in significant changes in insulin dose (prandial and basal) and thus increasing the risk of both hypoglycemia and DKA; however, to date, small retrospective study results have been reassuring.^{67,68,70,79-81} Because of a differential decrease in prandial vs basal insulin dose, it is possible that AID algorithms may need to be tweaked if newer GLP-1RAs are used in people with T1D.^73,82

Summary and Conclusions

The benefits of AID systems in registration and real-life studies have been well documented in the past decade. In registration studies, study designs varied from single arm to RCT studies. Primary endpoints in most of the studies included changes in HbA1c or GMI and TIR with secondary endpoints of TBR and other CGM metrics. The lack of a control group in some of the single-arm studies limits the ability to compare the outcomes observed with RCTs.

Real-life study designs were more complex with varying inclusion criteria and duration and mostly done by the sponsoring companies using their databases. This also limits the comparisons within different AID systems. However, most real-life studies confirmed the registration study data as they relate to improvement in glucose control as measured by (HbA1c, TIR). Real-life studies are important to learn about lived experiences and challenges with AID systems and to determine the effectiveness of a new technology once the constraints of inclusion and exclusion criteria are removed as are the guardrails of the frequent contacts and support provided in the clinical trials.

Patient selection, training, and education are the mainstay to achieve optimal diabetes management while using AID systems. In addition to breakthroughs in glycemic control, AID systems improve quality of life, decrease diabetes burden, and fear of hypoglycemia. Moving forward, toward fully automated AID systems, new-generation AIDs will integrate not only CGM data but also other physiological inputs that may alter glycemia. Some of the future directions for AID systems include novel algorithms (neural network), no meal announcements, alternative routes of insulin delivery, and faster acting insulins.

The important issues of wider access and acceptability and their use include challenges in implementation, lack of support system, and cost. Because of increasing weight in people with T1D, the role of adjunctive therapies like GLP-1RAs and SGLT2 inhibitors needs to be evaluated for their safety and efficacy in people with T1D. Many of the AID system studies in the last decade were supported by grants from NIDDK. The critical nature of the funding provided by the NIDDK and the commitment of the program scientists, investigators, study participants, and industry to collaborate to reach this first stage in the age of automation has been essential. Continued partnerships will drive the field forward.
