Notch Signaling in Developmental and Tumor Angiogenesis

Notch and Arterial/Venous Specification

One of the earliest roles for Notch in the developing embryo is to direct arterial and venous endothelial cell determination. Endothelial cells are thought to originate in the mesoderm from a precursor cell termed the angioblast. ³⁹ The angioblast goes on to differentiate into endothelial cells that acquire either an arterial or venous identity based on their expression of EphrinB2 or EphB4, respectively. In the nervous system, the EphrinB2/EphB4 signaling system has repulsive function; accordingly, EphrinB2/EphB4 signaling may have a similar role in the vasculature. In vivo and in vitro, Notch signaling is required to drive and maintain expression of EphrinB2 in arterial endothelial cells.^5,33-36 Taken together, these data suggest that Notch functions in early vascular development to drive arterial endothelial identity while concurrently suppressing venous identity.

Only recently have we begun to appreciate the mechanism by which Notch regulates venous/arterial specification in vascular development. In zebrafish and mammals, a common precursor vessel segregates into the first embryonic artery (dorsal aorta) and vein (cardinal vein). ⁴⁰ This process is dependent on both Dll4/Notch1 regulating EphrinB2/EphB4 signaling. In zebrafish, inhibition of Notch signaling with either a gamma-secretase inhibitor (GSI) or hey2 morpholino disrupted the segregation of the common vessel into a dorsal aorta and cardinal vein. ⁴⁰ This phenotype was replicated when morpholinos for either ephrinb2 or ephb4 were introduced, demonstrating a requirement for both Notch and EphrinB2/EphB4 signaling in early arterial/venous vascular development.

In mice, when Notch4 signaling was constitutively activated in the endothelium, the dorsal aorta was enlarged, whereas the diameter of the cardinal vein was reduced. ⁴¹ The enlargement of the dorsal aorta was observed prior to vascular smooth muscle cell recruitment and was independent of endothelial cell proliferation. Instead, the authors demonstrated an increase in EphrinB2- and Dll4-positive cells in the dorsal aorta and a concomitant reduction of EphB4- positive cells in the cardinal vein. Similarly, endothelial-specific overexpression of Dll4 correlates with a loss of venous endothelial EphB4 expression and a gain in arterial endothelial EphrinB2 in the cardinal vein. ³⁶ In contrast, disruption of Dll4/Notch1 signaling had the opposite phenotype, observed as an increase in EphB4+ endothelial cells in the cardinal vein and reduced EphrinB2+ endothelial cells in the dorsal aorta.^33,41 Taken together, these data suggest that activation of Notch promotes endothelial cell differentiation toward an arterial identity, thereby ensuring proper segregation of arteries and veins.

It has recently come to light that Notch and EphrinB2 signaling also have independent functions in vascular development. At E9.5, both loss and gain of function Notch mouse embryos develop arterial venous malformations (AVMs), although the AVMs arise in different regions of the embryo. ²⁷ AVMs are observed as a fusion of arteries and veins and an absence of the intervening capillary bed. Endothelial-specific activation of Notch is characterized by shunting between the dorsal aorta and cardinal vein in the anterior region of the embryo. In contrast, loss of Notch signaling resulted in small-diameter anastamoses between arteries and the anterior cardinal vein in the head of embryos.^20,27 Unexpectedly, the AVMs observed in embryos with endothelial-specific Notch activation phenocopied those of Ephrinb2 nullizygous embryos. This suggests that following the initial segregation of the common vessel, Notch no longer requires EphrinB2 to maintain the segregation of arteries from veins.

Later in development, arterial endothelial cells have been shown to require Dll1 to maintain their cellular identity. Dll1 expression is first observed in the mouse at E13.5 in the vascular endothelium, where it is restricted to the arteries and absent from the veins and capillaries. ²⁵ Dll1 mutant embryos display severe hemorrhaging and lose the expression of arterial endothelial EphrinB2, Vefgr-2, and Neuropilin1 (Nrp1). ²⁵ Furthermore, ischemia-induced arteriogenesis was severely impaired in Dll1 heterozygous mice and correlated with a loss of EphrinB2 expression. ²⁴ Throughout vascular development, it appears that Notch may act both in concert and independent of EphrinB2. Taken together, these embryonic studies clearly demonstrate that Notch functions reiteratively in the vasculature to regulate arterial/venous endothelial cell segregation and identity.

Notch and Sprouting Angiogenesis

Insight into the function for Notch in sprouting angiogenesis and endothelial cell identity has come from studies of murine retinal angiogenesis (Figure 1). The work of Betsholtz, Eichmann, Wiegand, and others has helped to dramatically refine our understanding of Notch function in vascular biology by identifying 2 endothelial cell types essential for sprouting angiogenesis: the “tip” cell and the “stalk” cell.^21,42,43 The “tip” cell, located at the leading edge of an angiogenic sprout, is highly migratory as evident by the presence of filopodia and expresses high levels of VEGFR-2, VEGFR-3, and platelet-derived growth factor-B. In the retina, the tip cells are thought to require high levels of VEGFR-2 to migrate toward a VEGF gradient produced by the underlying astrocyte plane. ⁴⁴ The “stalk” cell, located adjacent to the tip cell, is proliferative and lumenizing, and it expresses high levels of VEGFR-1. The cellular mechanisms that differentiate a lumenizing stalk cell from a proliferative stalk cell have yet to be elucidated.

OPEN IN VIEWER

Figure 1.

Notch signaling in sprouting angiogenesis. In an angiogenic sprout, the endothelial tip cell (light pink) expresses high levels of Dll4 in response to VEGFR-2 activation. Dll4 in the tip cell activates Notch1 in the neighboring endothelial stalk cell (dark pink). A Notch1-positive macrophage (yellow) is located between 2 endothelial tip cells undergoing anastomosis. It is proposed that the Notch-positive macrophage acts as a “bridge” between 2 Dll4 positive tip cells. Notch/Jagged1 signaling regulates endothelial and mural cell (green) interactions. N1 = Notch1; N3 = Notch3; Jag1 = Jagged1.

Analysis of the retinal vasculature of Notch mutant mice has established a role for Notch in endothelial tip and stalk cell fate determination. Gene disruption of Dll4 led to supernumerous angiogenic sprouts, resulting in increased retinal vascular density.^21,38,42,43 This Dll4 mutant phenotype correlated with an expansion of the expression of the tip cell markers, Vegfr-2, Vegfr-3, and Pdgfb, at the vascular front. In retinal angiogenesis, Notch1 activity is high in the adjacent stalk cells, and loss of endothelial Notch1 or addition of a gamma-secretase inhibitor phenocopied the Dll4 mutant retinal phenotype. ⁴² Consistent with these findings, activation of Notch signaling correlated with reduced endothelial tip cells and retinal vascular branch points and density. ⁴² In contrast, the Adams group has shown that loss of endothelial Jagged1 results in a decrease in retinal vascular density, suppression of the tip cell phenotype, and an increase in Vegfr-2 expression. ⁴⁵ From these data, it has been proposed that Jagged1 functions to inhibit Dll4/Notch1 between neighboring endothelial cells in retinal angiogenesis. Taken together, these data demonstrate a role for Notch1 signaling in “tip” versus “stalk” cell differentiation and thus regulation of tip cell number during sprouting angiogenesis.

In retinal angiogenesis, it has become clear that proper levels and localization of VEGFR-1, VEGFR-2, and VEGFR-3 are critical for tip cell identity and function.^38,44 Inhibition of Vefgr-2 signaling in the retina results in decreased vessel density characterized by a reduction in endothelial cells with filopodia, suggesting a loss of the migratory tip cell identity. This phenotype was enhanced by additional inhibition of Vegfr-3. In contrast, inhibition of Vegfr-1 results in an increase in tip cells. ⁴⁴ In vitro Notch has been shown to regulate VEGF receptor expression, whereas VEGF signaling has been shown to induce endothelial Dll4 expression.^46,47 Thus, a model has evolved that connects Notch and VEGF signaling in the regulation of tip/stalk cell identity. It has been proposed that in response to VEGF, Dll4 is induced in the tip cell, which in turn activates Notch1 in the neighboring stalk cell. A VEGF-feedback loop is then initiated, whereby Notch activation causes reduction of VEGFR-2 and VEGFR-3 and induction of VEGFR-1 in the stalk cell. In the tip cell, the absence of Notch signaling allows for high VEGFR-2 and VEGFR-3 expression, allowing for a heightened sensitivity to external VEGF cues, whereas decreased VEGF receptor expression in the stalk cell limits sprouting and ensures a proper number of tip cells at the angiogenic front.

Using computational modeling and sprouting assays with genetically mosaic cells, the Gerhardt group found that endothelial cells are in constant competition for the tip cell position at the leading edge of an angiogenic front. ⁴⁸ They propose that endothelial tip cell identity is transitory and dependent on environmental cues. Notch regulation of VEGF receptor expression downstream of Dll4 is critical in determining the dynamic flux between tip and stalk cell identity. This process appears to be in constant flux, with cellular contact between neighboring endothelial cells functioning as a dynamic process, subjecting cells to varying levels of Notch signaling and thus differential VEGF receptor expression. An understanding of this dynamic process helps to align the current model of high expression of Notch in the proliferative stalk cell with the findings that Notch signaling inhibits endothelial cell proliferation. It may be that high Notch signaling lasts only for a brief moment in a stalk cell to allow for momentary tip cell identity of its cellular neighbor during sprouting angiogenesis. However, once tip versus stalk cell identity has been briefly established, tight regulation of Notch signaling would allow for endothelial cell proliferation of stalk cells. Recently, Sirt1 has been shown to inhibit Notch signaling in the stalk cell and thus provide a mechanism by which Notch signaling can be fine-tuned. ⁴⁹ Sirt1, a deacetylase, was shown to deacytelate the Notch1-ICD to promote its ubiquitin- mediated degradation and thereby downregulate Notch-mediated gene transcription. To fully understand the role of Notch in regulating sprouting angiogenesis, future work will need to focus on the cellular mechanisms that modify Notch signaling to allow for the dynamic cellular identities of the nascent sprout.

Notch and Vascular Mural Cell Function

The production of new, functional blood-carrying vessels during angiogenesis requires sprouting endothelial cells to undergo lumenization followed by appropriate maturation. Vessel maturation is dependent on the recruitment of mural cells to nascent vessels. As their name suggests, mural cells make up the vessel wall that supports the underlying endothelial cells, thereby functioning as critical components of vessel stability. In this review, we define mural cells as both pericytes and vSMCs.

It is well established that mural cells promote vessel stability by signaling to endothelial cells to inhibit their proliferation and promote survival. ⁵⁰ Pericytes and vSMCs are cells of mesodermal origin and are believed to arise from the same cell lineage. However, the source of mural cells is still somewhat controversial in the field. It has been proposed that pericytes and vSMCs make up a differentiation continuum of the same cell type. Accordingly, pericytes and vSMCs are distinguished by their differential tissue distribution, their localization within the vessel wall, and their function. Capillaries are lined solely by pericytes, where they have a distinct morphology; pericytes appear to be wrapped around capillaries with multiple cellular protrusions and often lacking association with other pericytes. On the other hand, vSMCs are found in tight association with each other and are found in single or multiple layers around larger vessels. In addition, unlike vSMCs, which are exclusively found outside the endothelial basement membrane, pericytes share a basement membrane with the endothelium through which they can make direct contact with endothelial cells. ⁵¹

The intimate association of mural cells and endothelial cells provides an opportunity for Notch signaling between the two cell types. Notch may function either through homotypic mural cell contact or through direct cell contact between mural cells and endothelial cells, providing a mechanism by which one cell type can regulate the function of another. Mural cells express Notch1, Notch2, and Notch3 and the Notch ligands Jagged1 and Dll4.^52,53 In embryonic and retinal angiogenesis, endothelial Jagged1 deletion resulted in reduced vSMC coverage and vessel dilation.^45,54 In vitro, endothelial JAGGED1 has been shown to signal to NOTCH3 on vSMCs to induce NOTCH3 expression and regulate vSMC differentiation. ⁵⁵ Taken together, these findings demonstrate that Jagged1-induced Notch signaling regulates mural cell differentiation.

Analysis of mural cell phenotypes of Notch mutant mice provides further support for a role of Notch in endothelial/mural cell interactions. Despite being viable and fertile, adult Notch3 nullizygous mice present with altered vascular mural cell coverage. ⁵⁶ However, earlier in development, mural cell coverage is normal in the retinas of Notch3^–/– mice, suggesting that Notch3 does not contribute to mural cell recruitment. Notch3 may instead play an important role in the maintenance of mural cell coverage as demonstrated by the fact that Notch3 null mice display enlarged distal arteries with decreased vascular smooth muscle coverage as well as decreased mural cell coverage in the retina later in adulthood.^56,57 In fact, analysis of mutations in mice and humans demonstrates that Notch3 is an important regulator of arterial smooth muscle cell differentiation. The vascular smooth muscle cells lining the major arteries of Notch3-deficient mice displayed decreased Smoothelin expression, a marker that differentiates arterial vSMCs from their venous counterpart. ⁵⁷ Furthermore, in humans, NOTCH3 is exclusively expressed in arterial vascular smooth muscle cells.^52,58 Mutations in the human NOTCH3 gene are associated with the adult-onset stroke disease, CADASIL (cerebral autosomal dominant arteriopathy with subcortical infarcts and leukoencephalopathy), which is caused by cerebral vessel instability due to a loss of arterial vSMC coverage. ⁵⁹ The late onset of CADASIL and the delayed loss of mural cell coverage in Notch3-deficient mice suggest that Notch3 acts to maintain mural cell coverage in mature vasculature but does not appear to play a role in mural cell recruitment during angiogenesis.

The recruitment of mural cells to nascent blood vessels involves a variety of signaling mechanisms, including transforming growth factor–β (TGF-β), angiopoietin-Tie2, and the platelet-derived growth factor (PDGF) signaling pathway. PDGF signaling functions to promote mural cell migration and proliferation. During angiogenesis, spouting endothelial cells secrete the ligand PDGF-B to promote the proliferation and migration of PDFGR-β mural cells to the nascent vessels. Accordingly, genetic mouse models in which either Pdgfb or its receptor Pdgfrb is knocked out display decreased vascular mural cell coverage that caused dilation and hemorrhaging of vessels, ultimately resulting in perinatal death.^60,61 Interestingly, PDGFR-β has been shown to be a direct gene target of Notch. ⁶² In cultured human vascular smooth muscle cells, ectopic expression of an activated form of either NOTCH1 or NOTCH3, as well as JAGGED1-induced NOTCH activation, caused an increase in PDGFR-β transcript and protein levels. However, further analysis using chromatin immunoprecipitation and reporter assays showed that the Notch1 intracellular domain, but not Notch3, directly binds the 1.5-kb proximal promoter of PDGFR-β to induce its expression in a CSL-dependent manner. This demonstrates that Notch1 and Notch3 regulate PDGFR-β in unique ways. Interestingly, exposure to exogenous homodimeric PDGF-BB has been shown to downregulate NOTCH3 expression in vascular smooth muscle cells, again suggesting that NOTCH3 is not required for mural cell recruitment. ⁶³ Thus, one can propose a model whereby Notch1 signaling is critical for mural cell recruitment to new vessels, whereas Notch3 plays a role in pericyte/vSMC maturation once they arrive at their final destination.

Another way that Notch may regulate mural cell coverage is through promotion of endothelial-to-mesenchymal transition (EMT). EMT has been shown to be an important process during cardiovascular development, where it has been implicated in both cardiac leaflet and endocardial cushion formation. ⁶⁴ A role for Notch in regulating EMT is made possible by the fact that both endothelial cells and mesenchymal cells such as pericytes and vascular smooth muscles cells express Notch1, Notch2, and Jagged1. Furthermore, Notch can directly target and promote the expression of genes important for mesenchymal cell differentiation such as PDGFR-β and alpha smooth muscle actin (αSMA).^62,65 In fact, Dll4 signaling has been shown to be required by bone marrow–derived cells to activate expression of pericyte/vascular smooth muscle–specific cell markers. ⁶⁶ Expression of the intracellular domain of Notch1 in cultured endothelial cells was shown to induce morphological and functional changes that were characteristic of a mesenchymal phenotype. ⁶⁴ In addition to regulating mural cell recruitment and differentiation, future work may show that Notch contributes to mural cell coverage by altering cellular identity. Understanding this process could have great therapeutic potential by providing an additional source of vascular support cells in pathological settings defined by mural cell loss.

Notch1 Function in Macrophage Recruitment and Macrophage-Mediated Angiogenesis

Macrophages arise from the myeloid lineage and can act to establish unique microenvironments in which specialized cellular functions can occur. Accordingly, macrophages have the potential to regulate endothelial cell function. Until recently, studies of Notch signaling in the myeloid lineage have focused on differentiation of progenitor cells.^67,68 However, Notch signaling can also be activated in monocytes and macrophages, suggesting a role for Notch in mature cells of the myeloid lineage. Macrophages express Notch1, Notch2, and Notch4, as well as Dll4, Jagged1, and Jagged2.^68-70 Direct cell contact between macrophages and endothelial cells could therefore result in active Notch signaling to regulate the function and identity of either cell type.

To describe the diversity of their activation states and function, a simplified paradigm of macrophage polarization toward an M1 “classic” or M2 “alternative” activation state is useful. ⁷¹ M1 macrophages are induced in response to lipopolysaccharide (LPS) and interferon-gamma (IFN-γ) and produce inducible nitric oxide synthase (iNOS) and cytokines such as tumor necrosis factor alpha (TNF-α), interleukin (IL)–1, IL-6, and IL-12, ⁷² whereas M2 macrophages are induced in response to IL-4, IL-10, or IL-13 and generally counteract the proinflammatory activity of M1 macrophages. ⁷² In addition to inhibiting inflammation, M2 macrophages can promote cellular responses that are distinct from the inflammatory response. For instance, M2 macrophages are thought to function in angiogenic regulation. M2 macrophages are characterized by expression of arginase-1 and mannose receptor and stimulate cell proliferation, collagen production, angiogenesis, and tissue remodeling. ⁷² Production of pro-angiogenic factors is generally associated with M2 macrophages, which can produce VEGF, fibroblast growth factor–1 (FGF-1), angiopoietin-1 (Ang1), and matrix metalloproteinases.^72,73 However, the inflammatory cytokines, IL-6 and TNF-α, that are released by M1 macrophages can also be pro-angiogenic.^74,75 Thus, stimulation of angiogenesis is a function of macrophages that is not necessarily limited to a particular differentiation state.

Expression of Notch proteins is upregulated in response to inflammatory stimuli such as LPS and IFN-γ.^31,69,76 Notch may also interact with the nuclear factor–kappa B (NF-κB) and mitogen-activated protein kinase (MAPK) pathways, which have long been known to be essential for the inflammatory response of macrophages.^76-78 Thus, Notch may modulate the activity of other signaling pathways to fine-tune macrophage responses to environmental cues. Indeed, our group and others have shown that Notch regulates macrophage response to inflammatory stimuli. Macrophages mutant for Notch signaling have decreased expression of IL-6, IL-12, and TNF-α in response to LPS/IFN-γ stimulation.^31,76 In vivo, mice mutant for Notch1 have decreased macrophage recruitment, decreased expression of TNF-α, and increased collagen deposition and angiogenesis during wound healing compared to wild-type littermates. ³¹

Macrophages are recruited to sites of inflammation and active angiogenesis via VEGFR-1 activation, which may also regulate their angiogenic function at these sites.^79-82 This shows that VEGF, although most notable for its effect on endothelial cells to promote angiogenesis, can also affect macrophage function. It has also been proposed that VEGF stimulates inflammatory lymphangiogenesis via recruitment and function of macrophages. ⁸³ In addition to VEGF, there is increasing evidence that Ang2, via Tie2 expressed on macrophages, plays an important role in their pro-angiogenic activity, particularly in tumor models. ⁸⁴ Therefore, macrophages affect angiogenesis in a variety of contexts via distinct signaling pathways.

Previous studies show that macrophages are closely associated with sprouting endothelial cells in the developing postnatal mouse retina. ⁸⁵ In this setting, macrophages appear to form bridges between neighboring endothelial cell sprouts to facilitate anastomosis. ⁸⁶ As such, macrophage-deficient mice have reduced branching in the retinal vascular plexus.^85,87 Macrophages may also affect the directionality of endothelial cell sprouts by promoting sprouting both forward and sideways to form the vascular plexus. ⁸⁸ VEGF-mediated endothelial sprouting and macrophage-mediated anastomosis appear to be distinct steps in angiogenesis.^86,88 In fact, macrophage regulation of vessel fusion is secondary to VEGF-mediated endothelial cell induction, as the number of tip cells and filopodia is comparable in both macrophage-deficient and wild-type mice. ⁸⁷ The mechanism by which macrophages mediate tip cell branching remains unclear. It is likely that communication between macrophages and endothelial cells elicits the release of angiogenic factors from both cell types to mediate anastomosis. The factors involved and their cellular source remain to be determined.

Recent in vivo retinal analysis demonstrates that Notch1 regulates macrophage function during sprouting angiogenesis. Notch signaling was shown to regulate macrophage recruitment and macrophage activity in vessel anastomosis during angiogenesis. ⁸⁹ Specifically, Notch1 was shown to be critical for macrophage recruitment to sites of active angiogenesis, as demonstrated by a loss of macrophage localization to the vascular front in mice with Notch1 deleted in the myeloid lineage. Furthermore, by using Notch signaling reporter mice, active Notch signaling was observed in macrophages that were found to bridge 2 Dll4-positive endothelial tip cells undergoing anastomosis. The mechanisms by which macrophage-Notch proteins regulate endothelial branching remain to be determined. When one overlays this new concept with models of tip and stalk cell identity, we must now add the direct cell contact between macrophages and endothelial cells as a mechanism that allows for Notch-mediated endothelial gene expression during sprouting angiogenesis.

Notch regulates macrophage expression of Vegfr-1, ³¹ suggesting that Notch signaling is important for macrophage recruitment and function in tissues with increased expression of VEGF—namely, those undergoing inflammation or angiogenesis. There may not be a need for a distinction between inflammatory and angiogenic tissue, as inflammation occurs in vascularized tissue, and conversely, inflammation necessitates remodeling of blood vessels that are often damaged or destroyed by the inflammatory process. ⁹⁰ Wounds, tumors, and many other pathological processes are characterized by increased expression of VEGF that acts as a chemoattractant for inflammatory cells.^37,91 Notch-regulated VEGFR-1 expression may also mediate macrophage function at these sites. Because of their ability to extend many long and complex filopodia, macrophages are ideally suited to interact directly with other cells in their environment but also to act as “adaptors” between different cells. Currently, models of sprouting angiogenesis largely overlook the role that macrophages play in this process. Notch signaling in macrophages during angiogenesis may therefore complicate anti-angiogenic therapeutic strategies, which largely focus on Notch signaling only in endothelial cells. The role of Notch in macrophages and their interaction with endothelial cells should be recognized as important for mediating endothelial cell behavior.

Future work may further elucidate a role for Notch signaling in defining the activation state of differentiated macrophages in a variety of cellular and tissue contexts. Our data and that of others suggest that Notch plays a role in defining the activation state of differentiated macrophages. However, previous studies have also suggested that Notch signaling may promote commitment of hematopoetic progenitor cells to the myeloid fate, ⁶⁷ implying that Notch signaling is active in both early and later phases of myeloid differentiation. This concept raises the question of how Notch signaling can affect myeloid cell phenotypes in such divergent ways. Because macrophages express multiple Notch proteins, it is possible that the relative expression of different receptors may dictate distinct phenotypes and downstream functions. The many combinations of Notch ligands and receptors and the spatial and temporal regulation of Notch ligand and receptor expression can mediate differences in Notch signaling activity depending on context. ⁹²

Notch and Tumor Angiogenesis

Pathological angiogenesis relies on similar mechanisms and angiogenic factors as those involved in physiological angiogenesis, including hypoxia and VEGF signaling. When a tissue lacks sufficient oxygen, a series of coordinated signal transduction cascades are initiated and culminate in blood vessel recruitment into the hypoxic tissue. Under normal conditions, angiogenic factors and corresponding cellular functions usually recede when vascular perfusion allows sufficient oxygen to reach the tissue. However, pathological angiogenesis, such as tumor angiogenesis, is persistent and unresolved due to an incessant supply of tumor-derived angiogenic factors and inflammatory cytokines. It is well established that growth and metastasis of solid tumors are crucially dependent on development of the new vasculature.

VEGF signaling is the best-characterized signaling pathway in angiogenesis. VEGF-A is upregulated by the transcription factor hypoxia-inducible factor (HIF) and binds to 2 receptor tyrosine kinases, VEGFR-1 and VEGFR-2. Several studies demonstrate that VEGF-A is overexpressed in many human tumors. ⁹³ Therefore, it is not surprising that inhibition of angiogenesis and development of the VEGF blockade have been considered an attractive strategy to treat human cancer (Table 1). VEGF inhibitors, including Food and Drug Administration (FDA)–approved bevacizumab (Avastin), have been shown to reduce tumor angiogenesis and tumor growth and are now validated for cancer therapy. ⁹⁴ However, different tumors reportedly exhibit widely varying susceptibility to VEGF inhibition. This phenomenon may occur due to alternative angiogenic signals that rescue tumor vasculature and allow tumor growth despite VEGF blockade.

OPEN IN VIEWER

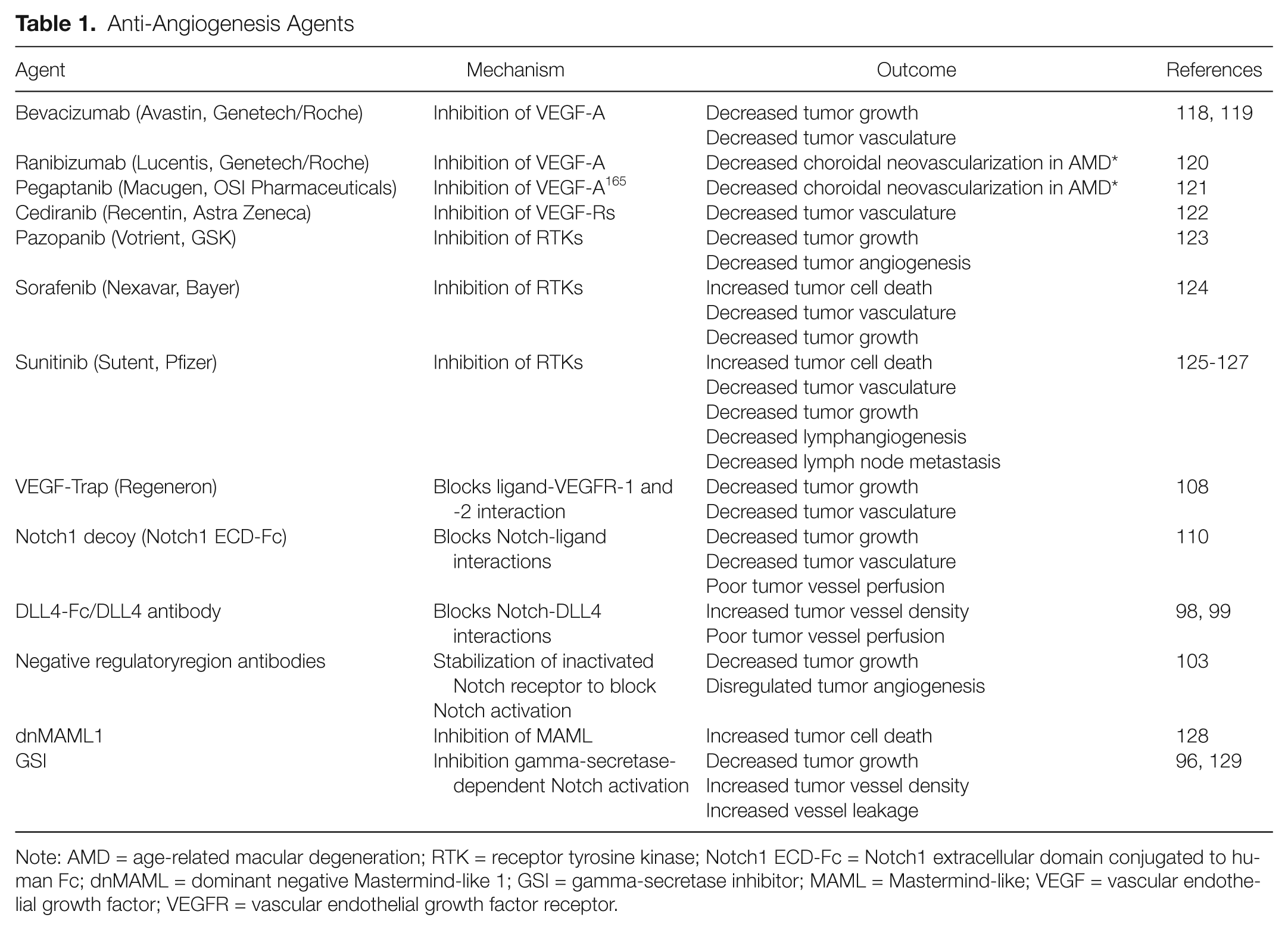

Table 1.

Anti-Angiogenesis Agents

Agent	Mechanism	Outcome	References
Bevacizumab (Avastin, Genetech/Roche)	Inhibition of VEGF-A	Decreased tumor growth	118, 119
		Decreased tumor vasculature
Ranibizumab (Lucentis, Genetech/Roche)	Inhibition of VEGF-A	Decreased choroidal neovascularization in AMD*	120
Pegaptanib (Macugen, OSI Pharmaceuticals)	Inhibition of VEGF-A165	Decreased choroidal neovascularization in AMD*	121
Cediranib (Recentin, Astra Zeneca)	Inhibition of VEGF-Rs	Decreased tumor vasculature	122
Pazopanib (Votrient, GSK)	Inhibition of RTKs	Decreased tumor growth	123
		Decreased tumor angiogenesis
Sorafenib (Nexavar, Bayer)	Inhibition of RTKs	Increased tumor cell death	124
		Decreased tumor vasculature
		Decreased tumor growth
Sunitinib (Sutent, Pfizer)	Inhibition of RTKs	Increased tumor cell death	125-127
		Decreased tumor vasculature
		Decreased tumor growth
		Decreased lymphangiogenesis
		Decreased lymph node metastasis
VEGF-Trap (Regeneron)	Blocks ligand-VEGFR-1 and -2 interaction	Decreased tumor growth	108
		Decreased tumor vasculature
Notch1 decoy (Notch1 ECD-Fc)	Blocks Notch-ligand interactions	Decreased tumor growth	110
		Decreased tumor vasculature
		Poor tumor vessel perfusion
DLL4-Fc/DLL4 antibody	Blocks Notch-DLL4 interactions	Increased tumor vessel density	98, 99
		Poor tumor vessel perfusion
Negative regulatory region antibodies	Stabilization of inactivated Notch receptor to block Notch activation	Decreased tumor growth	103
		Disregulated tumor angiogenesis
dnMAML1	Inhibition of MAML	Increased tumor cell death	128
GSI	Inhibition gamma-secretase-dependent Notch activation	Decreased tumor growth	96, 129
		Increased tumor vessel density
		Increased vessel leakage

Note: AMD = age-related macular degeneration; RTK = receptor tyrosine kinase; Notch1 ECD-Fc = Notch1 extracellular domain conjugated to human Fc; dnMAML = dominant negative Mastermind-like 1; GSI = gamma-secretase inhibitor; MAML = Mastermind-like; VEGF = vascular endothelial growth factor; VEGFR = vascular endothelial growth factor receptor.

A role for Notch signaling is well documented in both hematological malignancies and solid tumors. ⁹⁵ Notch has been demonstrated to act as either a tumor suppressor or an oncogene in a context-dependent manner. In addition, several lines of evidence suggest that Notch also plays an important role in tumor angiogenesis. As previously discussed, Notch receptors and ligands are widely expressed in endothelial and perivascular cells, but they are also shown to be upregulated in several types of tumor cells. Therefore, Notch, like VEGF, has become a focus for the development of targeted therapeutics by pharmaceutical companies. Several GSIs have been developed and evaluated in phase I clinical trials. However, the GSI-induced toxic effects of goblet cell metaplasia and diarrhea make the reagent unpromising for cancer treatment. ⁹⁶ Interestingly, Real and colleagues ⁹⁷ demonstrated that glucocorticoids protected GSI-treated mice from developing goblet cell hyperplasia, which supported the possibility of glucocorticoids plus GSIs in the treatment of T cell acute lymphoblastic leukemia (T-ALL).

Tumor vasculature and tumor cells have also been shown to overexpress the Notch ligand Dll4. ⁴⁷ Genetic studies have shown that reduction of Dll4 results in hypersprouting phenotypes and disruption of the vasculature. ³³ Accordingly, several anti-DLL4 agents have been developed and have entered phase I clinical trials. DLL4 blockade resulted in decreased tumor growth due to poorly perfused, nonfunctional tumor vasculature.^98-100 Treatment with either a DLL4-neutralizing antibody or a soluble form of DLL4, DLL4-Fc, caused an increase in sprouting angiogenesis and endothelial tip cell number in tumors. In addition, DLL4-blocking agents have been shown to lack the adverse effect of goblet cell metaplasia, which is a dose- limiting factor for GSIs. ⁹⁹ Thus, DLL4 inhibitors appeared to be a promising agent for cancer therapy. However, it has been shown that chronic Dll4 inhibition can cause pathological activation of endothelial cells and consequently vascular neoplasms. ¹⁰¹ Liver pathology has also been documented with chronic treatment of DLL4 antibodies in several animal models. The observation of these chronic effects of DLL4-neutralizing antibodies was further supported by genetic studies of Notch1 as a potential tumor suppressor. ¹⁰² Loss of Notch1 heterozygosity caused widespread vascular tumors and subsequent lethality due to massive hemorrhaging, suggesting that the blood vasculature is highly sensitive to Notch inactivation. Undoubtedly, these data have raised important safety concerns for using Notch-inhibiting agents for long-term treatment.

To avoid the severe side affects associated with pan-Notch inhibitors such as GSIs, Notch receptor–specific blocking antibodies have been developed. Antibodies that block ligand binding to either Notch1 or Notch2 have been shown to decrease tumor volume in mouse xenograft models. ¹⁰³ Consistent with DLL4 blockade, these tumors had increased vascular density, as measured by an increase in CD31 staining. Furthermore, treatment with Notch1 antibody increased vessel sprouting and vascular density in the retina. These findings suggest that Notch-specific blockade can inhibit tumor growth by disrupting angiogenesis. Encouragingly, treatment with only Notch1 or Notch2 blocking antibody alone has been found to be nontoxic in the mouse.

Nevertheless, anti-angiogenesis still remains an attractive strategy for treatment of solid tumors. More studies have shown that, in addition to the endothelium, perivascular cells also play an important role in angiogenesis, and they can be dysregulated in pathological angiogenesis.^50,104,105 Liu and colleagues ⁵⁵ showed that endothelial cells and mural cells communicate with each other through NOTCH3 and JAGGED1. In addition, JAGGED1 expressed in tumor cells has been shown to stimulate Notch-dependent angiogenesis. ¹⁰⁶ Inflammatory cells, including tumor-associated macrophages (TAMs), release a number of pro-angiogenic cytokines, such as VEGF-A, TNF-α, and basic fibroblast growth factor (bFGF). ¹⁰⁷ Therefore, it is possible that the next generation of Notch-inhibiting agents will be the ones that target Notch activity in perivascular cells rather than endothelial cells. Recent data support the ideas that individual Notch receptors and ligands may differentially regulate sprouting angiogenesis, vascular remodeling, and endothelial–mural cell interaction. By blocking specific Notch signaling pathways, the adverse effects of activated endothelial cells and vascular neoplasms may be reduced or even avoided.

Protein-based signaling pathway inhibitors have also been studied as anti-angiogenic agents in tumors. These peptide molecules contain the active domain of the protein and thereby block receptor- ligand interaction. These constructs include VEGF-Trap, ¹⁰⁸ dominant negative Mastermind, ¹⁰⁹ and Notch1 decoy. ¹¹⁰ VEGF-Trap is a protein consisting of regions of the extracellular domains of VEGFR-1 and VEGFR-2 that prevents activation of the VEGF receptor by sequestering its ligands. ¹⁰⁸ When purified protein is injected twice weekly, VEGF-Trap inhibited tumor growth and decreased vascular density in various mouse tumor models, including mouse melanoma, rat glioma, and human sarcoma cells. Dominant negative Mastermind-like-1 (dnMAML) binds to the CSL and Notch-ICD complex to prevent Notch target gene transcription. dnMAML is primarily designed to target cancer stem cells by inducing apoptosis in Notch-driven cancers such as T-ALL. ¹⁰⁹ However, in mouse tumor xenograft models, osteosarcoma cells expressing dnMAML have decreased tumor growth compared to control. ¹¹¹ The Notch1 decoy consists of the extracellular domain of Notch1 and can block the activity of several Notch ligands, including Jagged1, Dll1, and Dll4. Notch1 decoy therefore blocks Notch activation. However, tumors expressing the decoy do not show an increase in vascular density, which is a characteristic outcome of treatment with GSIs and DLL4 antibodies. Instead, when tumors expressing Jagged1 were treated with N1 decoy, they displayed reduced and disrupted endothelial networks and a significant reduction in vSMC recruitment. Thus, the Notch1 decoy, in contrast to Dll4 blockade, is a truly anti-angiogenic compound. The Notch1 decoy blocks not only Dll4-specific Notch activation but also the activity of other ligands, suggesting that inhibition of other Notch ligands should be considered as therapeutic targets.

Although Notch inhibitors are still preclinical, the monoclonal VEGF antibody bevacizumab is clinically available and represents a potential for combination therapy. As discussed above, some tumors are responsive to VEGF inhibition, although others are unresponsive and become resistant over time.^112,113 This is most likely due to compensation by other angiogenic pathways that maintain the tumor vasculature. In patients with metastatic breast cancer, treatment with anti-VEGF therapy did not show a statistically significant increase in overall survival benefit. ¹¹⁴ However, combination anti-angiogenic therapy may be useful in overcoming this resistance. In preclinical tumor models, VEGF therapy in combination with chemotherapy or other inhibitors has additive effects on inhibition of tumor growth when compared to monotherapy. In a mouse tumor model of Ewing’s sarcoma, soluble VEGFR-1 peptide-based inhibitor combined with cyclophosphamide had an enhanced effect on decreasing tumor size. ¹¹⁵ Combined inhibition of placental growth factor (PlGF) using anti-PlGF and anti-VEGFR-2 or soluble VEGFR-2 peptide also showed a more pronounced inhibitory effect on tumor growth. ¹¹⁶ Combination therapy that includes DLL4 inhibition has also been proven to decrease tumor size. In xenograft mouse model tumors, anti-DLL4 antibody in combination with chemotherapy (paclitaxel) caused an enhanced decrease in tumor size and reduced the number of cancer stem cells. ¹⁰⁰

In tumor models, VEGF inhibition has been reported to directly affect Notch signaling and vice versa. VEGF inhibition in the mouse Lewis lung carcinoma tumor model correlates with a decrease in Dll4 expression in tumor vessels. ⁹⁸ Also, human neuroblastoma tumor xenografts in mice treated with VEGFR-2 blocking antibody had upregulated Jagged1 protein expression and displayed increased Notch1 activation. ¹¹⁷ Given these findings, coupling agents that block the VEGF pathway with agents targeting the Notch pathway may result in enhanced treatment efficacy. Combined therapy may therefore overcome the issue of tumor escape that is associated with single-agent treatments. Evidence of this benefit was demonstrated when anti-DLL4 antibody was combined with VEGF inhibition in human lung carcinoma and mouse leukemia tumor models. In both studies, combined therapy resulted in enhanced tumor growth inhibition as compared to either monotherapy. ⁹⁹ It has also been shown that human sarcoma xenograft tumors in mice that are unresponsive to VEGF inhibition are instead responsive to DLL4 blocking antibody. ⁹⁸ These data further exemplify the crosstalk between VEGF and the Notch signaling pathway. Clearly, the field of Notch pathway inhibitors is a new and exciting area in cancer research, and additional study of their use both alone and in combination with chemotherapy or other biological agents should be explored.
