PP2A Counterbalances Phosphorylation of pRB and Mitotic Proteins by Multiple CDKs

Introduction

Protein Phosphatase 2A (PP2A) is an abundant serine/threonine phosphatase, which attains substrate specificity via the assembly of a large pool of holoenzymes consisting at the minimum of three subunits. A catalytic subunit (PP2A/C) and a scaffold subunit (PP2A/A), each encoded by two different genes, form core dimers, which are assembled with a collection of PP2A/B regulatory subunits forming trimeric holoenzymes (Figure 1). B subunits belong to four separate families, designated B, B′, B′′ and B′′′, each with multiple members encoded by different genes. The crystal structure of two separate holoenzymes assembled with regulatory subunits of the B (B55α) or the B′ (B56g) families, has provided insight on how the B subunit forms a pocket with the catalytic subunit that may confer substrate specificity^1-3. PP2A plays a major role in signaling by counteracting the action of Ser/Thr kinases in multiple pathways and is implicated in a large number of cellular processes including those that are often defective in cancer. Major targets of relevance to cancer include the MAP kinase and AKT pathways, the tumor suppressors pRB and p53, and CDK1 substrates among others^3-5. This review is mainly focused on the emerging role of B55α and perhaps other members of the B family in the modulation of the phosphorylation state of pocket proteins and mitotic CDK substrates, as well as the implications of PP2A function disruption in cancer in the context of these activities. Recent reviews focused on the role of serine/threonine phosphatases in the regulation of pocket protein function have been published recently^3,5.

OPEN IN VIEWER

Figure 1.

Heterotrimeric PP2A holoenzymes consist of a catalytic, a scaffold, and a regulatory subunit. The B regulatory subunit is responsible for substrate specificity and/or subcellular localization and can be any member from 4 unrelated families (B, B’, B’’, and B’’’). Scaffold and catalytic subunits are encoded each by 2 separate genes. Gene symbols and common protein names are listed.

Evidence That PP2A Is a Tumor Suppressor

Early evidence suggesting that PP2A could function as a tumor suppressor comes from studies showing that okadaic acid (OA) and other toxins in the same family that inhibit PP2A promote tumors in mice and the finding that SV-40 small t antigen, which inhibits PP2A, can transform human cells in cooperation with other oncogenes and facilitates transformation of rodent cells.

PP2A Is a Haploinsufficient Tumor Suppressor

Mutations have also been found in the 2 genes (PPP2R1A and PPP2R1B) encoding the scaffolding PP2A/A subunit in several types of cancers (Table 1). In one study, the PPP2R1B locus was analyzed in primary lung and colon samples as well as lung cancer derived cell lines. Various point and frameshift mutations were identified, including a mutant PP2A/Aβ scaffold subunit in a small cell lung cancer line that was unable to bind PP2A/C. ⁵⁰ Another study analyzed breast, lung, and melanoma tumors and cell lines and found mutations in both PPP2R1A and PPP2R1B. ⁵¹ The most frequent mutation found in this study, the deletion of exon 9 in PPP2R1B, results in the deletion of helix 9, which is needed for the binding of the B subunit. ⁵² Recapitulation of mutations of the Aα ⁵³ and Aβ ⁵⁴ scaffold subunits described by Calin et al. ⁵¹ via site-directed mutagenesis and investigation of their effects on the integrity of various PP2A heterotrimers revealed defects in the binding of various B family member subunits as well as the catalytic subunit. Interestingly, the E64D and E64G mutations of the PP2A/Aα subunit are unable to bind members of the B′ family, whereas binding to B and B′′ members as well as the C subunit is relatively unaffected. Mutations in the C-terminal end are deficient in binding both B and C subunits. ⁵³ Subsequently, it was shown that although PP2A/Aα mutants ectopically expressed in HEK-TER cells exhibited defects in binding other PP2A subunits, they were not oncogenic in transformation assays in which inactivation of PP2A by other means is transforming. ⁵⁵ In contrast, knockdown of the PP2A/Aα subunit in these cells promotes survival via activation of the AKT pathway and induced tumorigenesis in immunocompromised mice. ⁵⁵ This suggests that mutations affecting PP2A/A act by reducing the amount of functional heterotrimers in the cells. More recently, transgenic mice expressing the E64D and E64G mutations and a Δ5-Δ6 mutant with exons 5 and 6 of PPP2R1A deleted have been generated. ⁵⁶ PP2A/Aα extracted from the tissues of the E64D and E64G mice was defective in binding the B′ subunit, as previously reported. ⁵³ These mice were around 60% more susceptible to lung tumors than their wild-type counterparts when treated with benzopyrene.^56,57 Together, these studies strongly suggest that the 2 genes (PPP2R1A and PPP2R1B) encoding PP2A/A scaffolding subunits are haploinsufficient tumor suppressors.

OPEN IN VIEWER

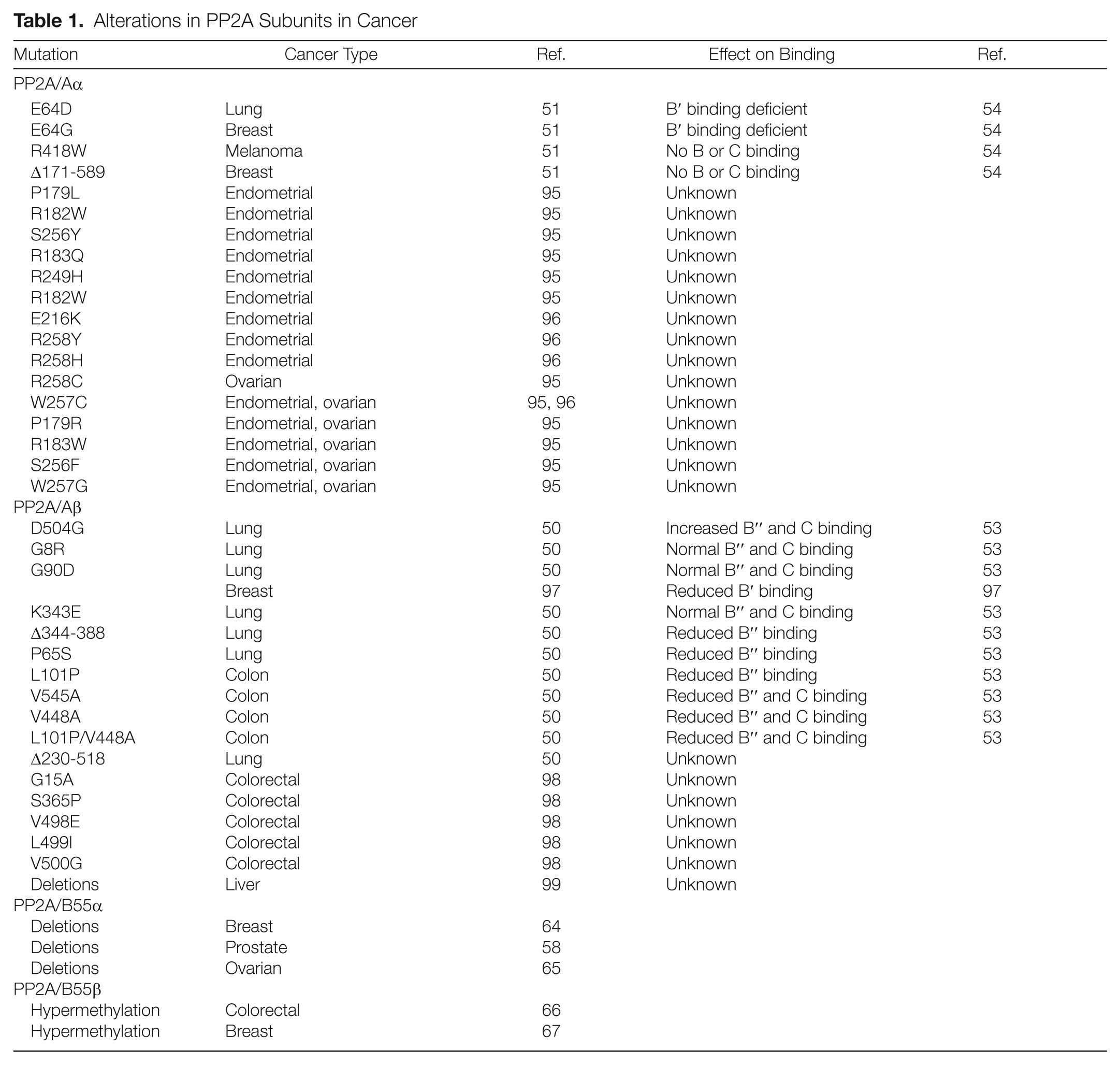

Table 1.

Alterations in PP2A Subunits in Cancer

Mutation	Cancer Type	Ref.	Effect on Binding	Ref.
PP2A/Aα
E64D	Lung	51	B’ binding deficient	54
E64G	Breast	51	B’ binding deficient	54
R418W	Melanoma	51	No B or C binding	54
D171-589	Breast	51	No B or C binding	54
P179L	Endometrial	95	Unknown
R182W	Endometrial	95	Unknown
S256Y	Endometrial	95	Unknown
R183Q	Endometrial	95	Unknown
R249H	Endometrial	95	Unknown
R182W	Endometrial	95	Unknown
E216K	Endometrial	96	Unknown
R258Y	Endometrial	96	Unknown
R258H	Endometrial	96	Unknown
R258C	Ovarian	95	Unknown
W257C	Endometrial, ovarian	95, 96	Unknown
P179R	Endometrial, ovarian	95	Unknown
R183W	Endometrial, ovarian	95	Unknown
S256F	Endometrial, ovarian	95	Unknown
W257G	Endometrial, ovarian	95	Unknown
PP2A/Aβ
D504G	Lung	50	Increased B’’ and C binding	53
G8R	Lung	50	Normal B’’ and C binding	53
G90D	Lung	50	Normal B’’ and C binding	53
	Breast	97	Reduced B’ binding	97
K343E	Lung	50	Normal B’’ and C binding	53
D344-388	Lung	50	Reduced B’’ binding	53
P65S	Lung	50	Reduced B’’ binding	53
L101P	Colon	50	Reduced B’’ binding	53
V545A	Colon	50	Reduced B’’ and C binding	53
V448A	Colon	50	Reduced B’’ and C binding	53
L101P/V448A	Colon	50	Reduced B’’ and C binding	53
D230-518	Lung	50	Unknown
G15A	Colorectal	98	Unknown
S365P	Colorectal	98	Unknown
V498E	Colorectal	98	Unknown
L499I	Colorectal	98	Unknown
V500G	Colorectal	98	Unknown
Deletions	Liver	99	Unknown
PP2A/B55α
Deletions	Breast	64
Deletions	Prostate	58
Deletions	Ovarian	65
PP2A/B55β
Hypermethylation	Colorectal	66
Hypermethylation	Breast	67

Alterations on PPP2R2A and PPP2R2B in Cancer

Although mutations on the scaffold subunit of PP2A are common in a variety of cancers, mutations in the regulatory subunits of PP2A are rare. Only 4 point mutations in PPP2R2A, which encodes the B55α B subunit of PP2A, have been reported in the COSMIC database from 652 sequenced samples, and mutations in other B subunits are uncommon. However, recent studies have shown that deletions of PPP2R2A, which maps to chromosome 8p21.2, are extremely common in prostate cancer (PCa) and are also frequent in breast cancer (Table 1). Using Affymetrix 500k/6.0 SNP array analysis of 141 paired normal/cancer prostate samples, investigators found that 84 tumors (59.6%) presented hemizygous deletion of the PPP2R2A gene and that 3 tumors (2.1%) had a homozygous deletion. However, there was no apparent correlation between PPP2R2A deletion and PCa-specific death, Gleason score, prostate specific antigen levels, or stage. These deletions were all somatic, and no germline deletions were found in 500 nonaggressive and 448 aggressive prostate tumors. ⁵⁸ An independent study conducted to identify recurrent breakpoints in prostate cancer also using the Affymetrix array 6.0 and 500K SNP identified 5 genomic breakpoints in the PPP2R2A gene in 78 prostate tumor samples, ranking PPP2R2A as the fourth most common genomic breakpoint, ahead of PTEN, BRCA1, and BRCA2. In addition, qRT-PCR analysis revealed that 8 of 9 paired normal/tumor samples exhibited decreased PPP2R2A mRNA expression in the tumors. ⁵⁹ Finally, analysis of the gene copy number alteration (CNA) data from another recent study shows that PPP2R2A was homozygously deleted in 7 of 128 (5.5%) and hemizygously deleted in 47 of 128 (36.7%) prostate tumors (Taylor et al., ⁶⁰ supplementary data). Matched mRNA expression Z-scores versus controls showed a correlation with CNA, where median expression values decreased with copy number. Of note, in all these studies the homozygous deletions affecting PPP2R2A also eliminate BNIP3L, another potential tumor suppressor gene^58,60,61; therefore, the contribution of disruption of each of these 2 genes in tumorigenesis remains to be elucidated. Moreover, hemizygous deletions are larger and variable and may affect the expression of other genes. NKX3.1, a gene that has been previously implicated in prostate gland development and as a potential haploinsufficient PCa tumor suppressor,^62,63 was found to be homozygously deleted in 4 of 81 prostate tumors (4.9%); however, no co- correlation between mRNA expression and CNA was found, suggesting the alternative presence of other tumor suppressors in this region. ⁶⁰ Importantly, deletion of PPP2R2A is not restricted to PCa, as a recently published study of the genomic and transcriptomic architecture of about 2,000 breast tumors has revealed that PPP2R2A is 1 of 3 novel deletions that is associated with outlier underexpression of its product. Loss of PPP2R2A expression in breast cancer is enriched in mitotic ER-positive cancers (luminal B), allowing for new molecular stratification of breast cancers. ⁶⁴ Moreover, homozygous deletions of PPP2R2A are also detected in serous ovarian cancer (4.5%), all indicating that alterations of this gene are not restricted to PCa. ⁶⁵

Promoter silencing via methylation of PPP2R2B, which encodes B55β, a regulatory subunit in the same family as B55α, has been found in colorectal cancer (CRC) (Table 1). Downregulation of PPP2R2B in CRC-derived patient samples was observed when compared with matched normal colon-derived mucosa in gene expression array analysis, as was hypermethylation of the PPP2R2B promoter. Reintroduction of B55β reduced the ability of DLD1 and HCT116 cells to form anchorage-independent colonies in soft agar, and the ability of DLD1 cells to form tumors in nude mice was reduced when B55β was expressed. In this study, it was shown that B55β targets PDK1 to regulate MYC signaling, and in CRC, loss of B55β results in a PDK1-dependent, but PI3K-independent induction of MYC phosphorylation in response to rapamycin, which is reversed upon readdition of B55β. ⁶⁶ Aberrant methylation of PPP2R2B has also been detected in ductal carcinoma in situ when compared with normal breast tissue. ⁶⁷

Taken together, the observation that PP2A inactivation occurs by different mechanisms affecting distinct trimeric PP2A holoenzymes in different types of cancer strongly suggests that the targets of PP2A inactivation are likely to be specific in subsets of tumors. In other words, the tumor relevant pathways deregulated as result of loss of particular PP2A activities are likely tumor specific.

Alterations on B55α May Be Linked to Inactivation of the Pocket Protein Pathway

The 3 members of the pocket protein family—pRB, p107, and p130—are inactivated by phosphorylation in a cell cycle dependent manner.^3,5,68,69 Pocket proteins are hypophosphorylated in quiescent cells or in the G1 phase of the cell cycle preceding the restriction point. Mitogenic stimulation of D-type cyclins′ expression and downregulation and/or sequestration of p27 result in the sequential activation of D-type cyclin/CDK4/6 and cyclin E/CDK2 complexes. These G1/S cyclin/CDK complexes cooperate to hyperphosphorylate and inactivate pocket proteins in mid- to late G1, resulting in disruption of E2F/pocket protein transcriptional repressor complexes and the initiation of a wave of E2F dependent gene transcription required for progression through S phase and mitosis.^69,70 Pocket proteins remain hyperphosphorylated through S, G2, and most M phase, as other cyclin/ CDK complexes are active through these phases. Coinciding with CDK inactivation in mitosis, pocket proteins are abruptly dephosphorylated and reset to their active state, as cells exit mitosis and enter the next G1 phase. The finding that protein phosphatase 1 (PP1) associates with pRB in late mitosis and early G1 and subsequent studies led to a model in which pocket proteins were switched off by inducible CDKs from mid- to late G1 though the point in mitosis where CDKs were inactivated, which in turn was associated with activation of PP1 and the reactivation of pocket proteins.^71-73 However, our laboratory found that treatment of exponentially growing cells with small pharmacological compounds that rapidly inhibit expression of D-type cyclin or CDK activity resulted in immediate dephosphorylation of pocket proteins. ⁷⁴ This dephosphorylation could be mediated by a phosphatase that is constitutively active throughout the cell cycle or, alternatively, the recruitment of a phosphatase to pocket proteins following CDK inhibition. This dephosphorylation could be prevented pharmacologically with concentrations of OA that inhibit PP2A but not PP1 and via expression of SV40 st, implicating PP2A as the phosphatase responsible. In agreement with these results, PP2A/C was found to co-immunoprecipitate with p107 and p130 in both quiescent and exponentially growing cells. Altogether this suggested that a heterotrimeric PP2A holoenzyme(s) acts in a dynamic equilibrium with inducible CDKs to maintain the phosphorylation state of pocket proteins through the cell cycle and in quiescent cells ⁷⁴ (Figure 2). The data also showed that reduction of particular cyclin/CDK activities had an intermediate effect, which could be explained by a shift in the PP2A/CDK equilibrium or by dephosphorylation of sites specific to the cyclin/CDK complexes being downregulated. ⁷⁴ The notion that the phosphorylation state of pRB could be determined by the ratio of pRB kinases and phosphatases has also been proposed. ⁷⁵

OPEN IN VIEWER

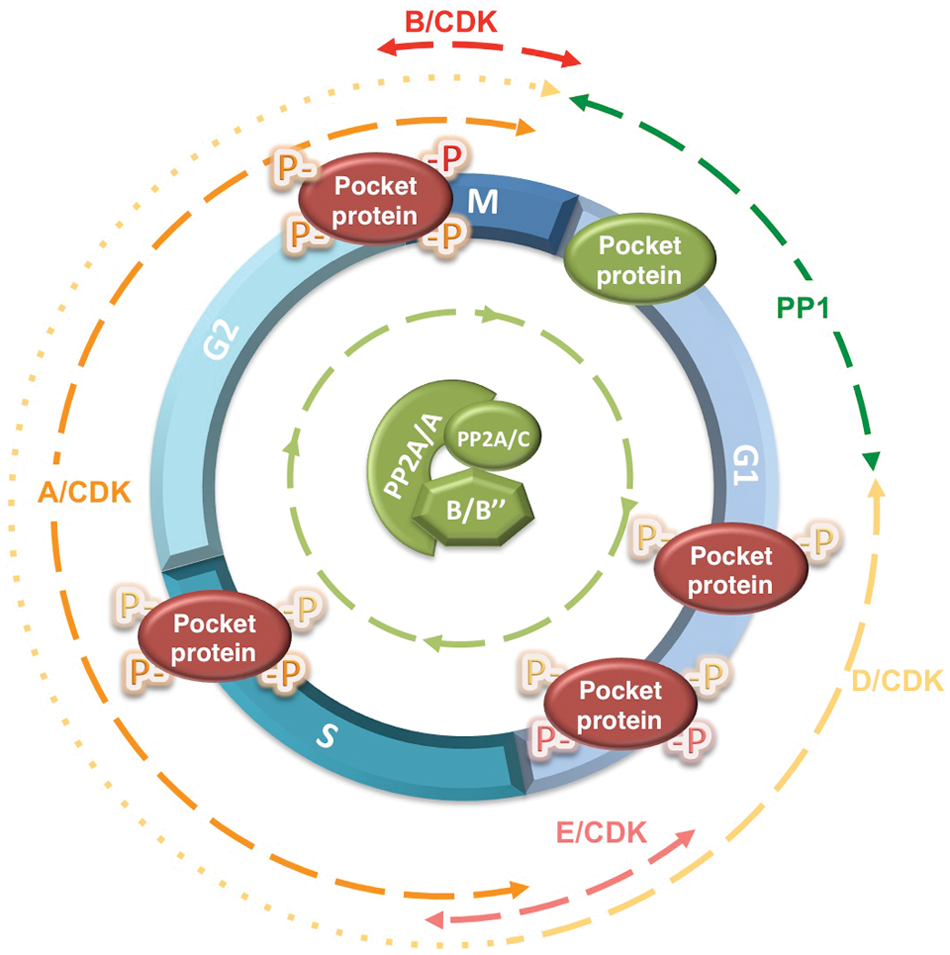

Figure 2.

The phosphorylation state of pocket proteins is regulated by an equilibrium between inducible cyclin/CDK complexes and 2 major types of Ser/Thr phosphatases. The active, hypophosphorylated form of pocket proteins is shown in green, and the inactive, hyperphosphorylated pocket protein is shown in red. Although PP1 has been implicated in dephosphorylation of pRB from late mitosis to G1, when CDK activity is low, PP2A appears to restrict pocket protein phosphorylation throughout the cell cycle and in quiescent cells (not shown in this figure). Two heterotrimeric complexes have been directly implicated in dephosphorylation of pocket proteins, PP2A/B55α and PP2A/PR70. PP2A/B55α was shown to preferentially target p107 and p130, but our unpublished observations indicate that pRB is also a target. PP2A/PR70 has been implicated in pRB dephosphorylation upon oxidative stress. However, its contribution to the phosphorylation state of pocket proteins in the absence of inducible signals has not been investigated. The approximate portion of the cell cycle in which each participating CDK and Ser/Thr phosphatase is active toward pocket proteins is indicated by dashed lines. Of note, the expression of D-type cyclins during the cell cycle, which is stimulated by mitogens, varies in different cell types. In some cell types, D-type cyclins are only expressed from mid-G1 through the G1/S transition (this is denoted by dashes changing to dots).

More recently, it has been shown that PP2A/PR70 holoenzymes target pRB for dephosphorylation upon oxidative stress, ⁷⁶ and our laboratory identified PP2A/B55α holoenzymes as being responsible for the dephosphorylation of p107 and, likely, p130. ²³ Of note, expression of SV40 st in cells dissociated the PP2A/A-C core dimer from B55α, but p107 remained bound to B55α. In agreement with this result, we also found that a B55α point mutant (D197K), which lacks a residue in a surface predicted to interact with substrates, ⁷⁷ was unable to interact with p107 yet retained, albeit reduced, an interaction with the PP2A/ A-C core dimer. ²³ Strikingly, both loss and gain of function assays suggested that the steady state phosphorylation of p107 is highly sensitive to variations in B55α expression in a variety of cells tested thus far, suggesting that regulation of B55α activity in cells is likely to have an impact on the activation state of pocket proteins. Obviously, this has implications in cancer, as genetic/epigenetic alterations leading to downregulation of pocket protein phosphatases could function as an alternative mechanism to inactivate the pRB pathway (Figure 3). One conceivable example is downregulation of B55α as a result of deletions on chromosome 8p21 that eliminated PPP2R2A in a variety of cancers, but most prominently in PCa.^58,60 More work is needed to test this idea.

OPEN IN VIEWER

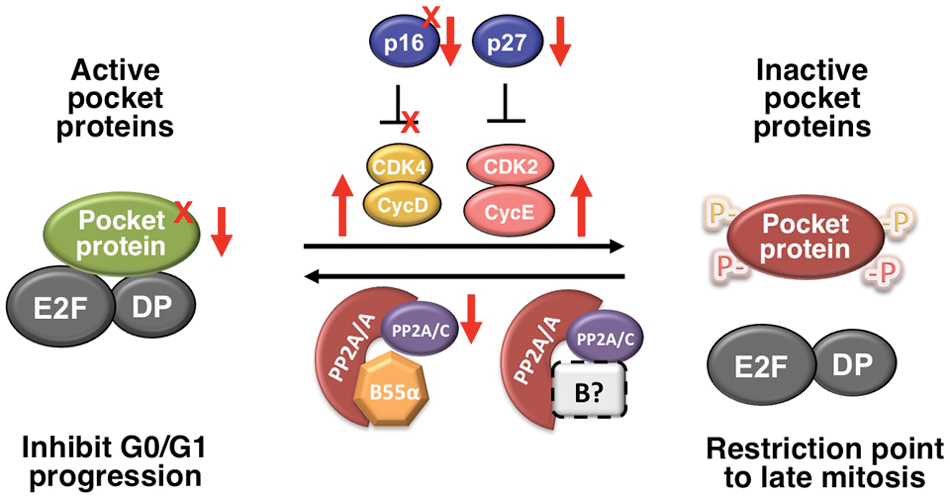

Figure 3.

The pocket protein regulatory network is disrupted by multiple mechanisms in cancer. Tumor suppressors in the network are inactivated via point mutations or deletions (X) or via epigenetic silencing or increased proteolytic degradation (↓). Mutations and or deletions affecting pRB, p130, and p16 have been described (reviewed in Malumbres & Barbacid ⁹⁴ ). Amplification of cyclins or defects in their degradation pathways is also common (↑). The pathway can be disrupted by a mutation on CDK4 that makes it resistant to CDK inhibitors (X). Deletions affecting expression of B55α have been described in a variety of cancers (see text) and may affect this equilibrium.

Alterations on PPP2R2A May Be Linked to Mitotic Defects

PP2A/B55 complexes play a critical role in promoting mitotic exit in higher eukaryotes by dephosphorylating many substrates phosphorylated by CDK1 in mitosis. ⁷⁸ Of note, as opposed to the universal involvement of CDK1 in triggering mitotic events in all eukaryotes, dephosphorylation of CDK1 substrates seems to be accomplished by different phosphatases in yeast and animal cells. An RNAi-based live-cell imaging screen identified B55α and the nuclear transport factor importin-β as key regulators in postmitotic spindle breakdown, nuclear envelop reassembly, chromatin decondensation, and Golgi assembly. ⁷⁹ In this study, mass spectrometry was used to identify regulated phosphorylation sites of the subunits of the heterotrimeric complex. Phosphorylation on Ser 167 of the B55α subunit was by far the most abundant and was enriched more than 5-fold in mitotic cells. ⁷⁹ Consistently, a B55α phosphorylation mimic mutant bound the PP2AC A-C dimer less efficiently than wild-type B55α in in vitro pulldown assays. Although these results suggested that the heterotrimeric PP2A/B55α complex may be negatively regulated via phosphorylation, further work is needed to clarify the kinetics of phosphorylation, its effects on the holoenzyme activity, and the upstream regulators.

Previous studies showed that Drosophila B55 mutants with reduced activity exhibited mitotic defects and reduced ability to dephosphorylate CDK1 substrates in vitro. ⁸⁰ In Xenopus extracts, PP2A/B55δ holoenzymes also appear to be responsible for dephosphorylation of many CDK substrates in interphase, and their activity is negatively regulated by the Greatwall (GW) kinase in mitosis, which is activated by CDK1. In the absence of GW, Xenopus extracts cannot enter M phase, but this is corrected by depletion of B55δ, ⁸¹ and GW depletion promotes mitotic exit even with high CDK1 activity. ⁸² Conversely, depletion of B55δ accelerates entry into mitosis. ⁸³ Two substrates of GW, ENSA and ARPP19, have been identified as novel inhibitors of PP2A during mitosis. In one study, ENSA and ARPP19 were both shown to bind PP2A; however, only ARPP19 was required to promote mitotic entry in Xenopus egg extracts. ⁸⁴ In another study, it was shown that phosphorylated ENSA specifically targets and inhibits PP2A/B55δ holoenzymes in Xenopus, ultimately leading to CDK1 activation. ⁸⁵ Moreover, in mammals GW is designated MASTL (MASTL/GW), and at least 2 B55 subunits, B55α (mentioned above) and B55δ, appear to work downstream. In MEFs, targeted inactivation of CDC20, the activating subunit of the anaphase promoting complex (APC), results in metaphase arrest. In these cells, mitotic exit can be induced by pharmacological inhibition of both CDK1 (with Roscovitine) and MASTL/GW (siRNA). Under these conditions, depletion of B55α and/or B55δ with specific siRNAs blocks mitotic exit. ⁸⁶ Thus, the requirement of members of the B55 family of heterotrimeric complexes for mitotic exit and their negative regulation by MASTL/GW is conserved in vertebrates. Of note, B55β and B55γ are not expressed at high levels in MEFs, as their expression is tissue specific, so it is conceivable that they would play a similar role in those cell types were they are expressed at significant levels.

In closing, the critical importance of B55α in mitotic exit, so far analyzed in HeLa cells and MEFs, also has implications in cancer given the high frequency of deletions affecting PPP2R2A, at least in prostate, ovarian and breast cancer. Hemizygous deletions on PPP2R2A may result in limiting levels of B55α for effective mitotic exit, which may facilitate mitotic defects and potentially genetic instability. However, the role of B55α in modulating the activation state of p107/p130 and perhaps also pRB suggests that elimination of PPP2R2A may be pleiotropic, especially if one also considers that B55α has been implicated in the negative regulation of mitogenic and survival pathways. The consequences of B55α deregulation will most likely vary in a cell type specific manner, reflecting the relative importance of this B regulatory subunit in each cell type.

In contrast, the high frequency of hemizygous deletions affecting the PPP2R2A locus, without alteration in the other allele, provides a potential strategy for therapeutics using small pharmacologic molecules with the ability to boost the activity of the product of the remaining intact allele. This idea has been tested in preclinical studies in leukemia where PP2A activity is reduced by deregulated endogenous inhibitors of PP2A (see sections above). FTY720 is a pharmacological activator of PP2A, which the FDA approved for use in the treatment of multiple sclerosis in humans, and is well tolerated.^57,87-89 FTY720 has been shown to have antitumoral activity in mouse xenografts of human tumors with no toxicity to mice. In addition to the established effect of FTY720 on leukemias, it has been shown that prostate cancer cell lines are more sensitive to FTY720 than prostate stromal cells. ⁹⁰ FTY720 also induced cytoskeletal changes in murine breast cancer cells and decreased their ability to adhere and migrate to extracellular matrix components, ⁹¹ and it inhibited metastasis of hepatocellular carcinoma cells in nude mice via inhibition of Rac-mediated cell motility and VEGF-mediated angiogenesis. ⁹² Because FTY720 is known to activate PP2A enzymatic activity independently of trimeric holoenzyme composition, ⁹³ it is conceivable that it might also alleviate the effects of reduction on B55α holoenzymes in mitosis and/or the activation of pocket proteins. Future studies should address these issues.
