Effect of Suppression of Rotational Joint Instability on Cartilage and Meniscus Degeneration in Mouse Osteoarthritis Model

Abstract

Objective

Joint instability and meniscal dysfunction contribute to the onset and progression of knee osteoarthritis (OA). In the destabilization of the medial meniscus (DMM) model, secondary OA occurs due to the rotational instability and increases compressive stress resulting from the meniscal dysfunction. We created a new controlled abnormal tibial rotation (CATR) model that reduces the rotational instability that occurs in the DMM model. So, we aimed to investigate whether rotational instability affects articular cartilage degeneration using the DMM and CATR models, as confirmed using histology and immunohistochemistry.

Design

Twelve-week-old male mice were randomized into 3 groups: DMM group, CATR group, and INTACT group (right knee of the DMM group). After 8 and 12 weeks, we performed the tibial rotational test, safranin-O/fast green staining, and immunohistochemical staining for tumor necrosis factor (TNF)-α and metalloproteinase (MMP)-13.

Results

The rotational instability in the DMM group was significantly higher than that of the other groups. And articular cartilage degeneration was higher in the DMM group than in the other groups. However, meniscal degeneration was observed in both DMM and CATR groups. The TNF-α and MMP-13 positive cell rates in the articular cartilage of the CATR group were lower than those in the DMM group.

Conclusions

We found that the articular cartilage degeneration was delayed by controlling the rotational instability caused by meniscal dysfunction. These findings suggest that suppression of rotational instability in the knee joint may be an effective therapeutic measure for preventing OA progression.

Keywords

articular cartilage joint instability knee osteoarthritis

Introduction

Osteoarthritis (OA) is a joint disease associated with cartilage degeneration, synovitis, osteophyte, subchondral bone degeneration.¹ The progression of OA causes significant pain and disability.^2,3 OA affects more than 150 million people worldwide, and knee OA accounts for most cases.^2,3 OA is a multifactorial disease wherein aging, obesity, and trauma have been shown to play roles in its progression.^4-7 Among the known factors for OA, the increase in mechanical stress plays a crucial role in the progression of knee OA. Joint instability is known to induce abnormal mechanical stress that may cause knee OA.⁸ Abnormal mechanical stress causes synovitis and cartilage degeneration by increasing the expression of the inflammatory cytokine, tumor necrosis factor-α (TNF-α), and the cartilage catabolic factor, matrix metalloproteinase (MMP).^9-12

The ligaments, muscles, and meniscus have an essential role in providing stability to the knee joint. In particular, the meniscus enhances bone compatibility and reduces the compressive stress of the joint surface.¹³ In addition, the meniscus controls the movement of the femoral condyle on the tibial plateau and is essential for flexion, extension, and rotation of the knee joint. Tibial rotation during flexion and extension occurs in a normal knee. However, it has been reported that abnormal tibial rotation occurs in patients with knee OA.^14-16 They also experience meniscal degeneration,^17-19 which may contribute to rotational instability. However, no studies explain the mechanism of rotational movement in cartilage degeneration with meniscal dysfunction.

The destabilization of the medial meniscus (DMM) model is the most used experimental rodent model for knee OA. In the DMM model, secondary OA occurs due to the abnormal mechanical stress resulting from the destabilization and degeneration of the medial meniscus.^20,21 This meniscal dysfunction causes joint instability and increases compressive stress. We hypothesize that the DMM model could reproduce the rotational instability and meniscal degeneration observed in patients with knee OA. We established a new controlled abnormal tibial rotation (CATR) model that reduces the rotational instability that occurs in the DMM model. In this model, we used a nylon suture to control the abnormal rotation from outside the joint capsule based on our previous model.²² CATR model is a model that reduced the joint instability compared to the DMM model. Thus, we aimed to investigate whether rotational instability affects articular cartilage degeneration using the DMM and CATR models, as confirmed using histology and immunohistochemistry.

Materials and Methods

Animals and Experimental Design

This study was approved by the Animal Research Committee of Saitama Prefectural University (approval number: 29-13). The animals were handled in accordance with the relevant legislation and institutional guidelines for humane animal treatment. The experimental design is illustrated in Figure 1A . In all, 20 twelve-week-old male mice were procured for the study (Institute for Cancer Research), and a total of 30 knees were assessed in subsequent experiments. The mice were randomized into 3 groups: DMM group (DMM, n = 10), CATR group (CATR, n = 10), and no surgery group (INTACT, n = 10; contralateral knee of the DMM group). All mice were housed in plastic cages under a standard 12 h light/dark cycle. Mice were allowed unrestricted movement within the cage and had free access to food and water.

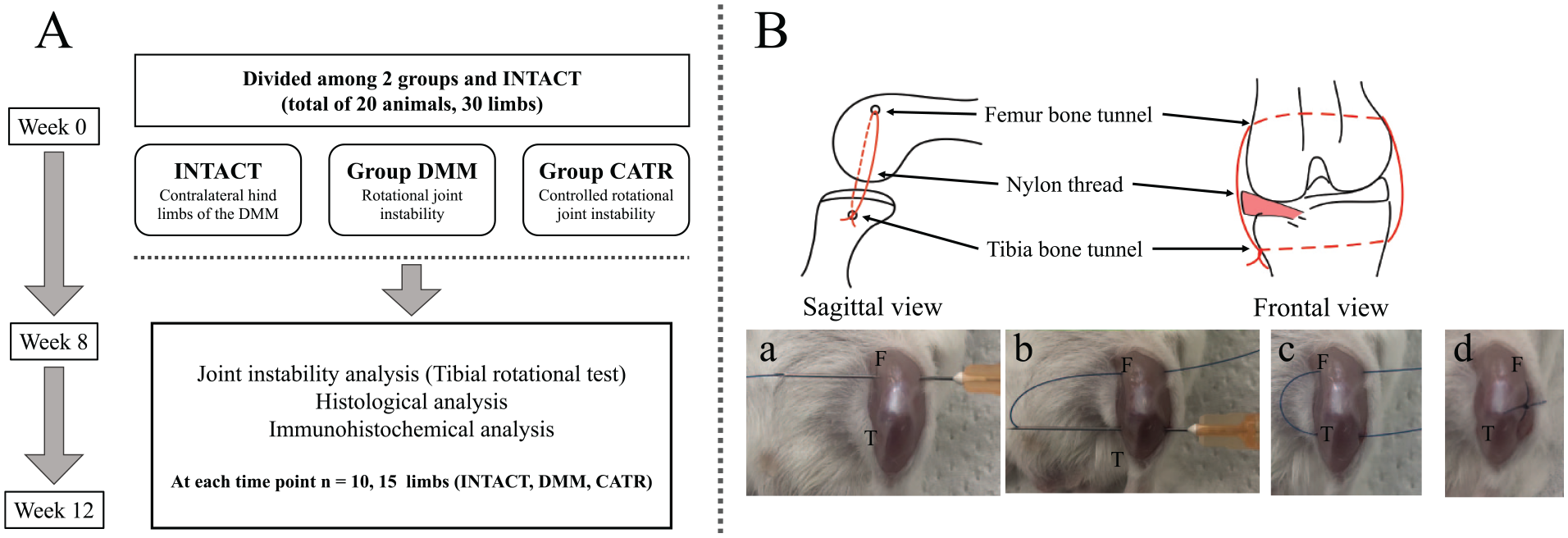

Figure 1.

(A) Experimental design. We performed the tibial rotational test, histological analysis and immunohistochemical analyses at 8 and 12 weeks. These analysis involved the DMM group, CATR group, and INTACT group (for each group, n = 5). (B) Surgery for the CATR model. The bone tunnels were created in the distal femur and proximal tibia using a 25-gauge needle (a, b) and insertion of 4-0 nylon threads threaded through the bone tunnels (c). After that, the nylon thread was tied up (d). F = femur; T = tibia; DMM = destabilization of the medial meniscus; CATR = controlled abnormal tibial rotation.

Surgical Procedures

The DMM and CATR procedures were performed on the left knee joint using a combination anesthetic (medetomidine, 0.375 mg/kg; midazolam, 2.0 mg/kg; and butorphanol, 2.5 mg/kg). DMM surgery was performed on the left knee joint of the mice as previously described.²⁰ CATR surgery was performed following the same procedure as DMM surgery ( Fig. 1B ) with the subsequent creation of bone tunnels in the distal femur and proximal tibia using a 25-gauge needle and insertion of 4-0 nylon threads threaded through the bone tunnels ( Fig. 1B , a , b ). The 4-0 nylon threads were tied and secured ( Fig. 1B , c , d ) to suppress the joint rotational instability in the DMM model. To reduce differences with intervention among the groups, a bone tunnel was also created in the DMM group, and a nylon thread was tied loosely to maintain joint instability.

Tibial Rotational Test

We performed the tibial rotational test using a constant force spring (0.05 kgf; Sanko Spring Co., Ltd., Fukuoka, Japan) and a soft X-ray device (M-60; Softex Co., Ltd., Kanagawa, Japan) to assess the knee joint rotational instability. At 8 and 12 weeks after surgery, we evaluated the knee joints with the intact femur, tibia, and foot. The femur and tibia were fixed with the knee joint at 90° flexion, and the paw was fixed with a pin. In addition, we pierced the tibia with a 25-gauge needle to serve as a reference for changes in tibial rotation ( Fig. 2A ). The proximal tibia was pulled laterally and medially using a 4-0 nylon thread connecting to the constant force spring. Radiographs were taken during the medial and lateral traction. We defined the change in angle between the needle and the vertical line of the soft x-ray device as rotational instability and measured the angle of the red line shown in Figure 2B as the degree of the tibial rotation angle. Soft X-ray radiography was performed at 28 kV and 1.5 mA with an exposure time of 1 s. Digital images were acquired using a NAOMI digital X-ray sensor (RF Co. Ltd., Nagano, Japan). The change in the tibial rotation was quantified using a dedicated image analysis software (Image J; National Institutes of Health, Bethesda, MD).

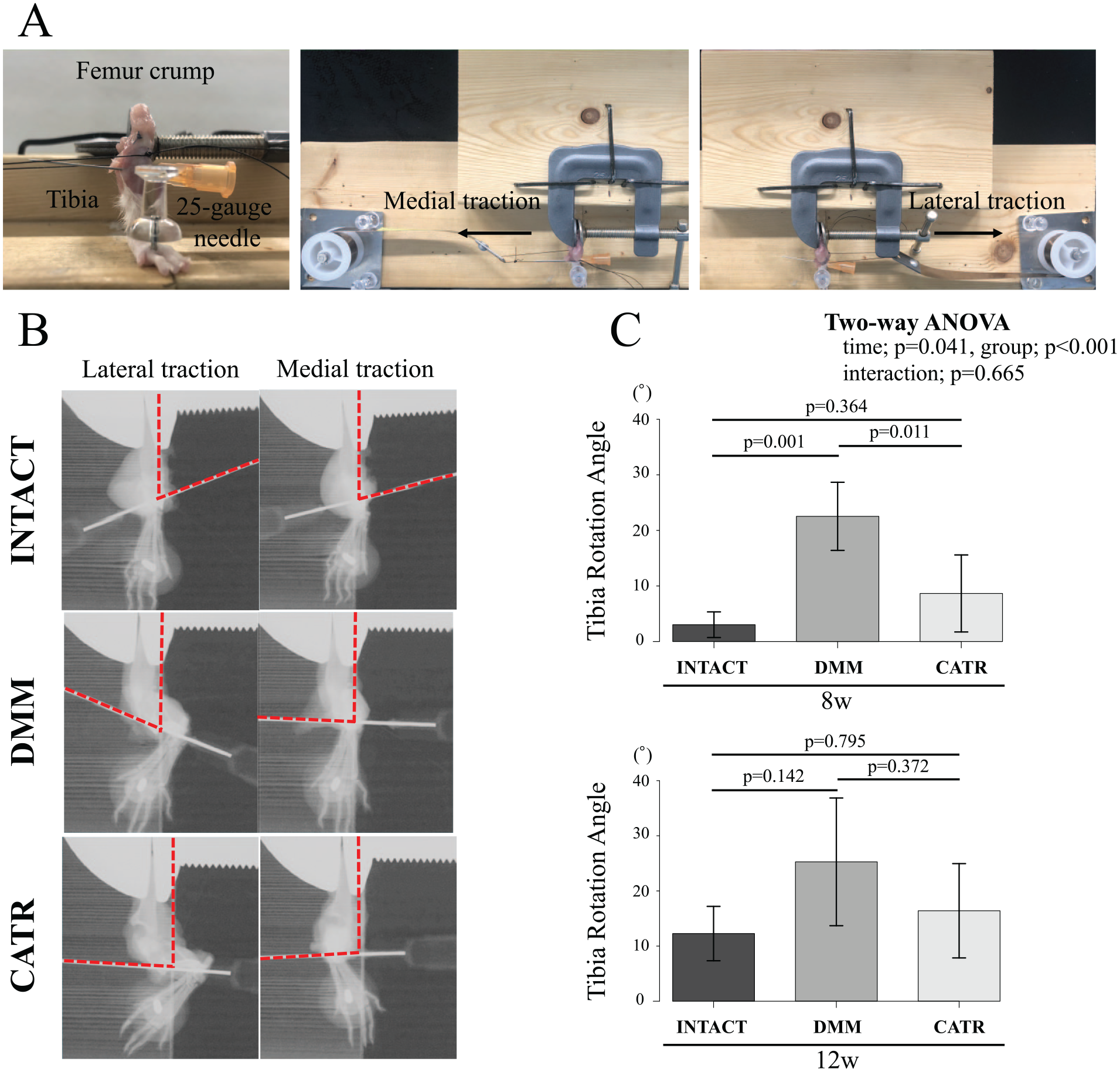

Figure 2.

(A) System for the tibial rotational test. The femur and tibia were set into the examination system at 90° flexion, and pierced the tibia with a 25-gauge needle. And rotational joint instability was maintained by medial and lateral traction. (B) Representative soft X-ray radiograph was taken during the tibial rotational test on the knee joint. The red line shows the standard of the tibial rotation angle. (C) Tibia rotation angle on the tibial rotational test. The results of 2-way ANOVA, there was a main effect in each of the time and groups, and no interaction was observed. At 8 weeks, the tibia rotation angle in the DMM group was significantly higher than that in the INTACT and CATR groups. At 12 weeks, DMM group was higher than that in the INTACT and CATR groups. ANOVA = analysis of variance; DMM = destabilization of the medial meniscus; CATR = controlled abnormal tibial rotation.

Histological Analysis

Mice were sacrificed at 8, and 12 weeks after surgery, wherein 5 knees were assessed in each group for both time points. Subsequently, the knee joint was fixed in 4% paraformaldehyde/phosphate-buffered saline for 24 h, then decalcified in 10% ethylenediaminetetraacetic acid for 21 days, dehydration in 70% and 100% ethanol and xylene, and embedding in paraffin blocks. Thin sections (6 μm) were cut in the sagittal plane using a microtome (ROM-360; Yamato Kohki Industrial Co., Ltd., Saitama, Japan). Sections were stained with safranin-O/fast green and subjected to histological evaluation to estimate the degree of tibial cartilage and meniscal degeneration on 1 slide of each sample. All the samples were taken with fluorescence microscope BZ-X710(Keyence, Tokyo, Japan), and the articular cartilage was taken at 40x magnification, and the meniscus was taken at 20x magnification. The Osteoarthritis Research Society International (OARSI) histopathological grading system was used to assess cartilage degeneration for structural changes and fibrillation lesions.²³ The mouse meniscus histological grading system established by Kwok et al.²¹ was used to evaluate the degeneration in the anterior horn of the meniscus. Two independent observers (KT and KM) performed OARSI scoring on an 8-stage scale (0, 0.5, 1-6) and meniscus scoring on a 5-point scale (0-4), with the mean values retained.

Immunohistochemical Analysis

To evaluate the expression of TNF-α and MMP-13, we performed immunohistochemical staining following the avidin-biotin complex method using the VECTASTAIN Elite ABC Rabbit IgG Kit (Vector Laboratories, Burlingame, CA). The tissue sections were deparaffinized with xylene and ethanol, and antigen activation was performed using proteinase K (Worthington Biochemical Co., Lakewood, NJ) for 15 min. Endogenous peroxidase was inactivated with 0.3% H₂O₂/methanol for 30 min. Nonspecific binding of the primary antibody was blocked using normal goat serum for 30 min, and then the sections were incubated with anti-TNF-α and anti-MMP-13 primary antibodies overnight at 4°C. Afterward, the sections were incubated with biotinylated secondary anti-rabbit IgG antibody and stained using Dako Liquid DAB+ Substrate Chromogen System (Dako, Glostrup, Denmark). Cell nuclei were stained with hematoxylin. For analysis, all the samples were taken with fluorescence microscope BZ-X710(Keyence, Tokyo, Japan), and the articular cartilage was taken at 40x magnification. We calculated the ratio of the number of TNF-α- or MMP-13-positive cells to the number of chondrocytes in the articular cartilage area of 10,000 μm² (100 μm × 100 μm) on 1 slide of each sample.

Statistical Analysis

All analyses were performed using R Studio version 1.2.5019. The normality of the data distribution was assessed using the Shapiro-Wilk test. Tibial rotation changes were normally distributed, while OARSI scores, meniscus scores, and percentages of TNF-α- and MMP-13-positive cells were not. Parametric data were compared using a 2-way analysis of variance (ANOVA) was used to determine the main effects of time and groups, and posthoc Tukey’s test was used. Non-parametric data were compared using the Kruskal-Wallis test and posthoc Steel-Dwass analysis. All significance thresholds were set to 5%. Parametric data are presented as mean ± 95% confidence interval, and nonparametric data are presented as median with interquartile ranges (IQRs).

Results

Evaluation of Joint Rotational Instability Using Soft X-Ray Analysis

Joint rotational instability was quantified in terms of the degree of tibial rotation angle, as determined using soft X-ray radiography with the tibial rotational test ( Fig. 2B ). At 8 weeks, the mean degree of tibial rotation angle in the DMM group was significantly higher than that in the INTACT and CATR groups (INTACT,3.03 ± 2.31 degrees; DMM, 22.53 ± 6.13 degrees; CATR, 8.65 ± 6.93 degrees). At 12 weeks, although not significant, the mean degree of tibial rotation angle in the DMM group was higher than in the INTACT and CATR groups (INTACT, 12.27 ± 4.93 degrees; DMM, 25.27 ± 11.58 degrees; CATR, 16.40 ± 8.55 degrees). There was a main effect in each of the time and groups, and no interaction was observed (Two-way ANOVA main effects; time: P = .041, group: P < .001, interaction: P = .665). Therefore, time and group affected the joint instability independently of each other. The exact P-values for each comparison are shown in Figure 2C .

Histological Analysis

Representative histological images of the cartilage at 8 and 12 weeks are presented in Figure 3A . A total of 5 knees were assessed in each group for both time points. Structural changes in the surface layer of cartilage in the DMM group were observed after 8 and 12 weeks. At 12 weeks, mild degeneration of the cartilage surface layer was observed in the CATR group compared with that in the DMM group. Changes in the surface structure and decreased staining with safranin O/fast green in the meniscus were observed in the DMM and CATR groups at 8 and 12 weeks ( Fig. 4A ).

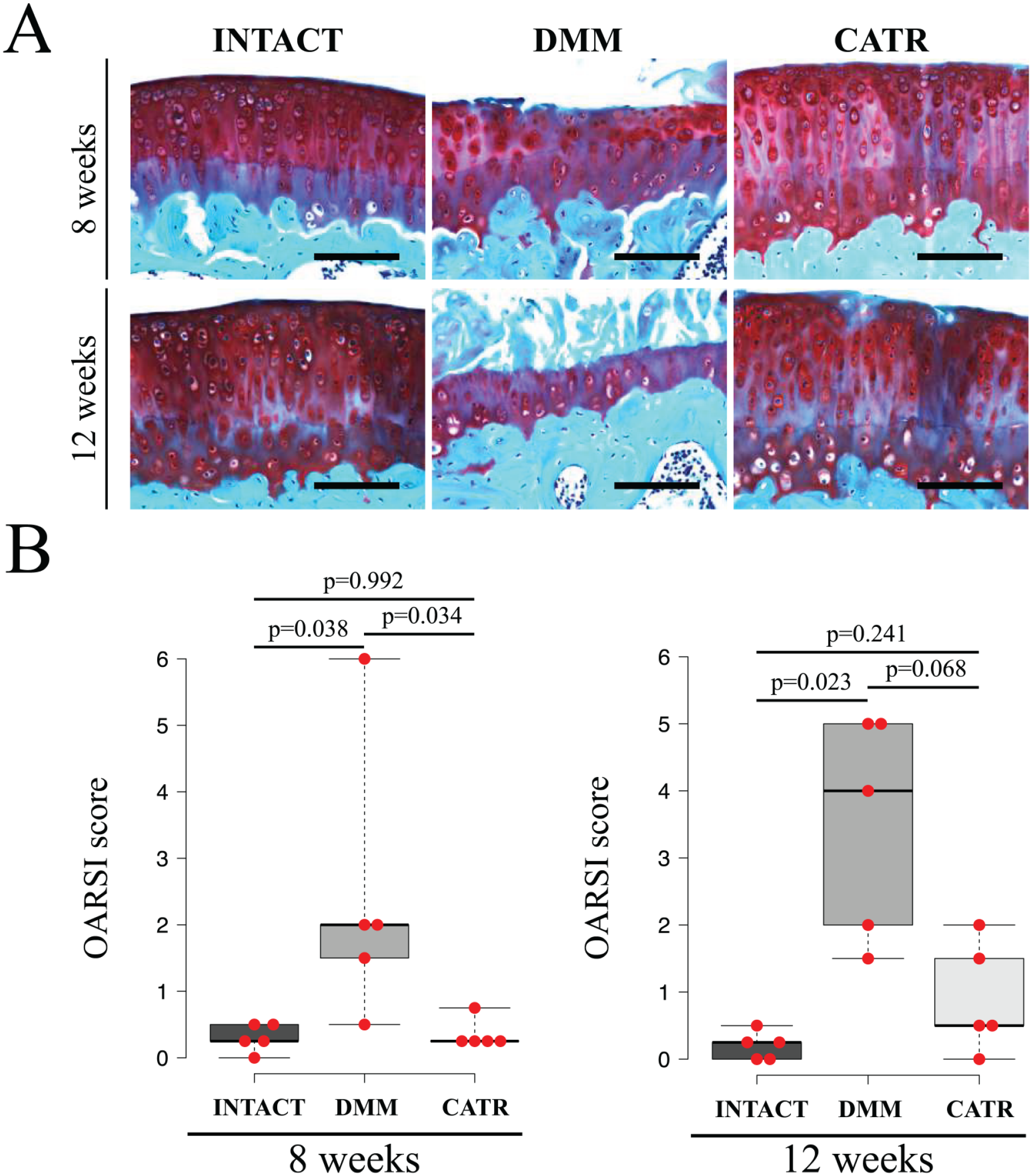

Figure 3.

(A) Representative histological images of the cartilage at 8 and 12 weeks. (B) Results of the OARSI score. At 8 weeks, the OARSI scores significantly higher in the DMM group than in the INTACT and CATR groups. At 12 weeks, the OARSI scores in the DMM group tended to increase compared with those in the CATR group. The kappa coefficient reliability of the evaluators (KT and KM) of the OARSI score was 0.905. OARSI = Osteoarthritis Research Society International; DMM = destabilization of the medial meniscus; CATR = controlled abnormal tibial rotation.

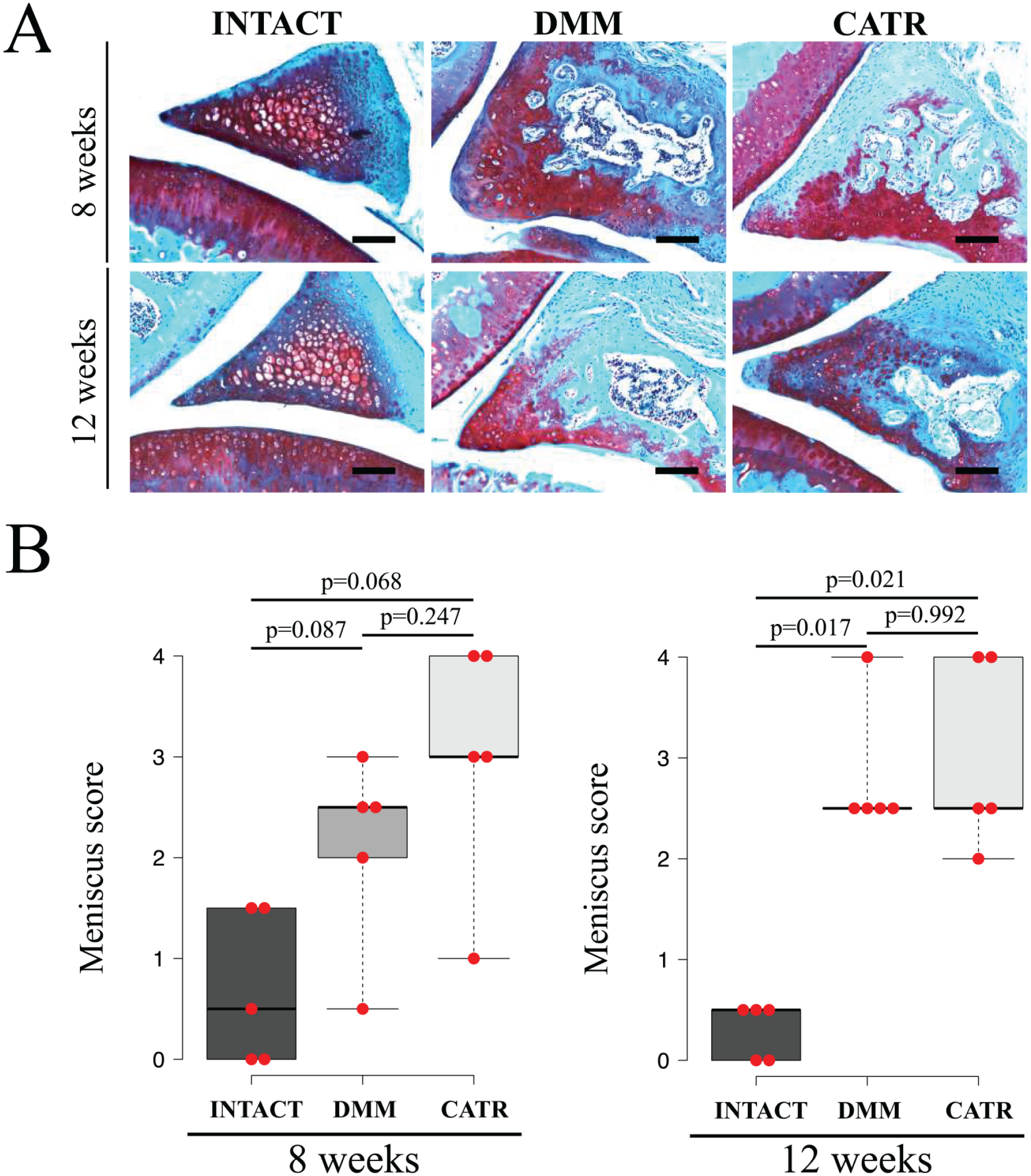

Figure 4.

(A) Representative histological images of the meniscus at 8 and 12 weeks. (B) Results of the meniscus score. At 8 weeks, meniscal scores in the DMM and CATR groups tended to increase compared with those in the INTACT group. At 12 weeks, meniscal scores in the DMM and CATR groups were significantly higher than in the INTACT group. The kappa coefficient reliability of the evaluators (KT and KM) of the Meniscus score was 0.784. DMM = destabilization of the medial meniscus; CATR = controlled abnormal tibial rotation.

Cartilage degeneration was assessed using the OARSI scores at 8 and 12 weeks ( Fig. 3B ). At 8 weeks, the DMM group showed a significantly higher score than the INTACT and CATR groups ( Fig. 3B ) (DMM vs. INTACT, P = .038; DMM vs. CATR, P = .034), but there was no significant difference between the INTACT and CATR groups ( Fig. 3B ) (INTACT vs. CATR, P = .992). At 12 weeks, the DMM group showed a significantly higher score than the INTACT group ( Fig. 3B ) (DMM vs. INTACT, P = .023), but no significant difference than the CATR group ( Fig. 3B ) (DMM vs. CATR, P = .068). There was no significant difference between the INTACT and CATR groups (INTACT vs. CATR, P = .241) ( Fig. 3B ).

Meniscal degeneration was evaluated using the mouse meniscus histological grading system established by Kwok et al.²¹ at 8 and 12 weeks ( Fig. 4B ). At 8 weeks, although not significant, meniscal degeneration scores in the DMM and CATR groups tended to increase compared with those in the INTACT group ( Fig. 4B ) (INTACT vs. DMM, P = .087; INTACT vs. CATR, P = .068). At 12 weeks, meniscal degeneration scores in the DMM and CATR groups were significantly higher than those observed in the INTACT group (INTACT vs. DMM, P = .017; INTACT vs. CATR, P = .021) ( Fig. 4B ). There was no significant difference between the DMM and CATR groups (DMM vs. CATR, P = .992) ( Fig. 4B ).

Immunohistochemical Analysis

Representative images of TNF-α and MMP-13 immunostaining of cartilage specimens is shown in Figure 5A . At 8 weeks, the percentage of TNF-α-positive cells in the DMM group was significantly higher than that in the INTACT and CATR groups (INTACT vs. DMM, P = .024; DMM vs. CATR, P = .024) ( Fig. 5B ). Meanwhile, the percentage of MMP-13-positive cells in the DMM and CATR groups was significantly higher than in the INTACT group (INTACT vs. DMM, P = .024; INTACT vs. CATR, P = .024) ( Fig. 5B ). Although not significant, the percentage of MMP-13-positive cells in the DMM group tended to increase compared with that in the CATR group (DMM vs. CATR, P = .071). At 12 weeks, the percentage of TNF-α-positive cells in the DMM group was significantly higher than that in the INTACT and CATR groups (INTACT vs. DMM, P = .024; DMM vs. CATR, P = .024) ( Fig. 5B ). The percentage of TNF-α-positive cells in the CATR group was significantly higher than that in the INTACT group (CATR vs. INTACT, P = .043) ( Fig. 5B ). Similarly, the percentage of MMP-13-positive cells in the DMM group was significantly higher than that in the INTACT and CATR groups (INTACT vs. DMM, P = .024; DMM vs. CATR, P = .024) ( Fig. 5B ).

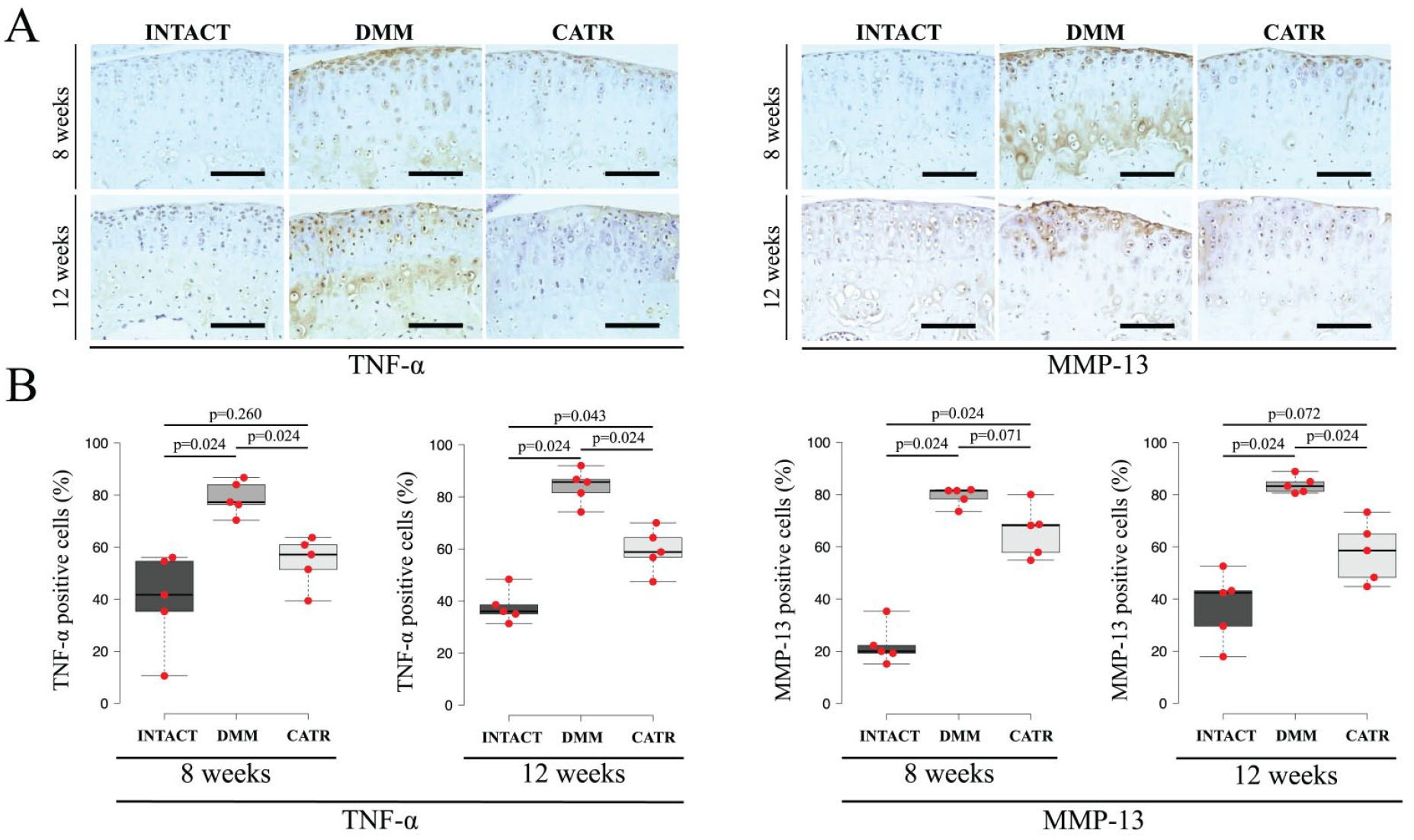

Figure 5.

(A) Representative immunostaining images of TNF-α and MMP-13 at 8 and 12 weeks. (B) The percentage positive cell ratio of TNF-α and MMP-13. At 8 weeks, the percentage of TNF-α-positive cells in the DMM group was significantly higher than that in the INTACT and CATR groups. Although the percentage of MMP-13-positive cells in the DMM group tended to increase compared with that in the CATR group. At 12 weeks, the percentage of TNF-α-positive cells in the DMM group was significantly higher than that in the INTACT and CATR groups. And the percentage of MMP-13-positive cells in the DMM group was significantly higher than that in the INTACT and CATR groups. TNF-α = tumor necrosis factor-α; MMP = matrix metalloproteinase; DMM = destabilization of the medial meniscus; CATR = controlled abnormal tibial rotation.

Discussion

The data from this study showed that controlling the rotational instability caused by MMTL transection delays articular cartilage degeneration, as confirmed by histological analysis. However, meniscal degeneration was not suppressed by controlling joint instability, as confirmed by joint instability and histological analysis. Furthermore, the expression of inflammatory cytokines TNF-α and MMP-13 in articular cartilage was inhibited by controlling rotational instability, confirmed by immunohistochemical analysis. These findings indicate that joint instability caused by meniscal dysfunction is a contributory factor in the progression of knee OA.

In this study, we used the DMM model that causes dysfunction of the medial meniscus and the CATR model that controls the rotational instability in the DMM model. At 8 weeks, rotation instability occurred in the DMM model but was reduced in the CATR model, as evidenced by the results of the tibial rotation test using soft X-rays. At 12 weeks, results showed a similar tendency to that at 8 weeks, but no significant difference was observed. The difference in joint instability between the groups at the 2-time points was due to increased joint instability in the INTACT and CATR groups. The results of the 2-way ANOVA for joint instability showed a main effect of the time. Therefore, the increased joint instability in the INTACT and CATR groups may be because of the week. In addition, we used the contralateral limb of the DMM group as the INTACT group in this study, which may have been affected for contralateral joint instability and cartilage degeneration. On the other hand, the CATR group had greater joint instability than the INTACT group at 8 weeks. Therefore, joint instability increased in the CATR group even at 8 weeks, and it is thought that joint instability increased further with time.

The OARSI score, indicating the severity of articular cartilage degeneration, was lower in the CATR group, which showed suppressed joint instability, than in the DMM group, which showed rotational instability. Articular cartilage degeneration depends on the magnitude of joint instability.¹⁰ Furthermore, controlling the anterior-posterior joint instability in the rat anterior cruciate ligament-transection (ACL-T) model suppresses articular cartilage degeneration.^12,24 Similarly, in this study, we found that the magnitude of joint instability affected the severity of articular cartilage degeneration. These findings suggest that in addition to the anterior-posterior joint instability that occurs in the ACL-T model, rotational instability is a factor that causes articular cartilage degeneration. However, at 12 weeks, there was no significant difference between the 2 groups. These results suggest that the CATR group was able to delay cartilage degeneration compared with the DMM group but did not completely inhibit cartilage degeneration.

TNF-α expression promotes the catabolism of chondrocytes and disrupts chondrocyte homeostasis. TNF-α is an important inflammatory cytokine in OA and induces the production of several matrix metalloproteinases, such as MMP-13.^25-27 MMP-13 induced by TNF-α degrades collagen type 2, the main extracellular matrix of articular cartilage.²⁸ It has been reported that the expression of these cytokines that promote the catabolism of chondrocytes is reduced in the state of suppressed joint instability.^12,24 In this study, the expression levels of TNF-α and MMP-13 in articular cartilage were lower in the CATR group than in the DMM group, suggesting that suppression of joint instability also inhibited the expression of TNF-α and MMP-13. Excessive shear force on chondrocytes increases the expression of catabolic factors such as MMP-13 and TNF-α.²⁹ In the present study, the expression of TNF-α and MMP-13 was increased in the DMM group with increased joint instability, resulting in cartilage degeneration. On the other hand, in the CATR group with suppressed joint instability, the expression of TNF-α and MMP-13 was lower than that in the DMM group, and cartilage degeneration was suppressed. These results suggest that increased shear forces due to joint instability may cause cartilage degeneration in the DMM group and that suppressing joint instability can reduce abnormal shear forces and suppress the expression of catabolic factors in chondrocytes. As supported by our findings, interventions that control joint instability may be effective means of suppressing the expression of inflammatory cytokines and articular cartilage degeneration.

Notably, the expression of TNF-α and MMP-13 in the articular cartilage of the CATR group was higher than that in the INTACT group. Murata et al.¹² and Onitsuka et al.²⁴ reported that articular cartilage degeneration could be delayed by suppressing joint instability in the ACL-T model. However, the expression of TNF-α and MMP-13 also increased upon suppression of joint instability compared with that in the control group. Knee OA is a disease that involves not only mechanical stress such as joint instability but also various factors such as inflammation and immune response. In this study, the expression of TNF-α and MMP-13 in the articular cartilage region was not completely abolished. Although suppressing joint instability can reduce abnormal mechanical stress, further research is needed to elucidate its effects on other factors such as inflammation.

In our study, there was no significant difference in the meniscal degeneration scores between the DMM and CATR groups. At 12 weeks, the meniscal degeneration score was significantly higher in the DMM and CATR groups than in the INTACT group. Severe meniscal degeneration has been reported to already occur in the DMM model 2 weeks after surgical intervention.²¹ Approximately 70% of tissue weight in the meniscus is water, while the rest is made up of organic matter, mainly extracellular matrix and cells. Collagen makes up the majority of organic matter, followed by glycosaminoglycans.^30,31 The inner region of the meniscus has a higher percentage of collagen type 2 than the outer region, which has a composition similar to those of the articular cartilage.³² With these biochemical properties, it has been shown that the semilunar plates play a role in load-bearing, load transfer, and shock absorption, as well as resisting axial compressive loading.^33,34 In the DMM and CATR groups, we observed a decreased staining of safranin-O/fast green with concomitant structural changes in the meniscus at 8 and 12 weeks after surgery. Therefore, it is inferred that the load distribution in these 2 groups was not optimal, and the compressive load increased.

Further, meniscal degeneration was observed in both the DMM and CATR groups, but articular cartilage degeneration was more severe in the DMM group. These results suggest that articular cartilage degeneration in the DMM group is not caused by load distribution disruption and compressive load increase due to meniscal dysfunction but is related to joint instability. Our findings support our hypothesis that suppression of joint instability is a common and effective intervention target in articular cartilage degeneration.

This study has significant limitations. Joint instability was the focus of our study. We showed that the CATR model suppresses the rotational instability that occurs in the DMM model. However, we only verified static instability and not dynamic instability. Thus, it is necessary to confirm whether there is a difference in joint instability between the DMM and CATR models in a dynamic environment, such as walking. In addition, since the tibial rotation test pulls on the proximal tibia, it adds stress other than rotation to the knee joint. Thus, the tibial rotation test did not represent a pure rotation of the tibia. And it is necessary to reconsider the test method to evaluate the pure rotational instability in future studies. Also, the INTACT group in this study was the contralateral limb of the DMM group. Therefore, the results of this study contained a mixture of interlimb comparison (INTACT vs. DMM) and individual comparison (INTACT vs. CATR, DMM vs. CATR). Thus, future studies should be conducted using an independent INTACT group. Moreover, increased joint instability in the INTACT group may be affected by increased time and the contralateral knee joint. OA is considered a disease of the entire joint, characterized by articular cartilage degeneration, synovitis, and changes in the subchondral bone. In particular, subchondral bone and cartilage have been found to have biological interactions.^35-37 In this study, the effect of joint instability on articular cartilage degeneration was clarified, but its effect on the subchondral bone is unclear. Further research requires analysis of surrounding tissues.

In conclusion, controlling rotational instability caused by meniscus dysfunction delayed the articular cartilage degeneration. Our findings suggest that control of joint instability may be a viable strategy for minimizing articular cartilage degeneration. In the comparison between the DMM and CATR groups, joint instability due to meniscus dysfunction appears to contribute to articular cartilage degeneration. Meniscal degeneration and dysfunction are involved in the progression of OA.^17-19 Thus, our study suggests that suppression of rotational instability in the knee joint is an effective therapeutic measure for preventing OA progression.

Footnotes

Author Note

Kaichi Ozone is also affiliated to Japan Society for the Promotion of Science, Tokyo, Japan.

Author Contributions

All authors approved the final version to be published. Study design: KA, KM, NK, and TK; data collection and histological analysis: KA, KT, YO, KO, K Morosawa, and SE; manuscript composition KA, KM, NK, and TK.

Acknowledgments and Funding

The author(s) disclosed receipt of the following financial support for the research, authorship and/or publication of this article: This study was supported by Saitama Prefectural University Research(SPUR) Grant No. 18009 and JSPS KAKENHI Grant number JP21K19724.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethical Approval

This study was approved by the Animal Research Committee of Saitama Prefectural University (Approval Number: 29-13).

Animal Welfare

This study followed institutional guidelines for humane animal treatment and complied with relevant legislation.

ORCID iDs

Kohei Arakawa

Yuichiro Oka

Kenji Murata

Takanori Kokubun

References

Lohmander

. What can we do about osteoarthritis? Arthritis Res. 2000;2(2):95-100. doi:10.1186/ar74.

Robinson

Lepus

Wang

Raghu

Mao

Lindstrom

, et al. Low-grade inflammation as a key mediator of the pathogenesis of osteoarthritis. Nat Rev Rheumatol. 2016;12(10):580-92. doi:10.1038/nrrheum.2016.136.

Jeon

Kim

Laberge

Demaria

Rathod

Vasserot

, et al. Local clearance of senescent cells attenuates the development of post-traumatic osteoarthritis and creates a pro-regenerative environment. Nat Med. 2017;23(6):775-81. doi:10.1038/nm.4324.

Collins

Reimer

Seerattan

Leonard

Herzog

. Using diet-induced obesity to understand a metabolic subtype of osteoarthritis in rats. Osteoarthritis Cartilage. 2015;23(6):957-65. doi:10.1016/j.joca.2015.01.015.

Nelson

Billinghurst

Pidoux

Reiner

Langworthy

McDermott

, et al. Early post-traumatic osteoarthritis-like changes in human articular cartilage following rupture of the anterior cruciate ligament. Osteoarthritis Cartilage. 2006;14(2):114-9. doi:10.1016/j.joca.2005.08.005.

Gabay

Hall

Berenbaum

Henrotin

Sanchez

. Osteoarthritis and obesity: experimental models. Joint Bone Spine. 2008;75(6):675-9. doi:10.1016/j.jbspin.2008.07.011.

Jørgensen

AEM

Kjær

Heinemeier

. The effect of aging and mechanical loading on the metabolism of articular cartilage. J Rheumatol. 2017;44(4):410-7. doi:10.3899/jrheum.160226.

Blalock

Miller

Tilley

Wang

. Joint instability and osteoarthritis. Clin Med Insights Arthritis Musculoskelet Disord. 2015;8:15-23. doi:10.4137/CMAMD.S22147.

Allen

Mata

Gabr

Huebner

Adams

Kraus

, et al. Kinematic and dynamic gait compensations resulting from knee instability in a rat model of osteoarthritis. Arthritis Res Ther. 2012;14(2):R78. doi:10.1186/ar3801.

10.

Kamekura

Hoshi

Shimoaka

Chung

Chikuda

Yamada

, et al. Osteoarthritis development in novel experimental mouse models induced by knee joint instability. Osteoarthritis Cartilage. 2005;13(7):632-41. doi:10.1016/j.joca.2005.03.004.

11.

Egloff

Hart

Hewitt

Vavken

Valderrabano

Herzog

. Joint instability leads to long-term alterations to knee synovium and osteoarthritis in a rabbit model. Osteoarthritis Cartilage. 2016;24(6):1054-60. doi:10.1016/j.joca.2016.01.341.

12.

Murata

Kanemura

Kokubun

Fujino

Morishita

Onitsuka

, et al. Controlling joint instability delays the degeneration of articular cartilage in a rat model. Osteoarthritis Cartilage. 2017;25(2):297-308. doi:10.1016/j.joca.2016.10.011.

13.

Makris

Hadidi

Athanasiou

KA.

The knee meniscus: structure-function, pathophysiology, current repair techniques, and prospects for regeneration. Biomaterials. 2011;32(30):7411-31. doi:10.1016/j.biomaterials.2011.06.037.

14.

Ikuta

Yoneta

Miyaji

Kidera

Yonekura

Osaki

, et al. Knee kinematics of severe medial knee osteoarthritis showed tibial posterior translation and external rotation: a cross-sectional study. Aging Clin Exp Res. 2020;32(9):1767-75. doi:10.1007/s40520-019-01361-w.

15.

Nagano

Naito

Saho

Torii

Ogata

Nakazawa

, et al. Association between in vivo knee kinematics during gait and the severity of knee osteoarthritis. Knee. 2012;19(5):628-32. doi:10.1016/j.knee.2011.11.002.

16.

Weidow

Tranberg

Saari

Kärrholm

. Hip and knee joint rotations differ between patients with medial and lateral knee osteoarthritis: gait analysis of 30 patients and 15 controls. J Orthop Res. 2006;24(9):1890-9. doi:10.1002/jor.20194.

17.

Englund

Guermazi

Roemer

Aliabadi

Yang

Lewis

, et al. Meniscal tear in knees without surgery and the development of radiographic osteoarthritis among middle-aged and elderly persons: the multicenter osteoarthritis study. Arthritis Rheum. 2009;60(3):831-9. doi:10.1002/art.24383.

18.

Badlani

Borrero

Golla

Harner

Irrgang

. The effects of meniscus injury on the development of knee osteoarthritis: data from the osteoarthritis initiative. Am J Sports Med. 2013;41(6):1238-44. doi:10.1177/0363546513490276.

19.

Emmanuel

Quinn

Niu

Guermazi

Roemer

Wirth

, et al. Quantitative measures of meniscus extrusion predict incident radiographic knee osteoarthritis—data from the Osteoarthritis Initiative. Osteoarthritis Cartilage. 2016;24(2):262-9. doi:10.1016/j.joca.2015.08.003.

20.

Glasson

Blanchet

Morris

. The surgical destabilization of the medial meniscus (DMM) model of osteoarthritis in the 129/SvEv mouse. Osteoarthritis Cartilage. 2007;15(9):1061-9. doi:10.1016/j.joca.2007.03.006.

21.

Kwok

Onuma

Olmer

Lotz

Grogan

D’Lima

. Histopathological analyses of murine menisci: implications for joint aging and osteoarthritis. Osteoarthritis Cartilage. 2016;24(4):709-18. doi:10.1016/j.joca.2015.11.006.

22.

Kokubun

Kanemura

Murata

Moriyama

Morita

Jinno

, et al. Effect of changing the joint kinematics of knees with a ruptured anterior cruciate ligament on the molecular biological responses and spontaneous healing in a rat model. Am J Sports Med. 2016;44(11):2900-10. doi:10.1177/0363546516654687.

23.

Glasson

Chambers

Van Den Berg

Little

. The OARSI histopathology initiative—recommendations for histological assessments of osteoarthritis in the mouse. Osteoarthritis Cartilage. 2010;18(Suppl 3):S17-23. doi:10.1016/j.joca.2010.05.025.

24.

Onitsuka

Murata

Kokubun

Fujiwara

Nakajima

Morishita

, et al. Effects of controlling abnormal joint movement on expression of MMP13 and TIMP-1 in osteoarthritis. Cartilage. 2020;11(1):98-107. doi:10.1177/1947603518783449.

25.

Zhao

Liu

Tian

Wei

Richbourgh

Liu

. Progranulin protects against osteoarthritis through interacting with TNF-α and β-Catenin signalling. Ann Rheum Dis. 2015;74(12):2244-53. doi:10.1136/annrheumdis-2014-205779.

26.

Hayden

Ghosh

. Regulation of NF-κB by TNF family cytokines. Semin Immunol. 2014;26(3):253-66. doi:10.1016/j.smim.2014.05.004.

27.

Croft

Benedict

Ware

. Clinical targeting of the TNF and TNFR superfamilies. Nat Rev Drug Discov. 2013;12(2):147-68. doi:10.1038/nrd3930.

28.

Otero

Plumb

Tsuchimochi

Dragomir

Hashimoto

Peng

, et al. E74-like Factor 3 (ELF3) impacts on matrix metalloproteinase 13 (MMP13) transcriptional control in articular chondrocytes under proinflammatory stress. J Biol Chem. 2012;287(5):3559-72. doi:10.1074/jbc.M111.265744.

29.

Wang

Guan

Guo

Zhu

Konstantopoulos

Wang

. Fluid shear stress-induced osteoarthritis: roles of cyclooxygenase-2 and its metabolic products in inducing the expression of proinflammatory cytokines and matrix metalloproteinases. FASEB J. 2013;27(12):4664-77. doi:10.1096/fj.13-234542.

30.

Herwig

Egner

Buddecke

. Chemical changes of human knee joint menisci in various stages of degeneration. Ann Rheum Dis. 1984;43(4):635-40. doi:10.1136/ard.43.4.635.

31.

Proctor

Schmidt

Whipple

Kelly

Mow

. Material properties of the normal medial bovine meniscus. J Orthop Res. 1989;7(6):771-82. doi:10.1002/jor.1100070602.

32.

Cheung

. Distribution of type I, II, III and v in the pepsin solubilized collagens in bovine menisci. Connect Tissue Res. 1987;16(4):343-56. doi:10.3109/03008208709005619.

33.

Tissakht

Ahmed

Chan

. Calculated stress-shielding in the distal femur after total knee replacement corresponds to the reported location of bone loss. J Orthop Res. 1996;14(5):778-85. doi:10.1002/jor.1100140515.

34.

Walker

Erkman

. The role of the menisci in force transmission across the knee. Clin Orthop Relat Res. 1975;109:184-92. doi:10.1097/00003086-197506000-00027.

35.

Goldring

. The role of bone in osteoarthritis pathogenesis. Rheum Dis Clin North Am. 2008;34(3):561-71. doi:10.1016/j.rdc.2008.07.001.

36.

Goldring

. Alterations in periarticular bone and cross talk between subchondral bone and articular cartilage in osteoarthritis. Ther Adv Musculoskelet Dis. 2012;4(4):249-58. doi:10.1177/1759720X12437353.

37.

Yuan

Meng

Wang

Peng

Guo

Wang

, et al. Bone-cartilage interface crosstalk in osteoarthritis: potential pathways and future therapeutic strategies. Osteoarthritis Cartilage. 2014;22(8):1077-89. doi:10.1016/j.joca.2014.05.023.
