High-flow nasal cannula oxygen therapy as an emerging option for respiratory failure: the present and the future

Brief description of the device

The HFNC device is an open-circuit system consisting of a flow generator (air/oxygen blender, turbine or Venturi mask), an active heated humidifier and a single heated noncondensing circuit (Figure 1). The circuit is connected to a silicone nasal cannula of different sizes to fit the patient’s nostrils. The original device, intended to be used in environments of high-level healthcare, needed to be connected to a source of oxygen and a source of high-pressure air in order to generate flows. Recently, new devices have been produced which can be used at home, as high flows can be obtained by a turbine (Figure 2). Parameters that can be set include the flow/min, fraction of inspired oxygen (FiO₂) and temperature. The flow of gas can be regulated up to 60 l/min (depending on the device), whereas the FiO₂ can be regulated up to 60% or 100%, again depending on the device. The recommended temperature is 37°C to warrant a content of 44 mg H₂O/l, which is 100% relative humidity. Currently the most marketed devices are the Optiflow and Airvo 2 (Fisher & Paikel Healthcare Ltd, Maidenhead, UK) and Precision Flow Plus and Flowrest (Vapotherm, Exeter, NH, USA). A recent review by Nishimura accurately describes technical details for all available devices. ¹⁰

OPEN IN VIEWER

Figure 1.

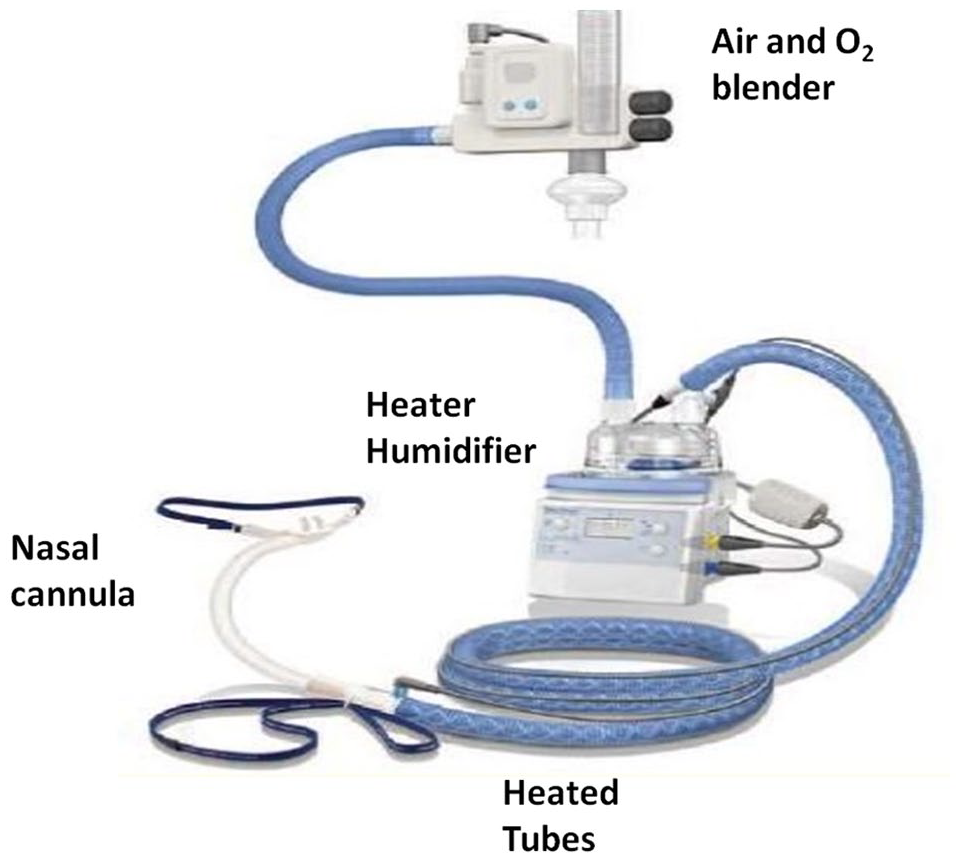

Optiflow nasal high-flow system (Fisher & Paikel Healthcare). The air–oxygen blender allows a fraction of inspired oxygen from 21% to 100% and generates a flow of up to 60 l/min. The gas is heated and humidified through an active heated humidifier and delivered through a heated tube.

OPEN IN VIEWER

Figure 2.

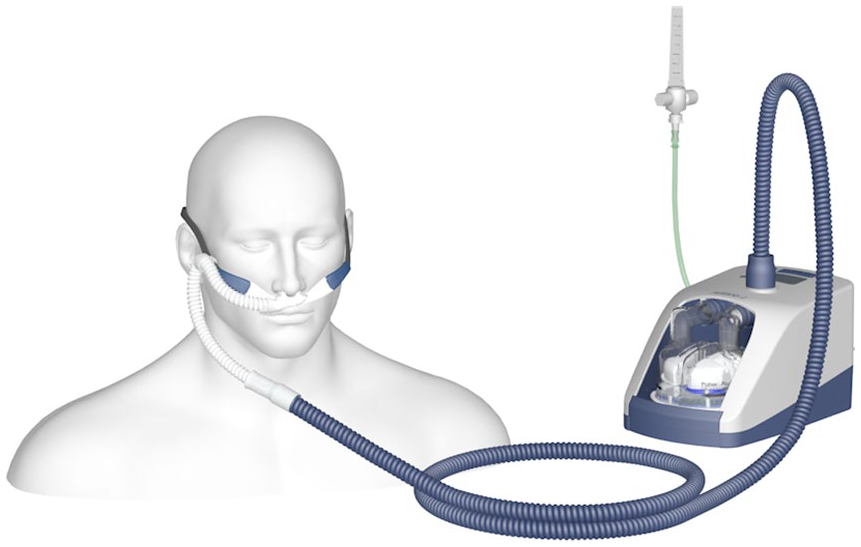

Airvo 2 high-flow system (Fisher & Paikel Healthcare). The high flow (up to 60 l/min) is generated by a turbine and the system can be used at home.

Effect on anatomical dead space and carbon dioxide wash-out

In the respiratory system ‘dead space’ refers to the space in which oxygen and carbon dioxide (CO₂) are not exchanged across the alveolar membrane. Specifically, ‘anatomical dead space’ refers to the volume of air located in the segments of the respiratory tract responsible for conducting air to the alveoli and respiratory bronchioles but which do not take part in the process of gas exchange itself. Reduction of dead space is one of the mechanisms by which the high flows produced by HFNC improve the removal of CO₂.

In patients with severe respiratory distress, HFNC reduces the respiratory rate.^11,12 In addition, compared with low-flow oxygen, HFNC improves thoracoabdominal synchrony in adults with mild to moderate respiratory impairment. ¹³ Although HFNC decreases minute ventilation, the partial pressure of CO₂ (PaCO₂) remains steady or even decreases. This indicates that HFNC produces a more efficient ventilation, facilitating the clearance of CO₂ from the anatomical dead space.^2,14,15 This is an extremely relevant effect, as during physiological human ventilation, around 30% of the tidal volume is wasted in anatomical space that does not participate in gas exchanges. The contribution of dead space is particularly important in patients with acute hypercapnia in which the dead space volume is increased by the high respiratory rate. This is a peculiar effect of HFNC in contrast with traditional NIV. The face mask used for NIV has the disavantage to increase anatomical dead space. ²

Effect on work of breathing

Work of breathing (WOB) is the energy expended by the respiratory muscles to perform their physiological activity and the main effect of NIV is to assist respiratory muscles by reducing WOB. Theoretically, the reduction of respiratory rate and the improved thoracicabdominal coordination should, as a consequence, reduce WOB. A reduction in WOB by HFNC has been shown directly in infants with respiratory distress. ¹⁶ In adults with COPD it has been reported that HFNC treatment decreases WOB compared with COT.^17–19 In a group of patients with exacerbation of COPD, the electrical activity of the diaphragm significantly decreased during postextubation HFNC treatment compared with COT. ¹⁸ In another study diaphragm activation was assessed by ultrasound in a group of patients recovering from acute hypercapnic respiratory failure and previously treated with NIV. Again, after NIV interruption, diaphragm activation increased during COT, but not HFNC. ¹⁹ This effect on WOB might be particularly useful in hypercapnic patients in which HFNC can represent an alternative to COT in order to avoid escalation to NIV.

Generation of a positive end-expiratory pressure

The HFNC device is an open system (while NIV is a closed system), however the high flows produced are sufficient to prevail against the expiratory flow and generate a small positive pressure in the airways, known as positive end-expiratory pressure (PEEP).^20,21

If the patient is breathing with closed mouth, so that there is little escape of gas, the pressure measured at the nasopharynx, increases with increasing flows. With a maximum flow of 60 l/min, the pharyngeal pressure will be around 3 cm H₂O, however, if the mouth is open the pressure will remain below 3 cm.^2,22 In a lung simulator model, factors affecting the level of PEEP were the set flow, peak inspiratory flow and tidal volume. ²³ This positive pressure, although small, is sufficient to increase the end-expiratory lung volume in a linear fashion with increasing gas flow.^21,24 Therefore, the PEEP effect of HFNC, which is lacking with COT, has undoubtedly some advantages in different clinical conditions. In acute hypoxaemic failure, PEEP causes alveolar recruiting (increase in the number of ‘open’ alveoli participating in ventilation) and the shift of lung water from the alveoli to the perivascular interstitial space (e.g. in pulmonary oedema). In patients with expiratory flow obstruction such as COPD, intrinsic PEEP, generated by lung hyperinflation, can be effectively counteracted by the application of a small extrinsic PEEP. ²⁵ This will contribute further to reduce WOB.

Regulation of FiO₂

One problem with COT is that relatively low flows of oxygen can be delivered and FiO₂ is inconstant when using a traditional cannula or mask. ²⁶ This occurs because physiologically the inspiratory flow varies with each breath and so does the FiO₂, although it is often erroneously assumed that at a set FiO₂ all the oxygen given is inhaled by the patient. On the contrary, if the patient is in respiratory distress, his inspiratory flow will exceed the oxygen flow delivered by traditional devices.^26,27 Moreover, in severe hypoxaemia masks are generally preferred to cannulas. Therefore, the high patient’s respiratory rate and flows will produce an entrainment of room air into the mask, so that the inhaled oxygen will be further diluted, resulting in an insufficient FiO₂.^27,28 When oxygen is administered via HFNC the flow is high and constant and this overcomes the issue of gas dilution, allowing the patient to inhale a constant FiO_2. ²⁹ Studies show that the set FiO₂ is more constant at higher flows ²³ and tends to be higher during open-mouth breathing. ³⁰

Airway humidification and heating

The HFNC device has an incorporated active heated humidifier which allows the delivery of warm and humidified gas into the airways (Figure 1). At the optimal temperature of 37°C, with flows in the range of 20–60 l/min, a 100% humidification can be achieved and maintained constant, although minor variations may occur at different flow levels, with changes in the patient’s breathing pattern and with different devices. ³¹ With higher flows (>80 l/min), which are currently under evaluation, conventional humidifiers may not be reliable. ³² The conditioned gas is delivered through a heated circuit which avoids condensation when the atmospheric temperature is lower. ³³

Indeed, the application of such conditioned gas may affect positively the airway function. It is well known that inhalation of dry and cold air increases airway resistance and WOB. ³⁴ A proper humidification is also necessary to optimise mucosal function, and to maintain gas exchange and host defense.^35,36 When the respiratory mucosa dries, mucus becomes thicker and the ciliary function is impaired so that it will be more difficult to clear secretions from the airways. ³⁷ With such premises, the use of COT or NIV without sufficient humidification may cause discomfort to the patient and produce an adverse physiological effect. ³⁸ On the contrary, in different clinical conditions, delivery of water vapour to the airways may improve airway clearance, increase the amount of secretions and preserve mucus rheological properties.^36,38 This will prevent the occurrence of atelectasis improving the ventilation–perfusion ratio. ³⁹ This effect of HFNC is particularly promising in those chronic hypersecretive states requiring an optimisation of airway clearance. In addition, patients with acute distress may have excessive secretions thus making a big effort in expelling them. At the moment, data on the effect of HFNC on mucus secretion are lacking, but indeed this is worthy of further investigation.

Hypoxic respiratory failure

The respiratory system is functionally composed of two parts, the lungs, which provide a gas-exchange surface, and the pump, which ventilates the lungs. In general, respiratory failure from lung dysfunction, caused by a variety of diseases (e.g. pneumonia, interstitial disease or pulmonary oedema), leads to hypoxaemia with normocapnia or hypocapnia. Acute hypoxic respiratory failure (ARF) was the first condition treated with HFNC in adults. Its use has been widely explored, particularly in ICUs and emergency departments (EDs) (Table 2).^2,27

OPEN IN VIEWER

Table 2.

Current clinical applications of the high-flow nasal cannula system.

	Clinical effects
Acute hypoxaemic respiratory failure	• Reduces dyspnoea• Improves oxygenation• Decreases escalation to invasive support
Hypoxaemic failure in immunocompromised patients	• Reduces dyspnoea• Improves oxygenation• Reduces intubation rate• Reduces mortality (?)
Cardiogenic pulmonary oedema	• Improves oxygenation• Reduces cardiac afterload
Exacerbation of chronic obstructive pulmonary diseases	• Improves gas exchange• Decreases partial pressure of CO2
Postextubation	• Improves gas exchange• Decreases reintubation rates
Respiratory procedures	• Improves oxygenation during endoscopy

The first studies in patients with different degrees of acute hypoxaemia focused on physiological parameters. These studies showed that HFNC oxygen therapy, compared with COT, improved oxygenation without affecting PaCO₂, and reduced the respiratory rate and clinical signs of respiratory distress.^2,9,11,12 In addition HFNC offered better comfort and was better tolerated than conventional therapy.^2,9 The rationale of using HFNC in ARF is to avoid escalation to more advanced respiratory supports such as NIV or endotracheal intubation. In one early study in patients with ARF treated with HFNC compared with those treated with COT, escalation to NIV was less likely. ⁴⁰ In another group of patients, developing ARF after lung transplantation, treatment with HFNC at admission to the ICU was the only variable associated with a reduced risk of NIV. ⁴¹ HFNC has been compared also with NIV itself in the management of ARF.^42–44 In a large trial performed in 2015, Frat et al. randomised 310 patients with ARF, mainly affected by pneumonia (those with acute heart failure were excluded), to standard oxygen therapy, NIV or HFNC treatment. ⁴³ They found no difference in the intubation rate among groups, but there was a significant difference in favour of high-flow oxygen in 90-day mortality. Interestingly, a post hoc analysis of this study showed that HFNC treatment was significantly superior to NIV or COT in a subgroup of immunocompromised patients. ⁴⁴ After an early implementation in ICUs, the use of HFNC has spread in EDs for the treatment of ARF, most commonly in patients with pneumonia or pulmonary oedema. Some studies confirm that in the ED HFNC, compared with conventional treatment, improves oxygenation, dyspnoea and comfort,^45,46 and reduces escalation to mechanical ventilation. ⁴⁷ Conversely, in one report HFNC did not reduce the need for mechanical ventilation compared with COT in the ED. ⁴⁸ In addition, a more recent study showed a higher mortality rate among patients treated with HFNC in non-ICU wards. ⁴⁹ The authors warned that care should be exercised when a patient with ARF, treated with HFNC, is not continuously monitored. At the moment the effect of HFNC on intubation or mortality rate in the ED remains unclear.

Although results from single studies published so far on the effect of HFNC on ARF seem encouraging, the attempt to merge the available data in meta-analysis has given conflicting results. Two meta-analyses in 2016 failed to find superiority of HFNC compared with NIV or COT in terms of mortality or intubation rate.^50,51 In contrast, in 2017 two further meta-analyses comprising 3881 and 1891 patients reported that HFNC was superior to COT and similar to NIV in reducing the intubation rate in ARF.^52,53 In the same year a Cochrane review was unable to establish whether HFNC is more effective or safe than COT in ICU patients. ⁵⁴ Again, in 2019 Zayed et al. failed to show an effect of HFNC on mortality rate in such patients. ⁵⁵ Inconclusive data from these meta-analyses are likely due to the heterogeneous patients included in the studies (e.g. different aetiologies of ARF), nonhomogeneous data, so that pooling is difficult, and some bias among studies (e.g. lack of blinding).^54,56 While HFNC is generally indicated for patients with mild to moderate hypoxia, a clear association between the efficacy of HFNC and the aetiology of ARF has not been established. Escalation to more invasive treatment is more likely to occur in patients whose hypoxaemia is strongly dependent in alveolar collapse and in patients with acute respiratory distress syndrome.

Hypercapnic respiratory failure

Contraindications and disadvantages

Without sufficient evidence clear contraindications for HFNC are lacking, however some authors suggest avoiding HFNC in patients for whom NIV is contraindicated. ² Owing to the side effects of the applied low pressure such as abdominal distension and barotrauma should be more rare in HFNC than in NIV. One important issue when using a noninvasive respiratory support, such as HFNC, is that recourse to more invasive management may be delayed and this may be deleterious in patients with respiratory instability. The precise time to give up HFNC and escalate respiratory support is not standardised yet and the decision is left to the judgement of the physician. In ARF, prolonged attempts with HFNC may delay intubation with adverse outcomes.^27,82 Conversely, intubation following early failure (before 48 h) of HFNC is associated with lower mortality in the ICU. ⁸² In patients who respond to the treatment generally an improvement is observed within the first 1–2 h. ² Low SaO₂, high respiratory rate and thoracoabdominal asynchrony should be considered predictors of HFNC failure.^2,41

Domiciliary treatment of patients with COPD and respiratory failure

Chronic management of patients with COPD includes, in addition to medical treatment, long-term oxygen therapy and domiciliary NIV, if hypercapnia is present, and both are effective in reducing mortality.^83,84 Long-term treatment with NIV, although highly effective, may have problems with patients’ compliance and adaptation to interfaces, that are negligible in the acute setting. Therefore, domiciliary treatment with HFNC would avoid the discomfort associated with the long-term use of a mask for NIV. In addition, the administration of oxygen via HFNC, providing optimal heat and humidification of the inhaled gas, may increase chest drainage, acting as a sort of respiratory physiotherapy, while the patient is simply breathing. At the moment only two studies have examined long-term treatment with HFNC in COPD.^80,81 Nagata et al. followed 32 patients with hypoxaemic hypercapnic COPD treated with HFNC for a period of 6 weeks. HFNC significantly reduced the levels of PaCO₂ and improved health-related quality of life compared with treatment with COT. ⁸² Storgaard et al. followed 200 hypoxaemic patients with COPD treated with HFNC for 12 months. These authors found that HFNC treatment, compared with COT, reduced the rate of exacerbations by about 40%, and reduced hospital admission and symptoms, without any effect on all-causes mortality. ⁸¹ It has been speculated that the reduction of exacerbations is likely due to the effect of humidification on airway clearance, ³⁶ although a direct study measuring the effect of HFNC on sputum production is lacking. Whatever is the underlying mechanism, the reduction of exacerbation rate in COPD is a major clinical outcome, as exacerbations are an important determinant of disease progression and quality of life. ⁸³ More long-term studies are therefore needed to clarify these aspects. In addition some technical aspects need consideration when HFNC is prescribed for home use. Among these, the risk of contamination of the tubes since, differently from NIV, warm and humidified gas is delivered and condensation cannot be avoided.

Support treatment during exercise in COPD

Exercise limitation, due to dyspnoea, is a major symptom in patients with COPD. ⁸⁵ In such patients, during exercise, the development of hypoxaemia and the increase in dead space can produce an abnormal rise in minute ventilation, so that the ventilatory reserve is rapidly reached. ⁸⁵ It has been speculated that HFNC, by improving the efficiency of ventilation, may increase exercise capacity. In addition, the high flow provided may improve gas exchange in a condition in which the patients unavoidably breathe at very high flows. In an early study, Chatila et al. administered heated and humidified high-flow oxygen at 20 l/min to 10 patients with COPD with advanced airflow obstruction and severe oxygen dependency during exercise. Compared with low-flow oxygen, high-flow oxygen decreased the respiratory rate, the T_I/T_TOT ratio and the rapid shallow breathing index, improving SaO₂ and endurance time. ⁸⁶ More recently, Cirio et al. evaluated the effect of HFNC on exercise performance (incremental exercise test on cycle ergometer) in 12 patients with severe COPD with exercise limitation. ⁸⁷ They found that HFNC at 55–60 l/min, compared with room air, increased endurance time, improved oxygenation and reduced dyspnoea. Exercise training represents an important part in the rehabilitation programme of patients with COPD and benefits are proportional to the applied intensity. ⁸⁸ Although high-intensity exercise is advised, this may be difficult to achieve for patients with severe obstruction. The use of HFNC may allow a given high-intensity load to be sustained for a longer time with fewer symptoms, improving the effect of exercise training in pulmonary rehabilitation programmes. Although these are interesting preliminary findings, no other studies are available so far. At present, the first randomised controlled trial on the effect of HFNC during exercise training in patients with COPD with respiratory failure is ongoing. ⁸⁹

Management of chronic mucus hypersecretion: bronchiectasis and cystic fibrosis

Chronic bronchitis, bronchiectasis and cystic fibrosis are all associated with a chronic increase in mucus secretion. Although there are differences in aetiologies, for all these conditions improving the muco-ciliary clearance is a pivotal approach in order to preserve airway patency, long-term function and to prevent recurrent infections. The expulsion of secretions can be facilitated by a number of manual and instrumental airway clearance techniques; however, maintenance of a sufficient airway surface liquid is crucial for effective ciliary function. In addition, as water is a main constituent of mucus, optimal hydration of the mucosa may reduce mucus viscosity, facilitating excretion. ⁹⁰ One early study showed that 30 min of airway humidification facilitates postural drainage in patients with bronchiectasis. ⁹¹ It is now well established that the optimal level of temperature and humidity to maintain mucosal function is core temperature and 100% relative humidity. Out of these values a progressive mucosal dysfunction begins and the greater the humidity deviation, the faster the mucosal dysfunction progresses. ⁸⁵ It has been reported that in a group of patients with bronchiectasis, inhalation of high-flow saturated air at 37°C for 3 h/day for 6 days, significantly improved lung clearance. ³⁶ Unfortunately, this is the only study available so far, but it is clear that the benefits of HFNC in bronchiectasis deserve further investigation. The use of HFNC is particularly promising in the management of patients with cystic fibrosis. There is one study showing that HFNC in stable patients with cystic fibrosis reduces the work of breathing to a similar extent compared with NIV, however the effect on mucus secretion has not been assessed in this or any other study. ⁹² It is conceivable that in cystic fibrosis HFNC may have combined advantages improving both ventilation and airway clearance.

Palliative care: from hospital to home

In the last years, although with a lack of clear recommendations, NIV has been used to improve dyspnoea in patients at the end of life with respiratory failure and a do-not-intubate status. ⁹³ As HFNC is more comfortable than NIV, particularly in patients with a poor general condition, studies have evaluated whether this device can be used as a palliative treatment in hypoxaemic patients at the end of life. In one study, comprising 183 patients with advanced cancer, HFNC improved clinical outcomes (SaO₂, comfort and the need for a step-up to other respiratory support) in 41% of patients, while 44% remained stable and 15% deteriorated during the therapy. ⁹⁴ In another group of patients who refused intubation, affected by a variety of conditions, such as pulmonary fibrosis, pneumonia and malignancies, treatment with HFNC significantly improved oxygenation and dyspnoea so that 82% were maintained by HFNC and only 18% escalated to NIV. ⁹⁵ The use of HFNC was also compared with NIV in patients with end-stage interstitial lung disease, a condition associated with particularly severe hypoxaemia and devastating dyspnoea. While no difference was reported in the survival rate, HFNC was better tolerated as the patients could eat and converse until just before death. ⁹⁶ In another group with idiopathic pulmonary fibrosis admitted to a respiratory ICU for ARF, short-term mortality fell to below 50% when a treatment algorithm incorporating HFNC was implemented. ⁹⁷ One putative advantage of a palliative treatment with HFNC is that severe patients in the last phases of their disease who require a high FiO₂, can be more easily treated at home, reducing their stay in the hospital. A recent study retrospectively examined a cohort of severe patients with end-stage respiratory failure, including interstitial lung diseases, cancer and COPD, who were discharged home on long-term HFNC. The survival of these patients was poor, but HFNC allowed the patients to return home and to be treated at reasonable cost. ⁹⁸ The role of this device, therefore, among other options for palliative care, needs further consideration.
