Curing kinetics study of chemically modified pineapple leaf fiber/epoxy composite

Abstract

Agricultural by-products have long hinder farmers, and subsequently, the food supply chain. Making use of their natural by-products will both reduce waste and increase industrial production. In particular, pineapple leaf fibers (PALF) can be extensively studied. Here, the curing kinetics of chemically modified PALF/epoxy resin crosslinked by an anhydride hardener was investigated by non-isothermal and isothermal methods with the differential scanning calorimetry technique. In this study, the Kissinger-Akahira-Sunose and Flynn-Wall-Ozawa methods, as well as Kamal's model, were employed to analyze the curing behavior of epoxy in non-isothermal and isothermal processes, respectively. The highest activation energies for pure epoxy and PALF/epoxy composite calculated differ when using the methods. Additionally, a decreasing trend in the activation energy values during the late stages of epoxy curing was observed. The results from Kamal's model indicate that the k₁ values of the PALF/epoxy composite are only greater than those of pure epoxy at 100°C and 110°C. However, all the k₂ values of PALF/epoxy are greater than those of pure epoxy. Additionally, the m value of the PALF/epoxy composite is lower than that of pure epoxy only at 100°C, while the n and m+n values of the PALF/epoxy composite are all greater than those of pure epoxy. Moreover, the results reveal that the Cure Index of the PALF/epoxy composite was larger than ΔH* and smaller than ΔT*. With PALF, it was found that the epoxy resin’s curing rate was increased and the activation energy was reduced. Meanwhile, the degree of crosslinks was less than that of the virgin resin. It is speculated that the hydroxyl groups on the plant fibers and the amine groups on the coupling agent-modified fibers can promote the cross-linking reaction. However, the curing reaction of the composite is affected by steric obstacles and high viscosity resulting from the addition of PALFs.

Keywords

Pineapple leaf fiber epoxy curing kinetics non-isothermal isothermal

Introduction

The global population has exceeded eight billion, raising concerns about issues such as natural resource depletion, water scarcity, and food insufficiency. Furthermore, the substantial volume of waste generated on a global scale demands urgent attention.¹ Towards the global goal of sustainability, industries and agriculture have been striving to build upon reasonable economic growth, innovation, limited consumption and production. This originates from the increasing awareness toward global warming from industrial processes. Recognizing the inherent nature of sustainable environmental issues associated with waste and acknowledging the potential of natural plant resources for producing natural fibers, the research on natural fiber-reinforced composites has received significant attention.²

As such, the global initiatives of using natural resources more effectively have increased dramatically. Natural fibers as reinforcement in plastics are nowadays an eco-friendly and economical substitute for synthetic fibers. The advantages of natural fibers over man-made fibers include low density, low cost, recyclability and biodegradability. Many researchers have investigated the strengthening effects of the natural fiber reinforced epoxy and various polymer composites.^3,4 A variety of fruits such as bananas, watermelons, papayas, mangoes, and pineapples are greatly valued for their taste and nutritional benefits. However, over 40% of the fruit's total mass, including the peel, leaves, and seeds, is inedible and predominantly contributes to substantial waste production. Many of these discarded materials contain a notable amount of cellulose fibers.⁵ Natural fibers are emerging as suitable alternative materials to glass fibers for reinforcing plastic polymers in various applications. Their ease of processing, which requires minimal energy consumption, combined with the growing demand for energy-efficient and lightweight solutions, gives natural fibers a distinct advantage over synthetic fibers. Various kinds of natural fibers, such as groundnut shell powder,⁶ pineapple leaf fibers (PALF), sisal fibers,⁷ and kenaf fibers,⁸ have been employed in the fabrication of polymer composites.

Among the types, fibers from pineapple leaves have gathered extensive studies. Pineapple (Ananas comosus) is an incredibly delicious and healthy tropical fruit. Global pineapple production reached 28.2 million tonnes in 2019.⁹ The fruit is widely cultivated in Costa Rica, Brazil, Malaysia, Thailand, Nigeria, Taiwan, etc. The pineapple leaves are abundant by-product materials that are left for disposal by decomposing or burning. It is estimated that about 76 million tons of pineapple leaves are produced every year. Pineapple leaf is also one of the major agricultural waste in Taiwan. Every year, more than five million tonnes of pineapple leaf trash are produced.¹⁰ Through studies and practices, it is found that pineapple leaves are a good source of environmentally friendly fiber that received little global attention for its commercial importance until the recent decade. Incorporating PALF into polymers would not only reinforce polymers, but also achieve waste recycling and increase economic benefits.¹¹

The fibers can be applied into matrices such as epoxy resins. Epoxy resins are thermosetting polymers with low volume shrinkage, dimensional stability, good adhesion, high strength, corrosion resistance, electrical insulation and other excellent properties. It has been widely used in industrial fields. Among the different types of epoxy resins, bisphenol-F epoxy resin has the advantages of low viscosity and good fluidity. Therefore, it can be used without addition of a reactive diluent or solvent, and its thermal stability and chemical resistance will not be affected.¹²

It should be noted that the poor compatibility of natural fiber with polymer matrix was an issue for its application. The effect is due to the hydrophilic nature of the fibers. To overcome this, a surface treatment of such fibers is an essential step to improve their interfacial adhesion with polymer matrices. Such chemical processes have been applied to improve the properties of natural fibers. Among them, alkali and silane treatments are largely employed due to their effective ability to improve the interfacial compatibility.^13,14 Overcoming the issue has led to the success of PALF composite fabrication. Continuous studies have focused on the improvements in strengths and the dynamics of the polymer matrices. Some have found as much as 58% improvement in tensile strength, depending on the percentage composition.¹⁵

While PALF promises sufficient strength improvement of the products, it is necessary to investigate how the industrial process of fabricating such polymer is changed. There are, however, few literatures that discussed the effect of plant fiber on the reaction kinetics of epoxy resin.^16,17 Bessa et al. investigated the effects of raw and treated Arundo donax L. cellulosic fibers on the curing kinetics of bisphenol A-based benzoxazine. The investigation of the curing kinetics of composites was conducted using the differential scanning calorimetry (DSC) technique under non-isothermal conditions and isoconversional integral kinetic methods. A decrease in the heat of curing, as well as the activation energy (Ea), was observed. The Avrami-Erofeev autocatalytic kinetic model was found to be the most suitable for describing the curing behavior of the composites.¹⁶ The study by Libera et al. assessed the impact of in nature, KOH or NaOH treated curauá fibers on the cure kinetics using the non-isothermal method. They discovered that the activation energy was higher for treated fibers than in nature.¹⁷

In this study, it is of interest to investigate the effect of PALF on the curing process. The study here begins with raw PALF. The material is then alkali- and silane-treated before incorporating into a bisphenol-F epoxy resin as a fabrication of a PALF reinforced epoxy composite. The treated PALF content was 20 wt%, exhibiting excellent mechanical and thermal properties.¹⁸ In order to provide a basis of curing process theory for applications of the PALF/epoxy resin composite, we investigate the curing kinetics of this system. DSC is a widely used and effective method to study the behavior of epoxy curing, including isothermal and non-isothermal methods. The recommendations for thermal polymerization processes have already been developed by the Kinetics Committee of the International Confederation for Thermal Analysis and Calorimetry (ICTAC). Among these recommendations, the Kissinger-Akahira-Sunose (KAS) and Flynn-Wall-Ozawa (FWO) methods are commonly used for isoconversional analysis. In addition, the Kamal model was particularly recommended because it can represent the mechanism of competition between a regular and autocatalytic reaction.¹⁹ This type of model can be used to simulate curing kinetic curves of much more diverse shapes. Indeed, it can describe a wide range of curing systems, including epoxy-amine and epoxy-anhydride systems, among others. Therefore, in this study, for the non-isothermal analysis, FWO²⁰ and KAS²¹ methods were used to predict the curing behavior of the epoxy resin and its composite. For isothermal method, the Kamal’s model²² was applied to analyze the curing kinetics of the system. The changes induced by the PALF on the curing kinetics are discussed.

Materials and methods

The following outlines the preparation of the composite. The setup to understand the effect of the fibers on the curing of the resin under thermal analysis is also presented.

Materials

This study proceeds to the fabrication of composite samples for their calorimetric measurements of the kinetic parameters. The PALF were prepared and added to the epoxy resin. Here, the epoxy resin (Bisphenol F-epoxy resin, ML3564) with epoxy equivalent of 165–175g/eq is used. The resin, along with the curing agent (polyaminoanhydride) and accelerator (benzyldimethylamine) were supplied by Golden-Gate Chemical Co. Taiwan. The silane coupling agent (3-aminopropyltriethoxysilane) was supplied by Dow Corning Co. The pineapple leaves were supplied in-kind by the Taiwan Agricultural Research Institute of the Council of Agriculture, Taiwan.

Modification of pineapple leaf fibers and preparation of composite

The raw PALF obtained were first treated in an alkaline solution.¹⁵ They were then washed with distilled water and dried in an oven at 60°C to preserve their compositions. Fibers were obtained by having the leaves chopped and screened to obtain an average length between 2 and 4 mm, and were subsequently treated by 3-aminopropyltri-ethoxysilane to obtain the modified PALF (MAF). The epoxy, the curing agent, and the accelerator were mixed with a ratio of 100:90:2. The MAF (20 wt%) were mixed to obtain the modified fiber-reinforced epoxy composites (MAF/EP).

Differential scanning calorimetry

Once the composite was prepared, the curing behavior was analyzed by a DSC (TA Instruments Q20). The thermoanalytical equipment is used to measure the specific heat of the sample as a function of temperature. The equipment model has an accuracy of ±0.1°C and a precision of ±0.05°C. To measure the non-isothermal kinetics, a sample mass of 5∼10 mg was sealed in an aluminum pan. It was then subjected to a heating program from 30°C to 250°C at different heating rates of 5, 10, 15 and 20°C/min under a constant nitrogen atmosphere. The isothermal curing was conducted at 100, 110, 120, and 130°C, and for 120 min each. A sample of pure epoxy resin, and a sample of MAF/EP were prepared for the DSC for comparison.

Kinetic analysis

The study analyses the samples via both the isothermal and non-isothermal methods. A related derivation is presented, and is related to the degree of curing reaction (or conversion), of which is measured by α. It is calculated by using the change in heat of the reaction.

α = \frac{H_{t}}{Δ H} \cdot

(1)

Here, H_t and ΔH are the enthalpy determined at a time t and the total enthalpy of the curing reaction, respectively.

Non-isothermal cure kinetics

Extensive non-isothermal kinetics analysis has a complexity of derivations and models.²¹ Therefore, a simplifying assumption involves the description of the reaction rate as a product of two functions, and is expressed as:

\frac{d α}{d t} = k (T) \cdot f (α) .

(2)

Expressing equation (2) in integral form gives the total reaction over time, i.e.,

g (α) = \int \frac{d α}{f (α)} = \int k d t,

(3)

Where k is the total reaction rate constant as a function of temperature. F(α) is the function of conversion as presented in equation (1).

Kissinger method

The investigation calls upon the Kissinger method. The method is a simple way to calculate activation energy that is based on the assumption of constant conversion (independent heating rates) when the reaction rate reaches maximum. It therefore involves the measurement of the peak temperature (T_p) at various heating rates (β). The integral form of the Kissinger equation is shown below.²¹

- \ln (\frac{β}{{T_{P}}^{2}}) = - \ln (\frac{A R}{E_{a}}) + \frac{E_{a}}{R T_{P}} \cdot

(4)

Here, A and R represent pre-exponential factor and universal gas constant, respectively. The activation energy (E_a) can be calculated from the slope of the plot of

- \ln (\frac{β}{{T_{p}}^{2}})

against

1 / T_{p}

Ozawa method

Meanwhile, Ozawa’s formulation²¹ found that the activation energy of a reaction is related to the heating rate, β, and the peak temperature of the reaction, T_p, at a constant degree of conversion by the following equation:

E_{a} = \frac{- R}{1.052} \frac{Δ \ln β}{Δ (1 / T_{P})} .

(5)

The activation energy (E_a) can be calculated from the slope of the plot of ln β against $1 / T_{p}$ .

The KAS and the FWO methods

In this study, we also determine the kinetic parameters for various conversion using the KAS and the FWO methods. The equation for fitting the KAS model is provided below:

\ln (\frac{β}{T^{2}}) = \ln (\frac{A R}{E α}) - (\frac{E}{R T})

(6)

The equation for fitting the FWO model is as follows:

\ln β = \frac{0.0048 A E}{R x} - 1.0516 (\frac{E}{R T})

(7)

The kinetic study was conducted using equations (6) and (7) from the KAS and FWO methods, respectively.²³ To calculate the activation energy of pure epoxy and MAF/EP composite using the KAS method, a plot was generated between ln (β/T²) and 1/T, and the slope was determined for various conversions (α). Activation energies were computed for each specific conversion (α), ranging from 0.2 to 0.9, based on the obtained linear segments. Similarly, for the FWO method, a graph was plotted between ln (β) and (1/T). Linear segments were achieved for each conversion, and by utilizing the slope of these linear segments, activation energies were computed.

Isothermal cure kinetics

For the cure kinetics based on the conversion and not T_p, Kamal’s model is commonly used. The two general kinetic models: nth-order kinetics and autocatalytic kinetics are used to simulate the isothermal curing mechanism of epoxy resins:²²

\frac{d α}{d t} = (k_{1} + k_{2} α^{m}) {(1 - α)}^{n},

(8)

where k₁ and k₂ are the specific rate constants of these models, and are functions of temperature. The exponents m and n correspond to the orders of reaction. Equation (8) can be written in the following form:

\frac{d α}{d t} = k_{1} {(1 - α)}^{n} + k_{2} α^{m} {(1 - α)}^{n} .

(9)

The first term on the right side of equation (9) is the nth-order reaction model and the second one is the autocatalytic reaction model. According to the nth-order kinetics model, the maximum reaction rate will be observed at t = 0, and, according to the autocatalytic model, the reaction rate is zero initially and attains a maximum value at some intermediate conversion. It is worth noting that, equation (9) enables the superposition of the two models. And for this property, when natural logarithm is applied to both sides of equation (8), the following can be derived:

\ln (\frac{d α}{d t}) = \ln (k_{1} + k_{2} α^{m}) + n \ln (1 - α),

(10)

\ln {[(\frac{d a}{d t}) / {(1 - α)}^{n}] - k_{1}} = \ln k_{2} + m \ln α,

(11)

\ln [(\frac{d α}{d t}) / (k_{1} + k_{2} α^{m})] = n \ln (1 - α) .

(12)

Note when α = 0 in equation (8), k₁ can be obtained from the value of dα/dt. Then, plotting ln (dα/dt) against ln (1-α), the initial value of n can be obtained from the slope according to equation (10). Further substituting the values of n and k₁ into equation (11) and plotting ln α with

\ln {[(d α / dt) / (1 - α) n] - k_{1}}

, the reaction order m and rate constant k₂ can be obtained from the slope and intercept of the line, respectively. Subsequently, substituting the values m, k₁, and k₂ that were obtained into equation (12), the slope of the relationship enables a new value of n (now n₁) to be obtained. Recursively, substituting the new value n₁ into equation (11) to obtain the new values of k_2,1 and m₁. The process of obtaining the values of n, m, and k₂ is iterated until the difference between the two consecutive values is less than 1%, and are considered to be the final kinetic parameter value.

Cure index

With an understanding of the curing behavior and kinetics of thermoset composites, Jouyandeh et al.²⁴ introduced the dimensionless “Cure Index” (CT) based on nonisothermal DSC experimental data as follows:

CI = {∆ H}^{*} \times {∆ T}^{*}

(13)

Where

{∆ H}^{*} = {∆ H}_{C} / {∆ H}_{ref}

(14)

{∆ T}^{*} = {∆ T}_{C} / {∆ T}_{ref}

(15)

So that

∆ T = T_{onset} - T_{endset}

(16)

Moreover, T_onset and T_endset represent the initial and final temperatures of cure in a typical DSC thermograms. Additionally, ΔH_c and ΔH_ref denote the total heat values liberated during the curing reaction of thermoset composites and the reference polymer, respectively. In addition, ΔT_c and ΔT_ref indicate the respective temperature ranges of curing, as directly measured by the instrument, for both the thermoset composite and the reference polymer.

In order to prevent the impact of filler aggregation on crosslinking reactions, an extremely low filler concentration can be employed, typically less than 0.2 wt% relative to the total weight of the resin/hardener mixture. Consequently, Jouyandeh et al. can straightforwardly classify the curing state of a thermoset composite compared to the reference sample into three possible cases indicated by the CI, as outlined below:

I. CI >ΔH*

II. ΔT*< CI <ΔH*

III. CI <ΔT*

For this case:

III (a): CI < ΔT* for T_p* < 1

III (b): CI < ΔT* for T_p* > 1

{where T}_{p}^{*} = T_{p, c} / T_{p, ref}

(17)

In equation (17), the variables T_p,c and T_p,ref represent the exothermic peak temperatures of the polymer with the additive and the pristine polymer, respectively. These values can be easily extracted from their respective DSC thermograms.

Results and discussion

Non-isothermal kinetics analysis

The DSC thermograms of pure epoxy and the MAF/EP composite at various heating rates are illustrated as Figures 1 and 2. The results from the DSC were recorded for both the pure epoxy sample, and for the MAF/EP. Different heating rates were used to calculate the reaction activation energies of pure epoxy resin and MAF/EP composite through Kissinger and Ozawa methods. The analysis diagrams of pure epoxy resin and MAF/EP composite drawn in Kissinger and Ozawa models are shown in Figures 3 and 4, respectively. It can be seen that the curves are shifted almost uniformly, indicating that the effect of PALF was little related to T_p, for which it agrees with Kissinger’s initial assumption of constant conversion. In addition, the calculated activation energies of pure epoxy based on equations (4) and (5) under the Kissinger model was 70.08 kJ/mole, and the Ozawa model was 73.21 kJ/mole. Both were all greater than those of MAF/EP composite under the Kissinger model at 58.71 kJ/mole, and the Ozawa model at 62.49 kJ/mole. These results indicate that the activation energies required for the curing reaction of the MAF/EP composite is less than that of pure epoxy by as much as ∼20%. This may be due to the hydroxyl groups on the pineapple leaf fibers that can promote curing reaction. In addition, the amine groups on the modified pineapple leaf fibers will also participate in the curing reaction, thereby also accelerating the reaction. Bessa et al.¹⁰ investigated the curing kinetics of bisphenol A-based benzoxazine by DSC technique under non-isothermal conditions, for which the decrease in the heat of curing and activation energy by the addition of Arundo donax L. cellulosic fibers was also evident.

Figure 1.

DSC thermogram of pure epoxy.

Figure 2.

DSC thermogram of MAF/EP composite.

Figure 3.

Kissinger model of MAF/EP composite compared with pure epoxy.

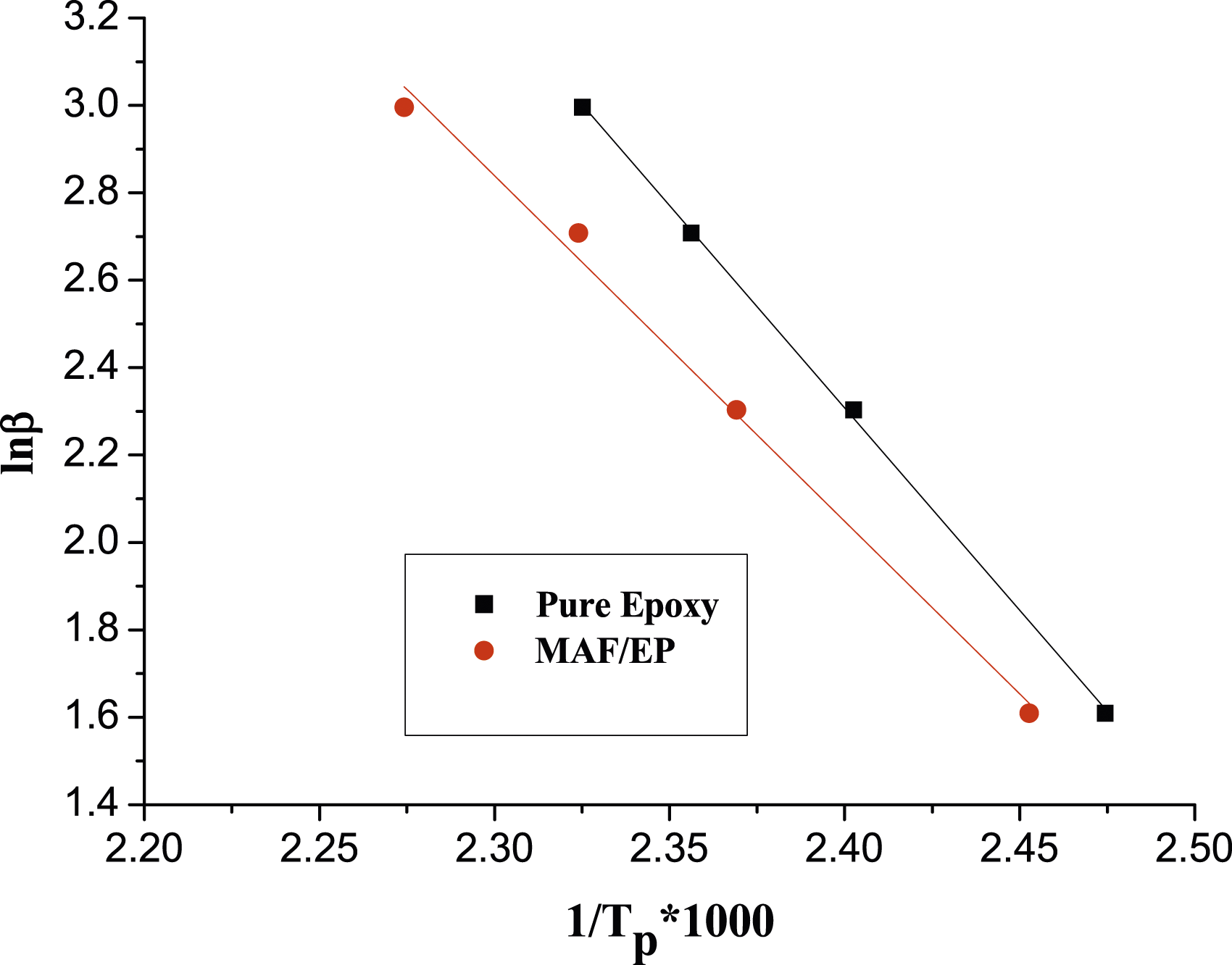

Figure 4.

Ozawa model of MAF/EP composite compared with pure epoxy.

Moreover, the activation energy of pure epoxy and MAF/EP composite calculated using the KAS method, a plot of ln (β/T²) versus 1/T, for various conversions (α) is depicted in Figure 5(a) and (b). Activation energies were computed for each specific conversion (α), ranging from 0.2 to 0.9, based on the obtained linear segments. The calculated activation energies are presented in Table 1. Similarly, for the FWO method, a graph was plotted between ln (β) and (1/T) as illustrated in Figure 6(a) and (b) and activation energies were computed and outlined in Table 1.

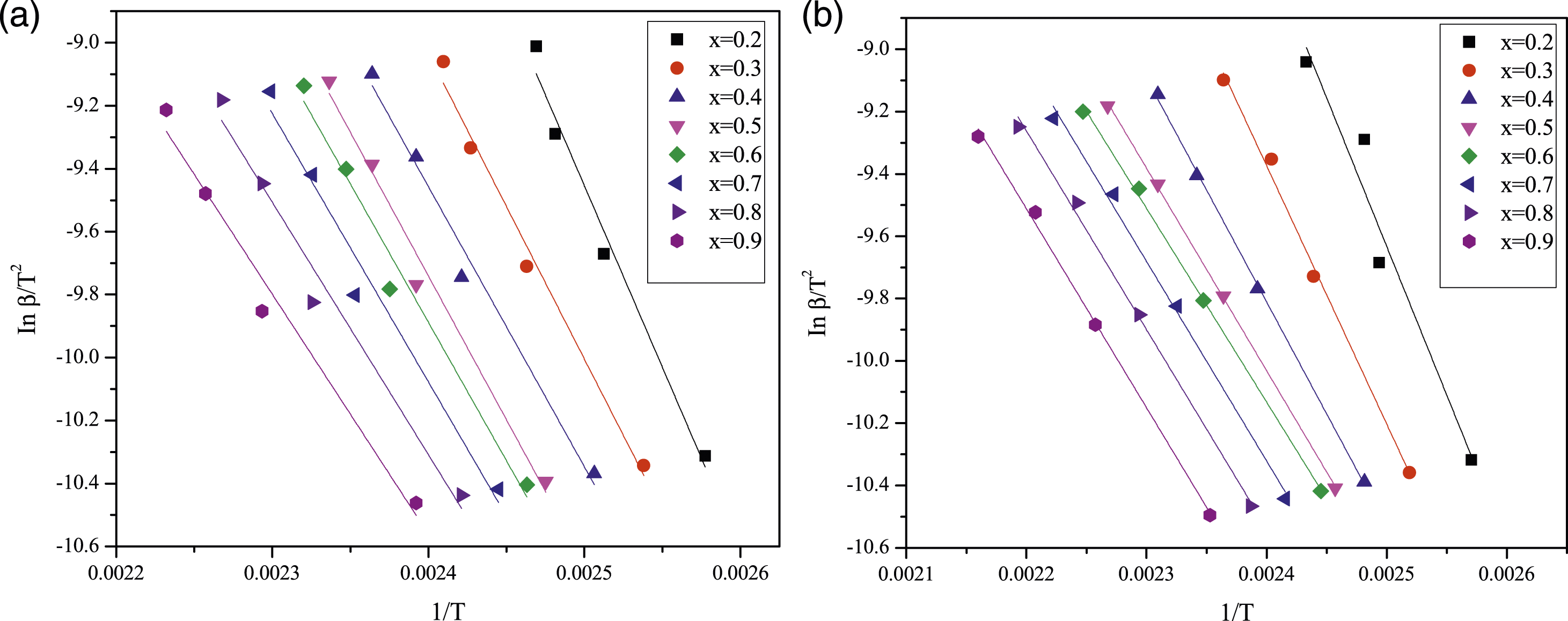

Figure 5.

Plot of ln (β/T²) versus 1/T of (a) Pure epoxy (b) MAF/EP composite for various conversions (α) using the KAS method.

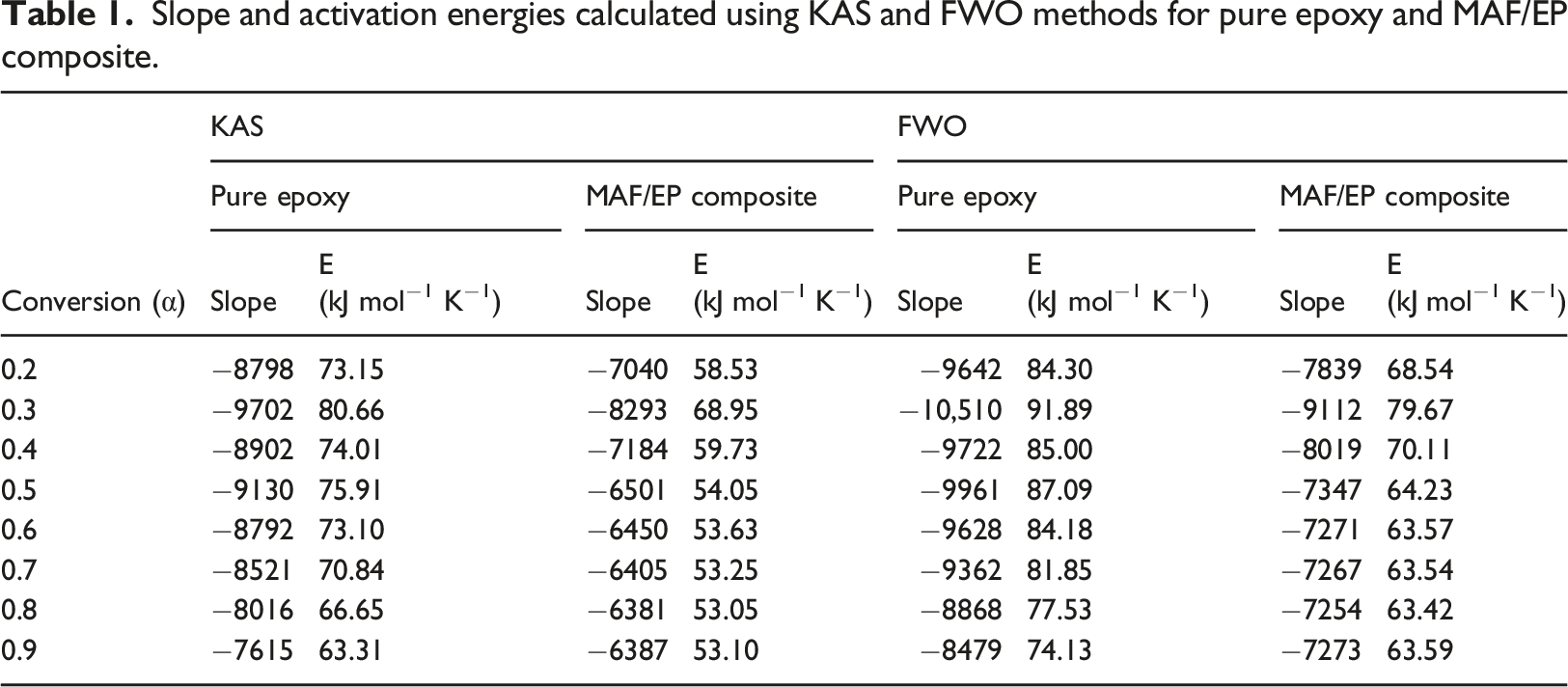

Table 1.

Slope and activation energies calculated using KAS and FWO methods for pure epoxy and MAF/EP composite.

	KAS				FWO
	Pure epoxy		MAF/EP composite		Pure epoxy		MAF/EP composite
Conversion (α)	Slope	E (kJ mol⁻¹ K⁻¹)	Slope	E (kJ mol⁻¹ K⁻¹)	Slope	E (kJ mol⁻¹ K⁻¹)	Slope	E (kJ mol⁻¹ K⁻¹)
0.2	−8798	73.15	−7040	58.53	−9642	84.30	−7839	68.54
0.3	−9702	80.66	−8293	68.95	−10,510	91.89	−9112	79.67
0.4	−8902	74.01	−7184	59.73	−9722	85.00	−8019	70.11
0.5	−9130	75.91	−6501	54.05	−9961	87.09	−7347	64.23
0.6	−8792	73.10	−6450	53.63	−9628	84.18	−7271	63.57
0.7	−8521	70.84	−6405	53.25	−9362	81.85	−7267	63.54
0.8	−8016	66.65	−6381	53.05	−8868	77.53	−7254	63.42
0.9	−7615	63.31	−6387	53.10	−8479	74.13	−7273	63.59

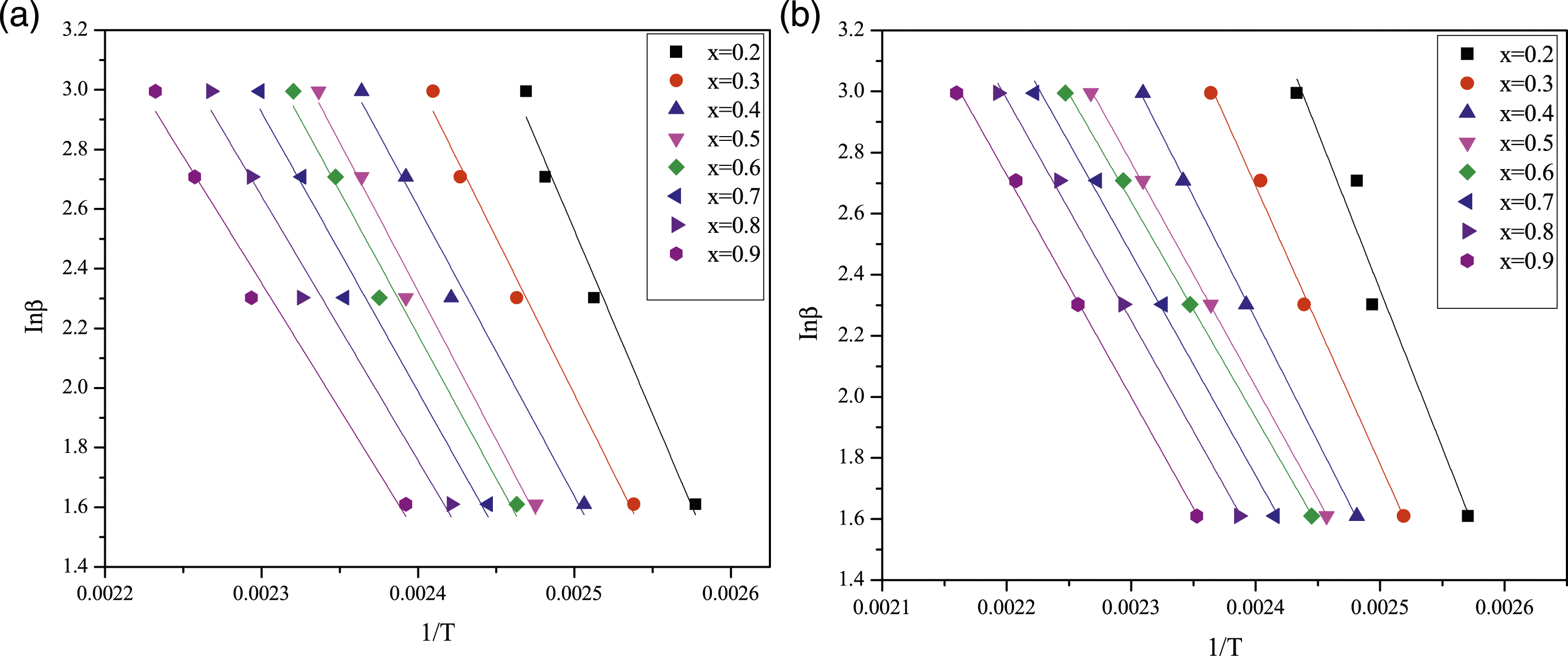

Figure 6.

Plot of ln(β) versus 1/T of (a) Pure epoxy (b) MAF/EP composite for various conversions (α) using the FWO method.

Also noted in Table 1, the activation energies calculated for each conversion factor using the FWO method were slightly higher than those obtained through the KAS method. The highest activation energy for pure epoxy at different conversion levels was determined to be 80.66 kJ mol⁻¹ K⁻¹ using the KAS method and 91.89 kJ mol⁻¹ K⁻¹ using the FWO method. Likewise, for the MAF/EP composite, the maximum activation energy at various conversion levels was identified as 68.95 kJ mol⁻¹ K⁻¹ using the KAS method and 79.67 kJ mol⁻¹ K⁻¹ using the FWO method.

It is found that both the FWO and KAS methods indicate a reduction in the value of activation energy at late stages of epoxy curing. Generally, the physical state of the curing reaction within the system shifts from a liquid state in the early stages to a cross-linked solid state as the curing reaction advances. As the curing reaction progresses, the molecular weight of the system increases, resulting in an elevated viscosity due to reduced molecular mobility of the curing components. Consequently, the curing kinetics transition from a chemical-controlled mechanism to a diffusion-controlled mechanism. This change leads to a reduction in the activation energy due to the diffusion of small curing components associated with the vitrification phenomenon.²⁵

Isothermal kinetics analysis

Figures 7 and 8 show the plots of the curing reaction rate (dα/dt) versus time t at different isothermal temperatures. For pure epoxy resin, the reaction rate increases as the scanning time increases. When it reaches a maximum value, the reaction rate will gradually slow down to zero, and the peak of the reaction rate became higher and shifted to a shorter time with increasing temperature. This reflects the type of epoxy resin conversion process containing autocatalytic reaction. However, for MAF/EP composite, the curves of the temperature at 100°C and 110°C do not fully conform to the autocatalytic reaction mechanism, while the temperature at 120°C and 130°C do. It is possible that the increased viscosity and steric obstacles of fibers will affect the progress of the curing reaction. However, at the increased temperatures of 120°C and 130°C, the impact of the steric hindrance produced by the pineapple leaf fiber will become less significant. The reaction rate (dα/dt) plotting against the conversion (α) is shown as Figures 9 and 10. In addition, Table 2 shows that pure epoxy has a higher degree of cross-linking than MAF/EP composite. It can be seen that the steric barrier and high viscosity of the MAF-containing composite may affect the mechanism of the cross-linking reaction.

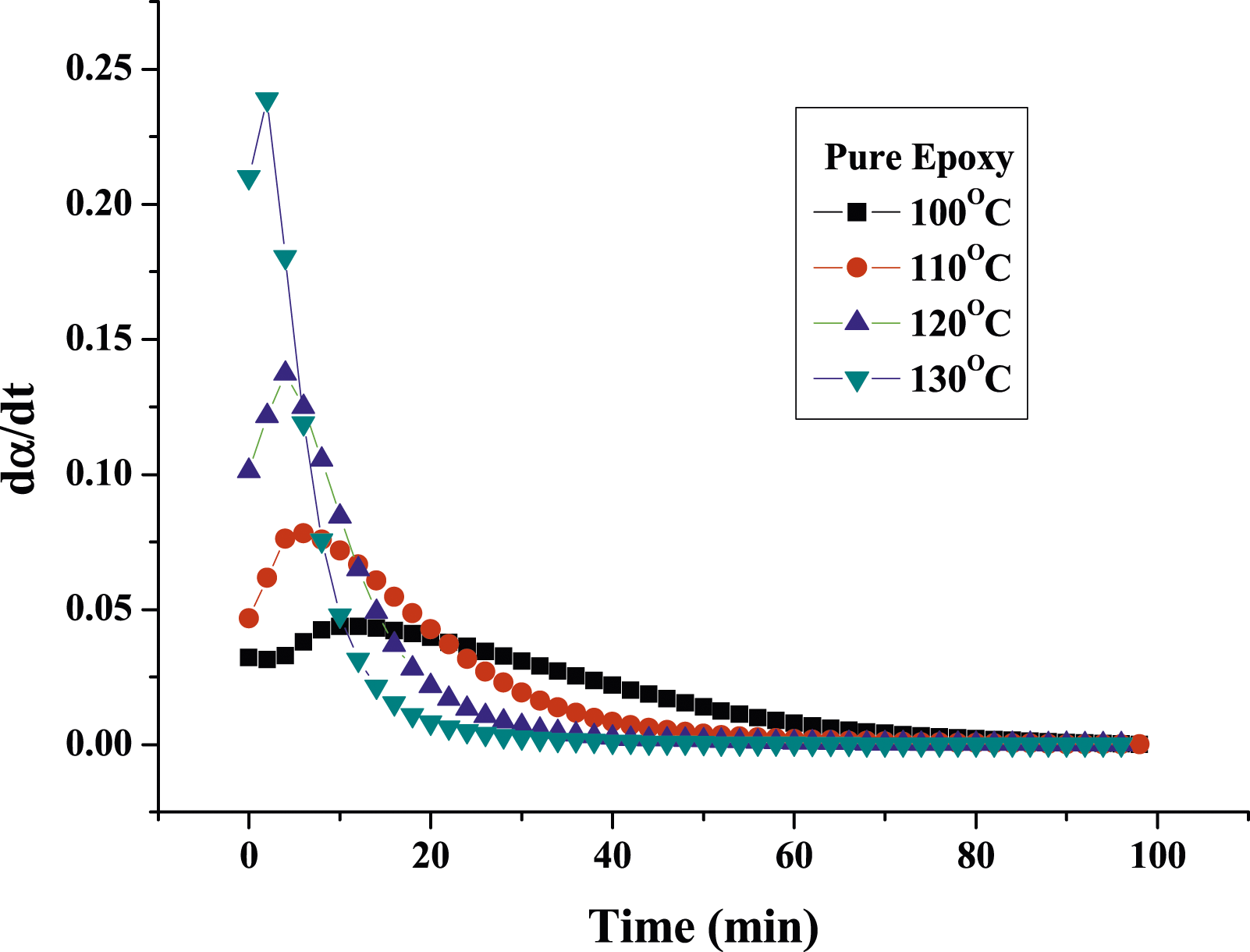

Figure 7.

Curing reaction rate versus time for pure epoxy at different curing temperatures.

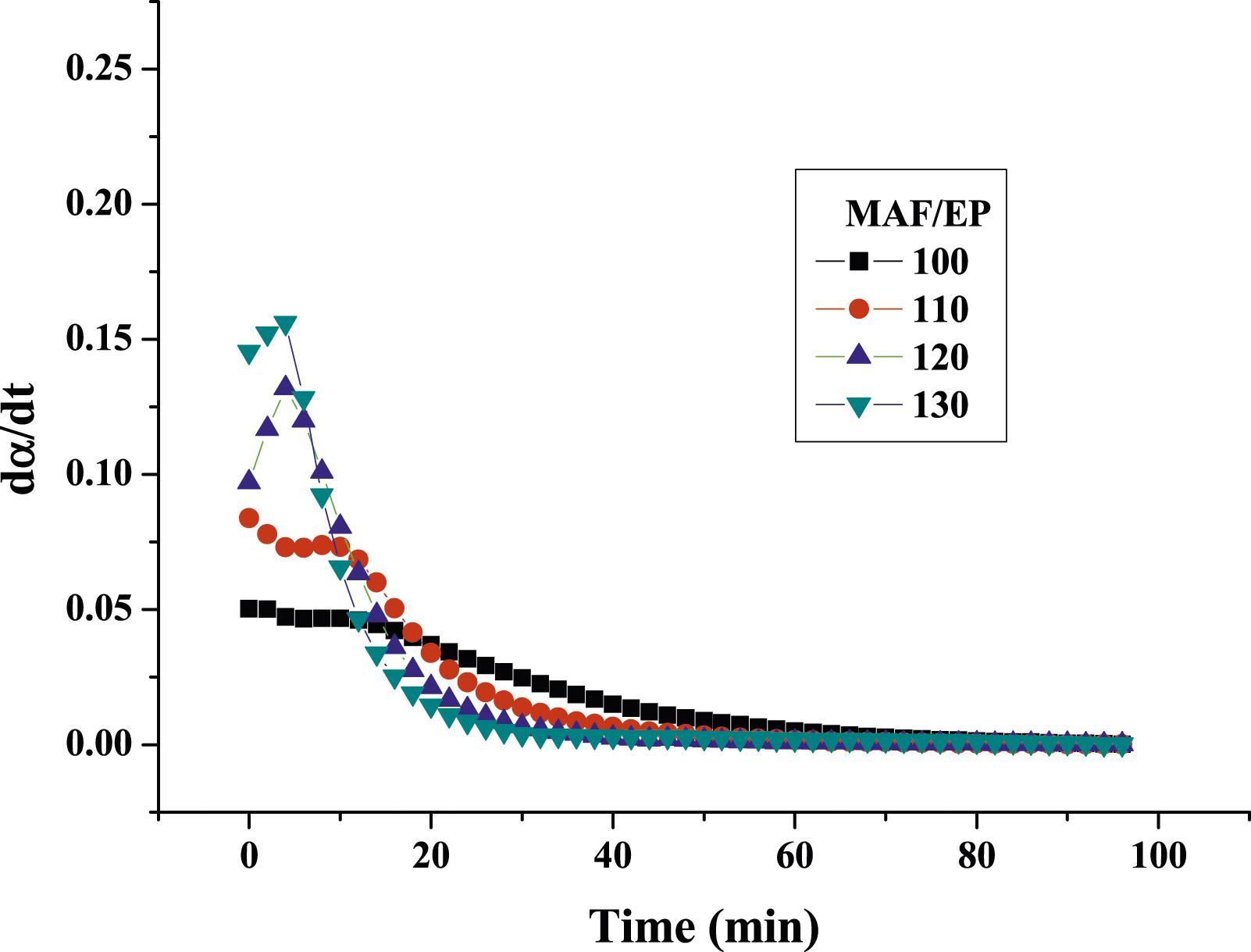

Figure 8.

Curing reaction rate versus time for MAF/EP composite at different curing temperatures.

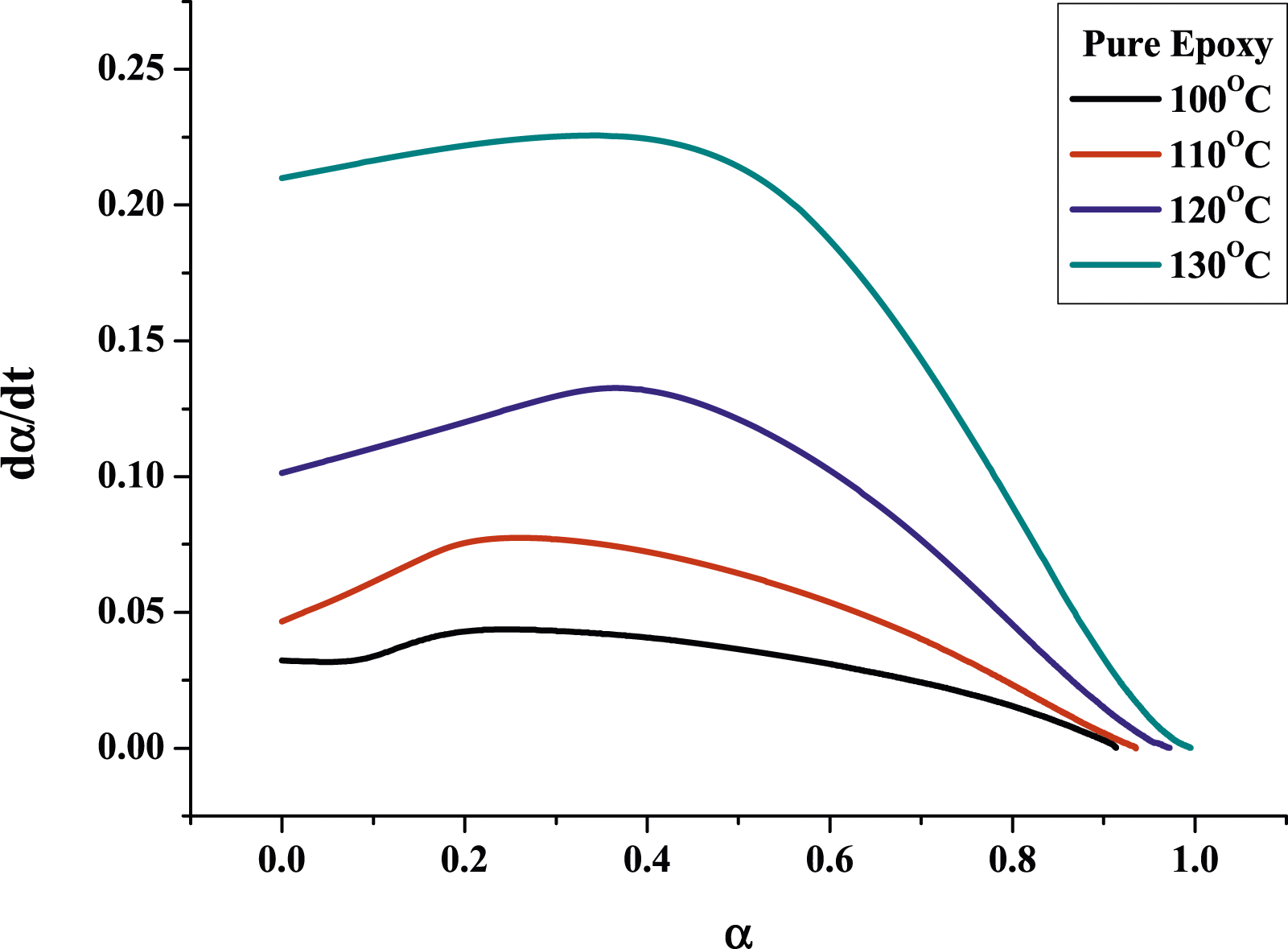

Figure 9.

Reaction rate against conversion for pure epoxy at different curing temperatures.

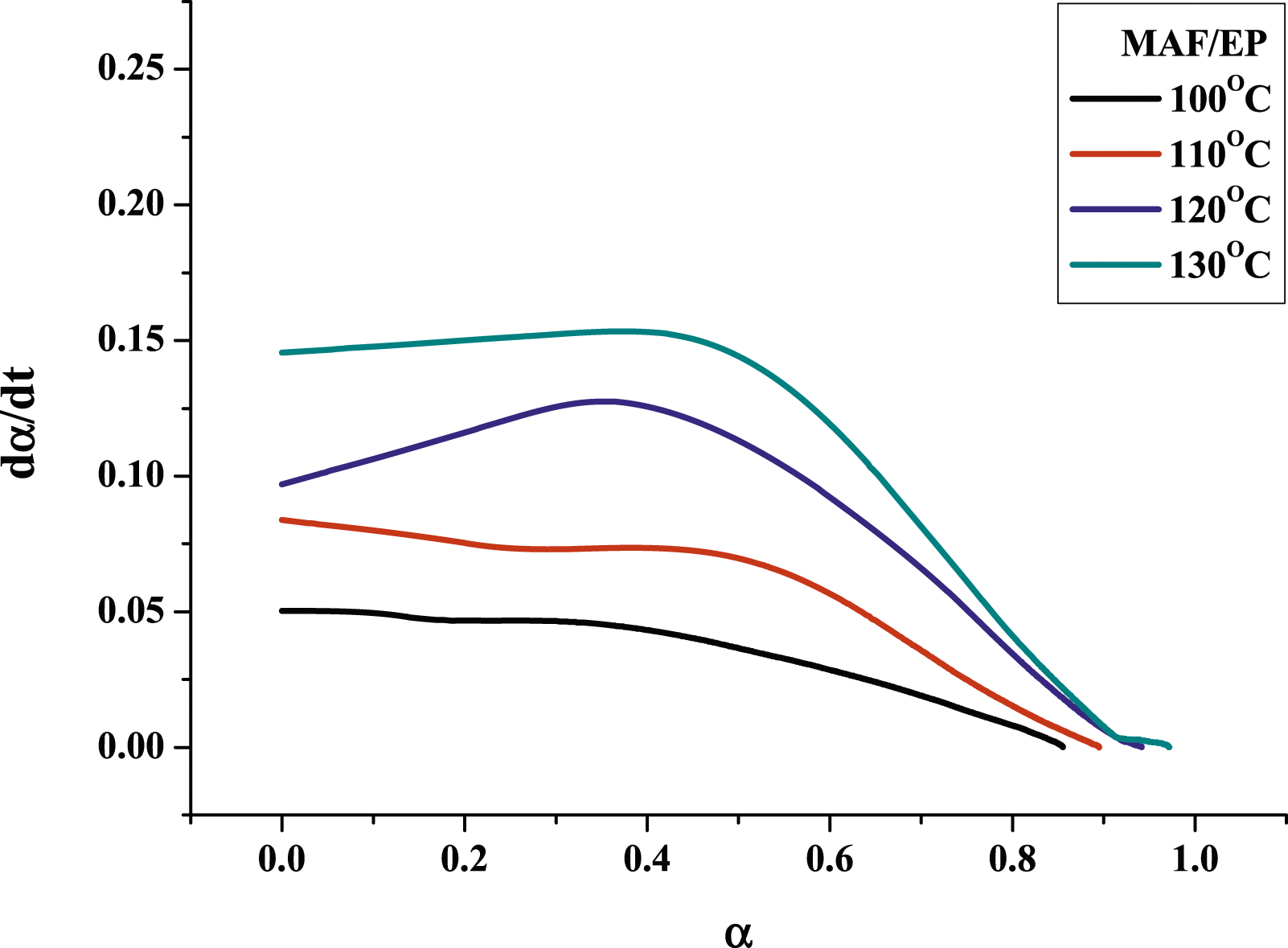

Figure 10.

Reaction rate against conversion for MAF/EP composite at different curing temperatures.

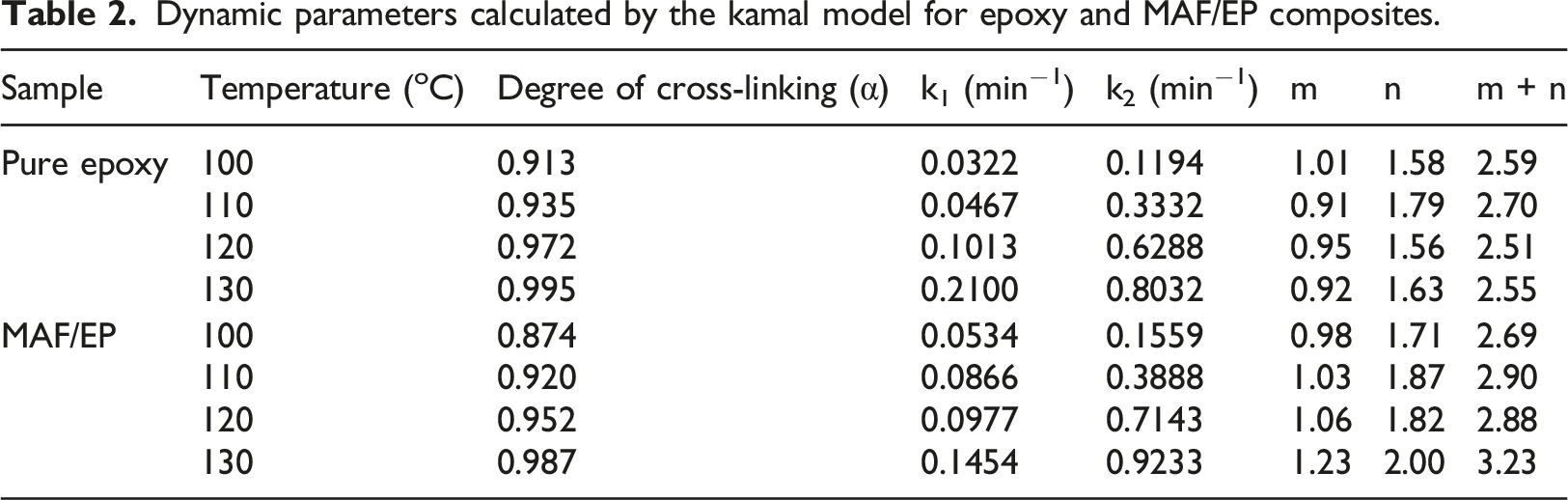

Table 2.

Dynamic parameters calculated by the kamal model for epoxy and MAF/EP composites.

Sample	Temperature (^oC)	Degree of cross-linking (α)	k₁ (min⁻¹)	k₂ (min⁻¹)	m	n	m + n
Pure epoxy	100	0.913	0.0322	0.1194	1.01	1.58	2.59
	110	0.935	0.0467	0.3332	0.91	1.79	2.70
	120	0.972	0.1013	0.6288	0.95	1.56	2.51
	130	0.995	0.2100	0.8032	0.92	1.63	2.55
MAF/EP	100	0.874	0.0534	0.1559	0.98	1.71	2.69
	110	0.920	0.0866	0.3888	1.03	1.87	2.90
	120	0.952	0.0977	0.7143	1.06	1.82	2.88
	130	0.987	0.1454	0.9233	1.23	2.00	3.23

The kinetic parameters obtained from Kamal’s model are shown in Table 1. It can be seen that both k₁ and k₂ increase with temperature. And k₁ is much smaller than that of k₂. In addition, the k₁ values of the MAF/EP (0.0534 and 0.0866) are greater than those of pure epoxy (0.0322 and 0.0467) at 100°C and 110°C. However, the k₂ values of MAF/EP (0.1559, 0.3888, 0.7143 and 0.9233) are greater than those of pure epoxy (0.1194, 0.3332, 0.6288 and 0.8032) at any temperatures. In addition, the m value of the MAF/EP (0.98) is lower than that of pure epoxy (1.01) only at 100°C, while the n and m + n values of the MAF/EP (2.69, 2.90, 2.88 and 3.23) are greater than those of pure epoxy (2.59, 2.70, 2.51 and 2.55) at any temperatures. It generally shows that most of the kinetic parameters of the PALF composite are collectively greater than those of pure epoxy. This is because the hydroxyl groups on the plant fibers and the amine groups on the coupling agent modified fibers can promote the cross-linking reaction. As a result, the rate constant k₂ and the order of reaction m + n of the catalytic reaction are increased. However, the curing reaction of the composite is affected due to steric obstacles and high viscosity resulting from the addition of pineapple leaf fibers. Therefore, the nth-order reaction becomes more significant than autocatalytic reaction at lower temperature for the composite. This led to the larger k₁ and smaller m of the composite. This is consistent with the autocatalytic reaction mechanism. That is, the reaction rate at constant temperature of 100°C and 110°C do not fully conform to the autocatalytic reaction mechanism, while the reaction rates at 120°C and 130°C do. It is suspected that the catalytic reaction caused by the hydroxyl groups on the pineapple leaf fiber and the amine groups on the coupling agent modified fibers tends to be significant at higher temperature. Therefore, the effects of the steric obstacle of the pineapple leaf fiber and high viscosity became relatively small. Subsequently, the overall reaction is more in line with the autocatalytic reaction mechanism.

Cure index

From Table 3, the results reveal that the curing behavior of MAF/EP composite matches both Case I (CI >ΔH*) and III(b) (CI < ΔT* for T_p* > 1). In Case I, the introduction of filler or any type of additive to the thermoset matrix accelerates the curing process compared to the reference polymer. This could be attributed to the surplus presence of reactive groups, such as hydroxyl or carboxylic functional groups within the structure of the added filler. These groups play a significant role in epoxy ring opening, especially in the proximity of gelation, which offers a plausible explanation for the enhanced curing process. For Category III(b), the dominant mechanism is chemical reaction. In such cases, the curing process is primarily governed by chemical reactions. The reaction is more likely to be continued above a critical conversion due to slight retardation of gelation and vitrification phenomena in the proximity of diffusion-controlled region. Additionally, depending on the size and chemical properties of the additive employed, diffusion across the crosslinked network may be impeded. As a result, the crosslink density could decrease.

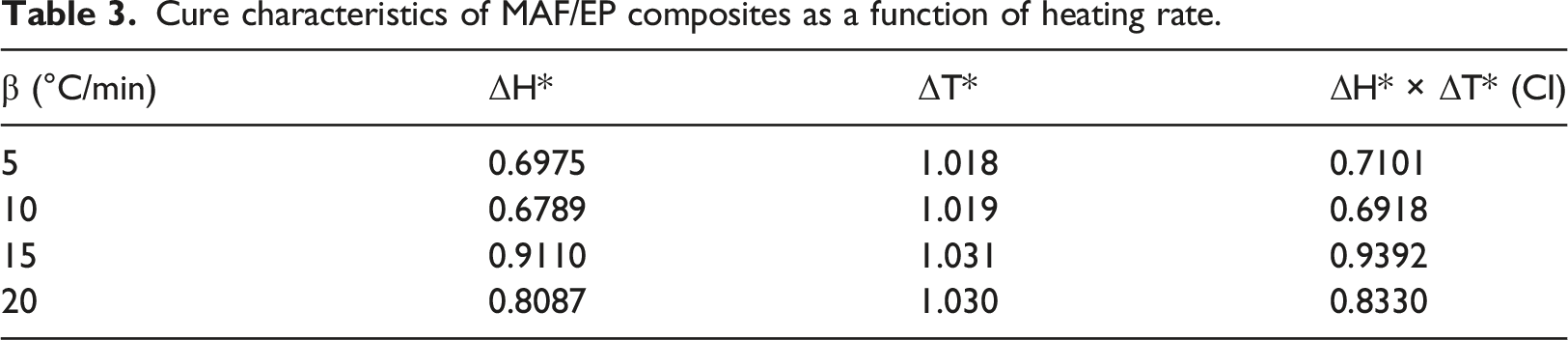

Table 3.

Cure characteristics of MAF/EP composites as a function of heating rate.

β (°C/min)	ΔH*	ΔT*	ΔH* × ΔT* (CI)
5	0.6975	1.018	0.7101
10	0.6789	1.019	0.6918
15	0.9110	1.031	0.9392
20	0.8087	1.030	0.8330

In this study, ΔT* was greater than one for the MAF/EP composite, especially at higher heating rates of 15 and 20°C/min. The study conducted by Jouyandeh et al. also found that the SiO₂ modified by polyethylenimine notably amplified ΔT, especially with elevated heating rates. Remarkably, the substantial nitrogen-rich macromolecules affixed to the surface of SiO₂ nanoparticles exert a profound influence on diffusion-controlled crosslinking during advanced stages. This influence arises from the active participation of nitrogen groups, which continue to engage in the ring-opening reaction of epoxy groups even after vitrification.²⁶

The impact of fillers on the epoxy resin curing process can be explained by considering the competition between two opposing factors: the acceleration effect of functional groups available or attached to the particle surfaces, and the retarding effect caused by the steric hindrance of nanoparticles. These conflicting effects play a crucial role in controlling the crosslinking process. From a molecular perspective, the addition of reactive fillers to the epoxy system restricts the mobility of reactive species, resulting in increased system viscosity. Consequently, one can anticipate that the cure reaction of epoxy may be hindered by the introduction of PALF, especially when the PALFs content is increased.²⁷

Furthermore, the effects can be related to the CI theory that is based on an extremely low filler concentration, typically less than 0.2 wt% relative to the total weight of the resin/hardener mixture. Nonetheless, in this study, the PALF content reached as high as 20 wt%, making it essential to consider the impact of filler aggregation and the resulting high viscosity on crosslinking reactions.

It has been observed that CI values are higher at higher heating rates (15 and 20°C/min) compared to those at lower heating rates (5 or 10°C/min). This suggests that the influence of filler aggregation and high viscosity on the curing process may be mitigated by the rapid heat supply associated with higher heating rates. This observation is consistent with the findings of the kinetic study mentioned above.

Conclusion

The application of PALF is hope to increase as it is an naturally available fiber, and the use of which reduces considerable wastes. With the structural benefits that the PALF provides, an investigation was performed to assess its effect in the curing of the epoxy of its composite. Namely, the curing kinetics of the composites were analyzed via the isothermal and non-isothermal models. Thermal data was obtained by the use of the DSC. The curing performance of PALF was compared with pure epoxy resin, respectively. According to the recommendations for thermal polymerization processes developed by ICTAC. The KAS and FWO methods were used for the non-isothermal analysis, and Kamal model was used for the isothermal analysis. The highest activation energies for pure epoxy and MAF/EP composite at different conversion levels calculated using the KAS method were 80.66 kJ mol⁻¹ K⁻¹ and 68.95 kJ mol⁻¹ K⁻¹, respectively. On the other hand, the highest activation energies for pure epoxy and MAF/EP composite at different conversion levels calculated using the FWO method were 91.89 kJ mol⁻¹ K⁻¹ and 79.67 kJ mol⁻¹ K⁻¹, respectively. Moreover, it reveals that the activation energies calculated for each conversion factor using the FWO method were slightly higher than those obtained through the KAS method. In addition, a reduction trend in the value of activation energy at late stages of epoxy curing, indicating the curing kinetics transition from a chemical-controlled mechanism to a diffusion-controlled mechanism. The kinetic parameters obtained from Kamal's model indicate that the k₁ values of the MAF/EP composite (0.0534 and 0.0866) are only greater than those of pure epoxy (0.0322 and 0.0467) at 100°C and 110°C. However, the k₂ values of MAF/EP (0.1559, 0.3888, 0.7143, and 0.9233) are greater than those of pure epoxy (0.1194, 0.3332, 0.6288, and 0.8032) at all temperatures. In addition, the m value of the MAF/EP composite (0.98) is lower than that of pure epoxy (1.01) only at 100°C, while the n and m + n values of the MAF/EP composite (2.69, 2.90, 2.88, and 3.23) are greater than those of pure epoxy (2.59, 2.70, 2.51, and 2.55) at all temperatures. This is because the hydroxyl groups on the plant fibers and the amine groups on the coupling agent-modified fibers can promote the cross-linking reaction. However, the curing reaction of the composite is affected by steric obstacles and high viscosity resulting from the addition of PALFs. Therefore, the nth-order reaction becomes more significant than the autocatalytic reaction at lower temperatures for the composite. It is suspected that the catalytic reaction caused by the hydroxyl groups on the PALF and the amine groups on the coupling agent-modified fibers tends to be more significant at higher temperatures. Therefore, the effects of the steric obstacles of the pineapple leaf fiber and high viscosity become relatively small. Moreover, the results reveal that the CI of the MAF/EP composite was larger than ΔH* and smaller than ΔT*. Additionally, both Tp* > 1 and ΔT* > 1 were found. Notably, in this study, the PALF content reached as high as 20 wt%, necessitating consideration of the impact of filler aggregation and the resulting high viscosity on crosslinking reactions. The reaction is more likely to continue above a critical conversion due to the slight retardation of gelation and vitrification phenomena in the proximity of the diffusion-controlled region. Consequently, the crosslink density could decrease. Based on the above analyses, it can be observed that all the results consistently indicate that the addition of modified PALF can catalyze the cross-linking reaction of epoxy. However, the high viscosity of the system may lead to a lower degree of cross-linking. By industrial practices, different fiber types and their percentages are mixed with the epoxy resins to increase strengths. The findings in this investigation can be implemented in industrial fabrication to reduce the energy required for curing. This offers an additional merit of using PALF composites. The double-fold benefit of reducing consumption and improving production will abridge agricultural and industrial partnership towards sustainability.
