Severe Acute Kidney Injury and Multiple Organ Failure in a 17-Day-Old Newborn: When Pathology Makes the Difference

What was known before

Acute tubulointerstitial nephritis (ATIN) in children is frequently caused by allergic drug reaction. The diagnosis is usually clinically suspected and kidney biopsy is not required.

What this adds

The clinical presentation of acute bacterial pyelonephritis in a neonate can be severe and is associated with complement activation. Histopathological findings of ATIN can be associated with thrombotic microangiopathy, especially in severe infectious process.

Introduction

Acute tubulointerstitial nephritis (ATIN) is a cause of acute kidney injury (AKI).^1,2 Drug-induced ATIN is the most frequent presentation in pediatric population, followed by less common etiologies such as infections and systemic inflammatory diseases.^2-4 ATIN is a pathological diagnosis that is usually clinically suspected, but kidney biopsy is not routinely performed unless patients develop AKI of unknown etiology. Its true incidence is thus underestimated. ⁵ In neonates, ATIN has rarely been reported and is usually drug-induced. ⁶ We report the case of 17-day-old boy with an atypical presentation of severe AKI, visceromegaly, and multiple organ failure. The kidney biopsy confirmed an unexpected diagnosis.

Case Report

Clinical History and Initial Laboratory Data

A 17-day-old boy presented with 24-hour history of repetitive vomiting, minimal urine output, and low body temperature (lowest rectal temperature, 34°C; normal range, 36.6°C-38.0°C). He was pale, lethargic, and dehydrated. His vital signs were as follows: heart rate of 160 bpm (normal range, 110-160 bpm), blood pressure of 82/55 mm Hg (normal systolic range, 65-85 mm Hg; diastolic range, 45-55 mm Hg), and respiratory rate of 48/min (normal range, 35-55/min) with normal oxygen saturation. His heart and lung auscultation was unremarkable. He had a soft and nontender abdomen, with palpable hepatosplenomegaly. Mild peripheral edema and petechial lesions over his face, palate, feet, and buttock were observed. He had normal external male genitalia. On presentation, biochemical testing was compatible with severe AKI, hyponatremia, hyperkalemia, and metabolic acidosis (Table 1). Moderate leukocytosis and severe thrombocytopenia were noted. Blood cultures were drawn before antibiotics were started. Urine culture was not performed as the patient was anuric. Intravenous (IV) fluid resuscitation (0.9% sodium chloride 20 mL/kg) was initiated along with broad-spectrum antibiotics (ampicillin and cefotaxime). Hyperkalemia was promptly treated with IV 10% calcium chloride (0.2 mL/kg) to stabilize the cell membrane and sodium bicarbonate (2 mmol/kg) before being transferred to the pediatric intensive care unit.

OPEN IN VIEWER

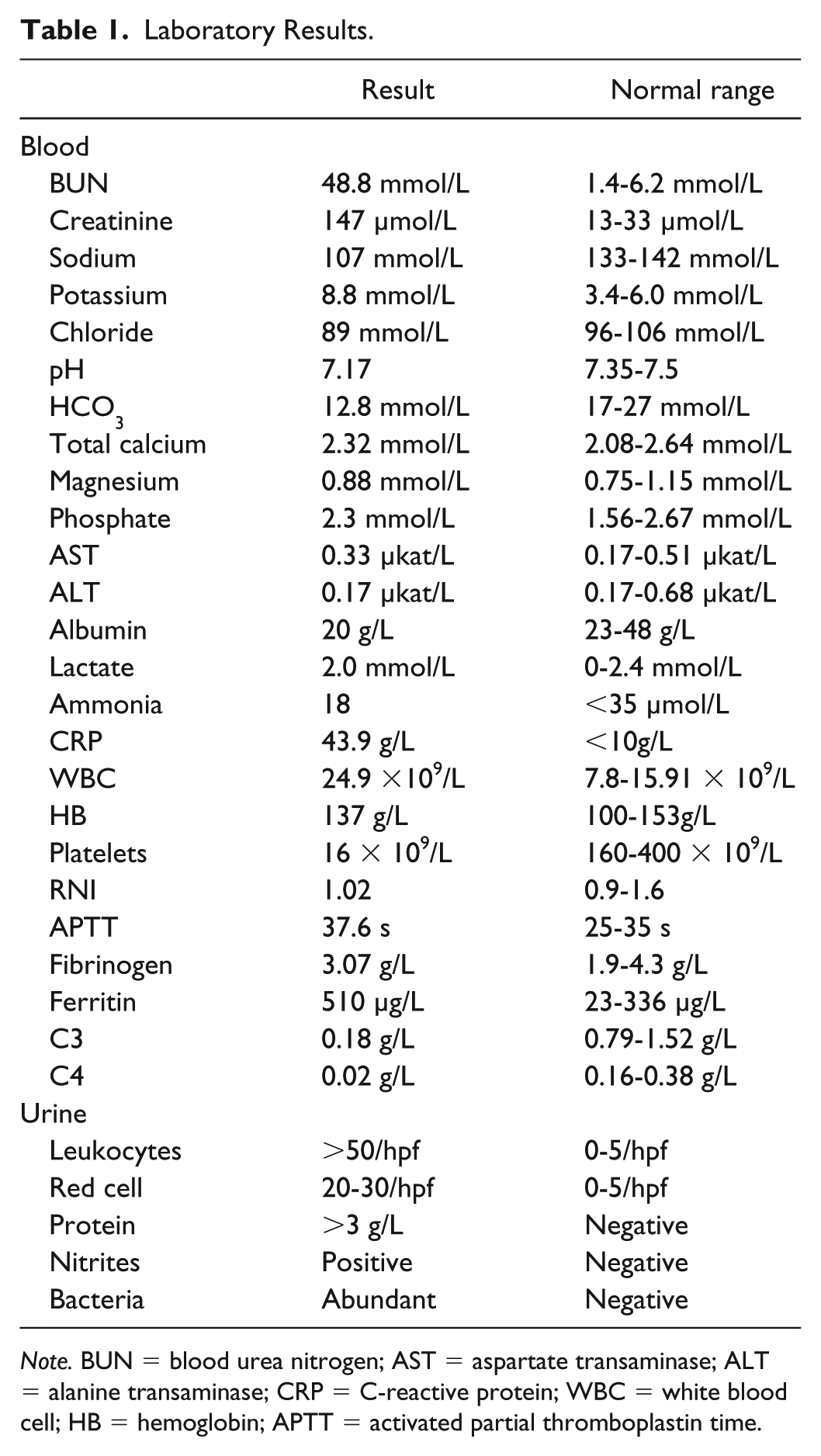

Table 1.

Laboratory Results.

	Result	Normal range
Blood
BUN	48.8 mmol/L	1.4-6.2 mmol/L
Creatinine	147 µmol/L	13-33 µmol/L
Sodium	107 mmol/L	133-142 mmol/L
Potassium	8.8 mmol/L	3.4-6.0 mmol/L
Chloride	89 mmol/L	96-106 mmol/L
pH	7.17	7.35-7.5
HCO3	12.8 mmol/L	17-27 mmol/L
Total calcium	2.32 mmol/L	2.08-2.64 mmol/L
Magnesium	0.88 mmol/L	0.75-1.15 mmol/L
Phosphate	2.3 mmol/L	1.56-2.67 mmol/L
AST	0.33 µkat/L	0.17-0.51 µkat/L
ALT	0.17 µkat/L	0.17-0.68 µkat/L
Albumin	20 g/L	23-48 g/L
Lactate	2.0 mmol/L	0-2.4 mmol/L
Ammonia	18	<35 µmol/L
CRP	43.9 g/L	<10g/L
WBC	24.9 ×109/L	7.8-15.91 × 109/L
HB	137 g/L	100-153g/L
Platelets	16 × 109/L	160-400 × 109/L
RNI	1.02	0.9-1.6
APTT	37.6 s	25-35 s
Fibrinogen	3.07 g/L	1.9-4.3 g/L
Ferritin	510 µg/L	23-336 µg/L
C3	0.18 g/L	0.79-1.52 g/L
C4	0.02 g/L	0.16-0.38 g/L
Urine
Leukocytes	>50/hpf	0-5/hpf
Red cell	20-30/hpf	0-5/hpf
Protein	>3 g/L	Negative
Nitrites	Positive	Negative
Bacteria	Abundant	Negative

Note. BUN = blood urea nitrogen; AST = aspartate transaminase; ALT = alanine transaminase; CRP = C-reactive protein; WBC = white blood cell; HB = hemoglobin; APTT = activated partial thromboplastin time.

The patient was born at term from an unremarkable pregnancy, except for maternal systemic hypertension in the third trimester. He was breastfed for 10 days and then switched to infant formula because of feeding difficulties. He was reported to be sleepy and not peeing often since birth. A skin rash over his extremities was observed on days 8 and 15 of life. The patient had not received any medications before presenting to emergency department.

In the first 24 hours, the patient required invasive mechanical ventilation for respiratory failure. He developed a diffuse maculopapular rash. His hyponatremia, hyperkalemia, and metabolic acidosis were corrected as per standard guidelines. He remained anuric and developed generalized edema despite high dose of diuretics (IV furosemide 2.5 mg/kg every 4 hours). His thrombocytopenia (as low as 16 × 10⁹/L) was refractory to platelet transfusions. Few urine drops were sent for culture and urinalysis (Table 1) 8 hours after admission. Urine microscopy did not reveal any casts. His abdominal ultrasound showed bilateral nephromegaly (right and left kidney long-axis measurement of 7.7 and 8.2 cm, respectively, without dilatation of the collective system) with a mild heterogeneous renal parenchyma and hepatosplenomegaly. To exclude a malignant process, a bone marrow biopsy was performed and revealed normal features. Further investigations showed low complement, high C-reactive protein, and high ferritin levels (Table 1). No schistocyte was seen on the blood smear. Plasma lactate dehydrogenase, haptoglobin, pyruvate, ammonia, creatinine kinase, triglycerides, and cortisol levels were normal. Urinary biomarkers of tubular dysfunction were not tested.

In the following 48 hours, the patient developed a disseminated intravascular coagulation, requiring fresh frozen plasma and cryoprecipitate transfusions. Blood and urine cultures as well as viral studies (including parainfluenza, influenza, pneumoviruses, adenoviruses, bocaviruses, rhinovirus, herpex, human herpesvirus-7 [HHV-7], cytomegalovirus [CMV], and varicella-zoster) were negative. Because of severe fluid overload, continuous venovenous hemofiltration was initiated and then discontinued due to hemodynamic instability. The patient’s clinical condition was rapidly and progressively deteriorating despite optimal antibiotic treatment and supportive care. As the clinical presentation was atypical and the etiology of AKI unclear, the decision to perform a kidney biopsy was made.

Pathology

Following optimization of the coagulation profile with blood products, a kidney biopsy was performed under ultrasound guidance and general anesthesia. Light microscopy showed a massive dense multifocal cellular infiltration of neutrophils, eosinophils, and lymphocytes with few plasma cells (Figure 1a). Tubular injuries including tubulitis, breaks of tubular basement membrane, and necrosis of tubular cells (Figure 1) were seen. Neither fibrosis nor tubular atrophy was observed. Glomeruli showed ischemic collapse (Figure 2a) or mesangiolysis and double contours of the glomerular basement membrane (Figure 2b). There was no evidence of endo- or extracapillary proliferation, or cast identified in the glomeruli. Immunofluorescence studies were negative (including albumin, fibrin, IgG, IgA, IgM, C3, and C1q). No microorganism was demonstrated with Gram and Grocott stain. Poor quality of tissue was studied under electronic microscopy, which did not show any glomeruli.

OPEN IN VIEWER

Figure 1.

Histopathological findings on the kidney biopsy.

OPEN IN VIEWER

Figure 2.

Features of thrombotic microangiopathy.

A skin biopsy was performed on areas affected by the maculopapulous rash. It revealed edema of the papillary dermis with mild superficial perivascular infiltrate of lymphocytes, histiocytes, and neutrophils. Few foci of extravasated red cells were observed. The epidermis was normal. These findings were suggestive of an urticarial lesion.

Discussion

This report describes an atypical presentation of AKI with unexpected findings of severe ATIN and TMA on the kidney biopsy. ATIN is an immune-mediated AKI found on 3% to 7% of kidney biopsies in children.^2,8 Antibiotics and non steroidal anti-inflammatory drugs are the most common etiologies (70%-85%).^2,3,9 Urinary tract infection (UTI) and bacteremia are the main culprits in 10% to 15% of cases.^2,3,9 Viral and parasitic infections are occasionally reported.^2,3 Immune processes such as immune complex deposition and cell-mediated or antibody-mediated diseases have been described. Idiopathic, metabolic, hereditary, and obstructive causes are rarely reported.^2,5 Histopathological findings of ATIN include diffuse interstitial edema with cellular infiltrate (lymphocytes, monocytes, macrophages, plasma cells).^5,10 Eosinophils or granuloma can be observed depending on the cause. ¹⁰ Inflammation may extend into tubular walls. Glomeruli and vessels are usually spared, but may be involved with severe inflammation. ¹⁰ Even if immunofluorescence studies are usually negative, granular deposition of complement in tubular membranes can be observed. ¹⁰

The sepsis-like presentation of the patient suggested by leukocytosis, elevated C-reactive protein, abnormal urinalysis, and histopathological findings on the kidney biopsy was in favor of ascending UTI despite negative urine culture (broad-spectrum antibiotics started before the urine sample was obtained). ¹¹ The histopathological findings showed severe ATIN. The presence of dense neutrophil infiltrate reflected an active infectious process. Features of TMA were atypical and unexpected, especially in context of normal hemoglobin, lactate dehydrogenase (LDH), and haptoglobin. Severe intrarenal inflammation may have caused severe endothelial damage and thus the presence of TMA on the kidney biopsy. The absence of granuloma was inconsistent with the diagnosis of tuberculous pyelonephritis. ¹⁰ Chronic pyelonephritis was excluded as tubular atrophy, glomerular sclerosis, or interstitial fibrosis was not observed. ¹⁰

Given the sepsis-like presentation, bacteremia was suspected but not found. It may be explained by an intermittent bacteremia, a finding well described in different settings including UTI. ¹¹ In a retrospective study assessing the concordance of UTI and positive blood culture in infants aged less than 121 days, 13% of patients had UTI and microbiologically proven bacteremia. ¹² In our patient, the infection-induced inflammation was likely the predominant clinical feature.

Other noninfectious etiologies were considered. The negative history for drug intake along with the absence of plasma cells and low percentage of eosinophils on the kidney biopsy was not in favor of a drug-induced ATIN. ⁴ Granulomatous interstitial nephritis and granulomatous diseases were eliminated, as the histology did not reveal any granuloma or tubular crystals. ¹³ The presence of a skin rash, thrombocytopenia, proteinuria, hypocomplementemia, and AKI were suggestive of neonatal lupus. The histopathological findings were, however, not consistent with this diagnosis. The negative inflammatory workup was not in favor of lupus (negative antinuclear, anti-DNA, anti-SSA, and anti-SSB antibodies). Few biochemistry and hematological abnormalities were suggestive of TMA, including thrombocytopenia, proteinuria, and AKI. A neonatal atypical hemolytic uremic syndrome was suspected, but visceromegaly, normal hemoglobin, normal LDH, and normal haptoglobin were not consistent. Histiocytosis and malignancy were eliminated based on renal biopsy findings and normal bone marrow biopsy. Acute renal dysfunction, heavy proteinuria, and hypocomplementemia are seen in IgG4-related ATIN. ¹⁴ IgG4 study was not performed on the kidney biopsy and plasma IgG4 not measured. IgG4 disease has been described in adulthood, typically mid-age. ¹⁴ Normal IgG, absence of eosinophilia, and negative antinuclear antibodies were not consistent with this diagnosis.^15,16 The absence of granules and inclusion bodies within the macrophages excluded malakoplakia. ¹⁷ Malakoplakia is characterized by a non-neoplastic infiltration of foamy macrophages resulting from abnormal intracellular processing of engulfed bacteria and macrophages containing granules or Michaelis-Gutmann bodies.

The hypocomplementemic profile was atypical. The low C3 and C4 levels (which normalized 15 days after admission) reflected a transient activation of the complement system. The complement system has a crucial role in the innate defense against microorganisms. ¹⁸ Temporary insufficiency of complement activity related to complement protein consumption has been described with infections. Low serum C3 values are typically related to bacterial infection. ¹⁸ Low serum C4 values involve anomalies in the classical pathway and may be related to predisposing conditions, which in the case of our patient was unknown. ¹⁸ This hypocomplementemic state is consistent with a severe infectious process, such as a severe bacterial pyelonephritis.

Acute pyelonephritis in native kidneys rarely causes AKI, unless it is bilateral with a known urinary tract abnormality or when it is associated with sepsis. The diagnosis of urosepsis is clinical and kidney biopsy is not required. In the current report, the kidney biopsy was performed because of the atypical presentation. The role of corticosteroids in the treatment of ATIN is controversial in children. ⁷ Corticosteroids were administrated after more than 72 hours of IV antibiotics. Administration of corticosteroids contributed to the recovery of the ATIN and potentially helped to treat TMA.^19,20 Even if we think that corticosteroids helped the patient, the role of steroid therapy in ATIN has stayed controversial with no prospective trial.

ATIN has been rarely reported in neonates. One report describes a 3-week-old baby with drug-induced ATIN (cefotaxime and gentamicin). ⁶ No kidney biopsy was performed. The patient recovered upon discontinuation of antibiotics, without requiring dialysis. For our patient, the kidney biopsy guided the management and led to a successful course. It has helped to understand the physiopathology of the disease and the potential severity of a UTI-induced ATIN in neonates.

Conclusion

We described an atypical presentation of severe ATIN induced by acute pyelonephritis and complicated by severe AKI requiring renal replacement therapy. It highlights the involvement of the complement activation within an infectious process. This case recalls the importance of obtaining blood and urine cultures before starting any antibiotics. Histopathological findings played a crucial role in understanding the physiopathology and the severity of the disease. Severe ATIN can be associated with TMA especially in severe infectious process. Proceeding to a kidney biopsy in a neonate has non-negligible risks and it should be considered when investigations are nonconclusive and atypical features are present.
