Smart technology facilitated patient-centered venous thromboembolism management: A mixed-methods study of the digital feasibility

Abstract

Objective

Venous thromboembolism (VTE) remains a major preventable cause of global mortality. Digital health tools may facilitate patient self-management and adherence to treatment. This study aimed to evaluate the feasibility of a mobile VTE application (mVTEA) for VTE management.

Methods

This pilot study employed a mixed-methods design, integrating a quantitative quasi-experimental evaluation with qualitative focus groups in patients using the mVTEA. From August 25, 2023 to May 10, 2024, the mVTEA was developed, incorporating patient-centered three-dimensional (3D) visualization health records, dynamic risk monitoring, and medication management support modules. The quantitative evaluation was performed 1 month after enrolment via the Chinese version of the User Version of the Mobile Application Rating Scale (C-uMARS) for design quality and the Chinese version of the mHealth App Usability Questionnaire (C-MAUQ) for usability. Qualitative data were collected via four age- and education-stratified focus groups with mVTEA users, focusing on exploring patients’ illness perceptions and in-depth adoption experiences to identify optimization priorities.

Results

Among the 43 patients who completed the 1-month follow-up, 37 (86%) provided positive feedback on the use of digital 3D health records. The mVTEA received favorable average quality (3.81±0.81) and usability (1.92±0.81) scores in the quantitative evaluation. Qualitative analysis revealed significant knowledge gaps among VTE patients and a strong desire for authoritative information. The participants expressed strong appreciation for the core functionalities of the mVTEA and desired real-time doctor–patient communication capabilities and a reliable knowledge base. Furthermore, they demonstrated a willingness to pay for comprehensive, mVTEA-enabled healthcare services.

Conclusions

In this feasibility study, the mVTEA demonstrated robust quality and usability among patients with or at high risk for VTE. Focus groups confirmed positive user feedback and identified specific optimization needs, collectively supporting the feasibility of mVTEA as a VTE management tool. This provides foundational evidence for future research to evaluate its impact on clinical outcomes.

Keywords

VTE digital health quality usability focus group feasibility

Introduction

Venous thromboembolism (VTE), which comprises deep vein thrombosis (DVT) and pulmonary embolism (PE), affects nearly 10 million people globally each year and accounts for roughly one-quarter of all deaths.^1,2 Post-thrombotic sequelae, including chronic thromboembolic pulmonary hypertension (CTEPH) and post-thrombotic syndrome (PTS), are common following VTE. Survivors of acute PE frequently experience long-term functional limitations and reduced quality of life. Post-PE impairment has been reported in up to 17% of cases, with a median of only 129 days to CTEPH diagnosis after PE.³ Moreover, almost half of patients with VTE develop PTS, which imposes substantial demands on healthcare services and is associated with substantial costs.⁴ These complications contribute significantly to morbidity, mortality, and socioeconomic burdens.

However, a substantial proportion of healthcare costs and mortality associated with VTE progression may be prevented through effective patient self-management. Patient-centered care, which prioritizes individual needs, is intended to empower patients to take an active role in managing their disease trajectory. Originating from Edith Balint's 1969 description of “understanding the patient as a unique human being”,⁵ this concept has evolved into a framework that integrates collaborative care, shared decision-making, and alignment with patient values and goals. The recent Scientific Statement on Patient-Centered Adult Cardiovascular Care from the American Heart Association advocates such a collaborative approach to enhance engagement, tailor interventions, and thereby improve clinical outcomes.⁶ Nevertheless, translating patient-centered principles into practice across the full spectrum of care remains challenging, particularly in facilitating meaningful communication, enhancing health literacy, and sustaining active participation in personal health management.

Patient-facing mobile health (mHealth) technologies, such as smartphone applications and wearable devices, offer significant potential to enable daily self-monitoring and self-management outside of clinical settings.^7–9 Evidence has demonstrated that such interventions can facilitate behavioral changes and improve health outcomes in patients with atrial fibrillation (AF),^8,10,11 heart failure,^12,13 coronary heart disease,¹⁴ diabetes,^15,16 and chronic obstructive pulmonary disease.¹⁷ In anticoagulation therapy, mHealth tools have been shown to enhance self-management for patients receiving warfarin. However, commercially available, self-administered applications remain limited, likely owing to the need for intensive monitoring and dose adjustments typically conducted within hospital settings.

Within the domain of VTE, no dedicated mobile application or digital health platform has been established to support patients throughout the course of the disease, with the goal of mitigating progression and preventing major complications. To address this gap, we have developed a smart technology-assisted, patient-centered mHealth application for managing VTE (mVTEA).¹⁸ This pilot mixed-methods study was conducted to quantitatively evaluate the technological quality and usability of the mVTEA, and to qualitatively explore patients’ illness perceptions, attitudes, and experiences with the tool, thereby evaluating its potential for VTE home management.

Methods

Study design and setting

This pilot study employed a mixed-methods design, which integrated a quantitative quasi-experimental evaluation with qualitative focus groups in patients using the mVTEA. It was conducted at the Sixth Medical Center of the Chinese People's Liberation Army General Hospital (PLAGH) and was approved by the institutional Ethics Committee (Approval No. HZKY-PJ-2022-21). This study was registered with the Chinese Clinical Trial Registry (Approval No. ChiCTR2200063206).

Development of the mVTEA

The mVTEA was developed on the Android platform following the Software Development Life Cycle (SDLC) framework, which consists of five phases: requirement gathering, design, implementation, testing, and maintenance.¹⁹ A user-centered design approach was applied to ensure that the interface and functionality addressed patient needs. The user interface was informed by Nielsen's 10 usability heuristics²⁰: (1) visibility of system status, (2) match between the system and the real world, (3) user control and freedom, (4) consistency and standards, (5) error prevention, (6) recognition rather than recall, (7) flexibility and efficiency of use, (8) aesthetic and minimalist design, (9) help users recognize, diagnose, and recover from errors, and (10) help and documentation. Clinical content was derived from authoritative sources and current international clinical guidelines, including those of the European Society of Cardiology, American Heart Association, American Society of Clinical Oncology, and American College of Chest Physicians,^21–27 to enable the delivery of personalized, evidence-based VTE management. The core modules include patient-centered digital health records, digital VTE care pathway, and medication management support. Figure 1 illustrates the core functional interface of the mVTEA.

Figure 1.

Core functional interface of the mVTEA for patient-centered VTE management. (A) Homepage with navigation to key modules, (B) interactive 3D visualized health records for intuitive review of personal medical data, (C) event reporting portal for logging thromboembolic events, bleeding incidents, and other symptoms, (D) medication management module supporting adherence tracking and reminders, and (E) weekly health summary report providing an overview of status and trends.

Patient-centered digital health records

Patient-centered digital health records were developed; incorporating three-dimensional (3D) visualization to enable patients to monitor their medical history, laboratory tests, and imaging results (Figure 1B). User satisfaction, feasibility, and acceptability of patient-centered digital health records were subsequently evaluated using a structured questionnaire (Table 1).

Table 1.

The questionnaire for assessing participants’ satisfaction, feasibility, and acceptability of patient-centered digital health records.

No.	Evaluations	Questions	Response options
1	Satisfaction	Are you satisfied with the access, use, and effects (e.g., enhanced sense of control, understanding of lab trends) of the patient-centered digital 3D health records?	Not at all Little Good Fine Excellent
2	Feasibility	How accessible is the patient-centered digital health records through scanning a two-dimensional code?
3	Acceptability	Is the digital 3D visualization of health records acceptable in your opinion?

Digital VTE care pathway

The clinical care pathway for VTE integrated into the mVTEA was operationalized through the ABCDEF pathway, which was designed to achieve patient-centered care. This pathway encompassed the following components:

Appropriate Antithrombotic Management: Guided anticoagulant selection (e.g., direct oral anticoagulants, warfarin), adjusted doses based on laboratory monitoring (e.g., INR), and provided thromboprophylaxis.

Bleeding Risk Management: Incorporated bleeding risk scores (e.g., HAS-BLED) and provided precautions to manage bleeding risks alongside anticoagulation.

Complication Monitoring: Facilitated surveillance for recurrent VTE, PTS, and CTEPH via scheduled check-ups and patient self-reporting of symptoms.

Digital Health Management: Utilized the mVTEA for telemedicine, medication tracking, symptom reporting, and wearable device integration for remote monitoring.

Exercise and Rehabilitation: Provided personalized and supervised exercise programs to improve long-term physical activity and outcomes.

Facilitate the Management of Vascular Risks and Comorbidities: Managed modifiable risk factors (e.g., hypertension, diabetes) and promoted lifestyle modifications through integrated care.

For patients diagnosed with VTE requiring anticoagulation, it is adapted to focus on appropriate antithrombotic management, among other components. Furthermore, the mVTEA used a hybrid data model. Authorized clinicians securely input and transmit critical data such as laboratory results and imaging reports to the patient's application via a published encrypted QRST-AB algorithm, which has been independently developed and validated in our prior study.²⁸ Patients can enter daily symptoms and metrics. This integrated data was visualized for patients, helping them understand their personal thrombosis and bleeding risks, track trends, and engage in informed self-management under professional guidance.

Medication management support

The Medication Management Support Module was a core component designed to enhance patients’ understanding and execution of their prescribed anticoagulation therapy. It addressed key areas of medication safety, including administration protocols, potential drug-drug interactions, and adherence to daily regimens. The system generated intelligent alerts and notifications, which were customized according to the patient's specific medication schedule and any dose adjustments made by their healthcare provider. Meanwhile, it provided a structured educational program that covered the critical importance of anticoagulant adherence, the recognition and management of potential adverse effects, and guidance on common drug-drug and food-drug interactions.

Data governance, security, and privacy measures

Given the sensitive nature of the medical data collected, a robust data governance and security framework was implemented. All data transmitted between the mobile application and the backend servers was secured using Transport Layer Security (TLS) 1.2 or higher. At rest, all personally identifiable information was encrypted using the Advanced Encryption Standard (AES-256). Access to the backend database was strictly controlled via a role-based access control system, ensuring that only authorized research personnel could access the data after de-identification for analysis purposes. Data were stored on secure, access-controlled servers within a HIPAA-compliant environment. A formal security protocol was established and adhered to throughout the study period.

Study populations

Adult patients hospitalized at the Department of Cardiology of the Sixth Medical Center of the PLAGH between August 25, 2023, and January 31, 2024, were eligible for inclusion if they had a diagnosis of VTE or were classified as being at high risk for VTE according to the Padua scale. Eligible thrombi included lower extremity or upper extremity DVT (jugular, innominate, subclavian, axillary, or brachial), PE, splanchnic vein thrombosis (hepatic, portal, splenic, mesenteric, renal, or gonadal), or cerebral vein thrombosis confirmed by appropriate imaging.

Patients were enrolled if they met all of the following criteria: (1) diagnosis of VTE or classification as high risk for VTE, (2) aged ≥ 18 years, (3) normal cognitive function without a diagnosed mental disorders, and ability to understand the study-related forms, (4) proficiency in using a smartphone, and (5) voluntary participation. Patients were excluded if they had severe hearing or language impairments that prevented effective cooperation with the researchers. Patients fulfilling these requirements and expressing interest in participation received a comprehensive, in-person explanation of the study objectives, procedures, potential benefits, and possible risks. Written informed consent was obtained from all participants prior to study initiation. All participants were followed for 1 month to allow for a quantitative evaluation of the mVTEA, including evaluation of its design quality and usability. Subsequently, 12 patients were purposively selected from this cohort for in-depth qualitative evaluation conducted through focus groups.

Quantitative research of the mVTEA evaluation

The design quality of the mVTEA was evaluated via the Chinese version of the user version of the Mobile Application Rating Scale (C-uMARS),^29,30 and its usability was evaluated via the Chinese version of mHealth App Usability Questionnaire (C-MAUQ).^31,32 Both questionnaires are publicly available, standardized instruments that have been validated in previous research. Their use in academic research does not require specific copyright permission according to the published terms.

The C-uMARS consists of 14 items grouped into three subscales: (A) Information, (B) Functionality, and (C) Engagement (Table 2).³⁰ The Information subscale evaluates the relevance, credibility, and usefulness of the application's content. The Functionality subscale assesses the application's usability, navigation, and overall performance. The Engagement subscale measures the level of user engagement with the application, including factors such as interactivity and customization options. Each subscale of the C-uMARS is rated on a 5-point scale (1-inadequate, 2-poor, 3-acceptable, 4-good, and 5-excellent).

Table 2.

The C-uMARS questionnaire for the quality evaluation of the mVTEA.

No.	Contents	Rating
Information
Q 1	Layout: Are the arrangement and size of on-screen buttons, icons, menus, and content appropriate?	inadequate poor acceptable good excellent
Q 2	Graphics: What is the quality/resolution of graphics used for buttons, icons, menus, and content?
Q 3	Visual esthetics: How esthetically pleasing does the application appear?
Q 4	Information Quality: Is the application's content accurate and relevant to its objectives/theme?
Q 5	Information Volume: Is the application's information presented comprehensive yet concise?
Q 6	Visual Information: Is the visual information (e.g., charts, images, videos) presented clearly, logically, and accurately?
Q 7	Information Credibility: Is the information sourced from reliable and credible origins?
Functionality
Q 8	Operational Performance: Do all components of the application function correctly and as intended?	inadequate poor acceptable good excellent
Q 9	Ease of use: How easy is it to learn how to use the application?
Q 10	Navigation: Is the navigation between screens logical and intuitive? Does the application provide all necessary links between screens?
Q 11	Functional Relevance: Do the existing features of the application meet your expectations and needs for this type of software?
Engagement
Q 12	Customization: Does the application allow you to personalize settings according to your preferences (e.g., sound, content, notifications, etc.)?	inadequate poor acceptable good excellent
Q 13	Interactivity: Does it allow user input, provide feedback, or contain prompts (e.g., reminders, sharing options, notifications, etc.)?
Q 14	Target Audience Appropriateness: Is the application's content (including visual design, language, and overall design) suitable for its intended target audience?

The C-MAUQ, which has established reliability and validity, was used for usability evaluation.³² It contains 21 items organized into three subscales: (A) usability and satisfaction (eight items), (B) system information arrangement (six items), and (C) efficiency (seven items) (Table 3). A 7-point Likert scoring system was used, with the following coding: 1 = extremely strongly agree, 2 = strongly agree, 3 = agree, 4 = neutral, 5 = disagree, 6 = strongly disagree, and 7 = extremely strongly disagree. Therefore, lower C-MAUQ scores indicate more positive ratings of usability, which contrasts with the C-uMARS scoring direction.

Table 3.

The C-MAUQ questionnaire for the usability evaluation of the mVTEA.

No.	Contents	Rating
Usability and Satisfaction
Q 1	The application is easy to use.	extremely strongly agree strongly agree agree neutral disagree strongly disagree extremely strongly disagree
Q 2	It is easy for me to learn to use the application.
Q 3	I find the application's interface pleasant.
Q 4	The information in this application is highly organized, and I can easily find the information I need.
Q 5	I feel comfortable using the application in various public settings.
Q 6	Using this application is efficient and does not require excessive time.
Q 7	I will use the application again.
Q 8	Overall, I’m satisfied with the application.
System Information Arrangement
Q 9	Whenever I make an error while using the application, I can easily and quickly correct it.	extremely strongly agree strongly agree agree neutral disagree strongly disagree extremely strongly disagree
Q 10	The manner in which this mobile health application delivers healthcare services is user-friendly and acceptable.
Q 11	The application gives me sufficient feedback and information so that I know the progress of my steps.
Q 12	The navigation and transition between screens in the application are consistent.
Q 13	The interface of the application allows me to use all the functions it offers (such as inputting information, responding to reminders, and reading messages).
Q 14	This application has all the features and capabilities I expected.
Efficiency
Q 15	The application is beneficial to my health.	extremely strongly agree strongly agree agree neutral disagree strongly disagree extremely strongly disagree
Q 16	The application has improved my access to healthcare services.
Q 17	The application helps me manage my health more effectively.
Q 18	The application makes it convenient for me to communicate with my healthcare providers.
Q 19	Using the application has given me more opportunities to interact with my healthcare providers.
Q 20	I believe my healthcare providers can receive any messages I send via this application.
Q 21	I feel comfortable communicating with my healthcare providers using this application.

Focus groups qualitative research on the mVTEA use

Focus groups are a well-established qualitative research method that enables researchers to gain in-depth insights into participants’ perspectives, experiences, and understanding.³³ We employed a purposive sampling method to select participants for focus groups from the 43 patients who had completed the quantitative evaluation. Participants were stratified by age and education level, aiming to maximize the range of perspectives within the resource limitations of this initial evaluation.

The research team, comprising two male researchers, included Hao Wang (moderator) and Bin-bin Liu (co-moderator). Wang, an associate professor in the Department of Cardiology, holds an M.D. degree and has over 10 years of experience in clinical practice and qualitative research. Liu holds a Bachelor's degree in Clinical Medicine and was responsible for process documentation and assistance. In addition to two researchers, the other authors of this paper and some nursing staff also observed the online meeting. Prior to the research, the moderator had no pre-existing relationship with any participants. At the beginning of each interview, the research purpose and the academic backgrounds of the researchers were explained to the participants.

A total of four focus groups were conducted via online video conferencing. An interview guide was developed, focusing on three main themes (eTable 1 in Supplemental 1), to explore patients’ knowledge and information needs regarding VTE, their evaluations of the mVTEA and their needs for home-based VTE care. The moderator structured discussions to address predetermined themes while remaining responsive to issues that emerged during the sessions. The co-moderator documented field notes during the discussions to capture non-verbal cues and interactive contexts. All discussions were conducted and audio-recorded in Mandarin. The recordings were sent to a professional service for verbatim transcription into Chinese. Transcripts were analyzed in the original language to preserve semantic and contextual meaning. No repeat interviews were required, and transcripts were not returned to participants for comment.

Data analysis followed the thematic analysis approach. Two researchers independently performed initial coding of the entire text dataset using Nvivo 15 software and were blinded to each other's work. Inter-coder reliability was assessed prior to consensus discussions by calculating Cohen's kappa coefficient (κ) on a randomly selected subset of transcripts (30%). The initial κ value was 0.78, indicating substantial agreement according to the benchmark criteria of Landis and Koch.³⁴ Through multiple iterative discussions, any coding discrepancies were reviewed and resolved until full consensus was reached. The researchers subsequently collaboratively categorized and consolidated the codes to jointly develop a final coding tree (Supplemental 2). To enhance the methodological rigor, data source triangulation was employed by comparing subgroups with different ages and educational backgrounds to examine the convergence and divergence of perspectives. This section was written in accordance with the Consolidated Criteria for Reporting Qualitative Research (COREQ) (eTable 2 in Supplemental 1).³⁵

Statistical analysis

This study was designed as a pilot evaluation of the mVTEA. The sample size requirement was determined using the method proposed by Viechtbauer et al.,³⁶ which estimates the number of participants needed to detect potential unforeseen problems with a given probability at a specified level of confidence. According to this method, with a minimum problem occurrence probability of 0.10 and a 95% confidence level, a minimum of 29 participants is sufficient to detect at least one occurrence. For the qualitative arm, 12 participants were included in the focus groups. This sample size is considered adequate to achieve thematic saturation in relatively homogeneous groups, as supported by established qualitative research methodology literature.³⁷

Continuous variables with a normal distribution are presented as mean ± standard deviation (SD). Non-normally distributed continuous variables are expressed as median (interquartile range, IQR). Categorical variables are summarized as frequency (percentage) and compared using the chi-square (χ²) test. For both the C-uMARS and C-MAUQ, the score for each question is presented as the mean of all participant responses. The score for a subscale or the total score is calculated by first computing the average of the respective items for each participant. These individual sums are then averaged across the sample to produce the reported subscale or total score. The Wilcoxon rank-sum test was performed to conduct intragroup comparisons of the subscales within the C-uMARS and the C-MAUQ, respectively. A two-sided P < .05 was considered statistically significant. All statistical analyses were performed using IBM SPSS Statistics version 26.0 and R version 4.4.1.

Results

A total of 43 patients (mean [SD] age, 56.9 [15.9] years; 25 men (58%) and 18 women (42%); median follow-up, 34.7 days [IQR, 29–40 days]) were included (Figure 2). Among them, 35 patients (81%) were diagnosed with VTE and eight patients (19%) were stratified as being at high risk for VTE by the Padua scale. The baseline characteristics of all patients are presented in Table 4. Hypertension was the most common comorbidity, followed by coronary heart disease and diabetes.

Figure 2.

Patient enrolment and follow-up flowchart.

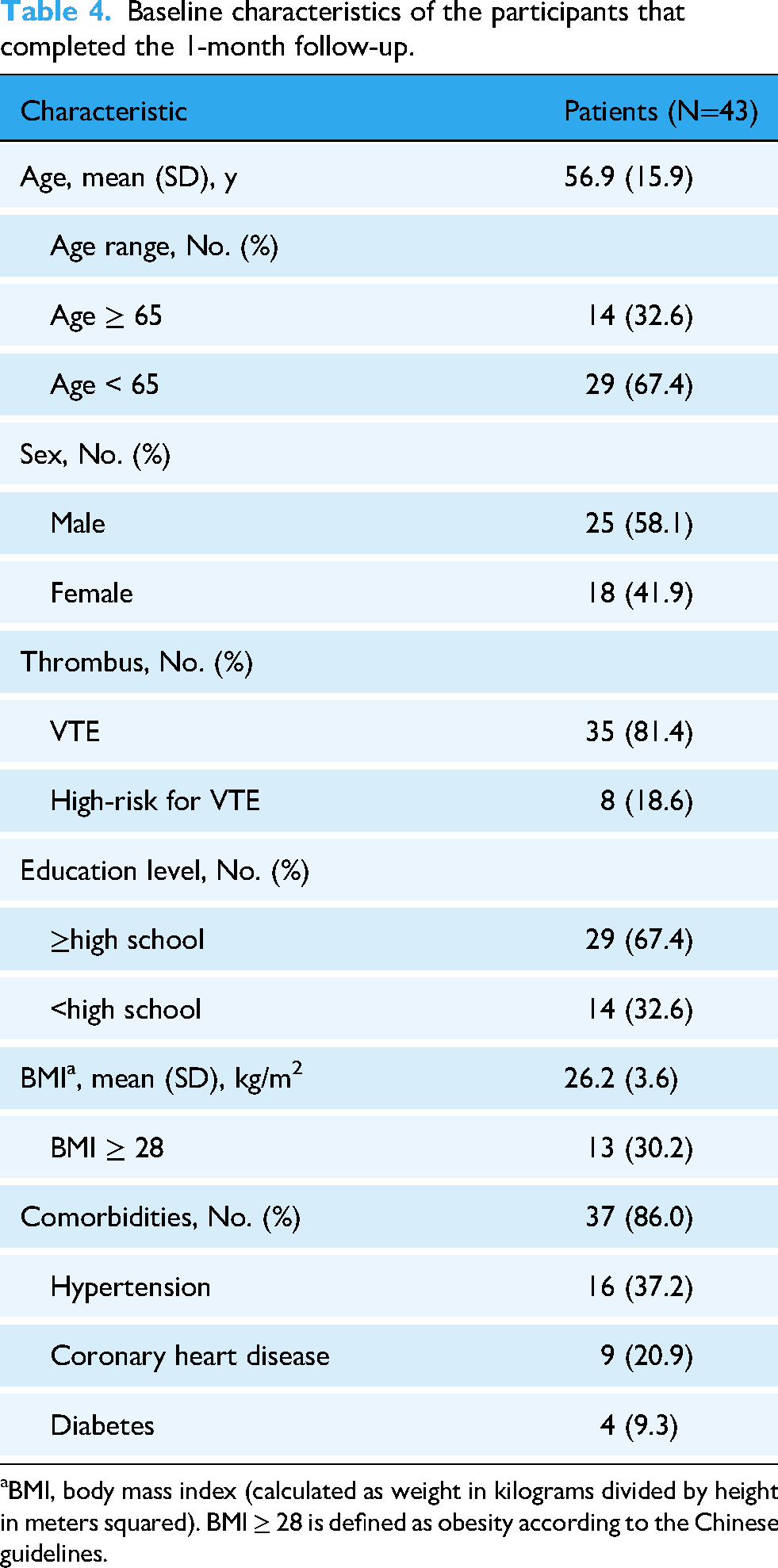

Table 4.

Baseline characteristics of the participants that completed the 1-month follow-up.

Characteristic	Patients (N=43)
Age, mean (SD), y	56.9 (15.9)
Age range, No. (%)
Age ≥ 65	14 (32.6)
Age < 65	29 (67.4)
Sex, No. (%)
Male	25 (58.1)
Female	18 (41.9)
Thrombus, No. (%)
VTE	35 (81.4)
High-risk for VTE	8 (18.6)
Education level, No. (%)
≥high school	29 (67.4)
<high school	14 (32.6)
BMI^a, mean (SD), kg/m²	26.2 (3.6)
BMI ≥ 28	13 (30.2)
Comorbidities, No. (%)	37 (86.0)
Hypertension	16 (37.2)
Coronary heart disease	9 (20.9)
Diabetes	4 (9.3)

BMI, body mass index (calculated as weight in kilograms divided by height in meters squared). BMI ≥ 28 is defined as obesity according to the Chinese guidelines.

Patient-centered digital health records

Of the 43 patients surveyed, 41 (95%) rated the QR code scanning process for accessing digital health records as fine or excellent. Furthermore, 37 patients (86%) gave a positive rating to the digital 3D visualization of health records, and expressed satisfaction with the access to and use of patient-centered digital health records, as well as the benefits of digital 3D visualization records, such as an increased sense of control and the visualization of changes in laboratory tests (Figure 3).

Figure 3.

The results of the investigation into satisfaction, feasibility, and acceptability of patient-centered digital health records.

Quantitative research of the mVTEA evaluation

Figure 4 presents the average scores for all the items in the quantitative research including all 43 participants. The average quality score (mean ± SD) of the mVTEA was 3.81 ± 0.81. The Information subscale received the highest ratings (3.82 ± 0.81), followed by Functionality (3.81 ± 0.85), and Engagement (3.79 ± 0.86) (Figure 5A). Within the Information subscale, items 7 (information credibility) and 3 (visual esthetics) obtained the highest mean score of 3.86. Conversely, the lowest mean scores within the Functionality and Engagement subscales were both 3.74, corresponding to item 10 (navigation) and item 14 (target audience appropriateness), respectively. The overall C-MAUQ score was 1.92 ± 0.81 (range: 1.70 to 2.12), reflecting favorable usability (a lower score represents a more positive evaluation). The scores for the three subscales of Usability and Satisfaction, System Information Arrangement, and Efficiency were 2.00 ± 0.88, 1.97 ± 0.90, and 1.79 ± 0.73, respectively (Figure 5B). Specifically, within the Usability and Satisfaction subscale, item 8 (Overall, I’m satisfied with the application) was rated most favorably with a mean score of 1.79. In contrast, item 14 (This application has all the features and capabilities I expected) in the System Information Arrangement subscale (possession of expected features and capabilities) received the least favorable rating, with a mean score of 2.09.

Figure 4.

The average score results from the quantitative evaluation of all 43 participants. (A) The average score of the C-uMARS for quality evaluation. Higher C-uMARS scores indicate more positive user evaluation (1 = inadequate; 7 = excellent) and (B) the average score of the C-MAUQ for usability evaluation. Lower C-MAUQ scores indicate more positive user evaluation (1 = extremely strongly agree; 7 = extremely strongly disagree).

Figure 5.

Subscale scores from the C-uMARS (a 5-point scale, with higher scores indicating higher quality) and the C-MAUQ (a 7-point scale, with lower scores indicating better usability).

Focus groups on patients’ priorities regarding the mVTEA use and home management

The qualitative evaluation was conducted between March 20 and May 10, 2024, and we systematically gathered perspectives from all 12 VTE patients (eight males; aged 18–87 years; eight with tertiary education) through four focus groups, each lasting 90–120 min. Through iterative analysis of all four focus groups, the three predetermined core themes established in this study were demonstrated to be stable and comprehensive. The data analysis yielded seven sub-themes (Figure 6) that further enriched the thematic structure, while no new concepts emerged that necessitated revision of the core framework. This finding confirms that thematic saturation at the core thematic level was achieved with the data collected via purposive sampling. Detailed patient perspectives and partial representative quotations derived from the sub-themes analysis are presented below. Full representative quotations are provided in eTable 3 in Supplemental 1.

Figure 6.

Theme and sub-themes of focus groups on patients with the mVTEA use.

Theme 1: VTE awareness and information needs

Patients demonstrated significant gaps in their knowledge regarding VTE. This cognitive state directly contributed to a significant psychological burden and motivated an active search for reliable information sources.

Gaps in VTE foundational knowledge

Patients consistently demonstrated inaccurate comprehension of fundamental concepts such as the definition and etiology of VTE. Their understanding of VTE treatments was predominantly limited to anticoagulation therapy, while failing to extend to a clear understanding of potential side effects. Only a minority of patients were aware of the increased risk of bleeding associated with anticoagulation.

‘I’m afraid that using anticoagulants might cause bleeding’ (P5, female, 57 years old, primary education).

Psychosocial impact of VTE

Patients generally perceived VTE, particularly PE, as highly dangerous. This perception leads to significant psychological distress and lifestyle impacts, primarily manifesting as behavioral changes such as a fear of engaging in physical activity, which substantially diminished their quality of life.

‘When I was first diagnosed with a thrombosis, I was utterly terrified… Now I still live in constant fear, never knowing when it might recur’ (P11, male, 43 years old, tertiary education).

Information-seeking behavior and channel evaluation

Patients primarily acquired VTE knowledge from healthcare professionals and online sources. Triangulation revealed that younger, highly-educated patients tended to cross-verify information through multiple channels, while older or less-educated counterparts relied more heavily on direct guidance from healthcare professionals. Despite these behavioral differences, all participants expressed a strong desire for access to authoritative VTE knowledge.

‘I always feel online information isn't sufficiently accurate. While I trust doctors as the most authoritative source, it's impossible to consult them at any time. Is there a more convenient way to obtain reliable knowledge about thrombosis’ (P10, male, 50 years old, tertiary education).

Theme 2: evaluation and expectations for the mVTEA

Patients widely acknowledged the existing functional value of the mVTEA and expressed clear expectations for its future development, while their specific foci varied across demographic groups.

Willingness to use the mVTEA and evaluation of its functionality and usability

All patients expressed strong endorsement for core functionalities, including the digital 3D visualization records, medication management support, adverse event reporting, and weekly health summaries. Concurrently, they emphasized the critical importance of data privacy. Specific suggestions for improvement were also provided, primarily concerning the intelligent medication reminder and the user interface. These needs were particularly evident among elderly users.

'These functions are really useful as they enable doctors to adjust my treatment plan, but patient privacy must be carefully protected’(P1, male, 30 years old, tertiary education).

Expectations for a future version of the mVTEA

Nearly all patients anticipated that the mVTEA would deliver two core functions: real-time doctor–patient communication and a specialized VTE knowledge base. Several participants also recommended incorporating lifestyle intervention (such as exercise reminders and hydration prompts).

‘It would be ideal to get quick answers from doctors through online consultation when I feel unwell. My only concern is that doctors might sometimes be too busy to reply promptly’(P6, female, 58 years old, secondary education).

‘I believe reminders for daily activity and drinking water would be quite useful’(P2, male, 32 years old, tertiary education).

Theme 3: home-based VTE care

Patients generally expressed a desire to access healthcare services based on mVTEA and demonstrated willingness to purchase mechanical thromboprophylaxis devices.

Willingness to pay for the mVTEA and desired self-care functions

Patients demonstrated a strong demand for home-based VTE management services through the mVTEA platform, with their ideal service model being a multifunctional integrated service. This comprehensive package would include annual/monthly online consultations, cross-institutional examination report interpretation, and monthly health reports. The acceptable price range was concentrated between RMB 1000 and 2000 annually. A notable age-related divergence emerged: younger patients showed not only greater willingness to pay for perceived beneficial services but also stronger preference for long-term service models. In contrast, older patients prioritized cost-effectiveness, preferring the lowest price for equivalent services.

‘If my condition requires me to purchase this service, I would only purchase a long-term subscription(such as an annual plan). Otherwise, I would not purchase it at all’(P9, male, 18 years old, tertiary education).

Willingness and acceptability of mechanical prevention

Under mVTEA platform-based end-to-end management, patients explicitly prefer direct purchase of mechanical thromboprophylaxis devices to secure ownership. The device rental model, however, has not gained favor.

‘If I genuinely need it, I would rather purchase it than rent it’(P3, male, 49 years old, tertiary education).

Mixed methods integration

A joint display (Table 5) was developed to integrate quantitative results from the C-uMARS and C-MAUQ assessments with qualitative themes from focus groups. This display highlights convergence between data streams, explanatory complementarity for lower-scoring dimensions, and expansion where qualitative evidence uncovered new user priorities.

Table 5.

Integration of quantitative and qualitative findings.

Quantitative Evaluation	Quantitative Score	Qualitative reflection	Integration Interpretation
C-uMARS-Information	Q7: Information Credibility (3.86)	Participants generally seek authoritative and reliable knowledge about VTE.	The mVTEA has gained initial user trust, which serves as a prerequisite for providing authoritative VTE knowledge.
C-uMARS-Functionality	Q10: Navigation (3.74)	The interface is somewhat complex, especially for elderly users.	Navigation and usability are significant shortcomings.
C-uMARS-Engagement	Q14: Target Audience Appropriateness (3.74)	Seniors have a stronger need for interface optimization.	There is heterogeneity in users’ expectations regarding mVTEA.
C-MAUQ-Usability and Satisfaction	Q8: Overall, I’m satisfied with the application(1.79)	All users strongly support the core features.	The practicality and reliability of core functions is the foundation of patient satisfaction.
C-MAUQ-System Information Arrangement	Q14: This application has all the features and capabilities I expected(2.06)	Users strongly desire real-time doctor–patient communication and access to a professional knowledge base.	The relatively low rating stems from the fact that the features users expect are not fully developed.
C-MAUQ-Efficiency	Q20: I believe my healthcare providers can receive any messages I send via this application(1.70)	Users strongly desire real-time doctor–patient communication.	Users recognize mVTEA as a reliable communication channel, but still expect timely responses.
Areas Not Quantitatively Captured	-	Lifestyle interventions such as exercise and hydration reminders.	Lifestyle interventions form the cornerstone of VTE management.

Discussions

This study employed a combined quantitative and qualitative research to evaluate the feasibility of the mVTEA. The quantitative results indicated that the design quality and usability of the application were robust evaluated by patients with VTE and those at high risk for VTE. Qualitatively, patient feedback from focus groups provided depth to these metrics, revealing strong endorsement of core functionalities, significant unmet information and communication needs, and a clear willingness to engage with and pay for integrated home-based care services delivered through the mVTEA. These findings collectively demonstrate mVTEA's preliminary feasibility and provide directions for optimization.

In the quality evaluation, the Information subscale received the highest evaluation, with Information Credibility scoring particularly well. This result was consistent with the qualitative finding of knowledge gaps among VTE patients and their clear need for authoritative information. This consistency indicates that the credibility and professionalism of information are the foundation for users’ acceptance of mVTEA, while also highlighting the importance of subsequently integrating a professional VTE knowledge base. Additionally, the analysis reveals a critical tension between standardized digital design and the different abilities within the users. Quantitative scores for Navigation and Target Audience Appropriateness were comparatively lower. Qualitative research corroborated this finding: elderly users generally perceived the interface as somewhat complex and insufficiently intuitive. This highlights the limitations of standardized design in addressing user diversity and underscores the need for the mVTEA to adopt more personalized, inclusive design principles (such as providing a simplified interface with larger fonts for elderly users) to accommodate varying levels of digital literacy. Furthermore, when users perceive high core utility in an application, they may exhibit greater tolerance for certain usability limitations. This was reflected in the usability assessment, where overall satisfaction was relatively high while ratings for interface esthetics were lower. This can be attributed to the considerable enthusiasm users express for core features such as interactive 3D digital health records. The visual and exploratory nature of such features appears to enhance both comprehension and perceived value,³⁸ indicating that optimizing highly practical core functionalities is equally crucial to refining interface details during early development stages. Qualitative findings revealed a clear willingness among patients to pay for integrated VTE management services delivered through the mVTEA platform, although preferred service models and price sensitivity varied across demographic groups. This not only supports the economic viability of implementing such a digital tool but also underscores the importance of tailoring service programs to meet diverse user expectations.

The findings of this pilot study offer concrete solutions to address key challenges in the current management of VTE. VTE, as a preventable and manageable disease, has led to severe economic and social burdens.^39,40 The conventional VTE management model has limitations such as high treatment costs, a shortage of high-quality medical resources, suboptimal adherence to guidelines, insufficient prevention and treatment of complications, and a lack of post-diagnosis rehabilitation management. Thrombotic and bleeding risks are not static, determined by a “one-time” assessment of baseline factors, but rather dynamic and continually influenced by factors such as aging, incident comorbidities, and changes in medications.⁴¹ Many of these factors are transient and potentially modifiable, underscoring the need to explore new, adaptive pathways for VTE management.

Mobile health technology has emerged as the key to addressing these challenges. The mAFA, by implementing an integrated management pathway specific to AF, has increased the anticoagulation rate among high-risk patients to over 80% and significantly reduced clinical adverse events.⁸ This demonstrates the substantial efficacy of a structured digital pathway in chronic disease management. However, its entire design logic is closely centered on AF and cannot be directly applied to the management of VTE. Alfalfa focuses on optimizing the warfarin anticoagulation therapy through remote INR monitoring and dose adjustment, increasing the time in therapeutic range to 79.35% and effectively improving anticoagulation quality.⁴² Nevertheless, its medication-oriented model shows clear limitations within the current paradigm of patient-centered disease management.

The mVTEA developed in this study aims to address this gap. It is the first to apply integrated, structured digital clinical pathways to VTE, aiming to establish a comprehensive platform covering the entire VTE care and to address the core requirements of VTE care. Our study demonstrates that the mVTEA exhibits robust quality and usability. Patients’ willingness to adopt this tool, coupled with their strong endorsement of its core features, indicates its feasibility and promising potential for VTE management. Future studies should consider evaluating long-term engagement, behavioral mechanisms of change, applicability in broader patient populations, integration with clinical workflows, and cost-effectiveness to better understand the application's effectiveness in enhancing patient self-management.¹⁸

Limitations

This study has limitations regarding generalizability. The single-center design inherently limits the diversity of the patient population and clinical practices reflected in our sample. A notable selection bias was introduced by the requirement for smartphone ownership and digital literacy, as illustrated in the recruitment flow (Figure 2). The participants therefore likely represent a subgroup of patients who are more comfortable and engaged with digital technology. Consequently, the positive quality and usability findings may not be generalizable to the broader VTE population, particularly older adults or those with limited digital access or skills, which should be considered when interpreting the results. The qualitative evaluation included 12 participants. This sample size is appropriate for a feasibility study aiming to deeply explore user perceptions and gather detailed feedback for tool optimization, and we observed signs of information saturation. However, it also implies that the identified themes and insights, while valuable, may not fully represent the perspectives of a broader cohort of VTE patients with varying digital skills or disease experiences. Consequently, these qualitative findings should be regarded as exploratory discoveries providing key directions and hypotheses for subsequent research. The lack of a control group in this pilot means that positive user feedback could be influenced, in part, by the increased attention inherent to participation in a study (e.g., Hawthorne effect).⁴³ This is an inherent limitation of a single-arm feasibility study.

Another limitation was that user satisfaction was measured as a feasibility metric. The scores thus represented initial perceptions to inform design refinements and were not definitive. The development and full validation of a satisfaction instrument, including establishing its content validity and internal consistency, were reserved for a subsequent, larger-scale study following this iterative development phase.

Lastly, the current study did not include objective behavioral or clinical endpoints necessary to draw definitive conclusions on effectiveness. Based on our previous research on secure data transmission technology and the current feasibility study of smart technology-enabled VTE management, and as we now commence the randomized controlled trial (SmaVTE study), addressing the effectiveness and the impact on clinical and safety outcomes.^18,28

Conclusion

In this pilot study, the mVTEA demonstrated robust quality and usability among patients with or at high risk for VTE. Focus groups further clarified specific optimization needs and clinical deployment requirements. These findings indicate the application's feasibility and potential as a VTE management tool and provide a foundation for future real-world evaluations of its clinical effects.

Supplemental Material

sj-docx-1-dhj-10.1177_20552076261430465 - Supplemental material for Smart technology facilitated patient-centered venous thromboembolism management: A mixed-methods study of the digital feasibility

Supplemental material, sj-docx-1-dhj-10.1177_20552076261430465 for Smart technology facilitated patient-centered venous thromboembolism management: A mixed-methods study of the digital feasibility by Binbin Liu, Zhigeng Jin, Hao Wang, Hui Zhang, Zheqi Zhang, Hong Wang, Ying Yang, Zhenguo Zhai and Yutao Guo in DIGITAL HEALTH

Supplemental Material

sj-docx-2-dhj-10.1177_20552076261430465 - Supplemental material for Smart technology facilitated patient-centered venous thromboembolism management: A mixed-methods study of the digital feasibility

Supplemental material, sj-docx-2-dhj-10.1177_20552076261430465 for Smart technology facilitated patient-centered venous thromboembolism management: A mixed-methods study of the digital feasibility by Binbin Liu, Zhigeng Jin, Hao Wang, Hui Zhang, Zheqi Zhang, Hong Wang, Ying Yang, Zhenguo Zhai and Yutao Guo in DIGITAL HEALTH

Footnotes

Acknowledgments

The authors thank all the staff and participants at the Sixth Medical Center of the PLAGH and all the patients who voluntarily took part in the study. We appreciate Liu Chen, from the DrBreath Company (DrBreath Co., Ltd., Beijing, China) for her technical assistance with the mVTEA.

ORCID iDs

Binbin Liu

Zhigeng Jin

Hao Wang

Hui Zhang

Zheqi Zhang

Hong Wang

Ying Yang

Zhenguo Zhai

Yutao Guo

Ethical approval

This study was approved by the Ethics Committees of the Sixth Medical Center of the PLAGH (Approval No. HZKY-PJ-2022-21). The trial was registered in the Chinese Clinical Trial Registry (Approval No. ChiCTR2200063206).

Author contributions

Study planning, project conception, and coordination were conducted by Zhigeng Jin, Zhenguo Zhai and Yutao Guo; all authors contributed to the design of the intervention; recruitment and data extraction were conducted by Binbin Liu and Hao Wang. All authors reviewed and approved the final version of the manuscript. Technical development and maintenance of the mVTEA were provided by DrBreath Co., Ltd, under the scientific direction of the authors.

Funding

This study was funded by National Key Research and Development Program of China (2023YFC2507201).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Guarantor

Yutao Guo.

Supplemental material

Supplemental material for this article is available online.

References

Khan

Tritschler

Kahn

, et al. Venous thromboembolism. Lancet 2021; 398: 64–77.

Wendelboe

Raskob

. Global burden of thrombosis: epidemiologic aspects. Circ Res 2016; 118: 1340–1347.

Valerio

Mavromanoli

Barco

, et al. Chronic thromboembolic pulmonary hypertension and impairment after pulmonary embolism: the FOCUS study. Eur Heart J 2022; 43: 3387–3398.

Busuttil

Lim

Davies

. Post thrombotic syndrome. In: Islam

MdS

(ed.) Thrombosis and embolism: from research to clinical practice . 906. Cham: Springer International Publishing, 2016, pp.363–375.

Balint

. The possibilities of patient-centered medicine. J R Coll Gen Pract 1969; 17: 269–276.

Goldfarb

Saylor

Bozkurt

, et al. Patient-Centered Adult Cardiovascular Care: A Scientific Statement From the American Heart Association. Circulation 2024; 149: e1176–e1188.

Guo

Wang

Zhang

, et al. Mobile photoplethysmographic technology to detect atrial fibrillation. J Am Coll Cardiol 2019; 74: 2365–2375.

Guo

Lane

Wang

, et al. Mobile health technology to improve care for patients with atrial fibrillation. J Am Coll Cardiol 2020; 75: 1523–1534.

Yao

Guo

Lip

GYH

, et al. The effects of implementing a Mobile health–technology supported pathway on atrial fibrillation–related adverse events among patients with multimorbidity: the mAFA-II randomized clinical trial. JAMA Netw Open 2021; 4: e2140071.

10.

Romiti

Guo

Corica

, et al. Mobile health-technology-integrated care for atrial fibrillation: a win ratio analysis from the mAFA-II randomized clinical trial. Thromb Haemost 2023; 123: 1042–1048.

11.

Guo

Romiti

Proietti

, et al. Mobile health technology integrated care in older atrial fibrillation patients: a subgroup analysis of the mAFA-II randomised clinical trial. Age Ageing 2022; 51: afac245.

12.

Yoon

Lee

Choi

, et al. Effectiveness of a smartphone app–based intervention with bluetooth-connected monitoring devices and a feedback system in heart failure (SMART-HF trial): randomized controlled trial. J Med Internet Res 2024; 26: e52075.

13.

Guo

Romiti

Corica

, et al. Mobile health-technology integrated care in atrial fibrillation patients with heart failure: a report from the mAFA-II randomized clinical trial. Eur J Intern Med 2023; 107: 46–51.

14.

Ghavami

Abdshah

Sadeghian

, et al. Effectiveness of the Green Heart Smartphone Application as a Self-Management Intervention for Hypertension and Dyslipidemia: A Randomized Clinical Trial. Arch Iran Med 2024; 27: 313–322.

15.

Guo

Corica

Romiti

, et al. Mobile health technology integrated care in atrial fibrillation patients with diabetes mellitus in China: a subgroup analysis of the mAFA-II cluster randomized clinical trial. Eur J Clin Investigation 2023; 53: e14031.

16.

Lim

Ong

Johal

, et al. Effect of a smartphone app on weight change and metabolic outcomes in Asian adults with type 2 diabetes: a randomized clinical trial. JAMA Netw Open 2021; 4: e2112417.

17.

Spielmanns

Gloeckl

Jarosch

, et al. Using a smartphone application maintains physical activity following pulmonary rehabilitation in patients with COPD: a randomised controlled trial. Thorax 2023; 78: 442–450.

18.

Jin

Zhang

Liu

, et al. Smart technology facilitated patient-centered venous thromboembolism management (the SmaVTE study): protocol for a randomized controlled trial. JMIR Res Protoc 2025; 14: e67254.

19.

Sommerville

. Software Engineering. Harlow, England: Pearson, 2021.

20.

Nielsen

. 10 Usability Heuristics for User Interface Design. Nielsen Norman Group, https://www.nngroup.com/articles/ten-usability-heuristics/ (2024, accessed 9 December 2024).

21.

Key

Khorana

Kuderer

, et al. Venous thromboembolism prophylaxis and treatment in patients with cancer: ASCO clinical practice guideline update. JCO 2020; 38: 496–520.

22.

Kearon

. Long-Term management of patients after venous thromboembolism. Circulation 2004; 110: I10–I18.

23.

Klok

Ageno

, et al. Optimal follow-up after acute pulmonary embolism: a position paper of the European Society of Cardiology working group on pulmonary circulation and right ventricular function, in collaboration with the European Society of Cardiology working group on atherosclerosis and vascular biology, endorsed by the European respiratory society. Eur Heart J 2022; 43: 183–189.

24.

Kakkos

Gohel

Baekgaard

, et al. Editor’s choice – European society for vascular surgery (ESVS) 2021 clinical practice guidelines on the management of venous thrombosis. Eur J Vasc Endovasc Surg 2021; 61: 9–82.

25.

Lyman

Khorana

Kuderer

, et al. Venous thromboembolism prophylaxis and treatment in patients with cancer: American society of clinical oncology clinical practice guideline update. JCO 2013; 31: 2189–2204.

26.

Stevens

Woller

Kreuziger

, et al. Antithrombotic therapy for VTE disease. Chest 2021; 160: e545–e608.

27.

Bavalia

Middeldorp

Weisser

, et al. Treatment of venous thromboembolism in special populations with direct oral anticoagulants. Thromb Haemost 2020; 120: 899–911.

28.

Jin

Wang

, et al. A novel QR code–based solution for secure electronic health record transfer in venous thromboembolism home rehabilitation management: algorithm development and validation. JMIR Rehabil Assist Technol 2025; 12: e69230–e69230.

29.

Stoyanov

Hides

Kavanagh

, et al. Development and validation of the user version of the Mobile application rating scale (uMARS). JMIR Mhealth Uhealth 2016; 4: e72.

30.

Zhang

, et al. Reliability and validity of the Chinese version of the user version of Mobile application rating scale. Chinese Journal of Modern Nursing 2020; 26: 2608–2612.

31.

Zhou

Bao

Setiawan

IMA

, et al. The mHealth app usability questionnaire (MAUQ): development and validation study. JMIR Mhealth Uhealth 2019; 7: e11500.

32.

Zhao

Cao

, et al. Chinese Version of the mHealth app usability questionnaire: cross-cultural adaptation and validation. Front Psychol 2022; 13: 813309.

33.

Kitzinger

. Qualitative research: introducing focus groups. Br Med J 1995; 311: 299–302.

34.

Landis

Koch

. The measurement of observer agreement for categorical data. Biometrics 1977; 33: 159–174.

35.

Tong

Sainsbury

Craig

. Consolidated criteria for reporting qualitative research (COREQ): a 32-item checklist for interviews and focus groups. Int J Qual Health Care 2007; 19: 349–357.

36.

Viechtbauer

Smits

Kotz

, et al. A simple formula for the calculation of sample size in pilot studies. J Clin Epidemiol 2015; 68: 1375–1379.

37.

Guest

Bunce

Johnson

. How many interviews are enough?: an experiment with data saturation and variability. Field Methods 2006; 18: 59–82.

38.

Shi

Sun

Yang

, et al. Three-Dimensional visual patient based on electronic medical diagnostic records. IEEE J Biomed Health Inform 2018; 22: 161–172.

39.

Raskob

Angchaisuksiri

Blanco

, et al. Thrombosis: a Major contributor to global disease burden. ATVB 2014; 34: 2363–2371.

40.

Duffett

. Deep venous thrombosis. Ann Intern Med 2022; 175: ITC129–ITC144.

41.

Gorog

Gue

Chao

T-F

, et al. Assessment and mitigation of bleeding risk in atrial fibrillation and venous thromboembolism: executive summary of a European and Asia-pacific expert consensus paper. Thromb Haemost 2022; 122: 1625–1652.

42.

Cao

Jiang

, et al. Effectiveness of the alfalfa app in warfarin therapy management for patients undergoing venous thrombosis prevention and treatment: cohort study. JMIR Mhealth Uhealth 2021; 9: e23332.

43.

McCambridge

Witton

Elbourne

. Systematic review of the hawthorne effect: new concepts are needed to study research participation effects. J Clin Epidemiol 2014; 67: 267–277.
