Evaluation of the ‘ring sign’ and the ‘core sign’ as a magnetic resonance imaging marker of disease activity and progression in clinically isolated syndrome and early multiple sclerosis

Abstract

Background

Brain lesions with a hypointense ring or core were described in multiple sclerosis on susceptibility weighted imaging.

Objective

The purpose of this study was to study the evolution and prognostic relevance of susceptibility weighted imaging hypointense lesions in clinically isolated syndrome and early multiple sclerosis.

Methods

Sixty-six early multiple sclerosis and clinically isolated syndrome patients were followed over a median period of 2.9 years (range 1.6–4.6 years) and underwent 3T magnetic resonance imaging including 3D susceptibility weighted imaging and T2-weighted fluid-attenuated inversion recovery. We assessed the presence of susceptibility weighted imaging hypointense core or ring lesions, and Expanded Disability Status Scale at baseline and follow-up.

Results

Of 611 lesions at baseline, 64 (10.5%) had a susceptibility weighted imaging hypointense core, and 28 (4.6%) had a susceptibility weighted imaging hypointense ring. Hypointense ring lesions were larger (p < 0.001) and more T1w hypointense (p = 0.002) than others. During follow-up, hypointense core lesions became susceptibility weighted imaging isointense (52 lesions, 81%); few developed into hypointense ring lesions (two lesions, 3%). Hypointense ring lesions did not shrink on T2-weighted fluid-attenuated inversion recovery images (p = 0.077, trend towards more enlargement compared to others), while hypointense core lesions more often shrunk in comparison to lesions without a hypointense core (p = 0.002). The number of susceptibility weighted imaging hypointense ring lesions at baseline correlated with Expanded Disability Status Scale progression at follow-up (p = 0.021, R = 0.289).

Conclusion

In our cohort of patients with clinically isolated syndrome or early multiple sclerosis, susceptibility weighted imaging hypointense ring lesions were only rarely detectable, but did not shrink and were associated with future disability progression.

Keywords

Multiple sclerosis clinically isolated syndrome 3 Tesla MRI ring sign susceptibility weighted imaging

Introduction

Multiple sclerosis (MS) is an inflammatory, demyelinating and neurodegenerative central nervous system disease with distinct brain lesions detectable by magnetic resonance imaging (MRI).^1,2 Recent studies have identified different MS lesion types based on their paramagnetic properties on gradient echo MRI sequences such as susceptibility weighted imaging (SWI).^3–5 Most importantly, lesions with a SWI hypointense core (‘core sign’), and lesions with a SWI hypointense ring (‘ring sign’) were described.^3–5

The pathophysiological correlates of those lesions are not fully understood yet. In SWI hypointense core lesions, severe demyelination or iron deposition as a consequence of dying iron-rich oligodendrocytes or blood brain barrier breakdown with haemoglobin leakage have been discussed as contributing to SWI signal loss.^5,6 Following this assumption, this lesion type rather reflects a relatively young than an old lesion.^4,6–9

In SWI hypointense ring lesions, iron-rich active microglia were histopathologically observed that co-localise with the paramagnetic ring.^10–15 The ‘ring sign’ was thus suggested as an in vivo imaging feature of chronic active MS lesions that smoulder over time and may contribute to disability progression in progressive MS disease stages.^10–15

If these hypotheses hold true, SWI signal changes may help to estimate the stage and chronic inflammatory activity of MS lesions, and potentially have diagnostic, therapeutic and prognostic implications.

Nevertheless, current studies have predominantly investigated lesion morphology and lesion evolution in patients with long-lasting MS, and little is known on the dynamics of SWI lesion morphology at the very beginning of the disease when neuroinflammation is believed to outweigh neurodegeneration.

Based on this background, we aimed to describe the presence of SWI hypointense core and ring lesions in patients with clinically isolated syndrome (CIS) and early MS. In addition, we asked whether SWI hypointense core lesions at this very early stage of the disease already develop into ring lesions, and whether the presence of such lesions at the beginning of the disease are associated with clinical or paraclinical worsening.

Methods

Study participants

Patients with CIS or relapsing–remitting MS as defined by the 2010 diagnostic panel criteria¹ were included from the Berlin CIS cohort. The Berlin cohort study of CIS and early MS (NCT01371071) is an observational, prospective study that follows patients over a period of at least 5 years to identify risk factors for relapses, prognostic factors and therapy response markers. Inclusion criteria are age > 18 years, CIS within the last 6 months, and diagnosis of MS within the last two years. All patients with a SWI scan at baseline, and a follow-up of at least 18 months were eligible for this study. Magnetic resonance (MR) images of insufficient quality were excluded. Clinical disability was assessed by the Expanded Disability Status Scale (EDSS), the Symbol Digit Modalities Test (SDMT) as a marker of cognitive function, and the Multiple Sclerosis Functional Composite (MSFC) score including the Nine-Hole Peg Test (9HPT), the Timed 25-Foot Walk test (T25FWT) and the Paced Auditory Serial Addition Test (PASAT). The study was approved by the local ethics committee (EA1/182/10). Written informed consent was obtained from all participants before examination.

MRI acquisition

MR images were acquired using a 3T Siemens whole body scanner (Trio TIM; Siemens, Erlangen, Germany). The imaging protocol included pre- and post-contrast three-dimensional T1*w magnetization prepared rapid gradient echo (MPRAGE; spatial resolution = (1 × 1×1) mm³, gadolinium (0.1 mmol Gd/kg) was used as contrast agent), and a three-dimensional T2-weighted fluid-attenuated inversion recovery (T2w-FLAIR; spatial resolution = (1 × 1×1) mm³). In addition, a three-dimensional gradient echo flow-compensated SWI (echo time = 28 ms, repetition time = 35 ms, flip angle = 15°, spatial resolution = (1 × 1×1) mm³) yielding magnitude, filtered phase and reconstructed SWI images was acquired (see Supplemental Material for more details).

Image analysis

MRI scans were analysed by NB, EB (medical students trained for the assessment of SWI lesion morphology) and TS (resident in neurology with experience in the analysis of gradient echo MR images such as SWI) in consensus reading, and blinded to clinical details. T2w-FLAIR hyperintense lesions with a diameter of > 3 mm were marked. Each T2w-FLAIR lesion was then looked up on co-registered SWI to describe the existence of a SWI hypointense core or a SWI hypointense ring at the edge of the lesion at baseline.

A hypointense core was defined as homogenous distributed SWI hypointense signal intensity within the centre of the lesion that is not related to a central vein as identified by its tubular appearance and pathway through the lesion edges. A hypointense ring was defined as SWI hypointense signal intensity at the edge of the lesion with rim-like appearance. Lesions with irregular SWI hypointense signal without meeting the above criteria were characterised as lesions with diffuse SWI hypointense signal. Lesions without SWI hypointense signal were termed SWI isointense.

Contrast enhancement was assessed on post-contrast three-dimensional T1*w MPRAGE images. Contrast-enhancing lesions with a SWI hypointense ring were classified as ‘acute ring lesions’, and non-contrast enhancing lesions with a SWI hypointense ring were classified as ‘chronic ring lesions’.Next, changes in lesion morphology were noted at follow-up.

We also assessed lesion volume (change), percentage of brain volume change (PBVC),¹⁶ normalised mean intralesional T1w signal intensity, contrast enhancement, and the number of new lesions at follow-up (see Supplemental Material for more details).

Statistical analysis

All analyses were performed using IBM SPSS Statistics (Version 20; IBM, Armonk, New York, USA). All p values < 0.05 were considered significant. Because of the exploratory nature of the study, no adjustments for multiple comparisons were made. Most of the variables were not normally distributed. Thus, group differences were assessed by using a nonparametric Mann–Whitney U test (MWU), and we used Spearman correlation to test for associations between imaging and clinical variables. Dichotomous variables were compared by using Fisher’s exact test. Finally, we used general linear models (GLMs) with backward selection to assess the predictive value of SWI imaging markers (p-to-exclude = 0.1). Results were bootstrapped (resampling size n = 1000) and confirmed by using Spearman correlation. PASAT, T25FWT and 9HPT scores were transformed into z scores. Relapse rates and PBVC were annualised.

Results

Study participants

Seventy-nine patients fulfilled the inclusion criteria, and 13 patients were subsequently excluded for technical reasons (insufficient SWI image quality, see also Supplemental Material Table 1 for missing values). Finally, 66 patients with CIS (n = 32) or relapsing–remitting MS (n = 34) were analysed and followed over a median period of 2.9 years (range 1.6–4.6 years). More demographic details are presented in Table 1.

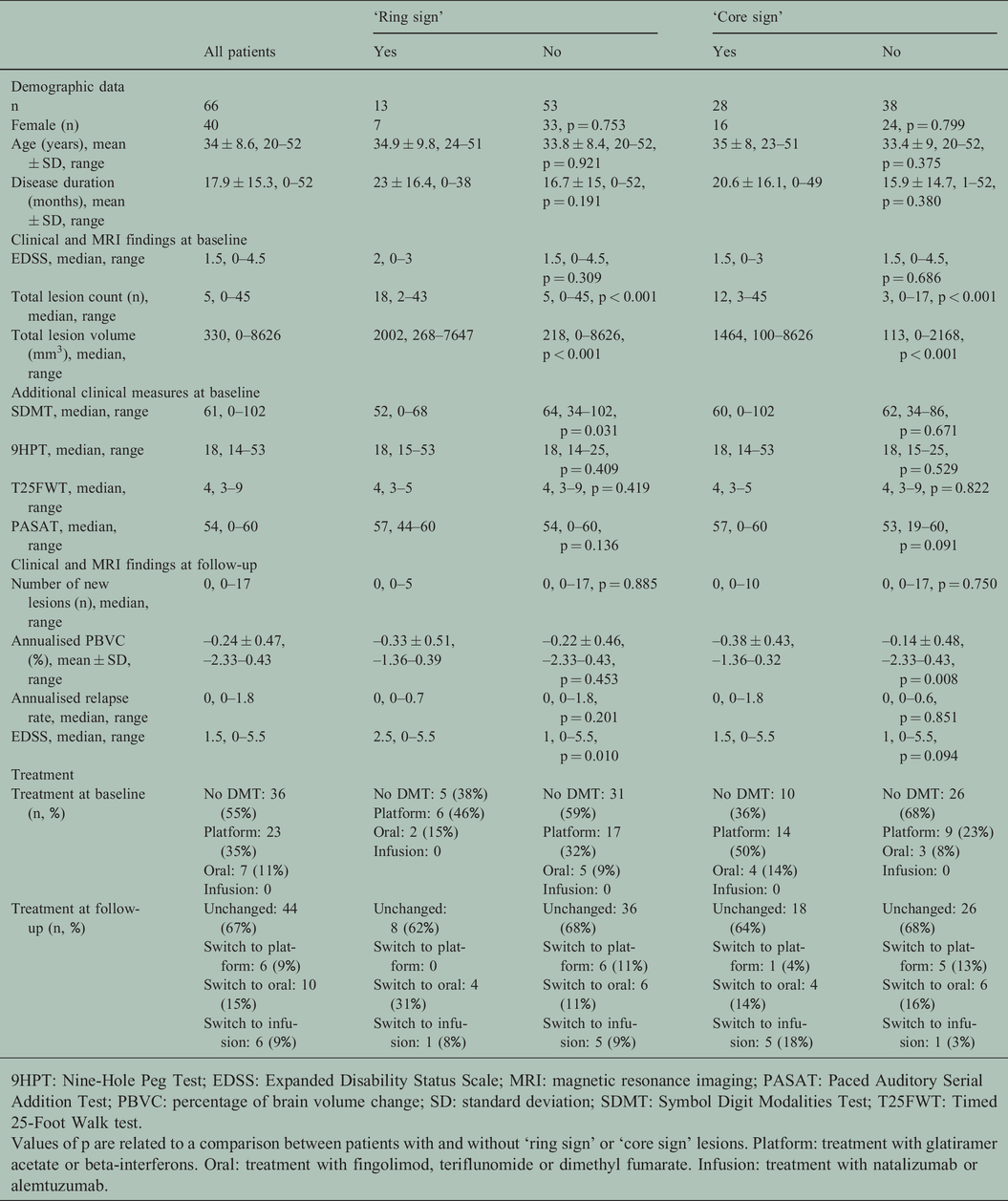

Table 1.

Cohort overview and comparison between subgroups.

	All patients	‘Ring sign’		‘Core sign’
	All patients	Yes	No	Yes	No
Demographic data
n	66	13	53	28	38
Female (n)	40	7	33, p = 0.753	16	24, p = 0.799
Age (years), mean ± SD, range	34 ± 8.6, 20–52	34.9 ± 9.8, 24–51	33.8 ± 8.4, 20–52, p = 0.921	35 ± 8, 23–51	33.4 ± 9, 20–52, p = 0.375
Disease duration (months), mean ± SD, range	17.9 ± 15.3, 0–52	23 ± 16.4, 0–38	16.7 ± 15, 0–52, p = 0.191	20.6 ± 16.1, 0–49	15.9 ± 14.7, 1–52, p = 0.380
Clinical and MRI findings at baseline
EDSS, median, range	1.5, 0–4.5	2, 0–3	1.5, 0–4.5, p = 0.309	1.5, 0–3	1.5, 0–4.5, p = 0.686
Total lesion count (n), median, range	5, 0–45	18, 2–43	5, 0–45, p < 0.001	12, 3–45	3, 0–17, p < 0.001
Total lesion volume (mm³), median, range	330, 0–8626	2002, 268–7647	218, 0–8626, p < 0.001	1464, 100–8626	113, 0–2168, p < 0.001
Additional clinical measures at baseline
SDMT, median, range	61, 0–102	52, 0–68	64, 34–102, p = 0.031	60, 0–102	62, 34–86, p = 0.671
9HPT, median, range	18, 14–53	18, 15–53	18, 14–25, p = 0.409	18, 14–53	18, 15–25, p = 0.529
T25FWT, median, range	4, 3–9	4, 3–5	4, 3–9, p = 0.419	4, 3–5	4, 3–9, p = 0.822
PASAT, median, range	54, 0–60	57, 44–60	54, 0–60, p = 0.136	57, 0–60	53, 19–60, p = 0.091
Clinical and MRI findings at follow-up
Number of new lesions (n), median, range	0, 0–17	0, 0–5	0, 0–17, p = 0.885	0, 0–10	0, 0–17, p = 0.750
Annualised PBVC (%), mean ± SD, range	–0.24 ± 0.47, –2.33–0.43	–0.33 ± 0.51, –1.36–0.39	–0.22 ± 0.46, –2.33–0.43, p = 0.453	–0.38 ± 0.43, –1.36–0.32	–0.14 ± 0.48, –2.33–0.43, p = 0.008
Annualised relapse rate, median, range	0, 0–1.8	0, 0–0.7	0, 0–1.8, p = 0.201	0, 0–1.8	0, 0–0.6, p = 0.851
EDSS, median, range	1.5, 0–5.5	2.5, 0–5.5	1, 0–5.5, p = 0.010	1.5, 0–5.5	1, 0–5.5, p = 0.094
Treatment
Treatment at baseline (n, %)	No DMT: 36 (55%) Platform: 23 (35%) Oral: 7 (11%) Infusion: 0	No DMT: 5 (38%) Platform: 6 (46%) Oral: 2 (15%) Infusion: 0	No DMT: 31 (59%) Platform: 17 (32%) Oral: 5 (9%) Infusion: 0	No DMT: 10 (36%) Platform: 14 (50%) Oral: 4 (14%) Infusion: 0	No DMT: 26 (68%) Platform: 9 (23%) Oral: 3 (8%) Infusion: 0
Treatment at follow-up (n, %)	Unchanged: 44 (67%) Switch to platform: 6 (9%) Switch to oral: 10 (15%) Switch to infusion: 6 (9%)	Unchanged: 8 (62%) Switch to platform: 0 Switch to oral: 4 (31%) Switch to infusion: 1 (8%)	Unchanged: 36 (68%) Switch to platform: 6 (11%) Switch to oral: 6 (11%) Switch to infusion: 5 (9%)	Unchanged: 18 (64%) Switch to platform: 1 (4%) Switch to oral: 4 (14%) Switch to infusion: 5 (18%)	Unchanged: 26 (68%) Switch to platform: 5 (13%) Switch to oral: 6 (16%) Switch to infusion: 1 (3%)

9HPT: Nine-Hole Peg Test; EDSS: Expanded Disability Status Scale; MRI: magnetic resonance imaging; PASAT: Paced Auditory Serial Addition Test; PBVC: percentage of brain volume change; SD: standard deviation; SDMT: Symbol Digit Modalities Test; T25FWT: Timed 25-Foot Walk test.

Values of p are related to a comparison between patients with and without ‘ring sign’ or ‘core sign’ lesions. Platform: treatment with glatiramer acetate or beta-interferons. Oral: treatment with fingolimod, teriflunomide or dimethyl fumarate. Infusion: treatment with natalizumab or alemtuzumab.

Lesion morphology at baseline

In total, we analysed 611 lesions at baseline. Of these, 64 lesions (10.5%, mean ± standard deviation (SD) per patient, range, 1.0 ± 2.3, 0–12) had a SWI hypointense core, 28 lesions had a SWI hypointense ring (4.6%, mean ± SD per patient, range, 0.4 ± 1.1, 0–6), and 19 lesions showed a diffuse SWI hypointense intralesional signal distribution (3.1%, mean ± SD per patient, range, 0.3 ± 0.8, 0–5). The remaining 500 lesions (82%) were SWI isointense. Hypointense ring lesions without contrast enhancement were larger (p < 0.001) and had lower normalised T1w intensity values (p < 0.001) in comparison to lesions without a ring. The Supplemental Material provides more information including a description of the lesion morphology of gadolinium-enhancing lesions.

The fate of SWI hypointense ring and core lesions

The ring sign persisted in 21 of all 28 ring lesions (75%, Figure 1). In seven lesions, the ring sign disappeared into SWI isointensity including all five lesions with contrast enhancement at baseline (‘acute ring sign’ lesions) as well as two others. Lesions with and without hypointense rings at baseline did not differ regarding change in normalised T1w intensity values (MWU, p = 0.207) nor T2w-FLAIR lesion volume (MWU, p = 0.077).

Figure 1.

The fate of an exemplary ‘ring sign’ lesion.

The hypointense core disappeared into SWI isointensity in 52 of 64 lesions (81%, Figure 2), nearly disappeared in two lesions (3%), and remained stable in eight lesions (13%).

Figure 2.

The fate of an exemplary ‘core sign’ lesion without contrast enhancement.

During follow-up, a distinct ring sign developed out of two hypointense core (3%) and two diffuse hypointense lesions (Figure 3). Two of them showed contrast enhancement at baseline.

Figure 3.

Transition of a ‘core sign’ lesion into a ‘ring sign’ lesion.

Lesions with and without a hypointense core at baseline did not differ regarding change in normalised T1w intensity values nor T2w-FLAIR lesion volume (all p < 0.290). Nonetheless, more hypointense core lesions were classified as ‘shrinking’ in comparison to lesions without a hypointense core (Figure 4, Fisher’s exact test p = 0.002).

Figure 4.

The fate of an exemplary contrast enhancing ‘core sign’ lesion.

Group differences at baseline: MRI measures

Twenty patients (30%) had SWI hypointense core lesions. We did not observe statistical significant differences in age, gender, disease duration or treatment between patients with and without SWI hypointense core lesions (Table 1). Patients with SWI hypointense core lesions had more T2w-FLAIR lesions (MWU, p < 0.001, Table 1), higher lesion volumes (MWU, p < 0.001, Table 1) and more contrast-enhancing lesions (MWU, p = 0.022) at baseline.

Thirteen patients (19%) had SWI hypointense ring lesions. We did not observe significant differences in age, gender, disease duration or treatment between patients with and without SWI hypointense ring lesions (Table 1). Patients with SWI hypointense ring lesions had more T2w-FLAIR lesions (MWU, p < 0.001), higher lesion volumes (MWU, p < 0.001), more contrast enhancing lesions (MWU, p = 0.002) and overall lower normalised intralesional T1w signal intensity values (MWU, p = 0.014) at baseline (see Supplemental Material for more details).

Group differences at baseline: clinical parameters

Patients with SWI hypointense core or ring lesions, did not differ regarding clinical measures including sex, age, disease duration, EDSS, MSFC, 9HPT, T25FWT and PASAT (all p > 0.091, Table 1) except for patients with SWI hypointense ring lesions who had lower SDMT values (MWU, p = 0.031, see Supplemental Material for more details).

Predictive value of SWI markers at baseline: MRI measures

A higher number of SWI hypointense core lesions per patient at baseline correlated with higher rates of brain volume loss during follow-up (PBVC, Spearman, p < 0.001, rho = –0.424), but did not predict the number of new lesions or the degree of mean normalised T1w signal intensity at follow-up (all p > 0.924, Table 1, see Supplemental Material for more details).

The number of SWI hypointense ring lesions at baseline did not predict the degree of brain atrophy during follow-up, the number of new lesions or the degree of mean normalised T1w signal intensity at follow-up (all p > 0.126, Table 1, see Supplemental Material for more details).

The analysis of the proportion of lesions with a SWI hypointense core or ring instead of the number of lesions did not significantly change the results (data not presented).

Predictive value of SWI markers at baseline: clinical parameters

An EDSS increase was observed in 17 patients (26%). Patients with SWI hypointense ring lesions had higher EDSS values at follow-up (MWU, p = 0.010, Table 1) and showed a higher EDSS increase (MWU, p = 0.032, Figure 5). In addition, the number of SWI hypointense ring lesions per patient correlated with higher EDSS values at follow-up (Spearman, p = 0.005, rho = 0.342), and EDSS change (Spearman, p = 0.021, rho = 0.289). By using a general linear model with backward selection and EDSS at follow-up as the dependent variable, and sex, age, disease duration, disease course, EDSS at baseline, lesion count, lesion volume, number of contrast enhancing lesions and SWI hypointense ring/core lesions as independent variables, only age (B = 0.029, p = 0.042), EDSS at baseline (B = 0.723, p < 0.001) and the number of SWI hypointense ring lesions at baseline (B = 0.371, p = 0.001) remained significant within the model (R² = 0.587, p < 0.001) and thus were predictive for the EDSS at follow-up (see Supplemental Material for more analyses that better illustrate that this association is independent of the overall T2w-FLAIR lesion load). The results were confirmed by bootstrapping.

Figure 5.

Boxplots.

We did not observe an association between the number of SWI hypointense core or ring lesions and any other clinical measures at follow-up including EDSS (hypointense core lesions), number of relapses, conversion from CIS to RRMS, MSFC, 9HPT, T25FWT, PASAT and SDMT (all p > 0.250). Accordingly, patients with SWI hypointense core lesions and patients with SWI hypointense ring lesions did not differ from patients without such lesions regarding these clinical outcome measures (all p > 0.094, Table 1).

The analysis of the proportion of lesions with a SWI hypointense core or ring instead of the number of lesions did not significantly change the results (data not presented).

Discussion

In this study we have investigated the temporal evolution of SWI hypointense ring and core lesions in a rather young early MS and CIS cohort to assess the prognostic relevance of these novel MRI biomarkers at the very beginning of the disease.

We observed that only a relatively small proportion of patients within our cohort had hypointense ring lesions while more patients had hypointense core lesions. Patients with either hypointense ring or core lesions had more T2w-FLAIR lesions at baseline. During follow-up, the majority of hypointense core lesions became SWI isointense and/or shrunk. Few hypointense core lesions developed into hypointense ring lesions. Hypointense ring lesions did not shrink, and only sporadic become SWI isointense over time. Finally, patients with SWI hypointense ring lesions at baseline had a more severe EDSS progression than patients without.

SWI is a gradient echo imaging technique that is sensitive to changes of the magnetic field on the microscopic level.^11,17 Thus, the presence of paramagnetic substances and changes in the magnetic microstructure of the tissue will lead to signal changes on SWI.¹⁷ This makes SWI – and other gradient echo MR imaging techniques such as T2*w imaging and quantitative susceptibility mapping (QSM) – an attractive imaging technique to explore new imaging biomarkers as it provides additional information on top of conventional MR measures.

In MS, different imaging patterns were described on SWI.^18,19 In a varying proportion of MS lesions, a distinct SWI hypointense core can be visualised.^3,5,20,21 The pathophysiological correlate of this imaging finding is not fully understood, but our data show that the SWI hypointense core does not resemble T1w hypointense lesions. One hypothesis is that the SWI hypointense core is either the consequence of a loss of diamagnetic myelin because of severe demyelination or paramagnetic iron deposits.^5,20,22 But where does the iron come from? Oligodendrocytes are by far the predominant iron-containing cells in the brain as they carry iron-requiring enzymes necessary for myelin production.²³ Intra-lesional iron deposits may thus be the consequence of dying oligodendrocytes releasing iron into the extracellular space, or reflect an increased iron-demand of oligodendrocytes during re-myelination.^23–25 Another idea is that intra-lesional iron deposits derive from leaky blood vessels within the MS lesions as a consequence of blood brain barrier (BBB) breakdown.^20,22 The observation that many young MS lesions with a nodular contrast enhancement as a sign of BBB breakdown are QSM negative, however, argues against this hypothesis.^9,26,27 In any case, all these assumptions suggest that a SWI hypointense core is a sign of disease activity and/or subsequent early repair mechanisms and thus probably reflect an imaging feature of rather younger than older MS lesions.^6,7 Our results strongly support this hypothesis as a relevant proportion of SWI hypointense core lesions shrunk or became SWI isointense over time. Also, a decrease in magnetic susceptibility over time was described in MS lesions⁷ and paramagnetic MR signal changes were more often observed in MS patients with a short versus long disease duration.⁶ Both observations are in good agreement with our results. The ‘young lesion hypothesis’ of SWI hypointense core lesions may also explain the association between the latter and higher T2w-FLAIR lesion counts or increased rates of future brain atrophy as a consequence of Wallerian degeneration. Please note that the statistical analysis remained inconclusive whether brain atrophy was indeed predicted by SWI hypointense core lesions as SWI hypointense core lesions and T2w-FLAIR lesion counts were intercorrelated.

In addition, acute and chronic paramagnetic or SWI hypointense rings (‘ring sign’) were described around a proportion of MS lesions.^10–15 Acute rings are rather thin and typically co-localise with the area of contrast enhancement in ring enhancing MS lesions.²⁸ They are likely to reflect spreading inflammatory activity including higher concentrations of proteins at the lesion edges, rather than iron deposition.²⁸ Our data is well in line with this hypothesis as most SWI hypointense rings around contrast enhancing lesions disappeared over time suggesting that this is a rather transient feature of acute MS lesions. In contrast, chronic rings are more prominent or thick on gradient echo images²⁸ and were shown to persist over a longer period of time.^4,12,29 Histopathological and PET data suggest that the SWI hypointense ring corresponds to iron within CD68 positive cells such as microglia or macrophages at the edge of (chronic) active MS lesions.^10–15 One hypothesis is that microglia and/or macrophages incorporate and redistribute the iron from the centre of the lesion to the edge during lesion development as iron sequestration by macrophages is an important inflammatory response.³⁰ This idea is further supported by a recent experimental study showing that iron induces M1 polarization of macrophages and that iron uptake is regulated by proinflammatory cytokines.³⁰ Our data is well in line with this hypothesis as we - for the best of our knowledge – for the first time visualised the development of a SWI hypointense ring out of a SWI hypointense core lesion in vivo, which might indicate a redistribution of iron as discussed above.

Following the idea of the ‘ring sign’ as an in vivo biomarker of chronic active MS lesions, different research groups have investigated whether the ‘ring sign’ is a feature of smoldering or slowly enlarging lesions and whether the presence of ‘ring sign’ lesions is associated with a worse clinical outcome.^{6,12,16-19,31-35} While some studies have indeed described an association of the ‘ring sign’ with progressive MS,³³ higher levels of clinical disability^17,33 and smoldering lesions,^12,31 others did not observe such relationships.^{6,16,32,34,35} These discrepancies are likely to be the consequence of different study populations, sample sizes and follow-up intervals. A long follow-up is of high relevance, as the lesions grow with a rate of less than 1 mm per year.¹² Our data, which includes a follow-up of up to 4.6 years did not show an enlargement of ‘ring sign’ lesions over time, but in contrast to ‘core sign’ lesions, ‘ring sign’ lesions did not shrink and showed a trend towards more enlargement compared to other lesions. Hence, it remains inconclusive whether the ‘ring sign’ is indeed a marker of slowly enlarging lesions.

Nevertheless, the existence of ‘ring sign’ lesions at baseline was associated with the degree of disability as measured by EDSS and SDMT as well as disability worsening at follow-up as measured by (change in) EDSS. This supports the idea that patients with ‘ring sign’ lesions are somehow characterised by a proinflammatory stage.^12,13,31 The magnitude of this association was, however, only moderate, and we did not observe an association with additional markers of disease progression, which suggest that other (unknown) factors significantly contribute to disability progression in CIS and early MS.

Our study is not free of limitations. Although we followed all participants over a median period of 2.9 years, this follow-up could still be too short in order to detect relatively small volume changes within slowly expanding lesions. A much longer follow-up interval is probably needed to fully understand the evolution of ring lesions in terms of size and SWI signal intensity. Also, study participants were treated with a mix of different disease modifying therapies. Although we did not observe clear differences in lesion morphology between treatment groups, the number of study participants within subgroups was limited, and the potential treatment effect of disease modifying therapies on the development of ring sign lesions remains largely unknown. Finally, the overall degree of disease activity was relatively low in this cohort, which may have reduced the power in detecting associations between SWI image characteristics and clinical outcome measures including cognitive function.

In conclusion, hypointense core lesions were frequently detectable in patients with CIS or early MS and are likely to reflect early MS lesion stages as most of them become SWI isointense over time. In our CIS and early MS cohort, only few hypointense core developed into hypointense ring lesions, and hypointense ring lesions were only rarely detectable at all. If present, they were associated with future disability progression, which renders them interesting for future clinical trials and personalised health directed approaches.
