Mathematical,Mathematics Educational,and Educational Values in Mathematical Modeling Tasks

Mathematical modeling

Professional application of each mathematical process standard used in instructional environments will help students to improve themselves in a way to achieve the desired goals. One of these process standards is mathematical modeling (National Council of Teachers of Mathematics [NCTM], 2000). Mathematical modeling is different from mathematical models. Lesh and Doerr (2003) defined mathematical models as physical objects or conceptual systems that students use to make sense of mathematical concepts. While mathematical concepts and operations used by students to understand the decimal base blocks, fraction bars and algebra tiles, such as concrete objects or manipulatives, are mathematical models (Cirillo et al., 2016), mathematical modeling is an activity involving two-way transitions between reality and mathematics in general and far more than “a ‘pseudo-realistic problem’, in which all data are given, or you only have to exercise algorithms” (Borromeo Ferri, 2018, p. 13).

Studies on mathematical modeling in education have become popular, especially after Henry Pollak’s study in 1969 entitled “How can we teach applications of mathematics” (Galbraith, 2012). Since then, different classifications and perspectives on mathematical modeling have emerged (see Kaiser-Meßmer, 1986; Kaiser & Schwarz, 2010; Kaiser & Sriraman, 2006). These different classifications and perspectives on mathematical modeling have naturally led researchers to understand the epistemological foundations of mathematical modeling differently (see Kaiser & Schwarz, 2010; Kaiser & Sriraman, 2006). Therefore, Kaiser and Sriraman (2006) felt the need to classify the different perspectives of mathematical modeling by explaining their similarities and differences. In this context, Kaiser and Sriraman classified mathematical modeling approaches into six categories as realistic or applied modeling, contextual modeling, educational modeling, socio-critical modeling, epistemological or theoretical modeling, and cognitive modeling (or meta-perspective). In addition to this classification, Kaiser and Schwarz (2010) added the model eliciting approach. Then, Blum (2015), using Kaiser and Sriraman’s (2006) classification, grouped the mathematical modeling perspectives under six different headings in terms of aim and suitable examples: applied modeling, educational modeling, socio-critical modeling, epistemological modeling, pedagogical modeling, and conceptual modeling. However, Blum’s (2015) classification does not include model eliciting approach and cognitive modeling present in the classification of Kaiser and Sriraman (2006). The classifications put forward by Kaiser and Sriraman (2006), Kaiser and Schwarz (2010), and Blum (2015) were considered together with the examples commonly used in the modeling literature, therefore it was decided to limit the scope of the present study to realistic/applied modeling (Anglo-Saxon pragmatism, mostly the UK), model eliciting approach (American problem-solving approach, mostly the U.S.), socio-critical modeling (Romanic tradition, mostly Brazil), and cognitive modeling (mostly Germany) in the mathematical modeling literature. Realistic/applied modeling is based on Anglo-Saxon pragmatism and applied mathematics. Real-life examples taken from industry-based and scientific applications have an important place in realistic/applied modeling (Kaiser & Sriraman, 2006). In model eliciting approach (Lesh & Doerr, 2003) which is based on six principles (model construction, reality, self-assessment, construct documentation, construct shareability and reusability, and effective prototype), American pragmatism is at the forefront and this approach has evolved into a process where students are revising their own models rather than classical problems solving (Kaiser & Schwarz, 2010). Socio-critical modeling, based on socio-critical approaches in political sociology, includes pedagogical purposes such as being able to understand its environment critically and also highlights the position of mathematics and mathematical modeling in society and is associated with ethnomathematics by D’Ambrosio (1999). Cognitive modeling is based on cognitive psychology and involves psychological purposes such as analysis, understanding, and development of cognitive processes involved in modeling (Kaiser & Sriraman, 2006). Meanwhile, these four different perspectives are important in terms of reflecting the mathematical modeling understanding of four different cultures; therefore, it increases the originality/value of the present study.

Mathematical modeling, mathematical values, and culture

Mathematical modeling, as mentioned above, is generally an activity involving two-way transitions between reality and mathematics (Borromeo Ferri, 2018). However, to solve the situations encountered in daily life, individuals/students need to know a certain level of mathematics and have mathematical literacy. Mathematical literacy in the Programme for International Student Assessment (PISA) surveys is defined as follows:

Mathematical literacy is an individual’s capacity to formulate, employ, and interpret mathematics in a variety of contexts. It includes reasoning mathematically and using mathematical concepts, procedures, facts and tools to describe, explain and predict phenomena. It assists individuals to recognize the role that mathematics plays in the world and to make the well-founded judgments and decisions needed by constructive, engaged and reflective citizens. (Organisation for Economic Co-operation and Development [OECD], 2013, p. 25)

On the other hand, the development of mathematics, especially mathematics teaching may vary depending on culture, is also manifested in the mathematical modeling approaches proposed in the literature. As can be seen in the mathematical modeling perspectives, each perspective reflects another culture, and thus the modeling tasks based on different mathematical modeling perspectives also bear the characteristics of these reflected cultures (e.g., Anglo-Saxon, American, Romanic tradition, and Germany). However, when the relevant literature is examined, as mentioned earlier, it is seen that there is a limited number of studies examining values, which are a component of culture, in mathematical modeling. For example, Baba and Shimada (2019) named the problems that can be encountered in daily life and included some social values in their solutions as “open-ended problem,” and in their studies, they examined “socially open-ended problems” only in terms of social values. In the present study, three mathematical value pairs, especially in Western culture context, proposed by Bishop (1991) are discussed: rationalism–objectivism, control–progress, and mystery–openness. The mathematics educational values can differ in different cultures (Baba et al., 2012). Therefore, different classifications were used together for mathematics educational values included especially the five value pairs (formalistic–activist view of mathematics learning, relational–instrumental understanding/learning, relevance–theoretical aspect of mathematics learning, accessibility–specialism of mathematics learning, and process–tool focus of mathematics learning) proposed by Seah (1999), and values determined in the “Third Wave Project” (e.g., process–product, pleasure–hardship, ability–effort, ideas and practice–facts and theories, exposition–exploration, recalling–creating) proposed by Seah (2011).

Moreover, when the related literature in mathematics education is examined, it is seen that there are studies examining the mathematical and mathematics educational values involved in the textbooks (Dede, 2006; Seah, 1999; Seah & Bishop, 2000), and the values reflected in the mathematics tasks developed by preservice mathematics teachers (Dede, Akçakın, & Kaya, 2018). However, as mentioned above, no studies have been found which examined the mathematical values involved in mathematical modeling tasks. In particular, it is seen that there are no studies examining the mathematical, mathematics educational, and educational values of the mathematical modeling tasks based on different mathematical modeling perspectives; therefore, the mathematical values of these perspectives are examined in the context of cultural difference. In this context, the present study is thought to contribute to the literature of values in the context of mathematical modeling. In this context, it is thought that this study will contribute to the literature about values in terms of mathematical modeling.

Cultural differences and mathematical modeling

Modeling involves interaction among human subjects, mathematics, and the real world. In particular, the human factor in these interactions has a role in the classification of different modeling perspectives (Jurdak, 2016), as individuals carry the characteristics of the culture that they grow up. Additionally, while individuals are developed cognitively through educational practices, relevant cultural characteristics are also transferred (Gudmunsdottir, 1990; Powe, 1993). In this way, each society has its own unique culture. Similarly, in this study, culture is defined as “a way of dividing people up into groups according to some feature of these people which helps us to understand something about them and how they are different from or similar to other people” (Scollon et al., 2012, p. 3). Each society, as mentioned above, naturally has its own culture and culture-dependent values different from others. There are studies in the literature indicating that cultural values (e.g., educational values) vary according to countries (Hofstede, 1980, 2009). Hofstede explained the differences between countries under six cultural dimensions in his study: power distance, individualism, masculinity, uncertainty avoidance, long-term orientation, and indulgence.

Power distance is defined as the criteria that less powerful individuals in a country expect and accept the unequal distribution of power. Individualism is the degree of interdependence between members of society. A high score in the masculine dimension means that the society will resist competition and success, and a low score (femininity) means that the dominant values in the social care about others and quality of life. The dimension of uncertainty avoidance is the reactions against certain/uncertain situations for the future. Long-term orientation explains how each society should establish some ties with its own past while dealing with the challenges of the present and the future. Finally, the sixth dimension is called relatively weak control (indulgence) and relatively strong control (restraint). Cooper et al. (2007) made some determinations about the transfer and impact of Hofstede’s cultural dimensions, as mentioned above, to classroom teaching practices. Accordingly, in societies with a high level of power distance, and uncertainty avoidance, teacher-centered instruction is adopted, and questioning teachers’ teaching is considered disrespectful. Additionally, individuals are obliged to make sacrifices for society, and also the avoidance of vague and unclear teaching is highlighted. On the other hand, in societies with low level of power distance, and uncertainty avoidance, student-centered teaching is encouraged; students are encouraged to ask questions where they do not understand; teaching environments based on conflict situations are prepared as an incentive for teaching; it is open to innovations and especially technological changes; in ambiguous and open learning environments, problem-solving environments are prepared. In that vein, the codes of cultural value for the four different countries covered in this study are summarized in Figure 1.

OPEN IN VIEWER

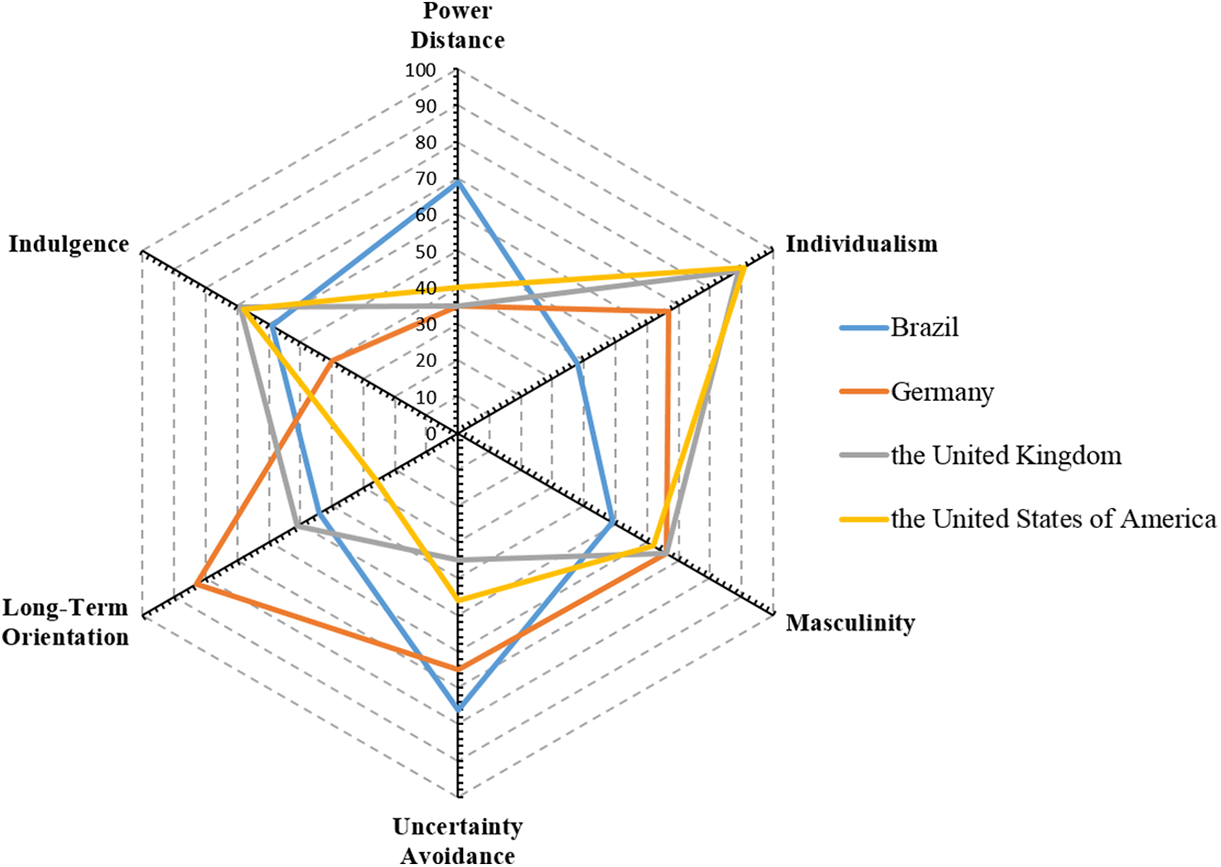

Figure 1.

Cultural value levels of societies: Brazil, Germany, the United Kingdom (UK), and the United States of America (U.S.) (Hofstede, 2009).

The six cultural values in Figure 1 represent the general value of Brazil, the UK, the U.S., and Germany. Individuals are consciously or unconsciously affected by the value structure of the country in which they live. This may affect their educational practices. Knowing the value characteristics of these four different countries can be considered as a way of understanding the value differences in the emerging modeling tasks. As can be seen in Figure 1, Brazil reflects a society that believes the hierarchy must be respected and inequalities between people are acceptable, while in other societies this ratio is generally similar and low compared to Brazil. In the dimension of individualism, it can be seen that the UK, the U.S., and Germany give priority to individualism value, whereas Brazil gives priority to collectivism value. In terms of masculinity, Brazil is in the middle of masculinity and femininity value, while in other societies, masculinity is at the forefront, meaning that competition is important and success is determined by the best of the winner or field. While Brazil and Germany tend to avoid unfamiliar and unclear situations, that is, there is no such trend in the U.S., and especially in the UK. Long-term orientation dimension points to values such as protecting the rights and dignity of each individual in society, respecting culture and tradition, and performing social responsibilities; and in other countries except Germany, this ratio is low. Again, indulgence is lower in Germany than in other countries, which means that Germany is a more restrictive country. This clearly shows that each country has its own cultural values. Borromeo Ferri (2015), for example, found differences in Western and Eastern cultures in her study of mathematical thinking styles. Different cultures produce different values (Dede, 2013, 2014; Clarkson et al., 2019) and differentiate accordingly in teaching (Seah, 2003). Because the values reflect the characteristics of the cultures (Cooper et al., 2007; Seah, 2003), the values involved in mathematical modeling tasks which are created according to different perspectives and the values reflected in the tasks prepared by the researchers educated/trained in different cultures may also vary. In this context, when the relevant literature is examined, there is no study examining the values contained in mathematical modeling tasks formed according to different perspectives (or different cultures).

Research design

This study is a qualitative research based on document review. It involves the analysis of written materials containing information about the research topic (Yıldırım & Şimşek, 2008). In this design, the documents to be examined are analyzed using a systematic procedure to find answers to specific research questions (Gross, 2018). In document review, first, the suitability of the documents for the purpose of the research should be explored. It is then necessary to check whether the content of the documents conforms to the conceptual framework of the study. Finally, the authenticity, reliability, accuracy, and representability of the documents should be explored (Bowen, 2009). In this context, the tasks discussed in the present study were selected from the studies of the leading researchers of the aforementioned perspectives (see Kaiser & Sriraman, 2006). Tasks are taken from the research studies. The documents examined in the scope of this research include writing and some of them are visual in addition to writing. However, in the scope of this research, only the writings in the documents were examined. The documents (e.g., articles, and books) were collected by reaching out to the works of leading researchers of the perspectives identified in Kaiser and Sriraman’s (2006) study. As mentioned earlier, the fact that the studies of leading researchers of the perspectives in the selection of documents are determined as an inclusive criterion. Thus, it is aimed to ensure that the relevant document is compatible with the conceptual framework of the study. As a result, the level of representation of the relevant documents was increased (see Gross, 2018). Nevertheless, the reliability, accuracy, and representativeness of the documents obtained were reviewed by the researchers.

Data collection

A total of 16 mathematical modeling tasks, 4 from each modeling perspective, were examined. After determining the tasks to be analyzed, repeated review, examination, and interpretation performed to gain meaning and empirical knowledge of the values in these modeling tasks. Sample tasks for each mathematical modeling perspective are presented in Table 1.

OPEN IN VIEWER

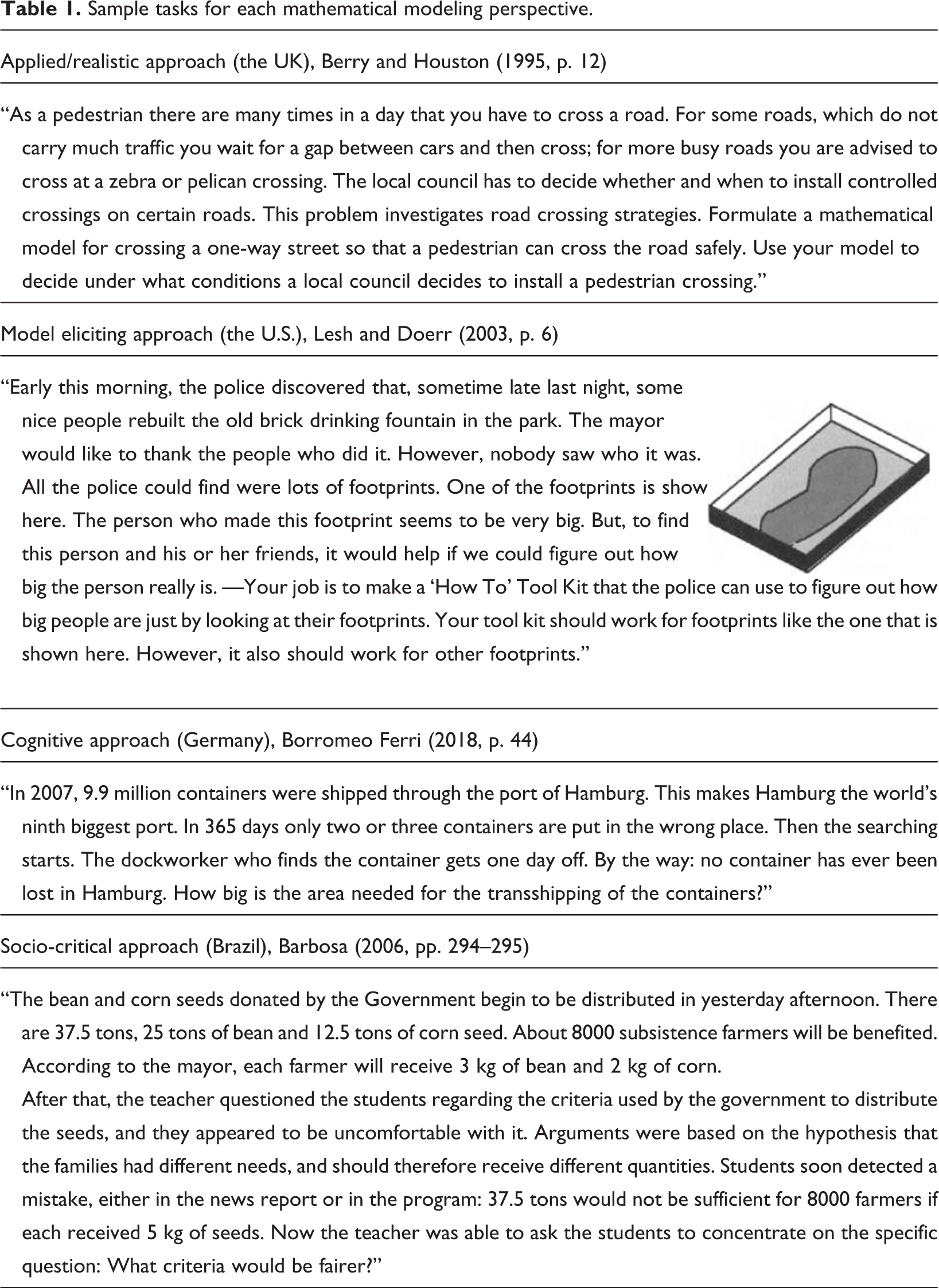

Table 1.

Sample tasks for each mathematical modeling perspective.

Applied/realistic approach (the UK), Berry and Houston (1995, p. 12)

“As a pedestrian there are many times in a day that you have to cross a road. For some roads, which do not carry much traffic you wait for a gap between cars and then cross; for more busy roads you are advised to cross at a zebra or pelican crossing. The local council has to decide whether and when to install controlled crossings on certain roads. This problem investigates road crossing strategies. Formulate a mathematical model for crossing a one-way street so that a pedestrian can cross the road safely. Use your model to decide under what conditions a local council decides to install a pedestrian crossing.”

Model eliciting approach (the U.S.), Lesh and Doerr (2003, p. 6)

“Early this morning, the police discovered that, sometime late last night, some nice people rebuilt the old brick drinking fountain in the park. The mayor would like to thank the people who did it. However, nobody saw who it was. All the police could find were lots of footprints. One of the footprints is shown here. The person who made this footprint seems to be very big. But, to find this person and his or her friends, it would help if we could figure out how big the person really is. ---Your job is to make a ‘How To’ Tool Kit that the police can use to figure out how big people are just by looking at their footprints. Your tool kit should work for footprints like the one that is shown here. However, it also should work for other footprints.”

Cognitive approach (Germany), Borromeo Ferri (2018, p. 44)

“In 2007, 9.9 million containers were shipped through the port of Hamburg. This makes Hamburg the world’s ninth biggest port. In 365 days only two or three containers are put in the wrong place. Then the searching starts. The dockworker who finds the container gets one day off. By the way: no container has ever been lost in Hamburg. How big is the area needed for the transshipping of the containers?”

Socio-critical approach (Brazil), Barbosa (2006, pp. 294–295)

“The bean and corn seeds donated by the Government begin to be distributed in yesterday afternoon. There are 37.5 tons, 25 tons of bean and 12.5 tons of corn seed. About 8000 subsistence farmers will be benefited. According to the mayor, each farmer will receive 3 kg of bean and 2 kg of corn. After that, the teacher questioned the students regarding the criteria used by the government to distribute the seeds, and they appeared to be uncomfortable with it. Arguments were based on the hypothesis that the families had different needs, and should therefore receive different quantities. Students soon detected a mistake, either in the news report or in the program: 37.5 tons would not be sufficient for 8000 farmers if each received 5 kg of seeds. Now the teacher was able to ask the students to concentrate on the specific question: What criteria would be fairer?”

Data analysis

The data were analyzed using semantic content analysis, one of the qualitative research data analysis methods. It is the process of creating a category to explore the main subject areas at the core of the data analyzed and the specific subareas that these areas contain (Tavşancıl & Aslan, 2001). In the present study, in mathematical modeling tasks, mathematical values, mathematics educational values, and educational values are the main subject areas. In this sense, the analysis unit can be word, theme, character or person, sentence or paragraph, and content (Yıldırım & Şimşek, 2008). Considering the possibility of missing the meaning of the sentence in the analysis of words and paragraphs (Yıldırım & Şimşek, 2008), in the present study, the mathematical values, mathematics educational values, and educational values reflected in the mathematical modeling tasks are examined in terms of values at the sentence level by focusing on the meaning of the sentences of the modeling tasks taking into account the indicators of the aforementioned values (see Dede, 2006, 2012; Seah, 1999, 2011). It should be noted that a value can be both mathematical, mathematics educational, and educational value. A sample of how data analysis is performed is also presented on the “bean and corn” task in Table 2. Due to the page number and word count limit, not all activities and analyses can be added.

OPEN IN VIEWER

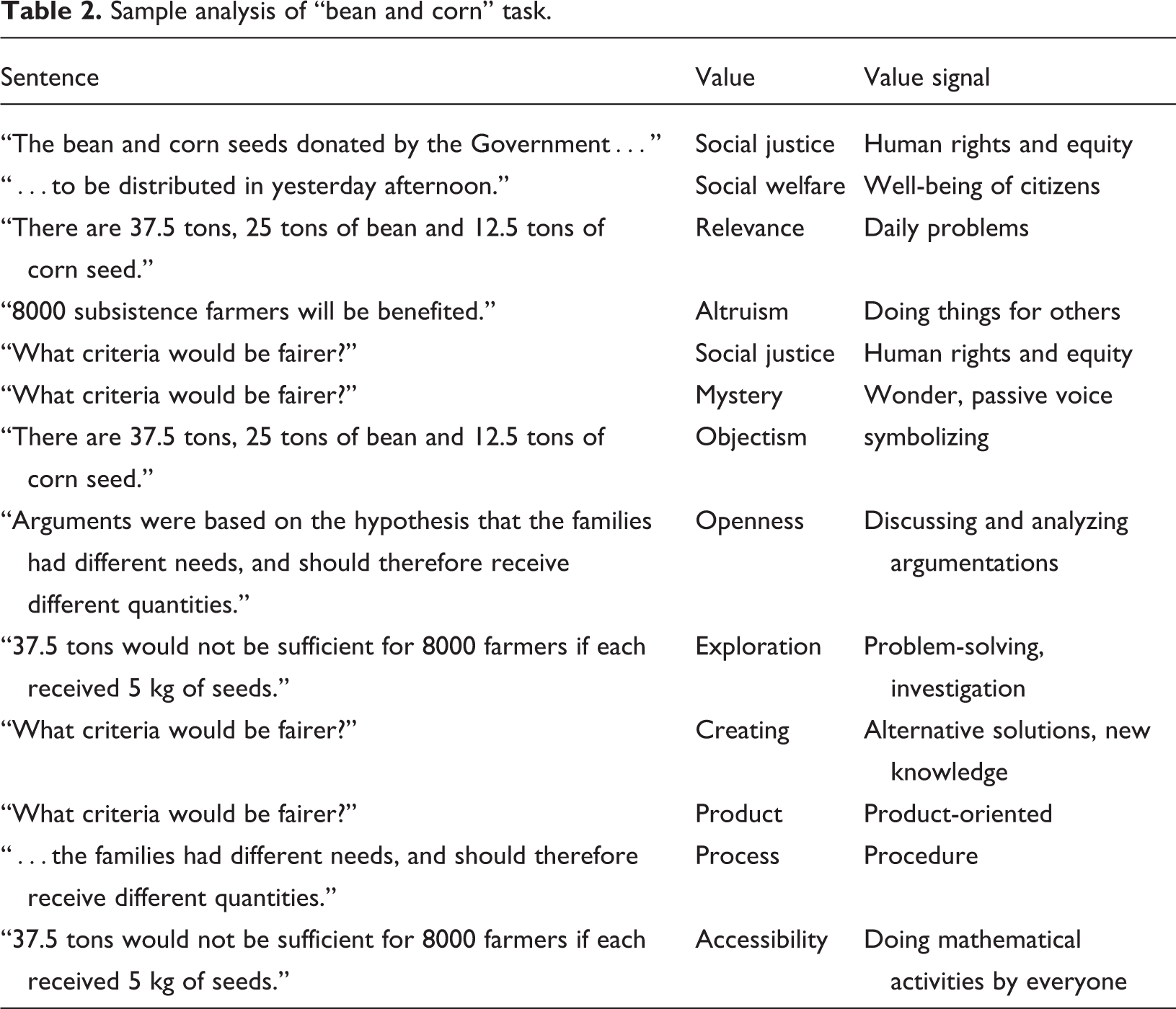

Table 2.

Sample analysis of “bean and corn” task.

Sentence	Value	Value signal
“The bean and corn seeds donated by the Government…”	Social justice	Human rights and equity
“…to be distributed in yesterday afternoon.”	Social welfare	Well-being of citizens
“There are 37.5 tons, 25 tons of bean and 12.5 tons of corn seed.”	Relevance	Daily problems
“8000 subsistence farmers will be benefited.”	Altruism	Doing things for others
“What criteria would be fairer?”	Social justice	Human rights and equity
“What criteria would be fairer?”	Mystery	Wonder, passive voice
“There are 37.5 tons, 25 tons of bean and 12.5 tons of corn seed.”	Objectism	symbolizing
“Arguments were based on the hypothesis that the families had different needs, and should therefore receive different quantities.”	Openness	Discussing and analyzing argumentations
“37.5 tons would not be sufficient for 8000 farmers if each received 5 kg of seeds.”	Exploration	Problem-solving, investigation
“What criteria would be fairer?”	Creating	Alternative solutions, new knowledge
“What criteria would be fairer?”	Product	Product-oriented
“…the families had different needs, and should therefore receive different quantities.”	Process	Procedure
“37.5 tons would not be sufficient for 8000 farmers if each received 5 kg of seeds.”	Accessibility	Doing mathematical activities by everyone

Trustworthiness of the study

Qualitative research methods are generally preferred, as quantitative studies on values in mathematics education can lead to subjective and disputable insights due to the nature of these values. The reliability and validity of qualitative research methods is provided with triangulation (Seah, 2008). In this sense, in the context of the different mathematical modeling perspectives proposed by Kaiser and Sriraman (2006), Kaiser and Schwarz (2010), and Blum (2015), the values emerged in the current study were compared with Bishop’s (1991), Seah’s (1999, 2011) categories of mathematical values, and Hofstede’s (2009) cultural value categories so that “theoretical triangulation” (Cohen et al., 2000, p. 113) was implemented on the values. In addition, different mathematical modeling perspectives have been extensively included in the text, and in this way, an in-depth description and richness has been sought in the transmission of findings (see Creswell, 2012). The reliability of data was ensured with peer review. Peer review can be conceived as an external control procedure for the reliability of the study (Lincoln & Guba, 1985). Thus, values coded by the researchers were sent to three separate researchers, all of whom have a PhD degree in mathematics education. In the light of expert feedbacks, values were updated. Once all the categories were examined, the concordance correlation coefficients between the researchers and experts in mathematics education were calculated as 0.83, 087, and 0.81 respectively.

Mathematical values

In terms of mathematical values, socio-critical modeling perspective (Brazil) differs from all other perspectives (applied/realistic, cognitive, and model eliciting). In particular, the value of objectism was only involved in tasks as to socio-critical modeling perspective. Two of the cognitive modeling tasks involve the value of progress, and this value was also involved in all of the socio-critical modeling tasks. Control, mystery, and openness values were involved in all four perspectives (socio-critical, applied/realistic, cognitive, and model eliciting). Rationalism value was involved in some of the tasks in the socio-critical modeling perspective and was only involved in one of the tasks which belong to applied/realistic perspective. Examples of the analysis process are presented in Table 3.

OPEN IN VIEWER

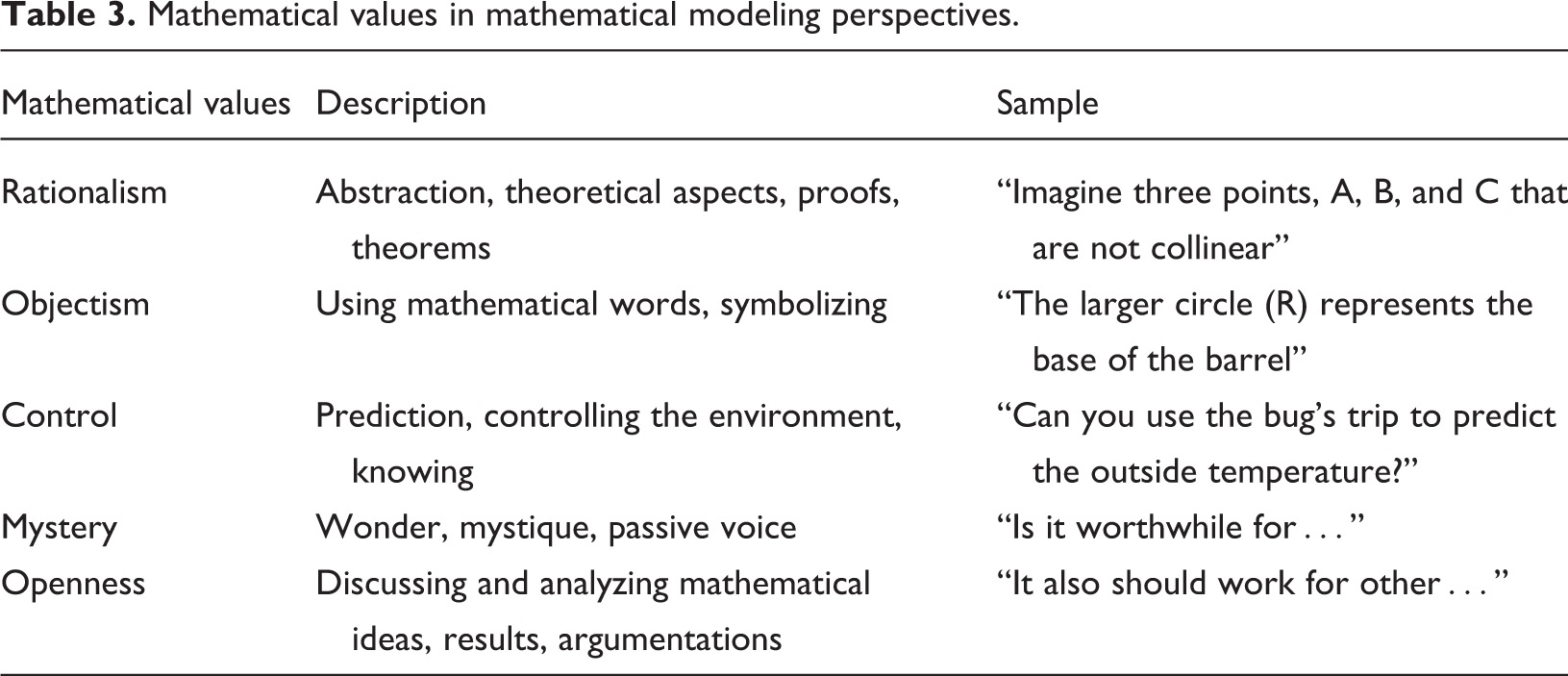

Table 3.

Mathematical values in mathematical modeling perspectives.

Mathematical values	Description	Sample
Rationalism	Abstraction, theoretical aspects, proofs, theorems	“Imagine three points, A, B, and C that are not collinear”
Objectism	Using mathematical words, symbolizing	“The larger circle (R) represents the base of the barrel”
Control	Prediction, controlling the environment, knowing	“Can you use the bug’s trip to predict the outside temperature?”
Mystery	Wonder, mystique, passive voice	“Is it worthwhile for…”
Openness	Discussing and analyzing mathematical ideas, results, argumentations	“It also should work for other…”

Mathematics educational values

In terms of mathematics educational values, all modeling tasks involved the values of product, process, exploration, creating, relevance, pleasure, and application. Accessibility value was involved in all modeling tasks except three of the modeling tasks as to applied/realistic modeling perspective. The value of specialism involved in two modeling tasks of applied/realistic perspectives and theoretical value involved in two modeling tasks of socio-critical modeling perspective. Examples of the analysis process are presented in Table 4.

OPEN IN VIEWER

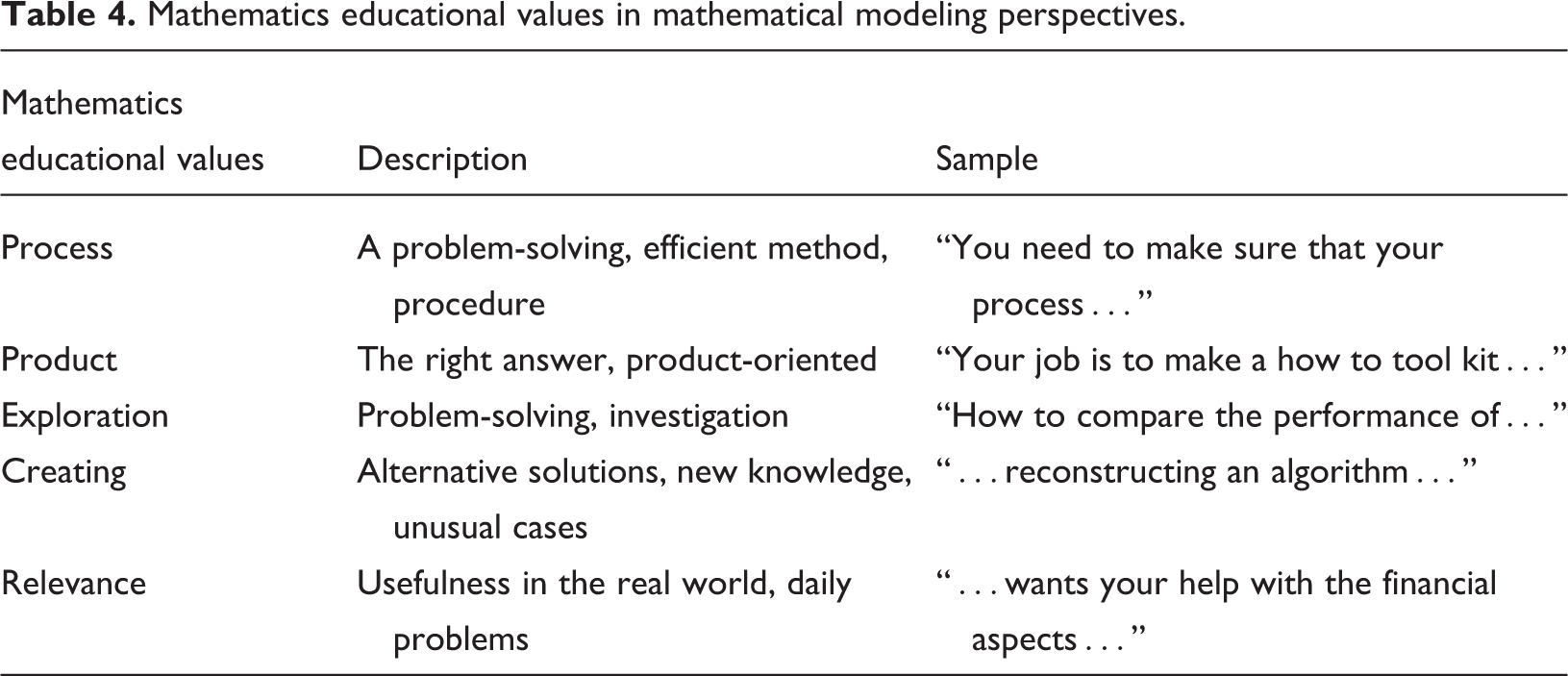

Table 4.

Mathematics educational values in mathematical modeling perspectives.

Mathematics educational values	Description	Sample
Process	A problem-solving, efficient method, procedure	“You need to make sure that your process…”
Product	The right answer, product-oriented	“Your job is to make a how to tool kit…”
Exploration	Problem-solving, investigation	“How to compare the performance of…”
Creating	Alternative solutions, new knowledge, unusual cases	“…reconstructing an algorithm…”
Relevance	Usefulness in the real world, daily problems	“…wants your help with the financial aspects…”

Educational values

In the context of educational values, social justice, equity, social welfare, humanity, and altruism (“…donated by the Government.” “What criteria would be fairer?” and “Landless Peoples’ Movement”) values come to the forefront in the tasks that take place in socio-critical modeling perspective. On the other hand, in the tasks as to model eliciting approach, individualism (“…which should be rehired…”) appears to be prominent. Examples of the analysis process are presented in Table 5.

OPEN IN VIEWER

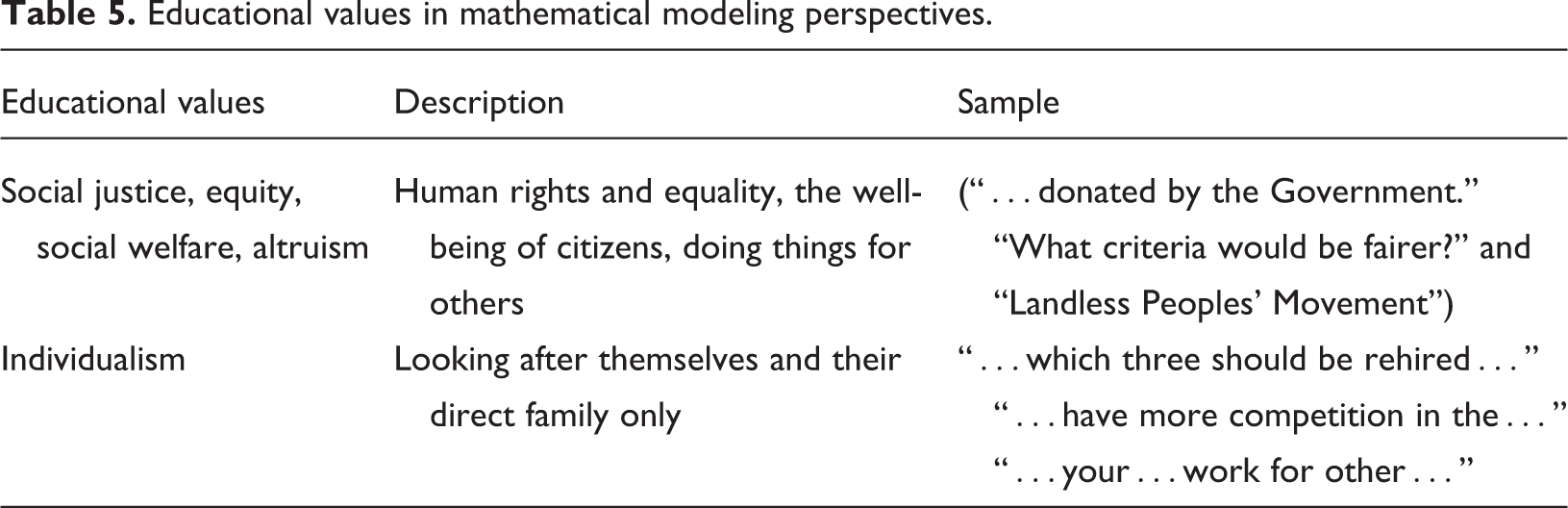

Table 5.

Educational values in mathematical modeling perspectives.

Educational values	Description	Sample
Social justice, equity, social welfare, altruism	Human rights and equality, the well-being of citizens, doing things for others	(“…donated by the Government.” “What criteria would be fairer?” and “Landless Peoples’ Movement”)
Individualism	Looking after themselves and their direct family only	“…which three should be rehired…” “…have more competition in the…” “…your…work for other…”
