Abstract
A recent theory posits that prediction deficits may underlie the core symptoms in autism spectrum disorder (ASD). However, empirical evidence for this hypothesis is minimal. Using a visual extrapolation task, we tested motion-prediction abilities in children and adolescents with and without ASD. We examined the factors known to be important for motion prediction: the central-tendency response bias and smooth-pursuit eye movements. In participants with ASD, response biases followed an atypical trajectory that was dominated by early responses. This differed from control participants, who exhibited response biases that reflected a gradual accumulation of knowledge about stimulus statistics. Moreover, although better smooth-pursuit eye movements for the moving object were linked to more accurate motion prediction in control participants, in participants with ASD, better smooth pursuit was counterintuitively linked to a more pronounced early-response bias. Together, these results demonstrate atypical visual prediction abilities in people with ASD and offer insights into possible mechanisms underlying the observed differences.
Prediction is a fundamental brain function that enables more effective interaction with an inherently dynamic environment (Heeger, 2017). It allows people not only to make inferences about the future but also to interpret the current events in the context of past history. A recent theory proposes that this ability to make predictions is impaired in individuals with autism spectrum disorder (ASD; Gomot & Wicker, 2012; Hellendoorn et al., 2015; Pellicano & Burr, 2012; Sinha et al., 2014). The theory posits that the seemingly distinct core deficits associated with ASD—social communication challenges and the presence of restricted and repetitive behaviors—may be explained by fundamental deficits in detecting predictive relationships in the environment (Sinha et al., 2014). For example, theory of mind, a well-known challenge for individuals with ASD (e.g., Baron-Cohen, 2000), requires predicting another individual’s emotional or cognitive states on the basis of both immediately available social cues and one’s previous history of observations about this person. Likewise, ASD symptoms related to insistence on sameness have been conceptualized as a way to cope with the unpredictability of the world (Markram & Markram, 2010; Sinha et al., 2014).
In the present study, we examined the integrity of visual motion-prediction abilities—a domain in which events unfold rapidly, sometimes within a millisecond timescale—in individuals with ASD. A prediction impairment on such a brief timescale can have negative consequences on everyday visual tasks in which individuals interact with dynamic objects. For instance, children with ASD may have difficulty catching balls (Jasmin et al., 2009; Whyatt & Craig, 2012), which is often attributed to gross motor difficulties. However, deficits in visual prediction may offer an alternative explanation, one that is more consistent with firsthand accounts of such difficulties (Sinha et al., 2014). In addition, visual motion processing is a well-characterized sensory function and has been used in a wide range of studies to make inferences about higher level cognitive functions (Park & Tadin, 2018; Pasternak & Tadin, 2020). Thus, testing visual motion prediction offers a tractable way to study prediction mechanisms in people with ASD, with possible implications for both perceptual behavior and general prediction abilities in people with ASD.
Prediction, even in its arguably simpler visual form, is not a unitary process. Motion-prediction performance is affected by several key perceptual and oculomotor factors (Bosco et al., 2015). A growing number of studies have emphasized the role of extraretinal signals (i.e., sources of motion information available outside of retinal visual signals), such as those from eye movements, in facilitating motion prediction. Typically, observers visually track a moving object using smooth-pursuit eye movements. As the object disappears behind an occluder, smooth-pursuit velocity diminishes, and people make predictive saccadic eye movements to the target location where the object would arrive (Bennett & Barnes, 2003, 2004; Diaz et al., 2013; Orban de Xivry et al., 2006). Critically, studies have shown that better quality of pursuit is associated with better prediction performance (Delle Monache et al., 2014; Spering et al., 2011, 2013). The rationale is that extraretinal signals from smooth pursuit provide additional information about object motion (Spering et al., 2011), which is especially useful when visual stimulation is absent (e.g., during occlusion).
Motion prediction relies not only on current sensory inputs but also on the recent history of object motion (Kwon & Knill, 2013). As people gain knowledge on the statistics of a stimulus distribution, they integrate that with the current sensory information to make perceptual judgments (Knill & Pouget, 2004). As a result, responses are subject to different sources of bias, depending on the statistics of the learned stimulus distributions. One particular example is the central-tendency bias (Hollingworth, 1910), in which people’s perceptual estimates are biased toward or away from the mean of the stimulus distribution. This pattern has been observed not only in motion prediction (Kwon & Knill, 2013) but also in a wide range of tasks and domains (Hollingworth, 1910; Jazayeri & Shadlen, 2010; Makin et al., 2009; Verstynen & Sabes, 2011). Although the existence of bias might seem maladaptive at first glance, it reflects the visual system’s strategy to make the best possible predictions under conditions of uncertainty by using prior observations. In fact, overall performance error decreases when the magnitude of the central-tendency bias is optimal (e.g., Jazayeri & Shadlen, 2010).
Thus, together with the extraretinal signals, prior knowledge of stimulus distributions is a cue one can rely on for visual motion prediction. This may be of particular importance in ASD research given recent proposals on how individuals with ASD integrate current sensory estimates with past knowledge. Specifically, the theory postulates that individuals with ASD are less influenced by prior information when making perceptual judgments (Pellicano & Burr, 2012; for an alternative hypothesis, see Brock, 2012). Similar patterns of behavior (i.e., increased sensitivity to current sensory stimulation and less emphasis on the past) have been more recently hypothesized and characterized by a broader framework of predictive processing in ASD as a tendency for greater weighting on prediction errors (e.g., Van de Cruys et al., 2014; for a review, see Palmer et al., 2017).
Studies in people with ASD have had mixed findings on whether motion-prediction abilities and the associated ocular responses are impaired in this population. A recent study reported an impairment in young adults with ASD when making predictions during straight self-motion (i.e., forward motion) but not curved trajectories (Sheppard et al., 2016), whereas another study reported no deficits in children and young adolescents with ASD for horizontal motion (Tewolde et al., 2018). Some evidence suggests atypicalities in a variety of basic eye-movement characteristics across a wide age range of people with ASD (Freedman & Foxe, 2018; Sweeney et al., 2004; Takarae et al., 2004), which in turn can deteriorate prediction in cases in which extraretinal signals might be essential. In tasks in which eye movements reflected predictions, fewer predictive saccades in adolescents with ASD have been reported (Goldberg et al., 2002). However, other studies have shown intact anticipatory pursuit (Aitkin et al., 2013; Ego, Bonhomme, et al., 2016) and intact pursuit gain and predictive acceleration during occlusion (Ego, Bonhomme, et al., 2016) in adolescents and young adults with ASD. These studies used highly “predictable” conditions (e.g., saccade targets alternated at regular intervals, or use of a fixed occlusion duration) to specifically assess whether the eye movements reflect or aid predictions. Such regularity, however, makes it difficult to assess possible group differences in more dynamic conditions that are common in the natural environment.
Here, we investigated motion-prediction abilities in children and adolescents with ASD and in age- and IQ-matched typically developing (TD) control participants. We used a simple hitting task (Fig. 1a) in which participants extrapolated the motion of a briefly presented stimulus (constant speed) and made a key-press response when they thought the stimulus had arrived at a target location (Kwon & Knill, 2013). The task is similar to natural interception behaviors, which often directly impose prediction demands. Imagine catching a ball in baseball. The available visual information is limited by various sources (e.g., occlusion from other players or changes in one’s own gaze) such that one needs to predict the motion trajectory for appropriate action. To evaluate individuals’ prediction performance and understand how they make use of available information, we manipulated the stimulus duration before occlusion (visible duration) as well as the time to arrival (occluded duration).

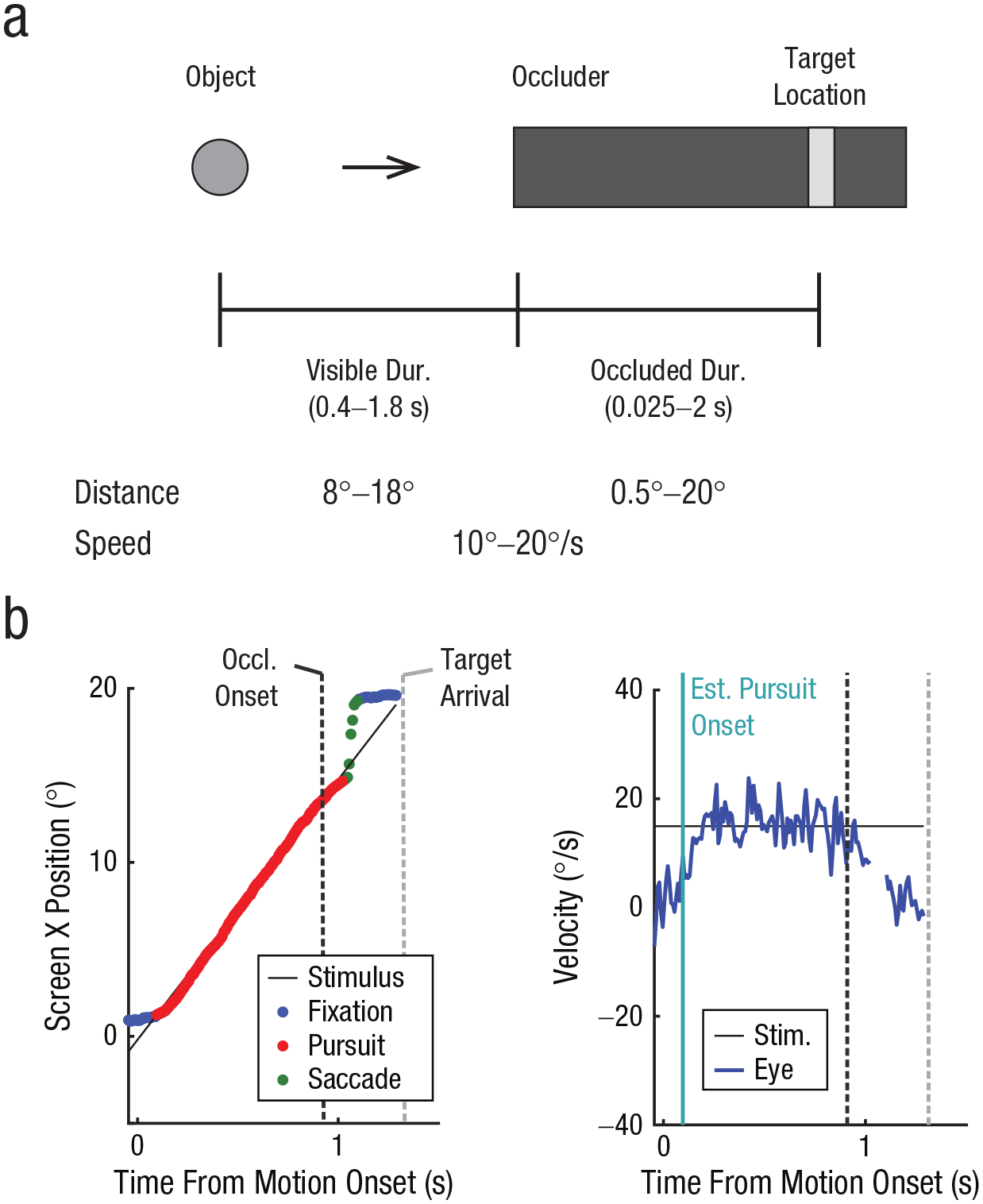

Schematic illustrations of experimental setting (a). The actual moving object was a bird from a popular smartphone game (Angry Birds; Rovio Entertainment, 2009), here depicted as a gray circle. The object moved for varying durations (visible dur.) before it disappeared behind the occluder (darker gray bar). Participants responded when they thought that the object had arrived at the target location (lighter gray bar). The actual target arrival time (occluded dur.) also varied from trial to trial. The visible and occluded durations were determined by sampling the distance and speed from uniform distributions (see Method). An example eye-movement trace from one participant (b). Darker and lighter vertical dashed lines indicate occluder onset and the actual target arrival time, respectively. Horizontal eye position is shown in the left panel. Each dot is an eye-movement sample, and the color reflects the classification according to our analysis (see Method). Eye-velocity trace is shown in the right panel, with saccade removed. Occl. = occlusion; Est. = estimated.
The goal of the study was twofold. First, we tested whether individuals with ASD are impaired in motion prediction. For this, we measured the different types of prediction errors, that is, bias (nonrandom error) and variability (random error) in each participant’s behavioral key-press responses. Given the proposals of prediction in people with ASD, we hypothesized worse prediction performance (i.e., larger bias and/or greater intraindividual variability in behavioral responses) in this population. Such impairment should be more prominent at longer occluded durations in which there is greater prediction demand.
Second, we investigated whether the prediction performance of people with ASD is related to atypicalities in the use of relevant information that are known to affect motion prediction: (a) central-tendency bias and (b) smooth-pursuit eye movements. Specifically, we examined whether individuals with ASD learn and integrate the statistics of past hitting time (i.e., occluded duration) into their predictions. This effect would manifest itself as a progressive development of central-tendency bias in which their behavioral responses are biased toward the mean of the distribution throughout the experiment (Kwon & Knill, 2013). For smooth-pursuit eye movements, we tested whether individuals with ASD take advantage of smooth pursuit in making predictions. Past studies have shown that in typical populations, prediction performance is better when participants visually pursue a moving object (vs. when they fixate; Spering et al., 2011, 2013). Moreover, these studies have also observed that as stimulus presentation (visible duration) becomes longer, both the smooth-pursuit quality and prediction-performance increases, suggesting that participants benefit from smooth pursuit in making motion predictions. Given this finding, we examined the integrity of such a relationship between smooth pursuit and prediction performance in people with ASD across visible durations. Together, these analyses allowed us to better parse out the prediction errors driven by different sources and gain further insights on possible differential use of relevant cues for motion prediction in people with ASD.
Method
Participants
Twenty-six children and adolescents (age range = 9–17 years) with ASD (25 male) and 20 TD control participants (18 male) were included in the study. Participants were recruited if they were in this age range with IQ greater than 80. Exclusion criteria for both groups included uncorrected vision (screened over the phone and confirmed at the first lab visit), diagnosis of a neurological disorder or injury, or injuries affecting eye movements. TD participants were further excluded if they had received other mental health (e.g., attention-deficit/hyperactivity disorder, depression, anxiety) or learning/behavioral diagnoses or if they had a first-degree relative with ASD. Participants recruited for the ASD group were required to have a previous clinical diagnosis of ASD.
We confirmed or ruled out an ASD diagnosis at the research visit with a combination of the Autism Diagnostic Observation Schedule (ADOS; Lord et al., 1999) and either the Autism Diagnostic Interview–Revised (ADI-R; Rutter et al., 2003a) with parents of participants with ASD or the Social Communication Questionnaire (SCQ; Rutter et al., 2003b) with parents of TD participants. An examiner trained to establish research reliability according to the authors’ guidelines administered the ADOS and ADI-R, and a licensed clinical psychologist made final diagnostic decisions. In a subset of participants with ASD (n = 19), we also collected a 20-item parent-report measure of symptoms of inattention and impulsivity, the Swanson, Nolan, and Pelham Rating Scale IV (SNAP-IV; Bussing et al., 2008). IQ was measured by abbreviated versions of the fourth edition of the Wechsler Intelligence Scale for Children (Wechsler, 2003) or the fourth edition of the Wechsler Adult Intelligence Scale (Wechsler, 2008), selected according to participant age.
The groups were matched on both age (ASD group: M = 13.3, SD = 2.0; TD group: M = 13.6, SD = 2.3), t(44) = 0.46, p = .65, and full-scale IQ (ASD group: M = 106.1, SD = 16.7; TD group: M = 113.5, SD = 14.6), t(44) = 1.6, p = .12. The mean ADOS severity score was 6.85 (SD = 1.41) for participants with ASD and 1.45 (SD = 0.89) for TD participants. Parents reported on their child’s race/ethnicity and annual household income. Eighty-seven percent of participants identified as White (TD group = 18; ASD group = 22), and 13% of participants identified as more than one race (TD group = 2; ASD group = 4). Annual household income was distributed as follows: 13%, less than $50,000 (ASD group = 5); 13%, $50,000 to $75,000 (TD group = 4; ASD group = 2); 26%, $75,001 to $100,000 (TD group = 6; ASD group = 6); 32.6%, $100,001 to $200,000 (TD group = 6; ASD group = 9); and 4.3%, more than $200,000 (TD group = 1; ASD group = 1). Income information was not reported for five participants (ASD group = 2; TD group = 3). Participants with ASD were generally high functioning (full-scale IQ > 80 for all but one participant), and all had fluent and complex speech. Several participants were excluded from eye-tracking analyses because of calibration difficulties with individuals wearing glasses (ASD group = 5; TD group = 1) or because less than 15% of trials were deemed usable (ASD group = 3; TD group = 1; for details, see Eye-Movement Analysis). Thus, the sample for all eye-movement analyses consisted of 18 participants with ASD and 18 TD control participants. This subsample was also matched on age, t(34) = −0.25, p = .81, and full-scale IQ, t(34) = −1.07, p = .29. The mean ADOS severity score for this subset of participants with ASD was 6.61.
All participants had normal or corrected-to-normal visual acuity (20/40) as assessed with the Snellen eye chart. Parents gave written informed consent, and participants gave assent. All participants were paid for participation. Procedures were approved by the Research Subjects Review Board at the University of Rochester in accordance with the Declaration of Helsinki.
Apparatus
Stimuli were created in MATLAB (The MathWorks, Natick, MA) and Psychophysics Toolbox (Brainard, 1997; Pelli, 1997) and were shown on a customized linear DLP projector (DepthQ WXGA 360; Lightspeed Design, Bellevue, WA) at 1,280 × 720-pixel resolution. The projector presented gray-scale images at a frame rate of 120 Hz. Viewing distance was 135 cm, and each pixel subtended 2 arcmin of visual angle. Eye position was recorded using a desk-mounted video-based eye tracker (Eyelink 1000; SR Research, Ottawa, ON, Canada) at a sampling rate of 120 Hz, matching the frame rate of our display. Recording was binocular, but the data from only one eye (selected according to which eye had the smaller overall standard deviation in eye velocity on a given trial) were analyzed. We recorded eye position from 250 ms before the onset of stimulus motion until participants’ response. Calibration was performed at the beginning of each block. A chin rest was used to support a still seated position, and an experimenter was in the experiment room with participants to encourage on-task behavior. An interactive visual schedule, in which participants marked the completion of each block, was used to facilitate progress and maintain motivation. Subjectively, we observed a high degree of participant motivation throughout the experiment. We speculate that this was due in part to the game-like task design of our experiment.
Stimuli, task, and experimental design
The stimulus was a moving bird (2 × 2°) from a popular mobile game, Angry Birds (Rovio Entertainment, 2009) presented on a gray background (Fig. 1a). The initial position of the stimulus was always at the left-most side of the screen, and the moving direction was always left to right. The occluder was a long rectangle (dark gray) with 5° height that extended to the right-most side of the screen. Within the occluder, a bar (light gray; 1° width and same height as the occluder) was placed to indicate the target location.
We manipulated the main variables of our study—visible and occluded durations—by independently and randomly sampling the stimulus speed, visible distance, and occluded distance (i.e., target location). Across trials, speed and visible distance were randomly sampled from a uniform distribution (speed: 10°–20°/s; visible distance: 8°–18°). For each trial, the stimulus moved at a constant speed and fixed distance before it disappeared behind an occluder. Together, this resulted in a distribution of visible durations that ranged between 0.4 s and 1.8 s. The occluded distance was randomly sampled from a uniform distribution between 0.5° and 20°, yielding a range of occluded durations between 0.025 s and 2 s.
Each trial began with a dynamic circle (Foss-Feig et al., 2013) that appeared at the initial stimulus position and then shrank in size (from 0.63° to 0.1° in radius over 250 ms) until it disappeared. After 250 ms, the stimulus appeared on the screen, moved horizontally rightward, and disappeared behind the occluder. Participants were instructed to press the space bar when they thought the stimulus had arrived at the target location. A trial was counted as correct if the distance between participants’ response (i.e., as indicated by the location of the stimulus center when the space bar was pressed) and the designated target location was less than 1.5°. On these correct trials, the bird visually bounced by increasing and decreasing its size repetitively over 1 s, paired with a sound. When participants were incorrect, the position of the bird at the time of participants’ button press was shown for 1 s as visual feedback. Note that correct and incorrect trials were used only for feedback; participants’ keyboard responses were recorded and analyzed as a continuous measure (i.e., when they pressed the space bar in relation to the actual arrival time at the target location).
To evaluate the central-tendency bias and ensure that the statistical properties of the stimulus distributions are appropriately learned (Berniker et al., 2010; Kwon & Knill, 2013), we asked participants to complete 400 trials total in a single session, distributed across four experimental blocks (100 trials each). Each block took approximately 7 to 8 min, and breaks were given in between.
Prediction-performance analysis
We report two types of error in prediction performance: bias and variability. Both absolute bias (responded time minus actual time) and relative bias (responded time divided by actual time) were calculated, and variability was estimated by taking the standard deviation of absolute and relative biases. The use of relative bias allowed us to average the data across trials and conditions when needed. Given that our stimulus (a bird) was inherently asymmetric in visual features, the centroid of the bird was used as its position in obtaining these bias and variability measures (for the centroid extraction method, see Section S1 in the Supplemental Material available online).
We discarded the trials in which the target location was too close to the starting point of the occluder such that participants could make a response while the stimulus was still visible (i.e., no prediction required; occluded distance < 1°; < 2.4% of trials). We also excluded outlier trials that were greater than 3 SD in relative bias (< 3% of trials). Note that trials excluded for these reasons were also excluded in all eye-movement analyses. When analyzing prediction performance alone, we used an average of 393 trials per participant (out of 400).
To examine the changes in overall prediction performance with increasing prediction demand, we binned the trials into 10 or five bins (depending on the analysis) according to occluded duration such that each bin contained an approximately equal number of trials. Absolute bias and variability in participants’ key-press responses were calculated for each bin.
Analyses of the development of central-tendency bias
To evaluate the possible differences in the central-tendency bias between the ASD and TD groups, we first compared the pattern of prediction bias in Blocks 1 and 4 across occluded durations. This step was based on the assumption that we would observe the largest difference in response bias in these two blocks if participants had learned the stimulus distribution throughout the experiment. We also examined the development of prediction bias in the bins with the shortest and the longest occluded durations (i.e., in which the biases typically develop in the opposite directions—an indication that the responses are biased toward or away from the mean). For this, we averaged the prediction bias every 20 trials in the two occluded-duration bins for each participant and performed a linear regression analysis to determine the slope of the trajectory.
Eye-movement analysis
Eye-movement data were analyzed offline. All trials were visually inspected, and the trials with eye blinks were removed from the analysis. On average, this eliminated 25.07% of the trials in the ASD group and 23.19% in the TD group, t(34) = 0.29, p = .77.
The primary goal of the eye-movement analysis was to obtain pursuit gain that characterizes smooth-pursuit quality for each participant and condition. To do this, we classified the eye-movement samples into different eye-movement types (saccades, smooth pursuits, and fixations; Fig. 1b, left). Detailed steps are explained in Section S2 in the Supplemental Material. In brief, saccades were first detected from the eye velocity traces and removed (Fig. 1b, right). The removed velocity samples were linearly interpolated. From these saccade-removed velocity traces, smooth pursuit was classified (vs. fixations) by (a) detecting the pursuit onset using a piecewise linear regression and (b) applying a position dispersion criteria (Komogortsev & Karpov, 2013). A trial was counted as a “pursuit trial” if the pursuit onset was detected and pursuit lasted more than five samples as determined by dispersion.
For the eye-movement analyses, we used only the pursuit trials in which pursuit was detected. Although we did not provide specific instructions for eye movements in the task, on average, we were able to detect smooth-pursuit behavior in a large number of the trials in both groups (ASD group: 3.85 times greater number of pursuit than no pursuit trials; TD group: 5.01 times greater), t(34) = −0.89, p = .38. This suggests that smooth pursuit is a natural strategy to use in this task. On average, smooth pursuit was present in 223 trials per participant in the ASD group and 217 trials in the TD group. The number of removed eye-movement trials was not different between groups, F(1, 34) = 0.07, p = .80, or across blocks, F(2.5, 85.08) = 2.49, p = .08, and there was no significant interaction between block and group, F(2.5, 85.08) = 1.62, p = .20.
To characterize the quality of smooth pursuit, we calculated the pursuit gain by dividing the eye velocity by the object velocity—a measure that accounts for differences in object speed. We separately calculated the gain across three different periods of smooth pursuit: the open-loop period, the closed-loop period, and the occluded period. The open-loop period is the first 100 ms to 150 ms after pursuit onset when the eye velocity begins to increase, driven by the feedforward signals from the retina (Lisberger, 2015; Lisberger & Medina, 2015). During the closed-loop period, the eye velocity reaches a steady state closely following the object motion. We defined the open-loop period to be the first 100 ms after the pursuit onset, and the closed-loop period was from 200 ms after the pursuit onset until the occluder onset. We also ran the analyses using a more constrained definition of the closed-loop period (200–400 ms after the pursuit onset), and the results did not change. The occluded period (time from occluder onset to participants’ response) was included to probe potential differences in the strategies that people with ASD may use for prediction in the absence of visual stimulation. The peak pursuit gain, time to peak, and the gain at the end of the closed-loop period were also obtained to better understand possible group differences in the temporal dynamics of the smooth-pursuit behavior. Additional analyses indicated that our paradigm and measurements yielded data that are of sufficient quality (see Section S3 in the Supplemental Material).
Testing the relationship between prediction errors and smooth pursuit
To examine the relationship between smooth pursuit and prediction performance, we tested whether the quality of pursuit, when present, was related to prediction performance. To test this, we exploited a well-established finding in typical populations that both the smooth-pursuit quality during the closed-loop period and prediction performance become better with increasing visible duration (Spering et al., 2011, 2013). Thus, we divided our data into shorter and longer visible duration trials using a median split (median = 0.86 s) and separately estimated the closed-loop pursuit gain in these two visible duration conditions (shorter and longer). Note that this analysis is analogous to experimentally inducing pursuit gain changes in a participant by manipulating stimulus duration (Spering et al., 2011).
We then examined the relationship between pursuit quality and prediction performance in three ways. We first assessed whether smooth-pursuit quality, on average, becomes better with increasing visible duration in both groups. To do this, we tested the changes in closed-loop pursuit gain in the shorter and longer visible duration conditions. Next, we examined whether pursuit gain is a significant predictor of prediction performance across visible durations. For this, we fit linear mixed-effects models to prediction performance from both the shorter and longer visible duration conditions, with the pursuit gain as a fixed effect and participant as a random effect (intercept). We fit the models separately for each group and prediction error (bias and variability), yielding four models in total. All of these models had lower Bayesian information criterion values (see Table S1 in the Supplemental Material) compared with the ones that also included visible duration as a predictor. Finally, we investigated whether there is a relationship between pursuit quality and prediction performance within an individual by correlating closed-loop pursuit gain and prediction bias on a trial-by-trial basis in each participant.
For statistical analyses, we tested the effects of group and conditions at the significance level of .05. Hyunh-Feldt and Bonferroni corrections were used as necessary. Welch’s t test was used for tests involving unequal variances. For linear mixed-effects models, p values were estimated via t tests using the Satterthwaite approximations to degrees of freedom.
Results
Coarse measures of prediction performance
To understand the differences in prediction performance between the ASD and TD groups, we first analyzed the data from all experimental blocks together, momentarily ignoring temporal dynamics associated with the development of the central-tendency bias. Here, we calculated the absolute bias (responded time minus actual time) and variability (standard deviation in prediction bias) in participants’ behavioral responses across occluded durations. Across measures of prediction bias and variability, we observed the expected relationship between occluded duration and performance in both groups (Fig. 2a). Specifically, as occluded duration became longer, there was an increasing tendency to respond almost 100 ms earlier than the actual hitting time, F(2.74, 120.7) = 37.83, p < .001 (Fig. 2a, left), and increased response variability, F(3.98, 175.22) = 235.87, p < .001 (Fig. 2a, right). There were no group differences in either of the measures (all ps > .11). Although we did observe a tendency for participants with ASD to respond earlier than TD participants at the bin with the longest occluded duration, this interaction did not reach statistical significance, F(2.74, 120.7) = 2.3, p = .086. Overall, these results demonstrate that longer occluded durations are similarly associated with increased prediction demand in both groups.

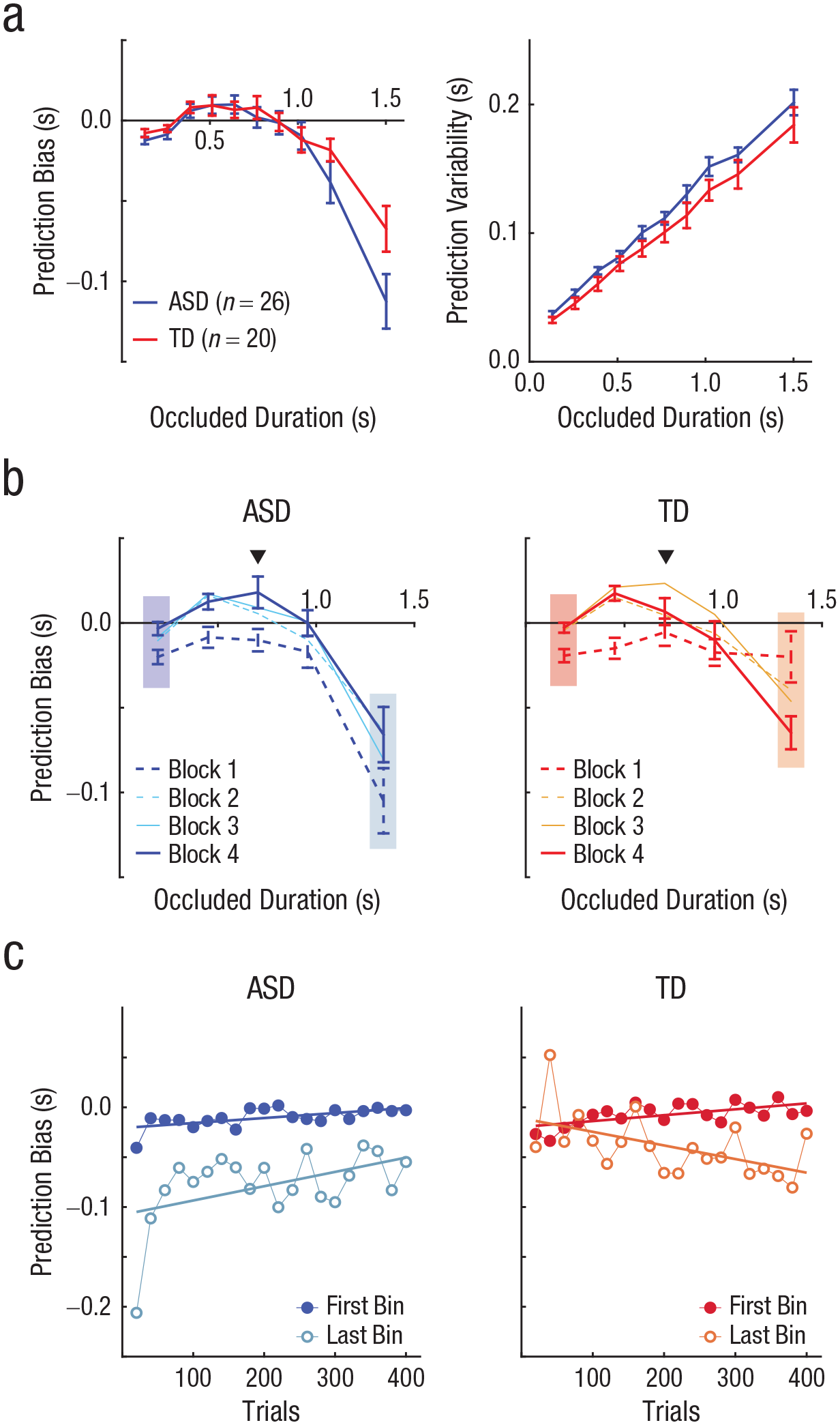

Prediction performance across varying occluded durations for participants with autism spectrum disorder (ASD; blue) and typically developing (TD) participants (red). The group average for prediction bias (left) and variability (right) across all trials (0 indicates accurate prediction) is shown in (a). Error bars represent standard error of the mean. Average prediction bias in each block across occluded durations for the ASD group (left) and the TD group (right) is shown in (b). Inverted triangles show the mean occluded duration for the stimuli used in the study. Error bars represent standard error of the mean. The shaded rectangles indicate the bins used for the analyses in (c). The development of prediction bias (averaged every 20 trials) over time in the ASD group (left) and the TD group (right) at the first (darker colors) and last (lighter colors) bins of the occluded durations is shown in (c). Data for each bin are fit with a standard linear regression.
Development of central-tendency bias across blocks
Although the above results may suggest that people with ASD are not impaired at the level of motion-prediction performance, an investigation of how individuals make predictions over time revealed notable differences. Specifically, we conducted a planned analysis on the changes in prediction bias between Blocks 1 and 4, which revealed atypicalities in participants with ASD regarding the development of central-tendency bias. There was a three-way interaction among group, occluded duration, and block, F(2.95, 129.99) = 6.60, p < .001. To better understand this, we separately analyzed the data in each group. In the TD group (Fig. 2b, right), we found a significant interaction between block and occluded duration, F(3.2, 60.76) = 9.06, p < .001. In Block 1, there was an overall small early bias (i.e., tendency to respond earlier than the actual target arrival time) that was similar in magnitude across occluded durations. In other words, initially, TD individuals treated different occluded durations similarly—an expected result given that there is little past experience to affect predictive behavior at this early stage. However, by Block 4, the pattern changed. At longer occluded durations, the early bias strengthened, whereas at shorter occluded durations, the early bias weakened and turned into a late bias (responding later than the target arrival time). This pattern in the TD group is consistent with the central-tendency bias reported in previous studies (Jazayeri & Shadlen, 2010; Kwon & Knill, 2013), in which the responses are biased toward the mean of the learned stimulus distribution. In fact, the pattern of the prediction bias observed in Block 4 closely resembles that generated by an ideal observer model (see Section S4 in the Supplemental Material), suggesting an optimal behavior in the TD group.
On the other hand, in the ASD group, we did not find a typical progression toward a central-tendency bias. Here, whereas participants with ASD showed a pattern similar to TD participants in terms of central-tendency bias in the end, the strong early bias at longer occluded durations was already present in Block 1 (Fig. 2b, left). There was a main effect of occluded duration in the ASD group, F(1.77, 44.29) = 25.92, p < .001, and the largest early bias appeared at the bin with the longest occluded duration. Moreover, we found a main effect of block, F(1, 25) = 17.63, p < .001, in which the early bias overall became weaker in Block 4. Contrary to the pattern found in the TD group, the interaction between block and occluded duration was not significant in the ASD group, F(2.77, 69.66) = 0.84, p = .47. These results suggest that, unlike in the TD group, the early bias in the bin with longer occluded duration was present from the first block of the experiment in the ASD group.
One possible explanation for the presence of such early bias in participants with ASD could be that they learned the stimulus statistics substantially faster than TD participants. However, the analysis of how the prediction bias developed across trials (Fig. 2c) revealed a pattern that cannot be fully explained by this account. In the TD group (Fig. 2c, right), there was a clear central-tendency bias, with a progressive development of the biases in the opposite directions for the shorter and longer occluded durations (corresponding to the first and last bins in Fig. 2b, respectively); first bin: slope = .000059 (5.9 ms increase per 100 trials), t(18) = 3.35, p = .004; last bin: slope = −.00014 (−14 ms decrease per 100 trials), t(18) = −2.68, p = .02. Consistent results were found when using the second occluded duration bin, in which a late bias eventually appeared in Block 4. These indicate that TD participants, over time, learned the stimulus statistics and integrated this knowledge into their predictions, resulting in stronger biases over time. Such strategy is thought to be optimal because it can help reduce the uncertainty in sensory estimates (Jazayeri & Shadlen, 2010).
In contrast, in the ASD group, the early bias was present at the very beginning and was numerically the strongest in as early as the first 20 trials in both the first and the last occluded-duration bins (Fig. 2c, left). This is an insufficient number of samples to learn statistical properties of a distribution that they had never encountered before (Berniker et al., 2010; Kwon & Knill, 2013). Moreover, the magnitude of the bias did not remain the same; it changed in the same direction in the two occluded-duration bins, weakening over the course of the experiment; first bin: slope = .00005 (5 ms increase per 100 trials), t(18) = 3.26, p = .004; last bin: slope = .00014 (14 ms increase per 100 trials), t(18) = 2.24, p = .04. These differences in the pattern of how the biases developed over time suggest that the prediction bias in the ASD group, at least initially in the experiment, likely was affected by a source that is different from the one used by TD individuals (see Discussion). Additional analyses ruled out the possibility that such atypical patterns of prediction bias in the ASD group were a result of impulsivity or subjective difficulty (or motivation) across blocks (see Section S5 in the Supplemental Material).
Better smooth-pursuit quality during occluded period in ASD
To characterize the quality of smooth pursuit, we first separately analyzed the pursuit gain in each group. The eye velocity during pursuit is typically slower than the object such that the resulting pursuit gain yields a number less than 1. In other words, a pursuit gain closer to 1 reflects faster and better pursuit, more similar to the object velocity.
The mean pursuit gain (eye velocity divided by object velocity, saccades removed) over time for each group is shown in Figure 3a. In both groups, the mean pursuit gain increased rapidly after the onset of the object motion, reached a steady state, and decreased as the object became occluded. Although the overall shape of the pursuit gain pattern over time was similar between the two groups, we observed a difference in the timing of pursuit onset; participants with ASD were slower in initiating the smooth pursuit, t(34) = 2.8, p = .008 (ASD group: M = 0.174 s, SD = 0.016; TD group: M = 0.156 s, SD = 0.022). In addition, in the ASD group, the time when the pursuit gain reached the peak was slower than that in the TD group, t(34) = 3.23, p = .003 (ASD group: M = 0.645 s, SD = 0.041; TD group: M = 0.594 s, SD = 0.054), although the two groups were not different in terms of the magnitude of pursuit gain at the peak (calculated by averaging five samples around a time point), t(34) = 1.11, p = .28 (ASD group: M = 1.24, SD = 0.18; TD group: M = 1.17, SD = 0.21), or at the time before the stimulus occlusion (average of five samples before the occluder onset), t(34) = 1.6, p = .12 (ASD group: M = 0.56, SD = 0.25; TD group: M = 0.44, SD = 0.19).

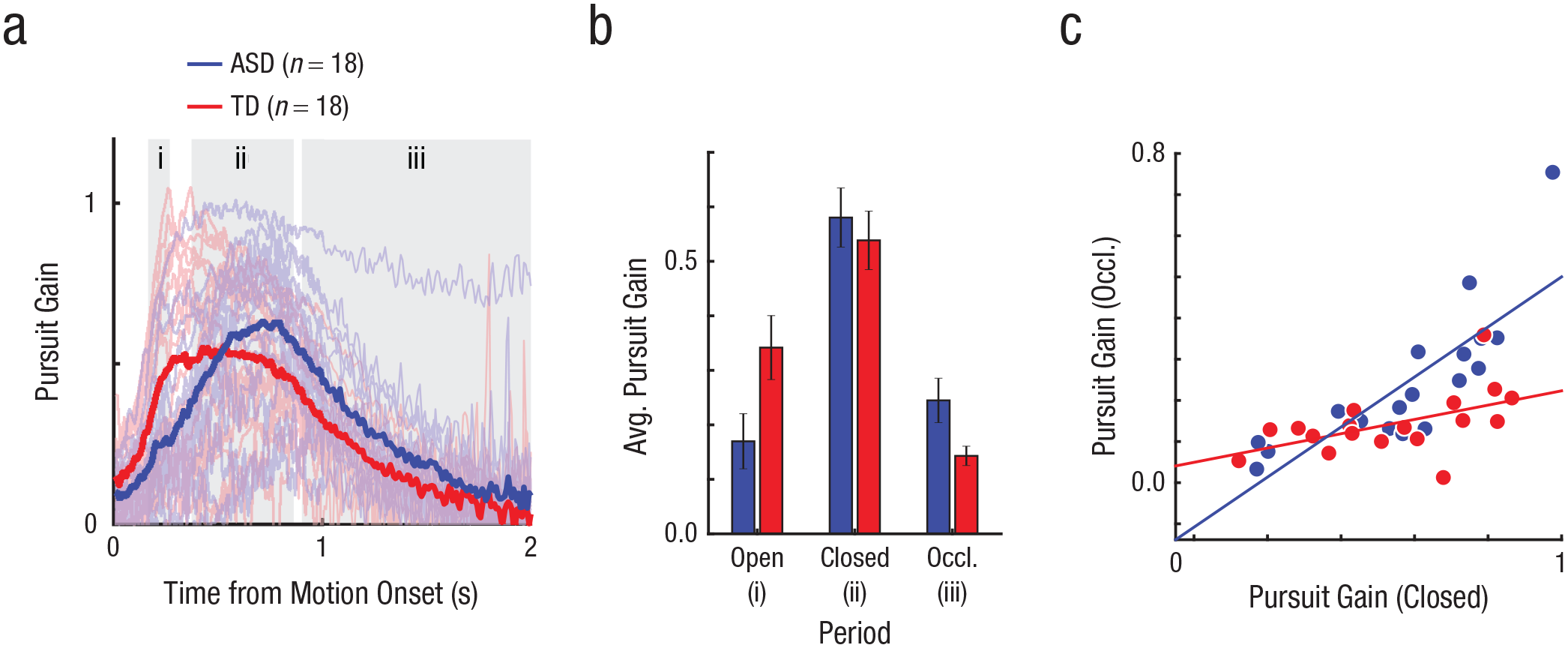

Results from the smooth-pursuit analysis for individuals with autism spectrum disorder (ASD; blue) and typically developing (TD) individuals (red). Mean pursuit gain traces from the stimulus motion onset, with saccades excluded, are shown in (a). Light curves show the mean traces for each participant, and dark curves are the group mean. Different pursuit periods in (b) are indicated by shaded gray areas. Note that these pursuit periods were calculated using the average pursuit onset across all individuals and thus are only an approximation for visualization. Average pursuit gain at different pursuit periods for each group is shown in (b). Error bars represent standard error of the mean. The scatterplot (c; with best-fitting regression lines) shows the correlation between pursuit gain during the closed-loop and occluded periods. Each data point represents the mean from an individual participant.
To better characterize the differences in smooth pursuit over time, we compared the mean pursuit gain in three different time periods (open-loop period, closed-loop period, and occluded period; see Eye-Movement Analysis) between the ASD and TD groups (Fig. 3b). As expected, we observed a significant main effect of pursuit period, F(2, 68) = 90.37, p < .001, in which the pursuit gain was the largest during the closed-loop period. Note that there was a significant interaction between group and pursuit period, F(2, 68) = 12.22, p < .001. Post hoc t tests revealed that, compared with the TD group, pursuit gain was smaller in the ASD group during the open-loop period, t(34) = −2.22, p = .03, but larger during the occluded period, t(23.26) = 2.29, p = .03. The two groups showed similar pursuit gain during the closed-loop period, t(34) = 0.55, p = .59. The smaller open-loop gain in the participants with ASD appears to be related to their slower pursuit onset; there was a strong negative correlation between open-loop gain and pursuit onset in both of the groups (ASD group: r = −.87, p < .001; TD group: r = −.94, p < .001), implying that participants who were slower at initiating the pursuit also had overall worse smooth-pursuit quality during the open-loop period.
An unexpected aspect of the results was significantly better smooth pursuit in the ASD group during stimulus occlusion. There was one participant with ASD who maintained unusually high pursuit velocity during both the closed-loop period and the occluded period (Fig. 3a, topmost pale blue line). Even when this participant was excluded, the results remained statistically identical (see Section S6 in the Supplemental Material). One possible account for increased occluded gain in the ASD group is that similar to the open-loop period, participants’ occluded pursuit gain may have been affected by slower pursuit onset. That is, to catch up with the stimulus, slower initiation of smooth pursuit in the ASD group may have resulted in faster smooth pursuit, leading to larger pursuit gain during the occluded period. However, pursuit onset, in fact, was negatively related to occluded pursuit gain in both the ASD group (r = −.574, p = .01) and the TD group (r = −.575, p = .01). In other words, slower pursuit onset was linked to worse smooth pursuit during the occluded period. This indicates that better smooth pursuit during the occluded period in the participants with ASD was not a compensation for their slower pursuit onset.
Instead, better pursuit during the occluded period in the ASD group seems to be closely related to that in the closed-loop period (Fig. 3c). In both groups, we found a positive correlation in pursuit gain between the two periods (ASD group: r = .81, p < .001; TD group: r = .52, p = .03), suggesting that participants who followed the object better with their eyes during the closed-loop period also had higher pursuit gain during stimulus occlusion. In fact, the group difference in occluded-period gain was not significant when controlling for the gain at the end of the closed-loop period, F(1, 33) = 2.56, p = .12, although it was still significant when controlling for the peak closed-loop gain, F(1, 33) = 4.31, p = .046. These results indicate that the quality of pursuit just before the stimulus disappeared was likely carried through to when the stimulus was occluded. The two groups were not different in the number and cumulative amplitude of saccades in all periods (all ps > .10). Together with the differences in the development of prediction bias in ASD, these results point to a possibility that there may have been differences in how participants with ASD predicted object motion compared with TD participants, and differential use of eye-movement signals was a possible candidate. In the next section, we explore this possibility.
Smooth pursuit quality is differently related to prediction performance in ASD
Motion-prediction performance typically benefits from smooth-pursuit eye movements (Spering et al., 2011, 2013): As pursuit quality improves with longer visible duration, prediction performance also improves. Deviations from this link would suggest an atypical relationship between smooth pursuit and prediction performance. Here, we specifically examine the hypothesis that prediction performance is differently related to smooth-pursuit quality in people with ASD. If smooth pursuit in people with ASD is related to prediction, then we should observe an atypical link between prediction performance and pursuit gain in the closed-loop or occluded periods (i.e., when the eye velocity is likely to be influenced by both the feedforward and feedback signals). To test this, we investigated the changes in closed-loop pursuit gain and prediction performance across visible durations (as determined according to the median of 0.86 s; see Testing the Relationship Between Prediction Errors and Smooth Pursuit).
First, we replicated the previous finding (Spering et al., 2011) that pursuit gain during the closed-loop period is greater for longer visible durations than shorter visible durations, F(1, 34) = 25.51, p < .001 (Fig. 4a). There was no significant interaction between visible duration and group, F(1, 34) = 0.37, p = .55, suggesting that the smooth pursuit in both groups became similarly better when the stimulus was visible for a longer period of time.

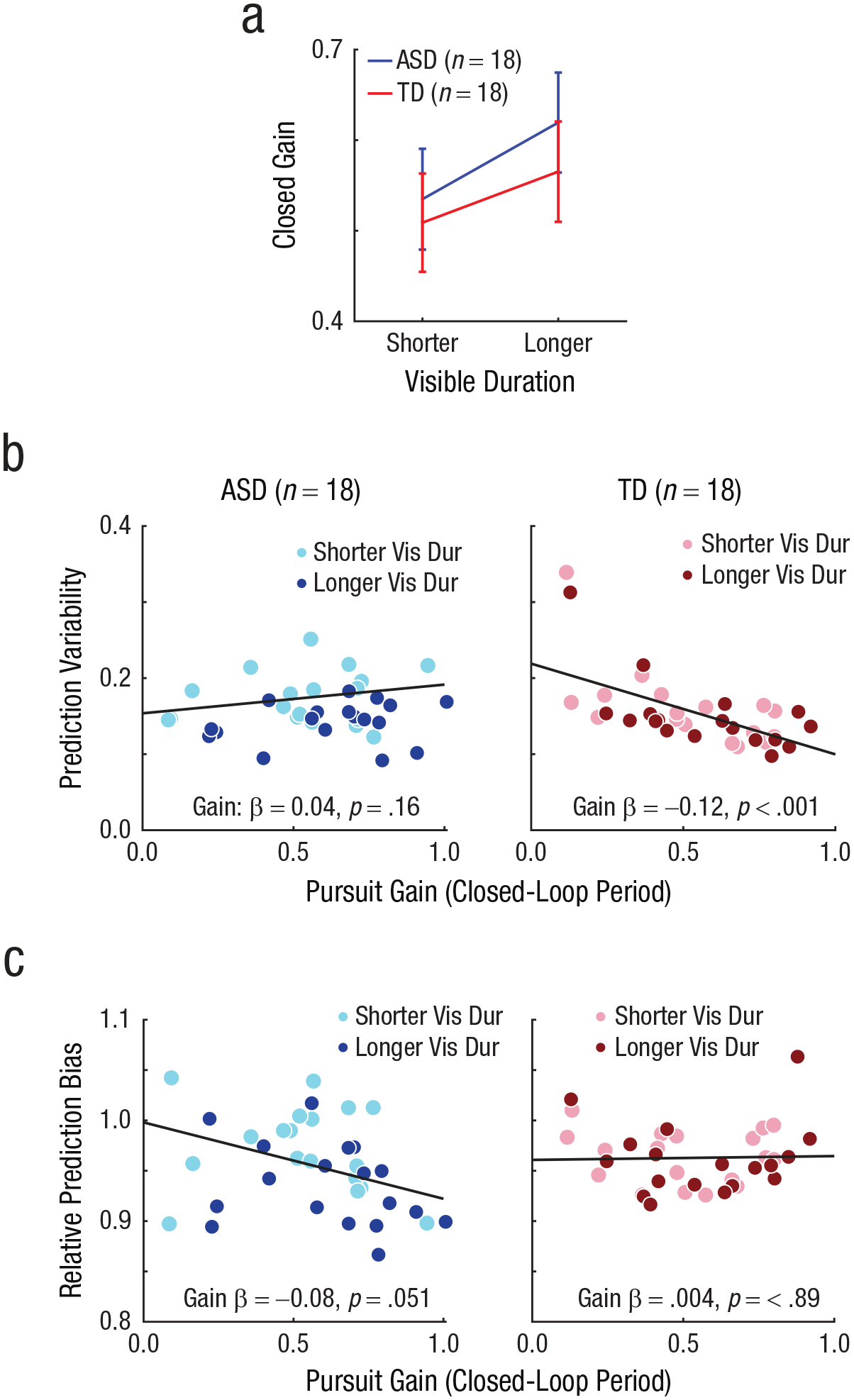

The effect of visible duration on closed-loop pursuit gain is shown in (a). Blue and red curves indicate the participants with autism spectrum disorder (ASD) and typically developing (TD) participants, respectively. Error bars are standard error of the mean. The relationship between closed-loop pursuit gain and prediction variability for the ASD group (left) and the TD group (right) is shown in (b). Each colored dot represents the mean from an individual participant’s data for either shorter (lighter colors) or longer (darker colors) visible durations (Vis Dur). Black lines are the fit from linear mixed-effects model analyses. The relationship between closed-loop pursuit gain and relative prediction bias (< 1 indicates early bias) for the ASD group (left) and the TD group (right) is shown in (c).
However, linear mixed effects analyses revealed a relationship between prediction performance and smooth pursuit in the ASD group that was seemingly different from that observed in the TD group. Here, we tested whether closed-loop pursuit gain is a significant predictor of prediction performance in each group across visible durations (Figs. 4b and 4c). In the TD group, consistent with previous reports in typical populations (Spering et al., 2011, 2013), we found that better pursuit was associated with improved prediction performance. Specifically, pursuit gain was negatively related to prediction variability (Fig. 4b, right; gain: β = −0.12, SE = 0.03), t(33.93) = −4.27, p < .001, suggesting that better pursuit was linked to more consistent responses in the TD group. On the other hand, there was no significant relationship between pursuit gain and prediction bias in the TD group (Fig. 4c, right; gain: β = 0.004, SE = 0.03), t(19.89) = 0.14, p = .89. In the ASD group, we observed the opposite pattern. Pursuit gain was not significantly related to prediction variability (Fig. 4b, left; gain: β = 0.04, SE = 0.03), t(24.9) = 1.45, p = .16, but was negatively related to prediction bias, which was marginally significant (Fig. 4c, left; gain: β = −0.08, SE = 0.04), t(18.5) = −2.09, p = .051. This suggests that better smooth pursuit was related to increased tendency to respond early in participants with ASD. Thus, whereas smooth pursuit became better with longer visible duration in both groups, the enhancement in pursuit quality was associated with different types of prediction errors (variability vs. bias) in different directions (better vs. worse prediction). Similar results were observed when using occluded pursuit gain (see Section S7 in the Supplemental Material).
We also tested whether we can find a consistent pattern—negative relationship between pursuit gain and prediction bias in people with ASD—within an individual by performing a trial-by-trial correlation between prediction bias and closed-loop pursuit gain in each participant. These trial-by-trial correlations tend to be low (because many factors influence task performance), but they can reveal the presence of shared mechanisms (Glasser & Tadin, 2014; Stone & Krauzlis, 2003). Specifically, for each participant, we obtained the correlation coefficient (r) between closed-loop pursuit gain and relative prediction bias and tested whether these correlation coefficients were statistically different from zero in each group. Consistent with our analyses across visible durations (Fig. 4c), in the ASD group, we indeed found a small but significant negative relationship between closed-loop pursuit gain and relative prediction bias (mean r = −.09, SD = .092), mean r statistically different from zero, t(17) = −4.14, p < .001. In the TD group, we did not find such a relationship (mean r = −.002, SD = .11), mean r not statistically different from zero, t(17) = −0.1, p = .92. We also compared whether the mean correlation coefficients were significantly different between the two groups. The results showed that the mean r in the ASD group was significantly smaller than that in the TD group, t(34) = −2.59, p = .01. When using occluded-period pursuit gain, we again found a negative trial-by-trial correlation in participants with ASD (mean r = −.15, SD = .12), mean r significantly different from zero, t(17) = −5.21, p < .001. These results together show an atypical pattern in the ASD group in which better smooth pursuit may have been linked to earlier prediction bias. Note that the use of only the “pursuit trials” did not bias our results (see Section S8 in the Supplemental Material).
Discussion
The present study reveals atypical motion-prediction abilities in people with ASD. All participants, on average, exhibited a tendency to have higher response variability as the occlusion duration became longer and showed evidence for the central-tendency bias (i.e., late responses for short occlusion durations and early responses for long occlusion durations). However, fine-grained analyses revealed that in the TD group, the central-tendency bias developed gradually over the course of the experiment. This is a key feature of central-tendency behavior that reflects accumulating knowledge of the stimulus statistics and is considered to be an adaptive predictive behavior (Jazayeri & Shadlen, 2010; see Section S4 in the Supplemental Material). In contrast, the ASD group did not show evidence for a central-tendency bias that grows with experience. The two groups also differed in how eye movements were related to prediction behavior. In the ASD group, the changes in the prediction bias were related to the quality of smooth pursuit. Specifically, better smooth pursuit during the closed-loop period was counterintuitively related to worse prediction (i.e., larger early bias), whereas in the TD group, it was linked to better prediction performance (i.e., reduced variability). Overall, these results provide evidence for differences in how individuals with ASD make predictions on the basis of available information. In particular, the findings suggest a possible deficit in people with ASD regarding learning or integrating the prior knowledge on the statistics of the environment and an atypical use of extraretinal signals in predicting visual motion.
Together, our findings show that despite seemingly similar patterns of performance on the surface, motion prediction appears to be influenced by distinct mechanisms in the ASD and TD groups. The results are seemingly inconsistent with previous studies that tested motion-prediction abilities in people with ASD. The discrepancy may be driven by differences in paradigm and analysis approach, highlighting the importance of isolating individual factors that contribute to motion-prediction abilities. Using a driving simulation, Sheppard et al. (2016) found a deficit in people with ASD in predicting the time to arrival for the other car only when the observer motion was in a forward trajectory and not in a curved trajectory. Here, the results may have been affected by how individuals interpret the optic flow generated by the simulated observer motion (Sheppard et al., 2016) rather than impairments in prediction ability per se. Using a similar visual extrapolation paradigm as ours with three occlusion durations (1 s, 2 s, and 4 s), Tewolde et al. (2018) found no group differences in prediction variability in participants with ASD. They also reported a similar pattern of prediction bias in both ASD and TD groups, and there was a tendency to respond late at shorter occlusion duration and to respond early at longer occlusion duration. Note that this pattern was observed from an aggregate data across all trials, and it is unknown whether there was a difference in the development of bias over time, as was the case in our data.
We also report a novel finding that smooth pursuit during stimulus occlusion was significantly better in participants with ASD. The occluded pursuit gain was correlated with that in the closed-loop period, suggesting that participants with ASD may have sustained their pursuit better throughout occlusion. Better smooth pursuit in participants with ASD, however, came at a cost; although it was linked to better performance (i.e., reduced variability) in TD participants, it was associated with worse performance (i.e., larger bias) in participants with ASD. This counterintuitive result provides insight into potential underlying mechanisms that may be atypical in people with ASD. We first consider the possibility that this finding reflects a general impairment in the saccadic eye-movement system in people with ASD. In the absence of visual stimulation, the visual system compensates for the decrease in pursuit velocity with predictive saccades (Orban de Xivry et al., 2006, 2008). This compensation ability becomes better throughout development (Ego, Yüksel, et al., 2016). In people with ASD, previous studies have shown less precise saccades (Johnson et al., 2012; Schmitt et al., 2014) and difficulties adapting to saccadic errors (Freedman & Foxe, 2018). Thus, it is possible that better smooth pursuit in people with ASD could be a by-product of a deficit in predictive catch-up saccades, a deficit that may, in turn, worsen prediction performance. However, we do not find this explanation to be likely. We did not find any group differences in any of our saccade measures. Furthermore, ASD is associated with an intact ability to alternate between smooth pursuit and saccades in the absence of visual stimulation (Ego, Bonhomme, et al., 2016).
Another possibility considers an atypical influence of extraretinal signals for motion prediction in people with ASD. A growing number of studies imply that the perceptual system can rely on both retinal and extraretinal signals related to eye movements when extrapolating motion trajectories (Bosco et al., 2015; Gauthier et al., 2007; Spering et al., 2011). Such processing is proposed to be mediated by a network of areas (Lisberger, 2009; Ono, 2015), including the medial superior temporal area, supplementary eye field, and cerebellum, where neurons respond to visual motion and maintain their response during occlusion. Extraretinal signals can be particularly useful during occlusion when the retinal motion associated with the object is absent. Here, it is possible that such signals may have been used and interpreted differently by the two groups, resulting in different types of prediction errors. For instance, in the TD group, greater pursuit gain might contribute to the certainty in sensory signals about object motion, affecting the prediction variability (random error). On the other hand, in the ASD group, pursuit signals may have been linked with the nonrandom errors, such as in the estimation of the object speed. Given that time is negatively related to speed (time = distance/speed), faster estimated object motion from pursuit would have resulted in shorter estimated time to target location, and thus earlier bias in the ASD group that deteriorates the performance (note that smooth-pursuit gain is typically smaller than 1 such that better pursuit is achieved by faster eye velocity). Although speculative, such an account may provide an explanation for why an earlier prediction bias is counterintuitively linked with better smooth pursuit in people with ASD.
Our finding of atypical development of central-tendency bias in the ASD group may be consistent with a proposal that postulates less influence of Bayesian priors on perceptual experiences in people with ASD (Palmer et al., 2017; Pellicano & Burr, 2012; Van de Cruys et al., 2014). The central-tendency bias has been suggested to reflect the human brain’s optimal strategies for incorporating prior knowledge into perceptual judgments (Jazayeri & Shadlen, 2010). Thus, the lack of this bias in people with ASD may indicate difficulties integrating prior knowledge with sensory inputs. However, this conclusion should be interpreted with caution. One of the key predictions from this Bayesian hypothesis is that because of less precise priors, the perceptual estimates in people with ASD should be more accurate (i.e., less biased) and truer to the current sensory signals. In this context, our finding that the responses in the ASD group were still erroneous and biased is inconsistent with this hypothesis. Nevertheless, the results suggest that prediction performance in people with ASD is influenced by a different source of bias that is less dependent on accumulating knowledge of the stimulus statistics. Whether this is due to individuals’ deficits in learning this information or in integrating it into percepts warrants further investigation.
An alternative explanation for atypical motion-prediction abilities in people with ASD may involve motion-processing deficits per se in people with ASD. It is well documented that individuals with ASD have atypicalities in processing motion information (Koh et al., 2010; Schauder et al., 2017; Spencer et al., 2000; Takarae et al., 2008), which may, in turn, disrupt prediction accuracy in this domain. Our finding that individuals with ASD demonstrated lower pursuit gain during the open-loop period potentially supports this idea. A recent study reported that individuals with ASD require longer stimulus durations to perceive motion for smaller stimuli (Schauder et al., 2017), similar to our stimulus size. This makes it possible that in our prediction task, more time was needed for them to initiate the smooth pursuit and/or reach a steady state because of decreased sensitivity to motion. However, it is difficult to conclude that motion-processing deficits alone fully explain our results for several reasons. First, we employed longer visible durations (well above threshold for both the ASD and TD groups), which would have minimized the effects of motion sensitivity differences. Second, although we found differences in the open-loop pursuit gain, pursuit quality was similar between groups during the closed-loop period. This indicates that once motion is successfully detected, the internally generated motion information in the ocular motor system for smooth pursuit may be intact. Therefore, although we cannot completely rule out the influence of decreased motion sensitivity in people with ASD on our findings, it is less likely that general motion-processing deficits explain our main findings regarding motion prediction.
Conclusions
Our study provides evidence for atypical motion-prediction abilities in people with ASD that may be influenced by differential use of relevant information in motion prediction. Such findings were uncovered using a paradigm that approximates the natural ways individuals interact with dynamic objects. The study provides empirical support for a recent theory that proposes prediction deficits as a global trait in people with ASD. Future studies should examine whether the atypicalities we observed in the motion domain reflect a broader prediction deficit that can be generalized to other complex areas and their potential influence on the core behavioral symptoms of ASD.
