Predicting Surgical and Non-surgical Curvature Correction by Radiographic Spinal Flexibility Assessments for Patients With Adolescent Idiopathic Scoliosis: A Systematic Review and Meta-Analysis

Abstract

Study Design

Systematic Review and Meta-analysis.

Objectives

This systematic review and meta-analysis aimed to: (1) synthesize the prevalent application ratios of 2 radiographic spinal flexibility assessment methods in AIS patients treated with PSF or bracing; and (2) quantitatively evaluate the accuracy of these methods in predicting post-intervention correction outcomes.

Methods

A systematic search was conducted across 5 electronic databases: CINAHL, Embase, Ovid, PubMed, and Web of Science. Meta-analyses were performed to investigate the accuracy of the spinal flexibility rate in predicting the post-intervention correction rate in AIS patients treated with PSF surgery or bracing, using RevMan 5.4.1 software.

Results

The results of 31 studies, involving 1868 AIS patients, showed that the side-bending method was utilized more frequently than the fulcrum-bending method in both treatments. Meanwhile, the spinal flexibility evaluated by the fulcrum-bending method may provide a more accurate prediction of post-surgical correction compared to the side-bending approach, particularly for main curves. For the bracing treatment, only a few studies have preliminarily reported good capability of the side-bending method in predicting the initial in-brace correction.

Conclusions

This review quantitatively assessed the clinical application ratio and effectiveness of side-bending and fulcrum-bending radiographs in predicting post-intervention curve corrections in AIS patients undergoing surgical or bracing treatments. The results of the current review supported to adopt the fulcrum-bending approach for AIS patients undergoing PSF surgery with main thoracic curves, and the side-bending approach for those with thoracolumbar/lumbar curves. For patients receiving bracing treatment, further research is still needed to confirm the clinical value of the side-bending method.

Keywords

scoliosis adolescent idiopathic scoliosis orthopaedic spinal flexibility radiography spine prognosis

Introduction

Adolescent idiopathic scoliosis (AIS) is a complex spinal deformity affecting 1% to 3% of children aged 10 to 16 years.¹ It is diagnosed with the Cobb angle of the spinal curve exceeds 10° in the coronal plane.² For scoliotic curves between 20° and 45°,^3,4 the conservative bracing treatment is commonly prescribed⁵ to minimize the risk of curvature progression^6,7 and to avoid surgery.⁸ For AIS patients with Cobb angles greater than 45°, spinal surgery is needed,⁹ with posterior spinal fusion (PSF) as the preferred treatment option for most cases.^2,9

Spinal flexibility is a critical parameter in both conservative and surgical treatments of AIS, in terms of predicting the initial in-brace correction and progression in AIS patients,^3,4 and the surgical correction in PSF surgery.^2,10 It is calculated as follows:¹¹

S p i n a l f l e x i b i l i t y = \frac{{C o b b}_{p r e - i n t e r v e n t i o n s t a n d i n g} - {C o b b}_{f l e x i b i l i t y a s s e s s m e n t p o s i t i o n}}{{C o b b}_{p r e - i n t e r v e n t i o n s t a n d i n g}}

(1)

where ${C o b b}_{p r e - i n t e r v e n t i o n s t a n d i n g}$ refers to the Cobb angle measured on pre-intervention radiographs that taken in standing position, and ${C o b b}_{f l e x i b i l i t y a s s e s s m e n t p o s i t i o n}$ refers to the Cobb angle measured on pre-intervention radiographs that taken in a specific position for the flexibility assessment. Selecting an appropriate assessment method that balances accuracy and ease of use is essential for optimizing patient evaluation in clinical practice.

Various methods have been used to assess the scoliotic curvature flexibility of patients with AIS. Common clinical physical examinations included Sit and Reach Test,¹² Lateral Bending Test,¹³ and Trunk Rotation Test,¹⁴ to assess treatment outcomes.^15-19 To predict the post-intervention correction, imaging techniques with greater reliability and accuracy are required, including the radiographic methods of traditional X-ray²⁰ and the EOS stereo-radiography system,²¹ and the radiation-free imaging techniques of ultrasound imaging.²² The testing positions in these methods are diverse, encompassing unassisted positions of supine,²³ supine/prone with lateral side-bending,²⁴ and prone²⁵; and externally assisted positions of supine, prone, side-lying, or erect, via manual traction,²⁶ mechanical pushing,²⁷ the use of a fulcrum,²⁸ or suspension.²⁹

So far, the radiographic-based assessment of scoliotic spinal flexibility remains the dominant method, particularly for the side-bending and the fulcrum-bending methods.²⁰ The side-bending method, introduced by Moe, J. H.,³⁰ has long been regarded as the “golden standard” for the spinal flexibility assessment. However, with the improved surgical curve correction using the pedicle screw instrumentation system,^31,32 the side-bending approach appears to no longer estimate the effects of surgical correction accurately.³³ Recently, there has also been growing attention to use the side-bending method to assess the spinal flexibility of AIS patients with moderate curvature undergoing bracing treatment.^34,35 However, its application remains limited, with its predicting effects in these patients remained inconclusive. Meanwhile, the Fulcrum-bending radiographic method, as introduced by Cheung and Luk, allows for a simple and accurate assessment of spinal flexibility without requiring patient’s effort.²⁸ Its application has increased in recent years, with some studies suggesting that it could predict the post-operative curve correction better than the side-bending approach in AIS patients undergoing PSF surgery.^36-38 However, 1 previous study found that none of the supine, side-bending, push-prone, or fulcrum-bending methods could accurately predict the curve correction in main thoracic and thoracolumbar/lumbar curves.²³ Controversy still remains regarding the preferred assessment method in clinical practice.

Several reviews have synthesized the predicting value of various spinal flexibility assessment approaches in AIS patients. He, C. and Wong, M. S.³⁹ provided a qualitative comparison of existing methods for estimating post-surgical correction, but did not specify the involved surgical techniques. In contrast, Khodaei, M. et al²⁰ focused solely on PSF surgery, and investigated the distribution and predicting capability of various radiographic methods in AIS patients. However, neither review offered precise data on the method differences or detailed clinical advice for selecting the best assessment method for AIS patients based on different curve locations and severities.

Therefore, a research gap still exists in the quantitative comparison of the predicting accuracy of post-intervention curvature correction between the side-bending and fulcrum-bending methods. There has also been limited evidence for AIS patients with different curve locations (eg, proximal thoracic, main thoracic, and thoracolumbar/lumbar curves⁴⁰) and curve magnitudes (eg, moderate and severe curvatures). Additionally, with the increasing usage of the fulcrum-bending method in recent years, the usage distribution or application ratio of this method should also be reinvestigated to update the information. Filling these research gaps could help synthesis the existing evidence and guide the future clinical practice for AIS patients with different conditions.

To the best knowledge of the authors, this systematic review and meta-analysis is the first study to quantitatively analyze and compare the accuracy of the fulcrum-bending and side-bending methods in predicting the actual correction rate after intervention in AIS patients receiving bracing and surgery treatments. It aimed to: (1) explore the application ratio/proportion of the side-bending and the fulcrum-bending approaches; and (2) quantitatively assess the accuracy of the side-bending and the fulcrum-bending method in predicting the actual post-intervention correction outcomes, in AIS patients who underwent PSF or bracing treatment.

Methods

The protocol of this systematic review and meta-analysis was registered on the International Prospective Register of Systematic Reviews (PROSPERO)⁴¹ with a registration ID: CRD42022363674. The review was conducted following the guideline of the Preferred Reporting Items for Systematic Reviews and Meta-Analyses 2020 statement (PRISMA2020).⁴²

During the information processing, 2 reviewers (Y.Y. and T.M.) conducted the eligibility assessment, data extraction, study quality assessment, and the evaluation of the quality of evidence independently. In cases of evaluation disagreement, 2 reviewers did separate reassessments and discussions until the agreements/conclusions were reached.

Information Sources

The systematic literature search was conducted from inception to September 2022 in the following electronic databases: CINAHL, Embase, Ovid, PubMed, and Web of Science. In the search procedure, medical topic headings (MeSH) and keywords containing textual terms relevant to the scope of this research were used.⁴³ The literature search was conducted using the following keyword phrases and subject headings: (idiopathic scoliosis OR scoliotic) AND (bracing OR brace OR spinal fusion OR spondylodesis OR spondylosyndesis) AND (flexibility). To supplement the search results, the references and citation lists of relevant studies were manually searched.⁴² After completing the manuscript, 1 more recent literature search following the same procedure was conducted in November 2024, to screen and identify if there were any newly published studies that fulfill the inclusion and exclusion criteria of this review.

After excluding the duplicates, the title and abstract were preliminarily screened for relevance. Studies relevant to spinal flexibility assessment methods, posterior spinal fusion surgery, or bracing treatment in AIS patients were identified for full-text retrieval.

Eligibility Criteria

The inclusion criteria were as follows: (1) patients with AIS and the mean age when under treatment should not be older than 18 years old; (2) patients with AIS who underwent the PSF or bracing treatment; (3) the study contained the side-bending radiograph and/or the fulcrum-bending radiograph as the assessment method for the spinal flexibility rate; (4) the study contained radiography parameters both before/pre- and after/post- the intervention; and (5) the study provided the original data or the mean & standard deviation (SD) of the pre-intervention flexibility rate and the post-intervention correction rate.

The exclusion criteria included: (1) the study was a case report, case series, review, or abstract; (2) the study contained several kinds of scoliosis illnesses and had no single group of AIS patients; and (3) patients received the previous treatment which might affect the results of the PSF or bracing intervention.

Data Extraction, Quality Assessment and Data Synthesis

The data collected from eligible studies to acquire information regarding the homogeneity of the study were: (1) paper’s general information (first author, year of publication, and study design), (2) participants’ baseline information (sample size, mean age at treatment, gender, and curve type), (3) utilization of the assessment method of the spinal flexibility rate, (4) received treatment, and (5) original data (Cobb angle measured before and after the treatment) or mean & SD data on the flexibility rate and the correction rate. Data were extracted for both pre-intervention and post-intervention.

According to the result of the eligibility evaluation, all included studies were observational studies. Therefore, the Newcastle-Ottawa Scale (NOS) quality assessment tool was used to investigate the potential bias in the studies and the quality of research for eligible papers, which is 1 of the most frequently employed approaches for assessing the risk of bias (ROB) in observational research.⁴⁴ Three categories were included in the assessment tool as selection, comparability, and outcome. This assessment tool employs a “star system” for scoring each article. The quality of articles was classified according to the number of stars that the article received with the following criteria: low quality (0 to 3 stars), moderate quality (4 to 6 stars), high quality (7 to 9 stars).

Meta-analyses were performed using RevMan 5.4.1 software provided by the Cochrane Collaboration. Continuous variables were expressed as the mean difference (MD) and the SD. For studies that only provided the original data on the Cobb angles, the required mean value and SD in the flexibility rate and the correction rate were calculated by 2 reviewers (Y.Y. and T.M.). If subgroups in 1 study contained the mean and SD values of the aforementioned target data, the data from these subgroups were combined into a single group when applicable. Statistical significance was defined as a probability of P = 0.05 in the overall effect Z test. Given the diversity of the included studies and their non-randomized study designs, a high level of heterogeneity was anticipated. Therefore, the random-effects meta-analysis approach was selected in the meta-analysis.⁴⁵ The I² test was used for heterogeneity measurement. According to Cochrane handbook,⁴⁵ I² values of 0% to 40%, 30% to 60%, 50% to 90%, and 75% to 100% were represented as not be important, moderate heterogeneity, substantial heterogeneity, and considerable heterogeneity, respectively. Publication bias was not reported according to the advice from the Cochrane Handbook,⁴⁵ as it was demonstrated that there was insufficient proof of the effects of publication bias in non-randomized studies.

Studies were divided into 2 primary groups based on the 2 types of treatment (ie, PSF and bracing) that AIS patients had undergone for data synthesis. In each study group, the secondary categories were the types of measured curves that were described in articles: proximal thoracic, main thoracic, and thoracolumbar/lumbar curves. In each curve category, meta-analyses were conducted according to the different time points of measuring correction rate: (1) immediate correction rate (measured within 4 weeks post-intervention); (2) follow-up correction rate (measured beyond 4 weeks post-intervention). In the category that the number of studies included was not enough for a meta-analysis, the narrative language was used for qualitative outcome synthesis.

The quality of evidence of the included studies was assessed by the “Grading of Recommendations, Assessment, Development and Evaluation (GRADE)” approach.⁴⁶

Results

Literature Searching

In the 5 databases of CINAHL, Embase, Ovid, PubMed, and Web of Science, a total of 1891 articles were identified from the beginning until September 2022. After removing the duplicated 926 items, the full texts of 111 of the remaining 965 records were retrieved for further analysis. After eliminating 11 items for which the complete texts were unavailable, 100 full-text articles were assessed for inclusion eligibility. The reasons for exclusion included no utilization of the side-bending or fulcrum-bending methods (n = 32), no pre- and post-intervention radiographs (n = 15), and no mean and SD data on the flexibility rate or the correction rate (n = 24). One additional study was added after the reference/citation searching. One additional study fulfilling the inclusion/exclusion criteria was identified during the more recent literature retrieval that was conducted in November 2024. Finally, a total of 31 studies met the inclusion criteria and were included in this review. Figure 1 displays the flowchart of the study review and selection process.

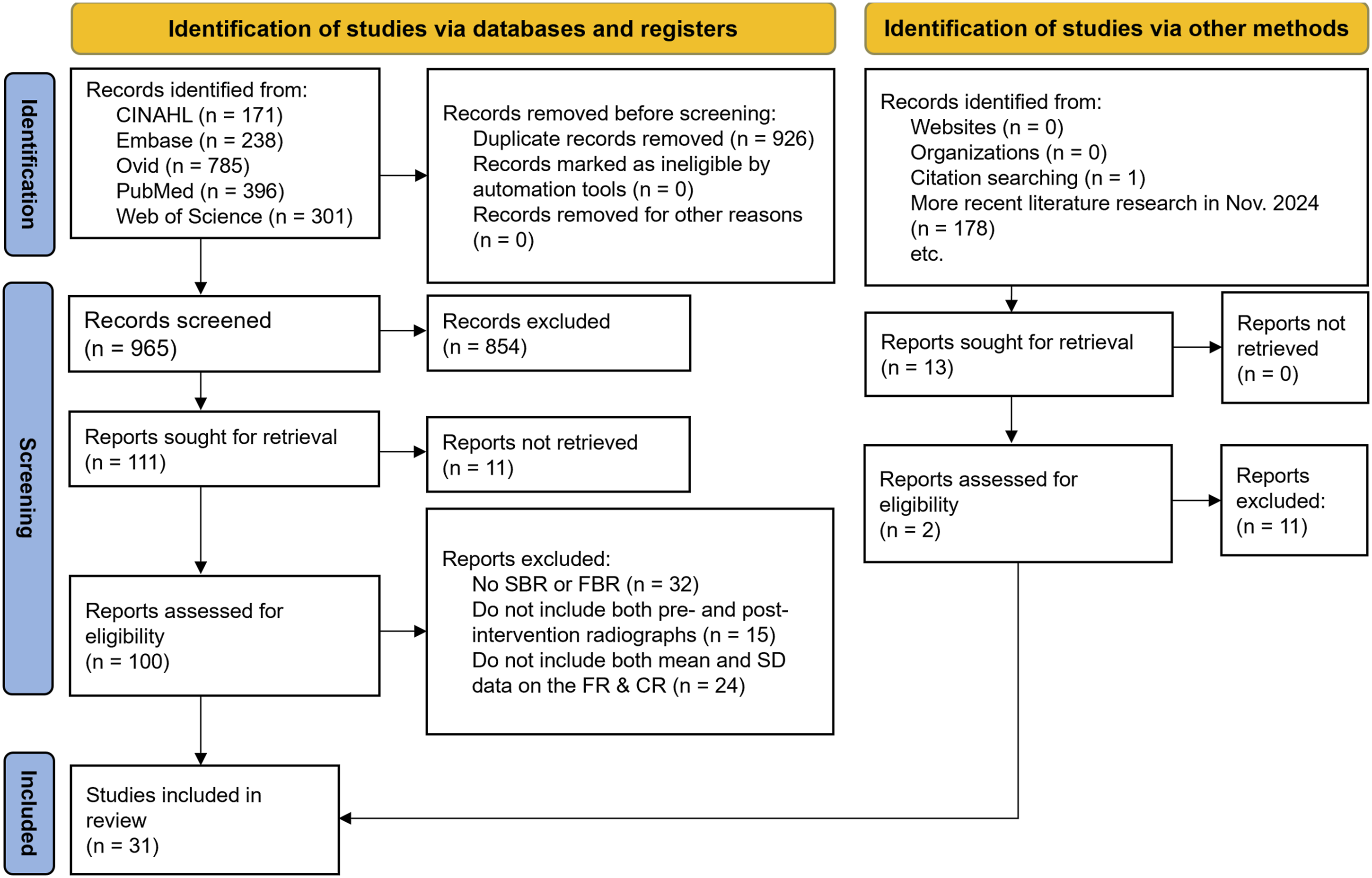

Figure 1.

PRISMA 2020 Flowchart for the inclusion process of the studies in the systematic review and meta-analysis. Note: CR, correction rate; FBR, fulcrum-bending radiograph; FR, flexibility rate; SBR, side-bending radiograph.

Study Characteristics

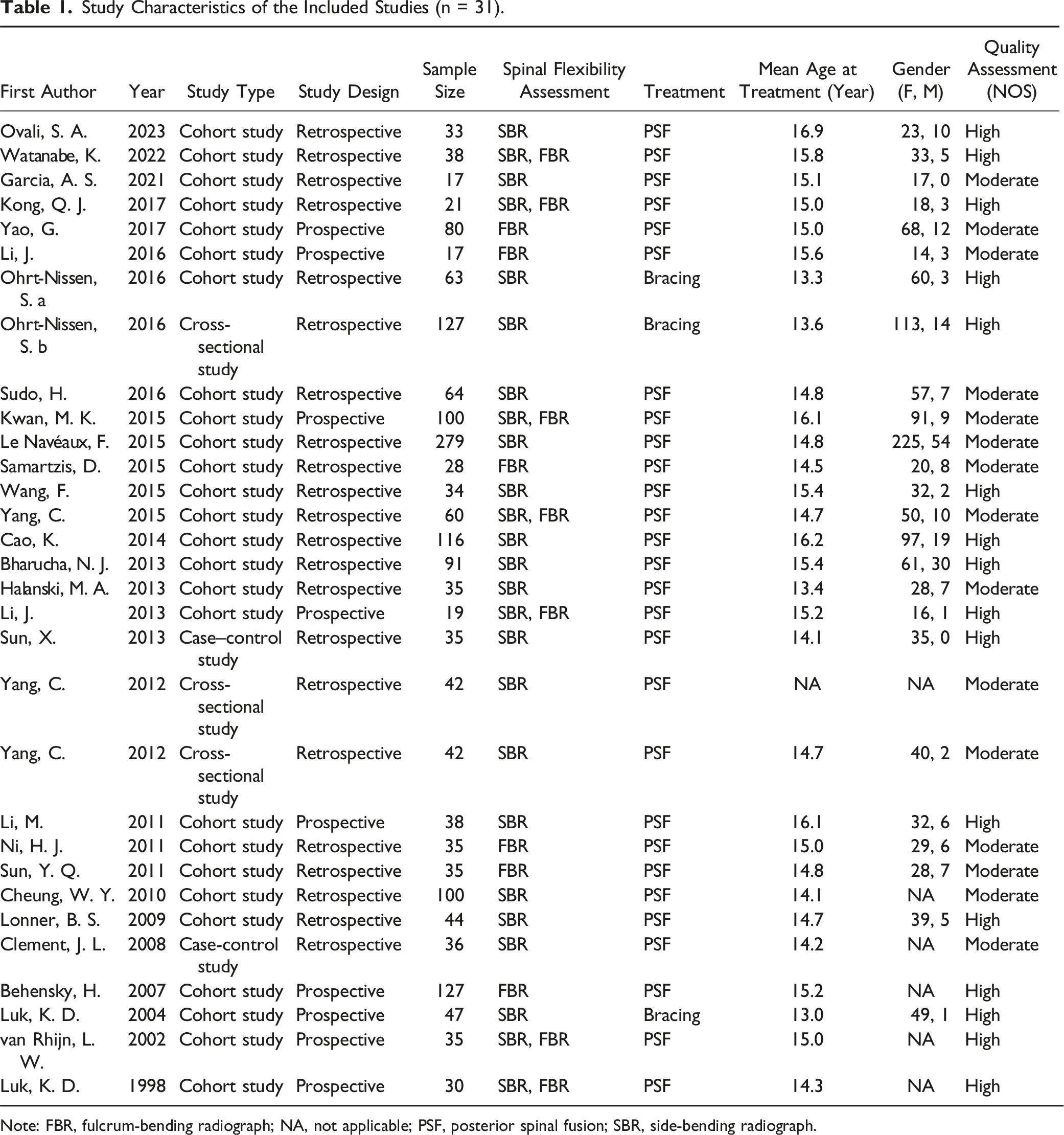

Table 1 summarizes the study characteristics of the included studies. A total of 31 studies were eligible, including 27 cohort studies (19 retrospective studies and 8 prospective studies), 2 case-control studies (retrospective studies), and 2 cross-sectional studies (retrospective study). The mean ages for AIS patients when receiving treatment ranged from 13.0 to 16.9 years.

Table 1.

Study Characteristics of the Included Studies (n = 31).

First Author	Year	Study Type	Study Design	Sample Size	Spinal Flexibility Assessment	Treatment	Mean Age at Treatment (Year)	Gender (F, M)	Quality Assessment (NOS)
Ovali, S. A.	2023	Cohort study	Retrospective	33	SBR	PSF	16.9	23, 10	High
Watanabe, K.	2022	Cohort study	Retrospective	38	SBR, FBR	PSF	15.8	33, 5	High
Garcia, A. S.	2021	Cohort study	Retrospective	17	SBR	PSF	15.1	17, 0	Moderate
Kong, Q. J.	2017	Cohort study	Retrospective	21	SBR, FBR	PSF	15.0	18, 3	High
Yao, G.	2017	Cohort study	Prospective	80	FBR	PSF	15.0	68, 12	Moderate
Li, J.	2016	Cohort study	Prospective	17	FBR	PSF	15.6	14, 3	Moderate
Ohrt-Nissen, S. a	2016	Cohort study	Retrospective	63	SBR	Bracing	13.3	60, 3	High
Ohrt-Nissen, S. b	2016	Cross-sectional study	Retrospective	127	SBR	Bracing	13.6	113, 14	High
Sudo, H.	2016	Cohort study	Retrospective	64	SBR	PSF	14.8	57, 7	Moderate
Kwan, M. K.	2015	Cohort study	Prospective	100	SBR, FBR	PSF	16.1	91, 9	Moderate
Le Navéaux, F.	2015	Cohort study	Retrospective	279	SBR	PSF	14.8	225, 54	Moderate
Samartzis, D.	2015	Cohort study	Retrospective	28	FBR	PSF	14.5	20, 8	Moderate
Wang, F.	2015	Cohort study	Retrospective	34	SBR	PSF	15.4	32, 2	High
Yang, C.	2015	Cohort study	Retrospective	60	SBR, FBR	PSF	14.7	50, 10	Moderate
Cao, K.	2014	Cohort study	Retrospective	116	SBR	PSF	16.2	97, 19	High
Bharucha, N. J.	2013	Cohort study	Retrospective	91	SBR	PSF	15.4	61, 30	High
Halanski, M. A.	2013	Cohort study	Retrospective	35	SBR	PSF	13.4	28, 7	Moderate
Li, J.	2013	Cohort study	Prospective	19	SBR, FBR	PSF	15.2	16, 1	High
Sun, X.	2013	Case–control study	Retrospective	35	SBR	PSF	14.1	35, 0	High
Yang, C.	2012	Cross-sectional study	Retrospective	42	SBR	PSF	NA	NA	Moderate
Yang, C.	2012	Cross-sectional study	Retrospective	42	SBR	PSF	14.7	40, 2	Moderate
Li, M.	2011	Cohort study	Prospective	38	SBR	PSF	16.1	32, 6	High
Ni, H. J.	2011	Cohort study	Retrospective	35	FBR	PSF	15.0	29, 6	Moderate
Sun, Y. Q.	2011	Cohort study	Retrospective	35	FBR	PSF	14.8	28, 7	Moderate
Cheung, W. Y.	2010	Cohort study	Retrospective	100	SBR	PSF	14.1	NA	Moderate
Lonner, B. S.	2009	Cohort study	Retrospective	44	SBR	PSF	14.7	39, 5	High
Clement, J. L.	2008	Case-control study	Retrospective	36	SBR	PSF	14.2	NA	Moderate
Behensky, H.	2007	Cohort study	Prospective	127	FBR	PSF	15.2	NA	High
Luk, K. D.	2004	Cohort study	Prospective	47	SBR	Bracing	13.0	49, 1	High
van Rhijn, L. W.	2002	Cohort study	Prospective	35	SBR, FBR	PSF	15.0	NA	High
Luk, K. D.	1998	Cohort study	Prospective	30	SBR, FBR	PSF	14.3	NA	High

Note: FBR, fulcrum-bending radiograph; NA, not applicable; PSF, posterior spinal fusion; SBR, side-bending radiograph.

Due to the limited number of articles included in the categories of proximal thoracic and thoracolumbar/lumbar curve-relevant studies, 2 fulcrum-bending studies that included 46 AIS patients were excluded from the meta-analysis. Therefore, a total of 1822 patients from 29 studies were included in this meta-analysis. The side-bending method was used in the PSF studies at a percentage of 78.6% (22/28), while the fulcrum-bending method was used at a percentage of 46.4% (13/28). Seven PSF studies contained both the side-bending and the fulcrum-bending methods in their research (25%, 7/28). All 3 bracing-related studies used the side-bending method as their spinal flexibility assessment method (100%, 3/3).

Quality Assessment Results

Table 2 shows the results of the quality assessment of the included 31 studies. A total of 27 cohort studies were included in the meta-analysis, with the NOS score ranging from 4 to 8 stars. Among the 27 cohort studies, 13 studies were assessed as having moderate quality, scoring from 4 to 6 stars; and the remaining 14 cohort studies received high-quality ratings, scoring from 7 to 9 stars. The 2 cross-sectional studies were given 6 and 7 stars, respectively, indicating moderate and high quality. There were 2 case-control studies that received 7 stars (high quality) and 5 stars (moderate quality) in the assessment using the NOS tool, respectively.

Table 2.

Quality of the Included Studies (n = 31).

No.	First Author	Year	Study Design	Selection	Comparability	Outcome	Qualify Score
No.	First Author	Year	Study Design	Selection	Comparability	Outcome	Stars (9)	Research Quality
1	Ovali, S. A.	2023	Cohort study	**	**	***	7	High
2	Watanabe, K.	2022	Cohort study	****	*	***	8	High
3	Garcia, A. S.	2021	Cohort study	**	**	*	5	Moderate
4	Kong, Q. J.	2017	Cohort study	**	**	**	7	High
5	Yao, G.	2017	Cohort study	**		***	5	Moderate
6	Li, J.	2016	Cohort study	**	**	*	5	Moderate
7	Ohrt-Nissen, S. a	2016	Cohort study	****		***	7	High
8	Ohrt-Nissen, S. b	2016	Cross-sectional study	****	*	**	7	High
9	Sudo, H.	2016	Cohort study	**	*	***	6	Moderate
10	Kwan, M. K.	2015	Cohort study	**	*	***	6	Moderate
11	Le Navéaux, F.	2015	Cohort study	**	*	***	6	Moderate
12	Samartzis, D.	2015	Cohort study	**	*	***	6	Moderate
13	Wang, F.	2015	Cohort study	**	**	***	7	High
14	Yang, C.	2015	Cohort study	**	*	***	6	Moderate
15	Cao, K.	2014	Cohort study	****	*	***	8	High
16	Bharucha, N. J.	2013	Cohort study	**	**	***	7	High
17	Halanski, M. A.	2013	Cohort study	**	*	*	4	Moderate
18	Li, J.	2013	Cohort study	**	**	***	7	High
19	Sun, X.	2013	Case–control study	***	**	**	7	High
20	Yang, C.	2012	Cross-sectional study	**	**	**	6	Moderate
21	Li, M.	2011	Cohort study	***	**	***	8	High
22	Ni, H. J.	2011	Cohort study	**	*	***	6	Moderate
23	Sun, Y. Q.	2011	Cohort study	**	*	*	4	Moderate
24	Cheung, W. Y.	2010	Cohort study	**	*	***	6	Moderate
25	Lonner, B. S.	2009	Cohort study	***	*	***	7	High
26	Clement, J. L.	2008	Case-control study	**	*	**	5	Moderate
27	Behensky, H.	2007	Cohort study	***	*	***	7	High
28	Luk, K. D.	2004	Cohort study	***	**	***	8	High
29	van Rhijn, L. W.	2002	Cohort study	**	**	***	7	High
30	Luk, K. D.	1998	Cohort study	***	*	***	7	High
31	Cheung, K. M.	1997	Cohort study	**		***	5	Moderate

Note: Newcastle-Ottawa Scale (NOS) quality assessment tool. One * means 1 star got in each category. The quality of articles was classified according to the number of stars with the following criteria: low quality (0 to 3 stars), moderate quality (4 to 6 stars), high quality (7 to 9 stars).

Clinical Outcomes

Primary Findings

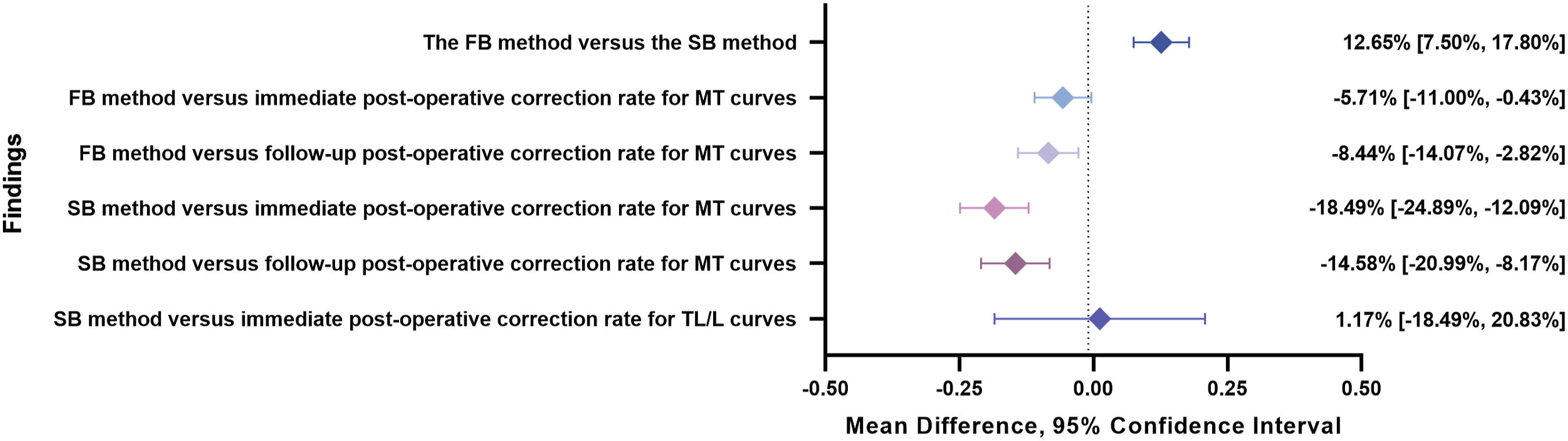

Figure 2 summarized the primary outcomes of the meta-analyses for included studies, including (1) the comparison of the flexibility rates assessed by the fulcrum-bending and the side-bending methods; (2) the predicted value of the fulcrum-bending and side-bending methods for main thoracic correction after the PSF surgery. The specific information on the meta-analysis for each outcome was reported in Supplemental Material 2.

Figure 2.

The primary outcomes of the meta-analyses for included studies. Note: This figure was produced according to the outcomes from the meta-analyses which were produced by the RevMan 5.4.1 software provided by the Cochrane Collaboration. The specific information on the meta-analysis for each outcome is in Supplemental Material 2. ◆: Pooled mean difference; error bar: 95% confidence interval. FB, fulcrum-bending radiograph; MT, main thoracic; SB, side-bending.

PSF Studies.

Comparison Between the Fulcrum-bending and the Side-bending Methods for Main Thoracic Curves Flexibility in AIS Patients.

A total of 5 studies^{33,37,38,47,48} providing the flexibility rate data that measured by the fulcrum-bending or side-bending methods were included in the meta-analysis (Supplemental Material 2a). Based on the pooled data from 230 patients, the flexibility rate measured by the fulcrum-bending method was significantly higher than those measured by the side-bending method, with an MD of 12.65% (95% CI: 7.50% to 17.80%, P < 0.001). There was substantial heterogeneity between studies (I² = 50%).

Accuracy of the Fulcrum-bending Method in Estimating the Immediate Post-operative Correction Rate for Main Thoracic Curves in AIS Patients.

There were ten studies^28,38,47-54 presented the fulcrum-bending flexibility rate, and the immediate post-surgical correction rate for main thoracic curves in AIS patients (Supplemental Material 2b). According to the pooled 399 sets of comparable data, the measured fulcrum-bending flexibility rate was significantly lower than the immediate post-surgical correction rate, with an MD of −5.71% (95% CI: −11.00% to −0.43%, P = 0.03). With similar pooled sample sizes, the fulcrum-bending method might show smaller predicting errors than the those of side-bending method (as described in the following section), when comparing the spinal flexibility rate to the actual immediate post-surgical correction rate. Significant heterogeneity between studies was reported (I² = 82%).

Accuracy of the Fulcrum-bending Method in Estimating the Follow-up Post-operative Correction Rate for Main Thoracic Curves in AIS patients.

The meta-analysis included a total of 6 studies^{33,37,49,50,52,55} that examined the fulcrum-bending flexibility rate and the follow-up post-surgical correction rate for main thoracic curves (Supplemental Material 2c). The follow-up time ranged from 24 to 52 months. The pooled data from 298 patients illustrated that the fulcrum-bending flexibility rate was significantly lower than the actual follow-up post-surgical correction rate with an MD of −8.44% (95% CI: −14.07% to −2.82%, P = 0.003). Compared to the side-bending method, the flexibility rate that measured using the fulcrum-bending method might show fewer predicting errors in comparison with the actual follow-up correction rate (as described in the following section). Considerable heterogeneity was found between studies (I² = 82%).

Accuracy of the Side-bending Method in Estimating the Immediate Post-operative Correction Rate for Main Thoracic curves in AIS Patients.

A total of eleven studies^{28,38,47,48,54,56-62} that provided the flexibility rate as measured by the side-bending method and the immediate post-surgical correction rate were included in the meta-analysis (Supplemental Material 2d). Based on the pooled data from 349 patients, the side-bending flexibility rate was significantly lower than the immediate post-surgical correction rate for main thoracic curves, with an MD of −18.49% (95% CI: −24.89% to −12.09%, P < 0.001). Considerable heterogeneity was presented between studies (I² = 89%).

Accuracy of the Side-bending Method in Estimating the Follow-up Post-operative Correction Rate for Main Thoracic Curves in AIS Patients.

The meta-analysis included thirteen studies^{33,57,59-61,63-69} that provided data on the side-bending flexibility rate and the follow-up post-surgical correction rate for main thoracic curves in 1021 AIS patients (Supplemental Material 2e). The follow-up time ranged from 1.5 to 82 months. The pooled data demonstrated that the side-bending flexibility rate was significantly lower than the follow-up correction rate with an MD of −14.58% (95% CI: −20.99% to −8.17%, P < 0.001). Heterogeneity was significant (I² = 96%).

Accuracy of the Side-bending Method in Estimating the Immediate Post-operative Correction Rate for Thoracolumbar/lumbar Curves in AIS Patients.

The meta-analysis comprised 5 studies^{57,58,61,62,70} that reported the side-bending flexibility rate and the immediate post-surgical correction rate (Supplemental Material 2f). The side-bending flexibility rate demonstrated a good prediction of the immediate post-surgical correction for thoracolumbar/lumbar curves, according to the pooled data from 96 patients. No significant difference between the flexibility rate and the immediate post-surgical correction rate was found with an MD of 1.17% (95% CI: −18.49% to 20.83%, P = 0.91). Significant heterogeneity was found (I² = 94%).

Secondary Findings

The results from the systematic review and meta-analysis of a smaller number of studies (1 to 4 included studies) were reported as the secondary findings of this review. It was expected that such results could serve as preliminary and intuitive quantitative evaluations, and may also provide considerable insights for future research and clinical research. While the Cochrane handbook states that 2 studies are adequate to conduct a meta-analysis,⁴⁵ however, it should be emphasized that the meta-analyses included in the finite quantity study may have larger potential biases in the clinical results. Figure 3 presented the secondary outcomes of the meta-analyses for included studies. The specific information on the meta-analysis for each outcome was in Supplemental Material 3.

Figure 3.

The secondary outcomes of the meta-analyses for included studies. Note: This figure was produced according to the outcomes from the meta-analyses which were produced by the RevMan 5.4.1 software provided by the Cochrane Collaboration. The specific information on the meta-analysis for each outcome is in Supplemental Material 3. ◆: Pooled mean difference; error bar: 95% confidence interval. MT, main thoracic; PT, proximal thoracic; SB, side-bending; TL/L, thoracolumbar/lumbar.

PSF Studies.

Accuracy of the Side-bending Method in Estimating the Follow-up Post-operative Correction Rate for Thoracolumbar/lumbar Curves in AIS Patients.

There were 4 studies^57,65,68,71 in the meta-analysis that reported the side-bending flexibility rate and the follow-up correction rate for thoracolumbar/lumbar curves (Supplemental Material 3a). The follow-up time ranged from 24 to 60 months. The pooled data from 229 AIS patients showed no significant difference between the flexibility rate and the actual correction rate, with a mean difference of 7.21% (95% CI: −6.72% to 21.14%, P = 0.31). This suggested that the side-bending method exhibited good predicting capability for determining the actual follow-up correction for thoracolumbar/lumbar curves in AIS patients. There was considerable heterogeneity between studies (I² = 94%).

Accuracy of the Side-bending Method in Estimating the Post-operative Correction Rate for Proximal Thoracic Curves in AIS Patients.

Two studies^33,65 that specifically addressed the proximal thoracic curves, examining both the side-bending flexibility rate and follow-up correction rate data, were incorporated into the meta-analysis (Supplemental Material 3b). The mean follow-up time was 24 months. The pooled data from 154 patients demonstrated that the side-bending flexibility rate was significantly lower than the actual follow-up post-surgical correction rate with an MD of −26.23% (95% CI: −30.40% to −22.06%, P < 0.001). The heterogeneity was considered not important (I² = 28%). Additionally, 1 study including 7 patients with proximal thoracic curves⁶² reported the pre-surgical flexibility rate of 19.60% ± 15.00%, as measured using the side-bending method, and the post-surgical correction rate of 37.30% ± 14.00%. The specific time point for the post-surgical measurement was not provided.

Accuracy of the Fulcrum-bending Method in Estimating the Post-operative Correction for Thoracolumbar/lumbar Curves in AIS Patients.

Only 1 study from Li, J. et al³⁸ reported data on the pre-surgical fulcrum-bending flexibility rate, as well as the correction rate that measured 1 week post-surgically, for thoracolumbar/lumbar curves. A total of 8 patients were included in the study, with a mean flexibility rate of 68.9% (SD = 14.7%) and a mean correction rate of 83.9% (SD = 7.7%).

Accuracy of the Fulcrum-bending Method in Estimating the Follow-up Post-operative Correction Rate for Proximal Thoracic Curves in AIS Patients.

Only 1 study from Watanabe, K. et al³³ focused on the capability of the fulcrum-bending method in predicting the actual correction measured after 2 years post-surgically for AIS patients with proximal thoracic curves. They found no significant difference between the fulcrum-bending flexibility rate and the post-surgical curve correction. The mean flexibility rate was 44.26% ± 14.27%, and the mean follow-up correction rate was 39.64% ± 15.06%, as calculated by the authors of this review based on the reported data from the study. Watanabe, K. et al indicated that these findings could support the conclusion that the fulcrum-bending method could assess the real proximal thoracic curve flexibility and therefore, had substantial value in predicting surgical outcomes.

Bracing Studies.

Accuracy of the Side-bending Method in Estimating the Follow-up Post-operative Correction Rate for Main Thoracic Curves in AIS Patients.

The meta-analysis included 2 studies^72,73 that reported the side-bending flexibility rate and the initial in-brace correction rate from 190 patients with various curve types (Supplemental Material 3c). According to the pooled data, the good predictability of the side-bending method in the degree of initial in-brace correction was observed, with an MD of −0.33% (95% CI: −4.67% to 4.00%, P = 0.88). The heterogeneity was not significant (I² = 0%).

Accuracy of the Side-bending Method in Estimating the Initial In-brace Correction Rate for Main Thoracic Curves in AIS Patients.

A total of 2 studies^73,74 reporting the side-bending flexibility rate and the initial in-brace correction rate for main thoracic curves were included in the meta-analysis (Supplemental Material 3d). The pooled data from 112 patients demonstrated that there was no significant difference between the flexibility rate and the correction rate with an MD of 13.70% (95% CI: −15.52% to 42.92%, P = 0.36). This might indicate a good predictivity of the side-bending method in the initial in-brace correction rate. Considerable heterogeneity was demonstrated (I² = 97%).

Accuracy of the Side-bending Method in Estimating the Initial In-brace Correction Rate for Thoracolumbar/lumbar Curves in AIS Patients.

Two studies^73,74 reporting the side-bending flexibility rate and the correction rate for thoracolumbar/lumbar curves in 84 patients were included in the meta-analysis (Supplemental Material 3e). The analysis showed no significant difference between the side-bending flexibility rate and the initial in-brace correction rate, with an MD of 31.89% (95% CI: −23.19% to 86.96%, P = 0.26). Significant heterogeneity was found (I² = 99%).

Quality of Evidence

The overall quality of evidence of the included studies was low. More specifically, due to the observational study designs, all predicting effectiveness of the fulcrum-bending and side-bending methods in determining the post-surgical curve correction, and the effectiveness of the side-bending method in estimating the initial in-brace correction for mixed curves in AIS patients, revealed low-quality evidence. Due to the observational study design and inconsistent outcomes of each included study, the predicted value of the side-bending approach in estimating the first in-brace correction for the main thoracic and thoracolumbar/lumbar curves showed very low-quality evidence. Table 3 displays the quality of the evidence across all included studies.

Table 3.

Summary of Quality of Evidence Across the Studies.

Topic	No. of Studies	Study Design	Risk of Bias	Inconsistency	Indirectness	Imprecision	Publication Bias	Other Factors and Upgrading	Overall Certainty of Evidence	Explanations for down- or Upgrading
Fulcrum-bending method vs Side-bending method	5	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the fulcrum-bending method in estimating immediate post-operative correction rate for main thoracic curves	10	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the fulcrum-bending method in estimating follow-up post-operative correction rate for main thoracic curves	6	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating immediate post-operative correction rate for main thoracic curves	11	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating follow-up post-operative correction rate for main thoracic curves	12	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating immediate post-operative correction rate for thoracolumbar/lumbar curves	5	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating follow-up post-operative correction rate for thoracolumbar/lumbar curves	4	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating follow-up post-operative correction rate for proximal thoracic curves	2	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the fulcrum-bending method in estimating immediate post-operative correction rate for thoracolumbar/lumbar curves	1	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the fulcrum-bending method in estimating follow-up post-operative correction rate for thoracolumbar/lumbar curves	1	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating initial in-brace correction rate for mixed curves	2	NRCT	−2	No	No	No	Undetected	None	⊕⊕○○ Low	No randomized control trial
Accuracy of the side-bending method in estimating initial in-brace correction rate for main thoracic curves	2	NRCT	−2	−1	No	No	Undetected	None	⊕○○○ Very low	No randomized control trial No overlap in confidence intervals
Accuracy of the side-bending method in estimating initial in-brace correction rate for thoracolumbar/lumbar curves	2	NRCT	−2	−1	No	No	Undetected	None	⊕○○○ Very low	No randomized control trial No overlap in confidence intervals

Note: Grading of Recommendations, Assessment, Development and Evaluation (GRADE) criteria. NRCT, non-randomized controlled trials.

Discussion

This systematic review and meta-analysis have investigated and compared the accuracy of the spinal flexibility rates, as assessed by the fulcrum-bending and side-bending radiographs, in predicting the actual curvature correction rate post-intervention in AIS patients who underwent the PSF surgical or bracing treatments. The results supported that the side-bending method has been applied more frequently than the fulcrum-bending method in both PSF and bracing research. The meta-analysis demonstrated that for the main and proximal thoracic curves, the fulcrum-bending method might have better-predicting accuracy both immediately and during follow-up in AIS patients receiving PSF surgery. For thoracolumbar/lumbar curves, the flexibility rate assessed by the side-bending method showed high predicting accuracy for both the immediate and follow-up post-surgical correction rates. In bracing studies, a few studies chose the side-bending method for spinal flexibility assessment, and supported its good capability in predicting the initial in-brace correction for AIS patients.

All included studies showed the moderate-to-high quality of methodologies according to the NOS assessment tool. Based on the GRADE criteria, there was low-quality evidence supporting the accuracy of the fulcrum-bending and the side-bending approaches, in predicting the post-surgical curve correction for AIS patients who underwent PSF surgery. There was low to very-low quality evidence that supported the accuracy of the side-bending method, in predicting the initial in-brace curve correction for AIS patients who underwent the bracing treatment.

The fact that the side-bending method has a longer history than fulcrum bending may be 1 of the reasons why it is more widely used in PSF surgery and brace therapy. Since been introduced in 1972,³⁰ the side-bending method has demonstrated good predicting ability for the post-surgical correction rate of the traditional non-segmental/segmental instrumentation techniques,^75-77 establishing it as the “golden standard” worldwide. In contrast, although the more recent fulcrum-bending method, which was introduced in 1997,²⁸ has been reported in more recent studies to have less predicting error than the traditional side-bending method with the modern segmental instrumentation techniques,^33,37,38,48 it has not yet achieved widespread global acceptance and application. Compared to the side-bending method, which does not require additional manual or auxiliary equipment and is easy for clinicians to master, the result of the fulcrum-bending method is influenced by factors such as fulcrum size.³⁸ This may affect the prediction results, leading to a lack of trust from clinicians. Similarly, the procedure of predicting initial in-brace correction based on the spinal flexibility have been recently originated from the surgical protocols.⁷⁸ The supine position without side-bending was the most commonly used spinal flexibility assessment during bracing treatment, even more frequent than the side-bending method, and the fulcrum-bending method had not yet been utilized.⁷⁹ However, so far, no consensus has been reached regarding the most accurate method for bracing treatment. The current meta-analysis indicates that further high-quality studies are still needed to fully understand the clinical value of the fulcrum-bending method in surgical treatment and the side-bending method in brace treatment.

For the surgical treatment of main thoracic curves, the immediate and long-term predicting accuracy of the fulcrum-bending approach was relatively high in AIS patients. In contrast, the predicting ability of the side-bending method should be interpreted with caution, as the results of the meta-analysis indicated that it might underestimate the correction rates more significantly. Compared to lumbar curves, thoracic curves are structurally limited in terms of range of motion due to the influence of the rib cage.⁸⁰ Previous studies have also indicated that patients who meet the indications for posterior spinal fusion (PSF) surgery may exhibit relatively rigid curves.²⁸ Consequently, they may face difficulties in actively and fully side-bending their spine without additional external assistance when assessing the spinal flexibility using the traditional side-bending method. Its limitations relating to the insufficient reliability^10,81 and reproducibility^10,23,82 have also been noticed in recent years. The above-mentioned issues can be solved by the utilization of the fulcrum-bending method. With the fulcrum in place, the patient’s own body gravity replaces their unstable active effort to passively open the spine.²⁸ The increased distance between the upper body (specifically the ipsilateral shoulder) and the X-ray table that provided by the fulcrum allows for the maximum application of passive bending force to fully exhibit the potential spinal flexibility. This leads to the results that even with the advanced modern surgical technologies (eg, all-pedicle screw instrumentation system), which have significantly enhanced curve correction in posterior spinal fusion (PSF) surgeries,^37,83,84 the fulcrum-bending method still consistently showed smaller predicting errors than the traditional side-bending method. This was also supported by the meta-analysis results of the current review. When considering the time effect, similar to a previous review,²⁰ this study also observed that the predicting error of the fulcrum-bending approach was smaller over time, comparing with the side-bending method. These findings supported the utilization of the fulcrum-bending method for measuring spinal flexibility in AIS patients with main thoracic curves. Based on the fulcrum-bending assessment results, surgeons can select the surgical fusion with more suitable levels and number of vertebrae. This enables more preservation of motion segments⁸⁵ and the potential to save more distal levels,^85,86 comparing to the conventional strategies of selecting fusion levels.

For the surgical treatment of thoracolumbar/lumbar curves, the side-bending technique could accurately predict both immediate and long-term post-surgical curve correction. Meta-analyses revealed no significant mean difference between the measured spinal flexibility and the actual post-surgical correction rate. This finding is consistent with the conclusion of a previous literature review.³⁹ Although a direct comparison between the side-bending method and the fulcrum-bending method for measuring thoracolumbar/lumbar flexibility has yet to be conducted, the side-bending method has shown comparable predictive accuracy to other radiographic-based assessment methods.^62,87-89 The previous findings further supported the application of the side-bending method for assessing the flexibility of thoracolumbar/lumbar curves. Its benefits also include ease of use, as it requires no additional equipment, leading and facilitating its extensive application and appreciation by clinicians. For the fulcrum-bending approach, previous studies have reported its ability to accurately estimate the post-surgical correction rate for thoracolumbar/lumbar curves.^90,91 However, this systematic review included a limited number of eligible fulcrum-bending research, highlighting the need for additional evidence to further support its predicting capacity.

For the surgical treatment of proximal thoracic curves, the side-bending method may underestimate the spinal flexibility in patients receiving PSF surgery, while the evidence on the fulcrum-bending approach has been limited. These findings from the current systematic review and meta-analysis are in accordance with a previous systematic review.²⁰ However, since only 2 side-bending related studies with small sample sizes were involved in the meta-analysis, this finding should be interpreted with caution. For the fulcrum-bending method, similar to the finding on thoracolumbar/lumbar curve studies, only 1 study has reported its promising application prospects in estimating the actual curve correction for proximal thoracic curves for surgically treated AIS patients,³³ making it unavailable to conduct a meta-analysis. Further research focusing on proximal thoracic curves is necessary to provide more evidence.

For the bracing treatment, the side-bending method showed good predicting ability for initial in-brace correction. However, this finding should be applied with caution, as only 3 studies were eligible for the systematic review, and each meta-analysis incorporated only 2 studies. This may explain why some recent studies still chose the conventional supine spine radiographs, without side bending, to assess the curve flexibility.^92-94 Although the side-bending method demonstrated certain accuracy in predicting the in-brace correction, more future studies are still needed to strengthen the evidence and identify the optimized protocol for curvatures with different angles, types, and levels in AIS patients.

For future clinical practice of assessing spinal flexibility using the fulcrum-bending or side-bending method, the findings of this meta-analysis and systematic review suggested that: (1) For AIS patients with main thoracic curves and receiving PSF surgery, the fulcrum-bending method could predict the post-intervention correction more accurately; (2) For AIS patients with thoracolumbar/lumbar curves and receiving PSF surgery, the side-bending method appeared to have sufficient predicting accuracy; (3) For AIS patients with proximal thoracic curves and receiving PSF surgery, the fulcrum-bending method may have promising potential, however, further comparisons are still necessary to evaluate the predictive accuracy between 2 methods; and (4) For AIS patients receiving bracing treatment, the side-bending method may be used, while more high-quality research to fully understand its application protocols are still needed.

Future research could consider: (1) investigating the predicted effectiveness of the fulcrum-bending method that applied in surgical AIS patients with proximal and thoracolumbar/lumbar curves; and (2) investigating the application value of the side-bending and/or fulcrum-bending methods for AIS patients who undergoing bracing treatment.

It’s important to point out that this systematic review and meta-analysis have several limitations. The first limitation was the high heterogeneity that existed among the included studies in this review. This might be due to the eligibility criteria of including as much available studies/data as possible, the high variability of the study design, and the objective of each study. Despite this, the meta-analysis results were considered reliable, with rather good control over the type of extracted data and the time point of extraction in this review. The second limitation was the limited number of eligible studies that focused on the utilization of: (1) the fulcrum-bending method for proximal and thoracolumbar/lumbar curves in PSF surgery; (2) the side-bending method for proximal curves in PSF surgery; and (3) the side-bending method in bracing treatment. As a result, most included studies were about surgical interventions (ie, PSF), rather than non-surgical intervention (ie, bracing). Limited by the low quality of evidence and the limited number of eligible studies that related to bracing interventions, the predicting accuracy results on the side-bending methods shall be interpreted with caution. The current evidence did not reject, but may also not be sufficient enough, to recommend the clinical practice of using side-bending method to predict the non-surgical correction for patients receiving bracing treatments.

Conclusions

This systematic review and meta-analysis have qualitatively and quantitatively evaluated the accuracy of 2 common clinical radiographic assessment methods of spinal flexibility in predicting post-intervention curve corrections of AIS patients. Up to now, the side-bending radiography method has been applied more often in clinical practice than the fulcrum-bending radiography method, regardless of whether the AIS patients received surgical or bracing treatments. The quantitative results supported the utilization of the fulcrum-bending method for assessing the spinal flexibility of main thoracic curves, and the side-bending method for thoracolumbar/lumbar curves in AIS patients receiving PSF surgery. Further investigations are still needed to support the use of the fulcrum-bending method for proximal thoracic curves. For patients undergoing bracing treatment, the side-bending method has limited evidence and still needs to be further investigated to confirm its clinical application value.

Supplemental Material

Supplemental Material - Predicting Surgical and Non-surgical Curvature Correction by Radiographic Spinal Flexibility Assessments for Patients With Adolescent Idiopathic Scoliosis: A Systematic Review and Meta-Analysis

Supplemental Material for Predicting Surgical and Non-surgical Curvature Correction by Radiographic Spinal Flexibility Assessments for Patients With Adolescent Idiopathic Scoliosis: A Systematic Review and Meta-Analysis by Yu-Yan Luo, Tim-Mei Hung, Qian Zheng, Hui-Dong Wu, Man-Sang Wong, Zi-Qian Bai, and Christina Zong-Hao Ma in Global Spine Journal

Supplemental Material

Supplemental Material - Predicting Surgical and Non-surgical Curvature Correction by Radiographic Spinal Flexibility Assessments for Patients With Adolescent Idiopathic Scoliosis: A Systematic Review and Meta-Analysis

Supplemental Material

Supplemental Material - Predicting Surgical and Non-surgical Curvature Correction by Radiographic Spinal Flexibility Assessments for Patients With Adolescent Idiopathic Scoliosis: A Systematic Review and Meta-Analysis

Footnotes

Author Contributions

All authors contributed to the study conception and design. Study conception and design were performed by Y.Y.L. and C.Z.H.M. Material preparation, data collection, analysis, and interpretation were performed by Y.Y.L., T.M.H., Q.Z., H.D.W., M.S.W., Z.Q.B., and C.Z.H.M. The first draft of the manuscript was written by Y.Y.L., and all authors revised and edited the manuscript. All authors have read and approved the final manuscript.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by Department of Biomedical Engineering, The Hong Kong Polytechnic University (grant number: P0034491, P0053711).

ORCID iDs

Yu-Yan Luo

Christina Zong-Hao Ma

Supplemental Material

Supplemental material for this article is available online

References

Parent

Newton

Wenger

. Adolescent idiopathic scoliosis: etiology, anatomy, natural history, and bracing. Instr Course Lect. 2005;54:529-536.

Miller

Cahill

Vitale

Shah

. Posterior correction techniques for adolescent idiopathic scoliosis. J Am Acad Orthop Surg. 2020;28(9):e363-e373. doi:10.5435/jaaos-d-18-00399

Peeters

CMM

van Hasselt

Wapstra

Jutte

Kempen

DHR

Faber

. Predictive factors on initial in-brace correction in idiopathic scoliosis A systematic review. Spine. 2022;47(8):E353-E361. doi:10.1097/brs.0000000000004305

Wong

LPK

Cheung

PWH

Cheung

JPY

. Curve type, flexibility, correction, and rotation are predictors of curve progression in patients with adolescent idiopathic scoliosis undergoing conservative treatment. Review. Bone and Joint Journal. 2022;104 B(4):424-432. doi:10.1302/0301-620X.104B4.BJJ-2021-1677.R1

Negrini

Donzelli

Aulisa

, et al. 2016 SOSORT guidelines: orthopaedic and rehabilitation treatment of idiopathic scoliosis during growth. Scoliosis Spinal Disord. 2018;13:3. doi:10.1186/s13013-017-0145-8

Wang

Xia

Wang

, et al. Optimized scheme for paired transverse corrective forces in S-shaped scoliosis via ultrasound and application in Chêneau brace: a pilot study. Prosthet Orthot Int. 2022;46(1):42-49. doi:10.1097/pxr.0000000000000064

Grivas

Negrini

Aubin

, et al. Nonoperative management of adolescent idiopathic scoliosis (AIS) using braces. Prosthet Orthot Int. 2022;46(4):383-391. doi:10.1097/pxr.0000000000000117

Weinstein

Dolan

Wright

Dobbs

. Effects of bracing in adolescents with idiopathic scoliosis. N Engl J Med. 2013;369(16):1512-1521. doi:10.1056/NEJMoa1307337

Weinstein

Dolan

Cheng

Danielsson

Morcuende

. Adolescent idiopathic scoliosis. Lancet. 2008;371(9623):1527-1537. doi:10.1016/s0140-6736(08)60658-3

10.

Cheh

Lenke

Lehman

Jr. Kim

Nunley

Bridwell

. The reliability of preoperative supine radiographs to predict the amount of curve flexibility in adolescent idiopathic scoliosis. Spine. 2007;32(24):2668-2672. doi:10.1097/BRS.0b013e31815a5269

11.

Duval-Beaupère

Lespargot

Grossiord

. Flexibility of scoliosis. What does it mean? Is this terminology appropriate? Spine. 1985;10(5):428-432.

12.

Mayorga-Vega

Merino-Marban

Viciana

. Criterion-related validity of sit-and-reach tests for estimating hamstring and lumbar extensibility: a meta-analysis. J Sports Sci Med. 2014;13(1):1-14.

13.

Mellin

. Accuracy of measuring lateral flexion of the spine with a tape. Clin Biomech. 1986;1(2):85-89. doi:10.1016/0268-0033(86)90081-1

14.

Gao

Thung

Wei

, et al. Absolute reliability and concurrent validity of the modified goniometric platform for measuring trunk rotation in the sitting position. Applied sciences. 2022;12(17):8891. doi:10.3390/app12178891

15.

Nokariya

Kotani

Sakuma

, et al. Trunk flexibility using a sit-and-reach test after surgery for adolescent idiopathic scoliosis. Spine Deform. 2023;11(2):297-303. doi:10.1007/s43390-022-00608-3

16.

Uehara

Takahashi

Ikegami

, et al. Correlation of lower instrumented vertebra with spinal mobility and health-related quality of life after posterior spinal fusion for adolescent idiopathic scoliosis. Clin Spine Surg. 2019;32(7):E326-E329. doi:10.1097/BSD.0000000000000794

17.

Fan

Wang

Huang

, et al. Comparison of functional outcome and quality of life in patients with idiopathic scoliosis treated by spinal fusion. Medicine (Baltim). 2016;95(19):e3289. doi:10.1097/MD.0000000000003289

18.

Sanchez-Raya

Bago

Pellise

Cuxart

Villanueva

. Does the lower instrumented vertebra have an effect on lumbar mobility, subjective perception of trunk flexibility, and quality of life in patients with idiopathic scoliosis treated by spinal fusion? J Spinal Disord Tech. 2012;25(8):437-442. doi:10.1097/BSD.0b013e3182318622

19.

Danielsson

Romberg

Nachemson

. Spinal range of motion, muscle endurance, and back pain and function at least 20 years after fusion or brace treatment for adolescent idiopathic scoliosis : a case-control study. Spine. 2006;31(3):275-283. doi:10.1097/01.brs.0000197652.52890.71

20.

Khodaei

Pachêco-Pereira

Trac

Chan

Lou

. Radiographic methods to estimate surgical outcomes based on spinal flexibility assessment in patients who have adolescent idiopathic scoliosis: a systematic review. Spine J. 2018;18(11):2128-2139. doi:10.1016/j.spinee.2018.06.344

21.

Hirsch

Ilharreborde

Mazda

. EOS suspension test for the assessment of spinal flexibility in adolescent idiopathic scoliosis. Eur Spine J. 2015;24(7):1408-1414. doi:10.1007/s00586-015-3771-y

22.

Cheung

, et al. An effective assessment method of spinal flexibility to predict the initial in-orthosis correction on the patients with adolescent idiopathic scoliosis (AIS). PLoS One. 2017;12(12):e0190141. doi:10.1371/journal.pone.0190141

23.

Klepps

Lenke

Bridwell

Bassett

Whorton

. Prospective comparison of flexibility radiographs in adolescent idiopathic scoliosis. Spine. 2001;26(5):E74-E79. doi:10.1097/00007632-200103010-00002

24.

Bekki

Harimaya

Matsumoto

, et al.

Which side-bending X-ray position is better to evaluate the preoperative curve flexibility in adolescent idiopathic scoliosis patients, supine or prone?

Asian Spine J. 2018;12(4):632-638. doi:10.31616/asj.2018.12.4.632

25.

Joshi

Berman

Baghdadi

, et al. Pre-operative prone radiographs can reliably determine spinal curve flexibility in adolescent idiopathic scoliosis (AIS). Spine Deform. 2022;10(5):1063-1070. doi:10.1007/s43390-022-00517-5

26.

Watanabe

Kawakami

Nishiwaki

, et al.

Traction versus supine side-bending radiographs in determining flexibility : what factors influence these techniques?

Spine. 2007;32(23):2604-2609. doi:10.1097/BRS.0b013e318158cbcb

27.

Kleinman

Csongradi

Rinksy

Bleck

. The radiographic assessment of spinal flexibility in scoliosis: a study of the efficacy of the prone push film. Clin Orthop Relat Res. 1982;162(162):47-53. doi:10.1097/00003086-198201000-00009

28.

Cheung

Luk

. Prediction of correction of scoliosis with use of the fulcrum bending radiograph. J Bone Joint Surg Am. 1997;79(8):1144-1150. doi:10.2106/00004623-199708000-00005

29.

Lamarre

M-E

Parent

Labelle

, et al. Assessment of spinal flexibility in adolescent idiopathic scoliosis : suspension versus side-bending radiography. Spine. 2009;34(6):591-597. doi:10.1097/BRS.0b013e318193a23d

30.

Moe

. Methods of correction and surgical techniques in scoliosis. Orthop Clin North Am. 1972;3(1):17-48.

31.

Hamill

Lenke

Bridwell

Chapman

Blanke

Baldus

. The use of pedicle screw fixation to improve correction in the lumbar spine of patients with idiopathic scoliosis. Is it warranted? Spine. 1996;21(10):1241-1249. doi:10.1097/00007632-199605150-00020

32.

Suk

Kim

Lee

Kim

Chung

. Thoracic pedicle screw fixation in spinal deformities: are they really safe? Spine. 2001;26(18):2049-2057. doi:10.1097/00007632-200109150-00022

33.

Watanabe

Ohashi

Sekimoto

, et al. Evaluating flexibility and predicting curve correction using fulcrum-bending radiographs in Lenke type 2 adolescent idiopathic scoliosis. J Orthop Sci. 2022;28:529-535. doi:10.1016/j.jos.2022.01.015

34.

Steen

Pripp

Lange

Brox

. Predictors for long-term curve progression after Boston brace treatment of idiopathic scoliosis. Eur J Phys Rehabil Med. 2021;57(1):101-109. doi:10.23736/s1973-9087.20.06190-0

35.

Cheung

JPY

Cheung

PWH

. Supine flexibility predicts curve progression for patients with adolescent idiopathic scoliosis undergoing underarm bracing. Bone Joint Lett J. 2020;102-b(2):254-260. doi:10.1302/0301-620x.102b2.Bjj-2019-0916.R1

36.

Yang

Lee

TTY

Lai

KKL

, et al. Semi-automatic method for pre-surgery scoliosis classification on X-ray images using Bending Asymmetry Index. Int J Comput Assist Radiol Surg. 2022;17:2239-2251. doi:10.1007/s11548-022-02740-x. Article in Press.

37.

Kwan

Zeyada

Chan

. Prediction of curve correction using alternate level pedicle screw placement in patients with adolescent idiopathic scoliosis (AIS) lenke 1 and 2 using supine side bending (SB) and fulcrum bending (FB) radiograph. Spine. 2015;40(20):1605-1612. doi:10.1097/brs.0000000000001087

38.

Hwang

Wang

, et al. An innovative fulcrum-bending radiographical technique to assess curve flexibility in patients with adolescent idiopathic scoliosis. Spine. 2013;38(24):E1527-E1532. doi:10.1097/BRS.0b013e3182a58e89

39.

Wong

. Spinal flexibility assessment on the patients with adolescent idiopathic scoliosis: a literature review. Spine. 2018;43(4):E250-E258. doi:10.1097/brs.0000000000002276

40.

Lenke

Edwards

Bridwell

. The Lenke classification of adolescent idiopathic scoliosis: how it organizes curve patterns as a template to perform selective fusions of the spine. Spine. 2003;28(20):S199-S207. doi:10.1097/01.Brs.0000092216.16155.33

41.

Booth

Clarke

Dooley

, et al. The nuts and bolts of PROSPERO: an international prospective register of systematic reviews. Syst Rev. 2012;1:2. doi:10.1186/2046-4053-1-2

42.

Page

McKenzie

Bossuyt

, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. BMJ. 2021;372:n71. doi:10.1136/bmj.n71

43.

Nelson

Schulman

. Orthopaedic literature and MeSH. Clin Orthop Relat Res. 2010;468(10):2621-2626. doi:10.1007/s11999-010-1387-4

44.

Wang

Yang

Huang

Weng

Zeng

. Methodological quality (risk of bias) assessment tools for primary and secondary medical studies: what are they and which is better? Mil Med Res. 2020;7(1):7. doi:10.1186/s40779-020-00238-8

45.

Cumpston

Page

, et al. Updated guidance for trusted systematic reviews: a new edition of the Cochrane Handbook for Systematic Reviews of Interventions. Cochrane Database Syst Rev. 2019;10:Ed000142. doi:10.1002/14651858.Ed000142

46.

Balshem

Helfand

Schünemann

, et al. GRADE guidelines: 3. Rating the quality of evidence. J Clin Epidemiol. 2011;64(4):401-406. doi:10.1016/j.jclinepi.2010.07.015

47.

Kong

Sun

Wang

, et al. Evaluating the rotation correction of the main thoracic curve in severe adolescent idiopathic scoliosis: bending and traction vs. Fulcrum - a preliminary report. Med Sci Monit. 2017;23:4981-4988. doi:10.12659/msm.903795

48.

Yang

Sun

, et al. Could CCI or FBCI fully eliminate the impact of curve flexibility when evaluating the surgery outcome for thoracic curve idiopathic scoliosis patient? A retrospective study. PLoS One. 2015;10(5):e0126380. doi:10.1371/journal.pone.0126380

49.

Cheung

Samartzis

, et al. Key-Vertebral screws strategy for main thoracic curve correction in patients with adolescent idiopathic scoliosis. Clin Spine Surg. 2016;29(8):E434-E441. doi:10.1097/bsd.0000000000000129

50.

Samartzis

Leung

Shigematsu

, et al. Selection of fusion levels using the fulcrum bending radiograph for the management of adolescent idiopathic scoliosis patients with alternate level pedicle screw strategy: clinical decision-making and outcomes. PLoS One. 2015;10(8):e0120302. doi:10.1371/journal.pone.0120302

51.

Sun

Samartzis

Cheung

Wong

Luk

KDK

. The “X-Factor” index: a new parameter for the assessment of adolescent idiopathic scoliosis correction. Eur Spine J. 2011;20(1):144-150. doi:10.1007/s00586-010-1534-3

52.

Cheung

Lenke

Luk

. Prediction of scoliosis correction with thoracic segmental pedicle screw constructs using fulcrum bending radiographs. Spine. 2010;35(5):557-561. doi:10.1097/BRS.0b013e3181b9cfa9

53.

Luk

Cheung

Wong

. A prospective comparison of the coronal deformity correction in thoracic scoliosis using four different instrumentations and the fulcrum-bending radiograph. Spine. 2004;29(5):560-563. doi:10.1097/01.brs.0000106494.14707.b2

54.

Luk

Cheung

Leong

. Assessment of scoliosis correction in relation to flexibility using the fulcrum bending correction index. Spine. 1998;23(21):2303-2307. doi:10.1097/00007632-199811010-00011

55.

Yao

Cheung

JPY

Shigematsu

, et al. Characterization and predictive value of segmental curve flexibility in adolescent idiopathic scoliosis patients. Spine. 2017;42(21):1622-1628. doi:10.1097/brs.0000000000002046

56.

Garcia

Vieira

Kruppa

JTP

Ueta

RHS

Puertas

. Comparison between radiographic methods of measuring flexibility in scoliosis. Article. Coluna/ Columna. 2021;20(2):84-88. doi:10.1590/S1808-185120212002235024

57.

Wang

Wei

Zhu

. Spontaneous thoracic curve correction after selective posterior fusion of thoracolumbar/lumbar curves in lenke 5C adolescent idiopathic scoliosis. Medicine (Baltim). 2015;94(29):e1155. doi:10.1097/md.0000000000001155

58.

Sun

Liu

, et al.

Does brace treatment impact upon the flexibility and the correctability of idiopathic scoliosis in adolescents?

Eur Spine J. 2013;22(2):268-273. doi:10.1007/s00586-012-2477-7

59.

Yang

Wei

Zhang

, et al. All-pedicle-screw versus hybrid hook-screw instrumentation for posterior spinal correction surgery in adolescent idiopathic scoliosis: a curve flexibility matched-pair study. Arch Orthop Trauma Surg. 2012;132(5):633-639. doi:10.1007/s00402-011-1454-7

60.

Clement

Chau

Kimkpe

Vallade

. Restoration of thoracic kyphosis by posterior instrumentation in adolescent idiopathic scoliosis comparative radiographic analysis of two methods of reduction. Spine. 2008;33(14):1579-1587. doi:10.1097/BRS.0b013e31817886be

61.

Behensky

Cole

Freeman

Grevitt

Mehdian

Webb

. Fixed lumbar apical vertebral rotation predicts spinal decompensation in Lenke type 3C adolescent idiopathic scoliosis after selective posterior thoracic correction and fusion. Eur Spine J. 2007;16(10):1570-1578. doi:10.1007/s00586-007-0397-8

62.

Ovali

. Comparison of traction, side-bending and dead-hang radiographs in preoperative evaluation and postoperative correction prediction in adolescent idiopathic scoliosis: a retrospective analysis of a novel flexibility radiograph. Medicine (Baltim). 2023;102(50):e36461. doi:10.1097/md.0000000000036461

63.

Sudo

Abe

Kokabu

, et al. Correlation analysis between change in thoracic kyphosis and multilevel facetectomy and screw density in main thoracic adolescent idiopathic scoliosis surgery. Spine J. 2016;16(9):1049-1054. doi:10.1016/j.spinee.2016.04.014

64.

Le Navéaux

Aubin

Larson

Polly

Baghdadi

YMK

Labelle

. Implant distribution in surgically instrumented lenke 1 adolescent idiopathic scoliosis: does it affect curve correction? Spine. 2015;40(7):462-468. doi:10.1097/BRS.0000000000000793

65.

Cao

Watanabe

Kawakami

, et al. Selection of lower instrumented vertebra in treating Lenke type 2A adolescent idiopathic scoliosis. Spine. 2014;39(4):E253-E261. doi:10.1097/BRS.0000000000000126

66.

Halanski

Cassidy

. Do multilevel ponte osteotomies in thoracic idiopathic scoliosis surgery improve curve correction and restore thoracic kyphosis? J Spinal Disord Tech. 2013;26(5):252-255. doi:10.1097/BSD.0b013e318241e3cf

67.

Bharucha

Lonner

Auerbach

Kean

Trobisch

. Low-density versus high-density thoracic pedicle screw constructs in adolescent idiopathic scoliosis: do more screws lead to a better outcome? Spine J. 2013;13(4):375-381. doi:10.1016/j.spinee.2012.05.029

68.

Fang

Sun

, et al. Thoracic curve correction after posterior fusion and instrumentation of structural lumbar curves in patients with adolescent idiopathic scoliosis. Arch Orthop Trauma Surg. 2011;131(10):1375-1381. doi:10.1007/s00402-011-1320-7

69.

Lonner

Auerbach

Boachie-Adjei

Shah

Hosogane

Newton

. Treatment of thoracic scoliosis: are monoaxial thoracic pedicle screws the best form of fixation for correction? Spine. 2009;34(8):845-851. doi:10.1097/BRS.0b013e31819e2753

70.

Cheung

Samartzis

Ganal-Antonio

Zhu

Luk

. Key-Vertebral Screws Strategy for Main Thoracic Curve Correction in Patients With Adolescent Idiopathic Scoliosis. Clin Spine Surg 2016;29(8):E434-441. doi:10.1097/bsd.0000000000000129

71.

, et al. Using side-bending radiographs to determine the distal fusion level in patients with single thoracic idiopathic scoliosis undergoing posterior correction with pedicle screws. J Spinal Disord Tech. 2011;24(7):437-443. doi:10.1097/BSD.0b013e31820500c9

72.

Ohrt-Nissen

Hallager

Gehrchen

Dahl

. Flexibility predicts curve progression in providence nighttime bracing of patients with adolescent idiopathic scoliosis. Spine. 2016;41(22):1724-1730. doi:10.1097/brs.0000000000001634

73.

Ohrt-Nissen

Hallager

Gehrchen

Dahl

. Supine lateral bending radiographs predict the initial in-brace correction of the providence brace in patients with adolescent idiopathic scoliosis. Spine. 2016;41(9):798-802. doi:10.1097/brs.0000000000001519

74.

van Rhijn

Plasmans

Veraart

. Changes in curve pattern after brace treatment for idiopathic scoliosis. Acta Orthop Scand. 2002;73(3):277-281. doi:10.1080/000164702320155248

75.

Aronsson

Stokes

Ronchetti

Richards

. Surgical correction of vertebral axial rotation in adolescent idiopathic scoliosis: prediction by lateral bending films. J Spinal Disord. 1996;9(3):214-219.

76.

Ohrt-Nissen

Hallager

Karbo

Gehrchen

Dahl

. Radiographic and functional outcome in adolescent idiopathic scoliosis operated with hook/hybrid versus all-pedicle screw instrumentation—a retrospective study in 149 patients. Spine Deformity. 2017;5(6):401-408. doi:10.1016/j.jspd.2017.05.002

77.

King

Moe

Bradford

Winter

. The selection of fusion levels in thoracic idiopathic scoliosis. J Bone Joint Surg Am. 1983;65(9):1302-1313. doi:10.2106/00004623-198365090-00012

78.

Kuroki

Inomata

Hamanaka

Chosa

Tajima

. Significance of hanging total spine x-ray to estimate the indicative correction angle by brace wearing in idiopathic scoliosis patients. Scoliosis. 2012;7(1):8. doi:10.1186/1748-7161-7-8

79.

Luo

CZH

Zou

Zhang

Wong

. Associations between spinal flexibility and bracing outcomes in adolescent idiopathic scoliosis: a literature review. J Orthop Surg Res. 2023;18(1):955. doi:10.1186/s13018-023-04430-z

80.

Brasiliense

LBC

Lazaro

BCR

Reyes

Dogan

Theodore

Crawford

. Biomechanical contribution of the rib cage to thoracic stability. Spine. 2011;36(26):E1686-E1693. doi:10.1097/BRS.0b013e318219ce84

81.

Davis

Gadgil

Trivedi

Ahmed

E-NB

. Traction radiography performed under general anesthetic: a new technique for assessing idiopathic scoliosis curves. Spine. 2004;29(21):2466-2470. doi:10.1097/01.brs.0000143109.45744.12

82.

Lamarre

Parent

Labelle

, et al. Assessment of spinal flexibility in adolescent idiopathic scoliosis: suspension versus side-bending radiography. Spine. 2009;34(6):591-597. doi:10.1097/BRS.0b013e318193a23d

83.

Olgun

Yazici

. Posterior instrumentation and fusion. J Child Orthop. 2013;7(1):69-76. doi:10.1007/s11832-012-0456-5

84.

Lenke

Betz

Harms

, et al. Adolescent idiopathic scoliosis: a new classification to determine extent of spinal arthrodesis. J Bone Joint Surg Am. 2001;83(8):1169-1181.

85.

Luk

KDK

Don

Chong

Wong

Cheung

. Selection of fusion levels in adolescent idiopathic scoliosis using fulcrum bending prediction : a prospective study. Spine. 2008;33(20):2192-2198. doi:10.1097/BRS.0b013e31817bd86a

86.

Kwan

KYH

Wong

Koh

Cheung

KMC

. Selection of lowest instrumented vertebra using fulcrum bending radiographs achieved shorter fusion safely compared with the last “substantially” touching vertebra in lenke type 1A and 2A curves. Spine. 2019;44(24):E1419-E1427. doi:10.1097/BRS.0000000000003182

87.

Erkilinc

Dumaine

, et al.

Postoperative correction in idiopathic scoliosis: which preoperative imaging technique is most predictive?

J Pediatr Orthop. 2021;41(9):E706-E711. doi:10.1097/BPO.0000000000001846

88.

Schulz

Joshi

Hanstein

Gomez

. The reliability of pre-operative prone radiographs to determine spinal curve flexibility in adolescent idiopathic scoliosis. Pediatrics. 2019;144(2):1063-1070. doi:10.1542/peds.144.2-MeetingAbstract.741

89.

Liu

Teng

Armstrong

Poe-Kochert

Son-Hing

Thompson

. Comparison of supine bending, push-prone, and traction under general anesthesia radiographs in predicting curve flexibility and postoperative correction in adolescent idiopathic scoliosis. Spine. 2010;35(4):416-422. doi:10.1097/BRS.0b013e3181b3564a

90.

Chan

Kwan

Saravanan

Saw

Deepak

. The assessment of immediate post-operative scoliosis correction using pedicle screw system by utilising the fulcrum bending technique. Med J Malaysia. 2007;62(1):33-35.

91.

Hay

Izatt

Adam

Labrom

Askin

. The use of fulcrum bending radiographs in anterior thoracic scoliosis correction: a consecutive series of 90 patients. Spine. 2008;33(9):999-1005. doi:10.1097/BRS.0b013e31816c8343

92.

Wong

LPK

Cheung

PWH

Cheung

JPY

. Supine correction index as a predictor for brace outcome in adolescent idiopathic scoliosis. Bone Joint Lett J. 2022;104-b(4):495-503. doi:10.1302/0301-620x.104b4.Bjj-2021-1220.R1

93.

Cheung

JPY

Cheung

PWH

Yeng

Chan

LCK

. Does curve regression occur during underarm bracing in patients with adolescent idiopathic scoliosis? Clin Orthop Relat Res. 2020;478(2):334-345. doi:10.1097/corr.0000000000000989

94.

Kawasaki

Cheung

PWH

Shigematsu

, et al. Alternate in-brace and out-of-brace radiographs are recommended to assess brace fitting and curve progression with adolescent idiopathic scoliosis follow-up. Glob Spine J. 2021;13:21925682211032559.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.09 MB

0.11 MB

0.08 MB
