A Low-Cost and High-Resolution Droplet Position Detector for an Intelligent Electrowetting on Dielectric Device

Abstract

A low-cost and high-resolution capacitive-to-digital converter integrated circuit is used for droplet position detection in a digital microfluidic system. A field-programmable gate array FPGA is used as the integrated logic hub of the system for a highly reliable and efficient control of the circuit. A fast-fabricating PCB (printed circuit board) substrate microfluidic system is proposed. Smaller actuation threshold voltages than those previously reported are obtained. Droplets (3 µL) are actuated by using a 200 V, 500 Hz modulating pulsed voltage. Droplet positions can be detected and displayed on a PC-based 3D animation in real time. The actuators and the capacitance sensing circuits are implemented on one PCB to reduce the size of the system. With the capacitive droplet position detection system, the PCB-based electrowetting on dielectric device (EWOD) reported in this work has promise in automating immunohistochemistry experiments.

Keywords

microfluidics electrowetting capacitive sensing position detection

Introduction

PCB (printed circuit board) substrate electrowetting devices are low cost and quickly fabricated, and they can be placed easily with digital controlling systems.^1–4 The results presented in this article will address the problem of localizing the droplet and make the operating process electrically visible to a PC.

The reliability of an automated microfluidic system depends on its self-surveillance capabilities. To avoid incorrect movements of the droplets, the controlling computer should be able to identify the position and control the destination of the droplets. Optical surveillance systems using cameras solved this problem to some extent.^5,6 Optical monitoring techniques require high-resolution source image frames, however, so the experiment process has to be recorded in a specific optical environment. Some experiments using optic-phobic solutions such as argentum nitricum, potassium iodide, and potassium thiosulfate cannot be tracked using this technique.

Electrode capacitance is sensitive to droplet size, composition, velocity, and position. Studies using capacitive sensors to identify the droplet’s parameters have shown reliable performance by detecting capacitance changes.^6–12 On-board oscillators can be used for capacitive sensors.^6,9–11,13 There are a lot of disadvantages when using on-board oscillators. First of all, an analog-to-digital converter IC (integrated circuit) and some peripheral circuits and ICs are required to collect the signal from the oscillator. These components increase the system size and introduce more parasitic capacitances. Another problem is that the resolution of the overall sensing system is much lower than that of the highly integrated capacitive-to-digital converter (CDC) used in our system. Moreover, it is hard for their system to detect multiple droplets on an electrowetting substrate at the same time. The only study that used integrated CDC for electrowetting on dielectric device (EWOD) just has one CDC to detect a single droplet actuation speed.¹² AD7745 does not have an address pin, so they cannot detect multiple droplets based on their current system. We integrated field-programmable gate array (FPGA) as the address counter in our study to help one CDC monitor the whole electrode array and locate each droplet accurately by the addresses.

Another capacitive-sensing method uses conventional bench single-channel capacitance meters (which are large in size) for testing the capacitance of a single electrode pair,^7,8 but they suffer from several limitations, such as low resolution, uncontrollable outputs, physical size, and a mono-channel output. With the advances in IC design, capacitance data can be directly read out of a serial communication port from an all-in-one IC preforming a capacitance-to-digital conversion. For example, the AD7745 (Analog Devices, Norwood, MA) is a high-resolution (24-bit) CDC with a measurement range from a couple of picofarads (pF) to 48 pF. There have been no reports of using this chip for droplet position detection in microfluidic systems. In the results presented here, a 2×8 sensor array is used in a droplet position detection system. A CDC is used to scan the electrode pairs in the array to monitor the capacitance changes. These data are then used to reconstruct the experiment’s operation, in real time, and generate animations that are viewed on a PC. This droplet-monitoring method, “capacitive vision,” is an alternative to traditional optical imaging that, as already mentioned, has limitations in some optic-phobic experiments.

Materials and Methods

A standard (FR-4, glass epoxy) double-sided PCB (Advanced Circuits, Tempe, AZ) is used for the electrowetting substrate material. A 16-bit microcontroller (MCU) (PIC24FJ96; Microchip, Chandler, AZ) is used to implement the operation of the preprogramed self-running action or the operation acted by keyboard commands. A direct-current (DC) high-voltage module (EMCO F40; EMCO, Schlieren, Switzerland) is capable of supplying a DC output voltage from 0 to 2000 V. An open-source software, ImageJ (US National Institutes of Health, Bethesda, MD), is used to measure the contact angle.

The gates of the metal–oxide semiconductor field-effect transistors (MOSFETs) in Figure 1 are connected to the input/output ports of the MCU. A high-voltage square wave can then be generated at the drains of the MOSFETs. A plastic sheet (Saran Wrap, 15 µm thick polyethylene) is cut in suitable size and placed on the top of the electrodes.¹⁵ Peanut oil is placed on top of Saran Wrap to create a hydrophobic surface. Both single-plate operation ( Fig. 2a ) and dual-plate operation ( Fig. 2b ) can be implemented for droplet manipulation.¹⁶

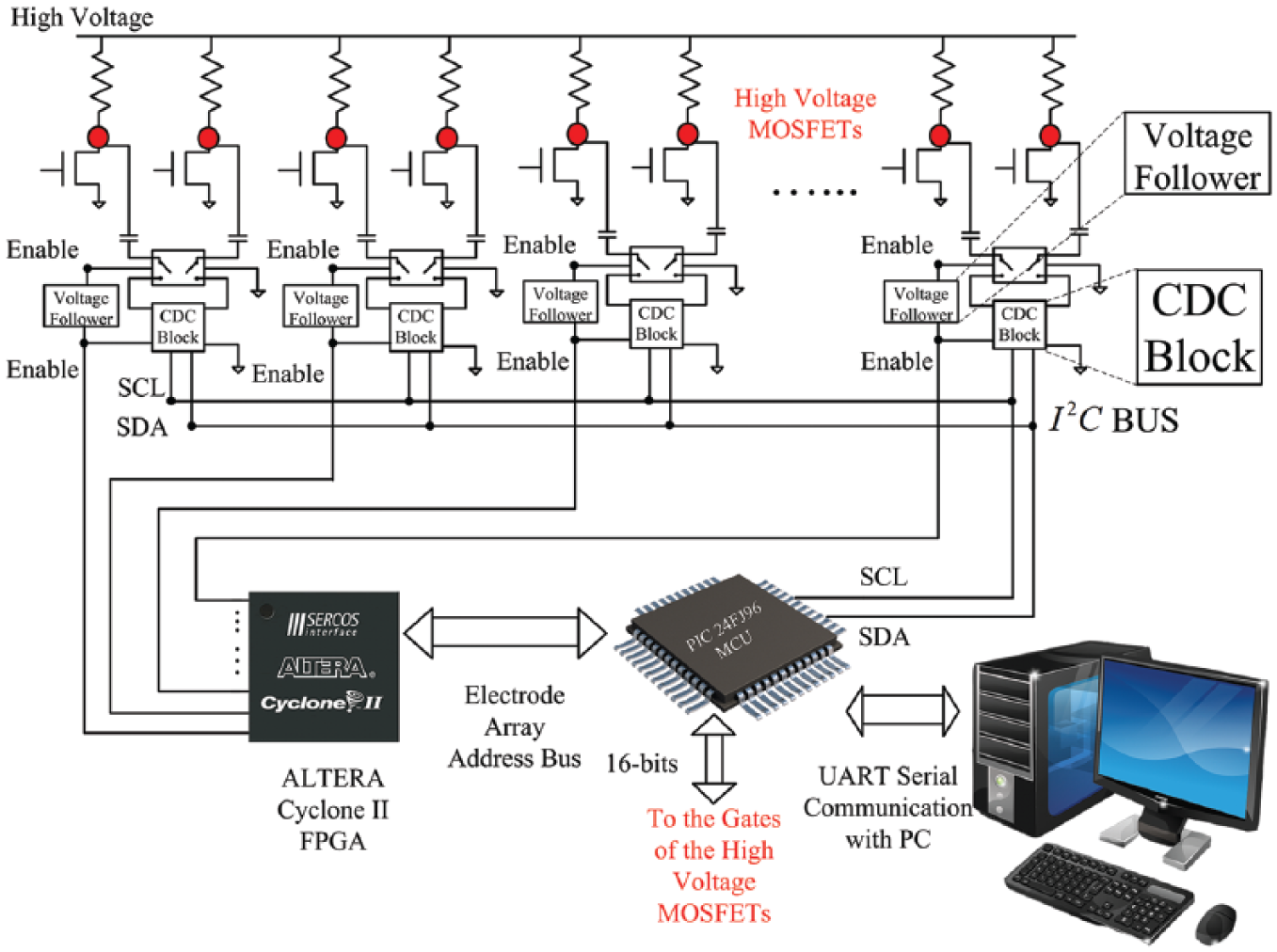

Figure 1.

System-level design of the droplet position monitor.

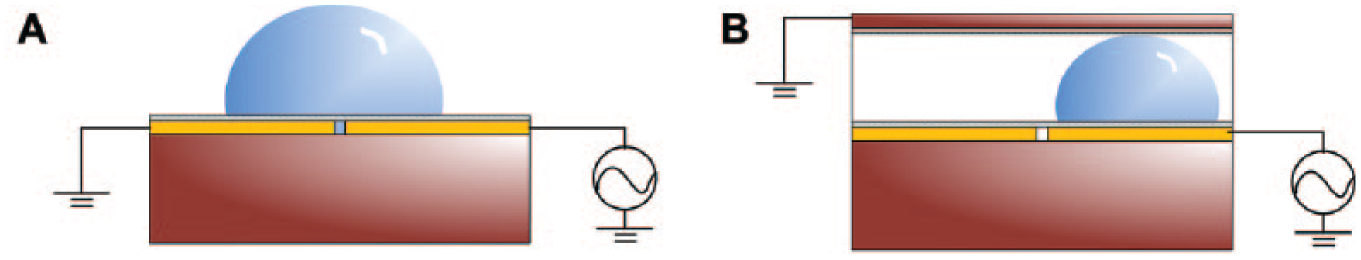

Figure 2.

Diagrams of (A) single-plate operation; and (B) dual-plate operation.

The MOSFETs in Figure 1 are used for controlling the high-voltage signals connected to the electrode array. Figure 3 shows the capacitance sensor system architecture. Relays are needed to isolate the CDC probes from the electrodes (a high voltage cannot be applied directly to the CDC). The 470 pF capacitors (the unlabeled capacitors in Fig. 1 ) are serially connected between the electrode pairs to reduce the total capacitance in the circuit so that the input range falls into the measurement range of the CDC sensor.

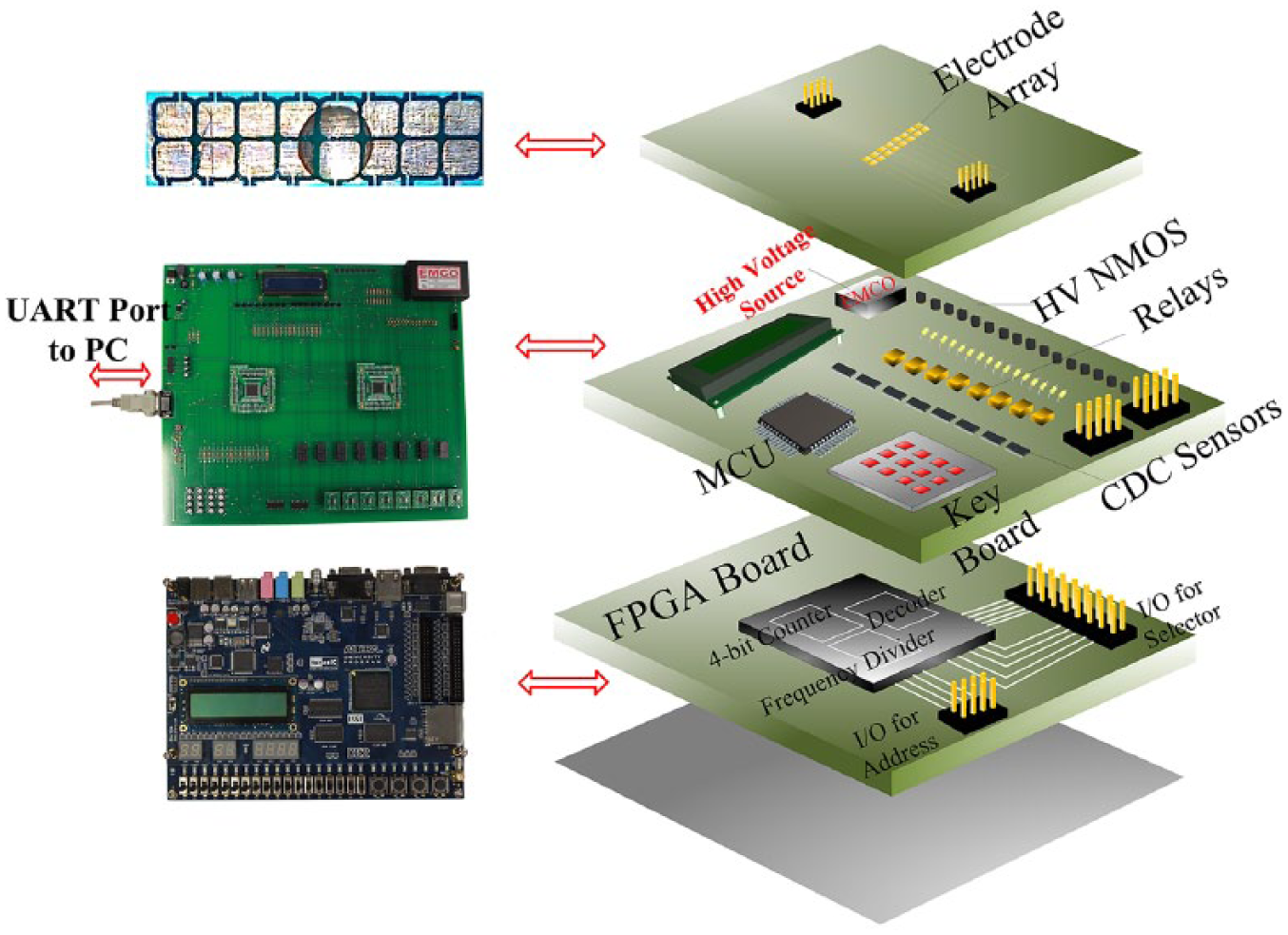

Figure 3.

Representation of the capacitance sensor system architecture.

The AD7745 does not have a specific address for each individual product. This means that if all of the CDCs are attached to the same interintegrated circuit (I2C) bus, the computer will not know where the received data come from. An address counter is used in the FPGA to select the specific CDC via an enable signal from the FPGA. The FPGA will send the address information for a CDC to the MCU at the same time (in the same loop). Then, the MCU can collect the data from the I2C and the address information from the FPGA at the same time. After a short postprocess of the data inside the MCU, the data are displayed in real time. Figure 3 shows a representation of the system.

A measurement extension circuit is applied to increase the measurement range of the CDC from 4 to 48 pF.¹⁷ Figure 4 shows the timing diagram of the system. The 8-bit enable pulses from the FPGA are separated by a 100 ms delay to avoid the data collision. The electrode address is counted by an embedded counter in the FPGA. The MCU can collect the capacitance data and the corresponding electrode address at the same time.

Figure 4.

The timing diagram of the logic module in field-programmable gate array (FPGA), microcontroller (MCU), and capacitive-to-digital converter (CDC) chips.

Results and Discussion

The threshold voltage to move the droplets depends on the contact angle changes of the droplets.¹⁸ How the contact angle of water droplets changes with various voltages and frequencies was investigated using the developed platform. The results are seen in Figure 5 . It is obvious that the contact angle change is dependent on both the voltage level and frequency of the applied pulse signal. When the voltage is lower than 100 V, the contact angle change is negligible. But when the voltage becomes larger than 200 V, the contact angle can change up to 40° when a 1 kHz pulse is used. Based on these results, the droplet starts to be actuated at 200 V. In general, droplet dynamics is determined by diverse factors such as fluid density, the initial and deformed contact angles, contact angle hysteresis, and frictions.¹⁹ Keeping other factors as constants, the contact angle change and the added voltage change will affect the droplet actuation significantly. The droplet contact angles are determined by the thermodynamic equilibrium conditions, which are described as:²⁰

\cos θ = \cos θ_{o} + \frac{ϵ V^{2}}{2 γ_{12} d}

where $θ_{o}$ is the contact angle without external voltage applied; $θ$ is the contact angle with external voltage $V$ applied; $ϵ$ is the dielectric constant of the droplet–substrate environment; $γ_{12}$ is the surface tension; and $d$ is the thickness of the dielectric layer. The dielectric constant of peanut oil is $ϵ_{p e a n u t - o i l} \approx 3.1$ ; the dielectric constant of silicone oil used in previous studies is $ϵ_{s i l i c o n e - o i l} \approx 2.7$ .²¹ As shown in Figure 6 , the total capacitance can be treated as the parallel of the oil capacitance, the Saran Wrap capacitance, and other environment capacitances. So a larger oil dielectric constant leads to an increased overall capacitance of the environment and lowers down the threshold voltage when achieving the same contact angle changes.

Figure 5.

Contact angle changes of a 3 µL water droplet. The contact angle change is affected by the activate pulse frequency and voltage level.

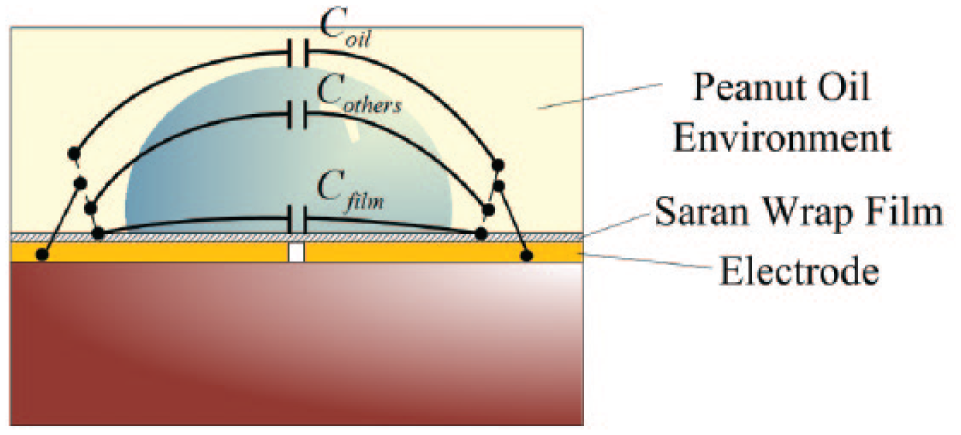

Figure 6.

Capacitance model for the droplet–substrate environment.

The postprocessed PCB array presented here can move droplets (~30 µL, and thus much smaller droplets that are still capable of bridging the array’s electrodes) with a much smaller voltage and frequency than previously reported.¹⁵ According to the discussion above, using peanut oil instead of silicone oil can decrease the threshold voltage.

The CDC sensor array is evaluated when the droplet is located at different positions. The capacitances cp1–cp8 in Figure 7 represent the capacitance of the eight electrode pairs. The droplet position has only three statuses: fully occupied, half occupied, and “off” the electrode. The software can distinguish if the droplet is on the left or on the right by checking the address. This is why an FPGA is used (i.e., to hold the address information).

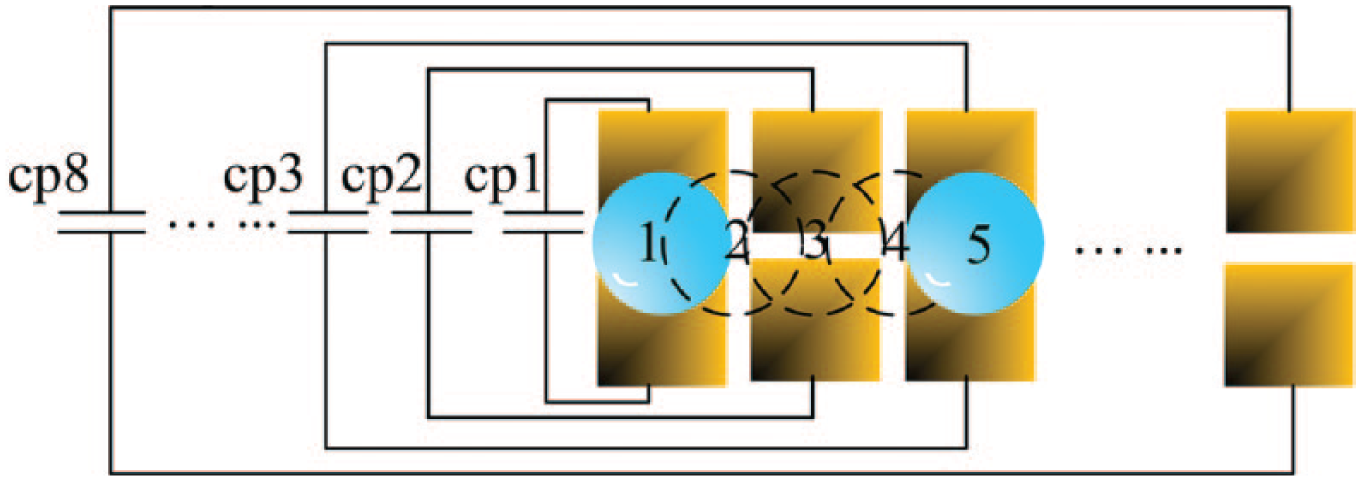

Figure 7.

Diagram of the capacitance of each electrode pair. The five droplets in this figure are specifically used to represent the five different positions of the droplets on the first three electrode pairs that help explain the parameters in Figure 8 .

Note that the capacitance measured uses a pure-water droplet that is higher than the capacitance of other types of droplets. The large dielectric constant of water means that ionic bonds of the solute will tend to dissociate in water yielding solutions containing ions. Water as a solvent opposes the ionic force between the ions. Water molecules have four hydrogen bonds, and this structure of water greatly resists the random thermal motions. This hydrogen bonding is responsible for its large dielectric constant.

The variation between CDCs (relative consistency) was also investigated. For example, there is a deviation of up to 200 fF between the CDC sensors when testing the same standard ceramic capacitor. The data seen in Figures 8 , 9 , and 10 were measured with circuits built with connection wires and bread boards. The CDC sensors are mounted on different SOIC-16 SMT adapters. Subtle parasitic capacitance changes are created by the differences of adapters and wires and the fabrication process of the CDC chip.

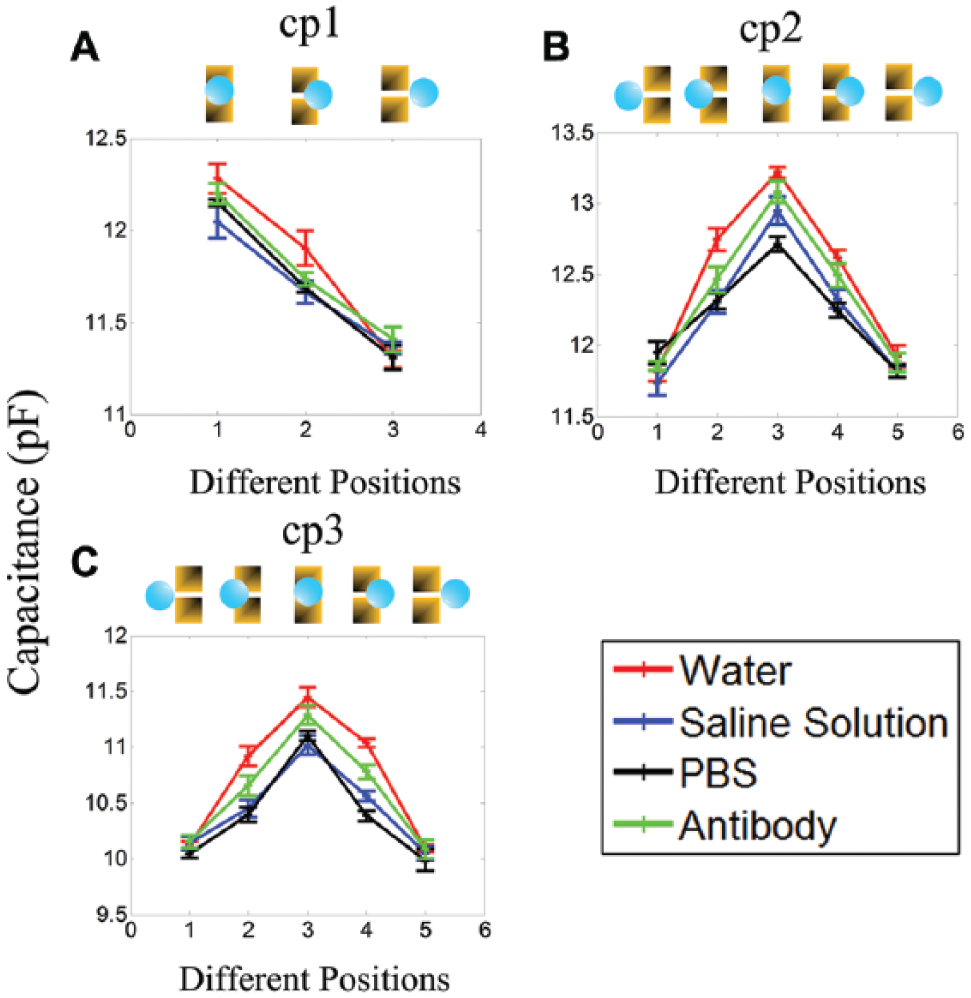

Figure 8.

Diagram of (A) cp1, (B) cp2, and (C) cp3 values at different positions.

Figure 9.

Diagram of the capacitance of the standard ceramic capacitors measured by AD7745 and Bench LCR/ESR Meter (B&K Precision Corp, Yorba Linda, CA). The diagram shows the comparison of the measurements of standard ceramic capacitors with the values of (A) 10 pF, (B) 15 pF, (C) 22 pF, (D) 33 pF, and (E) 47 pF.

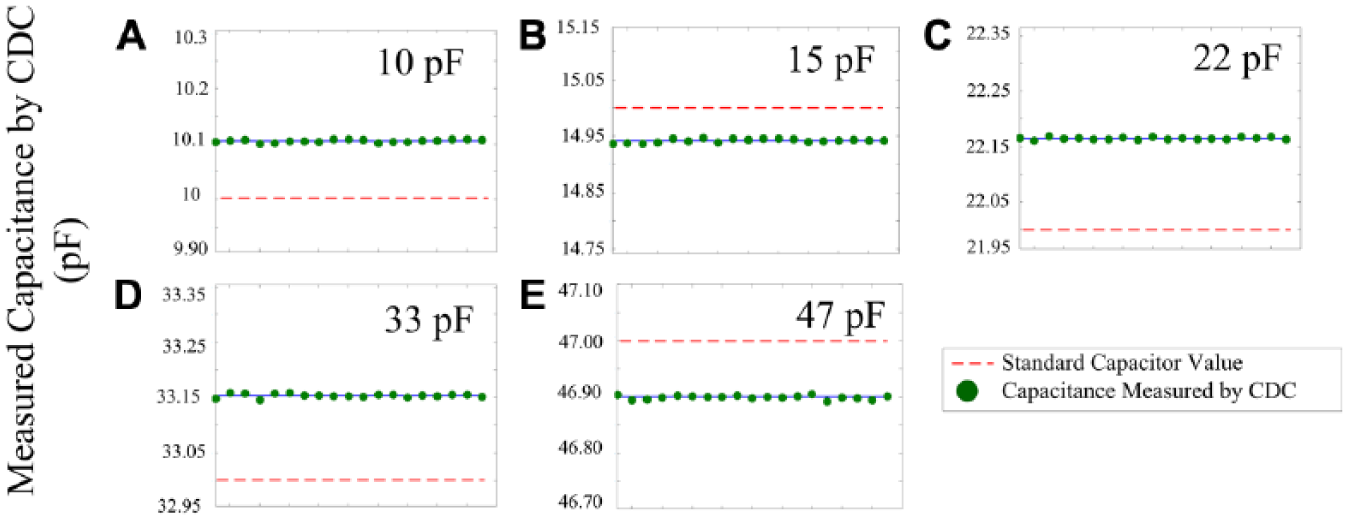

Figure 10.

Diagram of evaluating one capacitive-to-digital converter (CDC) with a standard ceramic capacitor.

One may also be concerned with the consistency of the CDC when it is measuring the same capacitor over and over again (the noise in the measurement). Figure 10 shows the stability of one CDC sampling the same capacitor. The deviations are small and negligible (around 10 fF) for this application. The deviation seen in Figure 8 is in the 200 fF range, but the deviation when testing standard ceramic capacitors is much smaller. This is because the deviation of the droplet system may be caused by the subtle displacement and shape of the droplet, undistinguishable with the naked eye (changes of hundreds of femtofarads may occur).

As shown in Figure 11 , the droplet-sensing system can distinguish the three statuses (fully occupied, half occupied, and “off”) for single droplets or multiple droplets. If the position of the droplets changed, then the software can update the position information in the matrix instantly and reflect the new positions in the animation. The capacitance data come together with the electrode address to the MCU and then are transmitted through the universal asynchronous receiver/transmitter port to the PC, so the computer will not make a mistake about the ownership of the capacitance data.

Figure 11.

Static droplet position detection in air environment for the following: (A1) one droplet bridges two electrodes; (A2) two droplets bridge two electrodes; (B1) one droplet bridges four electrodes; and (B2) one of the two droplets bridges four electrodes. The droplets are put on the electrode array by pipette.

When the droplet is moving, the system can update and reflect the position information dynamically ( Fig. 12 ). An oil environment is preferred because the droplet will have a larger contact angle change with voltage pulses added to the corresponding electrode.

Figure 12.

Dynamic detection of the droplet position in an oil environment. It is hard to see the transparent water droplet edges in an oil environment (droplets in Fig. 11 are moved in air) under the camera light-emitting diode (LED) lights, so red contour of the droplet is added to (A1)–(A4).

The main speed bottleneck of the entire process is the analog-to-digital conversion process inside the CDC. So if the capacitance becomes larger, the response time for the CDC will be even slower because of the longer charging time. This will be an issue if using a single MCU to scan over a large electrode array. Further work will focus on developing a distributed system that uses more MCUs to avoid this bottleneck. Obviously, the time spent on using a single MCU to scan the array is highly dependent on the size of the array. The response time can be further reduced by focusing on the data bus width. The current CDC is transmitting data using the I2C bus in which only one wire is used. Using a parallel bus can improve the data transmission rate and thus the response time.

Normally, electrowetting is implemented in an oil environment because the droplet in the oil has a much larger contact angle than in an air environment. There are several studies directed at using an air environment to actuate the liquids by using smaller electrodes and more hydrophobic surfaces.²² If the contact angle of the droplet on the electrode is large enough in air, then the oil environment can be avoided. Pumping and collecting the droplets are also required for the staining experiment. Some researchers are using a reservoir to store a larger amount of liquid to provide droplets to the electrodes.^13,23 For disposing wasted liquid, however, the electrowetting devices need to be assembled with a capillary pump as described before.^24–26 Microfluidic chips designed based on the techniques present in this study may have significant potential in animal tissue staining experiments.

Conclusions

The concept of using commercially capacitive IC chips to locate droplets on a microfluidic substrate (“capacitive vision”) has been reported. The fast prototyping PCB-based microfluidic systems are easy to fabricate and customize. A lower-threshold voltage than previously reported to actuate large droplets in a single-plate electrode array was achieved. The capacitance detection circuit developed in this work was used to locate single or multiple droplets, and then statically and dynamically display the position of the droplets in real time on a PC. Improvements in the response time of the sensor for large electrode arrays were proposed and discussed. Potential applications of this system in the batch processing of immunohistochemistry animal tissue staining experiments were also discussed.
