Abstract
We present a mesodissection platform that retains the advantages of laser-based dissection instrumentation with the speed and ease of manual dissection. Tissue dissection in clinical laboratories is often performed by manually scraping a physician-selected region from standard glass slide mounts. In this manner, costs associated with dissection remain low, but spatial resolution is compromised. In contrast, laser microdissection methods maintain spatial resolution that matches the requirements for analysis of important tissue heterogeneity but remains costly and labor intensive. We demonstrate a microfluidic tool for rapid extraction of histological regions of interest from formalin-fixed paraffin-embedded tissue, which uses a simple and automated method that is compatible with most downstream enzymatic reactions, including protocols used for next-generation DNA sequencing.
Effective application of targeted therapeutics requires frequent profiling of a patient’s tumor mutations. 1 However, plasma and tissue biopsies often have varying tumor content (ratio of tumor to healthy cells), which can confound standard genomic and proteomic assays. 2 Attempts to reduce tumor “contamination” by normal tissue are dominated by manual dissection methods, in which a technician physically scrapes away physician-defined regions of interest (ROIs) from glass slide tissue mounts. The delineation of these regions is typically performed by the physician after histological analysis of the tissue, which is stained for morphological examination with dyes such as hematoxylin and eosin (H&E). More advanced image processing, fluorescent imaging, and laser-based microdissection (i.e., dissection of 1–100 µm–sized ROIs) systems are all widely available, but the costs associated with these more refined techniques remain high. As an alternative, automated mesodissection (i.e., dissection of millimeter-sized ROIs) instruments are currently being developed to bridge the gaps between automation, ease of use, and cost. 3
In parallel, with the drive for more cost-effective diagnostic instrumentation, there is also a great need to maximize the amount of data generated from trace or limited samples in costly drug discovery efforts and clinical trials. We have previously presented a multiplexed immunohistochemistry fluorescence-microscopy method for characterizing multiple analytes in individual formalin-fixed paraffin-embedded (FFPE) tissue samples. 4 In this work, chemical inactivation of fluorescent dyes after each image acquisition round allows reuse of common dyes in subsequent iterative staining and imaging cycles, greatly increasing the number of unique protein molecules that can be analyzed from the same tissue section. This technique has been integrated into a digital pathology platform, which includes accurate computation registration of the multiple sequential images. This allows digital segmentation of the tissue samples into cellular or subcellular compartments, providing information on the location and quantification of each of the multiplexed targets (demonstrated using up to 60 different proteins). In addition, this platform technology has been automated, and the reagent processing has been miniaturized to decrease the cost associated with multiplexed analysis. 5
Herein, we extend the capabilities of the digital pathology platform to include a low-cost, easy-to-use microfluidic dissection tool for rapid extraction of ROIs for subsequent nucleic acid analysis. This gasket-enclosed extraction tool (GET) is capable of mesodissecting FFPE samples and incorporates advantages of laser-based dissection (i.e., automated tissue and cell selection and targeted extraction), while providing the economy and simplicity currently associated only with manual dissection.6,7 We also demonstrate that the GET can integrate into a universal cell and tissue acquisition system (UnipicK, http://www.neuroindx.com/products/unipick/; NeuroInDx, Torrance, CA) that is easily operated on existing inverted microscopes. The combination of these two technologies form the basis of a dissection tool useful both in research labs seeking to gain a low-cost automated dissection tool and in clinical/commercial labs seeking to expand their dissection throughput capabilities.
Materials and Methods
Design of Microfluidic Tool

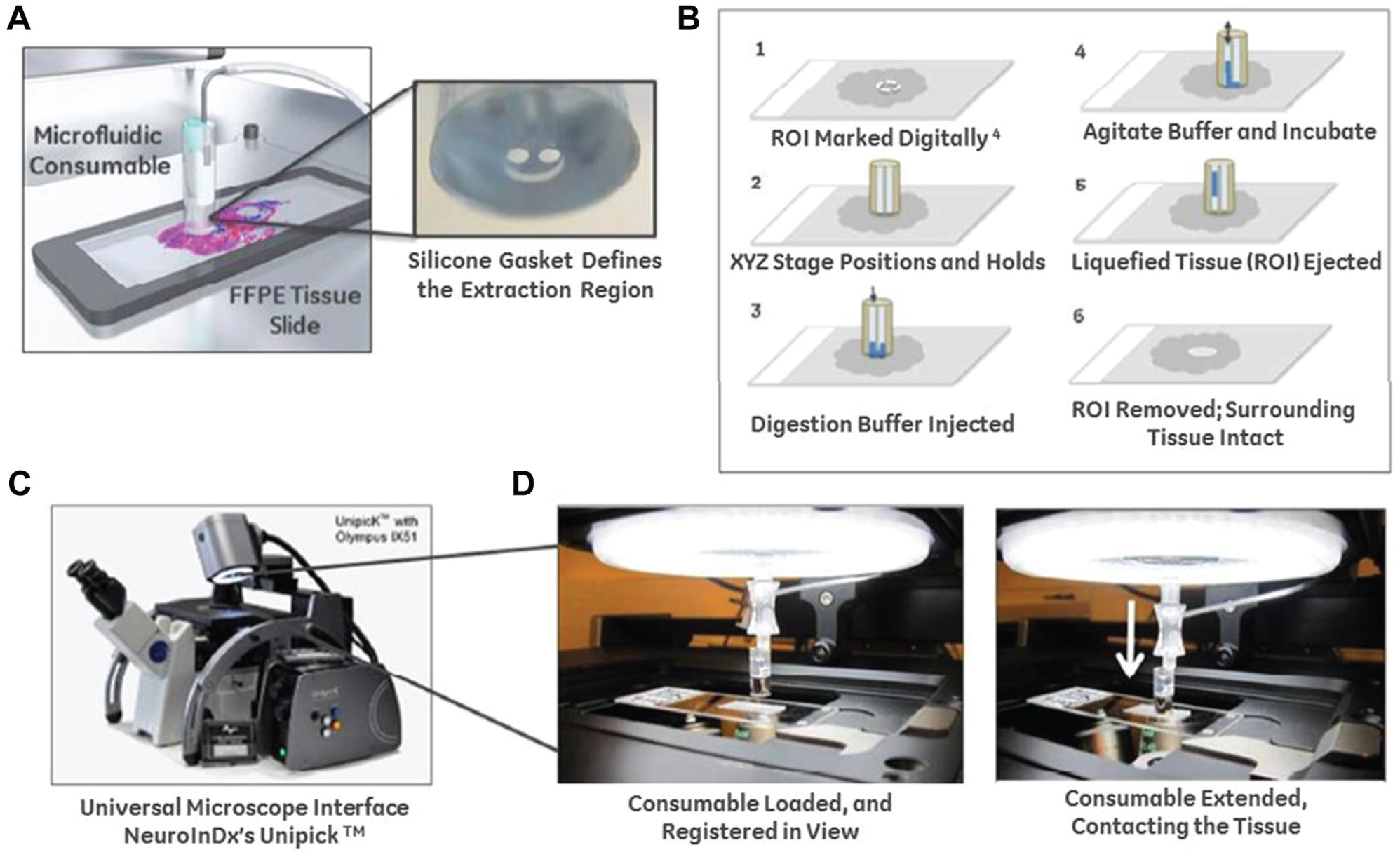

At the heart of the method is a microfluidic tissue extraction device consisting of a disposable tissue interface for delivering and removing a “liquification cocktail” to a defined section of the tissue. This is attached to a metallic ring, which facilitates magnetically assisted contact of the bottom portion of the interface with the tissue (
Fig. 1A
). The details of the GET and the schematics of the overall extraction protocol are depicted in
Figure 1B
. The GET contains two microfluidic channels. The first channel (right) is connected through tubing to a pump that controls the transport of the tissue digestion/liquification reagent to and from the ROI. The second channel (left) is connected to a small reservoir designed to load the buffer and hold the final digested tissue suspension after ROI extraction. The bottom portion of the GET contains a variably sized silicone gasket (0.5–3 mm I.D.), which makes contact with the FFPE sample. The opening in this gasket connects the right and left microfluidic channels and completes the compartmentalized fluidic circuit (from outlet to reservoir) when pressed onto the tissue. The force applied to the gasket is controlled either by magnetic means (a pull force between a metal/magnet in the device and a corresponding paramagnetic/magnetic stage base) or by a displacement-controlled motor coupled to the device via a spring. The level of force is chosen to ensure negligible damage to the FFPE tissue beneath the gasket and a tight fluidic seal between the gasket and slide (additional details on the device and force requirements for tissue extraction can be found in
(A) The microfluidic consumable creates a gasket-enclosed microfluidic chamber on FFPE tissue samples. The silicone gasket defines the extraction region, and a magnetic or motor-driven force creates a hermetic seal around the ROI (further details on structure and manufacturing in S1 ESI). (B) Schematic of the extraction protocol using the device and digestion buffer. (C) NeuroInDx’s UnipicK instrument, which can serve as a universal microscope interface for the microfluidic consumable. (D) Proof-of-concept integration of the microfluidic device with the UnipicK, depicting the device loaded against a tissue slide during an extraction.
Application and Testing of the Microfluidic Tool

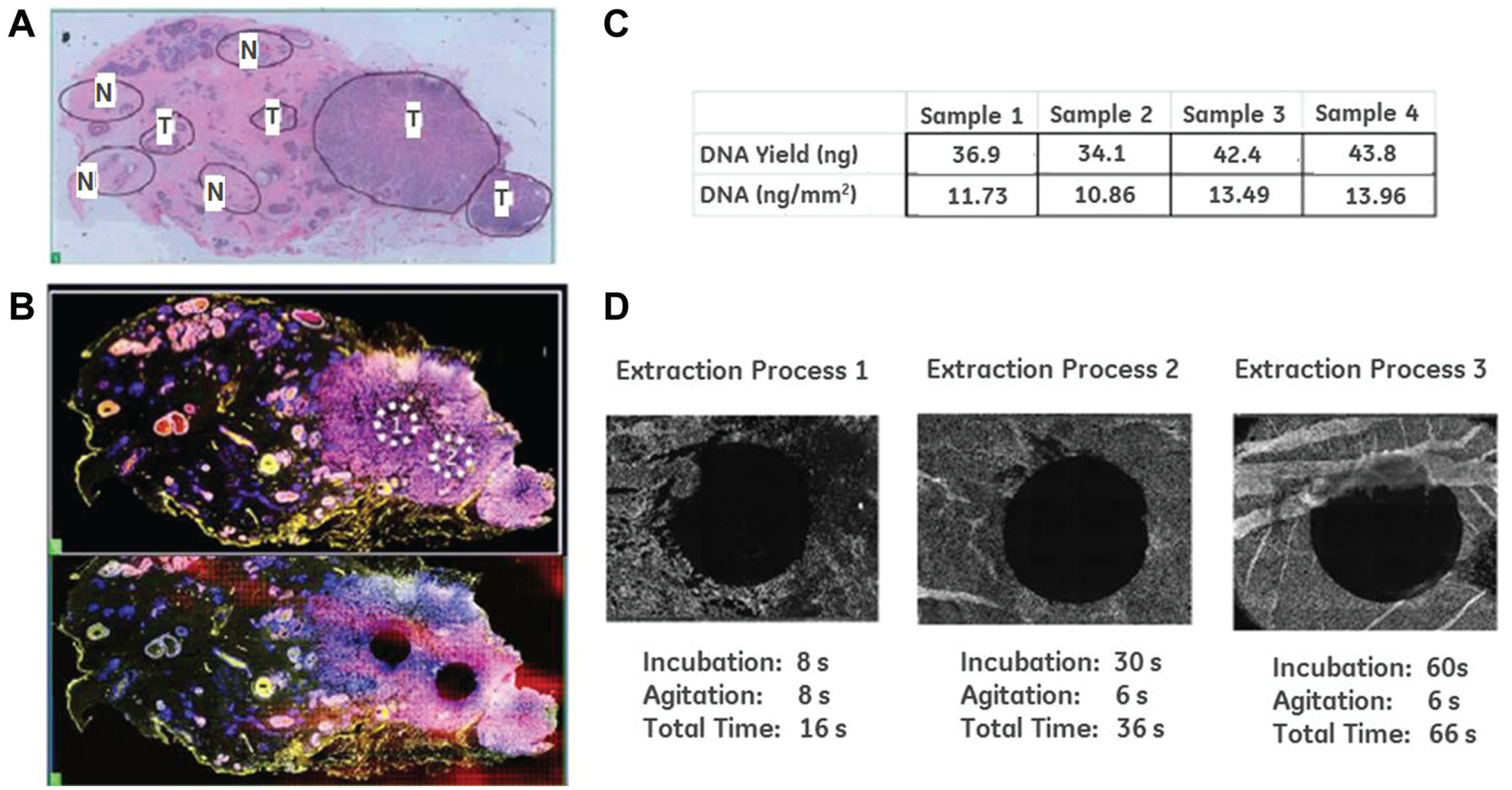

To illustrate the capability of the GET, we used a 5 µm thick H&E-stained FFPE tissue section from a breast invasive ductal carcinoma biopsy and extracted 2-mm ROIs from targeted regions (
Fig. 2
). The slide has been manually annotated with 8 ROIs through microscopic examination by an internal pathologist (similar to a traditional manual dissection protocol in a clinical lab). A serial section was further processed and fluorescently stained using antibodies against Her2-cy5 and PR-cy3. Two sub-ROIs within the manually annotated region 1 (
Fig. 2A
) were then marked for mesodissection (
Fig. 2B
, top panel). The microfluidic device with the 2-mm gasket was positioned over each ROI and brought into contact with the tissue sample. A tissue digestion buffer was then automatically loaded into the microfluidic consumable from a reservoir (using the external pump) and selectively brought into contact with the tissue within the ROI gasket. Details on buffer composition can be found in
(
The GET is a versatile device and can be integrated into preexisting commercial platforms, such as NeuroInDx’s UnipicK microscope interface. In our example, the tool was attached to the UnipicK luer-lock consumable interface and anchored onto the platform to demonstrate proof-of-concept automation ( Fig. 1C , D ). In the UnipicK platform, the GET is aligned to an ROI using the system’s x-y motion controls and then brought into contract with the tissue surface using the system’s z-axis motion control ( Fig. 1D ). The z-axis motor can be used to control force applied to the gasket and create a fluidic seal on the slide, replacing the paramagnetic stage base or magnet used in the independent microfluidic device ( Fig. 1A , B ). A transparent thin film heating insert or heated microscope slide stage can be used to directly heat the tissue sample and accelerate the tissue extraction.
Reagent and Immunohistochemistry Preparation
All FFPE tissue samples used in this report were purchased through Pantomics (Richmond, CA) and prepared for mesodissection through standard deparaffinization, rehydration, and antigen retrieval protocols. Prior to antibody staining, the tissue slides were blocked overnight in 10% donkey serum and stained with 4′,6-diamidino-2-phenylindole (Thermo Fisher, Waltham, MA). After background imaging, the slides were stained with dye-conjugated monoclonal antibodies directed against human epidermal growth factor receptor 2 (Her2-cy5) and progesterone receptor (PR-cy3) and imaged again prior to extraction. The monoclonal antibodies used against Her2 (rabbit, anti-human) and PR (mouse, anti-human) were obtained from Cell Signaling Technology (Danvers, MA) and Dako (Carpentaria, CA) respectively, and conjugated with Cy3 or Cy5 at General Electric. The pre- and post-extraction fluorescent images demonstrate that the selective extraction of the ROIs using the microfluidic tool left no visible damage in surrounding tissue ( Fig. 2B , bottom panel). The DNA extracted from the two ROIs was quantified, with background subtraction, using the Quant-iT HS assay (Thermo Fisher). Samples listed as xenografts were prepared after purchasing CD-1 nude mice or SCID mice from Charles River Laboratories (Wilmington, MA). Animals were housed under sterile conditions with food and water ad libitum and a 12 h light cycle. Mice were injected subcutaneously with 107 tumor cells in phosphate-buffered saline or culture medium while under 2% isoflurane anesthesia, and tumors were allowed to grow for approximately 5 to 10 d. Tumors were harvested, fixed, and prepared as described above for the purchased human samples. All animal studies were performed in accordance with federal and Institutional Animal Care and Use Committee guidelines using approved protocols.
Results and Discussion
DNA yield from the ROIs shown in Figure 2B (bottom panel) was 46.7 ng and 74.2 ng for ROI 1 and ROI 2, respectively. The difference in DNA yield between the two ROIs was consistent with the difference in cell density in those localized regions. A separate FFPE colon tissue slide with a more spatially uniform cell density was studied next to evaluate the reproducibility of the extractions’ DNA yield. Four separate 2 mm ROIs across a single tissue slide were extracted, and their DNA content was quantified ( Fig. 2C ). The tight range of DNA yield across each of the four samples (~34–44 ng) demonstrated extraction of reproducible concentrations of nucleic acids across the tissue.
The timing and completeness of the extraction were also evaluated. We found that at elevated temperatures, complete removal of the tissue within the gasket-defined ROI can be accomplished in seconds, making this method comparable to laser-based methods in terms of extraction speed (
Fig. 2D
; extraction process 1-3). Performing extractions at higher temperature may aid ROI removal in two ways. First, the activity of the enzymatic component of the tissue digestion buffer is optimal at higher temperatures (increased speed), and the higher temperatures may also aid in simple delamination of larger portions of tissue from the slide surface during the mechanical agitation associated with microfluidic loading of the ROI region with fluid. It should be noted that the speed of tissue digestion is dependent on the thickness of the tissue sample, as shown by the incomplete digestion of the thick tissue folds (an error in sample preparation) within the 60 s time point (
Fig. 2D
; extraction process 3). Additional details of the extraction protocol can be found in
Rapid tissue digestion and extraction are important in establishing a flexible dissection system that is capable of extracting irregular shapes and sizes of ROIs. Both laser-based and manual dissection methods allow for extracting irregularly shaped regions preselected by physicians after histological analysis. Rapid tissue extraction within the GET enables serial dissection and generation of arbitrary shapes using sequential processing (overlapping ROIs). The GET can be moved from one location to the next, extracting a larger ROI with the same aliquot of digestion buffer or even multiple ROIs across the slide that exhibit a similar proteomic expression pattern of morphology. Alternatively, multiple GETs can be used to extract separate ROIs across a large tissue sample without cross-contamination.
Importantly, the microfluidic method of dissection and the digestion buffer remain compatible with downstream next-generation sequencing (NGS) workflows. After extraction and DNA quantification (as described above), 5 µL of crude ROI extract was subjected to targeted resequencing. For comparison, DNA extracted from bulk tissue collected from whole FFPE slides of the same samples was also subject to targeted resequencing using the Ampliseq Cancer Panel (50 genes). Input DNA quantities used in the sequencing analysis were normalized to 10 ng from each sample, and DNA was determined amplifiable before sequencing using a PCR-based assay for HBB gene primers (218 base-pair amplicon; post-DNA precipitation and preparation). Further details on integration into the sequencing workflow
7
as well as a description of the sample and the data analysis protocol (including available or custom scripts for quality analysis, alignment, and statistical metric generation)
8
10
are found in

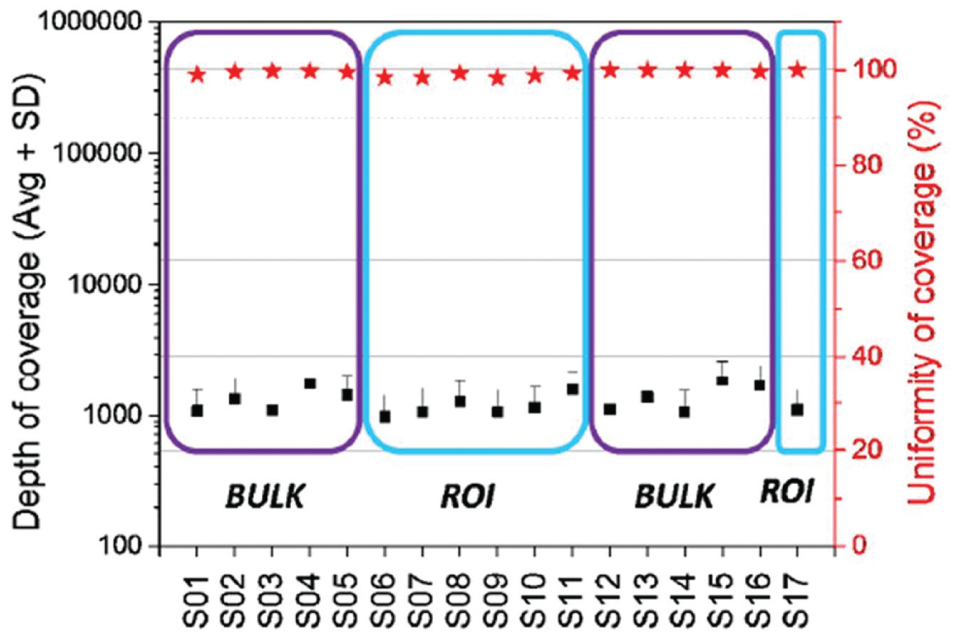

Samples from both data sets (whole slide [BULK] vs. dissected [ROI]) had very good depth of coverage. The descriptions of each samples listed along the x-axis (S01-S17) can be found in
With the growing use of advanced genomic and proteomic analyses of tumor samples for targeted cancer therapies, it is imperative that research and clinical laboratories have cost-effective methods of extracting the maximum amount of clinically useful information from the available trace or limited tumor samples. 1 FFPE tissue represents the largest pool of samples derived from clinical biopsies and pharmaceutical trials, yet researchers are challenged with either imprecise manual dissection techniques or costly and time-consuming laser-based microdissection for their analysis.11,12 In this report, we provide a simple-to-use and cost-effective approach of integrating automated dissection protocols into clinical workflows. Furthermore, we show proof-of-concept integration of our microfluidic FFPE dissection method with a commercially available cell extraction tool (UnipicK from NeuroInDx) that is back-compatible with a large range of inverted microscopes. Our demonstration shows that use of our device is compatible with advanced NGS workflows and provides flexibility for tissue dissection in terms of dissection speed and ROI shape and size. In future reports, we intend to expand the use of the microfluidic extraction technology within the fully digital molecular pathology platform previously developed4,5 and provide a complete platform to combine morphological, protein, and nucleic acid analysis using single FFPE samples.
