Antimicrobial properties of copper tetraamine fluoride

Abstract

Background:

A stable copper tetraamine fluoride (CTF) with low cytotoxicity has been developed for dental use.

Objective:

To investigate the antimicrobial effects of CTF against common microbes associated with dental caries and periodontal disease.

Method:

The minimum inhibitory concentrations (MIC) and minimum bactericidal/fungicidal concentrations (MBC/MFC) were used to evaluate the antimicrobial effects of CTF against eight common bacteria and one fungus associated with dental caries and periodontal disease. These nine microbes included cariogenic pathogens (Streptococcus mutans, Streptococcus sobrinus, Lactobacillus acidophilus, Lacticaseibacillus casei, Actinomyces naeslundii and Candida albicans), pulpitis-related bacteria (Enterococcus faecalis) and periodontal disease-related bacteria (Porphyromonas gingivalis and Actinobacillus actinomycetemcomitans). Transmission electron microscopy (TEM) was employed to examine the morphological changes of microbes with and without CTF treatment.

Results:

The MIC of CTF against nine microbes ranged from 80 ppm (Lacticaseibacillus casei) to 640 ppm (Candida albicans and Enterococcus faecalis). The MBC/MFC ranged from 320 ppm (Lacticaseibacillus casei) to 2560 ppm (Candida albicans). TEM revealed abnormal curvature of cell membranes, disrupted cell membranes, cytoplasmic clear zone, and cytoplasmic content leakage of the microbes treated with CTF.

Conclusion:

CTF has antimicrobial effects against common oral pathogens and presents a promising antimicrobial agent to aid management of dental caries and periodontal disease.

Keywords

Caries antibacterial antimicrobial fluoride copper

Introduction

Dental caries is the localized destruction to the hard tissue of teeth caused by acids generated during the fermentation of sugars by microorganisms.¹ The primary pathogenic microorganisms responsible for tooth decay include Streptococcus, Lactobacillus, Actinomyces, and Candida.² Pulp diseases refer to the secondary diseases of caries that can arise when the pulp becomes infected by microorganisms. Enterococcus faecalis (E. faecalis) is commonly seen in teeth that have experienced pulpal necrosis.³ Periodontal disease, which is a chronic inflammatory disease affecting tooth-supporting tissues, is primarily attributed to bacteria such as Porphyromonas gingivalis (P. gingivalis) and Aggregatibacter actinomycetemcomitans (A. actinomycetemcomitans).⁴ Therefore, the management of biofilm becomes a crucial element in the treatment of oral health problems such as dental caries and periodontal disease.

Among existing treatments, various antibacterial agents are widely used in dentistry to manage oral pathogens, with silver compounds being particularly common.^5
–8 However, the oxidation of ionised silver can lead to the staining of enamel and dentin, resulting in patient dissatisfaction.⁹ Additionally, some studies have shown that silver compounds exhibit high toxicity in human cells, underscoring the need for cautious use in dentistry.¹⁰ These concerns highlight the growing need to investigate alternative chemical compounds that offer robust antibacterial properties, minimal toxicity, and no discoloration effects.

Using copper as an alternative to silver could potentially address these concerns associated with silver compounds. A bibliometric analysis indicates increasing interest in copper within medical research.¹¹ Copper exhibits antibacterial properties against oral bacteria, such as Streptococcus mutans (S. mutans), while maintaining low toxicity towards human cells.¹² Copper ions can penetrate bacterial cell walls, disrupting metabolic activities and causing cell death.¹³ Additionally, copper compounds are readily available and widely accessible for manufacturing.¹⁴ Given its antimicrobial properties, ease of use, and cost-effectiveness, employing copper instead of silver presents a promising strategy for developing novel antimicrobial agents in dental applications.

Ammonia is antibacterial and acts as a stronger field ligand than water. Metal ammine complexes exhibit greater stability and reduced oxidation compared to their aquo counterparts.¹⁵ Fluoride is commonly used for remineralization in caries management and can also provide some antimicrobial ability.¹⁶ It promotes the crystal growth of fluorapatite on partially demineralised sub-surface crystals in carious lesions.

In our earlier research, we developed a novel copper tetraamine fluoride (CTF) using copper fluoride and ammonia solution.¹⁷ Our results indicated that CTF can inhibit the growth of S. mutans with low cytotoxicity and do not have staining effect. However, its antimicrobial effect against other prevalent oral pathogens remain unknown. Consequently, the objective of this study was to investigate the antimicrobial effects of the novel CTF against common microbes associated with dental caries and periodontal disease. Our study aims to address the unknown antimicrobial effects of CTF on a wider range of pathogens. The null-hypothesis of the study is that the CTF has no antimicrobial effects against some common microbes associated with dental caries and periodontal disease.

Methods

Microorganisms

Nine common oral pathogenic strains were selected for this study. They are cariogenic pathogens including S. mutans ATCC 35668, Streptococcus sobrinus (S. sobrinus) ATCC 33478, Lactobacillus acidophilus (L. acidophilus) ATCC 9224, Lacticaseibacillus casei (L. casei) ATCC 393, Actinomyces naeslundii (A. naeslundii) ATCC 12104 and Candida albicans (C. albicans) ATCC 10231, pulpitis-related bacteria E. faecalis ATCC 29212 and periodontal disease-related bacteria including P. gingivalis ATCC 33277 and A. actinomycetemcomitans ATCC 33384.

Brain heart infusion (BHI) medium was used for the culture of S. mutans, S. sobrinus, L. acidophilus, L. casei, A. naeslundii, E. faecalis, and A. actinomycetemcomitans. Sabouraud Dextrose broth was used for the culture of C. albicans. P. gingivalis broth was used for culture of P. gingivalis. L. acidophilus, L. casei and C. albicans were cultured aerobically. The other strains were cultured anaerobically.

Minimum inhibitory concentrations and minimum bactericidal/fungicidal concentrations

The minimum inhibitory concentrations (MICs) and minimum bactericidal/fungicidal concentrations (MBC/MFCs) were used to evaluate the antimicrobial effects of CTF against these common oral pathogens. The broth (100 μL consecutive two-fold dilutions ranging from 5120 ppm to 10 ppm of CTF) was supplemented with a 10 μL bacteria/fungi culture (10⁶ CFU/mL). The 96-well plates were then incubated at 37°C for 24 h. The optical density (OD) value was measured at a wavelength of 660 nm (bacteria) or 520 nm (fungi) both before and after the microorganisms were cultivated for 24 h. The MIC value is defined as the lowest concentration at which the OD values before and after incubation are consistent.

After the MIC determination, 10 μL fluid from each well, which showed the same OD values, was pipetted and seeded on agars, which were then incubated at 37°C for 48 h. The MBC/MFB is determined to be the lowest concentration at which no colonies are formed on the agar plate.

Microorganisms morphology

The transmission electron microscope (TEM) was used to examine the morphology of the microorganisms. The bacteria/fungi (10⁸ CFU/mL) were added with the CTF of MBC/MFC concentration.¹⁸ The bacteria/fungi were harvested after incubating at 37°C for 18 h and subjected to glutaraldehyde treatment. The semi-thin sections of the bacteria/fungi were contained in grids and observed with the TEM.

Results

MIC and MBC/MFC

Table 1 displays the MIC and MBC/MFC of CTF against S. mutans, S. sobrinus, L. acidophilus, L. casei, A. naeslundii, C. albicans, E. faecalis, P. gingivalis, and A. actinomycetemcomitans.

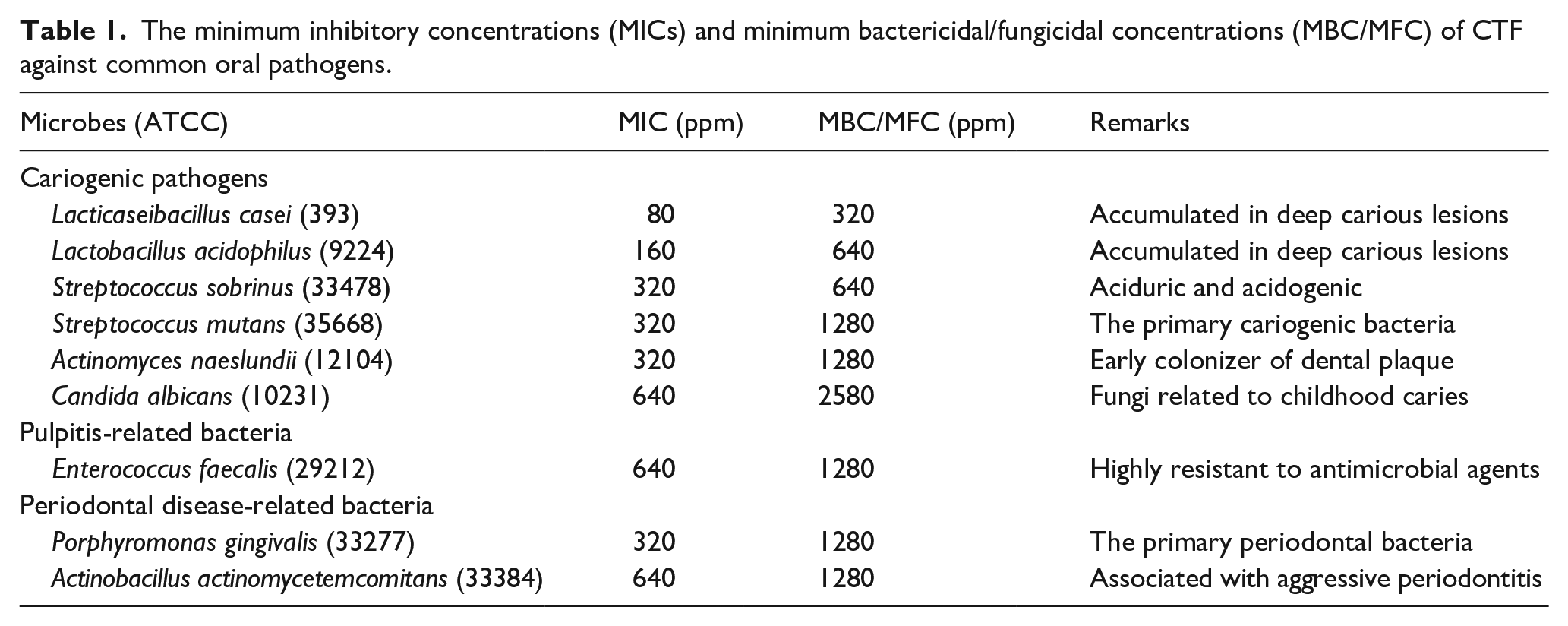

Table 1.

The minimum inhibitory concentrations (MICs) and minimum bactericidal/fungicidal concentrations (MBC/MFC) of CTF against common oral pathogens.

Microbes (ATCC)	MIC (ppm)	MBC/MFC (ppm)	Remarks
Cariogenic pathogens
Lacticaseibacillus casei (393)	80	320	Accumulated in deep carious lesions
Lactobacillus acidophilus (9224)	160	640	Accumulated in deep carious lesions
Streptococcus sobrinus (33478)	320	640	Aciduric and acidogenic
Streptococcus mutans (35668)	320	1280	The primary cariogenic bacteria
Actinomyces naeslundii (12104)	320	1280	Early colonizer of dental plaque
Candida albicans (10231)	640	2580	Fungi related to childhood caries
Pulpitis-related bacteria
Enterococcus faecalis (29212)	640	1280	Highly resistant to antimicrobial agents
Periodontal disease-related bacteria
Porphyromonas gingivalis (33277)	320	1280	The primary periodontal bacteria
Actinobacillus actinomycetemcomitans (33384)	640	1280	Associated with aggressive periodontitis

For cariogenic microbes, the MICs of the CTF against S. mutans and S. sobrinus were 320 ppm, whereas the MBCs were 1280 and 640 ppm, respectively. The MICs of L. acidophilus, L. casei, and A. naeslundii were 160, 80, and 320 ppm, and the MBCs were 640, 320, and 1280 ppm, respectively. The MIC of the CTF against C. albicans was 640 ppm and the MFC was 2580 ppm. For the pulpitis-related bacteria, the MIC and MBC of the CTF against E. faecalis were 640 and 1280 ppm, respectively. For periodontal disease-related bacteria, the MICs of P. gingivalis and A. actinomycetemcomitans were 320 and 640 ppm, respectively, and the MBCs were 1280 ppm.

Microorganisms morphology

Figure 1 presents TEM images of cariogenic pathogens with and without CTF treatment. S. mutans suffered significant damage after treated with CTF. The S. mutans cells exhibited abnormal morphology by aberrant cell curvatures and irregular cell shapes. Moreover, the cytoplasmic membranes of the cells were compromised, leading to the formation of transparent cytoplasmic zones and cytoplasmic content leakage. For S. sobrinus and L. acidophilus treated with CTF, the morphology changes were similar to CTF-treated S. mutans. These changes included the abnormal curvature of cell membranes, the transparency of the cytoplasmic zones, the disruption of the cytoplasmic membrane, and the leakage of cytoplasmic contents. For L. casei, the characteristic alterations observed were the abnormal curvature of cell membranes and the presence of cytoplasmic clear zones. After the treatment with CTF, the cell membranes of A. naeslundii abnormally curved and disrupted, and the cytoplasmic zones were transparent. When compared with untreated bacteria, CTF-treated C. albicans had abnormal morphological characteristics, such as the aberrant curvature and disruption of cell membranes, and the leakage of cytoplasmic contents.

Figure 1.

TEM images of cariogenic pathogens with and without CTF treatment.

Figure 2 shows TEM images of E. faecalis with and without CTF treatment. E. faecalis cells exhibited abnormal morphology by cytoplasmic clear zone, disrupted cell membrane, and cytoplasmic content leakage.

Figure 2.

TEM images of pulpitis-related bacteria with and without CTF treatment.

Figure 3 presents TEM images of periodontal disease-related bacteria with and without CTF treatment. The P. gingivalis suffered significant damage after treated with CTF, including the abnormal curvature of cell membranes, the transparency of the cytoplasmic zones, the disruption of the cytoplasmic membrane, and the leakage of cytoplasmic contents. The cell membranes of the treated A. actinomycetemcomitans abnormally curved and disrupted, and the cytoplasmic content leaked.

Figure 3.

TEM images of periodontal disease-related bacteria with and without CTF treatment.

Discussion

In recent years, copper has garnered considerable interest as a potential antimicrobial agent in dental treatments. Our previous study developed a novel CTF solution and examined the biocompatibility, antibacterial effect against S. mutans and staining effects. In this investigation, we investigated the antimicrobial effects of the novel CTF against common microbes associated with dental caries, pulpitis, and periodontal disease.

Cariogenic microorganisms are microbes that play a significant role in the development of dental caries. When the cariogenic microbes have colonised tooth surfaces, they can metabolise fermentable carbohydrates and generate organic acids, which can result in the demineralisation of tooth tissue.^19,20 Constant mineral loss erodes the tooth structure, leading to dental caries.²¹ To manage dental caries, it is important to manage bacterial activity and inhibit biofilm formation, which helps lower acid production and ultimately reduces demineralisation in dental caries.

S. mutans is regarded as the primary cariogenic microbes.²² S. mutans ferments carbohydrates and produces acid as a byproduct.²³ S. mutans can produce extracellular polysaccharides, particularly glucans, which facilitate adherence and accumulation on the tooth surface.²⁴ These extracellular polysaccharides also create a matrix for other microorganisms to attach, leading to a complex bacterial community that contributes to the development of dental caries.²⁵ S. sobrinus is another common cariogenic bacterium in the Streptococcus taxa. S. sobrinus is more acid-resistant and acidogenic than S. mutans, making it an important factor in dental caries.²⁶ Besides, studies have shown that S. sobrinus is associated with the progress of dental caries, especially in early childhood caries.²⁷ Inhibiting the growth of S. mutans and S. sobrinus could be an effective strategy for managing dental caries.

Lactobacilli are acidogenic and acid-tolerant bacteria that can produce lactic acid from fermentable carbohydrates.²⁸ Although S. mutans initiates the caries process, Lactobacillus species are more commonly associated with the progression of advanced caries.²⁹ These bacteria are frequently found in elevated quantities within deep carious lesions.³⁰ Furthermore, the presence of Lactobacillus species in saliva or dental plaque is frequently regarded as an indicator of caries activity and susceptibility.³¹ Further research is required to elucidate the precise mechanisms through which Lactobacillus species influence the progression of dental caries.

A. naeslundii is one of the early colonizers of dental plaque, contributing to the formation of the complex oral biofilm.³² In addition, A. naeslundii has been observed in greater quantities in cases with root surface caries, indicating its potential involvement in root caries.³³ C. albicans is a fungus, which is associated with early childhood caries.³⁴ Furthermore, C. albicans can cause opportunistic infections in individuals with weakened immune systems, contributing to the development of dental caries and other oral health issues.³⁵

For pulpitis-related bacteria, E. faecalis is frequently isolated from persistent endodontic infections, especially in cases of unsuccessful root canal treatments.³⁶ It can penetrate deep into dentinal tubules and form biofilms, resulting in endodontic infections.³⁷ Besides, E. faecalis exhibits robust resistance to a wide range of antimicrobial drugs.³⁸ Therefore, it is a challenge to manage oral infections caused by E. faecalis.

Periodontal diseases are chronic inflammatory diseases marked by the degradation of gingival connective tissue and the resorption of the alveolar bone, often leading to eventual tooth loss.³⁹ These diseases are triggered by periodontopathogenic microbes present in the subgingival plaque, notably P. gingivalis and A. actinomycetemcomitans.⁴⁰ P. gingivalis is a key pathogen in periodontal diseases, especially chronic periodontitis. It generates various virulence factors that enhance its pathogenicity.⁴¹ For instance, gingipains can break down host proteins, disrupt immune responses and contribute to tissue damage. Lipopolysaccharides can provoke an inflammatory response, while fimbriae help the bacteria adhere to host cells and other bacteria. Furthermore, P. gingivalis can invade host cells, allowing it to evade host defenses and antimicrobial agents.⁴ A. actinomycetemcomitans is often found in high numbers in aggressive periodontitis, indicating it is implicated in aggressive periodontitis.⁴² It can produce a variety of virulence factors, including endo- and exotoxins.⁴³ These factors can directly damage host tissues and protect the bacteria from host defences. Inhibiting the growth of P. gingivalis and A. actinomycetemcomitans is crucial for managing periodontal disease.

Antimicrobial ability is a crucial factor in the selection of antimicrobial drugs, and it can be assessed using MIC and MBC.⁴⁴ The findings of the current investigation indicate that the CTF had notable antibacterial efficacy. The MIC and MBC of the CTF against the nine microbes were found to vary between 80 to 640 ppm and 320 to 2560 ppm, respectively.

Moreover, the TEM was employed to observe the morphological alterations in microbes treated with CTF, thereby providing insights into the antimicrobial mechanism of CTF. Researchers suggested that copper ions can interact with the bacterial cell membrane, causing structural damage.⁴⁵ This interaction can lead to increased membrane permeability, resulting in leakage of essential cellular contents and ultimately cell death. Copper ions can also catalyse the production of reactive oxygen species, which can cause oxidative damage to cellular components, leading to cell death. In addition, copper ions can bind to proteins, disrupting their three-dimensional structure and function. This can inhibit essential enzymatic activities and other protein functions, impairing the bacteria’s ability to survive.⁴⁶ Copper ions can also interact with bacterial DNA, causing strand breaks and other forms of genetic damage. This can lead to mutations, interference with replication, and ultimately cell death.⁴⁷ Furthermore, copper can disrupt various metabolic pathways within the bacterial cell. For example, it can inhibit enzymes involved in cellular respiration and other critical biochemical processes, leading to energy depletion and cell death.⁴⁸ Ammonia can increase the pH of its surrounding environment. Many oral microbes thrive in neutral to slightly acidic conditions, so the alkaline conditions created by ammonia can disrupt bacterial cell processes. Moreover, ammonia can diffuse across cell membranes and disrupt intracellular pH and metabolic activities.⁴⁹ Fluoride inhibits the enzyme enolase, which is crucial in the glycolytic pathway.⁵⁰

In this study, TEM images revealed that CTF treatment led to the disruption of the cell membrane, causing unusual membrane curvature, irregular cellular shapes, and intra-bacterial vacuolization. This disruption further resulted in the breakdown of the cytoplasmic membrane and leakage of cytoplasmic components from the microorganisms. These observations align with the TEM images captured in our prior study, where CTF exhibited similar effects on microbes.¹⁷ However, this study primarily observed the antimicrobial mechanism of CTF through TEM images and did not involve a quantitative analysis of other potential factors contributing to CTF’s antimicrobial effects. These factors could include the interruption of DNA replication, denaturation of microbial proteins, and production of reactive oxygen species. In addition, the antimicrobial effect investigated in this study focused solely on single-species models. This approach provides simple, inexpensive, well-controlled, and repeatable experimental conditions. However, this strategy lacks complexity and does not account for the interactive effects between different microbial species. Future research initiatives should aim to provide a comprehensive analysis of the antimicrobial effects of CTF, including quantitative assessments of various contributing factors and investigations using multi-species models to better understand the antimicrobial effect of CTF.

Conclusion

This laboratory study showed that the novel CTF has antimicrobial effects against some common oral pathogens, specifically those associated with dental caries and periodontal disease. The CTF effectively inhibits the growth of these microbes and causes unusual cell morphology. CTF could be considered as a promising agent to manage oral infectious diseases including dental caries and periodontal disease.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study is supported by the RGC General Research Fund (GRF), Program No. 17100222.

ORCID iD

Chun-Hung Chu

References

Zhao

Wong

Wen

PYF

, et al Burden, trends, and inequality of dental caries in the U.S., 1990–2019. Am J Prev Med 2023; 64: 788–796.

Mei

Yan

Duangthip

, et al Effect of silver diamine fluoride on plaque microbiome in children. J Dent 2020; 102: 103479.

Alghamdi

Shakir

The influence of Enterococcus faecalis as a dental root canal pathogen on endodontic treatment: a systematic review. Cureus 2020; 12: e7257.

Cheng

van Asten

Burns

, et al Periodontitis-associated pathogens P. gingivalis and A. actinomycetemcomitans activate human CD14(+) monocytes leading to enhanced Th17/IL-17 responses. Eur J Immunol 2016; 46: 2211–2221.

Duangthip

Gao

Chen

, et al Oral health-related quality of life of preschool children receiving silver diamine fluoride therapy: a prospective 6-month study. J Dent 2019; 81: 27–32.

Zhao

Mei

, et al Caries-arresting effects of silver diamine fluoride and sodium fluoride on dentine caries lesions. J Dent 2018; 78: 65–71.

Çakmak

Akay

Donmez

, et al Effect of potassium aluminum sulfate application on the viability of fibroblasts on a CAD-CAM feldspathic ceramic before and after thermocycling. Materials (Basel) 2022; 15: 4232.

Sasany

Eyüboğlu

Özcan

Long-term effect of nanosized boric acid powder on optical properties of polymer infiltrated ceramic CAD-CAM material. Coatings 2023; 13: 483.

Sayed

Matsui

Hiraishi

, et al Evaluation of discoloration of sound/demineralized root dentin with silver diamine fluoride: in-vitro study. Dent Mater J 2019; 38: 143–149.

10.

Fancher

Fournier

Townsend

, et al Cytotoxic effects of silver diamine fluoride. Am J Dent 2019; 32: 152–156.

11.

Nizami

MZI

Yin

, et al Research interest in copper materials for caries management: a bibliometric analysis. J Func Biomater 2024; 15: 274.

12.

Kim

Nassar

Tamura

, et al The effect of reduced glutathione on the toxicity of silver diamine fluoride in rat pulpal cells. J Appl Oral Sci 2021; 29: e20200859.

13.

Ren

Cheng

, et al Characterisation of copper oxide nanoparticles for antimicrobial applications. Int J Antimicrob Agents 2009; 33: 587–590.

14.

Ingle

Duran

Rai

Bioactivity, mechanism of action, and cytotoxicity of copper-based nanoparticles: a review. Appl Microbiol Biotechnol 2014; 98: 1001–1009.

15.

Nilsson

Persson

Kessler

VG.

Coordination chemistry of the solvated AgI and AuI ions in liquid and aqueous ammonia, trialkyl and triphenyl phosphite, and tri-n-butylphosphine solutions. Inorg Chem 2006; 45: 6912–6921.

16.

Zhang

Niu

Yin

, et al Bioactive materials for caries management: a literature review. Dent J (Basel) 2023; 11: 59.

17.

Yin

Niu

, et al Developing a novel antibacterial copper tetraamine fluoride. J Dent 2024; 150: 105320.

18.

Niu

Yin

WKK

, et al A novel dual-action antimicrobial peptide for caries management. J Dent 2021; 111: 103729.

19.

Selwitz

Ismail

Pitts

NB.

Dental caries. Lancet 2007; 369: 51–59.

20.

Peng

Han

Zhou

, et al Effect of pH-sensitive nanoparticles on inhibiting oral biofilms. Drug Deliv 2022; 29: 561–573.

21.

Niu

Yin

WKK

, et al Antimicrobial peptides for the prevention and treatment of dental caries: a concise review. Arch Oral Biol 2021; 122: 105022.

22.

Zhao

Yang

, et al

Antibacterial activity of a Lysin LysP53 against

Streptococcus mutans. J Dental Res 2023; 102: 1231–1240.

23.

Loesche

WJ.

Role of Streptococcus mutans in human dental decay. Microbiol Rev 1986; 50: 353–380.

24.

Gong

, et al Lysine lactylation regulates metabolic pathways and biofilm formation in Streptococcus mutans. Sci Signal 2023; 16: eadg1849.

25.

Klein

Hwang

Santos

, et al Streptococcus mutans-derived extracellular matrix in cariogenic oral biofilms. Front Cell Infect Microbiol 2015; 5: 10.

26.

Saravia

Nelson-Filho

Ito

, et al Morphological differentiation between S. mutans and S. sobrinus on modified SB-20 culture medium. Microbiol Res 2011; 166: 63–67.

27.

Wyllie

Jensen

A novel competence pathway in the oral pathogen Streptococcus sobrinus. J Dent Res 2021; 100: 542–548.

28.

Caufield

Schön

Saraithong

, et al Oral Lactobacilli and dental caries: a model for niche adaptation in humans. J Dent Res 2015; 94: 110s–118s.

29.

Kneist

Schmidt

Callaway

, et al Diversity of Lactobacillus species in deep carious lesions of primary molars. Eur Arch Paediatr Dent 2010; 11: 181–186.

30.

Rôças

Alves

Rachid

, et al Microbiome of deep dentinal caries lesions in teeth with symptomatic irreversible pulpitis. PLoS One 2016; 11: e0154653.

31.

Piwat

Teanpaisan

Thitasomakul

, et al Lactobacillus species and genotypes associated with dental caries in Thai preschool children. Mol Oral Microbiol 2010; 25: 157–164.

32.

Diaz

Chalmers

Rickard

, et al Molecular characterization of subject-specific oral microflora during initial colonization of enamel. Appl Environ Microbiol 2006; 72: 2837–2848.

33.

Komiyama

Khandelwal

Duncan

DE.

Glycogen synthetic abilities of Actinomyces viscosus and Actinomyces naeslundii freshly isolated from dental plaque over root surface caries lesions and non-carious sites. J Dent Res 1986; 65: 899–902.

34.

Cui

Wang

Zhang

, et al Oral mycobiome differences in various spatial niches with and without severe early childhood caries. Front Pediatr 2021; 9: 748656.

35.

Patil

Majumdar

Sarode

, et al Oropharyngeal candidosis in HIV-infected patients-an update. Front Microbiol 2018; 9: 980.

36.

Gaeta

Marruganti

Ali

IAA

, et al The presence of Enterococcus faecalis in saliva as a risk factor for endodontic infection. Front Cell Infect Microbiol 2023; 13: 1061645.

37.

Zhang

Peng

Correlation between Enterococcus faecalis and persistent intraradicular infection compared with primary intraradicular infection: a systematic review. J Endod 2015; 41: 1207–1213.

38.

Gomes

Francisco

Godoi

Jr , et al Identification of culturable and nonculturable microorganisms, lipopolysaccharides, and lipoteichoic acids from root canals of teeth with endodontic failure. J Endod 2021; 47: 1075–1086.

39.

Socransky

Smith

Haffajee

AD.

Subgingival microbial profiles in refractory periodontal disease. J Clin Periodontol 2002; 29: 260–268.

40.

Engström

Eriksson

Lee

, et al Increased citrullination and expression of peptidylarginine deiminases independently of P. gingivalis and A. actinomycetemcomitans in gingival tissue of patients with periodontitis. J Transl Med 2018; 16: 214.

41.

Zhao

Liu

Zhang

, et al Porphyromonas gingivalis exacerbates ulcerative colitis via Porphyromonas gingivalis peptidylarginine deiminase. Int J Oral Sci 2021; 13: 31.

42.

Könönen

Müller

. Microbiology of aggressive periodontitis. Periodontol 2000 2014; 65: 46–78.

43.

Fives-Taylor

Meyer

Mintz

, et al Virulence factors of Actinobacillus actinomycetemcomitans. Periodontol 2000 1999; 20: 136–167.

44.

Zhang

Niu

Yin

, et al Antibacterial properties of the antimicrobial peptide gallic acid-polyphemusin I (GAPI). Antibiotics (Basel) 2023; 12: 1350.

45.

Jin

Ren

Yang

. Bio-functional Cu containing biomaterials: a new way to enhance bio-adaption of biomaterials. J Mater Sci Technol 2016; 32: 835–839.

46.

Azam

Ahmed

Oves

, et al Size-dependent antimicrobial properties of CuO nanoparticles against Gram-positive and-negative bacterial strains. Int J Nanomed 2012; 7: 3527–3535.

47.

Applerot

Lellouche

Lipovsky

, et al Understanding the antibacterial mechanism of CuO nanoparticles: revealing the route of induced oxidative stress. Small 2012; 8: 3326–3337.

48.

Nizami

MZI

Yin

, et al Application of copper nanoparticles in dentistry. Nanomaterials (Basel) 2022; 12: 805.

49.

Zhou

Yang

, et al Preparation of quaternarized N-halamine-grafted graphene oxide nanocomposites and synergetic antibacterial properties. Chin Chem Lett 2021; 32: 3509–3513.

50.

Mitsuhata

Puteri

Ohara

, et al Possible involvement of enolase in fluoride resistance in Streptococcus mutans. Pediatric Dent J 2014; 24: 12–16.
