Histological Analysis of Bridge-Enhanced ACL Restoration (BEAR) Tissue in Ligament Retears

Methods

Patients undergoing revision ACL surgery after a failed BEAR implant procedure were consented for tissue biopsy at their treating institution. All included patients were revised to a traditional autograft ACLR. Tissue biopsy specimens were taken at several locations across the site of the retorn ligament, with cluster biopsy specimens taken at the retear site. Biopsy specimens were taken using an arthroscopic punch and grasper. After multiple punch biopsy specimens were taken, the remainder of the ACL stump was excised using arthroscopic scissors and a grasper when possible. Histology slides of the biopsy specimens and remaining specimen were prepared and examined by a single pathologist (J.P.). The location of retear was recorded based on intraoperative evaluation to be cross-referenced with the original site of the tear (Table 1). Classification of the tear site was uniform based on the Sherman classification and was recorded by the surgeon per protocol in the BEAR III clinical trial (Table 2). ¹⁷

OPEN IN VIEWER

Table 1

Location of the Index ACL Tear of the Native Ligament Recorded and Cross-Referenced With the Location of Retear ^a

Patient No.	Original Tear Location (Sherman Classification Type)	Retear Location/Biopsy Location (Intraoperative Identification)	MRI Finding After Reinjury
1	Complete tear, proximal avulsion (1)	Partial tear >50%, midsubstance, (3)	Evidence of ACL sprain, partial retear
2	Complete tear, midsubstance (3)	Partial tear >50%, midsubstance (3)	Evidence of partial ACL tearing, midsubstance.
3	Complete tear, midsubstance (3)	Complete tear, midsubstance	Signal intensity consistent with ACL sprain, partial tearing
4	Complete tear, proximal avulsion (1)	Partial tear >50%, proximal (2)	Signal consistent with high-grade partial vs full retear of ACL
5	Complete tear, midsubstance (3)	Complete tear, midsubstance (3)	Heterogeneous signal throughout the region of ACL, consistent with high-grade partial retear

a

Tissue biopsy specimens were taken for histological analysis clustered at the site of the retear. ACL, anterior cruciate ligament; MRI, magnetic resonance imaging.

OPEN IN VIEWER

Table 2

Sherman Classification Describing Location of the ACL Disruption and Quantifying Remaining ACL Tissue ^a

Tear Classification	Tear Description
Type 1	Proximal avulsion (distal remnant length >90% of total ligament length remaining)
Type 2	Proximal tear (75%-90% length remaining)
Type 3	Midsubstance (25%-75% length remaining)
Type 4	Distal tear (10%-25% length remaining)
Type 5	Distal avulsion (<10% length remaining)

a

The location of the injury is named from the femoral side of the attachment of the ACL.

Pathology

Tissues submitted by the surgeons were entirely for histologic evaluation. As noted in Table 1, the site of the most recent tear was identified intraoperatively and labeled for evaluation. The remaining ACL tissue was evaluated histologically along a vertical plane from proximal to distal. The approximate location of the original tear location had been noted from the original operative report for cross-referencing. Similarly, the extent and location of the retear was also noted for comparison. For each case, hematoxylin and eosin–stained slides were reviewed by a central pathologist (J.P.). Histologic parameters included acute inflammation (0-4), presence of lymphocytes (0-4), presence of eosinophils (0-4), presence of macrophages (0-4), presence of giant cells (0-4), presence of organisms/evidence of infection (0-4), evidence of neovascularization (0-4), and fatty infiltrate (0-4) (Table 3). The presence of foreign material, malignancy, ligamentous/fibrous tissue, and synovial tissue was assessed. The appearance of the tissue in relation to normal-appearing ACL was also evaluated.

OPEN IN VIEWER

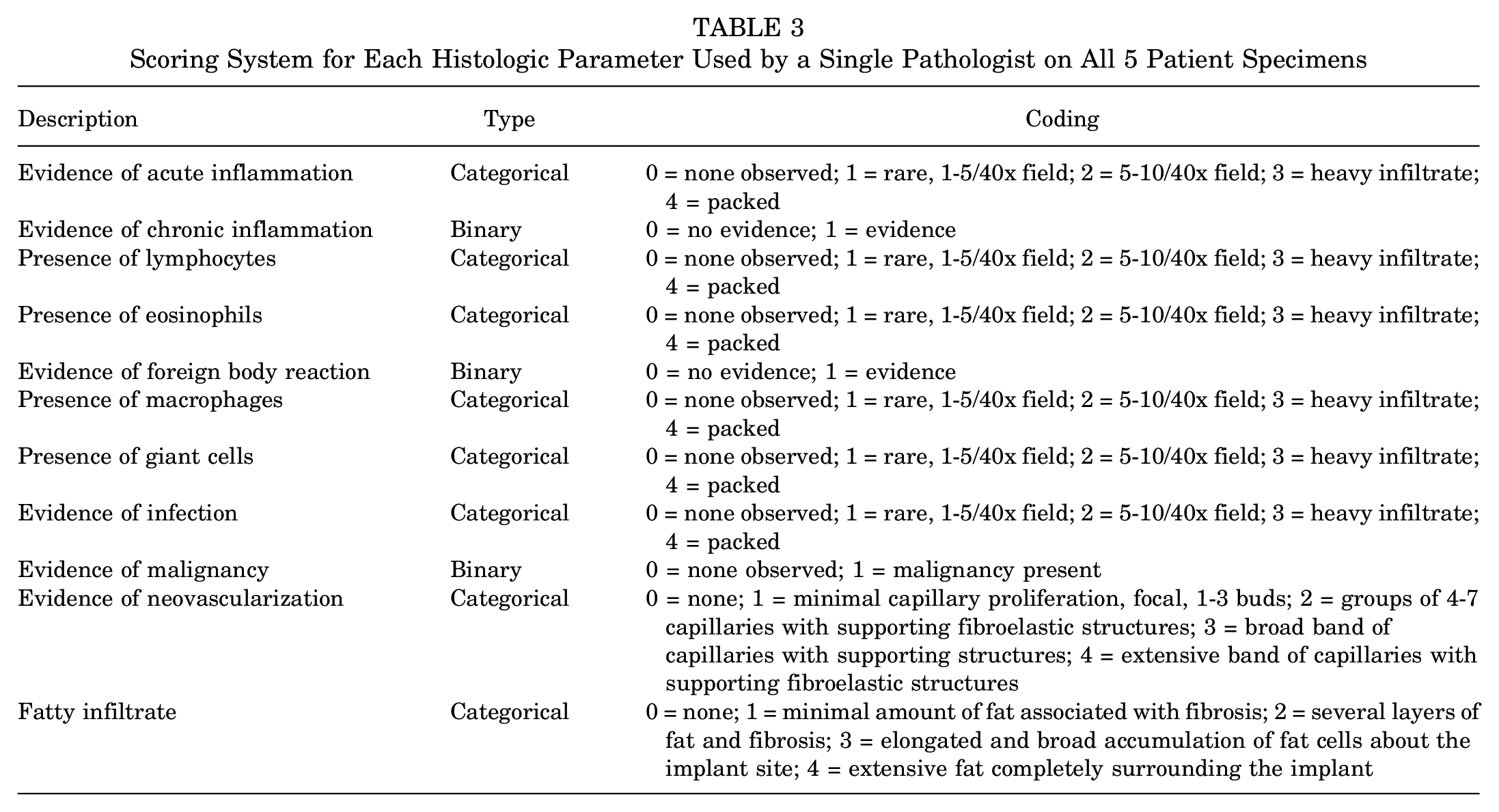

Table 3

Scoring System for Each Histologic Parameter Used by a Single Pathologist on All 5 Patient Specimens

Description	Type	Coding
Evidence of acute inflammation	Categorical	0 = none observed; 1 = rare, 1-5/40x field; 2 = 5-10/40x field; 3 = heavy infiltrate; 4 = packed
Evidence of chronic inflammation	Binary	0 = no evidence; 1 = evidence
Presence of lymphocytes	Categorical	0 = none observed; 1 = rare, 1-5/40x field; 2 = 5-10/40x field; 3 = heavy infiltrate; 4 = packed
Presence of eosinophils	Categorical	0 = none observed; 1 = rare, 1-5/40x field; 2 = 5-10/40x field; 3 = heavy infiltrate; 4 = packed
Evidence of foreign body reaction	Binary	0 = no evidence; 1 = evidence
Presence of macrophages	Categorical	0 = none observed; 1 = rare, 1-5/40x field; 2 = 5-10/40x field; 3 = heavy infiltrate; 4 = packed
Presence of giant cells	Categorical	0 = none observed; 1 = rare, 1-5/40x field; 2 = 5-10/40x field; 3 = heavy infiltrate; 4 = packed
Evidence of infection	Categorical	0 = none observed; 1 = rare, 1-5/40x field; 2 = 5-10/40x field; 3 = heavy infiltrate; 4 = packed
Evidence of malignancy	Binary	0 = none observed; 1 = malignancy present
Evidence of neovascularization	Categorical	0 = none; 1 = minimal capillary proliferation, focal, 1-3 buds; 2 = groups of 4-7 capillaries with supporting fibroelastic structures; 3 = broad band of capillaries with supporting structures; 4 = extensive band of capillaries with supporting fibroelastic structures
Fatty infiltrate	Categorical	0 = none; 1 = minimal amount of fat associated with fibrosis; 2 = several layers of fat and fibrosis; 3 = elongated and broad accumulation of fat cells about the implant site; 4 = extensive fat completely surrounding the implant

Results

Five patients across 2 institutions were identified with retears after a BEAR procedure and were consented for histological analysis over a 5-year period. The retear of the BEAR and analysis occurred at a mean of 482.4 days (16 months) (range, 366-623 days [12-20.7 months]) after implantation (Table 4). Four of the 5 patients had passed functional testing and were cleared to return to sport. One patient had arthrofibrosis that was documented 3 months after procedure. This patient (patient 5) underwent an arthroscopic lysis of adhesions and manipulation at 5 months after the procedure. At the time of the lysis, the ACL was noted to be intact (Figure 2). The mean time from retear to tissue biopsy was 191.6 days (range, 77-440 days) (Table 5). The mechanism of injury was described for each retear. In 3 of the patients, the mechanism of action was described as a pivoting maneuver, while the other 2 patients noted jumping injuries. MRI was performed on each patient after reinjury. MRI identified partial tears in each 5 patients. In each instance, heterogeneous signal intensity consistent with high-grade partial retear of the ACL was noted.

OPEN IN VIEWER

Table 4

Time From Implantation of BEAR to Histologic Biopsy ^a

ID	Date of BEAR Procedure	Date of Revision Surgery and Biopsy	Time Between Index Surgery and Biopsy
1	May 14, 2018	January 27, 2020	623 d/20.7 mo
2	July 9, 2018	December 6, 2019	515 d/17.17 mo
3	August 8, 2018	December 23, 2019	502 d/16.7 mo
4	December 17, 2018	December 18, 2019	366 d/12 mo
5	January 7, 2022	February 17, 2023	406 d

a

All 5 patients were biopsied 1 year following the BEAR procedure. BEAR, bridge-enhanced anterior cruciate ligament restoration.

OPEN IN VIEWER

Figure 2.

Right knee of a patient who underwent bridge-enhanced anterior cruciate ligament (ACL) restoration procedure and developed arthrofibrosis. The patient was taken back to the operating room at 5 months after implantation for a lysis. At this time, the ACL was found to be intact (arrow). The patient subsequently went on to tear the ACL after return to sport at month 10 after implantation.

OPEN IN VIEWER

Table 5

Time From Retear to Histologic Biopsy

ID	Retear Date	Biopsy Date	Time Between Retear and Biopsy	Mechanism of Injury
1	November 13, 2018	January 27, 2020	440 d	Sailing injury: awkward knee pivot, not wearing brace
2	July 13, 2019	December 6, 2019	147 d	Running and quick pivot, not wearing brace
3	June 1, 2019	December 23, 2019	206 d	Beach volleyball, awkward pivot in sand, not wearing brace
4	October 3, 2019	December 18, 2019	77 d	Large leap during dancing, wearing brace
5	November 21, 2022	February 17, 2023	88 d	Basketball jump and landing, not wearing brace

Restoration Cases

Using the scoring system identified in Table 2, the histological classification of each biopsy was identified. No infection or malignancy was identified. All 5 samples demonstrated ligamentous tissue and synovial tissue.

Histologic information is summarized in Table 6. None of the cases demonstrated evidence of acute inflammation (neutrophilic infiltrate), while lymphocytic infiltrate was noted in all cases (100%), ranging from rare (4 of 5; 80%) to heavy infiltrate (1 of 5; 20%) (Figure 3). Foreign materials from previous procedures were present in 2 cases (40%) with associated histiocytic infiltrate and giant cells. Ligamentous tissue and synovial tissue were noted in all cases (100%) with evidence of neovascularization (Figures 4 and 5). Fatty tissue was identified in 3 cases (60%), while no cases showed evidence of organisms/infection or malignancy (Figures 3-5). Type I collagen was noted predominantly at the biopsy sites. Absence of grossly fibrotic tissue was noted at the biopsy sites. There was no evidence of remnant collagen implant identified in any of the biopsy specimens.

OPEN IN VIEWER

Table 6

Histologic Findings of Failed Bridge-Enhanced Anterior Cruciate Ligament (ACL) ^a

	Case
	1	2	3	4	5
Acute inflammation	0	0	0	0	0
Lymphocytes	1	1	3	1	1
Eosinophils	0	0	0	0	0
Presence of macrophage	0	0	1	0	1
Presence of giant cells	0	0	3	0	1
Infection	0	0	0	0	0
Neovascularization	2	1	1	2	1
Fatty infiltrate	1	0	1	0	1
Foreign material	No	No	Yes	No	Yes
Malignancy	No	No	No	No	No
Ligamentous tissue	Yes	Yes	Yes	Yes	Yes
Synovial tissue	Yes	Yes	Yes	Yes	Yes

a

Using the scoring system identified in Table 2, the histological classification of each biopsy was identified. No infection or malignancy was identified. All five samples demonstrated ligamentous tissue and synovial tissue.

OPEN IN VIEWER

Figure 3.

Synovial tissue from patient 3 shows (A) multinucleated giant cells (arrow) with associated foreign materials and (B) perivascular lymphocytic inflammation (arrowheads). Hematoxylin and eosin 10X.

OPEN IN VIEWER

Figure 4.

Tissue from patient 4 demonstrates (A) dense fibrous tissue with (B) focal area of neovascularization characterized by capillary proliferation (bordered by arrowheads). Hematoxylin and eosin 10X.

OPEN IN VIEWER

Figure 5.

Tissue from patient 5 shows (A) neovascularization with capillary proliferation (the area between arrowheads) and (B) reactive synovial lining (arrow). Hematoxylin and eosin 10X.

Discussion

The present paper is the first to histologically evaluate the composition of tissue associated with the BEAR implant after a retear in humans. Histological analysis can prove valuable in appraising the quality and maturation of the healing tissue and substantiate clinical outcomes associated with biologic implants.^16,18 Arnoczky et al ¹ examined tissue biopsy specimens of the rotator cuff during second-look arthroscopies in 7 patients who underwent treatment for rotator cuff disease using a type I bovine collagen implant. Their findings demonstrated highly organized collagen at 6 months, which suggests functional loading of the newly generated tissue, which had the histologic appearance of tendon. While a small subset of patients, their findings nonetheless provided an early look and confidence for the tissue produced from the use of a bioinductive implant.

Before the BEAR procedure, successful ACL repair across the spectrum of ACL tear patterns was often not feasible based on tear location and the caustic intra-articular environment created after a tear.^11,17 Murray et al ¹¹ previously examined the histological changes in human ACL after rupture. Their findings noted a layer of synovial tissue over the ruptured surface, which potentially impeded repair of the ligament. Moreover, a large number of cells were observed in this synovial layer and in the epiligamentous tissue that expressed the gene for a contractile actin isoform, alpha-smooth muscle actin, thus differentiating into myofibroblasts. They believed that these factors contributed to the retraction and inhibition of the ACL to heal appropriately after repair.

The process of ligament healing starts with an early inflammatory response characterized by the infiltration of immune cells and the release of cytokines. ¹⁵ Fibroblasts, which are responsible for producing collagen, begin to migrate into the damaged area and lay down new connective tissue. Blood vessels also start to form, aiding in the delivery of oxygen and nutrients to support healing. Over time, there is the presence of collagen fibers bridging the gap between the torn ends of the ACL, indicating the progress of healing. In addition, histological analysis can reveal the biomechanical characteristics, organization, and alignment of collagen fibers, which is crucial for restoring the structural integrity of the ACL. The presence of mature collagen bundles with a similar orientation to the original ligament suggests a successful restoration (Figure 4). The histological examination can also provide insight into the degree of neovascularization, which refers to the formation of new blood vessels (Figure 5). A well-vascularized healing tissue is essential for adequate nutrient supply and can contribute to better outcomes.

In the present study, the histological findings confirmed that the tissue submitted during the procedure is in keeping with native type I collagen tissue (ligamentous tissue/synovial lining), showing reactive changes (lymphocytic infiltrate and neovascularization), which are part of the normal healing and maturation process. Notably, chronic fibrotic tissue was not observed in the samples; rather, the tissue appeared consistent with native ruptured ACL fibers. In addition, there were no findings to suggest additional pathology/complications (eg, acute inflammation, infection). Two patients demonstrated foreign material consistent with suture. The importance of the location of the biopsy at the time of revision for comparison with the site of initial injury is substantial. Through intraoperative classification in the index procedure, targeted biopsies at the site of injury during the revision procedure provide the best chance of examining the tissue to histological consistency. We recognize that this is an inexact science; however, the ability to cross-reference these locations across time points provides the best chance of study.

We believe these histological evaluations help support the premise that ACL tears treated with the BEAR implant contain ligamentous tissue that matures and heals into native-like tissue resembling the ACL. The biopsy results reported in this review are the first to histologically analyze the composition of the reruptured ligament following the BEAR procedure.

Of note, 4 of the 5 BEAR implant retears occurred at the same location as the index tear per chart review. Pathology review of the retear sites in these 4 patients did not reveal chronic fibrosis of the tissue per the pathology review. MRI was performed on each of the patients after reinjury. Interestingly, in each of the 5 MRIs, the radiologist noted a pivot-shift contusion, consistent with instability, as well as high-grade partial retears based on abnormal ACL signal within the ligament. While this sample size is too small to draw meaningful conclusions, we recognize that further evaluation of the retear locations of future BEAR implant patients should be cross-referenced with the index tear location to determine if incomplete healing may have occurred.

Retears associated with ACL surgery are an unfortunate inevitability in all methods of treatment. Multiple factors, such as failed biology, limb malalignment, tibial slope, technical error, and trauma, have been cited as reasons for failed index procedures. ³ Within the BEAR surgical cohort of patients, histological confirmation of native-like tissue has yet to be examined in human patients to date. Concerns over the integrity of the tissue have rightfully existed, as nonnative fibrotic scarring of the ACL could potentially lead to delayed failures long term. The results of this paper suggest that, in spite of retears in patients who underwent BEAR procedures, the tissue that had been restored at the index procedure was consistent with viable ACL-like tissue that would otherwise be found with a native ACL rupture. Further biopsy collection of intact and disrupted BEAR procedures at various time points are warranted to make a broader statement in regard to these findings and longer-term implications.

Limitations

The authors recognize limitations exist in this writing. The sample size of 5 patients is notably small. However, as reported in the Arnoczky et al ¹ manuscript analyzing rotator cuff repair biopsy, a small sample size can nevertheless yield valuable information. Samples of tissue are limited by the fact that they are only taken during second-look procedures due to retear of the restored ligament. Additionally, tear location and restoration at the index procedure may vary. Based on operative records, the biopsy specimens were taken at multiple locations of the ACL retear with a focus placed on the site of the actual visualized tear. Further collection of biopsy specimens taken at the time of revision surgery for retears and correlation with the location of index tear and retear location should be considered. Additionally, en bloc resection of the retorn ACL, while attempted in this current review, would be of benefit, although may be technically challenging across the board.

Conclusion

Histological evaluation of BEAR retears in human patients supports the hypothesis that the tissue restored by the implant is similar to native ACL collagen.
