Objective Comparison of Auditory Profiles Using Manifold Learning and Intrinsic Measures

Overview of the Data Set

The data set employed in this study was an extended Oldenburg Hearing Health Record database (OHHR; Jafri et al., 2025). The extended data set consisted of 1127 participants with a mean age of 67.2 years (SD = 12.0), of whom 55.7% were male and 44.3% female. All participants underwent a comprehensive auditory evaluation comprising eight different tests. These included a questionnaire, two cognitive assessments (verbal intelligence and the DemTect test; Kalbe et al., 2004), the SF-12 health survey, an adaptive categorical loudness scaling test (Xu and Kollmeier, 2026; Xu et al., 2026), two speech-in-noise tests (the Goettingen Sentence Test (GÖSA) and the Digit Triplet Test (DTT)), and pure-tone audiometry. 37 parameters were derived from these tests. Air-conduction audiograms were assessed in sound-treated booths by hearing aid acousticians in accordance with International Organization for Standardization, 2010. Measurements covered 11 audiometric frequencies ranging from 0.25 to 8 kHz for both ears, using a Unity II audiometer and HDA200 headphones. For further details on the measurements, see Gieseler et al. (2017), Saak et al. (2022, 2025), and Jafri et al. (2025).

Applying Auditory Profiles to the Data Set

Following the classification frameworks proposed by Bisgaard et al. (2010), Stevens et al. (2013), Cruickshanks et al. (2020), Dubno et al. (2013), Parthasarathy et al. (2020), Sanchez-Lopez et al. (2020), and Saak et al. (2022), participants were assigned to auditory profiles based on the parameters specified by each framework, which may include audiometric thresholds and, in some cases, additional supra-threshold measures (see the appendix for the details). Please note that we followed the original data-driven profiling procedure for Saak et al. (2022), rather than the federated learning approach described in Saak et al. (2025). Table 2 summarizes the distribution of participants for the eight auditory profiling frameworks. Please note that 704, 545, and 87 participants were categorized as unidentified under the audiometric phenotype, general phenotype, and BEAR auditory profiles, respectively. For the computation of intrinsic metrics, these “unidentified” participants were not excluded but treated as an additional cluster (“u”).

OPEN IN VIEWER

Table 2.

Number of Participants Within Each Class of the Respective Auditory Profiling Framework. Please Refer to Table 1 with Respect to the Details of the Respective Framework

Auditory profiling framework	Number of participants
Baseline	NH: 287, HI: 840
Bisgaard profile	N1: 283, N2: 200, N3: 253, N4: 73, N5: 27, N6: 7, N7: 2, S1: 140, S2: 88, S3: 54
WHO HI grades	Normal: 256, Mild: 312, Moderate: 327, Moderately severe: 160, Severe: 63, Profound: 9
WARHICS levels	Level 1: 80, 2: 55, 3: 92, 4: 224, 5: 232, 6: 138, 7: 304, 8: 2
Phenotype	O-N: 164, PRE-MET: 105, MET: 98, SENS: 20, MET + SENS: 36, Unidentified: 704
General phenotype	Normal: 119, Flat: 36, HFHL: 240, Mixed: 187, Unidentified: 545
BEAR	A: 431, B: 146, C: 395, D: 68, Unidentified: 87
Hearing4all	Level 1: 40, 2: 18, 3: 36, 4: 21, 5: 66, 6: 257, 7: 67, 8: 20, 9: 25, 10: 291, 11:190, 12: 50, 13: 46

Normalized Intrinsic Measures

Following Elkhouly et al. (2021), three statistical intrinsic measures—Davies-Bouldin (DB) score, Calinski-Harabasz (CH) score, and Silhouette Index—were employed to evaluate the performance of the eight auditory profiling frameworks using the extended Oldenburg Hearing Health Record (OHHR). All of the measures assess both internal consistency (i.e., similar individuals are grouped together) and group distinctiveness (i.e., distinct groups differ clearly from each other) (Caliński & Harabasz, 1974; Davies & Bouldin, 1979; Elkhouly et al., 2021; Rousseeuw, 1987). Lower Davies–Bouldin (DB) scores indicate better profiling performance, with an optimal value of 0, whereas higher Calinski–Harabasz (CH) and Silhouette Index values reflect superior auditory profiles; the Silhouette Index ranges from −1 to 1, with higher values indicating better performance.

To estimate the distribution of the three intrinsic measures, we performed bootstrapping by drawing 1,000 samples with replacement from the extended OHHR dataset, each containing n = 1,000 participants. The three intrinsic measures were recomputed for each sample, from which the median and interquartile range were estimated. The calculations for all three intrinsic measures were carried out using the Python “scikit-learn” package (Pedregosa et al., 2011), with distances and centroids computed using Euclidean distance; no additional data transformation was applied. Detailed descriptions of the intrinsic measures can be found in the supplementary material.

To enable fair comparisons across auditory profiling frameworks with different numbers of profiles, normalized variants of the intrinsic clustering measures were additionally evaluated. This normalization was introduced to reduce the tendency of the standard metrics to favor coarse clustering solutions with fewer profiles. Specifically, the DB score was normalized by dividing the original score by log₂(N), where N denotes the number of profiles. For the CH score and Silhouette Index, normalization was performed by multiplying each measure by log₂(N). The resulting values are referred to as the normalized DB score, normalized CH score and normalized Silhouette Index, respectively. In the following sections, the corresponding metrics without normalization are referred to as the standard DB score, standard CH score, and standard Silhouette Index.

Factors Influencing the Generation of Auditory Profiles (Clustering Approach, Number of Profiles)

Using the extended OHHR, we investigated two factors that could influence the clustering results of an auditory profiling framework—namely, the clustering approach and the number of profiles. For the clustering approach, we compared two widely used methods: vector quantization (VQ), employed in the Bisgaard profiles (Bisgaard et al., 2010), and the Gaussian Mixture Model (GMM), applied in Parthasarathy et al. (2020). The comparison was based on the Davies-Bouldin (DB) score. For comparability, both clustering methods were applied to the extended OHHR with the number of profiles fixed at 10. This choice was driven by methodological constraints: the number of Bisgaard profiles is predefined, whereas only the number of profiles could be adjusted via the GMM. A t-test was performed to evaluate the impact of the clustering method on the DB score. To assess the effect of the number of profiles, we used the GMM method since its parameters could be freely adjusted to generate auditory profiles, and varied the number of profiles from 2 to 15. The standard and normalized DB scores were plotted as a function of the number of profiles for comparison. The GMM model was implemented using the “scikit-learn” package in Python (Pedregosa et al., 2011).

Applying Principal Component Analysis (PCA) on the Extended OHHR

Principal Component Analysis (PCA), an unsupervised machine learning method, was applied to reduce the dataset’s dimensionality, visualize individual participants in a two-dimensional PCA space, and visually compare different auditory profiles. The analysis was conducted using the R package “FactoMineR” (Lê et al., 2008), which employs singular value decomposition (SVD) to extract the first two principal components (PC1 and PC2). The “factoextra” package (Kassambara & Mundt, 2017) was used to generate PCA plots, with PC1 and PC2 displayed on the x- and y-axes, respectively. Before performing PCA, the data were standardized to have unit variance. The final analysis retained five dimensions as a default setting.

Applying t-Distributed Stochastic Neighbor Embedding (t-SNE) on the Extended OHHR

t-Distributed Stochastic Neighbor Embedding (t-SNE) is an unsupervised manifold learning technique used to reduce data set dimensionality and visualize high-dimensional data, making it suitable for visually comparing different auditory profiles (Van Der Maaten, 2014; Van der Maaten & Hinton, 2008). Unlike Principal Component Analysis (PCA), which preserves the global structure, t-SNE focuses on maintaining the neighborhood relationships of data points when mapping from high-dimensional to low-dimensional spaces. Additionally, t-SNE is a non-linear dimensionality reduction method, whereas PCA is linear.

The t-SNE analysis was conducted using the R package “Rtsne” (Krijthe et al., 2018). The perplexity parameter was set to 30 (Van Der Maaten, 2014), and the theta parameter, controlling the trade-off between speed and accuracy, was set to 0.0. No initial PCA step was performed, and all other hyperparameters were kept at their default values (Krijthe et al., 2018). The two output variables from the t-SNE analysis were denoted as t-SNE Dimension 1 and t-SNE Dimension 2. PCA and t-SNE were used solely for visualization to facilitate qualitative comparison of the profile structures.

Impact of the Clustering Approaches and Number of Profiles

Figure 1A illustrates the effect of different clustering approaches on clustering performance. The standard DB scores differed significantly between the vector quantization method applied to Bisgaard profiles (Bisgaard et al., 2010) and the Gaussian Mixture Model (GMM) used in Parthasarathy et al. (2020), as confirmed by a t-test (p < 0.05). For this comparison, the number of profiles was fixed at 10.OPEN IN VIEWER

Figure 1B shows the standard and normalized DB scores as a function of the number of profiles N generated using the GMM-based clustering approach. Overall, both the standard and normalized DB scores initially increased with increasing N and then gradually decreased. For the standard DB scores, the lowest value was observed at N = 2, indicating the best clustering performance. Excluding N = 2, the lowest DB score occurred at N = 13, consistent with the findings of Saak et al. (2022). In contrast, the highest DB score was observed at N = 3, indicating the poorest clustering performance. For the normalized DB scores, the highest value was also observed at N = 3, whereas the lowest value occurred at N = 15. ANOVA confirmed that the DB scores differed significantly across N = 2–15 (p < 0.05).

Standard Intrinsic Measures

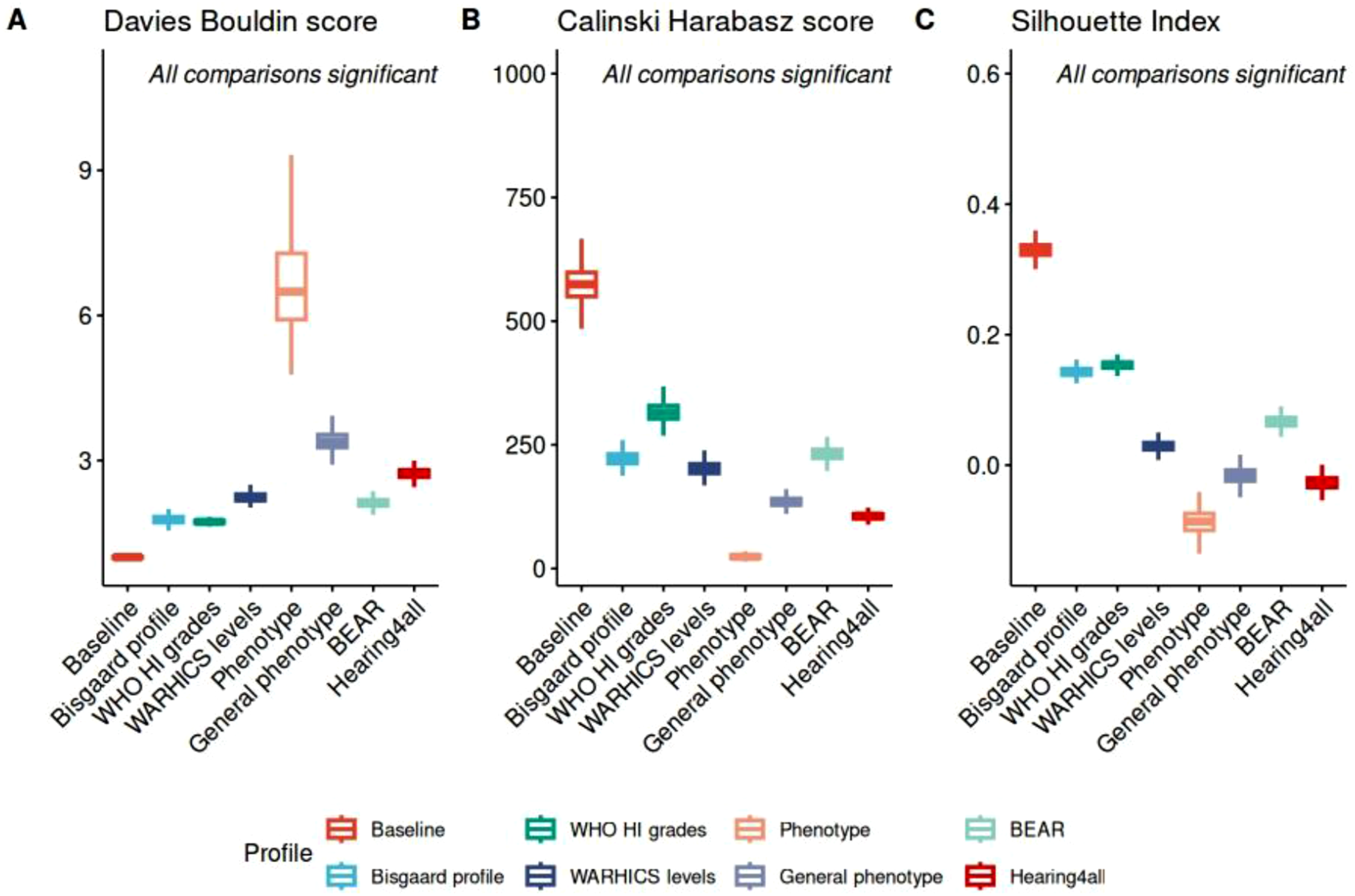

Figure 2 presents the three standard intrinsic measures for the evaluated auditory profiling frameworks. Overall, the baseline auditory profiles demonstrated the best clustering performance, yielding the lowest standard DB scores, highest CH scores, and Silhouette indices closest to 1, whereas the audiometric phenotypes showed the poorest performance. In addition, the three audiogram-based profiling frameworks (i.e., Bisgaard profiles, WHO HI grades, and WARHICS levels) exhibited relatively strong abilities to separate participants into distinct profiles. Among the comprehensive auditory profiling frameworks, the BEAR auditory profiles outperformed the Hearing4all auditory profiles, as reflected by smaller DB scores, larger CH scores, and Silhouette indices closer to 1. The audiometric phenotypes exhibited comparatively large variability in the DB scores across bootstrap samples, possibly because only a limited number of participants were assigned to several specific phenotype categories, while a relatively large proportion remained unidentified, leading to substantial variations in group composition between bootstrap samples. In addition, the definitions of the phenotypes may also contribute to the large variance.OPEN IN VIEWER

A limitation of standard intrinsic clustering metrics is their strong dependence on the number of profiles. In the present study, the standard Davies–Bouldin (DB) score reached its minimum when only two profiles were used, indicating that very coarse profile configurations can achieve disproportionately favorable clustering scores despite providing limited clinical granularity (Figure 1B). To reduce this bias, normalized variants of the intrinsic measures were additionally evaluated using a logarithmic penalty term based on the number of profiles N. As shown in Figure 1B, the normalization reduced the favorable bias toward low-dimensional clustering solutions, particularly for N = 2, while preserving the relative behavior of the original metrics and improving comparability across auditory profiling frameworks with different numbers of profiles.

Normalized Intrinsic Measures

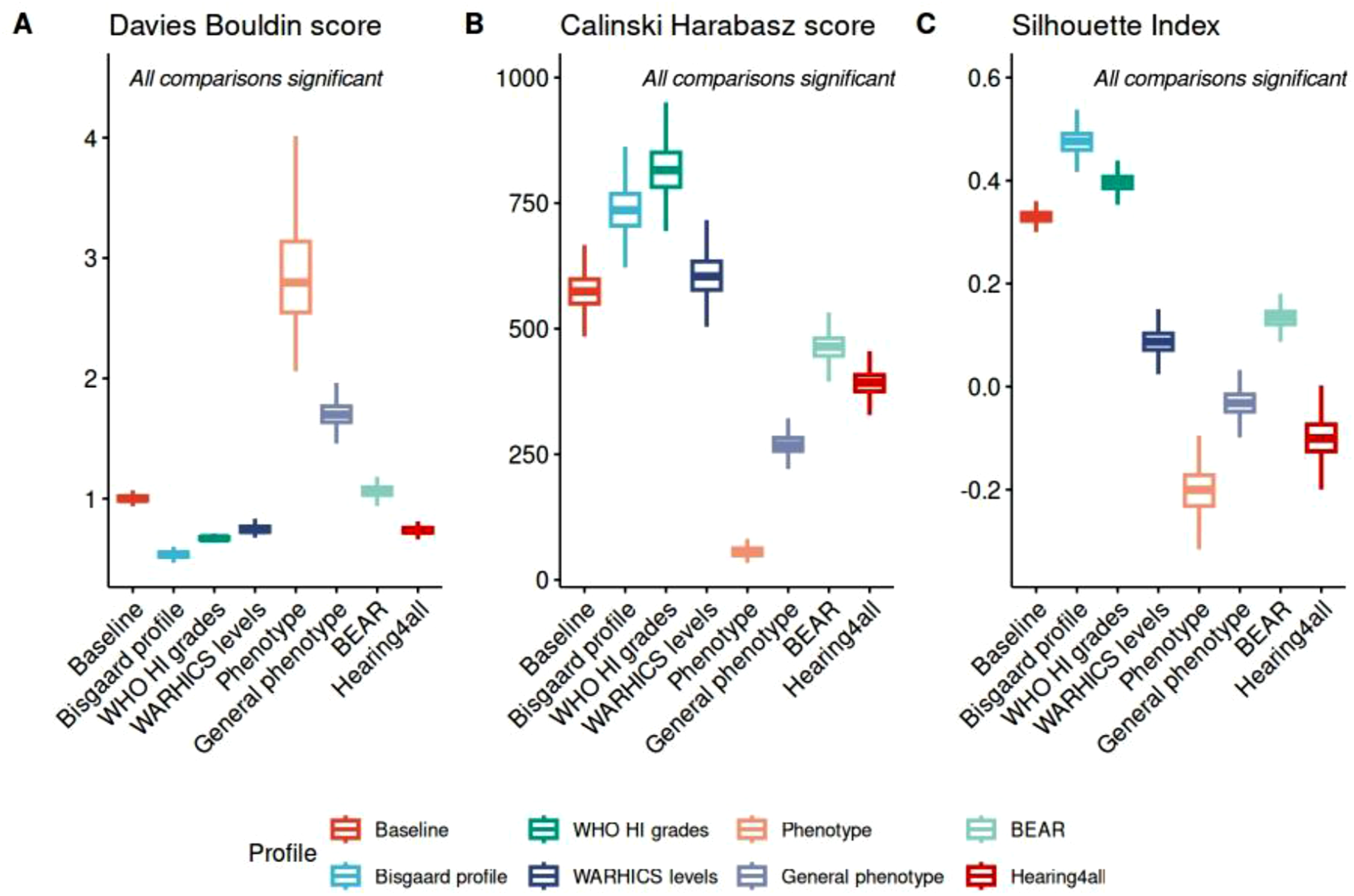

Figure 3A shows the normalized DB scores for different auditory profiling frameworks. Overall, the Bisgaard profile achieved the lowest normalized DB score, indicating the best performance, while the audiometric phenotype had the highest normalized DB score, reflecting the poorest performance. The normalized DB scores of the Bisgaard profile, WHO hearing impairment (HI) grades, WARHICS levels, BEAR, and Hearing4all auditory profiles were comparable, whereas the General phenotype scored slightly higher. In addition, the Hearing4all auditory profiles resulted in significantly lower normalized DB scores compared to the baseline auditory profile. Statistical analysis using ANOVA and post-hoc t-tests confirmed significant differences in normalized DB scores between all auditory profiling frameworks (p < 0.05).OPEN IN VIEWER

Figure 3B and C present the normalized Calinski-Harabasz (CH) scores and Silhouette Index values, respectively. The highest normalized CH score was observed for the WHO HI grades, while the normalized Silhouette Index values for the Bisgaard profile were closest to 1.0. These results suggest that both the WHO HI grades and the Bisgaard profile effectively distinguish participants across groups and cluster similar participants together. This aligns well with the results shown in Figure 3A, where both the WHO HI grades and the Bisgaard profile exhibited relatively low normalized DB scores. Conversely, the audiometric phenotype exhibited the lowest normalized CH score and the normalized Silhouette Index value farthest from 1.0, suggesting comparatively reduced clustering separation under the chosen profile configuration. Among the other frameworks, the baseline auditory profile, WARHICS levels, and BEAR profiles performed comparatively well, while the General phenotype performed slightly worse. In addition, the Hearing4all profiles exhibited lower CH and Silhouette Index values, suggesting comparatively reduced separation between profiles. ANOVA and post-hoc t-tests confirmed that the differences in all evaluation measures among the frameworks were statistically significant (p < 0.05).

Principal Component Analysis (PCA)

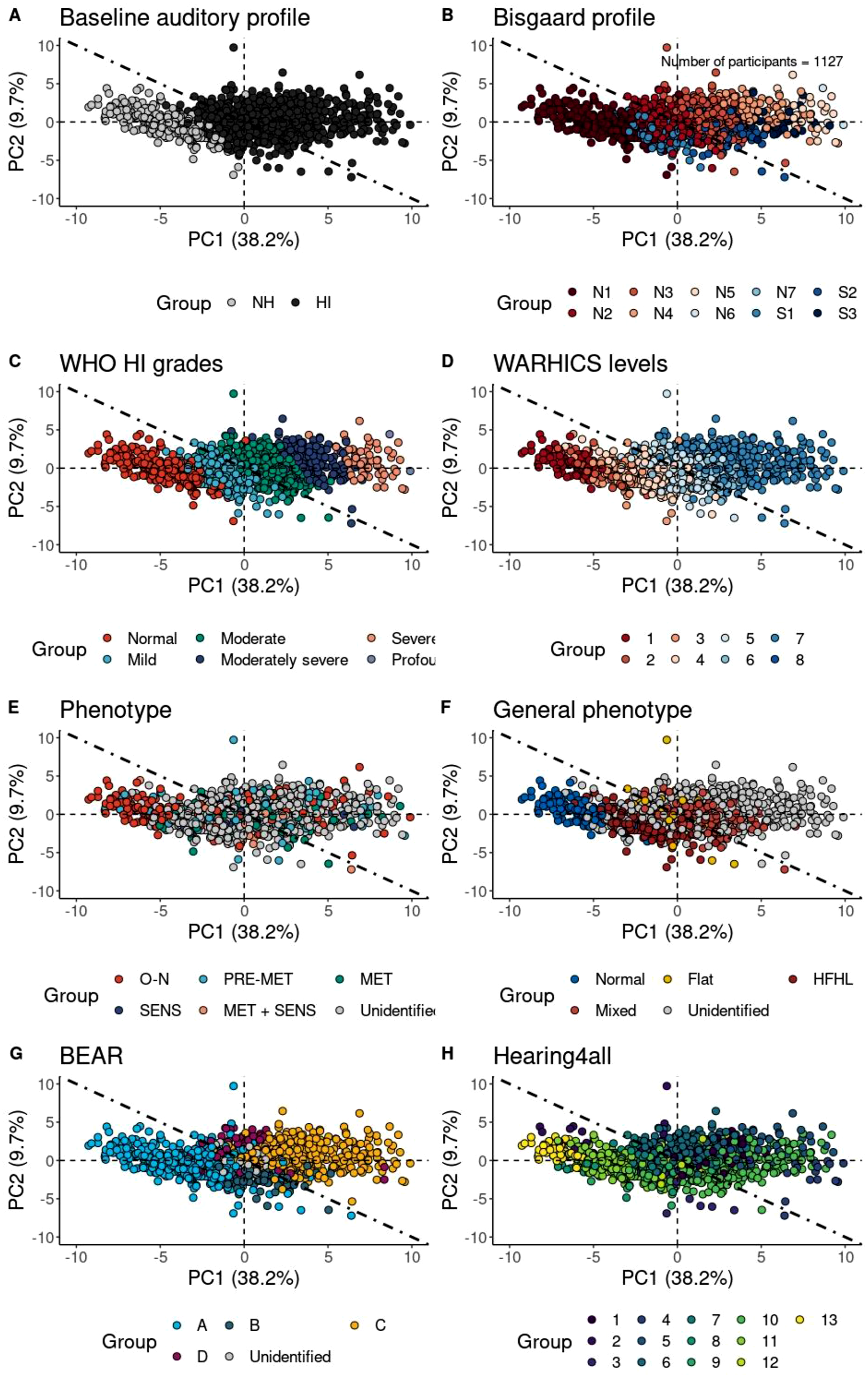

Figure 4 compares the eight auditory profiling frameworks using principal component analysis (PCA). Nearly all auditory profiling frameworks could reliably identify normal-hearing participants on the left side of the subplots (e.g., the NH group in Figure 4A, the N1 group in Figure 4B, the Normal group in Figure 4C, and Group 1 in Figure 4D). Figure 5 shows the contributing factors to the first and second principal components (PC1 and PC2). Overall, the PC1 and PC2 accounted for 38.2% and 9.7% of the variance in the data set, respectively. The factor loadings illustrated in Figure 5A exhibit that the top six contributing factors to PC1 were all audiometric thresholds (e.g., pure-tone average and thresholds at various frequencies), indicating that PC1 primarily reflects hearing sensitivity at the threshold level. This coincides with the observation, that the normal hearing group is represented on the left and the group with the largest hearing loss on the right side of the respective subplot in Figure 4. In contrast, Figure 5B shows that the main contributors to PC2 were supra-threshold parameters, derived from the adaptive categorical loudness scaling test. Therefore, PC1 may represent deficits in audibility, whereas PC2 appears to capture aspects of supra-threshold auditory processing.OPEN IN VIEWER

OPEN IN VIEWER

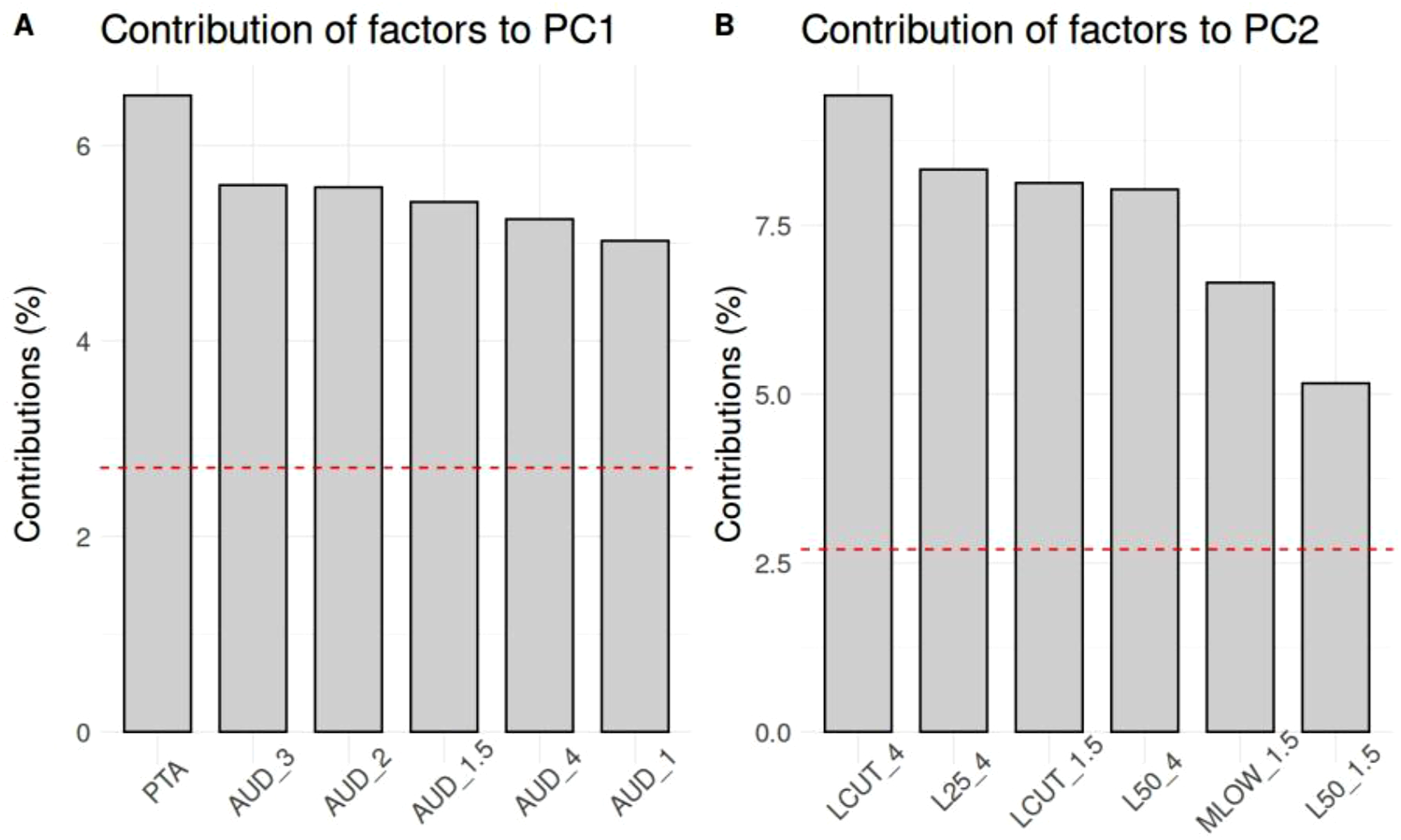

Figure 5.

Contributions of factors to (A) the first principal component (PC1) and (B) the second principal component (PC2). Only the top six contributing factors are shown. Red dashed line: average contribution. Sub-figure A: PTA – pure-tone average; AUD_3/2/1.5/4/1 – thresholds at 3, 2, 1.5, 4, and 1 kHz, respectively. Sub-figure B: LCUT_4/1.5 – transition levels of loudness growth functions at 4 and 1.5 kHz; L25_4 – medium loudness level (MLL) at 4 kHz; L50_4/1.5 – uncomfortable loudness level (UCL) at 4 and 1.5 kHz; MLOW_1.5 – slope at low levels at 1.5 kHz (see Oetting et al. (2014) for the explanation of these supra-threshold parameters derived from the loudness growth functions)

In Figure 4A–D, distinct group separations were observed for the baseline auditory profiles, WHO hearing impairment grades, and WARHICS levels. However, in Figure 4B, Bisgaard profiles showed substantial overlap, particularly between N-type and S-type audiograms (e.g., N1 and S1), suggesting that PCA may not effectively capture certain features, such as audiogram slope.

Figure 4E and F depict PCA results for audiometric phenotypes and general phenotypes. In Figure 4E, a large number of participants remained unclassified, and all groups appeared heavily mixed. This aligned with the quantitative results in Figures 2 and 3, where the audiometric phenotype framework performed the worst. Similarly, in Figure 4F, many participants could not be assigned to any general phenotype, although clear group separations were observed among the remaining participants.

In Figure 4G, only a few participants could not be categorized into one of the four BEAR auditory profiles. However, our results differed from those reported by Sanchez-Lopez et al. (2018, 2020). In Sanchez-Lopez et al. (2020), the four profiles were shown in a square representation based on the probability of belonging to each subgroup, with profiles A, B, C, and D occupying distinct regions and unidentified participants located more centrally (see Figure 3 in Sanchez-Lopez et al., 2020). In contrast, our analysis showed substantial overlap among groups in the PCA space. This discrepancy may stem from differences in the data sets and the examination procedures between the two studies. Our cohort was larger and potentially more diverse, while Sanchez-Lopez et al. (2020) may have focused on more targeted archetypes. In addition, Sanchez-Lopez et al. included specific tests like the fast spectro-temporal modulation test (Bernstein et al., 2016) and binaural pitch processing (Santurette and Dau, 2012), which were not part of the Hearing4All test battery. However, these specific tests played a limited role in the classification of auditory profiles in Sanchez-Lopez et al. (2020), indicating that their omission can not explain the discrepancy observed here. Figure 4H illustrates the 13 Hearing4all auditory profiles. These profiles also exhibited considerable overlap and mixing.

In summary, while the baseline auditory profile, WHO hearing impairment grades, and WARHICS levels provided relatively distinct groupings, the audiometric phenotype framework appeared less consistent. However, it is important to emphasize that the usefulness of a classification framework should be judged not only by the clarity of separation but by the clinical or interpretative value of the resulting profiles. For example, although substantial participant overlap is observed within the audiometric phenotype framework—suggesting comparatively limited discriminative power relative to other profiling approaches—it nevertheless may retain important clinical value. Specifically, audiometric phenotypes are motivated by hypothesized mechanisms of hearing loss and serve as descriptive frameworks for organizing audiometric patterns. One limitation of the PCA analysis is that restricting the representation to two dimensions may be insufficient to clearly distinguish among different profiles; future analyses could therefore incorporate additional dimensions.

t-Distributed Stochastic Neighbor Embedding (t-SNE)

Figure 6A–H present the results of t-Distributed Stochastic Neighbor Embedding (t-SNE), a non-linear manifold learning method, applied to eight auditory profiling frameworks. The x-axis and y-axis represent t-SNE dimensions 1 and 2, respectively. Unfortunately, unlike PCA, t-SNE does not produce axes with clear, interpretable meaning (Faust et al., 2018). Nevertheless, a similar rough annotation of the dimension 1 with overall hearing loss (in inverted order) is discernible as with the PCA (cf., Figure 4) since the normal hearing class is on the extreme right in all subplots and the class with the highest average hearing loss on the left. A more detailed comparisons among these auditory profiling frameworks shows strong alignment with the PCA results as well (see Figure 4). Specifically, groups in the baseline auditory profile, WHO HI grades, and WARHICS levels were clearly separable, whereas groups in the audiometric phenotypes were more intermixed. Comparing Figures 4 and 6, t-SNE appeared to offer slightly better separation of groups. For example, in the BEAR auditory profile, Groups B and D were distinct from Groups A and C in Figure 6G, while in Figure 4G, Groups B and D were mixed with Groups A and C. These results suggest that t-SNE outperforms PCA in separating groups in low-dimensional space, as expected. Unlike PCA, which projects data based on linear variance, t-SNE preserves the relationships between data points, particularly the local neighborhood distances, in the low-dimensional space. Consequently, t-SNE may be a more suitable method than PCA for dimensionality reduction in this context. However, limiting the analysis to two dimensions may obscure class separability that exists in higher-dimensional representations, indicating that future work should examine additional dimensions when applying PCA and t-SNE.OPEN IN VIEWER

Factors Influencing the Generation of Auditory Profiles

We systematically investigate two major factors that influence the generation of auditory profiles, using an extension of the Oldenburg Hearing Health Record (OHHR) as a common data set, enabling direct and fair comparisons across approaches — an advantage not achievable with literature-based values alone.

First, the clustering approach plays an important role, aligning with our expectations. Using the same number of profiles (N = 10) and the same data set, the vector quantization (VQ) method employed by Bisgaard et al. (2010) outperforms the Gaussian mixture model (GMM) used by Parthasarathy et al. (2020) with respect to separability between auditory profiles, as evidenced by significantly lower DB scores (see Figure 1A). The primary distinction between VQ and GMM lies in their handling of cluster overlap: VQ enforces hard cluster boundaries, while GMM allows for overlapping clusters (Kinnunen et al., 2011). This difference may partly account for the observed advantage of VQ in our study, although further validation is needed to confirm this finding. Furthermore, VQ is a simpler, non-parametric approach, whereas GMM is a parametric method with many free parameters, making it computationally intensive. GMM also assumes that the data follow a Gaussian mixture distribution, an assumption that may not hold in our case. In future studies, it could be insightful to compare these approaches with the decision tree method used by Sanchez-Lopez et al. (2020), as well as to evaluate their performance across independent datasets.

Second, the number of profiles affects the generation of auditory profiles. Our findings align with those of Saak et al. (2022), indicating that a profile count of 13 yields optimal clustering performance (see Figure 1B). However, we disagree with Elkhouly et al. (2021) and Parthasarathy et al. (2020), who suggested optimal profile counts of 10 and 6, respectively. These discrepancies may arise from differences in evaluation metrics: we used DB scores, Elkhouly et al. (2021) employed Silhouette Index values, and Parthasarathy et al. (2020) applied the Bayesian Information Criterion (BIC). Additionally, the clustering methods differ between studies: we and Parthasarathy et al. (2020) used GMM, whereas Elkhouly et al. (2021) employed spectral clustering (SP). Also the datasets underlying the profiles were different. Future research should investigate additional factors, such as data set composition and participant numbers, that could influence the generation of auditory profiles.

Comparison Between Auditory Profiles

In this study, we quantitatively compared eight auditory profiling frameworks using intrinsic measures and visually analyzed them through principal component analysis (PCA) and t-distributed stochastic neighbor embedding (t-SNE). These normalized intrinsic measures assess the auditory profiling frameworks in two key aspects: the extent to which participants with the same profile cluster together, and how well participants with different profiles are separated. This is an important consideration, as an effective auditory profiling framework should aim to maximize between-group variance while minimizing within-group variance. Our findings demonstrate that these approaches can effectively compare auditory profiling frameworks and identify the optimal auditory profile.

As anticipated, the baseline auditory profile tended to perform well in separating participants into two groups based on their pure-tone averages (PTA4), a strategy commonly used in the field, likely because it reflects a binary classification scheme, which makes group separation between a very homogeneous normal group and an inhomogeneous group with hearing impairment rather trivial. This finding is supported by Figure 1B, which shows that when N = 2, the standard Davies-Bouldin (DB) scores are at their lowest, indicating the highest clustering performance. However, despite this advantage, baseline auditory profiles provide limited support for achieving more precise diagnostics and optimized treatment within a precision-audiology framework. Hence, further exploration of subgroups within hearing-impaired (HI) listeners is necessary, as they are not homogeneous, particularly regarding supra-threshold measurements such as the loudness scaling data reported in Xu et al. (2024a), which are not included in most of the best-performing threshold-based profiling frameworks.

Across all auditory profiling frameworks, the audiometric phenotype shows the weakest ability to differentiate between groups of listeners. This may be attributed to both within-profile and between-profile variations. On the one hand, the within-profile variations are substantial, as evidenced by participants sharing the same audiometric phenotype (e.g., the older-normal phenotype) who are dispersed across the PCA and t-SNE 2-D space (see Figures 4 and 6). On the other hand, the between-profile differences are minimal. For instance, schematic boundaries between phenotypes overlap (as illustrated in Figure 1 of Dubno et al. (2013)), and shared characteristics are evident across phenotypes (as shown in Table 1 of Dubno et al. (2013)).

For the Bisgaard profiles, all approaches consistently indicate that participants with N-type or S-type audiograms are relatively well-clustered. However, distinguishing between N-type and S-type audiograms remains challenging, as shown in Figures 4 and 6. In Bisgaard et al. (2010), the PTA4 value for N1 is 10 dB HL, which is very close to the PTA4 for S1 (12 dB HL). Similarly, N2’s PTA4 is comparable to S2’s, and N4’s is similar to S3’s. These comparable PTA4 values, despite the differing slopes of the audiograms, result in small between-profile differences, which likely contribute to the difficulty in differentiating between N-type and S-type audiograms in the reduced two-dimensional space.

Both WHO Hearing Impairment (HI) grades and WARHICS levels demonstrate strong performance in categorizing participants into distinct auditory profiles. This is evidenced by their low normalized Davies-Bouldin (DB) scores, normalized high Calinski-Harabasz (CH) scores (Figure 3), and the clustering patterns observed in the PCA and t-SNE plots (Figures 4 and 6). Please note that some groupings appear comparable across the Bisgaard profiles, WHO HI grades, and WARHICS levels. For instance, the N3 Bisgaard profile aligns with the “moderate” WHO HI grade and WARHICS level 6.

These findings suggest a degree of correspondence between different auditory profiling frameworks, which is also reflected in Table 1—for example, WHO HI and WARHICS are both expert-based approaches grounded in epidemiological audiogram data—partly explaining their relatively strong performance in the two-dimensional space, where one axis largely represents audiometric information. For example, Humes (2021) compared WARHICS levels with WHO HI grades and observed that several WARHICS levels fell within specific WHO HI grades. They argued that WARHICS levels offer a finer categorization than WHO HI grades. However, our results suggest a more nuanced picture. The lower normalized CH scores and normalized Silhouette Index observed for WARHICS levels indicate less distinct or compact clustering in our data, potentially reflecting overlapping group boundaries or reduced separability. This may imply that, despite offering more categories, the WARHICS framework does not necessarily enhance cluster quality in our sample.

The relationship between WHO HI grades and Bisgaard profiles can also be inferred through PTA4 (pure-tone average across 500 Hz, 1 kHz, 2 kHz, and 4 kHz). Bisgaard et al. (2010) established the link between PTA4 and Bisgaard profiles in Table 1 of their study, while Humes et al. (2019) reported the corresponding relationship between PTA4 and WHO HI grades in Table 1 of their work. This allows for a comparative analysis of Bisgaard profiles and WHO HI grades via PTA4, further illustrating the interconnectedness of these frameworks.

Compared to the audiometric phenotype, the general phenotype demonstrates better clustering of participants into distinct groups, as indicated by a smaller normalized DB score, a larger normalized CH score, and a normalized higher SI (see Figure 3 for details). As illustrated in Figure 3C of Parthasarathy et al. (2020), the audiogram boundaries for the general phenotype are broader—particularly at frequencies below 2 kHz—compared to the audiometric phenotype (see Figure 1 in Dubno et al., 2013). This broader range suggests that the general phenotype achieves slightly better clustering performance due to its less restrictive classification criteria. Additionally, there is a clear correspondence between the two phenotypes: Older-normal, Metabolic, Sensory, and Metabolic + Sensory audiometric phenotypes align with the Normal, Flat, High Frequency Hearing Loss (HFHL), and Mixed general phenotypes, respectively.

The relatively low normalized DB score, high normalized CH score, and high normalized Silhouette Index suggest that the BEAR auditory profiles effectively segregate participants. Sanchez-Lopez et al. (2020) compared the four BEAR auditory profiles with the audiometric phenotypes and found that Profiles A and B corresponded to the sensory audiometric phenotype, Profile D aligned with the metabolic audiometric phenotype, and Profile C represented a mixed phenotype (metabolic + sensory). However, this clear correspondence is not evident in Figures 4 and 6, possibly because only a small number of participants were assigned to specific audiometric phenotypes, while the majority remained unidentified.

In contrast, the 13 Hearing4all auditory profiles outperform the audiometric phenotypes and achieve the best normalized Davies–Bouldin (DB) score, whereas BEAR profiles perform better on the remaining normalized intrinsic measures. The Hearing4all profiles exhibit large within-profile differences, as indicated by the considerable interquartile ranges for certain features (e.g., the speech recognition threshold in Profile 6; see Figure 3 in Saak et al., 2022, for details). These discrepancies may contribute to the slightly weaker performance of the Hearing4all profiles relative to the BEAR profiles and should be considered when interpreting the comparison. However, the Hearing4all framework comprises a larger number of profiles, which may enhance its applicability for more fine-grained diagnostics and treatment planning and leads to a better Davies Bouldin score.

We concur with Saak et al. (2022) on many advantages of the Hearing4all auditory profiles, such as their flexibility in profile numbers and ease of extension, which ensures that all participants can be assigned to a derived profile. However, some limitations must be acknowledged, including the lack of expert validation and low interpretability. Although the Bisgaard profiles are explicitly incorporated as input for generating the Hearing4all profiles, the correspondence between the Bisgaard profiles—and other auditory profiling frameworks—and the Hearing4all profiles remains unclear.

Audiogram-Based Vs. Comprehensive Auditory Profiles

Given their higher number of input parameters characterizing the individual patients in a more comprehensive way, the two comprehensive auditory profiles (i.e., the BEAR and Hearing4all auditory profiles) do not outperform audiogram-based auditory profiles in normalized intrinsic measures, PCA, and t-SNE. One possible reason is that the evaluation metrics, together with the underlying data representation, used may not accommodate high-dimensional data representations and tend to favor simpler models. Another possible reason is that threshold and supra-threshold parameters do not necessarily vary together in a consistent way across auditory profiles with the consequence that the comprehensive auditory profiles may fail to consistently differentiate between participants. Even though threshold and supra-threshold measures are known to be at least partially correlated with each other, it is also well known from the literature that they carry information which can be independent of each other: For instance, participants with identical audiograms can exhibit markedly different supra-threshold parameters, such as speech recognition threshold (SRT; Plomp & Mimpen, 1979) or loudness growth (Oetting et al., 2014; Xu et al., 2024a). Conversely, participants with different audiograms may share similar supra-threshold parameters, as seen with SRT (Hoppe et al., 2022).

Compared with comprehensive auditory profiles, audiogram-based profiles are simpler and easier to generate, as audiograms are routinely available in most clinical and research settings and have fewer independent parameters. In contrast, comprehensive auditory profiling requires additional supra-threshold listening measures, which are not yet standard in many clinics and may vary across laboratories. However, one of the central motivations for auditory profiling is a more detailed characterization of hearing loss that extends beyond threshold sensitivity. Accordingly, comprehensive profiles incorporate additional dimensions of supra-threshold processing, providing complementary information that cannot be captured by audiograms alone and is therefore essential for more precise characterization and individualized intervention. For instance, speech recognition in noise is assessed in both the Hearing4All auditory profiles (using the German Göttingen Sentence Test) and the BEAR auditory profiles (using the Danish Hearing-in-Noise Test, HINT). Although these tests differ and are language-specific, their outcomes could be integrated into a common profiling framework (e.g., Saak et al., 2025) to support a more unified interpretation. Such an integration, however, requires a standardized test battery that includes both audiograms and supra-threshold tests to comprehensively assess auditory function (Van Esch et al., 2013). Additionally, a standardized data structure is essential to facilitate data sharing across institutions (Kollmeier, 2024) which can lead to a big-data-supported set of auditory profiles by exploiting diverse large datasets via federated learning (Saak et al., 2025).

Epidemiological Vs. Audiological Auditory Profiles

The epidemiological auditory profile primarily includes the WHO hearing impairment (HI) grades and the WARHICS levels. These profiles are developed using population datasets with normative participants, while audiological auditory profiles are derived from clinical or audiological datasets (e.g., the Oldenburg Hearing Health Record; see Jafri et al., 2025). Epidemiological profiles generally encompass a broader range of participants in terms of age (including both young adults and older individuals) and have larger sample sizes, typically exceeding 10,000 participants. In contrast, audiological profiles focus on more targeted samples, such as individuals with hearing disorders or those aged 50–89 years, and are limited to smaller sample sizes, usually around 1,000 participants, which are substantial for research datasets but remain modest compared with large-scale clinical data.

Both epidemiological auditory profiles effectively differentiate participants within the current audiological data set, as indicated by a low normalized DB score, and high normalized CH score and normalized Silhouette Index. These findings are consistent with those of Humes (2021) and demonstrate that these profiles are not only applicable to population datasets but can also be extended to clinical datasets. In contrast, the clustering performance of auditory profiles developed using audiological datasets varies substantially. For example, some profiles, such as the Bisgaard profile, perform well, while others, like the audiometric phenotype, perform poorly. These differences may stem from the audiological data set employed in the current study, i.e., an extension of the OHHR. Profiles developed using different audiological data sets with a different case mix which does not align well with the current data set, might therefore exhibit a suboptimal performance.

Intrinsic Measures, PCA, and t-SNE

To date, our study is among the first to provide quantitative comparisons of different auditory profiling frameworks using intrinsic measures. Specifically, we employed three intrinsic metrics: the Davies-Bouldin (DB) score, the Calinski-Harabasz (CH) score, and the Silhouette Index, which generally produced consistent results.

The DB score evaluates clustering quality by calculating the ratio of within-profile distance to between-profile distance (see Formula S1). A smaller DB score indicates better clustering performance, reflecting minimized within-profile distances and maximized between-profile distances. Conversely, the CH score assesses clustering by computing the ratio of between-profile variance to within-profile variance (see Formula S2). Higher CH scores signify better clustering, indicating maximized between-profile variance and minimized within-profile variance. While both the DB and CH scores focus on evaluating clustering performance at the profile level, the Silhouette Index offers a more comprehensive view. It provides insights at both the individual data point level and the overall profile level by averaging (see Formula S3). The Silhouette Index measures how similar a data point is to its own cluster compared to other clusters. Given that these three intrinsic measures capture different aspects of auditory profiling frameworks, we recommend their adoption in future research to provide a more robust evaluation of clustering frameworks than single-metric approaches. If different metrics do not agree, one should consider a combination of all metrics.

Previous studies have suggested that biases in intrinsic clustering metrics can also be addressed by modifying the underlying distance calculations rather than applying a penalty term to the final score (e.g., Arbelaitz et al., 2013; Liu et al., 2010; Vergani & Binaghi, 2018). In the present study, a logarithmic normalization term based on the number of profiles N was introduced as a simple heuristic approach to reduce the trivial advantage of very coarse profile configurations. The logarithmic term was chosen because it provides a moderate penalty while largely preserving the behavior and interpretability of the original metrics. Nevertheless, the proposed normalization should be regarded as a meaningful, but not yet theory-supported alternative that requires further validation in future auditory profiling studies.

We compared different auditory profiling frameworks visually using Principal Component Analysis (PCA) and t-distributed Stochastic Neighbor Embedding (t-SNE), two dimensionality reduction techniques. Both methods reduce the original data set to two dimensions, enabling the visualization of participants across different groups in a derived 2D space for effective comparison. PCA, widely used in earlier studies for auditory profile comparisons (e.g., Sanchez-Lopez et al., 2018, 2020), provides a straightforward and computationally efficient approach. However, it is notably sensitive to outliers. In contrast, t-SNE, which is less commonly applied in this field, preserves the local structure of the data by maintaining the relative distances between points and is less affected by outliers. Our findings suggest that t-SNE offers better separation of participants compared to PCA. While PCA remains valuable for its simplicity and speed, t-SNE provides a complementary perspective, particularly in visualizing complex or locally structured data. Taken together, t-SNE should be considered an effective tool for visually comparing auditory profiles.

Limitations and Outlook

Currently, comparisons among different auditory profiling frameworks are based on the extension of a clinical database with open access, namely the Oldenburg Hearing Health Record. However, this data set primarily includes older patients with hearing impairments. While profiles derived from this data set offer valuable insights, their generalizability may be constrained. To ensure robust and unbiased findings, it is essential to validate these profiles using additional datasets, including population-based datasets. One suitable option is the National Health and Nutrition Examination Survey (NHANES), which has been extensively used in other studies (Ellis & Souza, 2021; Humes et al., 2023a, 2023b, 2023c; Parthasarathy et al., 2020; Xu, 2026). The NHANES data set includes over 10,000 participants, offering a broader spectrum of hearing abilities. Its test battery encompasses demographic questionnaires and audiometric evaluations but lacks many supra-threshold auditory assessments, such as speech-in-noise testing.

Second, the correspondence among different auditory profiling frameworks remains unclear. While some studies address this issue—such as Sanchez-Lopez et al. (2020), who explored the relationship between audiometric phenotypes and the BEAR auditory profile, and Saak et al. (2022), who examined links between the Bisgaard profile and the Hearing4all profile—a unified theoretical framework for correspondence would be invaluable. Such a framework could facilitate better understanding of the relationships among auditory profiling frameworks and enable their mutual conversion or estimation.

Third, our study demonstrates that two factors—the number of profiles and the clustering approach—affect the generation of auditory profiles. Future research could investigate additional factors, such as the number of participants and potential interactions. An increased sample size may lead to the identification of more profiles, thereby affecting profile generation. Moreover, incorporating a broader range of auditory test features might further impact the development of auditory profiles.

Fourth, an objective validation tool for auditory profiles, particularly data-driven profiles, is lacking. Even though the current work provides some bench-marking with respect to three intrinsic measures as a first step towards validating the auditory profiling frameworks considered, it remains unclear which data-driven profiles are redundant or irrelevant and should therefore be excluded. Future research should focus on methods to merge similar profiles (Saak et al., 2025) and identify the most relevant and interpretable auditory profiles to ensure a streamlined and clinically meaningful framework.
