Investigating Science Education Effect Sizes: Implications for Power Analyses and Programmatic Decisions

Abstract

A priori power analyses allow researchers to estimate the number of participants needed to detect the effects of an intervention. However, power analyses are only as valid as the parameter estimates used. One such parameter, the expected effect size, can vary greatly depending on several study characteristics, including the nature of the intervention, developer of the outcome measure, and age of the participants. Researchers should understand this variation when designing studies. Our meta-analysis examines the relationship between science education intervention effect sizes and a host of study characteristics, allowing primary researchers to access better estimates of effect sizes for a priori power analyses. The results of this meta-analysis also support programmatic decisions by setting realistic expectations about the typical magnitude of impacts for science education interventions.

Keywords

effect size meta-analysis program evaluation science education statistics student achievement

In the past two decades, there has been extensive focus on how to calculate power for cluster-randomized trials, or CRTs (e.g., Bloom, 2005; Bloom, Bos, & Lee, 1999; Donner & Klar, 2000; Hedges & Rhoads, 2009; Konstantopolous, 2008; Murray, 1998; Raudenbush, 1997; Raudenbush & Liu, 2000; Raudenbush, Martinez, & Spybrook, 2007; Schochet, 2008). Adequate statistical power for intervention studies helps researchers avoid making Type II errors—errors in which a researcher fails to detect an effect in a sample where that effect indeed exists in the population. Type II errors can occur when there is an insufficient number of participants in the study and/or the effect is smaller than expected. Underpowered studies can lead to inconclusive results that inhibit knowledge accumulation in a field, particularly when the same inconclusive findings are cited repeatedly.

Intervention research in science education is in its infancy in comparison to other fields such as mathematics and reading. Small studies and studies lacking comparison groups abound. In this study, we identified fewer than 2% of 6,600 reports since 2001 that reported impacts from a design conducive to generating confident causal inferences and statistical conclusions (e.g., had a comparison group, included at least 60 participants). From this result, it follows naturally that replications of rigorous impact studies are also rare (Makel & Plucker, 2014; Taylor et al., 2016).

While it is the case that meta-analyses can detect the existence of a significant overall effect from a set of nonsignificant impact estimates, this is contingent on whether there are sufficient studies of an intervention for this meta-analytic utility to come to bear. A lack of conclusive and unbiased findings from primary studies can severely inhibit knowledge accumulation in science education. With so few studies of intervention impacts, the science education field needs more than replications and meta-analyses. Science education needs more sufficiently powered primary studies of program impacts. Once strong causal impact studies with promising effects emerge, replications and meta-analyses will be able to advance the science education field even further.

In this paper, we present the results of a meta-analysis designed to support a priori power analyses in science education research as well as policy or programmatic decisions about intervention effects more broadly. Primary researchers can use the effect size estimates generated by our work in combination with recently published estimates for the intraclass correlation (ICC) and covariate correlation (e.g., Spybrook, Westine, & Taylor, 2016, Westine, Spybrook, & Taylor, 2013) to inform the designs of their own causal impact studies in science education. Policymakers and other decision makers can use our estimates to develop realistic expectations about the types of effects to expect from interventions with specified characteristics. We note here, however, that the most reliable sources of information about the effectiveness of a given intervention are impact estimates from prior studies of that intervention and/or meta-analyses of effects from that or similar interventions. The parameter estimates from this study are meant to refine effect size expectations beyond these primary sources of evidence or provide general guidance in the absence of any extant effect size information.

Although we focus here solely on the effects of science education interventions, this meta-analysis has characteristics that make its findings informative to researchers and decision makers in other education disciplines. This study examines the relationship between the effect size magnitude and key study characteristics, including students’ grade level, design of the study, outcome measure type, or intervention focus. Researchers synthesizing intervention studies outside of science education have found noteworthy variation in these very same intervention study characteristics (Cheung & Slavin, 2016; Hill, Bloom, Black, & Lipsey, 2008). As such, we assert that our findings are unique but likely cumulative with those of syntheses outside of science education.

Researchers often use a priori power analyses to estimate the number of participants needed in a study. In cluster randomized trials, accurate a priori power analyses rely on having accurate estimates of the three key design parameters mentioned previously: the ICC (a measure of the between-cluster variance as a fraction of the total variance), the extent to which covariates can account for variation in the outcome, and the estimated effect size. Any a priori power analysis is only as accurate as the design parameter estimates. If any of the design parameter estimates are inaccurate, then too many or too few subjects may be recruited, resulting in higher than necessary costs or an underpowered trial.

Recognizing the importance of accurate power analysis parameter estimates and finding none in the science education literature, the BSCS Science Learning and Western Michigan University began a joint project to provide empirical estimates of these design parameters. Spybrook et al. (2016), Westine et al. (2013), and Westine (2016) are products of this collaboration and examined the ICC and the variance explained by covariates. This manuscript complements that prior work by examining effect sizes from intervention research in science education and does so in a way that extends the scope and approach used in prior synthesis efforts, most notably, the two syntheses of inquiry-based science instruction (Furtak, Seidel, Iverson, & Briggs, 2012; Minner, Levy, & Century, 2010) and the more broadly focused syntheses of elementary science interventions (Slavin, Lake, Hanley, & Thurston, 2014) and secondary science interventions (Cheung, Slavin, Kim, & Lake, 2016). Our study extends the scope of the two syntheses of inquiry instruction by examining a much broader array of science education interventions. In the latter two syntheses, researchers extracted one effect size per study and excluded studies with researcher-developed outcome measures out of a concern about overalignment of outcome to treatment. Our screening and analytic approach contrasts that of Cheung et al. (2016) and Slavin et al. (2014) by modeling the effects of test developer (possible overalignment) instead of using it to exclude studies and extracting multiple effect sizes per study while accounting for the dependency among those effects.

The primary research question of this meta-analysis is: What is the relationship between the magnitude of the intervention effects and key study characteristics? The study characteristics of interest included the design (randomized studies compared to matched quasi-experimental studies), whether the outcome measure was developed by the study authors, who receives the intervention (e.g., students only, teachers only, both students and teachers), the science discipline targeted by the intervention, the treatment provider’s role (e.g., researcher or teacher), and the grade level of the students. Together, the suite of papers provides essential information for study designers in science education to conduct a priori power analyses.

Method

Eligibility Criteria

Eligible interventions were those implemented in either formal education settings or education lab research settings with students in primary and secondary schools. We included only studies published in English because we lacked capacity for translation. We included an array of science achievement outcome measures, including content knowledge, use of scientific practices, and outcomes related to understanding of the nature of science. Eligible interventions are school-based or lab-based interventions of any duration whose efficacy was reported between 2001 and 2014. We selected 2001 as the start of our collection of studies because it was the year of the passage of the No Child Left Behind Act—an act that called attention to the need for experimental intervention research in education and established funding mechanisms for conducting such studies.

We define lab-based interventions as those delivered to students at a university or other research site (e.g., nonprofit site). Interventions in museums only met eligibility requirements if the instruction was formalized. For example, a study of formal lecture demonstrations to classes of students at a museum was included, but studies of free-choice learning at a museum were not included. We included no studies from homeschool settings.

Eligible interventions included curriculum programs (including computer software activities for students to use), professional development programs with student-level outcomes, and use of specific instructional approaches or teaching strategies. Eligible comparison conditions include actual control groups (no intervention), “business-as-usual” (BaU) comparison groups (extant programs or practices), or a sham treatment (watching a movie that was not expected to be particularly beneficial). We did not include alternative interventions as eligible comparison groups. Our decision to exclude treatment-treatment studies was based on the fact that effect sizes from these studies would likely be smaller than (incomparable to) treatment-control, treatment-BaU, or treatment–sham treatment studies. To be eligible, the study design had to include at least two groups whose outcomes could be compared. We included studies in which group assignment was determined randomly (person-randomized or cluster randomized) or nonrandomly (e.g., quasi-experiment). Quasi-experiments were only included when they had clear matching on pretests prior to assignment to treatment or comparison conditions. To limit risk of bias, we required studies to have at least 30 students assigned to either the treatment or comparison group. This decision was informed by the work of Turner, Bird, and Higgins (2013), who concluded that in meta-analysis with at least two well-powered studies (like this one), underpowered studies contribute little additional insight. This finding is further supported by more recent work associating small studies with increased heterogeneity (IntHout, Ioannidis, Borm, & Goeman, 2015) and risk of bias (Afshari & Wetterslev, 2015).

In summary, each study in the ultimate set of eligible studies met all the following criteria:

based either in a school or an educational research lab setting

included either primary or secondary students

published in English

included at least one student achievement outcome

published between 2001 and 2014

studied a specific science education intervention

included at least two groups that could be compared on the outcomes (i.e., treatment-control, treatment–business as usual, treatment–sham treatment)

included a pretest or other measure to estimate baseline equivalence

included random assignment or matching on pretest for quasi-experiments

included at least 30 students in each treatment or comparison group

focused on a general population of students (e.g., did not have an explicit focus on students with learning disabilities).

Information Sources and Search Strategies

The study used several information sources to locate qualifying studies: Ulrich’s Web (ulrichsweb.serialssolutions.com), the Web of Science database (www.isiknowledge.com), the ProQuest Dissertation Abstracts database (www.proquest.com/products-services/dissertations), and reference lists of eligible studies (i.e., reference harvesting). We also identified organizations that were likely to conduct science education research studies and contacted them about unpublished manuscripts (see Search Strategies for Unpublished Studies, in the following).

Search strategies for published studies

We used Ulrich’s Web (the online version of Ulrich’s Periodicals Directory) to search for education journals published in English that focused on science education and education research. Specifically, we used the subjects: Education–Teaching Methods and Curriculum and Sciences: Comprehensive Works and English language as a delimiter to search Ulrich’s Web. The resulting list included 23 journals that publish science education research (see list in online Supplemental Appendix S1).

To search within these journals, we created a search string for use in Web of Science that we intended to capture a wide range of experimental and quasi-experimental studies in science education. The search string was: [TS= (intervention OR control OR treat* OR Experiment* OR Quasi* OR Effect* OR Compar* OR Trial OR Efficacy OR Random OR Assign*) AND PY = (2001 OR … 2014) AND SO= (“Journal of Research in Science Teaching” OR…)] with the additional 22 journals not shown here. We chose to do a journal-specific search because our search was so broad—our original open searches were leading to hundreds of thousands of abstracts. We followed our initial journal-specific search for published studies by examining references of included studies. This reference harvest led to studies from a total of 71 journals (see journal list in online Supplemental Appendix S2).

Search strategy for unpublished studies (grey literature)

Our grey literature search included: a search string employed within ProQuest Dissertation Abstracts, a request sent to listservs, and a search of the websites of 55 research organizations (see online Supplemental Appendix S4) informed by a list used for a similar purpose in the Science Review Protocol of the What Works Clearinghouse (Institute for Education Sciences, 2012). The full dissertation search string including delimiters is provided in online Supplemental Appendix S3. This search string returned 3,516 dissertations completed between 2001 and 2014 that were potentially eligible. After two screeners independently reviewed the abstracts of these studies, we identified 496 dissertations that met abstract screening criteria, and this subset was included in the full-text screening stage of the study. Combined, the request to listservs and the various research organizations resulted in 30 manuscripts submitted to the research team for full-text screening.

Data Collection and Coding

Researchers coding the full text of manuscripts used a FileMaker Pro database. For each study coded, we obtained a portable document format (PDF) file and embedded a link to the file directly into the database for coding and archival purposes. Coders could highlight the PDFs and make comments. Training involved collaborative coding tasks to establish coding norms and independent coding tasks to estimate intercoder reliability. Across all codes, the average level percentage agreement for independent coding was 83%. The coding team held weekly meetings to ask questions and resolve issues that had arisen during the previous week. When discrepancies arose, the PIs made final coding decisions. The database was hosted on a server such that all team members could access the database simultaneously.

Key information about the characteristics of a study or statistical information needed to extract effect sizes was often missing from published reports. In these situations, coders contacted study authors directly to inquire about the missing information. Specifically, 59 study authors were queried requesting various information, including intervention dosage, demographic information, details about the instrument used in study outcomes, timing of the posttest, the type of assignment to groups (e.g., RCT), and requests for means and standard deviations used in analyses. Most often, requests were for more specific information about the frequency or duration of the intervention (dosage), requested in 24% of the queries, and demographic information disaggregated by treatment group, requested in 20% of the queries. Nineteen percent of queried authors responded, sharing important information relevant to coding the studies. In the remaining instances, authors no longer had access to the data or did not respond to our query.

Variables coded

In addition to the bibliography and eligibility tables, there were four tables in the database: header (data related to the study as a whole), groups (data about each treatment and comparison group in the study), dependent variables (data about each outcome variable in the study), and effect sizes (data about group means, standard deviations, observed sample sizes, and/or other information used to estimate effect sizes, including t tests, p values, or hand-calculated effect sizes). Each table included a space for notes related to coding problems. Studies were required to pass criteria from the full-text eligibility table first before additional coding ensued. These initial eligibility requirements entailed coder assessments of whether the intervention was in science education and in either a school- or lab-based setting and the study occurred in a relevant timeframe (after 2001) with a relevant outcome and was conducted with a policy-relevant K–12 student sample and met methodological requirements, such as using an eligible comparison group and meeting a minimum sample size threshold, and reported impacts in such a way that an effect size could be extracted. See specifics for these codes in online Supplemental Table S1.

Choice and coding of moderators

Our choices of effect size moderators to test were influenced by our desire to provide evidence that either corroborates or challenges findings in the extant literature. For example, Hill et al. (2008) examined the extent to which the nature of the outcome measure (broadly focused standardized test vs. specialized topical test) and the grade level of the students (elementary school vs. middle school vs. high school) influenced effect size magnitudes from multiple disciplines, finding larger effect sizes for specialized topical tests and middle school interventions. Extending these analyses using a multiple regression approach (meta-regression), Cheung and Slavin (2016) also tested the effects of outcome measure type and grade level, finding larger effect sizes in studies with researcher-made measures and studies of elementary school students. Additionally, Cheung and Slavin (2016) tested the effects of study design (RCT vs. QED). The approach in the current study sought to build on these prior efforts.

We primarily used binary codes but in one case used a set of related indicator (dummy) codes. RCT is a binary study design variable designating randomized (coded 1) or quasi-experimental studies (coded 0). TCHONLY and TCH&STU are dummy variables that indicate who received the intervention. In this coding scheme, the reference group (STUONLY) includes interventions received only by students (e.g., curriculum materials without professional development support for teachers). TCHONLY indicates that the intervention is delivered only to teachers (e.g., a professional development program; coded 1 if it is teacher only and 0 otherwise), and TCH&STU indicates that the intervention is delivered to both teachers and students (e.g., curriculum materials plus supporting professional development for teachers; coded 1 if it is an intervention for both teachers and students and 0 otherwise). The SCITYPE variable is a binary variable that describes the science discipline under investigation. We grouped life science (including biology), multidisciplinary science, and earth/space science together (coded 0) as science disciplines that generally do not include mathematics at the high school level and grouped physical science, physics, and chemistry together (coded 1) as science disciplines that do generally involve mathematics. TESTDEV reflects whether an outcome was developed by study authors (coded 1 for author developed assessments, 0 otherwise). The HIGRD variable is a binary variable with 0 representing primary and middle school students (K–8 in the U.S. context) and 1 representing upper secondary school students (9–12 in the United States). Finally, the TRTPROV variable is a binary variable with 1 indicating that the teacher was the intervention provider and 0 indicating that the intervention provider was someone other than the teacher (e.g., a researcher).

Inclusion of multiple effect sizes

In traditional meta-analyses, each study contributes one effect size and the effect size estimates are independent across studies. However, researchers frequently report multiple effects. In some instances, researchers might use multiple outcome measures with the same individuals (e.g., one assessment might measure students’ understanding of science content, and another might measure students’ understanding of scientific practices such as the development of explanations). In other instances, multiple outcome measures arise from testing the same students at multiple timepoints (posttest and delayed posttest models fall in this category). Some studies have two or three treatment groups and each treatment group is compared to the same comparison group.

Effect size calculation

The 636 effect sizes (Hedges’ g) extracted from the eligible studies were a combination of pretest and posttest effect sizes. Of the 636 effects, 292 were posttest effect sizes that were the focus of our analysis. The magnitude and variance of each of the 292 effect sizes are provided in online Supplemental Table S2. Of the 292 effect sizes, 220 were calculated using unadjusted means but had a pretest effect size for the same dependent variable and treatment/comparison group contrast. Another 72 effect sizes were calculated using means adjusted for covariates. For the 220 studies with a matched set of pretest and posttest effect sizes for each outcome, we calculated the difference between effect sizes (posttest treatment effect minus pretest treatment effect). All effect sizes, including those from cluster-randomized or cluster quasi-experimental designs, were standardized on the individual-level, treatment group–specific, standard deviations and sample sizes.

Frequently, studies using cluster-randomized or cluster quasi-experimental designs failed to use appropriate analyses. That is, the study used cluster assignment (e.g., entire classes or schools were assigned to treatment or comparison conditions), but the analyses did not account for clustering (analyses were conducted as if individual students were assigned to treatment or comparison conditions). In such circumstances, the reported sample size is too large, and the analyses use underestimated standard errors. Higgins and Green (2011) describe how meta-analysts can adjust for such mismatched analyses by calculating a reduced, effective sample size for the study. Equation 1 conducts this adjustment:

N_{a d j} = N / [1 + (M - 1) I C C],

(1)

where M is the average cluster size for the study, N is the original number of student participants, and ICC is the intraclass correlation. We used a value of .172 for the ICC as this value is the eighth-grade science ICC estimate from Westine et al. (2013) and was chosen because it approximates a middle school ICC and thus a median position along the K–12 continuum.

If the number of clusters for a given group was 1 (e.g., cluster assignment with one treatment class and one comparison class), no adjustment is made. This design feature occurred in 15 studies, and we report results of sensitivity analyses in online Table S3 that compare results with these studies included versus omitted. In addition, we did not adjust the number of participants for studies in which individual students were assigned to the treatment or comparison condition.

After we adjusted the number of participants based on cluster size, we Winsorized the effective sample sizes (N) computed in equation 1. We used the Winsorized values of N along with the standardized mean difference effect sizes to calculate Hedges’ g effect sizes for each study. Finally, we Winsorized the Hedges’ g effect sizes. We used Winsorized values so particularly large studies and studies with particularly large effect sizes did not have a disproportionate influence on the results.

Statistical model

Our data included 636 effect sizes across 96 studies (an average of 6.6 effect sizes per study). Effect sizes within studies are correlated, and this dependence needs to be accounted for in the analysis. As information on the correlation between these effect sizes was not reported in primary studies, we used a method that was robust to misspecification of the correlation structure. For this reason, we used weighted least squares to estimate the meta-regression model and adjusted the standard errors for dependence within studies through use of robust variance estimation (RVE; Hedges, Tipton, & Johnson, 2010). Unlike standard model-based methods such as multivariate meta-analysis (Jackson, Riley, & White, 2011), RVE does not require the correlation structure to be correctly specified when calculating standard errors and hypothesis tests; instead, it estimates the standard errors empirically using a sandwich-estimator (for a tutorial, see Tanner-Smith, Tipton, & Polanin, 2016).

Additionally, we use small-sample corrections to RVE (Tipton, 2015; Tipton & Pustejovsky, 2015). These small-sample corrections involve the specification of a “working model” for the correlation structure—here we use a “correlated effects” model—and use of a t distribution with Satterthwaite degrees for the reference distribution. These degrees of freedom are a function of both the number of studies and features of the covariates. Importantly, these small-sample adjustments allow RVE to appropriately account for dependence even when degrees of freedom are as small as 4 or 5. Even though a working model is specified, a wide range of simulations shows that the resulting standard errors and hypothesis tests are robust to misspecification (Tipton, 2015; Tipton & Pustejovsky, 2015).

Working model and weighting

In most studies in this meta-analysis, the effect sizes were dependent because they were measured on the same individuals. For this reason, we assumed the “correlated effects” model as our working model in RVE. We also used this model to define approximately inverse-variance weights, defined as

w_{i j} = \frac{1}{k_{j} ({\bar{v}}_{• j} + {\hat{τ}}^{2})},

(2)

where w_ij is the weight for effect size i in study j, ${\hat{τ}}^{2}$ is the between-study random effect estimated using Equation 15 from Hedges et al. (2010), ${\bar{v}}_{• j}$ is the unweighted average of the variances of the effect size estimates in the jth study, and $k_{j}$ is the number of effect sizes from study j.

Meta-regression

Our meta-regression model for the primary analysis was estimated using the R package robumeta (Fisher, Tipton, & Hou, 2017) and specified as:

\begin{array}{l} E S_{i j} = β_{0} + β_{1} {(R C T)}_{i j} + β_{2} {(T C H O N L Y)}_{i j} \\ + β_{3} {(T C H & S T U)}_{i j} + β_{4} {(S C I T Y P E)}_{i j} \\ + β_{5} {(T E S T D E V)}_{i j} + β_{6} {(H I G R D)}_{i j} \\ + β_{7} {(T R T P R O V)}_{i j} + e_{i j} \end{array}

(3)

We grand mean centered all variables in the regression. As a result, the intercept is an estimate of the average effect size at the grand mean of all predictors. We assessed statistical significance of an estimated regression coefficient (β_j) with the test statistic $t_{j}^{R}$ :

t_{j}^{R} = \frac{b_{j}}{S_{j}^{R}},

(4)

where $S_{j}^{R}$ is the robust standard error including adjustments for small samples (Tipton, 2015).

The test statistic is compared with critical values from student’s t distribution with η_j degrees of freedom (these degrees of freedom are estimated and can vary from covariate to covariate; see Tipton, 2015).

Missing data handling

We were unable to determine the treatment provider’s discipline (teacher or other) for 16 effect sizes across four studies. Rather than lose the data completely, we conducted a single imputation and ran the meta-regression on a complete data set. We used MPlus to run a multilevel imputation to account for the nested structure of the data. We conducted a sensitivity analysis, comparing the values of the coefficients for the unimputed data set to those from the imputed data set and found little difference. The largest difference was in the coefficient for TRTPROV, with $\hat{β}$ = .040 for the unimputed set and $\hat{β}$ = .013 for the imputed set (with virtually identical standard errors). Taking this one step further, we tested whether the results of our single imputation were stable over 10 imputations and found very little difference in estimates across imputations (see online Supplemental Table S3 for details).

Results

Study Selection

The abstract screen culled the list to 1,174 unique studies that underwent a full-text screen. The full-text screen reduced the number of eligible studies to 96, and these studies came from a total of 21 different countries: United States (43), Turkey (15), Israel (7), Taiwan (6), Canada (3), Germany (3), Nigeria (3), Jordan (2), Kenya (2), Brazil (1), China (1), England (1), Finland (1), Greece (1), India (1), Korea (1), Netherlands (1), New Zealand (1), Singapore (1), Slovenia (1), and Switzerland (1). Figure 1 identifies the number of studies at each stage of our process. In this figure, a “record” refers to a single citation from one database. Because we used multiple databases, sometimes different databases located the same record. We identified 6,622 records through database searching (raw number, including duplicates), along with 30 additional records through our grey literature search. The combined total number of unique records was just 6,637 after excluding 15 duplicates. We use the term articles to refer to unique records. Our abstract screen of 6,637 articles led to the inclusion of 1,286 articles that met our abstract screen criteria.

Figure 1.

Number of records, articles, and studies identified and retained at each stage of the selection process.

It was essential that coders not include effect sizes for the same outcomes from the same participants more than once. This problem can arise when authors publish more than one article from the same research study. We searched author names across all 1,286 articles to look for articles that appeared to report findings from the same participants. We combined multiple articles into a single “study” and coded at the study level. The process of linking related articles into unique studies brought our number of studies down to 1,174. Of these, a full-text eligibility screen (using information from all linked articles for each study) yielded 96 studies that met our full inclusion criteria.

We excluded studies during the full-text screen for a variety of reasons. Many abstracts were sufficiently vague that we included the associated articles in the full-text screen for no reason other than there was insufficient information in the abstract to make an eligibility determination. For example, an abstract might refer to “impacts of an intervention” but not mention the existence or absence of a comparison group. Other abstracts might refer to “students” without clarifying (in the title, abstract, or keywords) whether they were primary, secondary, or undergraduate students.

Occasionally, study coders continued coding beyond identifying a reason for excluding a study. This occurred particularly when coders were unsure of a disqualifying coding decision and sought consultation with the larger team before excluding a study. Thus, some studies had multiple reasons listed for their exclusion while others had just one. Table 1 provides a summary of the reasons studies were excluded. However, without further coding of all disqualifying features of every study, the percentages should not be interpreted as complete; in fact, they likely underestimate the number of studies lacking a characteristic.

As the table shows, the two most common reasons for excluding a study related to study design. Twenty-two percent of the excluded studies did not include an eligible comparison group (this includes studies that had no comparison group as well as those that had an alternative treatment comparison group). We excluded 21% of studies because the student sample size was too small (fewer than 30 students in either the treatment or comparison group). A substantial portion (14.7%) were excluded because there were no reported measures of baseline equivalence. We included studies provided that the baseline measures were reported but did not use magnitude of the baseline equivalence effect size as an exclusion criterion.

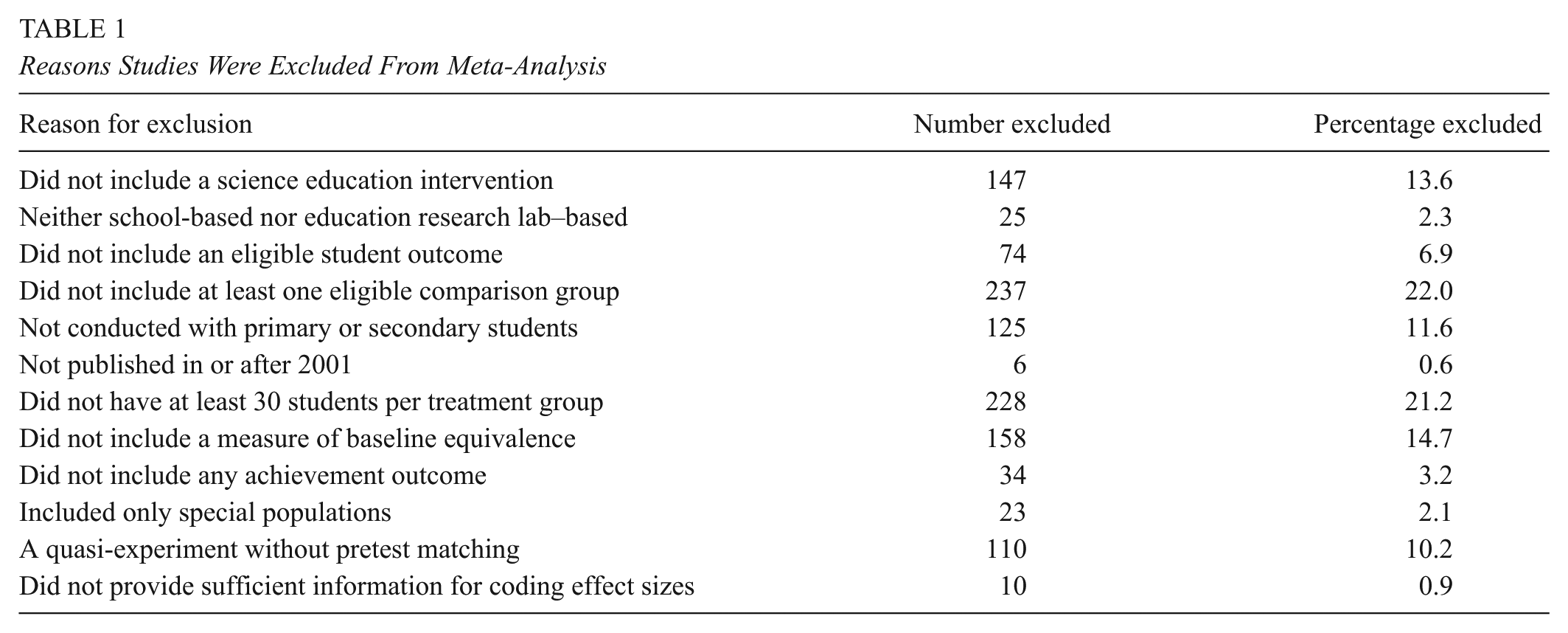

Table 1

Reasons Studies Were Excluded From Meta-Analysis

Reason for exclusion	Number excluded	Percentage excluded
Did not include a science education intervention	147	13.6
Neither school-based nor education research lab–based	25	2.3
Did not include an eligible student outcome	74	6.9
Did not include at least one eligible comparison group	237	22.0
Not conducted with primary or secondary students	125	11.6
Not published in or after 2001	6	0.6
Did not have at least 30 students per treatment group	228	21.2
Did not include a measure of baseline equivalence	158	14.7
Did not include any achievement outcome	34	3.2
Included only special populations	23	2.1
A quasi-experiment without pretest matching	110	10.2
Did not provide sufficient information for coding effect sizes	10	0.9

Overall Statistics

Table 2 shows the mean posttest effect size, standard deviation, and study sample size for each category of study design or intervention characteristic. The weighted average pretest effect size was −0.01 standard deviations, suggesting that although we did not disqualify studies based on baseline equivalence, it does not appear to have introduced substantial bias in the impact estimates.

Table 2

Mean Effect Size by Study Design or Intervention Characteristic

Variable	Reference group(n = No. of ES)	Mean ES (SD)Reference group	No. of studies in reference group	Indicator group(n = No. of ES)	Mean ES (SD)Indicator group	No. of studies in indicator group
RCT	Matched quasi-experiments (n = 50)	0.49 (0.32)	9	RCTs (n = 242)	0.45 (0.48)	87
STUONLY		NA	NA	Interventions for students only (n = 59)	0.36 (0.46)	24
TCHONLY		NA	NA	Interventions for teachers only (n = 29)	0.47 (0.28)	6
TCH&STU		NA	NA	Interventions for both teachers and students (n = 204)	0.58 (0.48)	66
SCITYPE	Life, earth/space, and multidisciplinary science (n = 155)	0.49 (0.42)	49	Physics, chemistry, and physical science (n = 137)	0.45 (0.46)	47
TESTDEV	Assessment developer is not the author or researcher (n = 79)	0.29 (0.43)	32	Assessment developer is the author or researcher (n = 213)	0.67 (0.47)	64
HIGRD	Highest grade in study includes primary and lower secondary students (K–8) (n = 102)	0.41 (0.47)	41	Highest grade in study includes upper secondary students (9–12) (n = 190)	0.53 (0.45)	55
TRTPROV	Treatment provider is not a teacher (n = 64)	0.49 (0.44)	20	Treatment provider is a teacher (n = 212)	0.45 (0.45)	76

In addition, we report several other statistics of importance. The intercept ( ${\hat{β}}_{0}$ = 0.489) of the meta-regression provides an estimate of the overall mean effect size for the study sample, and the 95% confidence interval around this intercept [0.368, 0.610] provides a sense of the precision of this estimate.

The overall average effect, however, is not particularly useful when there is heterogeneity in effect sizes across studies. To understand the true variation in study-average effect sizes, a prediction interval is useful. In this study, the 95% prediction interval for study-average effect sizes is [–0.393, 1.371], indicating that while the average study produced a positive effect, in some studies, the true effect was negative (and in others, the effect was positive and much larger). This interval is based on the fact that the variation in effect sizes across studies was high (I² = 77.36%, τ = 0.45).

Study and Intervention Characteristics as Moderators

Moderator effects from the meta-regression

Table 3 shows the parameter estimates from our meta-regression using RVE with correlated effects weights, conducted using Equation 3. Note that sensitivity analyses for the effect of Winsorizing (vs. not Winsorizing) the effect sizes indicated no difference in any parameter estimate to three decimal places. Sensitivity analyses were also conducted with regard to including studies with a single cluster per treatment condition. Two noteworthy differences emerged, and these results are reported and discussed in Table S3 online.

Table 3

Results of Robust Variance Estimation Meta-Regression Using 96 Studies With 292 Effect Sizes

Parameter	Estimate	SE	t value	df	p	95% CILower	95% CIUpper
Intercept	0.489	0.060	8.161	43	<.001	0.368	0.610
RCT	−0.004	0.179	−0.024	11	.98	−0.397	0.388
TCHONLY	0.060	0.148	0.405	9	.69	−0.276	0.396
TCH&STU	0.149	0.136	1.097	40	.28	−0.125	0.423
SCITYPE	−0.044	0.120	−0.363	61	.72	−0.284	0.196
TESTDEV	0.258	0.102	2.522	48	.02	0.052	0.463
HIGRD	0.053	0.114	0.463	68	.65	−0.175	0.280
TRTPROV	−0.005	0.139	−0.036	22	.97	−0.295	0.284

Note. RCT, 1 = randomized design; TCHONLY, 1 = intervention with teachers only; TCH&STU, 1 = intervention for both teachers and students; SCITYPE, 1 = physics, chemistry, or physical science; TESTDEV, 1 = assessment developer is author or researcher; HIGRD, 1 = highest grade in study includes upper secondary (Grades 9–12); TRTPROV, 1 = treatment provider is a teacher. See Table 2 for the reference group of each variable.

The interpretation of the meta-regression coefficients (slopes) is conceptually similar to any multiple regression using binary indicators—each regression coefficient is a covariate-adjusted difference in mean effect size between groups of effect sizes that differ on the target characteristic. For example, the regression coefficient of −0.004 for RCT represents the model-based estimate of the difference in average effect size for RCTs compared to QEDs. That is, controlling for all covariates, RCT effect sizes are estimated to be 0.004 standard deviations smaller than that of matched QEDs, on average. Similarly, the effects from researcher-developed assessments were estimated to be nearly 0.258 SD larger, on average, controlling for other study, sample, and outcome characteristics. This effect was statistically significant.

Also notable (though not significant) is that interventions with components for both students and teachers produced higher effect sizes than those that target students only with an adjusted difference of 0.149 standard deviations. When an intervention was conducted in a science discipline that tends to be more mathematical, the adjusted effect sizes were slightly smaller (0.044 standard deviations) than those in science disciplines that are less mathematical. Interventions for secondary students (Grades 9–12) showed slightly higher effects than for students in primary and lower secondary (K–8) grades, with an adjusted difference of 0.053 standard deviations. Finally, when teachers delivered an intervention, the effects were nearly identical (adjusted difference = 0.005 SD) to those from interventions delivered by a researcher (or other nonteaching personnel). Note that we also explored publication bias using a similar analytic approach, and these ancillary results are provided in online Supplemental Appendix S6.

Using the Meta-Regression Parameter Estimates in A Priori Power Analyses

When conducting a priori power analyses, a study designer should first consider whether there are existing meta-analyses or effect sizes from isolated primary studies of the same or similar interventions. In the absence of such information, we propose use of our meta-regression parameter estimates to arrive at an empirically based effect size estimate. The least precise approach would be to use the intercept estimate, which provides the overall average (weighted) of all 292 effect sizes in the meta-analysis. We don’t anticipate that this would be appropriate in the majority of cases as most study designers will have information on at least a subset of the study and/or outcome characteristics that can be used to adjust the overall mean effect size estimate. Optimally, a study designer would have information on all variables and make the eight corresponding adjustments to the grand mean, based on the magnitude of the meta-regression coefficients in Table 3. Yet another variation that leverages existing impact information would be to use an extant impact estimate or summary effect from a meta-analysis in place of the intercept from our model and then make the corresponding adjustments using our meta-regression coefficients.

To facilitate accurate and convenient computation of predicted effect sizes based on selected study/outcome characteristics, we developed a Web-based application that uses the results generated by the R robumeta and clubSandwich (Pustejovsky, 2015) packages. The application can be found at https://effectsizecalculator.bscs.org. For details on how the online application computes predicted effect sizes from a combination of the parameter estimates in Table 3 and user input, see the online Supplemental Appendix S5.

Example: Using meta-regression estimates to estimate an effect size

Here we present an example of how science education researchers may use our meta-regression results in a power analysis. Assume a researcher has developed a high school (HIGRD = 1) biology intervention (SCITYPE = 0) that provides curriculum materials for students and professional development for teachers (TCHONLY = 0; TCH&STU = 1), and the teachers implement the curriculum materials with students (TRTPROV = 1). The researcher wants to conduct a cluster (i.e., school) randomized efficacy trial (RCT = 1) and would like to determine how many schools are needed for the study to achieve 80% power. The researcher plans to use a state standardized test (TESTDEV = 0) as an outcome measure for the efficacy trial. Entering these study and outcome characteristics into the online application yields a predicted effect size of 0.377.

In addition to reporting an estimated effect size, the online application also indicates the precision of this estimate. A 95% confidence interval is computed for each expected effect size based on the set of observed covariate values. These intervals are calculated using

Est + / - t (. 025, η) SE (Est),

(5)

where both the degrees of freedom (η) and standard error (i.e., SE[Est]) are estimated based on the small-sample F test (Tipton & Pustejovsky, 2015). Importantly, the degrees of freedom η here will differ for different predicted effect sizes. For the aforementioned example, the application computes a 95% confidence interval around the predicted effect size (0.377) with a lower and upper limit of 0.164 and 0.590 standard deviations, respectively.

Using findings from Westine et al. (2013), study planners can obtain a reasonable estimate of the school-level intraclass correlation for 10th-grade outcomes (ICC = 0.196) and the variance explained by a school-level pretest covariate (R² = 0.868). Combining this information with the predicted effect size of 0.377 standard deviations and using Optimal Design v. 3.1 (Spybrook et al., 2011), one finds that a cluster randomized trial must maintain an analytic sample of 13 schools with 50 students each to achieve 80% power (5% significance level). Similarly, although the merits of doing so are debatable, a study designer could choose to take either an ultraconservative or ultraliberal approach and use the lower (conservative) or upper (liberal) limit of the effect size confidence interval in the power analysis. Using the same values as previously described for the R², ICC, cluster size, significance level, and desired power, Optimal Design yields an analytic sample estimate of 52 schools using the lower limit and 8 schools using the upper limit. Given this wide range, we would recommend instead using extant effect size information (if available) from prior primary studies or meta-analyses of the intervention or similar interventions.

Discussion

Comparisons to Extant Research

The average effect size (the intercept)

The grand mean effect size we estimated for this study, 0.489, is larger than any of the sample size weighted mean effect sizes reported in recent synthesis studies of science education interventions. Two recent studies are particularly relevant to the present study. The first, Slavin et al. (2014), synthesized a total of 23 effect sizes for elementary school science interventions, finding the following summary effects for three intervention categories: 0.02 SD for science kits, 0.36 SD for professional development programs, and 0.42 SD for technology applications. Similarly, Cheung et al. (2016) synthesized 21 effects from secondary school science interventions, finding the following average effects across four intervention categories: 0.17 SD for instructional process programs, 0.47 SD for technology programs, –0.02 SD for science kits, and 0.10 SD for innovative textbooks, each smaller than the grand mean effect size of this study. The differences between our results and that of other recent studies can be attributed in part to differences in the sample of effect sizes synthesized. The studies described previously synthesized a total of 44 effect sizes, as opposed to the 292 in the current study. The sample differences between the prior research and the current study arise from differences in inclusion criteria (e.g., publication date, minimum intervention duration, and the eligibility of studies that used experimenter-developed outcome assessments) as well as differences in analytic approach. Regarding the analytic approach, the studies described previously used fixed effects variances and traditional meta-analytic approaches to estimate summary effect sizes, whereas the present study extracted multiple effect sizes per study and estimated adjusted mean effects using meta-regression that modeled within-study dependence of effect sizes through robust variance estimation.

The effect of study design

The effect of study design was very small but consistent with recent work in this area. Although we observed a smaller effect of design than that observed by Cheung and Slavin (2016), the direction of the effects is the same, with both studies estimating smaller effects for randomized designs.

The effect of bundled interventions

The results of this analysis are suggestive that there is a positive effect of developing bundled interventions that provide products and/or services for both teachers and students. Unfortunately, this tentative result cannot be corroborated by the two recent syntheses by Slavin and colleagues as they categorized interventions differently than we did in the present study.

The effect of science discipline type

The effect of discipline type was quite small, and the possibility that this effect is spurious is too high to support a confident claim. Further study is needed around whether a noteworthy effect of discipline exists in the effect size population.

The effect of who develops the outcome measure

The finding that stands out dramatically is the positive relationship between use of researcher-developed outcome assessments and the magnitude of the treatment effect. This can result from either overalignment of outcome measures to treatments, insensitivity of standardized measures to treatment effects, or both. We cautiously assert that the primary source of this relationship in our data is likely the tendency of broadly focused standardized assessments to be insensitive to treatment effects. We found in our coding of each study’s methodological approach only a few instances of treatment-outcome overalignment but acknowledge that assessments of overalignment can be subjective and no clear definition exists.

The effect of students’ grade level

Slavin et al. (2014) did not report an overall summary effect for the 23 effect sizes in their synthesis of elementary school science interventions, nor did Cheung et al. (2016) report the like for the 21 effects of secondary school science interventions in their synthesis. However, both studies reported the individual study effects and sample sizes necessary to compute overall summary effects by grade span (elementary vs. secondary). Using this information, we conducted a random effects meta-analysis with student sample size weighting, finding for elementary school interventions a weighted summary effect of 0.33 SD and for secondary school interventions, a weighted summary effect of 0.21 SD. This finding is consistent with results from Hill et al. (2008), who found larger average effects in the earlier grades for interventions in mathematics and reading.

It would appear that the findings of the present study, where the weighted average of effect sizes for secondary school interventions is higher than for elementary school interventions, diverge from that of the prior syntheses. However, this appears to be an artifact of how the grade intervals were coded in the present study (K–8, 9–12) as opposed to the other syntheses. For example, the grade intervals in the Slavin et al. (2014) and Cheung et al. (2016) studies were K–5 and 6–12, respectively. When we disaggregate our effect sizes into these new grade intervals, we see a similar effect of grade level, with the weighted average effect size for interventions in the K–5 grade interval estimated at 0.09 standard deviations greater than the weighted average effect size for interventions in the Grades 6–12 interval. This is largely consistent with the mean effect size difference across these grade intervals from the Slavin et al. and Cheung et al. work.

The effect of who delivers the intervention

The effect of who delivers the intervention was also quite small and inconclusive. Although further study is needed to assess whether an effect of treatment provider exists in the effect size population, the lack of a clear effect challenges conventional wisdom in education that larger effects will be observed (all else equal) when the intervention developer also delivers the intervention (e.g., proof of concept or efficacy studies) as opposed to when a nondeveloper implements the intervention (e.g., scale-up studies).

Limitations

This study had several notable limitations. First, across the set of eligible studies, there was significant imbalance across the categories of several nominal variables. This required us to dichotomize planned moderators to achieve better balance and statistical power or in some cases eliminate the moderator altogether.

Omitted moderators included participant characteristics such as percentage minority, a contrast for lab- versus school-based intervention, and intervention duration. Percentage minority could not be used due to insufficient reporting in general and by treatment condition in particular. The lab- versus school-based intervention contrast could not be used due to extreme imbalance (4 lab-based, 92 school-based interventions). Outcome type could not be used as a variable because too few effect sizes for affective outcomes existed. The moderator for comparison group type suffered the same fate as only 5 studies used a no intervention comparison group, while 91 used a business-as-usual counterfactual. Finally, intervention duration could not be used because the data were extremely skewed and the resulting meta-regression degrees of freedom were less than 4, the minimum cutoff for trustworthy results suggested in the robumeta documentation. This was unfortunate as intervention duration is something that study planners do tend to know prior to study implementation, and it seems reasonable to hypothesize that duration would explain variance in effect size magnitude. We acknowledge that the omission of these planned moderators could have introduced unknown confounds in the interpretation of the remaining coefficients. Further, correlations among the remaining moderators could have affected the results. For example, it is intuitive that the TCHONLY and TCH&STU variables might be correlated, and indeed, the phi coefficient for this pairing is the largest of all bivariate relationships (0.51). However, overall, the relationships among the moderators are not strong, with the average absolute value of all pairwise bivariate correlations (phi) = .14.

The planned moderator that required a collapse into binary categories was SCITYPE. The original coding included six categories of science subject matter foci, but there was poor balance across the categories. Across the 96 studies, the percentage of interventions with each subject matter focus was biology/life science (37.8%), chemistry (19.5%), physics (20.7%), earth/space science (3.7%), multidisciplinary science (11%), and physical science (7.3%). Ultimately, we decided to combine physics, chemistry, and physical science into a category of disciplines that tend to be more quantitative at the K–12 level and contrast that with a reference group of traditionally less quantitative disciplines at the K–12 level: biology/life science, earth/space science, and multidisciplinary science. We acknowledge that in doing so, we sacrificed a more fine-grained set of categories and comparisons for better balance and statistical power.

Some unbalanced moderators remained (particularly RCT), and the combination of lingering imbalance and parameter estimates that tended to be small in magnitude resulted in poor statistical power and nonsignificant results. Therefore, the coefficients will not support definitive claims or generalizations about the relative efficacy of one intervention approach over another outside of this sample in the larger population of science education intervention effect sizes (with the exception that effect sizes from outcomes developed by the researchers tend to be larger). However, the coefficients provide a useful starting place for a priori power analyses as they provide some empirical basis for design decisions, reflecting variation of effect sizes within this sample of studies. The estimates from this study can also help policymakers and other decision makers in science education begin to set clearer expectations for the magnitude of effects that are likely to be observed from interventions with various characteristics. Finally, this meta-analysis was limited to school- or lab-based interventions. Online interventions and interventions based in informal settings were excluded, limiting the extent to which the study findings apply in an emerging digital age.

Implications

For Power Analyses

The field of intervention research in science education is in its infancy. After searching over 6,600 abstracts, we found just 96 that met our full inclusion criteria. The lack of a wide research base means that few intervention researchers have data from a comparison group study on which to base their own power analyses for future work. Even when they do, those results may be based on design characteristics that differ in important ways from what a researcher might propose in a larger efficacy trial. Specifically, as Lipsey and Wilson (2001) have suggested, pre-post (one group) effect sizes are incongruent with comparative (two group) effect sizes, although a conversion can be made between the two if the pre-post correlation is known (Borenstein, 2009). As we have shown, overestimating an effect size can lead to drastic underestimation of required sample sizes. When designing studies, a researcher can (and should) use relevant pilot effect sizes, provided that they map to the design of their planned study. Alternatively, a researcher would be wise to use meta-analytic findings (should they exist) for interventions that are a close match to their own invention. Barring that, the use of data from our set of studies would allow researchers who might otherwise have little information on which to base effect sizes for a priori power analyses to make empirically based decisions in this important stage of study design. At a minimum, researchers will have some idea of whether their proposed effect size might be conservative or optimistic based on what we have seen in the science education literature. Using results from our meta-analysis, intervention researchers in science education will be better able to design studies of causal impacts. Better designed studies are more likely to be funded and published. We propose that an important implication of our work will be an improvement in the quality and quantity of impact studies in science education.

Further, the use of adequately powered intervention studies in science education has importance for the field (beyond what it means for individual researchers). The tendency of the field to discount studies with nonsignificant p values (and ignore effect sizes), justifiably or not, means that we are likely to overlook important interventions simply because impact studies of those interventions were underpowered. Inconclusive findings can only lead to stagnation of the accumulation of knowledge about science education interventions.

For Programmatic Decisions

Over and above its utility for study designers (i.e., power analyses), the results of this study help establish an effect size “landscape” for science education. The prediction interval described previously establishes a range of plausible values for individual effect sizes, indicating that for interventions like those in this study, 95% of the effect sizes are likely to fall between −0.393 and 1.371 standard deviations. In terms of central tendency, merely interpreting the intercept estimate ( ${\hat{β}}_{0}$ = 0.489) suggests that the average effect size for science education interventions like those in this meta-analysis is about half of a standard deviation. Further, the confidence interval of this intercept [0.368, 0.610] establishes a range of likely values for the overall effect size in the larger effect size population, with the lower limit suggesting the most conservative expectation and the upper limit the most liberal. Beyond these overall findings, relationships observed in the moderator analyses can be helpful to decision makers in education. For example, our largest moderator effects suggest that (all else equal) effects on scores from researcher-developed tests are more likely to be larger than effects on other outcomes measures (e.g., state standardized tests) and that interventions that target both teachers and students (e.g., teacher professional development bundled with curriculum materials for students) are more likely to yield larger effects than interventions that target students only.

For Synthesis Methods

To date, most of the oft-cited work around benchmarks for effect sizes estimates have used a univariate approach to aggregating and summarizing average effect sizes (e.g., Cheung et al., 2016; Hill et al., 2008; Slavin et al., 2014). Considering our findings, we join recent calls to decrease the use of this approach (Polanin & Pigott, 2015). Although in general the adjusted mean differences from our meta-regression coefficients mirror the raw differences in mean effect sizes from the descriptive statistics table (Table 2), both in magnitude and direction, important differences remain. For example, we highlight the TRTPROV variable where the difference in raw mean effect size between the set of effects where the teacher provided the intervention are 0.15 standard deviations larger than for the set of effects where a nonteacher provided the intervention. The meta-regression coefficient also represents a mean difference in favor of teacher-provided interventions, but that estimated difference is less than 0.01 standard deviations. Such a difference, when brought into an a priori power analysis, could have a significant influence on minimum sample size estimates or minimum detectable effect sizes. Given the growing literature base suggesting that meta-regression estimates obtained using RVE are trustworthy even with small sample sizes (see simulations in: Tipton, 2013, 2015; Tipton & Pustejovsky, 2015), we conclude that the adjusted mean differences from the meta-regression are more precise and point a way forward for future research in this area.

For Future Research

In this age of evolving technology, science education interventions are becoming more transportable to other formats, contexts, and learning environments. As such, parallel work is desperately needed for online interventions and those implemented in informal settings (e.g., museums, science centers). A second key charge for the future is to conduct similar research in other disciplines using the techniques of this study. Specifically, we advocate for the use of meta-regression to estimate mean effect size differences across categories while controlling for other influential moderators. Until this work is conducted by the field using comparable techniques, accumulating knowledge about effect size moderation will be challenging.

Until then, our current challenge is to encourage study designers to use the information provided here to more precisely estimate required sample sizes for science education intervention studies. Doing so will decrease the likelihood that study designers will over- or under-recruit schools, teachers, and students, conserving the precious human and financial resources the field needs to continue an agenda of rigorous intervention research.
