Mechanical optimization of an Al-Al 2 O 3 composite nanowire via molecular dynamics simulation and metaheuristic optimization

Abstract

In the present study, mechanical properties optimization is investigated for an Al-Al₂O₃ composite nanostructure. The Al-Al₂O₃ composite nanostructure is considered an Aluminum nanowire reinforced by spherical Al₂O₃ particles. The structure tensile test is simulated via molecular dynamics simulation using LAMMPS. The mechanical properties of the composite are extracted from the obtained stress-strain curve of the composite. The important mechanical properties include maximum stress and toughness. An optimization process is then applied to maximize the mechanical properties of the composite via metaheuristic optimization algorithms including Genetic Algorithm (GA), Ant Colony (ACO), and Grey Wolf Optimizer (GWO). Since the studied nanostructure is mono crystal, the reinforcing mechanism differs from that of a grained macro material. Therefore, the optimization variables are not confined to size and volume fraction but they also include the location of the particles. The optimization is performed for 0.05 and 0.10 volume fractions and different particle sizes with respect to the location of particles. Applying the optimization process, the mechanical properties of the studied composite nanowire are substantially improved for tensile loading. The results reveal that the placement of the particles has a considerable effect on the improvement of mechanical characteristics. At last, a pattern is presented for the placement of particles to achieve the highest tensile characteristics of Al-Al₂O₃ composite nanowires.

Keywords

molecular dynamics LAMMPS metaheuristic optimization nano wire

Introduction

In the complicated material applications during the recent decades, the composite materials with nano-scaled structures are highly attended. These materials are widely used in nano and micro-sized electro-mechanical systems. The nanostructures are used in a wide variety of forms including nanoparticles, nanorods, nanowires, nanotubes, and nanoshells. In mechanical applications, the nano-structured composite materials are designed to achieve high strength to weight ratios.

Beside the experimental methods, theoretical investigation of the nano structures is so important for development of nano systems. Therefore, different methodologies are conducted to study the mechanical behavior of nano-scaled structures including atomistic modeling, continuum mechanics modeling, and hybrid atomistic-continuum mechanics modeling.¹

Carbon based materials such as graphene and Carbon nano tubes (CNT) are widely used for composite reinforcement. Abdollahi and Davoodi investigated the influence of covering a germanium nanowire with a single wall CNT on mechanical properties via molecular dynamics (MD) simulation.² The reinforcing effect of graphene is also proved for multilayered polymer nanocomposites and graphene-cement composites using MD.^3,4 MD studies are also performed by Hou et al. about cement-polymer nanocomposite mechanical properties and reinforcement mechanism.^5,6 In another study, the structure, reactivity and interfacial bonding of Graphene oxide reinforced cement nanocomposites is investigated via MD.⁷

As seen, MD simulation methods are so applicable for study of nano structures in different conditions. For example, temperature dependent mechanical properties of graphene reinforced polymer nanocomposites are studied using MD simulation.⁸

Metal matrix composites (MMCs) are the most important composites as their strength to weight ratios are higher than the others. MD simulation is widely used for studying such materials.⁹ MD simulation for mechanical properties of magnesium matrix composites reinforced with nickel-coated single-walled carbon nanotubes reveals a considerable improvement in the Young’s modulus.¹⁰ Choi et al. presented an MD study about CNT-reinforced aluminum composites under uniaxial tensile loading.¹¹ Through another MD analysis, metal matrix composites reinforced with graphene sheets and CNTs were proposed to improve the properties of metals.¹² Weng et al. presented a study about strengthening mechanism of nano-laminated graphene-Cu composites under compression via MD.¹³ A stress-strain study of graphene reinforced aluminum nanocomposite under compressive loading is performed via MD revealing that the compressive strength of nanocomposite material is much larger than that of pure Aluminum.¹⁴

In addition to the carbon made materials, Al₂O₃ is a very useful material for reinforcement of composites as it is one of the hardest materials in nature. Increase in mechanical properties of epoxy-Al₂O₃ nanocomposite is observed due to the incorporation of Al₂O₃ nanoparticles.¹⁵ The synergic effect of CNT/Al₂O₃ reinforcements on multiscale epoxy-based glass fiber composite is also proved via experiments and MD.¹⁶

Nano particles of Al₂O₃ are widely used for reinforcement of metal matrix composites. Excellent mechanical properties and fatigue performance of Al-Al₂O₃ metal-based nanocomposites makes them suitable for various applications.¹⁷ Other performed studies show that adding Al₂O₃ nano particles significantly enhances the mechanical properties of aluminum matrix composites including hardness and tensile properties.^18,19

In the present study, the mechanical strengthening effect of Al₂O₃ nano particles on an Aluminum nano-matrix is investigated. Here, the aim is to maximize this effect with respect to the size and arrangement of the particles. Heshmati et al. studied interface, waviness, agglomeration, orientation and length of the CNT as key parameters affecting the mechanical properties of CNT-reinforced composite beams.²⁰ In addition, the relation between overall mechanical properties and the architecture of composites is reported by Zhang et al. for the nanocarbon reinforced composites.²¹ In order to obtain the mechanical properties, spherical Al₂O₃ particles are scattered inside an Aluminum nanowire matrix and tensile test of the generated composite is simulated via LAMMPS. LAMMPS is a well-known molecular dynamics simulator invented by Sendia national lab. It’s a free open source program that utilizes the MPI parallel computation system which makes it applicable for complicated problems with high number of particles.

As shown in Figure 1, the study is started by an initial problem evaluation. In this stage, the overall plan is designed regarding initial simulations. The problem is then divided into multiple optimization problems with respect to the volume fraction and size of the reinforcing Al₂O₃ particles. In order to have a cost function for every problem, a MATLAB function is generated taking positions of nanoparticles and giving the LAMMPS tensile test simulation results. The optimization algorithms are applied to each problem to find the best particle positions maximizing the mechanical characteristics in each case. The best results are then aggregated and a pattern is proposed for placement of particles giving the highest strengthening effect.

Figure 1.

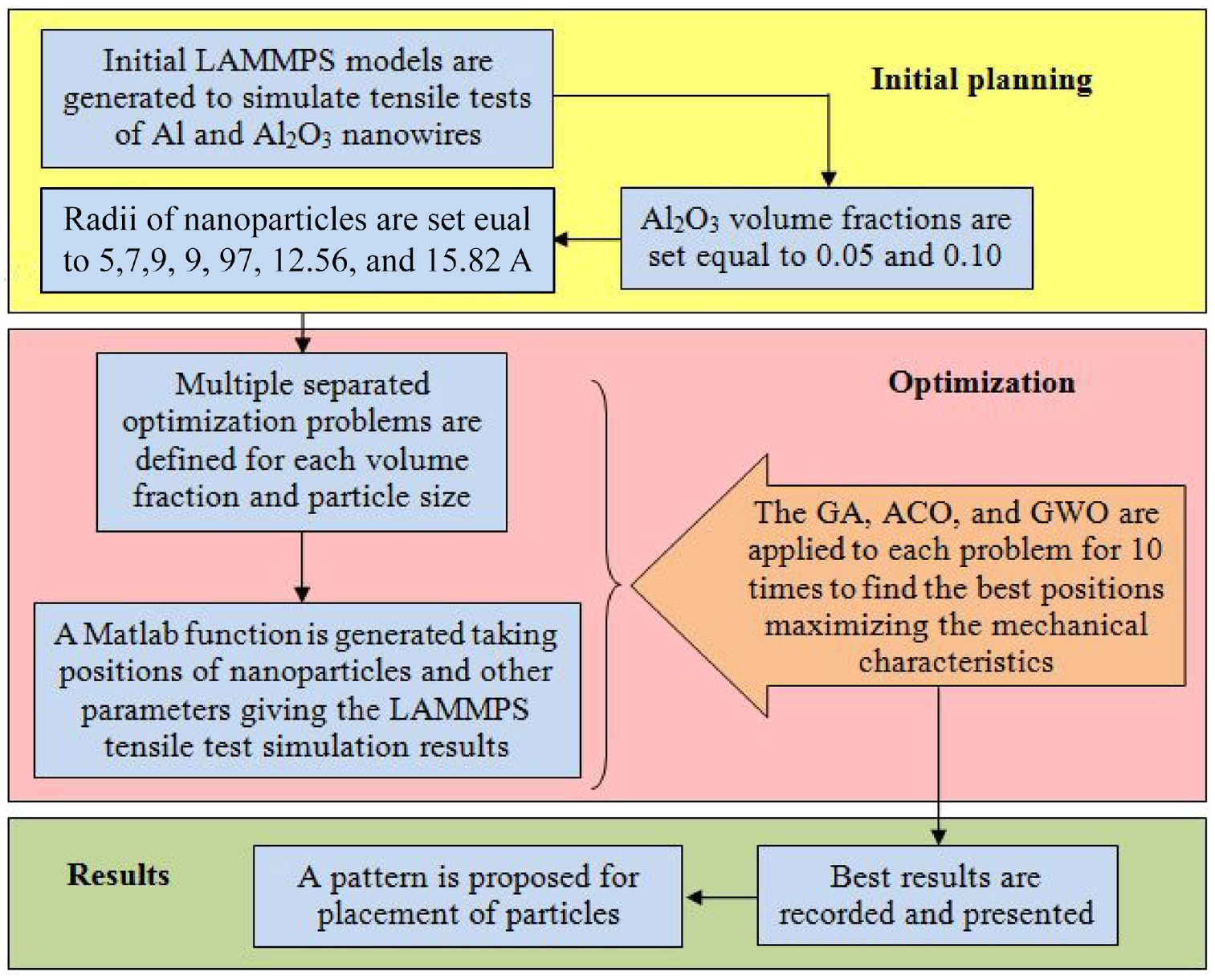

Flowchart of the present study.

Molecular dynamics simulation

The MD simulation is performed using LAMMPS for initial simulation of tensile tests of Al and Al₂O₃ nanowires. The mechanical properties of the structure are then obtained regarding the tensile test simulation results. To define a problem, LAMMPS takes text commands through data and input files. The data file includes the initial positions of the atoms and input file presents the geometry and material properties. These text files are generated via MATLAB as commands to be run in LAMMPS.

The initial atomic order, geometry and material properties are defined in MATLAB codes with respect to the investigated problem. These properties consist of crystal structure of the material, lattice constant or size of a unit cell, atomic mass, geometry, and dimensions of the nano-structure. Aluminum crystal has an FCC structure with lattice constant of a_Al = 4.0496 Å.²² The Alumina particles are of α-Al₂O₃ phase with a hexagonal crystal structure and lattice parameters of a_Al-O = b_Al-O = 4.758 Å, c_Al-O = 12.991 Å, α = 90°, β = 90°, and γ = 120°.²³

An essential part of the problem definition is to specify a suitable potential function that certifies the solution accuracy. Potential functions assign the interactions between atoms. In the present study, ReaxFF potential function is used that is developed by Zhang et al.²⁴ for Al/α-Al₂O₃ interfaces. The ReaxFF potential is successfully applied for variety of problems.^24–26

In order to simulate the Aluminum nanowire tensile test, firstly, an 18a_Al × 12a_Al × 12a_Al block is generated (Figure 2). In this study, time step of $Δ t = 0.1 fs$ is considered for all simulations. The simulations involve an initial relaxation stage performed in two steps. In the first step, the atoms are kept at constant temperature of 300 K for 25 ps by Langvin thermostat to minimize the kinetic energy at the beginning. During the second step of relaxation, the atoms are subjected to isothermal-isobaric (NPT) ensemble for 100 ps under 1 bar pressure at 300 K. In this part of simulation, the equilibrium state is obtained for the investigated problems.²⁶

Figure 2.

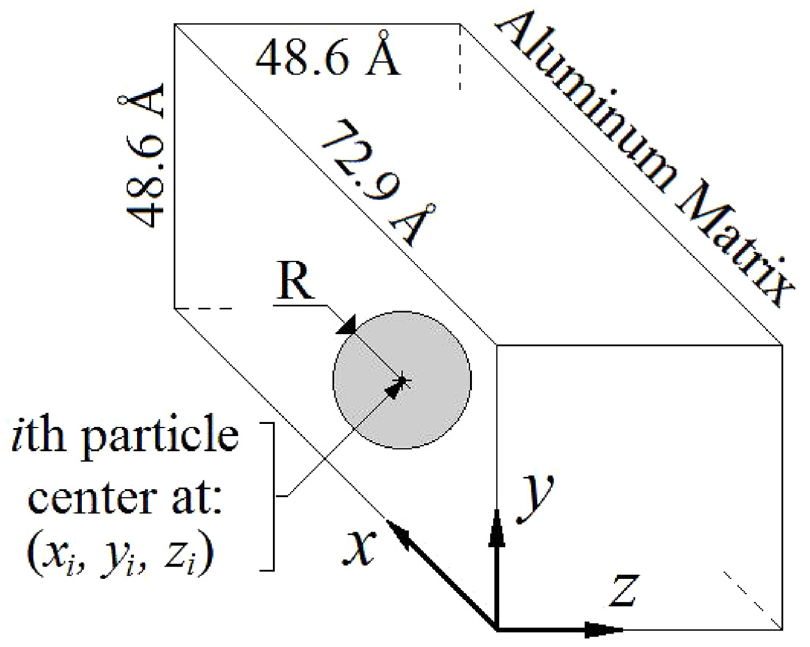

The investigated nanostructure.

In order to simulate the tensile loading condition, two loading regions are considered at the ends of the block with depth of a_Al (x ≤ 4.05 and x ≥ 68.85 Å). The loading regions move apart giving engineering strain rate of $\overset{\cdot}{ε} = 10^{8} s^{- 1}$ along the x-axis.²⁷ The rest atoms in the middle are in the deformation region. The constant temperature, constant volume (NVT) ensemble is applied to the atoms during this procedure.

Capturing the atomic quantities in time and space at every 100 steps, the simulation results are recorded to achieve the stress-strain curve. The stress-strain data consists of stress and strain vectors with $n$ components. These components reveal the history of stress and strain from beginning to failure through a discrete time domain. Figure 3 reveals the stress-strain curves obtained for Al and α-Al₂O₃ nanowires.

Figure 3.

The stress-strain curves obtained for Al and Al₂O₃ nanowires.

The toughness ( $U_{T}$ ) and maximum stress ( $σ_{\max}$ ) are investigated in this study as the most important material characteristics. These parameters give a general understanding of the mechanical properties. The toughness is extracted from the discrete stress-strain data by implementing the trapezoidal numerical integral approach as follows:

U_{T} = \int_{0}^{ε_{f}} σ d ε = \sum_{i = 0}^{n - 1} (\frac{σ_{i} + σ_{i + 1}}{2}) Δ ε

(1)

where $n$ indicates number of time steps, and $Δ ε$ is obtained as the product of strain rate and time step as follows:

Δ ε = \dot{ε} Δ t = 10^{- 8}

(2)

In addition, the $σ_{\max}$ parameter is simply assumed as the maximum stress of the stress-strain diagram. After running the simulation, LAMMPS generates a text file which gives the numerical solution of the problem. The $σ_{\max}$ and $U_{T}$ parameters are then extracted from the output file via MATLAB. Table 1 presents these values for Al and α-Al₂O₃ nanowires extracted from MD simulation. The crystal orientations in line with the x, y, and z directions are also revealed in Table 1. The assigned orientations give the best mechanical properties with respect to the tried simulations. These directions are assumed for all simulations.

Table 1.

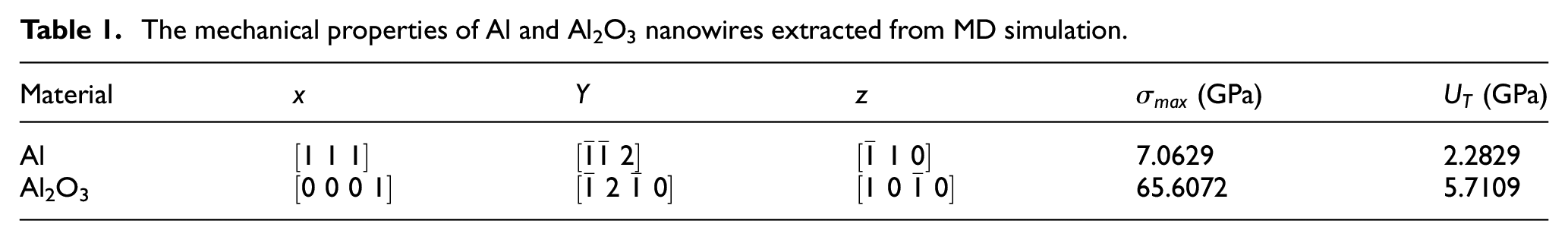

The mechanical properties of Al and Al₂O₃ nanowires extracted from MD simulation.

Material	x	Y	z	$σ_{\max}$ (GPa)	$U_{T}$ (GPa)
Al	$[1 1 1]$	$[\bar{1} \bar{1} 2]$	$[\bar{1} 1 0]$	7.0629	2.2829
Al₂O₃	$[0 0 0 1]$	$[\bar{1} 2 \bar{1} 0]$	$[1 0 \bar{1} 0]$	65.6072	5.7109

Optimization

In this section, the aim is to maximize the mechanical properties of an Aluminum nanowire reinforced by α-Al₂O₃ particles. The first step is to define an objective function dealing with mechanical properties. The objective function is considered as a linear combination of $σ_{\max}$ and $U_{T}$ that must be maximized. The objective function must cover both $σ_{\max}$ and $U_{T}$ with the same degree of importance. As seen in Table 1, the $σ_{\max}$ values are 3 and 11 times larger than $U_{T}$ values for Al and Al₂O₃, respectively. Therefore, the following combination is assigned as the objective function:

F_{obj} = σ_{\max} + 3 U_{T}

(3)

Classically, strengthening effect of particles in a composite depends on volume fraction ( $ϕ$ ), size, and shape of particles. In this study, spherical α-Al₂O₃ particles with equal size are used as the reinforcing phase. The volume fraction of particles and their radius (R) are relevant regarding number of particles (N) as follows:

ϕ = N \times (4 / 3) π R^{3} / V

(4)

where $V$ deals with total volume of the nanowire and it is equal to 72.9 × 48.6 × 48.6 Å³ (Figure 2). As shown in Figure 1, the problem is broken to multiple optimization problems with respect to the volume fraction and size of Al₂O₃ particles. For each problem, a MATLAB function is defined to construct the MD model in LAMMPS and take the results to give the $F_{obj}$ value. These problems are listed in Table 2 dealing with $ϕ = 0.05 and 0.10$ while $R = 5, 7, 9, 9.97, 12.56, and 15.82$ . Each optimization problem involves 3N optimization variables that are center point coordinates of particles (Figure 2). Since the particles must completely locate inside the matrix block, the following upper and lower bounds are defined for the variables:

Table 2.

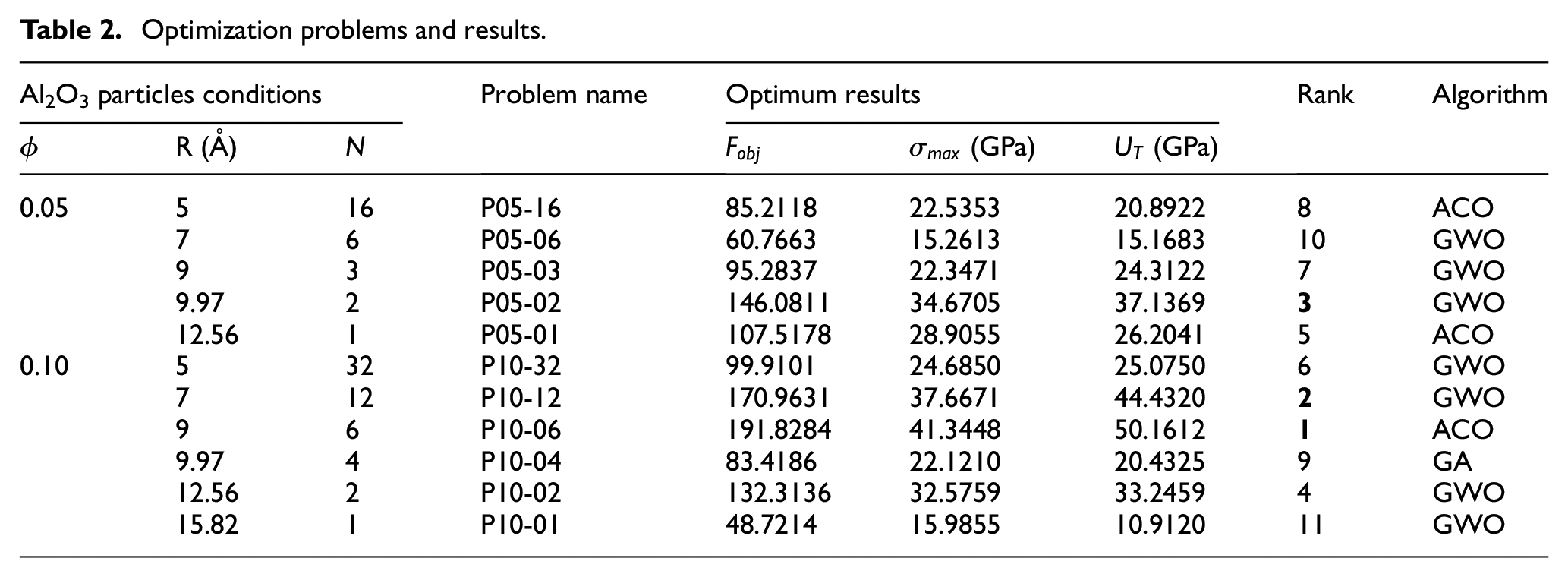

Optimization problems and results.

Al₂O₃ particles conditions			Problem name	Optimum results			Rank	Algorithm
$ϕ$	R (Å)	N	Problem name	$F_{obj}$	$σ_{\max}$ (GPa)	$U_{T}$ (GPa)	Rank	Algorithm
0.05	5	16	P05-16	85.2118	22.5353	20.8922	8	ACO
	7	6	P05-06	60.7663	15.2613	15.1683	10	GWO
	9	3	P05-03	95.2837	22.3471	24.3122	7	GWO
	9.97	2	P05-02	146.0811	34.6705	37.1369	3	GWO
	12.56	1	P05-01	107.5178	28.9055	26.2041	5	ACO
0.10	5	32	P10-32	99.9101	24.6850	25.0750	6	GWO
	7	12	P10-12	170.9631	37.6671	44.4320	2	GWO
	9	6	P10-06	191.8284	41.3448	50.1612	1	ACO
	9.97	4	P10-04	83.4186	22.1210	20.4325	9	GA
	12.56	2	P10-02	132.3136	32.5759	33.2459	4	GWO
	15.82	1	P10-01	48.7214	15.9855	10.9120	11	GWO

R + t \leq x_{i} \leq 72.9 - (R + t)

(5)

and

R + t \leq y_{i}, z_{i} \leq 48.6 - (R + t)

(6)

Here, t is a minimum thickness of matrix that is necessary to have a stable structure. Regarding the initial simulations, t is taken equal to 2 Å. Each problem also includes some constraints to avoid interference of particles. There are $N (N - 1) / 2$ constraints about the distance between centers of particles as follows:

\sqrt{{(x_{i} - x_{j})}^{2} + {(y_{i} - y_{j})}^{2} + {(z_{i} - z_{j})}^{2}} \geq 2 R + t

(7)

where $i, j = 1, 2, \dots, N and i \neq j$ . The constraints are defined separately for all problems in MATLAB. The defined optimization problems are then solved via GA, ACO, and GWO methods.

The utilized optimization algorithms

Metaheuristic algorithms are random-based methods commonly inspired from nature such as GA.²⁸ GA is one of the earliest metaheuristic algorithms resembling natural selection in the evolution process of living creatures. In GA, an initial set of random solutions is evolved through biologically inspired operations such as mutation, crossover, and selection to optimize the problem.

ACO is a swarm intelligence based method of optimization.²⁹ Such methods deal with a random initial population of solutions that moves and explores the optimization space to achieve the best solution with respect to a naturally inspired rule governing an intelligent swarm. This population is also known as the search agents. In ACO, the search agents movements mimic the behavior of real ants.

The GWO is another swarm intelligence based optimization method studied and verified attending to various benchmark functions and problems.³⁰ Simulating the leadership hierarchy and hunting mechanism of grey wolves in nature, this algorithm has shown an excellent performance compared to the other metaheuristic algorithms.

Results and discussion

Each method is applied to each problem for 10 times and the best results are presented. In each problem, the aim is to find a placement for particles maximizing the $F_{obj}$ . The methods are applied using 50 search agents with 3000 Iterations. The top results are shown in Table 2. A code name is also dedicated to each problem with respect to $ϕ$ and N values, for example, P05-16 means a problem with $ϕ = 0.05$ and N = 16. There are interesting concepts realized from Table 2.

As seen, fining the particles does not necessarily lead to higher mechanical properties and there is an optimum range. This optimum range is obviously observable for $ϕ = 0.10$ problems where P10-06 and P10-12 has respectively gained the first and second ranks. In addition, the strengthening effect of particles does not strictly depend on volume fraction. For example, P05-02 has gained the third rank among the problems that means higher than four cases with higher volume fraction. Therefore, there must be another effective factor that is placement of particles.

For better study of the particles placement effect, the convergence trends of the top optimizations are revealed in Figure 4. Study of these curves shows that correct selection of both size and location of particles can improve the mechanical properties of the composite nanowire by 527% for $ϕ = 0.05$ and 722% for $ϕ = 0.10$ . Placement of particles has a great contribution on mechanical properties by itself. The highest and lowest influences respectively belong to P10-32 and P05-01 problems that are respectively about 334% and 41%. Since the initial population is randomly chosen, these percentages are not exactly correct. However, they show the effect of particles placement on mechanical characteristics of the material. As seen, an increase in number of particles increases the effect of particles arrangement.

Figure 4.

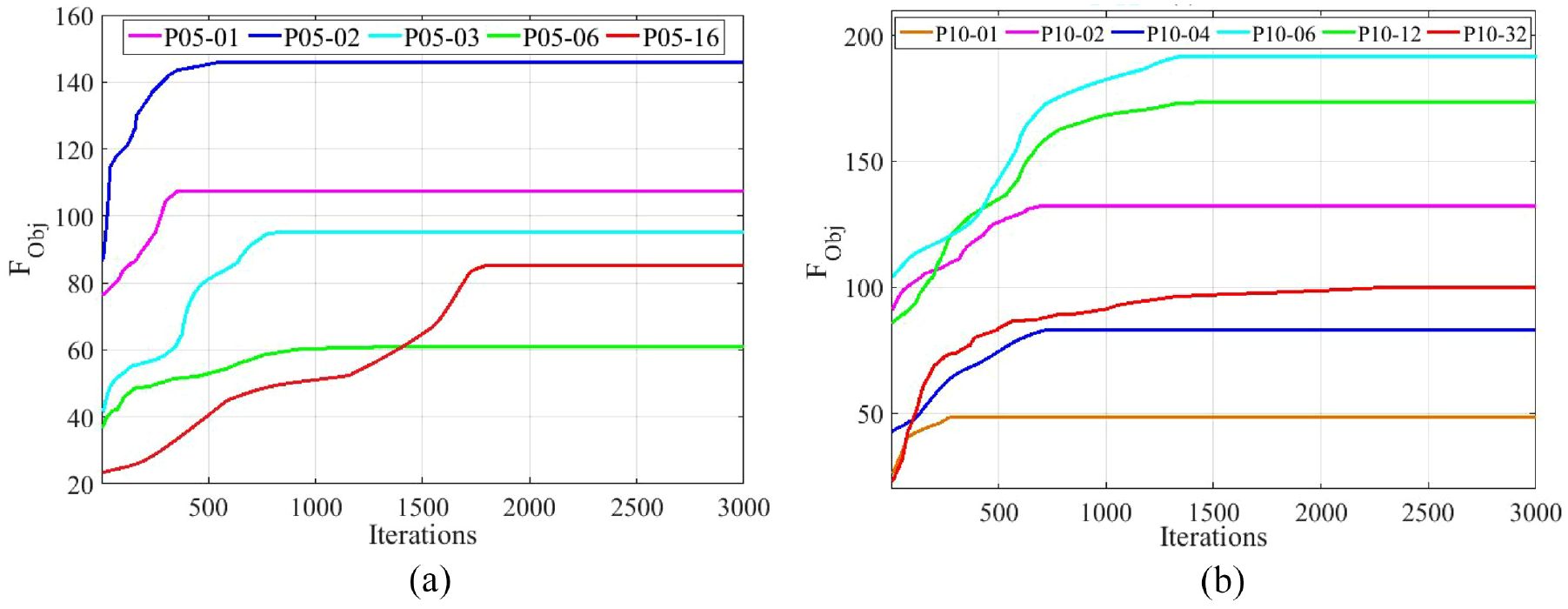

The best convergence trends for (a) $ϕ = 0.05$ (b) $ϕ = 0.10$ optimization problems.

The optimum stress-strain curves are presented in Figure 5. Comparing these curves with stress-strain curves of Al and Al₂O₃ (Figure 3), reveals that the material deformability and ductility is highly improved. Specially, attending the failure strain, the composite material flexibility is much higher than that of its components.

Figure 5.

The stress-strain curves obtained for optimum structures (a) Φ=0.05 and (b) $ϕ = 0.10$ .

The strengthening mechanism

Presence of reinforcing particles in MMCs confines movement of dislocations that leads to better mechanical behavior. However, there is no atomic disorder in the present nanowire model. Thus, there must be another strengthening mechanism for nanostructures. In order to understand such mechanism for Al-Al₂O₃ nano composite, the tensile test simulation trend for P05-01 is shown in Figure 6. The optimum solution of this problem has gained the fifth rank in Table 2. Figure 6 shows the behavior of the α-Al₂O₃ spherical particle during tension.

Figure 6.

The tensile test simulation trend for P05-01(a) $0 \leq ε \leq 0.3965$ , (b) $0.3965 \leq ε \leq 0.8146$ ,(c) $0.8146 \leq ε \leq 1.2459$ , and (d) failure.

As seen, the spherical Al₂O₃ particle is disintegrated inside the structure. Therefore, some additional deformation energy is consumed for breaking its atomic bonds. This additional energy dissipation leads to an additional resistance against deformation that improves the mechanical properties. In all other simulations, it is observed that wideness of particles shattering inside the matrix increases the tensile strength. Furthermore, electrical charge transfer among atoms causes rebinding and extra energy dissipation. There might be different mechanisms for other reinforcing materials such as ceramics and polymers which can be studied.

Optimum pattern

As seen, the effect of reinforcing particles on mechanical properties of a nanowire is highly influenced by emplacement of the particles. Therefore, there must be an optimum pattern for arrangement of the particles that is studied in this section. Figure 7 reveals the front and side views of the optimum patterns for three top ranked problems. In all patterns, the particles are concentrated at the ends of the block while there are partly no particles in the middle.

Figure 7.

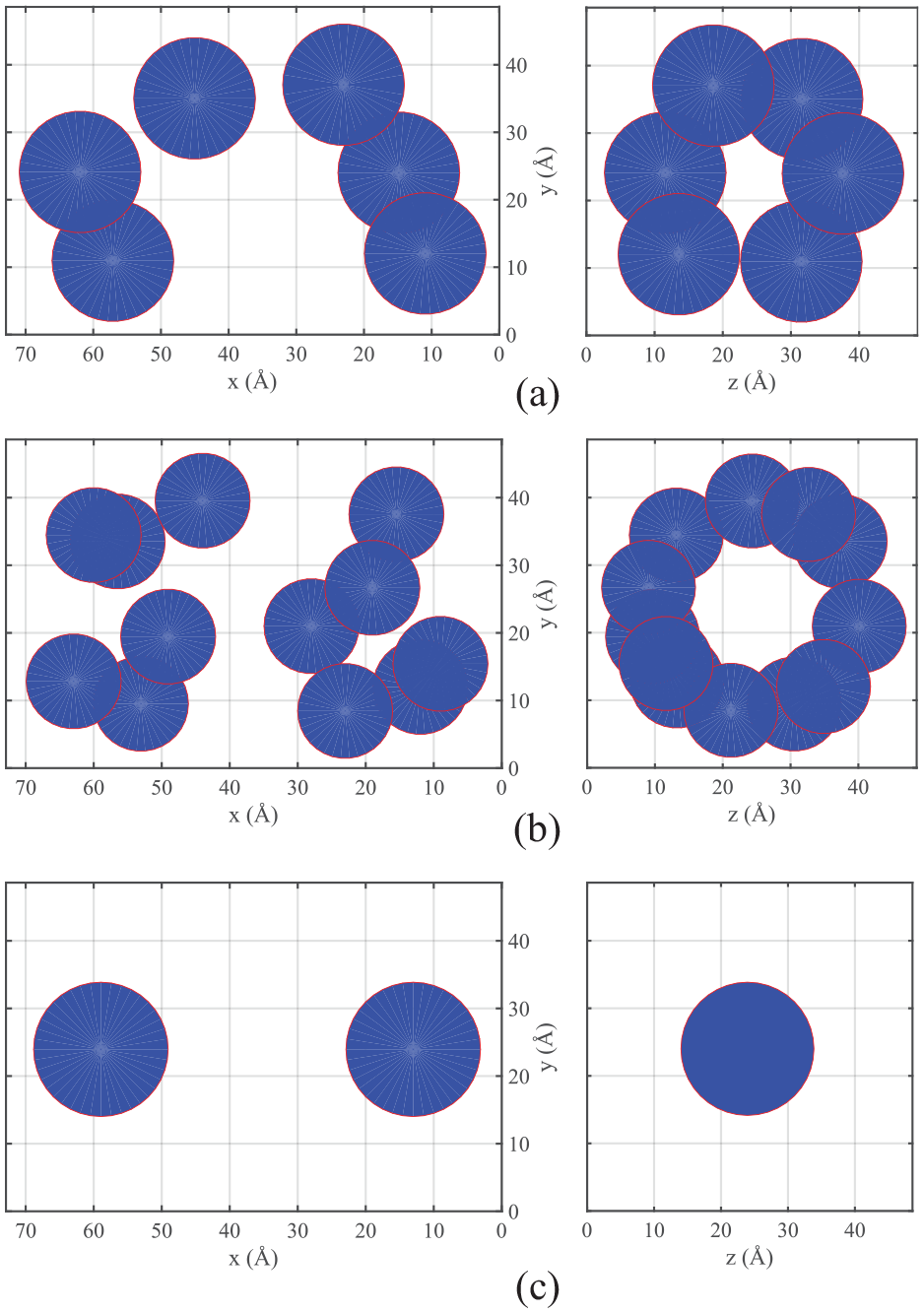

Front and side views of the top three optimum patterns (a) P10-06, (b) P10-12, and (c) P05-02.

The overall shape of the first two patterns which belong to P10-06 and P10-12, resemble a coil spring. The spring pitch length is short at the ends and it is long in the middle. In each ring of the spring, three particles are located almost making an equilateral triangle in side view. An approximate central symmetry is also observed is patterns. The third pattern (P05-02) obviously shows the importance of particle concentration in ends. This pattern is repeated for P10-02 which has the fourth rank. In P10-02 optimal model, particle centers are closer to the center because of their size. Therefore, in these cases, size and position of particles is more important than their volume fraction.

Pattern generalization

The results were obtained for a very short piece of nanowire, but they might be extended for micro and macro materials with different geometries even. The length of the nanowire was also limited and the size effect was not considered in the problem. For a long nanowire, the third and fourth patterns seem to be easy choices. It means scattering the particles on the centerline of the wire. Diameter of the particles must be about 0.41–0.52 of the wire width and the distance between their centers is closer at the ends and farther in the middle.

To prove the claim, the strengthening of a cylindrical Aluminum nanowire is studied in this section. The wire diameter is taken as equal to 60.74 Å (15a_Al) and its length is taken as equal to 607.44 Å (150a_Al). The length value is achieved after a convergence analysis with respect to the wire length. The tensile test was simulated for different lengths and no sensible variation in mechanical properties was observed for lengths higher than 120a_Al.

To reinforce this nanowire, 16 spherical Al₂O₃ particles with a diameter of 27.6 Å are aligned on its centerline ( $ϕ = 0.10$ ). The distance between the centers of two neighbor spheres starts from 31 Å at the ends and reaches up to 45 Å at the wire center. This pattern is proposed based on the previously obtained results and it is named P1. Table 3 presents the tensile test results of P1 in comparison to five other patterns namely BR1, BR2, BR3, BR4 and BR5. The BR1, BR2, and BR3 patterns are the best patterns out of 20 random cases with the specified particle conditions when $ϕ = 0.15$ . Similarly, the BR4 and BR5 are the best cases out of 20 random cases when $ϕ = 0.10$ .

Table 3.

Comparison of proposed pattern results with best random results.

Pattern name	Al₂O₃ particles conditions			Results
	$ϕ$	R (Å)	N	$F_{obj}$	$σ_{\max}$ (GPa)	$U_{T}$ (GPa)
P1	0.10	13.8	16	164.5173	38.6610	41.9521
BR1	0.15	13.8	24	96.5686	22. 0156	24.8510
BR2	0.15	15.8	16	76.1998	18.4771	19.2409
BR3	0.15	12.8	30	83.6703	20.8452	20.9417
BR4	0.10	12.8	20	71.3043	16.8541	18.1501
BR5	0.10	13.8	16	88.4201	21.0855	22.4449

The BR1 is the pattern that gives the best results among 20 random patterns with 24 spherical Al₂O₃ particles with a diameter of 27.6 Å. BR2 is the best of 20 random patterns with 16 spherical Al₂O₃ particles with a diameter of 31.6 Å. BR3 is the best of 20 random cases with 30 particles with a diameter of 25.6 Å.

The BR4 is the best random case with 20 particles with a diameter of 25.6 Å ( $ϕ = 0.10$ ) and BR5 pattern is the best random case out of 20 with the same particle conditions as P1.

As seen, the proposed pattern (P1) with $ϕ = 0.10$ gives better mechanical properties in comparison to the 100 random patterns with $ϕ = 0.15$ and $ϕ = 0.10$ . The results reveal that the obtained patterns and results can be generalized for other geometries and dimensions.

Conclusion

In this study, a scheme is presented for optimal reinforcement of nano scale composite structures. Metaheuristic optimization algorithms including GA, ACO, and GWO are used to optimize the structure of a composite Al/α-Al₂O₃ nano block to maximize its mechanical properties. The mechanical properties of the structure are obtained using MD simulation of the block under tensile test.

The spherical particles of α-Al₂O₃ are scattered inside a block of Aluminum nanowire. Various volume fractions and radii are assumed for the particles. Therefore, 11 optimization problems are defined for the assumed volume fractions and radii. The GWO method is then applied to each problem to find the best particles emplacement maximizing the mechanical properties. The best optimization results are reported out of 10 tries.

The optimization convergence trends reveal that the enforcement effect of particles not only depends on size and volume fraction, but it also depends on emplacement of particles. An optimized emplacement of particles averagely improves the mechanical properties of the composite for more than 100% in comparison to random placements. This percentage might rise up to 300% in some cases. In many cases, the effect of particles arrangement is even higher than that of volume fraction and size.

Studying the best arrangements, an optimum pattern is proposed for particles. The optimum pattern resembles a spiral form with high concentration at the ends and low concentration in the middle. In addition, the optimum diameter of the spherical particles is about half of the nanowire width. The results may also be applied for micro and macro scale composites. As a future study program, the presented scheme may be applied for different materials eliminating the size effect. The particles shape might also be considered as an effective parameter.

Footnotes

Appendix

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Sajad Hayati

References

Chandel

Wang

Talha

Advances in modelling and analysis of nano structures: a review. Nanotechnol Rev 2020; 9: 230–258.

Abdollahi

Davoodi

The influence of covering a germanium nanowire with a single wall carbon nanotube on mechanical properties: a molecular dynamics study. J Appl Phys 2017; 122: 035102.

Alian

Dewapriya

Meguid

SA.

Molecular dynamics study of the reinforcement effect of graphene in multilayered polymer nanocomposites. Mater Des 2017; 124: 47–57.

Hou

, et al. Reactive molecular dynamics and experimental study of graphene-cement composites: Structure, dynamics and reinforcement mechanisms. Carbon N Y 2017; 115: 188–208.

Hou

Wang

Molecular dynamics modeling of the structure, dynamics, energetics and mechanical properties of cement-polymer nanocomposite. Compos B Eng 2019; 162: 433–444.

Hou

Zhang

, et al. Insights into the molecular structure and reinforcement mechanism of the hydrogel-cement nanocomposite: an experimental and molecular dynamics study. Compos B Eng 2019; 177: 107421.

Hou

Yang

Tang

, et al. Reactive force-field molecular dynamics study on graphene oxide reinforced cement composite: functional group de-protonation, interfacial bonding and strengthening mechanism. Phys Chem Chem Phys 2018; 20: 8773–8789.

Lin

Xiang

Shen

H-S.

Temperature dependent mechanical properties of graphene reinforced polymer nanocomposites – A molecular dynamics simulation. Compos B Eng 2017; 111: 261–269.

Xing

Sheng

Wang

, et al. Research progress in molecular dynamics simulation of CNT and graphene reinforced metal matrix composites. Oxford Open Materr Sci 2021; 1: itab008.

10.

Zhou

Song

, et al. Molecular dynamics simulation for mechanical properties of magnesium matrix composites reinforced with nickel-coated single-walled carbon nanotubes. J Compos Mater 2016; 50: 191–200.

11.

Choi

Yoon

Lee

Molecular dynamics studies of CNT-reinforced aluminum composites under uniaxial tensile loading. Compos B Eng 2016; 91: 119–125.

12.

Bashirvand

Montazeri

New aspects on the metal reinforcement by carbon nanofillers: a molecular dynamics study. Mater Des 2016; 91: 306–313.

13.

Weng

Ning

, et al. Molecular dynamics study of strengthening mechanism of nanolaminated graphene/Cu composites under compression. Sci Rep 2018; 8(1): 3089.

14.

Srivastava

Pathak

Singh

, et al. Stress-strain behaviour of graphene reinforced aluminum nanocomposite under compressive loading using molecular dynamics. Mater Today Proc 2021; 44: 4521–4525.

15.

Bazrgari

Moztarzadeh

Sabbagh-Alvani

, et al. Mechanical properties and tribological performance of epoxy/Al₂O₃ nanocomposite. Ceram Int 2018; 44: 1220–1224.

16.

Roustazadeh

Aghadavoudi

Khandan

A synergic effect of CNT/Al₂O₃ reinforcements on multiscale epoxy-based glass fiber composite: fabrication and molecular dynamics modeling. Mol Simul 2020; 46: 1308–1319.

17.

Vaghari

Khayati

Jenabali Jahromi

Studying on the fatigue behavior of Al-Al₂O₃ metal matrix nano composites processed through powder metallurgy. J Ultrafine Grained Nanostruct Mater 2019; 52: 210–217.

18.

Al-Salihi

Mahmood

Alalkawi

HJ.

Mechanical and wear behavior of AA7075 aluminum matrix composites reinforced by Al₂O₃ nanoparticles. Nanocomposites 2019; 5: 67–73.

19.

Tiku

Navin

Kurchania

Study of structural and mechanical properties of Al/Nano-Al₂O₃ metal matrix nanocomposite fabricated by powder metallurgy method. Trans Indian Ins Metals 2020; 73: 1007–1013.

20.

Heshmati

Yas

Daneshmand

A comprehensive study on the vibrational behavior of CNT-reinforced composite beams. Compos Struct 2015; 125: 434–448.

21.

Zhang

Zhao

The superior mechanical and physical properties of nanocarbon reinforced bulk composites achieved by architecture design – a review. Prog Mater Sci 2020; 113: 100672.

22.

Lai

Liu

Mei

, et al. Molecular dynamics study on the mechanical characteristics of Al-terminated Al/α-Al₂O₃ interface under tensile loading. Int J Mater Prod Technol 2011; 42: 74–86.

23.

Shackelford

Doremus

RH.

Ceramic and glass materials. New York, NY: Springer, 2008.

24.

Zhang

ÇaúÏın

van Duin

, et al. Adhesion and nonwetting-wetting transition in the Al/α−Al₂O₃ interface. Phys Rev B 2004; 69: 045423.

25.

Sen

van Duin

ACT

, et al. Oxidation induced softening in Al nanowires. Appl Phys Lett 2013; 102: 051912.

26.

Sazgar

Movahhedy

Mahnama

, et al. Development of a molecular dynamic based cohesive zone model for prediction of an equivalent material behavior for Al/Al₂O₃ composite. Mater Sci Eng A 2017; 679: 116–122.

27.

Choudhary

Liang

Chernatynskiy

, et al. Charge optimized many-body (COMB) potential for Al₂O₃ materials, interfaces, and nanostructures. J Phys Condens Matter 2015; 27: 305004.

28.

Simon

Evolutionary optimization algorithms. New York, NY: John Wiley & Sons, 2013.

29.

Dorigo

Birattari

Stutzle

Ant colony optimization. IEEE Comput Intell Mag 2006; 1: 28–39.

30.

Mirjalili

Lewis

Grey wolf optimizer. Adv Eng Softw 2014; 69: 46–61.
