Concentration of noxious gases inside and outside residential apartments across different settlements in Port Harcourt metropolis,Nigeria

Abstract

The proliferation of harmful gases is a major global problem caused by anthropogenic activities. This study hypothesized that the emission of noxious gases varies seasonally in indoor and outdoor environments. Air samples were collected from 40 georeferenced residential areas (N = 40) in Port Harcourt using Aeroqual 500 monitor to measure six gases: CH₄, CO, NH₄, NO₂, O₃, and SO_2. Samples were collected at different times, locations, and seasons. The analysis of variance (ANOVA) indicates a significant difference in concentration between gases, times, and locations at p < 0.001. But the interaction effect shows that times and seasons significantly affect noxious gas concentration compared to location. In general, the concentration of CO was the highest, while that of O₃ was the lowest. The order of concentration is CO > SO₂ > NO₂ > CH₄ > NH₄ > O₃. The concentrations of NO₂ and SO₂ were higher than the WHO limit, while CO, CH4, NH, and O₃ were below the WHO limit. Furthermore, CO concentration was highest in the morning, while NO₂ and SO₂ concentrations were highest in the evening. For seasons, the CH₄, NH₄, NO_2, and SO₂ were higher during the dry season, while CO concentration was higher during the wet season. Pollutant levels should be regularly monitored to help provide exposure advisory to city dwellers on the impact of atmospheric pollution on their health.

Keywords

Atmospheric pollutants environment health residents noxious gases

Introduction

Life has significantly increased in abundance, complexity, and diversity over the earth’s history. Still, human activities have continuously altered the earth’s environment, posing a serious threat to the inhabitants of the earth.¹ The earth’s system is comprised of the atmosphere, hydrosphere, and lithosphere. The gaseous components of the atmosphere are nitrogen (78%), oxygen (21%), argon (1%), and some trace elements.²

Anthropogenic activities that release poisonous gases into the atmosphere include industrialization, urbanization, deforestation, vehicular transport, building, agriculture, road construction, and traffic congestion. These activities are known to have impacted the eco-environment negatively. The primary sources of indoor air pollution worldwide include the combustion of fuels, tobacco,³ coal, ventilation systems, emissions from furnishings, and construction materials.⁴ Indoor fires can produce black carbon particles, nitrogen oxides, sulphur oxides, and mercury compounds, among other emissions.⁵ Over 1.6 million people died from cooking stove fumes globally,⁶ and about 396,000 of these deaths occurred in sub-Saharan Africa, with Nigeria’s contribution to this death statistics being the highest. Similarly, studies in Port Harcourt reveal that gaseous pollutants from automobiles are the major cause of air pollution,⁷ and most analyzed air samples show CO, SO₂, and NO₂ above the WHO air quality standards.⁸

Global data shows that indoor air pollution (IAP) is far more lethal than outdoor air pollution (OAP)9. Health complications from IAP include pneumonia in children, asthma, tuberculosis, upper airway cancer, and cataract.⁹ Seventy-eight percent (78%) of the population uses biomass burning for cooking, contributing to IAP (IAP).¹⁰ Sources of IAP include mosquito repellent fumes, electricity generator fumes, and smoke from cigarettes.⁶ There has been a rapid increase in the use of generators over the past decade as an alternative power source for homes and commercial activities in Nigeria. Many people are often ignorant of the hazard generators cause, as they habitually expose themselves to the harmful effects while utilizing the power equipment.¹¹ High concentrations of carbon monoxide (CO), nitrogen dioxide (NO₂), sulphur dioxide (SO₂), and benzene are responsible for sickness in children.¹² Carbon monoxide (CO) is a very hazardous, colorless, and odorless gas emitted from the incomplete combustion of fuel in power generator sets, automobiles, and firewood. Health challenges that may arise from CO poisoning include vision and hearing impairment,¹³ cerebral congestion,¹⁴ fainting, headache,¹⁵ dizziness, asphyxia,¹⁶ oedema, and death.¹⁷ This study aims to determine the concentration of indoor and outdoor air pollutants around Port Harcourt because the city is s a host to a major oil refinery, the Port Harcourt refining company, where gases are flared daily. Secondly, there is a spike in atmospheric soot from numerous artisanal refineries along the surrounding creeks of the city.

The objectives of the study, therefore, were (1) to assess the concentration of harmful gases inside and outside residential buildings; (2) to determine the concentration between different collection times (i.e., frequency of collection); and (3) to evaluate the seasonal difference in air quality at different residential areas.

Materials and methods

Description of study area

Port Harcourt is one of the major cities in Nigeria (Figure 1) and serves as the capital of Rivers State.^18,19 It is the fourth most populated city in Nigeria, with many industries around it. It lies along Bonny River, part of the eastern tributary of the Niger River, 66 km upstream from the Gulf of Guinea, located in Nigeria’s coastal region. Port Harcourt metropolis is partly situated in a wetland ecosystem between Latitudes 4° 45′ N and 4° 55′ N and Longitudes 6° 55′ E and 7° 05′ E with 15.83 m elevation above sea level.²⁰

Figure 1.

Map of study area showing areas of air sample collection around Port Harcourt, Rivers State, Nigeria.49

The different study locations were georeferenced, as shown in Table 1. The study area experiences two seasons, the dry and the wet seasons, which occur between October-February and March -September each year. The dry season experiences atmospheric dryness caused by the northeast trade wind, popularly called “harmattan,” while the wet season experiences intense rainfall.^21,22 The temperature of Port Harcourt ranges from 25 to 28°C while the relative humidity in the city ranges from 80% to 90% during the rainy season and is reduced from 50% to 60% during the dry season due to the drier tropical continental air mass.²³

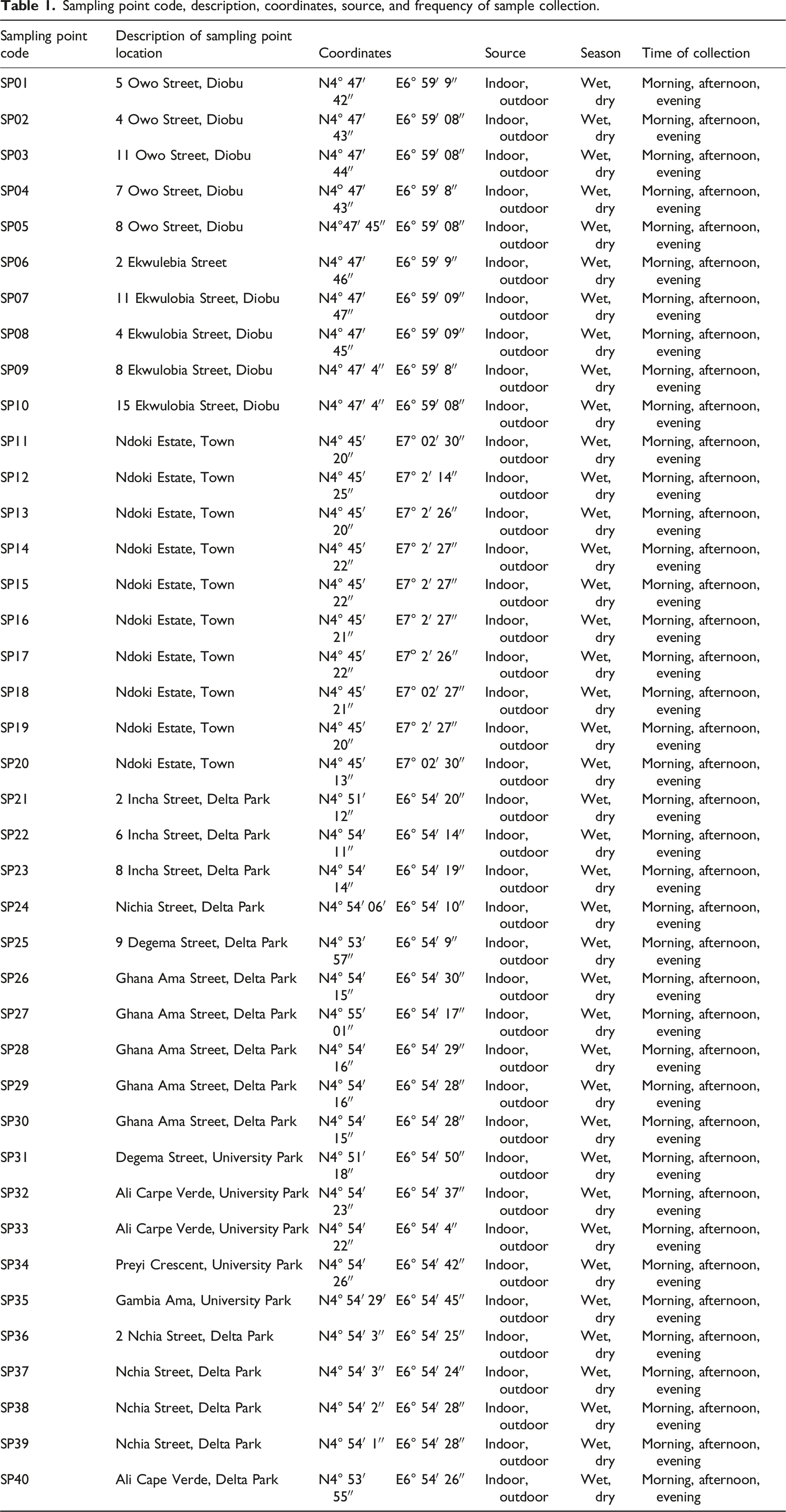

Table 1.

Sampling point code, description, coordinates, source, and frequency of sample collection.

Sampling point code	Description of sampling point location	Coordinates		Source	Season	Time of collection
SP01	5 Owo Street, Diobu	N4° 47′ 42″	E6° 59′ 9″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP02	4 Owo Street, Diobu	N4° 47′ 43″	E6° 59′ 08″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP03	11 Owo Street, Diobu	N4° 47′ 44″	E6° 59′ 08″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP04	7 Owo Street, Diobu	N4^o 47′ 43″	E6° 59′ 8″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP05	8 Owo Street, Diobu	N4°47′ 45″	E6° 59′ 08″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP06	2 Ekwulebia Street	N4° 47′ 46″	E6° 59′ 9″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP07	11 Ekwulobia Street, Diobu	N4° 47′ 47″	E6° 59′ 09″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP08	4 Ekwulobia Street, Diobu	N4° 47′ 45″	E6° 59′ 09″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP09	8 Ekwulobia Street, Diobu	N4° 47′ 4″	E6° 59′ 8″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP10	15 Ekwulobia Street, Diobu	N4° 47′ 4″	E6° 59′ 08″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP11	Ndoki Estate, Town	N4° 45′ 20″	E7° 02′ 30″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP12	Ndoki Estate, Town	N4° 45′ 25″	E7° 2′ 14″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP13	Ndoki Estate, Town	N4° 45′ 20″	E7° 2′ 26″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP14	Ndoki Estate, Town	N4° 45′ 22″	E7° 2′ 27″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP15	Ndoki Estate, Town	N4° 45′ 22″	E7° 2′ 27″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP16	Ndoki Estate, Town	N4° 45′ 21″	E7° 2′ 27″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP17	Ndoki Estate, Town	N4° 45′ 22″	E7^o 2′ 26″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP18	Ndoki Estate, Town	N4° 45′ 21″	E7° 02′ 27″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP19	Ndoki Estate, Town	N4° 45′ 20″	E7° 2′ 27″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP20	Ndoki Estate, Town	N4° 45′ 13″	E7° 02′ 30″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP21	2 Incha Street, Delta Park	N4° 51′ 12″	E6° 54′ 20″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP22	6 Incha Street, Delta Park	N4° 54′ 11″	E6° 54′ 14″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP23	8 Incha Street, Delta Park	N4° 54′ 14″	E6° 54′ 19″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP24	Nichia Street, Delta Park	N4° 54′ 06′	E6° 54′ 10″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP25	9 Degema Street, Delta Park	N4° 53′ 57″	E6° 54′ 9″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP26	Ghana Ama Street, Delta Park	N4° 54′ 15″	E6° 54′ 30″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP27	Ghana Ama Street, Delta Park	N4° 55′ 01″	E6° 54′ 17″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP28	Ghana Ama Street, Delta Park	N4° 54′ 16″	E6° 54′ 29″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP29	Ghana Ama Street, Delta Park	N4° 54′ 16″	E6° 54′ 28″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP30	Ghana Ama Street, Delta Park	N4° 54′ 15″	E6° 54′ 28″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP31	Degema Street, University Park	N4° 51′ 18″	E6° 54′ 50″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP32	Ali Carpe Verde, University Park	N4° 54′ 23″	E6° 54′ 37″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP33	Ali Carpe Verde, University Park	N4° 54′ 22″	E6° 54′ 4″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP34	Preyi Crescent, University Park	N4° 54′ 26″	E6° 54′ 42″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP35	Gambia Ama, University Park	N4° 54′ 29′	E6° 54′ 45″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP36	2 Nchia Street, Delta Park	N4° 54′ 3″	E6° 54′ 25″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP37	Nchia Street, Delta Park	N4° 54′ 3″	E6° 54′ 24″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP38	Nchia Street, Delta Park	N4° 54′ 2″	E6° 54′ 28″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP39	Nchia Street, Delta Park	N4° 54′ 1″	E6° 54′ 28″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening
SP40	Ali Cape Verde, Delta Park	N4° 53′ 55″	E6° 54′ 26″	Indoor, outdoor	Wet, dry	Morning, afternoon, evening

Experimental design

The conceptual model below shows a hypothetical distribution of atmospheric gaseous pollutants inside and outside residential areas (n = 40) (Figure 2). The independent variables (CH₄, CO, NH₄, NO₂, O₃, and SO₂) are influenced by the time of sample collection, seasons, and collection point, that is, indoor and outdoor (dependent variables). For instance, seasons affect gaseous concentration and determine whether it will be high or low.

Figure 2.

Experimental design of the study of noxious gases done in indoor and outdoor residential areas in Port Harcourt, Nigeria.

All 40 locations were sampled in indoor and outdoor areas at three time periods (morning, afternoon, and evening) during two seasons (dry and wet), giving a total of 480 observations (i.e., n = 2 × 3 × 2 × 40) using the GPS Model 76×. The air quality parameters measured were Sulphur dioxide (SO₂₎, Carbon Monoxide (CO), Nitrogen Dioxide (NO₂), Methane (CH₄), Ozone (O_3), and Ammonia (NH₄).

Stratified random sampling was used to delineate the study area into low and high-density areas.

Sample collection

Multiple air samples were collected between April 2021 (wet season) to October 2021 (dry season) after the calibration of the sensor on 30 April 2021. The measuring instruments were placed in a strategic location of each building; the readings were carried out in situ to measure the number of air parameters found in the building. Samples were collected three times on each sampling day, that is, morning, afternoon, and evening. We visited each location three times each day. The morning, afternoon, and evening samples were collected from 7 to 10 a.m., 12 a.m. to 2 p.m., and 4 to 7 p.m. Diobu, Town, and University of Port Harcourt Choba’s sampling points cover over 15 km.

Sampling instruments

The instruments used for this study included a GPS (Model 76Cx), which was used to determine the coordinates of the sampling points. An Aeroqual series 500 gas monitor was used to assess all the gaseous pollutants in the study area. The gas monitor is a portable meter with highly sensitive replaceable sensors for different gaseous air pollutants.

Sensor calibration

Calibration of the Aeroqual 500 was carried out following the manufacturer’s instructions. The Aeroqual 500 m was used with interchangeable sensor heads to measure the six gases studied, that is, Sulphur Dioxide (SO₂), Methane (CH₄), Ammonia (NH₃), Nitrogen Dioxide (NO₂), Carbon Monoxide (CO), and meter itself is essentially the power supply and electronics platform for the sensor heads that allows the user to display and record the concentration of the target gas. The sensor head houses the sensor itself (i.e., gas-sensitive semiconductor [GSS] or gas-sensitive electrochemical [GSE] sensor) and the control electronics. The sensor used in this study is listed in Table 2.

Table 2.

Detection limit and resolution of gas monitor (Aeroqual series 500) sensor.

Gas	Sensor code	The minimum detection limit (ppm)	Resolution (ppm^†)	Sensor type
CH₄	MT	0.1	0.01	GSS
CO	ECM	0.05	0.01	GSE
NH₄	ENG	0.2	0.1	GSE
NO₂	END	0.1	0.005	GSE
O₃	OZS	0.001	0.001	GSS
SO₂	ESO	0.04	0.01	GSE

^†1 ppm = 1 mg/kg.

(website: http://wwwgassensing.com/downloads/aeroqual/Aeroqual_Handheld_Manual.pdf).

Geospatial analysis

The indoor air quality contours were made using ArcGIS 10.2 software. This software is a Geographic Information System program that integrates spatial data and attributes (indoor air quality values), and stores and analyzes the input variable for graphic presentation.

Modeling of indoor air quality

This indoor modeling uses a mass balance approach to estimate indoor air pollutant concentrations in the study area.²⁴ In this modeling approach, a house was considered a simple box, as shown in Figure 3. The model does not indicate an equilibrium but simply shows the pattern of gaseous movement in and out of an apartment. It shows that the rate of pollutant increase in the box depends on the difference between the cumulative effect of pollutants entering and leaving the box. Meteorological parameters collected in the study include air pressure, relative humidity, wind speed, wind direction, and temperature.

\begin{array}{c} R a t e o f p o l l u t a n t i n c r e a s e i n b o x = R a t e o f p o l l u t a n t e n t e r i n g b o x f r o m o u t d o o r s \\ + R a t e o n p o l l u t a n t e n t e r i n g b o x f r o m i n d o o r s e m i s s i o n s \\ - R a t e o f p o l l u t a n t l e a v i n g b o x b y l e a k a g e t o o u t d o o r \\ - R a t e o f p o l l u t a n t l e a v i n g b o x b y d e c a y \end{array}

(1)

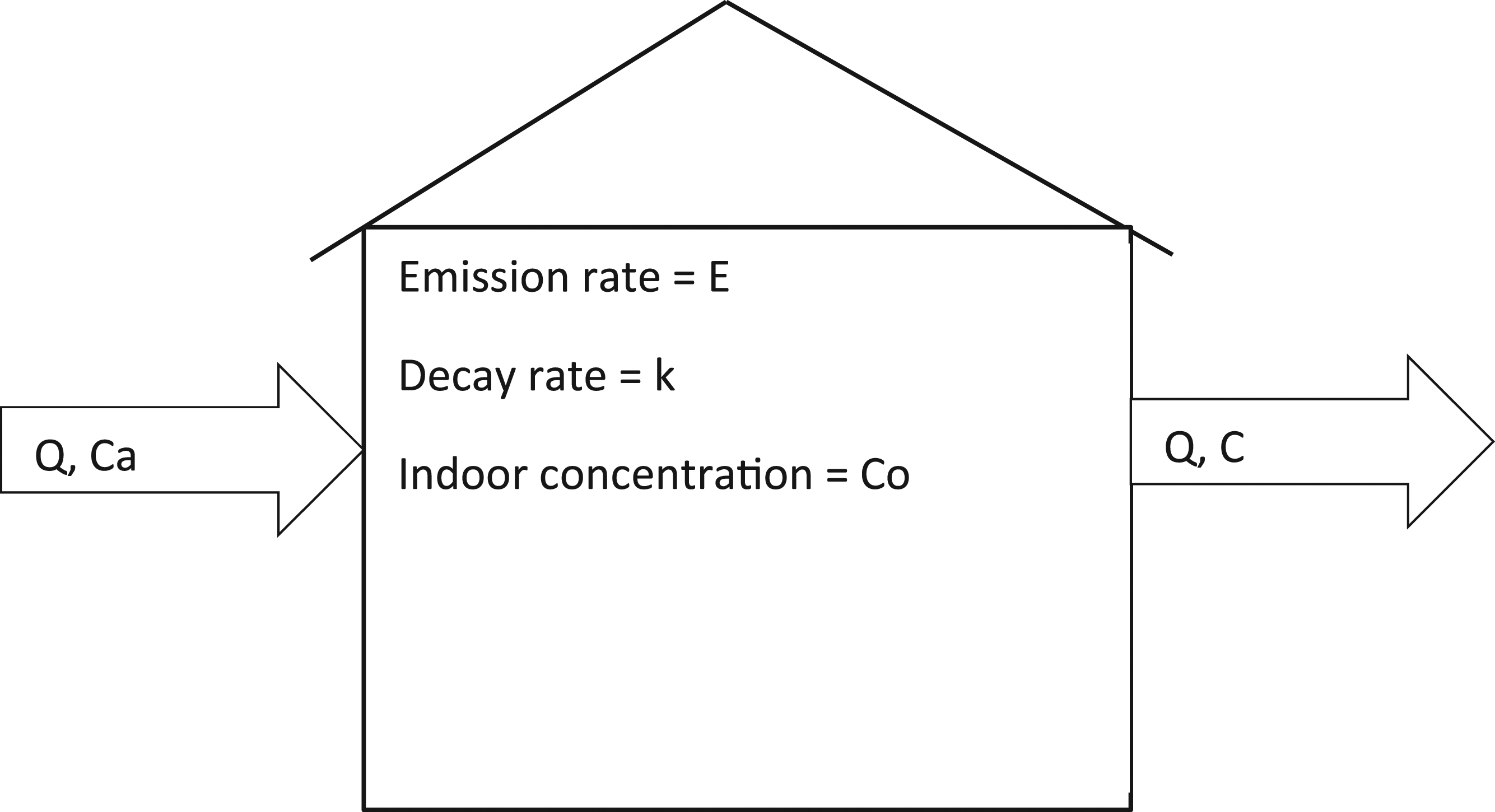

Figure 3.

Mass balance for indoor air quality modeling.

The governing mass balance model for indoor air pollution, as contained in Davis and Cornwell,²⁵ is expressed as given in equation (2)

V \frac{d C}{d t} = Q C_{a} + E - Q C - k C V

(2)

Where,

C = concentrations (μg/m³)

C_a = ambient concentrations (μg/m³)

Q = rate of infiltration of air into and out of the box (m³/s)

V = volume of the box (m³)

E = emission rate of pollutant into the box from indoor source (g/s)

k = pollutant decay constant or rate of reaction coefficient (/s)

Statistical analysis

An analysis of variance (ANOVA) was conducted to determine whether there was a significant difference in gas concentration inside and outside residential buildings at different collection times and seasons. A four-way ANOVA was conducted to determine whether there is any interaction effect. The data was initially log-transformed to ensure they were normal and had equal variances.²⁶ Later, bar graphs were then used to illustrate the results.²⁷ A posthoc Tukey’s HSD test was done to investigate pair-wise mean differences between groups. All analysis was performed in R statistical environment.²⁸

Results

Interaction effect

There was no significant interaction in the four-way interaction when all variables were considered (F_{10, 2808} = 0.217, p = 0.995; Table 3). While in the three-way interactions, the gas, time, and season combination were significant (F_{10, 2808} = 14.592, p = 0.001), whereas the combination that included location was not significant (p > 0.05). As for the two-way interaction, the following were significant: gas versus location, gas versus time, gas versus season, and time versus season (p = 0.001), while the interaction of location vs. time, and location versus season were not significant (p > 0.05). Lastly, the one-way-ANOVA showed a statistically significant difference for all the parameters (p < 0.05).

Table 3.

Four way-ANOVA of the interaction between sampling parameters and noxious gas concentration in residential areas around Port Harcourt, Nigeria.

SOV	Df	SS	MS	F	p-value
Gas	5	6793	1350.5	1836.427	0.001^a
Location (inside vs. outside)	1	11	11.2	15.109	0.01**
Time (morning, afternoon and evening)	2	77	38.7	52.343	0.001^a
Season (wet vs. dry)	1	19	19.2	25.922	0.001^a
Gas × location	5	30	5.9	8.019	0.001^a
Gas × time	10	222	22.2	29.961	0.001^a
Location × time	2	0	0.0	0.004	0.996
Gas × season	5	437	87.4	118.152	0.001^a
Location × season	1	0	0.0	0.028	0.867
Time × season	2	3	11.3	15.319	0.001^a
Gas × location × time	10	1	0.1	0.099	1.000
Gas × location × season	5	2	0.5	0.624	0.681
Gas × time × season	10	108	10.8	14.592	0.001^a
Location × time × season	2	1	0.4	0.545	0.580
Gas × location × time × season	10	2	0.2	0.217	0.995
Residuals	2808	2077	0.7

^aSignificant; ( × multiplicative effect).

In general, the two- three- and four-way interactions show that the concentration of gases in the atmosphere was mainly influenced by time and season (p < 0.001) and not location (p > 0.05) (Table 1).

Assessment of the concentrations of different gases and between inside and outside areas (i.e., location) of residential buildings

The analysis of variance (ANOVA) result indicates that there is a significant difference between gases (F_{5, 2808} = 1836.43, p < 0.001; Figure 3). This means there is a difference in the concentration of the six gases (CH₄, CO, NH₄, NO₂, O₃, and SO₂). The Tukey test also showed that the most significant difference lies between the CO-CH₄, CO-SO₂, CO-O₃, CO-NO₂, and CO-NH₄ combinations at p < 0.0001 (Table 4). Similarly, a significant difference lies in O₃-CH₄, O₃-CO, O₃-NH₂, and O3-NO₂. The inclusion of the location in the ANOVA model moves the p value to non-significance, that is, p > 0.05.

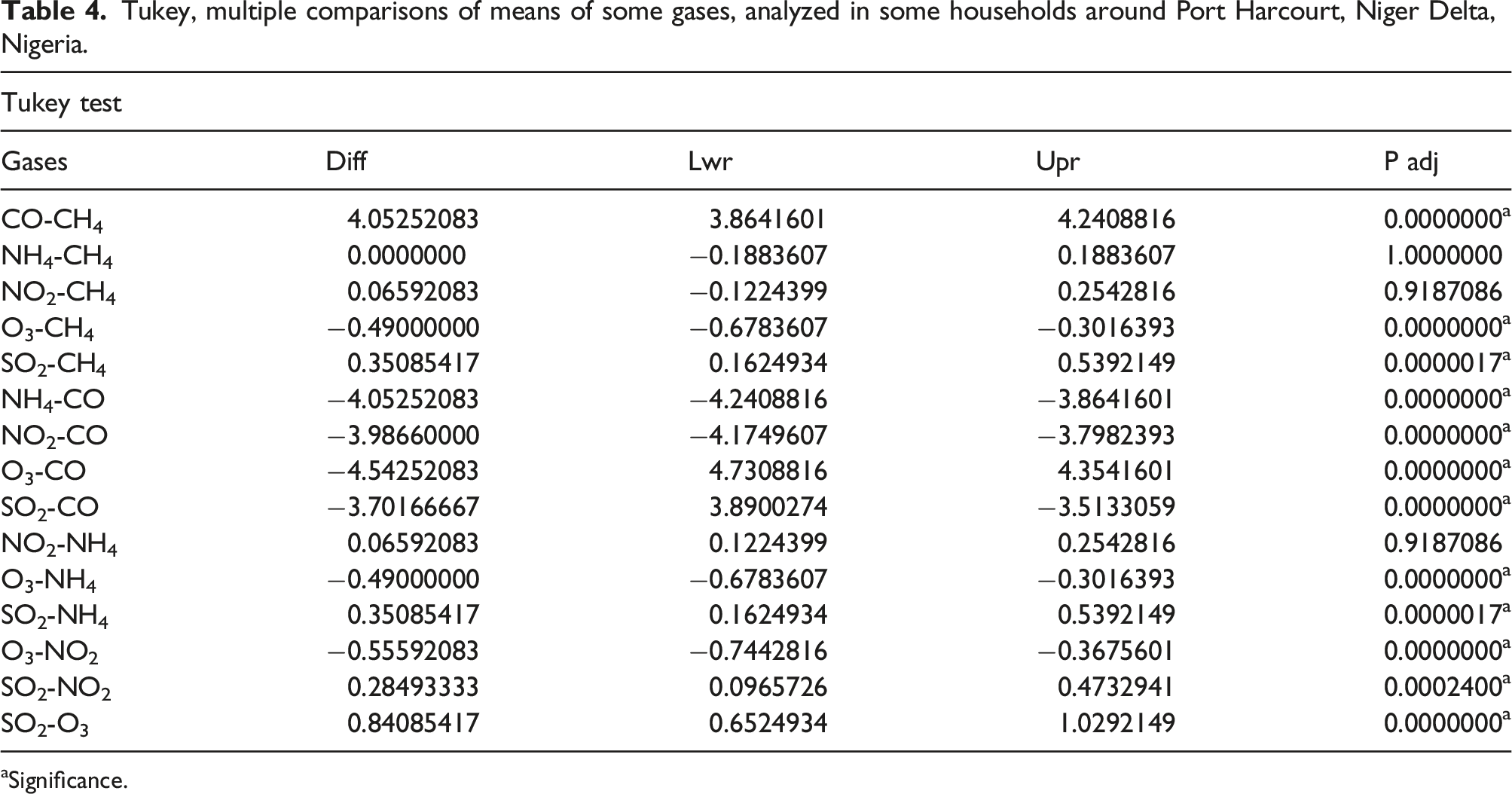

Table 4.

Tukey, multiple comparisons of means of some gases, analyzed in some households around Port Harcourt, Niger Delta, Nigeria.

Tukey test
Gases	Diff	Lwr	Upr	P adj
CO-CH₄	4.05252083	3.8641601	4.2408816	0.0000000^a
NH₄-CH₄	0.0000000	−0.1883607	0.1883607	1.0000000
NO₂-CH₄	0.06592083	−0.1224399	0.2542816	0.9187086
O₃-CH₄	−0.49000000	−0.6783607	−0.3016393	0.0000000^a
SO₂-CH₄	0.35085417	0.1624934	0.5392149	0.0000017^a
NH₄-CO	−4.05252083	−4.2408816	−3.8641601	0.0000000^a
NO₂-CO	−3.98660000	−4.1749607	−3.7982393	0.0000000^a
O₃-CO	−4.54252083	4.7308816	4.3541601	0.0000000^a
SO₂-CO	−3.70166667	3.8900274	−3.5133059	0.0000000^a
NO₂-NH₄	0.06592083	0.1224399	0.2542816	0.9187086
O₃-NH₄	−0.49000000	−0.6783607	−0.3016393	0.0000000^a
SO₂-NH₄	0.35085417	0.1624934	0.5392149	0.0000017^a
O₃-NO₂	−0.55592083	−0.7442816	−0.3675601	0.0000000^a
SO₂-NO₂	0.28493333	0.0965726	0.4732941	0.0002400^a
SO₂-O₃	0.84085417	0.6524934	1.0292149	0.0000000^a

^aSignificance.

Furthermore, for the inside versus outside concentration, the ANOVA result indicates a significant difference in the concentration of gases between inside and outside environments (F_{1, 2808} = 15.11, p < 0.01). The carbon monoxide (CO) concentration for inside and outside environments is significantly higher than the other gases measured (Table 5, Figure 3). In contrast, O₃ had the least concentration in inside and outside environments. The order of concentration is CO > SO₂ > NO₂ > CH₄ > NH₄ > O₃. All the noxious gases were lower than the international limit (WHO) apart from NO₂ and SO₂, which are higher than the limit (Table 5).

Table 5.

Mean levels of noxious gases ±1 SE in inside and outside environments in some communities in Port Harcourt, Niger Delta Nigeria.

Location	Gases (mg/kg)
Location	CH₄	CO	NH₄	NO₂	O₃	SO₂
Inside	0.50 ± 0.03	4.84 ± 0.13	0.50 ± 0.03	0.61 ± 0.06	0.01 ± 0.00	0.90 ± 0.07
Outside	0.50 ± 0.03	4.27 ± 0.14	0.50 ± 0.03	0.52 ± 0.06	0.01 ± 0.00	0.80 ± 0.05
WHO limit^a	0.60	9.00–10.00	0.60	0.20	0.075	0.02

^aWHO (2006).

The concentration of noxious gases inside versus outside of residential areas is further illustrated in a bar graph (Figure 4).

Figure 4.

The concentration of some noxious gases between indoor and outdoor environments around Port Harcourt, Rivers State, Nigeria. The legend shows increasing concentration. At the WHO limit of <0.02 mg/kg, NO₂, O₃, and SO₂ are above the limit, while at 0.60 mg/kg CH₄ and NH₄ are within the limit. Similarly, at >5.0 mg/kg CO is within the limit.

Determination of the concentration between different collection times

The ANOVA result indicates a significant difference in the concentration of gases between the times of sample collection (F_{2, 2808} = 52.34, p < 0.001). Samples collected in the evening had a higher concentration of NO₂ and SO₂, while samples collected in the morning had a higher concentration of CO (Table 6, Figure 5). In other words, the gas concentration remains constant throughout the day, and concentrations decrease from morning to afternoon and then increase in the evening (e.g. CO, NO₂, and SO₂). In contrast, CH₄ and NH₄ are not significantly different from each other.

Table 6.

Mean levels of noxious gases ±1 SE at different collection times in some communities in Port Harcourt, Niger Delta Nigeria.

Time of sample collection	Gases (mg/kg)
Time of sample collection	CH₄	CO	NH₄	NO₂	O₃	SO₂
Morning	0.50 ± 0.04	5.27 ± 0.16	0.50 ± 0.14	0.54 ± 0.07	0.01 ± 0.00	0.86 ± 0.06
Afternoon	0.50 ± 0.04	3.50 ± 0.14	0.50 ± 0.04	0.37 ± 0.05	0.01 ± 0.00	0.71 ± 0.07
Evening	0.50 ± 0.04	4.89 ± 0.16	0.50 ± 0.04	0.79 ± 0.08	0.01 ± 0.00	0.99 ± 0.04
WHO limit	0.60	9.00–10.00	0.60	0.20	0.075	0.02

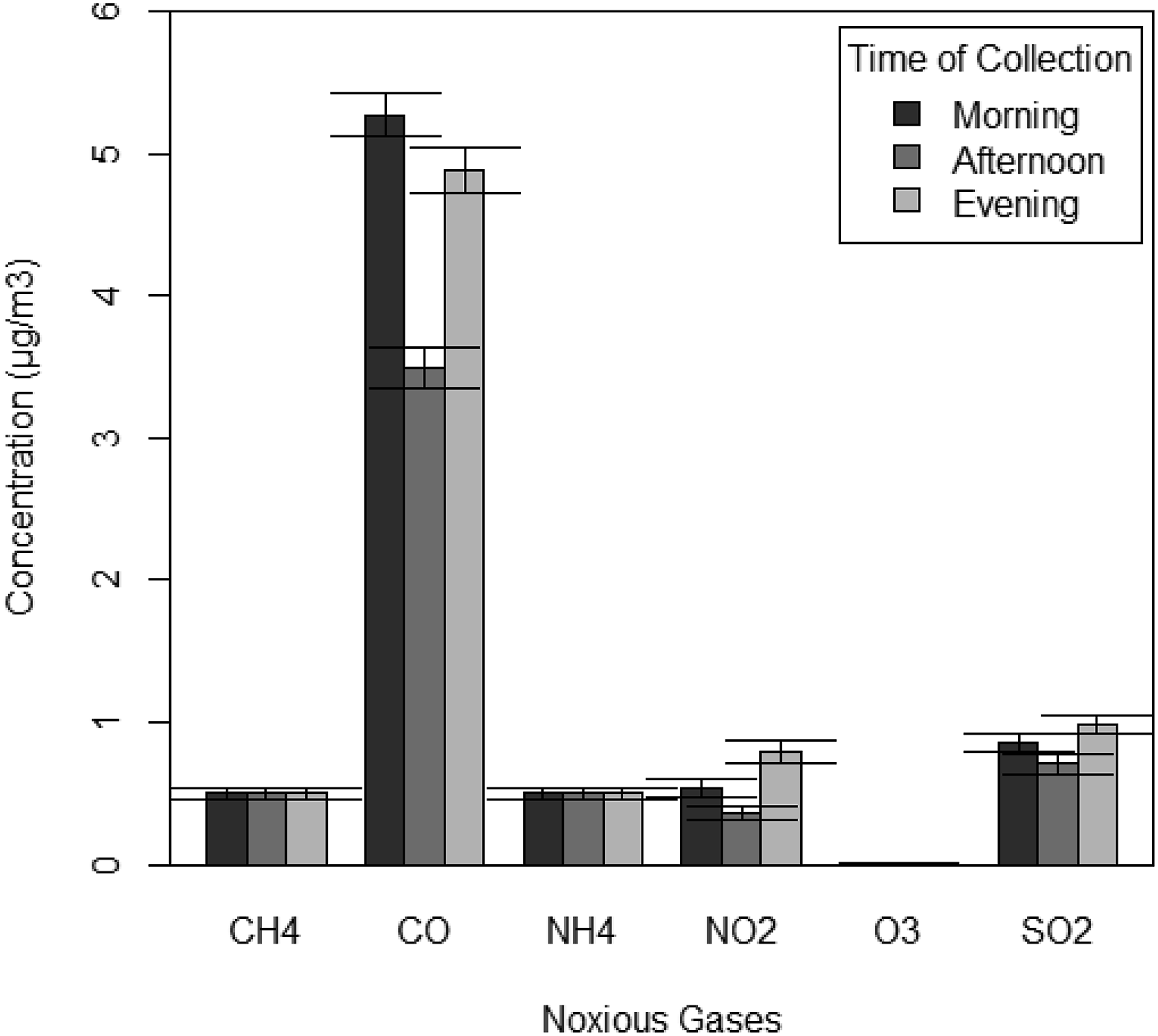

Figure 5.

Concentration of some noxious gases at different collection times (i.e. collection frequency) around Port Harcourt, Rivers State, Nigeria. (Apply the legend of Figure 3 here).

The concentration of noxious gases across the time of sample collection is further illustrated in a bar graph (Figure 5).

Evaluation of the seasonal difference in the air quality in different residential areas

The ANOVA results indicate a significant difference between the dry and wet seasons (F_{1, 2808} = 5.64. p = 0.02, Figure 6). The CH₄, NH₄, NO_2, and SO₂ were higher during the dry seasons, while CO was higher during the wet season. However, the concentration of O₃ was not significantly different (Table 7, Figure 6) in both seasons.

Figure 6.

The concentration of some noxious gases during wet and dry seasons around Port Harcourt, Rivers State, Nigeria. (Apply the legend of Figure 3 here).

Table 7.

Mean levels of noxious gases ±1 SE at different seasons in some communities in Port Harcourt, Niger Delta Nigeria.

Season	Gases (mg/kg)
Season	CH₄	CO	NH₄	NO₂	O₃	SO₂
Dry	1.00 ± 0.01	3.90 ± 0.12	1.00 ± 0.01	0.66 ± 0.06	0.91 ± 0.05	0.91 ± 0.05
Wet	0.01 ± 0.00	5.22 ± 0.14	0.01 ± 0.001	0.47 ± 0.05	0.79 ± 0.06	0.79 ± 0.06

The concentration of noxious gases in wet versus dry seasons is further illustrated in a bar graph (Figure 6).

Spatial interpolation of CO concentrations in the study area

Since CO concentration is significantly higher than other noxious gases, a spatial interpolation map for high and low-population-density areas was drawn (Figure 7). The maps revealed a low CO concentration in the low population density area during the dry season. While during the wet season, there was high CO concentration in the low population density area.

Figure 7.

Spatial interpolation of indoor SO₂ for dry and wet seasons (a and b); NO₂ for wet and dry Season (c and d), and CO for dry and wet season (e and f) in some localities around Port Harcourt, Rivers State, Nigeria.

Discussion

The objective of our study was to determine the concentration of noxious gases inside and outside residential buildings. And to determine the influence time, season and location have on poisonous gas concentration individually and interactively. Our study revealed that noxious gases in indoor and outdoor areas are mostly below the WHO limit except SO₂ and NO₂, which were above the WHO limit (Table 5). Carbon dioxide had the highest concentration in the indoor environment (Table 5) but was well below the WHO limit. Indoor pollutants are more harmful to health than outdoor pollutants,⁹ though, in terms of concentration, the previous study has shown that outdoor pollution is generally greater than indoor pollution.²⁹ Our study showed that the concentration of CO inside buildings was significantly higher than outside buildings. This reflects the use of generators, cooking stoves, and cigarette smoking, which produce CO. Carbon monoxide (CO) reduces the blood’s oxygen-carrying capacity, causing nausea,³⁰ unconsciousness, and death.³¹ This occurs because CO binds more readily to hemoglobin than oxygen and results in carboxyhemoglobin (COHb) formation, which leaves less hemoglobin available for transferring oxygen around the body. EPA (Environmental Protection Agency of US) set an 8-hour primary standard for CO at nine parts per million (ppm).³² However, in the absence of emission sources, concentrations of CO in indoor environments are generally lower than those outdoors.

On the other hand, NOx is a combination of NO₂ and NO pollutant concentrations.³³ The combustion of fossil fuels mainly produces nitric oxide. The primary sources of NOx are vehicle exhausts like diesel, petrol, liquefied petroleum gas (LPG), and compressed natural gas (CNG).³⁴ The concentration of NO₂ is also slightly higher inside residential buildings because of the accumulation of indoor and outdoor gases inside buildings. Nitrogen dioxide gas is mostly derived from generating sets used to provide electricity in buildings.³⁵ This is because of the irregular electricity supply by the electric power authority in many areas around the city. Almost every house has a power generating set that provides electric power. This generating set releases smoke into living homes, thus contaminating the indoor environment with other noxious gases, for example, SO₂. In addition, vehicle emissions also migrate into houses to increase the pollutants load, especially in dwellings near major roads in the city. Here, NO₂ is produced as a combustion product from fossil fuel cars. This gas is also produced from industrial emissions, as observed in areas near the Port Harcourt refinery that receive pollutants from gas flaring activity. Increased indoor and outdoor pollutants increase the risk of different types of cancers.^35–37 Harmful atmospheric gases have increased in the city because of the proliferation of artisanal refineries in the creeks around the city.³⁸

The higher concentrations of NO₂ and SO₂ in the evening are because of the “rush-hour” period, where there is an increase in vehicular traffic on the road. Concentrations of NO₂ and SO₂ are above the WHO limits of 0.2 mg/kg, and 0.02 mg/kg, respectively (Tables 6 and 7), and are mostly the components of vehicle exhaust. Increased traffic causes slow movement of vehicles and results in more gases from car exhaust. Another factor is the increased use of generating sets to supply electricity during the evenings. Sulphur dioxide (SO₂) is readily soluble in water, can be oxidized within airborne water droplets, and is formed because of the combustion of fuels like petrol, diesel, and coal containing sulphur.⁵ Thermal power plants and diesel vehicles are also major sources of SO₂.³⁹ Our study shows that SO₂ has a higher concentration inside (0.90 ± 0.07 mg/kg) than outside (0.80 ± 0.05 mg/kg) buildings (Table 6). In contrast, studies sulphur dioxide concentration is generally higher outdoors than indoors, especially during the evenings.⁴⁰ Absorption of SO₂ affects the respiratory system⁴¹ A higher concentration of CO in the morning might be because of higher cooking activities by various families in the morning.

Higher concentrations of most of the gases (i.e. CH₄, CO, NH₄, NO_2, and SO₂) during the dry season is because of the low humidity and dryness of the atmosphere, which facilitates the atmospheric distribution of the gases. Harmattan wind causes an increase in wind action, which enables the movement and distribution of pollutants in the air. During the wet season, most atmospheric gases are washed down as “acid rain” onto the land surface. This is shown in Figure 5, where the wet season concentrations of CH₄ and NH₄ are low compared to the dry season. A similar result is replicated by high concentrations of SO₂ and NO₂ during the dry season than in the wet season. The concentration of CO is higher during the wet season than during the dry season because of increased cooking with firewood and stove during the festive period (October–February). Sociocultural activities such as new yam festivals, child naming ceremonies, and traditional weddings lead to the use of firewood for cooking, which inevitably increases the CO level around urban and rural environments. Also, Studies show that CO is an acute indoor toxic air contaminant caused by increased cooking with a kerosene stove, smoking, and use of generating set to supply the electricity in indoor and outdoor environments.⁴² These gases have the potential to cause public health problems⁴³ and pollution-related mortality.^44–46

Our results indicate that the season affected CO concentration in the indoor environment (Figure 6). There was higher CO concentration indoors during the wet season because the CO concentration outside is washed by rainfall to form “acid rain.”

Our study also revealed that time and season (independent variables) have a more significant effect on noxious gas concentration than location (inside or outside residential buildings). This is supported by the fact that the two and three-way ANOVAs having location as a factor has a non-significant p-value (Table 5). Collection time determines if there is high traffic on the road and, thus, high exhaust emission. Similarly, the time of the year determines the increase or decrease in environmental parameters such as humidity, temperature, etc., which will impede or accelerate the proliferation of gaseous pollutants at the time of sample collection. Future studies will consider environmental and epidemiological data, which will be correlated with zones of high noxious gas concentrations around the study areas. This is because biomass burning during cooking increases atmospheric particulate matter, which results in increased deaths and diseases.⁴⁷ It is also reported that environmental factors cause 24% of the global disease burden and 23% of all deaths.⁴⁸

Conclusions

The time of sample collection, season, and location are essential factors in toxic gas concentration in the atmosphere. Samples collected in the morning and evening show high concentrations of NO₂, SO₂, and CO, which are poisonous gases that affect health if found indoors or outdoors. This is because, in the morning, there is a spike in the concentration of CO due to an increase in traffic, while in the evening, there is an increase in NO₂ and SO₂ because of the rush home traffic and roadside cooking activities. Since time and season are influenced, gaseous concentration city dwellers should be careful about how they expose themselves to pollutants by avoiding highly polluted environments. They can also wear a nose mask to prevent inhaling toxic gases.

This study indicates that it is essential to investigate and monitor the concentrations of poisonous gases and other particulate matter and their interactive effect on residential areas. The result shows that most of the gases are not at a hazardous concentration; however, if they are not monitored, they may rise to a level that is harmful to human health.

Footnotes

Acknowledgment

We thank the Director of the Institute of Natural Resources, Environment, and Sustainable Development (INRES), A.I. Hart, for providing a supporting letter for our lead researcher. Arc. M.A. Ibom for facilitating the approval of the letter from the University and E. Oti of the Ministry of Urban Development for facilitating access to residential settlements.

Author contributions

FMO: carried out the sampling, and wrote the manuscript, AON: did statistical analysis and wrote manuscript, AO: supervised the project, DSO; conceptualized the project and edited the manuscript.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/ or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Informed consent

The Institute of natural resources and sustainable development was informed of the use of questionnaires.

Availability of data and materials

Data would be available on request through the corresponding author

ORCID iD

Aroloye O Numbere

References

Tong

Bambrick

Beggs

, et al. Current and future threats to human health in the anthropocene. Environ Int 2022; 158: 106892.

Shikazono

. Introduction to earth and planetary system science: a new view of the earth, planets, and humans. In: Introduction to earth and planetary system science. Tokyo: Springer, 2012, pp. 1–10.

Pillarisetti

Chowdhury

. Indoor air pollution and health: bridging perspectives from developing and developed countries. Annu Rev Environ Resour 2022; 47: 197–229.

Pérez-Padilla

Schilmann

Riojas-Rodriguez

. Respiratory health effects of indoor air pollution. Int J Tuberc Lung Dis 2010; 14: 1079–1086.

Apte

Salvi

Household air pollution and its effects on health. F1000Research 2016; 5: F1000.

World Health Organization . Air quality guidelines: global update 2005: particulate matter, ozone, nitrogen dioxide, and sulfur dioxide. Geneva, Switzerland: World Health Organization, 2006.

Okonkwo

Okpala

Opara

. Assessment of automobile induced pollution in an urban area (a case study of Port-Harcourt city, Rivers State, Nigeria). J Chem Proc Eng 2014; 25: 12–15.

Ede

Edokpa

. Regional air quality of the Nigeria’s Niger Delta. Open J Air Pollut 2015; 4: 7–15.

Omole

Ndambuki

. Sustainable living in Africa: case of water, sanitation, air pollution and energy. Sustainability 2014; 6: 5187–5202.

10.

Patha

Cole

Barnes

. Reducing risk of respiratory illness associated with traditional cookstoves in a rural community in India: an initial assessment. J Environ Health 2017; 80(3): E1–E7.

11.

Onwuka

Ezigbo

Eneche

PSU

. Assessment of noise pollution from power generating sets: a case study of Nnewi-North LGA, Nigeria. J Sci Res Rep 2017; 16: 1–12.

12.

Sulaiman

Abdul-Rahim

Chin

, et al. Wood fuel consumption and mortality rates in Sub-Saharan Africa: evidence from a dynamic panel study. Chemosphere 2017; 177: 224–231.

13.

Park

Kim

, et al. Long-term exposure to ambient air pollutants and hearing loss in Korean adults. Sci Total Environ 2022; 820: 153124.

14.

Jadoon

Nawazish

Mahmood

, et al. Exploring health impacts of occupational exposure to carbon monoxide in the labour community of hattar industrial estate. Atmosphere 2022; 13(3): 406.

15.

Kijanka

Kawecki

Białoń

, et al. Three-step analysis of symptoms of carbon monoxide poisoning in pre-hospital medical response teams. Emerg Med Serv 2022; 9(1): 48–54.

16.

Tian

, et al. ER stress-related protein, CHOP, may serve as a biomarker of mechanical asphyxia: a primary study. Int J Leg Med 2022; 136(4): 1091–1104.

17.

Anakwue

. Cardiovascular disease risk profiling in Africa: environmental pollutants are not on the agenda. Cardiovas Toxicol 2014; 14: 193–207.

18.

Ayotamuno

Gobo

. Municipal Solid Waste Management in Port Harcourt, Nigeria: Obstacles and Prospects. Management of Environmental Quality: An International Journal 2004; 15: 389–398.

19.

Echendu

Georgeou

. “Not Going to Plan”: Urban Planning, Flooding, and Sustainability in Port Harcourt City, Nigeria. In Urban Forum (pp. 1-22). Springer; 2021.

20.

Yakubu

. Particle (soot) pollution in Port Harcourt Rivers State, Nigeria—double air pollution burden? understanding and tackling potential environmental public health impacts. Environments 2018; 5: 2.

21.

Weli

Worlu

. Recent rainstorm dynamics and its implications for flood frequency in sub-humid tropical city of Port Harcourt Nigeria. J Geogr Thought 2011; 12: 31–81.

22.

Eludoyin

Weli

. Spatial analysis of flood vulnerability levels in Port Harcourt metropolis using GIS. J Earth Sci Eng 2011; 2: 617–623.

23.

Wali

Urbanization and loss of wetland in port-harcourt metropolis, Nigeria. Doctoral dissertation. University of Science and Technology: Port Harcourt, 2017.

24.

Akintola

Sonibare

. Advection-diffusion model for indoor-outdoor exchange of air pollutants from electric power generators servicing buildings. Cogent Eng 2022; 9: 2076321.

25.

Davis

Cornwell

. Introduction to Environmental Engineering (4ed ed.). McGraw-Hill International Edition, 2008.

26.

Logan

. Biostatistical design and analysis using R: a practical guide. New York, NY: John Wiley & Sons, 2010.

27.

Quinn

Keough

. Experimental design and data analysis for biologists. London: Cambridge University Press, 2002.

28.

R Development Core Team . R: A language and environment for statistical computing. Vienna, Austria: R Foundation for Statistical Computing, 2013, http://www.R-project.org

29.

Karzai

Zhang

Sutton

, et al. Ambient particulate matter air pollution is associated with increased risk of papillary thyroid cancer. Surgery 2021; 171: 212–219.

30.

Meo

Almutairi

Abukhalaf

, et al. Sandstorm and its effect on particulate matter PM 2.5, carbon monoxide, nitrogen dioxide, ozone pollutants and SARS-CoV-2 cases and deaths. Sci Total Environ 2021; 795: 148764.

31.

TTT

Hsu

Wee

, et al. Carbon monoxide-releasing molecule-2 ameliorates particulate matter-induced aorta inflammation via Toll-like receptor/NADPH oxidase/ROS/NF-κB/IL-6 inhibition. Oxid Med Cell Long 2021; 2021: 2855042.

32.

Nopmongcol

Emery

Sakulyanontvittaya

, et al. A modeling analysis of alternative primary and secondary US ozone standards in urban and rural areas. Atmos Environ 2014; 99: 266–276.

33.

Carslaw

. Evidence of an increasing NO2/NOx emissions ratio from road traffic emissions. Atmos Environ 2055; 39: 4793–4802.

34.

Khan

Yasmin

Shakoor

. International experience with compressed natural gas (CNG) as environmentally friendly fuel. Energ Syst 2015; 6(4): 507–531.

35.

Guttikunda

Jawahar

. Atmospheric emissions and pollution from the coal-fired thermal power plants in India. Atmos Environ 2014; 92: 449–460.

36.

Liu

Tian

, et al. Short-term effects of indoor and outdoor air pollution on the lung cancer morbidity in Henan Province, Central China. Environ Geochem Health 2021; 44(8): 2711–2731.

37.

Hong

Liao

, et al. Air pollution increases human health risks of PM2. 5-bound PAHs and nitro-PAHs in the Yangtze River Delta, China. Sci Total Environ 2021; 770: 145402.

38.

Numbere

Maduike

. The impact of unsustainable exploitation of forest and aquatic resources of the Niger Delta, Nigeria. In: Biodiversity in Africa: potentials, threats and conservation. Singapore: Springer, 2022, pp. 239–265.

39.

Khader

. Air pollution and health outcomes in the Eastern Mediterranean Region: Knowledge and research gaps and need. In: Laher

(ed) Handbook of healthcare in the Arab world. Cham: Springer, 2021, pp. 1361–1404..

40.

Rodríguez-Albelo

López-Maya

Hamad

, et al. Selective sulfur dioxide adsorption on crystal defect sites on an isoreticular metal-organic framework series. Nat Commun 2017; 8: 14457.

41.

Grøntoft

Raychaudhuri

. Compilation of tables of surface deposition velocities for O3, NO2 and SO2 to a range of indoor surfaces. Atmos Environ 2004; 38: 533–544.

42.

Arbex

Santiago

Moyses

, et al. Impact of urban air pollution on acute upper respiratory tract infections. Adv Top Environ Health Air Pollut Case Stud 2011; 237–250.

43.

Chen

Rennie

Lockinger

, et al. Gender, environmental tobacco smoke, and pulmonary function in rural children and adolescents: the Humboldt study. J Agricul Safety Health 2005; 11: 167–173.

44.

United State Environmental Protection Agency (USEPA) . Environment and contaminants: criteria air pollutants, 1986. https://www.epa.gov/sites/production/files/2015-10/documents/ace3_criteria_air_pollutants.pdf (accessed 6 November 2021).

45.

World Health Organization . Global health risks: mortality and burden of disease attributable to select major risks. Geneva, Switzerland: World Health Organization, 2009.

46.

Lelieveld

Evans

Fnais

, et al. The contribution of outdoor air pollution sources to premature mortality on a global scale. Nature 2015; 525: 67–371.

47.

Ezzati

Kammen

. The health impacts of exposure to indoor air pollution from solid fuels in developing countries: knowledge, gaps, and data needs. Environ Health Perspect 2002; 110(11): 1057–1068.

48.

Prüss-Üstün

Corvalán

World Health Organization . Preventing disease through healthy environments: towards an estimate of the environmental burden of disease WHO. 2006. Geneva, Switzerland: World Health Organization, 2017.

49.

Akukwe

Ogbodo

. Spatial analysis of vulnerability to flooding in Port Harcourt metropolis, Nigeria. Sage Open 2015; 5: 2158244015575558.
