Predicting housing deprivation from space in the slums of Dhaka

Introduction

One in three urban residents live in slums globally, which are characterized by poor housing quality, lack of basic services and secured tenure. A key challenge in designing effective slum policies is the lack of reliable and updated data. International development agencies as well as national and municipal governments rarely have access to up-to-date, reliable information on the number and characteristics of slums (Lucci et al., 2018), which makes it difficult for them to formulate effective interventions, programs, and policies. For example, Briggs (2018) showed that aid from the World Bank and the African Development Bank did not accurately target the poorest populations across Africa and went to the relatively affluent areas. It is, therefore, critical to identify the most deprived populations in a reliable and timely manner in resource scarce settings such as those found in the slums of developing countries.

This paper develops one such approach to identify, prioritize, and target deprived slums for effective and equitable policy interventions. The traditional source of information on slums is either resource intensive surveys or population Censuses that tend to be at lower frequency and often conducted irregularaly in developing countries. To complement these sources, we build on the potential of very-high resolution (VHR) as well as open-source Earth Observation (EO) data to predict various housing conditions in slums, namely, access to water, sanitation, electricity, permanent structure, tenure security, and adequate living space.

The structure of the paper is as follows: first we review empirical applications of slum mapping and situates this study at the intersection of the theory and epistemology of housing deprivation. Next, we describe the case study, data, measurements, and the analytic methods, followed by the results of the regression analyses. Finally, we discuss the significance of this work in the context of the science of slum mapping as well as for slum policies in the global South and conclude with a brief summary and directions for future research.

Literature review

Remote sensing (RS) and satellite imagery have been considered important sources of information to understand and analyze the ecological aspects of urbanization (Nichol and Wong, 2006; Pham et al., 2011; Rajasekar and Weng, 2009; Rashed et al., 2001; Weber and Hirsch, 1991). VHR satellite images have also been used to identify pockets of urban poverty in several cities around the world (Emmanuel, 1997; Jenerette et al., 2007; Kit et al., 2012). Importantly, Lo (1997), Li and Weng (2007), and Weeks et al. (2007), among others, have extracted environmental characteristics such as vegetation cover, impervious surfaces, and the amount of bare soil from satellite images and showed that these Land Use/Land Cover (LULC) features could predict socio-economic conditions of residential areas that were traditionally collected with surveys and censuses. These relationships are grounded in the reasonable assumption that the physical conditions of the lived environment are good indicators of the socio-economic characteristics of the residents of that settlement. This is not to suggest that remotely sensed data, as an empirical tool to estimate poverty, obviates the need for field-based methods such as surveys and censuses. Rather, VHR imagery can provide quicker identification of areas that are deficient in urban infrastructure and services and can aid in the estimation of urban growth (e.g. mapping population growth and changes in LULC) and future demand for public services without the delays associated with time-intensive ground surveys and infrequently and irregularly administered censuses.

More relevant still, researchers have identified and delineated slums and informal settlements within those urban areas using RS data. For example, Rhinane et al. (2011) used an object-oriented classification approach to map slums in Casablanca, Morocco with an accuracy of 85%. Several RS approaches have also been utilized to obtain up-to-date and quick information on the location and growth of slums. Kit et al. (2012) proposed using a lacunarity method to extract slum pockets from QuickBird satellite images for the case of Hyderabad, India. RS can also play a key role in analyzing space-time dynamics such as monitoring densification and expansion of settlements or assisting with the implementation of slum improvement policies (Patino and Duque, 2013). Kuffer et al. (2016) have provided a comprehensive review of these and other RS based slum-mapping studies over the period of 2000–2015 and emphasized the need for exploring the systematic relationship between image elements and slum characteristics observed on the ground.

There has been number of studies focusing on morphological aspects of slums, that is, identifying, and delineating slum boundaries within urban areas. For example, Duque et al. (2017) developed a machine learning approach for the automatic identification of slums from VHR imagery in three cities of Latin America; Kuffer et al. (2016) analyzed VHR imagery to not only identify slums but also to capture the diversity of slum types in Mumbai; Mboga et al. (2017) used neural networks to identify slums in Dar es Salaam; Wurm et al. (2017) used a random forest classifier to map slums in Mumbai; Leonita et al. (2018) used Machine Learning methods to identify slums in Bandung City; Prabhu and Raja (2018) used feature extraction techniques to map slums in Madurai; Pratomo et al. (2018) showed the temporal dynamics of slums in Jakarta using RS data from multiple time periods; Taubenböck, Kraff, and Wurm (2018) provided evidence from 44 cities to show that slums have similar physical features and open the possibility of universal models for slum identification. A review of studies that use VHR for slum mapping has also been undertaken by Mahabir et al. (2018). More recently, slum-mapping studies have focused on methodological advancements to develop models with increasing accuracy. For example, Stark et al. (2019) and Wurm et al. (2019) have explored the potential of fully convolutional neural networks, Stark et al. (2020) developed a transfer-learned fully convolutional exception network while Fisher et al. (2022) developed a convolutional deep learning model. However, these studies have focused on the morphological and geographic aspects of slum identification and delineation, but they have not considered living conditions of the people living in those slums.

Importantly, Duque et al. (2015) and Hofmann (2001) have argued that poverty measures such as individual level income and consumption require a heavy investment in time and money to conduct large-scale surveys; hence, there is a need to devise alternative methods. There is growing interest among researchers to devise methods for time- and cost-efficient estimation of social and spatial indicators such as the extent of poverty and locations of the hotspots of deprivation to facilitate targeted investments by practitioners and policymakers. To this end, only a handful of studies have attempted to predict outcome indicators obtained from a pre-existing census or survey as a function of variables derived from RS (Duque et al., 2015; Stoler et al., 2012; Taubenböck and Kraff, 2014). Taubenböck and Kraff (2014) delineated and defined slum areas using remotely sensed data while Duque et al. (2015) and Stoler et al. (2012) modeled a Slum Index (computed from survey and census data, respectively) that measures various degrees of household deprivation in slums. Our study builds on these works and contributes to this growing field by developing a model that could be used to predict various housing deprivations within slums.

Specifically builds on the pioneering work by Duque et al. (2015), which explores the potential of RS imagery to measure variability in poverty within a city by predicting multiple deprivations using a value-focused slum index. Similar to Duque et al.’s approach, here we use EO data on urban land use and land cover to estimate multidimensional housing deprivation. In an important departure, we predict multiple types of deprivation using household level data. We utilize the Slum Severity Index (SSI) developed by Patel et al. (2014, 2019, 2020) that measures multidimensional deprivation scores. The SSI aggregates the five measures of housing deprivation that are used to define a slum and are proposed by the UN-HABITAT (2010). These five measures include lack of access to adequate water, sanitation, tenure security, durable housing structure, and sufficient living space. In this study, we add a sixth variable of deprivation—access to electricity—to the original SSI for a more comprehensive measurement of housing deprivation. Second, in addition to the RS indicators, we incorporate geospatial variables such as distance to commercial centers, major road junctions, and social amenities to predict multiple housing deprivation. Thus, the purpose of this study is not only to identify a set of spatial variables for image-based identification of various types of housing deprivation within slum areas but also to contribute to a global inventory of slum indicators and extraction methods for slum mapping (Kuffer et al., 2016: 5) that in turn, can facilitate knowledge-sharing among scholars and policymakers for targeted policy interventions for achieving the SDGs, in particular SDG 11, which aims to make cities and settlements inclusive.

Location variables like distance to a central business district (CBD) or zones of industrial activity have been found to be good predictors of average housing values in a neighborhood. Hence, we expect that proximity to the CBD, major transit nodes, paved roads, and social amenities like schools and hospitals will be likely predictors of better housing conditions. Following Patino and Duque (2013: 7) advice on incorporating RS variables in slum detection that are broadly applicable to slums worldwide, we used OpenStreetMap (OSM) to map road networks. We created several indicators that characterize the nature of road networks including a winding index, the typology of the road network, the distance to paved roads, and the connectivity of the road network to transit nodes and social amenities (Hofmann., 2001; Siluzas and Kuffer, 2008). A high winding index reflects informal street patterns that are likely to be associated with poor living conditions especially due to lack of piped networks for water and sanitation that are typically found along planned streets.

Other physical attributes of the neighborhood’s structure included in this study are built-up homogeneity and density, density of continuous residential urban fabric, and the presence of water bodies and green space (Barros and Sobreira, 2008; Taubenböck et al., 2018). Based on these studies, higher density is expected to be correlated with deprivation while the lower built-up homogeneity in size and materials is less likely to have deprivation. We also expect that the presence of green space within slums will be associated with lower deprivation, and the presence of water bodies within slums will be associated with greater deprivation. This combination of internal and external characteristics of a neighborhood to identify slums and predict the variability of deprivation among them allows us to address some of the challenges highlighted by Kohli et al. (2012) in relying solely on building density measures for mapping slums and predicting deprivation. In addition to these pre-tested variables, we also consider that mean dwelling size, dwelling separation, and estimated dwelling height and age might relate to housing deprivation. We expect that mean dwelling size and the mean distance between two dwellings can help us predict the overcrowding indicator.

Data and methods

This section provides a brief overview of Dhaka, our case study city, a description of the datasets and indicators, and analytical strategies. We used two types of data: household survey data and EO data, which form the dependent and independent variables, respectively, for the regression models. We describe both data followed by a discussion of the analytical methods.

BUISB household survey data

We used the BUISB household survey conducted by the World Bank Group in May of 2016 as our primary source of information on household level deprivation to test how accurately remotely sensed EO and open-source GIS data could predict these deprivations. The survey collected data on housing conditions from 600 slum households in 63 slum communities of Dhaka (Figure 1).OPEN IN VIEWER

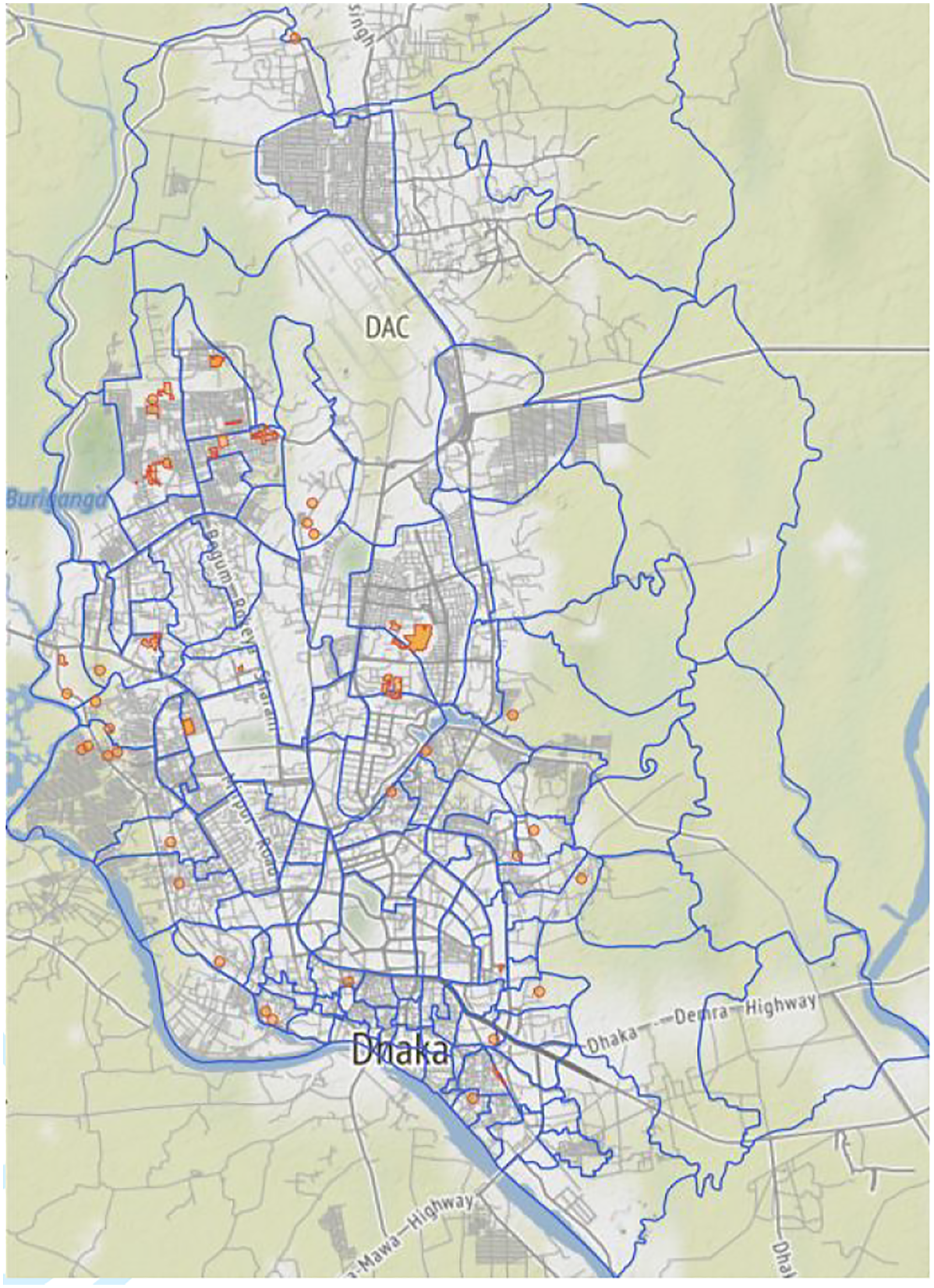

Figure 1.

Sampled slum communities (shown in orange) in Dhaka, Bangladesh.

The sampling frame for the BUISB survey was generated from the BBS Census of Slums and Floating Population (2015) that was comprised of 3360 informal/slum settlements. The BBS Census classified slums into three categories: (i) small (5–10 households); (ii) medium (11–200 households); and (iii) large (more than 200 households). The BUISB survey first sampled 63 slums using probability proportion to size (PPS), and then in the second stage, selected households using the systematic equal probability sampling from those 63 settlements. The survey sampled five households from each small slum, and 10 households from medium and large slums (Table 1).

OPEN IN VIEWER

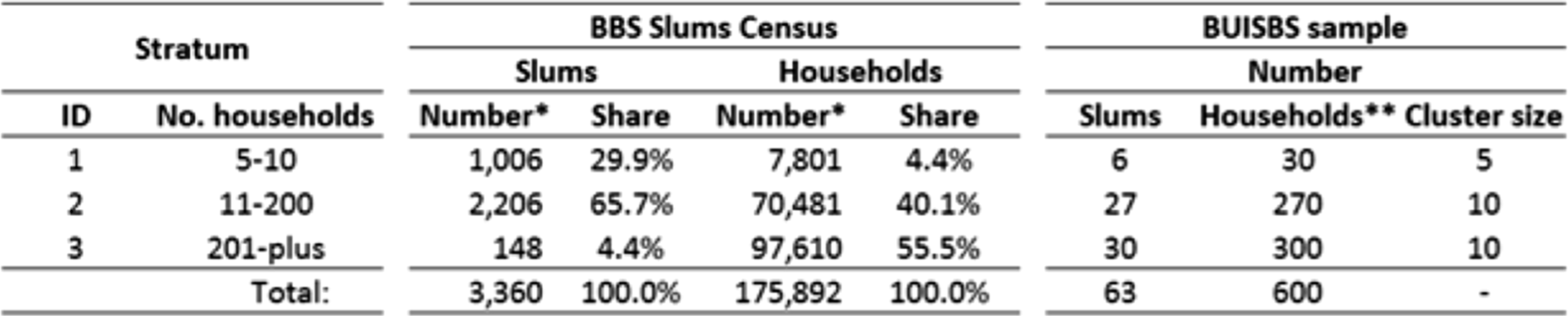

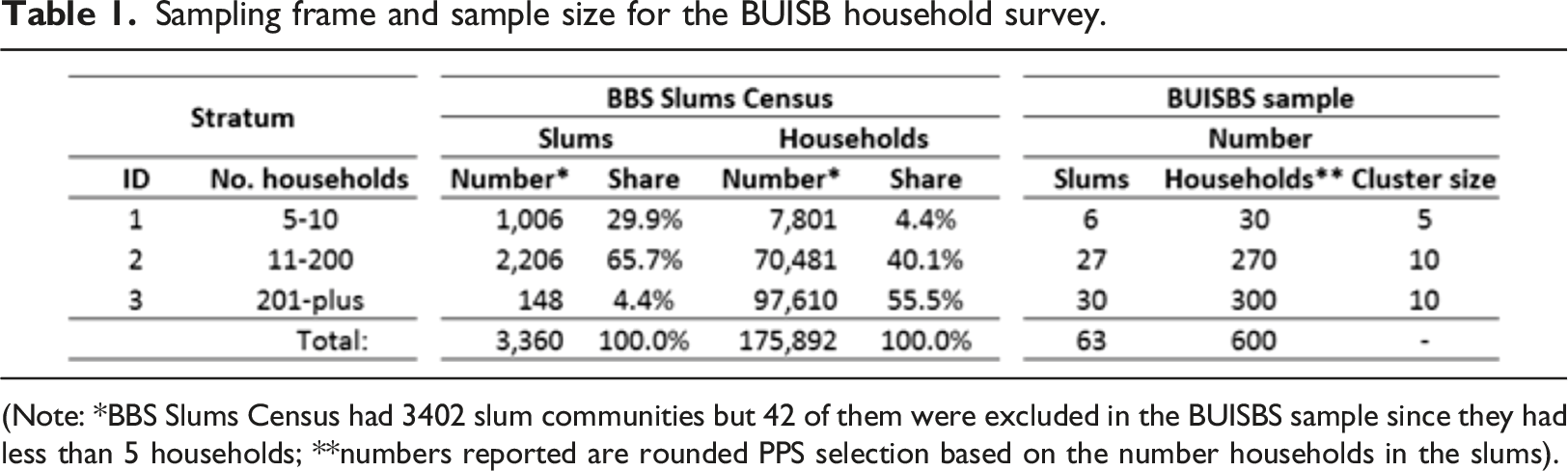

Table 1.

Sampling frame and sample size for the BUISB household survey.

(Note: *BBS Slums Census had 3402 slum communities but 42 of them were excluded in the BUISBS sample since they had less than 5 households; **numbers reported are rounded PPS selection based on the number households in the slums).

The data were collected over a period of 16 days between May 12 and 28 May 2016, with 30 teams of two interviewers each, and the survey administered to 600 slum households yielded a response rate of 98%. The final study sample was comprised of 588 slum households: 30 from small slums, 259 from medium slums, and 299 from large slums.

Analytic methods

Slum level models were created using dependent variables aggregated from household observations within each slum. Since aggregate measures can be treated as count variables (e.g. the total number of households lacking a housing element in a slum), Poisson regression was used. Only in the case of overcrowding, assumptions for Poisson regression did not hold and hence an Ordinary Least Square (OLS) regression model was constructed using the percent of overcrowded households as an outcome measure. There are seven models in total (six for each of the measures of deprivation in housing and basic services, and the seventh for the aggregate SSI); six of them used Poisson regression and one of them (overcrowding) used OLS regression.

Equation (1) presents a generic equation for all six Poisson regression models

Y = e ln ( E ) + β X

(1)

where Y represents the expected count of deprivation in a slum, X represents explanatory variables derived from EO data (e.g. locational aspects, access, hazard susceptibility, morphology, relational measures about space, and structural measures) and E represents the number of surveyed households.

Equation (2) presents the equation for the OLS regression model

Y = β 0 + β X + ε

(2)

where Y represents the dependent variable (overcrowding) in slums and X represents the explanatory variables derived from EO data.

Explanatory variables were selected using the standard stepwise regression procedure that involved selecting the variables that minimize the model’s Akaike Information Criterion (AIC). Overdispersion in count data was verified and the likelihood ratio test of alpha was used to check if the Poisson regression was appropriate, or the negative binomial regression should be considered to tackle potential overdispersion. In all six cases, Poisson regression was appropriate.

Analysis and results

Descriptive statistics

The BUISB household survey reveals that a typical slum household has 4.3 members, household heads are on average 39 years old and have been living in the slum for around 8.6 years, suggesting that deprived living conditions for a typical family are not short-term. Overcrowding, poor housing conditions, and fear of eviction are salient features of lives in slums. One room is normally shared by three people and rooms are on average 12 square meters in area. Housing structures are either temporary, largely constructed using low quality materials including tin-sheds (59% of housing structures) or semi-permanent (29% of housing structures). Only 12% of the housing units are constructed with permanent construction materials. Over half of the slum households reported living under fear of eviction. About 70% of slum residents were renters.

Table 2 provides summary statistics for each of the measures included in the SSI for the sampled households in Dhaka. Lack of adequate space is the most prevalent problem in slums whereas access to water and electricity seems almost universal. These decomposed measures provide a better understanding of housing deprivation compared to a simple slum/non-slum dichotomy for urban planning and policymaking. In addition, they provide readily useful inter- and intra-slum information for policymakers by rapidly identifying which dimension of housing and basic services requires their attention.

OPEN IN VIEWER

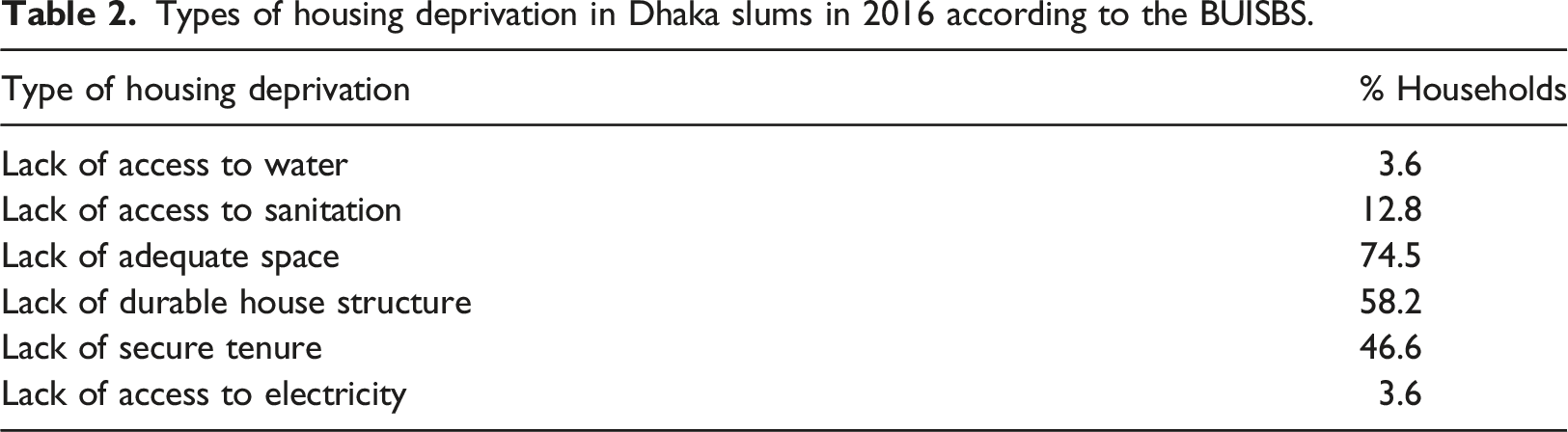

Table 2.

Types of housing deprivation in Dhaka slums in 2016 according to the BUISBS.

Type of housing deprivation	% Households
Lack of access to water	3.6
Lack of access to sanitation	12.8
Lack of adequate space	74.5
Lack of durable house structure	58.2
Lack of secure tenure	46.6
Lack of access to electricity	3.6

Analysis of the aggregate SSI indicates that while no households in the surveyed sample lack all six elements of housing and basic services, one quarter are deprived in three or more areas. Interestingly, seven percent of households are not deprived of any of the six elements despite being in a slum neighborhood.

Regression results

The regression modeling with housing and basic service deprivation measures as a function of RS and geospatial variables revealed important relationships. Table 3 provides a summary of each of the seven multiple regressions.

OPEN IN VIEWER

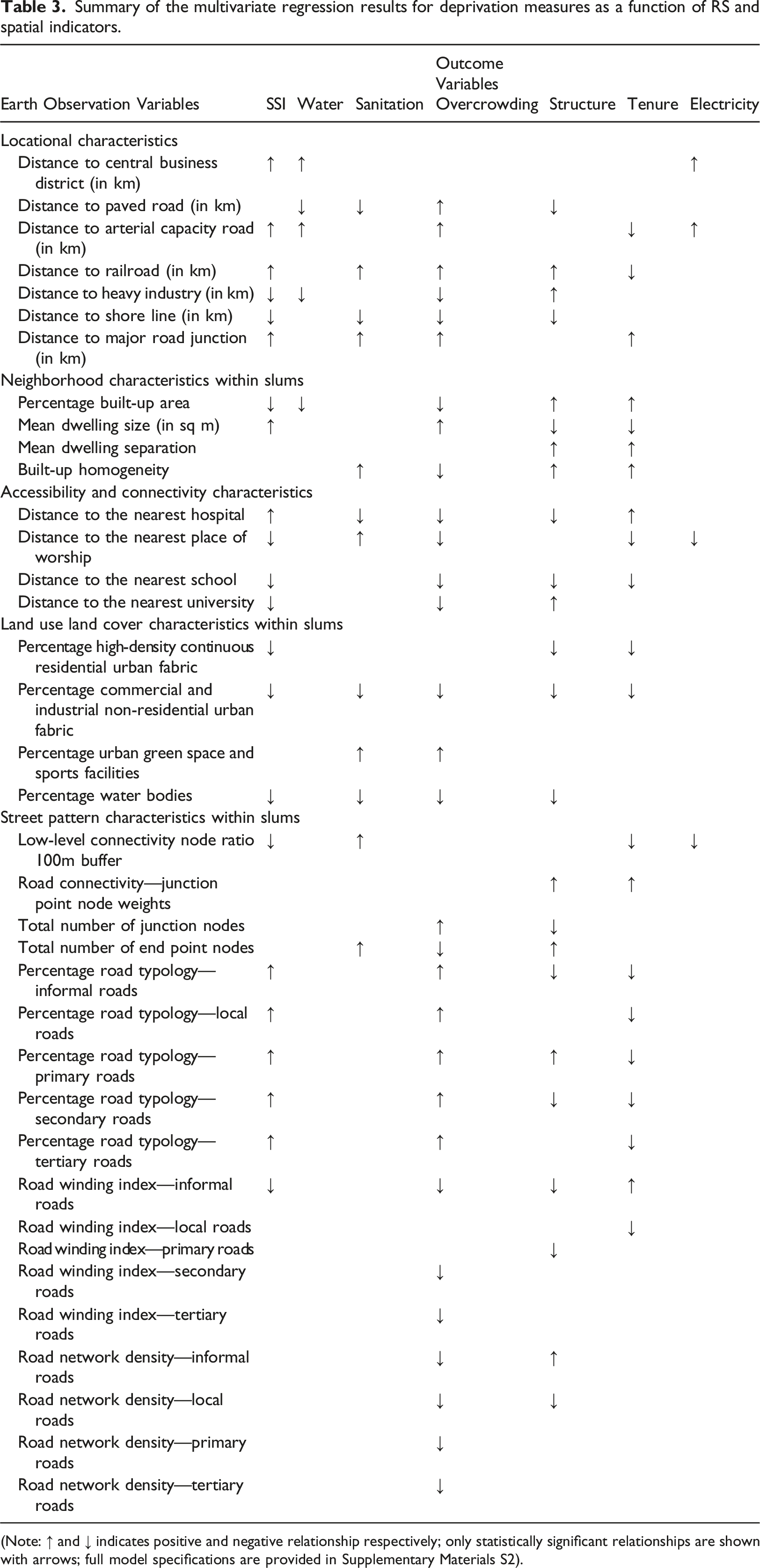

Table 3.

Summary of the multivariate regression results for deprivation measures as a function of RS and spatial indicators.

Earth Observation Variables	SSI	Water	Sanitation	Outcome Variables Overcrowding	Structure	Tenure	Electricity
Locational characteristics
Distance to central business district (in km)	↑	↑					↑
Distance to paved road (in km)		↓	↓	↑	↓
Distance to arterial capacity road (in km)	↑	↑		↑		↓	↑
Distance to railroad (in km)	↑		↑	↑	↑	↓
Distance to heavy industry (in km)	↓	↓		↓	↑
Distance to shore line (in km)	↓		↓	↓	↓
Distance to major road junction (in km)	↑		↑	↑		↑
Neighborhood characteristics within slums
Percentage built-up area	↓	↓		↓	↑	↑
Mean dwelling size (in sq m)	↑			↑	↓	↓
Mean dwelling separation					↑	↑
Built-up homogeneity			↑	↓	↑	↑
Accessibility and connectivity characteristics
Distance to the nearest hospital	↑		↓	↓	↓	↑
Distance to the nearest place of worship	↓		↑	↓		↓	↓
Distance to the nearest school	↓			↓	↓	↓
Distance to the nearest university	↓			↓	↑
Land use land cover characteristics within slums
Percentage high-density continuous residential urban fabric	↓				↓	↓
Percentage commercial and industrial non-residential urban fabric	↓		↓	↓	↓	↓
Percentage urban green space and sports facilities			↑	↑
Percentage water bodies	↓		↓	↓	↓
Street pattern characteristics within slums
Low-level connectivity node ratio 100m buffer	↓		↑			↓	↓
Road connectivity—junction point node weights					↑	↑
Total number of junction nodes				↑	↓
Total number of end point nodes			↑	↓	↑
Percentage road typology—informal roads	↑			↑	↓	↓
Percentage road typology—local roads	↑			↑		↓
Percentage road typology—primary roads	↑			↑	↑	↓
Percentage road typology—secondary roads	↑			↑	↓	↓
Percentage road typology—tertiary roads	↑			↑		↓
Road winding index—informal roads	↓			↓	↓	↑
Road winding index—local roads						↓
Road winding index—primary roads					↓
Road winding index—secondary roads				↓
Road winding index—tertiary roads				↓
Road network density—informal roads				↓	↑
Road network density—local roads				↓	↓
Road network density—primary roads				↓
Road network density—tertiary roads				↓

(Note: ↑ and ↓ indicates positive and negative relationship respectively; only statistically significant relationships are shown with arrows; full model specifications are provided in Supplementary Materials S2).

Multiple locational characteristics of slums derived from EO data were statistically significant predictors of housing and basic services deprivation. Of note is the distance to the CBD. With increasing distance, slums were more likely to be deprived of water and electricity, whereas it had no association with sanitation, overcrowding, or structure. Except for sanitation, this finding concurs with what is generally referred to as peripheralization of slums, indicating decreasing access to services as new slums form in the peripheries of a city where municipal services are not yet developed.

Another interesting set of indicators was related to proximity to transportation networks and employment opportunities. Generally, deprivation was lower for slums close to roads. Those that were closer to arterial roads had access to water and electricity. For slums farther away from railroads or major road junctions, probability of housing deprivation increased. Proximity to heavy industry also resulted in higher housing and services deprivation indicating a potential trade-off between residing near a workplace at the cost of lower quality housing, a phenomenon that is generally observed for labor migrants working in such industries.

All indicators of density were associated with an increase in housing and basic services deprivation. Average dwelling size and average distance between two dwellings essentially measure housing density. In addition, the percentage of built-up area in any slum neighborhood is another direct measure of overall density. Effectively, the more crowded the slums were, the more deprived they were. This is not surprising since residential density is often a signature manifestation of living conditions in slums.

Distance to social amenities such as schools, universities, hospitals, and places of worship could be important predictors of housing conditions. We expected that proximity to social amenities is a desirable characteristic and hence it might be associated with improved housing conditions, yet the results were mixed. As the distance from amenities increased, some housing conditions improved while others worsened.

Various land use and land cover characteristics were significant predictors of housing and service deprivations in expected directions. For example, as the percentage of high-density residential urban fabric increased for a slum, housing deprivation decreased. Similarly, commercial, and industrial land use and the percentage of water bodies also reduced housing and basic service deprivation. Finally, housing deprivation also decreased with an increasing percentage of green space.

Several measures of street patterns within slums were associated with housing and basic services deprivation. As expected, higher percentages of informal roads and winding roads were associated with higher service deprivations. Slums with road networks that had lower-level accessibility were also more deprived in terms of services. There were some mixed results in this category that may require further investigation with larger datasets.

Discussion

As discussed in the literature review section, accurately identifying, and delineating slums as geographic and morphological features in cities have been the subject of research in the last two decades or so. This focus on slum mapping is very useful for place-based slum policies but they cannot support household-based policy interventions such as aiding a family for constructing a toilet. Similarly, geographically identifying a slum does not automatically lead to an actionable planning intervention because such delineation does not provide any information on the type of housing deprivation experienced by people living in them. In place-based identification approaches, a slum without access to water and a slum without access to sanitation are not differentiated. Since planners cannot “un-slum” a place but they can provide access to water or sanitation, it is important that the science of slum mapping considers predicting household living conditions rather than only mapping a slum as a place.

This paper has shown one way of using RS and GIS data to predict such deprivation as experienced by people living in slums. As Kuffer et al. (2016) have argued, combining “image-based information with socio economic characteristics may ultimately lead to a better targeting of pro-poor policy interventions” (p. 474). To this end, policy makers and city planners need the appropriate tools and evidence to provide basic services in constantly changing environments of urban settings, especially in slums. Current planning and policy approaches rely on household surveys to estimate demand for urban services such as water and sanitation. However, these surveys are often expensive and time-consuming. Consequently, they are not conducted on a regular basis. On the other hand, resolution, availability, and affordability of EO data have improved drastically in the last two decades. Our framework thus provides a pathway to estimate demands for urban services by leveraging such readily available EO data. Since EO data are available at a much higher frequency than population censuses, our approach could provide near real-time estimates that could be especially useful given that slums in the developing world are rapidly growing and living conditions are constantly changing. It should be noted that while the technology is making such data increasingly affordable, they may still be expensive for local governments. However, international development agencies could include access to EO data as part of their technical and financial assistance to cities in developing countries. Initiatives such as Earth Observation for Sustainable Development Goals (https://eo4sdg.org/) are steps in this direction.

For national governments, this methodology provides an efficient and cost-effective way to estimate various types of housing deprivation and demand for urban services nationwide. Given that RS images could be available for all the cities in a nation at once, there is far less time lag between data acquisition and their use in decision-making than traditional survey-based methods of data collection and analysis that could take multiple years to cover all the cities. Additionally, due to the growing availability of technologies like OpenStreetMap that allow residents to contribute data, geospatial analysis can also take place in real-time using updated information from the community. International development organizations, likewise, can also use EO-based approach to inform both national and global interventions by estimating global housing deprivation in real-time without conducting large-scale surveys.

Additionally, although this study covered a single city, Dhaka, the approach could be adapted and tested for its universality in future studies since similar surveys are routinely collected around the world and remote sensing data are increasingly becoming available for cities. While a survey alone cannot support citywide program implementation, this approach provides a framework that could also be applied to predict citywide deprivation once a model is constructed. Decision-making should neither be driven by data availability nor by statistical techniques. It is important to first develop a clear model. Data on deprivation could be collected and statistical techniques applied only after a clear model is established. To this end, this study contributes to the development of such a model in the context of measuring housing and basic services deprivation from space, which could also precede data collection on deprivation at the household level with surveys and censuses in any city where slums are prevalent.

While the results presented here are promising, there are several limitations that are worth noting. Most of these arose from the lack of an enhanced dataset limiting the benefits that could be derived from the proposed framework. We note four limitations. First, while the original sample was a sizeable 588 households, location data were only available at the slum level, which reduced the aggregated sample to 63 slums. Future research should collect household level locational data combined with housing conditions to predict household level deprivations.

Second, only five to ten households had been surveyed in each slum and as a result, aggregate measures (e.g. percentage of households with water deprivation) suffered from generalizations because of the small sample size within a slum. As a result of the aggregation and subsequent smaller sample size, Poisson regression was employed. However, any regression specification that is meant for count data such as Poisson regression requires a much larger sample size. While the results may not be inaccurate with a sample size of 63, they will be much more robust with a sample size greater than 100. Ideally, a sample size over 500 is desirable for Poisson regressions.

Third, the actual deprivation indicated in our models may be underrepresented owing to narrow definitions and inherent assumptions used when measuring deprivation. The UN-Habitat (2010) definition of slums is conservative in the sense that it underestimates the deprivation of slum households. This is primarily because the definition is restricted to the physical and legal characteristics of slums and eschews the social dimensions (e.g. concentrated poverty) that are often difficult to measure (Davis, 2006). Nonetheless, we can expect that the underestimation is partially corrected as physical deprivation is highly correlated to social and economic marginalization (Arimah, 2001; Begum and Moinuddin, 2010). In addition, when a slum dweller responds “yes” to a water availability question, it may not accurately capture access to water since the question does not focus on quantity or quality of water, or time spent collecting water, for example.

Fourth, we did not analyze the impact of incremental and vertical growth on slum deprivation in detail. Some slums (especially in Eastern Dhaka and Southern Dhaka near the river) underwent transformation from homogeneous low-rise structures to a mix of low-rise and high-rise structures (visible differences between 2006 and 2017 images). For example, a substantial proportion of multi-story high-rise buildings were built within the original slum neighborhoods in a scattered, spatially inconsistent, and organic manner between 2006 and 2017. Rather than reflecting a change in soil sealing (imperviousness) or structural patterns (which could be reflected by standard variables derived from optical EO data), this process is attributed to a change in 3D. Our framework does not fully reflect this internal process in slum areas.

Despite these limitations, our paper demonstrates that indicators derived from EO data could predict multiple housing deprivation (e.g. multidimensional SSI) as well as the individual deprivation indicator (e.g. water and sanitation). This promising approach could provide useful insights for planning and policymaking when ground level surveys are not possible.

Conclusions

In an era of increasing urbanization, this study, and the use of EO data for exploring housing deprivation, has relevance and life-changing implications for residents of slums and informal settlements. Given that it has been traditionally challenging to chart even the location and growth of slums due to their transient nature, our suggested method could greatly increase the efficiency in designing and implementing, prioritizing, or even expanding, basic services in impoverished informal settlements. The process of implementing a slum upgrading project or expansion of basic services, such as water and sanitation, depends on the quality of information supporting such policy implementation.

The suggested approach ultimately contributes to further strengthen urban monitoring systems that are important for achieving SDG 11. They should not be seen only as a slum-mapping exercise but rather as slum characterization, which is useful to identify pockets of poverty, spaces where development is lagging and areas with scarce provision of basic services. EO data offer a distinctive source of commensurable information that can be further combined with administrative, social, and economic information at multiple scales for in-depth policy analysis. Continued advancement of EO-based technology and research using the methodologies such as the one developed in this paper will, in the long-term, open new doors to improving the quality of life for over a quarter of the world’s urban population that live in slums today.
