Evaluation of Luminogenic Substrates as Probe Substrates for Bacterial Cytochrome P450 Enzymes: Application to Mycobacterium tuberculosis

Abstract

Several cytochrome P450 enzymes (CYPs) encoded in the genome of Mycobacterium tuberculosis (Mtb) are considered potential new drug targets due to the essential roles they play in bacterial viability and in the establishment of chronic intracellular infection. Identification of inhibitors of Mtb CYPs at present is conducted by ultraviolet-visible (UV-vis) optical titration experiments or by metabolism studies using endogenous substrates, such as cholesterol and lanosterol. The first technique requires high enzyme concentrations and volumes, while analysis of steroid hydroxylation is dependent on low-throughput analytical methods. Luciferin-based luminogenic substrates have proven to be very sensitive substrates for the high-throughput profiling of inhibitors of human CYPs. In the present study, 17 pro-luciferins were evaluated as substrates for Mtb CYP121A1, CYP124A1, CYP125A1, CYP130A1, and CYP142A1. Luciferin-BE was identified as an excellent probe substrate for CYP130A1, resulting in a high luminescence yield after addition of luciferase and adenosine triphosphate (ATP). Its applicability for high-throughput screening was supported by a high Z’-factor and high signal-to-background ratio. Using this substrate, the inhibitory properties of a selection of known inhibitors could be characterized using significantly less protein concentration when compared to UV-vis optical titration experiments. Although several luminogenic substrates were also identified for CYP121A1, CYP124A1, CYP125A1, and CYP142A1, their relatively low yield of luminescence and low signal-to-background ratios make them less suitable for high-throughput screening since high enzyme concentrations will be needed. Further structural optimization of luminogenic substrates will be necessary to obtain more sensitive probe substrates for these Mtb CYPs.

Keywords

cytochrome P450 tuberculosis bioluminescence high-throughput screening

Introduction

Cytochrome P450 enzymes (CYPs or P450s) constitute a superfamily of heme thiolate containing proteins that catalyze the oxidation of a wide range of physiological and nonphysiological compounds. The enzymes are represented in virtually all kingdoms of life.^1–3 In bacteria, most identified CYPs still remain orphan enzymes with unknown function. Functional characterization of several bacterial CYPs has revealed that they can catalyze widely diverse reactions, such as the degradation of organic compounds as a source of carbon for microbial growth or the synthesis of bioactive metabolites.⁴ CYPs from pathogenic bacteria have become attractive therapeutic drug targets. For example, CYP51 is a validated drug target, since 14α-demethylation of sterol substrates is required for the biosynthesis of membrane sterols, such as cholesterol in animals and ergosterol in fungi.⁵ CYP51 is strongly inhibited by various azole antibiotics, such as clotrimazole, econazole, fluconazole, and ketoconazole, which are capable of binding tightly to the active site of CYP51 by direct coordination of the imidazole and triazole group to the heme iron.^6,7 The inhibition of CYP51 has therefore been proposed as a treatment for infectious diseases, such as Chagas and the African sleeping sickness disease, which are caused by protozoan parasites containing a CYP51 orthologue.^8,9

Genome mapping of Mycobacterium tuberculosis (Mtb), the etiologic agent of tuberculosis (TB), has revealed that it encodes a CYP51 gene (Rv0764c) as well as an additional 19 CYP genes.¹⁰ Some of these CYPs appear to play pivotal roles in Mtb viability and the establishment of chronic infection, and may represent potential novel drug targets for this disease. Several azole compounds bind with high affinity to several Mtb CYPs, and some were shown to have a potent antimycobacterial activity against (non-)persistent Mtb in mice as well as against multidrug-resistant TB strains (MDR-TB).^11–21 These azole-containing drugs, however, also strongly inhibit human CYPs, which could lead to adverse drug reactions due to drug–drug interactions. Therefore, the search for potent and more specific inhibitors for Mtb CYPs is still actively pursued.

To date, screening for potential inhibitors of Mtb CYPs is most commonly conducted by using UV-vis optical titration experiments in which the affinity of ligands is determined by spectroscopically recording the concentration-dependent shift of the heme iron Soret band.^17,22,23 Enzyme inhibition experiments are only feasible for the Mtb CYPs for which substrates have been identified. Analysis of metabolites of identified substrates of Mtb CYPs, such as cholesterol,²⁰ methyl branched lipids,²⁴ dicyclotyrosine (cYY),^15,16 and dextromethorphan,²⁵ depends on gas or liquid chromatography coupled to mass spectrometry. These methods are relatively low-throughput and time-consuming, especially when extractions and derivatization reactions are required, as in the case of gas chromatography.²⁴ Therefore, there is still a need for suitable probe substrates that will enable high-throughput screening (HTS) of libraries of potential inhibitors of Mtb CYPs.

Bioluminescent assays based on the light production by the adenosine triphosphate (ATP)-dependent metabolism of D-luciferin by luciferase are widely used for many applications because of their high sensitivity and the possibility to apply them in high-density microplates.²⁶ So-called pro-luciferins have been developed as substrates of human CYPs and are used for HTS of inhibition or induction of human CYPs.^27–29 These assays are based on O-dealkylation or aromatic hydroxylation reactions catalyzed by human CYPs, resulting in formation of D-luciferin or 2-cyano-6-hydroxybenzothiazole that can be converted to D-luciferin by reaction with D-cysteine.^27–29 Because of the very high sensitivity of D-luciferin detection by ATP–luciferase reagent by luminometers, these assays require only low amounts of CYPs and can be performed in high-density microplates. The aim of the present study was to evaluate 17 D-luciferin-based luminogenic analogues as potential probe substrates for CYP121A1, CYP124A1, CYP125A1, CYP130A1, and CYP142A1 from Mtb.

Materials and Methods

Materials

Genomic DNA from Mtb strain H37Rv was provided by Prof. Dr. Wilbert Bitter (Medical Microbiology and Infection Control, Vrije Universiteit [VU] Medical Center, Amsterdam, the Netherlands) and was used as template DNA for the cloning of Mtb CYPs. Escherichia coli DNA was isolated from DH5α cells using the High-Pure PCR Template Preparation Kit (Roche Molecular Systems, Woerden, the Netherlands). Primers ( Table 1 ) were from Integrated DNA Technologies BVBA (Leuven, Belgium). D-Luciferin, P450-Glo Luciferin Detection Reagent (P450-Glo LDR), and pro-luminogenic substrates were from Promega (Madison, WI, USA). The following pro-luminogenic substrates were used (for structures, see Suppl. Fig. S1 ): Luciferin-BE, Luciferin-CEE, Luciferin-H EGE, Luciferin-H, Luciferin-IPA, Luciferin-ME, Luciferin-ME EGE, Luciferin-Multi-CYP, Luciferin-PFBE, Luciferin-PPXE, Luciferin-1A2, Luciferin-2B6, Luciferin-2J2/4F12, Luciferin-3A7, Luciferin-4A, Luciferin-4F2/3, and Luciferin-4F1. NADPH (Nicotinamide adenine dinucleotide phosphate in reduced form) was from AppliChem GmbH (Darmstadt, Germany). Glucose-6-phosphate, glucose-6-phosphate dehydrogenase from Leuconostoc mesenteroides, porcine esterase, D-cysteine, econazole, and miconazole were obtained from Sigma-Aldrich (Schnelldorf, Germany). Ketoconazole was purchased from Fagron (Rotterdam, the Netherlands). All other chemicals and reagents were of analytical grade and obtained from standard suppliers unless otherwise mentioned.

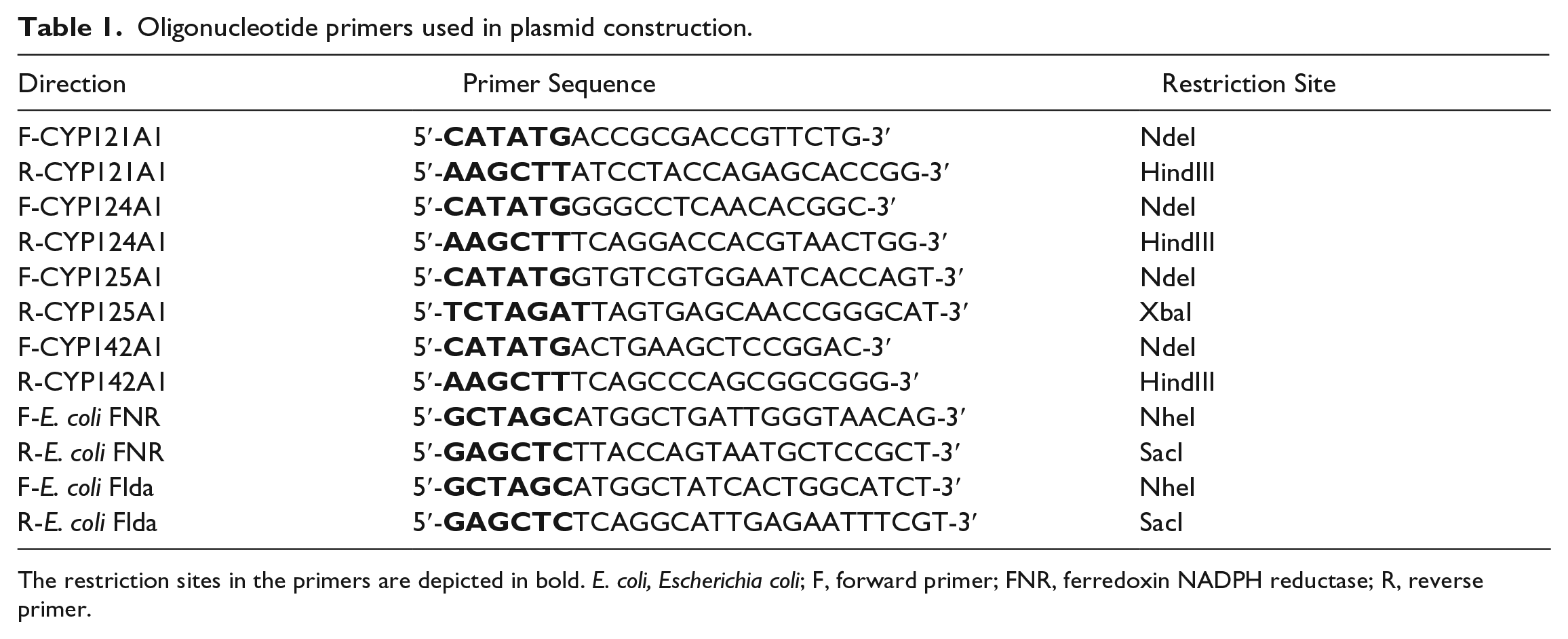

Table 1.

Oligonucleotide primers used in plasmid construction.

Direction	Primer Sequence	Restriction Site
F-CYP121A1	5′-CATATGACCGCGACCGTTCTG-3′	NdeI
R-CYP121A1	5′-AAGCTTATCCTACCAGAGCACCGG-3′	HindIII
F-CYP124A1	5′-CATATGGGGCCTCAACACGGC-3′	NdeI
R-CYP124A1	5′-AAGCTTTCAGGACCACGTAACTGG-3′	HindIII
F-CYP125A1	5′-CATATGGTGTCGTGGAATCACCAGT-3′	NdeI
R-CYP125A1	5′-TCTAGATTAGTGAGCAACCGGGCAT-3′	XbaI
F-CYP142A1	5′-CATATGACTGAAGCTCCGGAC-3′	NdeI
R-CYP142A1	5′-AAGCTTTCAGCCCAGCGGCGGG-3′	HindIII
F-E. coli FNR	5′-GCTAGCATGGCTGATTGGGTAACAG-3′	NheI
R-E. coli FNR	5′-GAGCTCTTACCAGTAATGCTCCGCT-3′	SacI
F-E. coli Flda	5′-GCTAGCATGGCTATCACTGGCATCT-3′	NheI
R-E. coli Flda	5′-GAGCTCTCAGGCATTGAGAATTTCGT-3′	SacI

The restriction sites in the primers are depicted in bold. E. coli, Escherichia coli; F, forward primer; FNR, ferredoxin NADPH reductase; R, reverse primer.

Molecular Cloning, Expression, and Purification of Selected Mtb CYPs and Surrogate Redox Partners

The PCR amplifications of the genes coding for CYP121A1 (Rv2276), CYP124A1 (Rv2266), CYP125A1 (Rv3534c), and CYP142A1 (Rv1256c) and the surrogate redox partners from E. coli DH5α, ferredoxin NADPH reductase (FNR), and flavodoxin (Flda) were conducted using the upstream and downstream primers shown in Table 1 . The corresponding recombinant enzymes were expressed in E. coli BL21 (DE3) and purified as described elsewhere.³⁰ CYP130A1 and CYP130A1-BM3R, the fusion protein of CYP130A1 with the reductase domain of CYP102A1, were expressed and purified as described previously.²⁵ CYP concentrations were quantified using the carbon monoxide difference spectrum assay according to Omura and Sato.³¹

Heterologous expression of FNR and Flda of E. coli was conducted as described by Neeli et al. and Hoover et al., respectively.^32,33 These redox partners were selected as surrogate electron transfers based on their previously reported ability to support catalytic activities of the selected Mtb CYPs.^20,24,34 UV-vis spectroscopic analysis of FNR and Flda showed spectra in line with those reported in previous studies displaying characteristic peaks at 370 nm and 450 nm for E. coli FNR and at 466 nm and 372 nm, with a distinct shoulder on the longer wavelength band at <495 nm, for the oxidized pure E. coli Flda ( Suppl. Fig. S2 ).^35,36

Analysis of Metabolism of D-Luciferin by Mtb CYPs

To determine whether the product D-luciferin is further metabolized by Mtb CYPs, which may obscure detection of D-luciferin formation from the pro-luciferin substrates, 0.5 µM D-luciferin was incubated with 0.5 µM Mtb CYP, 2.5 µM E. coli FNR, and 5 µM Flda in a final volume of 50 µL in 50 mM potassium phosphate buffer (pH 7.4) supplemented with 5 mM MgCl₂. The catalytically self-sufficient CYP130A1-BM3R fusion protein was also incubated at a concentration of 0.5 µM but in the absence of supplemental redox partners. As controls, incubations of 0.5 µM luciferin in buffer and 0.5 µM luciferin with only FNR and Flda were used. All incubations were performed in triplicate at 37 °C, except for CYP121A1, which was incubated at 30 °C, as in previous studies.^15,16 The reactions were performed in opaque white 96-well plates and were initiated by the addition of 5 µL 10× NADPH regenerating system, consisting of 5 mM NADPH, 100 mM glucose-6-phosphate, and 4 unit/mL glucose-6-phosphate dehydrogenase. After incubating for 1 h, 50 µL P450-Glo LDR was added, which terminates the CYP reaction and generates a luminescent signal that is proportional to the D-luciferin concentration.³⁷ Signals were allowed to stabilize for 20 min at room temperature, after which the luminescence was quantified as relative light units (RLUs) using a GloMax 96 Microplate Luminometer (Promega), operating without filters and with an integration time of 1 s per well. To quantify the metabolism of D-luciferin, the luminescence of incubations in the presence of Mtb CYPs was corrected for the background luminescence measured by performing control incubations in the absence of Mtb CYPs. Incubations with CYP125A1, which appeared to interfere with P450-Glo LDR reagent if not denatured (data not shown), were terminated by the addition of 5 µL 5 M trifluoroacetic acid and subsequently neutralized by 50 µL 1.5 M Tris buffer, pH 9.

In addition to the quantification of D-luciferin by the luminometric assay, D-luciferin and possible metabolites were analyzed by liquid chromatography–mass spectrometry (LC-MS). An Agilent 1200 rapid resolution LC system (Agilent, Santa Clara, CA, USA) was used connected to a time-of-flight (TOF) Agilent 6230 mass spectrometer and diode array detector. Analytes were separated using a Phenomenex Luna 5 µm C18 column (4.6 × 150 mm) protected by a Phenomenex security guard (5 µm, 4.0 × 3.0 mm) (Phenomenex, Torrance, CA, USA). A binary gradient running at 0.6 mL/min was used and was constructed using eluent A (0.1% formic acid, 98.9% H₂O, and 0.1 % acetonitrile) and eluent B (0.1% formic acid, 1% H₂O, and 98.9% acetonitrile). The gradient was programmed as follows: (1) from 0 to 5 min, isocratic at 1% B; (2) from 5 to 30 min, a linear increase from 1% B to 99% B; (3) from 30 to 35 min, isocratic at 99% B; (4) from 35 to 35.5 min, linear decrease from 99 to 1% B; and (5) from 35.5 to 45 min, isocratic at 1% B. The Agilent TOF 6230 mass spectrometer was equipped with an electrospray ionization source and was operating in positive ionization mode with a capillary voltage of 3500 V, 10 L/min nitrogen drying gas, and 50 psig nitrogen nebulizing gas at 350 °C. The data were analyzed using Agilent Masshunter Qualitative Analysis software, Version 5.0.

Metabolism of Luminogenic Substrates by Mtb CYPs

To evaluate the ability of the five Mtb CYPs to metabolize pro-luciferin substrates to D-luciferin, each Mtb CYP was incubated with 17 luminogenic substrates. Incubations were performed with 0.5 µM purified Mtb CYP, 2.5 µM E. coli FNR, and 5 µM Flda, in a final volume of 100 µL in 50 mM potassium phosphate buffer (pH 7.4) supplemented with 5 mM MgCl₂. Substrate concentrations used were 50 µM, except for Luciferin-IPA, Luciferin-1A2, and Luciferin-2B6, which were incubated at 25 µM because of their lower water solubility. The reactions were initiated by the addition of 10 µL 10× NADPH regenerating system, resulting in final concentrations of 0.5 mM NADPH, 10 mM glucose 6-phosphate, and 0.4 unit/mL glucose-6-phosphate dehydrogenase. All incubations were performed in triplicate in opaque white 96-well plates. The reactions were allowed to proceed for 1 h at 37 °C, with the exception of CYP121A1, which was incubated at 30 °C, as done previously.^15,16 Reactions were terminated by the addition of 100 µL P450-Glo LDR. For incubations with Luciferin-H EGE, Luciferin-ME EGE, and Luciferin-MultiCYP, the P450-Glo LDR was supplemented with 20 unit/mL porcine esterase to hydrolyze the ester group.³⁷ For incubations with Luciferin-1A2 and Luciferin-2B6, the P450-Glo LDR was supplemented with 4 mM D-cysteine to cyclize the cyano group to form D-luciferin.³⁷ After addition of the P450-Glo LDR, signals were allowed to stabilize for 20 min at room temperature, after which the luminescence was quantified using a GloMax 96 Microplate Luminometer, as described above. For each pro-luciferin substrate, control incubations were performed in the absence of Mtb CYPs to measure background luminescence. The background luminescence was subtracted from the luminescence measured in Mtb CYP–containing incubations to give the net RLU values.

The amounts of D-luciferin formed in the reactions were quantified using a standard curve of D-luciferin prepared in the reaction solutions. Triplicate samples at 2.0, 0.4, 0.08, 0.016, and 0.0 µM D-luciferin standards were used to construct a standard curve. The luminescence observed at 0 µM D-luciferin was subtracted from the luminescence measured in the presence of D-luciferin. Concentrations of D-luciferin were calculated by linear regression analysis using GraphPad Prism 8.02 for Windows (GraphPad Software, San Diego, CA, USA).

Assessment of Enzyme Kinetic Parameters

For enzyme–substrate pairs that showed significant luminescence, the enzyme kinetical parameters were determined by incubating with eight concentrations of luminogenic substrate in the presence and absence of 0.5 µM Mtb CYP. Concentrations were made by a twofold dilution series starting at either 250 or 500 µM. All incubations were performed in triplicate. Because the increase in luminescence was linear for at least 60 min ( Suppl. Fig. S3 ), reactions were terminated after 60 min by the addition of 100 µL P450-Glo LDR. The mean background RLU values of incubations in the absence of Mtb CYPs were subtracted from the RLU values measured in the corresponding incubations in the presence of Mtb CYPs. The D-luciferin concentration was calculated from the net RLU values using a standard curve of D-luciferin, which was constructed as described above. Enzyme kinetic parameters K_m and V_max were determined by nonlinear regression according to the Michaelis–Menten equation using GraphPad Prism 8.02 for Windows (GraphPad Software).

Validation of the Bioluminescence Assay for CYP130A1-BM3R

The highest luminescence was produced after incubation of Luciferin-BE with CYP130A1-BM3R. To evaluate the robustness of the bioluminescence assay for HTS application, the Z’-factor and signal-to-background (S/B) ratio were determined according to Zhang et al.³⁸ As positive controls, 35 incubations were performed with 0.5 µM CYP130A1-BM3R and 100 µM Luciferin-BE, in a final volume of 50 µL in 50 mM potassium phosphate buffer (pH 7.4) supplemented with 5 mM MgCl₂. Reactions were initiated by the addition of 5 µL 10× NADPH regenerating system and allowed to proceed for 1 h at 37 °C. Reactions were terminated by the addition of 50 µL P450-Glo LDR, and luminescence was quantified after 20 min at room temperature, as described above. As a negative control, 35 incubations in the absence of CYP130A1-BM3R were also conducted. The S/B ratio was calculating by dividing the mean signal from the positive control by the mean signals from the negative control. The Z’-factor was calculated according to the following equation:³⁸

Z^{'} = 1 - \frac{3 (σ_{p} + σ_{n})}{| μ_{p} - μ_{n} |}

where µ_p and σ_p are the mean values and standard deviation, respectively, of the luminescence signals of the 35 incubations containing CYP130A1-BM3R; and µ_n and σ_n are those of the incubations without CYP130A1-BM3R.

Assessment of IC₅₀ Values for a Selection of Azole Compounds

To determine the IC₅₀ values for a selection of azole compounds, 0.5 µM CYP130A1-BM3R was pre-incubated for 10 min at 37 °C with 37 µM Luciferin-BE in the presence of varying concentrations of econazole, ketoconazole, and miconazole. Concentrations of these azole compounds were varied from 0.001 to 100 µM. The incubations were performed in triplicate in opaque white 96-well plates and in a final volume of 50 µL in 50 mM potassium phosphate buffer (pH 7.4) supplemented with 5 mM MgCl₂. The reactions were started by the addition of 5 µL 10× NADPH regenerating system and incubated for 1 h at 37 °C. Reactions were terminated by the addition of 50 µL of P450-Glo LDR, and luminescence was quantified as described above. Luminescence was corrected for the background luminescence measured in corresponding incubations performed in the absence of CYP130A1-BM3R. IC₅₀ values were calculated using GraphPad Prism 8.02 for Windows (GraphPad Software) by nonlinear regression using the log(inhibitor concentration) versus a response equation with four-parameter logistic curve fitting.

Results and Discussion

Metabolism of D-Luciferin by Mtb CYPs

Since the use of pro-luciferin substrates relies on the formation of D-luciferin, whether D-luciferin can undergo secondary metabolism by the Mtb CYPs was studied first, because this would limit the application of D-luciferin-based screening assays. As shown in Figure 1A , the luminescent signal of D-luciferin was not significantly decreased after incubation for 1 h with CYP121A1, CYP124A1, CYP130A1-BM3R, CYP142A1, or the E. coli redox partners. Only after incubating with CYP125A1 was a strong decrease of luminescence observed (data not shown). LC-MS analysis of the incubation of D-luciferin with CYP125A1 did not, however, show a significant decrease of D-luciferin concentration and no product formation ( Fig. 1B ). Therefore, CYP125A1 seems to interfere with the luminescence detection by the P450-Glo LDR reagent. By terminating the CYP125A1 incubations with acid and neutralization, before adding P450-Glo LDR, the full luminescence of D-luciferin was obtained again ( Fig. 1A ). The mechanism by which active CYP125A1 interfered with the luminescence detection was not further investigated.

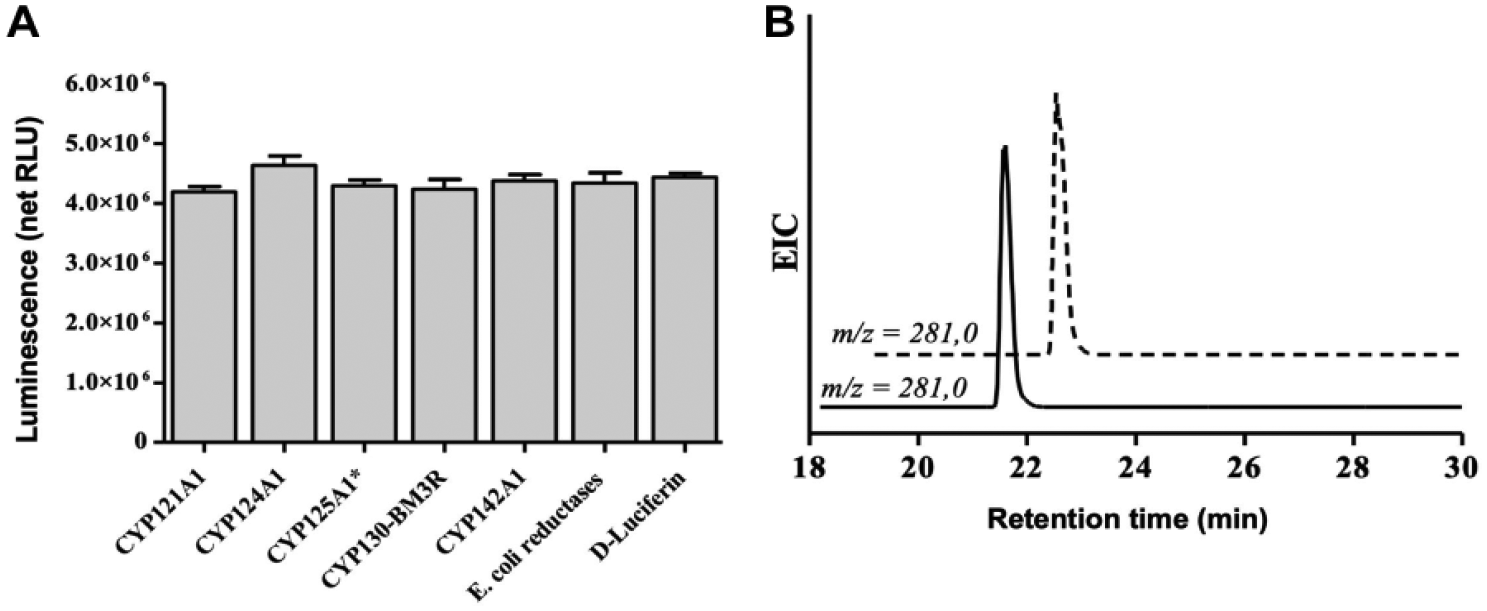

Figure 1.

Evaluation of D-luciferin stability after incubation with Mycobacterium tuberculosis (Mtb) cytochrome P450 enzymes (CYPs). (A) D-luciferin luminescent signal after incubation of 0.5 µM D-luciferin with 0.5 µM Mtb CYPs. Bars represent means ± standard deviation (SD) of triplicate experiments. As negative controls, incubations of D-luciferin with only Escherichia coli FNR and Flda or D-luciferin in buffer were performed. CYP125A1*, incubations with CYP125A1 were terminated by acidification and neutralized before luminescence measurement, as described in the Materials and Methods section. (B) Representative extracted ion chromatograms of incubations with D-luciferin (m/z = 281) with CYP125A1: solid line, incubation terminated after 0 min of incubation; and dotted line, incubation terminated after 60 min of incubation.

Metabolism of Pro-Luciferin Substrates by Mtb CYPs

Figure 2A–2E shows the production in net luminescence obtained after 60 min of incubation of the five Mtb CYPs with the 17 pro-luciferin substrates. The net luminescence production was calculated by subtracting the luminescence measured in control incubations without Mtb CYPs from the luminescence measured in incubations in the presence of Mtb CYPs. For the absolute luminescence measured in both conditions, see Supplemental Figure S4 , which also shows the S/B ratio of the luminescence values.

Figure 2.

Luminescence produced after incubation of 17 luminogenic substrates for 60 min with five Mycobacterium tuberculosis (Mtb) cytochrome P450 enzymes (CYPs): (A) CYP121A1, (B) CYP124A1, (C) CYP125A1, (D) CYP130-BM3R, and (E) CYP142A1.

As shown in Figure 2D , the highest increase in luminescence was observed in the incubations of CYP130A1-BM3R with Luciferin-BE as substrate. Using the standard curve of D-luciferin, the concentration of D-luciferin formed in the incubation of CYP130A1-BM3R with Luciferin-BE was determined to be 0.38 ± 0.01 µM ( Suppl. Fig. S5 ). Incubation of Luciferin-BE with CYP130A1 reconstituted with E. coli FNR and Flda as redox partners resulted in a 4.5-fold lower amount D-luciferin formation ( Suppl. Fig. S6 ). The higher activity of CYP130A1-BM3R can be explained by the more efficient electron transfer from the NADPH cofactor to the catalytic heme domain for the fusion protein, as was observed previously when using dextromethorphan as substrate.²⁵ For CYP130A1-BM3R also, a high activity was observed with Luciferin-2J2/4F12 as substrate, although with a 1.5-fold lower activity when compared to incubations with Luciferin-BE as substrate ( Fig. 2D ). Luciferin-4F12, Luciferin-2B6, and Luciferin-PFBE also showed significant increase of luminescence but at a 10-fold lower yield. Because Luciferin-BE appeared to be the best substrate for CYP130A1-BM3R, the enzyme kinetic parameters of the O-debenzylation reaction was determined by incubating with different substrate concentrations. As shown in Figure 3 , when plotting the specific activity of D-luciferin formation against Luciferin-BE concentration, a hyperbolic curve was obtained for CYP130A1-BM3R. When fitted by nonlinear regression according to the Michaelis–Menten equation, a K_m of 37 ± 2.4 µM and k_cat of 40 ± 0.8 pmol D-luciferin/nmol CYP/min were obtained. When compared to the enzyme kinetic parameters of dextromethorphan N-demethylation, which was the first CYP130A1-BM3R-catalyzed reaction identified,²⁵ the O-debenzylation reaction of Luciferin-BE shows a 25-fold lower k_cat value and a 3.9-fold lower K_m value ( Table 2 ). As a consequence, the intrinsic clearance k_cat/K_m for Luciferin-BE O-debenzylation appears 10-fold lower than that of dextromethorphan N-demethylation. Since the dextromethorphan N-demethylation requires a low-throughput high-performance liquid chromatography (HPLC)-based method, whereas the luminescence-based method allows parallel incubations in high-density microtiter plates, the latter method will be more suitable for HTS.

Figure 3.

Enzyme kinetic analysis of D-luciferin formation in incubations of Luciferin-BE with CYP130A1-BM3R. The enzyme kinetic parameters were obtained by nonlinear regression according to the Michaelis–Menten equation. Points represent means ± standard deviation (SD) of triplicate experiments. Background D-luciferin formation was measured in incubations in the absence of CYP130A1-BM3R, and subtracted from D-luciferin formation in the presence of CYP130A1-BM3R.

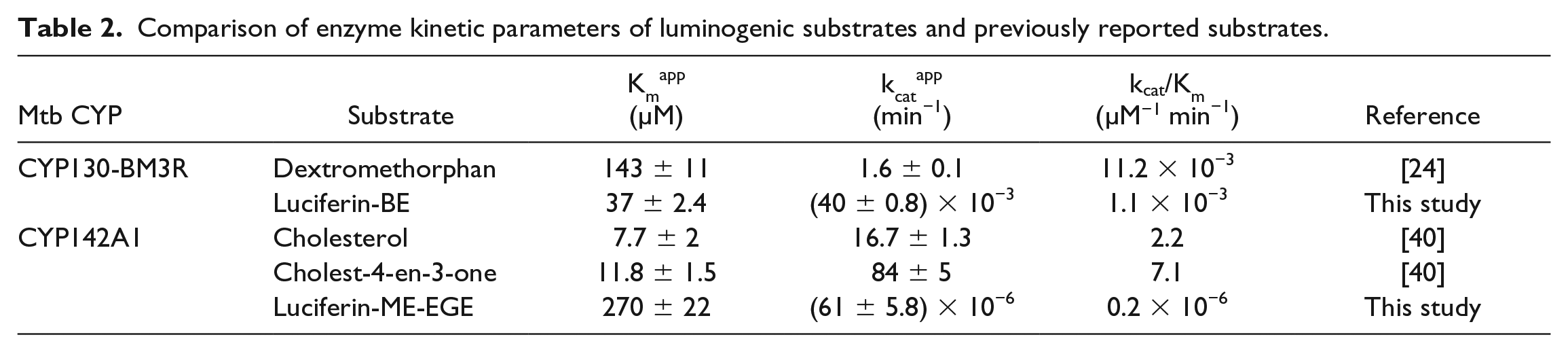

Table 2.

Comparison of enzyme kinetic parameters of luminogenic substrates and previously reported substrates.

Mtb CYP	Substrate	K_m^app (µM)	k_cat^app (min⁻¹)	k_cat/K_m (µM⁻¹ min⁻¹)	Reference
CYP130-BM3R	Dextromethorphan	143 ± 11	1.6 ± 0.1	11.2 × 10⁻³	[24]
	Luciferin-BE	37 ± 2.4	(40 ± 0.8) × 10⁻³	1.1 × 10⁻³	This study
CYP142A1	Cholesterol	7.7 ± 2	16.7 ± 1.3	2.2	[40]
	Cholest-4-en-3-one	11.8 ± 1.5	84 ± 5	7.1	[40]
	Luciferin-ME-EGE	270 ± 22	(61 ± 5.8) × 10⁻⁶	0.2 × 10⁻⁶	This study

Compared to the luminescence observed after incubations with CYP130A1-BM3R and Luciferin-BE, only very low luminescence was observed after incubations with the other four Mtb CYPs ( Fig. 2 ). For CYP121A1, the monooxygenase specific to the Mycobacterium genus, the highest net luminescence was also observed after incubations with Luciferin-BE ( Fig. 2A ). The S/B ratio of luminescence was only 2.1, however (see Suppl. Fig. S4 ). CYP121A1 is known to specifically catalyze the C–C coupling of the aromatic rings of cYY, yielding mycocyclosin.^15,16 For this specialized Mtb CYP, no other substrates have been identified yet. Because of the low yields of luminescence and the low S/B ratios, the luminogenic substrates evaluated in the present study do not appear suitable for HTS for inhibitors of the Mtb CYP.

CYP124A1, CYP125A1, and CYP142A1 are known to catalyze 26-hydroxylation of the side chain of cholesterol and 4-cholestene-3-one.^39,40 When incubated with the luminogenic substrates, significant differences in selectivity were observed ( Fig. 2B , 2C , and 2E ). Luciferin-ME EGE was the only pro-luciferin substrate metabolized by these three cholesterol-metabolizing Mtb CYPs and showed the highest S/B values (7.3, 7.8, and 21 for CYP124A1, CYP125A1, and CYP142A1, respectively (see Suppl. Fig. S4B, S4C, and S4E). It was attempted to determine enzyme kinetic properties using this substrate. Because of the very low production of luminescence obtained at the lower substrate concentrations, however, not enough data points were obtained to describe hyperbolic curves for CYP124A1 and CYP125A1. Only for CYP142A1 could a hyperbolic curve be obtained ( Suppl. Fig. S7 ), allowing assessment of its enzyme kinetic parameters ( Table 2 ). When comparing the enzyme kinetic parameters obtained with those previously obtained for the hydroxylation of cholesterol and cholest-4-en-3-one, the K_m values were 23- to 35-fold higher with Luciferin-ME EGE as substrate, which is indicative of a significantly lower affinity. Furthermore, the catalytic efficiency k_cat/K_m of D-luciferin production appeared to be more than a millionfold lower when compared with those of cholesterol and cholest-4-en-one hydroxylation. This points to a predominantly nonproductive orientation of Luciferin-ME EGE in the active site of CYP142A1. Although the high sensitivity of luminescent detection of D-luciferin allowed the assessment of enzyme kinetic parameters, the magnitude of the luminescent signal is very low when compared to CYP130A1-BM3R.

Validation and Application of the Bioluminescence Assay for CYP130A1-BM3R

Since CYP130A1-BM3R showed the highest luminescence signal with Luciferin-BE as substrate, the robustness of this potential HTS assay was validated by determining the Z’-factor.³⁶ Figure 4 shows the variability in luminescence of 35 incubations in the presence of CYP130A1-BM3R and of 35 incubations performed in the absence of CYP130A1-BM3R. Based on these data, a Z’-factor of 0.87 and an average S/B ratio of 65 was obtained. A Z’-factor higher than 0.5 is considered the threshold for robust HTS assays. Therefore, Luciferine-BE can be considered a valuable substrate for HTS for inhibitors of CYP130A1.

Figure 4.

Assessment of Z’-factor for the high-throughput assay for CYP130A1-BM3R using Luciferin-BE as substrate. The assay was performed in 96-well microplate format. Each well contained 100 µM Luciferin, 0.5 µM CYP130A1-BM3R, and NADPH regenerating system (NRS) in a final volume of 50 µL in 50 mM phosphate buffer. After 60 min at 37 °C, reactions were terminated by addition of 50 µM P450-Glo Luciferin Detection Reagent (P450-Glo LDR), and incubated for an additional 20 min at room temperature before measuring luminescence. Red dots represent incubations in the absence of CYP130A1-BM3R, which were used as negative controls. The dashed lines represent ±3 standard deviations from the mean signal (solid line).

To demonstrate the applicability of this novel bioluminescence assay for the quantification of the inhibitory properties of ligands, the IC₅₀ values of the three azole compounds were determined ( Fig. 5 ). Econazole and miconazole appeared to be the most potent inhibitors of CYP130A1-BM3R with IC₅₀ values equal to 0.05 ± 0.01 and 0.017 ± 0.003 µM, respectively. Ketoconazole showed the lowest inhibitory potency with an IC₅₀ value of 0.10 ± 0.02 µM. These IC₅₀ values obtained are in accordance with the values previously reported using an HPLC-based method with dextromethorphan as substrate ( Table 3 ).²⁵ Since the HPLC-based method requires 20 min analysis time per sample, however, whereas the luminescence-based method allows parallel measurement in high-density microplates, the novel assay will be more suitable for HTS.

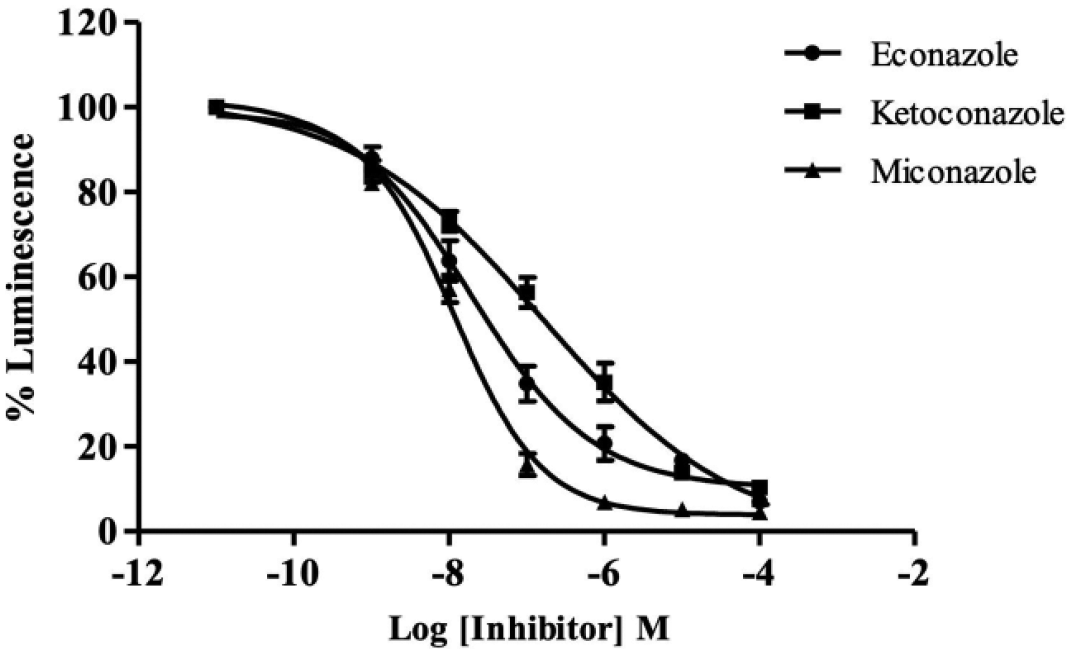

Figure 5.

Concentration-dependent inhibition of CYP130A1-BM3R activity by azole compounds. Data are expressed as percentage of luminescence relative to luminescence of incubations in the absence of inhibitor. IC₅₀ values calculated were as follows: econazole, 0.05 ± 0.01 µM; miconazole, 0.017 ± 0.003 µM; and ketoconazole, 0.1 ± 0.02 µM. Samples were analyzed as described under the Materials and Methods section (mean ± standard deviation, n = 3).

Table 3.

Comparison of IC₅₀ and K_d values for a test set of inhibitors of CYP130A1-BM3R-catalyzed reactions.

Inhibitor	IC₅₀ (this study),Luciferin-BE	IC₅₀ (24),dextromethorphan	K_d values,dextromethorphan	Ratio K_d/IC₅₀,dextromethorphan
Econazole	0.05 ± 0.01	0.017 ± 0.007	1.93 ± 0.03	39
Ketoconazole	0.1 ± 0.02	0.13 ± 0.02	48 ± 1.5	480
Miconazole	0.017 ± 0.003	0.023 ± 0.006	1.70 ± 0.21	100

IC₅₀ is expressed in µM.

Each data point represents a mean of triplicates ± standard deviation (SD).

Previous studies have used UV-vis spectroscopy to identify potent inhibitors of CYP130A1. By measuring the spectral shift caused by addition of 100 µM concentration of ligand to 0.8 µM CYP130A1, 20,000 compounds could be screened in 384-well plates.⁴² Subsequent quantification of apparent dissociation constants (K_d) of positive hits by spectral titration, however, required titration of compounds to 1 mL of 2.5 µM of CYP130A1. In the novel bioluminescent assay, the enzyme concentration and incubation volume were fivefold (0.5 µM vs. 2.5 µM) and 20-fold (50 µL vs. 1 mL) lower, respectively, therefore requiring significantly less protein.¹⁶ As shown in Table 3 , the K_d values of the azole compounds obtained by spectral titration studies are 39- to 480-fold higher than the IC₅₀ values obtained by enzyme inhibition experiments. Therefore, IC₅₀ values are most likely more predictive for the inhibitory potency of compounds than K_d values obtained by spectral binding.

In conclusion, a novel and sensitive bioluminescent method has been established that is applicable for HTS for inhibitors of CYP130A1. Further structural optimization of luminogenic substrates is required for CYP121A1, CYP124A1, CYP125A1, and CYP142A1, however, since the luminescent yield and S/B values with the tested substrates are considered too low to be used for HTS.

Supplemental Material

Supplemental_Material_DISC-18-0159R1 – Supplemental material for Evaluation of Luminogenic Substrates as Probe Substrates for Bacterial Cytochrome P450 Enzymes: Application to Mycobacterium tuberculosis

Supplemental material, Supplemental_Material_DISC-18-0159R1 for Evaluation of Luminogenic Substrates as Probe Substrates for Bacterial Cytochrome P450 Enzymes: Application to Mycobacterium tuberculosis by Sandra Ortega Ugalde, Dongping Ma, James J. Cali and Jan N. M. Commandeur in SLAS Discovery

Footnotes

Supplemental material is available online with this article.

Abbreviations

CYP, Cytochrome P450; cYY, dicyclotyrosine; Flda, flavodoxin; FNR, ferredoxin NADPH reductase; HTS, high-throughput screening; LDR, luciferin detection reagent; Mtb, Mycobacterium tuberculosis; RLU, relative light units; TB, tuberculosis.

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This project was funded by The Netherlands Organization for Scientific Research (grant no. 022.005.031 to S. Ortega Ugalde).
