Controlling Phosphate Removal with Light: The Development of Optochemical Tools to Probe Protein Phosphatase Function

In this commentary, we discuss the design principles considered in developing an optically controlled protein phosphatase, opportunities and limitations of the methodology, areas in need of improvement, and potential future applications.

Comment on: Courtney TM, Deiters A. Optical Control of Protein Phosphatase Function. Nat. Commun. 2019, 10, 4384.

At the most basic level, signal transduction is the computing of extracellular stimuli, or inputs, and their conversion into a cellular response, an output. Protein kinases are likely the first enzyme class that comes to mind for their role in signal transduction, more specifically for their role in propagating phosphorylation throughout a pathway.^1,2 However, protein phosphatases, arguably, play an equally important role in that they counteract kinases through the removal of a phosphate group. ³ Once thought to play an inferior role to kinases, the importance of phosphatases has become evident in recent years. Still, phosphatases remain understudied and poorly characterized compared with kinases. Traditional genetic tools, such as gene silencing or knockdown, have provided most of the knowledge that we have to date regarding protein phosphatase substrates and their various roles in disease. Two key factors contribute to the complexity and difficulty of studying protein phosphatases: (1) the detection of a negative signal (or removal of a phosphate group), which must first be installed by the appropriate kinase, and (2) the conserved, shallow active sites of phosphatases are not typically amenable to the design of specific inhibitors. ⁴ Despite these issues and due to their prevalence in disease, those up to the challenge have explored phosphatases as drug targets with some success. ⁵

Based on the difference in kinetics between cell signaling events (minute timescale) and traditional genetic tools (hour/day timescale), it became apparent that developing new tools for studying protein phosphatases might enable us to fill some of the existing knowledge gaps in signaling pathways. We envisioned that the development of an optogenetic protein phosphatase would afford acute activation of enzymatic activity in order to study the immediate effects of the engineered enzyme. Light is an excellent control element for cell signaling, as it can be readily adjusted in timing, location, wavelength, and amplitude. ⁶ To do this, we utilized a genetic code expansion technique in order to site-specifically introduce a photocaged amino acid at a defined site within our protein of interest. ⁷ A photocaged amino acid utilizes a photosensitive “protecting group” to mask the native amino acid side chain and render it inactive until irradiation with light cleaves the protecting group, thus generating the native amino acid residue—and thereby the native protein. In order to incorporate caged amino acids into a protein of interest, a tRNA/tRNA synthetase pair was engineered that recognizes the nonnatural amino acid and incorporates it into a growing polypeptide chain in response to an amber codon (TAG). This methodology has previously been applied for the generation of numerous caged protein kinases through incorporation of a caged lysine into the ATP binding pocket, thus blocking ATP binding and enzyme activity until photoactivation at a defined time point. ⁷

To adapt a similar strategy for protein phosphatases, we selected the dual-specific phosphatase 6 (DUSP6 or MKP3), which has high specificity for extracellular signal-regulated kinase (ESRK) over other mitogen-activated protein kinases (MAPKs), such as JNK or p38. Dysregulation of MKP3 expression (both overexpression and downregulation) has been implicated to play both oncogenic and tumor-suppressive roles in a range of cancers. Since the interaction between MKP3 and ESRK is well characterized, it provides an ideal starting point for proof-of-concept design. MKP3 functions to counteract the dual phosphorylation of ESRK (pESRK) by upstream kinases in the Ras/Raf/MEK/ESRK pathway ( Fig. 1A ). pESRK results in nuclear translocation where pESRK activates a number of downstream targets. MKP3 binds to and dephosphorylates pESRK, thereby preventing nuclear translocation and subsequent activation of target proteins. Additionally, MKP3 can bind to the nonphosphorylated ESRK and sequester it in the cytoplasm in order to prevent reactivation of ESRK by the upstream kinase MEK. We utilized an ESRK-KTR translocation reporter for assessing MKP3 activity following photoactivation in live cells. This reporter utilizes the ESRK binding region of Elk-1 fused to a bipartite nuclear localization sequence with a competing nuclear export signal and is localized in the nucleus in the absence of pESRK. Upon pathway stimulation at the cell surface (e.g., with epidermal growth factor) and propagation of phosphorylation, pESRK translocates to the nucleus and phosphorylates the reporter, thus resulting in nuclear exclusion. Thus, the ESRK-KTR reporter couples both ESRK localization and ESRK activity.

OPEN IN VIEWER

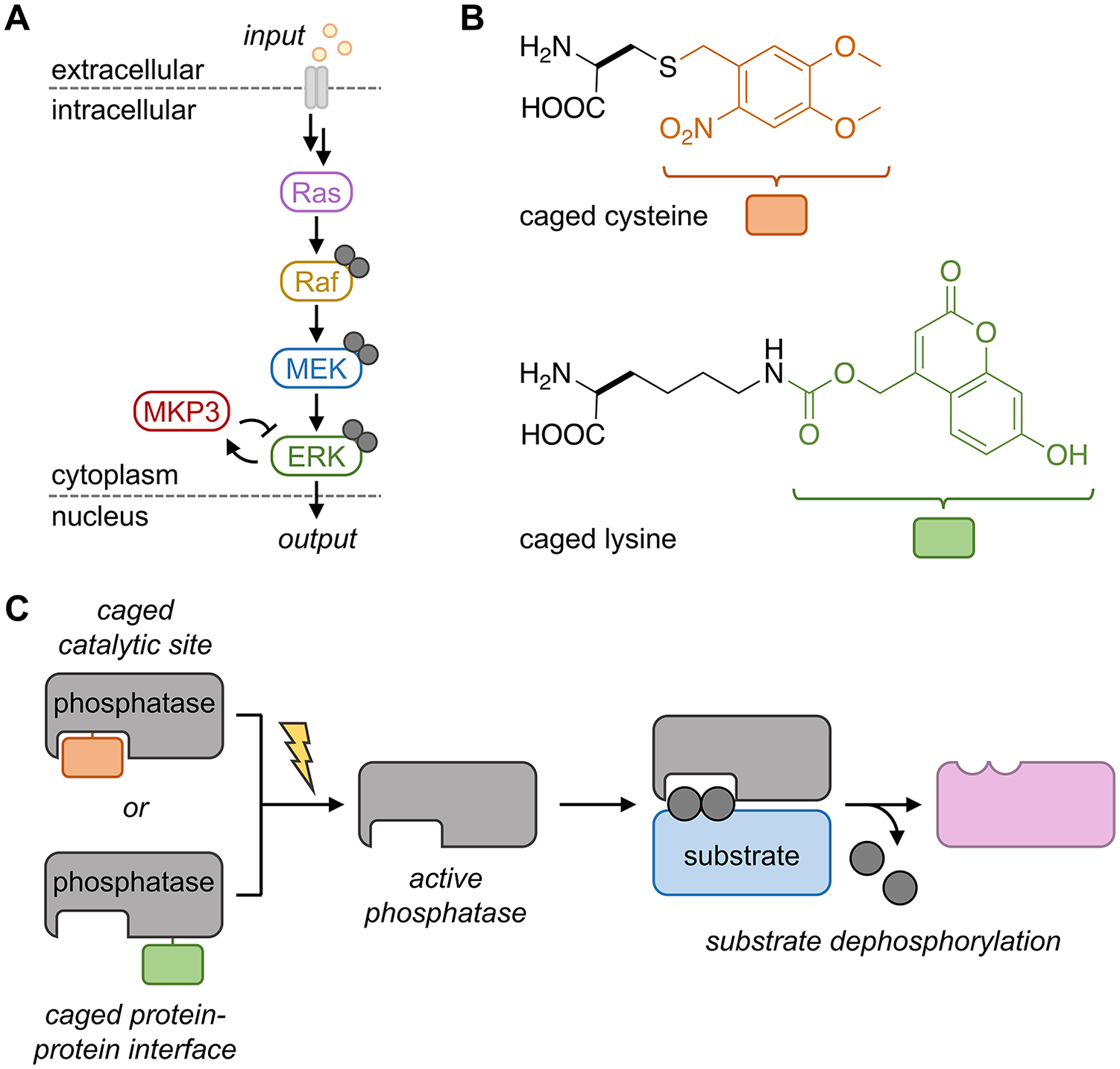

Figure 1.

(A) Schematic of the Ras/Raf/MEK/ESRK signaling pathway with the dual-specific phosphatase MKP3 indicated in red. Upon growth factor stimulation (an input), a cascade of phosphorylation events results in ESRK phosphorylation and translocation to the nucleus where transcriptional programs are activated (a cellular output). (B) Structures of the caged cysteine and the caged lysine with the respective caging groups are indicated in orange and green. (C) A caging group introduced at the active site of the phosphatase (top) or at the protein–protein interface (bottom) renders the enzyme inactive, until light exposure removes the caging group and generates an active phosphatase that dephosphorylates its target substrate.

MKP3 utilizes an essential cysteine to catalyze the dephosphorylation of pESRK through a direct nucleophilic attack onto the phosphate, transferring it from the target protein onto the thiol. Replacement of this catalytic residue with a caged cysteine ( Fig. 1B ) allowed us to render the enzyme inactive until its function was restored through irradiation with 365 nm light (as was validated in a biochemical assay). Light-triggered decaging releases the native cysteine (or lysine; see below), yielding the native protein with wild-type catalytic properties. We immunoprecipitated phosphatase mutants (wild-type, catalytically dead, caged, and photoactivated) from mammalian cells and measured the relative phosphatase activity of the immobilized enzymes using a fluorogenic substrate, DiFMUP. We also demonstrated successful photoactivation of MKP3 using the ESRK-KTR reporter in live cells. It is important to recognize that roughly half of all protein phosphatases utilize a catalytic cysteine; thus, we anticipate the active site-caging approach to be broadly applicable.

Sequestration of ESRK by MKP3 is a result of the high-affinity (nanomolar range) interaction between the kinase interaction motif (KIM) of MKP3 and the docking groove of ESRK, and it is this interface through which kinase–phosphatase specificity is conferred. We hypothesized that a protein–protein interface could provide a second, complementary site for the caging of MKP3—and other phosphatases. Analysis of the crystal structure of ESRK2 bound to the KIM peptide of MKP3 (residues 60–76) revealed several potential residues to target for inhibiting the interaction. The MKP3 KIM peptide contains four basic amino acid sites that we hypothesized could be replaced with a caged lysine to sterically block the protein–protein interaction and abrogate electrostatic interaction, until light exposure removes the sterically demanding caging group and restores a positive charge to the residue. The optimal scenario would be replacement of K68 with a caged lysine in order to generate the native phosphatase upon light activation. Replacement of R64, R65, or R74 would require confirmation that an R-to-K mutation retained substrate recognition and enzymatic activity. Interestingly, we tested all four of these positions and found that caging of K68 and R74 was not sufficient to inhibit the phosphatase–kinase interaction in our cell-based reporter. We validated that individual replacement of R64 or R65 with lysine resulted in wild-type phosphatase activity; however, we were only able to incorporate a caged lysine into position 65. Through caging at K65, we demonstrated that caged lysine ( Fig. 1B ) blocked the kinase–phosphatase interaction, and consequently blocked enzymatic activity, until activated with 365 nm light. More importantly, we showed tunability of MKP3 activity with an increase in activity upon increased light exposure. We observed a graded (rather than switch-like) response in reporter activity upon increasing light exposure, thus suggesting that MKP3 functions to dampen the signaling response of the Ras/MAPK cascade to growth factor stimulation, as opposed to simply switching off the pathway.

Two distinct, yet complementary, approaches were developed for rendering MKP3 light responsive and enabled acute perturbation of the ESRK pathway for further dissection of the role played by MKP3 ( Fig. 1C ). ⁸ As is true for most new methodologies, these approaches do have a few limitations and obstacles that should be improved upon in our future endeavors. Genetic code expansion requires the expression of the engineered synthetase/tRNA pair in the cell line of interest, as well as introduction of the gene of interest and, here, a fluorescent reporter. As such, transfection efficiency decreases with an increase in plasmid number, which can result in a low sample size per individual experiment. Furthermore, the efficiency of the engineered synthetase dictates incorporation efficiency: compared with other unnatural amino acids, the caged cysteine results in relatively low incorporation, thus limiting its utility, while the caged lysine provides a significantly higher level of incorporation, often enabling production of caged protein at levels that match the native protein. Utilization of a stable cell line containing the reporter and/or engineered synthetase would provide one opportunity for improvement; however, an overall lower expression is to be expected when compared with transient transfection. Additional efforts to engineer more efficient synthetases is another avenue that would further expand the scope of this approach. A few different caged cysteine and lysine analogs have been reported and can be selected when photocaging a protein/enzyme of interest. The ones utilized here result in a high level of incorporation and also showcase excellent decaging efficiency in a cellular context. For caged cysteine, only caging groups that are cleaved efficiently at 365 nm have been utilized; however, both nitrobenzyl and coumarin caging groups have been applied to lysine caging, allowing for activation at both 365 and 405 nm.

When selecting residues to target at a protein–protein interface, it is advantageous to consider several different sites, as introduction of a small caging group may not be sufficient to abrogate interaction at all locations chosen (as seen in the case of our KIM-caging approach). One can also envision capitalizing on computational approaches to predict residues in order to minimize the experimental workload of site selection. ⁹ Modulation of protein phosphatase activity through reversible oxidation of cysteine residues provides an additional level of control of signal transduction; however, studying the effects of this reversibility is challenging with the current tools. ¹⁰ As an alternative to genetic code expansion, development of optically controlled phosphatases through optogenetic techniques (e.g., Dronpa or LOV domains) would provide the opportunity to reversibly control phosphatase activity; however, very careful design principles must be employed such that these large photoresponsive domains do not interfere with the endogenous functions of the selected phosphatase when fused to it.

We predict that these approaches can be combined with systems analyses in order to elucidate the downstream effects of acute phosphatase activation in a time-resolved manner, given the defined starting point of enzyme activation. Additionally, the defined starting point of phosphatase function in conjunction with reporter assays may enable screening for small-molecule inhibitors of signaling nodes in live cells. More broadly, we believe that the second approach opens the door for rendering a wide range of protein–protein interactions that rely on electrostatic interactions controllable with light, as we have demonstrated for nuclear transport. ¹¹ Control of nonenzymatic functions via this strategy has the potential to expand our understanding of protein scaffolding, protein chaperoning, interactions involved in protein complex (dis)assembly, and others.
