Automated System for Small-Population Single-Particle Processing Enabled by Exclusive Liquid Repellency

Abstract

Japanese

Korean

Chinese

Exclusive liquid repellency (ELR) describes an extreme wettability phenomenon in which a liquid phase droplet is completely repelled from a solid phase when exposed to a secondary immiscible liquid phase. Earlier, we developed a multi-liquid-phase open microfluidic (or underoil) system based on ELR to facilitate rare-cell culture and single-cell processing. The ELR system can allow for the handling of small volumes of liquid droplets with ultra-low sample loss and biofouling, which makes it an attractive platform for biological applications that require lossless manipulation of rare cellular samples (especially for a limited sample size in the range of a few hundred to a few thousand cells). Here, we report an automated platform using ELR microdrops for single-particle (or single-cell) isolation, identification, and retrieval. This was accomplished via the combined use of a robotic liquid handler, an automated microscopic imaging system, and real-time image-processing software for single-particle identification. The automated ELR technique enables rapid, hands-free, and robust isolation of microdrop-encapsulated rare cellular samples.

Keywords

exclusive liquid repellency multi-liquid-phase open microfluidics underoil single-particle processing

Introduction

Single cells have found various important applications, such as in the study of cancer heterogeneity,^1–3 developmental biology,^4,5 neurobiology,^2,6 and immunology.^7,8 There is growing interest in identifying and isolating specific single cells from a heterogeneous biological sample to discover the unique cellular traits underlying biological heterogeneity. The isolation of single cells from a small sample pool (e.g., a few hundred to a few thousand cells), however, remains a highly challenging endeavor. Although current single-cell isolation techniques like limiting dilution, fluorescence-activated cell sorting (FACS),⁹ and microfluidics^10–12 can allow for the isolation of single cells at relatively high throughput, they require a relatively large sample volume and cell number to work with and could struggle to isolate single cells from a very limited sample size, which makes them unsuitable for rare-cell applications like circulating tumor cell (CTC) research.^13,14 Single-cell printing techniques (e.g., from cytena) were developed to operate with only a few microliters of sample volume to isolate hundreds of single cells into microwell plates (e.g., 96- or 384-well plates) with a high yield (> 95%). The successful handling of minute amounts of samples requires an efficient liquid-handling technique that has very low loss during aspiration, transfer, and sample retrieval from culture. This is generally difficult using traditional single-liquid-phase liquid-handling and storage equipment such as multiwell plates. Aqueous liquids generally exhibit adherence to these surfaces, and thus any liquid transfer would result in residual liquid being left behind. Sample loss can be further aggregated due to nonspecific cell adhesion on solid surfaces and/or detrimental evaporation or condensation when cell culture is involved.¹⁵ Although a variety of specialized multi-liquid-phase platforms have been developed for efficiently manipulating small amounts of cell samples without significant loss, such as droplet microfluidics,¹⁶ they are usually based on a closed-system design,¹⁷ which makes external access for individual cell manipulation and retrieval difficult,^18,19 and also require costly and complex devices and fluid control equipment.²⁰

Exclusive liquid repellency (ELR) describes the conditions of a solid–water–oil three-phase system that allows for complete repellency of an aqueous droplet from the solid phase, exhibiting a contact angle (CA) of 180° ( Fig. 1a ). The ELR system is suitable for isolation of single cells from rare samples, followed by in situ cell culture in aqueous microdrops without significant sample loss.²¹ The technique, however, previously relied on manual cell-by-cell aspiration and laborious microscope imaging for finding and identifying single cells of interest, which represents a barrier to broader adoptability of the technique. Here, we present a method that performs rapid dispensing of ELR microdrop-encapsulated single particles into a standard 384-well plate by a programmable robotic liquid handler, single-particle imaging and identification using custom-built real-time image-processing software, and automated re-collection of microdrops containing single particles of interest ( Fig. 1b ).

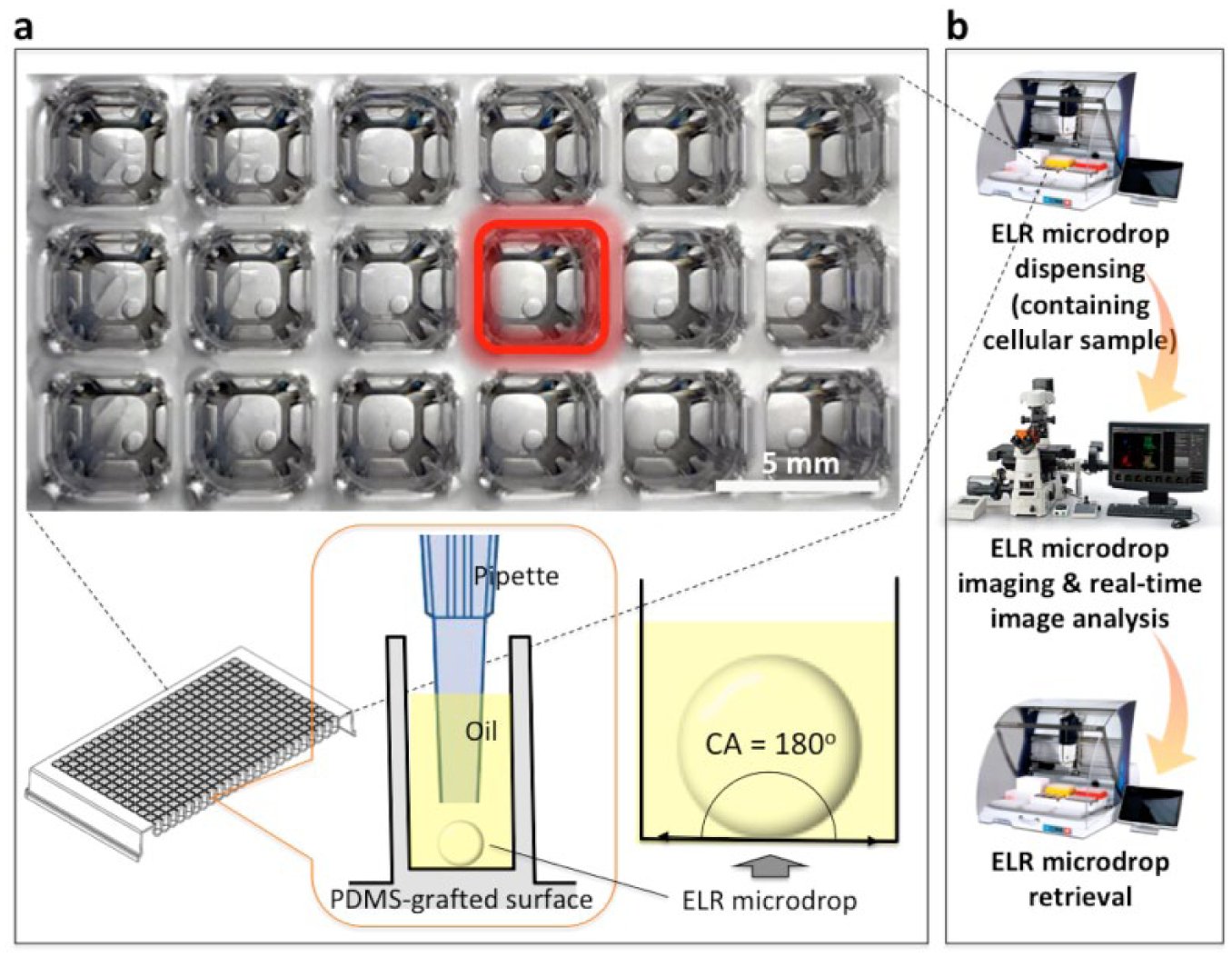

Figure 1.

Schematic of exclusive liquid repellency (ELR) microdrop-based automated open microfluidic system. (a) Underoil (silicone oil, 5 cSt) ELR microdrops (1 µL each drop) in a polydimethylsiloxane (PDMS)-grafted 384-well plate. Microdrops dispensed under oil stayed completely repelled from adhering onto the surface [with contact angle (CA) = 180°]. (b) Workflow for automated single-particle processing.

Materials and Methods

Conditions to Achieve ELR

In previous work, the physics and design rules for ELR were discussed.²¹ In brief, in a solid–water–oil three-phase system, ELR can be achieved only if the interfacial energies (i.e., γ_S/W for solid–water, γ_S/O for solid–oil, and γ_W/O for water–oil) meet a boundary condition, that is, γ_S/O + γ_W/O ≤ γ_S/W for water in oil and γ_S/W + γ_W/O ≤ γ_S/O for oil in water. Determined by this principle, aqueous microdrops get completely repelled with a CA of 180° from polydimethylsiloxane (PDMS) surfaces under silicone oil ( Fig. 1a ). The inherently nonadhesive nature between the microdrops and the substrate effectively mitigates biofouling, which allows for lossless sample retrieval after screening.

Fabrication of PDMS-Grafted Well Plate

A standard 384-well plate (polystyrene, tissue culture treated by vacuum gas plasma, and nonpyrogenic; Corning, NY) was treated first with oxygen plasma (Plasma Surface Technology, 60 W, 3 min; Diener Electronic Femto, Ebhausen, Germany), then transferred into a vacuum desiccator for vapor phase deposition of PDMS–silane (1,3-dichlorotetramethylsiloxane, SID3372.0; Gelest, Morrisville, PA). 50 µL PDMS–silane was vaporized under reduced pressure in the desiccator by pumping down for 3 min, then condensed onto the surface of the well plate under vacuum at room temperature for 30 min. The PDMS-grafted well plate was thoroughly rinsed with ethanol (anhydrous, 99.5%) and deionized (DI) water, then dried with compressed air for use.

Preparation of Stable Fluorescence Bead Suspension

Fluorescence beads [melamine resin based, carboxylate modified, fluorescein isothiocyanate (FITC) marked, 12 µm average diameter, 90287-5ML-F; Sigma-Aldrich, St. Louis, MO] were used as model particles. The beads were dispersed in phosphate-buffered saline (PBS) containing 2 mg/mL collagen I (bovine, PureCol; Advanced BioMatrix, San Diego, CA) to give a stable suspension with a concentration of 1 bead/µL, showing no settling of the dispersed particles throughout time.

Results

Dispensing of Bead-Containing ELR Microdrops

A robotic liquid handler (PIPETMAX; Gilson, Middletown, WI) was programmed for this task ( Fig. 2a ). First, the ELR microdrop plate (i.e., a PDMS-grafted 384-well plate) was prefilled with silicone oil (5 cSt) ( Fig. 2b and 2c , Suppl. Movie S1, and Suppl. Movie S2). Oil was stored in an oil plate (12-column, low-profile reagent reservoir; Seahorse Bioscience, North Billerica, MA), with 6 mL per column (×3 columns). All eight channels of the pipette head on the liquid handler were used for maximal efficiency. Each oil-dispensing cycle can fill two rows of the ELR microdrop plate with a 40 µL/well. The dead volume left in tips (around 20 µL × 8) was returned to the oil plate before the next dispensing cycle. Each column of the oil plate holds enough volume for four oil-dispensing cycles, which fills eight rows of the ELR microdrop plate. In total, three columns of the oil plate can fill a 384-well plate in around 5 min. Next, microdrops were dispensed to each well ( Fig. 2d–2f , Suppl. Movie S3, and Suppl. Movie S4). Fluorescent bead suspension (400 µL, 1 bead/µL) was stored in an Eppendorf tube (1.5 mL) on a sample rack. Only one channel of the pipette head of the liquid handler was used for microdrop dispensing to minimize dead volume and sample loss. Each dispensing cycle of the fluorescence bead suspension can fill one row of the ELR microdrop plate with 1 µL per drop. The dead volume left in the tip was returned to and collected in another Eppendorf tube on a sample rack for reuse. The preparation time of the ELR microdrop plate took around 60 min.

Figure 2.

Exclusive liquid repellency (ELR) microdrop dispensing with pipette robot. (a) Layout of the robotic liquid handler, including the pipette head and the sample bed with various components. (b, c) Oil prefilling of the ELR microdrop plate (i.e., a PDMS-grafted 384-well plate, 40 µL/well) using eight channels of the pipette head. (d–f) Aqueous microdrop dispensing (fluorescence bead suspension, about 1 bead/µL, 1 µL each drop) using one channel of the pipette head. Fluorescence bead suspension was loaded from a sample rack, and the microdrops were dispensed under oil at the ELR microdrop plate. When the pipette left the air–oil interface, the microdrops got released from the tip.

Image-Based Microdrop and Bead Detection

The prepared ELR microdrop plate was imaged using a Nikon Ti-Eclipse widefield fluorescence microscope at 4× magnification. A single bright-field (BF) image (2 ms exposure; Fig. 3b and 3c) and a 7-slice z-stack in the 488 nm fluorescence channel (100 ms exposure, Δz = 150 µm; Fig. 4a ) were acquired for each well. Total imaging time of the plate took approximately 80 min (12.6 s per well), with overhead from microscope stage movement and channel switching accounting for most of this time (94%). The slice number and spacing of the z-stack were chosen to minimize unnecessary overhead while sampling the full height of each ELR microdrop. Preliminary experiments with relatively fine z-resolution (Δz = 50 µm) indicated that 150 µm spacing was sufficient to meet these requirements, and beads were visible enough in at least one slice to be detected accurately (data not shown). Further reduction of the detection time is achievable if a higher-density well plate was used (e.g., a 1536-well plate), due to the smaller ELR microdrop volumes and fewer z-slices.

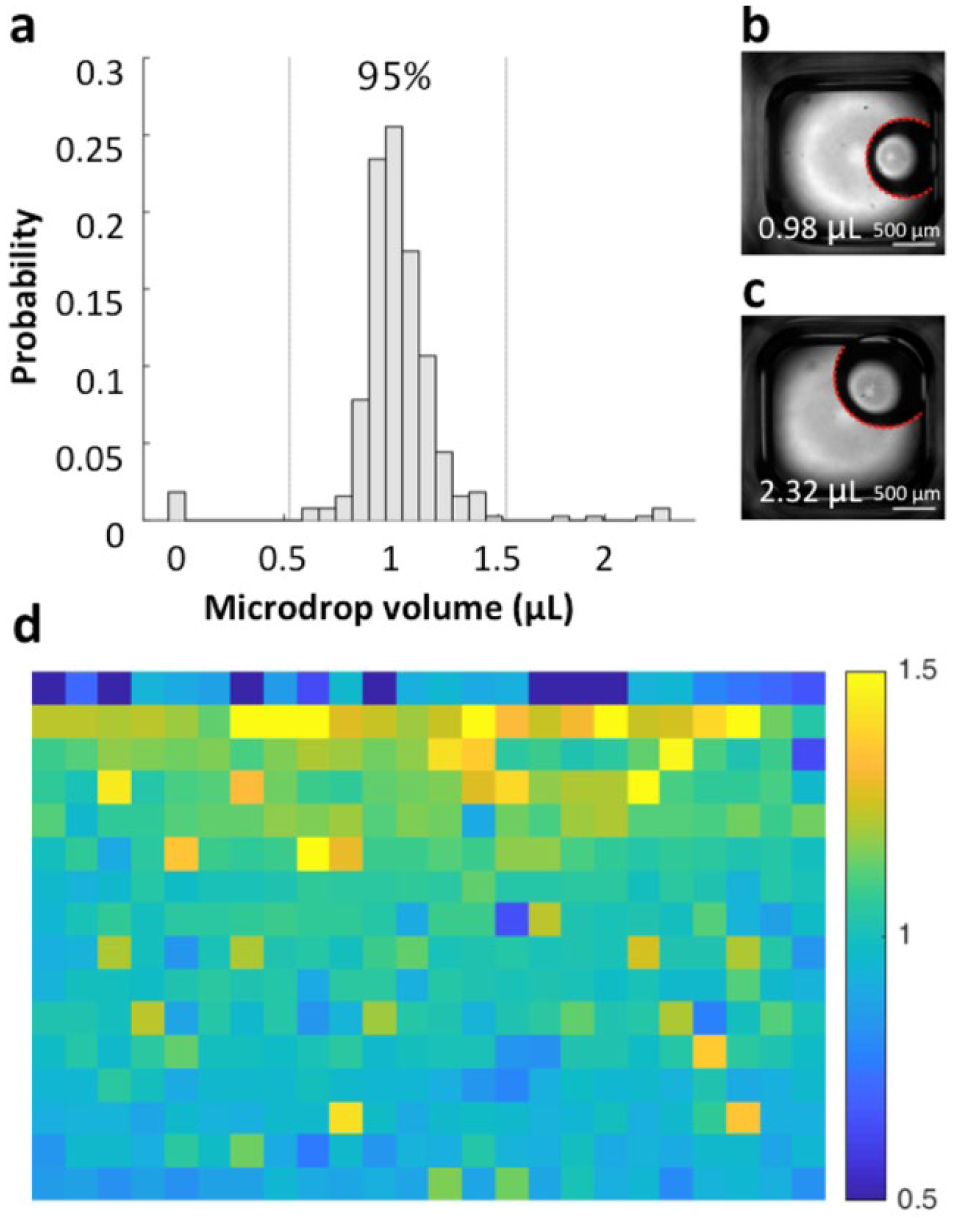

Figure 3.

Microdrop volume. (a) Distribution of microdrop volume estimated from bright-field (BF) images (mean = 1.03 µL; standard deviation [SD] = 0.25 µL; N = 384). Vertical lines represent the 95% confidence interval. (b) Example BF image of a typical microdrop, with the fitted edge overlaid in red (volume = 0.98 µL). (c) Example image of a large microdrop (volume = 2.32 µL). The roughly doubled volume was a result of carryover of the unreleased microdrop and double release in the next well. (d) The spatial variation in microdrop volume (µL) throughout the exclusive liquid repellency (ELR) microdrop plate, with each pixel corresponding to a well. Wells were prepared from top to bottom, then from left to right.

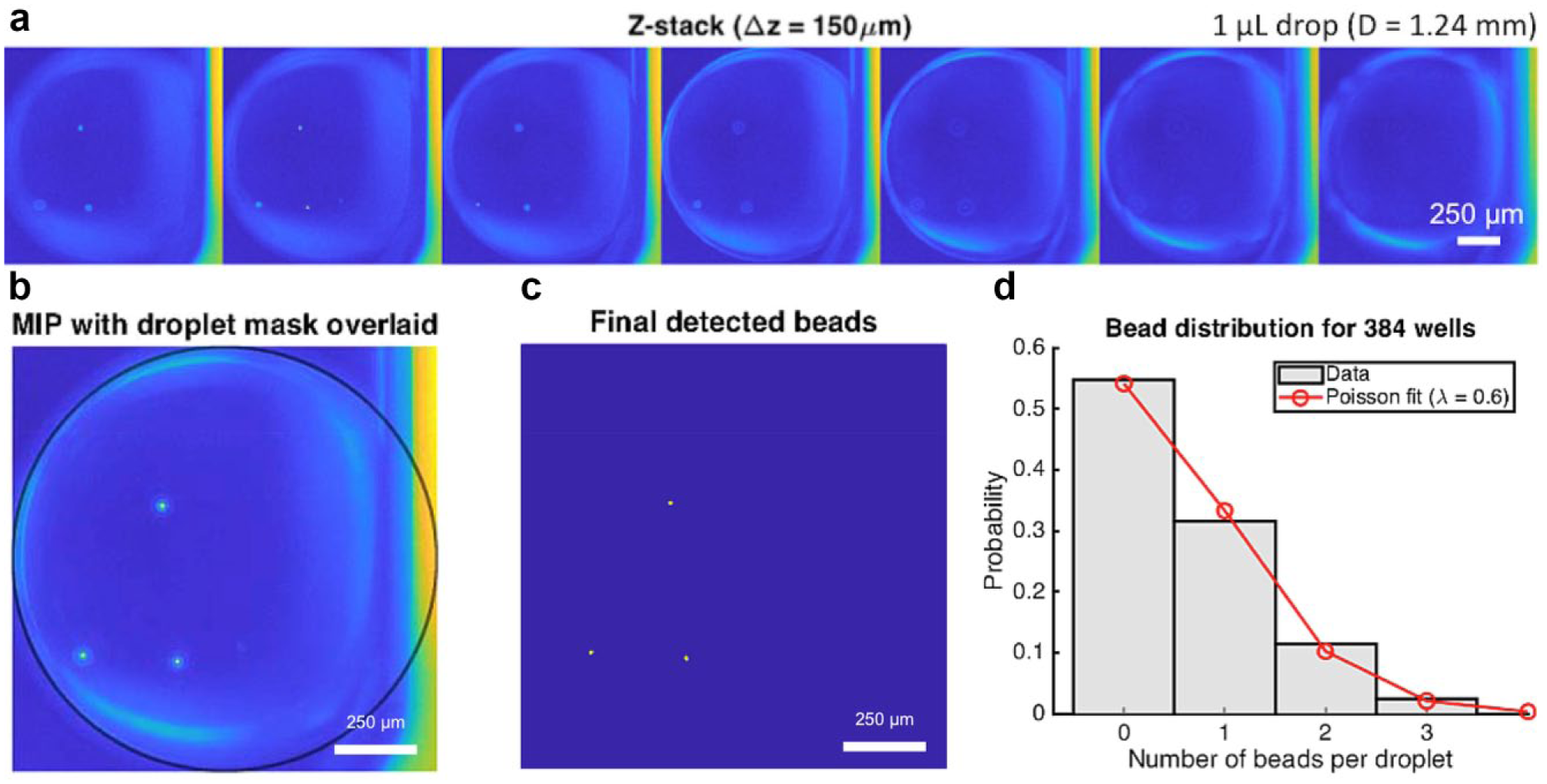

Figure 4.

Bead detection. (a) z-Stack of a detected microdrop containing fluorescence beads with a step (Δz) of 150 µm. (b) Maximum-intensity projection image generated from the z-stack. (c) Final detected beads based on a minimum contrast-to-noise ratio (CNR) of 10 and a minimum area of 10 pixels. Any objects within the microdrop area meeting these criteria are considered beads. (d) The number of detected beads per well obeyed Poisson distribution with parameter λ = 0.6, with a 95% confidence interval of 0.54–0.69.

Fully automated bead detection was performed in real time during image acquisition using a custom-built program written in MATLAB (MathWorks, Natick, MA). The detection algorithm consisted of a two-step process. The first step was to identify and segment the boundary of each microdrop in the BF images ( Suppl. Fig. S1 ). Its purpose was to mitigate false-positive detection by requiring that beads are located within the microdrop region. BF images were masked with an intensity threshold using the triangle method,²² and the central region corresponding to the illumination spot was isolated based on its large size. The convex deficiency of the spot (i.e., the difference between the region and its convex hull) largely consisted of pixels within the microdrop, although it also included many unwanted small regions. Most of these pixels were removed by morphological opening with a small structuring element (disk of radius 5), followed by intersection with the original spot edge. The final microdrop mask was generated by fitting a circle to the remaining edge pixels using a random sample consensus (RANSAC) fitting routine. Because remaining unwanted pixels were relatively few compared to those of the oil–water interface (i.e., the edge of each microdrop facing the well center), they were given zero weight using the RANSAC approach. The microdrop volume was calculated using the equation for a sphere with the fitted radius. The second step was to detect beads in the 488 nm fluorescence channel ( Fig. 4 ). For each well, a maximum-intensity projection (MIP) of the z-stack was calculated. This was done so that beads occurring in different z-planes would be detected. The MIP was subsequently thresholded at a minimum contrast-to-noise ratio (CNR) of 10, and a minimum area threshold of 10 pixels was applied to remove spurious noise regions. The final mask of detected beads was generated by intersection of this result with the previously calculated microdrop mask. Computation time for real-time detection was around 2 s per well (~1.5 and ~0.5 s for the respective steps), thus negligibly affecting overall throughput.

Bead detection was validated against a manual count of beads per microdrop by an image scientist blinded to the automated results. One type of validation was to consider bead detection as a binary process (i.e., negative for zero beads and positive for at least one bead) and analyze the receiver operating characteristics (ROCs; Suppl. Fig. S2 ). ROC curves could be calculated by varying either the CNR threshold or area threshold. Because, however, the detection results were relatively insensitive to a reasonable range of minimum CNR, the area threshold was considered while keeping the CNR threshold constant at 10. The area under the curve (AUC) of the ROC curve was used to assess the overall quality of the automated approach. A second type of validation was to assess the exact number of beads detected per microdrop using the intraclass correlation coefficient (ICC; Suppl. Table S1 ).

Microdrop Retrieval

After identification with microscopy, the microdrops were registered with their location information on the ELR microdrop plate ( Fig. 5a–5c ). Microdrops of interest (e.g., containing a single particle or single cell in a specific phenotype) could be selectively retrieved with oil by the robotic liquid handler ( Fig. 2a , Suppl. Movie S5, and Suppl. Movie S6). To demonstrate the operation, an ELR microdrop plate was prepared with a 1 µL microdrop of dyed water in each well. Ninety-six microdrops were successfully harvested from the ELR microdrop plate and then transferred to a collection plate, with the emptied wells forming a “UW” pattern ( Fig. 5d ). To protect the microdrops (and cellular samples encapsulated) from severe deformation or bursting during aspiration, a large-orifice tip with an end opening comparable to or larger than the microdrops was used in this step.

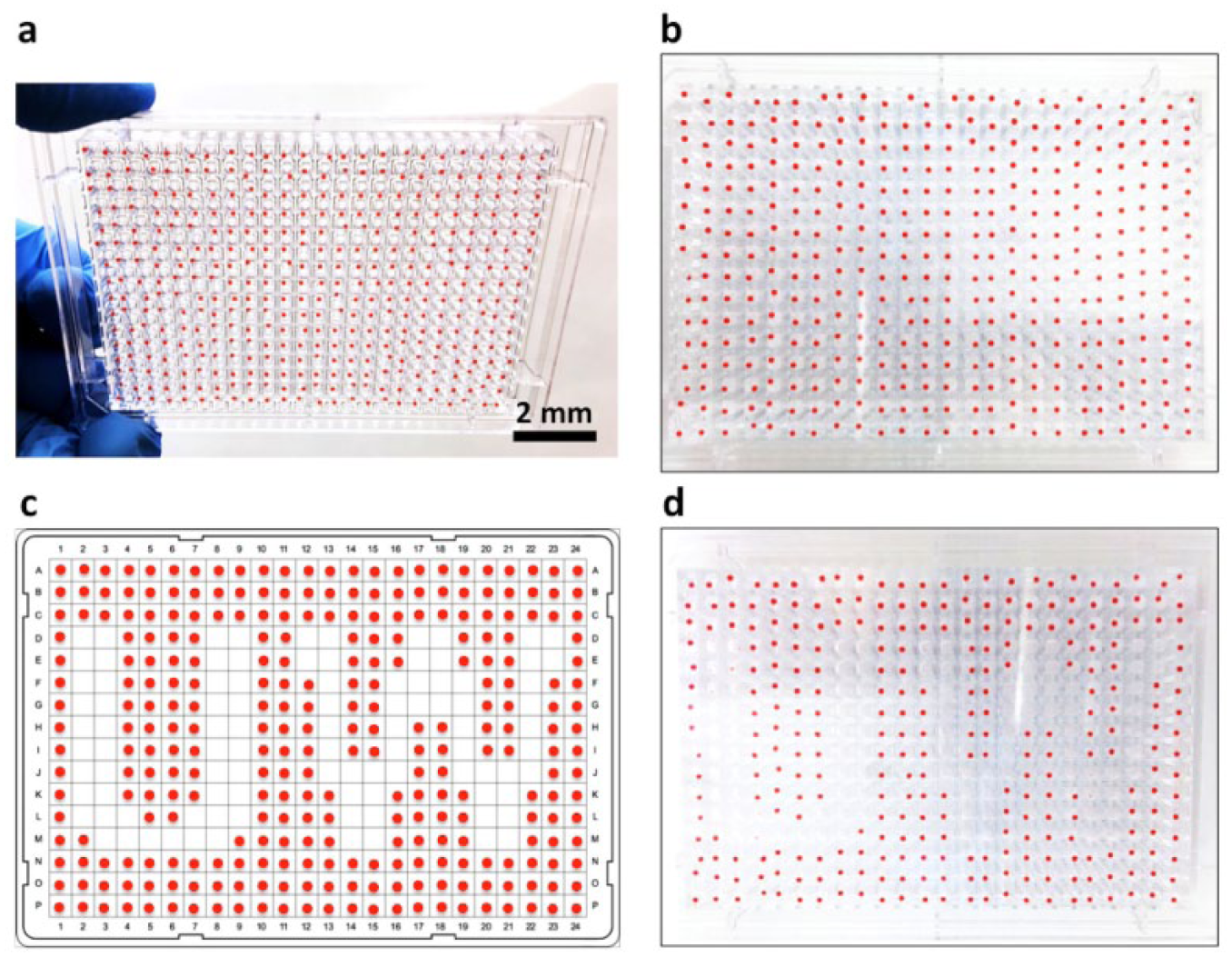

Figure 5.

Microdrop retrieval. (a, b) An exclusive liquid repellency (ELR) microdrop plate (384 wells) with 1 µL microdrop of dyed water (red) per well. (c) A program chart showing the locations of the microdrops to be retrieved. (d) The plate with 96 target microdrops removed. Microdrops were harvested and transferred with oil to give minimized sample loss.

Discussion

The ELR microdrop-based open microfluidic system offers a set of characteristics enabling its use as a cell culture and screening platform,^21,23 which includes (1) minimized media loss and interwell contamination via evaporation and condensation; (2) minimized sample loss and device fouling from sample loading, culture, transfer, and retrieval; (3) adjustable permeation of vital gases (e.g., oxygen and carbon dioxide); (4) full physical access and sample manipulation on device with external tools (e.g., pipettes); (5) compatibility with standard bioassay labware (e.g., well plates and culture dishes); and (6) low adoption barrier (i.e., easy to make and easy to use). By benefiting from automation enabled by a combined use of a robotic liquid handler and an imaging and real-time image analysis system, human labor and operator error can be significantly reduced ( Suppl. Table S2 ).

When preparing an ELR microdrop plate on the robotic liquid handler, liquid dispensing can be done with adjustable throughput by using different numbers of pipette channels (1 to 8 in this model study; Fig. 2 ). The maximum number of pipette channels used (or throughput) was mainly determined by the available starting sample volume. With large or unlimited sample volume (e.g., oil prefilling), maximum throughput can be achieved using all eight channels. For small or limited sample volumes (e.g., rare cell stock), less channels or one channel was used to minimize sample loss related to nonspecific sample adhesion during aspiration and liquid storage. The time efficiency of liquid dispensing demonstrated here is not the upper limit of the technique described in this work and could be further improved with higher-speed liquid-handling instruments.

The distribution of microdrop volume was measured by fitting the detected oil–water interface (or edge of a microdrop) to a circle ( Fig. 3a ). The 95% confidence interval (CI) ranged from 0.5 to 1.5 µL with an average volume of 1.03 ± 0.25 µL ( Fig. 3b ). The variation in volume was mainly influenced by the accuracy of the pipette head on the robotic liquid handler. Outside of the 95% CI, two chaperone regimes were observed that correspond to either empty wells or microdrops with roughly twice the target dispensing volume (i.e., around 2.0 µL; Fig. 3c ). These outlying microdrops were located mainly on the first and second rows of the plate, suggesting that they related to initial conditions when dispensing each column ( Fig. 3d ). More specifically, unreleased microdrops corresponding to the empty wells were likely caused by the “dry-tip” effect under oil. When the pipette tip first meets oil, some time is needed for oil to replace any aqueous medium and completely wet its surface. If the residence time is not long enough, the tip stays mostly “dry” relative to oil, and the release of the microdrop is more difficult. The double-volume microdrops along the second row resulted from the resolution of this effect, and further subsequent dispensing volume was accurate and stable. The dry-tip effect can be mitigated by increasing the residence time of the tip for the first well of each column (data not shown).

In preliminary experiments, we found that a minimum CNR of 10 and a minimum area of 10 pixels produced very accurate bead detection, so we use these values here. Any objects within the microdrop area that meet these thresholds are considered beads. Importantly, we also determined how the spacing of z-slices affects the accuracy, and we found that slices may be spaced up to 150 µm without significantly degrading the accuracy. This is helpful for acquiring the minimum number of z-slices in the interest of acquisition time ( Fig. 4a–c ). The postdetection ROC analysis verified the accuracy of the automated approach in detecting microdrops with at least one bead (i.e., binary detection). We found a true-positive rate (or sensitivity) of 97.7% and a true-negative rate (or specificity) of 94.29% for our chosen parameters ( Suppl. Table S2 ), and the AUC of the ROC curve was 0.99 ( Suppl. Fig. S2 ). These results indicate a high probability for our real-time analysis to correctly classify the microdrops. Furthermore, the ICC between the manual bead count and the automated results was 0.94 for all 384 wells, and 0.83 if wells containing zero beads were disregarded. This indicates high accuracy with respect to exactly how many beads are present. We note, however, that the binary detection has more practical importance than the exact quantitation of beads.

As previously demonstrated, the number of beads per dispensed microdrop was expected to obey Poisson distribution.²¹ Poisson distribution is described by the following equation: P (k events in interval) = e^−λ(λ^k/k!), where P is the probability of occurrence with k events in interval (i.e., the number of beads per droplet), λ is the average events in interval (i.e., the concentration of bead suspension), and e is the base of natural logarithms. The automated results showed a fit of Poisson distribution with parameter λ = 0.6 bead/µL ( Fig. 4d ). In the tested condition, the frequency of single-bead-containing microdrops is about 30%.

Owing to the advantages of underoil ELR, microdrops of interest after screening can be harvested and trans-ferred without loss with the protection of oil ( Fig. 5 and Suppl. Movie S6 ). The collected microdrops can be further manipulated under oil for various downstream assays. For example, microdrops containing different cell “phenotypes” can be selectively merged if added together into a target well to produce a co-culture system.²¹ As another example, cells in a microdrop can be lysed in situ under oil. RNA contents can be further extracted from under oil using Dynabeads for quantitative reverse transcription PCR (RT-qPCR).²³

The combination of automated liquid handling, imaging, and real-time image analysis with the ELR-based microdrop system greatly improves the practicality and broad applicability of the technique in biomedical laboratories and clinics, where the highest impact is expected. Automation can release lab workers from laborious and repetitive experiments, which greatly increases the efficiency of assays and reduces inconsistency in data collection caused by operator errors.

Supplemental Material

DS_TECH853219 – Supplemental material for Automated System for Small-Population Single-Particle Processing Enabled by Exclusive Liquid Repellency

Supplemental material, DS_TECH853219 for Automated System for Small-Population Single-Particle Processing Enabled by Exclusive Liquid Repellency by Chao Li, David J. Niles, Duane S. Juang, Joshua M. Lang and David J. Beebe in SLAS Technology

Footnotes

Acknowledgements

We thank Dr. Scott Berry, Dr. John Guckenberger, and Dr. Jennifer Schehr for the early training on the robotic liquid handler and Ms. Crysta Frank for assistance on the test run of liquid-handling protocols.

Author Contributions

C.L. and D.N. contributed equally. C.L. and D.N. designed the research. C.L., D.N., and D.J. conducted experiments, and all authors interpreted the data; C.L., D.N., and D.J. wrote the manuscript, and all authors revised it.

Declaration of Conflicting Interests

The authors declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: D. J. Beebe holds equity in BellBrook Labs LLC, Tasso Inc., Stacks to the Future LLC, Lynx Biosciences LLC, Onexio Biosystems LLC, and Salus Discovery LLC. J. Lang holds equity in Salus Discovery LLC.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is funded by NSF EFRI-1136903-EFRI-MKS, NIH R01 EB010039 BRG, NIH R01 CA185251, NIH R01 CA186134, NIH R01 CA181648, EPA H-MAP 83573701, the Prostate Cancer Foundation Challenge Award, the University of Wisconsin Carbone Cancer Center’s Cancer Center Support Grant P30 CA014520, and the Wisconsin Partnership Program Collaborative Health Sciences Grant.

Supplemental material is available online with this article.
