Optical coherence tomography in pediatric patients: a clinical review

Introduction

The use of optical coherence tomography (OCT) in clinical practice has increased exponentially over the past 10 years due to technological advancements and its widespread availability. In adults, OCT is integral to diagnosing and monitoring macular conditions such as age-related macular degeneration, diabetic retinopathy, retinal vein occlusion, and pachychoroid spectrum disorder.^1–3 Although OCT offers many advantages over clinical examination, such as higher sensitivity and localization of pathology to individual retinal layers, its value in the pediatric population may be underrecognized. Toddlers as young as 3 years old can often cooperate for desktop OCT, and handheld devices are available for use in infancy and under anesthesia. The development of faster image acquisition with spectral-domain OCT, along with eye-tracking technology, has made OCT even more feasible in children.^4,5 While most pediatric retinal diseases primarily affect the periphery (e.g. retinopathy of prematurity, familial exudative vitreoretinopathy, Coat’s disease), OCT has increased our understanding of macular pathology in peripheral retinal diseases. In this review, we discuss the clinical relevance of OCT in pediatric patients.

Retinopathy of prematurity

Retinopathy of prematurity (ROP) is one of the most common retinal diseases in children, occurring in preterm neonates and increasing in incidence around the world due to advancements in premature neonatal care. ⁶ With the increased prevalence of ROP, there has been more interest and opportunity to use OCT to better understand macular development in prematurity. In addition, with the options of primary laser, anti–vascular endothelial growth factor (anti-VEGF), and combination treatment, OCT now serves as an important tool for comparing the advantages and disadvantages of treatment options.

One of the first papers using OCT in preterm infants imaged subjects from India with gestational age averaging 31–32 weeks and followed patients serially until 52 weeks. ⁷ The study demonstrated cystoid spaces and greater central foveal thickness in infants who developed ROP. Another paper by Vajozovic and colleagues ⁸ used the presence of the ellipsoid zone (EZ) at the foveal center, distance from Bruch’s membrane to the EZ, and radial distance from foveal center to EZ as measures of retinal maturity and found that photoreceptor inner and outer segment development is delayed in preterm infants from 23 to 31 weeks of gestational age compared to full-term infants. Longitudinal studies in preterm infants have also characterized the maturation of the fovea, demonstrating centrifugal migration of the inner retina with outer retina thickening. ⁹

Lee and colleagues ¹⁰ reported 61% of 23 neonates imaged had the findings of cystoid spaces on OCT during ROP screening. The authors suggest this may be from elevated VEGF levels and could be used as a marker of additional ocular or systemic disease. The same group followed 13 children with cystoid spaces during ROP screening longitudinally and found that children with this finding had worse visual acuity and either sensorimotor deficits or poor neurodevelopment at 2 years of age. ¹¹ Thus, the subclinical findings of cystoid spaces on OCT in infancy seem to predict both visual and neurodevelopmental outcomes for preterm infants (see Figure 1 for an example of OCT images in ROP).

OPEN IN VIEWER

Figure 1.

OCT image of an 11 year-old female who was born at 24 weeks of gestational age. She developed type I retinopathy of prematurity in infancy that was treated with laser therapy. The foveal cross section demonstrates increased central foveal thickness and retained inner retinal layers.

In school-aged children born preterm, desktop OCT angiography (OCT-A) has demonstrated macular immaturity similar to what has been detected in infancy as well as decreased foveal avascular zone (FAZ) size. ¹² Smaller FAZ and increased central foveal thickness have been correlated to worse best-corrected visual acuity. ¹³ OCT and OCT-A have also been applied in studies on school-aged children investigating the use of anti-VEGF medications during infancy, and these studies have found reduced refractive error and more normally developed macula compared with laser treatment during infancy.^14–16

Congenital infections

Inherited retinal dystrophies and diseases

OCT has been routinely used to diagnose and follow inherited retinal dystrophies. As there are many types of retinal dystrophies, here we focus on a select few with particularly salient OCT findings.

Retinitis pigmentosa

Retinitis pigmentosa (RP) is one of the most common retinal dystrophies, comprising a group of heterogeneous disorders leading to the progressive degeneration of retinal photoreceptors and typically presenting with peripheral vision loss and difficulty seeing at night. ²⁵ Without a known family history, RP can be difficult to diagnose early on. Classic clinical findings include RPE mottling, optic nerve pallor, and attenuated vasculature, although most patients do not manifest these early on. Electroretinography (ERG) is useful to diagnose and characterize the disease, which may require examination under anesthesia for patients below 7 years old. Therefore, OCT offers a more practical way to monitor disease in these patients, as it can often be performed without an examination under anesthesia for patients above 3 years of age. One study found the ratio between foveal outer segment pigment epithelial thickness and photoreceptor outer segment length, measured with OCT, could be used as a surrogate to monitor central retina disease in RP, which is useful to predict visual outcomes in these patients. ²⁶ OCT is also used to monitor more obvious structural changes in the retina such as outer nuclear layer (ONL) thinning and thinning of the outer segment, with no associated changes in the inner nuclear layer or ganglion cell layer of the inner retina.^22,27,28 In addition, OCT is used to detect and monitor cystoid macular edema (CME) associated with RP, which can be treated with carbonic anhydrase eye drops with variable outcomes (see Figure 2 for example). ²⁹

OPEN IN VIEWER

Figure 2.

OCT image of a 9-year-old female diagnosed with retinitis pigmentosa. The image demonstrates significant cystoid macular edema in the outer plexiform layer.

Stargardt disease

Stargardt disease is a recessively inherited macular dystrophy that leads to progressive central loss of vision. The underlying cause is the accumulation of lipofuscin in the RPE, which is toxic to photoreceptors. ³⁰ Classic clinical findings include pisciform yellow flecks, pigment mottling, and a dark choroid on fluorescein angiogram, although these are not always evident in early stages of the disease and may be missed upon initial clinical presentation. ³¹ OCT offers an additional clinical test to analyze the ultrastructure of the retina and is particularly useful in detecting lipofuscin accumulation and changes in the photoreceptor layer in early disease (see Figure 3 for an example). ³² A recent study found that fundus autofluorescence underestimated the choriocapillaris layer loss compared to OCT, suggesting that RPE damage may occur before the choriocapillaris (CC) layer and demonstrating how OCT might be used to monitor early disease. ³³ Typical OCT findings in late Stargardt disease include bull’s-eye atrophy, loss of inner and outer photoreceptor segment layers, and variable thinning of other retinal layers. Thus, OCT provides useful information in the diagnosis and staging of Stargardt disease and has also provided fundamental insights into the pathophysiology of the disease.

OPEN IN VIEWER

Figure 3.

OCT image of a 62-year-old male with confirmed Stargardt disease and preserved central vision. The image demonstrates bull’s-eye maculopathy with widespread lipofuscin accumulation in the RPE (red arrows).

Best disease

Best vitelliform macular dystrophy (BVMD) is one of the most common macular dystrophies in children, caused by an autosomal dominant mutation in the BEST1 gene. ³⁴ Classically, the disease causes a yellow ‘egg yolk’ appearance in the macula with RPE involvement early on and often progresses to retinal and RPE atrophy. Although visual prognosis is typically good, the condition can lead to significant vision loss due to atrophy or choroidal neovascularization (CNV). OCT is used in the diagnosis and staging of Best disease, with typical findings demonstrating outer retinal layer disruption and the presence of vitelliform material underneath the retina (see Figure 4 for OCT images of the stages of BVMD), ³⁵ although one paper suggests the separation of the outer retinal layers occurs between the RPE and Bruch’s membrane. ³⁶ OCT can also detect the central RPE atrophy and CNV that are associated with later clinical stages of the disease. ³⁷ Some studies have demonstrated benefits using anti-VEGF therapies to treat CNV in BVMD, which can also be monitored for treatment response with OCT. ³⁸ In addition, OCT can detect macular holes, which can result from late stages of BVMD.^35,39

OPEN IN VIEWER

Figure 4.

Characteristic imaging of the stages of Best vitelliform macular dystrophy. From left to right are fundus photographs, blue-light fundus autofluorescence, and OCT images. From top to bottom are subclinical (a, stage I), vitelliform (b, stage II), pseudohypopyon (c, stage III), vitelliruptive (d, stage IV), and macular atrophy (e, stage V) stages. Beginning in stage II, OCT demonstrates vitelliform material (yellow arrow), with a focal area of underlying subretinal fluid (red arrow). Stages III and IV demonstrate continued subretinal fluid and the presence of hyperreflective material, with advanced disease (stage V) demonstrating macular atrophy and the loss of outer retinal layers.

Coats disease

Coats disease is an idiopathic eye disease that is found almost exclusively in males, with findings of unilateral, peripheral telangiectatic vessels. ⁴⁰ OCT findings include epiretinal membrane (ERM), vitreomacular traction, CME, subretinal/intraretinal fluid or exudate, central macular thickness, and subfoveal choroidal thickness (see Figure 5 for an example of characteristic OCT findings of Coats disease). ⁴¹ Ong and colleagues ⁴² have used OCT to demonstrate that retinal exudates and CME appear later in the disease course, often resulting in fibrosis and poor visual outcomes. A separate study also found that compact hyperreflective structures corresponding to fibrosis and outer retinal atrophy were associated with poor post-treatment visual acuity (VA), whereas bright hyperreflective areas corresponding to exudates and foveal subretinal thickness were associated with improved post-treatment VA. ⁴³ Recently, OCT-A has also been used clinically in diagnosing and monitoring Coats disease. OCT-A was found to be equally sensitive in detecting medium-to-large vascular abnormalities compared to fluorescein angiography (FA) in a series of nine patients but could not detect small telangiectasias seen in FA. ⁴⁴ OCT and OCT-A have also been used to analyze and monitor treatment in Coats disease, such as one study which found anti-VEGF injections combined with laser therapy led to telangiectasia regression and exudate resolution. ⁴⁵ A limitation of OCT-A in Coats disease is that field of view is confined to the macula and vascular pathology requiring treatment is located in the periphery.

OPEN IN VIEWER

Figure 5.

OCT image of an 11-year-old male with Coats disease with history of cryotherapy, laser therapy, and multiple anti-VEGF treatments. The image demonstrates subfoveal fibrosis and scar.

Ocular albinism

Ocular albinism (OA) stems from various genetic mutations in the tyrosine/melanin biochemical cascade and leads to permanent pigmentary deficiencies and vision loss in children. ⁴⁶ OCT can be used to demonstrate characteristic foveal hypoplasia resulting from abnormal RPE development, which resembles the immature retina in ROP.^46,47 In addition to the loss of a foveal pit, high-reflectivity bands across the fovea, presence of inner retinal layers typically absent at the foveal center, and absence of the typically thickened photoreceptor foveal nuclear layer have been described. ⁴⁸ These OCT findings can help rule out other differential diagnoses and be used to evaluate future visual acuity as this mostly depends on the foveal hypoplasia which does not appear to improve with time. ⁴⁹ Nystagmus, commonly associated with OA, may limit the ability to acquire OCT images.

Neurocutaneous syndromes

Neurocutaneous syndromes, also known as phakomatoses, are a group of disorders that have multiple systemic effects of the nervous, skeletal, and integumentary systems and also have characteristic ocular findings. ⁵⁰ OCT is useful in detecting several unique findings of neurofibromatosis type 1 (NF1), a neurocutaneous syndrome, including monitoring optic nerve gliomas (OPGs) and choroidal abnormalities. Several studies have found that NF1 patients with OPGs demonstrate retinal nerve fiber layer (RNFL) and macular thinning on OCT.^51,52 Authors have suggested these findings might be used as a screening tool for children with NF1 to reduce the need for magnetic resonance images (MRIs) in these young patients or could be used to monitor the progression of existing OPGs. Viola and colleagues ⁵³ describe choroidal abnormalities, such as choroidal nodules and choroidal nevi, in NF1, and the authors suggest these findings could be used as an additional criterion for NF1 diagnosis. Neurofibromatosis type 2 (NF2), a related but less common condition, has almost pathognomonic OCT findings of scrolled or flame-shaped ERMs and retinal hamartomas. ⁵⁴ Scrolled ERMs on OCT have been described before systemic findings in NF2, and children presenting with these eye findings on OCT should have neuroimaging performed (see Figure 6). ⁵⁵

OPEN IN VIEWER

Figure 6.

OCT of an 11-year-old male with mosaic neurofibromatosis 2, confirmed with genetic testing. The OCT image demonstrates scrolled or flame-shaped epiretinal membrane with a retinal astrocytic hamartoma in the inner retina.

Sturge–Weber syndrome

Sturge–Weber syndrome (SWS), or encephalotrigeminal angiomatosis, is another neurocutaneous disorder that has significant ocular manifestations. Unlike many of the other phakomatoses, SWS occurs sporadically (i.e. not genetically inherited) and is classically associated with hemangiomas and a significantly increased risk of glaucoma (prevalence 30–70%). ⁶⁵ Less common manifestations include retinal tortuosity and retinal detachment. ⁶⁶ Several articles have described SWS OCT findings of diffuse choroidal hemangiomas with increased choroidal thickness (see Figure 7).^67,68 In addition, focal defects in the RPE were described, as well as RNFL thinning. A separate study also found increased choroidal thickness and noted unilateral thickening in affected eyes for patients without bilateral manifestations. ⁶⁹ OCT has been used to monitor choroidal thickness in SWS after photodynamic therapy (PDT) and showed a choroidal thickness reduction of 251 to 83 µm during follow-up. ⁷⁰ Notably, the choroidal hemangiomas and increased choroidal thickness in SWS are difficult to treat and do not typically respond to conventional therapy, placing patients at increased risk of complications including retinal hemorrhage, retinal detachment, and choroidal effusion. Thus, other therapies such as PDT, anti-VEGF, and radiotherapy are commonly used in treatment, and OCT offers a noninvasive approach to monitor the response to these treatments in SWS.

OPEN IN VIEWER

Figure 7.

OCT image of a patient with Sturge–Weber syndrome with unilateral diffuse choroidal hemangioma. The images demonstrate a choroidal hemangioma with choroidal thickening of the right eye (700 µm) with normal choroid of the left eye (200 µm). Red arrows demonstrate the increased choroidal thickness OD.

Retinoblastoma

Retinoblastoma is the most common pediatric ocular tumor and represents 6.1% of all pediatrics cancers under 5 years of age. ⁷⁴ Most patients with active retinoblastoma are followed by examination under anesthesia for a more complete evaluation and immediate opportunity to treat. Rootman and colleagues ⁷⁵ reported on the use of handheld OCT to characterize 19 retinoblastoma lesions in 16 patients, of which 5 lesions were small. They highlighted the utility of OCT in detecting small lesions which may be missed with clinical examination alone. ⁷⁵ Cao and colleagues ⁷⁶ described three children (7–33 months old) with retinoblastoma located in the macula treated with (systemic versus intra-arterial) chemotherapy where OCT showed tumor regression and resolution of subretinal fluid. Berry and colleagues ⁷⁷ also described a case report of early detection of retinoblastoma in the fellow eye of a 7-week-old patient with group E retinoblastoma in the primary eye (see Figure 8). Therefore, OCT offers an imaging modality for both early detection of these tumors and treatment response.

OPEN IN VIEWER

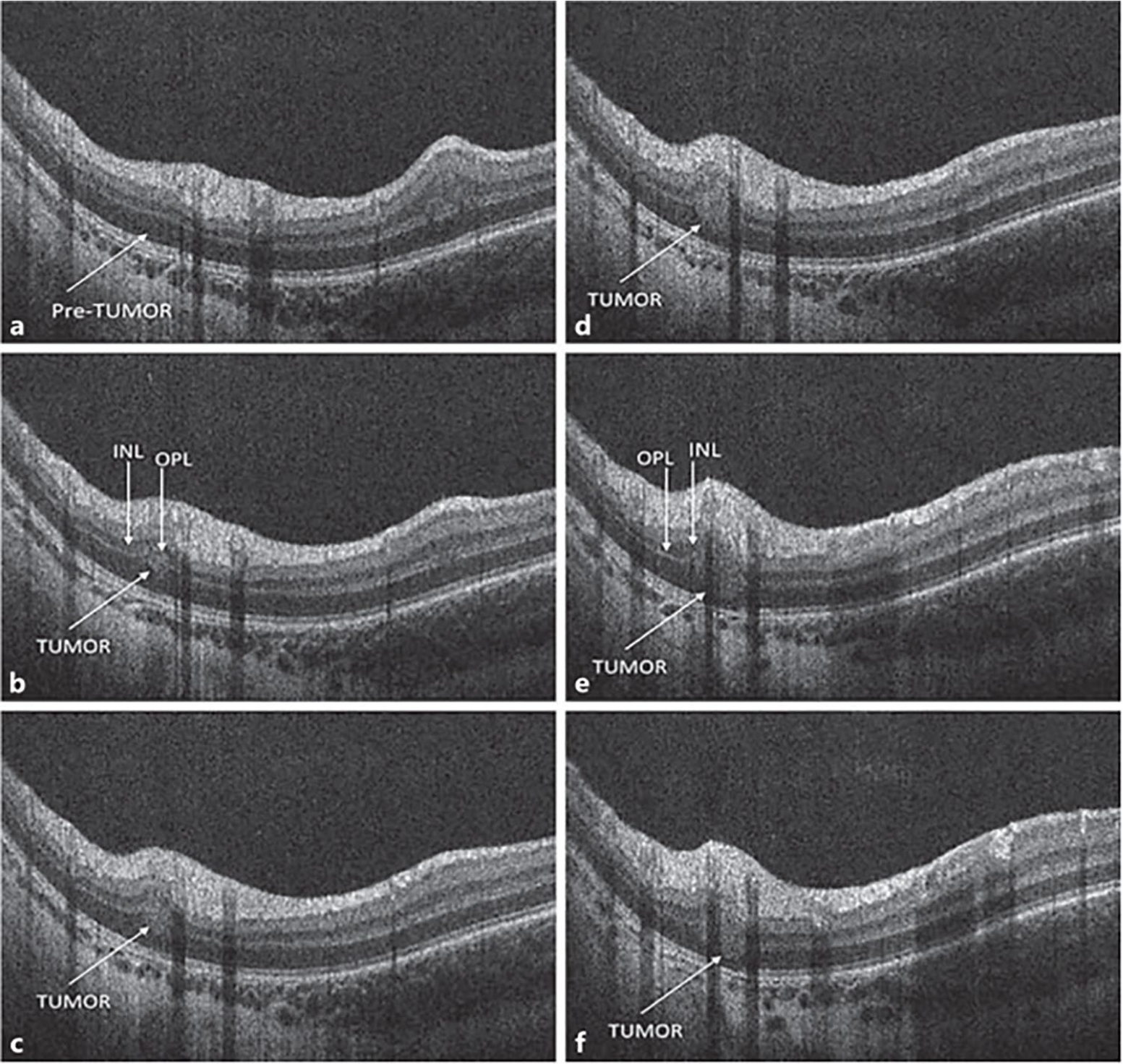

Figure 8.

OCT images of a 17-week-old male with a germline retinoblastoma mutation. The images (a)–(f) move from the superior aspect of a tumor toward the margin of the optic nerve. They demonstrate the presence of a small retinal tumor not detected by indirect fundoscopy, which exhibits involvement of the outer nuclear layer, outer plexiform layer, and inner nuclear layer, with the OPL and INL draping over the edges of the tumor.

Amblyopia

Amblyopia is one of the most common and preventable causes of permanent visual impairment in children, with the most common types being strabismus and refractive error. Bitirgen and colleagues ⁷⁸ found that children with both strabismus and hyperopic amblyopia had significantly increased peripapillary choroidal thickness on OCT compared to controls even after controlling for refractive error. Multiple papers have described an increased central macular thickness in amblyopic patients that correlated with the severity of amblyopia.^79–81 Authors have proposed that the lack of normal postnatal changes in amblyopia could affect macular maturation, which normally involves centripetal migration of the inner retina leading to the increased overall foveal thickness found in many studies. ⁸⁰ Yen and colleagues ⁸² have shown that amblyopia may also lead to increased RNFL thickness, hypothesized to be due to a reduction in normal postnatal ganglion cell apoptosis due to a lack of sharp focus required for normal development. In addition, Borrelli and colleagues ⁸³ recently used OCT-A to describe novel vascular findings in amblyopic children including increased choriocapillaris vessel density and outer parafoveal macular thickness. Although OCT and OCT-A findings in amblyopia are subtle and relatively new, they may be used to understand the mechanism behind visual impairment in these patients and with further research may help shed light on how to use the technology in clinical practice.

Conclusion

In conclusion, OCT has become an integral part of diagnosing and managing pediatric retinal diseases. Children as young as 3 years old can be imaged with a desktop device, and handheld devices can be used in infancy and under anesthesia. OCT has value in both macular diseases such as Best disease and Stargardt disease and primarily peripheral diseases such as ROP and Coats disease.
