Scrototesticular Irradiation in Primary Testicular Lymphoma: A Guide for Scrotal Simulation (Dr Kanhu’s Burger Technique)

Case History

A 56-year-old male presented with painless swelling over the left scrotum since 2 months. The patient underwent left orchiectomy. The postoperative histopathology report was suggestive of PTL. Patient showed complete response after receiving 8 cycles of R-CHOP chemotherapy regimen and 2 cycles of intrathecal methotrexate for CNS prophylaxis. Now the patient planned for consolidative radiotherapy to scrotum and contralateral testis.

Radiotherapy Dose

Fractionated consolidative radiotherapy was planned to the whole of scrotum including postop tumor bed, contralateral testis, tunica albuginea, epididymis, and rete testis to a total dose of 30Gy in 15 fractions @ 2Gy per fraction as per IELSG and International Lymphoma Radiation Oncology Group (ILROG) guidelines.^{1, 8}

Radiotherapy Simulation Technique

The detailed process of simulation of patient for scrototesticular radiation is summarized below in a step-by-step manner.

Step 1:

Patient was positioned in supine with frog leg position. A pelvic immobilization mask (Orfit) is prepared in this position (Figure 1A).

OPEN IN VIEWER Figure 1A-G.

Depicts the 7-Step Simulation Procedure for Scrototesticular Irradiation.

Step 2:

A hole was made in this mask around the penile region and the scrotum along with the contralateral testis was pulled out through this hole and made to rest on the mask (Figure 1B).

Step 3:

The posterior aspect of the scrotum was supported with a wax bolus to prevent under dosing to scrotum and testis (Figure 1C).

Step 4:

The penis was moved outside of the irradiation field by fixing it to the abdominal wall by the help of a tape (Figure 1D).

Step 5:

Now a small second mask was made over the previously prepared pelvic mask to stabilize the scrotum in position (Figure 1E).

Step 6:

Second bolus was made over the superior aspect of the second mask (Figure 1F).

Step 7:

A copper wire was used to demarcate the scrotal position over the second mask that can be seen in computed tomography (CT) scan so that we need not miss the target (Figure 1G).

Planning CT Scan

A planning CT scan from xiphisternum to mid-thigh is taken with 3 mm slice thickness with and without contrast with hands over the chest. Both the immobilization mask and bolus can be seen in Figure 2.

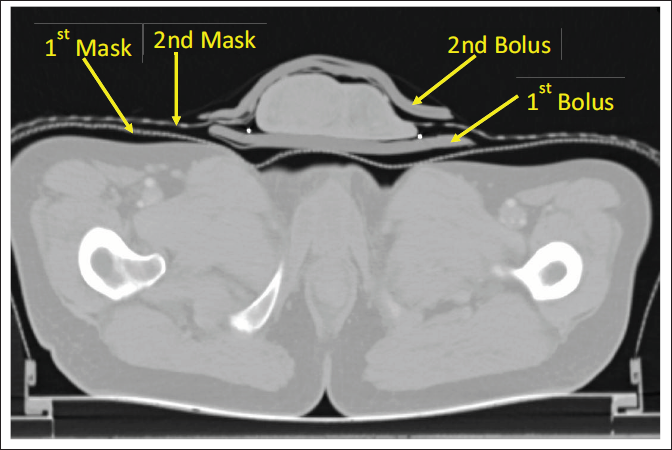

OPEN IN VIEWER Figure 2.

Shows Both the Immobilization Mask and Both the Bolus During CT Simulation.

Target Delineation

CT images are transferred to treatment planning system for delineation of target volume. There is no gross tumor volume as it has been removed surgically. Clinical target volume includes contralateral testis, epididimys, and spermatic cord. Planning target volume (PTV) is institution specific.

Treatment Planning

The treatment planning was done by using 6MV photon, ARC technique, and electron beams using anteroposterior portals (Figure 3A-C). The dose-volume histogram in Figure 3D gives a comparative study of all the 3 plans and it was seen that the coverage of PTV was better with the ARC therapy. So, the present case was treated using this ARC technique.

OPEN IN VIEWER Figure 3.

Shows the Treatment Plans in the Present Case by 6MV Photon (A), ARC Technique (B), and Electron (C) While the Dose-Volume Histogram of All the 3 Plans (D).
