Analytical solution for vibration characteristics of rotating graphene nanoplatelet-reinforced plates under rub-impact and thermal shock

Abstract

This article presents an analytical investigation on vibration characteristics of rotating graphene nanoplatelet (GPL)-reinforced plates subjected to rub-impact and thermal shock. The effective material properties are assumed to vary continuously and smoothly along the thickness direction of the plate and are determined via the Halpin–Tsai micromechanics model together with the rule of mixture. Considering the gyroscopic effect, the equations of motion are derived by adopting the Hamilton’s principle based on the Kirchhoff’s plate theory. Then, the Galerkin method and the small parameter perturbation method are utilized to obtain the free and forced vibration results for the rotating plate. A detailed parametric study is conducted to examine the effects of the GPL weight fraction, GPL distribution pattern, length-to-thickness ratio and length-to-width ratio of GPLs, and the rotating speed on free vibration characteristics of the nanocomposite plate. Attention is also given to the influences of the GPL weight fraction, thermal flow, and friction coefficient on forced vibration responses of the plate. The obtained results can play a role in the design of a rotating GPL-reinforced plate structure to achieve significantly improved mechanical performance.

Keywords

graphene nanoplatelet analytical solution rotating plates rub-impact thermal shock

Introduction

Rotating plates are considerably used as main components in various applications, such as blades with low aspect ratios. Compared to beam models, plate models are more accurate to describe the deformation along their width direction. As two-dimensional structures, rotating plates have been investigated by many scholars.^1

–9

Young and Liou¹⁰ presented a method to investigate the Coriolis effect on the vibration of a cantilever rotating plate. Cote et al.¹¹ examined the effects of shear deformation and rotary inertia on the free vibration of a rotating annular plate. Yoo and Pierre¹² presented a dynamic modeling method of a rotating cantilever plate and studied its modal characteristics. Hashemi et al.¹³ developed a finite element formulation for vibration analysis of rotating thick plates. Younesian et al.¹⁴ presented an analytical analysis on vibrations of a hollow circular plate subjected to a rotating peripheral force. Li and Zhang¹⁵ carried out a dynamic model of a functionally graded (FG) rectangular plate undergoing large overall motions and investigated its free vibrations. Rostami et al.¹⁶ presented a study on in-plane vibrations of rotating orthotropic cantilever plates. Adopting the absolute nodal coordinate formulation, Chen et al.¹⁷ carried out the dynamic analysis of a rotating plate with a setting angle.

As the modern industry develops rapidly, more and more structural components are demanding high strength performance. Owing to the exceptional mechanical properties, graphene nanoplatelets (GPLs) have tremendous application potentials as nanofillers to enhance structural strength and stiffness. Recently, some researchers have paid their attention to the mechanical behavior of GPL-reinforced structures.

Yang and his colleagues conducted extensive research on vibration behaviors of GPL-reinforced structures.^18

–22 Within the framework of the first-order shear deformation plate theory, Song et al.²³ carried out free and forced vibrations of FG multilayer GPL reinforced composite plates. Yang et al.²⁴ presented the thermoelastic bending behavior of novel FG polymer nanocomposite rectangular plate reinforced with GPLs. Bahaadini and Saidi²⁵ investigated aeroelastic characteristics of FG multilayer GPL-reinforced polymer composite rotating plates under supersonic flow. Ebrahimi et al.²⁶ dealt with the thermal vibration analysis of GPL-reinforced nanocomposite plates embedded on the viscoelastic substrate. Considering the cantilever boundary conditions, Niu et al.²⁷ investigated free vibrations of the rotating FG composite cylindrical panels reinforced with GPLs. Nguyen et al.²⁸ presented a Bezier finite element formulation for the bending and transient analysis of FG porous plates reinforced by GPLs embedded in piezoelectric layers.

The main issue treated in this article is to present an analytic method to investigate free and forced vibrations of a rotating plate with GPL reinforcement subject to rub-impact and thermal shock. The plate is modeled by adopting the Kirchhoff’s plate theory, and the equations of motion are derived by using the Hamilton’s principle. Then, the Galerkin method and the small parameter perturbation method are utilized to obtain the analytical solution for the nanocomposite plate. Moreover, a parametric study is conducted to examine the effects of the rotating speed, GPL weight fraction, GPL distribution pattern, length-to-thickness ratio and length-to-width ratio of GPLs, thermal flow, and friction coefficient on vibration characteristics of the rotating plate.

Modeling

A rotating plate reinforced with GPLs, subjected to a combined action of rub-impact and thermal shock, is established in Figure 1. To describe its motion accurately, the fixed coordinate system o ₁-x ₁ y ₁ z ₁ and the rotating coordinate system o-xyz are proposed. The plate rotates by a fixed distance R ₀ at an angular velocity Ω along the y ₁ axis, which is the axial direction. x ₁ axis and z ₁ axis are the corresponding radial directions. The origin o of the rotating coordinate system o-xyz is at the corner of the plate. The x axis, y axis, and z axis are the length direction, width direction, and thickness direction of the plate, respectively. The corresponding sizes of the plate along these three directions are a, b, and h.

Figure 1.

GPL-reinforced rotating plate subjected to rub-impact and thermal shock.

Description of effective material properties

The rotating plate, in this article, is considered as a polymer nanocomposite structure reinforced with GPLs. According to the Halpin–Tsai model,^29,30 the effective Young’s modulus can be predicted as follows:

E (z) = E_{M} {\frac{3}{8} [\frac{1 + ξ_{l} (\frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{l}}) V_{GPL}}{1 - (\frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{l}}) V_{GPL}}] + \frac{5}{8} [\frac{1 + ξ_{w} (\frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{w}}) V_{GPL}}{1 - (\frac{E_{GPL} / E_{M} - 1}{E_{GPL} / E_{M} + ξ_{w}}) V_{GPL}}]}

where E _M and E _GPL are Young’s modulus of the polymer matrix and GPLs, respectively; ξ_l and ξ _W are GPL’s geometry factors in the form of

{\begin{cases} ξ_{l} = 2 l / h \\ ξ_{w} = 2 w / h \end{cases}

in which l, w, and h are GPL’s average length, width, and thickness, respectively.

The volume fraction of GPLs is defined as

V_{GPL} (z) = \frac{g_{GPL}}{g_{GPL} + ρ_{GPL} (1 - g_{GPL}) / ρ_{M}}

where g _GPL is the weight fraction of GPLs; ρ _M and ρ _GPL are the mass density of polymer matrix and GPL nanofillers, respectively.

Due to the nonuniform distribution of GPLs in the polymer matrix, the weight fraction of GPLs is position dependent. Five different GPL distribution patterns, shown in Figure 2, enter in consideration.

Figure 2.

GPL distribution patterns: Linear distribution (pattern I); Positive parabolic distribution (pattern II); Uniform distribution (pattern III); Trapezoidal distribution (pattern IV); Inverse parabolic distribution (pattern V).

The expressions of GPL distribution patterns can be written as

g_{GPL} (z) = {\begin{cases} λ_{1} g_{0} (\frac{1}{2} + \frac{z}{h}) & pattern I \\ \frac{4}{h^{2}} λ_{2} g_{0} z^{2} & pattern II \\ λ_{3} g_{0} & pattern III \\ λ_{4} g_{0} (1 + \frac{z}{h}) & pattern IV \\ λ_{5} g_{0} (1 - \frac{4}{h^{2}} z^{2}) & pattern V \end{cases}

where g ₀ is a characteristic value of weight fraction; λ ₁, λ ₂, λ ₃, λ ₄ and λ ₅ are the weight fraction indices.

According to the rule of mixture, the effective Poisson’s ratio, mass density, thermal expansion coefficient, and specific heat capacity of the composite are expressed as

{\begin{cases} υ (z) = V_{GPL} υ_{GPL} + V_{M} υ_{M} \\ ρ (z) = V_{GPL} ρ_{GPL} + V_{M} ρ_{M} \\ α (z) = V_{GPL} α_{GPL} + V_{M} α_{M} \\ C (z) = V_{GPL} C_{GPL} + V_{M} C_{M} \end{cases}

where υ _GPL, α _GPL, and C _GPL are GPL’s Poisson’s ratio, thermal expansion coefficient, and specific heat capacity, respectively; υ _M, α _M, and C _M are Poisson’s ratio, thermal expansion coefficient, and specific heat capacity of the matrix, respectively.

The volume fraction of matrix is determined by

V_{M} = 1 - V_{GPL}

Based on the micromechanics model,³¹ the effective thermal conductivity coefficient of nanocomposite is

k (z) = k_{M} + k_{M} \frac{V_{GPL}}{3} [\frac{2}{L + 1 / (\frac{k_{GPL} / k_{M}}{2 R_{k} k_{GPL} / l + 1} - 1)} + \frac{1}{(1 - L) / 2 + 1 / (\frac{k_{GPL} / k_{M}}{2 R_{k} k_{GPL} / h + 1} - 1)}]

where R_k is an average interfacial thermal resistance between the GPL and the matrix; k _M and k _GPL are the intrinsic thermal conductivity coefficients of the polymer matrix and GPLs, respectively; the GPL geometric parameter L is obtained as

L = \frac{8 ln [(ξ_{l} + \sqrt{ξ_{l} ​^{2} - 4}) ξ_{l}] - 16 ln 2}{\sqrt{{(ξ_{l} ​^{2} - 4)}^{3}}} - \frac{4}{ξ_{l} ​^{2} - 4}

Description of rub-impact and thermal shock

In actual engineering, rub-impact fault occurs frequently because the clearance between blades and casing needs to be designed as small as possible. In this article, the impact force is regarded as an approximate periodic impact load, illustrated in Figure 3 and expressed as

F_{impact} (y, t) = {\begin{cases} 0 & (n - 1) T_{impact} + t_{act} < t < n T_{impact} \\ F_{M} sin [\frac{π}{t_{act}} (t - (n - 1) T_{impact})] & (n - 1) T_{impact} \leq t \leq (n - 1) T_{impact} + t_{act} \end{cases}

where, n = 1, 2, 3,…; t _act is the impact time of one period; T _impact is one periodic time; F _M is the impact force distribution patterns in the form of

F_{M} (y) = \frac{F_{2} - F_{1}}{b} y + F_{1}

in which F ₁ and F ₂ are the minimum and maximum amplitudes of impact force, respectively.

Figure 3.

Sinusoidal pulse impact force.

To facilitate subsequent calculation, equation (9) needs to be expanded as

F_{impact} (y, t) = a_{m} + \sum_{n = 1}^{\infty} (a_{n} cos \frac{2 n π}{T_{impact}} t + b_{n} sin \frac{2 n π}{T_{impact}} t)

where

{\begin{cases} a_{m} = \frac{1}{T_{impact}} \int_{0}^{t_{act}} [F_{M} sin (\frac{π}{t_{act}} t)] d t \\ a_{n} = \frac{2}{T_{impact}} \int_{0}^{t_{act}} [F_{M} sin (\frac{π}{t_{act}} t) cos (\frac{2 n π}{T} t)] d t \\ b_{n} = \frac{2}{T_{impact}} \int_{0}^{t_{act}} [F_{M} sin (\frac{π}{t_{act}} t) sin (\frac{2 n π}{T} t)] d t \end{cases}

The corresponding rub force is related by

F_{rub} (y, t) = μ F_{impact} (y, t)

in which μ is the friction coefficient.

A large number of spinning blades in an aeroengine always work in high-temperature environment. In this article, the thermal flow q _T is applied to the surface of rotating plate.

The temperature of an arbitrary point on the plate is assumed as

T_{shock} = T_{x y} T_{z}

where T_xy is the in-plane temperature distribution; T_z can be derived from

k \frac{\partial^{2} T_{z}}{\partial z^{2}} = C ρ \frac{\partial T_{z}}{\partial t}

The boundary and initial conditions are

{\begin{cases} z = \frac{h}{2}, k \frac{\partial T_{z}}{\partial z} = q_{T}; z = - \frac{h}{2}, \frac{\partial T_{z}}{\partial z} = 0 \\ t = 0, T_{z} = 0 \end{cases}

By solving equation (15), one can get

T_{z} = \frac{q_{T} h}{k} [\frac{β t}{π^{2}} + \frac{z^{2} + h z - \frac{h^{2}}{12}}{2 h^{2}} - \frac{2}{π^{2}} \sum_{n = 1}^{\infty} \frac{{(- 1)}^{n}}{n^{2}} e^{- n^{2} β t} cos \frac{n π}{2} (\frac{2 z}{h} + 1)]

in which β = kΠ/Cρh.

Theoretical formulations

Analytic solution for free vibration

The kinetic energy of the plate is given by

T = \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} ρ [w^{2} Ω^{2} + {(\frac{\partial w}{\partial t})}^{2} + {(R_{0} + x)}^{2} Ω^{2} - 2 \frac{\partial w}{\partial t} (R_{0} + x) Ω] d x d y d z

The deformation potential energy is

U_{1} = \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} D {{(\frac{\partial^{2} w}{\partial x^{2}} + \frac{\partial^{2} w}{\partial y^{2}})}^{2} - 2 (1 - υ) [\frac{\partial^{2} w}{\partial x^{2}} \frac{\partial^{2} w}{\partial y^{2}} - {(\frac{\partial^{2} w}{\partial x \partial y})}^{2}]} z^{2} d x d y d z

The centrifugal potential energy caused by rotation is written as

U_{2} = \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} ρ Ω^{2} {[R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] {(\frac{\partial w}{\partial x})}^{2}} d x d y d z

From this, the total potential energy of the plate is

\begin{array}{l} U = U_{1} + U_{2} \\ = \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} D {{(\frac{\partial^{2} w}{\partial x^{2}} + \frac{\partial^{2} w}{\partial y^{2}})}^{2} - 2 (1 - υ) [\frac{\partial^{2} w}{\partial x^{2}} \frac{\partial^{2} w}{\partial y^{2}} - {(\frac{\partial^{2} w}{\partial x \partial y})}^{2}]} z^{2} d x d y d z \\ + \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} {ρ Ω^{2} [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] {(\frac{\partial w}{\partial x})}^{2}} d x d y d z \end{array}

where $D (z) = E (z) / [1 - u {(z)}^{2}] .$

The transversal deformation w is assumed as

w (x, y, t) = W (x, y) sin (ω t + ϕ)

in which W (x, y) is the mode function that satisfies the geometric boundary condition and takes the form of

W (x, y) = \sum_{m = 1}^{M} \sum_{n = 1}^{N} A_{m n} ϕ_{m} (x) ϕ_{n} (y)

where

ϕ_{m} (x) = cosh (α_{m} x) - cos (α_{m} x) - c_{m} [sinh (α_{m} x) - sin (α_{m} x)]

{\begin{cases} ϕ_{1} (y) = 1, ϕ_{2} (y) = 1 - \frac{2 y}{b} \\ ϕ_{n} (y) = cosh (β_{n} y) + cos (β_{n} y) - d_{n} [sinh (β_{n} y) + sin (β_{n} y)] \end{cases}

in which

{\begin{cases} cosh (α_{m} a) cos (α_{m} a) = - 1 \\ c_{m} = \frac{cos (α_{m} a) + cosh (α_{m} a)}{sin (α_{m} a) + sinh (α_{m} a)} \\ m = 1, 2, \dots, M \end{cases}, {\begin{cases} cosh (β_{n} b) cos (β_{n} b) = 1 \\ d_{n} = \frac{cos (β_{n} b) - cosh (β_{n} b)}{sin (β_{n} b) - sinh (β_{n} b)} \\ n = 3, 4, \dots, N \end{cases}

Substituting equations (18), (21), and (22) into the Hamilton’s principle

\int_{t_{0}}^{t_{1}} δ (T - U) d t = 0

gives

\int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} {\begin{cases} ρ (Ω^{2} - ω^{2}) W δ W - \frac{1}{2} ρ Ω^{2} (a^{2} - x^{2}) \frac{\partial W}{\partial x} δ (\frac{\partial W}{\partial x}) \\ - D [\begin{array}{l} (\frac{\partial^{2} W}{\partial x^{2}}) δ (\frac{\partial^{2} W}{\partial x^{2}}) + (\frac{\partial^{2} W}{\partial y^{2}}) δ \frac{\partial^{2} W}{\partial y^{2}} \\ + \frac{\partial^{2} W}{\partial x^{2}} δ (\frac{\partial^{2} W}{\partial y^{2}}) + \frac{\partial^{2} W}{\partial y^{2}} δ (\frac{\partial^{2} W}{\partial x^{2}}) \end{array}] z^{2} \\ + D (1 - υ) z^{2} [\frac{\partial^{2} W}{\partial x^{2}} δ (\frac{\partial^{2} W}{\partial y^{2}}) + \frac{\partial^{2} W}{\partial y^{2}} δ (\frac{\partial^{2} W}{\partial x^{2}}) - 2 \frac{\partial^{2} W}{\partial x \partial y} δ (\frac{\partial^{2} W}{\partial x \partial y})] \end{cases}} d x d y d z = 0

Substituting equation (23) into equation (28), we have

\int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} {\begin{cases} D (1 - υ) [- 2 \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} ​^{'} (x) ϕ_{n} ​^{'} (y) ϕ_{i} ​^{'} (x) ϕ_{j} ​^{'} (y)] z^{2} \\ - D υ z^{2} [\begin{array}{l} \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} ​^{''} (x) ϕ_{n} (y) ϕ_{i} (x) ϕ_{j} ​^{''} (y) \\ + \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} (x) ϕ_{n} ​^{''} (y) ϕ_{i} {(x)}^{''} ϕ_{j} (y) \end{array}] \\ + ρ (Ω^{2} - ω^{2}) \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} (x) ϕ_{n} (y) ϕ_{i} (x) ϕ_{j} (y) \\ - \frac{1}{2} ρ Ω^{2} (a^{2} - x^{2}) \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} ​^{'} (x) ϕ_{n} (y) ϕ_{i} ​^{'} (x) ϕ_{j} (y) \\ - D z^{2} [\begin{array}{l} \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} ​^{''} (x) ϕ_{n} (y) ϕ_{i} {(x)}^{''} ϕ_{j} (y) \\ + \sum_{m = 1}^{M} \sum_{n = 1}^{N} \sum_{i = 1}^{M} \sum_{j = 1}^{N} A_{m n} ϕ_{m} (x) ϕ_{n} ​^{''} (y) ϕ_{i} (x) ϕ_{j} ​^{''} (y) \end{array}] \end{cases}} d x d y d z = 0

Eliminating the unknown coefficients leads to the governing equation

E \int_{- h / 2}^{h / 2} ρ (ω^{2} - Ω^{2}) d z + (H + G - 2 K) \int_{- h / 2}^{h / 2} D υ z^{2} d z + (I + F + 2 K) \int_{- h / 2}^{h / 2} D z^{2} d z + \frac{Ω^{2}}{2} L \int_{- h / 2}^{h / 2} ρ d z = 0

where E, F, G, H, I, K and L follow the same form of

X = [\begin{matrix} X_{11} & \dots & X_{1 j} & \dots & X_{1 (M \times N)} \\ ⋮ & ⋱ & ⋮ & ​ & ⋮ \\ X_{i 1} & \dots & X_{i j} & \dots & X_{i (M \times N)} \\ ⋮ & ​ & ⋮ & ⋱ & ⋮ \\ X_{(M \times N) 1} & \dots & X_{(M \times N) j} & \dots & X_{(M \times N) (M \times N)} \end{matrix}]

in which X_ij is the corresponding element in each matrix, expressed as

{\begin{cases} E_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} ϕ_{m} (x) ϕ_{n} (y) ϕ_{i} (x) ϕ_{j} (y) d x d y \\ F_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} ϕ_{m} ​^{''} (x) ϕ_{n} (y) ϕ_{i} ​^{''} (x) ϕ_{j} (y) d x d y \\ G_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} ϕ_{m} (x) ϕ_{n} ​^{''} (y) ϕ_{i} ​^{''} (x) ϕ_{j} (y) d x d y \\ H_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} ϕ_{m} ​^{''} (x) ϕ_{n} (y) ϕ_{i} (x) ϕ_{j} ​^{''} (y) d x d y \\ I_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} ϕ_{m} (x) ϕ_{n} ​^{''} (y) ϕ_{i} (x) ϕ_{j} ​^{''} (y) d x d y \\ K_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} ϕ_{m} ​^{'} (x) ϕ_{n} ​^{'} (y) ϕ_{i} ​^{'} (x) ϕ_{j} ​^{'} (y) d x d y \\ L_{[(i - 1) N + j] [(m - 1) N + n]} = \int_{0}^{b} \int_{0}^{a} (a^{2} - x^{2}) ϕ_{m} ​^{'} (x) ϕ_{n} (y) ϕ_{i} ​^{'} (x) ϕ_{j} (y) d x d y \end{cases}

Thus, the natural frequencies ω of the rotating GPL reinforced plate can be calculated form equation (30) directly.

In addition, the backward traveling wave frequency ω_b and forward traveling wave frequency ω_f are obtained as

{\begin{cases} ω_{b} = ω + Ω \\ ω_{f} = | ω - Ω | \end{cases}

Analytic solution for forced vibration

In accordance to the linear thermoelastic principle, the relationship between stress and strain is

{\begin{matrix} σ_{x} = \frac{E}{1 - υ^{2}} [(ε_{x} + υ ε_{y}) - (1 + υ) α T_{shock}] \\ σ_{y} = \frac{E}{1 - υ^{2}} [(ε_{x} + υ ε_{y}) - (1 + υ) α T_{shock}] \\ τ_{x y} = G γ_{x y} \end{matrix}

Based on the Kirchhoff plate theory, the constitutive relations are

ε_{x} = - \frac{\partial^{2} w}{\partial x^{2}} z, ε_{y} = - \frac{\partial^{2} w}{\partial y^{2}} z, γ_{x y} = - 2 \frac{\partial^{2} w}{\partial x \partial y} z

The thermal deformation potential energy of the plate is determined by

U_{3} = \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} D {\begin{cases} {(\frac{\partial^{2} w}{\partial x^{2}} + \frac{\partial^{2} w}{\partial y^{2}})}^{2} - 2 (1 - υ) [\frac{\partial^{2} w}{\partial x^{2}} \frac{\partial^{2} w}{\partial y^{2}} - {(\frac{\partial^{2} w}{\partial x \partial y})}^{2}] \\ + (1 + υ) α T_{shock} (\frac{\partial^{2} w}{\partial x^{2}} + \frac{\partial^{2} w}{\partial y^{2}}) \end{cases}} z^{2} d x d y d z

Thus, the total potential energy of the plate under thermal shock can be obtained as

\begin{array}{l} U_{T} = U_{2} + U_{3} \\ = \frac{1}{2} \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} {\begin{cases} D z^{2} (1 + υ) α T_{shock} (\frac{\partial^{2} w}{\partial x^{2}} + \frac{\partial^{2} w}{\partial y^{2}}) - 2 D z^{2} (1 - υ) [\frac{\partial^{2} w}{\partial x^{2}} \frac{\partial^{2} w}{\partial y^{2}} - {(\frac{\partial^{2} w}{\partial x \partial y})}^{2}] \\ + D z^{2} {(\frac{\partial^{2} w}{\partial x^{2}} + \frac{\partial^{2} w}{\partial y^{2}})}^{2} + ρ Ω^{2} [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] {(\frac{\partial w}{\partial x})}^{2} \end{cases}} d x d y d z \end{array}

The virtual work done by rub-impact force is given by

δ W_{T} = q (x, y, t) δ w

where

q (x, y, t) = μ F_{impact} (y, t) δ (x - a)

Applying the Hamilton’s principle

\int_{t_{0}}^{t_{1}} (δ L + δ W_{T}) d t = 0 (L = T - U_{T})

and substituting equations (18), (37), and (38) into equation (40) yield

\begin{array}{l} \int_{- h / 2}^{h / 2} {\begin{cases} ρ w Ω^{2} - ρ \ddot{w} + ρ Ω^{2} [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] \frac{\partial^{2} w}{\partial x^{2}} \\ - ρ Ω^{2} (R_{0} + x) \frac{\partial w}{\partial x} - D z^{2} [\frac{\partial^{4} w}{\partial x^{4}} + 2 \frac{\partial^{4} w}{\partial x^{2} \partial y^{2}} + \frac{\partial^{4} w}{\partial y^{4}}] \end{cases}} d z \\ = \int_{- h / 2}^{h / 2} [D z^{2} (1 + υ) α (\frac{\partial^{2} T_{shock}}{\partial x^{2}} + \frac{\partial^{2} T_{shock}}{\partial y^{2}})] d z - q (x, y, t) \end{array}

The solution of equation (41) can be considered as a superposition solution of two parts in the form of

w = w_{static} + w_{dynamic}

where w _static is the static solution which satisfies

\int_{- h / 2}^{h / 2} D z^{2} (\frac{\partial^{4} w_{static}}{\partial x^{4}} + 2 \frac{\partial^{4} w_{static}}{\partial x^{2} \partial y^{2}} + \frac{\partial^{4} w_{static}}{\partial y^{4}}) d z + \int_{- h / 2}^{- h / 2} D (1 + υ) z^{2} α (\frac{\partial^{2} T_{shock}}{\partial x^{2}} + \frac{\partial^{2} T_{shock}}{\partial y^{2}}) d z = 0

In addition, w _dynamic is the dynamic solution which can be derived from

\begin{array}{l} \int_{- h / 2}^{h / 2} {\begin{cases} ρ w_{dynamic} Ω^{2} - ρ {\ddot{w}}_{dynamic} + ρ Ω^{2} [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] \frac{\partial^{2} w_{dynamic}}{\partial x^{2}} \\ - ρ Ω^{2} (R_{0} + x) \frac{\partial w_{dynamic}}{\partial x} - D z^{2} [\frac{\partial^{4} w_{dynamic}}{\partial x^{4}} + 2 \frac{\partial^{4} w_{dynamic}}{\partial x^{2} \partial y^{2}} + \frac{\partial^{4} w_{dynamic}}{\partial y^{4}}] \end{cases}} d z \\ = - q (x, y, t) - \int_{- h / 2}^{h / 2} {\begin{cases} ρ w_{static} Ω^{2} - ρ {\ddot{w}}_{static} - ρ Ω^{2} (R_{0} + x) \frac{\partial w_{static}}{\partial x} \\ + ρ Ω^{2} [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] \frac{\partial^{2} w_{static}}{\partial x^{2}} \end{cases}} d z \end{array}

Static solution

Setting

w_{static} = \sum_{m = 1}^{M} \sum_{n = 1}^{N} B_{m n} ϕ_{m} (x) ϕ_{n} (y)

and applying the Ritz method

\frac{\partial U_{T}}{\partial B_{i j}} = 0

give

\begin{array}{l} \sum_{m = 1}^{M} \sum_{n = 1}^{N} B_{m n} {\int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} D z^{2} [\begin{array}{l} {ϕ^{″}}_{m} (x) ϕ_{n} (y) {ϕ^{″}}_{i} (x) ϕ_{j} (y) \\ + ϕ_{m} (x) {ϕ^{″}}_{n} (y) ϕ_{i} (x) {ϕ^{″}}_{j} (y) \\ + υ ϕ_{m} (x) {ϕ^{″}}_{n} (y) {ϕ^{″}}_{i} (x) ϕ_{j} (y) \\ + υ {ϕ^{″}}_{m} (x) ϕ_{n} (y) ϕ_{i} (x) {ϕ^{″}}_{j} (y) \\ + 2 (1 - υ) {ϕ^{'}}_{m} (x) {ϕ^{'}}_{n} (y) {ϕ^{'}}_{i} (x) {ϕ^{'}}_{j} (y) \end{array}] d x d y d z} \\ = \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} [- D z^{2} (1 + υ) α T_{z} (\frac{\partial^{2} T_{x y}}{\partial x^{2}} + \frac{\partial^{2} T_{x y}}{\partial y^{2}}) ϕ_{i} (x) ϕ_{j} (y)] d x d y d z \end{array}

where

T_{x y} = \sum_{m = 1}^{\infty} \sum_{n = 1}^{\infty} \frac{4}{π^{2} m n} (1 - cos m π) (1 - cos n π) sin \frac{m π x}{a} sin \frac{n π y}{b}

Further, equation (47) can be changed to

[\begin{matrix} Φ_{11}^{11} & Φ_{12}^{11} & \dots & Φ_{m n}^{11} & \dots & Φ_{M N}^{11} \\ Φ_{11}^{12} & Φ_{12}^{12} & \dots & Φ_{m n}^{12} & \dots & Φ_{M N}^{12} \\ ⋮ & ⋮ & ⋱ & ⋮ & ⋱ & ⋮ \\ Φ_{11}^{i j} & Φ_{12}^{i j} & \dots & Φ_{m n}^{i j} & \dots & Φ_{M N}^{i j} \\ ⋮ & ⋮ & ⋮ & ⋮ & ⋮ & ⋮ \\ Φ_{11}^{M N} & Φ_{12}^{M N} & \dots & Φ_{m n}^{M N} & \dots & Φ_{M N}^{M N} \end{matrix}] {\begin{matrix} B_{11} \\ B_{12} \\ ⋮ \\ B_{m n} \\ ⋮ \\ B_{M N} \end{matrix}} = \int_{- h / 2}^{h / 2} [- D z^{2} (1 + υ) α T_{z}] d z {\begin{matrix} Λ_{11} \\ Λ_{12} \\ ⋮ \\ Λ_{i j} \\ ⋮ \\ Λ_{M N} \end{matrix}}

in which

{\begin{cases} Φ_{m n}^{i j} = \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} D z^{2} [\begin{array}{l} {ϕ^{″}}_{m} (x) ϕ_{n} (y) {ϕ^{″}}_{i} (x) ϕ_{j} (y) + ϕ_{m} (x) {ϕ^{″}}_{n} (y) ϕ_{i} (x) {ϕ^{″}}_{j} (y) \\ + υ ϕ_{m} (x) {ϕ^{″}}_{n} (y) {ϕ^{″}}_{i} (x) ϕ_{j} (y) + υ {ϕ^{″}}_{m} (x) ϕ_{n} (y) ϕ_{i} (x) {ϕ^{″}}_{j} (y) \\ + 2 (1 - υ) {ϕ^{'}}_{m} (x) {ϕ^{'}}_{n} (y) {ϕ^{'}}_{i} (x) {ϕ^{'}}_{j} (y) \end{array}] d x d y d z \\ Λ_{i j} = \sum_{m = 1, 3, 5}^{\infty} \sum_{n = 1, 3, 5}^{\infty} {\frac{16}{π^{2} m n} [{(\frac{m π}{a})}^{2} + {(\frac{n π}{b})}^{2}] \int_{0}^{a} sin \frac{m π x}{a} ϕ_{i} (x) d x \int_{0}^{b} sin \frac{n π y}{b} ϕ_{j} (y) d y} \end{cases}

Suppose

B_{m n} (t) = {\underline{B}}_{m n} \int_{- h / 2}^{h / 2} [- D z^{2} (1 + υ) α T_{z}] d z

where, B _mn can be determined by substituting equation (51) into equation (49).

By substituting equation (51) into equation (45), the static solution can be obtained.

Dynamic solution

Setting

w_{dynamic} = \sum_{i = 1}^{I} \sum_{j = 1}^{J} Q_{i j} (t) W_{i j} (x, y)

and substituting equation (52) into equation (44), we have

{\ddot{Q}}_{i j} (t) + ω_{i j}^{2} Q_{i j} (t) = \frac{P_{i j} (t)}{M_{i j}}

where

{\begin{cases} P_{i j} (t) = \int_{0}^{b} \int_{0}^{a} q^{'} (x, y, t) W_{i j} (x, y) d x d y \\ M_{i j} = \int_{- h / 2}^{h / 2} \int_{0}^{b} \int_{0}^{a} ρ (z) W_{i j} (x, y) d x d y dz \end{cases}

and

q^{'} (x, y, t) = q (x, y, t) + \int_{- h / 2}^{h / 2} {\begin{cases} ρ w_{static} Ω^{2} - ρ {\ddot{w}}_{static} - ρ Ω^{2} (R_{0} + x) \frac{\partial w_{static}}{\partial x} \\ + ρ Ω^{2} [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] \frac{\partial^{2} w_{static}}{\partial x^{2}} \end{cases}} d z

According to the vibration theory of single freedom system, the solution for equation (53) can be obtained as

Q_{i j} (t) = a_{i j} sin ω_{i j} t + b_{i j} cos ω_{i j} t + \frac{1}{M_{i j} ω_{i j}} \int_{0}^{t} P_{i j} (τ) sin ω_{i j} (t - τ) d τ

where a_ij and b_ij are determined by initial conditions; P_ij is determined by

\begin{array}{l} P_{i j} (τ) = \int_{0}^{b} \int_{0}^{a} q (x, y, τ) W_{i j} (x, y) d x d y \\ - Ω^{2} \int_{- h / 2}^{h / 2} [ρ D z^{2} (1 + υ) α T_{z}] d z \int_{0}^{b} \int_{0}^{a} {\begin{cases} w_{static} - (R_{0} + x) \frac{\partial w_{static}}{\partial x} + \\ [R_{0} (a - x) + \frac{1}{2} (a^{2} - x^{2})] \frac{\partial^{2} w_{static}}{\partial x^{2}} \end{cases}} W_{i j} (x, y) d x d y \\ + \frac{d^{2} {\int_{- h / 2}^{h / 2} [ρ D z^{2} (1 + υ) α T_{z} (τ)] d z}}{d τ^{2}} \int_{0}^{b} \int_{0}^{a} w_{static} W_{i j} (x, y) d x d y \end{array}

Thus, the dynamic solution can be calculated by substituting equation (56) into equation (52).

Results and discussion

Validation study

To validate the accuracy of modeling in this paper, the theoretical solution, given by Piovan and Sampaio,³² is provided for a direct comparison. The dimension and material parameters are the following: plate length a= 152.40 mm, plate width b= 22.12 mm, plate thickness h= 2.66 mm, Young’s modulus E = 214 GPa, Poisson’s ratio υ = 0.3, and mass density ρ = 7800 kg m⁻³.

Another validation example is presented in Table 2, where the numerical results³³ are calculated by employing the finite element method. The selected parameters are defined as plate length a = 80 mm, width b = 80 mm, thickness h = 30 mm, Young’s modulus E = 70.2 GPa, Poisson’s ratio υ = 0.33, and mass density ρ = 2850 kg m⁻³.

It can be seen from Tables 1 and 2 that the present results agree well with the two literature studies. The maximum error is less than 2%, which indicates the proposed model is sufficiently accurate.

Table 1.

Comparison between theoretical and experimental results.

Frequency	Present	Ref.³²	Error (%)
1st	97.81	97.00	0.835
2nd	611.95	611.00	0.320
3rd	1711.71	1693.00	1.105

Table 2.

Comparison between theoretical and numerical results.

Frequency	Present	Ref.³³	Error (%)
First	39.21	39.56	0.88
Second	94.86	96.78	1.98
Third	239.32	242.76	1.42
Fourth	306.73	310.92	1.35
Fifth	346.98	352.93	1.69

Parametric analysis

In this section, vibration characteristics of the rotating plate reinforced with GPL under rub-impact and thermal shock is investigated. Unless otherwise stated, the dimension parameters of the plate are the following: a = 0.45 m, b = 0.45 m, and h = 0.045 m; the material parameters of the plate are the following: E _GPL = 1050 GPa, E _M = 2.76 GPa, υ _GPL = 0.186, υ _M = 0.35, ρ _GPL = 1060 kg m⁻³, ρ _M = 1200 kg m⁻³, α _GPL = 2.0 × 10⁻⁵ K⁻¹, α _M = 8.1 × 10⁻⁵ K⁻¹, C _GPL = 650 J kg⁻¹ K⁻¹, C _M = 1912.55 J kg⁻¹ K⁻¹, k _GPL= 2000 W mK⁻¹, k _M= 0.2 W mK⁻¹, R_k = 1.0 × 10⁻⁸ m² K W⁻¹, g _GPL= 1%, l/h = 10³ and l/w = 2; the load parameters are: T _impact= 2Π/Ω, Ω = 300 rad s⁻¹, t _act= 0.1 T_c , F ₁ = 1000 N, F ₂ = 20F ₁, μ = 0.3 and q _t = 0. In addition, pattern II of GPL distributions are considered if not specified in the following analysis.

Figure 4 depicts the variations of first two natural frequencies of the plate with rotating speed for different GPL distribution patterns, where λ ₁, λ ₂, λ ₃, λ ₄, and λ ₅ represent pattern I, pattern II, pattern III, pattern IV, and pattern V, respectively. It can be seen obviously that the natural frequencies of forward traveling waves decrease monotonically with a corresponding increase in the rotating speed, while those of backward traveling waves increase gradually. Another observation is that pattern II and pattern V of GPLs provide the highest and lowest natural frequencies, respectively. Thus, it is demonstrated that adding a larger number of GPL nanofillers near the top and bottom surfaces of the plate is an effective way to enhance the structural stiffness.

Figure 4.

Effects of GPL distribution patterns on natural frequencies of the rotating plate: (a) first frequency and (b) second frequency.

To examine the effect of GPL’s geometrical dimension, Figure 5 displays the variations of first two natural frequencies of the plate with rotating speed for different GPL length-to-thickness ratios. Results show that the natural frequencies are increased significantly with the increase of the GPL length-to-thickness ratio. For the same content of GPLs, the higher value of l/h represents thinner GPLs, namely, GPLs with less graphene layers. It is worth noting that adopting thinner GPLs would lead to the better reinforcing effect for the rotating plate.

Figure 5.

Effects of GPL length-to-thickness ratios on natural frequencies of the rotating plate: (a) first frequency and (b) second frequency.

Furthermore, the variations of first two natural frequencies of the plate with rotating speed for different GPL length-to-width ratios are presented in Figure 6, where the GPL length remains constant. As can be seen, the natural frequencies increase markedly as the GPL length-to-width ratio decreases. Virtually, a smaller l/w means that each individual GPL has a larger surface area. This suggests that GPLs with larger surface areas would be more effective in improving mechanical performance, which is caused by better load transfer capability.

Figure 6.

Effects of GPL length-to-width ratios on natural frequencies of the rotating plate: (a) first frequency and (b) second frequency.

Figure 7 illustrates the variations of first two natural frequencies of the plate with rotating speed for different GPL weight fractions. As shown, the natural frequencies with g _GPL = 0 are significantly lower than those with g _GPL ≠ 0, which implies that dispersing a few GPL reinforcements into the matrix can considerably improve the mechanical behavior of the rotating plate. In addition, it is obvious that an increase in GPL weight fraction can lead to increased natural frequencies.

Figure 7.

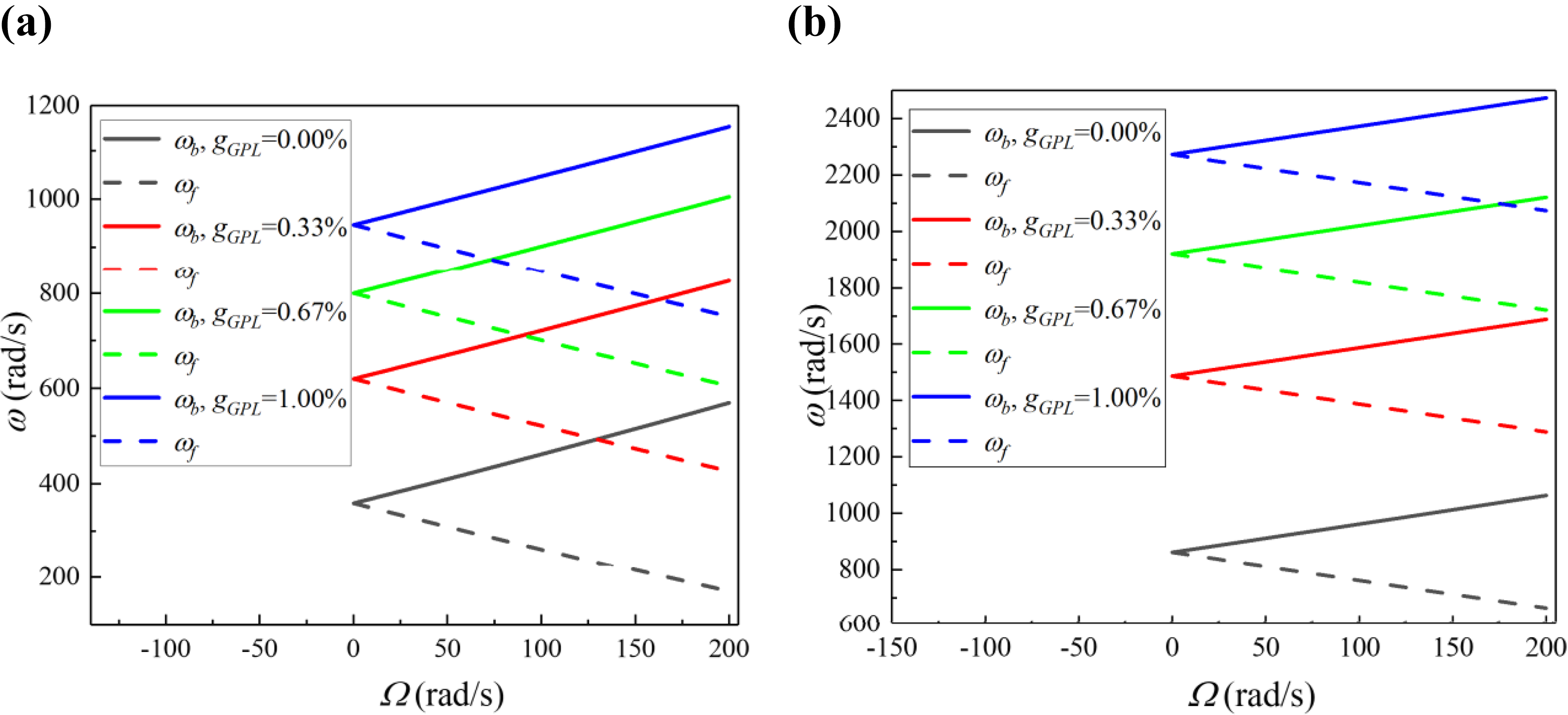

Effects of GPL weight fractions on natural frequencies of the rotating plate: (a) first frequency and (b) second frequency.

Moreover, to study the influence of material property on the forced vibration responses, Figure 8 plots the variations of forced vibration responses of the rotating plate for different GPL weight fractions. Results show that the forced vibration responses decrease significantly with the increase of the GPL weight fraction. This implies that adding more GPL nanofillers into polymer matrix is an efficient way to improve the mechanical behavior of the rotating plate. It can be told that the similar conclusions are drawn by the free and forced vibration results with different GPL weight fractions. Besides, for the case of different GPL distribution patterns, different GPL length-to-thickness ratios or different GPL length-to-width ratios, the forced vibration results also give the conclusions which are similar with those obtained by the free vibration results. Thus, they are omitted to avoid repetition.

Figure 8.

Effects of GPL weight fractions on forced vibration responses of the rotating plate: (a) time-domain response and (b) frequency-domain response.

Figure 9 gives the variations of forced vibration responses of the rotating plate for different thermal flow. It is obvious that increasing thermal flow tends to give higher vibration response. This implies that thermal shock can aggravate the dynamic vibration of rotating plates and should be avoided in actual engineering.

Figure 9.

Effects of thermal flow on forced vibration responses of the rotating plate: (a) time-domain response and (b) frequency-domain response.

Figure 10 illustrates the variations of forced vibration responses of the rotating plate for different friction coefficients. It can be seen that the vibration amplitudes increase steadily with the increase of friction coefficients, which indicates higher friction coefficient would exacerbate the vibration caused by rub-impact. For the purpose of preventing damage, the friction can be decreased by reducing the surface roughness between the tip of the plate and the casing during the production.

Figure 10.

Effects of friction coefficients on forced vibration responses of the rotating plate: (a) time-domain response and (b) frequency-domain response.

Conclusions

This article investigates the free and forced vibration characteristics of a nanocomposite rotating plate reinforced with GPLs subject to rub-impact and thermal shock. In accordance to the Kirchhoff plate theory, the equations of motion are derived by the Hamilton’s principle. Then, the Galerkin method and the small parameter perturbation method are employed to obtain the analytical solutions for free and forced vibration.

Results imply the following: (1) Adding a larger number of GPL reinforce fillers near the surfaces of the plate is an effective way to enhance the structural stiffness; (2) Adopting thinner GPLs would lead to better reinforcing effect; (3) GPLs with larger surface areas would be more effective in improving mechanical performance; (4) Dispersing more GPL nanofillers into polymer matrix is an efficient way to improve the mechanical behavior of the rotating plate. (5) Thermal shock can aggravate the dynamic vibration of rotating plates and should be avoided in actual engineering; (6) Higher friction coefficient would exacerbate the vibration caused by rub-impact. For the purpose of preventing damage, the friction can be decreased by reducing the surface roughness between the tip of the plate and the casing during production.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Science Foundation of China (No. 51805076, No. U1708255 and No. 51775093), the Fundamental Research Funds for the Central Universities (No. N182303035 and No. N170503011) and the Natural Science Foundation of Liaoning Province, China (No. 20180551058).

ORCID iD

Xiang Sheng Gao

References

Dokainish

Rawtani

. Vibration analysis of rotating cantilever plates. Int J Numer Meth Eng 1971; 3(2): 233–248.

Laura

PAA

Grossi

. Transverse vibrations of rectangular anisotropic plates with edges elastically restrained against rotation. J Sound Vibrat 1979; 64(2): 257–267.

Sreenivasamurthy

Ramamurti

. A parametric study of vibration of rotating pre-twisted and tapered low aspect ratio cantilever plates. J Sound Vibrat 1981; 76(3): 311–328.

Wang

Shaw

Mahrenholtz

. Vibration of rotating rectangular plates. J Sound Vibrat 1987; 112(3): 455–468.

Karmakar

Sinha

. Finite element free vibration analysis of rotating laminated composite pretwisted cantilever plates. J Reinf Plast Compos 1997; 16(16): 1461–1491.

Yoo

Kim

. Free vibration analysis of rotating cantilever plates. Aiaa J 2002; 40(11): 2188–2196.

Cherif

HSM

. Free vibration analysis of rotating cantilever plates using the p-version of the finite element method. Struct Eng Mech 2006; 22(2): 151–167.

Korspeter

Hochlenert

Kirillov

. In and out of plane vibrations of a rotating plate with frictional contact: investigations on squeal phenomena. J Appl Mech 2009; 76(4): 041006.

Rostami

Ranji

Bakhtiari-Nejad

. Vibration characteristics of rotating orthotropic cantilever plates using analytical approaches: a comprehensive parametric study. Arch Appl Mech 2008; 88(4): 481–502.

10.

Young

Liou

. Coriolis effect on the vibration of a cantilever plate with time-varying rotating speed. J Vibrat Acoust 1992; 114(2): 49–59.

11.

Cote

Atalla

Nicolas

. Effects of shear deformation and rotary inertia on the free vibration of a rotating annular plate. J Vibrat Acoust 1997; 119(4): 641.

12.

Yoo

Pierre

. Modal characteristic of a rotating rectangular cantilever plate. J Sound Vibrat 2003; 259(1): 81–96.

13.

Hashemi

Farhadi

Carra

. Free vibration analysis of rotating thick plates. J Sound Vibrat 2009; 323(1-2): 366–384.

14.

Younesian

Aleghafourian

Esmailzadeh

. Vibration analysis of circular annular plates subjected to peripheral rotating transverse loads. J Vibrat Cont 2015; 21(7): 1443–1455.

15.

Zhang

. Free vibration analysis of rotating functionally graded rectangular plates. Compos Struct 2016; 136: 493–504.

16.

Rostami

Ranji

Bakhtiari-Nejad

. Free in-plane vibration analysis of rotating rectangular orthotropic cantilever plates. Int J Mech Sci 2016; 115-116: 438–456.

17.

Chen

Zhang

. Dynamics analysis of a rotating plate with a setting angle by using the absolute nodal coordinate formulation. Eur J Mech A-Solid 2019; 74: 257–271.

18.

Feng

Kitipornchai

Yang

. Nonlinear bending of polymer nanocomposite beams reinforced with non-uniformly distributed graphene platelets (GPLs). Compos Part B Eng 2017; 110: 132–140.

19.

Song

Yang

Kitipornchai

. Bending and buckling analyses of functionally graded polymer composite plates reinforced with graphene nanoplatelets. Composi Part B Eng 2018; 134: 106–113.

20.

Yang

Dong

Kitipornchai

. Unilateral and bilateral buckling of functionally graded corrugated thin plates reinforced with graphene nanoplatelets. Compos Struct 2019; 209: 789–801.

21.

Wang

Feng

Wang

, et al. Nonlinear free vibration of graphene platelets (GPLs)/polymer dielectric beam. Smart Mater Struct 2019; 28(5): 055013.

22.

Zhao

Feng

Wang

, et al. Bending and vibration analysis of functionally graded trapezoidal nanocomposite plates reinforced with graphene nanoplatelets (GPLs). Compos Struct 2017; 180: 799–808.

23.

Song

Kitipornchai

Yang

. Free and forced vibrations of functionally graded polymer composite plates reinforced with graphene nanoplatelets. Composi Struct 2017; 159: 579–588.

24.

Yang

Kitipornchai

. Thermoelastic analysis of functionally graded graphene reinforced rectangular plates based on 3D elasticity. Meccanica 2016; 52(10): 2275–2292.

25.

Bahaadini

Saidi

. Aeroelastic analysis of functionally graded rotating blades reinforced with graphene nanoplatelets in supersonic flow. Aeros Sci Technol 2018; 80: 381–391.

26.

Ebrahimi

Nouraei

Dabbagh

. Modeling vibration behavior of embedded graphene-oxide powder-reinforced nanocomposite plates in thermal environment. Mech Based Des Struct Mach 2019; 48: 1–24.

27.

Niu

Zhang

Guo

. Free vibration of rotating pretwisted functionally graded composite cylindrical panel reinforced with graphene platelets. Eur J Mech A-Solid 2019; 77: 103798.

28.

Nguyen

Thai

, et al. An isogeometric Bézier finite element analysis for piezoelectric FG porous plates reinforced by graphene platelets. Compos Struct 2019; 214: 227–245.

29.

Yang

Kitipornchai

. Dynamic instability of functionally graded multilayer graphene nanocomposite beams in thermal environment. Compos Struct 2017; 162: 244–254.

30.

Dong

Zhu

Wang

, et al. Analytical prediction of the impact response of graphene reinforced spinning cylindrical shells under axial and thermal loads. Appl Mathemat Model 2019; 71: 331–348.

31.

Yang

Mei

Chen

, et al. 3D thermo-mechanical solution of transversely isotropic and functionally graded graphene reinforced elliptical plates. Compos Struct 2018; 184: 1040–1048.

32.

Piovan

Sampaio

. A study on the dynamics of rotating beams with functionally graded properties. J Sound Vibrat 2009; 327: 134–143.

33.

Chen

Yang

. Analysis and comparison of several cases of natural properties of cantilever plates. Mech Sci Technol 1996; 15: 321–325.
