AI-based multiobjective optimization of flat plate solar collectors for sustainable dairy industry in Mexico

Abstract

This study develops a computational methodology to assess the performance of a flat plate solar collector system for dairy pasteurization, integrating computational intelligence methods. A heat exchanger tank captures thermal energy from the collectors, with an auxiliary heater compensating for any unmet thermal demand. The analysis considers four climate types—temperate, arid, dry, and tropical—along with four auxiliary fuel options: diesel, fuel oil, natural gas, and LP gas. Design variables include solar field area, heat exchanger tank volume, fuel type, and climate conditions. A dataset is generated by varying these parameters, incorporating governing equations for solar technology, industrial thermal requirements, and regional climate data. This dataset trains a surrogate artificial intelligence (AI) model based on artificial neural networks, where input neurons represent the design variables, and output neurons correspond to economic-environmental indicators: net present value, total life cycle cost, and carbon dioxide emission reduction. To identify optimal system configurations, multi-objective optimization is performed using three different algorithms: particle swarm optimization, genetic algorithms, and the whale optimization algorithm. These algorithms generate Pareto diagrams that facilitate the analysis of trade-offs among the performance indicators. Results indicate economic and environmental feasibility across all climate regions when using diesel as auxiliary fuel, with Jalisco's temperate climate being the most suitable for implementation. This methodology offers a flexible framework for evaluating the feasibility of solar technologies in industrial processes, supporting sustainable energy integration.

Graphical abstract

This is a visual representation of the abstract.

Keywords

artificial intelligence multi-objective optimization artificial neural network solar heat for industrial process flat plate solar collectors

Highlights

A solar collector field provides heat for dairy pasteurization, modeled using artificial neural networks.

Multi-objective optimization is conducted using particle swarm, genetic, and whale optimization algorithms.

Different climatic conditions commonly found in Latin America are analyzed.

This methodology can be adapted to assess the economic and environmental feasibility of various industrial processes.

Introduction

Industries worldwide are currently seeking ways to maintain production levels demanded by society while minimizing the environmental impact of their manufacturing processes. Given the high heat requirements in these processes, converting solar energy to thermal energy offers an attractive solution to address this critical challenge.

The technologies enabling this energy transformation significantly reduce the environmental impact of industrial processes. Among the most commonly used are Flat plate solar collectors (FPC), parabolic solar collectors, and linear Fresnel collectors. However, since economic factors are crucial for the industrial sector, these technologies cannot fully replace traditional methods of generating thermal energy. This is because solar-powered industrial equipment is still in development, making it more expensive compared to conventional fossil fuel-based systems. As a result, implementing hybrid systems in industries is essential. These systems can help reduce greenhouse gas emissions while remaining economically and energetically viable. Flat plate collectors are the most cost-effective solar energy technology on the market (Zaboli et al., 2023), reaching the temperatures required by certain industries worldwide, such as the pasteurization process in the dairy industry (Rashed et al., 2021; Rosales-Pérez et al., 2024).

Economic studies on solar energy systems used in industrial processes help estimate the minimum cost required to meet demand, considering both solar technologies and non-renewable alternative sources (Dhirawani et al., 2022). In terms of environmental impact, these studies clearly demonstrate the potential to reduce carbon use and greenhouse gas emissions, such as when solar heat is used in the paper and textile industries. The economic impact of using solar heat for industrial processes (SHIP) in these industries has been analyzed using indicators like the unit cost of usable thermal energy, discounted payback period, Net Present Value (NPV), and internal rate of return on investment (Mohammadi et al., 2021).

To implement this technology, access to solar resources for energy conversion is essential. Mexico benefits from abundant solar radiation, with an average solar insolation of 6 kWh/m² per day throughout much of the country. Additionally, Mexico has the largest number of thermal power plants dedicated to providing solar heat for various industrial processes (Hernandez-Escobedo et al., 2022). Therefore, there is an urgent need to conduct studies on industries that already use this technology, as well as those planning to adopt it, either in Mexico or any other country with suitable solar resources. These analyses should include environmental-economic indicators such as NPV, Total Life Cycle Cost (TLCC), and Amount of Carbon Mitigated (ACM), which help identify the optimal technological configuration for the SHIP system, offering the greatest economic, energy, and environmental benefits.

Since industrial processes that require heat often operate continuously, conducting the studies mentioned earlier in a practical setting is not feasible—just a few minutes of downtime can result in significant financial losses. Therefore, developing theoretical or surrogate models to describe the processes associated with SHIP systems is essential for this type of analysis. Computational tools, particularly those based on artificial intelligence (AI), have been developed in recent years to make accurate predictions of energy systems with a very small margin of error. These tools enable the study and forecasting of the thermal and energy performance of plants that provide SHIP, saving time and allowing for the projection of the long-term energy, economic, and environmental benefits of these systems (Antuña-Yudego et al., 2023).

AI-based tools can estimate the amount of energy delivered by a solar energy harvesting system, using numerical data previously gathered from the study site. Recent advancements in computational tools have improved the ability to model the thermal and energy parameters of solar collector fields supplying SHIP, producing results that closely match those from commercial software (Sharifi and Eskandari, 2023). AI has become a crucial tool for analyzing exergy parameters in thermodynamic systems. By applying AI techniques, it is possible to predict the thermal and energy behavior of complex systems with greater accuracy and efficiency, including exergy losses, energy demands, and overall system optimization. This use of AI also aids in calculating exergoeconomic costs and supports decision-making to improve system performance, even without extensive domain expertise (Bian et al., 2022).

Recent studies have highlighted the effectiveness of artificial neural networks (ANN) in various renewable energy and environmental applications. One study developed an IoT-based environmental monitoring system that used ANN to predict air pollutants such as ${CO}_{2}$ and ${NO}_{2}$ in non-industrial areas, achieving high accuracy in real-time pollution monitoring (Arulmozhiselvi and Indirani, 2022). Another study focused on the use of ANN models in hybrid renewable energy systems, where they accurately predicted energy outputs from solar and wind sources, significantly improving prediction reliability (Rahman et al., 2021). Further research demonstrated the ability of ANN to estimate daily maximum and minimum temperatures using MODIS satellite data, achieving a high correlation coefficient (Ovando et al., 2022). In wind energy applications, hybrid models based on ANN were used to estimate wind speed and wind power density, showing superior prediction performance (Koroglu and Ekici, 2024). Additionally, ANN models have been applied to analyze abnormal aerosol air pollution, accurately estimating peak pollution periods and providing valuable data for air quality management (Gubanova et al., 2021).

While AI tools like ANN have proven effective in modeling renewable energy systems, optimizing these systems is often key to achieving the best outcomes. In many cases, modeling serves as an intermediate step that supports the optimization process, where design parameters must be carefully considered. One such tool, the Pareto diagram, helps visualize the space of optimal solutions in a two-dimensional format. It has been successfully used to identify optimal areas for maximizing exergy efficiency while minimizing both total cost and environmental impact in cogeneration systems. For instance, the Pareto method was applied to optimize site selection for wind energy installations, reducing costs and improving strategic decisions for wind power development (Derse and Yılmaz, 2022).

Despite the growing use of AI-based methods for energy system modeling, there remains a clear research gap in integrating AI with multi-objective optimization for the design of SHIP in the dairy sector, particularly in developing countries such as Mexico. Most previous studies have focused on single-objective optimization or limited techno-economic evaluations, without fully leveraging the predictive capabilities of ANN for optimization purposes (Guo et al., 2021; Ukaegbu et al., 2023). In addition, limited attention has been given to the combined analysis of multiple climatic regions and fuel types in SHIP systems using AI-based surrogate models (Thirunavukkarasu et al., 2023; Ukoba et al., 2024). By addressing this gap, the present study provides a comprehensive computational framework that demonstrates the significant impact of AI in enhancing the accuracy, speed, and reliability of solar system performance evaluations. The integration of ANN-based surrogate modeling with advanced optimization algorithms allows for the identification of optimal configurations that maximize economic and environmental benefits while minimizing costs, thus supporting the sustainable implementation of SHIP systems in the dairy industry.

Building on the points discussed, this work proposes a computational methodology for the sustainable integration of photo-thermal technology into industrial processes within the dairy sector. Using a multi-objective optimization approach, the goal is to enhance the design and operation of SHIP systems. This study includes an economic-environmental analysis of integrating a SHIP system based on flat solar collectors in Mexico's dairy industry, utilizing optimization tools and multi-objective decision-making techniques.

In this context, this study applies three multi-objective optimization algorithms—genetic algorithm (GA), particle swarm optimization (PSO), and whale optimization algorithm (WOA)—to identify optimal system configurations that maximize carbon mitigation and NPV, while minimizing TLCC. The integration of these optimization tools enables a robust evaluation of trade-offs between economic and environmental objectives, allowing for the generation of Pareto diagrams that support decision-making in the design of SHIP systems.

Methodology

Case of study: solar heat for the dairy industry in Mexico

In Mexico, the food processing sector is one of the largest consumers of industrial heat. Within this sector, the dairy industry accounts for 10% of the gross domestic product, placing Mexico as the world's 8th largest dairy producer. Additionally, milk production in Mexico is concentrated across four distinct climate regions: arid, dry, temperate, and tropical.

The industrial process under study is milk pasteurization in the dairy industry, which requires thermal energy between 80–90 °C to effectively treat the dairy product (Ramkumar et al., 2022). The plant operates from 9:00 to 17:00, seven days a week, to maximize solar radiation use. During this operating schedule, the pasteurization process has a constant thermal demand of 125 kW_th, equivalent to a daily energy requirement of 1000 kW_th (May Tzuc et al., 2020). This results in an annual thermal energy consumption of 365 MWh, as illustrated in Figure 1.

Figure 1.

Thermal energy monthly demand of the dairy pasteurization process.

The proposed solar heat generation system consists of an array of flat-plate solar collectors integrated with the industrial process described above. Figure 2 presents the schematic layout of the SHIP system based on flat-plate solar collectors. The configuration comprises two primary hydraulic loops. The first loop, known as the Solar Thermal Circuit (STC), circulates water through the collectors and is activated when solar irradiance surpasses 600 W/m². It is deactivated when irradiance drops below 400 W/m², ensuring efficient energy capture and system protection. The second loop, the Thermal Load Circuit (TLC), supplies thermal energy to the dairy process. An auxiliary heater is triggered when the inlet temperature to the industrial process does not meet the required setpoint, thereby guaranteeing thermal stability for industrial operations.

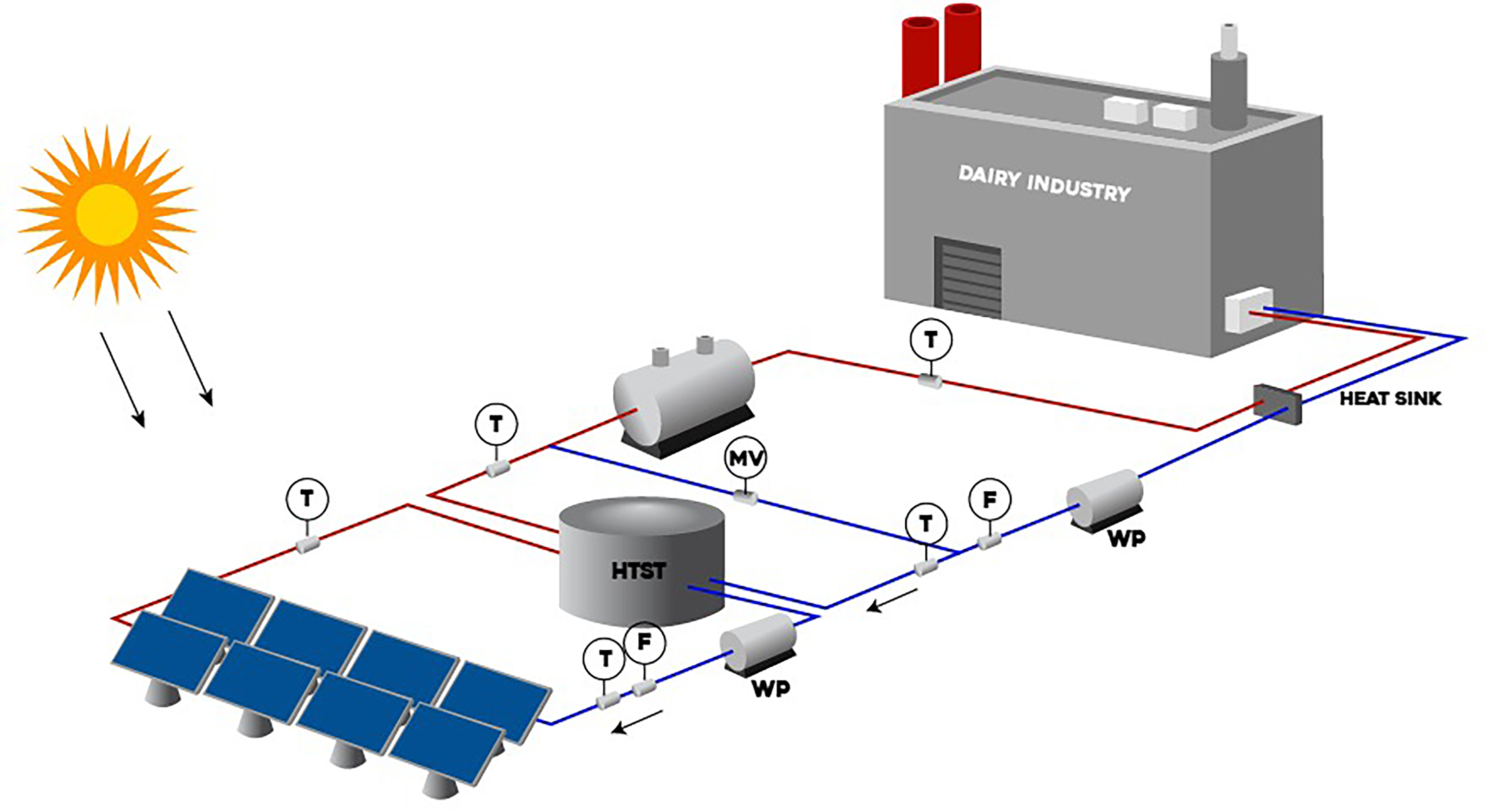

Figure 2.

Schematic diagram of the SHIP system using flat plate solar collectors.

The system includes key components such as:

Flat-plate solar collectors, which harness solar energy to heat water in the STC.

HTST tank (High-Temperature Short-Time) for thermal storage and regulation.

Heat exchangers and circulation pumps (WP) to transfer and maintain flow in both loops.

Temperature (T) and flow (F) sensors for real-time monitoring and control.

A mixing valve (MV) that regulates temperature at the storage tank inlet.

An auxiliary boiler, which supplies backup thermal energy to the process when solar energy is insufficient.

The operational characteristics of the dairy industrial process are shown in Table 1. Design parameters, such as mass flow rate of the solar field and outlet temperature, are taken into account. It is important to note that these conditions are maintained during an 8-h workday, where a continuous heat demand is required.

Table 1.

Technical and operational characteristics of the SHIP system (May Tzuc et al., 2020).

Parameters		Values	Units
Thermal fluid properties
Specific heat	$(c p_{t f})$	4180.0	$[J \cdot {kg}^{- 1} \cdot K^{- 1}]$
Thermal conductivity	$(κ_{t f})$	0.670	$[W \cdot m^{- 2} \cdot K]$
Dynamic viscosity	$(μ_{t f})$	0.00031	$[Pa \cdot s]$
Density	$(ρ_{t f})$	1000.0	$[kg \cdot m^{- 3}]$
Industrial process operating conditions
Thermal load temperature	$(T_{i n})$	90.0	[ $\circ C$ ]
Return temperature	$(T_{o u t})$	80.0	[ $\circ C$ ]
Process heat required	$(Q_{L})$	125.0	[ ${kW}_{th}$ ]
Solar field mass flow	$({\dot{m}}_{c})$	1.987	[ $kg \cdot s^{- 1}$ ]
Thermal load mass flow	$({\dot{m}}_{L})$	2.987	[ $kg \cdot s^{- 1}$ ]
Solar field input temperature	$(T_{i, N})$	90.0	[ $\circ C$ ]
Solar field output temperature	$(T_{O, N})$	105.0	[ $\circ C$ ]
Daily working hours	-	8	[ $hrs$ ]
Boiler efficiency	$(η)$	0.87	[–]

The SHIP system operation was modeled considering typical instrumentation used in industrial solar heating systems. Two control loops were incorporated to ensure accurate system behavior. The first control loop regulates the STC, activating the water circulation pump when the incident solar radiation on the flat plate collectors reaches or exceeds 600 W/m², and stopping it when radiation falls below 400 W/m². The second control loop controls the TLC, activating the auxiliary heating system when the inlet temperature of the industrial process drops below the required setpoint. It also regulates a three-way mixing valve to maintain the process temperature within the desired range, ensuring stable operation (May Tzuc et al., 2020).

The system is equipped with temperature sensors (Pt100 Class A) with an operating range of −50 °C to 250 °C and an accuracy of ±0.15 °C, installed at strategic points such as the collector field, storage tank, and industrial process inlet and outlet. Flow meters are ultrasonic-type, with an accuracy of ±1% of the measured flow, enabling precise control of mass flow rates in both hydraulic loops. The mixing valve and water pumps were selected to match the design flow rates and pressure losses of the SHIP system, ensuring proper operation under industrial conditions (May Tzuc et al., 2020).

Additionally, a numerical experimentation process was conducted to generate the necessary database for the training of the AI model. This database simulates the thermal and energy performance of the SHIP system under various combinations of climatic conditions, fuel types, and design parameters, using validated thermodynamic models to ensure consistency and reliability in the predictive analysis.

To verify the accuracy of the mathematical model used to generate the database for training the ANN, a validation process was carried out by comparing the model's predictions with experimental data previously collected under similar operating conditions. This experimental data, obtained from prior research on SHIP systems with FPC (May Tzuc et al., 2020), includes temperature profiles, flow rates, and energy delivery measurements recorded during steady-state operation. The governing equations and thermal models used in this study were adjusted to replicate these experimental conditions, ensuring consistent boundary conditions and input parameters. The validation results showed an absolute percentage deviation below 5% for key performance variables, such as thermal energy delivered and outlet temperatures, confirming the model's reliability for simulating the SHIP system's behavior across different scenarios. This verification step strengthens the credibility of the dataset employed to train the ANN-based surrogate model.

The solar thermal field (STF) provides part of the heat required by the industry. To store any excess energy and meet demand during periods of intermittent solar radiation, a centralized horizontal thermal storage tank (HTST) is used. The tank is made of stainless steel 304-2B on the inside and 304-BA on the outside. It features two heat exchangers: one (HX1) transfers energy from the STF to the industrial process, while the other (HX2) delivers this energy to the process, ensuring no direct contact between the two circuits. The main thermal losses in this component are due to the material properties of the hot water tank ( ${UA}_{st}$ ) and the efficiency of the heat exchangers ( $ε_{C}$ and $ε_{L}$ ).

If the energy generated from solar radiation is insufficient to meet the thermal demand of the industrial process, a conventional heating system powered by fossil fuels is used. This conventional heat source also helps reduce the initial investment costs of the project. The energy losses associated with the conventional heater are due to its efficiency ( $Q_{aux, loss}$ ) and the energy transfer throughout the SHIP system during the process (Cetina-Quiñones et al., 2024a).

Since the proposed SHIP system takes into account the solar resource of the region where it is implemented, analyzing different climatic locations is crucial for evaluating the performance of both economic and environmental indicators. The locations selected represent the four main climates in the country: Coahuila for the arid climate, Monterrey for the dry climate, Jalisco for the temperate climate, and Mérida for the tropical climate (Figure 3). The meteorological variables of interest, which were obtained for each climate, include direct solar radiation, ambient temperature, and wind speed. These data were sourced from the climate database of the SAM software, using 15-min intervals.

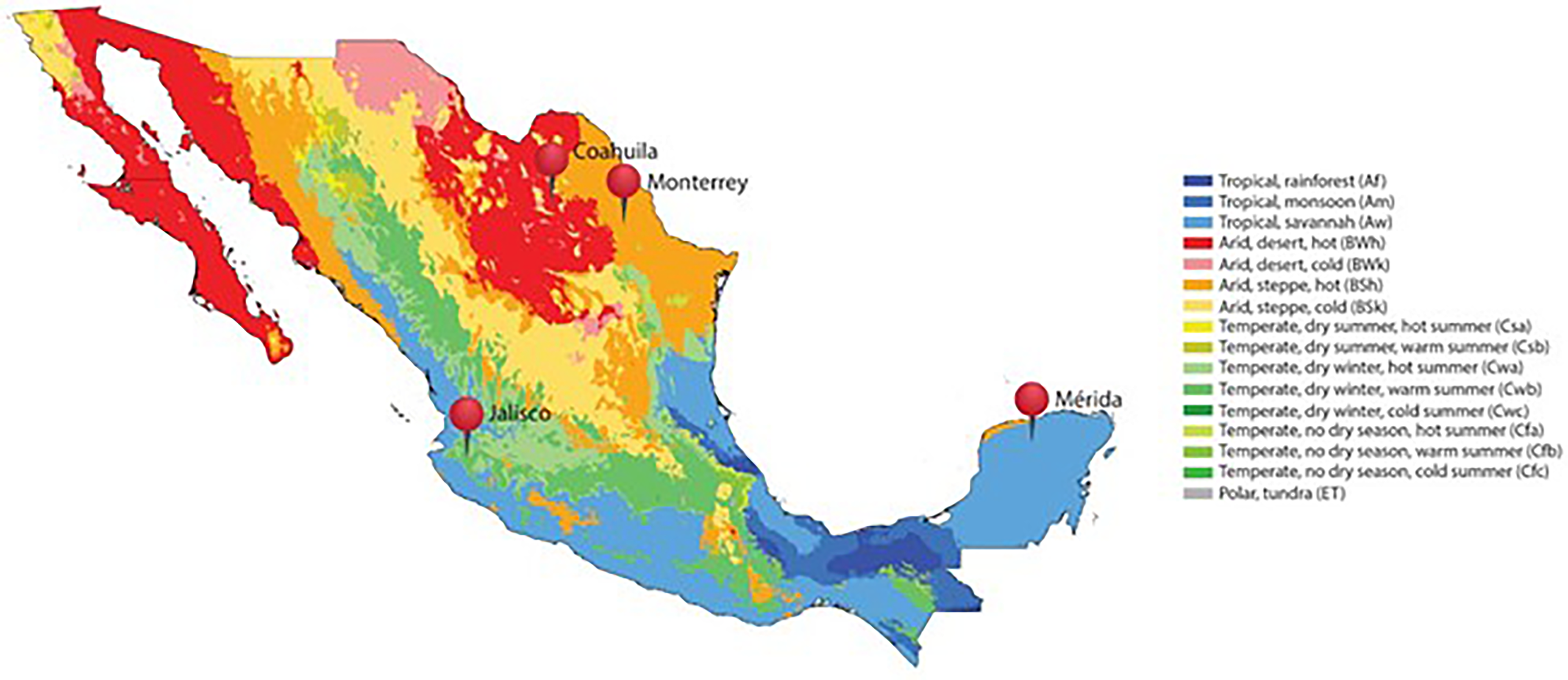

Figure 3.

Location of the four representative climates selected nationwide.

To ensure the suitability of the 15-min interval used for the climatic data, it is important to note that the SHIP system analyzed in this study operates under steady-state conditions, with a constant thermal demand during the 8-h working period. The simulation focuses on the long-term thermal performance of the system rather than on transient thermal responses. As such, the selected time interval provides adequate temporal resolution to capture the key variations in solar irradiance and ambient temperature throughout the day, without significantly affecting the accuracy of the energy balance calculations. This level of temporal aggregation is consistent with similar studies focusing on energy performance evaluations under quasi-steady conditions (Faisal and Saraei, 2025; Islam et al., 2023).

The climatic data for each selected location were obtained with a 15-min resolution, which is sufficiently detailed to capture the main daily variations in solar irradiance and ambient temperature. Although this data varies with time, the SHIP system was modeled under steady-state conditions, given its constant thermal demand and stable operation during the 8-h workday. Moreover, the thermal inertia of key components—such as the storage tank, the heat exchanger, and the solar field—dampens short-term fluctuations, making the steady-state approximation suitable for analyzing the system's overall thermal performance (Aleksiejuk-Gawron and Chochowski, 2020; Wang et al., 2022).

To complement the characterization of the selected climate zones, Figure 4 shows the monthly average of solar energy availability for each location. The data were obtained from the NASA POWER Data Access Viewer, using historical records from 2004 to 2024. These values represent the total solar energy received on a horizontal surface, considering both direct and diffuse components. The results are expressed in kilowatt-hours per square meter per day (kWh/m²/day) and provide a clear depiction of the seasonal variability of the solar resource throughout the year, which is a key factor for assessing the feasibility of the SHIP system.

Figure 4.

Monthly average solar energy availability for the four selected climate zones, based on NASA POWER Data Access Viewer (2004–2024).

Governing equations of the flat plate solar collector

Flat plate solar collectors (FPC) are made up of a multi-layered structure, with each layer serving a specific and essential function. Figure 5 shows a cross-sectional view of the components that make up the solar collector. The first layer is a glass cover that protects the entire structure while allowing sunlight to pass through. The second layer consists of an air gap, which acts as an insulator to reduce heat losses from the absorbed energy to the surrounding environment. Below the absorbent layer is a pipe through which the working fluid circulates, with its temperature being adjusted by the energy absorbed from the previous layers. A support cover is placed beneath the pipe, and finally, thermal insulation is added as an additional measure to minimize energy losses.

Figure 5.

Main components of the flat solar collector considered for the energy analysis.

To analyze the thermal and energy behavior of the collector, an energy balance must be conducted across all the layers previously described. The equation required to perform this energy balance is given by (Minakova and Zaitsev, 2022):

\frac{d E}{d t} = {\dot{Q}}_{i} - {\dot{Q}}_{o} + {\dot{Q}}_{g}

(1)

Where dE/dt represents the change in internal energy over time, while ${\dot{Q}}_{i}$ , ${\dot{Q}}_{o}$ and ${\dot{Q}}_{g}$ denote the heat entering, leaving, and generated, respectively, within the system under study. It is important to note that the flat plate solar collector is analyzed under steady-state conditions, meaning that equation (1) equals zero.

Glass cover

Analyzing the energy balance for the glass cover (Cetina-Quiñones et al., 2023):

${\dot{Q}}_{i} = G_{t} α_{g} [W / m^{2}]$ is the radiation absorbed by the glass cover.

${\dot{Q}}_{o} = U_{t} (T_{g} - T_{a m b}) + h_{n c}^{c o n v} (T_{g} - T_{p}) + h_{g - p}^{r a d}$ $(T_{g} - T_{p}) [W / m^{2}]$ is the energy leaving the glass cover.

${\dot{Q}}_{g} = 0 [\frac{W}{m^{2}}]$ , as no heat is generated within the glass cover.

Substituting these values into equation (1) and considering steady-state conditions, the energy balance for the first layer is expressed as:

\begin{aligned} U_{t} (T_{a m b} - T_{g}) + h_{n c}^{c o n v} (T_{p} - T_{g}) + h_{g - p}^{r a d} (T_{p} - T_{g}) \\ + G_{t} α_{g} = 0 \end{aligned}

(2)

where:

$T_{a m b}, T_{g} and T_{p} [\circ C]$ are the temperatures of the ambient, glass and absorbent layer, respectively.

$U_{t} [W / m^{2} \cdot \circ C]$ is the global coefficient of heat losses in the glass cover.

$h_{n c}^{c o n v} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by convection, from the glass cover to the air layer.

$h_{g - p}^{r a d} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by radiation, from the glass cover to the absorber plate.

Absorber plate

An analogous analysis for the absorber plate shows that:

${\dot{Q}}_{i} = G_{t} α_{p} τ_{g} [W / m^{2}]$ is the radiation transmitted by the glass cover.

${\dot{Q}}_{o} = h_{n c}^{c o n v} (T_{p} - T_{g}) + h_{p - g}^{r a d} (T_{p} - T_{g}) + h_{f}^{c o n v}$ $(T_{p} - T_{f}) + h_{p - b}^{r a d} (T_{p} - T_{b}) [W / m^{2}]$ is the energy leaving the absorber plate.

${\dot{Q}}_{g} = 0 [W / m^{2}]$ , as no heat is generated within the absorber plate.

Therefore, the energy balance for the absorber plate is given by:

\begin{aligned} h_{n c}^{c o n v} & (T_{g} - T_{p}) + h_{p - g}^{r a d} (T_{g} - T_{p}) \\ + h_{f}^{c o n v} (T_{f} - T_{p}) + h_{p - b}^{r a d} (T_{b} - T_{p}) + G_{t} τ_{g} α_{g} = 0 \end{aligned}

(3)

where:

$T_{f} and T_{b} [\circ C]$ are the temperatures of the working fluid and bottom layer, respectively.

$h_{n c}^{c o n v} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by convection, from the absorber plate to the air layer.

$h_{p - g}^{r a d} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by radiation, from the absorber plate to the glass cover.

$h_{f}^{c o n v} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by convection, from the absorber plate to the working fluid.

$h_{p - b}^{r a d} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by radiation, from the absorber plate to the bottom layer.

Working fluid

For the layer containing the working fluid, it is necessary to account for the mass flow along the pipes through which it circulates. The change in the energy of the working fluid is related to the thermal balances previously conducted, as shown in:

h_{f}^{c o n v} (T_{p} - T_{f}) + h_{f}^{c o n v} (T_{b} - T_{f}) = \dot{q}

(4)

Where $\dot{q} [W / m^{2}]$ represents the heat gain of the working fluid per unit length of the collector, as given by (Vargas-López et al., 2019):

\dot{q} = \frac{{\dot{m}}_{f} c_{p, f}}{γ W L} (T_{f} - T_{f, i n})

(5)

The elements for the energy balance equation in this case are:

${\dot{Q}}_{i} = 0 [W / m^{2}]$ , as the working fluid layer is isolated.

${\dot{Q}}_{o} = h_{f}^{c o n v} (T_{f} - T_{p}) + h_{f}^{c o n v} (T_{f} - T_{b}) [W / m^{2}]$ is the energy leaving the working fluid layer.

${\dot{Q}}_{g} = 0 [W / m^{2}]$ , as no heat is generated within the working fluid layer.

With the previous equations, the energy balance for the working fluid is obtained:

h_{f}^{c o n v} (T_{p} - T_{f}) + h_{f}^{c o n v} (T_{b} - T_{f}) = Γ (T_{f} - T_{f, i n})

(6)

where:

$Γ = \frac{{\dot{m}}_{f} c_{p, f}}{γ W L} [-]$ is the ratio between the energy of the working fluid and the area of the flat solar collector.

$\overset{\dot{}}{m_{f}} [kg / s]$ is the mass flow of the working fluid.

$c_{p, f} [J / kg \cdot \circ C]$ is the specific heat of the working fluid.

$γ [-]$ is the heat gain parameter of the working fluid.

$W and L [m]$ are the width and length of the flat solar collector, respectively.

Bottom cover

Finally, the bottom cover releases heat through convection to the working fluid and by radiation to the absorber plate. Additionally, heat is lost to the environment due to transfer from the lower surface of the collector. Therefore:

${\dot{Q}}_{i} = 0 [W / m^{2}]$ , as the bottom cover is isolated.

${\dot{Q}}_{o} = h_{b - p}^{r a d} (T_{b} - T_{p}) + h_{f}^{c o n v} (T_{b} - T_{f}) + U_{b}$ $(T_{b} - T_{a m b}) [W / m^{2}]$ .

${\dot{Q}}_{g} = 0 [W / m^{2}]$ , as no heat is generated within the bottom cover layer.

The energy balance for this layer is given by equation:

h_{b - p}^{r a d} (T_{p} - T_{b}) + h_{f}^{c o n v} (T_{f} - T_{b}) + U_{b} (T_{a m b} - T_{b}) = 0

(7)

where:

$h_{b - p}^{r a d} [W / m^{2} \cdot \circ C]$ is the coefficient of heat transfer by radiation, from the bottom layer to the absorber plate.

$U_{b} [W / m^{2} \cdot \circ C]$ is the global coefficient of heat losses in the bottom cover.

The system of equations that governs the performance of the flat plate solar collector is represented by (Cetina-Quiñones et al., 2021):

\begin{aligned} (\begin{matrix} (h_{n c}^{c o n v} + h_{p - g}^{r a d} + U_{t}) & - (h_{n c}^{c o n v} + h_{p - g}^{r a d}) & 0 & 0 \\ - (h_{n c}^{c o n v} + h_{p - g}^{r a d}) & (h_{n c}^{c o n v} + h_{p - g}^{r a d} + h_{f}^{c o n v} + h_{p - b}^{r a d}) & - h_{f}^{c o n v} & - h_{p - b}^{r a d} \\ 0 & - h_{f}^{c o n v} & (2 h_{f}^{c o n v} + Γ) & - h_{f}^{c o n v} \\ 0 & - h_{p - b}^{r a d} & - h_{f}^{c o n v} & (h_{p - b}^{r a d} + h_{f}^{c o n v} + U_{b}) \end{matrix}) \\ (\begin{matrix} T_{g} \\ T_{p} \\ T_{f} \\ T_{b} \end{matrix}) = (\begin{matrix} U_{t} T_{a m b} + α_{g} G_{t} \\ α_{p} τ_{g} G_{t} \\ Γ T_{f, i n} \\ U_{b} T_{a m b} \end{matrix}) \end{aligned}

(8)

In real-world applications, several factors can reduce the efficiency of FPC over time. To account for these effects, the thermal parameters used in the energy balance equations—such as the glass transmissivity $τ$ , absorber plate absorptivity $α$ , and the global heat loss coefficients $U_{t}$ —were selected based on empirical values reported in literature under non-ideal conditions (Al-Sharafi et al., 2024; Ashour et al., 2022; Sethi et al., 2024). These values inherently reflect losses due to dust deposition, aging of the absorber coating, and fluctuations in environmental conditions such as wind and ambient temperature. Although the model does not explicitly account for time-dependent degradation, reductions in optical or thermal performance parameters would result in lower useful energy gain and increased reliance on auxiliary heating.

Energy analysis of the SHIP system

Integrating solar technology into an industrial process requires several key components, including a solar collector field, thermal storage medium, hydraulic circuit, recirculation elements, an auxiliary heater, and a monitoring and control system. Additional parameters to consider include the amount of thermal energy the SHIP system must provide, the temperature at which the heat transfer fluid interacts within the heat exchanger, and the intended use of the heated fluid, whether for hot water production or steam generation (Cetina-Quiñones et al., 2024a). The placement of the auxiliary heater in the SHIP system depends on the thermal range achievable by the solar technology. If the auxiliary heater is set in parallel, the solar technology must be scaled to fully meet the industrial process's thermal demand. Conversely, when configured in series, the auxiliary heater can raise the temperature of the fluid from the solar technology as needed to satisfy thermal requirements (Ghabour and Korzenszky, 2021). Based on this analysis, a SHIP system with an auxiliary heater in series is the most advantageous setup when using FPC, as it allows further heating of the fluid if required. Figure 6 illustrates the thermal analysis of the SHIP system, considering the heat exchanger as the control volume.

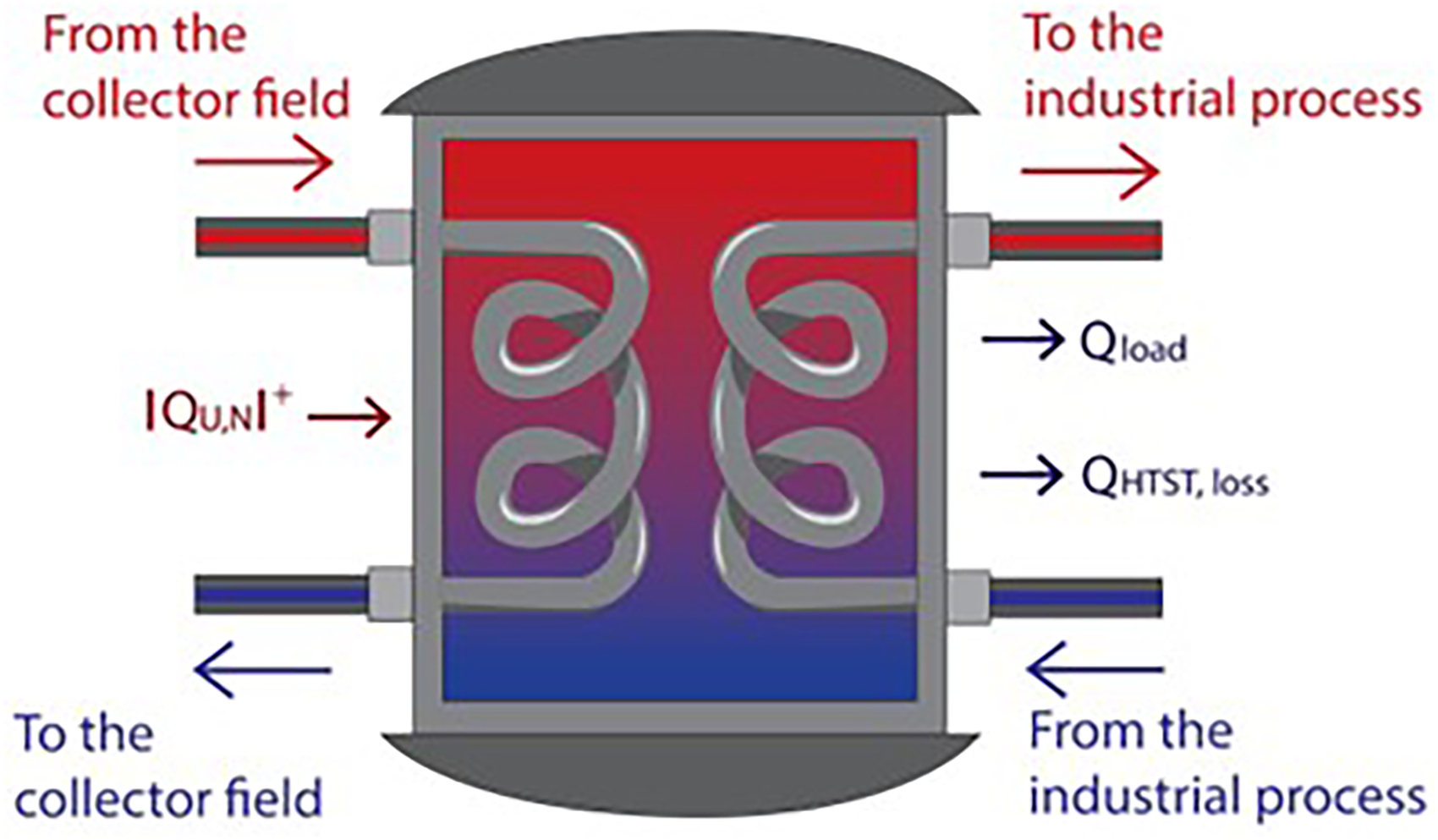

Figure 6.

Energy balance of the control volume associated with the SHIP system.

It is worth noting that, although thermal energy storage (TES) systems are commonly applied in SHIP configurations to manage intermittent solar energy, this study employs a different approach. Instead of a conventional TES, a heat exchanger configuration (as shown in Figure 6) is used to directly transfer the thermal energy from the solar field to the industrial process. This setup allows for continuous heat delivery during the plant's operational hours without the need for dedicated storage units, while also simplifying system operation and control.

Energy conservation within the control volume is represented by the following equation (Sreenath et al., 2023):

V_{s t} ρ_{s t} C P_{s t} \frac{d T_{s t}}{d t} = | Q_{u, N} |^{+} - Q_{l o a d} - Q_{H T S T, l o s s}

(9)

Here, $| Q_{u, N} |^{+} [W / m^{2}]$ represents the thermal gain provided by the solar field, while $Q_{l o a d}$ and $Q_{H T S T, l o s s} [W / m^{2}]$ denote the energy transferred to the industrial process and the energy lost to the environment, respectively. $V_{s t} [m^{3}]$ , $ρ_{s t} [kg / m^{3}]$ and $C P_{s t} [J / kg \cdot \circ C]$ refer to the fluid properties in the thermal storage tank: volume, density, and specific heat. The energy required by the industrial process is given by:

Q_{l o a d} = ε_{L} ({\dot{m}}_{L} C P_{t f}) (T_{s t} - T_{m u})

(10)

Here, $ε_{L}$ [-] denotes the efficiency of the heat exchanger, ${\dot{m}}_{L} [kg / s]$ represents the mass flow, and $C P_{t f} [J / kg \cdot \circ C]$ is the specific heat of the fluid used in the thermal load. $T_{s t}$ and $T_{m u}$ [°C] refer to the temperatures in the storage tank and the temperature of the fluid exiting the solar collector field and entering the tank, respectively. For the other negative factor in equation (8), the energy loss from the storage tank is calculated using the expression:

Q_{H T S T, l o s s} = (U A)_{s t} (T_{s t} - T_{a})

(11)

here,

(U A)_{s t} [W / m^{2} \cdot \circ C]

is the tank's energy loss coefficient, and

T_{a}

[°C] represents the ambient temperature. When the solar field cannot meet the energy demands of the industrial process, the auxiliary heater provides additional energy, represented as:

Q_{a u x} = | ε_{L} ({\dot{m}}_{L} C P_{t f}) (T_{i n} - ε_{L} T_{s t} - T_{m u} (1 - ε_{L})) |^{+}

(12)

here,

T_{i n}

[°C] represents the temperature of the thermal load required for the industrial process. Finally, the thermal gain

| Q_{u, N} |^{+} [W / m^{2}]

for a field of FPC is calculated using the following equation:

| Q_{u, N} |^{+} = A_{a} F_{R} (G_{b} τ_{α}^{'} - U_{L}^{'} (T_{i} - T_{a}))

(13)

here,

A_{a}

[m²] denotes the unit area of the flat plate collector,

F_{R}

[–] is the heat removal factor,

G_{b} [W / m^{2}]

represents the global solar radiation, and

τ_{α}^{'}

[–] is the parameter that links the cover's transmissivity with the absorber plate's absorptivity. Additionally,

U_{L}^{'} [W / m^{2} \cdot \circ C]

represents the modified optical efficiency, and

T_{i}

[°C] is the initial temperature at the collector inlet.

It is important to highlight that this study focuses exclusively on an energy-based analysis of the SHIP system, addressing only thermal performance and energy balances. Exergy analysis, which considers the quality of energy and the irreversibilities occurring throughout the system, including key aspects such as entropy generation and dead availability, was not included within the scope of this research.

Economic-environmental indicators

After deriving the equations governing the thermal and energy behavior of the SHIP system, it is essential to consider indicators that evaluate the economic and environmental performance of applying the collector field in the dairy industry.

Economic feasibility indicator: net present value

The NPV is a key metric for assessing the project's economic viability and guiding investment decisions. For this study, the NPV is defined as the difference between the initial investment and the cumulative cash flows generated over the project's useful lifetime.

N P V = - I_{o} + \sum_{i = 1}^{n} \frac{F E_{i}}{{(1 + t d)}^{i}}

(14)

here,

I_{o}

is the initial investment, n is the project's useful lifetime, td is the annual discount rate, and

F E_{i}

is the annual cash flow. The cash flow takes into account the energy saved through the implementation of the solar collector field

(E A_{i})

, the operation and maintenance costs

(O M_{i})

, and the energy costs for the auxiliary heater

(E C A_{i})

F E_{i} = E A_{i} - O M_{i} - E C A_{i}

(15)

where:

E A_{i} = E_{t h} P C_{F} (1 + t i_{F})^{i}

(16)

O M_{i} = O M (1 + t i_{O M})^{i}

(17)

E C A_{i} = E_{a u x} P C_{F} (1 + t i_{F})^{i}

(18)

From equations (16), (17). and (18),

E_{t h}

represents the energy generated by the solar field,

P C_{F}

is the price of fuel for the auxiliary heater, OM is the cost of operation and maintenance of the first year,

E_{a u x}

is the energy generated by the auxiliary heater,

t i_{F}

is the fuel inflation rate, and

t i_{O M}

is the annual increase rate for operation and maintenance. A positive NPV indicates that the investment is viable, while negative values suggest that the initial investment exceeds the return, leading to the rejection of the project (Cetina-Quiñones et al., 2024b).

Economic feasibility indicator: total life cycle cost

The second indicator of economic viability is the TLCC, which complements the NPV. This metric accounts for all cash outflows required to ensure the proper operation of the project throughout its lifetime (Cetina-Quiñones et al., 2024b). Equation (19) outlines the formula used for its calculation:

T L C C = I_{o} + \sum_{i = 1}^{n} \frac{C T_{i}}{{(1 + t d)}^{i}}

(19)

where

C T_{i}

are the total costs throughout the useful lifetime of the project, calculated as:

C T_{i} = O M_{i} - E C A_{i}

(20)

The costs associated with implementing the SHIP system using FPC are detailed in Table 2.

Table 2.

Economic parameters for the solar heating system implemented in the Mexican market.

Concept	Value	Reference
Investment costs
Installed FPC cost	$280 USD/m²	(Cetina-Quiñones et al., 2024a)
Cost of the thermal storage tank	$1020 USD/m³	(Cetina-Quiñones et al., 2024a)
Initial operation and maintenance	0.5%	(Cetina-Quiñones et al., 2024a)
Operation and maintenance costs
Annual rate of operation and maintenance	5.0%	(Thirunavukkarasu, 2023; Faisal, 2025)
Annual rate for the cost of fuel	9.0%	(Thirunavukkarasu, 2023; Faisal, 2025)
Annual discount rate of the project	10.0%	(Thirunavukkarasu, 2023; Faisal, 2025)
Useful lifetime of the solar thermal project	20 years	(Thirunavukkarasu, 2023; Faisal, 2025)
Auxiliary system costs
Diesel	$0.1044 USD/kWh	(May Tzuc et al., 2020; Aleksiejuk-Gawron, 2020)
Fuel oil	$0.0428 USD/kWh	(May Tzuc et al., 2020; Aleksiejuk-Gawron, 2020)
LP gas	$0.0760 USD/kWh	(May Tzuc et al., 2020; Aleksiejuk-Gawron, 2020)
Natural gas	$0.0186 USD/kWh	(May Tzuc et al., 2020; Aleksiejuk-Gawron, 2020)

Table 3.

Environmental characteristics of the fuels used in the backup heating system.

Fuel	Density [kg/L]	Carbon content [kg·C/kg_FL]	Calorific value [kWh·kg_FL]
Diesel	0.826	0.8583	11.994
Fuel oil	0.999	0.8460	10.842
LP gas	0.525	0.8199	12.822
Natural gas	0.844	0.7116	12.983

As shown in Table 3 above, the cost of the auxiliary heater is included in TLCC analysis. This accounts for the annual fuel expenses required to supply the thermal energy not covered by the solar collectors, considering the specific fuel prices detailed for each scenario.

Environmental feasibility indicator: amount of carbon mitigated

One of the key advantages of implementing solar technology to provide SHIP is the reduction of atmospheric pollutants, particularly carbon dioxide. The ACM indicator is used to quantify this reduction in emissions, following the calculation provided by the Mexican Institute of Ecology and Climate Change, as shown in (May Tzuc et al., 2020):

A C M = [\frac{44.01}{12.01} E_{t h}] [\frac{C C_{F}}{(C V_{F}) (η_{F})}]

(21)

here, 44.01/12.01 represents the stoichiometric coefficient for complete carbon oxidation,

C C_{F}

denotes the carbon content of the fuel,

C V_{F}

is the specific calorific value of the fuel, and

η_{F}

is the efficiency of the auxiliary heater. When evaluating the use of different fuels in the auxiliary heater, it is essential to consider the environmental parameters listed in:

Advanced computing techniques

One of the most widely used tools in AI today is ANN, which simulate complex phenomena through interconnected computational structures, much like neurons in the human brain. However, creating models capable of representing these phenomena is not sufficient; it is also essential to identify the parameters within these systems that can be optimized to achieve the desired outcomes (Haykin, 1999).

Artificial neural network

Surrogate models derived from various AI techniques emulate the behavior of complex systems, reducing computational demands while maintaining a reliable representation of the original model (Haykin, 1999). In the case of the SHIP system, the number of thermal, energetic, economic, and environmental parameters involved makes the model computationally intensive, requiring extensive code and subprograms that complicate analysis of the system's main cycle.

To address this complexity, a parametric study was conducted by varying the design parameters of the SHIP system under steady-state conditions. The parameters included the solar field area, thermal storage tank volume, auxiliary heater fuel type, and climatic condition. This systematic variation resulted in a dataset comprising 22,464 steady-state simulations, covering a wide range of possible system configurations. The resulting dataset was then used for the training, testing, and validation of the ANN surrogate model.

The ANN's input variables include climate type (CL), the fuel used for the auxiliary heating system (FL), the volume of the thermal storage tank (VOL), and the area of the solar field (ADS). The output parameters correspond to economic and environmental indicators: ACM, NPV, and TLCC. Table 4 presents the input and output parameters, along with their maximum, minimum, and nominal values and respective units.

Table 4.

Parameters used to evaluate the economic and environmental viability of the SHIP system (Cetina-Quiñones et al., 2024a).

Parameters		Maximum	Nominal	Minimum	Units
Input values
Solar field area	(ADS)	650.0	390.0	130.0	m²
Volume of the thermal storage tank	(VOL)	12.0	6.0	1.0	m³
Fuel used for the auxiliary heat system	(FL)	4	-	1	[–]
Type of climate	(CL)	4	-	1	[–]
Output values
Mitigation of CO₂	(ACM)	107,051.30	74,982.80	12,128.60	kg CO₂
Total life cycle cost	(TLCC)	623,854.01	380,770.25	132,926.7	$ USD
Net present value	(NPV)	281,060.17	59,480.82	−535,405.36	$ USD

For FL, the coding used is: 1 for diesel, 2 for fuel oil, 3 for LP gas, and 4 for natural gas. For CL, the coding is: 1 for arid, 2 for temperate, 3 for tropical, and 4 for dry climates.

Since the activation function used in the neurons of the hidden layer is sigmoidal, it is necessary to preprocess the data by adjusting the input values to fall between 0.1 and 0.9 using the following equation (Mohd Yusof et al., 2022):

x_{m} = 0.8 \frac{X_{m} - x_{m i a c u t e; n}}{x_{m a a c u t e; x} - x_{m i a c u t e; n}} - 0.1

(22)

where

x_{m}

is the normalized value of

X_{m}

, and

x_{m i a c u t e; n}

and

x_{m a a c u t e; x}

are the values reported in Table 4. The data used to create the ANN is split into 80% for training and the remaining 20% for testing and validation. The activation function for the hidden layer is the hyperbolic tangent sigmoid, and a linear function is used for the output layer. The performance of the artificial neural network model is evaluated using the coefficient of determination

R^{2}

, the root mean square error (RMSE) and the mean absolute percentage error (MAPE):

R^{2} = 1 - \frac{\sum_{i = 1}^{α} {(y_{s i m (i)} - y_{e x p (i)})}^{2}}{\sum_{i = 1}^{α} {(y_{s i m (i)} - {\bar{y}}_{e x p})}^{2}}

(23)

R M S E = \sqrt{\frac{1}{α} \sum_{i = 1}^{α} {(y_{s i m (i)} - y_{e x p (i)})}^{2}}

(24)

M A P E = \frac{1}{α} \sum_{i = 1}^{α} | \frac{y_{s i m (i)} - y_{e x p (i)}}{y_{e x p (i)}} | x 100

(25)

where

y_{s i m (i)}

is the value estimated by the ANN,

y_{e x p (i)}

is the value obtained through numerical experimentation,

{\bar{y}}_{e x p}

is the average of the desired values and α is the total number of samples in the dataset (Bouquet et al., 2024).

Multi-objective optimization algorithms

Optimization problems have always posed challenges across various scientific fields (Monteiro and Reynoso-Meza, 2023). Based on the number of objective functions (OF) involved, these problems can be categorized as single-objective or multi-objective optimization, with the latter being more commonly observed in nature. Problems requiring the optimization of multiple objectives can be addressed using the following equations (Le Digabel and Wild, 2024):

min (Y) = F (X) = [f_{1} (X), f_{2} (X), \dots, f_{M} (X)]

(26)

Equation (26) is conditioned by:

x_{n}^{m i a c u t e; n} \leq x_{n} \leq x_{n}^{m a a c u t e; x}

(27)

X = [x_{1}, x_{2}, \dots, x_{N}]

(28)

Y = [y_{1}, y_{2}, \dots, y_{M}]

(29)

In the equations above, represents the number of OF to be optimized, and N denotes the dimensionality of the solution space, which is constrained by the minimum and maximum values defined in Equation (2.26). The goal of solving a multi-objective optimization problem is to identify the set of solutions X that minimize or maximize, as applicable, the functions defined in Y. The algorithms employed in this study to solve Equation (2.26) include the GA, PSO, and WOA.

Genetic algorithm (GA)

Genetic algorithms (GAs) are among the most widely used tools in AI, as they model optimization processes on the principles of evolution within a population (Goldberg, 1989). The fundamental concepts underlying any GA include evolution, natural selection among chromosomes, and the reproduction of the fittest individuals. The general procedure followed by all GAs adheres to the same principles: the process begins with a population of individuals, where each represents a potential solution to the problem. During execution, crossover operations are performed between the fittest individuals, producing offspring, and occasionally introducing mutations. This new generation undergoes repeated cycles of crossover and mutation until the individuals meet the convergence criteria of the problem (Wu et al., 2023).

The procedure followed by GAs is outlined in Figure 7. Key components shared by all GAs include the population, as well as the selection, crossover, and mutation processes. Within the population, size and diversity are critical factors: diversity reflects the genetic variation among individuals, while larger populations expand the solution search space but increase computation time.

Figure 7.

Steps in the general cycle of genetic algorithms.

For the selection process, common methods include roulette, elitist selection, and tournament selection. In the roulette method, each individual is assigned a probability based on their fitness, with those having higher probabilities being more likely to be selected. Elitist selection involves copying the top-performing individuals directly into the next generation, while allowing the remaining individuals to undergo another selection process. In tournament selection, individuals are chosen randomly, and those with the highest fitness are selected to reproduce, with their offspring replacing the least fit individuals.

Crossover can be either destructive or non-destructive. Destructive crossover introduces offspring into the new population even if they are less fit than their parents, whereas non-destructive crossover allows offspring to survive only if they outperform their parents. Lastly, mutation adds diversity to the population and fosters the creation of new individuals. Without mutation, the algorithm would be limited to combining genes from the initial population, potentially hindering its ability to explore new solutions.

Particle swarm optimization (PSO)

The PSO algorithm is the oldest of the so-called swarm intelligence algorithms. It was originally inspired by the social behaviors of birds and fish. Initially designed to solve problems with solutions represented as points in a multidimensional continuous search space, the algorithm has since been modified to handle irregular or transient solutions for non-differentiable problems (Clerc, 2006).

Figure 8 illustrates the fundamental behavior of individuals in a PSO algorithm. At the initial iteration, candidate solutions (particles) are randomly distributed across the search space. Each particle evaluates its position based on a fitness function and adjusts its velocity and direction according to both its own best-known position and the global best found by the swarm. Over successive iterations, this cooperative mechanism drives the particles to converge toward the optimal solution. This collective learning behavior enables PSO to efficiently explore and exploit the solution space (Menos-Aikateriniadis et al., 2022). A detailed explanation of such a process is provided below.

Figure 8.

Behavior of individuals in a particle swarm optimization algorithm.

Before initiating the optimization process, it is essential to define the OF and specify all algorithm parameters, such as the learning coefficients $c_{1}$ and $c_{2}$ as well as the number of particles N. The swarm P, consisting of N particles, is initialized randomly. Each particle is represented by a vector of dimension H, with its individual elements corresponding to the decision variables of the OF. Each decision variable j is constrained by a minimum value $P_{j}^{m i n}$ and a maximum value $P_{j}^{m a x}$ . Therefore, particle $P_{i}$ is represented by the vector:

P_{i} = {P_{i, 1}, P_{i, 2}, \dots, P_{i, D - 1}, P_{i, D}}

(30)

where

P_{i, 1}, P_{i, 2}

are values within the range [

P_{j}^{m i n}

P_{j}^{m a x}

]. A

G b e s t

vector is created to store the best solution found so far. Additionally, a

P b e s t_{i}

vector is initialized for each

P_{i}

, initially set equal to

P_{i}

. The

P b e s t_{i}

vector stores the best position discovered by the particle

P_{i}

to date.

A velocity vector $V_{i}$ , initialized to zeros, is also created for each particle $P_{i}$ . When the initial swarm P is generated, the quality of each particle is evaluated using the objective function (OF). Once the swarm has been evaluated, the best particle $P_{i}$ is identified and stored in $G_{b e s t}$ .The main algorithm cycle then begins and continues until the convergence criterion is met. During each iteration, for all particles in the swarm P, the velocity vector $V_{i}$ assigned to each particle $P_{i}$ is updated. Subsequently, each element of $P_{i}$ is updated based on the newly calculated $V_{i}$ values.

Once $P_{i}$ is updated, its quality is evaluated using the OF. For a minimization problem, if OF( $P_{i}$ ) is less than OF( $P b e s t_{i}$ ), the particle $P_{i}$ is assigned to its corresponding $P b e s t_{i}$ . After evaluating all particles in the swarm P, the best-performing particle is identified and temporarily assigned to a particle T. If OF(T) is less than OF( $G b e s t_{i}$ ), the particle T is assigned to $G b e s t$ . The algorithm repeats this process until the convergence criterion is satisfied. Once convergence is achieved, the value of the $G b e s t$ particle is returned as the solution to the algorithm (Duan et al., 2022).

Whale optimization algorithm (WOA)

This algorithm is based on the hunting behavior of whales, which search for plankton near the ocean surface. In this case, the individuals of the population are represented by whales distributed across the search space, which analogously represents the ocean. The search process is divided into two main stages (Mirjalili and Lewis, 2016).

First, the whales, or population individuals, search near the surface of the sea to locate the area where they are most likely to find food, or in this case, the optimal solution to the problem (Figure 9(a)). Once this region is identified, the second stage involves diving beneath the plankton and then spiraling upward in a contraction movement, converging at a point that represents the optimal solution to the problem (Figure 9(b)). As with most optimization algorithms inspired by animal behavior, the primary objective is to minimize the distance between the individuals in the population and the optimal solution (Mahmoud et al., 2023).

Figure 9.

Schematic illustration of the two stages of the whale optimization algorithm: a) Surface search and b) Contraction spiral movement (Mirjalili and Lewis, 2016).

The first stage is governed by linear relationships between individuals, ensuring that each one covers the entire search space in the most efficient way possible. The second stage follows circular motion equations during the ascent to the surface. The algorithm begins with a population of n whales, representing the individuals of the population, and defines the distance to the optimal solution as a performance metric. As the search process commences, the parameters described in the equations are updated for each individual using the following equations (Mirjalili and Lewis, 2016):

\vec{A} = 2 \vec{a} \cdot \vec{r} - \vec{a}

(31)

\vec{C} = 2 \cdot \vec{r}

(32)

where

\vec{a}

is a vector that decreases linearly from 2 to 0 throughout the iterations of both stages of the process, and

\vec{r}

is a random vector with values between 0 and 1. Additionally,

\vec{A}

and

\vec{C}

are the coefficient vectors used int the following equations:

\vec{D} = | \vec{C} \vec{X} * (t) - \vec{X} (t) |

(33)

\vec{X} (t + 1) = \vec{X} * (t) - \vec{A} \cdot \vec{D}

(34)

where

\vec{D}

is the distance of the search agent from the optimal solution,

\vec{X}

is the position vector, and

\vec{X} *

is the position vector of the best solution found so far. It is important to note that the search agent is the component developed within the algorithm to find the best solution that satisfies the convergence criteria. In the case of the WOA, the search agents, which are analogous to whales, are designed to find the optimal solution, much like how whales search for plankton to meet their dietary needs.

The algorithm uses p as a random number between 0 and 1, and l as a value between −1 and 1. If p < 0.5 and |A|<1, the search agent's position is updated using equation (32). However, if |A| ≥ 1, a search agent is selected at random, and its position is updated using equation (34). For the case where p ≥ 0.5, the search agent's position is updated using the following equation (35):

\vec{X} (t + 1) = {\vec{D}}^{'} \cdot e^{b l} \cdot \cos (2 π l) + \vec{X} * (t)

(35)

where b is a constant that defines the shape of the logarithmic spiral, and

{\vec{D}}^{'}

represents the distance from the i-th whale to the prey, as given by equation (36):

{\vec{D}}^{'} = | \vec{X} * (t) - \vec{X} (t) |

(36)

Once all the positions of the search agents have been updated, the algorithm corrects any agents that have moved outside the search space, calculates the performance parameter for each agent, and updates the position of the prey if it has improved compared to the previous iteration.

Results and discussion

Surrogate model

Various neural network architectures were tested using the database obtained from the SHIP system to identify the AI model that best describes the system. The configuration of the artificial neural network with the best performance included 4 design parameters in the input layer, 50 neurons in a single hidden layer, and 3 indicators as neurons in the output layer (Figure 10).

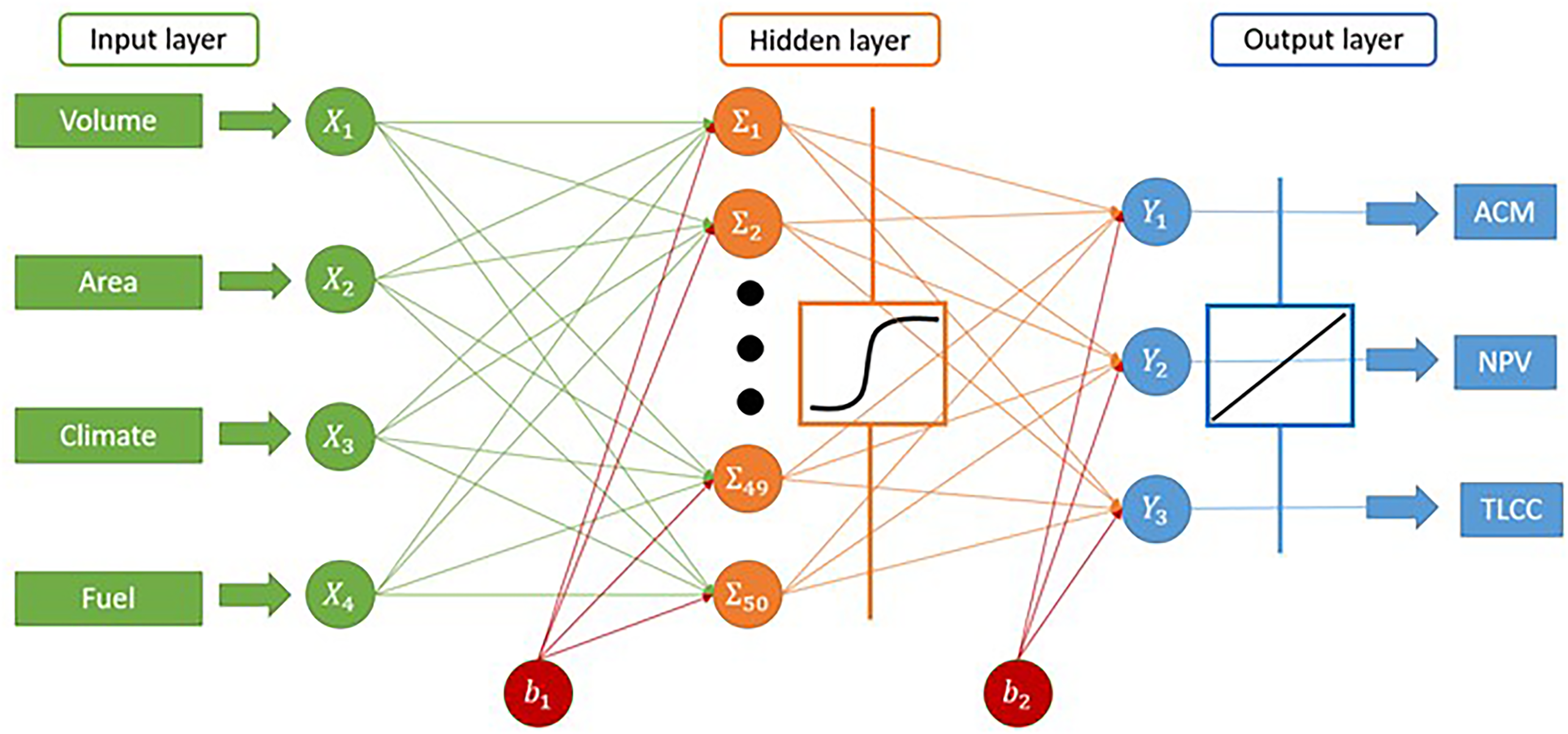

Figure 10.

ANN architecture illustrating all the procedures carried out in the SHIP system.

To assess the relationship between the ANN and the SHIP system results obtained through numerical experimentation, the network's statistical parameters are calculated based on the number of neurons in the hidden layer (Table 5), along with the regression graphs for the different stages of ANN training (Figure 10). Table 5 shows that with 50 neurons in the hidden layer, all economic-environmental indicators have a coefficient of determination (R²) greater than 0.9999, an RMSE of 8.2468 × 10⁻⁴, and an MAPE of less than 0.2000. In Figure 11, the reliability of the model for training, testing, and validation exceeds R² = 0.9999. These results are crucial for the ANN used in this work, as it serves as a surrogate model for an industrial heat demand process. Given the strict production targets and compliance standards required by dairy companies, any miscalculation could result in significant financial consequences.

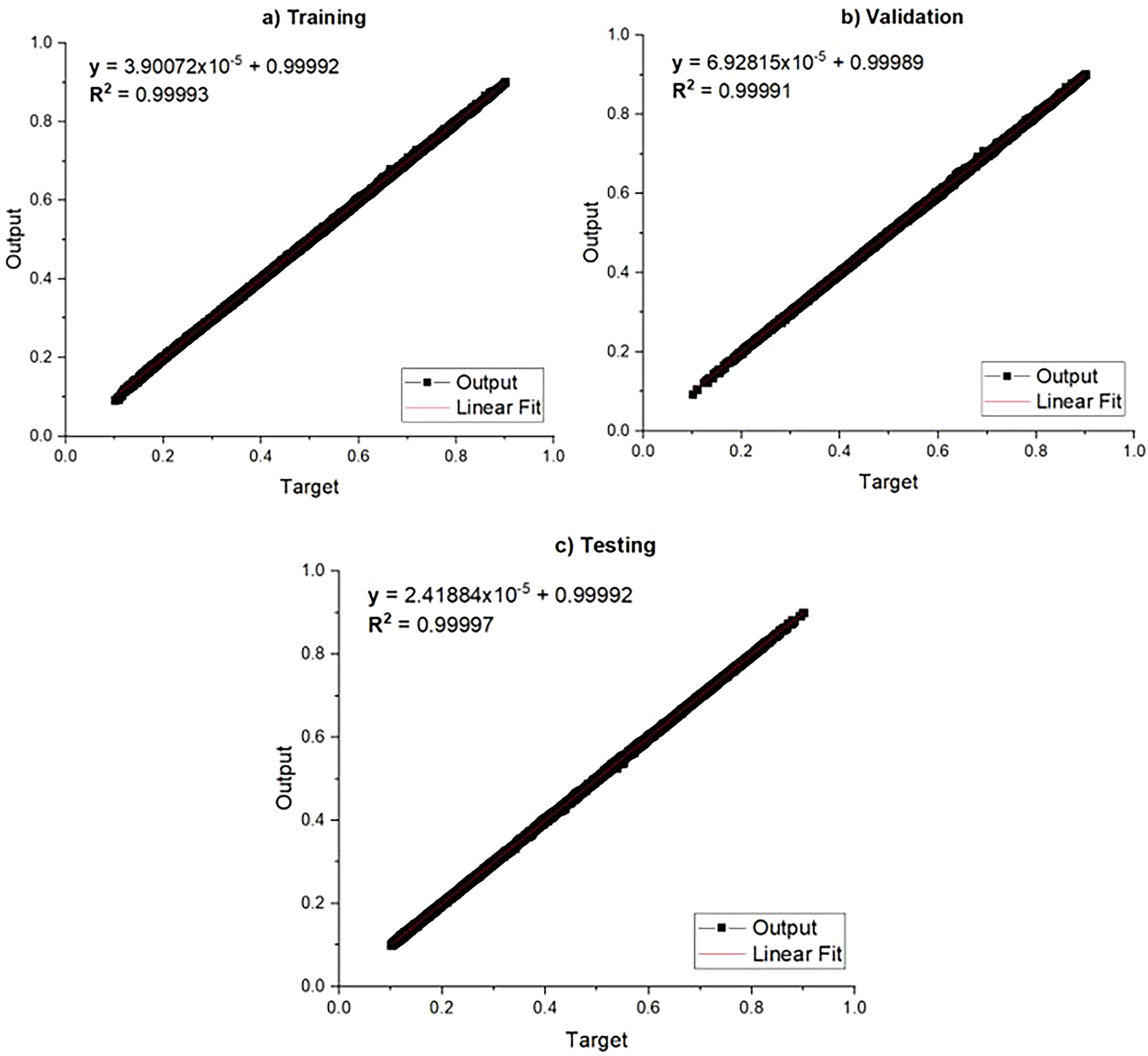

Figure 11.

Regression plots for the training (a), validation (b) and testing (c) of the ANN.

Table 5.

Statistical results obtained by changing the number of neurons in the hidden layer.

Hidden neurons	MAPE	RMSE	$R^{2}$
Hidden neurons	MAPE	RMSE	NPV	TLCC	ACM
30	$0.4001$	$0.0017$	$0.99978$	$0.99995$	$0.99989$
35	$0.3014$	$0.0013$	$0.99986$	$0.99997$	$0.99991$
40	$0.2467$	$0.0011$	$0.99991$	$0.99998$	$0.99996$
45	$0.2019$	$8.4742 \times 10^{- 4}$	$0.99993$	$0.99999$	$0.99997$
50	$0.1919$	$8.2468 \times 10^{- 4}$	$0.99994$	$0.99999$	$0.99997$

The ANN-based surrogate model showed high predictive accuracy for the three output indicators: NPV, TLCC, and ACM. As shown in Table 5 and Figure 11, the model achieved a coefficient of determination (R²) above 0.9999 for all outputs, along with low RMSE and MAPE values. These results indicate that the ANN is capable of reliably approximating the complex relationships between the design parameters—solar field area, thermal storage tank volume, CL, and auxiliary heater fuel—and the economic-environmental performance indicators of the SHIP system.

This level of accuracy is particularly relevant because the surrogate model is used as the foundation for the subsequent multi-objective optimization process. By providing consistent predictions of the system's performance, the ANN model allows the optimization algorithms to operate on a computationally efficient yet representative approximation of the system behavior. This ensures that the optimal solutions identified in the optimization stage are based on a sufficiently accurate representation of the SHIP system.

Multi-objective optimization problem

Once the surrogate model is obtained using the ANN, various multiobjective optimization algorithms are applied to determine the design parameters that maximize ACM and NPV, while minimizing TLCC. Tables 6 to 9 present the design parameters, along with the optimized economic and environmental indicators. These algorithms are applied across the four climatic regions, considering the four fuel scenarios used by the auxiliary heater. The PSO algorithm converges the fastest, while the WOA has the longest computation times but yields smaller standard deviations in most cases. The GA serves as an intermediate option for obtaining the optimized parameters.

Table 6.

Design parameters of the SHIP system obtained through the different optimization algorithms for the case of Coahuila, considering the 4 fuel scenarios for the auxiliary heater.

Fuel for the auxiliary heater	Optimization algorithms	Computational time [s]		Tank volume [m³]		Solar field area [m²]		ACM [kg CO₂]		NPV [$ USD]		TLCC [$ USD]
Fuel for the auxiliary heater	Optimization algorithms	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation
Diesel	GA	90.57	12.22	12.00	3.47 × 10⁻⁴	637.29	8.15	8.07 × 10⁷	4.40 × 10⁵	1.21 × 10⁵	2.05 × 10³	3.86 × 10⁵	1.69 × 10²
	PSO	84.03	3.80	11.96	3.19 × 10⁻³	639.53	6.75	8.08 × 10⁷	3.66 × 10⁵	1.22 × 10⁵	1.67 × 10³	3.86 × 10⁵	1.53 × 10²
	WOA	220.52	20.35	12.00	3.04 × 10⁻⁴	627.88	14.48	8.11 × 10⁷	5.15 × 10⁵	1.23 × 10⁵	2.28 × 10³	3.86 × 10⁵	2.34 × 10²
Fuel oil	GA	101.55	1.64	4.95	4.46	517.89	77.45	7.82 × 10⁷	6.46 × 10⁶	−7.03 × 10⁴	6.13 × 10³	2.56 × 10⁵	1.16 × 10⁴
	PSO	86.76	0.86	5.55	4.73	532.56	78.91	7.93 × 10⁷	6.54 × 10⁶	−6.97 × 10⁴	6.22 × 10³	2.58 × 10⁵	1.20 × 10⁴
	WOA	214.75	15.35	5.95	4.74	546.62	71.01	8.05 × 10⁷	5.78 × 10⁶	−6.82 × 10⁴	5.35 × 10³	2.59 × 10⁵	1.14 × 10⁴
Natural gas	GA	114.78	8.77	3.23	3.66	376.23	156.45	4.66 × 10⁷	1.89 × 10⁷	−1.17 × 10⁵	1.16 × 10⁴	1.77 × 10⁵	2.70 × 10⁴
	PSO	88.00	1.32	4.19	4.35	415.26	162.75	5.10 × 10⁷	1.94 × 10⁷	−1.19 × 10⁵	1.24 × 10⁴	1.84 × 10⁵	2.88 × 10⁴
	WOA	208.42	9.93	4.11	4.30	424.21	158.12	5.21 × 10⁷	1.85 × 10⁷	−1.19 × 10⁵	1.23 × 10⁴	1.85 × 10⁵	2.83 × 10⁴
LP gas	GA	92.12	1.59	8.21	4.53	571.94	24.49	5.87 × 10⁷	1.72 × 10⁶	1.92 × 10⁴	8.73 × 10³	3.31 × 10⁵	1.31 × 10³
	PSO	84.99	2.31	9.92	3.79	584.85	29.22	5.95 × 10⁷	1.72 × 10⁶	2.36 × 10⁴	8.99 × 10³	3.31 × 10⁵	1.31 × 10³
	WOA	213.67	10.94	10.50	3.40	583.55	21.92	5.96 × 10⁷	1.38 × 10⁶	2.38 × 10⁴	6.99 × 10³	3.32 × 10⁵	1.13 × 10³

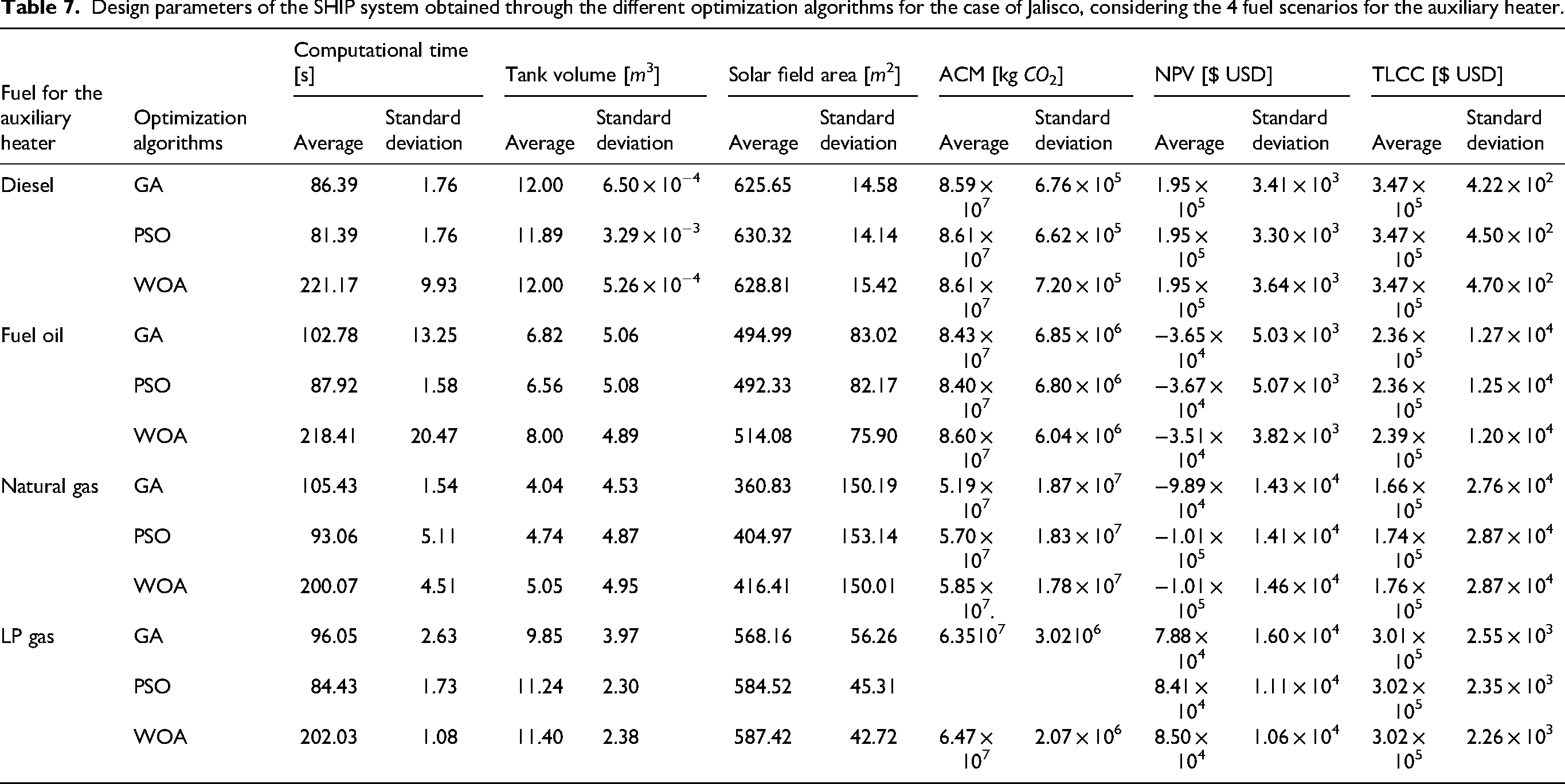

Table 7.

Design parameters of the SHIP system obtained through the different optimization algorithms for the case of Jalisco, considering the 4 fuel scenarios for the auxiliary heater.

Fuel for the auxiliary heater	Optimization algorithms	Computational time [s]		Tank volume [m³]		Solar field area [m²]		ACM [kg CO₂]		NPV [$ USD]		TLCC [$ USD]
Fuel for the auxiliary heater	Optimization algorithms	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation
Diesel	GA	86.39	1.76	12.00	6.50 × 10⁻⁴	625.65	14.58	8.59 × 10⁷	6.76 × 10⁵	1.95 × 10⁵	3.41 × 10³	3.47 × 10⁵	4.22 × 10²
	PSO	81.39	1.76	11.89	3.29 × 10⁻³	630.32	14.14	8.61 × 10⁷	6.62 × 10⁵	1.95 × 10⁵	3.30 × 10³	3.47 × 10⁵	4.50 × 10²
	WOA	221.17	9.93	12.00	5.26 × 10⁻⁴	628.81	15.42	8.61 × 10⁷	7.20 × 10⁵	1.95 × 10⁵	3.64 × 10³	3.47 × 10⁵	4.70 × 10²
Fuel oil	GA	102.78	13.25	6.82	5.06	494.99	83.02	8.43 × 10⁷	6.85 × 10⁶	−3.65 × 10⁴	5.03 × 10³	2.36 × 10⁵	1.27 × 10⁴
	PSO	87.92	1.58	6.56	5.08	492.33	82.17	8.40 × 10⁷	6.80 × 10⁶	−3.67 × 10⁴	5.07 × 10³	2.36 × 10⁵	1.25 × 10⁴
	WOA	218.41	20.47	8.00	4.89	514.08	75.90	8.60 × 10⁷	6.04 × 10⁶	−3.51 × 10⁴	3.82 × 10³	2.39 × 10⁵	1.20 × 10⁴
Natural gas	GA	105.43	1.54	4.04	4.53	360.83	150.19	5.19 × 10⁷	1.87 × 10⁷	−9.89 × 10⁴	1.43 × 10⁴	1.66 × 10⁵	2.76 × 10⁴
	PSO	93.06	5.11	4.74	4.87	404.97	153.14	5.70 × 10⁷	1.83 × 10⁷	−1.01 × 10⁵	1.41 × 10⁴	1.74 × 10⁵	2.87 × 10⁴
	WOA	200.07	4.51	5.05	4.95	416.41	150.01	5.85 × 10⁷.	1.78 × 10⁷	−1.01 × 10⁵	1.46 × 10⁴	1.76 × 10⁵	2.87 × 10⁴
LP gas	GA	96.05	2.63	9.85	3.97	568.16	56.26	6.3510⁷	3.0210⁶	7.88 × 10⁴	1.60 × 10⁴	3.01 × 10⁵	2.55 × 10³
	PSO	84.43	1.73	11.24	2.30	584.52	45.31			8.41 × 10⁴	1.11 × 10⁴	3.02 × 10⁵	2.35 × 10³
	WOA	202.03	1.08	11.40	2.38	587.42	42.72	6.47 × 10⁷	2.07 × 10⁶	8.50 × 10⁴	1.06 × 10⁴	3.02 × 10⁵	2.26 × 10³

Table 8.

Design parameters of the SHIP system obtained through the different optimization algorithms for the case of Merida, considering the 4 fuel scenarios for the auxiliary heater.

Fuel for the auxiliary heater	Optimization algorithms	Computational time [s]		Tank volume [m³]		Solar field area [m²]		ACM [kg CO₂]		NPV [$ USD]		TLCC [$ USD]
Fuel for the auxiliary heater	Optimization algorithms	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation
Diesel	GA	76.15	5.20	11.99	6.023 × 10⁻⁷	651.86	4.40 × 10⁻⁵	7.39 × 10⁷	2.70	3.09 × 10⁴	1.12 × 10⁻²	4.33 × 10⁵	6.42 × 10⁻⁴
	PSO	81.31	1.71	11.79	4.11 × 10⁻¹⁵	647.03	6.29 × 10⁻¹³	7.35 × 10⁷	9.74 × 10⁻⁸	2.86 × 10⁴	7.60 × 10⁻¹¹	4.33 × 10⁵	3.02 × 10⁻¹⁰
	WOA	204.94	4.78	12	0	651.99	6.85 × 10⁻¹³	7.39 × 10⁷	1.20 × 10⁻⁷	3.10 × 10⁴	5.65 × 10⁻¹¹	4.33 × 10⁵	3.10 × 10⁻¹⁰
Fuel oil	GA	93.35	2.23	4.31	3.66	528.16	73.34	7.00 × 10⁷	6.30 × 10⁶	−1.11 × 10⁵	6.13 × 10³	2.77 × 10⁵	9.99 × 10³
	PSO	84.70	1.65	4.55	3.84	536.73	74.45	7.06 × 10⁷	6.40 × 10⁶	−1.10 × 10⁵	6.19 × 10³	2.78 × 10⁵	1.01 × 10⁴
	WOA	199.71	4.45	5.11	3.96	555.26	64.60	7.23 × 10⁷	5.43 × 10⁶	−1.08 × 10⁵	4.51 × 10³	2.80 × 10⁵	9.52 × 10³
Natural gas	GA	101.76	1.85	2.94	3.08	384.22	156.52	4.10 × 10⁷	1.74 × 10⁷	−1.32 × 10⁵	1.08 × 10⁴	1.85 × 10⁵	2.80 × 10⁴
	PSO	87.03	0.96	2.80	2.64	419.41	159.46	4.47 × 10⁷	1.74 × 10⁷	−1.34 × 10⁵	1.13 × 10⁴	1.91 × 10⁵	2.83 × 10⁴
	WOA	203.15	5.64	3.00	2.90	423.11	155.29	4.52 × 10⁷	1.70 × 10⁷	−1.33 × 10⁵	1.10 × 10⁴	1.92 × 10⁵	2.79 × 10⁴
LP gas	GA	94.36	1.48	3.44	1.46	585.68	18.37	5.24 × 10⁷	1.04 × 10⁶	−5.34 × 10⁴	5.43 × 10³	3.66 × 10⁵	718.89
	PSO	82.31	1.58	3.89	2.41	592.20	22.03	5.28 × 10⁷	1.44 × 10⁶	−5.14 × 10⁴	7.75 × 10³	3.66 × 10⁵	723.38
	WOA	201.94	4.58	10.93	2.90	643.54	23.45	5.66 × 10⁷	1.68 × 10⁶	−3.02 × 10⁴	9.17 × 10³	3.67 × 10⁵	528.52

Table 9.

Design parameters of the SHIP system obtained through the different optimization algorithms for the case of Monterrey, considering the 4 fuel scenarios for the auxiliary heater.

Fuel for the auxiliary heater	Optimization algorithms	Computational time [s]		Tank volume [m³]		Solar field area [m²]		ACM [kg CO₂]		NPV [$ USD]		TLCC [$ USD]
Fuel for the auxiliary heater	Optimization algorithms	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation	Average	Standard deviation
Diesel	GA	85.23	1.64	12.00	4.12 × 10⁻⁴	640.82	6.17	7.30 × 10⁷	2.90 × 10⁵	2.37 × 10⁴	1.55 × 10³	4.35 × 10⁵	139.13
	PSO	79.87	1.94	11.79	3.94 × 10⁻⁴	641.37	4.69	7.30 × 10⁷	2.20 × 10⁵	2.34 × 10⁴	1.16 × 10³	4.35 × 10⁵	115.04
	WOA	204.98	1.63	12.00	2.72 × 10⁻⁴	647.52	6.82	7.33 × 10⁷	3.21 × 10⁵	2.53 × 10⁴	1.67 × 10³	4.36 × 10⁵	178.76
Fuel oil	GA	99.76	1.47	4.02	3.59	511.81	80.73	6.93 × 10⁷	6.41 × 10⁶	−1.10 × 10⁵	4.65 × 10³	2.74 × 10⁵	1.17 × 10⁴
	PSO	85.97	2.31	3.88	3.55	512.81	82.89	6.92 × 10⁷	6.50 × 10⁶	−1.10 × 10⁵	4.61 × 10³	2.74 × 10⁵	1.20 × 10⁴
	WOA	198.03	1.59	4.76	4.04	536.70	73.91	7.13 × 10⁷	5.75 × 10⁶	−1.08 × 10⁵	3.46 × 10³	2.77 × 10⁵	1.15 × 10⁴
Natural gas	GA	102.25	0.95	3.12	2.97	384.59	157.57	4.25 × 10⁷	1.66 × 10⁷	−1.32 × 10⁵	1.24 × 10⁴	1.86 × 10⁵	2.76 × 10⁴
	PSO	88.33	1.53	2.84	1.98	421.67	158.05	4.62 × 10⁷	1.63 × 10⁷	−1.33 × 10⁵	1.27 × 10⁴	1.92 × 10⁵	2.74 × 10⁴
	WOA	198.44	2.05	3.56	3.35	430.35	156.91	4.71 × 10⁷	1.61 × 10⁷	−1.34 × 10⁵	1.31 × 10⁴	1.94 × 10⁵	2.82 × 10⁴
LP gas	GA	92.04	1.94	8.06	4.44	582.77	35.65	5.30 × 10⁷	2.09 × 10⁶	−5.07 × 10⁴	1.11 × 10⁴	3.68 × 10⁵	1.80 × 10³
	PSO	85.74	0.98	9.61	3.91	593.98	34.65	5.38 × 10⁷	1.95 × 10⁶	−4.68 × 10⁴	1.02 × 10⁴	3.68 × 10⁵	1.74 × 10³
	WOA	209.70	2.17	10.31	3.49	599.08	31.59	5.41 × 10⁷	1.73 × 10⁶	−4.51 × 10⁴	9.03 × 10³	3.68 × 10⁵	1.59 × 10³

Finally, Figures 12 to 15 display the Pareto diagrams obtained for all possible combinations of climatic conditions and fuel scenarios for the auxiliary heater, using different optimization algorithms. While identifying these regions of optimal solutions, there are specific cases, such as the diesel fuel scenario in Mérida (Figure 14), where no algorithm was able to identify a well-defined optimal solution zone under the given conditions. In this case, the optimization process converged to isolated solutions instead of continuous Pareto fronts, due to the minimal economic and environmental variation among the feasible configurations. As a result, the diagrams display only scattered points without a clear trend.

Figure 12.

Pareto diagrams obtained through the different optimization algorithms, considering the 4 fuels of the auxiliary heater for the climate of Coahuila.

Figure 13.

Pareto diagrams obtained through the different optimization algorithms, considering the 4 fuels of the auxiliary heater for the climate of Jalisco.

Figure 14.

Pareto diagrams obtained through the different optimization algorithms, considering the 4 fuels of the auxiliary heater for the climate of Merida.

Figure 15.

Pareto diagrams obtained through the different optimization algorithms, considering the 4 fuels of the auxiliary heater for the climate of Monterrey.

Additionally, there are discontinuities observed when using LP gas in Coahuila, Jalisco, and Monterrey. When using natural gas as fuel, a well-defined region of solutions is observed across all four climatic locations. It is important to note that the following Pareto diagrams correspond to the optimization process results. These diagrams display the solutions obtained by applying the three multi-objective optimization algorithms (GA, PSO, and WOA) to the already trained ANN-based surrogate model.

Conclusions

In this study, a computational methodology based on AI techniques was implemented to model and optimize the economic-environmental parameters resulting from the use of FPC to meet the thermal demand of the pasteurization process in the dairy industry. Using the equations that govern the thermal and energy behavior of FPC, and considering the operating characteristics of the industrial process, the values for the VPN, TLCC, and ACM indicators were obtained for this SHIP system. An auxiliary heater, connected in series, provided heat to the process when the energy from the solar collector field was insufficient. The fuels considered for the heater's operation were diesel, fuel oil, natural gas, and LP gas.

Additionally, the results related to the solar heat delivered by the flat plate collectors were obtained based on climatic data from four regions of the country, each with distinct climates: arid (Coahuila), temperate (Jalisco), tropical (Mérida), and dry (Monterrey). Using the area occupied by the solar collector field, the VOL, the climatic region, and the auxiliary heater fuel as design parameters, a database was created with 22,464 results obtained from numerical experimentation.

A surrogate model was then developed using ANN, with the four design parameters as input variables and the three economic-environmental indicators as output variables. From the results presented in Table 3, it can be seen that the artificial neural network with 50 neurons in the hidden layer exhibits the appropriate statistical parameters to represent the integration of the SHIP system with the flat plate collectors, with a MAPE = 0.1919, RMSE = $8.2468 x 10^{- 4}$ , and a correlation coefficient $R^{2}$ > 0.9999 for all three output variables.

The predictive performance of the artificial neural network model was a key element in this study. By accurately representing the relationships between the design parameters and the economic-environmental indicators, the surrogate model enabled a computationally efficient optimization process. The high accuracy achieved by the ANN ensured that the optimization algorithms operated on a reliable approximation of the system, allowing for the identification of feasible solutions that are consistent with the behavior of the SHIP system under the analyzed scenarios.

The PSO, whale optimization, and GAs were applied to the surrogate model to generate the Pareto diagrams for the three output variables. The values shown in Tables 6 to 9 indicate that all four climatic regions yield positive results when diesel is used as the auxiliary heater fuel; in Coahuila and Jalisco, LP gas is also a viable option. Due to negative NPVs, fuel oil and natural gas are not economically viable for any of the climatic regions. Among the four climates studied, the temperate climate yielded the best economic-environmental indicators, followed by arid, tropical, and dry climates.

Previous studies with parabolic cylinder collectors (Ghabour and Korzenszky, 2021) were unable to find any favorable scenarios for the implementation of this technology in the tropical climate, considering all four types of auxiliary heater fuels. Therefore, it is important to highlight the economic-environmental feasibility of FPC compared to parabolic trough collectors for use in the dairy industry, specifically in the tropical climate of Mérida, Yucatán. Finally, the Pareto diagrams in Figures 12 to 15 confirm that the three optimization algorithms produced nearly identical sets of optimal solutions for each climatic region and fuel type studied.

Footnotes

ORCID iDs

Víctor Cardoso-Fernández

Oscar May Tzuc

Luis Josué Ricalde

Ignacio Vicente Perez-Quintana

Ali Bassam

Author contributions

Víctor Cardoso-Fernández: Conceptualization, Methodology, Software, Validation, Formal analysis, Investigation, Resources, Data Curation, Writing—Original Draft, Writing—Review & Editing, Visualization, Supervision, Project administration.

Oscar May Tzuc: Conceptualization, Methodology, Software, Validation, Formal analysis, Investigation, Resources, Data Curation, Writing—Original Draft, Writing—Review & Editing, Visualization, Project administration.

Luis Josué Ricalde: Conceptualization, Methodology, Software, Formal analysis, Investigation, Resources, Data Curation, Writing—Original Draft, Writing—Review & Editing, Visualization, Project administration.

Ignacio Vicente Perez-Quintana: Methodology, Software, Formal analysis, Resources, Data Curation, Writing—Original Draft, Writing—Review & Editing.

Ali Bassam: Methodology, Software, Validation, Resources, Writing—Review & Editing, Supervision, Project administration, Funding acquisition.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The author V. Cardoso-Fernández is grateful for the financial support from Consejo Nacional de Humanidades, Ciencias y Tecnologías (CONAHCYT) to pursue a postgraduate degree in Universidad Autónoma de Yucatán, under the following quantitative details CVU: 1006703, scholarship number: 808252.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Author Biographies

Víctor Cardoso-Fernández is a Professor in Physics. His area of research is renewable energy, focusing on artificial intelligence and multiobjective optimization algorithms.

Oscar May Tzuc is a Professor at the Autonomous University of Campeche. His research focuses on renewable energy, energy efficiency, and the application of artificial intelligence and optimization techniques to energy systems.

Luis Josué Ricalde is a Professor at the Autonomous University of Yucatán and Coordinator of its graduate program in Renewable Energy. His research focuses on automatic control, renewable energy systems, and the application of artificial intelligence and optimization techniques to energy and industrial processes.

Ignacio Vicente Perez-Quintana is a Professor at the Autonomous University of Yucatán with a PhD in Physics. His research focuses on thin film materials, renewable energy systems, particularly solar collectors, and the characterization and optimization of energy conversion technologies.

Ali Bassam is a Professor and Head of the Renewable Energy and Sustainable Development Department at the Autonomous University of Yucatán. He holds a PhD in Energy Engineering from the National Autonomous University of Mexico. His research focuses on modeling and optimization of energy and environmental systems using artificial intelligence, with applications in academic and industrial projects.

References

Al-Sharafi

Ahmadullah

Hassan

, et al. (2024) Influence of environmental dust accumulation on the performance and economics of solar energy systems: A comprehensive review. Cleaner Energy Systems 8: 100125.

Aleksiejuk-Gawron

Chochowski

(2020) Study of dynamics of heat transfer in the flat-plate solar collector. Processes 8(12): 1607.

Antuña-Yudego

Fernández-Pacheco

Álvarez-Álvarez

, et al. (2023) A CFD-based methodology for impact assessment of industrial emissions and evaluation of mitigation measures for regulatory purposes. Processes 11(7): 2039.

Arulmozhiselvi

Indirani

(2022) Environmental air pollution monitoring in non industrial area using machine learning techniques and IOT. International Journal of Health Sciences 6(S7): 2115–2130.

Ashour

El-Awady

Tawfik

(2022) Numerical investigation on the thermal performance of a flat plate solar collector using ZnO & CuO water nanofluids under Egyptian weathering conditions. Energy 240: 122743.

Bian

You

Zhao

, et al. (2022) Energy, exergy, economy analysis, and multi-objective optimization of a novel integrated energy system by combining artificial neural network and whale optimization algorithm. International Journal of Energy Research 46(15): 24179–24196.

Bouquet

Jackson

Nick

, et al. (2024) AI-based forecasting for optimised solar energy management and smart grid efficiency. International Journal of Production Research 62(13): 4623–4644.

Cetina-Quiñones

Bassam

Carrillo

, et al. (2024a) Toward a sustainable dairy industry in Mexico: optimization of a parabolic trough solar collector system with passive heat-transfer enhancement techniques and a machine learning approach. Environment, Development and Sustainability: 1–35. doi:10.1007/s10668-024-05287-w.

Cetina-Quiñones

Bassam

Medina-Carril

, et al. (2024b) Multi-objective optimization of energo-enviro-economic indicators of an outdoor swimming pool heating system: An approach with advanced computational techniques. Journal of the Brazilian Society of Mechanical Sciences and Engineering 46(4): 86.

10.

Cetina-Quiñones

Sánchez-Domínguez

Casillas-Reyes

, et al. (2023) 9E analysis of a flat plate solar collector system implementation: A new approach based on digital twin model coupled with global sensitivity analysis and multi-objective optimization. Journal of Renewable and Sustainable Energy 15(3). doi:10.1063/5.0151617.

11.

Cetina-Quiñones

Xamán

Bassam

, et al. (2021) Thermo-economic analysis of a flat solar collector with a phase changing material under tropical climate conditions: Residential and industrial case. Applied Thermal Engineering 182(March 2020), 116082.

12.

Clerc

(2006) Particle Swarm Optimization. Wiley USA: ISTE Ltd.

13.

Derse

Yılmaz

(2022) Optimal site selection for wind energy: A case study. Energy Sources, Part A: Recovery, Utilization, and Environmental Effects 44(3): 6660–6677.

14.

Dhirawani

Parekh

Kandoi

, et al. (2022) Cost savings estimation for solar energy consumption using machine learning. In: 2022 11th International Conference on Renewable Energy Research and Application (ICRERA). IEEE, pp.42–49. doi:10.1109/ICRERA55966.2022.9922872.

15.

Duan

Guo

Liu

(2022) A hybrid genetic-particle swarm optimization algorithm for multi-constraint optimization problems. Soft Computing 26(21): 11695–11711.

16.

Faisal

Saraei

(2025) Numerical investigation to enhance the solar collector performance using nano-encapsulated octadecane organic paraffin PCM. Energy Engineering 122(5): 2099–2117.

17.

Ghabour

Korzenszky

(2021) Effect of in series and in parallel flow heater configuration of solar heat system for industrial processes. Science, Technology and Innovation 14(3): 18–26.

18.

Goldberg

(1989) Genetic Algorithms in Search, Optimization, and Machine Learning. Addison-Wesley.

19.

Gubanova

Vinogradova

Skorokhod

, et al. (2021) Abnormal aerosol air pollution in Moscow near the local anthropogenic source in July 2021. Hydrometeorological Research and Forecasting 4: 134–148.

20.

Guo

, et al. (2021) Multi-objective optimization of multi-energy heating systems based on solar, natural gas, and air- energy. Sustainable Energy Technologies and Assessments 47: 101394.

21.

Haykin

(1999) Neural Networks: A Comprehensive Foundation. Prentice Hall.

22.

Hernandez-Escobedo

Franco

Perea-Moreno

A-J

(2022) GIS-Based Wind and solar power assessment in central Mexico. Applied Sciences 12(24): 12800.

23.

Islam

Ali

Pratik

, et al. (2023) Numerical analysis of a flat plate collector using different types of parallel tube geometry. AIP Advances 13(10). doi:10.1063/5.0159916.

24.

Koroglu

Ekici

(2024) A comparative study on the estimation of wind speed and wind power density using statistical distribution approaches and artificial neural network-based hybrid techniques in Çanakkale, türkiye. Applied Sciences 14(3): 1267.

25.

Le Digabel

Wild

(2024) A taxonomy of constraints in black-box simulation-based optimization. Optimization and Engineering 25(2): 1125–1143.

26.

Mahmoud

Atia

Esmail

, et al. (2023) Application of whale optimization algorithm based FOPI controllers for STATCOM and UPQC to mitigate harmonics and voltage instability in modern distribution power grids. Axioms 12(5): 20.

27.

May Tzuc

Bassam

Ricalde

, et al. (2020) Environmental-economic optimization for implementation of parabolic collectors in the industrial process heat generation: Case study of Mexico. Journal of Cleaner Production 242: 118538.

28.

Menos-Aikateriniadis

Lamprinos

Georgilakis

(2022) Particle swarm optimization in residential demand-Side management: A review on scheduling and control algorithms for demand response provision. Energies 15(6): 2211.

29.

Minakova

Zaitsev

(2022) Biaxial heat balance model of a solar collector. Journal of Nano- and Electronic Physics 14(4): 04030-1–04030–4.

30.

Mirjalili

Lewis

(2016) The whale optimization algorithm. Advances in Engineering Software 95: 51–67.

31.

Mohammadi

Khanmohammadi

Immonen

, et al. (2021) Techno-economic analysis and environmental benefits of solar industrial process heating based on parabolic trough collectors. Sustainable Energy Technologies and Assessments 47: 101412.

32.

Mohd Yusof

Muda

Pratama

, et al. (2022) Improved swarm intelligence algorithms with time-varying modified sigmoid transfer function for amphetamine-type stimulants drug classification. Chemometrics and Intelligent Laboratory Systems 226: 104574.

33.

Monteiro

Reynoso-Meza

(2023) A multi-objective optimization design to generate surrogate machine learning models in explainable artificial intelligence applications. EURO Journal on Decision Processes 11: 100040.

34.

Ovando

Sayago

Bocco

(2022) Developing machine learning models for air temperature estimation using MODIS data. AgriScientia 39(1): 15–28.

35.

Rahman

Shakeri

Tiong

, et al. (2021) Prospective methodologies in hybrid renewable energy systems for energy prediction using artificial neural networks. Sustainability 13(4): 2393.

36.

Ramkumar

Arthi

Jebaseelan

, et al. (2022) Implementation of Solar Heat Energy and Adsorption Cooling Mechanism for Milk Pasteurization Application. Adsorption Science & Technology. Edited by D. Barik 2022. doi:10.1155/2022/5125931.

37.

Rashed

Ahmed Elsamni

Elkaranshawy

, et al. (2021) Design and performance evaluation of large field of flat plate solar collectors network for industrial application. In: 2021 12th International Renewable Engineering Conference (IREC). IEEE, pp.1–7,

38.

Rosales-Pérez

Villarruel-Jaramillo

Pérez-García

, et al. (2024) Techno-economic analysis of hybrid solar thermal systems with flat plate and parabolic trough collectors in industrial applications. Alexandria Engineering Journal 86: 98–119.

39.

Sethi

Bodhe

Chauhan

, et al. (2024) Impact of absorber surface coatings on the thermal performance of non-concentrating solar thermal collectors: An overview. Materials Today: Proceedings. doi:10.1016/j.matpr.2024.05.019.

40.

Sharifi

Eskandari

(2023) Techno-economic evaluation and multi-criteria optimization of a trigeneration flash–binary geothermal power plant integrated with parabolic trough solar collectors. Journal of Thermal Analysis and Calorimetry 148(16): 8263–8282.

41.

Sreenath

Azmi

Ismail

ZAM

(2023) Feasibility of solar hybrid energy system at a conservation park: Technical, economic, environmental analysis. Energy Reports 9: 711–719.

42.

Thirunavukkarasu

Sawle

Lala

(2023) A comprehensive review on optimization of hybrid renewable energy systems using various optimization techniques. Renewable and Sustainable Energy Reviews 176: 113192.

43.

Ukaegbu

Tartibu

Lim

(2023) Multi-Objective optimization of a solar-assisted combined cooling, heating and power generation system using the Greywolf optimizer. Algorithms 16(10): 63.

44.

Ukoba

Olatunji

Adeoye

, et al. (2024) Optimizing renewable energy systems through artificial intelligence: Review and future prospects. Energy & Environment 35(7): 3833–3879.

45.

Vargas-López

Xamán

Hernández-Pérez

, et al. (2019) Mathematical models of solar chimneys with a phase change material for ventilation of buildings: A review using global energy balance. Energy 170: 683–708.

46.

Wang

Liu

, et al. (2022) Thermal performance analysis of large-scale flat plate solar collectors and regional applicability in China. Energy 238: 121931.

47.

Guo

Han

, et al. (2023) Autonomous detection of myocarditis based on the fusion of improved quantum genetic algorithm and adaptive differential evolution optimization back propagation neural network. Health Information Science and Systems 11(1): 33.

48.

Zaboli

Saedodin

Ajarostaghi

SSM

, et al. (2023) Recent progress on flat plate solar collectors equipped with nanofluid and turbulator: State of the art. Environmental Science and Pollution Research 30(51): 109921–109954.
