A spuriously ‘normal’ haemoglobin A 1c result

Abstract

We report a case of spuriously ‘normal’ haemoglobin A_1c (HbA_1c) result due to misidentification of HbG Taipei as HbA_o by the Variant II built-in retention time algorithm. The defect was circumvented effectively by the implementation of a chromatographic system specific internal quality control mechanism for peak identity verification. HbA_1c and estimated average glucose results were corrected from 4.7% to 8.2%, and 4.9 to 10.5 mmol/L, respectively. The results were consistent with the patient's concurrent and previous fasting blood glucose concentrations and existence of diabetes mellitus dermopathy, indicating poor glycaemic control. A review of currently available analytical systems showed that other than mass spectrometry, HbA_1c measurements by these systems were generally affected by the presence of haemoglobin variants. The same haemoglobin variant may affect different analytical systems differently, resulting in the deviation of HbA_1c results from the true value to different extents. Including the analytical principle of HbA_1c measurement in the laboratory report can avoid inappropriate comparison of results obtained by different analytical systems. Moreover, since individual haemoglobinopathy may affect the degree of glucose binding to haemoglobin in a different way, this uncertainty limits the general application of same decision cut-off of established guidelines for glycaemic control monitoring. Adoption of an individualized monitoring system based on the critical difference or reference change value of HbA_1c can be considered.

Introduction

The American Diabetes Association has recently recommended the use of haemoglobin A_1c (HbA_1c) not only as an indicator of glycaemic control in patients with diabetes mellitus, but also as a tool for screening and diagnosis of diabetes mellitus. The presence of haemoglobin variants can affect HbA_1c results, depending on analytical methodology and associated technological shortcomings. Here, we report a case of a patient with diabetes mellitus with a spuriously ‘normal’ HbA_1c result that resulted in inappropriate clinical management due to the presence of a haemoglobin variant and technological issues affecting the analytical system.

Case

A 75-year-old man with a history of type II diabetes mellitus (DM) presented to the cardiology centre on 4 March 2011 for regular follow-up. Laboratory tests revealed a fasting blood glucose of 9.6 mmol/L but apparently good glycaemic control in terms of a normal haemoglobin A_1c (HbA_1c) concentration of 4.7% (decision cut-off: <6.5%) and a normal estimated average glucose (eAG) of 4.9 mmol/L (reference range: 3.9–7.8 mmol/L). The patient showed skin changes in the lower limbs consistent with DM dermopathy despite repeatedly ‘normal’ HbA_1c results as tested elsewhere. Owing to privacy issues, methods adopted for the HbA_1c measurement elsewhere were not known. Review of our past laboratory records showed elevated fasting blood glucose concentrations of 6.7 and 10.6 mmol/L in July and November 2010, respectively, but without accompanying HbA_1c results. The only previous HbA_1c result determined by our laboratory was back in 2009 when the fasting blood glucose was 7.0 mmol/L with an agreeable concurrent HbA_1c concentration of 6.1% and an eAG of 7.1 mmol/L.

Chromatogram assessment of the current 2011 sample (sample A) uncovered HbA_o peak misidentification by the built-in retention time algorithm¹ of the VARIANT-II Hemoglobin Testing System (Bio-Rad Laboratories, Hercules, CA, USA) (Figure 1). This resulted in overestimation of the total peak area and consequent underestimation of the HbA_1c in %. Manual recalculation after correct peak assignment allowed the HbA_1c result to be revised from 4.7% to 8.2%, and eAG from 4.9 to 10.5 mmol/L. This was more consistent with the concurrent fasting blood glucose concentration of 9.6 mmol/L. Chromatogram assessment of the 2009 sample (sample B) showed correct peak identification, which explained the agreeable results of HbA_1c in %, eAG and fasting blood glucose (Figure 1).

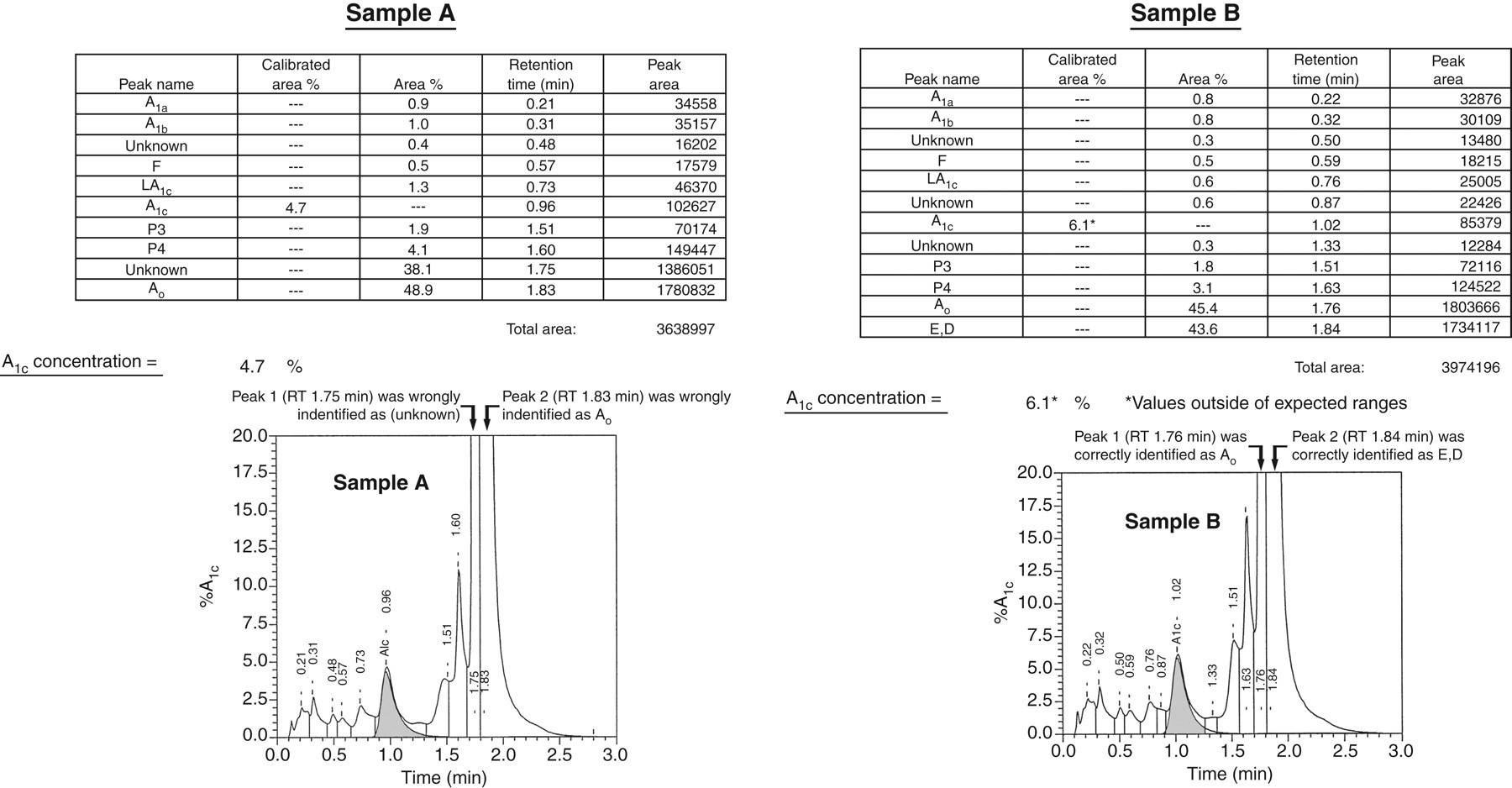

Figure 1

Chromatogram of 2011 sample (sample A) with wrongly identified A_o and (unknown) peaks and 2009 sample (sample B) with correctly identified A_o and E, D peaks by the VARIANT-II Hemoglobin Testing System. RT, retention time

The (unknown) peak indicated the presence of haemoglobinopathy. The red cells of the patient were normochromic normocytic and peripheral blood smear examination was unremarkable. High-performance liquid chromatography (HPLC) by the β-Thalassemia Short Program of the VARIANT-II System showed a slow eluting haemoglobin variant at the HbA₂ window with a retention time of 3.52 min that accounted for 37.8% of the total haemoglobin fraction (Figure 2). Direct sequencing of the β-globin gene was performed, showing that the patient was heterozygous for HbG Taipei (β-globin gene codon 22 GAA → GGA; Glu → Gly mutation).

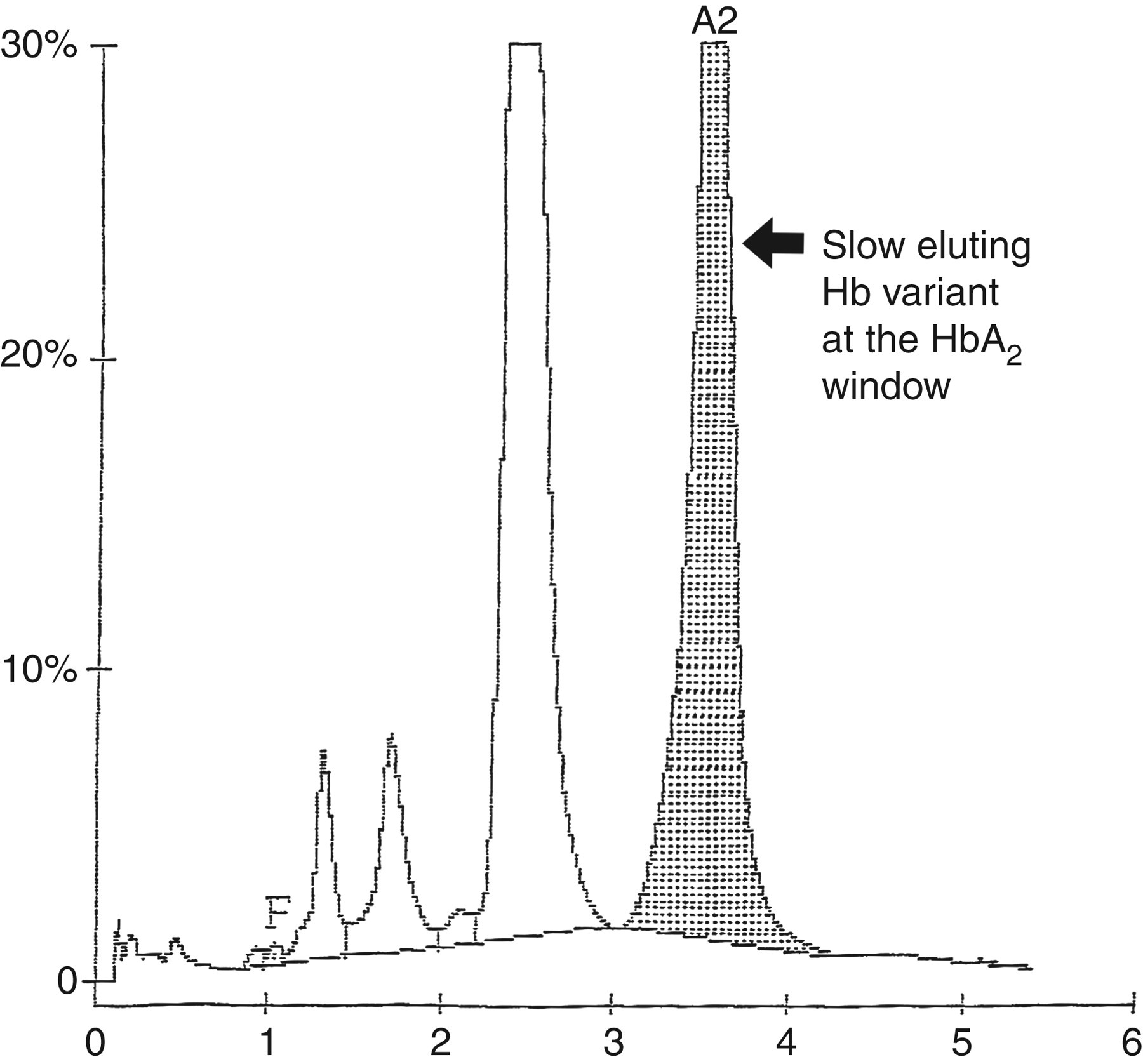

Figure 2

Chromatogram of slow eluting haemoglobin variant peak at the haemoglobin A₂ (HbA₂) retention time window by the β-Thalassemia Short Program of the VARIANT-II System

Discussion

The American Diabetes Association has recommended HbA_1c as both an indicator of long-term glycaemic control in patients with DM, and a screening and diagnostic tool of the disease.² Appropriate clinical application of the HbA_1c result relies on how accurately this analyte reflects the glycaemic status of the patient, which can be upset by the presence of haemoglobin variant(s) and technological shortcomings. Studies regarding interference of the HbA_1c result by haemoglobin variants^3–6 and various methodologies to tackle this issue^7,8 have been extensively reported. Nevertheless, to the best of our knowledge, none reported shortcomings of the proprietary peak identification algorithms, including the wide and significantly overlapped retention time windows, which may result in wrong peak identification and erroneous HbA_1c measurement.

Our laboratory adopts a fully automated NGSP-certified cation-exchange HPLC system, the VARIANT-II, for HbA_1c analysis. A proprietary exponentially modified Gaussian (EMG) algorithm¹ is applied to quantify HbA_1c concentration based on relative peak area, which is obtained by dividing area of peak HbA_1c by area summation of all peaks up to HbA_o, against two levels of calibration. All peaks eluting after HbA_o, labile HbA_1c and carbamylated peaks are excluded.

The VARIANT-II built-in retention time window governs peak identification (Table 1). Too wide and significantly overlapped retention time windows jeopardized correct peak assignment and thus accuracy of HbA_1c determination. Since August 2010, our laboratory has established a chromatographic system specific internal quality control plan. Apart from running Bio-Rad lyphochek bilevel HbA_1c controls (Bio-Rad Laboratories) to assess HbA_1c results at the start and end of each run, an in-house retention time system was established. Stringent retention time windows of HbA_1c and HbA_o peaks were adopted as internal quality control parameters for peak identity verification of every patient sample and Bio-Rad lyphochek bilevel HbA_1c controls. Retention time windows were established using data of Bio-Rad lyphochek bilevel HbA_1c controls and patient samples with no haemoglobin variant from two time periods (July to August and November to December 2010), involving a sample size of 3409. During the study periods, three lots of column, mobile phase, calibrator and control were involved. Retention time windows were established based on mean ± 3 standard deviations, and validation was performed in the subsequent two months on a sample size of 1542. Retention time windows of HbA_1c and HbA_o were established as 0.91–1.03 (central value 0.97) and 1.73–1.79 (central value 1.76) min, respectively. Any sample not meeting the in-house retention time window was reviewed, investigated and followed up accordingly.

Table 1

HbA_1c and HbA_o retention time comparison between the VARIANT-II built-in algorithm and in-house established system

Peak	Central value	RT window	Range (central value ±0.5 of RT window)	CV (%)*
Retention time (VARIANT-II Built-in Algorithm) (total run time: 3 min)
A1a	0.16	0.12	0.10–0.22	–
A1b	0.28	0.20	0.18–0.38	–
F	0.58	0.16	0.50–0.66	–
LA_1C	0.74	0.16	0.66–0.82	–
(unknown)	0.84	0.08	0.80–0.88	–
A_1C	0.95	0.30	0.80–1.10	7.9%
P3	1.53	0.14	1.46–1.60	–
P4	1.64	0.12	1.58–1.70	–
A_o	1.80	0.20	1.70–1.90	2.8%
E,D	1.88	0.10	1.83–1.93	–
S	1.98	0.10	1.93–2.03	–
C	2.13	0.10	2.08–2.18	–

Retention time (in-house established) (total run time: 3 min)
Peak	Central value	RT window	Range (central value ±0.5 of RT window)	CV (%) ^†
A_1C	0.97	0.12	0.91–1.03	2.1%
A_o	1.76	0.06	1.73–1.79	0.6%

HbA_1c, haemoglobin A_1c; CV, coefficient of variation; RT, retention time

CV (%)* = 1/4 RT window/central value, with RT window =± 2 SD

CV (%)^† = 1/6 RT window/central value, with RT window =± 3 SD

Our stringent in-house retention time system enabled significant narrowing of retention time windows of both HbA_1c and HbA_o peaks and complete separation of HbA_o and HbE/D peaks. This control mechanism guaranteed correct peak identification in our case and thus revising area summation of all peaks up to HbA_o from 3,638,997 to 1,858,165. This resulted in upgrading HbA_1c results from 4.7% to 8.2%.

Although haemoglobin variants including haemoglobin F, E/D, S and C were measurable by the VARIANT-II Hemoglobin Testing System, a chromatographic run of three minutes limited its capability to identify a wide spectrum of haemoglobin variants correctly, particularly when the haemoglobin variant eluted within the retention time window of haemoglobin F, E/D, S and C due to charge similarity. As in this case, HbG Taipei was erroneously identified as haemoglobin E/D due to elution in the respective retention time window. Likewise, while the β-Thalassemia Short Program of the VARIANT-II System covers most of the common and important haemoglobin variants in different populations, for example HbS and HbC in Africa, and HbE in South East Asia, it is notable that Hb New York and Hb Malay escape the detection due to co-elution with HbA. Therefore, direct sequencing of the α or β globin genes was required to confirm the haemoglobin variant identity as reported in this case.

The Chinese are a population with a high prevalence of haemoglobinopathy. One review reported the identification of 24 haemoglobin variants in 271 persons living in the Silk Road region of China, among which HbG Taipei, originating from Han in the Yellow River valley, occurred at the highest frequencies.⁹ Apart from that, there is hitherto no report in the literature reporting its occurrence in other Asian populations, or its prevalence locally.

Haemoglobin A_1c assays can be divided into methods that apply molecular charge, including cation-exchange high-performance liquid chromatogram and electrophoresis; or molecular structure, comprising immunoassays, boronate affinity chromatography and mass spectrometry. The presence of haemoglobin variants may result in over- or under-determination of HbA_1c concentration depending on the analytical principle. Cation-exchange high-performance liquid chromatogram and electrophoresis are affected by haemoglobin variants co-eluting with HbA and/or HbA_1c due to charge similarity. Erroneous detection of epitopes of haemoglobin variants with amino acid substitutions occurring within the N-terminal β-globin chain can cause interference in immunoassay by an anti-HbA_1c antibody, and the presence of a high percentage of HbF. Boronate affinity chromatography is affected by haemoglobin variants with decreased or increased glycation. While mass spectrometry, the International Federation of Clinical Chemistry and Laboratory Medicine (IFCC) reference method, is generally not affected by the presence of genetic or chemical modification of HbA and/or HbA_1c molecules, cost and technical expertise requirements do not allow general application in routine medical laboratories. The same haemoglobin variant may affect different analytical systems differently. Stating the analytical principle of HbA_1c measurement in the laboratory report can avoid inappropriate comparison of results determined by different analytical systems. This is particularly crucial for glycaemic control monitoring.

Individual haemoglobinopathy may affect the degree of glucose binding to haemoglobin in a different way. A subject with a haemoglobin variant and having a HbA_1c concentration <6.5% may not always equate to good glycaemic control due to the possible lower degree of glucose binding. This uncertainty limited the general application of same decision cut-off of established guidelines for glycaemic control monitoring. Although fructosamine is an alternative monitoring tool,¹⁰ it only reflects the glycaemic status on a fortnightly basis.

To serve the glycaemic control monitoring purpose, particularly in populations with a high prevalence of haemoglobinopathy, establishment of an individualized system based on critical difference or reference change value is worth consideration. Reference change value involves calculating an appropriate decision goal in terms of analytical and biological variations with an equation [1.96 × sq root (2) × sq root (sq (CVa)+sq (CVw))], where CVa is analytical between-run imprecision and CVw is intra-individual biological variation. Sequential results being significantly different must vary by more than the reference change value. Therefore, a patient with good glycaemic control should have HbA_1c in % not deviating from the previous result by the magnitude of reference change value. As an example, an HbA_1c system meeting an optimal analytical goal should have CVa not exceeding 2.2%¹⁰ with a CVw of 1.0%,¹¹ giving a reference change value of 6.7%. For sequential results to be significantly different, the HbA_1c result must differ by more than 0.44% if the previous HbA_1c reading was 6.5%. Nevertheless, appropriate application of reference change value relies on the constant effect of the haemoglobin variant over time and two sequential results obtained by the same analytical principle. The latter requirement further reinforces the positive and important implication of including the HbA_1c analytical principle in the laboratory report.

Conclusion

We report a case of spuriously normal HbA_1c result due to HbA_o peak misidentification by the VARIANT-II built-in retention time algorithm, which is circumvented effectively by the implementation of a chromatographic system specific internal quality control mechanism for peak identity verification. We recommend adoption of an individualized glycaemic control monitoring system based on critical difference or reference change value in the face of individualization of haemoglobinopathy, which may affect different analytical systems differently. We suggest including the analytical principle of HbA_1c measurement in the laboratory report, not only to avoid inappropriate comparison of results obtained by different analytical systems, but also to maximize the application of an individualized glycaemic control monitoring system, particularly in a population with a high prevalence of haemoglobinopathy.

DECLARATIONS

Competing interests: None.

Funding: None.

Ethical approval: Not applicable.

Guarantor: VMHL.

Contributorship: VMHL conceived the case report and wrote the first draft. VMHL and ESKM reviewed the case. EMCC obtained the patient's consent. ESKM and JCCS conducted chromatographic and genetic studies, respectively, of the haemoglobin variant. All authors reviewed, edited and approved the manuscript.

Acknowledgements: None.
