Introduction of Sprotte needles to a single-centre acute neurology service: before and after study

Introduction

The most common complication occurring after lumbar puncture is low-pressure headache. ¹ The mechanism by which this complication occurs is thought to be a continued cerebrospinal fluid (CSF) leak through a dural tear.^2,3 Atraumatic (Sprotte) needles, with their characteristic pencil-point tip, were first developed in 1951. ³ They have been in use since the early 1990s ⁴ and have been shown to significantly reduce the incidence of postlumbar-puncture headache (PLPH) in numerous studies, including randomized prospective studies and double-blind randomized controlled trials.^5–7 PLPH is defined as a headache appearing within 12 days from lumbar puncture although usually appearing within 24–48 h. ⁶ As a result of the decreased incidence of PLPH with atraumatic needles they are widely used in spinal anaesthesia ⁷ but their use in other clinical specialities is still limited. ⁶ Their implementation has been recommended in several neurology publications^5,7 but the uptake is poor in the UK (unlike the rest of Europe) due to concerns of cost, lack of familiarity with technique, perceived learning curve and availability. Here we retrospectively assessed the complication rates associated with the use of traumatic (Quincke) needles and compared this prospectively with atraumatic needles after their implementation into a regional acute neurology service.

Methods

The study took place in a single-centre acute neurology service planned investigation unit. The incidence of complications was audited by collecting retrospective data from 24 patients aged 53.5 ± 17.2 years (mean ± SD) who had undergone traumatic (Quincke) lumbar punctures using 22-G needles over the previous four weeks. The use of 22-G atraumatic (Sprotte) needles was then implemented and data were prospectively collected from 36 patients aged 47.9 ± 16.9 (mean ± SD) over six weeks. Data were collected by the authors using a telephone questionnaire (Figure 2). The lumbar punctures were performed for an unselected set of neurological conditions. They were performed with the patient in the left lateral position at the L3/4 or L4/5 level and the stylet was replaced prior to needle withdrawal. With regard to the traumatic needles the bevel was inserted upwards (perpendicular to the long axis of the patient). CSF was gained at the first or second attempt. The same volume of CSF (∼4 mL) was collected from all patients and volume was measured in the hospital laboratories to which the samples were sent for analysis. All patients were asked to remain flat for 30 min post-procedure. Patients undergoing therapeutic lumbar punctures for raised intracranial pressure were excluded from the study. OPEN IN VIEWER

OPEN IN VIEWER

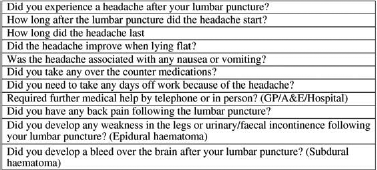

Figure 2

Questionnaire used for data collection

Two patients in the traumatic group and six patients in the atraumatic group were not contactable and therefore excluded from the study. Data on complication rates were collected by telephone questionnaire at least 12 days after they had undergone their lumbar puncture. Laboratory data on the number of red blood cells per millilitre of CSF in the first sample were analysed and used as an index for ‘traumatic’ taps.

Non-parametric comparisons of independent datasets, such as the comparison of postprocedure headache between the traumatic and atraumatic groups, were analysed using a chi-squared test with a P ≤ 0.05. A Mann-Whitney U test was used to analyse the difference in red blood cells per millilitre in the first CSF sample following the two types of lumbar puncture.

Results

A comparison of traumatic (Quincke) and atraumatic (Sprotte) needles revealed a significant reduction in the incidence of postlumbar puncture headaches overall (*P < 0.01), headaches requiring over-the-counter medication (*P < 0.00001), need for further medical assistance (*P < 0.006), time off work (*P < 0.003), nausea and vomiting (*P < 0.01) and traumatic taps as per the count of red blood cells per millilitre in the CSF (*P < 0.02). There was no significant difference in the incidence of back pain (P > 0.05). There was no significant difference between the number of red blood cells per millilitre of CSF and the headache rate (P = 0.22) (Table 1).

OPEN IN VIEWER

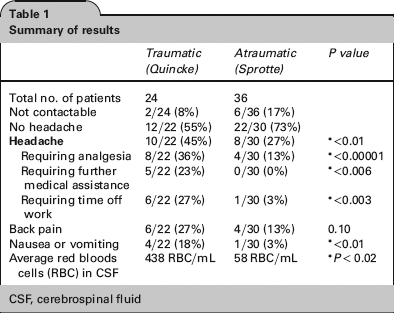

Table 1

Summary of results

	Traumatic (Quincke)	Atraumatic (Sprotte)	P value
Total no. of patients	24	36
Not contactable	2/24 (8%)	6/36 (17%)
No headache	12/22 (55%)	22/30 (73%)
Headache	10/22 (45%)	8/30 (27%)	*<0.01
Requiring analgesia	8/22 (36%)	4/30 (13%)	*<0.00001
Requiring further medical assistance	5/22 (23%)	0/30 (0%)	*<0.006
Requiring time off work	6/22 (27%)	1/30 (3%)	*<0.003
Back pain	6/22 (27%)	4/30 (13%)	0.10
Nausea or vomiting	4/22 (18%)	1/30 (3%)	*<0.01
Average red bloods cells (RBC) in CSF	438 RBC/mL	58 RBC/mL	∗P < 0.02

CSF, cerebrospinal fluid

Discussion

To the authors’ knowledge this is the first report in the current literature that the use of atraumatic lumbar puncture needles has a lower rate of ‘traumatic taps’, as determined by the red blood cell count in the first sample of CSF taken, compared with the traumatic needles. In line with previously published randomized controlled studies we have also shown that the introduction of atraumatic lumbar puncture needle use to an acute neurology service in a London teaching hospital produces significant reductions in all complication rate outcome measures except back pain. The main limit to our study is the small number of participants due to the single-centre nature and short study duration.

A number of trials have been published comparing the incidence of headache and other complications following the use of traumatic versus atraumatic lumbar puncture needles across a wide variety of clinical settings. The initial studies over 20 years ago investigated the rate of postlumbar puncture headache following spinal anaesthesia using needles of gauge 24–29. ⁸ Compared with our findings these studies had much lower incidences of postlumbar puncture headache for both traumatic and atraumatic needles of around 25% and 11%, respectively. This lower incidence for both needle types is thought to be due to the smaller gauge of the needles and delivery of spinal anaesthesia, both of which have been shown to be independent predictors of postlumbar puncture headache.^9,10 These fine bore needles are suitable for spinal anaesthesia but when accurate pressure measurement and sampling of CSF is mandated needles of size 22 G or larger are required. ¹¹ Randomized controlled trials comparing the use of atraumatic versus traumatic 22-G needles have in some studies shown a significant improvement from 36% to 3%, respectively, ¹² while other studies have shown only a modest improvement from 42% traumatic to 33% atraumatic and 54% traumatic to 29% atraumatic. ¹³ The latter studies are more in keeping with our results of 45% traumatic improving to 27% atraumatic. The discrepancy in the reported incidences may be due to the differing criteria used in these studies to delineate which headaches are likely due to ‘low pressure’ aetiology. Some studies reported all headaches while others only count headaches that had convincing low-pressure features, such as change in intensity with posture. Furthermore, other studies only included headaches of moderate-to-severe nature and discounted milder headaches. Interestingly studies which did not report the milder headaches have similar incidence rates to the group in our study which required over-the-counter medications. This suggests therefore that our results are in line with other published studies regarding headache incidence when the needle size and reporting criteria are accounted for.

Few studies in the literature have published rates of patients requiring over-the-counter medications or seeking further medical assistance. A randomized controlled study of 97 patients using a similar gauge of traumatic and atraumatic needles found rates of over-the-counter medication requirement to be 54% and 34%, respectively. In addition, patients requiring further medical attention (general practitioner consultation, hospital admission or hospital telephone call) were 18% in the traumatic group compared with 5% in the atraumatic group. ¹³ This is consistent with our findings of 23% and 0%, respectively. As would be expected with a blunt tip needle the rate of ‘traumatic’ lumbar punctures, as determined by the red blood cell count in the first sample of CSF taken, is significantly lower than with the traumatic needles. To our knowledge this is the first report of this in the current literature but will require further correlation with larger studies.

OPEN IN VIEWER

Figure 3

Atraumatic lumbar puncture needle technique. The technique for the use of atraumatic needles is easy to learn with a minimal learning curve for healthcare workers already able to perform lumbar punctures using Quincke ‘traumatic’ needles. The Quincke needles have sharp tips, while the Sprotte needles are blunted. The most notable difference is the requirement for an introducer needle (a). This is a sharp-tipped 18-G needle through which the atraumatic needle passes. Once this is inserted approximately 2 cm deep to the skin (dependent on the amount of adipose tissue present) the atraumatic needle is then advanced (b). The tactile feedback using an atraumatic needle is different from traumatic needles but this is easily learnt. In younger patients the spinal ligaments tend to be tougher and require slightly more pressure to pass through. The stylet is withdrawn from the atraumatic needle and cerebrospinal fluid is attained (c). A manometer can then be attached to the end of the needle to measure the opening pressure

Lumbar punctures are performed by a variety of physicians including anaesthetists, neurologists, general physicians, haematologists, oncologists and emergency department physicians. Their use is either diagnostic, for a wide range of infective or neuro-inflammatory conditions, or therapeutic, such as during spinal anaesthesia, intrathecal chemotherapy delivery and in the treatment of raised intracranial pressure. In some cases a tear in the dura following a lumbar puncture is thought to be beneficial and is hypothesized to be the reason why lumbar punctures in patients with raised intracranial pressure have a symptomatic benefit lasting longer than the physiological time it takes to reproduce the CSF removed. ¹⁴ In the majority of cases, however, a CSF leak following a lumbar puncture from a dural tear is an unwanted side-effect which can be debilitating. This can lead to severe headaches, nausea, vomiting, tinnitus, diplopia, hearing impairment and in some cases development of subdural haemorrhages ¹⁵ or venous sinus thrombosis. ¹⁶

Factors which have been found to affect headache postlumbar puncture include age, needle gauge, needle type, bevel direction, reinsertion of the stylet prior to removal and administration of spinal anaesthesia.^9–11 Factors for which there is no beneficial prophylactic evidence include lying flat for any period of time after the procedure, position of patient during the procedure, amount of CSF drained, caffeine and fluid intake post-procedure.^9–11,17

Reasons stated for the lack of atraumatic needle use in the UK include lack of availability, comparative cost of the needles and concern about accuracy of pressure measurements. Atraumatic lumbar puncture needles are estimated to be 2–3 times the price of the standard traumatic needles. In a single institution over two months the significant reduction in complication rates represents cost efficiency and better patient care. ¹⁷

Conclusion

A large evidence base now exists for the superiority of atraumatic lumbar puncture needles over traumatic needles but their use is still not commonplace in the UK compared with Europe. We have shown that the implementation of atraumatic lumbar puncture needle use is safe, has a minimal learning curve and produces reliable results in keeping with published complication rates. The rate of traumatic taps, using red blood cells per millilitre of CSF as a marker, is significantly lower. To increase the use of atraumatic lumbar puncture needles among the medical profession in the UK, greater awareness of the reduced complication rates, increased availability of needles and further training are required.
