Expression of Monocarboxylate Transporter 1 in Oral and Ocular Canine Melanocytic Tumors

Abstract

Solid tumors are composed of a heterogeneous population of cells surviving in various concentrations of oxygen. In a hypoxic environment, tumor cells generally up-regulate glycolysis and, therefore, generate more lactate that must be expelled from the cell through proton transporters to prevent intracellular acidosis. Monocarboxylate transporter 1 (MCT1) is a major proton transporter in mammalian cells that transports monocarboxylates, such as lactate and pyruvate, together with a proton across the plasma membrane. Melanocytic neoplasia occurs frequently in dogs, but the prognosis is highly site-dependent. In this study, 50 oral canine melanomas, which were subdivided into 3 histologic subtypes, and 17 ocular canine melanocytic neoplasms (14 melanocytomas and 3 melanomas) were used to examine and compare MCT1 expression. Immunohistochemistry using a polyclonal chicken anti-rat MCT1 antibody showed that most oral melanoma exhibited cell membrane staining, although there were no significant differences observed among the 3 histologic subtypes. In contrast, the majority of ocular melanocytic tumors were not immunoreactive. Additionally, we documented the presence of a 45-kDa band in cell membrane protein Western blots, and sequencing of a reverse transcriptase polymerase chain reaction band of expected size confirmed its identity as a partial canine MCT1 transcript in 3 oral tumors. Increased MCT1 expression in oral melanomas compared with ocular melanocytic tumors may reflect the very different biology between these tumors in dogs. These results are the first to document canine MCT1 expression in canine tumors and suggest that increased MCT1 expression may provide a potential therapeutic target for oral melanoma.

Keywords

Canine melanocytic tumors MCT1 melanoma eye oral cavity

Melanoma is relatively common in dogs, accounting for 30–40% of all oral neoplasms and up to 7% of all malignant tumors. Oral melanocytic tumors are considered highly malignant, while ocular melanocytic tumors involving the anterior uveal tract are generally considered benign. Seventy to eighty percent of oral melanomas metastasize to regional lymph nodes and other organs;²⁹ therefore, the mean postoperative survival time is 3 months, with only approximately 25% of patients surviving 1 year or more.^12, ³⁹ Histologic characteristics, including mitotic index and degree of pigmentation, appear to have no prognostic value.^2, ^23, ²⁷ In contrast to oral melanocytic tumors, the prognosis for patients with ocular melanocytic tumors is excellent after surgery, even with tumors that are histologically malignant, with systemic metastases being rarely reported.^6, ³⁸

Tumor cells growing in a hypoxic microenvironment up-regulate glycolysis, which subsequently produces a large amount of intracellular lactic acid that must be transported out of the cell to prevent intracellular acidosis.³³ Intracellular acidosis has been shown to be a trigger in the early phase of apoptosis and to lead to the activation of endonuclease inducing DNA fragmentation.^16, ⁴¹ To avoid intracellular acidification, pH regulators are thought to be up-regulated in tumor cells.¹⁴ Monocarboxylate transporters (MCTs) are one of the 4 major types of pH regulators, along with Na⁺/H⁺ exchangers, vacuolar adenosine triphosphatase, and anion exchangers, which are involved in homeostasis in mammalian cells.¹⁴ MCT1 is thought to be most important for pH regulation within rapidly metabolizing, highly glycolytic tumor cells.²² Fourteen different isoforms have been detected in mammalian tissues, but only isoforms 1–4 have been demonstrated to transport monocarboxylates, such as lactate and pyruvate.^9, ¹⁰ Although MCT1 has been examined in a variety of cells of various animals,¹⁰ there have been no studies examining MCT1 expression in canine tissues.

Human neoplasms that express MCT1 include glial neoplasm,^7, ²² ependymomas,⁷ hemangioblastomas,⁷ and alveolar soft-part sarcomas.¹⁸ Various in vitro studies that target human melanoma MCT1 have been reported,^5, ³⁴ although no clinical trials are currently ongoing. The aim of the present study was to determine whether the expression of MCT1 differed between benign and malignant canine melanocytic tumors and to determine if differences in immunoreactivity were seen between the 3 subtypes of oral melanomas.

Materials and Methods

Samples

Fifty oral canine melanocytic tumors and 17 ocular canine melanocytic tumors were examined. Samples were obtained from surgical biopsies between 1997 and 2005 at the Veterinary Teaching Hospital, Rakuno Gakuen University, and from general veterinary practitioners in Japan. Samples were fixed either in 4% paraformaldehyde for 24 hours or 10% formalin for 24–48 hours. After fixation, the tissues were dehydrated through a series of graded paraffin and sectioned serially at 4 μm. For Western blotting and reverse transcriptase polymerase chain reaction (RT-PCR), 3 oral melanomas were immediately frozen in liquid N₂ and stored at −80°C. Canine colonic tissues confirmed to contain MCT1 (unpublished data in our laboratory) were used as a positive control for Western blots, RT-PCR, and the immunohistochemical studies. Nonneoplastic melanocytes within sections of normal oral mucosa and in the eye were used as normal comparators for MCT1 expression in immunohistochemical studies. We did not use negative tissue controls lacking MCT1 expression for Western blots and RT-PCR, considering the widespread constitutive tissue expression of MCT1.⁹

Histology and morphologic diagnosis

Each oral and ocular tumor was classified as melanocytoma (benign) or melanoma (malignant) according to the World Health Organization classification of tumors of the alimentary system and the ocular and otic tumors of domestic animals, respectively.^11, ³⁷ Oral melanomas were further subdivided into 3 subtypes, epithelioid, spindle-cell, and mixed types (epithelioid and spindle patterns), according to the criteria of Smith et al.²⁹ on the basis of the predominant cell type by conventional light microscopy of HE-stained sections. A bleaching procedure using the method proposed by Roels et al.²⁸ was performed on tissue sections containing dense melanin pigment.

Immunohistochemistry

Immunohistochemical studies were performed using the avidin-biotin-peroxidase complex method (Vectastain Elite ABC Kit, Vector Laboratories Inc., Burlingame, CA, USA). The primary antibody used was a chicken polyclonal anti-rat MCT1 (Chemicon International Inc., Temecula, CA, USA). Dewaxed sections were subjected to antigen retrieval by heating in a microwave oven in the presence of 0.01-M sodium citrate buffer, pH 6.0, for 15 minutes. Sections were incubated in 3% (volume per volume) H₂O₂ in methanol at room temperature for 10 minutes to quench endogenous peroxidase activity. Subsequently, sections were incubated with the primary antibody diluted 1 : 200 at 4°C for 12 hours, with biotinylated goat anti-chicken immunoglobulin Y (IgY) (Santa Cruz Biotechnology Inc., Santa Cruz, CA, USA) for 30 minutes at room temperature and with avidin-biotin-peroxidase conjugate for 30 minutes. Finally, the reaction products were “visualized” by treatment with 0.05% 3,3′-diaminobenzidine solution and counterstained with Mayer's hematoxylin. Procedural controls were obtained by omitting the primary antibody. A bleaching procedure²⁸ was performed on tissue sections containing dense melanin pigment prior to the immunoreaction of the primary antibody.

The expression of MCT1 in melanocytes of normal oral mucosa and the eye was detected by double immunolabeling, using the MCT1 antibody and a mouse monoclonal anti-human Melan A antibody (Novocastra Laboratories Ltd., Newcastle, UK). The sections immunostained with MCT1 antibody and “visualized” by treatment with 0.05% 3,3′-diaminobenzidine solution were treated with 0.005% biotin in phosphate buffered saline (PBS) to mask avidin for 30 minutes at room temperature, followed by incubation with the melan A antibody. Sections were incubated with alkaline phosphatase-conjugated streptavidin for 30 minutes. Reaction products were visualized with alkaline phosphatase substrate Fast blue (SAB-AP Kit, Nichirei Co., Tokyo, Japan), which yields a blue precipitate without counterstain. A bleaching procedure²⁸ was performed on tissue sections prior to the immunoreaction of the primary antibody.

Grading of MCT1-staining pattern

The immunohistochemistry staining was evaluated on the basis of a distinct immunoreaction on the cell membrane. A mean percent labeling score was obtained for each sample as follows: The estimated percentage of labeled neoplastic cells in each of 10 random 400× fields was obtained for each specimen according to the following scoring system: 0 = 0%, 1 = <10%, 2 = 10–30%, 3 = 31–60%, and 4 = >61% of cells staining positive for MCT1. These 10 field scores were averaged to obtain the mean percent labeling score for each tumor specimen. We conducted an analysis of the differences among the 3 histologic subtypes of oral melanoma using the analysis of variance test and of the difference between oral and ocular melanocytic tumors using the Student's t-test. A value of P < .05 was considered statistically significant.

Polyacrylamide Gel electrophoresis and western blot analysis

Western blot analysis was performed as previously described.¹⁵ Briefly, aliquots (30 μg) of membrane protein were separated on a 10% SDS-polyacrylamide gel and transferred to nitrocellulose membranes (Tokyo Roshi Kaisha Ltd., Tokyo, Japan), which were blocked overnight at 4°C with 5% (weight in volume) nonfat dry milk in PBS-T (0.1% Tween 20 in PBS), then probed for 1 hour with a primary antibody (chicken anti-rat MCT1, Chemicon International Inc., Temecula, CA, USA) and diluted 1 : 500 in PBS. After washes in PBS-T, the membranes were incubated with biotinylated goat anti-chicken IgY diluted 1 : 1,000 in PBS for 30 minutes at room temperature and with avidin-biotin-peroxidase conjugated for 30 minutes. Immunodetection was performed by chemiluminescence (ECL, Amersham International, Buckinghamshire, UK) according to the instructions of the manufacturer. A mouse monoclonal beta-actin antibody (Abcam, Cambridge, UK) was used as an internal standard control. Negative control blots were probed only with the secondary antibody.

RT-PCR

Total RNA was isolated from the oral melanoma tissue using the RNeasy Mini Kit according to the manufacturer's protocol (Qiagen Inc., Valencia, CA, USA). One microgram of total RNA was reverse-transcribed using Superscript II and oligo-d(T)_12–18 (Invitrogen, Carlsbad, CA, USA) in a 20-μl reaction volume. PCR was performed on synthesized cDNAs using Taq DNA polymerase (Takara Bio Inc., Otsu, Japan). MCT1-specific PCR primers were derived from a canine MCT1 cDNA sequence (GenBank Accession no. XM533065): sense primer 5′-gtggatgcttgtcaggctgtgg-3′; antisense primer 5′-ccagctacacagcagtttagtagg-3′ (Hokkaido System Science Co. Ltd., Tokyo, Japan). The PCR conditions used were 94°C for 2 minutes, 35 cycles of 94°C for 30 seconds, 55°C for 30 seconds, 72°C for 1 minute, and a final extension at 72°C for 2 minutes using a thermocycler (iCycler, Bio-Rad Laboratories, Hercules, CA, USA). Glyceraldehyde-3-phosphate dehydrogenase cDNA was used as a positive cDNA control. PCR products were separated by agarose gel electrophoresis (1% agarose) and visualized with ultraviolet light following ethidium bromide staining. Negative controls were performed using a reaction mixture with H₂O as a substitute for the template DNA. The identity of the amplified MCT1 cDNA fragment was confirmed by sequencing using an automated DNA sequencer (310 Genetic Analyzer, Applied Biosystems Inc., Foster, CA, USA).

Results

Histology

All 50 oral melanocytic tumors were classified as melanoma (malignant) and further subdivided by their predominant cell type into 26 epithelioid, 9 spindle cell, and 15 mixed types. The epithelioid-type tumors contained closely packed round or polyhedral cells with abundant cytoplasm containing large nuclei with 1 or more prominent nucleoli (Fig. 1a). The spindle cell–type tumors were arranged in streams and interweaving bundles with nuclei that tended to be larger, and nucleoli were more prominent (Fig. 1c). The mixed type comprised both cell morphologies and patterns. A chondroid formation was seen in 2 of the 15 mixed types (Fig. 1e). Typically, malignant neoplastic tissues exhibited atypical nuclei, abundant mitotic figures, and areas of necrosis. The degree of pigmentation varied from scant to moderate.

Fig. 1a.

Canine oral melanoma; epithelioid type. Nonpigmented epithelioid cells are arranged in a sheet. HE. Bar = 20 μm. Fig. 1b. Canine oral melanoma; epithelioid type. Note expression of monocarboxylate transporter 1 (MCT1) on the cell membrane of neoplastic cells. Immunohistochemical staining: avidin-biotin complex methods, Mayer's hematoxylin counterstain. Bar = 20 μm. Fig. 1c. Canine oral melanoma; spindle cell type. Nonpigmented spindle cells are arranged in streams. HE. Bar = 20 μm. Fig. 1d. Canine oral melanoma; spindle cell type. Note expression of MCT1 on the cell membrane of neoplastic cells. Immunohistochemical staining: avidin-biotin complex methods, Mayer's hematoxylin counterstain. Bar = 20 μm. Fig. 1e. Canine oral melanoma; mixed type. A chondroid formation with scant melanin granules is seen in a mixed-type melanoma. HE. Bar = 20 μm. Fig. 1f. Canine oral melanoma; mixed type. Chondroid cells with MCT1 expression on cell membrane are seen. Immunohistochemical staining: avidin-biotin complex methods, Mayer's hematoxylin counterstain. Bar = 20 μm. Fig. 1g. Positive control of canine colon with MCT1 expression in the epithelium. HE. Bar = 50 μm. Fig. 1h. Canine oral melanoma without primary antibody; mixed type. No visible staining of MCT1 is seen. Immunohistochemical staining: avidin-biotin complex methods, Mayer's hematoxylin counterstain. Bar = 20 μm.

Seventeen ocular melanocytic tumors were classified into 14 melanocytomas and 3 melanomas. Melanocytomas were characterized by 2 cell types in varying proportions. One type contained deeply pigmented, large, polyhedral cells (plump cells) with a small nucleus, while the other type contained slender spindle cells having abundant pigment and a relatively small nucleus (Fig. 2a–c). Mitotic figures were very rare or absent. Of the 3 melanomas, 1 was composed of only short spindle cells that showed an indistinct cell boundary and nuclear pleomorphism with scant pigmentation. Mitotic figures were abundant (>10 /10 high-power fields), and extensive necrosis was seen. The other 2 melanomas consisted of oval-to-spindle cells with nuclear pleomorphism, distinct nucleoli, and anisokaryosis. A cluster of deeply pigmented plump cells was occasionally seen. The mitotic index was approximately 3–4 in 10 high-power fields, and focal necrosis was also observed.

Fig. 2a.

Canine ocular melanoma; melanoma arising in subconjunctival connective tissue at the limbus to the sclera. A mass is composed of deeply pigmented neoplastic cells. HE. Bar = 100 μm. Fig. 2b. Canine ocular melanoma; tumor consists of large, round cells with small nuclei. Bleaching method. Bar = 100 μm. Fig. 2c. Canine ocular melanoma; no expression of monocarboxylate transporter 1 (MCT1) in neoplastic cells. Note MCT1 expression on retina and pigmented epithelial cells. Immunohistochemical staining: avidin-biotin complex methods, Mayer's hematoxylin counterstain. Bar = 100 μm. Fig. 2d. Canine ocular melanoma; high magnification of Fig. 2c. Immunohistochemical staining, avidin-biotin complex methods; Mayer's hematoxylin counterstain. Bar = 30 μm.

Immunohistochemistry and analysis

The staining grade of MCT1 in 3 types of oral melanomas ranged from 0 to 4. The mean grade was 2.7 for the epithelioid type (Fig. 1b), 2.4 for the spindle cell type (Fig. 1d), and 2.3 for the mixed type (Fig. 1f). In the ocular melanocytic tumors, immunoreactivity was limited to a few plump cells of 1 melanocytoma, while the others showed no positive staining (Fig. 2d). Analysis of the grade showed no statistical significance between the 3 types of oral melanomas (P = .64) (Table 1) or between ocular melanocytoma and ocular melanoma (P = .66) (Table 2), whereas a significant difference was observed between the oral and ocular melanocytic tumors (P < .0001). The control sample, which was from the colon of a healthy dog, had evidence of positive MCT1 staining in the epithelium (Fig. 1g). No immunostaining was observed for MCT1 in the slide without primary antibody (Fig. 1h).

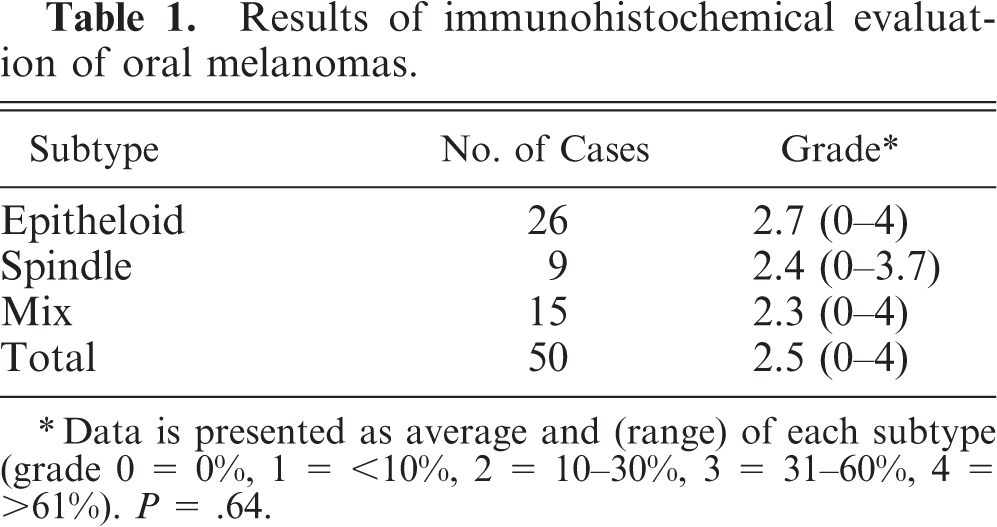

Table 1.

Results of immunohistochemical evaluation of oral melanomas.

Subtype	No. of Cases	Grade∗
Epitheloid	26	2.7 (0–4)
Spindle	9	2.4 (0–3.7)
Mix	15	2.3 (0–4)
Total	50	2.5 (0–4)

∗Data is presented as average and (range) of each subtype (grade 0 = 0%, 1 = <10%, 2 = 10–30%, 3 = 31–60%, 4 = >61%). P = .64.

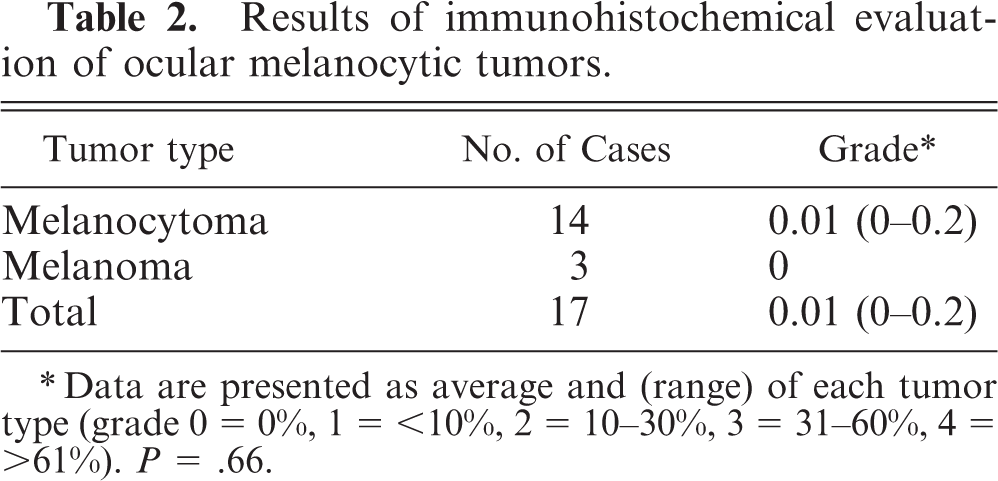

Table 2.

Results of immunohistochemical evaluation of ocular melanocytic tumors.

Tumor type	No. of Cases	Grade∗
Melanocytoma	14	0.01 (0–0.2)
Melanoma	3	0
Total	17	0.01 (0–0.2)

∗Data are presented as average and (range) of each tumor type (grade 0 = 0%, 1 = <10%, 2 = 10–30%, 3 = 31–60%, 4 = >61%). P = .66.

Furthermore, double staining of MCT1 and Melan A revealed that most of the Melan A– positive melanocytes of the oral mucosa and iris, ciliary body, and choroid were not immunoreactive with MCT1 (Fig. 3a, b). In normal oral mucosa, MCT1 was detected in the basal cell layer; and in normal eye, MCT1 strongly immunoreacted with retinal pigmented epithelium.

Fig. 3a.

Normal canine oral mucosa; no immunoreaction of monocarboxylate transporter 1 (MCT1) in Melan A–positive melanocytes (asterisks). Note MCT1 expression on basal cells (arrows). Double immunolabeling; avidin-biotin complex and streptavidin-alkaline phosphatase methods, without counterstain. MCT1 (brown) and Melan A (blue). Bar = 20 μm. Fig. 3b. Normal canine eye (pars ciliaris retinae); no immunoreaction of MCT1 in Melan A–positive melanocytes (asterisks). Note MCT1 expression on retinal pigmented epithelial cells (arrows). Double immunolabeling: avidin-biotin complex and streptavidin-alkaline phosphatase methods, without counterstain. MCT1 (brown) and Melan A (blue). Bar = 20 μm.

Western blot analysis

The MCT1 antibody detected a single band of approximately 45 kDa in immunoblots of membrane proteins prepared from each of the 3 oral melanoma tissues examined, which were identical to the products obtained from control tissue (Fig. 4). No band was observed in the absence of the primary antibody. Ocular melanocytic tumors were not examined.

Fig. 4.

Western blot analysis of monocarboxylate transporter 1 (MCT1) expression in canine oral melanoma (n = 3). Lanes 1–3: oral melanomas. Lane 4: canine colon as positive control. Top. MCT1. Note immunopositive bands at approximately 45 kDa. Middle. Negative control. Bottom. ß-actine as internal standard control.

RT-PCR

With the use of specific primers derived from the canine MCT1 cDNA sequence, a 300-bp cDNA fragment was obtained by RT-PCR amplification of total RNA from each of the 3 oral melanoma tissues, which were at the same size band as the 1 obtained from control tissue (Fig. 5). No fragment was obtained in the absence of the primer.

Fig. 5.

Expression of mRNA for monocarboxylate transporter 1 in canine oral melanoma (n = 3). Top. Lanes 1–3: oral melanomas. Lane 4: canine colon as positive control. Lane 5: no template DNA control. Bottom. Amplification with glyceraldehyde-3-phosphate dehydrogenase mRNA–specific primers as internal polymerase chain reaction control.

The identity of the PCR fragment was confirmed by sequencing. The nucleotide sequence of the melanoma PCR products was identical to the published canine MCT1 sequence. Ocular melanocytic tumors were not examined.

Discussion

In this article, we documented, for the first time, MCT1 expression in canine melanoma. MCT1, a proton-linked monocarboxylate transporter, is a transmembrane protein known to contribute to transporting monocarboxlates such as lactate and pyruvate into and out of cells in a variety of tissues.^9, ¹⁰ Thus, MCT1 plays a critical role in the energy metabolism, homeostasis, and pH control. The role of MCT1 in healthy as well as diseased tissues has become an area of intensive research in human medicine. Several studies have reported that MCT 1 expression was increased when cells became hypoxic because of disease states such as stroke or neoplasia.^7, ^21, ^34, ⁴²

This study demonstrated that MCT1 was frequently expressed in canine oral melanoma and that there were no statistically significant differences in staining grade between different histologic subtypes. We also obtained an approximately 45-kDa band by Western blotting from 3 oral melanomas, the size of which was consistent with that of canine MCT1 protein detected in control colonic tissue. On the mRNA level, we verified the existence of MCT1 by RT-PCR and confirmed the fragment identity as canine MCT1.

In general, tumor microenvironments are acidic relative to normal tissue. It has been more than 7 decades since Werbug and Dickens³⁶ published the observation that tumors, as they dedifferentiate, reprogram their metabolism from oxidative phosphorylation to anaerobic glycolysis. Such an anaerobic metabolism may present an advantage for rapidly growing tumors, whose vascular supply might otherwise prove inadequate for the provision of sufficient oxygen for adenosine 5-triphosphate synthesis through oxidative phosphorylation. Thus, the catabolism of glucose to lactate is now a well-known hallmark of malignant tumors.^13, ³⁵ However, this acquired metabolism of tumor cells eventually accumulates lactic acids inside the cell, which cause acute intracellular acidification. Consequently, intracellular acidosis leads to the inhibition of glycolysis and causes apoptosis, unless acids are removed from the cell. To avoid this, the ability to dispose of intracellular protons is crucial for cancer cell survival.^14, ^20, ^24, ^25, ^31, ³⁴ In fact, in spite of the low extracellular pH environment of tumors compared with normal tissue, the intracellular pH of tumor cells is similar to that of normal tissue.^8, ⁴⁰ Thus, the presence of MCTs is likely physiologically important in cancer cells. In human medicine, studies have shown that the transformation to malignancy is accompanied by increased MCT1 expression in some tumors, although the opposite has been reported.^1, ^7, ^19, ²¹

Similar to canine oral melanomas, human melanomas are also highly malignant and resistant to both conventional radiation and chemotherapy. Several in vitro studies aimed at reducing intracellular pH of melanoma cells have been reported with the hopes of augmenting existing therapies. Hyperglycemia combined with a respiratory inhibitor increased the acidification in melanoma cells,^3, ⁴ via the accumulation of lactic acid, a process known as the Warburg effect.²⁶ Other recent data support the notion that acidified tumor cells are more sensitive to hyperthermia and some chemotherapeutics.^3, ^17, ^30, ^32, ⁴³ Using 3 melanoma cell lines, Wahl et al.³⁴ demonstrated that intracellular pH was significantly reduced by MCT inhibitors and also showed the existence of MCT1 by RT-PCR. Consequently, an attempt was made using an inhibitor of MCT1 to improve the effectiveness of thermotherapy against melanoma cells in vitro.⁵

In the present study, as assessed by immunohistochemistry, most canine oral melanomas expressed MCT1, while ocular melanocytic tumors did not. While MCT1 expression has been reported to occur in a variety of normal tissue of many species,⁹ expression was rarely observed in most melanocytes of the normal oral mucosa and the eye of dogs. Increased MCT1 expression in oral melanomas compared with ocular melanocytic tumors may reflect the very different biology between these tumors in dogs. MCT1 expression may have an important physiologic role in survival of neoplastic cells within the tissue environment of oral melanoma but may not be needed in the environment typical of ocular melanocytic tumor. In addition, considering the results obtained in this study and others, we believe MCT1 could be a potential therapeutic target in canine oral melanoma. Further functional studies, however, are needed to clarify the role of MCT1 in canine melanomas.

Footnotes

Acknowledgement

The work was supported by a grant-in-aid to the High Technological Research Center (Rakuno Gakuen University) from the Ministry of Education, Culture, Sports, Science and Technology of Japan.

References

1 Asada

Miyamoto

Fukutomi

Tsuda

Yagi

Wakazono

Oishi

Fukui

Sugimura

Ushijima

: Reduced expression of GNA11 and silencing of MCT1 in human breast cancers. Oncology 64:380–388, 2003

2 Bostock

: Prognosis after surgical excision of canine melanomas. Vet Pathol 16:32–40, 1979

3 Burd

Lavorgna

Daskalakis

Wachsberger

Wahl

Biaglow

Stevens

Leeper

: Tumor oxygenation and acidification are increased in melanoma xenografts after exposure to hyperglycemia and meta-iodo-benzylguanidine. Radiat Res 159:328–335, 2003

4 Burd

Wachsberger

Biaglow

Wahl

Lee

Leeper

: Absence of Crabtree effect in human melanoma cells adapted to growth at low pH: reversal by respiratory inhibitors. Cancer Res 61:5630–5635, 2001

5 Coss

Storck

Daskalakis

Berd

Wahl

: Intracellular acidification abrogates the heat shock response and compromises survival of human melanoma cells. Mol Cancer Ther 2:383–388, 2003

6 Disters

Dubielzig

Augirre

Acland

: Primary ocular melanoma in dogs. Vet Pathol 20:379–395, 1983

7 Froberg

Gerhart

Enerson

Manivel

Guzman-Paz

Seacotte

Drewes

: Expression of monocarboxylate transporter MCT1 in normal and neoplastic human CNS tissues. Neuroreport 12:761–765, 2001

8 Griffiths

: Are cancer cells acidic? Br J Cancer 64:425–427, 1991

9 Halestrap

Meredith

: The SLC16 gene family: from monocarboxylate transporters (MCTs) to aromatic amino acid transporters and beyond. Pflugers Arch 447:619–628, 2003

10.

10 Halestrap

Price

: The proton-linked monocarboxylate transporter (MCT) family: structure, function and regulation. Biochem J 343:2281–2299, 1999

11.

11 Head

Cullen

Dubielzig

Else

Misdrop

Patnaik

Tateyama

van der Gaag

: World Health Organization. International Histological Classification of Tumors of Domestic Animals: Histological Classification of Tumors of the Alimentary System of Domestic Animals. Armed Forces Institute of Pathology, American Registry of Pathology. Washington, DC, 2003

12.

12 Head

Elase

Dubielzig

: Tumors of the alimentary tract. In: Tumors of Domestic Animals, ed. Meuten

, 4th ed., pp. 401–481. Iowa State Press, Ames, 2000

13.

13 Holm

Hagmuller

Staedt

Schlickeiser

Gunther

Leweling

Tokus

Kollmar

: Substrate balances across colonic carcinomas in humans. Cancer Res 55:1373–1378, 1995

14.

14 Izumi

Torigoe

Ishiguchi

Uramoto

Yoshida

Tanabe

Ise

Murakami

Yoshida

Nomoto

Kohno

: Cellular pH regulators: potentially promising molecular targets for cancer chemotherapy. Cancer Treat Rev 29:541–549, 2003

15.

15 Kirat

Inoue

Iwano

Hirayama

Yokota

Taniyama

Kato

: Expression and distribution of monocarboxylate transporter 1 (MCT1) in the gastrointestinal tract of calves. Res Vet Sci 79:45–50, 2005

16.

16 Kondo

Safaei

Mishima

Niedner

Lin

Howell

: Hypoxia-induced enrichment and mutagenesis of cells that have lost DNA mismatch repair. Cancer Res 61:7603–7607, 2001

17.

17 Kuin

Aalders

Lamfers

van Zuidam

Essers

Beijnen

Smets

: Potentiation of anti-cancer drug activity at low intratumoral pH induced by the mitochondrial inhibitor m-iodoben-zylguanidine (MIBG) and its analogue benzylguanidine (BG). Br J Cancer 79:793–801, 1999

18.

18 Ladanyi

Antonescu

Drobnjak

Baren

Lui

Golde

Cordon-Cardo

: The precrystalline cytoplasmic granules of alveolar soft part sarcoma contain monocarboxylate transporter 1 and CD147. Am J Pathol 160:1215–1221, 2002

19.

19 Lambert

Wood

Ellis

Shirazi-Beechey

: Molecular changes in the expression of human colonic nutrient transporters during the transition from normality to malignancy. Br J Cancer 86:1262–1269, 2002

20.

20 Lee

Tannock

: Heterogeneity of intracellular pH and of mechanisms that regulate intracellular pH in populations of cultured cells. Cancer Res 58:1901–1908, 1998

21.

21 Lin

Vera

Chaganti

Golde

: Human monocarboxylate transporter 2 (MCT2) is a high affinity pyruvate transporter. J Biol Chem 237:28959–282965, 1998

22.

22 Mathupala

Parajuli

Sloan

: Silencing of monocarboxylate transporters via small interfering ribonucleic acid inhibits glycolysis and induces cell death in malignant glioma: an in vitro study. Neurosurgery 55:1410–1419, 2004

23.

23 Millanta

Fratini

Corazza

Castagnaro

Zappulli

Poli

: Proliferation activity in oral and cutaneous canine melanocytic tumours: correlation with histological parameters, location, and clinical behaviour. Res Vet Sci 73:45–51, 2002

24.

24 Newell

Tannock

: Reduction of intracellular pH as a possible mechanism for killing cells in acidic regions of solid tumors: effects of carbonylcyanide-3-chlorophenylhydrazone. Cancer Res 49:4477–4482, 1989

25.

25 Owen

Pooler

Wahl

Coss

Leeper

: Altered proton extrusion in cells adapted to growth at low extracellular pH. J Cell Physiol 173:397–405, 1997

26.

26 Racker

Spector

: Warburg effect revisited: merger of biochemistry and molecular biology. Science 213:303–307, 1981

27.

27 Ramos-Vara

Beissenherz

Miller

Johnson

Pace

Fard

Kottler

: Retrospective study of 338 canine oral melanomas with clinical, histologic, and immunohistochemical review of 129 cases. Vet Pathol 37:597–608, 2000

28.

28 Roels

Tilmant

Ducatelle

: CNA and Ki67 proliferation markers as criteria for prediction of clinical behaviour of melanocytic tumours in cats and dogs. J Comp Pathol 121:13–24, 1999

29.

29 Smith

Goldschimit

McManus

: A comparative review of melanocytic neoplasms. Vet Pathol 39:651–678, 2002

30.

30 Song

Lyons

Griffin

Makepeace

Cragoe

Jr : Increase in thermosensitivity of tumor cells by lowering intracellular pH. Cancer Res 53:1599–1601, 1993

31.

31 Tanatock

Rotin

: Acid pH in tumors and its potential for therapeutic exploitation. Cancer Res 49:4373–4384, 1993

32.

32 van den Berg

van den Berg-Blok

Kal

Reinhold

: A moderate elevation of blood glucose level increases the effectiveness of thermoradiotherapy in a rat tumor model. II. Improved tumor control at clinically achievable temperatures. Int J Radiat Oncol Biol Phys 50:793–801, 2001

33.

33 Vaupel

Kallinowski

Okunieff

: Blood flow, oxygen and nutrient supply, and metabolic micro-environment of human tumors: a review. Cancer Res 49:6449–6465, 1989

34.

34 Wahl

Owen

Burd

Herlands

Nogami

Rodeck

Berd

Leeper

Owen

: Regulation of intracellular pH in human melanoma: potential therapeutic implications. Mol Cancer Ther 1:617–628, 2002

35.

35 Walenta

Wetterling

Lehrke

Schwickert

Sundfor

Rofstad

Mueller-Klieser

: High lactate levels predict likelihood of metastases, tumor recurrence, and restricted patient survival in human cervical cancers. Cancer Res 60:916–921, 2000

36.

36 Warburg

Dickens

: The Metabolism of Tumours: Investigations from the Kaiser-Wilhelm Institute for Biology, Berlin-Dahlem. Constable, London, 1930

37.

37 Wilcock

Dubielzig

Render

: World Health Organization. International Histological Classification of Tumors of Domestic Animals: Histological Classification of Ocular and Otic Tumors of Domestic Animals. Armed Forces Institute of Pathology, American Registry of Pathology. Washington, DC, 2002

38.

38 Wilcock

Peiffer

Jr : Morphology and behavior of primary ocular melanomas in 91 dogs. Vet Pathol 23:418–424, 1986

39.

39 Withrow

: Cancer of the oral cavity. In: Small Animal Clinic Oncology, ed. Raymond

Kersey

, 3rd ed., pp. 305–318. WB Saunders, Philadelphia, Pennsylvania, 2001

40.

40 Yamagata

Tannock

: The chronic administration of drugs that inhibit the regulation of intracellular pH: in vitro and anti-tumour effects. Br J Cancer 73:1328–1334, 1996

41.

41 Yuan

Narayanan

Rockwell

Glazer

: Diminished DNA repair and elevated mutagenesis in mammalian cells exposed to hypoxia and low pH. Cancer Res 60:4372–4376, 2000

42.

42 Zhang

Vannucci

Philp

Simpson

: Monocarboxylate transporter expression in the spontaneous hypertensive rat: effect of stroke. J Neurosci Res 79:139–145, 2005

43.

43 Zhou

Bansal

Leeper

Glickson

: Intracellular acidification of human melanoma xenografts by the respiratory inhibitor m-iodoben-zylguanidine plus hyperglycemia: a 31P magnetic resonance spectroscopy study. Cancer Res 60:3532–3536, 2000
