Histological Evidence of Increased Osteoclast Cell Number and Asymmetric Bone Resorption Activity in the Tibiae of Interleukin-6-Deficient Mice

Abstract

Interleukin-6 (IL-6) is a multifunctional cytokine considered to modulate bone homeostasis. Based on previous contradictory studies, we aimed to verify the influence of IL-6 deficiency on bone remodeling using an IL-6 knockout (IL-6-/-) murine model. Eight-month-old male mice, homozygous for the disrupted IL-6 gene, and their wild type (WT) littermates (control), were used. After transcardiac perfusion, tibiae were removed for histochemical analysis. Compared with the control group, IL-6 deficiency increased tartrate resistant acid phosphatase (TRAP)-positive osteoclast numbers and up-regulated the alkaline phosphatase (ALP) activity of osteoblasts in the metaphysis of the tibia. However, further analysis of serial histological sections from IL-6-/- mice found a significant discrepancy in osteoclast number, with the higher number of TRAP-positive osteoclasts conflicting with the lower number of cathepsin K-positive osteoclasts. Moreover, TUNEL staining identified a significantly higher rate of osteoclast apoptosis in IL-6-/- mice as compared with their WT controls. IL-6 deficiency induced abundant TRAP-positive osteoclasts but delayed bone remodeling by significantly inhibiting the bone resorption activity of osteoclasts and promoting osteoclast apoptosis.

Keywords

IL-6 osteoblast osteoclast apoptosis bone resorption

Introduction

Interleukin-6 (IL-6), one of the most widely studied cytokines of the IL-6 family, is multifunctional and is involved in the regulation of various physiological processes, including immune response, acute-phase reaction, hematopoiesis, and cancer (Hirano et al. 1989). More recent studies have reported that IL-6 also functions in the maintenance of bone homeostasis; however, evidence for this remains controversial (Blanchard et al. 2009; Terpos et al. 2011; Jones et al. 2013; Ni et al. 2014). Both osteoblasts and osteoclasts are influenced by IL-6 family cytokines via signaling of glycoprotein 130 (gp130), a signal transmembrane transducer (Sims and Walsh 2010). IL-6 is widely accepted to stimulate osteoclasts. This is based on an abundance of previous reports that have shown IL-6 to induce the differentiation of osteoclast precursor cells into mature and active osteoclasts, both in vitro and in vivo (Ishimi et al. 1990; Binkley et al. 1994; Naka et al. 2002; Hong et al. 2007). However, other reports describe how IL-6 plays an inhibitory role in osteoclast formation and bone resorption by down-regulating enzymatic expression of osteoclasts and inhibiting RANKL signaling pathways (Duplomb et al. 2008; Yoshitake et al. 2008). Meanwhile, osteoblasts are found to express IL-6 receptor (IL-6R), which, when bound to IL-6, could promote osteoblast differentiation by increasing the levels of alkaline phosphatase (ALP) and osteocalcin, resulting in enhanced bone nodule formation and extracellular matrix mineralization in vitro (Nishimura et al. 1998; Heymann and Rousselle 2000; Erices et al. 2002; Franchimont et al. 2005). However, Kaneshiro et al. (In Press) found that IL-6 and its soluble receptor (sIL-6R) were able to obviously reduce the activity of osteoblasts, as well as the degree of mineralization in a dose-dependent manner in vitro, which indicates that IL-6 has negative effects on osteoblast differentiation. Taken together, these results suggest that the exact effect of IL-6 on osteoblasts and osteoclasts remains an enigma.

The role of IL-6 in bone remodeling in vivo has been studied using various transgenic and knockout animal models. In one IL-6-deficient model, generated by gene targeting, mice were reported to have a normal amount of trabecular bone, with no changes in osteoblast and osteoclast cell numbers but with a higher rate of bone turnover than the wild-type control (Poli et al. 1994). Conversely, other studies have reported that IL-6-deficient mice display increased bone formation (Heymann and Rousselle 2000; Franchimont et al. 2005). In addition, De Benedetti et al. (2006) found osteopenia in prepubertal IL-6 transgenic mice, with severe alterations in the cortical and trabecular bone microarchitecture, as well as decreased osteoblast and increased osteoclast cell numbers and activity. Furthermore, researchers have shown that an absence of IL-6 signaling results in a lower tissue mineral density, bone volume fraction, mineral/matrix ratio, and crystallinity of bone (Yang et al. 2007).

Because of the diversity and contradictory data of previous studies, the majority of preceding IL-6 knockout studies have been performed using young mice (6–8 weeks); however, limited information is available concerning the different immune responses in middle-aged (8–12 months) mice. Therefore, we aimed to collect histological evidence of bone remodeling influenced by IL-6 deficiency using a middle-aged IL-6-/- murine model.

Materials & Methods

Animals and Tissue Preparation

All animal experiments in this study were conducted according to the Guidelines for Animal Experimentation of Shandong University and Hokkaido University. Eight-month-old, male, strain-matched, IL-6-/- mice and their wild type (WT) littermates (Jackson Laboratory, Bar Harbor, ME) were used in these experiments. IL-6-/- mice were backcrossed onto the C57BL/6 background for 10 generations before being intercrossed to produce homozygotes. For statistical analysis, eight animals were present in each group. All mice were subjected to transcardiac perfusion with 4% paraformaldehyde in a 0.1 M phosphate buffer (pH 7.4). Tibiae were removed and immersed in the same fixative for an additional 12 hr. Samples were then decalcified with 10% EDTA-2Na solution for 3 weeks at 4C. Specimens were then dehydrated through an ascending ethanol series and embedded in paraffin using standard procedures. Serial sections (5-µm thickness) were prepared for histochemical analysis.

Histological Examination and Image Analysis

Hematoxylin and eosin staining was performed to investigate the morphology of the metaphyses in both groups. Stained sections were observed and digital images were taken with a light microscope (Olympus BX-53, Tokyo, Japan). Using Image Pro Plus 6.2 software (Media Cybernetics, Silver Spring, MD, USA), trabecular bone volume (BV/TV, bone volume/tissue volume × 100%) and cartilage bone volume (CV/TV, cartilage volume/tissue volume × 100%) were measured. Ten slices for each sample were used for quantitative histomorphometric analysis to obtain the mean value.

Immunohistochemistry Examination and Image Analysis

Sections were dewaxed in xylene and rehydrated in a graded ethanol series. Endogenous peroxidases were blocked by incubating sections in 0.3% hydrogen peroxide for 30 min at room temperature. Sections were then pre-incubated with 1% bovine serum albumin in phosphate-buffered saline (BSA-PBS) for 20 min to reduce non-specific staining. Following this, sections were incubated for 2 hr at room temperature with a rabbit antiserum against ALP, generated by Oda et al. (1999), at a dilution of 1:150, or an anti-cathepsin K antibody (Abcam, Cambridge, MA) at a dilution of 1:200. After rinsing with PBS, sections were incubated with horseradish peroxidase (HRP)-conjugated secondary antibodies (DaKo, Glostrup, Denmark) at a dilution of 1:100 for 1 hr at room temperature. The immunoreaction was visualized with diaminobenzidine (Sigma-Aldrich, St. Louis, MO). Double staining of ALP and TRAP was performed as previously reported (Li et al. 2013). In brief, after satisfactory immunostaining, sections treated with the ALP antibody were rinsed with PBS and submerged in a mixture of 3.0 mg of naphthol AS-BI phosphate, 18 mg of red violet LB salt, and 100 mM L(+) tartaric acid (0.36 g), diluted in 30 mL of 0.1 M sodium acetate buffer (pH 5.0), for 15 min at 37C. Staining was observed by light microscopy (Olympus) after faintly counterstaining with methyl green. The primary antibody was replaced with 1× PBS for the negative control.

Ten tissue sections were selected for each sample group for the statistical assessment of osteoclast number and ALP activity. This was conducted in three randomly selected, non-overlapping microscopic fields of view, using Image Pro Plus 6.2 software. Additionally, cathepsin K-positive osteoclasts and TRAP-positive osteoclasts were counted in the same serial section views at an original magnification of ×1000.

TUNEL Detection and Quantification

For the detection of apoptotic cells, the TACS 2TdT-Blue Label In Situ Apoptosis Detection Kit (Trevigen Inc., Gaithersburg, MD), for terminal deoxynucleotidyl transferase-mediated deoxyuridine triphosphate nick end labeling (TUNEL), was employed. Dewaxed sections were incubated with 1% proteinase K (Trevigen Inc.) diluted 1:200 at 37C for 15 min, followed by inhibition of the endogenous peroxidases at room temperature for 5 min. After treatment with TdT enzyme at a dilution of 1:50 at 37C for 1 hr, sections were incubated with HRP-conjugated streptavidin at room temperature for 15 min. The reaction was made visible with the blue label solution provided in the kit. Apoptotic osteoclasts were determined as both TUNEL- and TRAP-positive in the same field of serial sections at an original magnification of ×1000.

Statistical Analysis

All statistical analyses were performed using SPSS software (Chicago, IL) and all values are presented as the mean ± standard deviation (SD). Differences among groups were assessed by the unpaired t-test and considered statistically significant when p<0.01.

Results

Histological Alterations of the Tibial Metaphysis

IL-6-/- mice showed significantly more trabecular bone and a wider growth plate than their WT controls (Fig. 1A, 1B). Moreover, abundant residual cartilage cores were seen in the metaphyses of IL-6-/- mice as compared with WT counterparts (Fig. 1C, 1D). As shown in Fig. 1E-1G, statistical analysis revealed significant differences (p<0.001) between the IL-6-/- group and their WT controls with regard to trabecular bone volume (41.10 ± 0.68 vs 14.82 ± 0.30), cartilage volume (14.11 ± 0.13 vs 2.04 ± 0.03), and height of growth plate (98.63 ± 0.85 vs 58.86 ± 0.36), respectively.

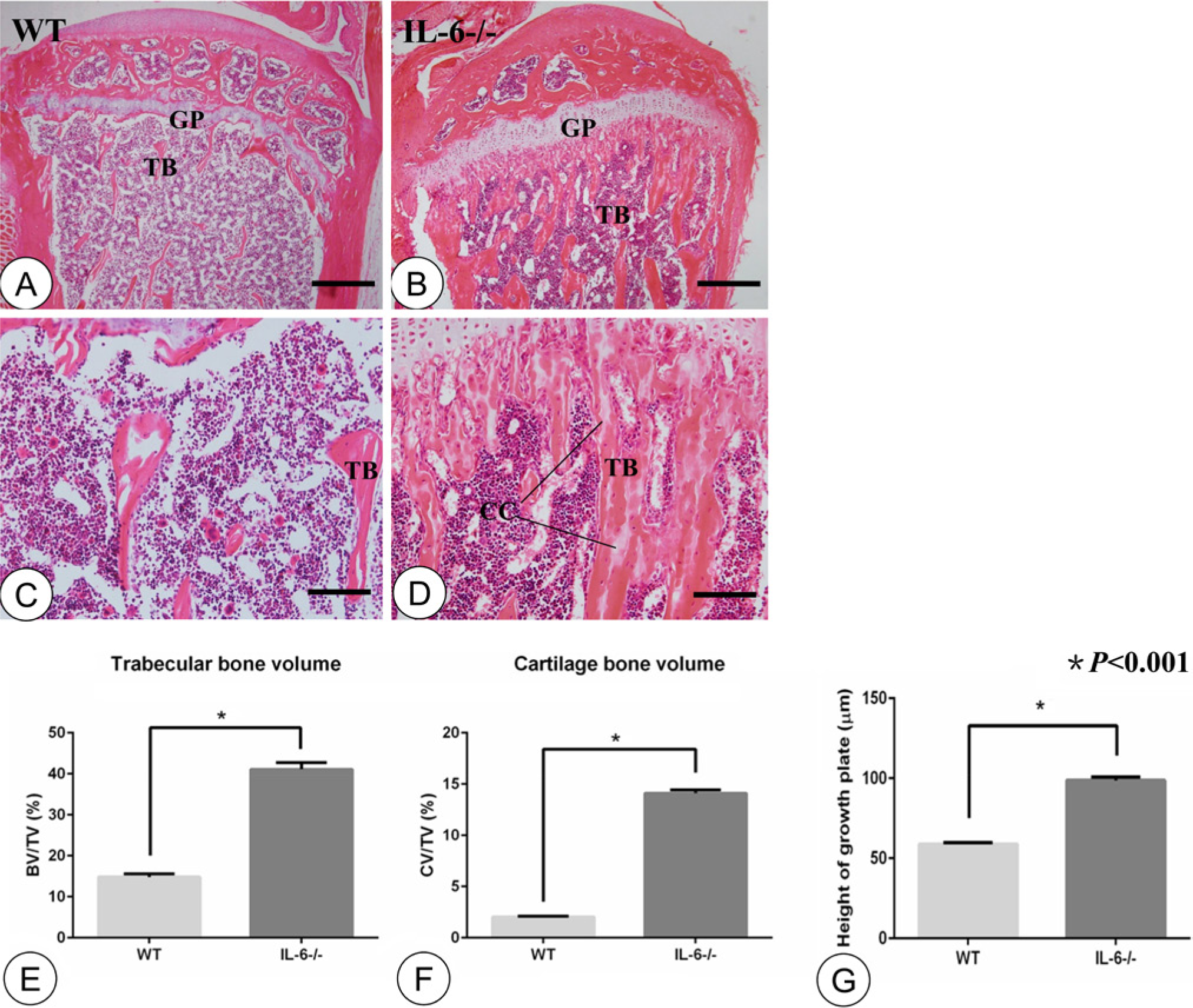

Figure 1.

Hematoxylin-eosin staining and statistical analysis. Low-magnification images of the tibial metaphysis in the WT (A) and IL-6-/- (B) groups. High-magnification images of the tibial metaphysis in the WT (C) and IL-6-/- (D) groups. Statistical analysis of trabecular bone volume (E), cartilage bone volume (F), and height of growth plate (G) between the groups. The WT group manifested scarce trabeculae and a thin growth plate (A, C). The IL-6-/- group showed more immature trabecular bone containing abundant residual cartilage cores and an abnormal growth plate (B, D). Statistical analysis revealed significant differences in trabecular bone volume, cartilage volume as well as height of growth plates between the WT and IL-6-/- groups (E, F, G; p<0.001, n=8). TB: trabecular bone; GP: growth plate; CC: cartilage cores. Error bars indicate ± SD. Scale bars in A and B, 300 µm; C and D, 60 µm.

Effects of IL-6 Deficiency on Osteoblasts and Osteoclasts

As shown in Figure 2, ALP was faintly expressed and only a few TRAP-positive osteoclasts were found in the WT group (Fig. 2A). In contrast, ALP activity was significantly enhanced and abundant TRAP-positive osteoclasts were found on the surface of the trabecular bone in the metaphyses of the IL-6-/- group (Fig. 2B). Both ALP activity (0.30 ± 0.003 vs 0.19 ± 0.004) and TRAP-positive osteoclast cell number (60.3 3± 1.09 vs 10.50 ± 0.42) were significantly (p<0.001) increased in the IL-6-/- mice (Fig. 2C, 2D).

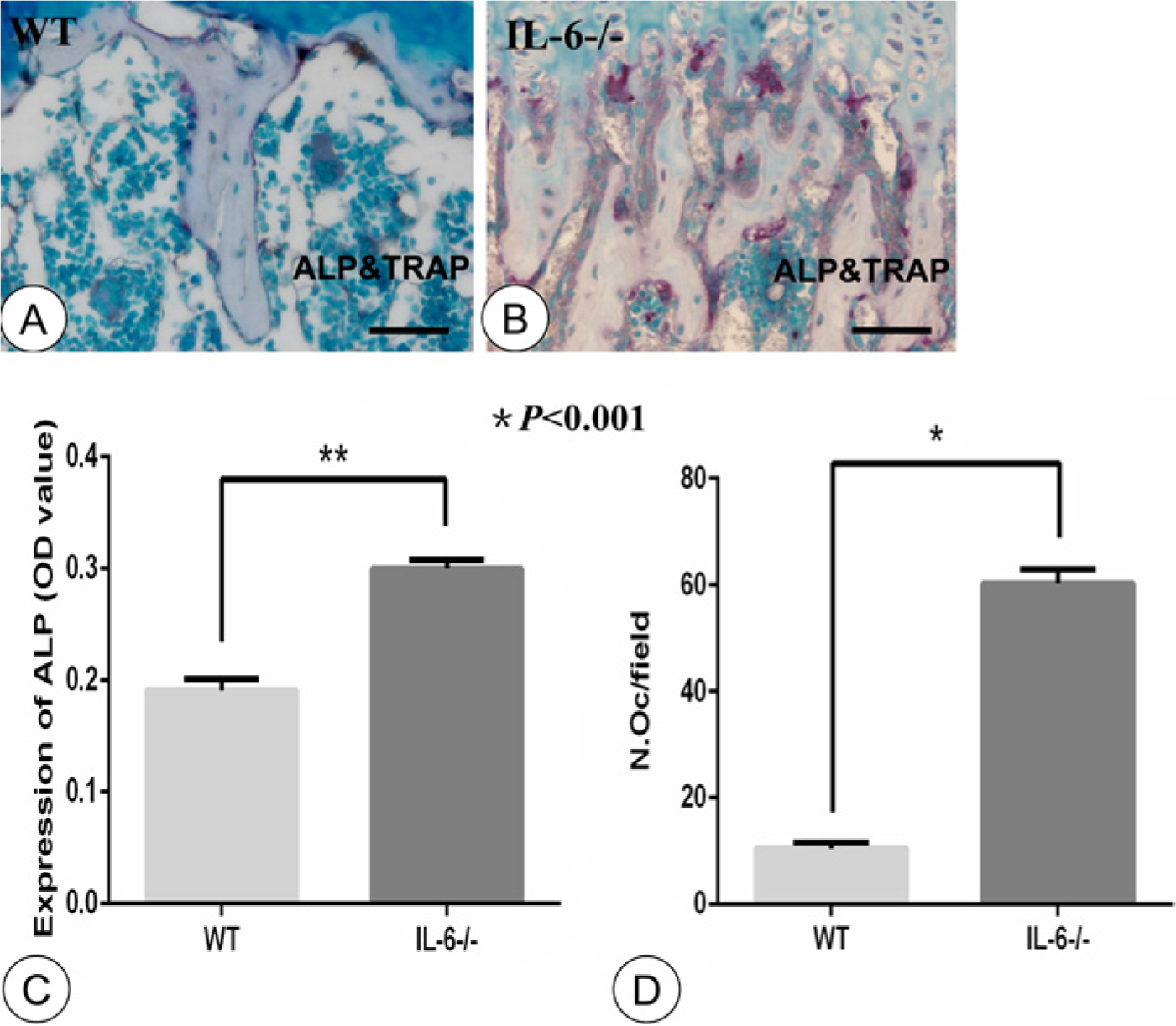

Figure 2.

Double-staining of alkaline phosphatase (ALP) and tartrate resistant acid phosphatase (TRAP) and statistical analysis. Double staining for ALP (brown) and TRAP (red) in trabecular bone of the WT (A) and IL-6-/- (B) groups. Statistical analysis for expression of ALP- (C) and TRAP-positive osteoclasts (D). ALP was faintly expressed and few TRAP-positive osteoclasts were observed in the WT group (A). Strong ALP and abundant TRAP-positive osteoclasts were observed in the IL-6-/- group (B). Expression of ALP- and TRAP-positive osteoclast numbers were significantly increased in the IL-6-/- group (C, D; n=8, p<0.001). OD: optical density; OC: osteoclast. N.Oc, number of osteoclasts. Error bars indicate ± SD. Scale bars in A and B, 30 µm.

Discrepancy between the Number of TRAP-positive and Cathepsin K-positive Osteoclasts

The numbers of TRAP-positive and cathepsin K-positive osteoclasts in the same microscopic visual fields were consistent in the WT group (Fig. 3A, 3C), but obvious differences in osteoclast positivity were observed for sections from the IL-6-/- mice, as shown in Figure 3B and 3D. Statistically, the numbers of TRAP-positive and cathepsin K-positive osteoclasts were proportionate in the WT control group (5.5 ± 1.08 vs 5.45 ± 1.05, p>0.05, Fig. 3E), but an obvious discrepancy between these two markers was measured for samples taken from IL-6-/- mice (16.5 ± 1.05 vs 6.17 ± 0.75, p<0.001; Fig. 3E).

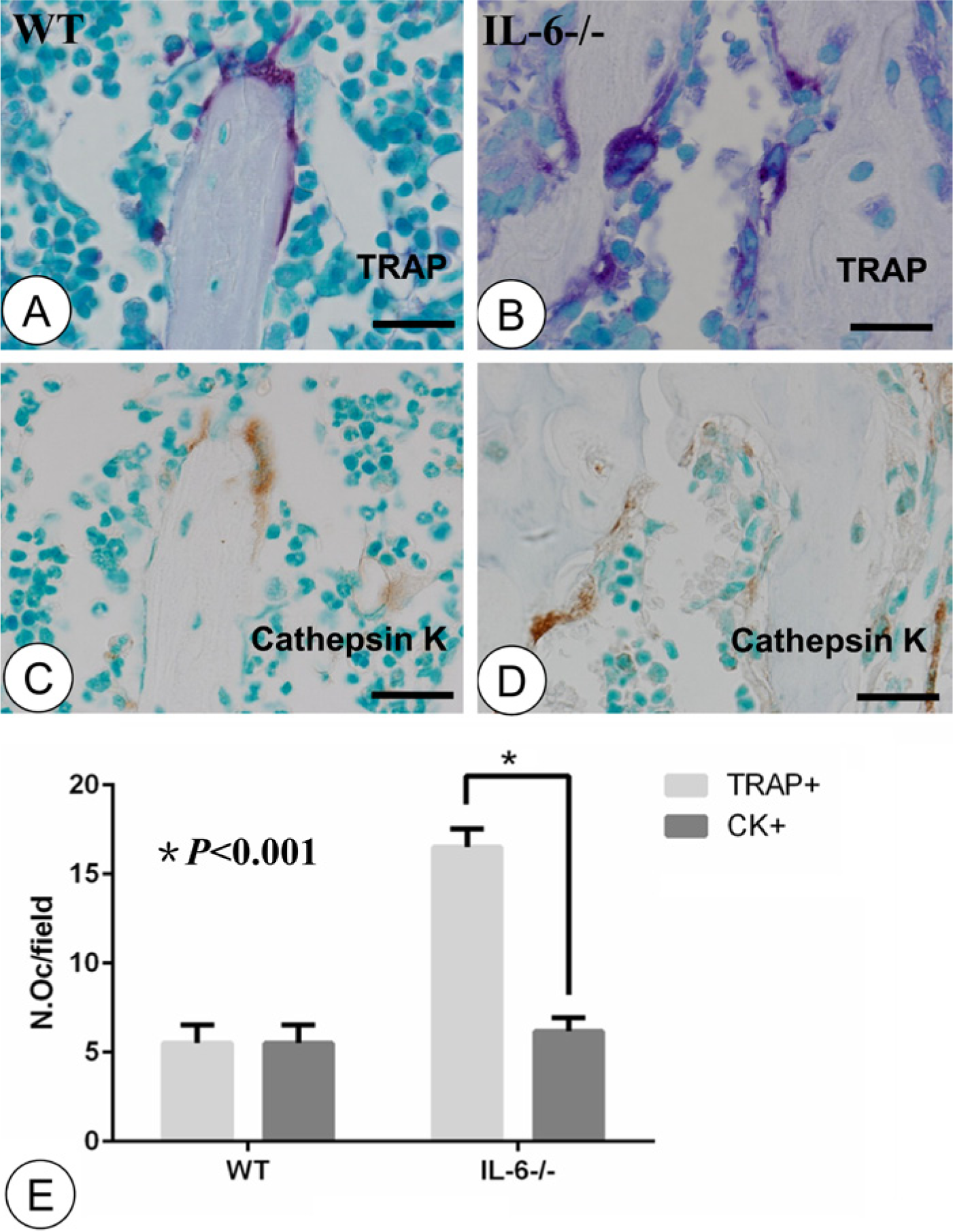

Figure 3.

Staining for TRAP and cathepsin K and statistical analysis in serial sections. TRAP-positive osteoclasts (red) in the WT (A) and IL-6-/- (B) groups. Immunolocalization of cathepsin K (brown) in microscopically identical visual fields in the WT (C) and IL-6-/- (D) groups. (E) Statistical analysis for TRAP-positive and cathepsin K-positive osteoclasts. WT group showed consistent expression of TRAP-positive and cathepsin K-positive osteoclasts in the same microscopic visual fields (A, C). In the IL-6-/- group, many TRAP-positive osteoclasts showed faint or undetectable cathepsin K activity (B, D). There was an obvious discrepancy between the TRAP-positive and cathepsin K-positive osteoclast numbers in the IL-6-/- group (E, n=8, p<0.001). OC, osteoclast; CK, cathepsin K; N.Oc, number of osteoclasts. Error bars indicate ± SD. Scale bars, 12 µm.

Effects of IL-6 Deficiency on Osteoclast Apoptosis

TUNEL staining was used to detect osteoclast apoptosis in different groups in identical microscopic fields of view. TRAP staining was used to visualize osteoclasts whereas TUNEL staining was applied to detect apoptotic cells on serial sections. Very few visible apoptotic osteoclasts were observed in the WT group (Fig. 4A, 4C). However, the number of apoptotic cells was significantly increased in the IL-6-/- group, especially at sites where TRAP-positive osteoclasts were located (Fig. 4B, 4D). Statistically, IL-6 deficiency caused an increase in the proportion of apoptotic osteoclasts (8.51 ± 0.56 in WT group vs 49.95 ± 0.37in IL-6-/- group, p<0.001; Fig. 4E).

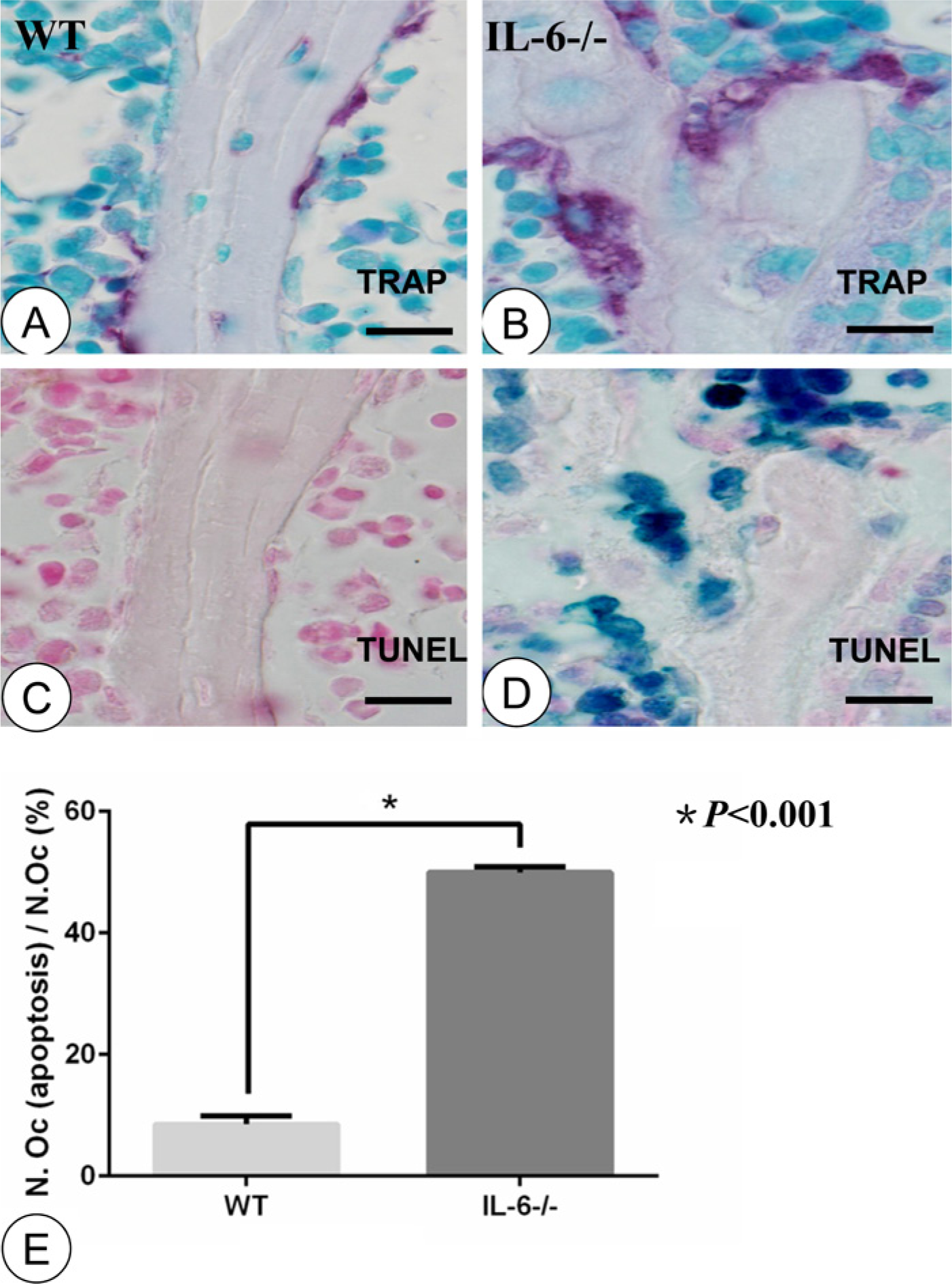

Figure 4.

Staining of TRAP and TUNEL on serial sections. TRAP-positive osteoclasts (red) in the WT (A) and IL-6-/- (B) groups. TUNEL detection (dark blue) revealed osteoclast apoptosis in the WT (C) and IL-6-/- (D) groups. (E) Statistical analysis comparing the percentage of apoptotic osteoclasts. The WT group showed few TRAP-positive osteoclasts on the surface of trabecular bone (A) with numerous in the IL-6-/- group (B). There were few visible apoptotic bodies in the microscopic vision of the WT group (C). The IL-6-/- group displayed abundant apoptotic bodies, especially at sites of TRAP-positive osteoclasts (D). Statistical analysis revealed a significant difference in apoptotic bodies between the WT and IL-6-/- groups (E; n=8, p<0.001). Error bars indicate ± SD. Scale bars, 12 µm.

Discussion

In this study, we investigated bone remodeling in the metaphysis of the tibia using an 8-month-old IL-6-/- murine model. Previous studies report that young (aged 6–8 weeks) IL-6-/- mice have no significant bone abnormalities (Kopf et al. 1994; Sims et al. 2004) or only a higher rate of bone turnover than WT controls (Bonewald 2007). In this study, we found that middle-aged IL-6-deficient mice had a more immature bone structure than WT controls in the metaphysis of the tibia, which was characterized by thicker trabeculae containing abundant residual cartilage cores, as well as a wider growth plate. Previous studies have found that plasma IL-6 concentration was higher in middle-aged subjects than in younger ones, both in mice and humans (Wei et al. 1992; Roubenoff et al. 1998; Okamura et al. 2012). Moreover, an age-related osteoporosis animal model has shown decreased bone mineral density accompanied by increased IL-6 (Halade et al. 2010). Given these data, we speculated that the inconformity between our results and that of previous studies may be contributed to age.

To further explore the underling mechanism of how IL-6 deficiency influences bone remodeling, we performed double staining of ALP and TRAP and found that IL-6 deficiency enhanced ALP activity on the surface of the trabecular bone. This finding is consistent with previous reports that IL-6 depletion can enhance osteoblast proliferation and osteogenic capability (Yang et al. 2007), and that genetically induced overexpression of IL-6 in two transgenic mouse models led to a significant reduction in osteoblast number (Kitamura et al. 1995; De Benedetti et al. 2006). Meanwhile, we found an increase in osteoclast number in IL-6-deficient mice, which is inconsistent with the generally accepted theory that IL-6 has a positive effect on osteoclasts (Ishimi et al. 1990; Binkley et al. 1994; Yokota et al. 2014). However, subsequent studies have revealed that IL-6 primarily influences osteoclasts indirectly through RANKL production by osteoblasts, and this indirect IL-6 effect is substantially larger than the effect IL-6 exerts directly on osteoclast precursors (Udagawa et al. 1995, Johnson et al. In Press). As demonstrated in the schema (Fig. 5), we speculate that IL-6 deletion causes an increase in osteoblast numbers and thus an increase in RANKL secretion by these cells to promote osteoclast differentiation. More importantly, this indirect effect of IL-6 deletion far exceeds the direct inhibitory function on osteoclasts. In addition, the role IL-6 plays in osteoclastogenesis can be compensated for by other factors, such as TNF-α, monocyte chemotactic protein-1, and IL-1 (Poli et al. 1994), which may provide another possible mechanism to explain the increase in osteoclast number. However, the precise mechanism for this requires further study.

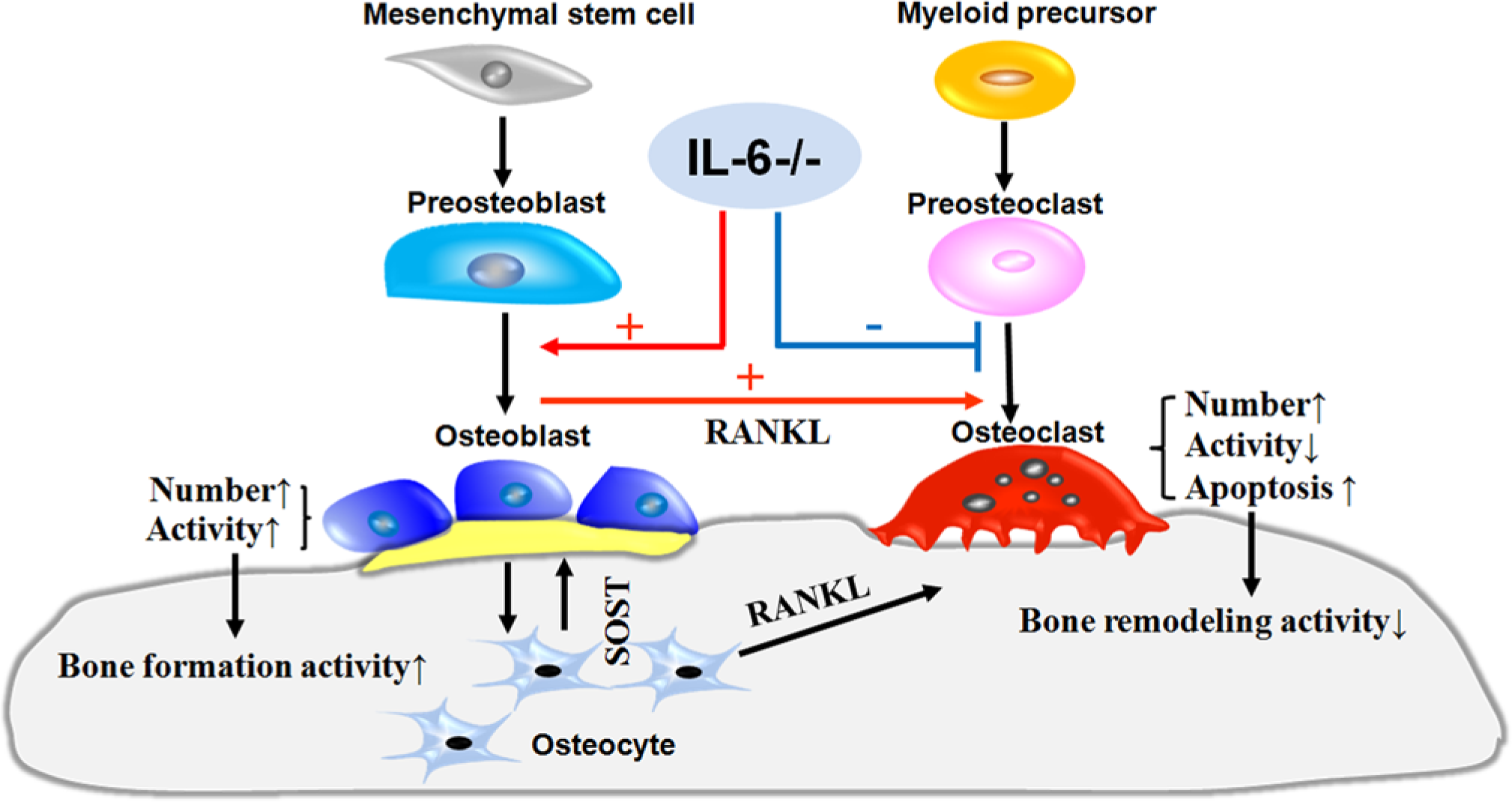

Figure 5.

A hypothetical scheme illustrating the influence of IL-6 deficiency on bone remodeling. IL-6 deficiency likely regulates the differentiation of osteoclasts by direct inhibition (blue line) and indirectly by promoting (red line) osteoclastogenesis.

The glycosylated metalloenzyme TRAP is highly and specifically expressed in osteoclasts and is widely used as a specific bone osteoclast marker (Minkin 1982). Contrastingly, the cysteine proteinase cathepsin K is selectively expressed in osteoclasts (Drake et al. 1996). Although several studies indicate both TRAP and cathepsin K are involved in bone degradation, TRAP has been shown to be present in osteoclasts in an inactive pro-form that can be activated by certain proteinases, particularly cathepsin K (Ljusberg et al. 1999a; Ljusberg et al. 1999b). We therefore used TRAP as a specific marker of osteoclasts whereas cathepsin K was used to indicate osteoclastic activity. To explain delayed bone remodeling, as signified by abundant residual cartilage cores and an abnormal growth plate in the metaphysis of IL-6-deficient mice, we detected osteoclast activity using TRAP and cathepsin K assays. Our results found an obvious discrepancy between the number and bone resorption ability of osteoclasts in the IL-6-/- group. That is, more TRAP-positive and less cathepsin K-positive osteoclasts were seen in the same visual field, as shown in Figure 3. This phenomenon can be partially explained by previous studies, whereby the combination of IL-6 and its soluble receptor are reported to stimulate bone resorption activity of mature osteoclasts in vitro (Adebanjo et al. 1998; Palmqvist et al. 2002) and in vivo (Binkley et al. 1994). However, further examination of the osteoclast ruffled border ultrastructure and enzymatic immunocompetence are necessary in future studies. In addition, our results showed many TRAP-positive osteoclasts were apoptotic in the IL-6-/- group, indicating that IL-6 deficiency had a negative effect on osteoclast survival. In view of the capacity of IL-6 to delay osteoclast apoptosis, as reported in previous studies (Yonish-Rouach et al. 1991; Schwarze et al. 1995), our findings are consistent with the well-recognized, anti-apoptotic properties of IL-6.

In the current study, IL-6 depletion increased TRAP-positive osteoclast numbers, many of which showed faint bone resorption activity and characteristics of apoptosis, resulting in reduced bone resorption ability and delayed bone remodeling. However, the presence of these TRAP-positive cells is enough to couple bone formation (Soriano et al. 1991). Considering the significant osteogenic capability and low bone resorption activity, it is not surprising that IL-6-/- mice displayed thicker trabeculae and a more immature bone structure, characterized by abundant residual cartilage cores and a wider growth plate, than their WT controls. In summary, our study suggests that IL-6 deficiency increases TRAP-positive osteoclast numbers, but delays bone remodeling by significantly inhibiting the bone resorption ability and promoting apoptosis of osteoclasts.

Footnotes

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was partially supported by the National Nature Science Foundation of China (grant No. 81271965; 81311140173) and Specialized Research Fund for the Doctoral Program of Higher Education (grant No. 20120131110073) to Li M. The Ministry of Education, Culture, Sports, Science & Technology and Japanese Society for the Promotion of Science to Amizuka N.

References

Adebanjo

Moonga

Yamate

Sun

Minkin

Abe

Zaidi

(1998). Mode of action of interleukin-6 on mature osteoclasts. Novel interactions with extracellular Ca²⁺ sensing in the regulation of osteoclastic bone resorption. J Cell Biol 142:1347-1356.

Binkley

Sun

Checovich

Roecker

Kimmel

Ershler

(1994). Effects of recombinant human interleukin-6 administration on bone in rhesus monkeys. Lymphokine Cytokine Res 13:221-226.

Blanchard

Duplomb

Baud’huin

Brounais

(2009). The dual role of IL-6-type cytokines on bone remodeling and bone tumors. Cytokine Growth Factor Rev 20:19-28.

Bonewald

(2007). Osteocytes as dynamic multifunctional cells. Ann N Y Acad Sci 1116:281-290.

De Benedetti

Rucci

Del Fattore

Peruzzi

Paro

Longo

Vivarelli

Muratori

Berni

Ballanti

Ferrari

Teti

(2006). Impaired skeletal development in interleukin-6-transgenic mice: a model for the impact of chronic inflammation on the growing skeletal system. Arthritis Rheum 54:3551-3563.

Drake

Dodds

James

Connor

Debouck

Richardson

Lee-Rykaczewski

Coleman

Rieman

Barthlow

Hastings

Gowen

(1996). Cathepsin K, but not cathepsins B, L, or S, is abundantly expressed in human osteoclasts. J BiolChem 271:12511-12516.

Duplomb

Baud’huin

Charrier

Berreur

Trichet

Blanchard

(2008). IL-6 inhibits RANKL-induced osteoclastogenesis by diverting cells into the macrophage lineage: key role of Serine727 phosphorylation of STAT3. Endocrinology 149:3688-3697.

Erices

Conget

Rojas

Minguell

(2002). Gp130 activation by soluble interleukin-6 receptor/interleukin-6 enhances osteoblastic differentiation of human bone marrow-derived mesenchymal stem cells. Exp Cell Res 280:24-32.

Franchimont

Wertz

Malaise

(2005). Interleukin-6: an osteotropic factor influencing bone formation? Bone 37:601-606.

10.

Halade

Rahman

Williams

Fernandes

(2010). High fat diet-induced animal model of age-associated obesity and osteoporosis. J Nutr Biochem 21:1162-1169.

11.

Heymann

Rousselle

(2000). gp130 Cytokine family and bone cells. Cytokine 12:1455-1468.

12.

Hirano

Taga

Yamasaki

Matsuda

Tang

Muraguchi

Horii

Suematsu

Hirata

Yawata

(1989). A multifunctional cytokine (IL-6/BSF-2) and its receptor. Int Arch Appl Immunol 88:29-33.

13.

Hong

Angelo

Kurzrock

(2007). Interleukin-6 and its receptor in cancer: implications for Translational Therapeutics. Cancer 110:1911-1928.

14.

Ishimi

Miyaura

Jin

Akatsu

Abe

Nakamura

Yamaguchi

Yoshiki

Matsuda

Hirano

(1990). IL-6 is produced by osteoblasts and induces bone resorption. J Immunol 145:3297-3303.

15.

Johnson

Brennan

Vrahnas

Poulton

McGregor

Standal

Walker

Koh

Nguyen

Walsh

Forwood

Martin

Sims

(In Press). The primary function of gp130 signaling in osteoblasts is to maintain bone formation and strength, rather than promote osteoclast formation. J Bone Miner Res doi: 10.1002/jbmr.2159.

16.

Jones

(2013). Inflammation. Fetal bone growth directly and locally impaired by IL-6. Nat Rev Rheumatol 9:505.

17.

Kaneshiro

Ebina

Shi

Higuchi

(In Press). IL-6 negatively regulates osteoblast differentiation through the SHP2/MEK2 and SHP2/Akt2 pathways in vitro. J Bone Miner Metab doi: 10.1007/s00774-013-0514-1.

18.

Kitamura

Kawata

Takahashi

Higuchi

Furuichi

Ohkawa

(1995). Bone marrow neutrophilia and suppressed bone turnover in human interleukin-6 transgenic mice. A cellular relationship among hematopoietic cells, osteoblasts, and osteoclasts mediated by stromal cells in bone marrow. Am J Pathol 147:1682-1692.

19.

Kopf

Baumann

Freer

Freudenberg

Lamers

Zinkernagel

Bluethmann

Köhler

(1994). Impaired immune and acute-phase responses in interleukin-6-deficient mice. Nature 368:339-342.

20.

Hasegawa

Hogo

Tatsumi

Liu

Guo

Sasaki

Tabata

Yamamoto

Ikeda

Amizuka

(2013). Histological examination on osteoblastic activities in the alveolar bone of transgenic mice with induced ablation of osteocytes. Histol Histopathol 28:327-335.

21.

Ljusberg

Dodds

Lark

Gowen

Lazner

Kola

Ek-Rylander

Andersson

(1999a). Tartrateresistant/purple acid phosphatase is proteolytically cleaved in vivo by cathepsin K. J Bone Miner Res 14(suppl):358.

22.

Ljusberg

Ek-Rylander

Andersson

(1999b). Tartrateresistant purple acid phosphatase is synthesized as a latent proenzyme and activated by cysteine proteinases. Biochem J 343:63-69.

23.

Minkin

(1982). Bone acid phosphatase: tartrate-resistant acid phosphatase as a marker of osteoclast function. Calcif Tissue Int 34:285-290.

24.

Naka

Nishimoto

Kishimoto

(2002). The paradigm of IL-6: from basic science to medicine. Arthritis Res 4 (Suppl 3):S233-242.

25.

Nishimura

Moriyama

Yasukawa

Mundy

Yoneda

(1998). Combination of interleukin-6 and soluble interleukin-6 receptors induces differentiation and activation of JAK-STAT and MAP kinase pathways in MG-63 human osteoblastic cells. J Bone Miner Res 13:777-785.

26.

Zhang

Pan

Wang

(2014). Association of IL-6 G-174C polymorphism with bone mineral density. J Bone Miner Metab 32:167-173.

27.

Oda

Amaya

Fukushi-Irie

Kinameri

Ohsuye

Kubota

Fujimura

Kobayashi

(1999). A general method for rapid purification of soluble versions of glycosyphosphatidylinositol-anchored proteins expressed in insect cells: An application for human tissue-nonspecific alkaline phosphatase. J Biochem 126: 694-699.

28.

Okamura

Starr

Lee

Stromberg

Evers

Saito

(2012). Age-dependent vulnerability to experimental acute pancreatitis is associated with increased systemic inflammation and thrombosis. Aging Cell 11:760-769.

29.

Palmqvist

Persson

Conaway

Lerner

(2002). IL-6, leukemia inhibitory factor, and oncostatin M stimulate bone resorption and regulate the expression of receptor activator of NF-kappa B ligand, osteoprotegerin, and receptor activator of NF-kappa B in mouse calvariae. J Immunol 169:3353-3362.

30.

Poli

Balena

Fattori

Markatos

Yamamoto

Tanaka

Ciliberto

Rodan

Costantini

(1994). Interleukin-6 deficient mice are protected from bone loss caused by estrogen depletion. EMBO J 13:1189-1196.

31.

Roubenoff

Harris

Abad

Wilson

Dallal

Dinarello

(1998). Monocyte cytokine production in an elderly population: effect of age and inflammation. J Gerontol A Biol Sci Med Sci 53:M20-26.

32.

Schwarze

Hawley

(1995). Prevention of myeloma cell apoptosis by ectopic bcl-2 expression or interleukin 6-mediated up-regulation of bcl-xL. Cancer Res 55:2262-2265.

33.

Sims

Jenkins

Quinn

Nakamura

Glatt

Gillespie

Ernst

Martin

(2004). Gp130 regulates bone turnover and bone size by distinct downstream signaling pathways. J Clin Invest 113:379-389.

34.

Sims

Walsh

(2010). GP130 cytokines and bone remodeling in health and disease. BMB Rep 43:513-523.

35.

Soriano

Montgomery

Geske

Bradley

(1991). Targeted disruption of the c-src proto-oncogene leads to osteopetrosis in mice. Cell 64:693-702.

36.

Terpos

Fragiadaki

Konsta

Bratengeier

Papatheodorou

Sfikakis

(2011). Early effects of IL-6 receptor inhibition on bone homeostasis: a pilot study in women with rheumatoid arthritis. Clin Exp Rheumatol 29:921-925.

37.

Udagawa

Takahashi

Katagiri

(1995). Interleukin (IL)-6 induction of osteoclast differentiation depends on IL-6 receptors expressed on osteoblastic cells but not on osteoclast progenitors. J Exp Med 182: 1461-1468.

38.

Wei

Davies

Hemmings

(1992). Increase of plasma IL-6 concentration with age in healthy subjects. Life Sci 51:1953-1956.

39.

Yang

Ricciardi

Hernandez-Soria

Shi

Pleshko Camacho

Bostrom

(2007). Callus mineralization and maturation are delayed during fracture healing in interleukin-6 knockout mice. Bone 41:928-936.

40.

Yokota

Sato

Miyazaki

Kitaura

Kayama

Miyoshi

Araki

Akiyama

Takeda

Mimura

(2014). Combination of tumor necrosis factor α and interleukin-6 induces mouse osteoclast-like cells with bone resorption activity both in vitro and in vivo. Arthritis Rheumatol 66:121-129.

41.

Yonish-Rouach

Resnitzky

Lotem

Sachs

Kimchi

Oren

(1991). Wild-type p53 induces apoptosis of myeloid leukaemic cells that is inhibited by interleukin-6. Nature 352:345-347.

42.

Yoshitake

Itoh

Narita

Ishihara

Ebisu

(2008). IL-6 directly inhibits osteoclast differentiation by suppressing rank signaling pathways. J Biol Chem 283:11535-11540.
