Molecular Cytogenetic Characterization Identified the Murine B-Cell Lymphoma Cell Line A-20 as a Model for Sporadic Burkitt’s Lymphoma

Abstract

Here, we report the first molecular cytogenetic characterization of the BALB/cAnN mouse derived B-cell non-Hodgkin lymphoma (B-cell NHL) cell lines A-20. Even though previously used as a model for testing of, for example, dexametason, up to present, no data in the genetic properties of A-20 were available. The present study closed this gap and provides evidence that A-20 is a model for B-cell NHL subgroup sporadic Burkitt’s lymphoma. C-myc oncogene is involved in a translocation and copy number alterations as gain of murine 14q material could be observed. Interestingly, the cell line showed the karyotype 39,X,-X or -Y,t(2;15)(qE5;qD2),del(6)(qB3qC3),del(9)(qA3qA4),dup(14)(qE1qE4) in ~95% of the cells, being exceptionally stable for cell lines being established 38 years ago. Still, ~5% of the cells showed polyploidization followed by chromothripsis. It remains to be determined if this can be observed also in other cell lines, just has not been reported yet, and/or if it is a unique feature of A-20. Overall, finally here, the necessary genetic data to identify A-20 as a model for human sporadic Burkitt’s lymphoma are provided.

Keywords

chromothripsis molecular cytogenetics murine cell line A-20 sporadic Burkitt’s lymphoma

Introduction

B-cell non-Hodgkin lymphomas (B-cell NHL) comprise a heterogeneous group of acquired malignancies. According to Cuneo,¹ they can be classified as lymphoplasmacytic lymphoma, follicle center cell lymphoma, diffuse large-cell lymphoma, Burkitt’s lymphoma (nowadays subdivided by World Health Organization into endemic, sporadic, and HIV-associated Burkitt’s lymphoma), Burkitt-like lymphoma, mantle cell lymphoma, marginal zone B-cell lymphoma, and splenic lymphoma with villous lymphocytes. B-cell NHL can be characterized best by IHC, but also by fluorescence in situ hybridization (FISH).^2,3

As a simple PubMed search shows, murine cell lines are widely used for lymphoma research: more than 9050 hits are found.⁴ The here-studied murine B-cell NHL A-20 is among this list. It has been applied in only about 5 published studies; yet, this limited number is most likely due to the fact that up to the present, there was no (cyto)genetic study done for it. Thus, genetic content was unknown, and it was widely unclear for which lymphoma type A-20 is a model for.

A-20 is a BALB/c B-cell lymphoma line, derived from a spontaneous reticulum cell neoplasm found in an “old” BALB/cAnN mouse. According to Kim et al.,⁵ the modal chromosome number of A-20 cell line was between 33 and 38, and no gender of the mouse was given from which the cells were derived from. Besides some immunophenotypic data,^6–9 no further basic information could be found for A-20 in the literature. Nonetheless, even a test of medication meant for lymphoma treatment was done on this cell line, for example, for dexametason.^10,11

Here, we present the first detailed molecular cytogenetic analyses of the cell line A-20. Multicolor-FISH using whole chromosome painting (wcp) probes and the FISH banding-approach “murine multicolor banding (mcb)” as well as array-comparative genomic hybridization (aCGH) were used, as previously reported.¹² The obtained data on imbalances and chromosomal breakpoints in A-20 were translated into human genome to find out the human lymphoma subtype corresponding to A-20.

Materials and Methods

Murine Lymphoma Cell Line A-20

The cell line A-20 was obtained from American Type Culture Collection (ATCC TIB-208; Middlesex, UK) as a not further characterized B-lymphocyte line, and grown in RPMI-1640 medium with 2mM L-glutamine, 25 mM HEPES (4-[2-hydroxyethyl]-1-piperazineethanesulfonic acid), and 5% fetal calf serum in the presence of antibiotics. Cells were split in two portions and worked up cytogenetically (flask 1; see below); from flask 2, whole genomic DNA was extracted using Blood & Cell Culture DNA Midi Kit (Qiagen; Hilden, Germany) according to manufacturer’s instructions. For cytogenetic workup of cells from flask 1, colcemid at the concentration of 0.1µg/ml was added for 2–3 hr. Subsequently, the cells were hypotonicly treated in 0.075 M KCl for 20 min and fixed/cytogenetically worked up, and metaphase spreads were prepared according to standard procedures.¹³

Molecular Cytogenetics

FISH was performed as described previously.^12,14 For multicolor-FISH with wcp probes, the SkyPaint DNA Kit M-10 for Mouse Chromosomes (Applied Spectral Imaging; Glasgow, UK) was used according to manufacturer’s protocol. For FISH-banding, previously established murine chromosome-specific mcb probe mixes were applied.¹⁵ Image acquisition was done using a Zeiss Axioplan microscope equipped with ISIS software (MetaSystems; Altlussheim, Germany). At least 29 metaphases were analyzed for each probe set.

ACGH was performed and evaluated according to standard procedures using SurePrint G3 Mouse CGH Microarray, 4 × 180 K (Agilent Technologies; Ratingen, Germany).¹²

Data Analysis

The regions of imbalances present in A-20, as defined after analyses of aCGH and mcb data, were aligned with their human homologous regions using Ensembl and the University of California, Santa Cruz (UCSC) Genome Browser as previously described.¹⁴ Also, potential cancer-related genes for observed breakpoint regions were identified via the “Atlas of Genetics and Cytogenetics in Oncology and Haematology.”¹⁶ The alignments are summarized in Table 1.

Table 1.

The Regions of Gain and Loss of Copy Numbers as Well of Breakpoints of Balanced Rearrangements Observed in AE17 and the Corresponding Homologue Regions in Human Are Listed as Cytoband and Position (GRCh37/hg19).

		Homologue Region in Human
Region	Gain	Cytoband	Position (GRCh37/hg19)
14qE1–qE4	1×	13q14.3–q33.1	13:52651898–102437231
		Homologue Region in Human
Region	Loss	Cytoband	Position (GRCh37/hg19)
5qB3–qC3	1×	2p13.3–p11.2 2p11.2 1p31.3 4q27 4q22.1–q22.3	2:70805311–86867996 2:88002903–88874857 1:67166227–67851415 4:120041924–121273532 4:88257546–94351949
9qA3–qA4	1×	19p13.2 7p14.3–p14.2	19:8808332–11579065 7:33094750–36454430
		Homologue Region in Human
Region	Breakpoint	Cytoband	Position (GRCh37/hg19)
2qE5	t	11p11.2–p11.2 15q13.3–15q21.2	11:43.5–48.8 Mb 15:~33–51 Mb
15qD2	t	8q24.1–8qter	8:~127–147 Mb

To align the obtained data with the human B-cell NHLs, data were collected from Cuneo,¹ Ota et al.,¹⁷ Ferreira et al.,¹⁸ Tirado et al.,¹⁹ Zhao et al.,²⁰ Thelander and Rosenquist,²¹ García et al.,²² and Neat et al.²³

Results

The murine cell line A-20 revealed the following final karyotype after using all 21 wcp probes in one experiment (Fig. 1A), all chromosome-specific murine mcb probe sets (Fig. 1B), and aCGH (data not shown):

39,X,-X or -Y,t(2;15)(qE5;qD2),del(6)(qB3qC3),del (9)(qA3qA4),dup(14)(qE1qE4).

Figure 1.

(A) Multicolor-FISH using all 21 murine whole chromosome paints as probes was applied on chromosomes of the cell lines A-20. Results for the main clone are depicted. (B) Murine multicolor banding results for all chromosomes confirmed and refined the results of multicolor-FISH from Fig. 1A. Abbreviation: FISH, fluorescence in situ hybridization.

This karyotype was found in more than 95% of the cells; of those cells with only 1.5% of the cells showed single cell aberrations, such as loss or gain of single chromosomes or structural rearrangements. Also ~0.2% of the A-20 cells were tetraploid without any additional alterations. In total, ~5% of the overall 639 analyzed metaphases of cell line A-20 showed highly complex rearranged karyotypes, which could not be analyzed in detail as shown in Fig. 2.

Figure 2.

2/31 detected cells with complex aberrant karyotypes—in (A) a metaphase after multicolor-FISH (M-FISH) and (B) mcb11 are shown. Abbreviation: FISH, fluorescence in situ hybridization; mcb, murine multicolor banding.

Overall, the resulting chromosomal imbalances observed in aCGH were in agreement with the FISH results of the main clone (summarized in Fig. 3). According to aCGH, six breakpoints could be characterized in more detail as follows (according to the National Center for Biotechnology Information Build 37 [UCSC mm9, July 2007]):

6qB3: 58.56 Mb

6qC3: 84.63 Mb

9qA3: 20.79 Mb

9qA4: 26.13 Mb

14qE1: 88.15 Mb

14qE4: 116.82 Mb

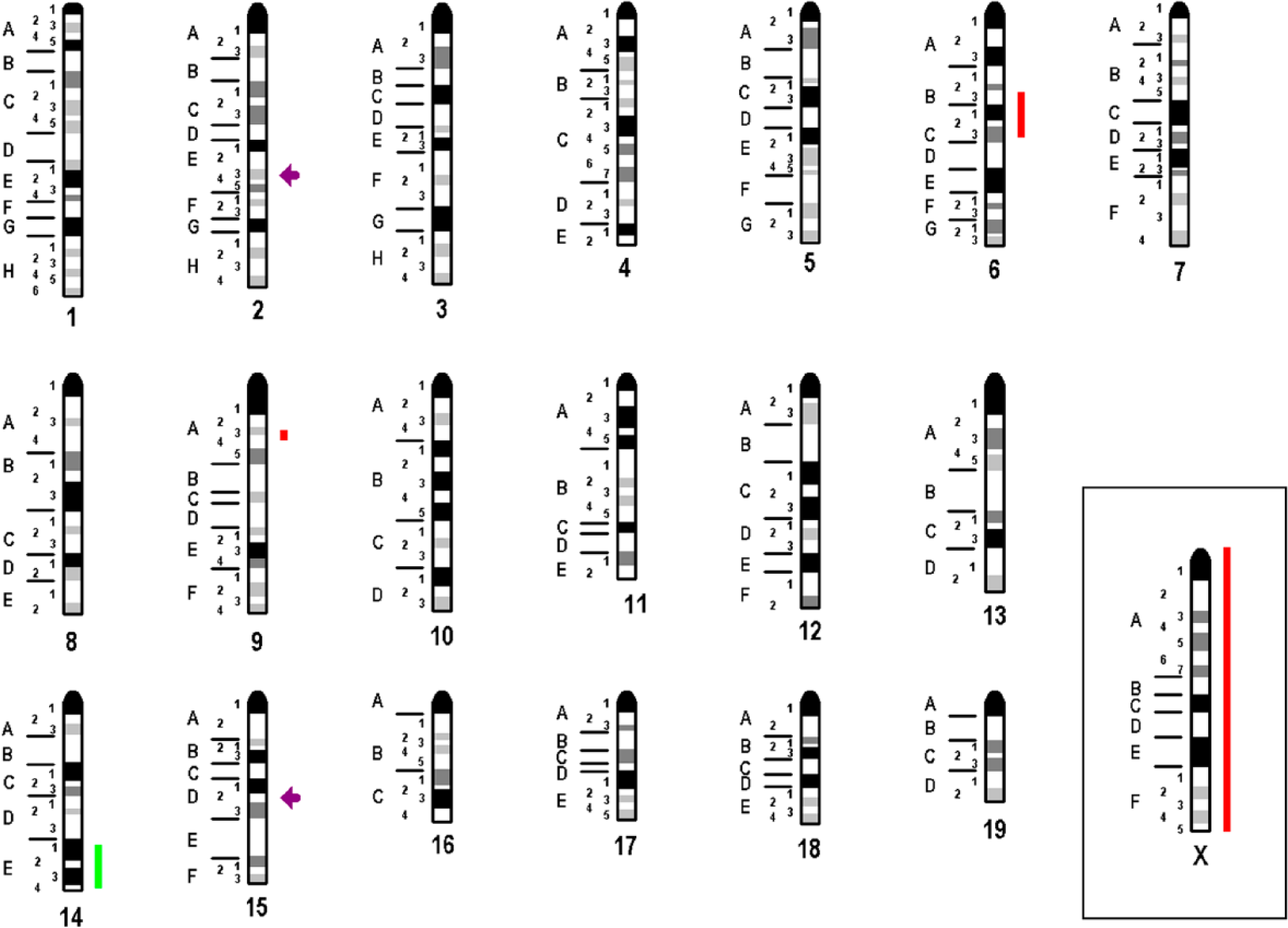

Figure 3.

Imbalances and breakpoints observed in A-20 are summarized here. Gains are depicted as light green bars, losses as red bars, breakpoints as violet arrow.

Imbalances smaller than 3.5 Mb detected in aCGH were not considered (see discussion).

The imbalances of A-20 were translated to human genome (Fig. 4) and aligned with their homologous regions in human (Table 1) and compared with human lymphomas. The highest concordance was found with sporadic Burkitt’s lymphomas (Table 2).

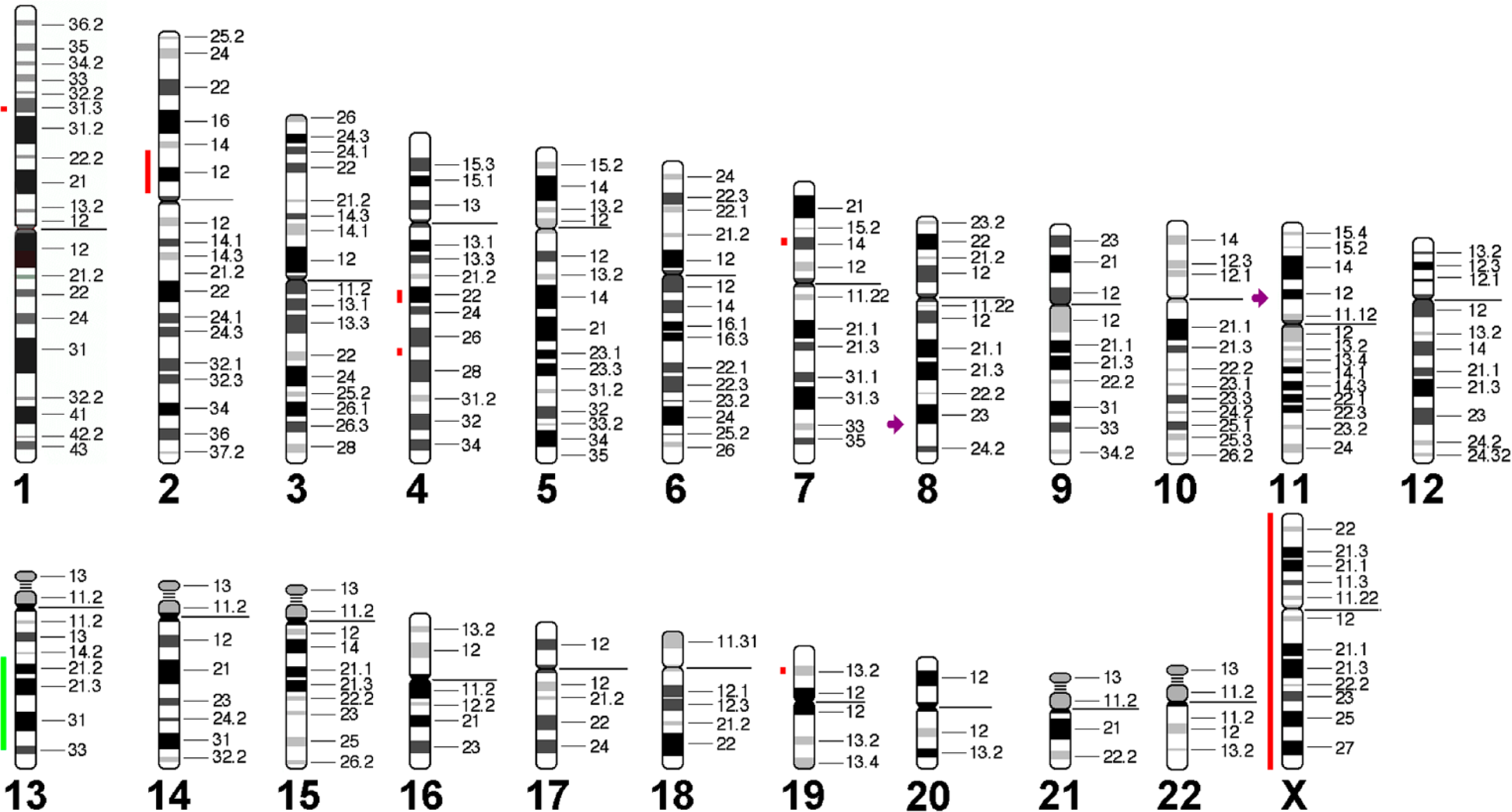

Figure 4.

Imbalances present in A-20 (Fig. 2) are “translated” to the corresponding homologous regions in human. Color code as in Fig. 3.

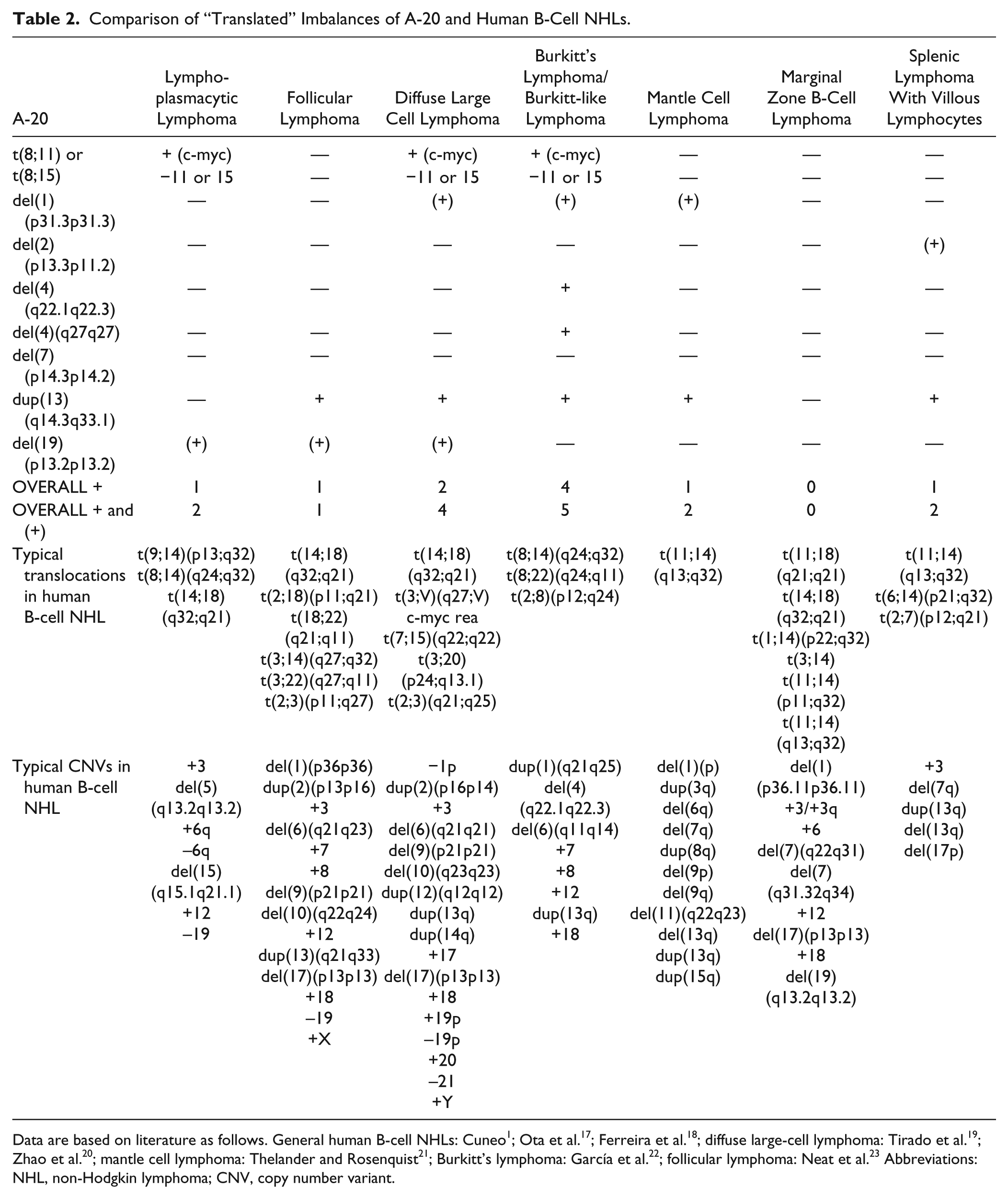

Table 2.

Comparison of “Translated” Imbalances of A-20 and Human B-Cell NHLs.

A-20	Lympho-plasmacytic Lymphoma	Follicular Lymphoma	Diffuse Large Cell Lymphoma	Burkitt’s Lymphoma/Burkitt-like Lymphoma	Mantle Cell Lymphoma	Marginal Zone B-Cell Lymphoma	Splenic Lymphoma With Villous Lymphocytes
t(8;11) or t(8;15)	+ (c-myc)	—	+ (c-myc)	+ (c-myc)	—	—	—
t(8;11) or t(8;15)	−11 or 15	—	−11 or 15	−11 or 15	—	—	—
del(1)(p31.3p31.3)	—	—	(+)	(+)	(+)	—	—
del(2)(p13.3p11.2)	—	—	—	—	—	—	(+)
del(4)(q22.1q22.3)	—	—	—	+	—	—	—
del(4)(q27q27)	—	—	—	+	—	—	—
del(7)(p14.3p14.2)	—	—	—	—	—	—	—
dup(13)(q14.3q33.1)	—	+	+	+	+	—	+
del(19)(p13.2p13.2)	(+)	(+)	(+)	—	—	—	—
OVERALL +	1	1	2	4	1	0	1
OVERALL + and (+)	2	1	4	5	2	0	2
Typical translocations in human B-cell NHL	t(9;14)(p13;q32) t(8;14)(q24;q32) t(14;18)(q32;q21)	t(14;18)(q32;q21) t(2;18)(p11;q21) t(18;22)(q21;q11) t(3;14)(q27;q32) t(3;22)(q27;q11) t(2;3)(p11;q27)	t(14;18)(q32;q21) t(3;V)(q27;V) c-myc rea t(7;15)(q22;q22) t(3;20)(p24;q13.1) t(2;3)(q21;q25)	t(8;14)(q24;q32) t(8;22)(q24;q11) t(2;8)(p12;q24)	t(11;14)(q13;q32)	t(11;18)(q21;q21) t(14;18)(q32;q21) t(1;14)(p22;q32) t(3;14) t(11;14)(p11;q32) t(11;14)(q13;q32)	t(11;14)(q13;q32) t(6;14)(p21;q32) t(2;7)(p12;q21)
Typical CNVs in human B-cell NHL	+3 del(5)(q13.2q13.2) +6q –6q del(15)(q15.1q21.1) +12 –19	del(1)(p36p36) dup(2)(p13p16) +3 del(6)(q21q23) +7 +8 del(9)(p21p21) del(10)(q22q24) +12 dup(13)(q21q33) del(17)(p13p13) +18 –19 +X	−1p dup(2)(p16p14) +3 del(6)(q21q21) del(9)(p21p21) del(10)(q23q23) dup(12)(q12q12) dup(13q) dup(14q) +17 del(17)(p13p13) +18 +19p –19p +20 –21 +Y	dup(1)(q21q25) del(4)(q22.1q22.3) del(6)(q11q14) +7 +8 +12 dup(13q) +18	del(1)(p) dup(3q) del(6q) del(7q) dup(8q) del(9p) del(9q) del(11)(q22q23) del(13q) dup(13q) dup(15q)	del(1)(p36.11p36.11) +3/+3q +6 del(7)(q22q31) del(7)(q31.32q34) +12 del(17)(p13p13) +18 del(19)(q13.2q13.2)	+3 del(7q) dup(13q) del(13q) del(17p)

Data are based on literature as follows. General human B-cell NHLs: Cuneo¹; Ota et al.¹⁷; Ferreira et al.¹⁸; diffuse large-cell lymphoma: Tirado et al.¹⁹; Zhao et al.²⁰; mantle cell lymphoma: Thelander and Rosenquist²¹; Burkitt’s lymphoma: García et al.²²; follicular lymphoma: Neat et al.²³ Abbreviations: NHL, non-Hodgkin lymphoma; CNV, copy number variant.

Discussion

Genetically, murine tumor cell lines are not well characterized; this also holds true for cell line A-20. Here, the karyotype of A-20 was studied and defined in detail based on aCGH and mcb.

We found that the cell line is still diploid, even though most human and many murine cell lines become tetraploid over time,^14,24 including human Burkitt’s lymphoma cell lines.^25,26 As outlined by Davoli and de Lange,²⁴ tetraploidization could be connected with telomere disruption; however, for A-20, there are no studies available yet on telomere length and/or telomerease activity that could support or contradict this theory. Overall, when comparing A-20 with other decade-old cell lines such as NIH3T3,¹⁴ it is amazing that initially chromosome numbers between 33 and 38⁵ were reported, and now A-20 still presents a stable chromosome number of 39 in ~95% of the cells. Still, in the remainder ~5% of the cells, chromothripsis was observed (Fig. 2). This could reflect a chromothripsis-related mechanism to avoid tetraploidization of the malignant cells.²⁷ Thus, other long-established cell lines with and without tetraploidization should be studied for small percentages of chromothriptic cells, as it could well be that such small cell populations were simply ignored previously, as suggested by others.^28,29 By application of aCGH and mcb, it was possible to resolve 8 chromosomal breakpoints involved in (un)balanced chromosomal rearrangements in A-20. However, resolution of mcb is limited to 5–10 Mb.¹⁴ Here, imbalances smaller than 3.5 Mb detected in aCGH were not considered in the evaluation. Only aberrations seen by FISH-banding and aCGH were included here, that is, as such were proven by two independent approaches (see also Kubicova et al.¹²).

When transforming the imbalances and breaks observed in A-20 to human genome using databases and bioinformatics tools (see Table 1) such as were done before for NIH3T3 and AE17,^12,14 it turned out that A-20 is a model for sporadic Burkitt’s lymphoma. The underlying idea is that identical imbalances and rearrangements found in the murine tumor cell line pinpoint for which human tumor the cell line can serve as a model.^12,14 The translocations found involve c-myc and a yet unknown partner-gene on murine chromosome 15. So, in summary: c-myc is the driving oncogene and, in addition, 4 imbalances found in A-20 are typically observed as well in sporadic Burkitt’s lymphoma. Thus, even though also similar imbalances as in A-20 can be found in diffuse large-cell lymphoma, overall, only 1 compared with 3 matching copy number variations supports the view that A-20 was a sporadic Burkitt’s lymphoma in the original BALB/cAnN mouse.

As there is only one X-chromosome in A-20, it cannot be clarified if originally, the individual mouse was male or female. Even though the finding of overall two metaphases with two X-chromosomes among 60 correspondingly targeted cells (data not included in section “Results”), this is not necessarily indicative for an originally female individual, as the two corresponding cells just could have doubled the remaining X-chromosome during division. It is well known that chromosome numbers in tumor cells are unstable in general.^30,31

Overall, finally, 38 years after establishment of the cell line, the present work provides the necessary genetic data to characterize A-20 as a model for human sporadic Burkitt’s lymphoma. In agreement with this, the successful previous use of dexamethasone,^10,32 concanavalin A,^9,33 and ruthenium complexes^10,34 for growth inhibition in this cell line and human sporadic Burkitt’s lymphoma was reported.

Footnotes

Competing Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Author Contributions

NK created the murine multicolor banding probes, cultivated the cell line, and prepared the chromosomes. KG and SSHA performed and evaluated the fluorescence in situ hybridization experiments, MR did the array-comparative genomic hybridization studies, and TL developed the study and wrote up the final results and the article draft. The article was approved by all authors.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Supported by grant # 2013.032.1 of the Wilhelm Sander-Stiftung.

References

Cuneo

Classification of B-cell non-Hodgkin’s lymphomas (NHL). Atlas Genet Cytogenet Oncol Haematol. 2000;4(1):24–26.

Mauvieux

Macintyre

. Practical role of molecular diagnostics in non-Hodgkin’s lymphomas. Baillieres Clin Haematol. 1996 Dec;9(4):653–67.

Liehr

Othman

Rittscher

Alhourani

. The current state of molecular cytogenetics in cancer diagnosis. Expert Rev Mol Diagn. 2015 Apr;15(4):517–26.

PubMed. Available from: https://www.ncbi.nlm.nih.gov/pubmed/?term=lymphoma+cell+line+mouse.

Kim

Kanellopoulos-Langevin

Merwin

Sachs

Asofsky

. Establishment and characterization of BALB/c lymphoma lines with B cell properties. J Immunol. 1979 Feb;122(2):549–54.

Glimcher

Kim

Green

Paul

WE.

Ia antigen-bearing B cell tumor lines can present protein antigen and alloantigen in a major histocompatibility complex-restricted fashion to antigen-reactive T cells. J Exp Med. 1982 Feb 1;155(2):445–59.

Mengel

Daré

Delgado

Nomizo

Silva

Campos-Neto

An activated murine B cell lymphoma line (A-20) produces a factor-like activity which is functionally related to human natural killer cell stimulatory factor. Eur J Immunol. 1992 Dec;22(12):3173–8.

Heath

Chang

Harada

Santos-Argumedo

Gordon

Hannum

Campbell

Shanafelt

Clark

Torres

Howard

. Antibodies to murine CD40 stimulate normal B lymphocytes but inhibit proliferation of B lymphoma cells. Cell Immunol. 1993 Dec;152(2):468–80.

Shih

Floyd-Smith

Invariant chain (CD74) gene regulation: enhanced expression associated with activation of protein kinase C delta in a murine B lymphoma cell line. Mol Immunol. 1995 Jun;32(9):643–50.

10.

Shaker

Shahabi

Sharp

BM.

Expression of naloxone-resistant beta-endorphin binding sites on A20 cells: effects of concanavalin A and dexamethasone. Immunopharmacology. 1994 Nov–Dec;28(3):183–92.

11.

Silveira-Lacerda Ede

Vilanova-Costa

Hamaguchi

Pavanin

Goulart

Homsi-Brandenburgo

Dos Santos

Soares

Nomizo

. The ruthenium complex cis-(dichloro)tetraammineruthenium(III) chloride presents selective cytotoxicity against murine B cell lymphoma (A-20), murine ascitic sarcoma 180 (S-180), human breast adenocarcinoma (SK-BR-3), and human T cell leukemia (Jurkat) tumor cell lines. Biol Trace Elem Res. 2010 Jun;135(1–3):98–111.

12.

Kubicova

Trifonov

Borovecki

Liehr

Rincic

Kosyakova

Hussein

. First molecular cytogenetic characterization of murine malignant mesothelioma cell line AE17 and in silico translation to the human genome. Curr Bioinform. 2017 Jan;12(1):11–8.

13.

Claussen

Michel

Mühlig

Westermann

Grummt

Kromeyer-Hauschild

Liehr

Demystifying chromosome preparation and the implications for the concept of chromosome condensation during mitosis. Cytogenet Genome Res. 2002;98(2–3):136–46.

14.

Leibiger

Kosyakova

Mkrtchyan

Glei

Trifonov

Liehr

. First molecular cytogenetic high resolution characterization of the NIH 3T3 cell line by murine multicolor banding. J Histochem Cytochem. 2013 Apr;61(4):306–12.

15.

Kosyakova

Hamid

Chaveerach

Pinthong

Siripiyasing

Supiwong

Romanenko

Trifonov

Fan

Generation of multicolor banding probes for chromosomes of different species. Mol Cytogenet. 2013;6(1):6.

16.

Atlas of genetics and cytogenetics in oncology and haematology. Available from: http://atlasgeneticsoncology.org/index.html.

17.

Ota

Tagawa

Karnan

Tsuzuki

Karpas

Kira

Yoshida

Seto

Identification and characterization of a novel gene, C13orf25, as a target for 13q31-q32 amplification in malignant lymphoma. Cancer Res. 2004 May 1;64(9):3087–95.

18.

Ferreira

García

Suela

Mollejo

Camacho

Carro

Montes

Piris

Cigudosa

JC.

Comparative genome profiling across subtypes of low-grade B-cell lymphoma identifies type-specific and common aberrations that target genes with a role in B-cell neoplasia. Haematologica. 2008 May;93(5):670–9.

19.

Tirado

Chen

García

Kohlman

Rao

Genomic profiling using array comparative genomic hybridization define distinct subtypes of diffuse large B-cell lymphoma: a review of the literature. J Hematol Oncol. 2012 Sep 11;5:54.

20.

Zhao

Fan

Lin

Wang

Chromosome abnormalities in diffuse large B-cell lymphomas: analysis of 231 Chinese patients. Hematol Oncol. 2013 Sep;31(3):127–35.

21.

Thelander

Rosenquist

. Molecular genetic characterization reveals new subsets of mantle cell lymphoma. Leuk Lymphoma. 2008 Jun;49(6):1042–9.

22.

García

Hernandez

Gutiérrez

Flores

González

Calasanz

Martínez-Climent

Piris

Lopéz-Capitán

González

Odero

San Miguel

. Abnormalities on 1q and 7q are associated with poor outcome in sporadic Burkitt’s lymphoma. A cytogenetic and comparative genomic hybridization study. Leukemia. 2003 Oct;17(10):2016–24.

23.

Neat

Foot

Jenner

Goff

Ashcroft

Burford

Dunham

Norton

Lister

Fitzgibbon

. Localisation of a novel region of recurrent amplification in follicular lymphoma to an approximately 6.8 Mb region of 13q32-33. Genes Chromosomes Cancer. 2001 Nov;32(3):236–43.

24.

Davoli

de Lange

. Telomere-driven tetraploidization occurs in human cells undergoing crisis and promotes transformation of mouse cells. Cancer Cell. 2012 Jun 12;21(6):765–76.

25.

Shapiro

Andersson-Anvret

Klein

Polyploidization of Epstein-Barr virus (EBV)-carrying lymphoma lines decreases the inducibility of EBV-determined early antigen following P3HR-1 virus superinfection or iododeoxyuridine treatment. Intervirology. 1978;10(2):94–101.

26.

Wolf

Pawlita

Bullerdiek

zur Hausen

Suppression of the malignant phenotype in somatic cell hybrids between Burkitt’s lymphoma cells and Epstein-Barr virus-immortalized lymphoblastoid cells despite deregulated c-myc expression. Cancer Res. 1990;50(10):3095–100.

27.

Rode

Maass

Willmund

Lichter

Ernst

Chromothripsis in cancer cells: an update. Int J Cancer. 2016 May 15;138(10):2322–33.

28.

Heng

Liu

Stevens

Abdallah

Horne

Bremer

Chowdhury

CJ.

Karyotype heterogeneity and unclassified chromosomal abnormalities. Cytogenet Genome Res. 2013;139(3):144–57.

29.

Heng

Regan

Liu

CJ.

Why it is crucial to analyze non clonal chromosome aberrations or NCCAs?

Mol Cytogenet. 2016 Feb 13;9(1):15.

30.

Bloomfield

Duesberg

. Karyotype alteration generates the neoplastic phenotypes of SV40-infected human and rodent cells. Mol Cytogenet. 2015 Oct 22;8(1):79.

31.

Yurov

Vorsanova

Iourov

IY.

GIN’n’CIN hypothesis of brain aging: deciphering the role of somatic genetic instabilities and neural aneuploidy during ontogeny. Mol Cytogenet. 2009 Nov 25;2(1):23.

32.

Levine

. Challenges in the management of Burkitt’s lymphoma. Clin Lymphoma. 2002 Dec;3(suppl 1):S19–S25.

33.

Ben-Bassat

Goldblum

Mitrani

Klein

Johansson

. Concanavalin A receptors on the surface membrane of lymphocytes from patients with African Burkitt’s lymphoma and lymphoma cell lines. Int J Cancer. 1976 Apr 15;17(4):448–54.

34.

Nikolova

Ivanov

Buyukliev

Konstantinov

Karaivanova

. Preparation, physicochemical characterization and pharmacological study of novel ruthenium(III) complexes with imidazole and benzimidazole derivatives. Arzneimittelforschung. 2001 Sep;51(9):758–62.
