Digital Staging of Hepatic Hemangiomas Reveals Spatial Heterogeneity in Endothelial Cell Composition and Vascular Senescence

Tissue Microarray Design and Patient Cohort

HHs included in this analysis (n=98) were resected from 1995 to 2017 at the Department of Surgery, University Hospital Heidelberg. Samples were provided by the Tissue Bank of the National Center for Tumor Diseases (NCT) Heidelberg, Germany, in accordance with the regulations of the tissue bank and the approval of the ethics committee of Heidelberg University (application number S-230/20).

The female HH specimens (n=64) were resected with an age of 54.8 ± 14.1 (SD) years and a lesion size of 5.6 ± 5.5 cm. Male patient HH specimens (n=34) were resected with an age of 59.1 ± 11.5 years and a lesion size of 5.4 ± 5.5 cm. To address potential inter- and intralesional heterogeneity within HHs, a large core (1.5 mm core size) TMA was generated, consisting of four cores per specimen when sufficient sampling was possible (two cores to assess hemangioma center, and one core each to assess hemangioma margin and far distant liver tissue). In total, the TMA consisted of 339 cores (n=181 hemangioma, n=80 margin, n=78 liver).

Slide Scanning, Quantification of Vessel Diameter, Positive Cell Detection, Antibodies and Statistics

TMAs were scanned using an Aperio AT2 scanning device (Leica; Wetzlar, Germany) with a resolution of 0.25 µm and 40×-fold magnification. For accurate cell detection, quantification, and cell type annotation of immunohistochemical stainings, the TMA dearrayer algorithm within QuPath was used. ¹⁷ Cores with artifacts (overlay/tears) or cores missing more than one third of the tissue area were manually excluded. The average diameter of hemangioma vessels was evaluated in cores with an annotation of “hemangioma center” by measuring the diameter of five representative vessels using the line tool. Cell detection was performed based on optical density sum with a set pixel size of 0.5 µm. For automated image quantification of nuclear or cytoplasmic stainings, the TMA dearrayer was used after an image normalization step and single thresholding. Stainings were then quantified using the integrated inbuilt object counter tool within the TMA dearrayer and further analyzed in Excel and R studio. In total, 16 immunohistochemical markers were stained to assess EC content and subtype (CD31, THBD (thrombomodulin), CD34, FVIII, ERG, PDPN (podoplanin)), cellular environment (CD68, DES), cell cycle state (Ki67, p16, p53, CDK4) and responsiveness to extracellular cues/pathway activity (CATB, MET, MYC, BRAFV600E). A complete list of all antibodies and dilutions used can be found in Table 1.

OPEN IN VIEWER

Table 1.

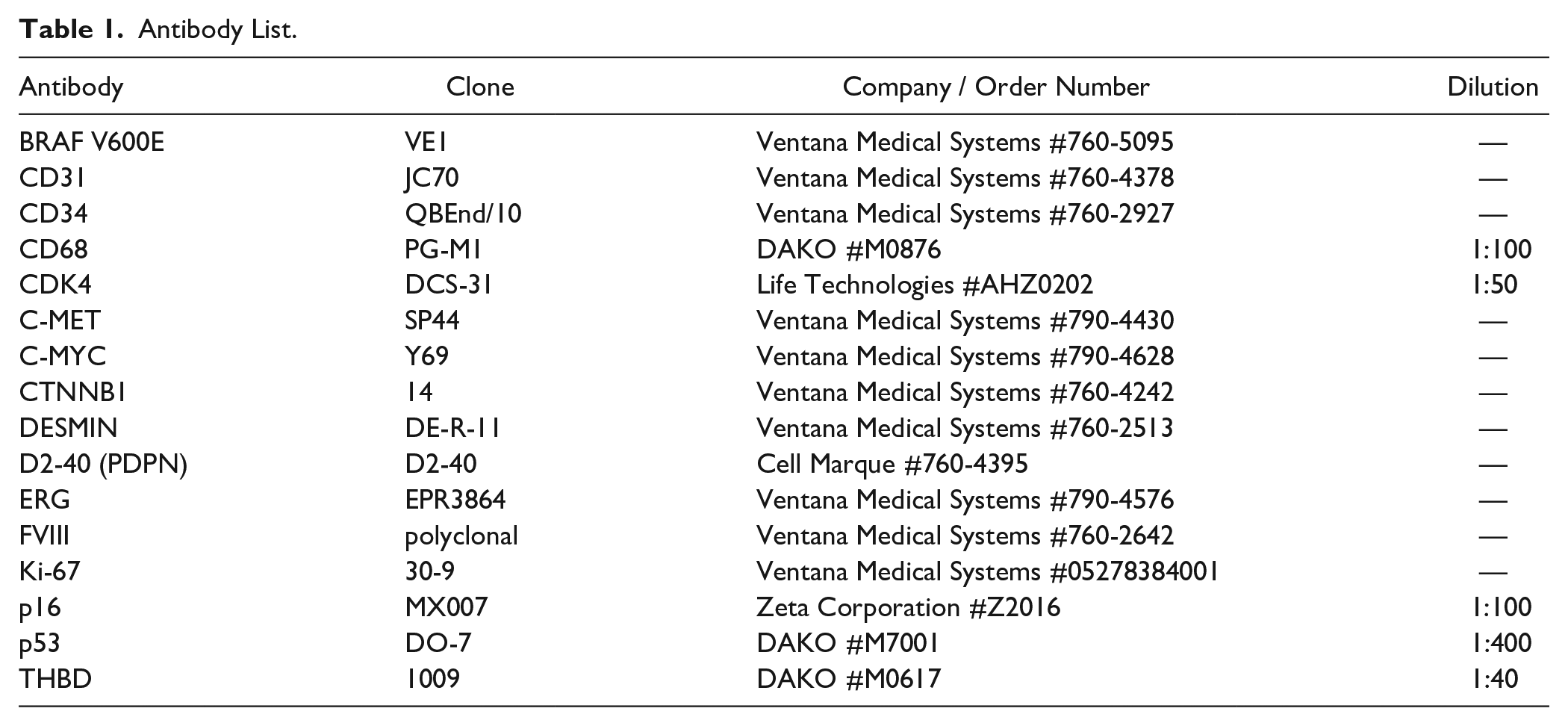

Antibody List.

Antibody	Clone	Company / Order Number	Dilution
BRAF V600E	VE1	Ventana Medical Systems #760-5095	—
CD31	JC70	Ventana Medical Systems #760-4378	—
CD34	QBEnd/10	Ventana Medical Systems #760-2927	—
CD68	PG-M1	DAKO #M0876	1:100
CDK4	DCS-31	Life Technologies #AHZ0202	1:50
C-MET	SP44	Ventana Medical Systems #790-4430	—
C-MYC	Y69	Ventana Medical Systems #790-4628	—
CTNNB1	14	Ventana Medical Systems #760-4242	—
DESMIN	DE-R-11	Ventana Medical Systems #760-2513	—
D2-40 (PDPN)	D2-40	Cell Marque #760-4395	—
ERG	EPR3864	Ventana Medical Systems #790-4576	—
FVIII	polyclonal	Ventana Medical Systems #760-2642	—
Ki-67	30-9	Ventana Medical Systems #05278384001	—
p16	MX007	Zeta Corporation #Z2016	1:100
p53	DO-7	DAKO #M7001	1:400
THBD	1009	DAKO #M0617	1:40

Shapiro–Wilk test was used to test for normality. Wilcoxon rank-sum test was used for calculating p-values of non-normally distributed datapoints. Benjamini and Hochberg correction was applied to correct for multiple testing while simultaneously avoiding overcorrection of p-values (p-adjust function, R studio). P values are indicated as follows: *p<0.05, **p<0.01, ***p<0.001. Plots were generated in Excel and R studio (ggplot2 and ggpubr).

Additional methods used in this study are compiled in the supplemental materials and methods section.

HHs Are Characterized by a Heterogeneous Contrast Agent Uptake and Degree of Tissue Regression

To study vascular flow as a functional parameter in HH, we first analyzed CT/MRI scans of 28 patients. In multiple large hemangiomas, so-called giant hemangiomas, ¹⁸ region-specific differences in the uptake of contrast agent were detected (Fig. 1A). To display this inhomogeneity at higher resolution, three-dimensional reconstructions and limited density range pixel visualizations of a hemangioma margin in native and venous phases were generated, which confirmed inhomogeneous uptake of contrast agent (Fig. 1B). Moreover, single-plane surface plot visualizations confirmed phase-specific heterogeneity of density values in the lesion (Fig. 1C). As these functional differences in vascular flow and contrast agent uptake may be due to differences in tissue composition, we next analyzed resected HHs using conventional histology. To assess the degree of hemangioma regression independent of histological subtype, 63 hemangiomas were evaluated using H&E whole slides. As expected, the majority of hemangiomas showed varying signs of regression, and in 20% of HHs regression was scored as “very strong” (Fig. 1D and E). Histology revealed architectural differences in individual patients and within large lesions with a coexistence of non-regressed, partially regressed, and fully regressed areas (Fig. 1E).

OPEN IN VIEWER

Figure 1.

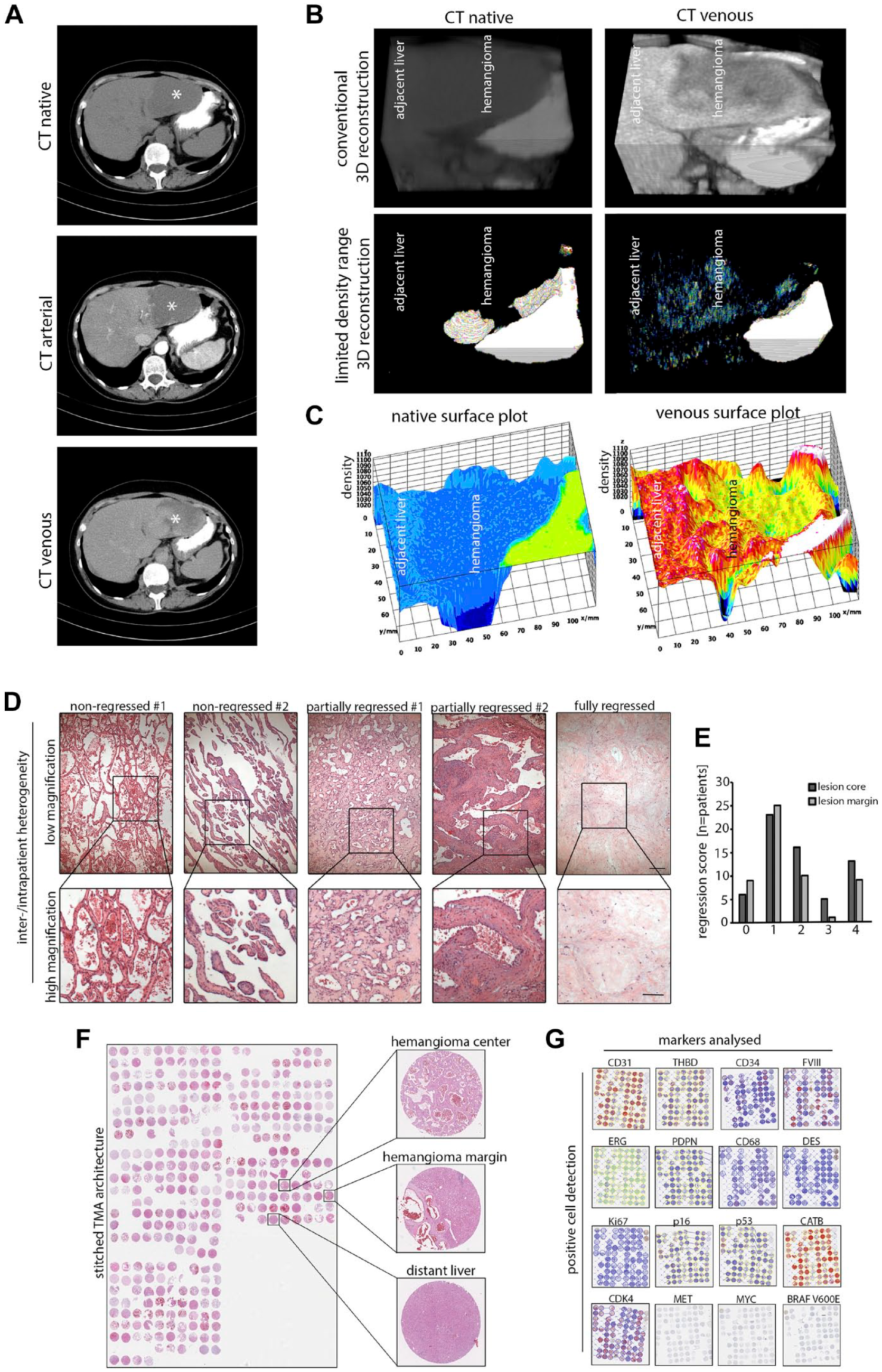

Functional and morphological heterogeneity in HHs and study design. (A) CT scan of a patient with a large hemangioma located in the left liver lobe (asterisk). Specified imaging phases show an inhomogeneous uptake of contrast agent in the lesion. (B) Three-dimensional reconstruction of the hemangioma margin of the same patient. Limited density range visualization removes liver-specific signal and visualizes inhomogeneous uptake of contrast agent in HH. (C) Native and venous phase density surface plots of the same patient. Inhomogeneous contrast agent uptake in the lesion can be observed. (D) H&E images of five HHs with different intralesional morphology as displayed by vascular morphology and degree of tissue regression. Scale bar: 200 µm (low) and 100 µm (high). (E) Distribution of the regression score in HH centers and marginal zones (0 = “none,” 1 = “slight,” 2 = “intermediate,” 3 = “strong,” 4 = “very strong”; n=63). (F) Stitched H&E overview of the TMA consisting of five slides in total covering 98 HH, 80 HH margins, and 78 distant liver tissues and 339 cores in total. (G) Low magnification overview of a tissue microarray section after positive cell detection of the respective marker panel used in this study (see Table 1). MET, MYC, and BRAF V600E were not digitally scored due to negative staining results. Abbreviations: HH, hepatic hemangioma; CT, computed tomography; H&E, hematoxylin and eosin; TMA, tissue microarray.

In conclusion, CT/MRI scans and H&E sections confirmed functional and architectural differences and heterogeneity in HHs.

Immunohistochemical Characterization of HH Reveals Endothelial Cell Heterogeneity

To analyze morphological and expression differences of HHs on a large scale in a spatial context, a single institutional TMA was generated that contained 98 HHs, 80 margins, and 78 adjacent liver tissues, which were stained for 16 markers (Fig. 1F and G; Supplemental Fig. 1A; Table 1). To assess EC content, positive cell detection of CD31, THBD, CD34, factor VIII–related antigen (FVIII), and ETS transcription factor ERG (ERG) was performed (Fig. 2A). These markers stained ECs of HH homogeneously, while in adjacent liver tissues CD31, THBD, CD34, and FVIII were mainly expressed in ECs of the portal tract, whereas LSECs were weakly positive (CD31, THBD, FVIII) or negative (CD34). Nuclear staining for ERG selectively stained LSEC and CEC nuclei, as previously described.^19,20 To correlate overall EC cellularity within cores, a correlation analysis of ERG-positive nuclei and CD31-, THBD-, CD34-, and FVIII-positive cells was performed (Supplemental Fig. 1B). The high positive correlations of the previously described markers confirmed a CEC phenotype in HHs and demonstrated an accurate cell estimation by the marker panel being used. ²¹

OPEN IN VIEWER

Figure 2.

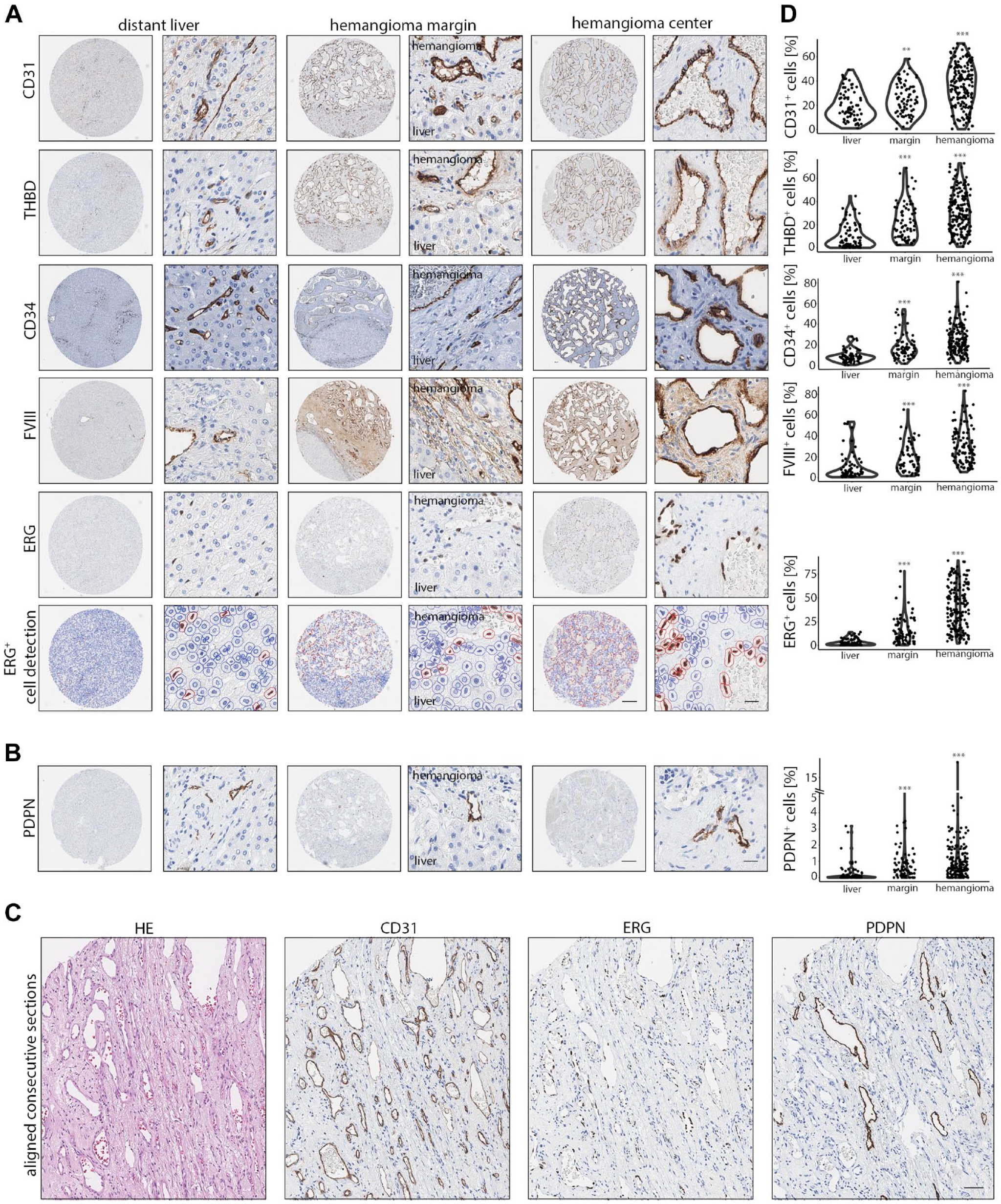

A CEC marker panel reveals endothelial heterogeneity in HHs. (A) Low and high magnification of CD31, THBD, CD34, FVIII, and ERG in liver, hemangioma margin, and hemangioma center. Last row: Overlay of ERG-positive cell detection demonstrates a highly accurate cell classification. Scale bar: 250 µm (low) and 20 µm (high). (B) Low and high magnification of PDPN expression in liver, hemangioma margin, and hemangioma center. In liver, only a minor fraction of portal vessels stain positive for PDPN, whereas a higher abundance of PDPN⁺ ECs in hemangioma margins and centers can be detected. Scale bar: 250 µm (low) and 20 µm (high). (C) Aligned consecutive H&E and immunohistochemical sections of CD31, ERG, and PDPN of HH. The presence of PDPN⁺ lyECs next to CD31⁺ and ERG⁺ cells demonstrates intralesional vascular heterogeneity. Scale bar: 100 µm. (D) Percentual distribution of CD31⁺, THBD⁺, CD34⁺, FVIII⁺, ERG⁺, and PDPN⁺ cells in liver, hemangioma margin (margin), and hemangioma center (hemangioma). Comparison of liver tissue vs tissue area of interest by Wilcoxon rank-sum test (**p<0.01, ***p<0.001). Abbreviations: CEC, continuous endothelial cell; HH, Hepatic hemangioma; FVIII, factor FVIII related antigen; ERG, ETS transcription factor ERG; PDPN, podoplanin; EC, endothelial cell; H&E, haematoxylin eosin; lyEC, lymphatic endothelial cell; THBD, thrombomodulin.

Next, to test for CEC heterogeneity in HHs, we stained for the lymphatic EC (lyEC) marker PDPN. Indeed, in 90.6% of analyzed HH cores, PDPN⁺ lyECs could be observed next to PDPN-negative ECs (Fig. 2B). After setting a higher cut-off value for PDPN⁺ cells, a total of 77% of HH center cores still contained lyEC. In average, 1.14% of all cells were detected as PDPN⁺; however, the number of PDPN⁺ cells was increased up to 18.48%. Digitally aligned consecutive sections of H&E, CD31, ERG, and PDPN revealed that these PDPN⁺ cells were ERG⁺ CD31⁺ (Fig. 2C). Core-specific cell detection revealed an increase in positive cells from distant liver, HH margin, to HH center for all EC markers (Fig. 2D). The number of CD68⁺ cells was significantly reduced in both HH margin and HH center compared with distant liver (Supplemental Fig. 2A and B). Desmin⁺ (DES) cells were significantly enriched in HH margins but not in HH centers (Supplemental Fig. 2A and B).

Together, the first characterization of HHs and distant liver tissues revealed heterogeneity in CEC subtype composition and cellular microenvironment.

A Subset of HHs Is Identified as p16-senescent

With the aim to functionally subtype HHs, p16 expression was analyzed as a common marker of cellular senescence.^22,23 A total of 90.9% of HH cores contained p16⁺ cells. In average, a p16⁺ cell count of 7.4% was observed, with the percentage of positive cells ranging up to 38.7%. To further classify p16^high and p16^low lesions, a cutoff of 10% was chosen, which is within the expected range of positive cells in models of cellular senescence (Fig. 3A). ²³ To compare the marker expression of non-senescent (p16^low) and p16-senescent (p16^high) HHs with strongly regressed lesions, fully regressed HHs were also included in our classification strategy. Both p16-senescent and regressed HHs represented 12% and 8% in our cohort compared with 80% of non-senescent HHs (Fig. 3B). Except for one core, regression and p16-senescence were mutually exclusive traits. To functionally validate the cellular senescence in HH ECs, p53 stainings were analyzed, which is another common marker of senescence. ²⁴ Indeed, the correlation analysis of p16⁺ cells and p53⁺ cells validated cellular senescence in HHs using an independent senescence marker (r_S = 0.42, ***p<0.001; Fig. 3C and D), and the positive correlation of two independent senescence markers indicated the existence of HHs with low or high numbers of senescent cells.

OPEN IN VIEWER

Figure 3.

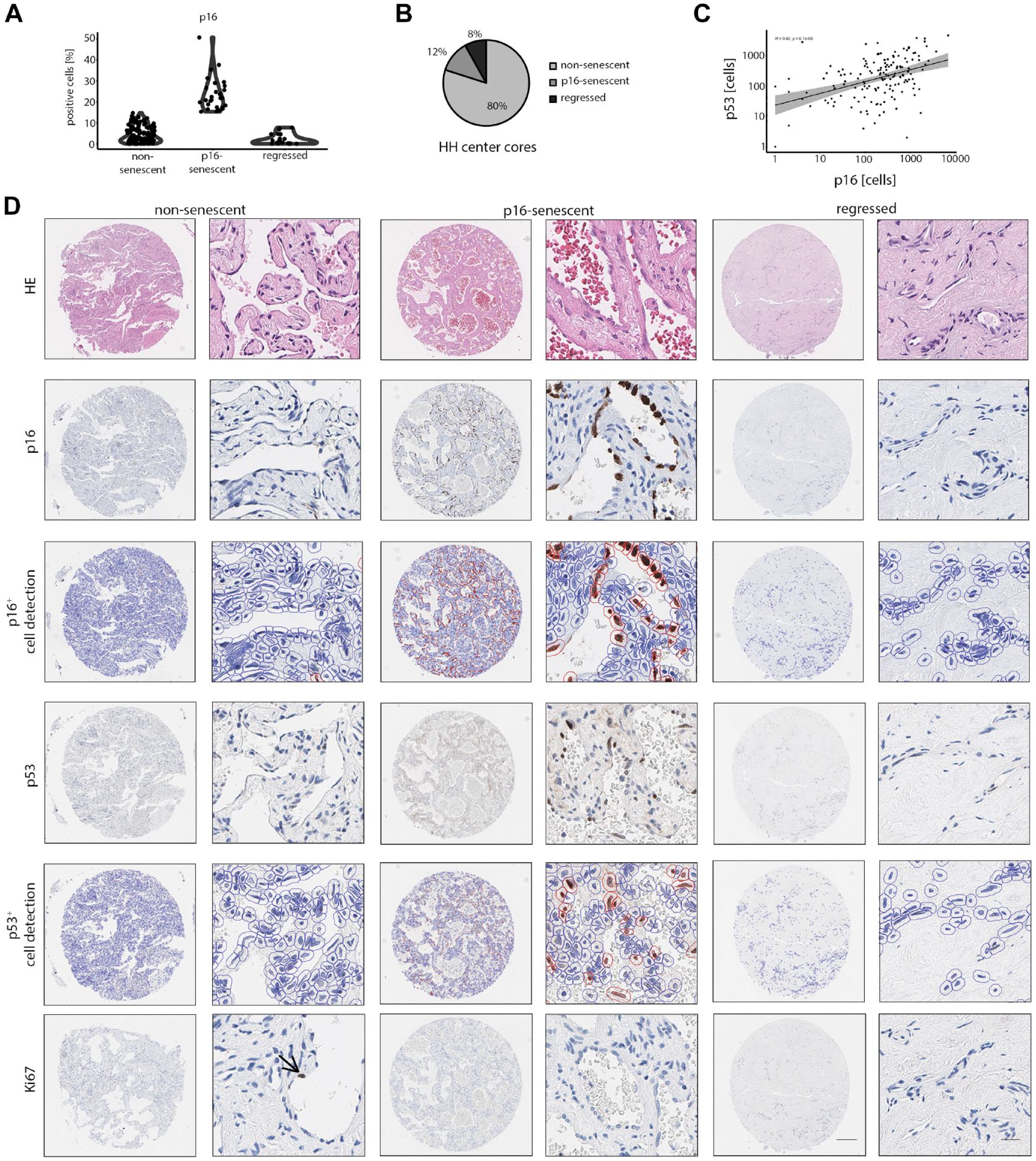

Defined spatial- and core-specific stages of non-senescent, p16-senescent, and regressed HHs. (A) Percentual distribution of p16⁺ cells in non-senescent, p16-senescent, and regressed hemangiomas after digital senescence classification. Cutoff for p16-positivity was set to 10%. (B) Percentual distribution of non-senescent, p16-senescent, and regressed hemangiomas after HH classification. (C) Correlation analysis between p16⁺ and p53⁺ cell numbers in HH cores (Spearman correlation analysis). (D) Low and high magnification of H&E, p16, p16⁺ cell detection, p53, p53⁺ cell detection, and Ki67 in non-senescent, p16-senescent, and regressed hemangiomas. Arrow indicates a Ki67⁺ EC in a non-senescent HH. Scale bar: 250 µm (low) and 20 µm (high). Abbreviations: HH, hepatic hemangioma; H&E, haematoxylin eosin; EC, endothelial cell.

p16-senescent HHs showed significantly higher EC density (measured by ERG⁺) and lyEC content (PDPN⁺; Fig. 4A). The same trend was observed for CD34⁺ cell numbers between p16-senescent and non-senescent HHs, however not reaching the level of significance (Fig. 4A). Regressed HHs were characterized by low numbers of CD31⁺, CD34⁺, ERG⁺, and PDPN⁺ cells and reduced vascular diameters (Fig. 4A). Ki67⁺ cells were lower in regressed HHs, but there was no significant difference in Ki67 positivity between p16-senescent and non-senescent hemangiomas (Fig. 3D and 4A). Also, “macroscopic size” and “age at resection” as clinical parameters were not significantly different in a core-specific HH comparison, but there was a trend toward smaller average lesion size for p16-senescent HH cores compared with regressed HH (Fig. 4B; p=0.1). Finally, the intrapatient region-specific stage subclassification was compared in patients, where multiple hemangioma cores have been assessed. While in 76% cores were monotypically classified, in 24% a heterotypic stage pattern as a sign of spatially restricted differences within HH tissue was observed between cores of the same patient. The majority of intrapatient heterogeneity was based on senescent/non-senescent (59%) and non-senescent/regressed stages (35%).

OPEN IN VIEWER

Figure 4.

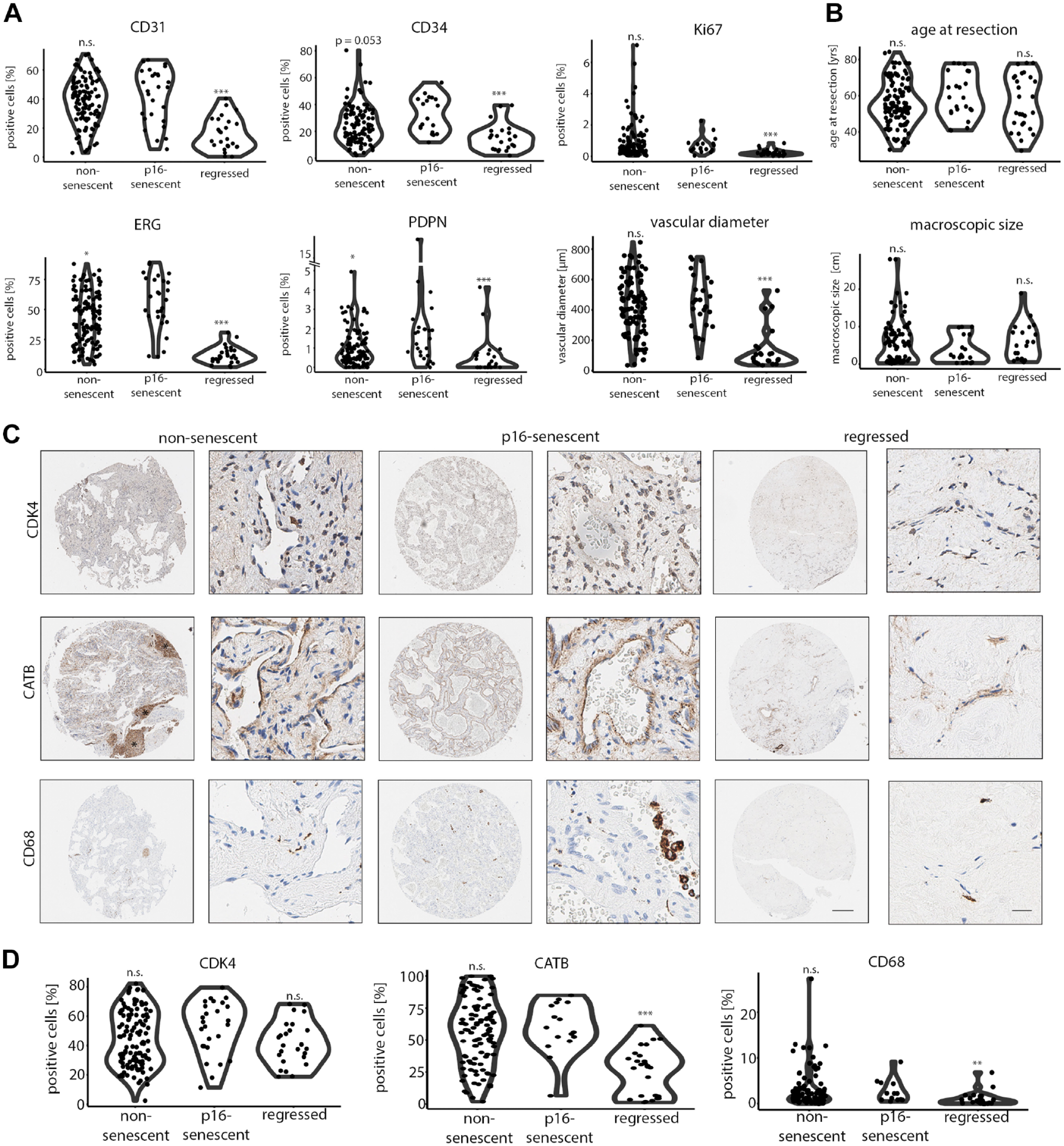

Unique cell composition in non-senescent, p16-senescent, and regressed HHs. (A) Percentual distribution of CD31⁺, CD34⁺, ERG⁺, PDPN⁺, and Ki67⁺ cells and average vascular diameters in non-senescent, p16-senescent, and regressed hemangiomas after HH classification. Comparison of p16-senescent hemangiomas vs subgroup of interest by Wilcoxon rank-sum test (*p<0.05, ***p<0.001). (B) Age at resection and HH macroscopic size in non-senescent, p16-senescent, and regressed hemangiomas. Comparison of p16-senescent hemangiomas vs subgroup of interest by Wilcoxon rank-sum test (n.s.). (C) Low and high magnification of CDK4, CATB, and CD68 in non-senescent, p16-senescent, and regressed hemangiomas. Scale bar: 250 µm (low) and 20 µm (high). Asterisk (*) demarcates insulas of CATB-positive retained hepatocytes in a non-senescent HH. (D) Percentual distribution of CDK4⁺, CATB⁺, and CD68⁺ cells in non-senescent, p16-senescent, and regressed hemangiomas after HH classification. Comparison of p16-senescent hemangiomas vs subgroup of interest by Wilcoxon rank-sum test (**p<0.01, ***p<0.001). Abbreviations: HH, hepatic hemangioma; CDK4, cyclin-dependent kinase 4; CATB, catenin beta 1; n.s., not significant.

In conclusion, a digitally assisted staging revealed morphological, functional, and intralesional differences in HH cores regarding EC composition, the presence of vascular senescence, and HH regression.

Hemangioma Regression Is Associated With Reduced Macrophage Infiltration and Beta-catenin Expression

As several HH cores showed signs of cellular senescence, we stained for the expression of p16-regulated downstream targets. On the protein level, one common p16-regulated protein is cyclin-dependent kinase 4 (CDK4), which forms complexes with cyclin D that are essential for cell-cycle progression. ²⁵ Indeed, ubiquitous CDK4 expression in HHs was detected independent of the disease stage (Fig. 4C). Previously, catenin beta 1 (CATB encoded by CTNNB1 gene) has been described as a downstream effector of ERG, CATB thereby promoting vascular stability and angiogenesis. ²⁶ To evaluate whether CATB expression in HHs correlates with a regression-free stage, positive cell detection was performed. Although no significant differences in the distribution of CATB⁺ cells was found between p16-senescent and non-senescent HHs, a significant reduction in CATB⁺ cells in regressed HH cores was observed (Fig. 4C and D). Next, MET Proto-Oncogene (MET) and MYC Proto-Oncogene (MYC) as markers of proliferative and migratory angiogenesis were screened.^21,27 Interestingly, both markers were not expressed in HHs (Supplemental Fig. 3A). BRAF mutations at hotspot codon V600 have recently been identified in a cohort of human HHs. ²⁸ This prompted us to screen for the common BRAF V600E mutation in our cohort. However, all HHs of our cohort were negative for BRAF V600E (Supplemental Fig. 3A). Finally, regressed hemangioma cores showed a reduced macrophage content as measured by CD68⁺ cells compared with p16-senescent HHs, whereas DES⁺ cells were equally distributed in HH subtypes (Fig. 4C and D; Supplemental Fig. 3B and C).

In summary, these results suggest a role of early p16-mediated vascular senescence in HHs with preserved CATB expression that is lost in fully regressed HHs.
