Another Small Supernumerary Marker Chromosome (sSMC) Derived from Chromosome 2: Towards a Genotype/Phenotype Correlation

A definition of small supernumerary marker chromosomes (sSMCs) was recently suggested as follows: “sSMC are structurally abnormal chromosomes that cannot be identified or characterized unambiguously by conventional banding cytogenetics alone, and are (in general) equal in size or smaller than a chromosome 20 of the same metaphase spread” (Liehr et al. 2004a). Therefore, sSMCs can be characterized only by molecular cytogenetic methods, i.e., fluorescence in situ hybridization (FISH). We recently proposed a strategy for how to proceed if a sSMC is detected (Liehr et al. 2003,2004b). According to that, apart from microdissection and reverse painting, the most straightforward way to determine an sSMC's origin is the cenM-FISH approach (Nietzel et al. 2001). For characterization of the content and structure of the sSMC, the subcenM-FISH approach should be applied, as introduced and applied in ~30 cases with sSMCs in Starke et al. (2003).

We followed that scheme in the case of a pregnant woman whose fetus after GTG-banding was found to have the karyotype 45,X[5]/47,XX, + mar[43]/46,XX[2]. The fetus was prenatally studied (amniocytic fluid in week 21 + 6) because it was an ICSI-induced pregnancy and, according to ultrasound examination, had a double bubble sign (i.e., sonographic signs of two cystic structures in the abdomen) and a single umbilical cord artery. The parents did not want a chromosome analysis of their own. Therefore, it could not be determined if the sSMC was inherited or had arisen de novo. The result of cenM-FISH (Figure 1) indicated that the marker was a small ring derived from chromosome 2. This result was confirmed and refined by subcenM-FISH (Figure 2). Therefore, the sSMC could be characterized as 47,XX, + r(2)(::p11.1->q11.2::). The pregnancy was continued and a healthy child was born. No Turner syndrome stigmata were present, and because the parents refused a postnatal chromosome analysis it could not be clarified if a Turner mosaic, as detected prenatally, was also present in the newborn.

This is the eleventh case reported in the literature with an sSMC derived from chromosome 2. In all 11 cases the sSMC is reported to be a small supernumerary ring chromosome (sSRC). This is striking because for sSMCs derived from all other chromosomes apart from chromosome 2 there are always reports of sSMCs and sSRCs (for overview on sSMC see Liehr et al. 2004a and http://mti-n.mti.uni-jena.de/huwww/MOL_ZYTO/sSMC.htm). There is a high probability that this ring chromosome formation is due to low repetitive elements present in the pericentric region of chromosome 2 similar to that of chromosomes 10 and 12 (Jackson et al. 1999; Vermeesch et al. 2003).

OPEN IN VIEWER

Figure 1

CenM-FISH (centromere-specific multicolor FISH) (Nietzel et al. 2001) result of the case reported here. The sSMC could be characterized as a ring derived from chromosome 2 (arrowhead).

OPEN IN VIEWER

Table 1

Summary of all available cases with sSMC(2) a

Case	Age	De novo	Karyotype after GTG	sSMC	Clinical signs	Reference
1	10 years	+	47,XX,+mar[100%]	r(2)(::p11.2->q11.1::)	Yes	Starke et al. 2003, case 7
2	1.5 years	+	47,XY,+r[50%]	r(2)(::p11.2->q14.1::)	Yes	Ostroverkhova et al. 1999
3	26 years	+	47,XY,+mar[52%]	r(2)(::p11.1->q11.2::)	None	Starke et al. 2003, case 6
4	Prenatal: child born	NA	45,X[5] 47,XX,+mar[43]/46,XX[2]	r(2)(::p11.1->q11.2::)	None	Present case
5	Prenatal: child born	+	47,XX,+mar[18%]	r(2)(::p10->q11.2::)	None	Villa et al. 2001
6	Adult	+	47,XY,del(2)(p10p12),+mar[100%]	r(2)(::p10->q12::)	None	Lasan Trcic et al. 2003
7	Adult	+	47,XX,+r[54%]	r(2)(::p10->q12::)	Yes (mother of #8)	Giardino et al., 2002
8	6 years	Maternal	47,XY,+r[44%]	r(2)(::p10->q12::)	Yes	Giardino et al., 2002
9	30 years	+	47,XY,+mar[100%]	r(2)	None	Daniel et al. 1994, case 9
10	7.5 years	+	47,XY,+r[30%]	r(2)	Yes	Plattner et al. 1993, case 26
11	2 years	+	47,XX,+mar[100%]	r(2)(q?)	Yes	Guanciali-Franchi et al. 2004

^aIn the cases where clinical signs were present those were very variable, and they are not specified in detail in this table. For details see http://mti-n.mti.uni-jena.de/~huwww/MOL_ZYTO/sSMC.htm

Five of the 11 cases reported in the literature and summarized in Table 1 are without clinical symptoms. However, only eight of those 11 cases were characterized in detail for their chromosomal content. Among those characterized comprehensively, there is a prominent correlation concerning presence of centromere-near sequences of 2p11.2 plus clinical abnormalities (cases 1 and 2) and absence of clinical signs plus presence of proximal sequences of 2q11.2 (cases 3, 4, and 5). Small partial trisomies of material derived distally from 2q11.2 already lead to clinical signs (cases 7 and 8). Case 6 has no clinical abnormalities and an sSMC similar to that of cases 7 and 8, but in case 6 there is no partial trisomy because a balanced karyotype 47,XY,del(2)(p10p12), + r(2)(::p10->q12::) was diagnosed. Therefore, we can speculate that case 9 consists of 2p centromeric and/or 2p11.2-derived material. Case 10 may include 2p11.2 or material distal from 2q11.2 and for case 11, for which the presence of 2q material is proven, the latter suggestion made for case 10 may also be true.

Even though uniparental disomy (UPD) must always be considered in case of an sSMC (Liehr et al. 2004a) and UPD 2 was excluded only for cases 5 and 8 in Table 1, we provide evidence for a first genotype/phenotype correlation of one small subgroup of sSMCs, those derived from chromosome 2 (Figure 3). It must be checked whether such a relatively simple correlation can be confirmed by further cases, e.g., for sSMC derived from chromosome 3 the situation seems to be more complex and is not yet resolved (Liehr et al. 2004c).

OPEN IN VIEWER

Figure 2

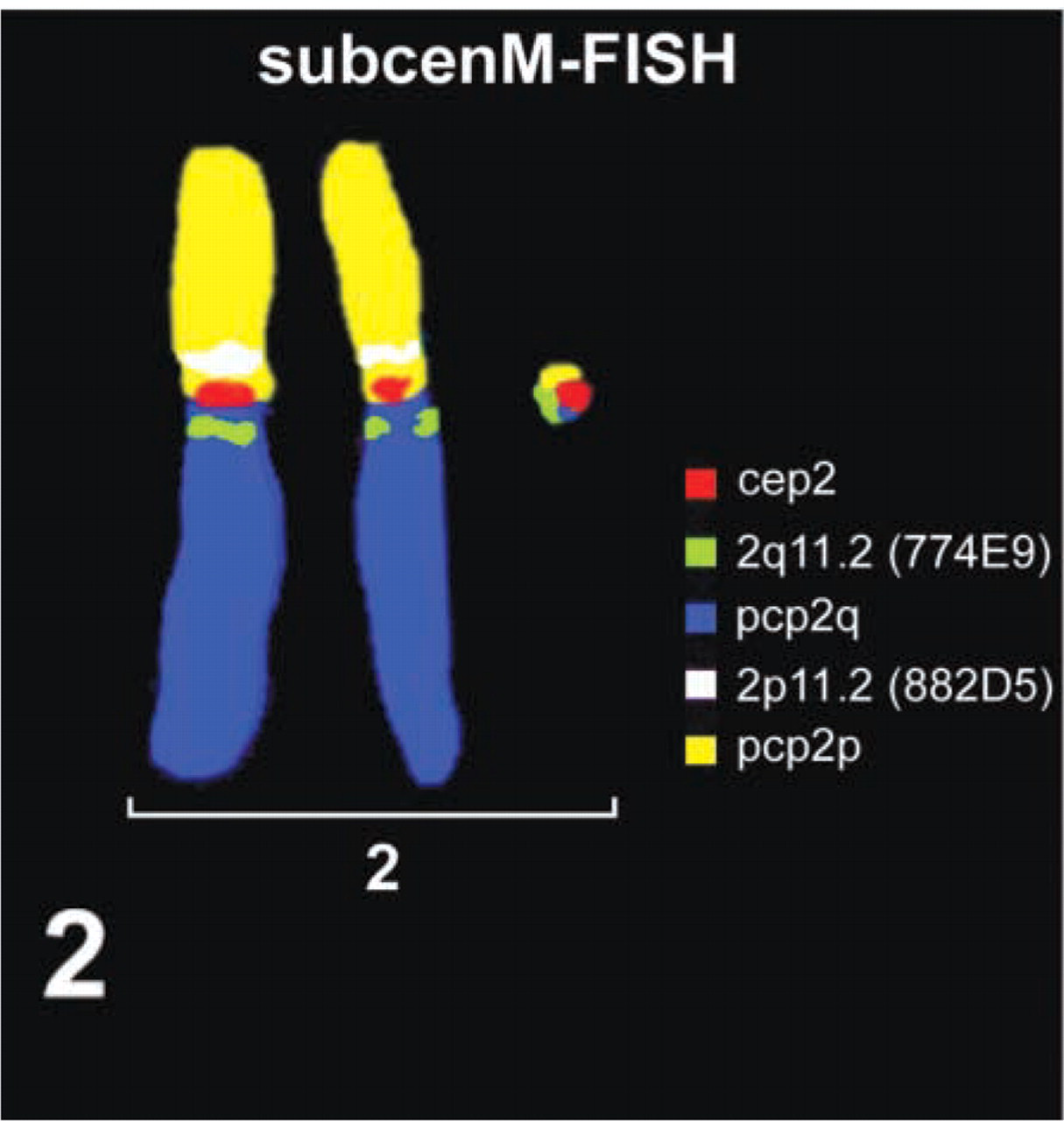

SubcenM-FISH characterized the sSMC as r(2)(::p11.1->q11.2::) (Starke et al. 2003).

OPEN IN VIEWER

Figure 3

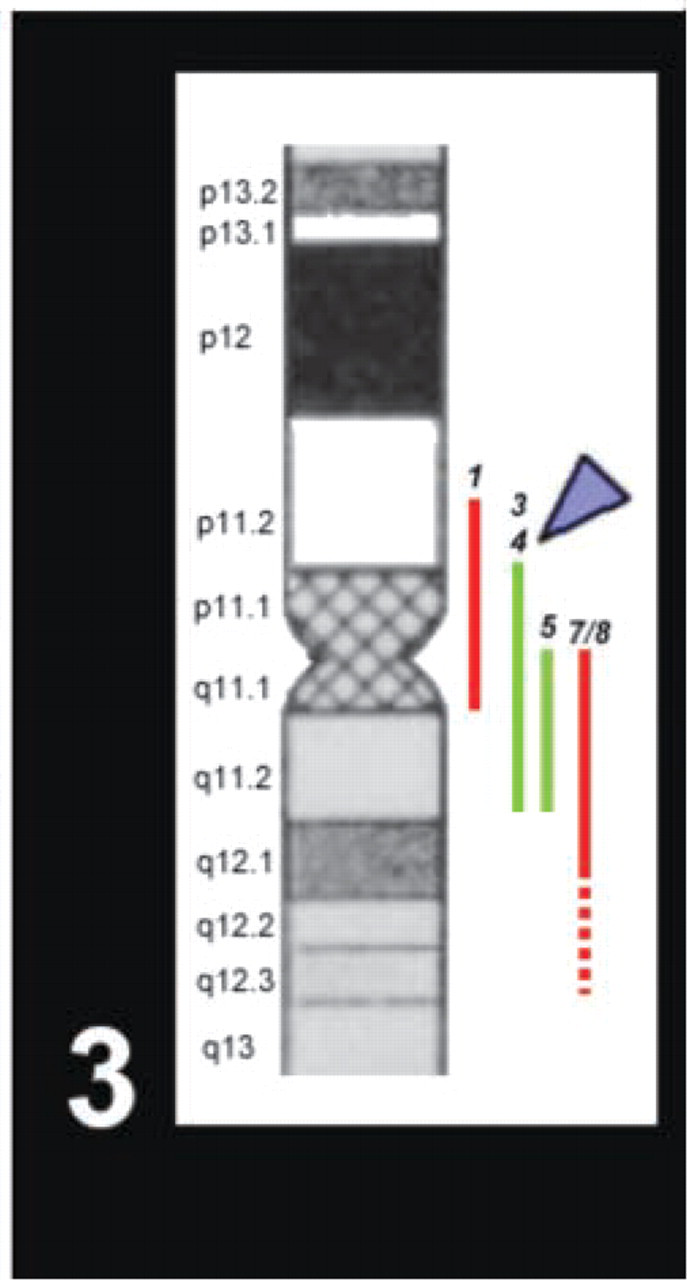

Summary from the literature of the partial trisomies in well-characterized cases with sSMC 2. The case numbers are according to Table 1; the present case is marked by an arrowhead. Clinical signs are to be expected when the sSMC contains sequences derived from 2p11.2 or distal from 2q11.2. Green color, no clinical signs; red color, clinical signs.
