Cotton Dyeing with Vat Dyes using Alkaline Pectinase and Iron (II) Salt

Abstract

Use of sodium hydrosulfite in the dyeing of cotton with vat dyes is criticized for generation of sulfur compounds leading to air and water pollution. In this study, attempts were made to dye cotton with alkaline pectinase along with iron (II) salt as an alternative formulation. A 43 Box-Behnken design was used for statistical analysis of performance for this new reducing system and to obtain optimum parameters for cotton dyeing. The results showed that alkaline pectinase along with iron (II) salt was quite effective in developing comparable dyebath potential, dye receptivity on cotton with comparable dye strength, and colorfastness, as compared to the hydrosulfite-based reducing system. Dyebath stability in presence and absence of dye also showed superior results compared to that of the hydrosulfite system.

Keywords

Alkaline Pectinase Cotton Dye Strength Sodium Hydrosulfite Vat Dyes

Introduction

Vat dyes belong to a well-known carbonyl class of dyes having a coplanar and multi-ring system. These rings contribute to strengthening the Van der Waals forces between dye and substrate.¹ At present, there is no true alternative to vat dyes, due to their excellent all-round colorfastness properties, which include wash, light, perspiration, and crock fastness.^2,3However, vat dyes are practically insoluble in water. But they can be converted into a water soluble form (leuco dyes) that has an affinity for cotton by reduction with a strong reducing agent like sodium hydrosulfite (Na₂S₂O₄) and sodium hydroxide (NaOH) solubilizing agent.⁴ The reduced form of the vat dye exhibits affinity to cellulosic fibers and thus becomes exhausted from the dyebath, followed by oxidation in which the exhausted dye is re-oxidized within the fiber as the oxidized insoluble form.^5–7

The disposal of dyebaths and rinse water causes problems due to the formation of sulfite, sulfate, thiosulfate, and toxic sulfide from the dissociation of hydrosulfite, contaminating wastewater from dyeing plants. In addition, as a result of the considerable excess of reducing agent required to stabilize oxidation-sensitive dye baths, the wastewater may contain excess sodium hydrosulfite, which affects aerobic processes in wastewater treatment.^8,9 This has led to a search for alternate eco-friendly hydrosulfite-free based reducing agents.^10,11 These include application of iron (II) salts along with gluconic acid and NaOH at 60 °C,¹² and iron (II) salts in combination with tartaric or citric acid, triethanolamine, and NaOH at room temperature (RT).^13–15

With the increasing demand on textile manufacturers to reduce pollution in textile coloration and finishing, the use of enzymes in the textile chemical processing is rapidly gaining wide recognition because of their eco-friendly and non-toxic characteristics.¹⁶ Enzymes are biological catalysts that mediate virtually all the biochemical reactions that constitute metabolism in living systems.¹⁷ They accelerate the rate of chemical reactions without themselves undergoing any permanent chemical change (i.e. they are true catalysts).^18,19 Certain specific enzymes are available that can catalyze dye reduction.²⁰ The effectiveness of enzymes, especially those belonging to oxidoreductase and hydrolase classes, is of utmost importance in this perspective.²¹

Pectinases comprise of a unique group of enzymes that catalyze the degradation of pectic polymers present in the plant cell wall.²² They are mainly synthesized by microorganisms and plants and are defined as a heterogeneous enzyme group that hydrolyzes pectic substances—a polymer chain consisting of a rhamnogalacturonan backbone that is linked to carbohydrates and other polymers.²³

Pectinases were some of the first enzymes to be used for domestic applications. Only in the 1960s did the chemical nature of plant tissues become apparent, and with this knowledge, scientists began to use a greater range of enzymes more efficiently.²⁴ As a result, pectinases are finding increased use in the commercial sector as an integral part of various biotechnological applications.²⁵

Based on the pH requirement for optimal enzymatic activity, pectinase can be broadly classified into acidic and alkaline types. Acidic pectinase has been extensively used for the extraction and clarification of fruit juices and wines, maceration of vegetables and fruits, improvement in essential oil extraction, and enhancement of baby-food production. In contrast, alkaline pectinases are used for treatment of wastewater from the food processing industry containing pectinaceous waste, degumming of bast fibers,²⁶ bioscouring of cotton, retting of plant fibers, coffee and tea fermentation, paper and pulp industrial processes, and the extraction of lemon oil.²⁵

In the present work, the effectiveness of alkaline pectinase along with iron (II) salt was studied on the reduction and solubilization of vat dyes, thus attempting to substitute sodium hydrosulfite in the vat dyeing technology to formulate a green as well as eco-friendly process. A 4³ Box-Behnken design was introduced for statistical analysis on performance of this system and to obtain optimal parameters and accuracy of the process for dyeing of cotton using alkaline pectinase along with FeSO₄. The reduction potential and dye strength, as well as stability of hydrosulfite and alkaline pectinase-based dyebaths, were studied. The colorfastness of dyeing was also evaluated and compared between the two methods.

Experimental

Materials

Thoroughly pretreated cotton fabric (124 epi, 92 ppi, warp and weft: 37s, and 138 g/m²) was used in this study.

Chemicals

Alkaline pectinase was procured from Clariant. Sodium hydrosulfite (AR, 87-88%), sodium hydroxide (AR, 98%), ferrous sulfate (AR, 98%), and hydrogen peroxide (30%) were obtained from SDFCL. Ten different vat dyes of commercial grade, viz. Green XBN (Vat Green 1, C.I. 59825), Olive Green B (Vat Green 3, C.I. 69500), Brown BR (Vat Brown 1, C.I. 70800), Gold Orange 3G (Vat Orange 15, C.I. 69025), Yellow 5G (Vat Yellow 2, C.I. 67300), Red 6B/UD (Vat Red 10, C.I. 67000), Grey M (Vat Black 8, C.I. 71000), Olive R (Vat Black 27, C.I. 69005), Brown R (Vat Brown 3, C.I. 69015), and Blue BC (Vat Blue 6, C.I. 69825) were used in this study. These dyes were obtained from ATIC and Indian Dyestuff Industries.

Cotton Dyeing using Sodium Hydrosulfite

The dyebaths were prepared with vat dye (1%, owf) pasted with TR oil and hot water was added to it. Sodium hydroxide (10%, owd) and sodium hydrosulfite (10%, owd) were added and stirred well until reduction and solubilization of dye took place (about 15 to 20 min at 60 °C). Cotton dyeing was carried out for 60 min at 60 °C at a 1:25 liquor ratio (LR). The bath was then dropped, the dyed cotton was cold washed and oxidized with hydrogen peroxide (1–2 g/L) at 50–60 °C for 20–30 min, followed by soaping and a final wash.

Cotton Dyeing using Alkaline Pectinase and FeSO₄

The dyebaths were prepared with vat dye (1–1.5%, owf), alkaline pectinase (0.25–1.5%, owd), ferrous sulfate, (1–6% owd), and sodium hydroxide (10–20% owd) at 90 °C for 1 h at a 1:25 LR. The dyed fabrics were cold washed thoroughly and oxidized with hydrogen peroxide, followed by soaping and washing.

Evaluation of Dyebath and Dyed Samples

Cotton samples dyed in both the hydrosulfite- and alkaline pectinase-based dyebaths were evaluated for dye strength (K/S) and CIELab values using the Datacolor Check (Data-color International) and the colorfastness of dyed cotton was assessed according to AATCC TM16-2004 (light), AATCC TM61-2007 (wash), and AATCC TM8-2007 (crocking) using the ATIRA lightfastness tester (Paresh Engineering Works), washfastness tester (RBC Electronics), and crock-meter (Prolific), respectively. The reduction baths were evaluated for reduction potential, as well as pH, at various stages of dyeing; in a blank reduction bath, after dye reduction, and at the end of dyeing using a digital pH meter and a digital combined oxidation reduction potential (ORP) meter (Century Instruments), respectively. The redox potential was assessed at reduction/dyeing temperature using an Ag/AgCl reference electrode and a Pt-Ag/AgCl combined electrode filled up with a saturated KCl solution.

Evaluation of Dyebath Stability

Reduction baths were prepared with hydrosulfite/hydroxide and alkaline pectinase/FeSO₄ separately. To study bath stability in absence of dye, the reduction baths were stored for 0, 1, 2, 4, 8, 12 and 24 h, followed by Vat Green XBN dye addition (1% owf) after the specified time of reducing agent storage, and cotton dyeing was carried out; changes in pH and reduction potential at each stage were recorded. To study the potential of stored dyebaths towards successful dyeing, hydrosulfite and alkaline pectinase reduction baths were prepared, followed by dye addition and storage up to 24 h prior to dyeing.

Statistical Analysis of the Dyeing Process

The Box-Behnken design was used to study the dye strength (K/S) as the response for cotton dyed with alkaline pectinase/ FeSO₄ for optimization of process parameters. Four parameters or factors, viz. concentration of pectinase (A), concentration of FeSO₄ (B), concentration of NaOH (C), and dyeing temperature (D) with respective coded values (levels) are shown in Table I.

Table I

Factors and Coded Levels for Dyeing with Alkaline Pectinase/FeSO₄

Coded Factor^a	Factors (Independent Variables)	Coded Levels
Coded Factor^a	Factors (Independent Variables)	Low	Center	High
A	Alkaline Pectinase (%)	−1	0	1
B	FeSO₄ (%)	−1	0	1
C	NaOH (%)	−1	0	1
D	Dyeing temperature (°C)	−1	0	1

A = X_a, B = X_f, C = X_n, D = X_t_. X values were used in Eq. 2.

Using these four parameters as factors, each with three levels, a 4³ Box-Behnken design was run to get a set of data (run), consisting of 29 total runs with four replicates at the central point. The design run results are given in Table II. Results were analyzed with response surface plots and equations were created for responses at a 95% confidence level. Individual, as well as interaction, effects of the process factors on K/S values were examined. The accuracy of the model generated was evaluated by the coefficient of determination (R²). Response surface figures were analyzed for understanding the effect of individual parameters (factors) on response (i.e., K/S values). The regression equation was determined accordingly.

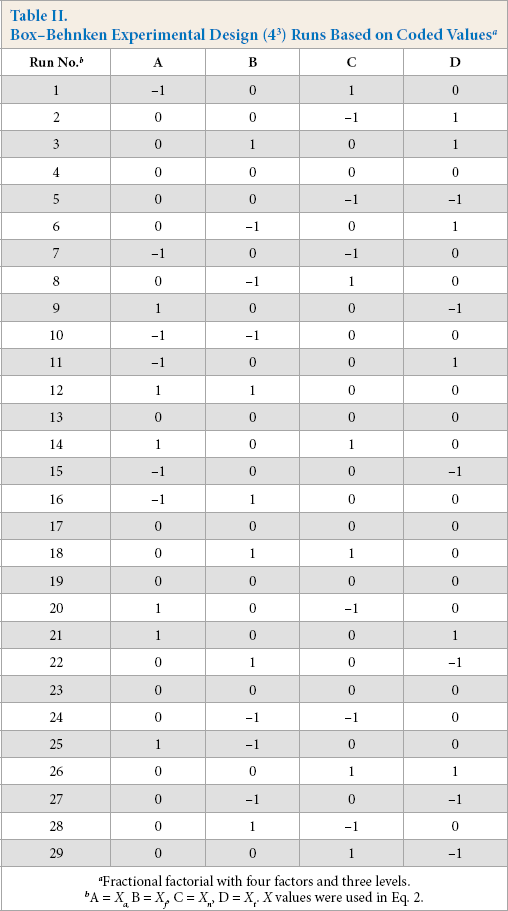

Table II

Box–Behnken Experimental Design (4³) Runs Based on Coded Values^a

Run No.^b	A	B	C	D
1	−1	0	1	0
2	0	0	−1	1
3	0	1	0	1
4	0	0	0	0
5	0	0	−1	−1
6	0	−1	0	1
7	−1	0	−1	0
8	0	−1	1	0
9	1	0	0	−1
10	−1	−1	0	0
11	−1	0	0	1
12	1	1	0	0
13	0	0	0	0
14	1	0	1	0
15	−1	0	0	−1
16	−1	1	0	0
17	0	0	0	0
18	0	1	1	0
19	0	0	0	0
20	1	0	−1	0
21	1	0	0	1
22	0	1	0	−1
23	0	0	0	0
24	0	−1	−1	0
25	1	−1	0	0
26	0	0	1	1
27	0	−1	0	−1
28	0	1	−1	0
29	0	0	1	−1

Fractional factorial with four factors and three levels.

A = X_a, B = X_f, C = X_n, D = X_t. X values were used in Eq. 2.

All design formations and statistical analysis were done with Design Expert 9 software. A quadratic polynomial was used to analyze the relationship K/S values (response) with four independent variables (factors) for the Box-Behnken design runs.

Data (response results) were analyzed using statistical tools to analyze the individual and interaction effect of the process factors on K/S values. Software was used to yield a regression equation at 95% confidence level (Eq. 1) and response surface figures were formed.

Y = β_{o} + \sum_{i = 1}^{n} β_{i} χ_{i} + \sum_{i = 1}^{n} β_{ii} χ_{i^{2}} + \sum_{i = 1}^{n} β_{ij} χ_{i} χ_{j} where n = 4

Eq. 1

Y represents the predicted response function, β₀ is an intercept, β_i, β_ii, and β_ij are the coefficients of the linear, quadratic, and interactive terms of regression equation, and χ_i, χ_ii, and χ_ij represent the coded independent variables, respectively. The regression coefficients were then used to make statistical calculations to generate dimensional response surface figures from the regression models. The fitted polynomial equation was expressed as response surface figures to visualize the relationship between the response and the experimental levels of each factor by 3-D response surfaces figures. These figures display the relative influence of the factors and help to predict experimental results for other combinations. The accuracy of the model was checked by the resulting R². When R² approaches unity, the empirical model fits the actual data. P-values of less than 0.05 were considered to be statistically significant. A lack of ft test was analyzed to check the adequacy of the model. Two techniques (i.e., response surface figures and regression equation techniques) were used to predict the optimal combination of factors that produces a maximum K/S value.

Results and Discussion

Sodium Hydrosulfite Reduction

Cotton was dyed with ten different vat dyes (1% owf) using Na₂S₂O₄ (10% owd) and NaOH (10% owd), followed by oxidation with H₂O₂. The reduction potential and pH of baths at different stages of dyeing, as well as dye strength (K/S) of cotton are shown in Table III.

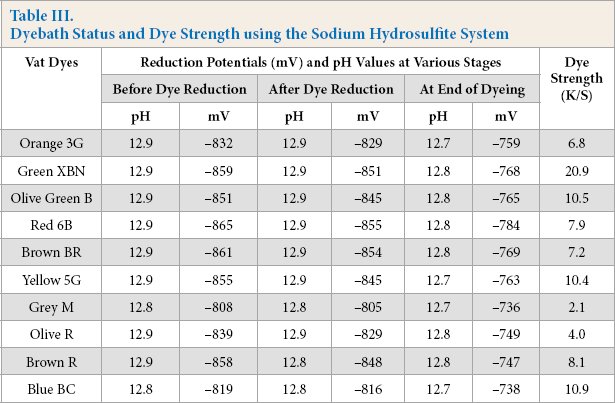

Table III

Dyebath Status and Dye Strength using the Sodium Hydrosulfite System

	pH	mV	pH	mV	pH	mV
Vat Dyes	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength (K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
Orange 3G	12.9	−832	12.9	−829	12.7	−759	6.8
Green XBN	12.9	−859	12.9	−851	12.8	−768	20.9
Olive Green B	12.9	−851	12.9	−845	12.8	−765	10.5
Red 6B	12.9	−865	12.9	−855	12.8	−784	7.9
Brown BR	12.9	−861	12.9	−854	12.8	−769	7.2
Yellow 5G	12.9	−855	12.9	−845	12.7	−763	10.4
Grey M	12.8	−808	12.8	−805	12.7	−736	2.1
Olive R	12.9	−839	12.9	−829	12.8	−749	4.0
Brown R	12.9	−858	12.8	−848	12.8	−747	8.1
Blue BC	12.8	−819	12.8	−816	12.7	−738	10.9

The pH of the baths at different stages of dyeing were found to be mostly identical, showing adequate alkalinity of the bath (Table III). The reduction potential of the baths remained on the high side, with a slight decrease after dyeing; adequate for reduction of vat dyes and retaining their reduced state throughout dyeing. K/S values of the samples were as expected. These K/S values were accepted as control values for the study of enzyme-mediated vat dye reductions.

Vat Dyeing using Alkaline Pectinase

In our earlier work, we established that alkaline pectinase can reduce sulfur dyes at 90 °C, thus proving its dye reduction abilities.²⁷ To develop a new enzyme-based reduction method, dyebaths were prepared with alkaline pectinase (0.25% owd) and NaOH (10% owd). Dyeings were carried out at 60 °C. The reduction potential and pH of the bath, as well as the resulting K/S values on dyed cotton, are given in Table IV.

Table IV

Influence of Alkaline Pectinase and NaOH on Dyebath Status and Dye Strength with Vat Green XBN (1%)

Temperature (°C)	Reduction Potentials (mV) and pH Values at Various Stages						DyeStrength(K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
60	13.0	−206	12.9	−190	12.8	−178	—

The reduction potential of the dyebaths at different stages of dyeing did not rise beyond –206 m V, although the pH remained on the remarkably high side (12.8–13.0). Vat dyes require a reduction potential of -750 mV or higher for their reduction and dyeing. In this case, because of absence of reduction of vat dyes, no dyeing took place.

Vat Dyeing using Alkaline Pectinase and FeSO₄

The activity of certain enzymes can be enhanced by adding FeSO₄ to reduction baths. The FeSO₄ performs two functions here; it forms Fe(OH)₂, which in turn gets partially solubilized in the bath in the presence of excess alkali, and the synergetic reduction of vat dye, possibly by contributing to the gross reduction potential of bath. Thus, FeSO₄ was added to the alkaline pectinase-based reduction baths to enhance the reduction potential. Dyebaths were prepared with alkaline pectinase (0.25% owd), FeSO4 (1% owd), and NaOH (10% owd) at 60 °C for 1 h. The dyebath status at different stages of dyeing and the corresponding K/S values on dyed cotton are shown in Table V.

Table V

Influence of FeSO₄ on Dyebath Status and Dye Strength with Vat Green XBN (1%)

Temperature (°C)	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength(K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
60	13.0	−758	12.9	−690	12.8	−684	0.6

The reduction potential of the dyebaths at different stages of dyeing rose up to –758 m V, and the pH was on the high side (12.8–13.0) throughout. Due to a substantial rise in reduction potential, dyeing took place to some extent, which was obvious from the K/S value of the dyed sample. Enzymes exhibit maximum performance at specific temperatures. Alkaline pectinase may not work fully at 60 °C, and as a consequence, partial reduction of dye caused the poor dye strength of cotton. In subsequent studies, dyebath parameters, such as concentrations of pectinase, FeSO₄, and NaOH, as well as time and temperature of dyeing, were varied initially to see their influence on the dyeability of cotton before statistical analysis was performed.

Selection of Factors and Levels for Design

To study the reduction potential of the new alkaline pectinase-based system using FeSO₄ for successful dyeing of cotton, the dyeing parameters (factors) were initially tested within a certain range to check their capabilities, dye strength (K/S) values were checked, and these results were fed into to the Box-Behnken design as factors and levels.

First, the dyebath temperature was varied at 30, 40, 50, 60, 70, 80, and 90 °C, keeping the other parameters unchanged. The dyebath status at different stages of dyeing and the corresponding K/S values of dyed cotton are shown in Table VI.

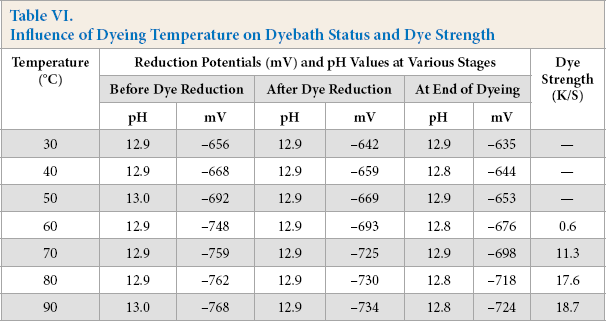

Table VI

Influence of Dyeing Temperature on Dyebath Status and Dye Strength

Temperature (°C)	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength (K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
30	12.9	−656	12.9	−642	12.9	−635	—
40	12.9	−668	12.9	−659	12.8	−644	—
50	13.0	−692	12.9	−669	12.9	−653	—
60	12.9	−748	12.9	−693	12.8	−676	0.6
70	12.9	−759	12.9	−725	12.9	−698	11.3
80	12.9	−762	12.9	−730	12.8	−718	17.6
90	13.0	−768	12.9	−734	12.8	−724	18.7

The new reducing system could not generate the required reduction potential in the dyebath at temperatures below 60 °C, with no reduction, and therefore, no cotton dyeing. Increased temperature progressively increased the dyebath reduction potential and the maximum dye uptake took place at 90 °C (Table VI); this temperature was accepted for further study. Pectinase is a cultured bacterial enzyme, frequently applied in scouring of cotton to remove hemicelluloses at boil; increased temperature enhanced its activity by improving the dyebath reduction potential.

To check the concentration of alkaline pectinase, dyebaths were prepared with Vat Green XBN dye (1% owf), alkaline pectinase (0.25–1.5% owd), FeSO₄ (2% owd), NaOH (10% owd), temperature of vatting and dyeing at 90 °C, and a dyeing time of 1 h. The dyebath status at different stages of dyeing and corresponding K/S values of dyed cotton are shown in Table VII.

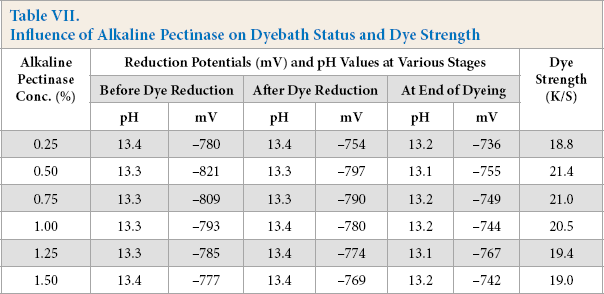

Table VII

Influence of Alkaline Pectinase on Dyebath Status and Dye Strength

Alkaline Pectinase Conc. (%)	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength (K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
0.25	13.4	−780	13.4	−754	13.2	−736	18.8
0.50	13.3	−821	13.3	−797	13.1	−755	21.4
0.75	13.3	−809	13.3	−790	13.2	−749	21.0
1.00	13.3	−793	13.4	−780	13.2	−744	20.5
1.25	13.3	−785	13.4	−774	13.1	−767	19.4
1.50	13.4	−777	13.4	−769	13.2	−742	19.0

With an increase in alkaline pectinase concentration up to 0.50%, there was a proportionate increase in the reduction potential of the dyebaths, followed by a gradual decrease at greater alkaline pectinase concentrations, while the pH remained unchanged. The maximum K/S value of dyed cotton followed the same trend as the reduction potential (Table VII). Enzymes are effective at low concentrations; an increase in concentration beyond a certain limit failed to further improve the reduction potential and K/S value.

To determine the effective FeSO₄ concentration, dyebaths were prepared with Vat Green XBN dye (1% owf), alkaline pectinase (0.50% owd). FeSO₄ (1–6% owd), NaOH (10% owd), temperature of vatting and dyeing at 90 °C), and a dyeing time of 1 h. The dyebath status at different stages of dyeing and corresponding K/S values of dyed cotton are shown in Table VIII.

Table VIII

Influence of FeSO₄ on Dyebath Status and Dye Strength

FeSO₄ Conc. (%)	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength (K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
1	13.1	−765	13.0	−747	12.9	−738	5.8
2	13.0	−779	12.9	−761	12.8	−740	10.9
3	12.9	−788	12.9	−767	12.8	−748	16.8
4	13.0	−798	12.9	−781	12.8	−766	20.6
5	12.9	−790	12.8	−779	12.8	−761	20.4
6	12.9	−792	12.8	−780	12.8	−768	20.5

An increase in the concentration of FeSO₄ increased the reduction potential of the dyebaths proportionately, while keeping the pH unchanged (Table VIII). The K/S values of dyed cotton also increased up to a 4% FeSO₄ concentration, beyond which it remained almost unchanged.

Application of FeSO₄ can consume NaOH to form Fe(OH)₂, thus requiring excess NaOH for efficient dyeing. Dyebaths were prepared with Vat Green XBN dye (1% owf), alkaline pectinase (0.50% owd), and FeSO₄ (4% owd). The concentration of NaOH was varied (11–20% owd), temperature of vatting and dyeing at 90 °C, and a dyeing time of 1 h. The dyebath status at different stages of dyeing and the corresponding K/S values of dyed cotton samples are shown in Table IX.

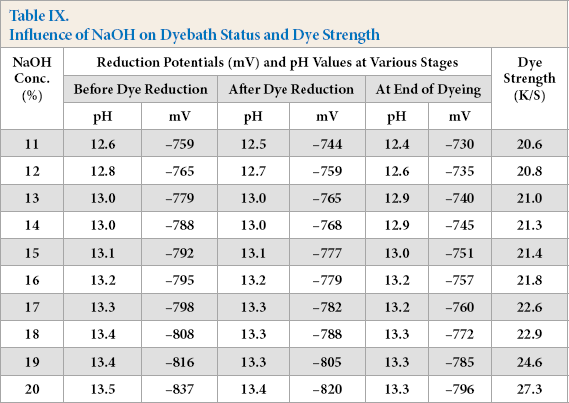

Table IX

Influence of NaOH on Dyebath Status and Dye Strength

NaOH Conc. (%)	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength (K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
11	12.6	−759	12.5	−744	12.4	−730	20.6
12	12.8	−765	12.7	−759	12.6	−735	20.8
13	13.0	−779	13.0	−765	12.9	−740	21.0
14	13.0	−788	13.0	−768	12.9	−745	21.3
15	13.1	−792	13.1	−777	13.0	−751	21.4
16	13.2	−795	13.2	−779	13.2	−757	21.8
17	13.3	−798	13.3	−782	13.2	−760	22.6
18	13.4	−808	13.3	−788	13.3	−772	22.9
19	13.4	−816	13.3	−805	13.3	−785	24.6
20	13.5	−837	13.4	−820	13.3	−796	27.3

Increased NaOH concentration proportionately increased the reduction potential and pH of the dyebaths as expected (Table IX). The K/S values of dyed cotton gradually increased with increased NaOH concentration up to 20% owd. NaOH concentration must be kept high to obtain the maximum solubility of reduced vat dye, to maintain higher pH, in addition to the NaOH consumed by FeSO₄ conversion to Fe(OH)₂.

Experimental results showed at least comparable efficiency of alkaline pectinase-based dyebaths as compared to the hydrosulfite system. Reduction potentials in all the three stages of dyeing (–759 to –837 mV) indicated complete dye reduction. The K/S results confirmed reduction and solubilization of dye using alkaline pectinase.

Parameters for selection of factors and levels for design were alkaline pectinase (0.5–1.5% owd), FeSO₄ (3–5% owd), NaOH (10–20% owd), and temperature (70–90 °C).

Box-Behnken Experimental Design

A 4³ Box-Behnken fractional factorial experimental design was run with four factors and three levels each (Table X), consisting of 29 runs with four replicates for optimization of parameters in the alkaline pectinase system. For all design runs, dye strength (K/S values) as response was obtained from empirically-derived CIELab values (Table XI).

Table X

Factors and Actual Levels for Dyeing with Alkaline Pectinase/FeSO₄

Coded Factor ^a	Factors (Independent Variables)	Actual Levels
Coded Factor ^a	Factors (Independent Variables)	Low (–1)	Center (0)	High (1)
A	Alkaline Pectinase (%)	0.5	1.0	1.5
B	FeSO₄ (%)	3	4	5
C	NaOH (%)	10	15	20
D	Dyeing temperature (°C)	70	80	90

A = X_a, B = X_f, C = X_n, D = X_t. X values were used in Eq. 2.

Table XI

Box—Behnken Experimental Design Layout and Observed Response

Run No.	A Alkaline Pectinase (%)	B FeSO₄ (%)	C NaOH (%)	D Temperature (^oC)	Y Dye Strength (K/S)
Run No.	Independent Variables^a				Dependent Variable
1	0.5	4	20	80	25.1
2	1	4	10	90	14.5
3	1	5	15	90	16.6
4	1	4	15	80	18.8
5	1	4	10	70	14.9
6	1	3	15	90	20.3
7	0.5	4	10	80	14.4
8	1	3	20	80	26.2
9	1.5	4	15	70	18.8
10	0.5	3	15	80	19.3
11	0.5	4	15	90	20.1
12	1.5	5	15	80	14.8
13	1	4	15	80	18.4
14	1.5	4	20	80	19.6
15	0.5	4	15	70	17.8
16	0.5	5	15	80	15.4
17	1	4	15	80	18.7
18	1	5	20	80	20.6
19	1	4	15	80	18.8
20	1.5	4	10	80	15.1
21	1.5	4	15	90	19.5
22	1	5	15	70	17
23	1	4	15	80	19
24	1	3	10	80	14.8
25	1.5	3	15	80	18.2
26	1	4	20	90	23.9
27	1	3	15	70	18.2
28	1	5	10	80	14.5
29	1	4	20	70	17.9

A = X_a, B = X_f, C = X_n, D = X_t. X values were used in Eq. 2.

Statistical Analysis

Statistical analysis was carried out for the obtained dye strength (K/S values) for 29 runs (Table XI) using the Box-Behnken experimental design. Response surface methodology (RSM) represents the effects of the four independent factors and their interaction with K/S values. The response surface figures (Figs. 1a–f) show the K/S values (dependent variable) of cotton dyed using alkaline pectinase as a function of two factors, while the third factor was kept at a constant center value level.

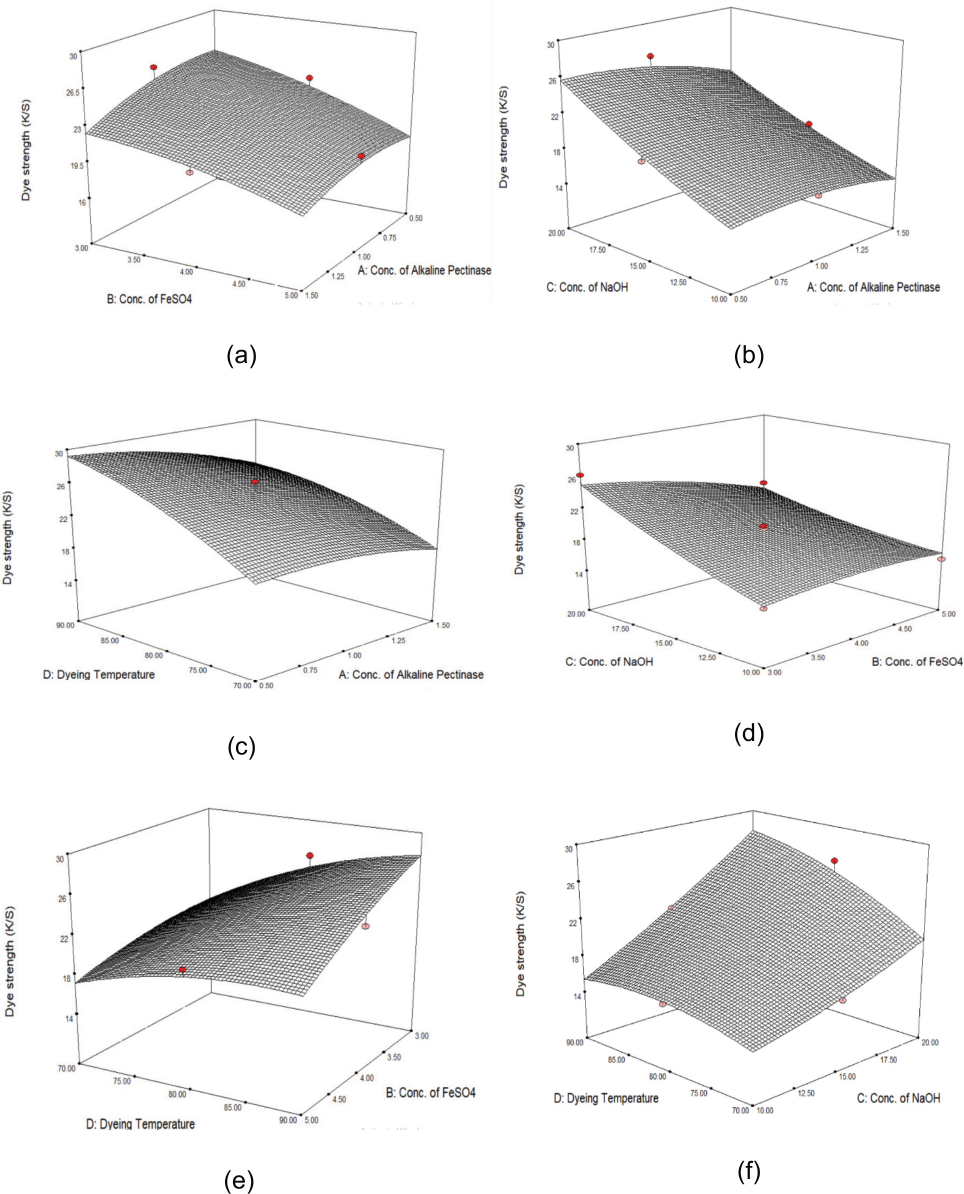

Fig. 1

Response surface figures of dye strength (K/S values) data obtained (a) with combined effects of alkaline pectinase and FeSO₄ concentrations, (b) alkaline pectinase and NaOH concentrations, (c) alkaline pectinase concentration and temperature, (d) FeSO₄ and NaOH concentrations, (e) FeSO₄ concentration and temperature, and (f) NaOH concentration and temperature on cotton dyed with Vat Green XBN dye (1% owf) using alkaline pectinase along with iron (II) salt.

All four factors showed significant influence on K/S values. The results were analyzed using both surface plots and the regression method. Regression equations in terms of coded values for run number 8 in Table XI showed the maximum K/S value. These results were compared with the results of the regression equation to obtain the optimized parameters for cotton dyed with this alkaline pectinase system.

Regression Data Analysis

Data was analyzed using statistical tools to obtain a regression equation for the response variable dye strength (K/S value). The regression equation for K/S values (R² = 0.9526 and F-value = 20.1) is given in Eq. 2.

\begin{array}{l} Y = + 19.42 - 0.55 X_{a} - 1.21 X_{f} + 3.14 X_{n} + 1.07 X_{t} + 0.55 X_{a} X_{f} \\ - 0.60 X_{a} X_{n} - 0.80 X_{a} X_{t} - 1.32 X_{f} X_{n} - 1.20 X_{f} X_{t} + 1.65 X_{n} X_{t} - \\ 0.96 X_{a}^{2} - 0.63 X_{f}^{2} + 0.52 X_{n}^{2} - 1.21 X_{t}^{2} \end{array}

Eq. 2

X_a is the alkaline pectinase concentration, X_f is the FeSO₄ concentration, X_n is the NaOH concentration, and X_t is the temperature.

The model adequacy was checked by an F-test and determination coefficient R². The regression model showed that this regression model was significant with an F-value of 20.1 for K/S values implying the model's significance, as the F-value was less than that of the calculated F-value. There was only a 0.01% chance that a model F-value this large could occur due to noise. X_a, X_f, X_n, X_t, X_fX_n, X_fX_t, X_nX_t, X_a², and X_t² were found to be the significant model terms.

In the next stage, to check efficiency of these optimized parameters using Vat Green XBN, dyebaths were prepared with ten different vat dyes (1% owf), alkaline pectinase 1%, (owd), FeSO₄ (3% owd), NaOH (20% owd), temperature of vatting and dyeing at 80 °C, and a dyeing time of 1 h. The dyebath status and corresponding K/S values on dyed cotton are shown in Table XII.

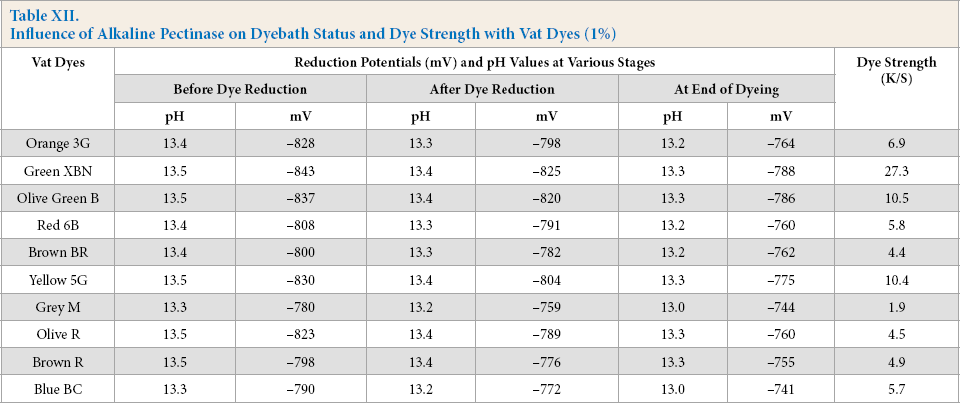

Table XII

Influence of Alkaline Pectinase on Dyebath Status and Dye Strength with Vat Dyes (1%)

Vat Dyes	Reduction Potentials (mV) and pH Values at Various Stages						Dye Strength (K/S)
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
Orange 3G	13.4	−828	13.3	−798	13.2	−764	6.9
Green XBN	13.5	−843	13.4	−825	13.3	−788	27.3
Olive Green B	13.5	−837	13.4	−820	13.3	−786	10.5
Red 6B	13.4	−808	13.3	−791	13.2	−760	5.8
Brown BR	13.4	−800	13.3	−782	13.2	−762	4.4
Yellow 5G	13.5	−830	13.4	−804	13.3	−775	10.4
Grey M	13.3	−780	13.2	−759	13.0	−744	1.9
Olive R	13.5	−823	13.4	−789	13.3	−760	4.5
Brown R	13.5	−798	13.4	−776	13.3	−755	4.9
Blue BC	13.3	−790	13.2	−772	13.0	−741	5.7

The reduction potential was adequate to reduce vat dyes completely for Gold Orange 3G, Green XBN, Olive Green B, Yellow 5G, and Olive R at 1% owf dye concentrations. The K/S values using these dyes gave equivalent or better results than those obtained using the hydrosulfite system. The remaining dyes—Red 6B, Brown BR, Grey M, Brown R. and Blue BC—showed lower K/S values compared to those from the hydrosulfite system (Fig. 2). K/S values on cotton for these dyes were around 33% less, but it was not an indication of low dyebath reduction potential (Table XII)—no dye reduction would have been observed. It is difficult to explain why K/S values were reduced for some dyes despite having adequate reduction potentials. This technology requires further study. Hence for these dyes, the dye concentration was increased from 1% to 1.5%. The resulting K/S values for these dyes is shown in Fig. 3. The K/S values of these dyes gave equivalent or better results than that for cotton dyed with vat dyes using the hydrosulfite system, except for Brown BR and Brown R.

Fig. 2

Comparison of K/S values on cotton in hydrosulfite and alkaline pectinase-based reduction baths for 1% shade.

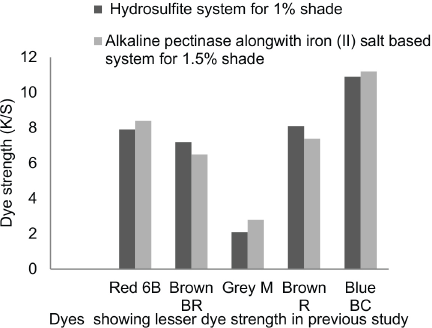

Fig. 3

Comparison of K/S values on cotton in hydrosulfite system for 1% shade and in alkaline pectinase-based reduction baths for 1.5% shade of selected dyes.

Dyebath Stability

Without Dye

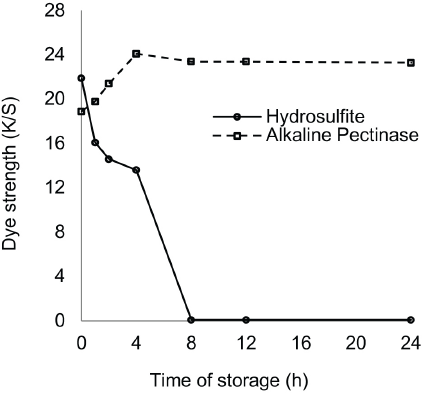

The stability of reduction baths prepared with hydrosulfite, and alkaline pectinase and iron(II) salt, were studied separately in the absence of dye. As stated earlier, the reduction baths were prepared for both systems and were stored for specific times. The change in pH and reduction potential were recorded. Vat Green XBN dye (1% owf) was added, the dyebath heated up to 80 °C, and dyeing carried out for 1 h.

Hydrosulfite-based reduction baths showed decreases in reduction potential over time and maintained their reducing capability for 4 h. In contrast, the alkaline pectinase-based reduction baths retained their reducing capability successfully throughout 24 h of storage in absence of dye, because of the non-oxidizing nature of pectinase (Tables XIII and XIV). For the hydrosulfite-based baths, the reduction potential was maximal at the time of bath preparation (i.e., 0 h), but thereafter, showed a gradual decrease with increased storage time. The reduction potential values of baths remained quite effective for dye reduction up to a storage time of 1 h, though the reduced status could not be maintained until the end of dyeing. A storage time of 1 h was the limit for complete dye reduction and maintaining reduced status until the end of dyeing as shown by K/S values (Fig. 4). However, alkaline pectinase-based baths showed stability for up to 4 h, and then gradually decreased until 24 h, although the pH remained as high as 12.5-13.5 throughout. K/S values were also at their maximum after a storage time of 4 h (Fig. 4).

Table XIII

Stability of Hydrosulfite-Based Reduction Bath in Absence of Dye

Time (h)	Reduction Potentials (mV) and pH Values at Various Stages
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
0	13.1	−869	13.1	−858	12.7	−768
1	12.9	−859	12.9	−842	12.9	−168
2	12.9	−848	12.9	−841	12.8	−155
4	12.9	−842	12.9	−831	12.8	−143
8	13.0	−581	13.0	−487	12.8	−128
12	12.9	−91	13.0	−89	12.7	−88
24	13.0	−84	13.0	−63	12.7	−58

Table XIV

Stability of Alkaline Pectinase-Based Reduction Bath in Absence of Dye

Time (h)	Reduction Potentials (mV) and pH Values at Various Stages
	Before Dye Reduction		After Dye Reduction		At End of Dyeing
	pH	mV	pH	mV	pH	mV
0	13.4	−825	13.3	−790	13.2	−768
1	13.3	−832	13.2	−795	13.1	−780
2	13.3	−842	13.3	−798	13.1	−789
4	13.2	−846	13.0	−808	12.9	−792
8	13.2	−838	13.0	−794	12.9	−784
12	13.3	−832	13.0	−790	12.8	−780
24	13.3	−832	13.0	−780	12.7	−768

Fig. 4

Stability of dyebaths in absence of dye.

With Dye

Reduction baths were prepared for both hydrosulfite and alkaline pectinase systems; dye was added and stored up to 24 h. The hydrosulfite system dyebaths showed the required reduction potential throughout dyeing up to a storage time of 4 h; beyond which, the starting reduction potential remained adequate enough, but the end potential (after dyeing) decreased progressively (Table XV), indicating the gradual decrease in reduced dye stability towards the end of dyeing. In contrast, alkaline pectinase-based reduction baths showed better long term dye stability. The baths showed a good potential up to a storage time of 24 h (Table XVI) with comparable dye strength. The comparison of K/S values on dyed cotton from all stored baths can be seen in Fig. 5.

Table XV

Stability of Hydrosulfite-Based Reduction in Green XBN Dye Bath

Time (h)	Reduction Potentials (mV) and pH Values at Various Stages
	Before Dyeing		At End of Dyeing
	pH	mV	pH	mV
0	13.2	−861	12.9	−758
1	13.0	−848	13.0	−197
2	13.2	−834	13.2	−170
4	13.3	−778	13.2	−150
8	13.2	−491	13.1	−128
12	13.3	−109	13.1	−105
24	13.2	−103	13.0	−100

Table XVI

Stability of Alkaline Pectinase-Based Reduction in Green XBN Dye Bath

Time (h)	Reduction Potentials (mV) and pH Values at Various Stages
	Before Dyeing		At End of Dyeing
	pH	mV	pH	mV
0	13.2	−775	13.1	−748
1	13.2	−792	13.1	−762
2	13.1	−815	13.0	−774
4	13.1	−828	12.9	−788
8	13.0	−812	12.9	−780
12	13.0	−810	12.7	−778
24	13.0	−807	12.6	−770

Fig. 5

Stability of dye baths in presence of dye.

Fastness Performance

Colorfastness of cotton dyed in hydrosulfite and alkaline pectinase systems were evaluated. The results are shown in Table XVII. The lightfastness of dyed cotton remained very good to excellent and almost the same in both systems for the ten dyes under study, except for Yellow 5G dye. Washfastness, and dry and wet crockfastness, results gave identical, excellent fastness properties for both hydrosulfite and alkaline pectinase systems, except for Brown R dye. Overall, the colorfastness of cotton dyed using the alkaline pectinase system showed comparable performance with those dyed with the hydrosulfite system.

Table XVII

Colorfastness of Cotton Dyed in Hydrosulfite and Alkaline Pectinase Systems

Vat Dye	System	Washfastness			Crockfastness		Lightfastness
Vat Dye	System	Color Change	Stain on Cotton	Stain on Wool	Dry	Wet	Lightfastness
Green XBN	Hydrosulfite	5	5	5	5	4–5	8
Green XBN	Alk. Pectinase	5	5	5	5	4–5	8
Orange 3G	Hydrosulfite	5	5	5	5	5	7
Orange 3G	Alk. Pectinase	5	5	5	5	5	7
Yellow 5G	Hydrosulfite	5	5	5	5	5	5
Yellow 5G	Alk. Pectinase	5	5	5	5	5	5
Olive Green B	Hydrosulfite	5	5	5	5	5	8
Olive Green B	Alk. Pectinase	5	5	5	5	5	8
Red 6B	Hydrosulfite	5	5	5	5	5	7
Red 6B	Alk. Pectinase	5	5	5	5	4–5	7
Brown BR	Hydrosulfite	5	5	5	5	4–5	7
Brown BR	Alk. Pectinase	5	5	5	5	4–5	7
Grey M	Hydrosulfite	5	5	5	5	5	7
Grey M	Alk. Pectinase	5	5	5	5	4–5	7
Olive R	Hydrosulfite	5	5	5	5	5	7
Olive R	Alk. Pectinase	5	5	5	5	5	7
Brown R	Hydrosulfite	5	5	5	5	5	8
Brown R	Alk. Pectinase	5	5	5	5	4–5	7
Blue BC	Hydrosulfite	5	5	5	5	4–5	8
Blue BC	Alk. Pectinase	5	5	5	5	4–5	8

Conclusion

Application of alkaline pectinase in combination with FeSO₄ resulted in complete reduction and solubilization of vat dyes. The dyebath status in terms of reduction potential and dye strength (K/S values) of cotton was found to be similar, with little variation, to those obtained using the hydrosulfite system. The stability of the pectinase/FeSO₄ reduction baths in the absence and presence of dye showed excellent stability for 24 h. The colorfastness of the dyed cotton fabrics were also identical with those obtained from the hydrosulfite system, except for Brown R dye. Sodium hydrosulfite used for vat dye reduction can be successfully substituted with alkaline pectinase/FeSO₄, thus making the vat dyeing process eco-friendly. However, in spite of the high dyebath reduction potential, complete dye reduction and uptake did not occur for few dyes, for which the dye concentration was increased to 1.5% to give comparable K/S values to those found for the other test dyes. The reasons behind this require further investigation.

References

Khatri

; Ahmed

; Shaikh

; Phan

D. N.

; Khan

; Khatri

; Lee

; Kim

I.S.

Carbohydrate Polymers 2017, 174, 443–449.

Hihara

; Okada

; Morita

Dyes and Pigments 2002, 53, 153–177.

Chowdhury

J. Md.

; Ahmaad

H.U.

; Nasrin

Journal of Advancement in Engineering and Technology 2017, 5 (2), 1–4.

Santhi

; Moses

J.J.

Indian Journal Fibre and Textile Research 2010, 35, 349–352.

Bechtold

; Aurora

Journal of Cleaner Production 2009, 17, 1669–1679.

Santhi

; Moses

J.J.

Oriental Journal of Chemistry 2008, 24 (1), 213–222.

Vuorema

; John

; Keskitalo

; Kulandainathan

M.A.

; Marken

Dyes and Pigments 2008, 76, 542–549.

Roessler

; Xiunan

Dyes and Pigments 2003, 59, 223–235.

Teli

M.D.

; Paul

; Landage

S.M.

; Aich

Indian Journal of Fibre and Textile Research 2010, 26, 101–107.

10.

Roessler

; Crettenand

Dyes and Pigments 2004, 63, 29–37.

11.

Roessler

; Dossenbach

; Marte

; Rys

Dyes and Pigments 2002, 54, 141–146.

12.

Chakraborty

J.N.

; Chavan

R.B.

AATCC Review 2004, 4 (7), 17–20.

13.

Semet

; Sackingen

; Gurninger

G.E.

Melliand Textilberichte 1995, 76 (3), 161–164.

14.

Chakraborty

J.N.

; Das

; Chavan

R.B.

Melliand International 2005, 12 (4), 319–323.

15.

Chavan

R.B.

; Chakraborty

J.N.

Coloration Technology 2001, 117 (2), 88–94.

16.

Mojsov

International Congress Engineering, Ecology and Materials in the Processing Industry, 2011, pp 230–239.

17.

Etters

J. N.

Textile Chemist and Colorist and American Dyestuff Reporter 1999, 1 (3), 33–36.

18.

Hasan

; Nabi

; Rezwan

International Journal of Fibre and Textile Research 2015, 5 (2), 16–19.

19.

Cavoco

P.A.

; Gubitz

G.M.

Textile Processing with Enzymes; Woodhead Publishing Ltd.; Cambridge, UK, 2003.

20.

Chakraborty

J.N.

; Jaruhar

Indian Journal of Fibre and Textile Research 2014, 39, 303–309.

21.

Jaruhar

; Chakraborty

J.N.

Textile Research Journal 2013, 83 (13), 1345–1355.

22.

Kavuthodi

; Danoj

Bioscience and Biotechnology Research Communications 2018, 11 (1), 18–30.

23.

Kubra

K.T.

; Ali

; Walait

; Sundus

Journal of Pharmaceutical, Chemical and Biological Sciences 2018, 6 (2), 23–34.

24.

Pasha

K.M.

; Anuradha

; Subbarao

International Journal of Pure and Applied Sciences and Technology 2013, 16 (1), 89–95.

25.

Kashyap

D.R.

; Vohra

P. K.

; Chopra

; Tewari

Bioresource Technology 2001, 77, 215–227.

26.

; Yishu

; Donglu

Bioengineered 2017, 8 (5), 613–623.

27.

Chakraborty

J.N.

; Jaruhar

AATCC Journal of Research 2017, 4 (5), 6–13.

Cotton Dyeing with Vat Dyes using Alkaline Pectinase and Iron (II) Salt

Abstract

Keywords

Introduction

Experimental

Materials

Chemicals

Cotton Dyeing using Sodium Hydrosulfite

Cotton Dyeing using Alkaline Pectinase and FeSO4

Evaluation of Dyebath and Dyed Samples

Evaluation of Dyebath Stability

Statistical Analysis of the Dyeing Process

Results and Discussion

Sodium Hydrosulfite Reduction

Vat Dyeing using Alkaline Pectinase

Vat Dyeing using Alkaline Pectinase and FeSO4

Selection of Factors and Levels for Design

Box-Behnken Experimental Design

Statistical Analysis

Regression Data Analysis

Dyebath Stability

Without Dye

With Dye

Fastness Performance

Conclusion

References

Cotton Dyeing using Alkaline Pectinase and FeSO₄

Vat Dyeing using Alkaline Pectinase and FeSO₄
