Synthesis,Characterization,and Dyeing Performance of UV Protective Mono Azo Acid Dyes Based on 4-Hydroxybenzophenone

Abstract

A key element in reducing human UV exposure is making proper UV protective goods with good ultraviolet protection factor (UPF) protection. The current research is focused on the synthesis of UV-protective functional dyes containing benzophenone-based UV absorbers and its application on wool and silk fabrics. Novel mono azo acid dyes were synthesized by the coupling of diazonium salt solutions of different aromatic amines with 4-hydroxybenzophenone, and these were applied on wool and silk. The fabrics dyed with the synthesized dyes showed less than 5% UVA and UVB transmission, indicating good protection against UV radiation. Dyed fabric also gave good to excellent washing, rubbing, and light fastness, and UV protection properties, even after ten washing cycles.

Keywords

4-Hydroxybenzophenone Light Fastness Mono Azo Acid Dyes UPF Factor UVA UVB

Introduction

Sunlight is necessary for all living organism on earth, but exposure to UV radiation from sunlight is the primary reason for many skin diseases, including skin cancer.¹ Many studies revealed that ozone layer depletion is a foremost cause of increased skin cancer cases, especially in Australia and New Zealand. The thinning of the ozone layer means higher levels of human UV exposure, which increases skin cancer risk. UV radiation is capable of causing changes in the DNA sequence of an organism and acts as a tumor initiator as well as a tumor promoter.² These risks may be remarkably decreased by reducing the exposure of skin to UV radiation.³ Generally, protection against harmful UV radiation is improved by applying sunscreen containing a UV absorber on exposed body parts.⁴

In the last decade, awareness about apparel grade protective textiles that can protect the human body from the effect of harmful UV radiation has increased tremendously.⁵ The most effective protection from UV radiation is obtained with next to skin apparel, which depends on fabric composition such as type of fiber, fabric thickness, grams per square meter (GSM), yarn compactness, weave structure, and the dyes and finishes used.⁶ A key goal in reducing exposure to UV radiation is producing appropriate UV protective textiles with an ultraviolet protection factor (UPF) greater than 40. These kinds of textiles are essential in high altitude areas for protection against skin disease.^7–10

Conventional textiles have low UPF values. To make them UV protective, they need further treatment with certain natural or synthetic chemicals. Commercially-available synthetic UV protective finishes include benzophenone derivatives,^11,12 benzotriazole derivatives, other benzophenone-based compounds,¹³ titanium dioxide formulations, and others.¹⁴ Solumbra fabric, which is rated at 100+ sun protection factor (SPF), was awarded the prestigious Gold Triangle Award by the American Academy of Dermatology. It blocks more than 98% of UVA and UVB rays and was developed for some of the most medically sun sensitive people.^15,16 Application of commercial UV protective finishes is an additional process in textile wet processing, increasing the overall cost of the product.

In the past few years, natural colorants were found to have excellent UV protection properties owing to the presence of UV-blocking components. UPF-enhancing natural dyes from plants, namely Diospyros kaki, Dioscorea cirrhosa, Millettia sp. (Jixueteng), Ecliptae herba, and microcap nucuma, extracted using environmentally-friendly solvents, show UV-protection on cotton and silk fabrics.¹⁷ Wool, cotton, and silk fabrics dyed with pomegranate, curcumin, cutch, and red onion peel extract also show excellent UV-protection properties.¹⁸ UV-protective properties of cotton fabric dyed with green, black, and red teas,^19,20 madder, weld, cochineal,²¹ lavender, daphene, roth, curry plant,²² and neem nanoparticle²³ are also reported in the literature. Wool fabric dyed with marigold flower, honeysuckle extract, and Indian rhubarb also show excellent UPF values.^24–26 However, reproducibility, cost efficiency, inadequate degree of fixation, and low color fastness properties are some of the limitations of natural colorants.^27–29

The concept of natural colorants with UV-blocking components encouraged us to synthesize novel acid dyes with built-in UV-blocking functionality. UV absorbers such as benzophenone, benzotriazoles, acrylonitriles, and triazines are very commonly used as additives in the plastic, paint, polymer, and coating industries, where they can reduce light-induced degradation. UV absorbers proficiently absorb high-energy UV radiation and convert it into harmless heat radiation.³⁰ Benzophenone is an excellent UV absorber^31,32 that prevents the photo-degradation of many vinyl polymers.³³ Compounds such as 4-hydroxybenzophenone, 2,4-dihydroxybenzophenone, and 2-hydroxy-4-me-thoxybenzophenone bearing hydroxyl and methoxy (as auxochrome) groups and a keto (chromophore) group have widely used applications as a polymer additive.³⁴ In the literature, a few benzophenone-based acids, reactive, and disperse azo dyes are also reported.^5,32,35–39

The present communication reports the synthesis of acid azo dyes by the diazo coupling process using 4-hydroxybenzo-phenone as a coupler, and its application on wool and silk fabrics. The wool and silk fabrics dyed with synthesized acid dyes were evaluated for UPF, UVA and UVB transmission, photo-stability, and fastness properties initially and after 1, 5, and 10 washing cycles.

Experimental

Materials

4-Hydroxybenzophenone, o-aminobenzenesulfonic acid, m-aminobenzenesulfonic acid, m-aminobenzoic acid, p-aminobenzoic acid, sodium hydroxide, sodium nitrite, sodium carbonate, dimethylformamide (DMF), acetone, methanol, conc. H₂SO₄, and conc. HCl were purchased from Sigma Aldrich Ltd. Lyogen WSN leveling agent was procured from Archroma. Ready for dyeing woven wool fabric (weight 173 g/m², 55 ends/inch, and 48 picks/inch) and woven silk fabric (weight 51 g/m², 320 ends/inch and 146 picks/inch) were purchased from Kiran Treads.

All compounds were purified by recrystallization and confirmed by thin layer chromatography (TLC) analysis (silica gel 60 coated aluminum plates (Merck). The UV-Vis spectrum of the synthesized dyes was recorded on a UV-Vis spectrometer (Specord 21, AnlytikJena). The L*, a*, b*, C*, h, K/S, DE_cmc, and %STR-WSUM of dyed fabrics were obtained using a X-Rite Color i7 (illuminant D₆₅ and 10° observer).

Synthesis of Mono Azo Acid Dyes

This is the general diazotization procedure for the preparation of the monoazo acid dyes 1–4 (Scheme 1). To a 100-mL round bottom flask, either o-aminobenzenesulfonic acid or m-aminobenzenesulfonic acid (0.01 mol, 1.73 g), or m-aminobenzoic acid or p-aminobenzoic acid (0.01 mol, 1.37 g), and Na₂CO₃ (0.005 mol, 0.53 g) were dissolved in a minimum quantity of water, then sodium nitrite (0.011 mol, 0.75 g) dissolved in a minimum amount of water was further added to the round bottom flask. The reaction mixture was then cooled in an ice+salt mixture to 0–5 °C. Then, 3 mL of hydrochloric acid was cooled to 0–5 °C and the solution in the round bottom flask was quickly poured to the HCl solution under continuous stirring and stirring of the mixture continued for 30 min. After completion of diazotization, starch-iodide paper was used to verify the presence of nitrous acid, and then urea was used for the decomposition of residual nitrous acid.

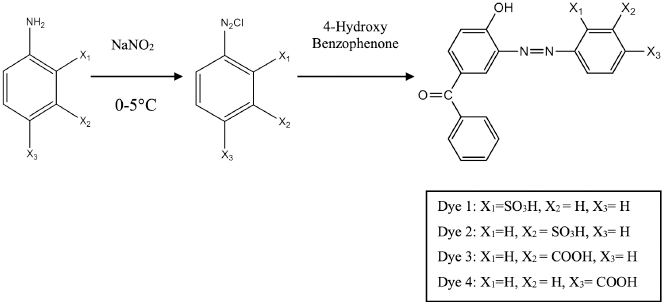

Scheme 1

Synthesis of monoazo acid dyes using 4-hydroxybenzophenone.

Na₂CO₃ (0.01 mol, 1.059 g) and NaOH (0.01 mol, 0.4 g) were dissolved in 50 mL of H₂O and gradually stirred until dissolution. 4-Hydroxybenzophenone (0.01 mol, 1.98 g) was added to the solution, followed by continuous stirring until complete dissolution, and then the solution was cooled to 0∼5 °C. The diazonium salt solution was added dropwise to the coupling component over a span of 30 min. During the entire addition, the pH of the reaction mass was adjusted to between 8 and 9. The reaction mass was stirred continuously for 2–3 h. After that, the reaction mixture's pH value was reduced to 2–3 using a 10% w/w aqueous solution of HCl. The reaction mass was filtered using Whatman filter paper and the filtered dye was further purified using DMF-ether to give dyes 1–4.

Dyeing Wool and Silk

Dyeing of wool and silk fabrics was carried out in a laboratory dyeing machine (R.B.E. Electronics) with a mass to liquor ratio (MLR) of 1:20 and the depth of the shade was 1%. The dyeing bath was adjusted to acidic pH (4.5–5) using 10% acetic acid solution and Lyogen WSN was used as a levelling agent. Wool and silk fabrics were then dyed in the prepared dye bath. Dyeing was initiated at room temperature (RT) and the temperature was gradually raised to 100 °C. Dyeing was carried out at 100 °C for 1 h, followed by cooling to 50 °C. After completion of the dyeing cycle, the dyed fabrics were thoroughly washed with warm and cold water followed by air drying.

To measure the percent exhaustion initially and after the dyebath liquor was collected, the absorbance of the collected solution was measured on a UV-Vis transmission spectrophotometer. The percent exhaustion (%E) was calculated from spectroscopic measurements according to the following formula.

% E = 1 - \frac{(C 2)}{(C 1)} \times 100

C1 and C2 are the before and after dyeing concentrations of dye solution respectively.

Fabric Washing

The undyed and dyed wool and silk fabrics were washed 10 times according to ISO 6330-2012 standard test method to study the durability of the UV protective properties of the synthesized dyes. UPF and fastness properties of the dyed wool and silk fabrics were evaluated after 1, 5, and 10 washes.

Analysis

Determination of UPF Factor and UV Transmission

The UPF and UV transmission through the dyed sample was measured on a spectrophotometer (Labsphere UPF TesterV-2000F Fabric Analyzer). Percent transmission of UVA and UVB radiation, and UPF values, were determined using AATCC TM183-2010.

UV Exposure and Color Fading Measurements

UV light exposure and color fading measurements were carried out using a customized method based on AATCC TM186. Samples were exposed for 100 h at 60 °C temperature at an irradiance of 0.77 W/m². Color difference between unexposed and exposed samples and color strength after 100 h of exposure was measured on a reflectance spectrophotometer (Color i7, X-Rite).

Fastness

Lightfastness of the wool and silk fabrics dyed with synthesized dyes were tested on a Xenon arc lamp apparatus following ISO 105-BO2. Washing fastness was tested on a Washometer (SDL Atlas) following ISO 105-C10-C(3). Change in shade and adjacent fabric staining were reported as per ISO gray scales for color change and staining. Rubbing fastness was tested on a MAG rubbing tester using ISO 105 X12:2016(E), including both dry and wet rubbing. Staining of cotton rubbing cloth was assessed with the gray scale for staining under a suitable illuminant.

Dye Toxicity Testing

The determination of aromatic amine toxicity derived from azo colorants was conducted by subjecting a dyed wool fabric to direct reduction for non-disperse dyes as per EN ISO 14362-1 2017.

For non-disperse dyes, the textile test specimen was directly subjected to reduction with sodium dithionite in a citrate-buffered aqueous solution at 70 °C in a closed vessel. Derived amines were then transferred to a t-butyl methyl ether phase by liquid-liquid extraction and cleaned up on a diatomaceous earth column. After concentration of the t-butyl methyl ether extract, amine detection and quantification were conducted by gas chromatography/mass spectrometry (GC/MS).⁴⁰

Results and Discussion

Elemental and TLC Analysis of Synthesized Dyes

The dyes obtained were in powder form and in color ranges from yellow to brownish yellow. Composition was confirmed by elemental analysis (Table I). TLC was used for checking purity of dyes using a hexane:ethyl acetate:methanol (3:1:3) solvent system and a single spot was obtained for all dyes.

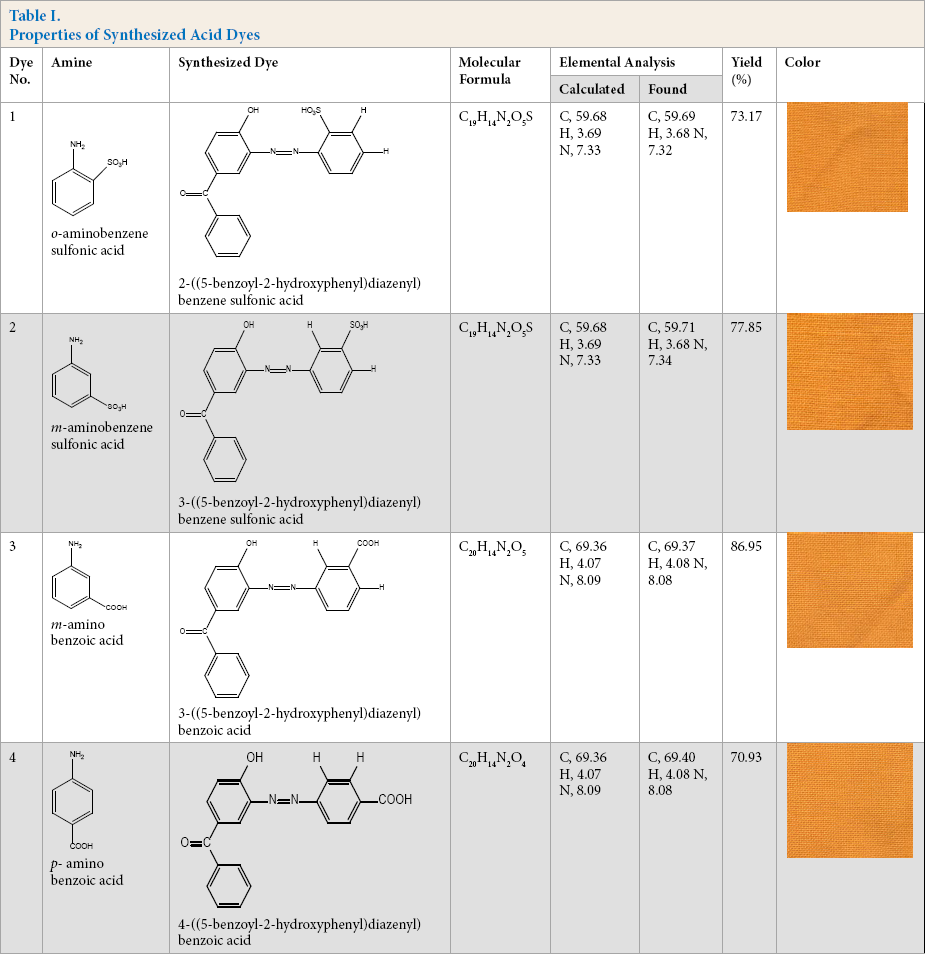

Table I

Properties of Synthesized Acid Dyes

Dye Spectral Data

Dyes 1–4 were dissolved in DMF and UV-Vis absorption spectra were recorded for each dye. All four dyes show prominent absorption peaks in the 290–476 nm region. Absorption peaks in the UV region indicate that the synthesized dyes absorbed UV light and were therefore effective against harmful UV radiation. Fig. 1 shows the UV-Vis absorption spectra of dyes 1–4. The molar extinction coefficients of these dyes were greater than 17,000 L/mol·cm (Table II).

Table II

λ_max and Molar Extinction Coefficient of Dyes 1–4 in DMF

Dye	λ_maxa(nm)	ε_a(L mol¹ cm–¹)	λ_maxb (nm)	ε_b(L mol ¹ cm ^–1)
1	296	27,932	447	17,716
2	293	89,364	408	29,171
3	290	36,202	476	29,920
4	295	56,554	418	25,116

Fig. 1

UV-Visible absorption scan of Dyes 1–4 in DMF.

Dyeing Properties of Dyes

Wool and silk fabrics were dyed with dyes 1–4. Percent exhaustion of all four dyes on wool and silk fabrics is reported in Table III. All dyes showed more than 95% exhaustion on wool and more than 89% exhaustion on silk. These dyes gave colors ranging from yellow to brownish yellow with uniform dyeing, excellent brightness, and depth of color on wool and silk fabric.

Table III

Percent Exhaustion of Dye Bath

Dye	Wool % Exhaustion	Silk % Exhaustion
1	97.2	92.4
2	95.6	89.9
3	95.9	91.3
4	98.0	92.8

Color Parameters of Fabrics before and after UV Exposure

To check the lightfastness of the dyed UV protective azo acid dyed textile material specimens, they were exposed to a UV light source and resistance to degradation was rated based on the color change of the specimens. Samples were exposed for 100 h at an irradiance of 0.77 W/m² at 60 °C and evaluated with AATCC method [customized]. The results of this experiment are given in Tables IV and V. Color parameters such as L*, a*, b*, C*, h, and K/S of unexposed and exposed fabrics were measured on a reflectance spectrophotometer. Color strength after exposure and the color difference between unexposed and exposed samples were also reported.

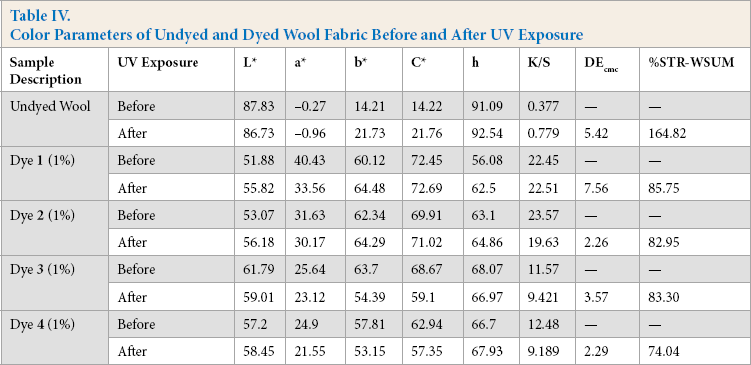

Table IV

Color Parameters of Undyed and Dyed Wool Fabric Before and After UV Exposure

Sample Description	UV Exposure	L*	a*	b*	C*	h	K/S	DE_cmc	%STR-WSUM
Undyed Wool	Before	87.83	−0.27	14.21	14.22	91.09	0.377	—	—
Undyed Wool	After	86.73	−0.96	21.73	21.76	92.54	0.779	5.42	164.82
Dye 1 (1%)	Before	51.88	40.43	60.12	72.45	56.08	22.45	—	—
Dye 1 (1%)	After	55.82	33.56	64.48	72.69	62.5	22.51	7.56	85.75
Dye 2 (1%)	Before	53.07	31.63	62.34	69.91	63.1	23.57	—	—
Dye 2 (1%)	After	56.18	30.17	64.29	71.02	64.86	19.63	2.26	82.95
Dye 3 (1%)	Before	61.79	25.64	63.7	68.67	68.07	11.57	—	—
Dye 3 (1%)	After	59.01	23.12	54.39	59.1	66.97	9.421	3.57	83.30
Dye 4 (1%)	Before	57.2	24.9	57.81	62.94	66.7	12.48	—	—
Dye 4 (1%)	After	58.45	21.55	53.15	57.35	67.93	9.189	2.29	74.04

Table V

Color Parameters of Undyed and Dyed Silk Fabric Before and After UV Exposure

Sample Description	UV Exposure	L*	a*	b*	C*	h	K/S	DE_cmc	%STR-WSUM
Untreated Silk	Before	94.58	−0.29	5.11	5.12	93.23	0.054	—	—
Untreated Silk	After	89.08	0.61	18.52	18.53	88.12	0.427	14.39	678.11
Dye 1 (1%)	Before	85.97	1.86	40.64	40.68	87.38	2.260	—	—
Dye 1 (1%)	After	83.17	3.88	32.53	32.76	83.20	1.398	4.06	86.05
Dye 2 (1%)	Before	86.10	3.04	43.42	43.52	85.99	1.958	—	—
Dye 2 (1%)	After	84.47	4.37	37.00	37.26	83.26	1.463	3.02	87.28
Dye 3 (1%)	Before	84.22	5.16	28.90	29.35	79.87	0.991	—	—
Dye 3 (1%)	After	83.64	4.79	26.02	26.46	79.57	0.928	1.48	94.50
Dye 4 (1%)	Before	82.47	5.10	33.91	34.29	81.45	1.688	—	—
Dye 4 (1%)	After	82.56	5.59	29.93	30.45	79.42	1.234	2.05	83.72

After 100 h of UV exposure, most of the wool fabrics dyed with dyes 1–4 retained color strength in the range of 74–85%, and for dyed silk fabrics, 83–94%. This indicates that dyeing wool and silk fabrics with dyes 1–4 effectively protected the fabrics against UV light color degradation.

UV Protective Properties of Fabrics before and after Washing

The UV protection properties of the undyed and dyed wool fabrics were evaluated initially and after 1, 5, and 10 washes as per AATCC 183-2010. The UPF values, and percent transmission of UVA and UVB radiation for undyed and dyed wool and silk fabrics are given in Table VI. The UPF value of undyed wool fabric was 17, whereas the dyed wool fabrics using dyes 1–4 to 1% shade gave a UPF value greater than 40. Wool fabric dyed with dyes 1–4 gave up to a 35% reduction in UPF values after 10 washes, but still gave very good protection against UV radiation, with a UPF value greater than 35. Undyed wool fabric gave 11.61% and 4.31% UVA and UVB transmission respectively. Wool fabric dyed with dyes 1–4 (benzophenone as coupler) gave a UVA transmission level of less than 4%, and UVB transmission of less than 3%. The UPF value of undyed silk fabric was 8; silk fabric dyed to 1% shade gave UPF values in the range of 27–31. UPF values of the dyed silk fabrics significantly decreased after 10 washes, but still gave good protection against UV radiation. Undyed silk gave 19.04% UVA transmission and 6.79% UVB transmission. Silk fabric dyed with dyes 1–4 gave UVA transmission values from 3.43–4.71% and UVB transmission values from 2.66–3.40%. Silk fabric gave good UV-protective properties, whereas wool gave excellent UV-protective properties when dyed with dyes 1–4.

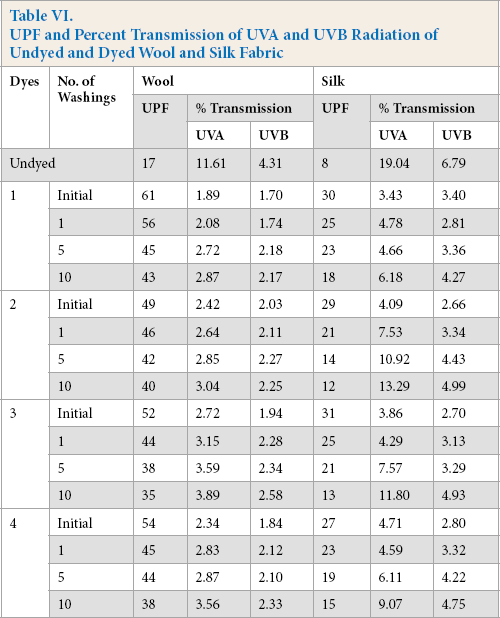

Table VI

UPF and Percent Transmission of UVA and UVB Radiation of Undyed and Dyed Wool and Silk Fabric

Dyes	No. of Washings	Wool			Silk
		UPF	% Transmission		UPF	% Transmission
		UPF	UVA	UVB	UPF	UVA	UVB
Undyed		17	11.61	4.31	8	19.04	6.79
1	Initial	61	1.89	1.70	30	3.43	3.40
	1	56	2.08	1.74	25	4.78	2.81
	5	45	2.72	2.18	23	4.66	3.36
	10	43	2.87	2.17	18	6.18	4.27
2	Initial	49	2.42	2.03	29	4.09	2.66
	1	46	2.64	2.11	21	7.53	3.34
	5	42	2.85	2.27	14	10.92	4.43
	10	40	3.04	2.25	12	13.29	4.99
3	Initial	52	2.72	1.94	31	3.86	2.70
	1	44	3.15	2.28	25	4.29	3.13
	5	38	3.59	2.34	21	7.57	3.29
	10	35	3.89	2.58	13	11.80	4.93
4	Initial	54	2.34	1.84	27	4.71	2.80
	1	45	2.83	2.12	23	4.59	3.32
	5	44	2.87	2.10	19	6.11	4.22
	10	38	3.56	2.33	15	9.07	4.75

UVA and UVB transmission values of untreated and treated substrates using dyes 1–4 indicate that the synthesized moiety containing UV absorbers dissipated absorbed energy very easily on both substrates, helping to avoid light degradation or color loss. UV absorbing dyes 1–4 applied on wool and silk increased the fabrics’ UPF values, essential for UV protective clothing.

Fastness Properties

Wool and silk fabrics dyed with dyes 1–4 showed good fastness to washing, light, and dry and wet rubbing (Tables VII–VIII). There was no significant change in the fastness properties of wool and silk fabrics after 1, 5, and 10 washings. Dye 4 gave a comparatively lower lightfastness rating when compared to the other three dyes, both on wool and silk fabrics, whereas dye 3 gave the highest rating. Lightfastness of dyes 1–4 on wool and silk fabrics gave ratings from 4 to 6, decreasing to 4 for some dyes after 10 washes.

Table VII

Washing Fastness, Light Fastness and Rubbing Fastness of Dyed Wool Fabric

Dyes	No. of Washings	Washing Fastness			Light Fastness	Rubbing Fastness
Dyes	No. of Washings	Change in Shade	Staining on Wool	Staining on Cotton	Light Fastness	Dry Rub	Wet Rub
1	Initial	5	5	5	5	5	4–5
	1	5	5	5	5	5	5
	5	5	5	5	5	5	5
	10	5	5	5	4–5	5	5
2	Initial	4–5	5	5	5	5	4–5
	1	5	5	5	5	5	4–5
	5	5	5	5	4–5	5	5
	10	5	5	5	4–5	5	5
3	Initial	4–5	5	5	5–6	4–5	4–5
	1	5	5	5	5–6	4–5	4–5
	5	5	5	5	5	5	5
	10	5	5	5	5	5	5
4	Initial	4–5	4–5	5	4–5	4–5	4
	1	5	5	5	4–5	5	4–5
	5	5	5	5	4	5	5
	10	5	5	5	4	5	5

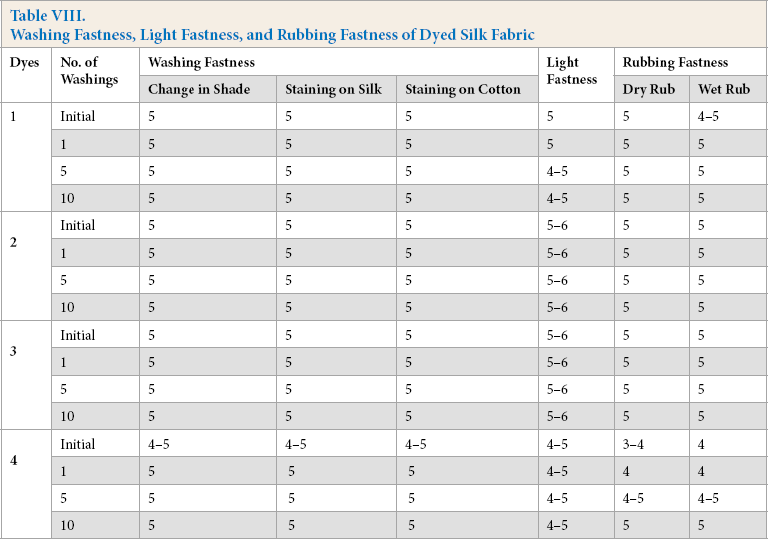

Table VIII

Washing Fastness, Light Fastness, and Rubbing Fastness of Dyed Silk Fabric

Dyes	No. of Washings	Washing Fastness			Light Fastness	Rubbing Fastness
Dyes	No. of Washings	Change in Shade	Staining on Silk	Staining on Cotton	Light Fastness	Dry Rub	Wet Rub
1	Initial	5	5	5	5	5	4–5
	1	5	5	5	5	5	5
	5	5	5	5	4–5	5	5
	10	5	5	5	4–5	5	5
2	Initial	5	5	5	5–6	5	5
	1	5	5	5	5–6	5	5
	5	5	5	5	5–6	5	5
	10	5	5	5	5–6	5	5
3	Initial	5	5	5	5–6	5	5
	1	5	5	5	5–6	5	5
	5	5	5	5	5–6	5	5
	10	5	5	5	5–6	5	5
4	Initial	4–5	4–5	4–5	4–5	3–4	4
	1	5	5	5	4–5	4	4
	5	5	5	5	4–5	4–5	4–5
	10	5	5	5	4–5	5	5

Dye Toxicity Testing

To test dye toxicity, wool fabric dyed with synthesized acid dyes 1–4 based on benzophenone were tested for the presence of banned amines as per EN ISO 14362-1 (Table IX).

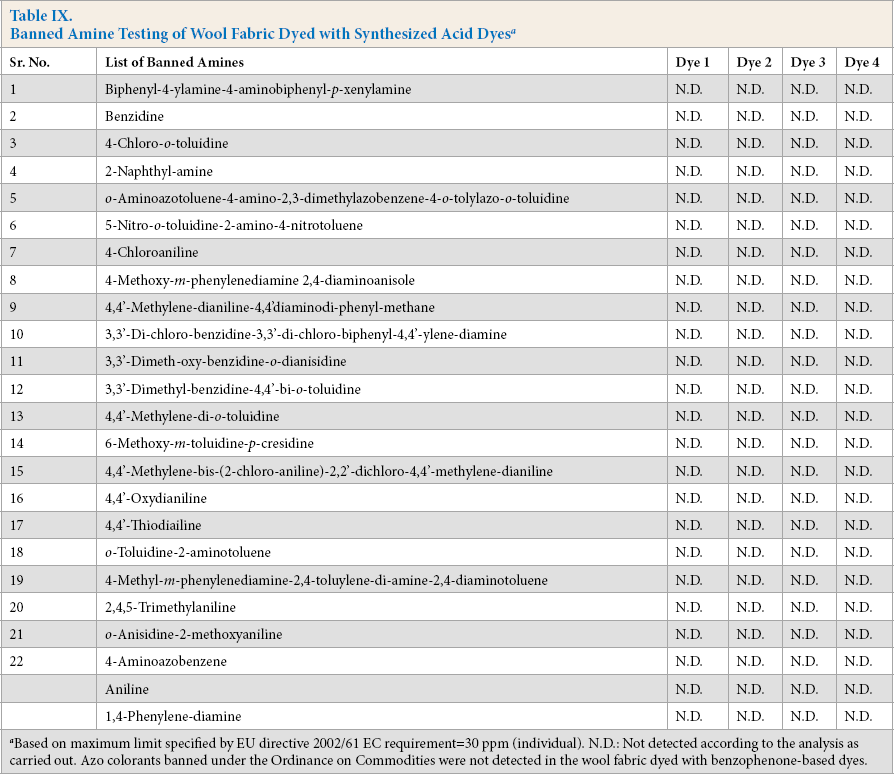

Table IX

Banned Amine Testing of Wool Fabric Dyed with Synthesized Acid Dyes^a

Sr. No.	List of Banned Amines	Dye 1	Dye 2	Dye 3	Dye 4
1	Biphenyl-4-ylamine-4-aminobiphenyl-p-xenylamine	N.D.	N.D.	N.D.	N.D.
2	Benzidine	N.D.	N.D.	N.D.	N.D.
3	4-Chloro-o-toluidine	N.D.	N.D.	N.D.	N.D.
4	2-Naphthyl-amine	N.D.	N.D.	N.D.	N.D.
5	o-Aminoazotoluene-4-amino-2,3-dimethylazobenzene-4-o-tolylazo-o-toluidine	N.D.	N.D.	N.D.	N.D.
6	5-Nitro-o-toluidine-2-amino-4-nitrotoluene	N.D.	N.D.	N.D.	N.D.
7	4-Chloroaniline	N.D.	N.D.	N.D.	N.D.
8	4-Methoxy-m-phenylenediamine 2,4-diaminoanisole	N.D.	N.D.	N.D.	N.D.
9	4,4’-Methylene-dianiline-4,4′diaminodi-phenyl-methane	N.D.	N.D.	N.D.	N.D.
10	3,3’-Di-chloro-benzidine-3,3’-di-chloro-biphenyl-4,4’-ylene-diamine	N.D.	N.D.	N.D.	N.D.
11	3,3’-Dimeth-oxy-benzidine-o-dianisidine	N.D.	N.D.	N.D.	N.D.
12	3,3’-Dimethyl-benzidine-4,4’-bi-o-toluidine	N.D.	N.D.	N.D.	N.D.
13	4,4’-Methylene-di-o-toluidine	N.D.	N.D.	N.D.	N.D.
14	6-Methoxy-m-toluidine-p-cresidine	N.D.	N.D.	N.D.	N.D.
15	4,4’-Methylene-bis-(2-chloro-aniline)-2,2’-dichloro-4,4’-methylene-dianiline	N.D.	N.D.	N.D.	N.D.
16	4,4’-Oxydianiline	N.D.	N.D.	N.D.	N.D.
17	4,4’-Tiodiailine	N.D.	N.D.	N.D.	N.D.
18	o-Toluidine-2-aminotoluene	N.D.	N.D.	N.D.	N.D.
19	4-Methyl-m-phenylenediamine-2,4-toluylene-di-amine-2,4-diaminotoluene	N.D.	N.D.	N.D.	N.D.
20	2,4,5-Trimethylaniline	N.D.	N.D.	N.D.	N.D.
21	o-Anisidine-2-methoxyaniline	N.D.	N.D.	N.D.	N.D.
22	4-Aminoazobenzene	N.D.	N.D.	N.D.	N.D.
	Aniline	N.D.	N.D.	N.D.	N.D.
	1,4-Phenylene-diamine	N.D.	N.D.	N.D.	N.D.

Based on maximum limit specified by EU directive 2002/61 EC requirement = 30 ppm (individual). N.D.: Not detected according to the analysis as carried out. Azo colorants banned under the Ordinance on Commodities were not detected in the wool fabric dyed with benzophenone-based dyes.

Conclusion

UV protective dyes 1–4 (using 4-hydroxybenzophenone as a coupler) were synthesized using the diazo-coupling reaction. Results showed that the wool and silk fabrics dyed with dyes 1–4 gave greater than 85% exhaustion. All dyed wool fabrics gave less than 5% UVA and UVB transmission even after 10 washings, indicating very good protection against UV radiation. Silk fabric gave good protection against UV radiation. The dyed fabrics had excellent and very good lightfastness on wool and silk, respectively, indicating the photo-stability of the dyes. Dyes 1–4 gave satisfactory dyeing properties on wool and silk, and the dyed fabrics gave excellent washing, rubbing, and light fastness properties, along with good UV radiation protective properties. Dyes 1–4 were also free from banned amines as per EN ISO 14362-1.
