Novel Positron Emission Tomography/Computed Tomography of Diffuse Parenchymal Lung Disease Combining a Labeled Somatostatin Receptor Analogue and 2-Deoxy-2 [ 18 F] Fluoro-D-Glucose

Abstract

We prospectively investigated the potential of positron emission tomography (PET) using the somatostatin receptor (SSTR) analogue ⁶⁸Ga-DOTATATE and 2-deoxy-2[¹⁸F]fluoro-D-glucose (¹⁸F-FDG) in diffuse parenchymal lung disease (DPLD). Twenty-six patients (mean age 68.9 ± 11.0 years) with DPLD were recruited for ⁶⁸Ga-DOTATATE and ¹⁸F-FDG combined PET/high-resolution computed tomography (HRCT) studies. Ten patients had idiopathic pulmonary fibrosis (IPF), 12 patients had nonspecific interstitial pneumonia (NSIP), and 4 patients had other forms of DPLD. Using PET, the pulmonary tracer uptake (maximum standardized uptake value [SUV_max]) was calculated. The distribution of PET tracer was compared to the distribution of lung parenchymal changes on HRCT. All patients demonstrated increased pulmonary PET signal with ⁶⁸Ga-DOTATATE and ¹⁸F-FDG. The distribution of parenchymal uptake was similar, with both tracers corresponding to the distribution of HRCT changes. The mean SUV_max was 2.2 ± 0.7 for ⁶⁸Ga-DOTATATE and 2.8 ± 1.0 (t-test, p = .018) for ¹⁸F-FDG. The mean ⁶⁸Ga-DOTATATE SUV_max in IPF patients was 2.5 ± 0.9, whereas it was 2.0 ± 0.7 (p = .235) in NSIP patients. The correlation between ⁶⁸Ga-DOTATATE SUV_max and gas transfer (transfer factor of the lung for carbon monoxide [TL_CO]) was r = .34 (p = .127) and r = .49 (p = .028) between ¹⁸F-FDG SUV_max and TL_CO. We provide noninvasive in vivo evidence in humans showing that SSTRs may be detected in the lungs of patients with DPLD in a similar distribution to sites of increased uptake of ¹⁸F-FDG on PET.

DIFFUSE PARENCHYMAL LUNG DISEASE (DPLD) is associated with significant morbidity and has an incidence of 57 in 100,000 per year. It consists of a heterogeneous group of diseases with varying amounts of interstitial inflammation and fibrosis.¹ Whereas the prognosis and treatment are relatively good for nonspecific interstitial pneumonia (NSIP), treatment options are limited and the prognosis is poor for idiopathic pulmonary fibrosis (IPF). Development of new and effective treatment options is urgently needed. Using the currently available clinical end points such as serial lung function and survival data, trials of novel agents will be long in duration and require costly clinical studies. However, at present, there is a lack of useful biomarkers to directly quantify or monitor disease activity in DPLD.^2–5

It was recently demonstrated that 2-deoxy-2[¹⁸F]fluoro-D-glucose (¹⁸F-FDG) positron emission tomography (PET) signal is consistently raised and can be objectively measured in patients with DPLD.^6–9 The spatial resolution of PET is limited, and ¹⁸F-FDG is a nonspecific tracer.¹⁰ So it could be argued that its uptake in DPLD is secondary to inflammation either of the interstitium or in infected dilated airspaces consequent on adjacent fibrosis^11,12 rather than active fibrogenesis.

Somatostatin receptor (SSTR) analogues labeled with positron emitters have recently become available.¹³ These tracers have higher specificity in terms of cellular targeting than ¹⁸F-FDG, which simply reflects glucose metabolism. SSTRs are expressed on monocytes and lymphocytes but have not been described on neutrophils.^14,15 This reflects the clinical observation that patients with pneumonia show uptake of ¹⁸F-FDG but not of the somatostatin analogue DOTATATE in the affected lung.¹¹ Moreover, somatostatin analogues were recently shown to suppress pulmonary fibroblasts in animals in vivo and in human pulmonary fibroblasts in vitro.¹⁶ Indeed, there is potential for radionuclide imaging as previously described using conventional gamma imaging.¹⁷ However, this type of imaging is limited by resolution compared to PET.¹⁸

In this study, we performed imaging of DPLD patients with a somatostatin analogue PET tracer and compared the PET findings to those using ¹⁸F-FDG. The hypothesis was that the greater cellular targeting of DOTATATE would result in different uptake characteristics in comparison with ¹⁸F-FDG. Therefore, a broad spectrum of DPLD was included in the study, ranging from predominantly fibrotic processes (IPF) through mixed inflammatory and fibrotic patterns (NSIP) to inflammatory predominant patterns (cryptogenic organizing pneumonitis [COP]) on the basis of high-resolution computed tomography (HRCT).

Materials and Methods

Patients

Institutional Review Board permission and informed patient consent were obtained for this prospective study. Twenty-six patients (19 males, 7 females; mean age 68.9 ± 11.0 years) with DPLD were recruited for combined PET/HRCT studies using both a ⁶⁸Ga-SSTR analogue and ¹⁸F-FDG. All patients were diagnosed with DPLD following multidisciplinary review on the basis of clinical and pulmonary function test (PFT) findings and the HRCT features. Ten patients had IPF diagnosed on the basis of concordant clinical and imaging findings according to the American Thoracic Society-European Respiratory Society criteria.² Twelve patients had NSIP, 11 diagnosed clinically on the basis of imaging features and 1 diagnosed on open lung biopsy. Four patients had other forms of DPLD; two patients had biopsy-proven COP, one patient had amiodarone-associated interstitial fibrosis, and one patient had asbestosis. Infection and thoracic malignancy were excluded on clinical and radiologic grounds. Full PFTs were performed. The clinical profile of the patients is summarized in Tables 1, Table 2, and Table 3.

Table 1.

Clinical Profile of the 10 Patients with Idiopathic Pulmonary Fibrosis Recruited for This Study

Patient	Diagnosis	Associated Comorbidity	TL_CO	DOTATATE SUV_max	FDG SUV_max
1	IPF	None	85	2.6	2.9
2	IPF	None	50	2.8	1.8
4	IPF	None	44	2.4	4.3
5	IPF	None	49	2	3.2
6	IPF	None	53	1.9	2.4
8	IPF	None	49	2.5	4.9
9	IPF	None	63	2.3	2.4
12	IPF*	None	52	4.1	3
15	IPF	None	43	3.3	—
16	IPF	None	93	0.9	1.2

FDG = fluoro-D-glucose; IPF = idiopathic pulmonary fibrosis; SUV_max = maximum standardized uptake value; TL_CO = transfer factor of the lung for carbon monoxide.

Lung biopsy was performed.

Pulmonary function tests are percent predicted.

Table 2.

Clinical Profile of the 12 Patients Recruited with Nonspecific Interstitial Pneumonia for This Study

Patient	Diagnosis	Associated Comorbidity	TL_CO	DOTATATE SUV_max	FDG SUV_max
10	NSIP	CTD	37	2.9	2.4
11	NSIP	CTD	41	1.5	2.1
14	NSIP	None	—	2.7	4.9
18	NSIP	CTD	56	1.2	2.7
19	NSIP	CTD	49	2.3	1.7
20	NSIP	CTD	—	2.8	2
21	NSIP	CTD	—	1.1	2.4
22	NSIP	CTD	58	1.8	2.9
23	NSIP	CTD	48	1.9	3.5
24	NSIP	CTD	29	1.7	3.3
25	NSIP	CTD	55	1.9	3.5
26	NSIP	CTD	61	2.8	1.8

CTD = connective tissue disease; FDG = fluoro-D-glucose; NSIP = nonspecific interstitial pneumonia; SUV_max = maximum standardized uptake value; TL_CO ⁼ transfer factor of the lung for carbon monoxide.

Table 3.

Clinical Profile of the 4 Patients with Other Forms of Diffuse Parenchymal Lung Disease (not Idiopathic Pulmonary Fibrosis or Nonspecific interstitial Pneumonia) Recruited for This Study

Patient	Diagnosis	Associated Comorbidity	TL_CO	DOTATATE SUV_max	FDG SUV_max
3	Amiodarone lung	Amiodarone	50	2.7	3.8
7	COP*	None	46	2.8	2.5
13	COP*	None	70	1.9	—
17	Asbestosis	Asbestos	—	1.8	2.4

COP = cryptogenic organizing pneumonia; CTD = connective tissue disease; SUV_max = maximum standardized uptake value; TL_CO ⁼ transfer factor of the lung for carbon monoxide.

Lung biopsy was performed.

Pulmonary function tests are percent predicted.

Imaging

Radiolabeling of ≈ 50 μg DOTATATE ([DOTA-DPhel, Tyr3]-ocreotate) with 600 to 1,200 MBq ⁶⁸Ga was performed with fully automated equipment from Eckert & Ziegler (Berlin, Germany).¹⁹ The automated preparation was done under sterile conditions in an isolator, and the labeling yield was analyzed by high-performance liquid chromatography (HPLC).

Images were acquired 1 hour after injecting 200 MBq of ¹⁸F-FDG or 175 MBq of ⁶⁸Ga-DOTATATE using a dedicated combined PET/64-detector computed tomography (CT) unit (GE Healthcare Technology, Waukesha, WI). For both the ¹⁸F-FDG and DOTATATE studies, three imaging sequences of the thorax were performed while the patient remained supine on the table throughout – “physical coregistration.” CT was performed for attenuation correction using 64 × 3.75 mm detectors, a pitch of 1.5, and 5 mm collimation (140 kVp and 80 mA in 0.8 seconds). Maintaining the patient's position, a whole-body PET emission scanning was performed and covered an area identical to that covered by CT. Next, maintaining the patient's position, deep inspiratory HRCT was performed using 64 × 1.25 mm detectors, a pitch of 0.53, and 1.25 mm collimation (120 kVp and 100 mAs). Somatostatin analogue acquisitions were carried out in three-dimensional mode (4 minutes/bed position), whereas ¹⁸F-FDG acquisitions were carried out in two-dimensional mode (8 minutes/bed position). Forty-seven transaxial emission images of 3.27 mm thickness (pixel size 3.9 mm) were reconstructed using ordered subsets expectation maximization (OSEM) with two iterations and 28 subsets. The axial field of view was 15.7 cm per bed position.

Image Analysis

The methodological details of our technique and its reproducibility in DPLD have already been described.⁶ PET/CT images were reviewed by a radiologist with dual accreditation in nuclear medicine with a long-term interest in cardiothoracic PET/CT (< 5 years). PET/CT images were loaded onto an Advantage workstation (GE Healthcare Technology). Both attenuation- and non-attenuation-corrected images were reviewed to ensure that areas of higher density lung were not accounting for increases in the PET standardized uptake value (SUV).²⁰ Using an automated 5 mm region of interest manually moved throughout the lung parenchyma, the maximum standardized uptake value (SUV_max) was recorded (Figure 1).

Figure 1.

A 68-year-old male patient with known idiopathic pulmonary fibrosis. The lower image from a ¹⁸F-FDG-PET study demonstrates a region of interest (ROI) measuring the pulmonary SUV_max at 2.5. The upper image is the coregistered axial CT scan.

The HRCT images were reconstructed using soft tissue and high spatial frequency reconstruction algorithms. The images were then loaded into a proprietary workstation and reviewed by a thoracic radiologist with a specialist interest in HRCT (more than 13 years' experience) without detailed knowledge of the PET images. The radiologist had access to the full HRCT data set but was only given PET/CT images of the sites of interest identified by the PET reporters (see above). The lung parenchyma in the region of the maximal pulmonary ¹⁸F-FDG uptake (see above and below) was examined for the presence of ground-glass opacity, reticulation, honeycombing, and architectural distortion/traction bronchiectasis; thus, the predominant pattern was determined, that is, ground-glass predominant^21,22 or reticulation/honeycombing predominant.^23,24

Statistical Analysis

All statistical tests were performed using software from GraphPad (San Diego, CA). Normality was assessed using Kolmogorov-Smirnov testing. Comparisons between ⁶⁸Ga somatostatin analogue and ¹⁸F-FDG uptake were made using unpaired t-tests. Comparison of findings between tracer pulmonary uptake of IPF and other DPLD patients and between SUV in honeycombing and ground-glass HRCT patterns was made using unpaired t-tests. Correlations between pulmonary tracer uptake and PFTs were made using linear regression. Statistical significance was set at p ≤ .05.

Results

See Table 1, Figure 2, and Figure 3.

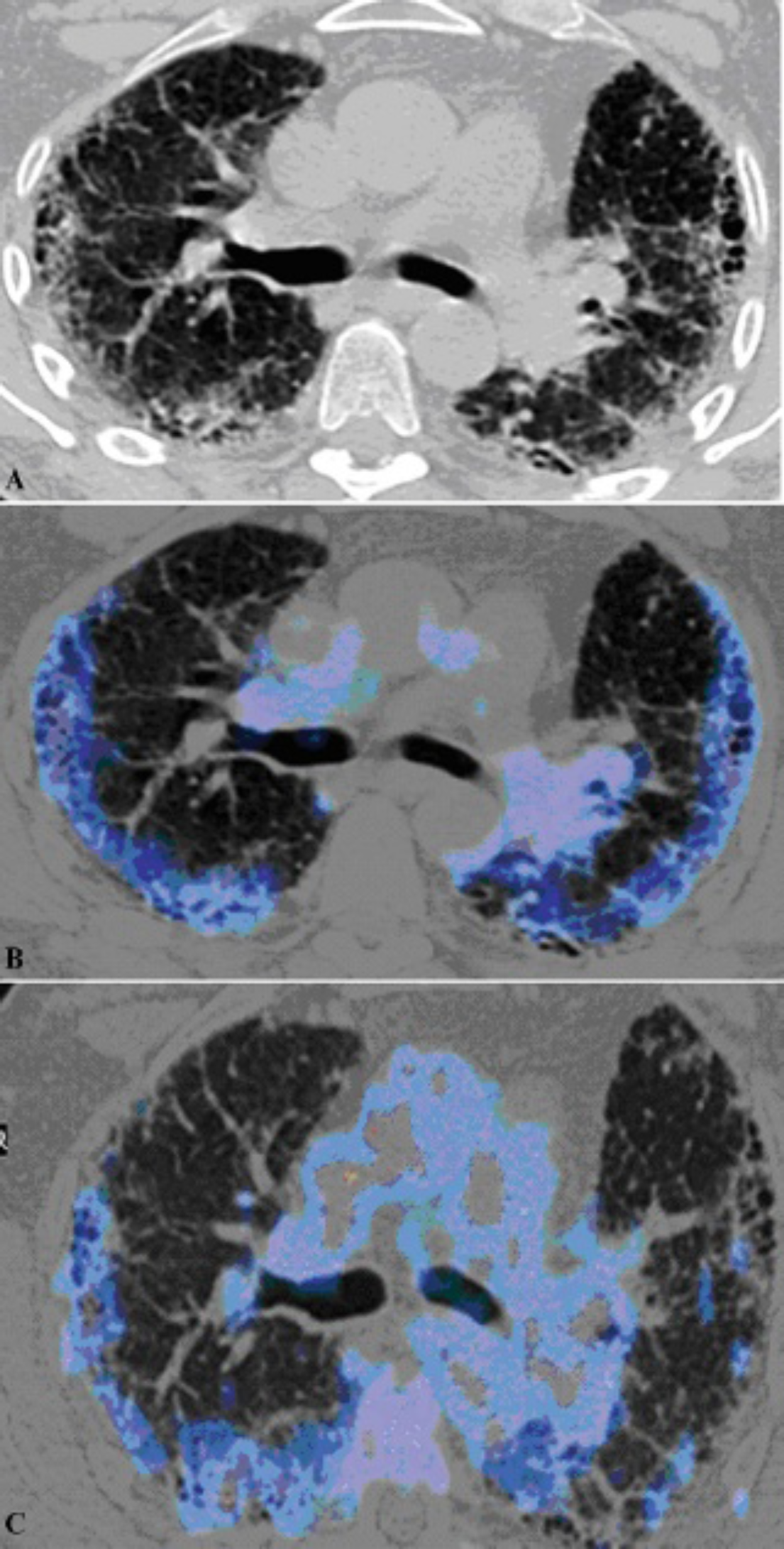

Figure 2.

A 68–year-old male patient with idiopathic pulmonary fibrosis. The axial CT scan (A) shows the pulmonary parenchymal pattern of reticular and honeycombing. These areas correspond to increased uptake of ⁶⁸Ga-DOTATATE (blue) on the fused PET/CT image (B). A similar lung parenchymal pattern of tracer uptake is identified on the ¹⁸F-FDG fused image (C). There is, however, more mediastinal uptake of tracer compared to the ⁶⁸Ga-DOTATATE.

Figure 3.

A 63-year-old male patient, one of eight with idiopathic pulmonary fibrosis in the study cohort. The coronal CT scan (A) shows the pulmonary parenchymal pattern of honeycombing, which corresponds to increased uptake of ⁶⁸Ga-DOTATATE (blue) on the fused PET/CT image (B). The infradiaphragmatic uptake (yellow) is physiologic hepatic activity.

Somatostatin Imaging

The labeling yield and radiochemical purity of ⁶⁸Ga-DOTATATE were > 97% at a specific activity of 17 to 34 GBq/μmol.

The mean lung ⁶⁸Ga-DOTATATE SUV_max was 2.2 ± 0.7 compared to the quoted mean ⁶⁸Ga-DOTATATE SUV_max of normal lung of 1.3.²⁵ The mean background lung ⁶⁸Ga-DOTATATE was 0.4 ± 0.2 (normal lung confirmed on HRCT). The mean pulmonary somatostatin analogue target to background (lung) ratio (TBR) was 5.3 ± 2.3. The mean mediastinal node SUV_max was 1.8 ± 0.6. The areas of increased somatostatin analogue uptake corresponded to the distribution of lung parenchymal abnormality on coregistered CT. The mean ⁶⁸Ga-DOTATATE SUV_max in patients with IPF was 2.5 ± 0.9, whereas in other forms of DPLD, it was 2.1 ± 0.7 (p = .253). The correlation between SUV_max and gas transfer (transfer factor of lung for carbon monoxide [TL_CO]) was −0.34 (p = .127).

Correlative Imaging with HRCT and ¹⁸F-FDG PET

Two of the above patients did not have ¹⁸F-FDG PET studies; one had a biopsy before the ¹⁸F-FDG study could be performed, and the other withdrew from the study following the ⁶⁸Ga-DOTATATE PET examination. The mean interval between ⁶⁸Ga-DOTATATE and ¹⁸F-FDG PET/CT studies was 2.2 months. In all patients, the areas of increased somatostatin analogue uptake corresponded to the distribution of lung parenchymal abnormality on coregistered CT. The uptake of DOTATATE had an SUV_max of 1.9 ± 0.7 in ground-glass-predominant HRCT lung parenchyma pattern, whereas in reticular honeycomb lung parenchyma changes, it was 2.4 ± 0.7 (p = .12).

The mean ¹⁸F-FDG SUV_max was 2.8 ± 1.0 versus ⁶⁸Ga-DOTATATE of 2.2 ± 0.7 (p = .018). The mean ¹⁸F-FDG background lung was 0.6 ± 0.2 versus ⁶⁸Ga-DOTATATE of 0.4 ± 0.2 (p= .008). The mean ¹⁸F-FDG TBR was 5.2 ± 2.1 versus ⁶⁸Ga-DOTATATE TBR of 5.3 ± 2.3 (p = .832). The mean mediastinal node ¹⁸F-FDG SUV_max was 2.9 ± 1.0 compared to ⁶⁸Ga-DOTATATE nodal uptake of 1.8 ± 0.6 (p < .001). The areas of increased ⁶⁸Ga-DOTATATE uptake corresponded to the distribution of pulmonary ¹⁸F-FDG uptake at the site of lung parenchymal change on HRCT.

The ¹⁸F-FDG SUV_max parenchymal uptake in patients with typical IPF was 2.9 ± 1.2, whereas in those with other forms of DPLD, the uptake was 2.8 ± 0.9 (p = .743). The correlation between ¹⁸F-FDG SUV_max and TL_CO was −0.49 (p = .028).

Discussion

We present novel PET/CT data on the imaging of DPLD with the use of a labeled somatostatin analogue in combination with ¹⁸F-FDG. In all DPLD patients, a disease signal was identified on ⁶⁸Ga-DOTATATE PET. This signal mirrored the distribution of lung parenchymal abnormality on HRCT and the pattern of tracer uptake on ¹⁸F-FDG studies.

In this study, there was a moderate negative correlation between pulmonary ⁶⁸Ga-DOTATATE uptake and gas transfer, in keeping with our previous observation using ¹⁸F-FDG.⁶ However, the relationship between transfer factor and ¹⁸F-FDG uptake was stronger than with ⁶⁸Ga-DOTATATE. In keeping with ¹⁸F-FDG PET DPLD studies,^6,8 we found no significant difference in ⁶⁸Ga-DOTATATE uptake between patients with IPF and NSIP. In fact, we once again observed that honeycomb areas had a higher uptake than that of ground glass, although this did not reach statistical significance in this series. The lack of difference between IPF and NSIP and the association of ⁶⁸Ga-DOTATATE uptake with TL_CO are in contrast to very recent published data.²⁶ In that study, using the less specific SSTR analogue ⁶⁸Ga-DOTANOC, NSIP was shown to have higher pulmonary uptake than IPF.²⁶ An explanation for this discordance is needed highlighting the need for more investigation and data.

Preclinical studies with somatostatin analogue treatment in IPF have shown attenuation of pulmonary fibrosis.¹⁶ Human studies have now been performed, and some studies have even been completed, and the results are awaited.²⁷ Given that we showed that we can detect a PET signal with a somatostatin analogue, there could be genuine interest in using PET in disease characterization, and it would be important to investigate whether this technique could be used for monitoring in therapeutic trials.

Given that the PET signal from both somatostatin analogue and ¹⁸F-FDG showed a similar distribution pattern at the corresponding sites of parenchymal abnormality on the coregistered HRCT, it would be important to reveal the exact source of the PET signal in our patients. It could be argued that the increased ¹⁸F-FDG PET signal in areas of pulmonary fibrosis could be attributed to neutrophils in infected dilated airways in DPLD patients. The apparent lack of SSTR expression in human neutrophils argues against this hypothesis accounting for the ⁶⁸Ga-DOTATATE signal.

The best way to identify the cellular target of the ⁶⁸Ga-DOTATATE PET/CT is to perform SSTR protein analysis in vitro on corresponding tissue samples, preferably with receptor autoradiography. Indeed, previous studies have shown an excellent correlation between in vitro and in vivo receptor data in SSTR-positive tumors.²⁸ The problem with DPLD, in comparison with tumors, is twofold: (1) poor availability of adequate fresh tissue for analysis; in the present study, fresh tissue was available from only 1 of the 26 cases; (2) histologically, the tissue in DPLD is made up of several different cell types, in contrast to tumors in which one cell type dominates. This makes it harder to identify the cell type responsible for the signal in DPLD. SSTR autoradiography²⁹ was performed in a single DPLD case in this investigation (data not shown) but did not reveal measurable SSTR levels, and SSTR immunohistochemistry with two different antibodies was also negative.³⁰ However, this sample was characterized by very few inflammatory cells, extensive fibrosis, and very few small vessels (despite numerous large vessels). As such, it may not have been a representative sample; therefore, it is impossible to draw a definitive conclusion.

SSTR2 expression has been found in both murine fibroblasts following bleomycin-induced pulmonary fibrosis and fibroblasts from patients with IPF.¹⁶ Lebtahi and colleagues found some binding of labeled octreotide to lung fibroblasts from a patient with IPF compared to normal controls, but it was actually the blood vessels that contributed most to the autoradiographic signal.¹⁷ Their results point to an intriguing possibility: SSTR2 and SSTR5 are preferentially expressed in proliferating human endothelium,³¹ and perhaps the positive signal is coming from neovascularization around the fibrotic areas, and there is increased vascular density at the edges of the fibrotic regions.³² In fact, the signal may be related to nonspecific factors such as increased vascular pool per se.

When performing radionuclide imaging of DPLD, it is possible to use the conventional gamma camera studies with the somatostatin analogue ¹¹¹In octreotide.²⁸ However, the spatial resolution and sensitivity are inferior to those of PET; thus, quantification of disease response would be poor.³³ Imaging with ⁶⁸Ga-DOTATATE PET has specific advantages over ¹⁸F-FDG PET; these include significant reduction in the radiation exposure,³⁴ no requirement either for pre-examination fasting or immobilization of the patient during the uptake period, and no dependency of a cyclotron as ⁶⁸Ga is a generator product. ⁶⁸Ga-DOTATATE PET shows clinical potential given that even with small numbers, there was a moderate relationship between pulmonary tracer uptake and TL_CO, although the relationship was weaker than with ¹⁸F-FDG.

Study limitations include the heterogeneity of the study population; however, this enabled us to obtain PET data for more than one HRCT pulmonary parenchyma pattern. However, the two main groups (IPF and NSIP) had population sizes too small to perform routine statistical analysis. There are many PET/CT technical considerations, such as correcting for density and respiratory motion, which have been covered elsewhere.⁹ It may have been ideal to have lung biopsies in all patients, but in keeping with guidelines, these were performed only when indicated.² Nonetheless, a tissue diagnosis was available in some patients.

This prospective study presents novel PET/CT data in patients with DPLD with a somatostatin analogue in comparison with the uptake to that of ¹⁸F-FDG. In all DPLD patients, a disease signal was identified on PET. This signal mirrored the distribution of lung parenchymal abnormality, which had a pattern of tracer uptake similar to that on the ¹⁸F-FDG studies. We provide noninvasive in vivo evidence in humans showing that SSTRs may be detected in the lungs of patients with DPLD. Further studies are needed to characterize the cells and pathways in DPLD that are responsible for this signal.

Footnotes

Acknowledgment

Financial disclosure of authors: This work was undertaken at University College London Hospital/University College London, which received a proportion of the funding from the United Kingdom's Department of Health's National Institute for Health Research Biomedical Research Centers funding scheme. A proportion of the funding was received from the Royal College of Radiologists (UK).

Financial disclosure of reviewers: None reported.

References

Coultas

Zumwalt

Black

Sobonya

. The epidemiology of interstitial lung diseases. Am J Resp Crit Care Med 1994;150:967–72.

Joint Statement of the American Thoracic Society (ATS) the European Respiratory Society (ERS) American Thoracic Society/ European Respiratory Society International Multidisciplinary Consensus Classification of the Idiopathic Interstitial Pneumonias, Am J Respir Crit Care Med 2002;165:277–304.

Gross

Hunninghake

. Idiopathic pulmonary fibrosis. N Engl J Med 2001;345:517–25, doi: 10.1056/NEJMra003200.

Dempsey

. Clinical review: idiopathic pulmonary fibrosis—past, present and future. Respir Med 2006;100:1871–85, doi: 10.1016/ j.rmed.2006.08.017.

Klinsberg

Mutsaers

Lasky

. Current clinical trials for the treatment of idiopathic pulmonary fibrosis. Respirology 2010;15: 19–31, doi: 10.1111/j.1440-1843.2009.01672.x.

Groves

Win

Screaton

. Idiopathic pulmonary fibrosis and diffuse parenchymal lung disease: implications from initial experience with 18F-FDG-PET/CT. J Nucl Med 2009;50: 538–45, doi: 10.2967/jnumed. 108.057901.

Umeda

Demura

Ishizaki

. Dual-time-point 18F-FDG PET imaging for diagnosis of disease type and disease activity in patients with idiopathic interstitial pneumonia. Eur J Nucl Med Mol Imaging 2009;36:1121–30, doi: 10.1007/s00259-009-1069-1.

Nusair

Rubinstein

Freedman

. Positron emission tomography in interstitial lung disease. Respirology 2007;12:843–7, doi: 10.1111/j.1440-1843.2007.01143.x.

Meissner

Soo Hoo

Khonsary

. Idiopathic pulmonary fibrosis: evaluation with positron emission tomography. Respiration 2006;73:197–202.

10.

Groves

Win

Ben Haim

Ell

. Non FDG PET tracers in clinical oncology. Lancet Oncol 2007;8:822–30, doi: 10.1016/ S1470-2045(07)70274-7.

11.

Kayani

Bomanji

Groves

. Functional imaging of neuroendocrine tumors with combined PET/CT using 68Ga-DOTATATE (DOTA-DPhel, Tyr3-octreotate) and 18F-FDG. Cancer 2008;112:2447–55, doi: 10.1002/cncr.23469.

12.

Jones

Sriskandan

Peters

. Dissociation of neutrophil emigration and metabolic activity in lobar pneumonia and bronchiectasis. Eur Respir J 1997;10:795–803.

13.

Chen

Ferkol

Mintun

. Quantifying pulmonary inflammation in cystic fibrosis with positron emission tomography. Am J Respir Crit Care Med 2006;173:1363–9, doi: 10.1164/rccm.200506-934OC.

14.

Hiruma

Koike

Nakamura

. Somatostatin receptors on human lymphocytes and leukaemia cells. Immunology 1990;71:480–5.

15.

Varecza

Elekes

László

. Expression of the somatostatin receptor subtype 4 in intact and inflamed pulmonary tissues. J Histochem Cytochem 2009;57:1127–33, doi: 10.1369/jhc.2009.953919.

16.

Borie

Fabre

Prost

. Activation of somatostatin receptors attenuates pulmonary fibrosis. Thorax 2008;63:251–8, doi: 10.1136/thx.2007.078006.

17.

Lebtahi

Moreau

Marchand-Adam

. Increased uptake of 111In-octreotide in idiopathic pulmonary fibrosis. J Nucl Med 2006;47:1281–7.

18.

Farr

Allisy-Roberts

. Gamma imaging. In: Farr

Allisy-Roberts

, editors. Physics for medical imaging. 1st ed. London: Saunders; 1997. p. 118–47.

19.

Decristoforo

Knopp

von Guggenberg

. A fully automated synthesis for the preparation of 68Ga-labelled peptides. Nucl Med Commun 2007;28:870–5, doi: 10.1097/MNM.0b013e3282f1753d.

20.

Groves

Kayani

Dickson

. Oral contrast medium in PET/CT: should you or shouldn't you? Eur J Nucl Med Mol Imaging 2005;32:1160–6, doi: 10.1007/s00259-005-1833-9.

21.

Flaherty

Toews

Travis

. Clinical significance of histological classification of idiopathic interstitial pneumonia. Eur Respir J 2002;19:275–83, doi: 10.1183/09031936.02.00182002.

22.

Katzenstein

Myers

. Idiopathic pulmonary fibrosis: clinical relevance of pathologic classification. Am J Respir Crit Care Med 1998;157:1301–15.

23.

Müller

Staples

Miller

. Disease activity in idiopathic pulmonary fibrosis: CT and pathologic correlation. Radiology 1987;165:731–4.

24.

Screaton

Hiorns

Lee

. Serial high resolution CT in non-specific interstitial pneumonia: prognostic value of the initial pattern. Clin Radiol 2005;60:96–104, doi: 10.1016/j.crad.2004.06.029.

25.

Shastry

Kayani

Wild

. Distribution pattern of 68Ga-DOTATATE in disease-free patients. Nucl Med Commun 2010;31:1025–32.

26.

Ambrosini

Zompatori

De Luca

. 68Ga-DOTANOC PET/CT allows somatostatin receptor imaging in idiopathic pulmonary fibrosis: preliminary results. J Nucl Med 2010;51:1950–5, doi: 10.2967/jnumed.110.079962.

27.

Treatment of idiopathic pulmonary fibrosis with long acting octreotide (FIBROSAND). Available at: http://clinicaltrials.gov/ct2/show/NCT00463983 (accessed December 2010).

28.

Krenning

Kwekkeboom

Pauwels

. Somatostatin receptor scintigraphy. In: Freeman

, editor. Nuclear medicine annual. New York: Raven Press; 1995. p. 1–50.

29.

Reubi

Kvols

Waser

. Detection of somatostatin receptors in surgical and percutaneous needle biopsy samples of carcinoids and islet cell carcinomas. Cancer Res 1990;50:5969–77.

30.

Korner

Eltschinger

Waser

. Value of immunohistochemistry for somatostatin receptor subtype sst2A in cancer tissues: lessons from the comparison of anti-sst2A antibodies with somatostatin receptor autoradiography. Am J Surg Pathol 2005;29:1642–51, doi: 10.1097/01.pas.0000174013.14569.90.

31.

Adams

Lindow

. Somatostatin receptors 2 and 5 are preferentially expressed in proliferating endothelium. Br J Cancer 2005;92:1493–8, doi: 10.1038/sj.bjc.6602503.

32.

Ebina

Shimizukawa

Shibata

. Heterogeneous increase in CD34-positive alveolar capillaries in idiopathic pulmonary fibrosis. Am J Respir Crit Care Med 2004;169:1203–8, doi: 10.1164/rccm.200308-1111OC.

33.

Srirajaskanthan

Kayani

Quigley

. The role of 68Ga-DOTATATE PET in patients with neuroendocrine tumors and negative or equivocal findings on 111In-DPTA-octreotide scintigraphy. J Nucl Med 2010;51:875–82, doi: 10.2967/jnumed.109.066134.

34.

Pettinato

Sarnelli

Di Donna

. 68Ga-DOTANOC: biodistribution and dosimetry in patients affected by neuroendocrine tumors. Eur J Nucl Med Mol Imaging 2008;35:72–9, doi: 10.1007/s00259-007-0587-y.
