Brucella melitensis,B. neotomae and B. ovis Elicit Common and Distinctive Macrophage Defense Transcriptional Responses

Abstract

Brucella spp. establish an intracellular replicative niche in macrophages, while macrophages attempt to eliminate the bacteria by innate defense mechanisms. Brucella spp. possess similar genomes yet exhibit different macrophage infections. Few B. melitensis and B. neotomae enter macrophages with intracellular adaptation occurring over 4–8 hr. Conversely, B. ovis are readily ingested by macrophages and exhibit a persistent plateau of infection. Evaluating early macrophage interaction with Brucella spp. allows discovery of host entry and intracellular translocation mechanisms. Microarray analysis of macrophage transcriptional response following a 4 hr infection by different Brucella spp. revealed common macrophage genes altered in expression compared to uninfected macrophages. Macrophage infection with three different Brucella spp. provokes a common innate immune theme with increased transcript levels of chemokines and defense response genes and decreased transcript levels of GTPase signaling and cytoskeletal function that may affect trafficking of Brucella containing vesicles. For example, transcript levels of genes associated with chemotaxis (IL-1β, MIP-1α), cytokine regulation (Socs3) and defense (Fas, Tnf) were increased, while transcript levels of genes associated with vesicular trafficking (Rab3d) and lysosomal associated enzymes (prosaposin) were decreased. Genes with altered macrophage transcript levels among Brucella spp. infections may correlate with species specific host defenses and intracellular survival strategies. Depending on the infecting Brucella species, gene ontology categorization identified genes differentially involved in cell growth and maintenance, endopeptidase inhibitor activity and G-protein mediated signaling. Examples of decreased gene expression in B. melitensis infection but not other Brucella spp. were growth arrest (Gas2), immunoglobulin receptor (FcγrI) and chemokine receptor (Cxcr4) genes, suggesting opposing effects on intracellular functions.

Introduction

Brucella species (spp.) are zoonotic pathogens able to infect humans and cause abortion in domestic animals. Human infection generally requires contact with a limited number of organisms (infectious dose estimated as less than 100 organisms) (1), progresses with inconsistent and persistent flu-like symptoms from 2–6 weeks post-inoculation and, if left untreated, develops into chronic brucellosis. Macrophages phagocytose Brucella spp. and initiate an innate immune response, while Brucella subvert the host antimicrobial defense mechanisms to establish an intracellular replicative niche (2). Once resident within the macrophage, Brucella avoid exposure and killing by the humoral immune response.

Host preference and virulence among species are unaccounted when comparing the few differences between genomic sequences of B. melitensis, B. abortus and B. suis (3). When comparing six historically identified Brucella spp., only 217 open reading frames present in B. melitensis were absent in the other species (4). Ultimately, Brucella research has revealed a limited number of factors that significantly alter host specificity by Brucella spp. Human infections with B. melitensis are severe in pathogenesis and are widely reported; conversely, neither B. ovis nor B. neotomae have been reported to cause human infection, and pathogenesis is at most limited. Investigating the murine macrophage response to highly similar Brucella spp. may provide additional understanding regarding the ability of Brucella spp. to establish and maintain infections.

Although transcriptional profiles of murine macrophages infected with B. abortus have been studied (7), no studies have compared host response among infections of differing Brucella spp. Altered host transcriptional response among Brucella spp. infections may identify not only common responses to infection, but also distinguish genes and pathways specific to each Brucella spp. infection. Identifying alterations in the macrophage transcriptome may provide greater understanding of host mechanisms involved in pathogen killing and bacterial regulation that limit damage to host cells during infection.

Murine macrophages are frequently used to investigate Brucella infection. The transcription profile after 4 hr of infection would evaluate general as well as specific response to different but genetically similar Brucella spp. Bacteria enter host cells and translocate to an endoplasmic reticulum containing a replicative niche within a few hours post infection; concurrently, a portion of the bacteria die by phagosome-lysosome fusion (8). The majority of host transcriptional response occurs during this early time (9). Examining an early time, such as 4 hr post infection, permits discovery of potential mechanisms of entry and intracellular translocation that take place before bacterial replication becomes evident after 8 hr (2, 10–12). The present microarray analyses evaluate macrophage response to Brucella spp. infection by testing 6 hypotheses and focusing on analogous and distinct transcriptional responses elicited by B. melitensis, B. neotomae and B. ovis.

Materials and Methods

Bacteria and Cell Lines.

B. melitensis, B. neotomae and B. ovis were grown in 12- by 75-mm tubes on a shaker platform in BBL Brucella broth (BD Biosciences, Franklin Lakes, NJ) or on Brucella broth plates containing 1.5% agar. B. melitensis, B. neotomae and B. ovis were transformed with pBBR1MCS/GFP_uv containing green fluorescent protein (gfp_uv) under a constitutive Tac promoter and with chloramphenicol resistance (13). Brucella spp. for infections were grown in broth with or without chloramphenicol at 37°C for 1–2 days and colony forming units (CFUs) determined by plating on agar and incubating 3 days at 37°C with 5% CO₂.

RAW 264.7 (TIB-71, ATCC) and J774A.1 (TIB-67, ATCC) mouse macrophage cell lines were maintained at 37 °C with 5% CO₂ in RPMI 1640 (Invitrogen, Carlsbad, CA) supplemented with 10% fetal bovine serum (FBS), 0.2 mM L-glutamine, antibiotic-antimycotic (100 U/mL penicillin G, 100 μg/mL streptomycin, 0.25 μg/mL amphotericin B, Gibco), 1 mM sodium pyruvate (SAFC Biosciences, St. Louis, MO) and MEM amino acids (Hyclone, Logan, UT).

Intracellular Survival of Brucella spp. in Macrophages.

Macrophages (0.5–1 × 10⁶/well) were plated in 6-well plates 2–12 hr prior to infection in medium without antibiotics. Brucella spp. were grown to stationary phase in Brucella broth and then serially diluted and plated on Brucella agar to estimate CFU/mL. Macrophages were infected at a multiplicity of infection (MOI, bacteria to macrophage) of 1000:1 for 90 min at 37°C with 5% CO₂. Extracellular bacteria were removed using three PBS washes followed by 30 μg/mL gentamicin (MP Biomedicals, Inc., Irvine, CA) in RPMI. After 30 min, macrophages were washed three times with PBS. RPMI supplemented with 2 μg/mL gentamicin was added to cultures after 2 hr. At 4 hr, cultures were washed, lysed with 0.1% Triton X-100, serially diluted and plated twice on Brucella agar to determine bacterial CFUs. Experiments were repeated independently a minimum of three times.

Flow Cytometry of Brucella-GFP_uv Infected Macrophages.

Macrophages (5 × 10⁷/T₂₅ flask) were plated 2–12 hr prior to infection in medium without antibiotics. Brucella spp. were grown to stationary phase, and macrophages were infected at a multiplicity of infection (MOI, bacteria to macrophage) of 1000:1 for 90 min at 37°C with 5% CO₂ followed by gentamicin treatment to remove extracellular bacteria as described above. After 4 hr of incubation, cells were washed three times with PBS, fixed in 4% paraformaldehyde (Electron Microscopy Sciences, Hatfield, PA) for 30 min and observed by fluorescence microscopy (Carl Zeiss, Thornwood, NY). Using a FACScan (Becton Dickinson, Palo Alto, CA), ten thousand events were collected. Debris and dead cells were eliminated from the analysis on the basis of side scatter and forward scatter. Cells infected with B. melitensis, B. neotomae and B. ovis strains containing pBBR1MCS/GFP_uv, were analyzed by flow cytometry to determine percentage of RAW 264.7 or J774A.1 cells infected at 4 hr.

Macrophage Infection for RNA Isolation.

RAW 264.7 cells for microarray and RAW 264.7 and J774A.1 cells for RT-PCR were plated at 5 × 10⁶ cells/T₇₅ flask 12–24 hr prior to infection, in supplemented RPMI 1640 without antibiotics. Macrophages were infected with 1 mL of a stationary phase Brucella spp. culture (MOI 1000:1). Infected macrophages were incubated for 4 hr at 37°C with 5% CO₂, washed once with PBS and then lysed for RNA collection (RNeasy, Qiagen, Germantown, MD).

Target Preparation for Microarray Hybridization.

Total RNA was isolated from macrophage cultures (RNeasy, Qiagen) with lysate centrifugation to remove intact bacterial cells. DNase treated RNA from two independent infections was pooled for each target preparation. Target RNA was prepared according to the manufacturer’s protocols (Affymetrix, Santa Clara, CA). Briefly, RNA was converted to double stranded cDNA (Invitrogen) except that T-7-(dT)24 oligomer (Genset Corp., San Diego, CA) was used. Double stranded cDNA was isolated using GeneChip® Sample cleanup and in vitro synthesis of biotin-labeled cRNA was completed with Enzo BioArray High-Yield RNA Transcript Labeling (Affymetrix). Labeled cRNA mixed with fragmentation buffer was incubated at 94°C for 35 min and was confirmed by agarose gel electrophoresis. Final RNA concentration ranged from 0.5–1.1 μg/μL.

Microarray Hybridization and Analysis.

Labeled cRNA was hybridized to GeneChip® Test3 arrays and Murine Genome U74Av2 microarrays (Affymetrix). Eleven MG_U74Av2 GeneChip® microarrays were independently hybridized with cRNA from uninfected macrophage samples (2 independent samples) and each of three Brucella spp. infected macrophage samples (3 independent samples for each Brucella species infection). GeneChip® washing, hybridization and scanning was performed by the University of WI Biotechnology Center, Gene Expression Center (University of WI-Madison) utilizing Affymetrix protocols and procedures. Affymetrix *.CHP, *.CEL and spreadsheets of signal output are available through NCBI Gene Expression Omnibus database at the time of publication, Series accession number GSE8385.

mRNA from uninfected RAW 246.7 macrophages was compared to macrophages infected for 4 hr with B. melitensis, B. ovis or B. neotomae. All genes were subjected to analysis by EBarrays (14, 15), a statistical analysis package in the comprehensive R archive network (http://cran.r-project.org/). Data conformity to the statistical assumptions was checked (coefficient of variation and log-normal normal model) and best fit models were used. Six biologically relevant hypotheses of altered transcript levels were tested (Mϕ designates RAW 264.7 macrophages):

$\batchmode \documentclass[fleqn,10pt,legalpaper]{article} \usepackage{amssymb} \usepackage{amsfonts} \usepackage{amsmath} \pagestyle{empty} \begin{document} \begin{eqnarray*}&&\mathrm{H_{0}:\ M{\phi}\ =\ M{\phi}\ +}\ B.\ melitensis\ \mathrm{=\ M{\phi}\ +}\ B.\ neotomae\\&&\mathrm{=\ M{\phi}\ +}\ B.\ ovis\end{eqnarray*} \end{document}$

Infected and uninfected macrophages have similar transcription.

$\batchmode \documentclass[fleqn,10pt,legalpaper]{article} \usepackage{amssymb} \usepackage{amsfonts} \usepackage{amsmath} \pagestyle{empty} \begin{document} \begin{eqnarray*}&&\mathrm{H_{1}:\ M{\phi}\ {\neq}\ M{\phi}\ +}\ B.\ melitensis\mathrm{\ =\ M{\phi}\ +}\ B.\ neotomae\\&&\mathrm{=\ M{\phi}+}\ B.\ ovis\end{eqnarray*} \end{document}$

Brucella spp. infected macrophages express mRNA different from uninfected macrophages.

$\batchmode \documentclass[fleqn,10pt,legalpaper]{article} \usepackage{amssymb} \usepackage{amsfonts} \usepackage{amsmath} \pagestyle{empty} \begin{document} \begin{eqnarray*}&&\mathrm{H_{2}:\ M{\phi}\ {\neq}\ M{\phi}\ +}\ B.\ melitensis\mathrm{\ {\neq}\ M{\phi}\ +}\ B.\ neotomae\\&&\mathrm{=\ M{\phi}+}\ B.\ ovis\end{eqnarray*} \end{document}$

B. ovis and B. neotomae infected macrophages express mRNA different from B. melitensis or uninfected macrophages.

$\batchmode \documentclass[fleqn,10pt,legalpaper]{article} \usepackage{amssymb} \usepackage{amsfonts} \usepackage{amsmath} \pagestyle{empty} \begin{document} \begin{eqnarray*}&&\mathrm{H_{3}:\ M{\phi}\ {\neq}\ M{\phi}\ +}\ B.\ melitensis\mathrm{\ =\ M{\phi}\ +}\ B.\ neotomae\\&&\mathrm{{\neq}\ M{\phi}\ +}\ B.\ ovis\end{eqnarray*} \end{document}$

B. melitensis and B. neotomae infected macrophages express mRNA different from B. ovis or uninfected macrophages.

$\batchmode \documentclass[fleqn,10pt,legalpaper]{article} \usepackage{amssymb} \usepackage{amsfonts} \usepackage{amsmath} \pagestyle{empty} \begin{document} \begin{eqnarray*}&&\mathrm{H_{4}:\ M{\phi}\ {\neq}\ M{\phi}\ +}\ B.\ melitensis\mathrm{\ =\ M{\phi}\ +}\ B.\ ovis\\&&\mathrm{{\neq}\ M{\phi}\ +}\ B.\ neotomae\end{eqnarray*} \end{document}$

B. melitensis and B. ovis infected macrophages express mRNA different from B. neotomae or uninfected macrophages.

$\batchmode \documentclass[fleqn,10pt,legalpaper]{article} \usepackage{amssymb} \usepackage{amsfonts} \usepackage{amsmath} \pagestyle{empty} \begin{document} \begin{eqnarray*}&&\mathrm{H_{5}:\ M{\phi}\ {\neq}\ M{\phi}\ +}\ B.\ melitensis\mathrm{\ {\neq}\ M{\phi}\ +}\ B.\ neotomae\\&&\mathrm{{\neq}\ M{\phi}\ +}\ B.\ ovis\end{eqnarray*} \end{document}$

Each macrophage culture expresses distinct mRNA.

Empirical Bayesian statistics designated a posterior probability (EBarrays Probability) specific to each gene, evidence that a given gene follows the transcription pattern designated by each of the hypotheses. The probability of random gene assignment to any hypothesis was 0.167, while posterior probabilities ≥ 0.2 were considered significant. Genes were sorted within each experimental hypothesis, and each gene was allocated only to the hypothesis with the largest posterior probability. The signal logarithm ratio (SLR) was calculated as the logarithm, base 2, of the ratio between infected (experimental) signal and uninfected (control) signal. Thus, the experimental:control ratio was transformed to zero for no change between conditions and the equivalent of a two-fold increase or decrease becomes 1 or −1 SLR, respectively.

Additional data analysis was conducted utilizing TM4 microarray analysis tools ANOVA (16) and SAM (17, 18) contained within TIGR MultiExperiment Viewer (MeV) (http://www.tm4.org/) (19, 20). Genes were annotated utilizing Affymetrix’s NetAffx Analysis Center (http://www.affymetrix.com/analysis/index.affx) and DAVID Bio-informatics Resources (http://david.abcc.ncifcrf.gov/). Gene ontology (GO) categorization of genes identified with altered transcription between uninfected and Brucella spp. infected macrophages were completed with EASE (http://david.abcc.ncifcrf.gov/). Genes were iteratively subjected to GO biological processes categorization and, while genes may be categorized in several of the GO categories, each gene was listed once.

Real Time RT-PCR (RT-PCR).

Total RNA was isolated from macrophage cultures (RNeasy, Qiagen) according to manufacturer’s protocol with DNase treatment. Macrophage RNA (2–4 μg) was primed with oligo(dT)₂₀, reverse transcribed with SuperScript^TM II or III (Invitrogen), and resultant cDNA diluted 1:5. Primers (listed in Text S1) and double-dye oligonucleotide probes for PCR were developed to amplify mRNA fragments 80–130 basepairs in length using Primer3 (21). RT-PCR was performed on cDNA samples utilizing qPCR Mastermix (Eurogentec, San Diego, CA) or iQ supermix (Bio-Rad, Hercules, CA) with dual labeled probes and iQ SYBR® green Supermix (Bio-Rad), respectively, to quantify relative transcript levels. The PCR was optimized on the iCycler (Bio-Rad) with primer concentrations ranging from 300–500 nM and probe concentrations at 125 nM. Amplification cycles were 95°C for 15 sec followed by 60 sec at 60°C with fluorescence detected during the extension phase. Relative gene mRNA quantities were quantified by the standard curve method using a housekeeping gene as a reference gene. SLR was calculated with these normalized transcription values.

ELISA Measurement of TNF Activity.

BMDM cells were flushed from the femurs and tibiae of 10–12 week-old wild-type C57BL/6 mice. Cells were grown for 5–8 days in RPMI 1640 (Gibco, Grand Island, NY), 10% FBS (Equitech-Bio Inc., Kerrville, TX), 25 μg/mL gentamicin (MP Biomedicals, Inc., Solon, OH) and 20–30 ng/mL M-CSF (R&D Systems, Minneapolis, MN). BMDM cells plated at 1 × 10⁶ cells/well in 6-well plates were infected with B. melitensis at an MOI 100 and incubated at 37°C. Supernatants were collected at 12 hr from cells infected with B. melitensis or medium. Supernatants were filtered through a 0.22 micron PES Millipore filter (Millipore, Billerica, MA) and assayed for TNFα using a Ready-Set-Go ELISA kit (eBioscience, San Diego, CA).

Additional Calculations and Statistics.

Error bars throughout indicate the standard error of the mean (SEM). A Student’s t test determined if there was significant difference between two independent samples using a pooled estimate of variation.

Results

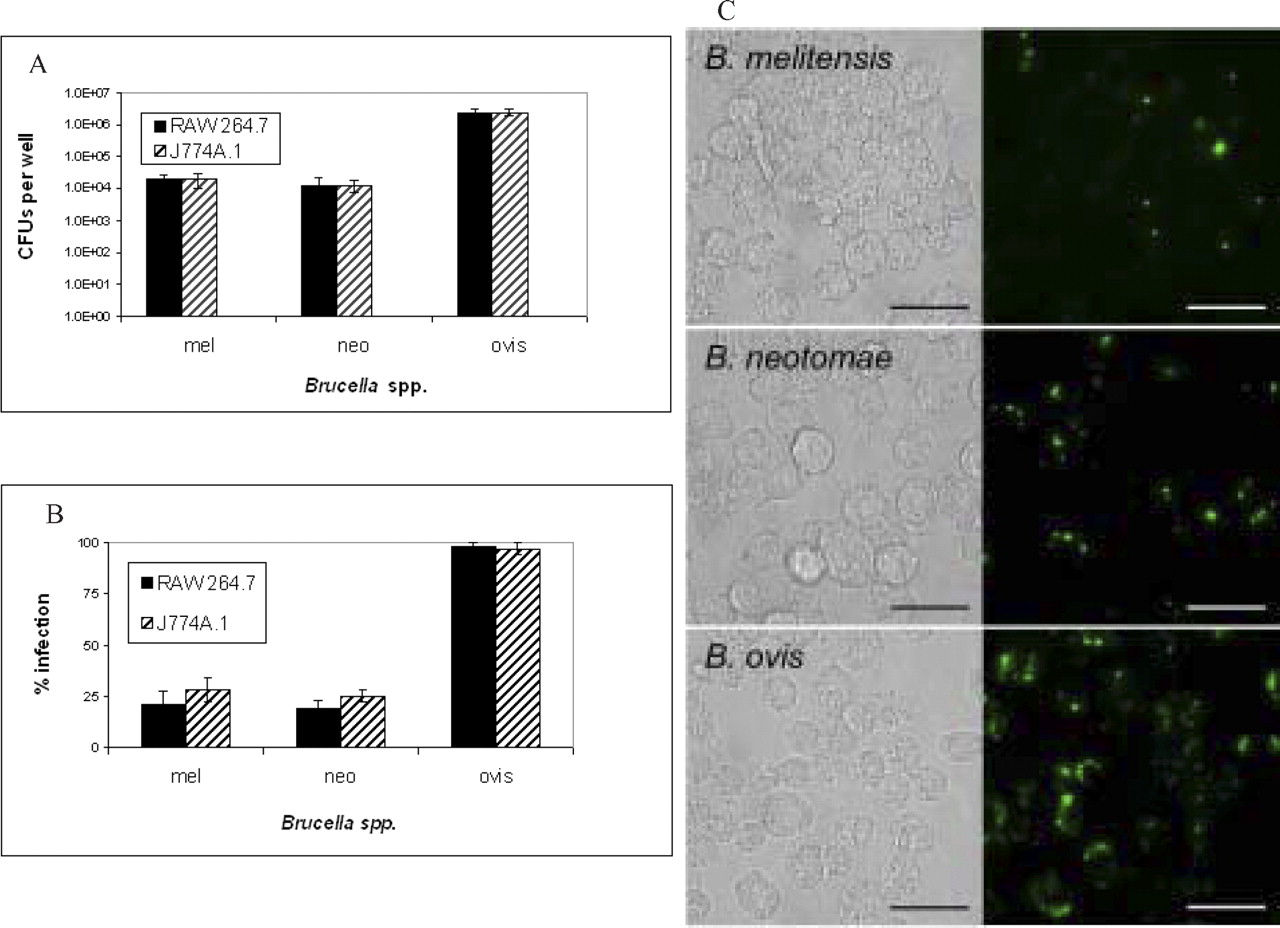

Brucella spp. Infection of RAW 264.7 and J774A.1 Macrophages Assessed by Colony Forming Units (CFUs) and Flow Cytometry Analysis of Brucella-GFP_uv.

RAW 264.7 macrophage infections with B. melitensis and B. neotomae were similar, with low numbers of these bacteria phagocytosed compared to the number of bacteria introduced (Fig. 1, panel A). Macrophage uptake of B. ovis, at 4 hr in both RAW 264.7 and J774A.1 cells was nearly two logarithmic units higher than B. melitensis or B. neotomae, paralleling previous observations (6, 22).

Similar to CFU results, flow cytometry analysis of RAW 264.7 macrophages infected for 4 hr with Brucella spp. expressing GFP_uv had low levels of B. melitensis and B. neotomae, compared to B. ovis (Fig. 1, panel B). This observation was further supported by fluorescent microscopy (Fig. 1 , panel C). At this early time, 20–30 percent of macrophages were infected with B. melitensis or B. neotomae, while greater than 95 percent of macrophages were infected with B. ovis (Fig. 1 , panel B) consistent with uptake for smooth and rough Brucella (22). Interestingly, the numbers of Brucella phagocytosed at these levels did not correlate in a linear or proportional manner to levels of transcriptional response, as changes in macrophage mRNA amounts following B. ovis infection were often similar to B. melitensis and B. neotomae infections.

Because of the difference in macrophage infection by B. melitensis and B. neotomae compared to B. ovis, macrophage viability was examined to determine if infection levels would influence macrophage survival. RAW 264.7 and J774A.1 macrophages were continuously infected with Brucella spp. for 4 hr without antibiotics and viability determined. No significant macrophage death was observed (data not shown). Therefore, host transcription with Brucella spp. infection at 4 hr was not biased toward cell death pathways.

Microarray Analysis of RAW 264.7 Macrophages Infected with Each of Three Brucella spp.

Genes Identified for Housekeeping Controls with No Transcriptome Change Across Three Brucella spp. Infection Conditions. A series of commonly used housekeeping genes were evaluated for potential as control genes in downstream analysis, and changes in transcript levels between Brucella spp. infected and uninfected macrophages were compared (Table 1). Genes with high posterior probabilities and low signal log ratio (SLR) with small variability appeared as the best control genes for Brucella spp. infections. Hypoxanthine guanine phosphoribosyl transferase 1 (Hprt1) and the TATA box binding protein (Tbp), which function in glycolysis and transcription, respectively (23), were transcribed at a moderate level (signal strength on microarray between 1 × 10⁴ and 1 × 10²) and had SLR near zero with small variability. Hprt1 and Tbp were unaltered by Brucella spp. infections and were therefore utilized as control housekeeping genes in downstream analysis of the transcriptome. The transcript levels of β-actin, β-glucuronidase, transferrin receptor and glyceraldehyde-3-phosphate dehydrogenase were minimally altered (−0.6 to 0.1 SLR) by infection, but each had a pronounced standard error and were considered not optimal for use as control genes.

Genes Identified With Increased Transcription Following Brucella spp. Infections. Seventy-two genes were identified under H₁ (transcription from macrophages infected by three Brucella spp. differs from uninfected macrophages) with SLR increases between 2.0 and 6.8 following infection with any Brucella spp. (Table 2). Defense and chemotactic response, both related to a common inflammatory response, encompass the largest groups of genes with increased transcript levels during infection. Interleukin-1β, tumor necrosis factor, macrophage inflammatory protein genes (MIP-1α, MIP-1β, MIP-2α), colony stimulating factor genes (Csf2 and Csf3) and Fas had increased transcription similar to reports with a variety of infectious agents (7, 24). Also, increased transcription was observed for cytokine regulation, anti-inflammatory and/or anti-apoptotic response genes (Socs3, Slfn2, IL-1rn, Gadd45b and Tnfaip3). These genes may prevent commitment to an inflammatory response pathway camouflaging immune recognition and providing a safe environment for bacterial survival. Although macrophages were infected with a greater number of B. ovis compared to B. melitensis and B. neotomae, Figure 1, no statistical difference was observed in the SLR between the 72 macrophage genes of Table 2 when infected with B. ovis compared to B. melitensis or B. neotomae.

Genes Identified with Decreased Transcription Following Brucella spp. Infections. Fifty-eight genes were identified with SLR decreases between −2.0 and −3.4 following infection with any Brucella spp. (Table 3 ). GO categories for genes with repressed transcript levels represented several biological functions, ranging from small GTPase mediated signal transduction and carboxylic acid metabolism to cell proliferation and lysosomal proteins. Small GTPase mediated signaling may be altered in response to the engulfment and association of Brucella spp. with the membrane of macrophages; included among this group are Rab3d, Gna12, Cfl2 and Iqgap1. Small GTPases are key regulators associated with trafficking of Brucella containing vesicles to the endoplasmic reticulum (25), a crucial step in the establishment of a replication niche. In contrast to the inflammatory response genes commonly increased following infection, there were also genes categorized as response to external stimulus with decreased transcription. Mr1, Abhd8 and IL17a may provide insight into mechanisms that the macrophage does not use in the response against this intracellular bacterium. Also, a decrease in prosaposin transcript levels was observed, a lysosomal enzyme that catabolizes glycosphingolipids that may enhance intracellular survival of Brucella spp.

Genes Identified with Altered Transcription Among Brucella spp. Infections. Thirty-three genes (Table 4 ) were identified under hypotheses that transcription among Brucella spp. infections was different from each other and uninfected macrophages (H_2–4). Of the 33 genes with altered expression among Brucella spp. infections, 21 genes had decreased transcript levels, 10 genes had increased transcript levels and, for two genes, the direction of change in expression was dependent on the species used for infection. Generally, the direction of change in transcription was uniform across the species tested. Twelve genes were altered based on the virulence descriptions of Brucella spp. (Table 4, part A ), as B. melitensis was compared to B. neotomae and B. ovis infections (H₂). GO biological and molecular function categorization unveiled genes altered according to H₂ are involved in cell growth and maintenance, endopeptidase inhibitor activity, response to external stimuli and G-protein mediated signaling. When the infections were grouped according to LPS phenotype of the Brucella, i.e., smooth B. melitensis and B. neotomae versus rough B. ovis, eleven genes were identified with altered transcription (H₃) (Table 4, part B ). Although smooth Brucella enter macrophages via lipid rafts (26), the mechanism of B. ovis entry is unknown. If different entry mechanisms occur for B. ovis, a distinct group of host genes may be altered compared to smooth Brucella spp. However, few macrophage genes were altered between rough and smooth Brucella spp. infections, and there was little GO commonality. Ten genes had altered transcript levels when infection with B. melitensis and B. ovis were considered similar and distinct from B. neotomae infection (H₄) (Table 4, part C). All three Brucella spp. infections increased interleukin 1 alpha gene expression, but levels were higher in B. melitensis and B. ovis infections. Genes identified according to this pattern (H₄) were categorized in GO biological functions of cell growth and maintenance and signal transduction. Lastly, no genes were identified with each of the four conditions, uninfected and three Brucella spp. infections, having distinct transcription (H₅).

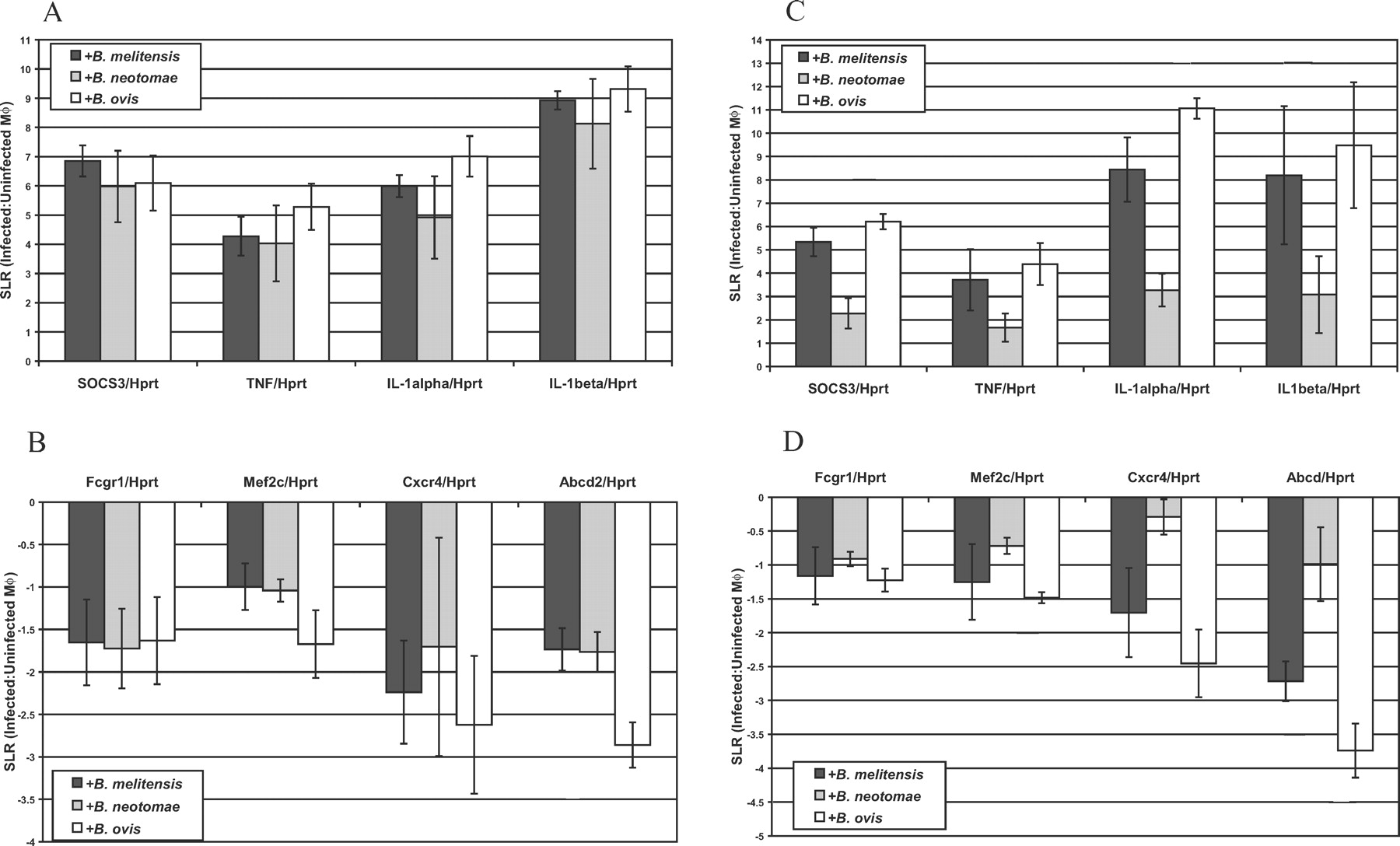

Confirmation of Microarray Data by Quantitative Real Time-PCR (qRT-PCR).

To verify the micro-array changes in transcript levels, eight genes were analyzed by qRT-PCR using the infection conditions as for micro-array analysis. Housekeeping genes, Hprt and Tbp, identified via this microarray analysis and previously tested (23, 27, 28) were used to normalize cDNA levels and resulted in similar patterns and levels of gene transcription (data not shown). qRT-PCR confirmed that the eight genes tested (Socs3, Tnf, IL-1α, IL-1β, FcγRI, Mef2c, Cxcr4 and Abcd2) had altered expression in RAW 264.7 macrophages following Brucella spp. infection in the same direction (increased or decreased) indicated by microarray analysis (Fig. 2, panels A and B). Further, J774A.1 and RAW 264.7 macrophage cell lines were used in parallel to verify that qRT-PCR results found in RAW 264.7 were applicable to J774A.1 cells. RAW 264.7 gene transcription altered among Brucella spp. infections was similarly changed (increased or decreased) during J774A.1 infection (Fig. 2 , panels C and D) with the direction of altered transcription paralleling microarray results.

TNFα Production by Macrophages.

To confirm the microarray change in TNFα transcription, bone marrow derived macrophages were infected with B. melitensis and supernatant analyzed by ELISA. Figure 3 illustrates that infected macrophages produced greater than 15-fold more TNFα than non-infected macrophages. These results together with the microarray findings suggest that B. melitensis activates TNFα production by macrophages.

Discussion

Murine macrophages infected with Brucella strains were profiled by microarray analysis. Interestingly, B. melitensis causes severe human infection, but neither B. ovis nor B. neotomae cause human pathogenesis. However, in vitro growth of B. melitensis and B. neotomae is similar in murine macrophages in contrast to in vivo human infection where B. neotomae is unable to initiate or maintain infection (29, 30). The IRF-1^−/− mouse model can distinguish degrees of Brucella virulence (5), where B. melitensis and B. neotomae induce death by 9–12 days (6), while B. ovis does not (E. Petersen, Personal Communication). The differing responses between rough (B. ovis) and smooth (B. melitensis and B. neotomae) Brucella in mice led us to explore transcription profiles of murine macrophages following infection by these three Brucella strains. A comparison of host response among infections by differing Brucella spp. may identify common responses to infection, as well as distinguish genes and pathways specific to each Brucella spp. infection. Identifying alterations in the macrophage transcriptome may provide greater understanding of host mechanisms involved in pathogen killing and bacterial regulation.

Common Macrophage Transcriptional Response by B. melitensis, B. neotomae and B. ovis Infections.

At 4 hr, low numbers of intracellular smooth B. melitensis and B. neotomae were observed, as reported by others, prior to Brucella reaching its replicative niche (22, 31, 32). However, RAW 264.7 macrophage uptake of rough B. ovis after 4 hr of infection was almost two logarithmic units higher than smooth B. melitensis or B. neotomae, perhaps from non-lipid raft mediated phagocytosis, although this is untested for rough B. ovis (22, 31, 32). Yet, microarray analysis of rough B. ovis-infected macrophages was qualitatively similar to those from smooth B. melitensis and B. neotomae infections. This similarity suggests that macrophages sense and respond to different Brucella species by a common profile of transcriptional changes.

The majority of these common response genes were inflammatory related suggesting similar activating and/or regulating effects of Brucella on the macrophage regardless of the Brucella species. Host response to Brucella spp. encompassed pro-inflammation independent of infection differences between rough and smooth Brucella spp. In comparing the common macrophage transcription profile to differing Brucella spp., we hypothesized that a large number of host genes with overlapping gene ontology function would be identified similar to that observed in wild-type and mutant Salmonella (33). Others have reported that LPS and CpG DNA can activate TLR signaling activating NFκB and AP-1 pathways inducing innate immune mechanisms (34). Adaptive immune mechanisms may be activated by Schlafen 2 (Slfn2) expression that regulates T cell activity as well as innate immunity (34). Pro-inflammatory gene expression may reflect a host protective response as many genes were chemotaxis related, potentially recruiting additional macrophages and immune cells to the site of Brucella spp. infected macrophages.

Genes that could serve to subdue or counteract inflammatory response genes, however, were also observed as upregulated in macrophages. For example, increased expression of Socs3 was observed. Socs3 participates in a negative feedback loop of cytokine signaling limiting the extent of cytokine in innate and adaptive immune responses (35). Also, IL-13R and Gadd45b were increased in transcription suggesting regulation of activated macrophages. Transcription of Bcl2, Bat4 and Phlda1 that participate in blocking apoptotic mechanisms was upregulated. In agreement with this finding, smooth Brucella spp. can protect against apoptosis (36), while engineered rough Brucella spp. can induce apoptosis (37). Consequently, the upregulation of genes that block apoptotic mechanisms may oppose upregulated inflammatory genes to camouflage immune recognition and produce a protective environment for Brucella replication. Also, decreased transcript levels of Psap (lysosomal catabolic enzyme), Sgip3 (clathrin mediated endocytosis) and Mpeg1 (a perforin like protein) would suggest that Brucella induces evasion strategies to protect its intracellular niche. Others have suggested evasion strategies such as Brucella altering host cell responses by shielding PAMPs from Toll-like receptors (38) and LPS masking of MHC molecules (39).

Of the macrophage genes commonly upregulated by all Brucella species tested, first, eicosanoids are important in mammalian repair (40). In macrophages infected with Brucella we observed induction of eiconosoid Ptgs2, also termed Cox2, encoding the cyclooxygenase 2 enzyme. Eicosanoids are considered important in antigen presentation and in macrophage effector functions, and play an important role in contributing to inflammation (40).

A second common inflammatory signal elicited by Brucella infection of macrophages is Gadd45. Gadd45A is an 18 kDa acidic nuclear protein involved in maintenance of genomic stability, DNA repair, cell cycle checkpoints and suppression of cell growth. Gadd45 is also a known stress response gene with the ability to regulate MAP-kinase signaling (41). Regulation of MAP-kinase signaling by Gadd45 can affect response to extracellular stimuli and regulate gene expression, mitosis, differentiation and cell survival/apoptosis. GADD45A may therefore be expressed as a stress response protein to inhibit macrophage growth during Brucella infection.

A third common inflammatory signal elicited by Brucella infection is an odorant binding protein. Odorant binding proteins (OBPs) belong to the lipocalin family of proteins involved in extracellular transport of hydrophobic ligands. OBPs were originally identified in nasal mucus and mucosa of insects and were proposed as molecular shuttles between the air mucus interface and the olfactory receptor binding sites. Their function in mammals is unknown, but OBPs can bind odorants of diverse chemical structures with a higher affinity for aldehydes and large fatty acids (42). In macrophages, OBPs may serve as chaperones for signaling molecules.

Macrophage Transcriptome Response to B. melitensis Differ from B. neotomae and B. ovis.

Macrophages infected with B. melitensis elicited a specific response with altered transcription in twelve genes compared to B. neotomae and B. ovis (H₂) (Table 4, part A). These genes provide insight into macrophage mechanisms used by the various Brucella species to establish a replicative niche. For example, two genes with established function during inflammation, FcγRI (43) and Cxcr4 (44), have decreased expression in B. melitensis infected macrophages compared to B. neotomae and B. ovis infections. FcγRI (CD64) may be involved in regulating antigen presentation by limiting additional phagocytosis and committing the cell to present antigens of engulfed pathogens (45). Decreased levels of FcγRI may be advantageous for bacteria by reducing downstream signaling initiation, including antibody dependent cell mediated cytotoxicity (ADCC) (46), production of reactive oxygen and nitrogen species (47, 48), and increased phagocytosis and cytokine secretion (49). Downregulation of Cxcr4 transcription in combination with Socs3 upregulation may reduce macrophage chemotaxis, adhesion and other inflammatory responses (50, 51). Suppressing several immune pathways initiated at the cell membrane, virulent Brucella may secure an intracellular replicative niche.

Three other genes with decreased expression in macrophages infected with B. melitensis compared to B. neotomae and B. ovis (H₂ hypothesis) are endopeptidase inhibitors, cystatin C and serpina3c and the actin associated protein encoded by Gas2. These natural peptidase inhibitors may influence cell migration, chemotaxis, proliferation, phagocytosis and respiratory burst (52–55). Interestingly, the treatment of mice harboring Leishmania with cystatin and a sub-optimal dose of IFN-γ led to parasite clearance and shifted the non-productive Th2 (type 2, humoral) response towards a Th1 response (56). Nitric oxide (NO) production (57) and phagosomal processing (55) are mechanisms where these endopeptidase inhibitors act and modulate intracellular infection. These same mechanisms are vital to progression of Brucella spp. infection (58–60) and exogenous modulation may provide the immunologic boost necessary for pathogen clearance. Brucella spp. may specifically alter the protease-inhibitor balance by bacterial production of extracellular proteases and cleavage of host endopeptidase inhibitors, similar to how Staphylococcus aureus functions in accessing nutrients and facilitating dissemination (61). Lastly, Gas2 was specifically down-regulated in B. melitensis. GAS2-like protein 1 is an actin-associated protein expressed at high levels in growth-arrested macrophages (62). Inhibition of Gas2 transcription may increase macrophage survival and growth, an advantage for Brucella spp. survival within an intracellular niche.

Eleven genes were altered in expression (Table 4, part B) by B. melitensis and B. neotomae but not by B. ovis (H₃). These genes could not be grouped according to function, but did categorize the Brucella spp. according to LPS type, rough or smooth. While Brucella spp. uptake based on smooth or rough phenotype did not affect transcript levels of many inflammatory-related genes in our study (H₁), LPS may subtly affect transcription when comparing B. melitensis and B. neotomae to B. ovis. Microarray analyses of macrophages responding to various bacteria indicate that an early response to infection parallels the response to LPS alone and is conserved across bacterial genera (63–65). For example, macrophage response to Salmonella versus purified Salmonella LPS is similar (64). However, Brucella LPS induces a 100-fold less stimulation of macrophages than enterobacterial LPS (2, 66), and may have less effect on macrophage transcription.

Cytochrome P450 4a10 (Cyp4a10) and protein kinase C-α (Prkca) may provide insight into intracellular pathways that differ between Brucella species (H₃) (Table 4, part B). A wide variety of bacterial and parasitic infections depress expression of cytochrome P450 (67), a gene important in detoxification (68). Cyp4a10 can enhance oxidative stress, through production of reactive oxygen species and reactive nitrogen species (69); therefore, decreased transcription induced by bacteria with smooth LPS could protect intracellular Brucella from innate killing mechanisms. Another gene with oxidative related functions, Prkca, has decreased transcript levels in the infected macrophage. Prkca is important in regulating phagosome-lysosome fusion (70), intracellular vesicle regulation (71) and generation of reactive oxygen species (72), events that may be regulated differently by diverse Brucella spp. Constitutive knock down of Pkrca during intracellular infection with Legionella, Leishmania and Salmonella (48, 73) leads to increased pathogen survival, likely through suppression of host respiratory burst. Downregulation of Cyp4a10 and Prkca pathways may prevent additional oxidative stress in the macrophage during smooth Brucella spp. infection, while Brucella spp. production of Cu, Zn superoxide dismutase (SodC) protects Brucella from oxidative damage (74). These results suggest that down-regulation of Cyp4a10 and Pkrca may shift the macrophage toward a less hostile intracellular environment for Brucella.

Finally altered transcription was identified when B. melitensis and B. ovis were considered dissimilar from B. neotomae (H₄). Nine of ten genes had decreased transcript levels in B. neotomae infection compared to the other Brucella spp., the most important examples being IL-1a, Abcd2 and mef2c. B. neotomae may moderate the IL-1α transcription earlier or through alternative stimulation. Abcd2 knock down has been correlated with oxidative stress or tissue damage (75) and abnormalities in mitochondria, Golgi and endoplasmic reticulum of host cells (76). The importance of Abcd transporters is reinforced by decreased transcript levels of other Abcd family members during Brucella infection (9, 77). Lastly, the alteration of mef2c expression suggests that B. neotomae infection may render RAW 264.7 macrophages more susceptible to activation-induced cell death (78) than B. melitensis or B. ovis infections. When compared to B. melitensis and B. ovis, B. neotomae infected macrophages appeared to have decreased immuno-stimulatory capability resulting in reduced oxidative stress and increased susceptibility to cell death.

Brucella infection of RAW 264.7 and J774A.1 macrophage cell lines resulted in similar results. While RAW 264.7 and J774A.1 cells are macrophage-like in lysozyme secretion (79), phagocytosis of particles, response to LPS stimulus (80) and activation state (81), differences do exist in the abilities of these cells to mediate cytolytic activity (81), synthesize nitrite and nitrate (80), and potentially other macrophage trafficking and defense mechanisms. Our microarray results were supported by similar transcription profiles between these Brucella infected macrophage cell lines. However, internalization of smooth Brucella by phagocytic macrophages occurs faster than by nonphagocytic cells such as trophoblasts (82) and may contribute to differences in microarray results between phagocytic and nonphagocytic cells. Ultimately, individual genes of interest must be further investigated for influence on Brucella spp. infections. In conclusion, the present study evaluated the macrophage transcriptome altered during B. melitensis, B. neotomae and B. ovis infections. Common changes in gene expression were observed among Brucella spp. infected macrophages suggesting similar innate immune mechanisms by macrophages when responding to different Brucella species. These changes were related to increased chemokine, alteration in cytokine signals and defense responses. Also, these three Brucella spp. induced decreased transcription of select genes, suggesting that repressed transcription may result from pathogen-specific manipulations. Further, a subset of macrophage genes was differentially altered based on a particular Brucella species that may reflect the differing intracellular survival abilities of each Brucella species. Microarray analysis of host transcription provides a foundation to understand variations in Brucella spp. infection of mice. Future studies will reveal variations in the intracellular survival strategies used by different Brucella spp. by evaluating the contribution of individual host genes during infection.

Table 1.
RAW 264.7 Macrophage Transcription of Common Housekeeping Genes Following Brucella spp. Infection

H₀: Mϕ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis

Probe set Entrez gene Average signal SLR^a EBarrays probability Gene symbol Gene product

^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SE.

101213_at 11837 5.7 × 10⁴ −0.2 ± 0.06 1.000 Arbp Acidic ribosomal phosphoprotein PO

101578_f_at 11461 2.2 × 10⁴ −0.6 ± 0.6 0.870 Actb β-actin

101214_f_at 162210_r_at 97751_f_at 14433 2.5 × 10⁴ 0.1 ± 0.2 0.894 Gapdh Glyceraldehyde-3-phosphate dehydrogenase

93346_at 18655 2.0 × 10⁴ 0.2 ± 0.1 1.000 Pgk1 Phosphoglyerate kinase 1

93088_at 12010 1.6 × 10⁴ 0.2 ± 0.2 1.000 b2m β 2 microglobulin

97538_at 110006 6.8 × 10³ −0.6 ± 0.2 0.999 b-gus β glucuronidase

160107_at 15452 6.5 × 10³ 0.07 ± 0.1 0.999 Hprt1 Hypoxanthine guanine phosphoribosyl transferase 1

103957_at 103958_g_at 22042 3.4 × 10³ −0.5 ± 1.2 0.991 Tfrc Transferrin receptor

99950_at 21374 6.7 × 10² −0.09 ± 0.2 0.996 Tbp TATA box binding protein

Table 2.
Genes with Increased Transcription in Brucella spp. Infected as Compared to Uninfected RAW 264.7 Macrophages

H₁: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis

SLR^a

Probe set Entrez gene M ^b N ^b O ^b Average ± SEM EBarrays probability Gene symbol Gene product Additional statistics^c

^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.

^bM, N, O indicate Brucella spp. used to infect macrophages B. melitensis, B. neotomae and B. ovis, respectively.

^cIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, SAM delta = 0.05; c, B. abortus microarrays (14).

Chemotaxis

102736_at 20296 6.4 5.8 6.5 6.2 ± 0.5 0.996 Ccl2 Chemokine (C-C motif) ligand 2 (MCP-1) a, b, c

103486_at 16176 7.5 6.1 6.7 6.8 ± 0.2 0.869 Il1b Interleukin 1 beta a, b, c

94761_at 20306 5.6 4.6 6.0 5.4 ± 0.3 0.764 Ccl7 Chemokine (C-C motif) ligand 7 (MCP-3) a, b, c

98406_at 20304 2.7 2.2 3.8 2.9 ± 0.6 0.658 Ccl5 Chemokine (C-C motif) ligand 5 (RANTES)

101160_at 20310 4.8 4.4 4.6 4.6 ± 0.1 0.997 Cxcl2 Chemokine (C-X-C motif) ligand 2 (MIP-2α) a, b, c

94146_at 20303 3.6 3.3 3.6 3.5 ± 0.2 0.999 Ccl4 Chemokine (C-C motif) ligand 4 (MIP-1β) a, b, c

98822_at 53606 2.3 2.0 3.0 2.4 ± 0.3 0.891 Isg15 ISG15 ubiquitin-like modifier

102424_at 20302 2.6 2.4 2.9 2.6 ± 0.2 0.905 Ccl3 Chemokine (C-C motif) ligand 3 (MIP-1α) a, b

104388_at 20308 2.8 2.4 2.7 2.6 ± 0.2 0.932 Ccl9 Chemokine (C-C motif) ligand 9 (MIP-1γ) a, b

93858_at 15945 1.7 2.1 2.2 2.0 ± 0.2 0.522 Cxcl10 Chemokine (C-X-C motif) ligand 10 c

Defense response

92948_at 12981 6.4 5.0 5.1 5.5 ± 0.4 0.723 Csf2 Colony stimulating factor 2 (granulocyte-macrophage) a, b

100981_at 15957 4.6 4.2 5.6 4.8 ± 0.3 0.720 Ifit1 Interferon-induced protein with tetratricopeptide repeats 1 a, b, c

102629_at 21926 4.3 4.1 4.2 4.2 ± 0.2 0.999 Tnf Tumor necrosis factor a, b, c

94142_at 12985 4.7 3.7 4.6 4.3 ± 0.2 0.987 Csf3 Colony stimulating factor 3 (granulocyte) a, b, c

103639_at 15958 2.8 3.2 3.7 3.2 ± 0.4 0.907 Ifit2 Interferon-induced protein with tetratricopeptide repeats 2

93871_at 16181 4.0 3.4 3.9 3.7 ± 0.2 0.996 Il1rn Interleukin 1 receptor antagonist a, b, c

102921_s_at 14102 2.5 3.5 2.7 2.9 ± 0.4 0.914 Fas Fas (TNF receptor superfamily member) c

102712_at 20210 3.4 2.3 2.9 2.9 ± 0.2 0.948 Saa3 Serum amyloid A 3 c

94928_at 21938 2.5 2.0 2.5 2.4 ± 0.2 0.885 Tnfrsf1b Tumor necrosis factor receptor superfamily, member 1b a, b, c

92534_at 14579 2.6 2.0 2.9 2.5 ± 0.2 0.839 Gem GTP binding protein (gene overexpressed in skeletal muscle)

98988_at 80859 3.1 2.7 2.1 2.6 ± 0.2 0.94304859 Nfkbiz Nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor, zeta

Protein-nucleus import

97238_at 21335 2.8 3.2 2.9 3.0 ± 0.6 0.940 Tacc3 Transforming, acidic coiled-coil containing protein 3

104149_at 18035 2.6 2.1 1.9 2.2 ± 0.2 0.704 Nfkbia Nuclear factor of kappa light chain gene enhancer in B-cells inhibitor, alpha a, b

161135_f_at 66406 2.3 1.2 2.6 2.0 ± 0.3 0.43736716 Sac3d1 SAC3 domain containing 1

Apoptosis

94186_at 22029 5.0 4.4 4.6 4.7 ± 0.2 0.943 Traf1 Tnf receptor-associated factor 1 a, b, c

104712_at 17869 3.7 4.0 3.0 3.6 ± 0.4 0.890 Myc Myelocytomatosis oncogene c

99392_at 21929 2.6 2.3 2.0 2.3 ± 0.5 0.814 Tnfaip3 Tumor necrosis factor, alpha-induced protein 3 c

161666_f_at 17873 3.8 3.4 3.6 3.6 ± 0.2 0.970 Gadd45b Growth arrest and DNA-damage-inducible 45 beta a, b

102779_at 17873 2.7 2.4 2.7 2.6 ± 0.3 0.947 Gadd45b Growth arrest and DNA-damage-inducible 45 beta c

Fatty acid biosynthesis

104647_at 19225 5.6 4.7 4.4 4.9 ± 0.3 0.929 Ptgs2 Prostaglandin-endoperoxide synthase 2 a, b, c

94057_g_at 20249 2.2 2.4 2.2 2.3 ± 0.2 0.849 Scd1 Stearoyl-coenzyme A desaturase 1

Cell surface receptor linked signal transduction

95344_at 16165 3.0 3.3 3.0 3.1 ± 0.3 0.941 Il13ra2 Interleukin 13 receptor, alpha 2 c

97733_at 11541 2.8 2.6 2.5 2.7 ± 0.2 0.931 Adora2b Adenosine A2b receptor a, b

104498_at 26556 2.4 3.2 1.3 2.3 ± 0.3 0.421 Homer1 Homer homolog 1 (Drosophila) b

102663_at 18793 2.7 2.2 2.7 2.5 ± 0.2 0.953 Plaur Urokinase plasminogen activator receptor a, b, c

Regulation of biological process

92232_at 12702 5.6 4.4 5.2 5.1 ± 0.2 0.912 Socs3 Suppressor of cytokine signaling 3 a, b, c

162206_f_at 12702 3.9 3.1 3.4 3.5 ± 0.1 0.967 Socs3 Suppressor of cytokine signaling 3 a, b

92471_i_at 20556 2.4 1.6 2.6 2.2 ± 0.3 0.595 Slfn2 Schlafen 2

Regulation of transcription, DNA-dependent

101415_i_at 81845 2.5 2.9 1.9 2.4 ± 0.3 0.777 Bat4 HLA-B associated transcript 4

102709_at 15260 2.4 2.5 2.7 2.5 ± 0.1 0.915 Hira Histone cell cycle regulation defective homolog A (S. cerevisiae) a, b

103651_r_at 68705 2.4 2.2 2.0 2.2 ± 0.2 0.808 Gtf2f2 General transcription factor IIF, polypeptide 2

102882_at 22704 2.4 2.1 2.5 2.3 ± 0.3 0.579 Zfp46 Zinc finger protein 46

Protein metabolism

160829_at 21664 5.1 4.7 4.5 4.8 ± 0.4 0.958 Phlda1 Pleckstrin homology-like domain, family A, member 1 a, b

93352_at 21817 2.2 1.8 2.0 2.0 ± 0.5 0.530 Tgm2 Transglutaminase 2, C polypeptide

102782_at 71340 3.3 3.5 2.8 3.2 ± 0.2 0.926 Riok1 RIO kinase 1 a, b

97548_at 328110 3.1 2.7 2.9 2.9 ± 0.2 0.950 Prpf39 PRP39 pre-mRNA processing factor 39 homolog (yeast)

Cell growth and/or maintenance

104451_at 18174 2.4 1.8 2.4 2.2 ± 0.1 0.805 Slc11a2 Solute carrier family 11 (proton-coupled divalent metal ion transporters), member 2 (Nramp2) a, b

94379_at 16561 3.2 2.8 3.2 3.1 ± 0.1 0.945 Kif1b Kinesin family member 1B a, b

94384_at 15937 2.8 2.6 2.2 2.5 ± 0.3 0.890 Ier3 Immediate early response 3 b, c

160729_f_at 21884 3.3 2.1 3.4 2.9 ± 0.2 0.736 Fabp9 Fatty acid binding protein 9, testis a, b

161281_f_at 15937 3.6 3.0 1.8 2.8 ± 0.3 0.44599685 — Immediate early response 3

Physiological process

160084_at 546355 3.2 2.7 3.1 3.0 ± 0.3 0.995 Odc Similar to ornithine decarboxylase b

AFFX- GapdhMur/M 32599_5_st 14433 2.9 2.3 1.7 2.3 ± 0.4 0.761 Gapdh Similar to glyceraldehyde-3-phosphate dehydrogenase

102749_at 12865 1.9 2.4 2.5 2.3 ± 0.4 0.672 Cox7a1 Cytochrome c oxidase, subunit VIIa 1

94147_at 18787 2.6 2.3 1.9 2.3 ± 0.3 0.813 Serpine1 Serine (or cysteine) proteinase inhibitor, clade E, member 1 c

102694_at 26436 2.5 1.5 3.4 2.5 ± 0.2 0.498 Psg16 Pregnancy specific glycoprotein 16 a, b

Miscellaneous classification

96515_at 14204 1.9 1.9 2.5 2.1 ± 0.4 0.550 Il4i1 Interleukin 4 induced 1

98774_at 16365 4.0 4.2 4.1 4.1 ± 0.3 0.973 Irg1 Immunoresponsive gene 1 a, b, c

98773_s_at 16365 3.4 3.1 3.3 3.3 ± 0.3 0.998 Irg1 Immunoresponsive gene 1 a, b

94971_at 72391 2.7 1.9 2.6 2.4 ± 0.4 0.851 Cdkn3 Cyclin-dependent kinase inhibitor 3

162384_f_at 12457 1.9 3.4 2.8 2.7 ± 0.4 0.748 Ccrn4l CCR4 carbon catabolite repression 4-like

94389_at 66373 1.9 2.4 1.9 2.1 ± 0.4 0.503 Lsm5 LSM5 homolog, U6 small nuclear RNA associated (S. cerevisiae)

97714_r_at 54130 2.7 1.7 3.2 2.5 ± 0.3 0.753 Actr1a ARP1 actin-related protein 1 homolog A (yeast) b

96162_at 50764 1.6 3.4 2.3 2.5 ± 0.2 0.492 Fbxo15 F-box only protein 15 b

93869_s_at 12044 2.3 2.2 2.3 2.3 ± 0.2 0.627 Bcl2a1a B-cell leukemia/lymphoma 2 related protein A1a b, c

94505_at 67245 1.9 1.8 2.2 2.0 ± 0.1 0.512 Peli1 Pellino 1 a, b

104177_at 58185 2.8 1.9 3.0 2.5 ± 0.3 0.827 Rsad2 Radical S-adenosyl methionine domain containing 2

100669_at 25465 2.1 2.0 2.5 2.2 ± 0.6 0.583 — Interleukin 17

161511_f_at 53606 2.1 2.1 3.1 2.4 ± 0.5 0.825 Isg15 Interferon stimulated gene, ubiquitin-like modifier

97693_at 30865 5.6 5.0 5.4 5.3 ± 0.2 0.965 C78513 EST C78513

104477_at 3.0 3.3 3.8 3.4 ± 0.3 0.919 — Transcribed locus

99849_at 319202 2.7 2.0 2.7 2.5 ± 0.2 0.908 1200016   E24Rik RIKEN cDNA 1200016E24 gene

Table 3.
Genes with Decreased Level of Transcript in Brucella spp. Infected as Compared to Uninfected RAW 264.7 Macrophages

H₁: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis

SLR^a

Probe set Entrez gene M ^b N ^b O ^b Average ± SEM EBarrays probability Gene symbol Gene product Additional statistics^c

^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.

^bM, N, O indicate Brucella spp. used to infect macrophages B. melitensis, B. neotomae and B. ovis, respectively.

^cIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, SAM delta = 0.05; c, B. abortus microarrays (14).

Small GTPase mediated signal transduction

97415_at 19340 −2.6 −2.0 −3.2 −2.6 ± 0.3 0.866 Rab3d RAB3D, member RAS oncogene family b, c

97227_at 14673 −2.2 −2.5 −1.9 −2.2 ± 0.3 0.807 Gna12 Guanine nucleotide binding protein, alpha 12 a

97549_at 12632 −2.1 −2.2 −1.9 −2.1 ± 0.3 0.662 Cfl2 Cofilin 2, muscle

93850_at 29875 −2.7 −2.0 −1.3 −2.0 ± 0.4 0.494 Iqgap1 IQ motif containing GTPase activating protein 1

Cell proliferation

161417_r_at 18109 −2.5 −2.8 −2.5 −2.6 ± 0.5 0.968 Mycn V-myc myelocytomatosis viral related oncogene, neuroblastoma derived (avian)

93943_f_at 12193 −2.5 −2.4 −2.4 −2.4 ± 0.5 0.925 Zfp36l2 Zinc finger protein 36, C3H type-like 2

93713_at 20416 −2.5 −2.7 −2.2 −2.5 ± 0.3 0.914 Shc1 Src homology 2 domain-containing transforming protein C1

92300_at 17428 −2.4 −2.0 −2.9 −2.4 ± 0.3 0.889 Mnt Max binding protein c

99076_at 353187 −2.2 −1.7 −2.8 −2.3 ± 0.3 0.786 Nr1d2 Nuclear receptor subfamily 1 group D member 2 c

101571_g_at 16010 −2.0 −1.7 −3.0 −2.3 ± 0.2 0.685 Igfbp4 Insulin-like growth factor binding protein 4

99024_at 17122 −2.0 −1.8 −2.2 −2.0 ± 0.3 0.557 Mad4 Max dimerization protein 4

100444_at 12568 −2.4 −1.9 −1.6 −2.0 ± 0.4 0.520 Cdk5 Cyclin-dependent kinase 5

Carboxylic acid metabolism

93320_at 12894 −3.4 −1.9 −3.1 −2.8 ± 0.4 0.663 Cpt1a Carnitine palmitoyltransferase 1a, liver c

96799_at 30839 −2.7 −2.2 −2.3 −2.4 ± 0.3 0.897 Fbxw5 F-box and WD-40 domain protein 5

96126_at 20397 −2.3 −2.4 −2.0 −2.2 ± 0.2 0.704 Sgpl1 Sphingosine phosphate lyase 1

94405_at 21366 −2.7 −1.5 −1.7 −2.0 ± 0.2 0.444 Slc6a6 Solute carrier family 6 (neurotransmitter transporter, taurine), member 6

Response to external stimulus

101433_at 15064 −2.4 −2.4 −2.4 −2.4 ± 0.3 0.918 Mr1 Major histocompatibility complex, class I-related

104228_at 668701 −2.2 −2.2 −2.6 −2.3 ± 0.4 0.865 EG668701 Similar to Rap guanine nucleotide exchange factor 2

103250_at 54722 −2.7 −2.1 −2.0 −2.3 ± 0.2 0.838 Dfna5h Deafness, autosomal dominant 5 homolog

104372_at 64296 −2.6 −2.2 −1.9 −2.2 ± 0.2 0.793 Abhd8 Abhydrolase domain containing 8

99349_at 16171 −1.7 −2.5 −2.1 −2.1 ± 0.3 0.681 Il17a Interleukin 17A

93218_at 20947 −2.3 −2.0 −1.7 −2.0 ± 0.4 0.573 Swap70 SWAP complex protein

Protein modification

99643_f_at 12876 −3.7 −3.8 −2.7 −3.4 ± 0.4 0.949 Cpe Carboxypeptidase E b

161848_r_at 19260 −2.5 −2.2 −2.4 −2.4 ± 0.4 0.870 Ptpn22 Protein tyrosine phosphatase, non-receptor type 22 (lymphoid)

92427_at 21812 −2.4 −1.9 −2.3 −2.2 ± 0.4 0.729 Tgfbr1 Transforming growth factor, beta receptor I

99642_i_at 12876 −3.0 −2.1 −1.3 −2.2 ± 0.7 0.618 Cpe Carboxypeptidase E

100427_at 19277 −2.0 −1.4 −2.7 −2.0 ± 0.3 0.552 Ptpro Protein tyrosine phosphatase, receptor type, O b, c

Transcription from Pol II promoter

104591_g_at 17260 −2.4 −2.9 −2.5 −2.6 ± 0.2 0.932 Mef2c Myocyte enhancer factor 2C b, c

104590_at 17260 −2.8 −2.0 −2.2 −2.3 ± 0.2 0.821 Mef2c Myocyte enhancer factor 2C a, b

96171_at 54006 −2.1 −1.6 −2.4 −2.0 ± 0.2 0.580 Deaf1 Deformed epidermal autoregulatory factor 1 (Drosophila) b

Cytoskeleton organization and biogenesis

95705_s_at 11461 −2.2 −3.1 −2.4 −2.6 ± 0.5 0.887 Actb Actin, beta, cytoplasmic

161981_r_at 14246 −2.6 −1.6 −2.4 −2.2 ± 0.4 0.693 Flg Filaggrin

Metabolism

94872_at 57319 −2.8 −2.5 −2.8 −2.7 ± 0.4 0.934 Smpdl3a Sphingomyelin phosphodiesterase, acid-like 3A

161733_at 59010 −2.4 −2.9 −2.1 −2.5 ± 0.3 0.919 Sqrdl Sulfide quinone reductase-like

101972_at 16541 −2.8 −2.4 −2.5 −2.6 ± 0.3 0.915 Napsa Napsin A aspartic peptidase

99667_at 12862 −2.3 −2.2 −2.5 −2.3 ± 0.5 0.878 Cox6a2 Cytochrome c oxidase, subunit VI a, polypeptide 2

103538_at 21386 −1.8 −2.1 −2.5 −2.1 ± 0.3 0.680 Tbx3 T-box 3

96035_at 12039 −1.7 −2.0 −2.4 −2.0 ± 0.4 0.606 Bckdha Branched chain ketoacid dehydrogenase E1, alpha polypeptide

97560_at 19156 −1.4 −3.0 −1.7 −2.0 ± 0.4 0.381 Psap Prosaposin

Cell communication

160932_at 17973 −2.6 −2.6 −2.6 −2.6 ± 0.1 0.964 Nck1 Non-catalytic region of tyrosine kinase adaptor protein 1 a, b

97768_at 13506 −2.2 −2.1 −2.6 −2.3 ± 0.3 0.803 Dsc2 Desmocollin 2

Cell growth and/or maintenance

92695_at 14296 −2.0 −1.6 −2.7 −2.1 ± 0.3 0.658 Frat1 Frequently rearranged in advanced T-cell lymphomas

103534_at 15130 −2.8 −2.0 −1.5 −2.1 ± 0.2 0.626 Hbb-b2 Hemoglobin, beta adult minor chain b

93736_at 21452 −2.0 −2.0 −2.3 −2.1 ± 0.3 0.606 Tcn2 Transcobalamin 2

Miscellaneous classification

96494_at 75785 −2.9 −2.7 −2.5 −2.7 ± 0.2 0.959 Klhl24 Kelch-like 24 (Drosophila)

103933_at 22619 −2.9 −1.9 −2.8 −2.5 ± 0.2 0.895 Siae Sialic acid acetylesterase b

104299_at 224454 −3.0 −1.9 −2.5 −2.5 ± 0.3 0.852 Zdhhc14 Zinc finger, DHHC domain containing 14

94299_at 69654 −2.5 −2.0 −2.2 −2.2 ± 0.2 0.788 Dctn2 Dynactin 2

162116_r_at 116891 −3.0 −2.7 −1.7 −2.5 ± 0.9 0.741 Derl2 Der1-like domain family, member 2

160934_s_at 73094 −3.0 −2.6 −1.6 −2.4 ± 0.5 0.692 Sgip1 SH3-domain GRB2-like (endophilin) interacting protein 1

104714_at 105445 −2.2 −1.7 −2.2 −2.0 ± 0.2 0.611 Dock9 Dedicator of cytokinesis 9

162075_r_at 17476 −2.7 −1.5 −3.8 −2.7 ± 0.4 0.551 Mpeg1 Macrophage expressed gene 1

96464_at 140570 −2.1 −2.2 −1.9 −2.1 ± 0.2 0.518 Plxnb2 Plexin B2

160905_s_at 80515 −2.2 −2.2 −2.1 −2.1 ± 0.3 0.735 A030009 H04Rik RIKEN cDNA A030009H04 gene

97119_at 99029 −2.6 −2.5 −2.2 −2.4 ± 0.3 0.911 AI596198 Expressed sequence AI596198

97752_at 99358 −2.0 −2.1 −2.8 −2.3 ± 0.3 0.858 E13001 3N09Rik RIKEN cDNA E130013N09 gene

103748_at 74440 −2.9 −1.6 −2.1 −2.2 ± 0.2 0.645 4933407 C03Rik RIKEN cDNA 4933407C03 gene

94069_r_at 67163 −3.4 −2.3 −2.2 −2.6 ± 0.3 0.946 2610204 L23Rik RIKEN cDNA 2610204L23 gene

Table 4A.
Differences in Macrophage Transcript Expression when Infected by Different Brucella Species

A.B. ovis and B. neotomae Infected Macrophages Express Transcripts Different from B. melitensis or Uninfected Macrophages

H2: Mϕ = ≠ Mϕ + B. melitensis ≠ = Mϕ + B. neotomae = Mϕ + B. ovis

SLR^a

Probe set Entrez gene B. melitensis B. neotomae B. ovis EBarrays probability Gene symbol Gene product statistics^b

94337_at 14453 −4.2 ± 0.7 −1.1 ± 0.4 −1.3 ± 0.5 1.000 Gas2 Growth arrest specific 2

162240_r_at 13010 0.8 ± 0.3 3.4 ± 0.2 3.9 ± 0.1 0.999 Cst3 Cystatin C a, b

101793_at 14129 −3.1 ± 0.1 −1.4 ± 0.3 −0.5 ± 0.3 0.903 Fcgr1 Fc receptor, IgG, high affinity I (FcγRI) a, b, c

102794_at 12767 −3.6 ± 0.5 −1.4 ± 0.7 −1.7 ± 0.3 0.898 Cxcr4 Chemokine (C-X-C motif) receptor 4 c

101070_at 54484 −3.6 ± 0.5 −1.6 ± 0.6 −1.7 ± 0.3 0.885 Mkrn1 Makorin, ring finger protein, 1

161878_r_at 52250 −2.2 ± 0.8 0.5 ± 0.1 0.3 ± 0.2 0.852 Reep1 Receptor accessory protein 1

93569_f_at 545005 0.6 ± 0.3 2.6 ± 0.4 3.3 ± 0.7 0.829 LOC544988 Similar to Spetex-2F protein

99377_at 18249 2.7 ± 0.6 0.5 ± 0.9 −0.6 ± 0.6 0.781 Obp1a Odorant binding protein Ia

94240_i_at 19944 1.7 ± 0.9 −0.8 ± 1.3 −0.8 ± 1.0 0.734 Rpl29 Ribosomal protein L29

104697_at 80837 −3.0 ± 0.7 −1.2 ± 0.9 −0.8 ± 0.4 0.622 Rhoj ras homolog gene family, member J

92857_at 19934 −3.3 ± 0.7 −1.2 ± 0.7 −2.0 ± 0.9 0.571 Rpl22 Ribosomal protein L22

102706_i_at 16625 −2.7 ± 0.9 −0.6 ± 0.4 −0.1 ± 0.3 0.566 Serpina3c Serine (or cysteine) proteinase inhibitor, clade A, member 3C

Table 4B.

B.B. melitensis and B. neotomae Infected Macrophages Express Transcripts Different from B. ovis or Uninfected Macrophages

H₃: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. neotomae = ≠ Mϕ + B. ovis

SLR^a

Probe set Entrez gene B. melitensis B. neotomae B. ovis EBarrays probability Gene symbol Gene product

161420_r_at 13478 −0.3 ± 0.7 −0.2 ± 1.3 −3.2 ± 0.5 0.993 Dpagt1 Dolichyl-phosphate acetylgluco-saminephosphotransferase 1 (GlcNAc-1-P transferase)

160797_r_at 12412 −2.1 ± 0.4 −2.0 ± 0.4 0.6 ± 0.2 0.975 Cbx1 Chromobox homolog 1 (Drosophila HP1 beta)

92600_f_at 13117 −2.4 ± 0.6 −2.4 ± 0.7 0.0 ± 0.1 0.953 Cyp4a10 Cytochrome P450, family 4, subfamily a, polypeptide 10

161128_r_at 544834 0.5 ± 1.3 1.8 ± 0.9 3.7 ± 0.8 0.9361 6030426L16Rik Similar to Hippocalcin-like protein 1, Visinin-like protein 3

99885_at 16019 0.6 ± 0.9 1.0 ± 0.3 3.1 ± 0.6 0.738 Igh-6 Immunoglobulin heavy chain 6 (heavy chain of IgM)

93566_at 74246 −1.5 ± 0.2 −2.6 ± 0.6 0.1 ± 0.3 0.711 Gale Galactose-4-epimerase, UDP

162076_r_at 14800 −2.2 ± 0.7 −3.0 ± 0.5 −0.5 ± 0.4 0.681 Gria2 Glutamate receptor, ionotropic, AMPA2 (alpha 2)

160728_r_at 73945 −2.1 ± 1.1 −0.4 ± 0.6 −4.4 ± 0.6 0.6579 Otud4 OTU domain containing 4

AFFX-BioDn-3_st 1037747 −1.6 ± 0.3 −0.4 ± 0.1 1.4 ± 0.1 0.6294 — Biotin synthesis protein bioC

161131_r_at 228889 −0.6 ± 0.4 −0.7 ± 0.1 −2.7 ± 0.1 0.5167 — Dead (asp-glu-ala-asp) box polypeptide 27

102299_at 18750 −1.8 ± 0.7 −1.2 ± 0.5 −3.3 ± 0.4 0.508 Prkca Protein kinase C, alpha

Table 4C.

C.B. melitensis and B. ovis Infected Macrophages Express Transcripts Different from B. neotomae or Uninfected Macrophages

H₄: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. ovis ≠ = Mϕ + B. neotomae

SLR^a

Probe set Entrez gene B. melitensis B. neotomae B. ovis EBarrays probability Gene symbol Gene product Additional statistics^b

^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.

^bIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, = SAM delta = 0.05; c, B. abortus microarrays (14).

94051_at 13612 3.0 ± 0.4 0.5 ± 0.4 3.2 ± 0.3 0.998 Edil3 EGF-like repeats and discordin I-like domains 3 a, b

96785_at 80880 −3.2 ± 0.6 −0.5 ± 1.1 −2.7 ± 0.7 0.994 Ankrd47 Ankyrin repeat domain 47

92913_at 26874 −4.1 ± 0.3 −2.0 ± 0.4 −3.9 ± 0.3 0.920 Abcd2 ATP-binding cassette, sub-family D (ALD), member 2 a, b

103467_g_at 54151 −2.3 ± 0.3 −0.6 ± 0.3 −2.9 ± 0.3 0.897 Cyhr1 Cysteine and histidine rich 1

94755_at 16175 3.9 ± 0.4 1.7 ± 0.7 3.1 ± 0.4 0.693 Il1a Interleukin 1 alpha b, c

93568_i_at 1.4 ± 0.0 −1.1 ± 0.7 1.2 ± 0.5 0.556 LOC544988 Similar to Spetex-2F protein

92504_at 15574 2.1 ± 0.6 −0.1 ± 0.4 1.8 ± 0.7 0.501 Hus1 Hus1 homolog (S. pombe)

104592_i_at 17260 −3.7 ± 0.2 −1.9 ± 0.3 −3.3 ± 0.2 0.473 Mef2c Myocyte enhancer factor 2C a, b

102798_at 11535 0.9 ± 0.6 2.4 ± 0.6 −0.3 ± 0.7 0.444 Adm Adrenomedullin

102374_at 53902 −2.9 ± 0.3 −1.0 ± 0.4 −2.2 ± 0.5 0.425 Dscr1l2 Down syndrome critical region gene 1-like 2 a, b

Figure 1.
Intracellular survival of Brucella spp. in RAW 264.7 and J774A.1 macrophages. Panel A. Intracellular Brucella spp. were isolated from RAW 264.7 or J774A.1 macrophages and enumerated at 4 hr. Macrophages were infected with 1000:1 MOI of each Brucella spp. and allowed to infect for 90 min followed by gentamicin treatment for 30 min. At 4 hr, macrophages were washed then lysed with 0.1% Triton X-100. Intracellular Brucella were enumerated by plating serial dilutions on agar. Four independent experiments were conducted, and the number of Brucella spp. isolated per well was averaged with error bars representing the SEM. Comparing B. melitensis or B. neotomae to B. ovis infection is significantly different with P ≤ 0.005. Panel B. Flow cytometry analysis of Brucella-GFP_uv infection in RAW 264.7 and J774A.1 macrophages at 4 hr. RAW 264.7 or J774A.1 macrophages were infected for 90 min with Brucella spp. containing GFP_uv followed by gentamicin treatment to remove extracellular bacteria. After 4 hr, RAW 264.7 or J774A.1 cells were fixed in 4% paraformaldehyde, and the percent of infected cells determined by flow cytometry analysis. Comparing B. melitensis or B. neotomae to B. ovis infection is significantly different with P ≤ 0.005. Panel C. RAW 264.7 macrophages were infected continuously for 4 hr with Brucella spp. containing GFP_uv. Cells were washed to remove extracellular Brucella and fixed in 4% paraformaldehyde. Matched bright field and fluorescence images were digitally captured at ×63 oil immersion magnification. Bar equals 20 μm. A color version of this figure is available in the online journal.

Figure 2.
Transcript level changes in select gens following Brucella spp. infection of RAW 264.7 (Panel A) or J774A.1 (Panel B) macrophages. RT-PCR results confirm genes with increased A or C or decreased B or D transcript levels following infection of RAW 264.7 or J774A.1 cells, respectively. Each RNA sample was normalized using Hprt transcript levels. Signal log ratios (SLR), a comparison of each infected sample to uninfected control RAW 264.7 samples, were averaged from four independent RNA isolations and error bars represent the SEM.

Figure 3.
Induction of TNFα by the B. melitensis in BMDMs from C57BL/6 mice. Cytokine levels were assayed from supernatants of B. melitensis 16M infected or medium alone bone-marrow derived macrophages (BMDMs). BMDMs were cultured 5–7 days pre-infection. Cytokines were measured in pg/mL by ELISA at 12 hr post-infection. Data are from 7 mice/experiment.

H₀: Mϕ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis
^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SE.
101213_at	11837	5.7 × 10⁴	−0.2 ± 0.06	1.000	Arbp	Acidic ribosomal phosphoprotein PO
101578_f_at	11461	2.2 × 10⁴	−0.6 ± 0.6	0.870	Actb	β-actin
101214_f_at 162210_r_at 97751_f_at	14433	2.5 × 10⁴	0.1 ± 0.2	0.894	Gapdh	Glyceraldehyde-3-phosphate dehydrogenase
93346_at	18655	2.0 × 10⁴	0.2 ± 0.1	1.000	Pgk1	Phosphoglyerate kinase 1
93088_at	12010	1.6 × 10⁴	0.2 ± 0.2	1.000	b2m	β 2 microglobulin
97538_at	110006	6.8 × 10³	−0.6 ± 0.2	0.999	b-gus	β glucuronidase
160107_at	15452	6.5 × 10³	0.07 ± 0.1	0.999	Hprt1	Hypoxanthine guanine phosphoribosyl transferase 1
103957_at 103958_g_at	22042	3.4 × 10³	−0.5 ± 1.2	0.991	Tfrc	Transferrin receptor
99950_at	21374	6.7 × 10²	−0.09 ± 0.2	0.996	Tbp	TATA box binding protein

H₁: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis
^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.
^bM, N, O indicate Brucella spp. used to infect macrophages B. melitensis, B. neotomae and B. ovis, respectively.
^cIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, SAM delta = 0.05; c, B. abortus microarrays (14).
Chemotaxis
102736_at	20296	6.4	5.8	6.5	6.2 ± 0.5	0.996	Ccl2	Chemokine (C-C motif) ligand 2 (MCP-1)	a, b, c
103486_at	16176	7.5	6.1	6.7	6.8 ± 0.2	0.869	Il1b	Interleukin 1 beta	a, b, c
94761_at	20306	5.6	4.6	6.0	5.4 ± 0.3	0.764	Ccl7	Chemokine (C-C motif) ligand 7 (MCP-3)	a, b, c
98406_at	20304	2.7	2.2	3.8	2.9 ± 0.6	0.658	Ccl5	Chemokine (C-C motif) ligand 5 (RANTES)
101160_at	20310	4.8	4.4	4.6	4.6 ± 0.1	0.997	Cxcl2	Chemokine (C-X-C motif) ligand 2 (MIP-2α)	a, b, c
94146_at	20303	3.6	3.3	3.6	3.5 ± 0.2	0.999	Ccl4	Chemokine (C-C motif) ligand 4 (MIP-1β)	a, b, c
98822_at	53606	2.3	2.0	3.0	2.4 ± 0.3	0.891	Isg15	ISG15 ubiquitin-like modifier
102424_at	20302	2.6	2.4	2.9	2.6 ± 0.2	0.905	Ccl3	Chemokine (C-C motif) ligand 3 (MIP-1α)	a, b
104388_at	20308	2.8	2.4	2.7	2.6 ± 0.2	0.932	Ccl9	Chemokine (C-C motif) ligand 9 (MIP-1γ)	a, b
93858_at	15945	1.7	2.1	2.2	2.0 ± 0.2	0.522	Cxcl10	Chemokine (C-X-C motif) ligand 10	c
Defense response
92948_at	12981	6.4	5.0	5.1	5.5 ± 0.4	0.723	Csf2	Colony stimulating factor 2 (granulocyte-macrophage)	a, b
100981_at	15957	4.6	4.2	5.6	4.8 ± 0.3	0.720	Ifit1	Interferon-induced protein with tetratricopeptide repeats 1	a, b, c
102629_at	21926	4.3	4.1	4.2	4.2 ± 0.2	0.999	Tnf	Tumor necrosis factor	a, b, c
94142_at	12985	4.7	3.7	4.6	4.3 ± 0.2	0.987	Csf3	Colony stimulating factor 3 (granulocyte)	a, b, c
103639_at	15958	2.8	3.2	3.7	3.2 ± 0.4	0.907	Ifit2	Interferon-induced protein with tetratricopeptide repeats 2
93871_at	16181	4.0	3.4	3.9	3.7 ± 0.2	0.996	Il1rn	Interleukin 1 receptor antagonist	a, b, c
102921_s_at	14102	2.5	3.5	2.7	2.9 ± 0.4	0.914	Fas	Fas (TNF receptor superfamily member)	c
102712_at	20210	3.4	2.3	2.9	2.9 ± 0.2	0.948	Saa3	Serum amyloid A 3	c
94928_at	21938	2.5	2.0	2.5	2.4 ± 0.2	0.885	Tnfrsf1b	Tumor necrosis factor receptor superfamily, member 1b	a, b, c
92534_at	14579	2.6	2.0	2.9	2.5 ± 0.2	0.839	Gem	GTP binding protein (gene overexpressed in skeletal muscle)
98988_at	80859	3.1	2.7	2.1	2.6 ± 0.2	0.94304859	Nfkbiz	Nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor, zeta
Protein-nucleus import
97238_at	21335	2.8	3.2	2.9	3.0 ± 0.6	0.940	Tacc3	Transforming, acidic coiled-coil containing protein 3
104149_at	18035	2.6	2.1	1.9	2.2 ± 0.2	0.704	Nfkbia	Nuclear factor of kappa light chain gene enhancer in B-cells inhibitor, alpha	a, b
161135_f_at	66406	2.3	1.2	2.6	2.0 ± 0.3	0.43736716	Sac3d1	SAC3 domain containing 1
Apoptosis
94186_at	22029	5.0	4.4	4.6	4.7 ± 0.2	0.943	Traf1	Tnf receptor-associated factor 1	a, b, c
104712_at	17869	3.7	4.0	3.0	3.6 ± 0.4	0.890	Myc	Myelocytomatosis oncogene	c
99392_at	21929	2.6	2.3	2.0	2.3 ± 0.5	0.814	Tnfaip3	Tumor necrosis factor, alpha-induced protein 3	c
161666_f_at	17873	3.8	3.4	3.6	3.6 ± 0.2	0.970	Gadd45b	Growth arrest and DNA-damage-inducible 45 beta	a, b
102779_at	17873	2.7	2.4	2.7	2.6 ± 0.3	0.947	Gadd45b	Growth arrest and DNA-damage-inducible 45 beta	c
Fatty acid biosynthesis
104647_at	19225	5.6	4.7	4.4	4.9 ± 0.3	0.929	Ptgs2	Prostaglandin-endoperoxide synthase 2	a, b, c
94057_g_at	20249	2.2	2.4	2.2	2.3 ± 0.2	0.849	Scd1	Stearoyl-coenzyme A desaturase 1
Cell surface receptor linked signal transduction
95344_at	16165	3.0	3.3	3.0	3.1 ± 0.3	0.941	Il13ra2	Interleukin 13 receptor, alpha 2	c
97733_at	11541	2.8	2.6	2.5	2.7 ± 0.2	0.931	Adora2b	Adenosine A2b receptor	a, b
104498_at	26556	2.4	3.2	1.3	2.3 ± 0.3	0.421	Homer1	Homer homolog 1 (Drosophila)	b
102663_at	18793	2.7	2.2	2.7	2.5 ± 0.2	0.953	Plaur	Urokinase plasminogen activator receptor	a, b, c
Regulation of biological process
92232_at	12702	5.6	4.4	5.2	5.1 ± 0.2	0.912	Socs3	Suppressor of cytokine signaling 3	a, b, c
162206_f_at	12702	3.9	3.1	3.4	3.5 ± 0.1	0.967	Socs3	Suppressor of cytokine signaling 3	a, b
92471_i_at	20556	2.4	1.6	2.6	2.2 ± 0.3	0.595	Slfn2	Schlafen 2
Regulation of transcription, DNA-dependent
101415_i_at	81845	2.5	2.9	1.9	2.4 ± 0.3	0.777	Bat4	HLA-B associated transcript 4
102709_at	15260	2.4	2.5	2.7	2.5 ± 0.1	0.915	Hira	Histone cell cycle regulation defective homolog A (S. cerevisiae)	a, b
103651_r_at	68705	2.4	2.2	2.0	2.2 ± 0.2	0.808	Gtf2f2	General transcription factor IIF, polypeptide 2
102882_at	22704	2.4	2.1	2.5	2.3 ± 0.3	0.579	Zfp46	Zinc finger protein 46
Protein metabolism
160829_at	21664	5.1	4.7	4.5	4.8 ± 0.4	0.958	Phlda1	Pleckstrin homology-like domain, family A, member 1	a, b
93352_at	21817	2.2	1.8	2.0	2.0 ± 0.5	0.530	Tgm2	Transglutaminase 2, C polypeptide
102782_at	71340	3.3	3.5	2.8	3.2 ± 0.2	0.926	Riok1	RIO kinase 1	a, b
97548_at	328110	3.1	2.7	2.9	2.9 ± 0.2	0.950	Prpf39	PRP39 pre-mRNA processing factor 39 homolog (yeast)
Cell growth and/or maintenance
104451_at	18174	2.4	1.8	2.4	2.2 ± 0.1	0.805	Slc11a2	Solute carrier family 11 (proton-coupled divalent metal ion transporters), member 2 (Nramp2)	a, b
94379_at	16561	3.2	2.8	3.2	3.1 ± 0.1	0.945	Kif1b	Kinesin family member 1B	a, b
94384_at	15937	2.8	2.6	2.2	2.5 ± 0.3	0.890	Ier3	Immediate early response 3	b, c
160729_f_at	21884	3.3	2.1	3.4	2.9 ± 0.2	0.736	Fabp9	Fatty acid binding protein 9, testis	a, b
161281_f_at	15937	3.6	3.0	1.8	2.8 ± 0.3	0.44599685	—	Immediate early response 3
Physiological process
160084_at	546355	3.2	2.7	3.1	3.0 ± 0.3	0.995	Odc	Similar to ornithine decarboxylase	b
AFFX- GapdhMur/M 32599_5_st	14433	2.9	2.3	1.7	2.3 ± 0.4	0.761	Gapdh	Similar to glyceraldehyde-3-phosphate dehydrogenase
102749_at	12865	1.9	2.4	2.5	2.3 ± 0.4	0.672	Cox7a1	Cytochrome c oxidase, subunit VIIa 1
94147_at	18787	2.6	2.3	1.9	2.3 ± 0.3	0.813	Serpine1	Serine (or cysteine) proteinase inhibitor, clade E, member 1	c
102694_at	26436	2.5	1.5	3.4	2.5 ± 0.2	0.498	Psg16	Pregnancy specific glycoprotein 16	a, b
Miscellaneous classification
96515_at	14204	1.9	1.9	2.5	2.1 ± 0.4	0.550	Il4i1	Interleukin 4 induced 1
98774_at	16365	4.0	4.2	4.1	4.1 ± 0.3	0.973	Irg1	Immunoresponsive gene 1	a, b, c
98773_s_at	16365	3.4	3.1	3.3	3.3 ± 0.3	0.998	Irg1	Immunoresponsive gene 1	a, b
94971_at	72391	2.7	1.9	2.6	2.4 ± 0.4	0.851	Cdkn3	Cyclin-dependent kinase inhibitor 3
162384_f_at	12457	1.9	3.4	2.8	2.7 ± 0.4	0.748	Ccrn4l	CCR4 carbon catabolite repression 4-like
94389_at	66373	1.9	2.4	1.9	2.1 ± 0.4	0.503	Lsm5	LSM5 homolog, U6 small nuclear RNA associated (S. cerevisiae)
97714_r_at	54130	2.7	1.7	3.2	2.5 ± 0.3	0.753	Actr1a	ARP1 actin-related protein 1 homolog A (yeast)	b
96162_at	50764	1.6	3.4	2.3	2.5 ± 0.2	0.492	Fbxo15	F-box only protein 15	b
93869_s_at	12044	2.3	2.2	2.3	2.3 ± 0.2	0.627	Bcl2a1a	B-cell leukemia/lymphoma 2 related protein A1a	b, c
94505_at	67245	1.9	1.8	2.2	2.0 ± 0.1	0.512	Peli1	Pellino 1	a, b
104177_at	58185	2.8	1.9	3.0	2.5 ± 0.3	0.827	Rsad2	Radical S-adenosyl methionine domain containing 2
100669_at	25465	2.1	2.0	2.5	2.2 ± 0.6	0.583	—	Interleukin 17
161511_f_at	53606	2.1	2.1	3.1	2.4 ± 0.5	0.825	Isg15	Interferon stimulated gene, ubiquitin-like modifier
97693_at	30865	5.6	5.0	5.4	5.3 ± 0.2	0.965	C78513	EST C78513
104477_at		3.0	3.3	3.8	3.4 ± 0.3	0.919	—	Transcribed locus
99849_at	319202	2.7	2.0	2.7	2.5 ± 0.2	0.908	1200016   E24Rik	RIKEN cDNA 1200016E24 gene

H₁: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis
^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.
^bM, N, O indicate Brucella spp. used to infect macrophages B. melitensis, B. neotomae and B. ovis, respectively.
^cIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, SAM delta = 0.05; c, B. abortus microarrays (14).
Small GTPase mediated signal transduction
97415_at	19340	−2.6	−2.0	−3.2	−2.6 ± 0.3	0.866	Rab3d	RAB3D, member RAS oncogene family	b, c
97227_at	14673	−2.2	−2.5	−1.9	−2.2 ± 0.3	0.807	Gna12	Guanine nucleotide binding protein, alpha 12	a
97549_at	12632	−2.1	−2.2	−1.9	−2.1 ± 0.3	0.662	Cfl2	Cofilin 2, muscle
93850_at	29875	−2.7	−2.0	−1.3	−2.0 ± 0.4	0.494	Iqgap1	IQ motif containing GTPase activating protein 1
Cell proliferation
161417_r_at	18109	−2.5	−2.8	−2.5	−2.6 ± 0.5	0.968	Mycn	V-myc myelocytomatosis viral related oncogene, neuroblastoma derived (avian)
93943_f_at	12193	−2.5	−2.4	−2.4	−2.4 ± 0.5	0.925	Zfp36l2	Zinc finger protein 36, C3H type-like 2
93713_at	20416	−2.5	−2.7	−2.2	−2.5 ± 0.3	0.914	Shc1	Src homology 2 domain-containing transforming protein C1
92300_at	17428	−2.4	−2.0	−2.9	−2.4 ± 0.3	0.889	Mnt	Max binding protein	c
99076_at	353187	−2.2	−1.7	−2.8	−2.3 ± 0.3	0.786	Nr1d2	Nuclear receptor subfamily 1 group D member 2	c
101571_g_at	16010	−2.0	−1.7	−3.0	−2.3 ± 0.2	0.685	Igfbp4	Insulin-like growth factor binding protein 4
99024_at	17122	−2.0	−1.8	−2.2	−2.0 ± 0.3	0.557	Mad4	Max dimerization protein 4
100444_at	12568	−2.4	−1.9	−1.6	−2.0 ± 0.4	0.520	Cdk5	Cyclin-dependent kinase 5
Carboxylic acid metabolism
93320_at	12894	−3.4	−1.9	−3.1	−2.8 ± 0.4	0.663	Cpt1a	Carnitine palmitoyltransferase 1a, liver	c
96799_at	30839	−2.7	−2.2	−2.3	−2.4 ± 0.3	0.897	Fbxw5	F-box and WD-40 domain protein 5
96126_at	20397	−2.3	−2.4	−2.0	−2.2 ± 0.2	0.704	Sgpl1	Sphingosine phosphate lyase 1
94405_at	21366	−2.7	−1.5	−1.7	−2.0 ± 0.2	0.444	Slc6a6	Solute carrier family 6 (neurotransmitter transporter, taurine), member 6
Response to external stimulus
101433_at	15064	−2.4	−2.4	−2.4	−2.4 ± 0.3	0.918	Mr1	Major histocompatibility complex, class I-related
104228_at	668701	−2.2	−2.2	−2.6	−2.3 ± 0.4	0.865	EG668701	Similar to Rap guanine nucleotide exchange factor 2
103250_at	54722	−2.7	−2.1	−2.0	−2.3 ± 0.2	0.838	Dfna5h	Deafness, autosomal dominant 5 homolog
104372_at	64296	−2.6	−2.2	−1.9	−2.2 ± 0.2	0.793	Abhd8	Abhydrolase domain containing 8
99349_at	16171	−1.7	−2.5	−2.1	−2.1 ± 0.3	0.681	Il17a	Interleukin 17A
93218_at	20947	−2.3	−2.0	−1.7	−2.0 ± 0.4	0.573	Swap70	SWAP complex protein
Protein modification
99643_f_at	12876	−3.7	−3.8	−2.7	−3.4 ± 0.4	0.949	Cpe	Carboxypeptidase E	b
161848_r_at	19260	−2.5	−2.2	−2.4	−2.4 ± 0.4	0.870	Ptpn22	Protein tyrosine phosphatase, non-receptor type 22 (lymphoid)
92427_at	21812	−2.4	−1.9	−2.3	−2.2 ± 0.4	0.729	Tgfbr1	Transforming growth factor, beta receptor I
99642_i_at	12876	−3.0	−2.1	−1.3	−2.2 ± 0.7	0.618	Cpe	Carboxypeptidase E
100427_at	19277	−2.0	−1.4	−2.7	−2.0 ± 0.3	0.552	Ptpro	Protein tyrosine phosphatase, receptor type, O	b, c
Transcription from Pol II promoter
104591_g_at	17260	−2.4	−2.9	−2.5	−2.6 ± 0.2	0.932	Mef2c	Myocyte enhancer factor 2C	b, c
104590_at	17260	−2.8	−2.0	−2.2	−2.3 ± 0.2	0.821	Mef2c	Myocyte enhancer factor 2C	a, b
96171_at	54006	−2.1	−1.6	−2.4	−2.0 ± 0.2	0.580	Deaf1	Deformed epidermal autoregulatory factor 1 (Drosophila)	b
Cytoskeleton organization and biogenesis
95705_s_at	11461	−2.2	−3.1	−2.4	−2.6 ± 0.5	0.887	Actb	Actin, beta, cytoplasmic
161981_r_at	14246	−2.6	−1.6	−2.4	−2.2 ± 0.4	0.693	Flg	Filaggrin
Metabolism
94872_at	57319	−2.8	−2.5	−2.8	−2.7 ± 0.4	0.934	Smpdl3a	Sphingomyelin phosphodiesterase, acid-like 3A
161733_at	59010	−2.4	−2.9	−2.1	−2.5 ± 0.3	0.919	Sqrdl	Sulfide quinone reductase-like
101972_at	16541	−2.8	−2.4	−2.5	−2.6 ± 0.3	0.915	Napsa	Napsin A aspartic peptidase
99667_at	12862	−2.3	−2.2	−2.5	−2.3 ± 0.5	0.878	Cox6a2	Cytochrome c oxidase, subunit VI a, polypeptide 2
103538_at	21386	−1.8	−2.1	−2.5	−2.1 ± 0.3	0.680	Tbx3	T-box 3
96035_at	12039	−1.7	−2.0	−2.4	−2.0 ± 0.4	0.606	Bckdha	Branched chain ketoacid dehydrogenase E1, alpha polypeptide
97560_at	19156	−1.4	−3.0	−1.7	−2.0 ± 0.4	0.381	Psap	Prosaposin
Cell communication
160932_at	17973	−2.6	−2.6	−2.6	−2.6 ± 0.1	0.964	Nck1	Non-catalytic region of tyrosine kinase adaptor protein 1	a, b
97768_at	13506	−2.2	−2.1	−2.6	−2.3 ± 0.3	0.803	Dsc2	Desmocollin 2
Cell growth and/or maintenance
92695_at	14296	−2.0	−1.6	−2.7	−2.1 ± 0.3	0.658	Frat1	Frequently rearranged in advanced T-cell lymphomas
103534_at	15130	−2.8	−2.0	−1.5	−2.1 ± 0.2	0.626	Hbb-b2	Hemoglobin, beta adult minor chain	b
93736_at	21452	−2.0	−2.0	−2.3	−2.1 ± 0.3	0.606	Tcn2	Transcobalamin 2
Miscellaneous classification
96494_at	75785	−2.9	−2.7	−2.5	−2.7 ± 0.2	0.959	Klhl24	Kelch-like 24 (Drosophila)
103933_at	22619	−2.9	−1.9	−2.8	−2.5 ± 0.2	0.895	Siae	Sialic acid acetylesterase	b
104299_at	224454	−3.0	−1.9	−2.5	−2.5 ± 0.3	0.852	Zdhhc14	Zinc finger, DHHC domain containing 14
94299_at	69654	−2.5	−2.0	−2.2	−2.2 ± 0.2	0.788	Dctn2	Dynactin 2
162116_r_at	116891	−3.0	−2.7	−1.7	−2.5 ± 0.9	0.741	Derl2	Der1-like domain family, member 2
160934_s_at	73094	−3.0	−2.6	−1.6	−2.4 ± 0.5	0.692	Sgip1	SH3-domain GRB2-like (endophilin) interacting protein 1
104714_at	105445	−2.2	−1.7	−2.2	−2.0 ± 0.2	0.611	Dock9	Dedicator of cytokinesis 9
162075_r_at	17476	−2.7	−1.5	−3.8	−2.7 ± 0.4	0.551	Mpeg1	Macrophage expressed gene 1
96464_at	140570	−2.1	−2.2	−1.9	−2.1 ± 0.2	0.518	Plxnb2	Plexin B2
160905_s_at	80515	−2.2	−2.2	−2.1	−2.1 ± 0.3	0.735	A030009 H04Rik	RIKEN cDNA A030009H04 gene
97119_at	99029	−2.6	−2.5	−2.2	−2.4 ± 0.3	0.911	AI596198	Expressed sequence AI596198
97752_at	99358	−2.0	−2.1	−2.8	−2.3 ± 0.3	0.858	E13001 3N09Rik	RIKEN cDNA E130013N09 gene
103748_at	74440	−2.9	−1.6	−2.1	−2.2 ± 0.2	0.645	4933407 C03Rik	RIKEN cDNA 4933407C03 gene
94069_r_at	67163	−3.4	−2.3	−2.2	−2.6 ± 0.3	0.946	2610204 L23Rik	RIKEN cDNA 2610204L23 gene

A.B. ovis and B. neotomae Infected Macrophages Express Transcripts Different from B. melitensis or Uninfected Macrophages
94337_at	14453	−4.2 ± 0.7	−1.1 ± 0.4	−1.3 ± 0.5	1.000	Gas2	Growth arrest specific 2
162240_r_at	13010	0.8 ± 0.3	3.4 ± 0.2	3.9 ± 0.1	0.999	Cst3	Cystatin C	a, b
101793_at	14129	−3.1 ± 0.1	−1.4 ± 0.3	−0.5 ± 0.3	0.903	Fcgr1	Fc receptor, IgG, high affinity I (FcγRI)	a, b, c
102794_at	12767	−3.6 ± 0.5	−1.4 ± 0.7	−1.7 ± 0.3	0.898	Cxcr4	Chemokine (C-X-C motif) receptor 4	c
101070_at	54484	−3.6 ± 0.5	−1.6 ± 0.6	−1.7 ± 0.3	0.885	Mkrn1	Makorin, ring finger protein, 1
161878_r_at	52250	−2.2 ± 0.8	0.5 ± 0.1	0.3 ± 0.2	0.852	Reep1	Receptor accessory protein 1
93569_f_at	545005	0.6 ± 0.3	2.6 ± 0.4	3.3 ± 0.7	0.829	LOC544988	Similar to Spetex-2F protein
99377_at	18249	2.7 ± 0.6	0.5 ± 0.9	−0.6 ± 0.6	0.781	Obp1a	Odorant binding protein Ia
94240_i_at	19944	1.7 ± 0.9	−0.8 ± 1.3	−0.8 ± 1.0	0.734	Rpl29	Ribosomal protein L29
104697_at	80837	−3.0 ± 0.7	−1.2 ± 0.9	−0.8 ± 0.4	0.622	Rhoj	ras homolog gene family, member J
92857_at	19934	−3.3 ± 0.7	−1.2 ± 0.7	−2.0 ± 0.9	0.571	Rpl22	Ribosomal protein L22
102706_i_at	16625	−2.7 ± 0.9	−0.6 ± 0.4	−0.1 ± 0.3	0.566	Serpina3c	Serine (or cysteine) proteinase inhibitor, clade A, member 3C

B.B. melitensis and B. neotomae Infected Macrophages Express Transcripts Different from B. ovis or Uninfected Macrophages
161420_r_at	13478	−0.3 ± 0.7	−0.2 ± 1.3	−3.2 ± 0.5	0.993	Dpagt1	Dolichyl-phosphate acetylgluco-saminephosphotransferase 1 (GlcNAc-1-P transferase)
160797_r_at	12412	−2.1 ± 0.4	−2.0 ± 0.4	0.6 ± 0.2	0.975	Cbx1	Chromobox homolog 1 (Drosophila HP1 beta)
92600_f_at	13117	−2.4 ± 0.6	−2.4 ± 0.7	0.0 ± 0.1	0.953	Cyp4a10	Cytochrome P450, family 4, subfamily a, polypeptide 10
161128_r_at	544834	0.5 ± 1.3	1.8 ± 0.9	3.7 ± 0.8	0.9361	6030426L16Rik	Similar to Hippocalcin-like protein 1, Visinin-like protein 3
99885_at	16019	0.6 ± 0.9	1.0 ± 0.3	3.1 ± 0.6	0.738	Igh-6	Immunoglobulin heavy chain 6 (heavy chain of IgM)
93566_at	74246	−1.5 ± 0.2	−2.6 ± 0.6	0.1 ± 0.3	0.711	Gale	Galactose-4-epimerase, UDP
162076_r_at	14800	−2.2 ± 0.7	−3.0 ± 0.5	−0.5 ± 0.4	0.681	Gria2	Glutamate receptor, ionotropic, AMPA2 (alpha 2)
160728_r_at	73945	−2.1 ± 1.1	−0.4 ± 0.6	−4.4 ± 0.6	0.6579	Otud4	OTU domain containing 4
AFFX-BioDn-3_st	1037747	−1.6 ± 0.3	−0.4 ± 0.1	1.4 ± 0.1	0.6294	—	Biotin synthesis protein bioC
161131_r_at	228889	−0.6 ± 0.4	−0.7 ± 0.1	−2.7 ± 0.1	0.5167	—	Dead (asp-glu-ala-asp) box polypeptide 27
102299_at	18750	−1.8 ± 0.7	−1.2 ± 0.5	−3.3 ± 0.4	0.508	Prkca	Protein kinase C, alpha

C.B. melitensis and B. ovis Infected Macrophages Express Transcripts Different from B. neotomae or Uninfected Macrophages
^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.
^bIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, = SAM delta = 0.05; c, B. abortus microarrays (14).
94051_at	13612	3.0 ± 0.4	0.5 ± 0.4	3.2 ± 0.3	0.998	Edil3	EGF-like repeats and discordin I-like domains 3	a, b
96785_at	80880	−3.2 ± 0.6	−0.5 ± 1.1	−2.7 ± 0.7	0.994	Ankrd47	Ankyrin repeat domain 47
92913_at	26874	−4.1 ± 0.3	−2.0 ± 0.4	−3.9 ± 0.3	0.920	Abcd2	ATP-binding cassette, sub-family D (ALD), member 2	a, b
103467_g_at	54151	−2.3 ± 0.3	−0.6 ± 0.3	−2.9 ± 0.3	0.897	Cyhr1	Cysteine and histidine rich 1
94755_at	16175	3.9 ± 0.4	1.7 ± 0.7	3.1 ± 0.4	0.693	Il1a	Interleukin 1 alpha	b, c
93568_i_at		1.4 ± 0.0	−1.1 ± 0.7	1.2 ± 0.5	0.556	LOC544988	Similar to Spetex-2F protein
92504_at	15574	2.1 ± 0.6	−0.1 ± 0.4	1.8 ± 0.7	0.501	Hus1	Hus1 homolog (S. pombe)
104592_i_at	17260	−3.7 ± 0.2	−1.9 ± 0.3	−3.3 ± 0.2	0.473	Mef2c	Myocyte enhancer factor 2C	a, b
102798_at	11535	0.9 ± 0.6	2.4 ± 0.6	−0.3 ± 0.7	0.444	Adm	Adrenomedullin
102374_at	53902	−2.9 ± 0.3	−1.0 ± 0.4	−2.2 ± 0.5	0.425	Dscr1l2	Down syndrome critical region gene 1-like 2	a, b

Footnotes

This work was sponsored by the NIH/NIAID Regional Center of Excellence for Bio-defense and Emerging Infectious Diseases Research (RCE) Program. The authors wish to acknowledge membership within and support from the Region V Great Lakes RCE (NIH award 1-U54-AI-057153), R21 AI070229, and BARD US-3829–06.

1

These authors contributed equally to the manuscript.

Acknowledgements

The authors would like to thank S. Splinter and W. Nelson at the Genome Center of Wisconsin for GeneChip® hybridization and scanning, C. Kendziorski for assistance with EBarrays statistical analysis and E. Petersen for personal communications.

References

Woods JB, Ed. USAMRIID’s Medical Management of Biological Casualties Handbook (6th ed.). Fort Detrick, MD: U.S. Army Medical Research Institute of Infectious Diseases, 2005.

Baldwin CL, Goenka R. Host immune responses to the intracellular bacteria Brucella: does the bacteria instruct the host to facilitate chronic infection? Crit Rev Immunol26:407–442, 2006.

Halling SM, Peterson-Burch BD, Bricker BJ, Zuerner RL, Qing Z, Li LL, Kapur V, Alt DP, Olsen SC. Completion of the genome sequence of Brucella abortus and comparison to the highly similar genomes of Brucella melitensis and Brucella suis. J Bacteriol187:2715–2726, 2005.

Rajashekara G, Glasner JD, Glover DA, Splitter GA. Comparative whole-genome hybridization reveals genomic islands in Brucella species. J Bacteriol186:5040–5051, 2004.

Ko J, Gendron-Fitzpatrick A, Ficht TA, Splitter GA. Virulence criteria for Brucella abortus strains as determined by interferon regulatory factor 1-deficient mice. Infect Immun70:7004–7012, 2002.

Baek SH, Rajashekara G, Splitter GA, Shapleigh JP. Denitrification genes regulate Brucella virulence in mice. J Bacteriol186:6025–6031, 2004.

Eskra L, Mathison A, Splitter G. Microarray analysis of mRNA levels from RAW264.7 macrophages infected with Brucella abortus. Infect Immun71:1125–1133, 2003.

Celli J, de Chastellier C, Franchini DM, Pizarro-Cerda J, Moreno E, Gorvel JP. Brucella evades macrophage killing via VirB-dependent sustained interactions with the endoplasmic reticulum. J Exp Med198:545–556, 2003.

He Y, Reichow S, Ramamoorthy S, Ding X, Lathigra R, Craig JC, Sobral BW, Schurig GG, Sriranganathan N, Boyle SM. Brucella melitensis triggers time-dependent modulation of apoptosis and down-regulation of mitochondrion-associated gene expression in mouse macrophages. Infect Immun74:5035–5046, 2006.

10.

Caron E, Liautard JP, Kohler S. Differentiated U937 cells exhibit increased bactericidal activity upon LPS activation and discriminate between virulent and avirulent Listeria and Brucella species. J Leukoc Biol56:174–181, 1994.

11.

Jiang X, Baldwin CL. Effects of cytokines on intracellular growth of Brucella abortus. Infect Immun61:124–134, 1993.

12.

Rittig MG, Alvarez-Martinez MT, Porte F, Liautard JP, Rouot B. Intracellular survival of Brucella spp. in human monocytes involves conventional uptake but special phagosomes. Infect Immun69:3995–4006, 2001.

13.

Eskra L, Canavessi A, Carey M, Splitter G. Brucella abortus genes identified following constitutive growth and macrophage infection. Infect Immun69:7736–7742, 2001.

14.

Newton MA, Kendziorski CM. Parametric empirical Bayes methods for microarrays. In: Parmigiani G, Garrett ES, Irizarray RA, Zeger SL, Eds. The Analysis of Gene Expression Data: Methods and Software. New York: Springer, pp259–276, 2003.

15.

Kendziorski CM, Newton MA, Lan H, Gould MN. On parametric empirical Bayes methods for comparing multiple groups using replicated gene expression profiles. Stat Med22:3899–3914, 2003.

16.

Zar JH. Biostatistical Analysis. New Jersey: Prentice Hall, 1999.

17.

Chu G, Narasimhan B, Tibshirani R, Tusher V. SAM “Significance Analysis of Microarrays” Users Guide and Technical Document. Available at: http://www-stat.stanford.edu/~tib/SAM/index.html. 2002.

18.

Tusher VG, Tibshirani R, Chu G. Significance analysis of microarrays applied to the ionizing radiation response. Proc Natl Acad Sci U S A98:5116–5121, 2001.

19.

Saeed AI, Bhagabati NK, Braisted JC, Liang W, Sharov V, Howe EA, Li J, Thiagarajan M, White JA, Quackenbush J. TM4 microarray software suite. Methods Enzymol411:134–193, 2006.

20.

Saeed AI, Sharov V, White J, Li J, Liang W, Bhagabati N, Braisted J, Klapa M, Currier T, Thiagarajan M, Sturn A, Snuffin M, Rezantsev A, Popov D, Ryltsov A, Kostukovich E, Borisovsky I, Liu Z, Vinsavich A, Trush V, Quackenbush J. TM4: a free, open-source system for microarray data management and analysis. Biotechniques34:374–378, 2003.

21.

Rozen S, Skaletsky H. Primer3 on the WWW for general users and for biologist programmers. Methods Mol Biol132:365–386, 2000.

22.

Jimenez de Bagues MP, Terraza A, Gross A, Dornand J. Different responses of macrophages to smooth and rough Brucella spp.: relationship to virulence. Infect Immun72:2429–2433, 2004.

23.

Vandesompele J, De Preter K, Pattyn F, Poppe B, Van Roy N, De Paepe A, Speleman F. Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol3:1–12, 2002.

24.

Jenner RG, Young RA. Insights into host responses against pathogens from transcriptional profiling. Nat Rev Microbiol3:281–294, 2005.

25.

Chaves-Olarte E, Guzman-Verri C, Meresse S, Desjardins M, Pizarro-Cerda J, Badilla J, Gorvel JP, Moreno E. Activation of Rho and Rab GTPases dissociates Brucella abortus internalization from intracellular trafficking. Cell Microbiol4:663–676, 2002.

26.

Naroeni A, Porte F. Role of cholesterol and the ganglioside GM(1) in entry and short-term survival of Brucella suis in murine macrophages. Infect Immun70:1640–1644, 2002.

27.

Radonic A, Thulke S, Mackay IM, Landt O, Siegert W, Nitsche A. Guideline to reference gene selection for quantitative real-time PCR. Biochem Biophys Res Commun313:856–862, 2004.

28.

Dheda K, Huggett JF, Bustin SA, Johnson MA, Rook G, Zumla A. Validation of housekeeping genes for normalizing RNA expression in real-time PCR. Biotechniques37:112–114, 116, 118–119, 2004.

29.

Stoenner HG. The behavior of Brucella neotomae and Brucella suis in reciprocal superinfection experiments in mice and guinea pigs. Am J Vet Res24:376–380, 1963.

30.

Stoenner HG, Lackman DB. A new species of Brucella isolated from the desert wood rat, Neotoma lepida Thomas. Am J Vet Res18:947–951, 1957.

31.

Rittig MG, Kaufmann A, Robins A, Shaw B, Sprenger H, Gemsa D, Foulongne V, Rouot B, Dornand J. Smooth and rough lipopolysaccharide phenotypes of Brucella induce different intracellular trafficking and cytokine/chemokine release in human monocytes. J Leukoc Biol74:1045–1055, 2003.

32.

Porte F, Naroeni A, Ouahrani-Bettache S, Liautard JP. Role of the Brucella suis lipopolysaccharide O antigen in phagosomal genesis and in inhibition of phagosome-lysosome fusion in murine macrophages. Infect Immun71:1481–1490, 2003.

33.

Detweiler CS, Cunanan DB, Falkow S. Host microarray analysis reveals a role for the Salmonella response regulator phoP in human macrophage cell death. Proc Natl Acad Sci U S A98:5850–5855, 2001.

34.

Sohn WJ, Kim D, Lee KW, Kim MS, Kwon S, Lee Y, Kim DS, Kwon HJ. Novel transcriptional regulation of the schlafen-2 gene in macrophages in response to TLR-triggered stimulation. Mol Immunol44:3273–3282, 2007.

35.

Dimitriou ID, Clemenza L, Scotter AJ, Chen G, Guerra FM, Rottapel R. Putting out the fire: coordinated suppression of the innate and adaptive immune systems by SOCS1 and SOCS3 proteins. Immunol Rev224:265–283, 2008.

36.

Gross A, Terraza A, Ouahrani-Bettache S, Liautard JP, Dornand J. In vitro Brucella suis infection prevents the programmed cell death of human monocytic cells. Infect Immun68:342–351, 2000.

37.

Fernandez-Prada CM, Zelazowska EB, Nikolich M, Hadfield TL, Roop RM 2nd, Robertson GL, Hoover DL. Interactions between Brucella melitensis and human phagocytes: bacterial surface O-Polysaccharide inhibits phagocytosis, bacterial killing, and subsequent host cell apoptosis. Infect Immun71:2110–2119, 2003.

38.

Rajashekara G, Covert J, Petersen E, Eskra L, Splitter G. Genomic island 2 of Brucella melitensis is a major virulence determinant: functional analyses of genomic islands. J Bacteriol190:6243–6252, 2008.

39.

Lapaque N, Forquet F, de Chastellier C, Mishal Z, Jolly G, Moreno E, Moriyon I, Heuser JE, He HT, Gorvel JP. Characterization of Brucella abortus lipopolysaccharide macrodomains as mega rafts. Cell Microbiol8:197–206, 2006.

40.

Harizi H, Gualde N. The impact of eicosanoids on the crosstalk between innate and adaptive immunity: the key roles of dendritic cells. Tissue Antigens65:507–514, 2005.

41.

Zhan Q. Gadd45a, a p53- and BRCA1-regulated stress protein, in cellular response to DNA damage. Mutat Res569:133–143, 2005.

42.

Briand L, Eloit C, Nespoulous C, Bezirard V, Huet JC, Henry C, Blon F, Trotier D, Pernollet JC. Evidence of an odorant-binding protein in the human olfactory mucus: location, structural characterization, and odorant-binding properties. Biochemistry41:7241–7252, 2002.

43.

Nakamura K, Malykhin A, Coggeshall KM. The Src homology 2 domain-containing inositol 5-phosphatase negatively regulates Fcgamma receptor-mediated phagocytosis through immunoreceptor tyrosine-based activation motif-bearing phagocytic receptors. Blood100:3374–3382, 2002.

44.

Wragg A, Mellad JA, Beltran LE, Konoplyannikov M, San H, Boozer S, Deans RJ, Mathur A, Lederman RJ, Kovacic JC, Boehm M. VEGFR1/CXCR4-positive progenitor cells modulate local inflammation and augment tissue perfusion by a SDF-1-dependent mechanism. J Mol Med86:1221–1232, 2008.

45.

Boldrick JC, Alizadeh AA, Diehn M, Dudoit S, Liu CL, Belcher CE, Botstein D, Staudt LM, Brown PO, Relman DA. Stereotyped and specific gene expression programs in human innate immune responses to bacteria. Proc Natl Acad Sci U S A99:972–977, 2002.

46.

Zheng L, Zomerdijk TP, Aarnoudse C, van Furth R, Nibbering PH. Role of protein kinase C isozymes in Fc gamma receptor-mediated intracellular killing of Staphylococcus aureus by human monocytes. J Immunol155:776–784, 1995.

47.

Joshi T, Butchar JP, Tridandapani S. Fcgamma receptor signaling in phagocytes. Int J Hematol84:210–216, 2006.

48.

Dasgupta D, Chakraborty P, Basu MK. Ligation of Fc receptor of macrophages stimulates protein kinase C and anti-leishmanial activity. Mol Cell Biochem209:1–8, 2000.

49.

Loegering DJ, Lennartz MR. Signaling pathways for Fc gamma receptor-stimulated tumor necrosis factor-alpha secretion and respiratory burst in RAW 264.7 macrophages. Inflammation28:23–31, 2004.

50.

Paranavitana CM, Zelazowska E, Das R, Izadjoo M, Jett M, Hoover D. Identification of novel genes in the memory response to Brucella infection by cDNA arrays. Mol Cell Probes19:341–348, 2005.

51.

Soriano SF, Hernanz-Falcon P, Rodriguez-Frade JM, De Ana AM, Garzon R, Carvalho-Pinto C, Vila-Coro AJ, Zaballos A, Balomenos D, Martinez AC, Mellado M. Functional inactivation of CXC chemokine receptor 4-mediated responses through SOCS3 up-regulation. J Exp Med196:311–321, 2002.

52.

Hiemstra PS. Novel roles of protease inhibitors in infection and inflammation. Biochem Soc Trans30:116–120, 2002.

53.

Vray B, Hartmann S, Hoebeke J. Immunomodulatory properties of cystatins. Cell Mol Life Sci59:1503–1512, 2002.

54.

Forsyth S, Horvath A, Coughlin P. A review and comparison of the murine alpha1-antitrypsin and alpha1-antichymotrypsin multigene clusters with the human clade A serpins. Genomics81:336–345, 2003.

55.

Lefebvre C, Cocquerelle C, Vandenbulcke F, Hot D, Huot L, Lemoine Y, Salzet M. Transcriptomic analysis in the leech Theromyzon tessulatum: involvement of cystatin B in innate immunity. Biochem J380:617–625, 2004.

56.

Das L, Datta N, Bandyopadhyay S, Das PK. Successful therapy of lethal murine visceral leishmaniasis with cystatin involves up-regulation of nitric oxide and a favorable T cell response. J Immunol166:4020–4028, 2001.

57.

Mukherjee S, Ukil A, Das PK. Immunomodulatory peptide from cystatin, a natural cysteine protease inhibitor, against leishmaniasis as a model macrophage disease. Antimicrob Agents Chemother51:1700–1707, 2007.

58.

Ko J, Gendron-Fitzpatrick A, Splitter GA. Susceptibility of IFN regulatory factor-1 and IFN consensus sequence binding protein-deficient mice to brucellosis. J Immunol168:2433–2440, 2002.

59.

Wang M, Qureshi N, Soeurt N, Splitter G. High levels of nitric oxide production decrease early but increase late survival of Brucella abortus in macrophages. Microb Pathog31:221–230, 2001.

60.

Porte F, Liautard JP, Kohler S. Early acidification of phagosomes containing Brucella suis is essential for intracellular survival in murine macrophages. Infect Immun67:4041–4047, 1999.

61.

Vincents B, Onnerfjord P, Gruca M, Potempa J, Abrahamson M. Down-regulation of human extracellular cysteine protease inhibitors by the secreted staphylococcal cysteine proteases, staphopain A and B. Biol Chem388:437–446, 2007.

62.

Stramer B, Winfield M, Shaw T, Millard TH, Woolner S, Martin P. Gene induction following wounding of wild-type versus macrophage-deficient Drosophila embryos. EMBO Rep9:465–471, 2008.

63.

Nau GJ, Richmond JF, Schlesinger A, Jennings EG, Lander ES, Young RA. Human macrophage activation programs induced by bacterial pathogens. Proc Natl Acad Sci U S A99:1503–1508, 2002.

64.

Rosenberger CM, Scott MG, Gold MR, Hancock RE, Finlay BB. Salmonella typhimurium infection and lipopolysaccharide stimulation induce similar changes in macrophage gene expression. J Immunol164:5894–5904, 2000.

65.

Huang H, Park CK, Ryu JY, Chang EJ, Lee Y, Kang SS, Kim HH. Expression profiling of lipopolysaccharide target genes in RAW264.7 cells by oligonucleotide microarray analyses. Arch Pharm Res29:890–897, 2006.

66.

Duenas AI, Orduna A, Crespo MS, Garcia-Rodriguez C. Interaction of endotoxins with Toll-like receptor 4 correlates with their endotoxic potential and may explain the proinflammatory effect of Brucella spp. LPS. Int Immunol16:1467–1475, 2004.

67.

Renton KW. Cytochrome P450 regulation and drug biotransformation during inflammation and infection. Curr Drug Metab5:235–243, 2004.

68.

Hossain H, Tchatalbachev S, Chakraborty T. Host gene expression profiling in pathogen-host interactions. Curr Opin Immunol18:422–429, 2006.

69.

Morgan ET. Regulation of cytochrome p450 by inflammatory mediators: why and how? Drug Metab Dispos29:207–212, 2001.

70.

Ng Yan Hing JD, Desjardins M, Descoteaux A. Proteomic analysis reveals a role for protein kinase C-alpha in phagosome maturation. Biochem Biophys Res Commun319:810–816, 2004.

71.

Chen YW, Lang ML, Wade WF. Protein kinase C-alpha and -delta are required for FcalphaR (CD89) trafficking to MHC class II compartments and FcalphaR-mediated antigen presentation. Traffic5:577–594, 2004.

72.

von Knethen A, Tautenhahn A, Link H, Lindemann D, Brune B. Activation-induced depletion of protein kinase C alpha provokes desensitization of monocytes/macrophages in sepsis. J Immunol174:4960–4965, 2005.

73.

St-Denis A, Caouras V, Gervais F, Descoteaux A. Role of protein kinase C-alpha in the control of infection by intracellular pathogens in macrophages. J Immunol163:5505–5511, 1999.

74.

Gee JM, Valderas MW, Kovach ME, Grippe VK, Robertson GT, Ng WL, Richardson JM, Winkler ME, Roop RM 2nd. The Brucella abortus Cu,Zn superoxide dismutase is required for optimal resistance to oxidative killing by murine macrophages and wild-type virulence in experimentally infected mice. Infect Immun73:2873–2880, 2005.

75.

Lu JF, Barron-Casella E, Deering R, Heinzer AK, Moser AB, deMesy Bentley KL, Wand GS, McGuinness MC, Pei Z, Watkins PA, Pujol A, Smith KD, Powers JM. The role of peroxisomal ABC transporters in the mouse adrenal gland: the loss of Abcd2 (ALDR), Not Abcd1 (ALD), causes oxidative damage. Lab Invest87:261–272, 2007.

76.

Wanders RJ, Visser WF, van Roermund CW, Kemp S, Waterham HR. The peroxisomal ABC transporter family. Pflugers Arch453:719–734, 2007.

77.

Roux CM, Rolan HG, Santos RL, Beremand PD, Thomas TL, Adams LG, Tsolis RM. Brucella requires a functional Type IV secretion system to elicit innate immune responses in mice. Cell Microbiol9:1851–1869, 2007.

78.

Fu W, Wei J, Gu J. MEF2C mediates the activation induced cell death (AICD) of macrophages. Cell Res16:559–565, 2006.

79.

Ralph P, Nakoinz I. Antibody-dependent killing of erythrocyte and tumor targets by macrophage-related cell lines: enhancement by PPD and LPS. J Immunol119:950–954, 1977.

80.

Stuehr DJ, Marletta MA. Synthesis of nitrite and nitrate in murine macrophage cell lines. Cancer Res47:5590–5594, 1987.

81.

Taniyama T, Holden HT. Cytolytic activity against tumor cells by macrophage cell lines and augmentation by macrophage stimulants. Int J Cancer26:61–69, 1980.

82.

Carvalho Neta AV, Stynen AP, Paixao TA, Miranda KL, Silva FL, Roux CM, Tsolis RM, Everts RE, Lewin HA, Adams LG, Carvalho AF, Lage AP, Santos RL. Modulation of the bovine trophoblastic innate immune response by Brucella abortus. Infect Immun76:1897–1907, 2008.

H₀: Mϕ = Mϕ + B. melitensis = Mϕ + B. neotomae = Mϕ + B. ovis
Probe set	Entrez gene	Average signal	SLR^a	EBarrays probability	Gene symbol	Gene product
^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SE.
101213_at	11837	5.7 × 10⁴	−0.2 ± 0.06	1.000	Arbp	Acidic ribosomal phosphoprotein PO
101578_f_at	11461	2.2 × 10⁴	−0.6 ± 0.6	0.870	Actb	β-actin
101214_f_at 162210_r_at 97751_f_at	14433	2.5 × 10⁴	0.1 ± 0.2	0.894	Gapdh	Glyceraldehyde-3-phosphate dehydrogenase
93346_at	18655	2.0 × 10⁴	0.2 ± 0.1	1.000	Pgk1	Phosphoglyerate kinase 1
93088_at	12010	1.6 × 10⁴	0.2 ± 0.2	1.000	b2m	β 2 microglobulin
97538_at	110006	6.8 × 10³	−0.6 ± 0.2	0.999	b-gus	β glucuronidase
160107_at	15452	6.5 × 10³	0.07 ± 0.1	0.999	Hprt1	Hypoxanthine guanine phosphoribosyl transferase 1
103957_at 103958_g_at	22042	3.4 × 10³	−0.5 ± 1.2	0.991	Tfrc	Transferrin receptor
99950_at	21374	6.7 × 10²	−0.09 ± 0.2	0.996	Tbp	TATA box binding protein

A.B. ovis and B. neotomae Infected Macrophages Express Transcripts Different from B. melitensis or Uninfected Macrophages
H2: Mϕ = ≠ Mϕ + B. melitensis ≠ = Mϕ + B. neotomae = Mϕ + B. ovis
		SLR^a
Probe set	Entrez gene	B. melitensis	B. neotomae	B. ovis	EBarrays probability	Gene symbol	Gene product	statistics^b
94337_at	14453	−4.2 ± 0.7	−1.1 ± 0.4	−1.3 ± 0.5	1.000	Gas2	Growth arrest specific 2
162240_r_at	13010	0.8 ± 0.3	3.4 ± 0.2	3.9 ± 0.1	0.999	Cst3	Cystatin C	a, b
101793_at	14129	−3.1 ± 0.1	−1.4 ± 0.3	−0.5 ± 0.3	0.903	Fcgr1	Fc receptor, IgG, high affinity I (FcγRI)	a, b, c
102794_at	12767	−3.6 ± 0.5	−1.4 ± 0.7	−1.7 ± 0.3	0.898	Cxcr4	Chemokine (C-X-C motif) receptor 4	c
101070_at	54484	−3.6 ± 0.5	−1.6 ± 0.6	−1.7 ± 0.3	0.885	Mkrn1	Makorin, ring finger protein, 1
161878_r_at	52250	−2.2 ± 0.8	0.5 ± 0.1	0.3 ± 0.2	0.852	Reep1	Receptor accessory protein 1
93569_f_at	545005	0.6 ± 0.3	2.6 ± 0.4	3.3 ± 0.7	0.829	LOC544988	Similar to Spetex-2F protein
99377_at	18249	2.7 ± 0.6	0.5 ± 0.9	−0.6 ± 0.6	0.781	Obp1a	Odorant binding protein Ia
94240_i_at	19944	1.7 ± 0.9	−0.8 ± 1.3	−0.8 ± 1.0	0.734	Rpl29	Ribosomal protein L29
104697_at	80837	−3.0 ± 0.7	−1.2 ± 0.9	−0.8 ± 0.4	0.622	Rhoj	ras homolog gene family, member J
92857_at	19934	−3.3 ± 0.7	−1.2 ± 0.7	−2.0 ± 0.9	0.571	Rpl22	Ribosomal protein L22
102706_i_at	16625	−2.7 ± 0.9	−0.6 ± 0.4	−0.1 ± 0.3	0.566	Serpina3c	Serine (or cysteine) proteinase inhibitor, clade A, member 3C

B.B. melitensis and B. neotomae Infected Macrophages Express Transcripts Different from B. ovis or Uninfected Macrophages
H₃: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. neotomae = ≠ Mϕ + B. ovis
		SLR^a
Probe set	Entrez gene	B. melitensis	B. neotomae	B. ovis	EBarrays probability	Gene symbol	Gene product
161420_r_at	13478	−0.3 ± 0.7	−0.2 ± 1.3	−3.2 ± 0.5	0.993	Dpagt1	Dolichyl-phosphate acetylgluco-saminephosphotransferase 1 (GlcNAc-1-P transferase)
160797_r_at	12412	−2.1 ± 0.4	−2.0 ± 0.4	0.6 ± 0.2	0.975	Cbx1	Chromobox homolog 1 (Drosophila HP1 beta)
92600_f_at	13117	−2.4 ± 0.6	−2.4 ± 0.7	0.0 ± 0.1	0.953	Cyp4a10	Cytochrome P450, family 4, subfamily a, polypeptide 10
161128_r_at	544834	0.5 ± 1.3	1.8 ± 0.9	3.7 ± 0.8	0.9361	6030426L16Rik	Similar to Hippocalcin-like protein 1, Visinin-like protein 3
99885_at	16019	0.6 ± 0.9	1.0 ± 0.3	3.1 ± 0.6	0.738	Igh-6	Immunoglobulin heavy chain 6 (heavy chain of IgM)
93566_at	74246	−1.5 ± 0.2	−2.6 ± 0.6	0.1 ± 0.3	0.711	Gale	Galactose-4-epimerase, UDP
162076_r_at	14800	−2.2 ± 0.7	−3.0 ± 0.5	−0.5 ± 0.4	0.681	Gria2	Glutamate receptor, ionotropic, AMPA2 (alpha 2)
160728_r_at	73945	−2.1 ± 1.1	−0.4 ± 0.6	−4.4 ± 0.6	0.6579	Otud4	OTU domain containing 4
AFFX-BioDn-3_st	1037747	−1.6 ± 0.3	−0.4 ± 0.1	1.4 ± 0.1	0.6294	—	Biotin synthesis protein bioC
161131_r_at	228889	−0.6 ± 0.4	−0.7 ± 0.1	−2.7 ± 0.1	0.5167	—	Dead (asp-glu-ala-asp) box polypeptide 27
102299_at	18750	−1.8 ± 0.7	−1.2 ± 0.5	−3.3 ± 0.4	0.508	Prkca	Protein kinase C, alpha

C.B. melitensis and B. ovis Infected Macrophages Express Transcripts Different from B. neotomae or Uninfected Macrophages
H₄: Mϕ ≠ = Mϕ + B. melitensis = Mϕ + B. ovis ≠ = Mϕ + B. neotomae
		SLR^a
Probe set	Entrez gene	B. melitensis	B. neotomae	B. ovis	EBarrays probability	Gene symbol	Gene product	Additional statistics^b
^aSignal log ratio = LOG₂ (experimental Brucella spp. infected signal/control uninfected signal) ± SEM.
^bIdentified by additional statistical analyses: a, ANOVA P ≤ 0.01; b, = SAM delta = 0.05; c, B. abortus microarrays (14).
94051_at	13612	3.0 ± 0.4	0.5 ± 0.4	3.2 ± 0.3	0.998	Edil3	EGF-like repeats and discordin I-like domains 3	a, b
96785_at	80880	−3.2 ± 0.6	−0.5 ± 1.1	−2.7 ± 0.7	0.994	Ankrd47	Ankyrin repeat domain 47
92913_at	26874	−4.1 ± 0.3	−2.0 ± 0.4	−3.9 ± 0.3	0.920	Abcd2	ATP-binding cassette, sub-family D (ALD), member 2	a, b
103467_g_at	54151	−2.3 ± 0.3	−0.6 ± 0.3	−2.9 ± 0.3	0.897	Cyhr1	Cysteine and histidine rich 1
94755_at	16175	3.9 ± 0.4	1.7 ± 0.7	3.1 ± 0.4	0.693	Il1a	Interleukin 1 alpha	b, c
93568_i_at		1.4 ± 0.0	−1.1 ± 0.7	1.2 ± 0.5	0.556	LOC544988	Similar to Spetex-2F protein
92504_at	15574	2.1 ± 0.6	−0.1 ± 0.4	1.8 ± 0.7	0.501	Hus1	Hus1 homolog (S. pombe)
104592_i_at	17260	−3.7 ± 0.2	−1.9 ± 0.3	−3.3 ± 0.2	0.473	Mef2c	Myocyte enhancer factor 2C	a, b
102798_at	11535	0.9 ± 0.6	2.4 ± 0.6	−0.3 ± 0.7	0.444	Adm	Adrenomedullin
102374_at	53902	−2.9 ± 0.3	−1.0 ± 0.4	−2.2 ± 0.5	0.425	Dscr1l2	Down syndrome critical region gene 1-like 2	a, b
