Abstract
Background:
Pharmacological treatment of Alzheimer’s disease (AD) involves symptomatic improvement of cognition using cholinesterase inhibitors (ChEIs) and memantine. The cost-effectiveness of these medications will guide decision-makers in making judicious use of scarce healthcare resources, particularly during the advanced disease stages.
Objective:
To evaluate the cost-effectiveness of ChEIs, memantine, and ChEI-memantine combinations in persons with moderate-to-severe AD from the US healthcare perspective.
Methods:
This pharmacoeconomic evaluation study used a state-transition Markov cohort model to simulate the costs and effectiveness of ChEI-memantine combinations compared with monotherapies of ChEI (donepezil, galantamine and rivastigmine) and memantine in persons with moderate-to-severe AD over a lifetime horizon with a 1-year cycle length. We estimated expected quality-adjusted life-years (QALYs), costs (in 2020 $US), net monetary benefits, and incremental cost-effectiveness ratios (ICERs). We discounted future costs and QALYs at the rate of 3%.
Results:
In this study, donepezil monotherapy, galantamine-memantine combination, and rivastigmine transdermal patch formed the cost-effectiveness frontier. Findings suggests that rivastigmine transdermal patch is the optimal treatment strategy at a willingness-to-pay (WTP) threshold of $150,000/QALY (ICER = $93,307/QALY [versus donepezil monotherapy]). Results across subgroups by age and sex also suggest that the rivastigmine transdermal patch is the optimal treatment strategy with the highest net benefit.
Conclusion:
From the US healthcare perspective, we found that, for persons with moderate-to-severe AD at a WTP threshold of $150,000/QALY, the rivastigmine transdermal patch is the most cost-effective pharmacological treatment option. Given that the transdermal patch is a preferred route of administration for persons with AD and their caregivers due to its convenience, our findings provide additional incentives for its use.
Keywords
INTRODUCTION
The number of persons with Alzheimer’s disease (AD) in the United States (US) is rising as the population of older adults increases [1]. AD is a growing concern due to longer life expectancy and the considerable size of the population expected to reach age 65 and beyond in the coming decades. An estimated 6.2 million people aged 65 and older in the US are living with AD [2, 3]. It is the most common type of dementia and accounts for 60–80% of reported cases [4]. Among individuals in the US aged 65 years or older, more than 1 in 9 has AD [2, 5]. AD is the fifth leading cause of death in persons aged 65 years or older [6]. In 2018, the US society spent an estimated $277 billion in the cost of care of persons with AD and other dementias [3]. Currently, AD has no cure, and pharmacological options for the management of its symptom are limited.
Pharmacological treatment for AD comprises memantine and the cholinesterase inhibitors (ChEIs) donepezil, galantamine, and rivastigmine. Although most cases progress to a severe stage that can last many years, most published clinical and economic evaluations have focused on the mild-to-moderate stages [7, 8]. The American Academy of Family Physicians recommends that treatment for mild-to-moderate AD should begin with ChEIs [9]. Donepezil, galantamine, and rivastigmine are FDA-approved for use during these stages. Switching ChEIs for lack of response or intolerable adverse effects is acceptable. For moderate-to-severe AD, studies suggest that combining memantine with an ChEI might help [10, 11]. Donepezil and the rivastigmine transdermal patch are FDA-approved for all stages, and memantine and donepezil-memantine combination for moderate-to-severe AD.
About 75% of the healthcare costs associated with AD occur during the more severe stages [12]. Therefore, the cost-effectiveness of medications during later stages is important to guide decision-making for judicious use of scarce healthcare resources. Previous cost-effectiveness studies of pharmacological treatments of moderate-to-severe AD have not compared all relevant drug combinations in a single decision analytic model (e.g., only comparing donepezil-memantine versus donepezil monotherapy [13], or memantine with ChEI as a drug class versus ChEI-class monotherapies;[14] both based on single clinical trials). It is unknown which ChEI-memantine combination is most cost-effective, since combinations differ in cost and effectiveness [14, 15]. We aimed to conduct a cost-effectiveness analysis of treating moderate-to-severe AD with all the clinically plausible and relevant treatment alternatives; the combination of memantine with each ChEI versus best supportive care (BSC) or ChEI monotherapy or memantine monotherapy.
METHODS
Model description and treatment strategies
This report follows the Consolidated Health Economic Evaluation Reporting Standards (CHEERS) guideline for health economic evaluations [16, 17]. Following guidance from the US Panel on Cost-effectiveness in Health and Medicine [18, 19], we developed a state-transition Markov model [20] to evaluate the cost-effectiveness of the following nine strategies in treating moderate-to-severe AD: BSC; donepezil or galantamine or oral rivastigmine or rivastigmine transdermal patch or memantine monotherapy; donepezil-memantine, galantamine-memantine or oral rivastigmine-memantine combinations.
The model begins with an initial distribution of patients in moderate and severe health states and recursively applies annual transition probabilities to simulate how patients switch states (to or from mild, moderate, or severe AD, or to death from AD or death from other causes; Fig. 1). Death from other causes was estimated from the US Life Table (Supplementary Table 1), stratified by sex (Supplementary Table 2) [21].

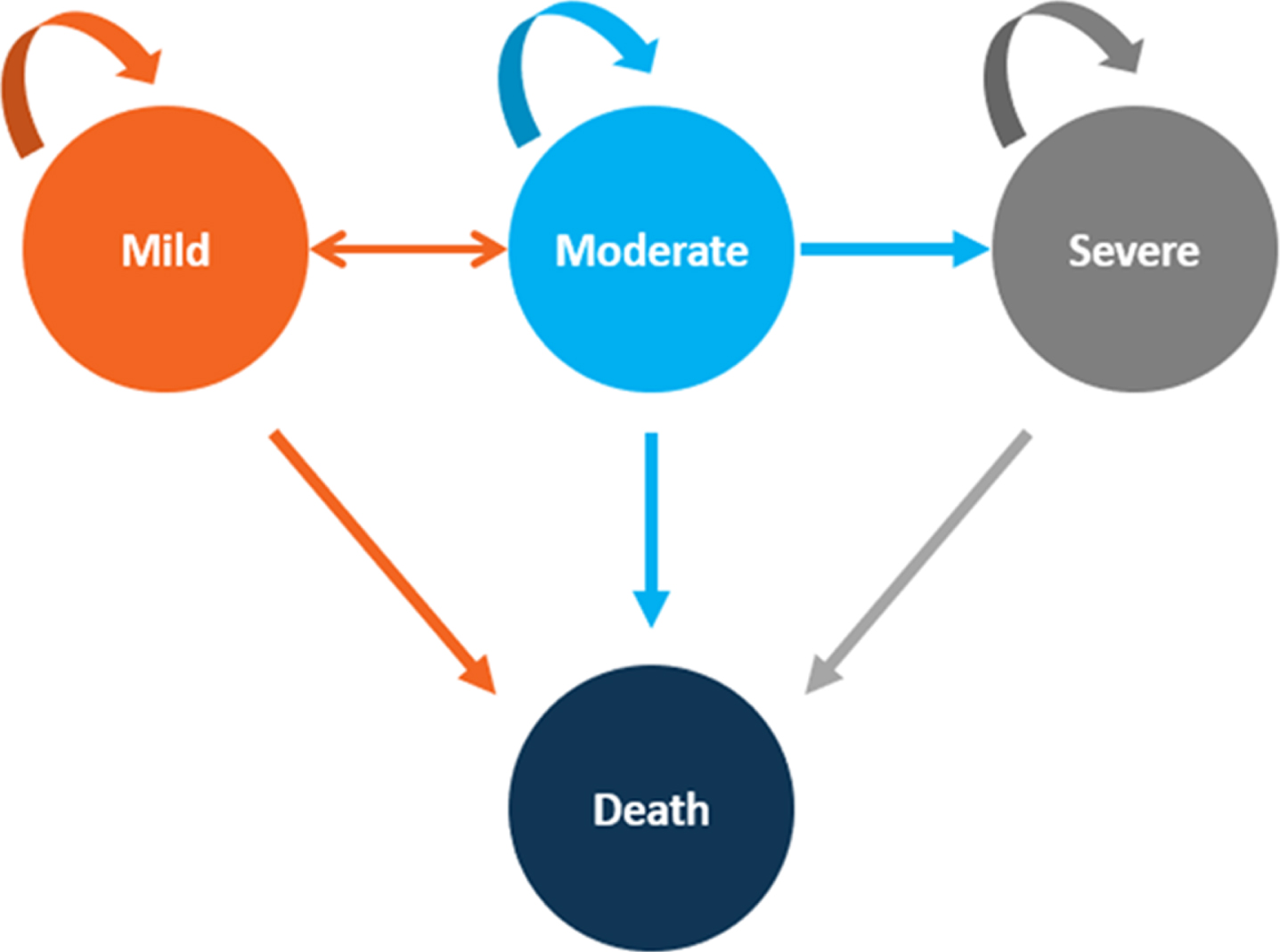

Health-State Transition Diagram. Depicts the Markov model health state transition. The circles represent health states, and the arrows represent possible transitions from one health state to another.
Model parameters
Transition probabilities
We obtained data for patients aged≥65 with AD enrolled in approximately 29 Alzheimer’s Disease Centers (ADCs) between 2005–2015 from the National Alzheimer’s Coordinating Center (NACC) database. ADCs are funded by the National Institute on Aging (NIA) of the National Institutes of Health [22, 23]. The ADCs enroll and follow participants approximately annually and NACC provides data for research upon request; all participants provided written informed consent. An Institutional Review Board (IRB) at each ADC approved all research activities, including data sharing; this secondary analysis of the de-identified data did not require additional approval.
Selected patients had≥1 annual visit to the ADCs. Health states were determined using validated Clinical Dementia Rating Scale (CDR® Dementia Staging Instrument) scores [24]: CDR 0.5–1 is mild; 2 is moderate and 3 is severe [25, 26]. These categories correlate with other AD measures [24]. We used the msm package in R to develop a multistate model [27, 28] and calculate the annual transition probabilities for treated or untreated patients aged 65 years. The disease stages were modelled as homogenous continuous-time Markov process with a transition Q matrix [28]. The calculated transition probabilities were consistent with others using the same database from a shorter timeframe (2005–2009) [29]. These probabilities were used to populate the transition matrix (Supplementary Table 3).
Intervention effectiveness and model assumptions
We incorporated the effect of interventions from a Bayesian network meta-analysis (NMA) of 142 studies [15]. This provides the most comprehensive and current evidence of the effectiveness of pharmacological treatments of AD, including indirect treatment estimates. The effect of the drugs on mortality (versus BSC) are presented in Supplementary Table 4. We converted the odds ratio (OR) to relative risk (RR) using the formula by Zhang et al. [30] before incorporating treatment effects for pertinent transition probabilities into the model using the RRs.
Although this NMA provided direct and indirect evidence for most of the strategies, we were unable to obtain data on transitioning from moderate or severe to death for rivastigmine-memantine, so we assumed the transition probability to be identical to donepezil-memantine because the drugs are similar, and this is the most studied combination in clinical trials with the most robust evidence.
Costs and utilities
All cost inputs were inflation-adjusted to 2020 US dollar value using the Consumer Price Index from the US Bureau of Labor Statistics. We included direct medical, non-medical, and caregiving costs. Cost of drugs acquisition were obtained from the 2016 Medicare Provider Utilization and Payment Data from the US Centers for Medicare & Medicaid Services (CMS) [31], except for rivastigmine transdermal patch which was unavailable in CMS so was obtained from the Average Wholesale Price (AWP) using the RED BOOK (Truven Health Analytics) [32]. We derived cost of care and utility estimates by disease stage based on an analysis by Saint-Laurent Thibault et al. (2015) [14] (Supplementary Table 5). We used direct medical cost of care (including antipsychotic medications, monitoring, physician visits and home care) to reflect the healthcare payer perspective (typically reimbursed by Medicare) [14].
Model outcomes and analysis
We defined outcomes (QALYs and costs) from the model over a lifetime horizon (i.e., the patient’s lifetime which was until every patient dies, and consistent with studies that have indicated that people ≥65 can live between 4 to 20 years) [3]. We assessed cost-effectiveness for each strategy by estimating the expected ICERs and net monetary benefits (NMBs). Expected ICER was estimated as the difference in cost between treatments divided by the difference in effect. In this cost-effectiveness analysis, comparison was made in the following ways [33]. 1) We arranged alternatives in order of increasing effectiveness. 2) We ruled out strongly dominated alternatives. 3) We calculated ICERs based on moving to increasingly costly and increasingly effective alternatives. 4) If the ICER associated with moving to more costly alternative falls, then the lower-cost alternative used to calculate the ICER is extendedly dominated and was ruled out. 5) We then recalculated ICERs based on comparisons of moving to increasingly costly but increasingly effective alternatives that are neither strongly nor extendedly dominated. Expected NMB was estimated as the effectiveness (in QALYs) multiplied by the willingness-to-pay (WTP) threshold, minus the cost of treatments. Using the NMB, which is found to be consistent with ICER approach, treatment with the greatest net benefit was determined as the most optimal treatment [33].
We applied a 3% discounting rate for costs and outcomes as recommended by the US Panel on Cost-effectiveness in Health and Medicine [18, 19]. A WTP threshold of $100,000 or $150,000 per QALY has been recommended (outside the context of an explicit resource constraint) [34]. We used $150,000/QALY to determine the optimal strategy in the reference-case and sensitivity analyses. Decision-makers may use the WTP threshold of their choice within the context of an explicit resource constraint.
To account for heterogeneity within the model, we conducted subgroup analyses on males, female, and starting age of 74 years, since age and sex are among the most important risk factors for AD, for which outcomes might differ [3]. All modelling computations were conducted using hēRo3, a web-based, open-source health economic modeling platform (https://heroapps.io/).
Sensitivity analysis
Deterministic, one-way sensitivity analysis was conducted by varying some selected variables through plausible ranges to assess the robustness of our results. Specifically, we varied the cost of rivastigmine transdermal patch, given that costs were from the RED BOOK while other drug costs were from CMS. We also varied the probabilities of moving to death from moderate and severe health states for rivastigmine-memantine as the probability we used was assumed to equal that of donepezil-memantine due to lack of data. This one-way analysis varied the estimates by±25% of the base case values, consistent with the literature where ranges are unavailable [35].
To account for joint parameter uncertainty in the entire model, we conducted a probabilistic sensitivity analysis (PSA) using second-order Monte Carlo simulations [36] based on 1000 iterations using distributions appropriate to the parameters: beta distribution for transition probabilities (adequately reflects a binomial distribution for a fraction of event and no event; bounded between 0 and 1), normal distributions for costs (data from a large sample size [37, 38]), and lognormal distribution for utilities (suitable when health states close to death are possible, such as severe AD [37, 38]).
RESULTS
Table 1 presents the results for all nine strategies. Donepezil, galantamine-memantine combination, and rivastigmine transdermal patch formed the cost-effectiveness or efficiency frontier (Fig. 2) [39]. In the reference-case analysis, the most effective treatment is rivastigmine transdermal patch (2.250 QALYs), followed by rivastigmine-memantine (1.831 QALYs). BSC and oral rivastigmine are the least effective (0.755 and 0.876 QALYs, respectively). Apart from rivastigmine transdermal patch, all combination treatments were more effective than their monotherapies. Subgroup analyses suggest that treatments are more effective in females than males and at 65 than 74 years (Tables 1 and 2).
Reference-Case Cost-Effectiveness of Cholinesterase Inhibitors and Memantine in Moderate-to-Severe Alzheimer’s Disease
QALYs, quality-adjusted life-years; ICER, incremental cost-effectiveness ratio (expressed in 2020 US dollars per QALY); Strongly dominated, means that a treatment is ruled out because it costs more for fewer QALYs than the comparator alternative; extendedly dominated means that a treatment is ruled out because it has an ICER that is greater than that of a more effective comparator alternative.

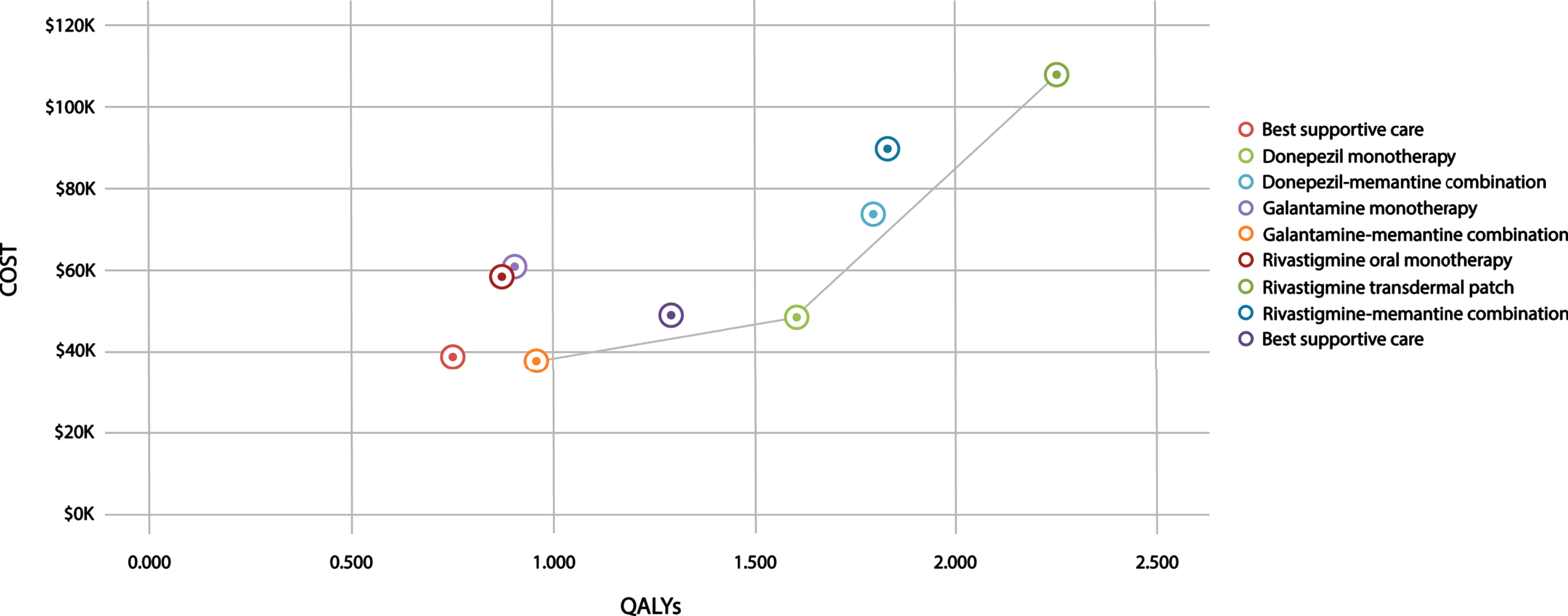

Cost-effectiveness plane. Shows the cost-effectiveness plane for costs and outcomes (quality-adjusted life-years) associated with all possible treatment strategies for AD. The solid line represents the cost-effectiveness frontier.
Cost-Effectiveness of Cholinesterase Inhibitors and Memantine Among Age and Sex Subgroups
QALY, quality-adjusted life-years; ICER, Incremental cost-effectiveness ratio (expressed in 2020 US dollars per QALY); NMB, Net monetary benefit. aNet monetary benefit at willingness-to-pay threshold of $150,000/QALY. Treatments with the greatest net monetary benefits are highlighted in bold.
The reference-case result indicates that rivastigmine oral and galantamine monotherapy were strongly dominated by galantamine-memantine as they cost more and were less effective (Fig. 2 and Supplementary Figure 1). Memantine was dominated by donepezil and rivastigmine-memantine was extendedly dominated by rivastigmine transdermal patch.
This cost-effectiveness analysis suggests that rivastigmine transdermal patch is the optimal treatment strategy at a WTP value of $150,000/QALY (ICER = $93,307/QALY versus donepezil monotherapy), with similar results across subgroups.
One-way sensitivity analysis by varying the cost of rivastigmine transdermal patch and probabilities of rivastigmine-memantine ombination from moderate or severe AD to death did not change suggestions on the optimal treatment (ICER < WTP) as both variables did not remarkably influence the ICER.
The PSA result based on healthcare perspective at WTP value of $150,000/QALY suggests that rivastigmine transdermal patch was the optimal treatment in 78.2% of iterations followed by donepezil-memantine (11.6%); then rivastigmine-memantine (7.9%); and then donepezil monotherapy (2.3%) (Fig. 3).

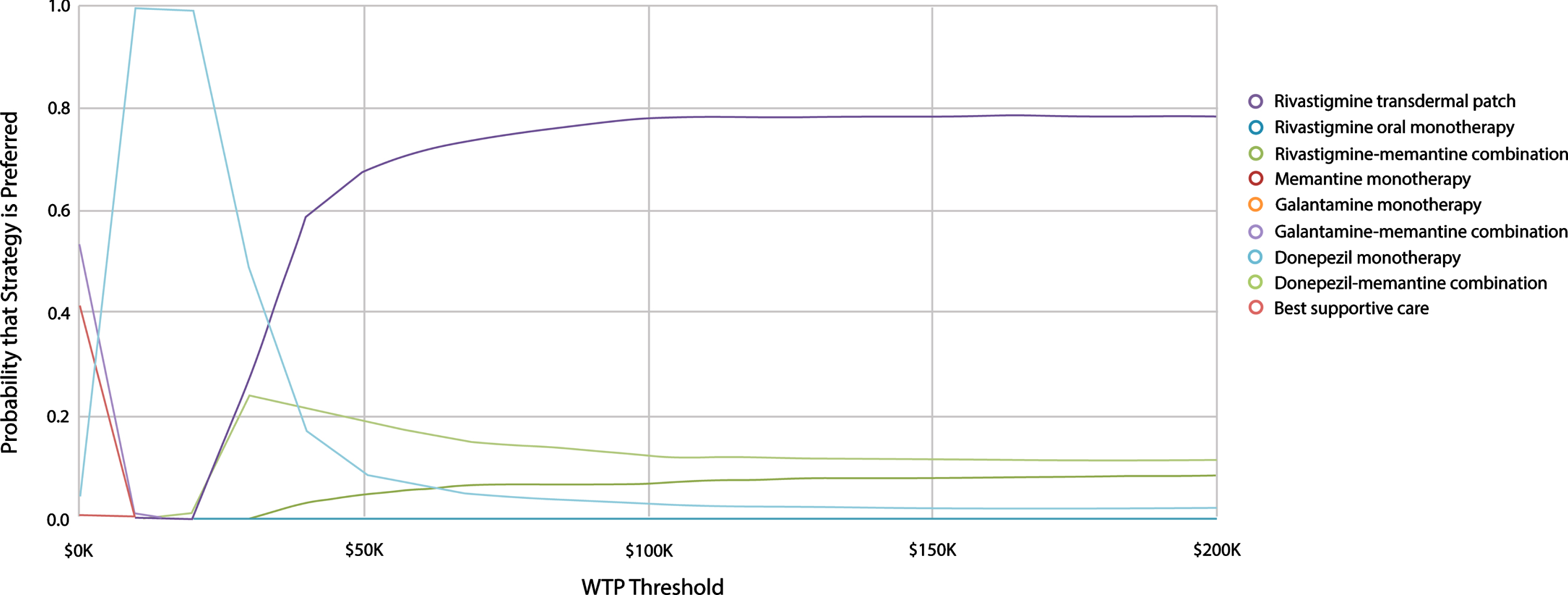

Probabilistic Sensitivity Analysis Cost-Effectiveness Acceptability Curve. Shows Cost-Effectiveness Acceptability Curves for nine different treatment options. The vertical axis represents probability that a treatment option is cost-effective while the horizontal axis presents the willingness-to-pay (WTP) threshold range (i.e., $0 – $200,000 per QALY). Rivastigmine transdermal patch has the highest probability to be cost-effective (“optimal”) at WTP values ≥$50,000 per QALY.
DISCUSSION
In this study for patients with moderate-to-severe AD, we examined the cost-effectiveness of ChEI-memantine combinations versus memantine or ChEI monotherapy. Based on the US healthcare perspective, our results suggest that monotherapy with the rivastigmine transdermal patch is the optimal treatment strategy at a WTP value of $150,000 per QALY. These results were consistent across subgroups. Combination therapies were more effective (provided more QALYs) than their respective monotherapies, except for the rivastigmine transdermal patch.
Previous cost-effectiveness studies on treatments for moderate-to-severe AD, which did not compare all available treatment options and used a shorter time horizon, yielded results that differed from ours. Weycker et al. (2007) [13] compared memantine-donepezil versus donepezil monotherapy, for only a year time horizon, and concluded that the combination was more cost-effective. Saint-Laurent Thibault et al. (2015) [14] compared ChEI-memantine versus memantine or ChEIs monotherapy over a 3-year time horizon and found that the combination was cost-effective. However, the study did not include the rivastigmine transdermal patch and did not differentiate between the three possible ChEI combinations.
The estimates of drug effect in both these studies were based on single clinical trials.
In the UK, a cost-effectiveness analysis by Knapp et al. (2017) with model inputs derived from a pragmatic clinical trial compared no treatment, donepezil monotherapy, memantine monotherapy, and donepezil-memantine [40–42]. It found that donepezil-memantine was not more cost-effective than donepezil monotherapy. It called for the UK National Institute for Health and Care Excellence (NICE) to revise its reimbursement guidelines [40, 43], which were based on the conclusion that insufficient evidence exists to differentiate between ChEIs. The NICE guidelines recommended that the best use of resources would be the option with the lowest acquisition cost [43]. However, in economic evaluations, decisions on optimal treatments should be based on maximizing net benefits rather than differences in statistical significance, given that the magnitude of costs and effects are not the same [44].
Failing to include all relevant alternatives could result in overestimation of cost-effectiveness if an intervention was not compared with a more cost-effective treatment [33]. Including all possible alternatives can be challenging because randomized controlled trials (RCTs) rarely compare all relevant treatment strategies, and we were able to use the NMA of 142 studies (published after the above three previous studies) to include treatments that were never compared directly in clinical trials [15]. To be able to completely assess the cost-effectiveness of interventions, it is also necessary that the time horizon should be long enough to capture all relevant outcomes [33], and our estimate is based on a lifetime horizon.
Since the introduction of tacrine in 1993 (withdrawn from the US market in 2012), and until new treatments are developed, memantine and the three ChEIs remain the mainstay in the symptomatic treatment of AD. It is worth noting, however, that in May 2018, the French Ministry of Health announced a policy that removed all AD drugs (donepezil, galantamine, rivastigmine, and memantine) from its list of reimbursable treatments [45]. If our US cost-effectiveness findings also apply to France, this 2018 policy decision in effect denies treatment that delivers more than two QALYs.
The high probability of being cost-effective we found for rivastigmine transdermal patch (78% from the healthcare perspective) gives an insight into the level of parameter uncertainty and supports our conclusion. This is one example of the value of our cost-effectiveness analysis, being able to guide decision makers regarding the best use of resources among available treatment options.
Strength and limitations
To our knowledge, our study is the first cost-effectiveness analysis of ChEI-memantine combination therapy versus ChEI or memantine monotherapy in the treatment of moderate-to-severe AD that compares all relevant alternatives, making available the most complete set of data for decision makers. In addition, our study accounted for model heterogeneity to evaluate differences in results due to sex or age.
As with any simulation model, our study should be viewed in the context of some limitations. First, our cohort consist of patients with a starting age of 65 (and a subgroup of 74) years; it is not clear whether our conclusion is applicable to other starting ages. This limitation is significant, because older patients have a higher mortality rate, and they are at higher risk of disease progression than younger ones. In the future, it will be important to evaluate the cost-effectiveness of these agents at other ages. Another limitation is that the model in the current study did not include differences in side effects of drugs. However, clinical experts indicate that, over long-term use, these medications are equally tolerated. Moreover, we accounted for adverse effects and drug switching in the MSM used to generate transition probabilities. Although a small proportion of NACC participants are in a skilled nursing facility, nursing home, hospital, or hospice, this study was limited to majority of patients in the community, as costs and utility inputs of the model were based on those reported for patients in such settings. Institutionalized patients incur more healthcare cost, and hence it is unclear whether our findings regarding optimal treatment would be applicable to these patients.
CONCLUSION
From the US healthcare perspective, we found that, for moderate-to-severe AD patients aged 65 years, at a WTP value of $150,000, the rivastigmine transdermal patch was the most cost-effective treatment. On examining parameter uncertainty, rivastigmine also had the greatest probability of being cost-effective. Given that the transdermal patch is a preferred route of administration for AD patients and caregivers due to its convenience, our findings provide an additional incentive for its use. These finding are consistent across subgroups by age and sex. Future studies may explore the cost-effectiveness of these agents in other age groups and institutional settings.
Footnotes
ACKNOWLEDGMENTS
Data used to estimate transition probabilities that went into the Model in this study was from the NACC database which is funded by NIA/NIH Grant U01 AG016976. NACC data are contributed by the NIA funded ADCs: P30 AG019610 (PI Eric Reiman, MD), P30 AG013846 (PI Neil Kowall, MD), P30 AG062428-01 (PI James Leverenz, MD) P50 AG 008702 (PI Scott Small, MD), P50 AG025688 (PI Allan Levey, MD, PhD), P50 AG047266 (PI Todd Golde, MD, PhD), P30 AG010133 (PI Andrew Saykin, PsyD), P50 AG005146 (PI Marilyn Albert, PhD), P30 AG062421-01 (PI Bradley Hyman, MD, PhD), P30 AG062422-01 (PI Ronald Petersen, MD, PhD), P50AG005138 (PI Mary Sano, PhD), P30 AG008051 (PI Thomas Wisniewski, MD), P30 AG 013854 (PI Robert Vassar, PhD), P30 AG008017 (PI Jeffrey Kaye, MD), P30 AG010161 (PI David Bennett, MD), P50 AG047366 (PI Victor Henderson, MD, MS), P30 AG010129 (PI Charles DeCarli, MD), P50 AG016573 (PI Frank LaFerla, PhD), P30 AG062429-01(PI James Brewer, MD, PhD), P50 AG023501 (PI Bruce Miller, MD), P30 AG035982 (PI Russell Swerdlow, MD), P30 AG028383 (PI Linda Van Eldik, PhD), P30 AG053760 (PI Henry Paulson, MD, PhD), P30 AG010124 (PI John Trojanowski, MD, PhD), P50 AG005133 (PI Oscar Lopez, MD), P50 AG005142 (PI Helena Chui, MD), P30 AG012300 (PI Roger Rosenberg, MD), P30 AG049638 (PI Suzanne Craft, PhD), P50 AG005136 (PI Thomas Grabowski, MD), P30 AG062715-01 (PI Sanjay Asthana, MD, FRCP), P50 AG005681 (PI John Morris, MD), P50 AG047270 (PI Stephen Strittmatter, MD, PhD).
CONFLICT OF INTEREST
The authors have no conflict of interest to report.
