Diagnosis of Alzheimer’s Disease and Mild Cognitive Impairment Using Convolutional Neural Networks

Dataset

The dataset used in this paper is the Alzheimer’s Disease Neuroimaging Initiative [14]. The original images of this dataset are in 3D formats. For convenience in using convolutional neural network algorithms, another dataset has been used which has two-dimensional images and is taken from Alzheimer’s disease neuroimaging data. In other words, the dataset used in the paper was downloaded from the Kaggle website. However, the images used on this website are actually the same ADNI website images that have been converted into two dimensions. Considering that the 3D images have been converted to 2D, as a result, each person in this dataset has several different images. The utilized 2D images in the dataset are of the T1-weighted type. Additionally, for calculating the NDI (Neurite Density Index) and ODI (Orientation Dispersion Index) parameters in the neurite orientation dispersion and density imaging (NODDI) method, diffusion-weighted images have been used for each patient. The dataset used in terms of the type of disease includes 3 separate classes; the number of samples of each class is listed in Table 1. Also, a sample image of each data set class is shown in Fig. 1.

OPEN IN VIEWER

Fig. 1

Three different examples of brain images from people with (a) Alzheimer’s disease, (b) mild cognitive impairment, and (c) healthy people.

In the ADNI dataset, there exists an additional tabular dataset for each patient, representing some of the features obtained from the patients. In Table 2, numerical features used in this dataset have been subjected to statistical analysis. In addition to these numerical features, non-numerical attributes such as Gender, Race, Nationality, and Marital status have been utilized in this research.

For age, mini-mental state examination (MMSE), Assessment Scale-Cognitive Subscale (ASCS), and Rey Auditory Verbal Learning Test (RAVLT) features, the first value represents the mean, the value inside the parentheses indicates the standard deviation, and the value inside the brackets denotes the minimum and maximum values associated with the respective feature. For the male and female gender features, as well as the married and single status, the first number indicates the count of that feature relative to the total members of the dataset, and the second number in prantesis represents the percentage of that feature from the total.

In Table 2, the last three rows represent various tests related to Alzheimer’s disease and mild cognitive impairment, which have been conducted on each patient. The concept of the numerical score for each of these tests is as follows [14]:

MMSE: A score of 25 or higher is considered a normal classification. If the score is below 24, an abnormal result is typically considered indicating a potential cognitive impairment. The maximum score for the Mini-Mental State Examination is 30.

Models

In this paper, three different types of convolutional neural networks are used, namely AlexNet, DenseNet, and one-dimensional convolutional neural networks with LSTM layers in order to diagnose Alzheimer’s disease and mild cognitive impairment and normal people. The input of AlexNet and DenseNet is the original image. Based on the previously trained features, they easily learn the new features in the brain images and finally give a model as an output that can be used to accurately predict Alzheimer’s disease or mild cognitive impairment or a healthy person. In addition to the numerical characteristics resulting from the orientation dispersion and density of the microstructures in the cerebral cortex of the patients.

The input of the one-dimensional convolutional neural network includes individual characteristics, such as gender, race, ethnicity, and marital status, and the score of the Mini–mental state examination, the score of Assessment Scale-Cognitive Subscale, and the score of the Rey Auditory Verbal Learning Test.

In this study, the dataset is divided into two categories: 80% for training and 20% for testing. Also, 30% of the training data is randomly considered as validation data at each stage of the training process. Finally, images were classified and each model was evaluated using different metrics.

Most of the research conducted in the field of Alzheimer’s disease diagnosis has been done using neural networks to distinguish Alzheimer’s disease or mild cognitive impairment from healthy individuals. These neural networks have mostly been two-dimensional convolutional neural networks, dividing the subjects into two categories: Alzheimer’s disease patients and healthy individuals, or mild cognitive impairment patients and healthy individuals. In these studies, researchers train either arbitrary or pre-trained convolutional neural networks on MRI images of patients and use the resulting model to diagnose the disease. Furthermore, these studies have not made any use of personal information such as age, gender, marital status, psychological test scores obtained from the patients, etc., in the neural network. This research aims to implement these overlooked factors as innovations and examine the obtained results with the accuracy of different models. The following are the proposed implementations:

The use of AlexNet convolutional neural network for distinguishing patients with Alzheimer’s disease, mild cognitive impairment, and healthy individuals from each other.

AlexNet neural network model

AlexNet is a deep neural network architecture used for pattern recognition in images. AlexNet consists of eight layers, including five convolutional layers followed by max-pooling layers, and three fully connected layers. Figure 2 depicts the proposed model for diagnosing Alzheimer’s disease and mild cognitive impairment from healthy individuals using the AlexNet convolutional neural network.

OPEN IN VIEWER

Fig. 2

Proposed model for diagnosing Alzheimer’s disease and mild cognitive impairment from healthy individuals using the AlexNet model.

In this model, Adam’s optimizer algorithm is used. This algorithm is generally a good optimizer in many fields, including image classification.

DenseNet-BC neural network model

DenseNet convolutional neural network has different types. In this research, its improved model, namely DenseNet-BC, is used. This kind of architecture has excellent performance with fewer parameters to train. The proposed architecture for diagnosing Alzheimer’s disease and mild cognitive impairment from healthy individuals using the DenseNet-BC neural network model is shown in Fig. 3.

OPEN IN VIEWER

Fig. 3

Proposed model for diagnosing Alzheimer’s disease and mild cognitive impairment from healthy individuals using the DenseNet-BC model.

In this research, the stochastic gradient descent optimizer is used. Usually, this optimizer is proposed for DenseNet-BC convolutional neural networks.

DenseNet-BC neural network model

In previous studies for diagnosing Alzheimer’s disease or mild cognitive impairment using convolutional neural networks [12, 15–17], personal information such as age, gender, marital status, etc., has not been used and the main focus has been given to feature extraction from brain images. However, in this research, in addition to numerical features extracted from the dispersion direction and density of the microstructures in the cerebral cortex of the patients and the percentage of the relative area of the gray matter in the brain images, individual features such as gender, race, ethnicity, marital status, scores on the MMSE, scores on the ASCS, and scores on the RAVLT are also used.

Some of these data are not available directly and calculations and processing should be done, but some of them are directly available without any pre-processing. In the following sections, the method of obtaining each of these features or their pre-processing is described separately.

Acquisition and pre-processing of inputs of CNN1D-LSTM model

In the following, the method of acquisition and pre-processing of the inputs of the CNN1D-LSTM model is described.

Segmentation of brain tissues into white and gray matter is a common method for examining brain disorders [18]. Gray matter has a large number of neurons that allow information processing and propagation of new information through axonal signaling in white matter. Neurons also die naturally with increasing age. There are various methods to implement this segmentation in the field of medical images. In the field of Alzheimer’s disease and mild cognitive impairment, the gray area is very important [19]. One of the new machine learning methods for image segmentation into white matter and gray matter is the k-means clustering algorithm [20, 21]. The k-means machine learning algorithm is used for image segmentation to extract gray matter regions of the brain from white matter regions, instead of using classical image segmentation methods such as masking, etc. An example of the main images of the data set and the gray matter area extracted from it using the k-means clustering method is shown in Fig. 4.

OPEN IN VIEWER

Fig. 4

Extraction of gray and white matter areas using image segmentation.

Gray and white matter are indicated by green and white colors in Fig. 4, respectively. Then, the total number of pixels with green color is considered as the area of the gray matter area in the brain images. We consider the ratio of green area to the total area of the brain as the ninth input of the CNN1D-LSTM model.

The Neuron Density Index (NDI) refers to the number of neurons present in each unit volume relative to the total volume described by covering spaces in the microstructure of the brain. In simpler terms, it is the number of neurons per unit volume relative to the total volume. This parameter is usually represented as a percentage or in the range of 0 to 1.

As the density of neurons increases, the value of neuron density approaches 1. A decrease in this parameter indicates a decrease in memory and disruption in the decision-making process in Alzheimer’s disease patients; in other words, a decrease in the neuron density parameter is a sign of Alzheimer’s disease progression.

The Orientation Dispersion Index (ODI) is used in the NODDI model to estimate the degree of directional dispersion in the extracellular space relative to the intracellular space at each point in the brain. More precisely, the DDI reflects the degree of directional dispersion in the extracellular space of the brain at each point. In [22], changes in the Orientation Dispersion Index in the brains of Alzheimer’s disease patients were investigated. The results of this study showed that the ODI in certain brain regions of Alzheimer’s disease patients had decreased. Therefore, the decrease in ODI in Alzheimer’s disease patients may indicate structural changes in white matter fibers, which are usually accompanied by a decrease in neural network activity and cognitive function [23]. Therefore, the ODI can be used as a diagnostic sign of Alzheimer’s disease, and studies in this area can help improve the diagnosis and treatment of this disease. Thus, the ODI index reflects the diffusion of water molecules in brain tissue and its value should be between 0 and 1. The values of NDI and ODI are considered the tenth and eleventh inputs of the one-dimensional convolutional neural network model, respectively.

The input of neural network models must be in numerical format. However, the characteristics of gender, race, ethnicity, and marital status are stored as strings in the dataset. In order to make these strings understandable for the neural network model, they must be converted to numbers. In Table 3, a separate number is assigned to each of the values of these characteristics and is replaced by string values in the dataset.

Since the scores on the Mini-Mental State Examination, Mini-Cog test, and Rey Auditory Verbal Learning Test are already in numerical format, there is no need for data pre-processing, and these numbers can be directly used in the neural network model [24].

After pre-processing the data, all of them should be standardized, and finally, standardized features are given as input to the convolutional neural network model. Figure 5 shows the structure of the proposed model for distinguishing Alzheimer’s disease, mild cognitive impairment, and healthy individuals from each other using a one-dimensional convolutional neural network.

OPEN IN VIEWER

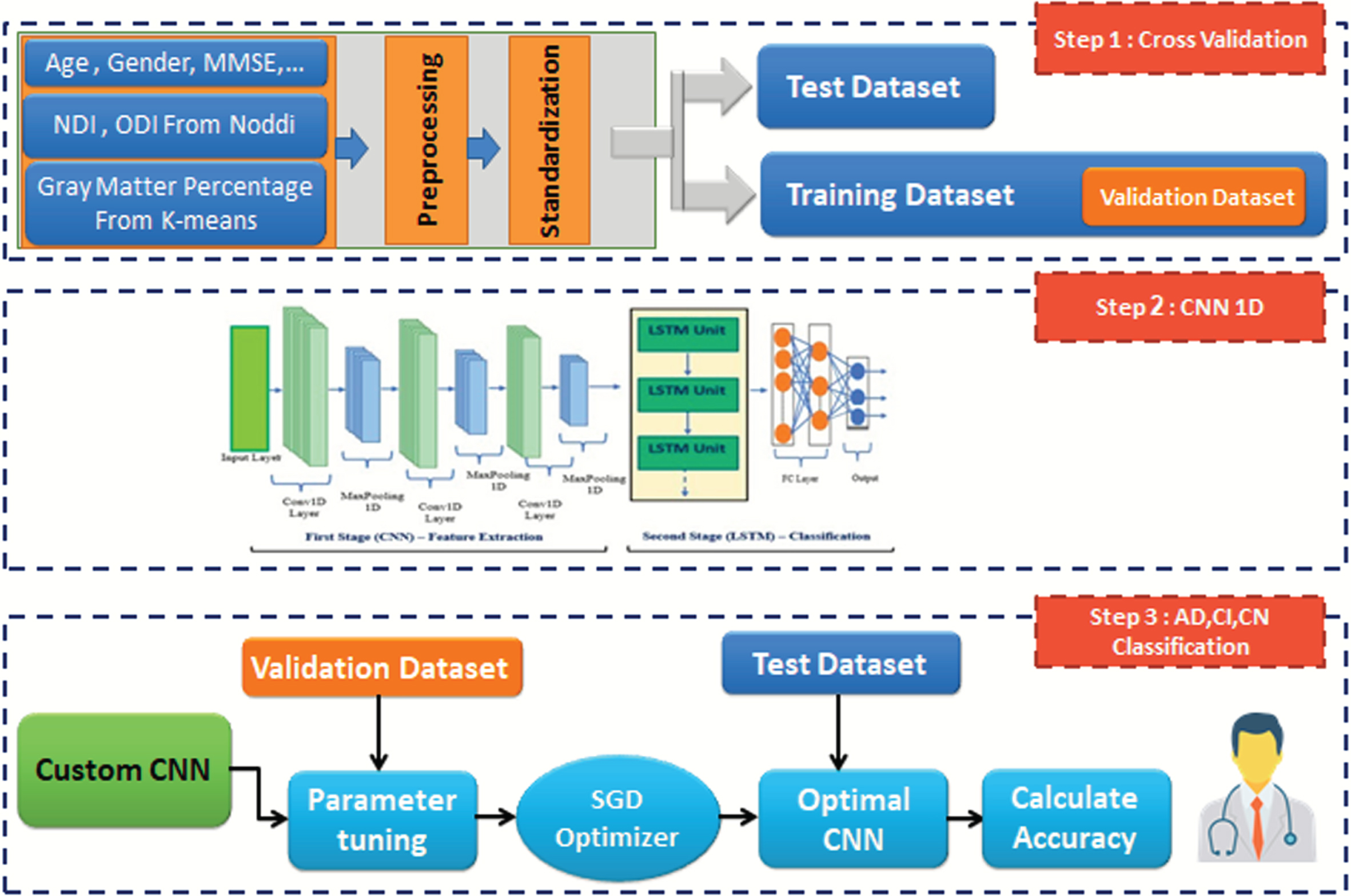

Fig. 5

Proposed model for diagnosing Alzheimer’s disease and mild cognitive impairment from healthy individuals using one-dimensional convolutional neural network.

The input of the model is a one-dimensional layer with a size of 11. This model consists of a convolutional layer with 16 filters and a kernel size of 1, followed by a max-pooling layer of size 3. Two fully connected layers with 125 and 3 neurons are also employed. The generated feature vector is then passed through three consecutive LSTM layers. Finally, the feature vector is fed into multiple fully connected layers, with the output layer being the last layer.

Performance metrics

After training the models using the training dataset, each model was run on the test data and the performance of the networks was evaluated using a confusion matrix. To construct the confusion matrix, the actual and predicted labels for each data point in the desired classification must first be determined. Then, using these labels, the confusion matrix is constructed, where columns represent the predictions and rows represent the actual labels. Each cell in this matrix shows the number of data points that have been classified correctly or incorrectly. Using this matrix, performance metrics such as accuracy, precision, recall, and F1-score can be calculated:

Accuracy metric: Accuracy = TP + TN TP + FP + FN + TN(1)

Training results

The performance of the AlexNet model was evaluated in 10 different training epochs. The accuracy of the AlexNet model on the training and validation datasets is shown in Fig. 6.

OPEN IN VIEWER

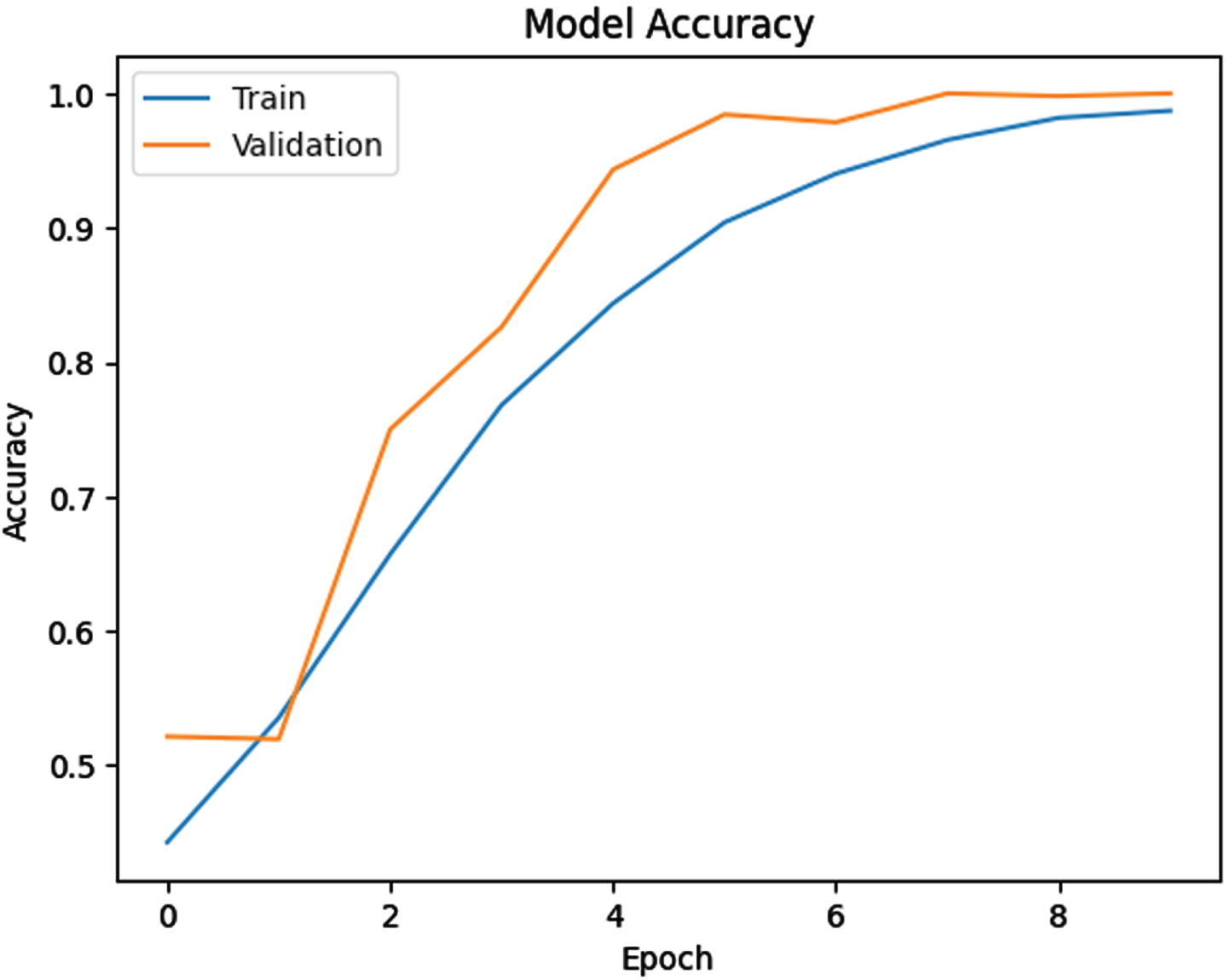

Fig. 6

Accuracy plot of the AlexNet model on the training and validation datasets.

The blue and orange lines in Fig. 6 show the accuracy of the AlexNet model on the training and validation datasets, respectively. As shown in Fig. 6, at the beginning of the training, the model’s accuracy on the training dataset was at its lowest, but as the training progressed, the model’s accuracy improved.

The large gap between the blue and orange lines at the beginning of the training indicates the overfitting of the model to the training dataset. As the training progresses, the gap between the two lines decreases and the two lines come close together due to achieving a balanced state during the training process. As shown by the orange line, the accuracy of the AlexNet model on the validation data was at its lowest at the beginning of the training, but as the training progressed, the accuracy of the model on the validation dataset improved.

In the DenseNet-BC model, the total number of parameters is 24,492, out of which 23,940 are trainable parameters and 552 are non-trainable parameters. The total number of parameters in the DenseNet-BC model is much lower than that of the AlexNet neural network model. Therefore, it can be concluded that the AlexNet model has been able to find many more patterns in the images compared to the DenseNet model. The accuracy of the DenseNet-BC model on the training and validation datasets is shown in Fig. 7.

OPEN IN VIEWER

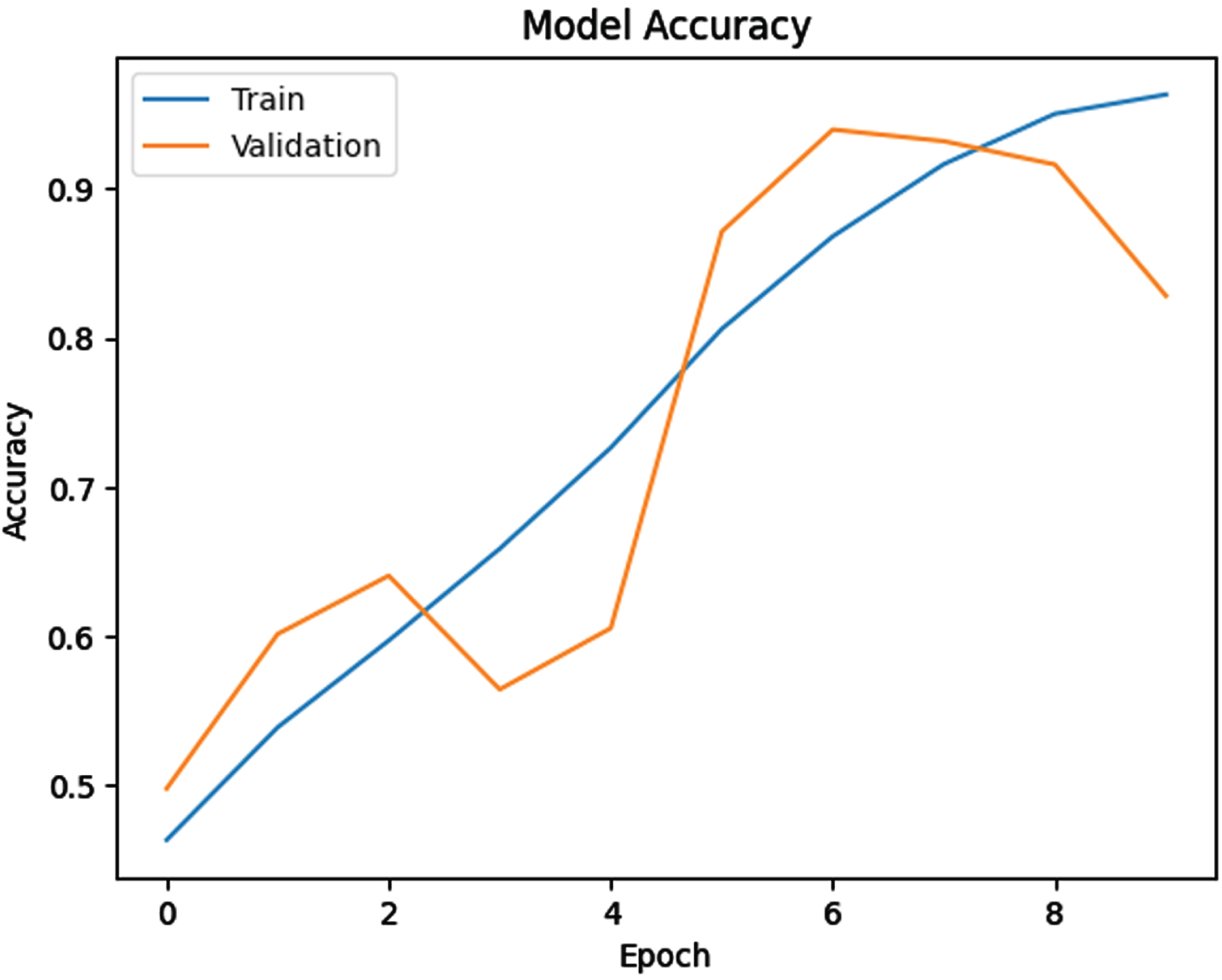

Fig. 7

Accuracy plot of the DenseNet model on the training and validation datasets.

It is evident from the blue curve that with an increase in the number of training epochs, the accuracy of the DenseNet model has improved on the training dataset. This indicates that the model has adapted well to the training data and is capable of accurately recognizing the training dataset. The highest accuracy of the model on the training dataset was achieved in epoch 10.

As evident from the orange curve, the accuracy of the DenseNet-BC model on the validation dataset has improved with an increase in the number of training epochs. However, the accuracy of the model on the validation dataset reached its maximum in epoch 7 and then gradually decreased with an increase in the number of training epochs.

The accuracy of the CNN1D-LSTM model on the training and validation datasets after 30 epochs is plotted in Fig. 8.

OPEN IN VIEWER

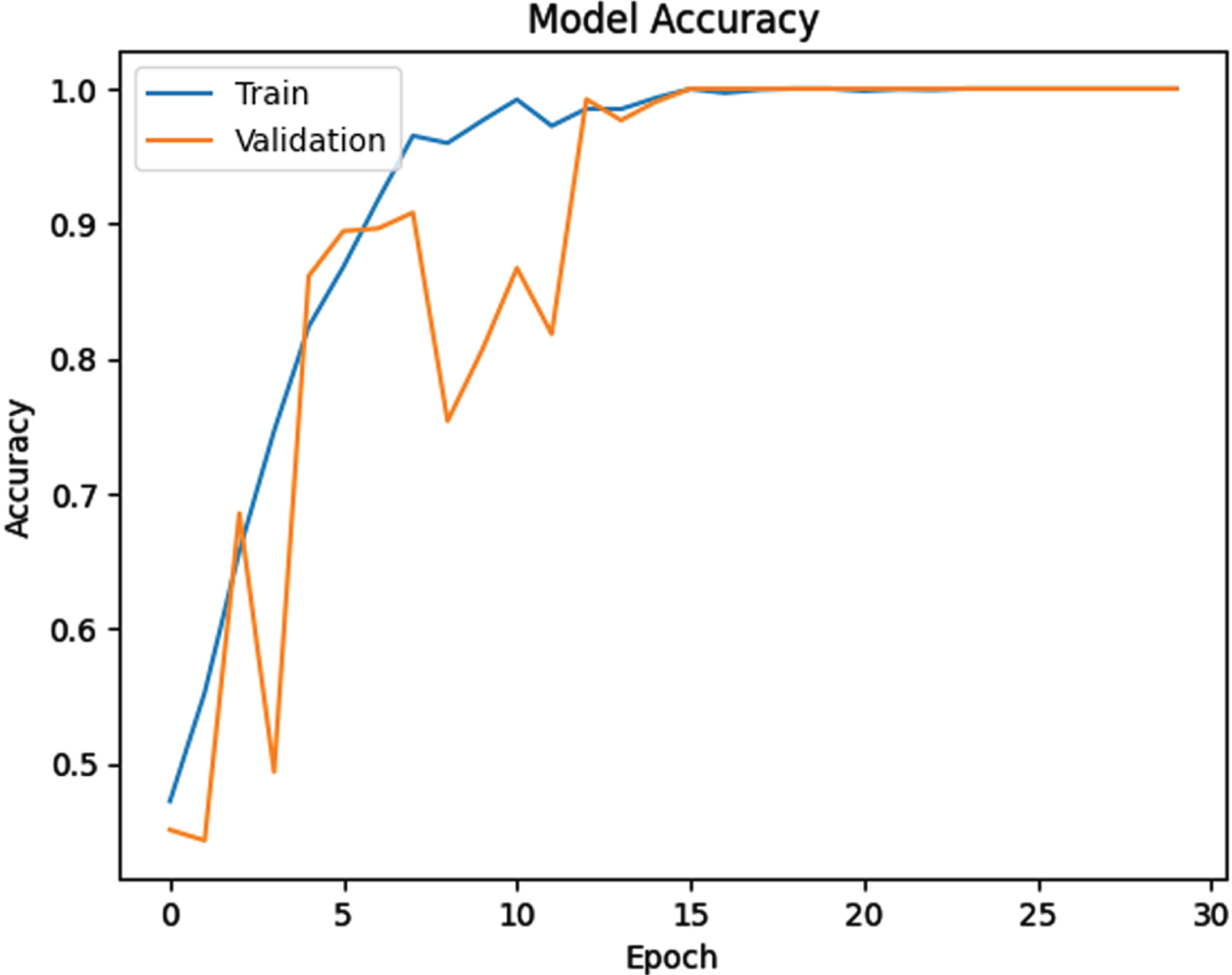

Fig. 8

Accuracy plot of the CNN1D-LSTM model on the training and validation datasets.

As shown in Fig. 8, the CNN1D-LSTM model has exhibited a positive trend on the training data, but experienced a sharp decline on the validation data initially. However, after the 15th epoch, it continued to ascend with high accuracy, indicating that the model was able to fit the validation data effectively. The CNN1D-LSTM model has a higher number of epochs compared to the pre-trained models, AlexNet and DenseNet. This is because AlexNet and DenseNet are pre-trained models that have learned a wide range of features beforehand, whereas the CNN1D-LSTM model is not pre-trained.

Test results

The confusion matrix of the AlexNet neural network model on the test dataset is shown in Fig. 9. The total number of test data points is 1024, out of which 286 belong to healthy individuals and 738 belong to individuals with mild cognitive impairment and Alzheimer’s disease. The AlexNet model has a high accuracy in predicting healthy individuals, as it has only misclassified one person as sick. In other words, the AlexNet model has higher sensitivity in detecting healthy individuals. However, in the case of detecting sick individuals, the model has slightly lower accuracy, as it has misclassified 12 out of 738 sick individuals as healthy. Overall, the AlexNet model has successfully distinguished healthy individuals from those with mild cognitive impairment and Alzheimer’s disease with an accuracy of 73.98%.

OPEN IN VIEWER

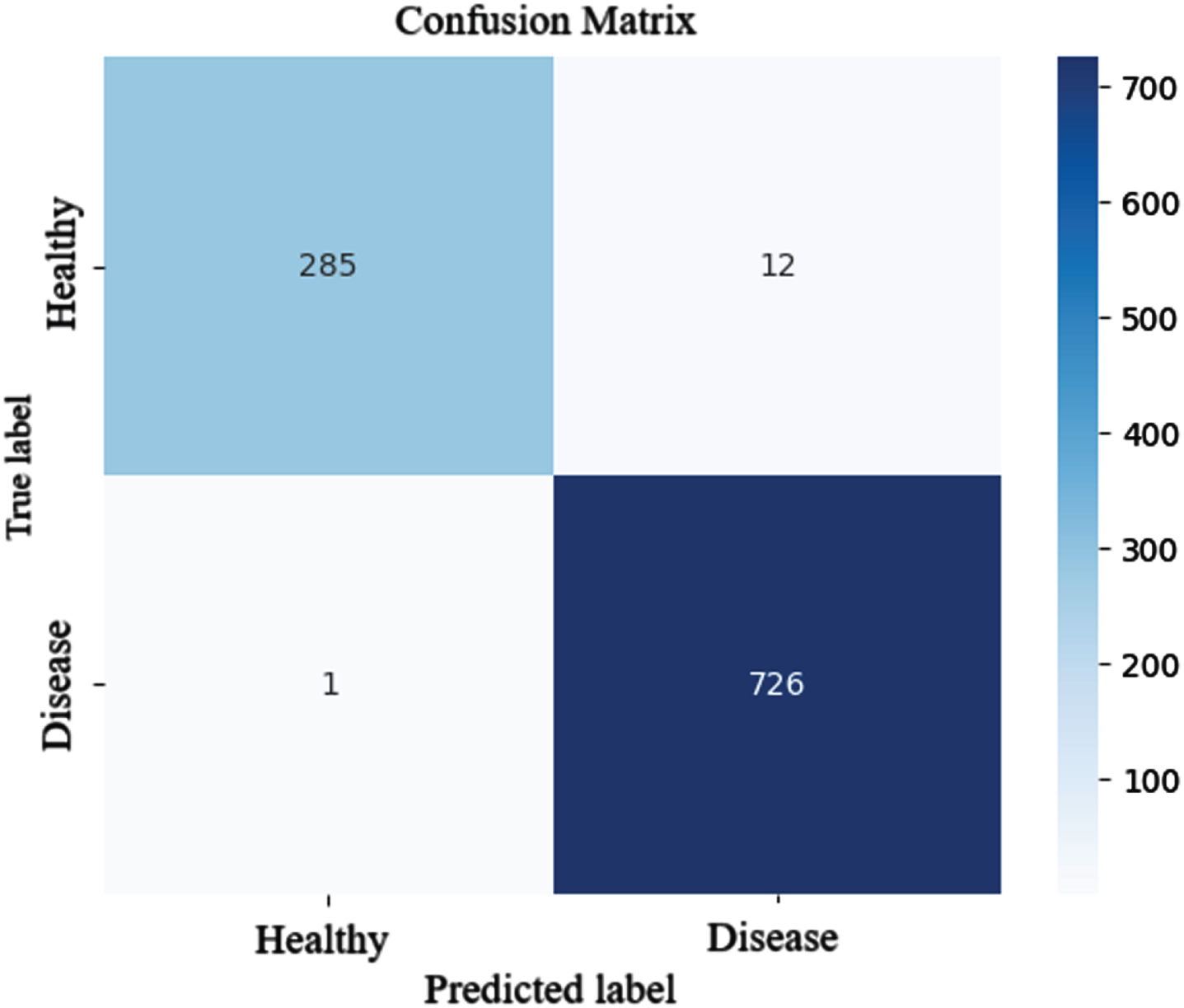

Fig. 9

Confusion matrix of the AlexNet model.

Figure 10 shows the confusion matrix of the DenseNet-BC model. As shown in Fig. 10, the DenseNet-BC neural network model had relatively good accuracy in predicting healthy individuals. Out of 286 cases of healthy individuals, the model misclassified 33 cases as patients. The DenseNet model also had lower accuracy in detecting patients compared to healthy individuals, misclassifying 86 out of 738 patient cases as healthy individuals. Overall, the DenseNet model was able to distinguish healthy individuals, individuals with mild cognitive impairment, and individuals with Alzheimer’s disease with an accuracy of 88.37%.

OPEN IN VIEWER

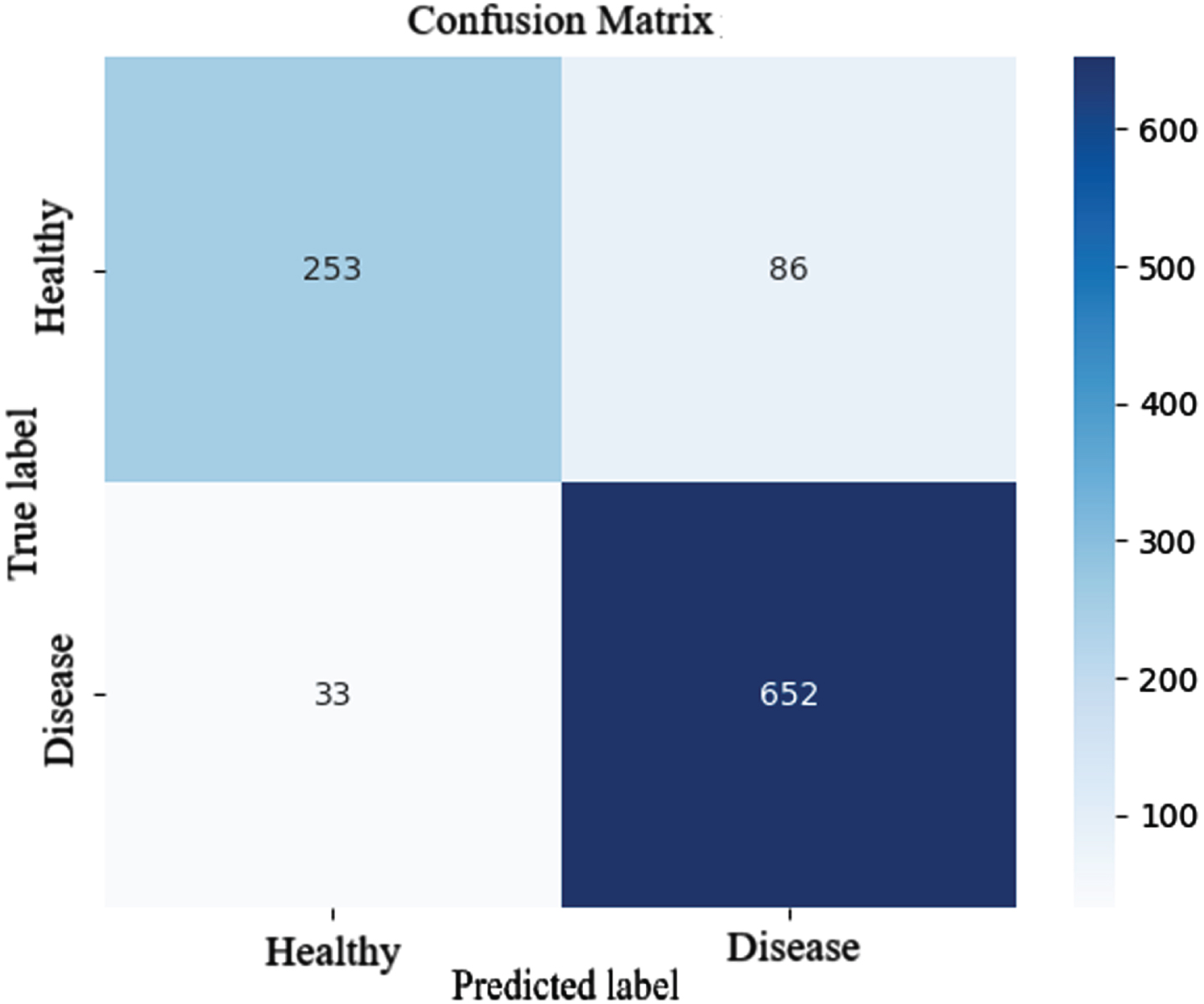

Fig. 10

Confusion matrix of the DenseNet-BC model.

The confusion matrix of the CNN1D-LSTM model on the test dataset is shown in Fig. 11.

OPEN IN VIEWER

Fig. 11

Confusion matrix of the CNN1D-LSTM model.

Based on the confusion matrix, although the CNN1D-LSTM model misdiagnosed 58 out of 286 healthy individuals as patient cases, the overall accuracy of the model is 91.89%. This accuracy rate is lower compared to the AlexNet neural network model but approximately 3% better than the DenseNet-BC neural network model.

Limitations and conclusions

Given the structure of the proposed models, this study has several limitations. The first limitation pertains to the lack of utilization of three-dimensional datasets. By converting the three-dimensional dataset into two-dimensional, some information is lost. The second limitation of the research is the limited scope of disease diagnosis, which includes only three categories: individuals with Alzheimer’s disease, mild cognitive impairment, and healthy individuals. However, there are different levels of similar diseases such as early mild cognitive impairment and late mild cognitive impairment that exist. The third limitation relates to the CNN1D-LSTM neural network model. This model requires additional contextual information such as gender, age, etc., related to the patient. However, in some cases, this data may not be available.

The accuracy of the AlexNet neural network model, with a precision of 98%, was significantly better than the DenseNet-BC neural network model, which had an accuracy of 88%. Additionally, the CNN1D-LSTM neural network model outperformed the DenseNet-BC neural network model with an accuracy of 91.89%.
