The 11th IJCAR automated theorem proving system competition

Abstract

The CADE ATP System Competition (CASC) is the annual evaluation of fully automatic, classical logic, Automated Theorem Proving (ATP) systems. CASC-J11 was the twenty-seventh competition in the CASC series. Twenty-four ATP systems competed in the various competition divisions. This paper presents an outline of the competition design and a commentated summary of the results.

Keywords

Automated theorem proving competition

1. Introduction

Automated Theorem Proving (ATP) deals with the task of proving theorems from axioms – the derivation of conclusions that follow inevitably from known facts [33]. The converse task of disproving conjectures is another facet of interest [5,11]. The axioms and conjecture are written in an appropriately expressive logic, and the proofs are often similarly written in logic [46]. The CADE ATP System Competition (CASC) [42] is the annual evaluation of fully automatic, classical logic, ATP systems – the world championship for such systems. One purpose of CASC is to provide a public evaluation of the relative capabilities of ATP systems. Additionally, CASC aims to stimulate ATP research, motivate development and implementation of robust ATP systems that can be easily and usefully deployed in applications, provide an inspiring environment for personal interaction between ATP researchers, and expose ATP systems within and beyond the ATP community. CASC-J11 was the twenty-seventh competition in the CASC series; see [47] and citations therein, and the CASC web site http://www.tptp.org/CASC, for information about previous competitions.1

¹
CASC was originally devised by Christian Suttner and the first author, after CADE-12 in 1994. The first CASC, CASC-13, was held as part of CADE-13 at DIMACS in 1996. Christian Suttner died in a gliding accident on 1st February 2022. CASC-J11 is dedicated to his memory – CASC would not exist without his inspiration and insights.

CASC-J11 was held on 9th August 2022 as part of the 11th International Joint Conference on Automated Reasoning,2

CADE was a constituent of the 11th International Joint Conference on Automated Reasoning, hence “J11” for the “11th Joint” conference.

which was in turn part of the 2022 Federated Logic Conference (FLoC). The “FLoC Olympic Games” hosted 14 competitions in various areas of logic and reasoning, which provided the CASC-J11 entrants with opportunities to observe and interact with developers of other types of reasoning tools. The CASC-J11 web site provides access to all the competition resources: http://www.tptp.org/CASC/J11.

CASC is divided into divisions according to problem and system characteristics, in a coarse version of the TPTP problem library’s Specialist Problem Classes (SPCs) [48]. There are competition divisions in which the systems are explicitly ranked, and a demonstration division in which systems demonstrate their abilities without being ranked (for systems that cannot be entered into the competition divisions for any reason, e.g., the system is the previous CASC’s division winner, or the entrant has a conflict of interest). Each competition division uses problems that have certain logical, language, and syntactic characteristics, so that the systems that compete in a division are, in principle, able to attempt all the problems in the division. Some divisions are further divided into problem categories that make it possible to analyze, at a more fine-grained level, which systems work well for what types of problems. The demonstration division uses the same problems as the competition divisions, and the entry specifies which competition divisions’ problems are to be used. Table 1 catalogs the divisions and problem categories of CASC-J11.

Table 1

Divisions and problem categories

Division	Problems	Problem categories. The example problems can be viewed online at http://www.tptp.org/cgi-bin/SeeTPTP?Category=Problems
THF	Typed (monomorphic) Higher-order Form theorems (axioms with a provable conjecture).	TNE – THF with No Equality, e.g., NUM738^1. TEQ – THF with EQuality, e.g., SET171^3.
TFA	Typed (monomorphic) First-order form theorems with Arithmetic (axioms with a provable conjecture).	TFI – TFA with only Integer arithmetic, e.g., DAT016 = 1. TFE – TFA with only rEal arithmetic, e.g., MSC022 = 2.
FOF	First-Order Form theorems (axioms with a provable conjecture).	FNE – FOF with No Equality, e.g., COM003 + 1. FEQ – FOF with EQuality, e.g., SEU147 + 3.
FNT	FOF Non-Theorems (axioms with a countersatisfiable conjecture, and satisfiable axioms without a conjecture).	FNN – FNT with No equality, e.g., KRS173 + 1. FNQ – FNT with eQuality, e.g., MGT033 + 2.
UEQ	Unit EQuality theorems in clause normal form (unsatisfiable clause sets).	E.g., RNG026-7.
SLH	Typed (monomorphic) higher-order theorems (axioms with a provable conjecture), generated by Isabelle’s SLedgeHammer system.	The problems were generated from sessions in Isabelle’s Archive of Formal Proofs. See Section 2.2.2 for details.
LTB	Theorems (axioms with a provable conjecture) from Large Theories, presented in Batches. A large theory typically has many functions and predicates, and many axioms of which only a few are required for a proof of a theorem. The problems in a batch are given to an ATP system all at once, and typically have a common core set of axioms. The batch presentation allows the ATP systems to load and preprocess the common core set of axioms just once, and to share logical and control results between proof searches. Each problem category might be accompanied by a set of training problems and their solutions, which can be used for ATP system tuning during (typically at the start of) the competition	VBT – Problems generated by Isabelle’s Sledgehammer system, from the “van Emde Boas Trees” entry in the Archive of Formal Proofs. See Section 2.2.3 for details. There was no common core set of axioms. Six versions of each VBT problem were provided: monomorphic and polymorphic typed first-order versions, monomorphic and polymorphic typed extended first-order versions, and monomorphic and polymorphic typed higher-order versions without $ite, $let, or tuples. Systems could attempt as many of the versions as they wanted, and could attempt the problems and versions in any order including in parallel. A solution to any version counted as a solution to the problem. The VBT category was accompanied by training data.

Twenty-four ATP systems competed in the various divisions. The division winners from CASC-28 (the previous CASC), and the Prover9 1109a system, were automatically entered into the demonstration division to provide benchmarks against which progress can be judged. The systems, the divisions in which they were entered, and their entrants, are listed in Table 2. A division acronym in italics indicates the system was in the demonstration division. System descriptions are in the competition proceedings [44] and on the CASC-J11 web site.

Table 2

The ATP systems and entrants

ATP System	Divisions							Entrant	Entrant’s affiliation
CSE 1.5			FOF					Feng Cao	JiangXi University of Science and Tech.
CSE_E 1.4			FOF					Peiyao Liu	Southwest Jiaotong University
cvc5 1.0	THF	TFA	FOF	FNT		SLH		Andrew Reynolds	University of Iowa
Drodi 3.3.3			FOF		UEQ			Oscar Contreras	Amateur Programmer
E 3.0	THF		FOF	FNT	UEQ	SLH	LTB	Stephan Schulz	DHBW Stuttgart
Ehoh 2.7						SLH		CASC	CASC-28 winner
Etableau 0.67			FOF					John Hester	Imandra
GKC 0.7			FOF		UEQ			Tanel Tammet	Tallinn University of Technology
Goéland 1.0.0			FOF					Julie Cailler	Laboratoire d’Informatique, de Robotique
									et de Microélectronique de Montpellier
iProver 3.6		TFA	FOF	FNT	UEQ		LTB	Konstantin Korovin	University of Manchester
Lash 1.12	THF							Cezary Kaliszyk	University of Innsbruck
LEO-II 1.7.0	THF							Alexander Steen	University of Greifswald
Leo-III 1.7.0	THF							Alexander Steen	University of Greifswald
Prover9 1109a			FOF					CASC	CASC fixed point
Satallax 3.4	THF							Cezary Kaliszyk	University of Innsbruck
SnakeForV4.7 1.0		TFA	FOF	FNT	UEQ			Martin Suda	Czech Technical University
Toma 0.2					UEQ			Teppei Saito	Japan Advanced Institute of Science
									and Technology
Twee 2.4					UEQ			CASC	CASC-28 winner
Twee 2.4.1					UEQ			Nick Smallbone	Chalmers University of Technology
Vampire 4.5		TFA						CASC	CASC-28 winner
Vampire 4.6			FOF	FNT			LTB	CASC	CASC-28 winner
Vampire 4.7	THF	TFA	FOF	FNT	UEQ	SLH	LTB	Giles Reger	University of Manchester
Zipperposition 2.1	THF							CASC	CASC-28 winner
Zipperposition 2.1.999	THF		FOF			SLH		Jasmin Blanchette	Vrije Universiteit Amsterdam

CASC-J11 was organized by Geoff Sutcliffe, assisted by Martin Desharnais for the SLH and LTB divisions, and overseen by a panel consisting of Pascal Fontaine, Cláudia Nalon, and Christoph Weidenbach. The competition was run on computers provided by the StarExec project [39] at the University of Miami.

This paper is organized as follows: Section 2 outlines the design and organization of the competition. Section 3 provides a commentated summary of the results. Section 4 contains short descriptions of three of the ATP systems. Section 5 describes some of the CASC activities that stimulate ATP research. Section 6 concludes and discusses plans for future CASCs. A Tense Note: Attentive readers will notice changes between the present and past tenses in this paper. Many parts of CASC are established and stable – they are described in the present tense (the rules are the rules). Aspects that were particular to CASC-J11 are described in the past tense so that they make sense when reading this after the event.

2. Outline of design and organization

The design and organization of CASC has evolved over the years to a sophisticated state. An outline of the CASC-J11 design and organization is provided here; the details are in [45] and on the CASC-J11 web site. Important changes for CASC-J11 were (for readers already familiar with the general design of CASC):

The TFA division returned from hiatus.

The LTB division did not have FOF versions of the problems, but added TXF versions.

2.1. System delivery, execution, and evaluation

The ATP systems entered into CASC are delivered to the competition organizer as StarExec installation packages, which the organizer installs and tests on StarExec. Source code is delivered separately, under the trusting assumption that the installation package does correspond to the source code. After the competition all competition division systems’ StarExec and source code packages are made available on the CASC web site. This allows anyone to use the systems on StarExec, and to examine the source code. An open source license is encouraged, to allow the systems to be freely used, modified, and shared. Many of the StarExec packages include statically linked binaries that provide further portability and longevity for the systems.

The ATP systems are required to be fully automatic. They are executed as black boxes, on one problem (in the non-LTB divisions) or one batch (in the LTB division) at a time. Any command line parameters have to be the same for all problems/batches in each division. The ATP systems are required to be sound, and are tested for soundness by submitting non-theorems to the systems in the THF, TFA, FOF, UEQ, SLH, and LTB divisions, and theorems to the systems in the FNT division. Claiming to have found a proof of a non-theorem or a disproof of a theorem indicates unsoundness. One system was found to be unsound before CASC-J11, and was repaired in time for the competition.

The systems in the competition divisions are ranked according to the number of problems solved with an acceptable proof/model output; see [45] for an explanation of what is “acceptable”. Ties are broken according to the average time taken over problems solved. Trophies are awarded to the competition divisions’ winners.

In addition to the ranking, three other performance measures are presented in the results: The state-of-the-art contribution (SotAC) quantifies the unique abilities of each system (excluding the previous year’s winners that are earlier versions of competing systems). For each problem solved by a system, its SotAC for the problem is the fraction of systems that do not solve the problem, and a system’s overall SotAC is the average SotAC over the problems it solves but that are not solved by all the systems. The efficiency balances the number of problems solved with the time taken. It is the average solution rate over the problems solved (the solution rate for one problem is the reciprocal of the time taken to solve it), multiplied by the fraction of problems solved. The core usage measures the extent to which the systems take advantage of multiple cores. It is the average of the ratios of CPU time to wall clock time used, over the problems solved. The competition ran on octa-core computers, thus the maximal core usage was 8.0.

2.2. The competition problems

2.2.1. Problems for the TPTP-based divisions

The problems for the THF, TFA, FOF, FNT, and UEQ divisions were taken from the Thousands of Problems for Theorem Provers (TPTP) problem library [43], v8.1.0. The TPTP version used for CASC is released only after the competition has started, so that new problems in the release have not been seen by the entrants. The problems have to meet certain criteria to be eligible for use:

The TPTP tags problems that are designed specifically to be suited or ill-suited to a particular ATP system, calculus, or control strategy as biased, and they are excluded from the competition.

The problems must be syntactically non-propositional.

The TPTP uses system performance data in the Thousands of Solutions from Theorem Provers (TSTP) solution library to compute problem difficulty ratings in the range 0.00 (easy) to 1.00 (unsolved) [48]. Problems with ratings in the range 0.21 to 0.99 are eligible. Problems of lesser and greater ratings are made eligible if there are not enough problems with ratings in that range. For CASC-J11 the TNE, FNN, and FNQ problem categories used problems with ratings in the range 0.21 to 1.00. The TNE category selected 3 problems with rating 1.00 out of the 100 problems used, the FNN category selected 28 problems with rating 1.00 out of the 100 problems used, and the FNQ category selected 39 problems with rating 1.00 out of the 150 problems used.

Systems can be submitted before the competition so that their performance data is used in computing the problem ratings – problems that are solved get a rating less than 1.00 and are thus eligible (unless the rating drops below 0.21). The rating system also uses performance data from ATP systems that are not entered into the competition, which can produce ratings that make problems eligible for selection but easy or unsolvable by the systems in the competition – see Sections 3.1 and 3.2 for examples. Using such problems that are solved by all or none of the competition systems does not affect the competition rankings, has the benefit of placing the systems’ performances in the context of the state-of-the-art in ATP, but does reduce the differentiation between the systems in the competition. The rating system is being improved to reduce this effect in future TPTP releases.

In order to ensure that no system receives an advantage or disadvantage due to the specific presentation of the problems in the TPTP, the problems are preprocessed to strip out all comment lines (in particular, the problem header), randomly reorder the formulae/clauses (include directives are left before the formulae, and type declarations are kept before the symbols’ uses), randomly swap the arguments of associative connectives, randomly reverse implications, and randomly reverse equalities.

The numbers of problems used in each division and problem category are constrained by the numbers of eligible problems, the number of systems entered across the divisions, the number of CPUs available, the time limits (see Section 2.3), and the time available for running the competition live in one conference day, i.e., in about 6 hours. The numbers of problems used are set within these constraints, according to the judgement of the organizers. Table 3 gives the numbers of eligible problems, the maximal numbers that could be used after taking into account the limitation on very similar problems (see below), and the numbers of problems used, in each division and category. The problems used are randomly selected from the eligible problems based on a seed supplied by the competition panel:

The selection is constrained so that no problem category contains an excessive number of very similar problems, according to the “very similar problems” (VSP) lists distributed with the TPTP: For each problem category in each division, if the category is going to use N problems and there are L VSP lists that have an intersection of at least $N / (L + 1)$ with the eligible problems for the category, then maximally $N / (L + 1)$ problems are taken from each of those VSP lists. See [41] for details.

In order to combat excessive tuning towards problems that are already in the preceding TPTP version, the selection is biased to select problems that are new in the TPTP version used, until 50% of the problems in each problem category have been selected or there are no more new problems to select, after which random selection from old and new problems continues.

The problems are given to the ATP systems as files in TPTP format, in increasing order of TPTP difficulty rating.

Table 3
Numbers of eligible and used problems

Division category THF TFA FOF FNT UEQ SLH LTB

TNE TEQ TFE TFI FNE FEQ FNN FNQ VBT

Eligible 124 1614 37 237 255 3647 255 228 612 2040 8900

Usable 124 1328 37 237 113 866 119 228 612 1200 8800

Used 100 400 25 225 100 400 100 150 250 720 8000

New 0 142 0 0 0 50 0 3 46 720 8000

Division category	THF	TFA	FOF	FNT	UEQ	SLH	LTB
Eligible	124	1614	37	237	255	3647	255	228	612	2040	8900
Usable	124	1328	37	237	113	866	119	228	612	1200	8800
Used	100	400	25	225	100	400	100	150	250	720	8000
New	0	142	0	0	0	50	0	3	46	720	8000

2.2.2. Problems for the SLH division

As a “surprise” test to see if there had been progress in the last year, the same 720 SLH problems from CASC-28 were used in CASC-J11. In summary (see [47] for details), an initial set of 2040 problems was generated by Isabelle’s Sledgehammer system [29] from the Archive of Formal Proofs (AFP) [1],3

³
https://www.isa-afp.org

from the biggest (most proof goals) theory in 50 randomly selected AFP sessions. Appropriately difficult problems were selected for the competition based on data from running seven ATP systems on the 2040 problems.

2.2.3. Problems for the LTB division

The problems for the LTB division are taken from various sources, with each problem category being based on one source. CASC-J11 had only one category, the VBT category, which used a set of 8900 problems generated by Isabelle’s Sledgehammer system from the “van Emde Boas Trees” session in the AFP.4

⁴
https://www.isa-afp.org/entries/Van_Emde_Boas_Trees.html

Recall from Section 1, six versions of each problem were provided: monomorphic and polymorphic typed first-order versions (TF0 and TF1), monomorphic and polymorphic typed extended first-order versions (TX0 and TX1), and monomorphic and polymorphic typed higher-order versions (TH0 and TH1). In order to gauge the problems’ difficulties and find proofs that could be used in the training data that is provided in the LTB division, five ATP systems (E 2.6.X, lambdaE 22.03.23, Leo-III 1.6.6, Vampire 4.6.1, Zipperposition 2.1) were run on all versions of the 8900 problems with a 60 s CPU time limit. A prerelease of 100 problems with their proofs was evenly sliced out from the 8900 problems and distributed to the entrants before the competition so there were no surprises, leaving 8800 problems. The problems were then sorted according to the number of solutions found across all versions, and a training set of 800 problems that each had at least two proofs was sliced out as the training data to be used in the competition. The remaining 8000 problems were used in the competition. There were 3517 problems where all versions had at least one proof (from the five ATP systems), 6867 problems where at least one version had at least one proof, 800 problems where at least one version had no proofs, and 490 problems that had no proofs. These results provided assurance that the problems were of a reasonable range of difficulty. The TF0 problems used had up to 12792 axioms, the TF1 problems had up to 12528 axioms, the TX0 problems had up to 12579 axioms, the TX1 problems had up to 12488 axioms, the TH0 problems had up to 10296 axioms, and the TH1 problems had up to 10078 axioms.

The problems are given to the ATP systems as files in TPTP format, in the natural order of their source, i.e., for CASC-J11 in the order of their export from the AFP. The problem batch was unordered, which meant that the ATP systems could attempt as many of the versions as they wanted, in any order including in parallel, and could attempt them multiple times. This provided opportunities for sharing logical and control results between proof attempts. A solution to any version counted as a solution to the problem.

2.3. Resources

The StarExec computers used for the competition had an octa-core Intel(R) Xeon(R) E5-2667 v4 CPU run at 2.10 GHz, 128 GiB memory, and the CentOS Linux release 7.4.1708 (Core) operating system Linux kernel 3.10.0-693.el7.x86_64. One ATP system ran on one CPU at a time, and could use all the cores on the CPU. (Each StarExec computer has two sockets, i.e., two CPUs, and 256 GiB memory. StarExec uses Linux’s sched_setaffinity to restrict each system run to a single CPU, and setrlimit to limit memory use to 128 GiB.) StarExec copies the systems and problems to a compute node before starting execution, so that the system does not experience any network delay loading the problem. The StarExec computers used for CASC are the same as are publicly available to the TPTP community, which allows the system developers to test and tune their systems in exactly the same environment as is used for the competition.

In the THF, TFA, FOF, FNT, and UEQ divisions the time limit for each problem is constrained by the same factors that constrain the numbers of problems that can used (see Section 2.2.1), and additionally the numbers of problems that are used. The time limit is set within the constraints, according to the judgement of the organizers. In CASC-J11 a 120 s wall clock time limit was imposed for each problem, and no CPU limits were imposed so that it could be advantageous to use all the cores on the CPU. In the SLH division a 30 s CPU time limit was imposed for each problem, which is the amount of CPU time that can be usefully allocated for a proof attempt in the Sledgehammer context.5

⁵
According to Jasmin Blanchette, and he should know.

In the LTB division a 172800 s wall clock time limit was imposed for the problem batch, giving an average of 21.6 s per problem. There was no wall clock time limit for each problem, and no CPU time limits.

Demonstration division systems can run on the competition computers, or the computers can be supplied by the entrant. The CASC-J11 demonstration division systems all used the competition computers.

3. Results

For each ATP system, for each problem, four items of data were recorded: whether or not the problem was solved, the CPU and wall clock times taken (as measured by StarExec’s runsolver utility [34], and prepended to each line of the system’s stdout), and whether or not a proof/model was output. This section summarizes the results, and provides commentary. The result tables below give the number of problems solved in the division with a proof/model output (with a ()ed indication of problems solved without a proof/model output), the average time taken over the problems solved, the state-of-the-art contribution, the (micro-)efficiency, the core usage, the number of new problems solved, and the number of problems solved in each problem category. In each table the CASC-28 winner is emphasized in the demonstration division. Detailed results, including the systems’ output files, are available on the CASC-J11 web site.

3.1. The THF division

Table 4 summarizes the results of the THF division. Zipperposition dominated the division, with the new Zipperposition 2.1.999 being outperformed by the CASC-28 winner Zipperposition 2.1. The most interesting change in this division was the entry of E 3.0, which had acquired THF capability in the last year. Even more interesting is that E outperformed other systems that have had THF capability for many years, e.g., Vampire, Leo-III, Satallax, and cvc5. This new capability came from the integration of new data structures and inference rules [3,50,51,53]. A short system description of E is provided in Section 4.

Another interesting entry was Lash 1.12, which is a reimplementation [7] of Satallax 3.4 [8] in C. Lash did not perform as well as Satallax because several features in Satallax had not yet been ported: pattern clauses, higher order unification, and use of E as a backend. The performance graph for the THF division6

⁶
https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#THFProblems

shows the positive impact of Lash and Satallax’s schedules of modes. Unfortunately Lash did not output proofs for 18 problems due to the implementation of proof output being done quickly just before the competition – it needs to be completed and bugfixed.

Table 4

THF division results

ATP system	THF/500	Avg. WC	SotAC	μ Eff.	Core usage	New/142	TNE/100	TEQ/400
Zipperposition 2.1.999	456	9.2	0.34	539	3.7	133	79	377
E 3.0	419	3.1	0.28	688	1.4	121	63	356
Vampire 4.7	367	7.6	0.21	490	3.4	109	59	308
Leo-III 1.7.0	335	6.1	0.15	236	2.5	91	51	284
Satallax 3.4	329	20.3	0.17	312	0.7	94	54	275
cvc5 1.0	282	5.9	0.10	431	0.6	73	38	244
Lash 1.12	262 (+18)	7.6	0.10	418	0.6	77	41	239
LEO-II 1.7.0	173 (+1)	3.8	0.03	309	0.5	43	27	147
Demonstration division
Zipperposition 2.1	460	8.7	–	544	3.7	128	82	378

In addition to being a new entrant in the THF division, E also had the lowest average time taken, and as a result the highest efficiency. It also had the second highest SoTAC. cvc5 also had a relatively high efficiency thanks to its low average time taken. As in the past, Leo-III had a lower efficiency due to its JVM startup time of 1-3 s, which means that solutions always take a few seconds even if the time used for reasoning is low. While Satallax solved more problems than Lash, the reimplementation in Lash is clearly faster, which results in higher efficiency. The core usage was rather low in THF compared to other divisions – see the summary of core usages in Section 5.1. Zipperposition and Vampire made the best use of the multiple cores available. The category rankings and numbers of new problems solved are almost completely aligned with the overall ranking, which indicates that the systems were not particularly tuned to problems with or without equality, or to problems in the TPTP. None of the three problems with rating 1.00 (see Section 2.2) were solved.

The individual problem results show that 19 problems were unsolved, 120 problems were solved by all the systems, and 24 problems were solved by only one system (13 problems were solved by only the two versions of Zipperposition, and are counted as unique solutions for Zipperposition 2.1.999). Of the 24 unique solutions, 16 were by Zipperposition 2.1.999, 2 each by E, Satallax, and Zipperposition 2.1, and 1 each by cvc5 and Lash. A portfolio approach (sharing the time between several systems) could help here. The best portfolio with 45 s allocated to each of the two Zipperpositions, E, and Leo-III, would solve 470 problems. A further 1 problem could be solved by a very precise time allocation to those four systems and additionally cvc5. The rather large number of problems solved by all the systems is an instance of the issue noted in Section 2.2.1. In this case it was due to the use of performance data from both theorem proving and model finding variants of systems e.g., those of E and Vampire, when computing the problem ratings. This particular effect will be gone from the ratings of future TPTP releases.

3.2. The TFA division

The TFA division was on hiatus for CASC-28 because only three systems, including the previous CASC-27’s winner, were entered into the division in CASC-J10 the year before. The division returned from hiatus with encouragement from some system developers, and it was pleasing to see five systems entered in CASC-J11. The entrants included two new systems: SnakeForV4.7 and iProver. SnakeForV4.7 was entered as a demonstration division system because the entrant felt that the system was “capitalizing on the whole Vampire team’s effort”, and he did not want to be “snatching any potential trophies from Vampire proper”.

Table 5 summarizes the results of the TFA division. The winner was cvc5, with the CASC-28 winner Vampire 4.5 close behind, and the demonstration division’s SnakeForV4.7 well out ahead. The developer of cvc5 commented: “To be honest, I’m a bit surprised since I didn’t make a big push for it. Perhaps the problem selection swung in my favor this year.”. Note that the new Vampire 4.7 solved less problems than Vampire 4.5. The performance graph for the TFA division7

⁷
https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#TFAProblems

shows the impact of cvc5’s strategy scheduling. The first strategy solves 73 problems, and is particularly interesting because it uses finite model finding as part of its theorem proving process: cvc5 considers finite models of increasing size by incrementally fixing cardinality bounds. If it finds a conflict that does not depend on the current cardinality bound then unsatisfiability has been established. Since the performance of finite model finding tends to be highly orthogonal to other approaches, cvc5 uses it as a strategy in theorem proving divisions.

The impressive performance of SnakeForV4.7 is clearly the highlight of the division, and a short system description of SnakeForV4.7 is provided in Section 4. The first entry of iProver into the TFA division is also of quite some interest, and a short system description of iProver is also provided in Section 4.

Table 5

TFA division results

ATP system	TFA/250	Avg. WC	SotAC	μ Eff.	Core usage	TFE/25	TFI/225
cvc5 1.0	195	20.5	0.24	291	0.8	22	173
Vampire 4.7	187	4.4	0.17	500	3.9	21	166
iProver 3.6	138	17.7	0.06	130	5.2	15	123
Demonstration division
SnakeForV4.7 1.0	218	5.5	0.27	647	4.1	23	195
Vampire 4.5	192	5.6	–	523	3.9	21	171

SnakeForV4.7 and the Vampires had high efficiency due to a combination of low times taken over high numbers of problems solved. All the systems except cvc5 had high core usage. The high core usage of iProver might seem strange alongside its relatively high average (wall clock) time taken, but is explained by its quite high average CPU time of 127.4 s.

The individual problem results show that 10 problems were unsolved, 109 problems were solved by all the systems, 20 problems were solved by only one system, and no problems were solved by only the two versions of Vampire. Of the 20 unique solutions, 12 were by cvc5, 5 were by Vampire 4.5, 2 by SnakeForV4.7, and 1 by iProver. A simple portfolio of SnakeForV4.7 and cvc5, giving each 60 s, would solve 229 problems. The reason for the rather large number of problems solved by all the systems is another instance of the issue noted in Section 2.2.1. In this case many problems were easy for the systems in the competition due to the influence of performance data from systems that were not entered, including Beagle [2], Princess [35], SPASS + T [30], and Z3 [13].

3.3. The FOF division

Table 6 summarizes the results of the FOF division. There were strong performances by the usual suspects: the Vampires, E, iProver, and CSE_E. The Vampire-based demonstration division system SnakeForV4.7 solved the most problems. Prover9, which is entered as a fixed point against which progress can be judged, slipped further down the ranking compared to CASC-28, where it was sixth from last. While this might be bad news for Prover9, it’s good news for ATP because it does indicate progress in the field. While Etableau found proofs for 279 problems, the CASC-J11 panel had ruled that the proofs were not acceptable. As a result Etableau received a zero score and ranked last. The developer said that he “understood completely”, and hopefully the ruling will lead to better proof output ready for CASC-29!

Goéland was one of the newcomers to CASC, and while it’s performance was relatively weak, the CASC rules explicitly state that “A system that is not entered into a division is assumed to perform worse than the entered systems”, i.e., Goéland is assumed to be better than several well-known ATP systems (that were not entered). See Section 5.1 for details of the best newcomer award received by Goéland.

Table 6
FOF division results

ATP system FOF/500 Avg. WC SotAC μ Eff. Core usage FNE/100 FEQ/400

Vampire 4.7 451 5.4 0.35 676 2.8 94 357

E 3.0 384 8.5 0.26 486 3.0 78 306

iProver 3.6 365 15.8 0.23 192 4.6 88 277

CSE_E 1.4 361 11.5 0.23 406 0.9 79 282

GKC 0.7 335 8.2 0.20 425 4.1 76 259

Zipperposition 2.1.999 294 12.8 0.16 297 3.8 66 228

cvc5 1.0 271 23.5 0.16 233 0.8 52 219

Drodi 3.3.3 205 7.8 0.09 274 4.0 46 159

CSE 1.5 128 31.6 0.05 77 1.0 41 87

Goéland 1.0.0 7 6.5 0.00 7 3.4 2 5

Etableau 0.67 0 (+279) 6.3 0.15 362 3.0 58 221

Demonstration division

SnakeForV4.7 1.0 460 5.0 0.36 687 3.4 91 369

Vampire 4.6 448 6.2 – 691 2.7 92 356

Prover9 1109a 123 14.6 0.05 109 0.9 19 104

ATP system	FOF/500	Avg. WC	SotAC	μ Eff.	Core usage	FNE/100	FEQ/400
Vampire 4.7	451	5.4	0.35	676	2.8	94	357
E 3.0	384	8.5	0.26	486	3.0	78	306
iProver 3.6	365	15.8	0.23	192	4.6	88	277
CSE_E 1.4	361	11.5	0.23	406	0.9	79	282
GKC 0.7	335	8.2	0.20	425	4.1	76	259
Zipperposition 2.1.999	294	12.8	0.16	297	3.8	66	228
cvc5 1.0	271	23.5	0.16	233	0.8	52	219
Drodi 3.3.3	205	7.8	0.09	274	4.0	46	159
CSE 1.5	128	31.6	0.05	77	1.0	41	87
Goéland 1.0.0	7	6.5	0.00	7	3.4	2	5
Etableau 0.67	0 (+279)	6.3	0.15	362	3.0	58	221
Demonstration division
SnakeForV4.7 1.0	460	5.0	0.36	687	3.4	91	369
Vampire 4.6	448	6.2	–	691	2.7	92	356
Prover9 1109a	123	14.6	0.05	109	0.9	19	104

The three Vampire(-based) systems all had low average times taken, high SoTACs, high efficiency, and reasonable core usage. iProver, GKC, and Drodi had the highest core usage. The performances in the two problem categories are well aligned with the overall performance, with E having its usual predilection for the FEQ category. Prover9 and SnakeForV4.7 also did better in the FEQ category.

The individual problem results show that 13 problems were unsolved, no problems were solved by all the systems, and 17 problems were solved by only one system (4 problems were solved by only the two versions of Vampire, and are counted as unique solutions for Vampire 4.7). Of the 17 unique solutions, 5 were by Vampire 4.7, 5 by SnakeForV4.7, 2 by each of E and cvc5, and 1 by each of CSE_e, iProver, and Prover9. A portfolio giving 40 s to each of SnakeForV4.7, Vampire 4.6, and E would solve 470 problems.

3.4. The FNT division

Table 7 summarizes the results of the FNT division. As in CASC-28 the Vampires came out ahead of the other systems, with the CASC-28 winner Vampire 4.6 solving the most problems. The demonstration division system SnakeForV4.7 also performed strongly. The performance graph for the FNT division8

⁸
https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#FNTProblems

clearly shows the separation between the Vampire-based systems and the other three systems. Compared to CASC-28 fewer problems were solved, e.g., Vampire 4.6 solved 229 of the 250 problems in CASC-28. This was due to the use of 67 problems with rating 1.00 in CASC-J11 (see Section 2.2), of which only two were solved in the competition.

Table 7

FNT division results

ATP system	FNT/250	Avg. WC	SotAC	μ Eff.	Core usage	FNN/100	FNQ/150
Vampire 4.7	160	18.1	0.25	328	4.8	61	99
cvc5 1.0	78	31.6	0.09	96	0.9	43	35
iProver 3.6	63	20.5	0.07	60	5.5	26	37
E 3.0	62	5.1	0.05	187	2.2	16	46
Demonstration division
Vampire 4.6	167	16.2	–	323	3.5	69	98
SnakeForV4.7 1.0	159	16.4	0.25	349	4.9	67	92

Vampire 4.7 and SnakeForV4.7 had the highest SoTACs, and were joined by Vampire 4.6 for the highest efficiencies. iProver, Vampire 4.7, and SnakeForV4.7 had high core usage.

The individual problem results show that 77 problems were unsolved (65 of rating 1.00, as discussed above), 13 problems were solved by all the systems, and 8 problems were solved by only one system (1 problem was solved by only the two versions of Vampire, and is counted as a unique solution for Vampire 4.7). Of the 8 unique solutions, 3 were by Vampire 4.6, 2 by each of Vampire 4.7 and iProver, and 1 by SnakeForV4.7. A portfolio approach does not help much, with a combination of Vampire 4.6 using 92 s and E using 28 s solving 167 problems.

3.5. The UEQ division

Table 8 summarizes the results of the UEQ division. The new version of Twee won, with the previous version that won CASC-28 solving one less problem (which led somebody to joke that the new version number should have been 2.4+1 instead of 2.4.1 ☺). In comparison to CASC-28. where Twee 2.4 won with 227 problems solved and E 2.6 was the runner up with 195 problems solved, the new E 3.0 did relatively better. The developer of E believes that the improved performance is due to E’s new support for multicore-scheduling, which allows it to run its search processes longer – this is described in the short description of E in Section 4. As in other divisions, the demonstration system SnakeForV4.7 outperformed the underlying Vampire system. The rather weak performance of Toma is due to it being a newly developed system. The developer explained that “many modules (e.g., rewriting, unification, proof reconstruction, etc.) are implemented too naively”, and that he is “planning to implement term indexing”. Toma will return for CASC-29 and hopefully it will perform much better – developers consistently learn and improve their systems through participation in CASC.

Table 8
UEQ division results

ATP system UEQ/250 Avg. WC SotAC μ Eff. Core usage New/46

Twee 2.4.1 216 7.4 0.31 595 4.0 38

E 3.0 212 11.1 0.29 531 3.7 43

Vampire 4.7 152 9.0 0.13 388 4.7 20

iProver 3.6 142 14.4 0.11 159 4.8 23

GKC 0.7 120 11.4 0.09 236 5.2 19

Drodi 3.3.3 116 5.8 0.07 306 4.3 19

Toma 0.2 1 2.2 0.00 1 0.9 1

Demonstration division

Twee 2.4 215 7.5 – 585 4.2 36

SnakeForV4.7 1.0 207 6.4 0.27 549 4.4 32

ATP system	UEQ/250	Avg. WC	SotAC	μ Eff.	Core usage	New/46
Twee 2.4.1	216	7.4	0.31	595	4.0	38
E 3.0	212	11.1	0.29	531	3.7	43
Vampire 4.7	152	9.0	0.13	388	4.7	20
iProver 3.6	142	14.4	0.11	159	4.8	23
GKC 0.7	120	11.4	0.09	236	5.2	19
Drodi 3.3.3	116	5.8	0.07	306	4.3	19
Toma 0.2	1	2.2	0.00	1	0.9	1
Demonstration division
Twee 2.4	215	7.5	–	585	4.2	36
SnakeForV4.7 1.0	207	6.4	0.27	549	4.4	32

Twee, E, and to a lesser extent SnakeForV4.7, had the best SoTACs, which predicts that they would do well in a portfolio – this is confirmed below. These systems also had the best efficiencies, with Drodi also having a high efficiency thanks to its low average time taken. With the exception of Toma, all the systems had high core usage, even more so than in other divisions. See Section 5.1 for a discussion of this phenomenon.

There were 46 new problems in the UEQ division, 28 of which were created by encoding non-UEQ problems with Horn clause normal forms to UEQ form [10], 8 are relational lattice theory problems [28], 4 are problems in MV algebra [20], and 2 are in knot theory [19]. (Although these problems were contributed to the TPTP by the developer of Twee, this did not seem to give Twee an unfair advantage in the competition.) All of the new problems were solved by some system – four by only E and three by only the Twees. E solved the most new problems, which contributed to its strong performance in the division.

The individual problem results show that 7 problems were unsolved, 97 problems were solved by all the systems except Toma, and 25 problems were solved by only one system (8 problems were solved by only the two versions of Twee, and are counted as unique solutions for Twee 2.4.1). Of the 25 unique solutions, 14 were by E, 8 by Twee 2.4.1, 2 by SnakeForV4.7, and 1 by Twee 2.4. A portfolio approach works well – a simple portfolio giving 30 s to each of Twee 2.4.1, E, SnakeForV4.7, and GKC would solve 235 problems.

3.6. The SLH division

The left half of Table 9 summarizes the results of the SLH division in CASC-J11 (see below for a discussion of the right half of the table). E and Ehoh (the CASC-28 winner) solved the most problems, closely followed by the demonstration division system Zipperposition.

There is a developmental lineage from Zipperposition, to Ehoh, to E: Zipperposition was originally developed as a clone of E (written in OCaml) to experiment with types, sorts, and induction [12]. Over time Zipperposition was adopted as a testbed for new techniques for embedding higher-order logic into a saturation-based ATP system [3,50]. Ehoh resulted from porting some of those techniques into a separate branch of the E code base, written in C. The branch was regularly merged into E, and in CASC-28 both systems were built from nearly the same code base. For CASC-28 Ehoh was kept separate from E to ensure that the contributions of Ehoh’s developer were clearly visible, which turned out to be a wise decision – Ehoh won the CASC-28 SLH division! By CASC-J11 E had added new features not implemented in Ehoh. In particular E can now reason in full higher-order logic, which results in a potentially larger search space, but is offset by better heuristics – see the short description of E in Section 4. Ehoh can do only lambda-free higher-order logic with lambda-lifting, but that is enough for nearly all the SLH problems. Zipperposition was entered in the CASC-J11 demonstration division because the entrant was concerned about a conflict of interest – the SLH problems were generated in the same group that developed the theory and implementation of Zipperposition, and Zipperposition could have benefited from testing and training on those (and similar) problems. In contrast, Ehoh and E were not tested and trained (specifically, at least) on these problems, and the systems’ entrants did not feel a conflict of interest. Further, the historical linkage from Zipperposition to Ehoh and E would have impacted both systems similarly, due to the shared code base. Despite the shared heritage, the differences between E and Ehoh resulted in them each solving 32 problems that were not solved by the other (so they solved the same number of problems). The developer of E believes that the different unsolved problems were too hard for each system’s inference rules and chosen strategy schedule.

Table 9
SLH division results

ATP system SLH/720 Avg. CPU SotAC CPU μ Eff. CASC-28

Version /720

E 3.0 655 1.7 0.23 784 Ehoh 2.7 655

Vampire 4.7 629 3.3 0.19 482 4.6 626

cvc5 1.0 595 0.8 0.15 778 1.0 310

Demonstration division

Ehoh 2.7 655 2.0 – 743 2.7 655

Zipperposition 2.1.999 654 5.4 0.21 702 2.1 675

ATP system	SLH/720	Avg. CPU	SotAC	CPU μ Eff.	CASC-28
E 3.0	655	1.7	0.23	784	Ehoh 2.7	655
Vampire 4.7	629	3.3	0.19	482	4.6	626
cvc5 1.0	595	0.8	0.15	778	1.0	310
Demonstration division
Ehoh 2.7	655	2.0	–	743	2.7	655
Zipperposition 2.1.999	654	5.4	0.21	702	2.1	675

There is quite a range of average times taken, with cvc5 having the lowest and Zipperposition having the highest. The latter is largely due to the implementation in OCaml, vs. the other systems’ implementations in C/C++. For cvc5 the low average time taken results in an efficiency comparable to the top systems. Only Vampire had a lower efficiency, which reflects Vampire’s emphasis on multi-core performance that does not help in the SLH division where a CPU time limit is imposed.

The individual problem results show that 3 problems were unsolved, 459 problems were solved by all the systems, and 14 problems were solved by only one system. Of the 14 unique solutions, 4 were by each of E, Vampire, and cvc5, and 2 by Ehoh. A portfolio approach works well here – a portfolio of all five systems, giving each 6.0 s, would solve 708 problems.

Recall from Section 2.2.2, the same 720 SLH problems from CASC-28 were used in CASC-J11. The computing environment was also unchanged, so a comparison of the CASC-J11 and CASC-28 results is meaningful and interesting. The results in the right half of Table 9 are from CASC-28. As is expected, Ehoh solved the same number of problems. Vampire improved slightly, and cvc5, which did not change version number since CASC-28, improved quite dramatically. The cvc5 developer explained that the system had not really “improved”, but rather that in CASC-28 it was mistakenly configured for first-order logic, which was corrected in CASC-J11. In contrast, the new version of Zipperposition performed worse than the previous version that ran in CASC-28. In terms of individual results, the 459 problems solved by all the systems in CASC-J11 contrasts with the 208 problems in CASC-28. This increase is due to the improved performance of cvc5, and also by the absence of Leo-III which solved only 499 problems in CASC-28. A portfolio approach also worked well in CASC-28.

3.7. The LTB division

Table 10 summarizes the results of the LTB division. The Vampires solved the most problems, demonstrating the efficacy of their dynamic strategy tuning: The idea is to start by attempting all versions of all problems with a short time limit, to get an initial set of problems solved. Following that an auto-tuning mode starts, repeatedly iterating through the remaining unsolved problems, randomly selecting a version of an unsolved problem and randomly selecting a strategy for the version, weighted according to how successful the strategies have been so far. The strategy weighting is updated dynamically by giving a successful strategy a weight proportional to how many previous strategies failed to solve the problem version, and giving an unsuccessful strategy a constant penalty. Over time the successful strategies are given higher priority, and different (successful) strategies are used in subsequent attempts on unsolved problems. For CASC-J11 Vampire 4.7 added a slight variation that introduced a fresh strategy with a 1% probability at each attempt, by randomly permuting an existing strategy. If the fresh strategy solved the problem it was kept in the pool of strategies, otherwise it was discarded. The purpose was to inject some randomness into very long runs, but the developer reported that he has “no idea if it actually helped!”.

The selected problems and problem versions were evidently harder for the systems than in CASC-28, where Vampire 4.6 solved 78%, iProver 3.5 70%, and E 2.6 68% of the problems, compared to 47%, 43%, and 41% respectively in CASC-J11. Polymorphism continues to be a challenge for the ATP systems – see the CASC-28 report [47] and the discussion of Table 11 below. In CASC-28 Vampire 4.6 solved 262 problems by finding that they had contradictory axioms. This year Vampire 4.7 solved 146 by contradictory axioms. Of the 146, 41 were TF0, 30 TF1, 66 TX0, 5 TH0, and 4 TH1. Contradictory axioms is a recurring “feature” of problems generated by Sledgehammer, where contradictory axioms can appear in proofs of negation, proofs by contradiction, and proofs by case analysis where some cases do not apply.

Table 10
LTB division results

ATP system LTB/8000 Avg. WC SotAC WC μ Eff. Core usage

Vampire 4.7 3729 46.3 0.09 154 5.7

iProver 3.6 3446 50.1 0.05 126 6.1

E 3.0 3292 52.5 0.05 116 1.6

Demonstration division

Vampire 4.6 3725 46.4 – 163 5.7

ATP system	LTB/8000	Avg. WC	SotAC	WC μ Eff.	Core usage
Vampire 4.7	3729	46.3	0.09	154	5.7
iProver 3.6	3446	50.1	0.05	126	6.1
E 3.0	3292	52.5	0.05	116	1.6
Demonstration division
Vampire 4.6	3725	46.4	–	163	5.7

Table 11 shows the numbers of each version of the problems solved. There were 4532 problems solved across all systems and problem versions. There is quite a high degree of specialization to specific problem versions, with Vampire 4.7 having the broadest range. The most problems were solved in the lowest logic, with iProver solving all its 3446 problems in TF0. The benefit of being able to solve problems in higher logics is clear, and there appears to be some space for improvement by adding TX1 capability.

Table 11

Problems solved for each version

Ver	V 4.7	V 4.6	iPro	E	Union
TF0	959	1948	3446	2816	4008
TF1	942	1307	0	0	1870
TX0	1541	0	0	4	1544
TX1	0	0	0	0	0
TH0	260	449	0	472	999
TH1	27	21	0	0	41
Sum	3729	3725	3446	3292	4532

The Vampires’ dynamic strategy tuning approach meant that most problems and problem versions were attempted more than once; only 40 problems were attempted (and thus solved) only once, six problems were solved in the 77th attempt, and one problem was attempted (but not solved) 78 times. Figure 1 shows the accumulated number of problems solved by the number of attempts. While over half of the solutions were found by the 12 attempt, the figure shows how the number of problems solved keeps increasing, up to the six solved in the 77th attempt. The multiple attempts on problems is also reflected in Vampire 4.7’s accumulated CPU times across the solved problems, from 1155 problems accumulating less than 1 s of CPU time, up to 2 problems that accumulated just over 4000 s of CPU time – see the performance graph for the LTB division.9

⁹

https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#LTBProblems

Vampire 4.6 took the same approach as Vampire 4.7 but without the new strategy permutation feature. Vampire 4.6 was disadvantaged by the different versions of problems available in CASC-J11: In CASC-28 there were first-order form (FOF) problems, and no TXF problems. As a result this year Vampire 4.6 spent time looking for FOF problems that did not exist, ignored the TXF problems because TXF was not part of CASC-28, and attempted the THF problems to a greater extent than Vampire 4.7, as is evident in Table 11. E also attempted more than one version of each problem, by first trying the TF0 versions, then the TX0 versions of the remaining unsolved problems, and finally the TH0 versions of the remaining still unsolved problems. E used a dynamic scheduling algorithm that gave each attempt the remaining time divided by the number of remaining versions of unsolved problems. E solved only a very small number of TX0 problems; the developer believes this was caused by E converting TX0 problems to TF0 problems in preprocessing, resulting in problems that were nearly identical to the TF0 problems on which the strategies had already failed in the last iteration. iProver attempted only the TF0 versions of the problems.

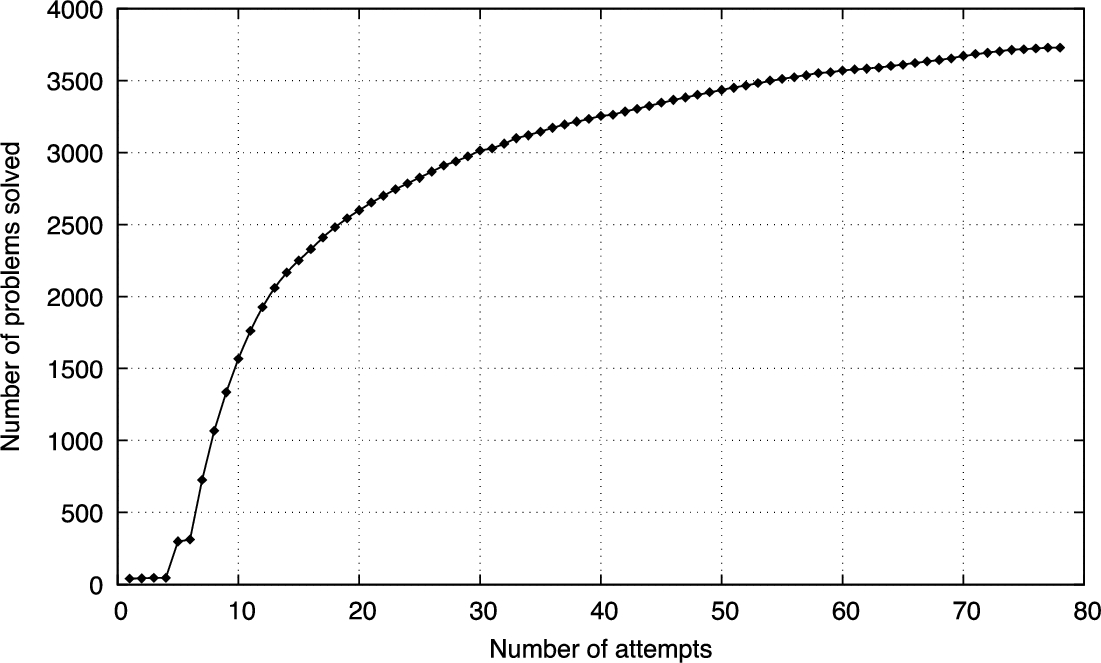

Fig. 1.

Vampire 4.7 problems solved by attempts.

The individual problem results show that 3468 problems were unsolved, 2552 problems were solved by all the systems, and 919 problems were solved by only one system (263 problems were solved by only the two versions of Vampire, and are counted as unique solutions for Vampire 4.7). Of the 919 unique solutions, 425 were by Vampire 4.7, 175 were by Vampire 4.6, 169 by iProver, and 150 by E. As the systems have different approaches to solving the problems, a portfolio approach that shares the available time cannot be (easily) considered. However, Table 11 shows that giving all systems the full 172800 s solves 4532 problems. Interestingly, just Vampire 4.6 and iProver 3.6 together would solve 4141 problems, and adding Vampire 4.7 to that mix would solve 4382 problems.

4. System descriptions

As was noted in Sections 3.1, 3.2, 3.3, and 3.4, there were three systems of particular interest in CASC-J11: E 3.0 for its somewhat astonishing new THF capability and strong performance in FOF; SnakeForV4.7 1.0’s for its powerhouse performances in TFA, FOF, and FNT; iProver 3.6 for its new TFA capability and features described in the IJCAR best student paper [17]. These short descriptions of the systems were written by their entrants.

E [37] is a saturating theorem prover. It was originally built for first-order clausal logic with equality, but over time has been extended to full first order logic, many-sorted first-order logic with first-class Booleans, λ-free higher order logic [52], and most recently full higher-order logic [4,50]. E implements a pipeline of preprocessing (including clausification), the main DISCOUNT saturation loop, and post-processing to extract a TPTP-compliant proof. While the higher-order superposition calculus [4] is complete, its implementation in E is not because (i) some inference rules of the calculus that seem to be rarely useful (based on experiments with the Zipperposition system that implements the calculus) have not been implemented, and (ii) the higher-order unification procedure computes at most a limited number of unifiers, because computing and using all (potentially infinitely many) unifiers is not easily supported in the given clause loop. Thus infinitary inferences are not supported, and instead the finite set of unifiers returned by the unification procedure is used immediately, with each unifier potentially resulting in the creation of a new clause. Proof search in E is controlled primarily by a literal selection strategy, a clause selection heuristic, and a simplification ordering. The prover supports a large number of pre-programmed literal selection strategies. Clause selection heuristics can be constructed on the fly by combining various parameterized primitive evaluation functions, or can be selected from a set of predefined heuristics. Clause evaluation heuristics are based on symbol-counting, but also take other clause properties into account. Several parameterized instances of Knuth-Bendix-Ordering (KBO) and Lexicographic Path Ordering (LPO) [36] are supported for term ordering, which can be lifted in different ways to literal orderings. For CASC-J11 E used a multi-core strategy-scheduling automatic mode that supports two-tiered schedules. First, based on properties of the original input problem, a number of preprocessing strategies are selected. Each of these is scheduled onto one or more cores. After preprocessing, each process reclassifies the problem based on the resulting CNF problem, and runs a schedule of search strategies on its assigned core. E is implemented in C, based on efficient data structures and indexing techniques, and portable to most modern operating systems.

SnakeForV4.7 is a strategy discovery and schedule construction tool applied to Vampire 4.7 [27]. Snake samples the space of available prover strategies, locally optimizes the discovered solutions, builds a performance database of the optimized strategies evaluated over a problem set, and finally constructs a schedule in a greedy heuristic fashion. Snake treats Vampire as a Las Vegas randomized algorithm [40], and uses instruction limiting (as opposed to time limiting) for precise and robust resource control. Currently the strategy space sampling is uniform. When Vampire solves a problem for the first time, or solves a problem using less instructions than in any previous solution, a local optimization process takes over. This process takes the new strategy-problem pair $(S, P)$ and modifies S one configuration option at a time in a hill-climbing fashion, to minimize the expected number of instructions (over tens of independently seeded runs) needed to solve P. Preference is given to default option values, which together with the fact that Vampire’s strategy description language is relatively crude, helps prevent unwanted overfitting. Each optimized strategy is evaluated over the problem set under consideration. This is relatively expensive, but necessary for the final schedule construction step. Schedule construction uses a standard (probabilistic) weighted greedy cover algorithm, where the weight of improving the schedule’s expected number of problems solved by $Δ E$ while scheduling a strategy S for I additional instructions is $Δ E / I$ . The strategies available for discovery to SnakeForV4.7 were those of Vampire 4.7. However, the CASC-mode of Vampire 4.7 used old schedules from 2019. Thus SnakeForV4.7 was able to highlight features added to Vampire more recently, such as layered clause selection [21] and new arithmetic reasoning rules [31]. SnakeForV4.7 also makes use of various randomization and shuffling options [40], which allow it to approach theorem proving probabilistically. For example, Snake can decide to schedule two independently seeded copies of the same strategy in order to lower the chance of not solving some key problems. While the schedules for CASC-J11 were constructed to maximize the expected performance on the respective known TPTP problems, the final schedules are monolithic and do not branch based on specific problems’ characteristics.

iProver [15,25] is a theorem prover for first-order logic, with support for arithmetic. iProver combines an instantiation calculus Inst-Gen [26] with ordered resolution and superposition calculi in an abstraction-refinement framework [22]. Groundings of clauses generated by first-order calculi are exchanged with SAT (MiniSAT [18]) and SMT (Z3 [13]) solvers; ground models returned by these solvers are used to guide instantiations. Recent additions to iProver were focused on refinements of superposition, in particular on extending methods from term rewriting and Knuth-Bendix completion from unit equalities into full first-order logic. These methods include ground joinability, connectedness, encompassment demodulation, and AC normalisation [16,17]. These techniques improved overall performance of iProver for both unit and non-unit equational problems, and thereby solving several problems previously unsolved by any prover. For problems containing arithmetic, iProver uses clausification and theory axioms provided by Vampire [27,32], and submits ground queries to Z3 for sub-tasks such as normalisation and simplification of terms containing interpreted symbols, and checking the consistency of ground clauses modulo theories. iProver runs schedules consisting of several Inst-Gen, superposition, and resolution components, which can share clauses. For example, lemmas judged useful in superposition can be passed to Inst-Gen where they can be used for simplifications and instantiation inferences. Schedules are trained using a machine learning framework HOS-ML, which significantly increases the number of problems solved and reduces the time taken, compared to a naïve schedule [23]. iProver is implemented in OCaml.

Table 12
Core usages

ATP System THF TFA FOF FNT UEQ LTB

cvc5 1.0 0.6 0.8 0.8 0.9 – –

Drodi 3.3.3 – – 4.0 – 4.3 –

E 3.0 1.4 – 3.0 2.2 3.7 1.6

GKC 0.7 – – 4.5 – 5.2 –

iProver 3.6 – 5.2 4.1 5.5 4.8 6.1

SnakeForV4.7 1.0 – 4.1 3.4 4.7 4.4 –

Vampire 4.7 3.4 3.9 2.8 4.8 4.7 5.7

Zipperposition 2.1.999 3.7 – 3.8 – – –

ATP System	THF	TFA	FOF	FNT	UEQ	LTB
cvc5 1.0	0.6	0.8	0.8	0.9	–	–
Drodi 3.3.3	–	–	4.0	–	4.3	–
E 3.0	1.4	–	3.0	2.2	3.7	1.6
GKC 0.7	–	–	4.5	–	5.2	–
iProver 3.6	–	5.2	4.1	5.5	4.8	6.1
SnakeForV4.7 1.0	–	4.1	3.4	4.7	4.4	–
Vampire 4.7	3.4	3.9	2.8	4.8	4.7	5.7
Zipperposition 2.1.999	3.7	–	3.8	–	–	–

5. Stimulating research

5.1. Scientific stimulation

One aspect of ATP that has been stimulated by recent CASCs is the use of multi-core search strategies.10

¹⁰
Actually, there is a historical social note here: The developer of iProver has long been a proponent of wall clock time limits and multi-core approaches. He lobbied the CASC organizer on this topic as far back as CASC-25 in 2015, in particular after the CASC dinner that year. That was one influence that led to wall clock time limits being introduced in CASC-J10 in 2020.

The focus on core usage was discussed in the CASC-28 report [47], and it is pleasing to have empirical evidence of progress in this aspect of ATP system development. Table 12 summarizes the core usages across the divisions, for systems that were entered in at least two divisions. Recall from Section 2.1 that the competition ran on octa-core computers, thus the maximal core usage was 8.0. The core usage values show that all the systems except cvc5 now have strong multi-core capability. Core usage was particularly high in the UEQ division, where most search strategies are complete so that individual strategies can be run for longer periods with hope of solving harder problems. A comparison with the core usage values for the versions of the systems in CASC-28 (provided in [47]) shows that the core usage values have generally increased. The most dramatic improvement is in E, where E 2.6 used only a single core in CASC-28. E had high core usage in the FOF, FNT, and UEQ divisions of CASC-J11, where different search strategies were started with little or no preprocessing, and run in parallel on the multiple cores to success or timeout. In particular, in the UEQ division, the clausification that E runs on a single core is trivial, and then a schedule of complete strategies is run with the time limit scaled to use the full available time. In the THF and LTB divisions E’s core usage is lower because several different preprocessors are run before search starts, some of which make some problems (in CNF form) trivially satisfiable so that multi-core search for a refutation is not started. Vampire 4.7 also improved noticeably compared to Vampire 4.6, e.g., in the UEQ division the core usage increased from 2.9 in CASC-28 to 4.7. The least improvement was in iProver, where iProver 3.5 had comparable core usage in CASC-28. While discussing this analysis of core usage with entrants it was noted that it is generally difficult to accurately assess core usage for problems that are solved very quickly because systems’ preprocessing steps, e.g., parsing and clausification, are (i) often run on a single core, (ii) can dominate the CPU and wall clock times measured, and (iii) might produce a solution before multi-core processing is started (as noted for E in the THF and LTB divisions).

At the second Olympics Games session at FLoC, multiple competitions’ organizers presented their results and handed out the winners’ medals that were provided by the games chair, Dana Drachsler Cohen. For CASC-J11, medals for the seven division winners were given out. Additionally, the audience was reminded that CASC is as much about stimulation as it is about evaluation, and the Goéland team received the “best newcomer” trophy recognizing their stimulating new participation in CASC-J11, including a system description in the IJCAR conference [9].

5.2. Social stimulation

In addition to being a scientific evaluation of the relative capabilities of ATP systems, CASC provides social stimulation for ATP research with an inspiring environment for personal interaction between ATP researchers – see Section 1. This is done in several ways, starting with the CASC dinner on the evening before the competition. The CASC dinner offers a relaxed atmosphere in which developers can discuss their research, talk about their systems, and learn from each other. As Stephan Schulz (the developer of E) once said: “You can learn more from people sitting around der Tisch at a CASC dinner than you do from reading their papers or listening to their talks”. The CASC-J11 dinner was attended by 26 entrants, associates, organizers, panel members, and spouses.

A highlight of the CASC dinner is the revelation of the CASC T-shirts that are included in the CASC registration fee. The CASC T-shirts are well known in the CADE/IJCAR community, and provide a way to identify the people involved with CASC during and after the conference, leading to stimulating interactions. The CASC-J11 T-shirt design can be seen at https://www.tptp.org/CASC/J11/T-shirtGIF.html.

To further stimulate conversations and insights into the ATP systems in the competition, before the competition starts entrants and other conference attendees are invited to buy a “CASC sweepstakes” ticket. Each ticket names a random ATP system in the FOF division, and the challenge is to predict how many problems the “horse” will solve. This activity draws in observers, thus exposing the ATP systems within and beyond the ATP community – talking to the system developer is one good way to get a good estimate of the system’s expected performance!

6. Conclusion

CASC-J11 was the twenty-seventh annual evaluation of fully automatic, classical logic, Automated Theorem Proving (ATP) systems. CASC-J11 fulfilled its objectives by evaluating the relative capabilities of ATP systems, and stimulating development and interest in ATP. The highlights of CASC-J11 were: good core usage by most systems, definite advancement in some systems, and another fascinating LTB division.

While the design of CASC is mature and stable, each year’s experiences lead to ideas for changes and improvements. Changes being planned for CASC-29 are:

The LTB division will go on hiatus, because the 14 LTB divisions since CASC-24 in 2008 have adequately achieved the goal of stimulating development of ATP systems that are effective in the LTB setting, e.g., their use in interactive theorem proving [6,24,49]. Of course more progress is always possible, and the LTB division is likely to return from hiatus in a future edition of CASC.

Typed First-order Non-theorem (TFN) division will return from hiatus, using monomorphic typed first-order problems without arithmetic. This is motivated by the observed importance of model finding in applications, including verification [14], checking the consistency of axiomatizations [38], and finding a solution to a problem that is coded as a model finding problem [54].

Noting the observations in Section 5.1, the measurement of core usage will be modified to avoid inaccuracies introduced by problems that are solved very quickly, e.g., one option might be to measure core usage over only those problems that take at least 1 s of wall clock time.

As always, the ongoing success and utility of CASC depends on ongoing contributions of problems to the TPTP. The automated reasoning community is encouraged to continue making contributions of all types of problems.

References

Ammer and

Lammich, van Emde Boas trees, Archive of Formal Proofs (2021). http://isa-afp.org/entries/Van_Emde_Boas_Trees.html.

Baumgartner,

Bax and

Waldmann, Beagle – A hierarchic superposition theorem prover, in: Proceedings of the 25th International Conference on Automated Deduction,

Felty and

Middeldorp, eds, Lecture Notes in Computer Science, Springer-Verlag, 2015, pp. 285–294.

Bentkamp,

Blanchette,

Tourret and

Vukmirović, Superposition for full higher-order logic, in: Proceedings of the 28th International Conference on Automated Deduction,

Platzer and

Sutcliffe, eds, Lecture Notes in Computer Science, Springer-Verlag, 2021, pp. 396–412.

Bentkamp,

Blanchette,

Tourret,

Vukmirović and

Waldmann, Superposition with lambdas, Journal of Automated Reasoning 65(7) (2021), 893–940. doi:10.1007/s10817-021-09595-y.

Blanchette and

Nipkow, Nitpick: A counterexample generator for higher-order logic based on a relational model finder, in: Proceedings of the 1st International Conference on Interactive Theorem Proving,

Kaufmann and

Paulson, eds, Lecture Notes in Computer Science, Springer-Verlag, 2010, pp. 131–146. doi:10.1007/978-3-642-14052-5_11.

Brown,

Gauthier,

Kaliszyk,

Sutcliffe and

Urban, GRUNGE: A grand unified ATP challenge, in: Proceedings of the 27th International Conference on Automated Deduction,

Fontaine, ed., Lecture Notes in Computer Science, Springer-Verlag, 2019, pp. 123–141.

Brown and

Kaliszyk, Lash 1.0 system description, in: Proceedings of the 11th International Joint Conference on Automated Reasoning,

Blanchette,

Kovacs and

Pattinson, eds, Lecture Notes in Artificial Intelligence, 2022, pp. 350–358. doi:10.1007/978-3-031-10769-6_21.

C.E.

Brown, Satallax: An automated higher-order prover (system description), in: Proceedings of the 6th International Joint Conference on Automated Reasoning,

Gramlich,

Miller and

Sattler, eds, Lecture Notes in Artificial Intelligence, 2012, pp. 111–117. doi:10.1007/978-3-642-31365-3_11.

Cailler,

Rosain,

Delahaye,

Robillard and

Bouziane, Goéland: A concurrent tableau-based theorem prover, in: Proceedings of the 11th International Joint Conference on Automated Reasoning,

Blanchette,

Kovacs and

Pattinson, eds, Lecture Notes in Artificial Intelligence, 2022, pp. 359–368. doi:10.1007/978-3-031-10769-6_22.

10.

Claessen and

Smallbone, Efficient encodings of first-order Horn formulas in equational logic, in: Proceedings of the 9th International Joint Conference on Automated Reasoning,

Galmiche,

Schulz and

Sebastiani, eds, Lecture Notes in Computer Science, 2018, pp. 388–404. doi:10.1007/978-3-319-94205-6_26.

11.

Claessen and

Sörensson, New techniques that improve MACE-style finite model finding, in: Proceedings of the CADE-19 Workshop: Model Computation – Principles, Algorithms, Applications,

Baumgartner and

Fermueller, eds, 2003.

12.

Cruanes, Extending superposition with integer arithmetic, structural induction, and beyond, PhD thesis, Ecole Polytechnique, Paris, France, 2015.

13.

de Moura and

Bjørner, Z3: An efficient SMT solver, in: Proceedings of the 14th International Conference on Tools and Algorithms for the Construction and Analysis of Systems,

Ramakrishnan and

Rehof, eds, Lecture Notes in Artificial Intelligence, Springer-Verlag, 2008, pp. 337–340.

14.

D’Silva,

Kroening and

Weissenbacher, A survey of automated techniques for formal software verification, IEEE Transactions on Computer-aided Design of Integrated Circuits and Systems 27(7) (2008), 1165–1178. doi:10.1109/TCAD.2008.923410.

15.

Duarte and

Korovin, Implementing superposition in iProver, in: Proceedings of the 10th International Joint Conference on Automated Reasoning,

Peltier and

Sofronie-Stokkermans, eds, Lecture Notes in Artificial Intelligence, 2020, pp. 388–397. doi:10.1007/978-3-030-51054-1_24.

16.

Duarte and

Korovin, AC simplifications and closure redundancies in the superposition calculus, in: Proceedings of the 30th International Conference on Automated Reasoning with Analytic Tableaux and Related Methods,

Das and

Negri, eds, Lecture Notes in Artificial Intelligence, Springer-Verlag, 2021, pp. 200–217. doi:10.1007/978-3-030-86059-2_12.

17.

Duarte and

Korovin, Ground joinability and connectedness in the superposition calculus, in: Proceedings of the 11th International Joint Conference on Automated Reasoning,

Blanchette,

Kovacs and

Pattinson, eds, Lecture Notes in Artificial Intelligence, 2022, pp. 169–187. doi:10.1007/978-3-031-10769-6_11.

18.

Eén and

Sörensson, An extensible SAT-solver, in: Proceedings of the 6th International Conference on Theory and Applications of Satisfiability Testing,

Giunchiglia and

Tacchella, eds, Lecture Notes in Computer Science, Springer-Verlag, 2004, pp. 502–518. doi:10.1007/978-3-540-24605-3_37.

19.

Fish and

Lisitsa, Detecting unknots via equational reasoning, I: Exploration, in: Proceedings of the 7th International Conference on Intelligent Computer Mathematics,

Watt,

Davenport,

Sexton,

Sojka and

Urban, eds, Lecture Notes in Artificial Intelligence, Springer-Verlag, 2014, pp. 76–91. doi:10.1007/978-3-319-08434-3_7.

20.

Galatos and

Tsinakis, Generalized MV-algebras, Journal of Algebra 283 (2005), 254–291. doi:10.1016/j.jalgebra.2004.07.002.

21.

Gleiss and

Suda, Layered clause selection for theory reasoning, in: Proceedings of the 10th International Joint Conference on Automated Reasoning,

Peltier and

Sofronie-Stokkermans, eds, Lecture Notes in Computer Science, 2020, pp. 402–409. doi:10.1007/978-3-030-51074-9_23.

22.

Hernandez and

Korovin, An abstraction-refinement framework for reasoning with large theories, in: Proceedings of the 9th International Joint Conference on Automated Reasoning,

Galmiche,

Schulz and

Sebastiani, eds, Lecture Notes in Computer Science, 2018, pp. 663–679. doi:10.1007/978-3-319-94205-6_43.

23.

Holden and

Korovin, Heterogeneous heuristic optimisation and scheduling for first-order theorem proving, in: Proceedings of the 14th International Conference on Intelligent Computer Mathematics,

Kamareddine and

Sacerdoti, eds, Lecture Notes in Computer Science, Springer-Verlag, 2021, pp. 107–123. doi:10.1007/978-3-030-81097-9_8.

24.

Kaliszyk and

Urban, Automated reasoning service for HOL light, in: Proceddings of the International Conference on Intelligent Computer Mathematics,

Carette,

Aspinall,

Lange,

Sojka and

Windsteiger, eds, Lecture Notes in Computer Science, Springer-Verlag, 2013, pp. 120–135. doi:10.1007/978-3-642-39320-4_8.

25.

Korovin, iProver – An instantiation-based theorem prover for first-order logic (system description), in: Proceedings of the 4th International Joint Conference on Automated Reasoning,

Baumgartner,

Armando and

Dowek, eds, Lecture Notes in Artificial Intelligence, 2008, pp. 292–298. doi:10.1007/978-3-540-71070-7_24.

26.

Korovin, Inst-Gen – A modular approach to instantiation-based automated reasoning, in: Programming Logics, Essays in Memory of Harald Ganzinger,

Voronkov and

Weidenbach, eds, Lecture Notes in Computer Science, Springer-Verlag, 2013, pp. 239–270.

27.

Kovacs and

Voronkov, First-order theorem proving and vampire, in: Proceedings of the 25th International Conference on Computer Aided Verification,

Sharygina and

Veith, eds, Lecture Notes in Artificial Intelligence, Springer-Verlag, 2013, pp. 1–35.

28.

Litak,

Mikulás and

Hidders, Relational lattices: From databases to universal algebra, Journal of Logical and Algebraic Methods in Programming 85(4) (2016), 540–573. doi:10.1016/j.jlamp.2015.11.008.

29.

Paulson and

Blanchette, Three years of experience with sledgehammer, a practical link between automatic and interactive theorem provers, in: Proceedings of the 8th International Workshop on the Implementation of Logics,

Sutcliffe,

Ternovska and

Schulz, eds, EPiC Series in Computing, EasyChair Publications, 2010, pp. 1–11.

30.

Prevosto and

Waldmann, SPASS+T, in: Proceedings of the FLoC’06 Workshop on Empirically Successful Computerized Reasoning, 3rd International Joint Conference on Automated Reasoning,

Sutcliffe,

Schmidt and

Schulz, eds, CEUR Workshop Proceedings, 2006, pp. 19–33.

31.

Reger,

Schoisswohl and

Voronkov, Making theory reasoning simpler, in: Proceedings of the 27th International Conference on Tools and Algorithms for the Construction and Analysis of Systems,

Groote and

Larsen, eds, Lecture Notes in Computer Science, Springer-Verlag, 2021, pp. 164–180.

32.

Reger,

Suda and

Voronkov, Playing with AVATAR, in: Proceedings of the 25th International Conference on Automated Deduction,

Felty and

Middeldorp, eds, Lecture Notes in Computer Science, Springer-Verlag, 2015, pp. 399–415.

33.

Robinson and

Voronkov, Handbook of Automated Reasoning, Elsevier Science, 2001.

34.

Roussel, Controlling a solver execution with the runsolver tool, Journal of Satisfiability, Boolean Modeling and Computation 7(4) (2011), 139–144. doi:10.3233/SAT190083.

35.

Rümmer, A constraint sequent calculus for first-order logic with linear integer arithmetic, in: Proceedings of the 15th International Conference on Logic for Programming, Artificial Intelligence, and Reasoning,

Cervesato,

Veith and

Voronkov, eds, Lecture Notes in Artificial Intelligence, Springer-Verlag, 2008, pp. 274–289.

36.

Schulz, Empirical properties of term orderings for superposition, in: Proceedings of the 8th Workshop on Practical Aspects of Automated Reasoning,

Konev,

Schon and

Steen, eds, CEUR Workshop Proceedings, 2022, Online.

37.

Schulz,

Cruanes and

Vukmirović, Faster, higher, stronger: E 2.3, in: Proceedings of the 27th International Conference on Automated Deduction,

Fontaine, ed., Lecture Notes in Computer Science, Springer-Verlag, 2019, pp. 495–507.

38.

Schulz,

Sutcliffe,

Urban and

Pease, Detecting inconsistencies in large first-order knowledge bases, in: Proceedings of the 26th International Conference on Automated Deduction,

de Moura, ed., Lecture Notes in Computer Science, Springer-Verlag, 2017, pp. 310–325.

39.

Stump,

Sutcliffe and

Tinelli, StarExec: A cross-community infrastructure for logic solving, in: Proceedings of the 7th International Joint Conference on Automated Reasoning,

Demri,

Kapur and

Weidenbach, eds, Lecture Notes in Artificial Intelligence, 2014, pp. 367–373. doi:10.1007/978-3-319-08587-6_28.

40.

Suda, Vampire getting noisy: Will random bits help conquer chaos? (system description), EasyChair Preprint no. 7719, 2022.

41.

Sutcliffe, The CADE-16 ATP system competition, Journal of Automated Reasoning 24(3) (2000), 371–396. doi:10.1023/A:1006393501098.

42.

Sutcliffe, The CADE ATP system competition – CASC, AI Magazine 37(2) (2016), 99–101. doi:10.1609/aimag.v37i2.2620.

43.

Sutcliffe, The TPTP problem library and associated infrastructure. From CNF to TH0, TPTP v6.4.0, Journal of Automated Reasoning 59(4) (2017), 483–502. doi:10.1007/s10817-017-9407-7.

44.

Sutcliffe, Proceedings of the 11th IJCAR ATP System Competition, Online, 2021. http://www.tptp.org/CASC/J11/Proceedings.pdf.

45.

Sutcliffe, Proceedings of the CADE-28 ATP System Competition, Online, 2021. http://www.tptp.org/CASC/28/Proceedings.pdf.

46.

Sutcliffe, The logic languages of the TPTP world, Logic Journal of the IGPL (2022). doi:10.1093/jigpal/jzac068.

47.

Sutcliffe and

Desharnais, The CADE-28 automated theorem proving system competition – CASC-28, AI Communications 34(4) (2022), 259–276. doi:10.3233/AIC-210235.

48.

Sutcliffe and

C.B.

Suttner, Evaluating general purpose automated theorem proving systems, Artificial Intelligence 131(1–2) (2001), 39–54.

49.

Urban and

Sutcliffe, ATP-based cross verification of Mizar proofs: Method, systems, and first experiments, Journal of Mathematics in Computer Science 2(2) (2009), 231–251.

50.

Vukmirović,

Bentkamp,

Blanchette,

Cruanes,

Nummelin and

Tourret, Making higher-order superposition work, in: Proceedings of the 28th International Conference on Automated Deduction,

Platzer and

Sutcliffe, eds, Lecture Notes in Computer Science, Springer-Verlag, 2021, pp. 415–432.

51.

Vukmirović,

Bentkamp and

Nummelin, Efficient full higher-order unification, in: Proceedings of the 5th International Conference on Formal Structures for Computation and Deduction,

Z.M.

Ariola, ed., Leibniz International Proceedings in Informatics, Dagstuhl Publishing, 2020, pp. 5:1–5:20.

52.

Vukmirović,

Blanchette,

Cruanes and

Schulz, Extending a brainiac prover to lambda-free higher-order logic, International Journal on Software Tools for Technology Transfer 24 (2021), 67–87. doi:10.1007/s10009-021-00639-7.

53.

Vukmirović and

Nummelin, Boolean reasoning in a higher-order superposition prover, in: Proceedings of the 7th Workshop on Practical Aspects of Automated Reasoning,

Fontaine,

Rümmer and

Tourret, eds, CEUR Workshop Proceedings, 2020, pp. 148–166.

54.

Winker, Generation and verification of finite models and counterexamples using an automated theorem prover answering two open questions, Journal of the ACM 29(2) (1982), 273–284. doi:10.1145/322307.322308.

The 11th IJCAR automated theorem proving system competition – CASC-J11

Abstract

Keywords

1. Introduction

2.1. System delivery, execution, and evaluation

2.2. The competition problems

2.2.1. Problems for the TPTP-based divisions

3 https://www.isa-afp.org

4 https://www.isa-afp.org/entries/Van_Emde_Boas_Trees.html

5 According to Jasmin Blanchette, and he should know.

3.1. The THF division

6 https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#THFProblems

7 https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#TFAProblems

8 https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#FNTProblems

Table 10 LTB division results ATP system LTB/8000 Avg. WC SotAC WC μ Eff. Core usage Vampire 4.7 3729 46.3 0.09 154 5.7 iProver 3.6 3446 50.1 0.05 126 6.1 E 3.0 3292 52.5 0.05 116 1.6 Demonstration division Vampire 4.6 3725 46.4 – 163 5.7

5.1. Scientific stimulation

6. Conclusion

References

³
https://www.isa-afp.org

⁴
https://www.isa-afp.org/entries/Van_Emde_Boas_Trees.html

⁵
According to Jasmin Blanchette, and he should know.

⁶
https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#THFProblems

⁷
https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#TFAProblems

⁸
https://www.tptp.org/CASC/J11/WWWFiles/ResultsPlots.html#FNTProblems

Table 10
LTB division results

ATP system LTB/8000 Avg. WC SotAC WC μ Eff. Core usage

Vampire 4.7 3729 46.3 0.09 154 5.7

iProver 3.6 3446 50.1 0.05 126 6.1

E 3.0 3292 52.5 0.05 116 1.6

Demonstration division

Vampire 4.6 3725 46.4 – 163 5.7
