Integration of context-aware conversational interfaces to develop practical applications for mobile devices

2.1. User modelling

Research in techniques for user modelling has a long history within the fields of language processing and speech technologies. According to [43], very early examples of user modelling in these fields are dominated by knowledge-based formalisms and various types of logic aimed at modelling the complex beliefs and intentions of agents.

However, traditionally conversational interfaces have tended to focus on cooperative, task-oriented rather than conversational forms of dialogue, so that user models have been typically less complex. It is possible to classify the different approaches with regard to the level of abstraction at which they model dialogue. This can be either at the acoustic level, the word level or the intention-level. The latter is a particularly useful and compact representation of human-computer interaction. Intentions cannot be observed, but they can be described using the speech-act and dialogue-act theories [46].

In recent years, simulation on the intention-level has been most popular [43]. This approach was first used by Levin et al. [28] and has been adopted in later work on user simulation by most research groups [6,10]. Modelling interaction on the intention-level avoids the need to reproduce the enormous variety of human language on the level of speech signals or word sequences [15,30].

The main purpose of a user intention model in this field is to improve the usability of a conversational interface through the generation of corpora with interactions between the system and the user model [20,30], reducing the time and effort required for collecting large samples of interactions with real users. The user model can be employed to evaluate different aspects of a conversational interface, particularly at the earlier stages of development, or to determine the effects of changes to the system’s functionalities (e.g., evaluate confirmation strategies or introduce errors or unpredicted answers in order to evaluate the capacity of the dialogue manager to react to unexpected situations).

Two main approaches can be distinguished in the creation of user intention models: rule-based and data or corpus-based. In a rule-based user model, different rules determine the behaviour of the system [34]. In this approach the researcher has complete control over the design of the evaluation study. However, these proposals are usually designed ad-hoc for their specific domain using models and standards in which developers must specify each step to be followed by the user model. This way, the adaptation of the hand-crafted designed models to new tasks is a time-consuming process that implies a considerable effort.

Corpus-based approaches use probabilistic methods to select the next user input, with the advantage that this uncertainty can better reflect the unexpected behaviours of users interacting with the system. Statistical models of user intention have been suggested as the solution to the lack of the data that is required for training and evaluating dialogue strategies. Using this approach, the conversational interface can explore the space of possible dialogue situations and learn enhanced strategies [43].

Georgila et al. [10] proposed the use of HMMs, defining a more detailed description of the user states and considering an extended representation of the history of the dialogue. A dialogue is represented as a sequence of Information States [37,52]. Two different methodologies are described to select the next user action given a history of information states. The first method uses n-grams, whereas the second is based on the use of a linear combination of 290 characteristics to calculate the probability of every action for a specific state.

A technique for user modelling based on explicit representations of the user goal and the user agenda is presented in [41]. The user agenda is a structure that contains the pending user dialogue acts that are needed to elicit the information specified in the goal. The agenda-based simulator is used in [42], to train a statistical Partially Observable MDP (POMDP)-based dialogue manager [5]. The main drawback of this approach is that the large state space of practical conversational interfaces makes its direct representation intractable [52]. Another disadvantage of the POMDP methodology is that the optimization process is free to choose any action at any time.

A data-driven user intention simulation method is presented in [19] that integrates diverse user discourse knowledge (cooperative, corrective, and self-directing). User intention is modelled based on logistic regression and Markov logic framework. Human dialogue knowledge is designed into two layers: domain and discourse knowledge, and integrated with the data-driven model in generation time.

2.2. Dialogue management

The dialogue management process of a conversational interface relies on the fundamental task of deciding the next action of the system, interpreting the incoming semantic representation of the user input in the context of the dialogue. In addition, it resolves ellipsis and anaphora, evaluates the relevance and completeness of user requests, identifies and recovers from recognition and understanding errors, retrieves information from data repositories, and decides about the next system’s response.

The design of the dialogue manager has been traditionally carried out by hand-crafting dialogue strategies tightly coupled to the application domain in order to optimize the behaviour of the dialogue system in that context. This way, the simplest dialogue management strategy is programmatic dialogue management, in which a generic program implements the application with an interaction model based on finite-state machines [2].

Frame-based dialogue managers do not have a predefined dialogue path but use a frame structure comprised of one slot per piece of information that the system can gather from the user [32]. The core idea is that humans communicate to achieve goals and during the interaction the mental state of the speakers may change. This strategy is suitable for form-filling tasks in which the system asks the user a series of questions to gather information, and then consults an external knowledge source, such as the ones that can be developed with VoiceXML.

A related approach is the so-called “information state” dialogue theory [47,52]. The information state of a dialogue represents the information needed to uniquely distinguish it from all others. It comprises the accumulated user interventions and previous dialogue actions on which the next system response can be based. The information state is also sometimes known as the conversation store, discourse context, or mental state. Following this theory, the main tasks of the dialogue manager are to update the information state based on the observed user actions, and select the next system action.

In the agent-based paradigm for dialogue management, dialogue is viewed as interaction between two agents, each of which is capable of reasoning about its own actions and beliefs. Agent-based dialogue management is suitable for the design of more natural dialogue systems in which the system and the user can share the initiative of the dialogue [24]. Thus, the dialogue manager takes the preceding context into account and the dialogue evolves dynamically as a sequence of related steps that build on top of each other. Automating the learning of agent-based dialogue managers by using statistical models trained with real conversations also allows us to model the variability in user behaviours and explore a wider range of strategies and dialogue movements, also reducing the time and effort required to develop the dialogue manager [8].

Statistical approaches for dialogue management present several important advantages. Rather than maintaining a single hypothesis for the dialogue state, they maintain a distribution over many hypotheses for the correct dialogue state. Statistical dialogue models can be trained with corpora of human-computer dialogues with the goal of explicitly modelling the variance in user behaviour that can be difficult to address by means of hand-written rules [43].

The most widespread methodology for machine-learning of dialogue strategies consists of modelling human-computer interaction as an optimization problem using Markov Decision Processes (MDP) and reinforcement methods [28]. The main drawback of this approach is that the large state space of practical spoken dialogue systems makes its direct representation intractable [52]. Partially Observable MDPs (POMDPs) outperform MDP-based dialogue strategies since they provide an explicit representation of uncertainty [5,8]. This enables the dialogue manager to avoid and recover from recognition errors by sharing and shifting probability mass between multiple hypotheses of the current dialogue state.

Other interesting approaches for statistical dialogue management are based on modelling the system by means of Hidden Markov Models [6], stochastic Finite-State Transducers [18], or using Bayesian Networks [35]. Also [26] proposed a different hybrid approach to dialogue modelling in which n-best recognition hypotheses are weighted using a mixture of expert knowledge and data-driven measures by using an agenda and an example-based machine translation approach respectively.

Regarding internal context, our proposal is based on the traditional view of the dialogue act theory, in which communicative acts are defined as intentions or goals. Our technique is based on a statistical model to predict user’s intention during the dialogue, which is automatically learned from a dialogue corpus. This model is used by the system to anticipate the user’s needs by dynamically adopting their goals and also providing them with unsolicited comments and suggestions, as well as responding immediately to interruptions and provide clarification questions. The model takes into account the complete history of the interaction and also the information stored in user profiles.

Our proposed technique for user modelling predicts the next user dialogue act in the same representation defined for the spoken language understanding module. We represent dialogues as a sequence of pairs ( A i , U i ), where A i is the output of the system (the system response or turn) at time i, and U i is the semantic representation of the user turn (the result of the understanding process of the user input) at time i; both expressed in terms of dialogue acts [12]. This way, each dialogue is represented by: ( A 1 , U 1 ) , … , ( A i , U i ) , … , ( A n , U n ) , where A 1 is the greeting turn of the system, and U n is the last user turn. We refer to a pair ( A i , U i ) as S i , the state of the dialogue sequence at time i.

A data structure, that we call User Register ( UR ), contains the information provided by the user throughout the previous history of the dialogue. For each time i, the proposed model estimates user’s intention taking into account the sequence of dialogue states that precede time i, the system answer at time i, and the objective of the dialogue O . The selection of the most probable user answer U i is given by: U ˆ i = arg max U i ∈ U P ( U i | UR i − 1 , A i , O ) .

The information contained in UR i is a summary of the information provided by the user up to time i. That is, the semantic interpretation of the user utterances during the dialogue and the information that is contained in a user profile. The information in the user profile can be classified into three different groups:

We propose to solve the previous equation by means of a classification process, which takes the current state of the dialogue (represented by means of the set UR i − 1 , A i , O ) as input and provides the probabilities of selecting the different user dialogue acts.

As previously described, the dialogue manager decides the next action of the system [47,50], interpreting the incoming semantic representation of the user input in the context of the dialogue. This module deals with different sources of information such as the NLU results, database queries results, application domain knowledge, and knowledge about the users and the previous dialogue history to select the next system action. We propose a statistical methodology that combines multimodal fusion and dialogue management functionalities. To do this, a data structure is introduced to store the information provided by the user’s inputs, the user’s intention model, and the context of the interaction.

The process that is carried out by the dialogue manager can lead the system to ask the user for additional information, to require a confirmation for information already provided by the user, or to generate a response once the user has provided all the required information. In the last case, the Web Query Manager receives this information and provides the dialogue manager with the result of the query (e.g., the list of recommended hotels that fulfils the user requirements, films that are played in the theatres nearby the user location, etc.).

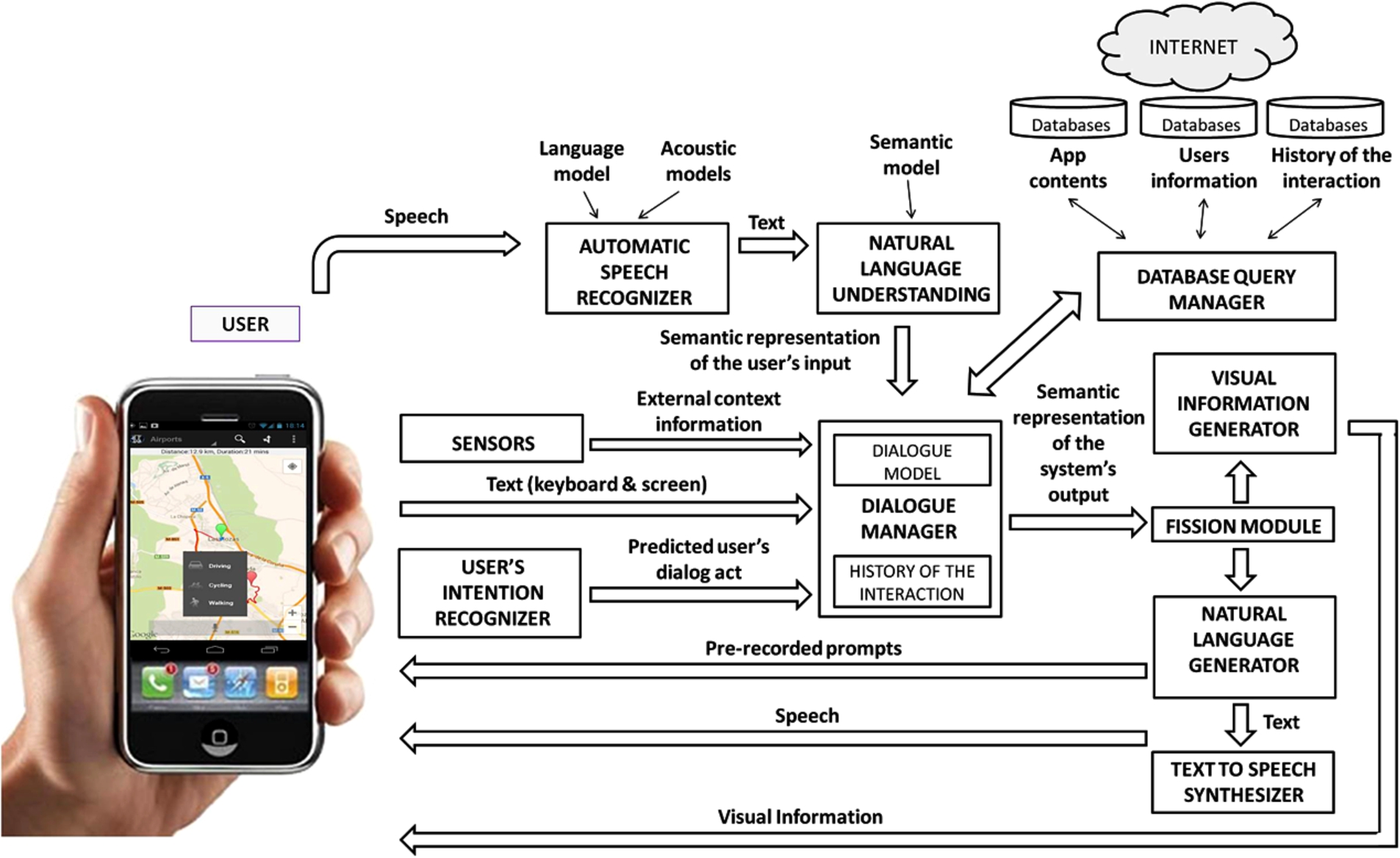

The methodology that we propose for the multimodal data fusion and dialogue management processes considers the set of input information sources (spoken interaction, visual interaction, external context, and user intention modelling) by means of a machine-learning technique. As in our previous work on statistical dialogue management [11], we propose the definition of a data structure similar to the User Register to store the values for the dialogue acts provided by means of the different input modalities along the dialogue history, which we called Interaction Register ( IR ).

The information contained in the IR at each time i has been generated considering the values provided by the input modules of the system along the dialogue history. Each slot in the IR can be usually completed by means of more than one input modality. If just one value has been received for a specific dialogue act, then it is stored at the corresponding slot in the IR using the described codification. Confidences scores provided by the modules processing each input modality are used in case of conflict among the values provided by several modalities for the same slot. Thus, a single input is generated for the dialogue manager to consider the next system response.

As in our previous work on dialogue management [11], we propose the use of a MLP-based classification process to determine the next system response given the single input that is provided by the interaction register after the fusion of the input modalities and also considering the previous system response. This way, the current state of the dialogue is represented by the term ( IR i , A i − 1 ) , where A i − 1 represents the last system response. The values of the output of the classifier can be viewed as the a posteriori probability of selecting the different system responses given the current situation of the dialogue, as the following equation shows: A ˆ i = arg max A i ∈ A P ( A i | IR i , A i − 1 ) .

3.2. Multimodal output generation

The modality fission module receives abstract, modality independent presentation goals from the dialogue manager. The multimodal output depends on several constraints for the specific domain of the system, e.g., the current scenario, the display size, and user preferences like the currently applicable modality mix. This module applies presentation strategies that decompose the complex presentation goal into presentation tasks. It also decides whether an object description is to be uttered verbally or graphically. The result is a presentation script that is passed to the Visual Information and Natural Language generation modules.

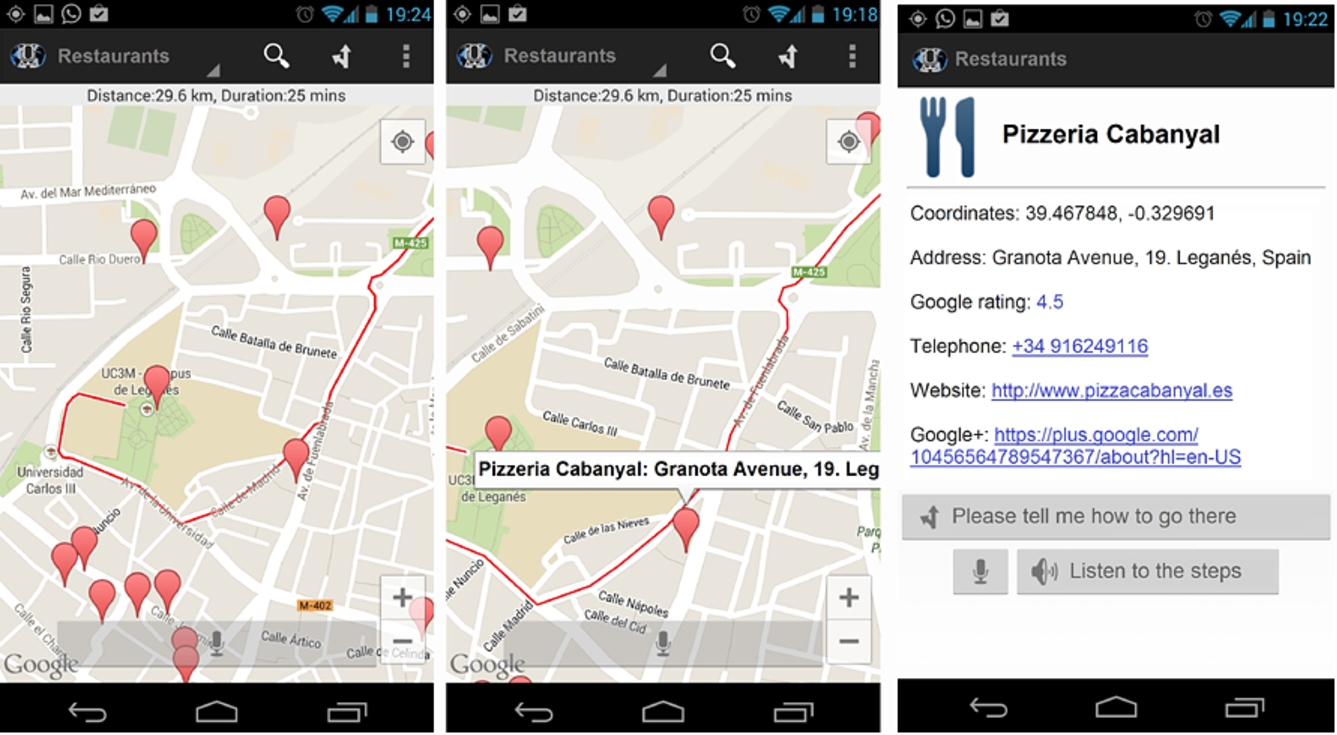

The visual generation module creates the visual arrangement of the content using dynamically created and filled graphical layout elements. Since many objects can be shown at the same time on the display, the manager re-arranges the objects on the screen and removes objects, if necessary. The visual structure of the user interface (UI) is defined in an Android-based multimodal application by means of layouts. Layouts can be defined by declaring UI elements in XML or instantiating layouts elements at runtime. Both alternatives can be combined in order to declare the application’s default layouts in XML and add code that would modify the state of the screen objects at run time. Declaring the UI allows to better separate the presentation of the application from the code that controls its behaviour.

UI layouts can be quickly designed in the same way a web page is generated. Android provides a wide variety of controls that can be incorporated to the UI, such as buttons, text fields, checkboxes, radio buttons, toggle buttons, spinners, and pickers. The View class provides the means to capture the events from the specific control that the user interacts with. The user interactions with the UI are captured by means of event listeners. The default event behaviours for the different controls can also been extended using the class event handlers.

Natural language generation is the process of obtaining texts in natural language from the non-linguistic representation, internal representation of information handled by the dialogue system [27,29]. The simplest approach consists in using predefined text messages (e.g., error messages and warnings). Finally, a text-to-speech synthesizer is used to generate the voice signal that will be transmitted to the user. We propose the use of the Google TTS API to include the TTS functionality in an application.

The text-to-speech functionality has been available on Android devices since Android 1.6 (API Level 4). The android.speech.tts package includes the classes and interfaces required to integrate text-to-speech synthesis in an Android application. They allow the initialization of the TTS engine, a callback to return speech data synthesized by a TTS engine, and control the events related to completing and starting the synthesis of an utterance, among other functionalities.

Every Android device incorporates a default TTS motor. In addition, Android allows the installation and personalization of several motors, like Pico TTS (British and American English, French, Italian, German, and Spanish), IVONA TTS HQ (dialects of the English language, Polish, German, French, Italian, Spanish, Romanian, and Icelandic), SVOX Classic TTS (40 male and female voices for more than 25 languages), Samsung TTS (Korean, English, Chinese, and Spanish), CereProc Ltd (dialects of the English language), eSpeak TTS (60 different languages), EasyTTS (27 different languages), Flite TTS (dialects of the English language), Ekho TTS (Cantonese and Mandarin), or Vaja TTS (English and Thai).

5.1. Usability assessment of the different input and output modalities

The methodology used to evaluate the multimodal interaction with the conversational interface is based on the work presented in [36], which points out that the usability assessment of a multimodal system requires the evaluation of the different interaction modalities. To do this, we have developed the assessment questionnaire shown in Table 1, which is based in standard questionnaires like AttrakDiff [13] and SASSI [17]. A total of 25 native Spanish users (12 men, 13 women, aged 22 to 54, avg. age 34.6) participated in the evaluation.

As Table 1 shows, the questionnaire consists of 9 questions. Each question has 5 possible answers from which only one is selected. The main aspects that are evaluated are users previous experience using multimodal interfaces, the degree to which the user finds that the system understood him and they understood the system, the perceived interaction rate, the perceived difficulty level of the interaction with the system, the presence of errors, the certainty of the user of what to do at each time, and the global level of satisfaction with the system.

Table 2 shows the average results of the subjective evaluation using the described questionnaire. We can observe that the participants’ previous experience using multimodal interfaces is very varied, as our objective was to evaluate the system with users with different degrees of familiarity with these systems.

With respect to the extent to which the users feel that the system understood them, it is possible to see that the recognizer had a very good performance. Tactile mode was perceived as more accurate than oral as expected, but the oral mode was punctuated very high by the users, with 4.64 over 5 respectively. As can be observed, users felt that the system understood them better with the multimodal than with the tactile mode.

The users also felt that the system responses were comprehensible, specially with the tactile and multimodal modes. The results of the oral mode were lower probably due to the quality of the synthesized voice. We used the standard Spanish voice provided by Android. The results were higher when using better synthesizers like the voices of IVONA TTS. Also with the film functionality, sometimes the titles of the films were in languages that differed from the one selected for TTS which reduced the intelligibility of the results in these particular cases.

Regarding the interaction rate, it was found adequate in most cases, though in some cases the participants reported they were expecting barge-in mechanisms in the oral mode. The multimodal mode was found very useful to for the users to interact with the system at a pace which is adequate for their needs, as they could switch between interaction modes. This is in consonance with the fact that the multimodal mode has reported the maximum perceived easiness of use.

Generally, the users have not perceived errors during their interactions in the tactile mode, while in the oral and multimodal modes more errors were detected though they did not imply a fail in the interaction and in every case they could complete the task. In particular, the participants reported that the multimodal mode was more useful than the oral mode for reporting errors to the users.

About the certainty of what to do at each moment of the interaction, participants felt more security in the multimodal mode, which has also received the better punctuation in the overall satisfaction as it brings more flexibility to the user.

In [44] and [43], the authors propose a set of statistical measures to evaluate the quality of a conversational interfaces. Three dimensions are defined: high-level features (dialogue and turn lengths), dialogue style (dialogue-act frequency, proportion of goal-directed actions, grounding, formalities, and unrecognised actions, proportion of information provided, reprovided, requested and rerequested), and dialogue efficiency (goal completion rates and times). Additionally, the simulation presented in [1,40,41] is evaluated by testing the similarity between real and simulated data by means of statistical measures (dialogue length, task completion rate and dialogue performance).

For comparison purposes, we have developed two versions of the multimodal application described in the previous section. The baseline system does not carry out any adaptation to the user, while the context-aware system adapts the dialogue considering the context information provided by the user intention recognizer and the external context provided by the sensors.

To assess the benefits of our proposal, we have evaluated the context-aware system and compared it to the baseline system. In order to do so, 30 recruited students and lecturers in our department participated in the evaluation (aged 18 to 47, mean 32.2 years old, 67% male). A total of 300 dialogues was recorded from the interactions of the recruited users, 15 users employed the real context-aware system and 15 users employed the baseline version of the system. The users were provided with a brochure describing the scenarios that they were asked to complete and main functionalities of the system.

A total of 40 scenarios was defined to consider the different queries that may be performed by users. Each scenario specified a set of objectives that had to be fulfilled by the user at the end of the dialogue and they were designed to include and combine the complete set of functionalities previously described for the system. An example of the defined scenarios is as follows:

The set of defined scenarios can be grouped into the following categories:

We have adapted the previously described measures considering the information that is available in the definition of the multimodal conversational interface and the context information included in the user profile. Our proposed measures can be classified into three groups: task success/efficiency measures, high-level dialogue features, and dialogue style/cooperativeness measures. These measures evaluate the overall quality of the acquired dialogues and provided services as a whole.

To compare the baseline and context-aware versions of the conversational interface we computed the mean value for the evaluation measures, which we extracted from different studies [1,40]. We then used two-tailed t-tests to verify that the means are significantly different across the different types of scenarios and users, as described in [1]. The significance of the results was computed using the SPSS software [23] with a significance level of 95%.

By means of high-level dialogue features, we evaluate the duration of the interactions, how much information is transmitted in individual turns, and how active the participants are. These features cover the following statistical properties: (i) dialogue length, measured as the number of turns per task, the number of turns of the shortest dialogue, the number of turns of the longest dialogue, and the number of turns of the most frequent dialogue; (ii) Percentage of different dialogues in each corpus and the number of repetitions of the most frequent dialogue; (iii) Turn length, measured by the number of actions per turn; and (iv) Participant activity as a ratio of system and user actions per dialogue. Table 3 shows the comparison of the different high-level measures for the context-aware and context-unaware systems.

Regarding the number of dialogue turns, the context-aware system produced shorter dialogues (8.3 turns in average) compared to the number of turns of the baseline system (13.4). As shown in Table 3, this general reduction in the number of turns is generalized also to the case of the longest, shortest and most seen dialogues for the context-aware system. This might be because users have to explicitly provide and confirm more information using the baseline system, whereas the context-aware system automatically adapted the dialogue to the user and the dialogue history. This way, users have more variability in order to provide the different information that is needed to access the different services in the baseline app.

Dialogue style and cooperativeness measures analyse the frequency of different dialogue acts and reflect the proportion of actions that are goal-directed (i.e. not indexed in dialogue formalities). For dialogue style features, we defined and counted a set of system/user dialogue acts. On the system side, we measured the confirmation of concepts and attributes, questions to require information, and system answers generated after a database query. On the user side, we measured the percentage of turns in which the user carries out a request to the system, provides information, confirms a concept or attribute, the Yes/No answers, and other answers not included in the previous categories. Finally, we have measured the proportion of goal-directed actions (request and provide information) versus the grounding actions (confirmations) and rest of actions.

Tables 4 and 5 respectively show the frequency of the most dominant user and system dialogue acts in the context-aware and context-unaware dialogues. On the system side, S_request, S_confirm, and S_inform indicate actions through which the system respectively requests, confirms, or provides information. S_other stands for other types of system prompts (e.g, Waiting and Not-Understood dialogue acts). On the user side, U_provide, U_ query, U_confirm, and U_yesno respectively identify actions by which the user provides, requests, confirms information or gives a yes/no answer, while U_other represents all other user actions (e.g, dialogue formalities or out of task information).

In both cases, it can be observed that there are significant differences in the distribution of dialogue acts. On the one hand, users need to provide less information using the context-aware architecture. This explains the higher proportion for the rest of user actions in the context-aware system. It can also be observed a higher proportion of yes/no actions for the context-aware dialogues. These actions are mainly used to confirm that the specific services have been correctly provided using context information.

On the other hand, Table 5 shows that there is a reduction in the system requests when the context-aware architecture is used. This explains a higher proportion of the inform and confirmation system actions when this application is used.

Finally, we grouped all user and system actions into three categories: “goal directed” (actions to provide or request information), “grounding” (confirmations and negations), and “rest”. Table 6 shows a comparison between these categories. As can be observed, the interactions with the context-aware application have a better quality, as the proportion of goal-directed actions is higher.

Finally, we evaluated the global operation of the applications considering the following interaction parameters: (i) question success rate (SR), percentage of successfully completed questions: system asks – user answers – system provides appropriate feedback about the answer; (ii) confirmation rate (CR), computed as the ratio between the number of explicit confirmations turns and the total of turns; (iii) error correction rate (ECR), percentage of corrected errors.

The results of this evaluation for the described interactions (Table 7) show that both apps could interact correctly with the users in most cases, achieving a success rates of 96.73% and 91.48% respectively. The fact that the possible answers to the user’s responses are restricted in most cases made it possible to have a very high success in speech recognition. Additionally, the approaches for error correction by means of confirming or re-asking for data were successful in 94.15% of the times when the speech recognizer did not provide the correct input.

The confirmation and error correction rates were also improved by the context-aware app, given that less information is required to the user, reducing the probability of introducing errors. The main problem detected was related to spoken user inputs misrecognized with a very high ASR confidence, and this erroneous information was forwarded to the dialogue manager. However, as the success rate shows, this fact did not have a considerable impact on the system’s operation.
