Ontology summit 2019 communiqué: Explanations

1. Introduction

The last few years have seen a substantial increase in the use of machine learning (ML) techniques for solving important problems in the field of Artificial Intelligence (AI). These advances have been driven by the availability of massive amounts of raw data. The ML techniques construct complex statistical models by processing large datasets. Unfortunately, it is difficult to explain how these ML models come to their conclusions, since each decision is, in principle, the result of a program that includes the entire dataset that was used to develop the model. This has led to the perception that ML models are too “deep” and “mysterious” to be adequately explained. Whether or not this is an accurate perception, to solve the problem of explaining the functioning of an ML model or, indeed, any large complex system, it is necessary to address the issue of what an explanation is, as well as what criteria can be used to evaluate the accuracy of an explanation and its suitability for a purpose.

In his presentation at the Ontology Summit 2019, Derek Doran asked the question “Okay but Really… What is Explainable AI?” (Doran, 2018). He found that there was wide disagreement about the answer to this question. As a first approximation to classifying this variety, he identified a hierarchy of explanation “types” an AI system can exhibit:

To illustrate the distinctions among the three levels, consider the case of an application for a loan that was denied. The following are examples of the three types of explanation for answering the question “Why was my application for a loan denied?”

Interpretation: The account balance covariate in the logistic regression model used to make decisions explains 89.9 % of residual variance.

While the first two types above may be adequate in some limited technical contexts, for the most part, humans would demand the third and highest level. Accordingly, there is general agreement with the following definition of explanation, “An explanation is the ability to answer a how or why question and to answer a follow-up question to clarify in a particular context.” This definition makes it clear that an explanation may not be sufficient if it consists of a single generated answer. There should be a capability for a dialog between the user and the system. A further consequence of this definition is the importance of context. Since the notion of context is the subject of the Ontology Summit 2018, the current Summit may be regarded as a continuation of the previous Summit (Baclawski et al., 2018). Indeed, since context includes the answers to the six question words Who, What, When, Where, Why and How, explanation is both part of the context and depends on it.

The Ontology Summit 2019 sought to explore, identify and articulate how ontologies can bring value to the problem of automating explanations of complex systems in general. The Summit dealt with this goal by first studying the notion of explanation in a series of sessions in the Fall of 2018. This Communiqué begins with the background and history of the notion of explanation in Section 2, based on what we learned in the Fall sessions. The three most important areas that were identified in the Fall and studied at greater depth in 2019 were (1) Explainable AI (XAI), presented in Section 3, (2) Commonsense Reasoning and Knowledge (CSRK), presented in Section 4, and (3) Narratives, presented in Section 5. In addition, it was decided that some specific domains should be studied to determine the kinds of problems that practitioners are facing with respect to explanations. The two chosen domains were the Financial domain, presented in Section 6 and the Medical domain, presented in Section 7, both of which were broadly defined. The findings of the summit are summarized in Section 8. The Communiqué ends with a conclusion in Section 9 and acknowledgments in Section 10.

2. Background

An explanation is the answer to the question “Why?” as well as the answers to follow-up questions such as “Where do I go from here?” Accordingly, explanations generally occur within the context of a process, which could be a dialog between a person and a system or could be an agent-to-agent communication process between two systems. Explanations also occur in social interactions when clarifying a point, expounding a view, or interpreting behavior. In all such circumstances in common parlance one is giving/offering an explanation.

Among the first known attempts at understanding the ‘why’ of explanations were those documented among Indian intellectuals and philosophers, beginning with the knowledge collection called the Vedas (dating back to 5000 BCE). This philosophical tradition included notions of context, logic and explanation that are similar to the modern conceptions. For example, there was a notion of syllogism that explicitly incorporated context into the structure of the syllogism. Explanation was also a part of logical inference. More generally, explanation in the form of a dialog between a teacher and a student appears throughout the Vedas.

Later in the classical Greek period, Aristotle provided a view of explanation as part of a deductive process using reason to reach conclusions. In the Posterior Analytics from his Organon, Aristotle proposed 4 types of causes to explain things. These were from either the thing’s matter (material cause), form (formal cause), end (purpose or final cause), or agent (efficient cause).

The Summit considered not only AI systems that can explain their actions, but also other smart engineering systems which cooperate with each other and aid humans. With the increasing amount of software devoted to industrial automation and process control, this capability is becoming more important than ever. Explanations include expressing rationales, characterizing strengths and weaknesses, and projecting their behavior into the future. Ontologies could play a significant role in explainable smart systems by representing the conceptual framework that can be used for constructing explanations. An ontology used for explanation would include terms for domain and natural world concepts, relations, and activities.

Software today, whether a legacy system or a newly developed system, most commonly does not include explainability. Unfortunately, explainability cannot simply be added as another module. Rather it should drive the software engineering process from the earliest stages of planning, analysis and design. Explainability needs must be empirically discovered during these stages (Clancey, 2019). Unfortunately, there is little sensitivity to these needs as well as little experience with addressing them in current systems and work practices (Clancey, 2019). One problem is that there are no standards for evaluating the quality of explanations, so there are no objective criteria for determining whether one has adequately implemented explainability (Baclawski, 2019a; Grüninger, 2019). Another problem is that there can be disconnects among the views of the stakeholders. Users generally view explainability as very useful, but investors do not perceive that it adds value (Grosof, 2019). Still other classical software engineering problems arise such as “mission creep” in which requirements are added later in the development process at a time when it is too late to modify the design to accommodate the new requirements, resulting in cost overruns, delays and poor designs (Grosof, 2019). Finally, there is a need for evaluating the quality of explanations. Quality includes not only subjective measures of explainability but also whether the explanations are verifiable and conform to standards.

Perhaps the most all-encompassing reason for developing explainability is the General Data Protection Regulation (GDPR) which states, “The data subject should have the right... to obtain an explanation of the decision reached...” (Recital 71 GDPR, 2018; Tiddi, 2019). However, the extent to which the GDPR regulations themselves provide a “right to explanation” is heavily debated. Given that explainability is still a nascent research activity, it should not be surprising that the GDPR stops short of mandating this ability immediately. Nevertheless, the intent is to make it easier for users to obtain explanations, especially for fully automated decision making systems.

A benefit of the use of ontologies in support of explanations is the potential for improving interoperability between systems that otherwise would not have a common framework for interoperation. The danger is that current efforts for explainability will have many of the same undesirable characteristics that have been criticized for AI systems. One of these is fragility (also called brittleness) in the following sense: two perceptively indistinguishable inputs with the same predicted label can be assigned very different interpretations and explanations (Ghorbani et al., 2019). Another is siloing in the sense that each product employs completely different and incompatible explanation techniques. While such products individually satisfy the requirement of providing explanations, they cannot be consistently integrated into large scale systems.

3. Explainable artificial intelligence

Since the 1950s, when the term Artificial Intelligence was coined, there has been considerable progress in this area. The 1980s was dominated with the rise of rule-based systems. This period has been called “the first wave” of AI. Advancements in computer hardware facilitated multilayered neural networks, which led to significant improvements in machine learning for certain classes of problems in the 2000s. This was the “second wave.” There have been a number of proposals for what will be the dominant focus of the upcoming “third wave,” for example, the Defense Advanced Research Projects Agency (DARPA) views the third wave as contextual adaptation where “systems construct contextual explanatory models for classes of real world problems” (Gunning, 2018).

The first wave of AI produced several reasoning techniques, such as decision trees, inference networks, Bayesian networks, statistical learning techniques, and the beginnings of neural networks. During the first wave, it was already recognized that these systems were unable to provide adequate explanations (Jackson, 1986). As Ford et al surmised, “...the inadequate approach to explanation found in most expert systems can be a significant impediment to user acceptance” (Ford et al., 1993).

OPEN IN VIEWER

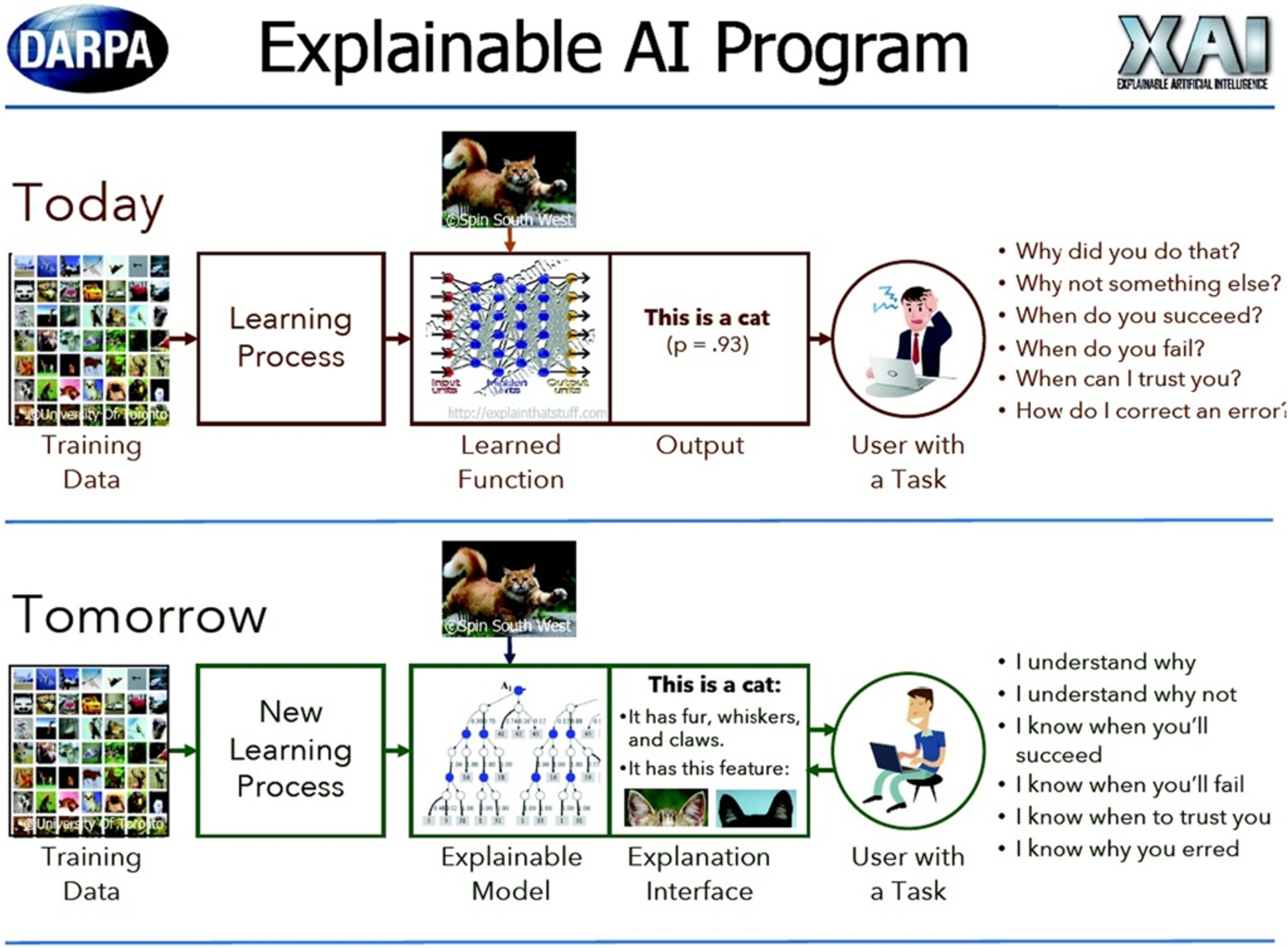

Fig. 1.

The DARPA XAI program (Gunning, 2018).

OPEN IN VIEWER

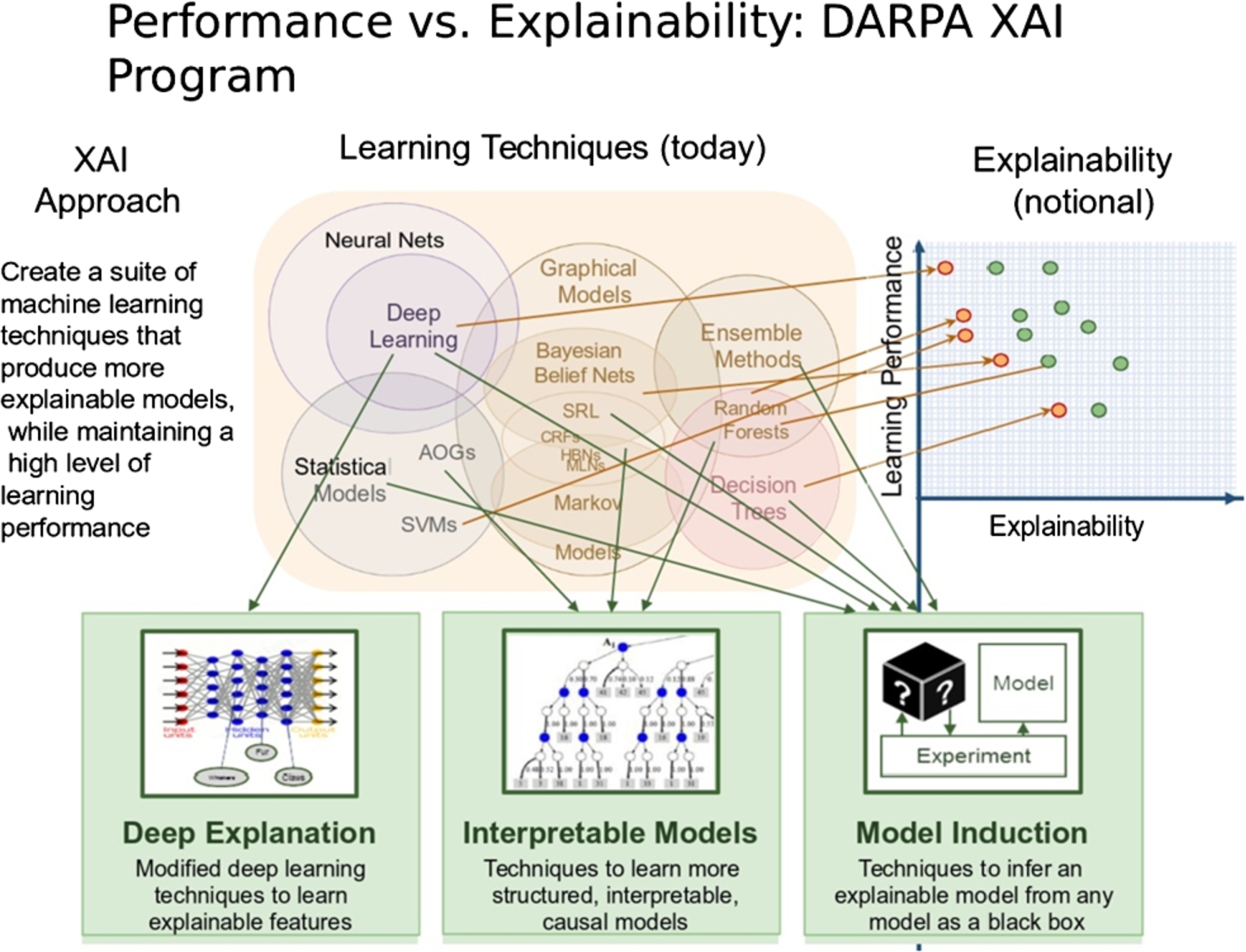

Fig. 2.

Performance vs explainability (Gunning, 2018).

As the second wave took place, multilayered neural networks (deep learning) with more than one hidden layer produced impressive results in a wide variety of classification problems. There was a tradeoff between performance and explainability. For example, a major problem with neural networks is the lack of transparency. It was more like a black box approach, where the following questions could not be adequately answered:

The DARPA XAI Program initially had a goal of addressing the above questions by enhancing AI software to answer them (Gunning, 2018). See Figs 1 and 2. Note that the DARPA XAI Program proposed that ontologies should be part of the solution. The program also required the use of counterfactual arguments.

Sargur Srihari proposed that probabilistic AI (PAI) will be an important part of the third wave of AI. While probability and statistics are related, there are fundamental differences between them. Statistics analyzes observations to understand them, most commonly in the form of a probabilistic model. Probability deals with models that allow one to make predictions and decisions when there is uncertainty. The probabilistic models can be postulated a priori or estimated a posteriori using statistics. PAI focuses on generative models in the form of probability distributions that can be queried. PAI uses a variety of algorithms and architectures for knowledge representation, inference and learning. It uses Probabilistic Graphical Models (PGMs) to find the most probable explanation (MPE), also called the maximum a posteriori probability assignment. As a result, PAI is more suited to explainability than the techniques employed in the first two waves of AI. Sargur Srihari has used PGMs and MPE in his work on forensics which lends itself to a combination of deep learning and probabilistic explanation (Srihari, 2019).

Explainable AI defines a field of research, not a particular “type” of AI. There exist unique notions of ‘explanations’, making problem- or context-independent explainable AI work inappropriate. For AI systems to be understandable, symbolic systems and reasoning should be integrated to provide operationally effective communications of the internal state and operation of the system (Michie, 1988). Meaningful ontologies and knowledge bases could play a significant role in ensuring that stakeholders understand and trust the conclusions that an AI system draws.

There is a long history showing the relevance of commonsense reasoning and knowledge (CSRK) to explanation. Certainly many pioneers of modern AI believed so and argued that a major long-term goal of AI should include endowing computers with standard commonsense reasoning capabilities. In “Programs with Common Sense”, John McCarthy described 3 ways for AI to proceed: (McCarthy, 1968)

imitate the human central nervous system,

A related goal has been to endow AI systems with natural language (NL) understanding and production. An early example of this is McCarthy’s conceptualization of a smart advice taker that would have access to: “a fairly wide class of immediate logical consequences of anything it is told and its previous knowledge.” McCarthy further noted that this useful property, if designed well, would be expected to have much in common with what makes us describe certain humans as “having common sense.” He went on to use this idea to define CSRK – “We shall therefore say that a program has common sense if it automatically deduces for itself a sufficiently wide class of immediate consequences of anything it is told and what it already knows” (McCarthy, 1968).

Unfortunately, the early attempts to realize McCarthy’s conceptualization proved to be brittle and did not capture deep knowledge. These attempts demonstrated that the nature and scale of both explanation and CSRK was difficult. The amount of everyday knowledge needed for common tasks was considerably larger than expected. Indeed, understanding even the simplest children’s story, which is a feat that children master with what seems a natural process, is still a formidable problem. The Cyc project attempted to encode a broad range of human commonsense knowledge as a step toward understanding text, which would bootstrap further learning. But this type of progress has been slow, and some believe that today this problem of scale can be addressed in new ways such as ML. But ML methods do not include a built-in way to provide machine generated explanations of what they “know.” For this reason, research is exploring how common sense could assist in solving this problem. Particular challenges include addressing the known brittleness of ML models given various adversarial changes to input, and generalization to unseen situations when faced with limited training data. Preliminary work suggests that CSRK could help compensate for limited training data and make it easier to generate explanations, assuming that common sense is available in an easily available form.

There is evidence, for example, that state-change commonsense knowledge can be used to compensate for limited training data when the text is describing a procedure or sequence of discrete, inter-related events. Common sense aware ML models make more sensible predictions despite limited training data when they can use the prior knowledge of state-changes. For example, it is unlikely that a ball would be destroyed in a basketball game scenario. The model injects common sense at the decoding phase by re-scoring the search space such that the probability mass is driven away from unlikely situations. Adding common sense results in much better and more robust performance.

The conclusion is that CSRK can assist in addressing some of the challenges of explainability in general and of explainability of AI systems in particular.

5. The role of narrative

Narrative may be regarded as being complementary to commonsense reasoning and knowledge. While CSRK provides the underlying reasoning and knowledge necessary for explanation, the topic of narrative covers 1) the use of knowledge elements in forming stories as sequences of events, and 2) the presentation of these stories in dialog.

Narrative is a strategy for sense-making. The Project Narrative at Ohio State University states, “Narrative theory starts from the assumption that narrative is a basic human strategy for coming to terms with fundamental elements of our experience, such as time, process, and change, and it proceeds from this assumption to study the distinctive nature of narrative and its various structures, elements, uses, and effects” (Miller et al., 2017).

As already noted above in the very definition of explanation, an explanation narrative is an interactive conversation. People leverage their partial understandings of the causal structure of the world “by knowing how to access additional explanatory knowledge in other minds and by being particularly adept at using situational support to build explanations on the fly in real time” (Keil, 2006).

Results from social science regarding how humans explain to each other can serve as a useful starting point for explanation in artificial intelligence (Miller, 2018; Miller et al., 2017). Key insights include:

Relating the conversational evaluation criteria above to the relevance, usefulness and trustworthiness criteria previously noted for explanations can yield additional insights. For example, the Maxim of Quantity suggests that an explanation should be as extensive as necessary but no more so. Surprisingly, the trustworthiness criterion is another one that also has this property. If humans trust a system too much, then they will be unprepared for situations in which the system exhibits anomalous or dangerous behavior (Rodriguez et al., 2019).

Many techniques have been developed for generating NL from knowledge and reasoning processes. It is commonly assumed that proofs are the “gold standard” for explanation. However, in practice, proofs are not adequate as explanations, as we remarked in Section 1 above. In most cases, one could generate a complete and rigorous proof from the published argument, but it is very difficult to accomplish this and it is rarely done. In some cases, the claimed theorem turns out to be incorrect in spite of having a thoroughly reviewed and published “proof.” Alternatively, Baclawski has proposed that by taking explanation as the goal, one can develop fully complete and rigorous proofs that could also be readable and convincing narratives (Baclawski, 2019b).

Narratives need not be limited to NL. One could also use visual techniques. They are gaining maturity and could be used both for input from, and for output to, the user. Combining NL and visual techniques could be an especially effective approach to explainability.

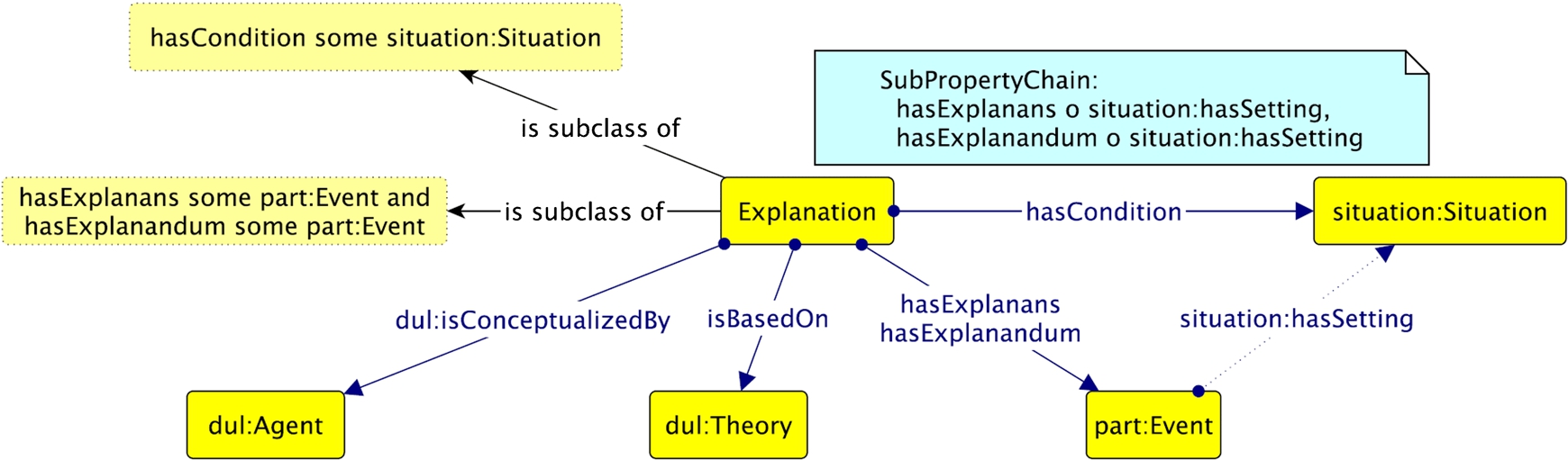

Tiddi studied theories and models of explanation in a variety of disciplines to identify the minimal ‘story’ elements that define an explanation (Tiddi et al., 2015). The resulting Explanation Ontology Design Pattern is shown in Fig. 3. In this pattern, an explanation requires:

OPEN IN VIEWER

Fig. 3.

Explanation ontology design pattern from (Tiddi et al., 2015).

Narrative can play a significant role in explanations that are intended for non-specialists and for dialogs. While there is an extensive theory of narration, there are few systems that automatically generate explanations as narratives. Ontologies could be useful for solving this problem.

The financial services industry is diverse, international and huge. Depending on how it is defined, it globally represents a $10 to $20 trillion industry (in U.S. currency). It is also rapidly evolving, with new investment vehicles and services constantly being introduced. This industry is highly regulated, and governments are increasingly mandating that explanations for decisions must be provided to customers (which includes both individuals and companies), to financial services partners, and to government regulators.

Consider the example of the credit industry, a significant subdomain of financial services. In the U.S., the Fair Credit Reporting Act (FCRA) mandates that credit decisions must be explained. For example, a customer whose application for a credit card was denied has the right to know why. The credit card company might respond to a request for an explanation with “Because you didn’t meet our criteria.” Needless to say, the customer is likely to ask which criteria were not met, and a dialog will then be necessary.

The following are some of many challenges involved in providing explanations in the credit industry in particular, and the financial services industry in general:

One approach to the challenges listed above would be for the financial services industry to develop a common language. Although this industry is highly regulated, it has no common industry language. The U.S. Treasury Office of Financial Research stated, “The lack of a common industry language is a billion dollar problem.” One reason why it is so difficult to develop such a language is that regulations are very large and written in unstructured, natural language text. A single U.S. regulation, the Federal Reserve System Final Rule 12 CFR Part 223, consists of 143 pages of text, and the summary alone is 19 pages long. Another complication is that financial regulations have long reference chains to other regulations.

Nevertheless, progress is being made with the development of the Financial Industry Business Ontology (FIBO) (Bennett, 2019). The FIBO ontology has the potential to contribute to a number of challenges from the list above. As a common language, it would assist in data fusion and coordination. As a formal language, it can be used for explaining reasoning processes. Finally, since FIBO uses natural language terminology, narratives could be formulated to deal with human understanding and dialog.

7. Medical explanations

The health care enterprise involves many different stakeholders – consumers, health care professionals and providers, researchers, and insurers. AI is likely to play an important role in many tasks that these stakeholders undertake. These include: image diagnostics, medical decision making, prior authorization, drug design, nutrition advisor, patient scheduling, etc. During the late 1970s and early 1980s, the pioneering knowledge-based expert systems (KBES) were in the domain of medical diagnosis (e.g., MYCIN, INTERNIST-I). These systems relied on rule-based inferencing and probabilistic knowledge networks. Unfortunately, as noted in Section 3, most of these systems did not provide adequate explanations of their decisions. In 1993, Ford et al surmised, “...the inadequate approach to explanation found in most expert systems can be a significant impediment to user acceptance” (Ford et al., 1993).

Currently, neural networks (or deep neural networks [DNNs]) are playing a key role in many medical applications that involves image interpretation and diagnosis. Eric Topol’s paper and book provide numerous examples of such DNN-based systems (Topol, 2019a; 2019b). However, the key problem with DNN-based systems is the lack of explainability, which is very important for many reasons. Medical AI systems will be accepted only if they are trusted by clinicians and other stakeholders, and explainability is essential for this, since patient lives depend on medical decisions. There are also laws and regulations giving patients the right to explanations about their diagnoses and treatments. Explanations are more significant in some medical fields, such as mental health (Kursuncu et al., 2019).

A combination of DNNs and knowledge graphs (ontologies) could potentially form the basis for future AI systems in medicine. Achieving this requires solving several problems as discussed in the Introduction above. One must first be able to interpret the DNN. In other words, identify why an input goes to an output. Next one must integrate the interpretation of the DNN with the knowledge graph so that one can trace the reason for the input producing the output (Kursuncu et al., 2019). One must then understand the concepts in the knowledge graph. Finally, a human readable narrative should be generated as discussed in Section 5.

While there is general agreement on the steps required for the generation of explanations given above, there are several possibilities for how knowledge graphs could be used in the machine learning architecture. While there are many ML algorithms, most are variations on supervised learning, i.e., first train the model on labeled training data, then apply the model to new unlabeled data. Based on this architecture, there are at least three ways in which knowledge graphs could be used for explainability:

Knowledge enhancement before a model is trained

Other forms of learning, such as semi-supervised and unsupervised learning may also have multiple roles for ontologies. The Global Health Intelligence project, which involved data integration and interoperability for malaria monitoring and evaluation in sub-Saharan Africa, integrated and analyzed large volumes of structured and unstructured data, and processed the data to find patterns. The project also produced explanatory and predictive models (Shaban-Nejad, 2019). In this case, each of the steps, integration, analysis, pattern recognition and model development can make use of ontologies prior to, during and following the step.

8. Findings

We now summarize the main findings of the Summit. The findings were organized into groups that very roughly correspond to the phases of a system development project. Ontologies can play important roles in achieving explainability throughout all development phases. We begin in Section 8.1 with the reasons why a system should be able to explain its functioning. This is followed by Section 8.2 which proposes what is necessary for explainability. Section 8.3 discusses challenges for how explainability could be achieved. Each challenge represents an opportunity for research on explainable systems.

9. Conclusion

Automating explanations of complex systems today is largely handled in an unsystematic manner, if it is handled at all. Modern AI systems are especially difficult to explain, but they are not the only systems that lack adequate explainability. We found that ontologies and context sensitivity can be important parts of an effective solution to explainability. This conclusion was apparent in all of the Summit tracks, both in the general areas of commonsense reasoning and narrative and in the more specific domains of explainable AI, financial services and medicine. While we listed many potential approaches that are actively being pursued, much more research and development is needed for systems to be adequately explainable.

10. Acknowledgments

Certain commercial software systems are identified in this paper. Such identification does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST) or by the organizations of the authors or the endorsers of this Communiqué; nor does it imply that the products identified are necessarily the best available for the purpose. Further, any opinions, findings, conclusions or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of NIST or any other supporting U.S. government or corporate organizations.

We wish to acknowledge the support of the ontology community, especially the invited speakers and participants who contributed to the Ontology Summit. There were 23 invited speakers, some of whom gave presentations at more than one session. The complete list of sessions, speakers, and links to presentation slides and video recordings is available at http://bit.ly/2WTduUB. We also wish to acknowledge feedback from many other individuals, including Dieter Gawlick, Paul Sonderegger, Anna Chystiakova, Kenny Gross, Zhen Hua Liu, Azamat Abdoullaev, and Elham Tabassi.
