A goal-oriented framework for ontology reuse

1. Introduction

Ontologies have been recognized as conceptual tools of great importance in Computer Science since the end of the 1960s, mainly in areas such as Data Modeling (conceptual modeling) and Artificial Intelligence (Davis, 1998; Mealy, 1967). In the last fifteen years, there has been an explosion of works related to ontologies in various segments of Computer Science. This has been motivated by the recognition of the importance of the use of ontologies in semantic interoperability tasks (e.g., system integration and data integration), in general, and by its role in the Semantic Web development, in particular. For instance, applications that process Linked Data available on the Web are programmed to understand well-known vocabularies (schemas, ontologies) at the time of their writing. Defining new vocabularies for every new data set we publish without properly linking to existing vocabularies makes this data unintelligible to existing applications. Reusing the appropriate vocabularies reduces heterogeneity by relying on ontological agreement (Heath and Bizer, 2011).

Nowadays, ontology engineers are supported by a wide range of ontology engineering methods and tools. However, building ontologies is still a complex task even for experts (Noppens and Liebig, 2009). Some of the main reasons for that are: (i) the ontology engineer must have a consistent and mature view of the domain being represented; (ii) ontology representation languages (e.g. OWL, RDF) are usually not very expressive and leave much room for interpretation; and (iii) even when we aim at developing reference ontologies (i.e. conceptual models without concern with computational properties), developing the right conceptual model is still open to interpretation and face problems such as requirements and scope definition.

Moreover, the emergent scenario has required more comprehensive and high-quality ontologies to solve problems involving semantic issues. In this context, developing a new ontology by reusing existing ontologies may be useful. Ontology reuse allows speeding up the ontology development process, saving time and money, and promoting the application of good practices. However, ontology reuse in general is a hard research issue, and one of the most challenging and neglected areas of Ontology Engineering (Gangemi and Presutti, 2009). For example, ontology engineers still face problems to find and select the right ontologies for reuse and integrate several ontologies into a new ontology (Park et al., 2011).

In a recent study, Fernández-López et al. (2019) point out that although ontology reuse is recommended in the community, in practice it is not yet consolidated. Factors such as language heterogeneity, deficiencies in the documentation and lack of information about the ontology are obstacles for finding and reusing ontologies. Even though one of the main characteristics of ontologies has been claimed to be reusability, the practice has shown that it has not been achieved yet.

One of the challenges of ontology reuse is the obscurity of the design rationale of the available ontologies (Gangemi and Presutti, 2009). Design rationale concerns the reasons for decisions made during a design process (Jarczyk et al., 1992). Unknown design rationale makes it difficult to select the ontologies to be reused as well as to understand them, which is crucial to integrate them properly. We advocate the use of Goal-Oriented Requirements Engineering (GORE) to make the ontology design rationale explicit and promote ontology reuse (Van Lamsweerde, 2001). GORE has been used to provide design rationale in Software Engineering, explaining from where a requirement came and which stakeholders’ goals it meets (Van Lamsweerde, 2001). In Ontology Engineering, we argue that GORE helps explain the rationale behind ontology selection, because motivational elements (i.e., goals) reveal the reasons behind the development of an ontology (or ontology pattern), besides providing a notion of the kind of knowledge that is represented in the ontology.

The work presented in this paper is part of a larger research project whose main research question is how the use of GORE can improve the understanding of ontology scope and design rationale and contribute to ontology reuse. The motivation behind the project came from practical experiences in our research group and from literature. In the work presented by Salamon et al. (2018), we investigated the literature about ontology reuse (more specifically regarding ontology integration and merging) and we noticed that the lack of explicit design rationale and of a concern with ontology integration in the ontology development process as a whole has hampered reuse. Note that what makes GORE special is the possibility to use goals to make explicit the ‘whys’ behind requirements. We were inspired by the approach presented in the work by Fernandes et al. (2011), which adopts competency questions as a strategy to identify ontology’s scope and requirements, and it profits from GORE potential to make clear the design rationale (i.e., the motivation behind CQs). In this work, we benefit from this clarification in a framework to support ontology reuse.

This paper presents GO-FOR, a Goal-Oriented Framework for Ontology Reuse in which we apply GORE in Ontology Engineering to express a design rationale to ontology model fragments. In GO-FOR, ontology models are depicted in self-contained fragments (i.e., domain design ontology patterns) related to goals. These model fragments are self-contained ontology structures called goal-oriented ontology patterns (GOOP). Thus, goals can be used as parameters to support ontology shareability. GO-FOR aids in the creation, storage, and reuse of GOOPs, promoting ontology development with and for reuse. A partial view of GO-FOR was introduced in the work by Reginato et al. (2019), focusing on its conceptual architecture. In this paper, we extend the work by Reginato et al. (2019) by providing a more comprehensive view of GO-FOR and detailing all its components: a conceptual architecture, an ontology development process and a supporting tool. We also present a new application of GO-FOR in a real case scenario in the health care (particularly, laboratory test) domain.

The main contributions of this paper are: (i) the framework itself (GO-FOR), which allows connecting ontology fragments with the goals they meet (giving rise to GOOPs), storing the GOOPs in a repository and retrieving them for reuse; (ii) the goal-oriented and pattern-based process for ontology development reusing GOOPs and other ontology fragments; and (iii) GOOP-Hub, the tool developed to aid GO-FOR use and support ontology reuse. This work contributes to the state-of-the-art by exploring the use of GORE in the context of ontology reuse and to the state-of-the-practice by providing a tool to store and reuse ontology fragments (GOOPs) based on the goals they achieve.

This paper is organized as follows: Section 2 provides the background for the paper; Section 3 presents the principles behind GO-FOR; Section 4 describes the GO-FOR conceptual architecture; Section 5 presents the GO-FOR process; Section 6 concerns GOOP-Hub, the GO-FOR supporting tool; Section 7 addresses GO-FOR use and reports the application of GO-FOR to build an ontology to integrate patient examination data; Section 8 discusses related works; and Section 9 presents our final considerations.

2. Background

3. GO-FOR principles

Building an ontology through reuse depends on finding suitable ontologies for being reused (Park et al., 2011). The search and selection of ontologies to be reused should consider the alignment between their scope and the scope of the ontology to be developed. That is, for each ontology model candidate to be reused, it should be verified which part of it meets the requirements of the ontology being built. Therefore, ontology reuse should be based on ontology requirements.

Considering that GORE can be used to establish ontology requirements and ontology patterns favor reuse, we propose GO-FOR, a goal-oriented and pattern-based framework to aid ontology reuse. GO-FOR stands for Goal-Oriented Framework for Ontology Reuse.

GO-FOR is based on four principles related to a subset of ontology design recurrent issues pointed out in the work presented by Gruber (1991), namely: (I1) Which pieces of information about terms are critical for supporting shareability (e.g., name, textual definition, type)? (I2) How to describe the purposes of a particular ontology? (I3) How to capture and use design rationale? (I4) How to identify correspondences between ontologies? To address these issues, GO-FOR follows the principles (P1–P4) described below.

(P1) Standardize Terminology and Semantic Searching. This principle is related to issue I1. Keywords and other metadata are often used to enable semantic search. However, it is difficult to say which metadata about the ontology structures (e.g., models, patterns, concepts) is most critical to support reuse, but it is easier to identify factors that can negatively influence it. One, for certain, occurs when ontology developers give arbitrary and inexpressive names for ontology structures. Although recently this aspect has been addressed by the community, there are still several models and vocabularies with inexpressive names. For instance, if an ontology engineer searches for an ontology covering the e-commerce domain using the keyword “e-commerce” to find ontologies addressing this subject, he/she may expect to find ontology models covering aspects such as transactions, authentication, shopping and so on. However, such search could return, among others, the Good Relations ontology (Hepp, 2008), whose description states that the ontology provides a vocabulary to e-commerce, when, in fact, it provides a vocabulary to specify offerings on the web, not addressing several aspects related to e-commerce (Salamon et al., 2017). The lack of a standard to name ontology structures harms the search and retrieval of suitable ontologies and, consequently, can compromise ontology reuse.

(P2) Apply Design Rationale. As discussed in Section 1, one of the difficulties to ontology reuse is the obscurity of the ontologies design rationale (Gangemi and Presutti, 2009), which is directly related to issue I3. It is important to make explicit the reasons for developing an ontology the way it was developed (e.g., what led the ontology engineer to include certain concepts in the ontology). In our view, addressing this problem is a key factor for ontology reuse. Moreover, making the design rationale explicit also contributes to solve issue I2, since a design rationale approach can support to define ontology purpose.

(P3) Solve Overlaps. When ontology models are developed from scratch, without any concern with reuse, there is a high chance of overlaps with other ontology models. Thus, identifying and solving overlaps between ontologies is important to avoid redundancy and increase reuse. This relates to I4, since overlap solving involves the establishment of correspondences between ontologies.

(P4) Focus more on Patterns than Models. Ontology models can cover a large scope, covering several requirements. In such cases, it can be hard to identify a model that meets a specific requirement desired for reuse. Moreover, when finding the model, it is necessary to identify its fragment that meets the desired requirement for reuse. Patterns are a better approach in these cases. They promote reuse since they modularize ontology models in a way that is easier to find and reuse.

GO-FOR takes the four aforementioned principles into account and comprises: (i) a conceptual architecture that contains the necessary components to GO-FOR use; (ii) a goal-oriented process that guides ontology development considering GO-FOR architecture; and (iii) a tool that supports GO-FOR use. In the following sections we describe the GO-FOR components.

4. GO-FOR conceptual architecture

The basic elements of GO-FOR are goal-oriented ontology patterns (GOOPs), which are aligned to principle P4. In a GOOP, the goal establishes the scope addressed by the ontology fragment. Thus, GOOPs can be reused based on the goal to which they relate. GOOPs are stored in a goal-oriented ontology pattern repository (GOOPR). Inside the GOOPR, GOOPs relate to each other according to the relationships between their goals. Figure 1 shows an overview of GO-FOR conceptual architecture.

In a nutshell, in order to reuse GOOPs for ontology development, the ontology engineer must start by identifying the actors in the domain of interest and developing the goal models that describe the scope of the ontology to be developed (as suggested in the work presented by Fernandes et al. (2011)). The use of goal models to define the ontology scope contributes to principle P2, since the design rationale is expressed by means of the goals that guide the definition of what is to be addressed by the ontology and why. Moreover, goal models help define the ontology purpose, which is also addressed in P2. For each goal represented in the goal model, the ontology engineer verifies if there is a GOOP in the GOOPR related to it (i.e., if there is a GOOP containing that goal). If this is the case, the ontology engineer can reuse the GOOP by integrating it to the ontology model. In this case, we have development with reuse. Otherwise, the ontology engineer can create a new ontology model fragment to achieve the goal. Thus, it can relate the fragment to the goal (resulting in a GOOP) and store it in the repository for future reuse. In this case, we have development for reuse.

OPEN IN VIEWER

Fig. 1.

GO-FOR architecture.

The ontology engineer is who builds the goal model that guides the ontology development and, thus, he/she is responsible for defining the ontology goals. Although a certain degree of understanding of the goals that the ontology should achieve is required, the use of goals as a way to represent requirements has shown that they tend to be closer to domain experts, promoting better understanding of their needs and underlying motivation (Yu et al., 2011). This is due to the fact that goals not only focus on what should be done but also on why, justifying and explaining the presence of requirement components which are not necessarily comprehensible to clients (Aljahdali et al., 2011). Hence, it is probably easier to start by identifying the goals that the ontology needs to achieve than its detailed requirements (e.g., in the form of competency questions, which can be derived from the goals) (Fernandes et al., 2011).

Next, we discuss aspects of GO-FOR conceptual architecture elements, namely GOOPs and GOOPR.

4.1. Goal-oriented ontology patterns (GOOP)

A GOOP consists of an ontology fragment wrapped by a goal. In other words, it refers to an ontology model fragment that can be used to achieve a goal. A GOOP can be created whether using an ontology model fragment already built (i.e., a fragment of an existing ontology can be used to achieve a goal, giving rise to a GOOP) or building the model fragment from scratch (i.e., a model fragment is built aiming to achieve a goal).

A GOOP is also related to the actor who has the goal contained in the GOOP. Different actors may have the same goal and need different fragment models to achieve it. For example, a doctor and a researcher may have both the goal “describe disease” and need different concepts to do so (e.g., a researcher may need more technical details about the disease). Thus, when searching for a GOOP to be reused, the ontology engineer can also consider the actor related to the GOOP in order to reuse the GOOP more suitable for the ontology being developed.

Ontology design patterns and ontology models usually have arbitrary names. Contrariwise, GOOPs are identified by their goals and following a standard terminology structure to name them (principle P1). In the goal modeling literature, goals are usually expressed using passive voice, but there is no defined rule about that. Thus, to make things as simple as possible, we propose to name GOOPs by using a verb (bare infinitive) and a noun (or a noun phrase), e.g., “define course program”, “describe product offering”.

Concerning the verb, by analyzing several ontology model fragments and investigating goals that they are able to achieve, we noticed that the goals can usually be associated with three main types of actions, namely: classification, identification and description. Thus, we suggest a set of verbs to be used to name a GOOP according to the type of action to which its goal refers. Classification applies when the goal is to classify an entity (e.g., a specimen) according to a system of classification that is disposed as taxonomies. The word classification is commonly used with this meaning whether in conceptual modeling or ontology engineering (Partridge et al., 2018). Thus, for model fragments that are used to classify entities we indicate the use of the verb “classify” to label the pattern. Identification occurs when the purpose is to identify a well-known element (e.g., a chemical element of a periodic table) according to a taxonomy or a list of values (enumeration). Here, the verbs to be used are “identify” or “determine”. These verbs were suggested based on the concept of identity discussed in the work by Guizzardi et al. (2021). Finally, description occurs when a model fragment is meant to describe an entity (i.e., an event or an object) by representing its relationship with other entities that represent its characteristics. For example, a birth can be described by its date, the mother and the baby that participated in that event. For description, we suggest using “describe”, “characterize”, “define”, “specify” or “register”. The verbs proposed here are the ones we have identified so far and, thus, is not an exhaustive list. The set of verbs can be extended in the future by including new synonyms or even new verbs to represent other actions not addressed so far. Table 1 summarizes the standard terminology for verbs when naming a GOOP.

OPEN IN VIEWER

Table 1

Terminology for naming GOOPs

Type of action	Definition	Model Structure	Verbs to be used	Example
Classification	Classify an entity according to a hierarchy	Taxonomy	Classify	Classify a specimen
Identification	Identify an entity as a well-known entity	Taxonomy or enumeration	Identify, determine	Identify blood type
Description	Describe an entity according to its characteristics	Complex structure	Describe, characterize, define, specify, register	Describe crime

Regarding the noun, it refers to the entity to be classified, identified, or characterized. In the examples shown in Table 1, the nouns are specimen, blood type and crime. The main guideline is to be clear about the entity to enable the identification of synonyms, generalizations, and specializations. For instance, in the goal “describe a water sample”, “water sample” is the noun. “Water sample” has “hydro sample” as synonym, is generalized by “sample” and specialized by “freshwater sample”. Therefore, it is possible to search GOOPs considering different keywords for nouns.

We propose this standard in order to soften the problem of completely arbitrary terminology discussed in P1 and, at the same time, simplify the search for GOOPs. That is, the search for GOOPs becomes more accurate if a controlled vocabulary is used to name them. Moreover, in the supporting tool (presented in Section 6) we apply semantic searching considering terms informed as parameters for the search and the terms used to name the goals.

When considering the goals, GOOPs can relate to one another by a part of relationship. A GOOP is part of another GOOP when the goal of the former is a decomposition of the goal of the latter. For example, if g 2 is a decomposition (i.e., subgoal) of g 1 , goop1 contains g 1 , and goop2 contains g 2 , then goop2 is part of goop1. The part of relation is transitive, and the parts are not exclusive (i.e., a GOOP can be part of several GOOPs). If different GOOPs have common parts, it means that their ontology models overlap. The relationships between GOOPs promote principle P3, because once the relationships are identified, they can structure the overlaps and avoid redundancy.

In order to increase reusability, a GOOP has an associated documentation, describing its concepts and other relevant information to support understanding the ontology fragment and, thus, contribute to its reuse.

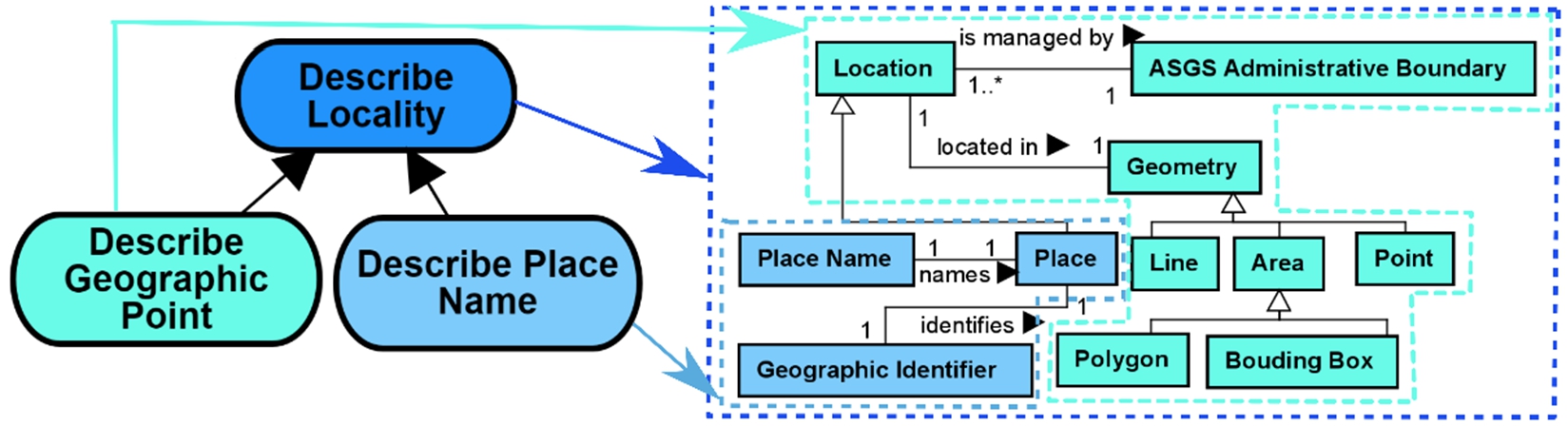

As an example, Fig. 2 shows a fragment of a goal model and the GOOP created from the Place Names Ontology1

¹

http://www.linked.data.gov.au/def/placenames/

to achieve the goal Describe Locality. The GOOP was created in the context of a Water Quality Ontology, developed by using GO-FOR (Reginato et al., 2019). Note that the goal Describe Locality has two subgoals: Describe Geographic Point and Describe Place Name. Each of them is related to an ontology fragment (indicated by the same color used to represent the goal). The integrated two fragments related to the goal Describe Locality form the GOOP Describe Locality.

OPEN IN VIEWER

Fig. 2.

GOOP related to Describe Locality.

4.2. Goal-oriented ontology pattern repository (GOOPR)

GOOPs are stored in a GOOPR, that aims at supporting the reuse of ontology fragments already built, i.e., the GOOPs.

When developing a new ontology, the ontology engineer can search for GOOPs to be reused to address the scope of the new ontology. He/she defines the goals to which the ontology is committed by developing its goal models and uses the goals as a basis to search for GOOPs. This search involves comparing the goals of the new ontology to the goals of GOOPs stored in the GOOPR, to identify matchings between them (i.e., to find GOOPs that meet the goals).

Suppose that an ontology engineer has built the goal model shown in Fig. 32

²

The goal model was produced using iStar (Franch et al., 2016) using the piStar tool (Pimentel and Castro, 2018).

for an ontology about the Web Product Offering domain. In the goal model a Provider (an actor) wants to Describe Web Product Offering. This goal is decomposed into Describe Product and Describe Offering Conditions. The latter, in turn, is decomposed into Specify Payment Methods, Specify Shipment Methods and Specify Coverage.

OPEN IN VIEWER

Fig. 3.

Goal model example.

In a bottom-up approach, the ontology engineer can search for GOOPs to achieve the ultimate goals (e.g., Specify Payment Methods) and the achievement of the composed goals is obtained by integrating GOOPs related to the goals that form them. The ontology engineer can also adopt a top-down approach and search for GOOPs to achieve goals composed by others. He/she can explore goal decomposition to select the GOOPs for reuse. For example, if the ontology engineer searches for a GOOP related to Describe Offering Conditions, he/she can compare the goal decomposition in the GOOP returned in the search with the goal decomposition in the goal model to verify coverage. If the returned GOOP is related to Describe Offering Conditions, but it has only Specify Payment Methods and Specify Shipment Methods as subgoals, the ontology engineer can search for another GOOP with larger coverage, can search for another GOOP to complement the previous one by covering Specify Coverage, or can decide to reuse the previous GOOP and develop the missing fragment.

By exploring the goals structure, the ontology engineer can also identify parts of the GOOPs that can be discarded. For example, if the GOOP returned to achieve Describe Offering Conditions also had Describe Offering Validity as subgoal and the ontology engineer was not interested in this goal, he/she would not reuse the part of the GOOP (which is a GOOP itself) related to this goal. Finally, when searching and selecting GOOPs, the ontology engineer must also take the actor related to the GOOP into account, because, as we said before, different actors can have the same goal but need different ontology models to achieve them.

The GO-FOR ontology development process consists of a set of steps to guide ontology development using the GO-FOR conceptual architecture. Therefore, it is a goal-oriented and pattern-oriented ontology development process with and for reuse. It addresses the ontology development process as a whole (from requirements elicitation to test) and covers the development of reference and operational ontologies. Here, we focus on the process steps referring to the development of reference ontologies because the following steps (design, implementation and test), necessary to produce an operational version of the reference ontology, are very similar to the corresponding steps in other ontology development methods (e.g., (Falbo, 2014)).

Figure 4 depicts the GO-FOR ontology development process, which consists of six phases: Ontology Requirements Elicitation, Selection of GOOPs for Reuse, Selection of Ontologies for Reuse, Ontology Building, Ontology Evaluation, and Extraction of GOOPs. Each phase of the process is described in the following to indicate the flow between activities. In the figure, the initial node (solid circle) indicates the beginning of the process. Control flows (arrows) represent the sequence of activities. Diamonds indicate decision points, where a choice between possible flows must be made based on a condition. Rectangles with rounded edges represent activities. When they have the symbol in the lower right corner, they represent activities that are broken down into others. Rectangles with straight edges represent artifacts, which can be inputs (when they are entering an activity) or outputs (when they are leaving an activity). The end node (non-solid circle) indicates the end of the process.

OPEN IN VIEWER

Fig. 4.

GO-FOR process.

5.6. Extraction of GOOPs

The first five phases of the GO-FOR ontology development process address development with reuse, since they consider the reuse of existing GOOPs and ontologies to develop new ontologies. This last phase of the process aims at ensuring ontology development for reuse, generating new GOOPs and making them available at the repository (GOOPR). It involves two activities:

GOOPs Identification: The ontology model resulting from the previous phase satisfies the goals established in the ontology goal models. In this activity, the ontology engineer must identify, from the ontology model, ontology fragments related to the goals represented in the goal models. Each fragment able to meet a goal (except the model fragments referring to reused GOOPs) should give rise to a new GOOP. Composition relation between GOOPs due to goals decomposition must be identified. For each identified GOOP, the ontology engineer must record its conceptual model, documentation (e.g., concepts description, axioms) and associated goal.

Storage of GOOPs: At last, the ontology engineer must store the created GOOPs in the GOOPR, making them available for future reuse.

The GOOPs created in this phase are later (during the implementation phase of the process – not addressed here) implemented in OWL and their operational versions are also made available in the GOOPR.

In summary, by performing GO-FOR ontology development process, a virtuous cycle of ontology development for reuse and with reuse emerges: the extraction of GOOPs from developed ontologies enables to populate the repository (GOOPR) promoting development for reuse. On the other hand, goal-oriented search to select GOOPs for reuse supports the development with reuse. Figure 5 illustrates the virtuous cycle of ontology development for reuse and with reuse that emerges from GO-FOR use.

When developing ontologies using the GO-FOR ontology development process, ontology engineers relate ontology fragments to goals and store them as GOOPs in the repository (GOOPR). In Fig. 5, ontology fragments G1, G2 and G3 associated to the respective goals represent GOOPs extracted from the Ontology A and its goal model. As it can be noticed, G1 is related to Goal 1, G2 is related to Goal 1.2 and G3 is related to Goal 1.1. Goals 1.1 and 1.2 are subgoals of Goal 1. Thus, GOOPs G2 and G3 are part of G1. Once GOOPs are available in the GOOPR, they can be retrieved based on their goals and the ontology fragments can be integrated into ontologies being developed. In the figure, the goal model of the ontology being developed (Goal Model B) contains the Goal 1.2. Thus, the Ontology Engineer B retrieves the GOOP related to that goal and reuses the ontology fragment G2 by integrating it into the Ontology B.

OPEN IN VIEWER

Fig. 5.

GO-FOR supporting development for and with reuse.

Aiming to provide computational support to GO-FOR and promote its use, we have developed the GOOP-Hub,3

Considering that most of the ontology fragments available on the web use the Web Ontology Language (OWL), we have implemented the GOOP-Hub metamodel in this language. The main advantage of this choice is that it is possible to make SPARQL queries using the GOOP-Hub metamodel structure as part of the query. In this way, we can take advantage of the language to make inferences based on the meta-model and provide better search results. Moreover, since the metamodel uses OWL, a widespread language used in the Semantic Web, it can be referred even outside the GOOP-Hub infrastructure. Figure 6 presents the core concepts of the GOOP-Hub metamodel.

OPEN IN VIEWER

Fig. 6.

The GOOP-Hub metamodel.

The GOOP-Hub metamodel comprises elements of the OWL metamodel alongside goal modeling constructs. A GOOP is composed of OWL classes, object properties and data properties. These three OWL constructs are the main elements used to represent a model fragment in terms of its structure. The hierarchies must be represented by associating classes with its subclasses and domain and range of Object Properties can be used to describe to which classes an object property is associated. Since GOOPs are thought to be generic structures to be reused, we have just used the most basic OWL constructs of OWL LITE. For this reason, OWL DL constructs often used for reasoning purposes are ignored (e.g., equivalence and logical operators). Besides the OWL structure, a GOOP also involves a Goal that can be Atomic or Complex. A Complex Goal is composed of other Goals either by AND or OR decomposition. An AND decomposition is used when all its subgoals must be satisfied for its achievement. An OR decomposition occurs when only one needs to be satisfied. Goals are related to the Actors who want to achieve them. Actors are also related to GOOPs, indicating which model fragment is necessary for an actor to achieve a certain goal.

To add a GOOP into the repository the user informs the goal(s) and actor(s) to which the GOOP relates and uploads the ontology fragment in OWL format, alongside with a picture depicting the conceptual model of the ontology fragment. The application performs the conversion to the meta-model, so that the relationships between GOOPs are established according to the relationships between goals. To store the GOOPs, we use Stardog,4

As previously said, different actors may need different ontology fragments to achieve the same goal. In the metamodel shown in Fig. 6, the relationships “achieves goal of” between GOOP and Actor, “has” between Actor and Goal, and “is used to achieve” between GOOP and Goal mean that a single GOOP can achieve the goal of one or many Actors and that an Actor may need more than one GOOP to achieve a certain Goal. Moreover, the following constraint must be considered: if a GOOP g p is used to achieve a Goal g and achieves a goal of an Actor a, then g must be a goal of a.

Currently, there are around 40 GOOPs stored in the GOOP-Hub, covering domains such as measurement, software process, time, biology, chemistry, specimen, scientific activities, patient and locality. They were stored during the development of ontologies built with GO-FOR. Some of them came from works performed in our research group (e.g., (Barcellos et al., 2014), (Ruy et al., 2015a) and (Ruy et al., 2016)), others came from external sources (e.g., Interlinking Ontology for Biological Concepts6

The goal-based search for GOOPs in the GOOP-Hub is made by using textual inputs referring to the ontology goals (e.g., Specify event interval or Describe offering item). In our implementation, we apply Apache Lucene, which is a java full-text search engine in which, given a search query, the API returns a set of documents (in our case, goals) sorted using a score system such that the documents (goals) most similar to the query are displayed first. The association between a goal and a GOOP is persisted as an OWL relation since the goal and the GOOP are defined as OWL resources. Thus, it is possible to make the goal-based search and find GOOPs by using the metamodel proposed as an OWL structure.

In addition to the textual searching, ontology engineers count with a SPARQL Endpoint, where they can perform complex queries involving all the elements of the metamodel and their instances. For example, the ontology engineer can search for a GOOP with the goal Describe Location filtering those that have the concept City. As result of the search, the ontology engineer receives a list of GOOPs that meet the parameters. The GOOPs can be visualized (by means of the pictures that depict the conceptual model) and downloaded in OWL format. Figures 7 and 8 illustrate some screens of GOOP-Hub. Figure 7 shows the initial page of GOOP-Hub and presents the search page, where the user searches for GOOPs based on the goal name (or part of it). Figure 8 presents the GOOP details page, which is reached when the user clicks the button “Show” of a GOOP returned in the search. The page shows the GOOP description, its OWL representation and a picture illustrating its conceptual model. When the ontology engineer selects a GOOP for reuse, he/she can download the GOOP as an OWL file, which can be imported by ontology development supporting tools.

OPEN IN VIEWER

Fig. 7.

GOOP-Hub initial page and search page.

OPEN IN VIEWER

Fig. 8.

Page detailing the returned GOOP.

We have applied GO-FOR in some scenarios in order to evaluate whether it is (i) applicable in real ontology engineering scenarios and (ii) able to assist the ontology engineer to reuse existing ontologies. Moreover, we sought to identify difficulties faced when using GO-FOR. In this section we present some results of GO-FOR use in a research project concerning chronic diseases prevention in Brazil. Brazilian health care data is scattered throughout a number of systems (Unified Health System, private health insurances, private hospitals and clinics). Therefore, it is hard to obtain information on patients’ tests and their condition, mostly about chronic diseases such as diabetes and hypertension, which makes it difficult for the government to take direct action to help the population. The referred research project aims to provide an ontology-based solution to integrate health care data and make them available to support decision making. Hence, an ontology has been used to enable data interoperability. The ontology has been developed by using GO-FOR. Next, we explore a fragment of the ontology to demonstrate GO-FOR use.

As prescribed by the GO-FOR process, the ontology scope was defined by means of goal models. An important actor of the domain of interest is the Laboratory Technician, who is responsible for collecting samples, describing information about patients, obtaining and analyzing data, among others. Figure 9 shows a fragment of the goal model related to the Laboratory Technician, focusing on the goal Describe Patient Laboratory Test. The colors in the figure will be further used to identify different GOOPs. Achieving the Describe Patient Laboratory Test goal is necessary to verify the patient health condition by analyzing chemical entities properties of collected samples. In the model depicted in Fig. 9, such main goal is AND-decomposed in three subgoals, namely: Describe Patient, Describe Biological Sampling and Describe Sample Measurement. It means that in order to Describe Patient Laboratory Test, these three goals must be achieved. Describe Biological Sampling, in turn, has an AND decomposition with Describe Sampling Date/Hour, Identify Biological Sample Material and Identify Sampling Procedure. Describe Sample Measurement has an AND decomposition with Identify Chemical Property, Describe Measure, Describe Measurement, Describe Measurement Analysis. Describe Measure has an AND decomposition with Define Used Measure and Identify Measure Unit. Describe Measurement has an AND decomposition with Define Measurement Procedure, Define Measurement Act and Describe Measured Value. Describe Measurement Analysis has an AND decomposition with Define Measurement Analysis Act, Define Reference Values, Define Interpretation and Define Analysis Result. At last, Describe Patient has an AND decomposition with Describe Patient Information and other goals that are not shown here due to scope limitation.

Once the goal model was defined, the next step was to derive the competency questions to detail the ontology scope. For example, some of the competency questions derived from the model depicted in Fig. 9 were: What was the result of a measurement analysis that analyzed values measured in a biological sample?, Which are the types of procedures to measure samples aiming at patient laboratory test?, What was the measure unit used to express the patient’s measured chemical property?, What was the chemical property measured in a measurement?. The competency questions helped to detail the ontology scope and were particularly useful to evaluate the ontology by indicating which questions the resulting ontology should be able to answer. Based on the goal models, we defined the ontology modularization. For example, taking the goals decomposition shown in Fig. 9 into account, we defined the following modules: Patient, Sampling, and Measurement.

Considering the goal model, we searched the GOOP-Hub looking for GOOPs that meet the established goals. We adopted a top-down approach, first looking for GOOPs related to subgoals of Describe Patient Laboratory Test. Since we did not find any GOOP covering those subgoals, we looked for GOOPs related to their subgoals, and so on. We found GOOPs related to the following goals: Describe Sampling Date/Hour, Identify Sampling Procedure, Describe Measurement, Describe Measure, Define Measurement Analysis Act and Define Analysis Result.

OPEN IN VIEWER

Fig. 9.

Fragment of the goal model related to laboratory technician.

Figure 10 presents the GOOP we selected to meet the Describe Sampling Date/Hour goal. That GOOP was extracted from the Time Ontology8

OPEN IN VIEWER

Fig. 10.

GOOP related to “Describe sampling date/hour”.

OPEN IN VIEWER

Fig. 11.

Integrated view of measurement-related GOOPs selected for reuse.

Figure 11 depicts an integrated view of the GOOPs we selected to meet the goals Identify Sampling Procedure, Describe Measurement, Describe Measure, Define Measurement Analysis Act and Define Analysis Result. These GOOPs were stored in the GOOP-Hub during the development of a Measurement Ontology (Santos et al., 2019). In the figure, each region indicates a selected GOOP. Blue region refers to the GOOP selected to achieve Identify Sampling Procedure; pink region indicates the GOOP selected to Describe Measure; orange region indicates the GOOP selected to Describe Measurement, and yellow region indicates the GOOP selected to achieve Measurement Analysis Act and Define Analysis Result.

A Measurable Entity is anything that can be measured, such as a person. Measurable Entity is instance of Measurable Entity Type (e.g., Person). Measurable Entity Types are characterized by at least one Measurable Element (e.g., Person can be characterized by weight, height, blood pressure). Measures are used to quantify Measurable Elements and to characterize Measurable Entity Types. For instance, the measure weight in kilograms can be used to quantify the measurable element weight of measurable entities of the type Person. Measures have Scales composed of all possible values (Scale Value) to be associated by the Measure to a Measurable Element. Measures can be expressed in Measure Units (e.g., mg/dL, kilograms).

Measurement is an event that measures a Measurable Element of a Measurable Entity by applying a Measure and adopting a Measurement Procedure (which describes the steps to be carried out to collect data for the measure). The result is a Measured Value. For instance, the measurement of John’s cholesterol by applying the measure cholesterol HDL in mg/dL and adopting the Bichromatic Enzymatic measurement procedure could determine the measured value 51 mg/dL.

Sampling is the act of collecting Samples by adopting a Sample Procedure. A Sample is a proxy for a Measurable Entity, said a Sample Represented Measurable Entity. In other words, a Sample represents a Sample Represented Measurable Entity, which is the Measurable Entity characterized by the Sample. For example, a blood sample represents a person, since by measuring the blood sample it is possible to characterize that person.

Measurement Analysis is the act of analyzing Measured Values to produce an Analysis Result that characterizes the measured Measurable Entity. For example, the analysis of the measured value to John’s cholesterol indicates that his cholesterol level is acceptable.

After selecting the GOOPs, we used the competency questions related to the respective goals to verify if the GOOPs were enough to meet the goals or if additional concepts were necessary. For example, concerning the goal Describe Measurement Procedure, we noticed that the selected GOOP did not provide information to answer the following competency question: Which are the types of procedures to measure samples aiming at patient laboratory test?. Thus, we searched outside GOOP-Hub for ontology fragments to complement the selected GOOPs.

Figure 12 shows the selected fragment to address the aforementioned competency question. It was obtained from the Interlinking Ontology for Biological Concepts (IOBC)9

OPEN IN VIEWER

Fig. 12.

IOBC fragment for complementing the GOOP select to achieve Describe Measurement Procedure.

We also searched outside GOOP-Hub for ontology fragments to meet the goals not covered by the selected GOOPs. For example, to meet the goal Identify Chemical Property, we selected the fragment from the Chebi Ontology10

In the model, Chemical Element is a physical entity of interest in chemistry, including molecular entities, parts thereof, and chemical substances. A Chemical Substance is a portion of matter of constant composition, composed of molecular entities of the same type or of different types. A Molecular Element is any constitutionally or isotopically distinct atom, molecule, ion, ion pair, radical, radical ion, complex, conformer etc., identifiable as a separately distinguishable entity. A Triglyceride is any glyceride resulting from the condensation of all three hydroxy groups of glycerol with fatty acids. Hemoglobin, in turn, is the iron-containing oxygen-transport metalloprotein in the red blood cells (erythrocytes) of almost all vertebrates.

After selecting GOOPs and ontology fragments to be reused, we integrated them. We started by identifying the semantic relations between concepts from different GOOPs and ontology fragments. Most of them were relations of specialization, meaning that the concepts from the GOOPs were more generic than the ones from the reused ontologies. In fact, we expected that because the measurement-related GOOPs provided core concepts about measurement and sampling, while the other ontology fragments address specifics of chemical entities examination. When the integration operations were applied, the more specific concepts were related to the more generic ones through specialization relations. When we did not find correspondence between concepts from different GOOPs/ontologies, the concepts were added to the integrated model and suitably related to the other concepts. We also added some new concepts to address information needs not met by the reused GOOPs and ontologies. Finally, we made some adjustments in concept names to ensure consistency in the terminology used in the ontology.

OPEN IN VIEWER

Fig. 13.

Ontology fragment selected to meet Identify Chemical Property.

OPEN IN VIEWER

Fig. 14.

Fragment of resulting ontology.

Figure 14 shows a fragment of the final ontology. For the sake of simplification, we do not present all the concepts related to the goal model presented in Fig. 9. In Fig. 14, the concept color indicates the goal to which it relates. Therefore, concepts plus the goal in the same color illustrate fragments of the GOOPs reused to build the ontology. However, it is important to notice that, as shown in Fig. 11, some concepts belong to more than one measurement-related GOOP. The concepts in grey were added to the model to meet the ontology requirements not covered by the reused GOOPs and ontologies. Red is used to indicate relationships created to integrate concepts from different GOOPs as well as new concepts added in order to address the ontology scope.

Biological Sampling refers to a Sampling that produces a Biological Sample. The values measured in a Biological Sample are so-called Biological Measured Values. These values are analyzed (during Measurement Analysis) by comparing them to Reference Values of Medical Properties, which are well-known reference values for a given medical property. Thus, they are values of the Scale of the Measure used to measure the referred property (Measurable Element). Each Reference Value of Medical Property leads to an Interpretation, which is a lexical value (e.g., “acceptable”, “desired”, “recommended”) considered to determine the Analysis Result of a Measurement Analysis.

After building the ontology, we evaluated it through verification and validation. During verification, we checked whether the concepts and relations defined in the ontology are able to answer the competency questions. For each competency question (CQ), we identified the elements of the ontology which together are able to address the question. Table 2 shows a fragment of the verification table.

During validation, we aimed to evaluate the ontology by assessing whether it is suitable for representing real-world situations. For that, we instantiated the ontology using data extracted from the research project. Table 3 shows a fragment of the validation table.

Once the ontology was built and evaluated, we extracted new GOOPs to store them in the GOOP-Hub and make them available for future reuse. For example, the fragment shown in Fig. 13 was related to the goal Identify Chemical Property and recorded as a new GOOP. Figure 15 presents a GOOP extracted from the resulting ontology to achieve the goal Describe Biological Sampling. The GOOP includes concepts from other GOOPs used to build the ontology and also a new concept we added to meet the ontology requirements.

Finally, we implemented the ontology and the GOOPs in OWL and stored them in GOOP-Hub. The ontology has been used to integrate health care data from different sources (spreadsheets, information systems, web sites, PDF files, etc.).

The use of GO-FOR in the case reported in this section showed that using GO-FOR in a real ontology engineering scenario is viable. Moreover, GO-FOR helped reuse existing ontologies, contributing to the quality of the developed model and the productivity of the ontology engineering process. By using GO-FOR, we were able to reuse GOOPs to build most of the model. By reusing GOOPs, we obtained the core conceptualization of our ontology and, thus, we just needed to complement it with concepts from other ontologies and add a few concepts to address specifics of the domain of interest. In the end, we contributed to GOOP-Hub by adding new GOOPs to it, which are available to be reused in the development of other ontologies. As for difficulties we faced when using GO-FOR, we highlight the lack of support to integrate the selected GOOPs and build the ontology integrated model.

OPEN IN VIEWER

Fig. 15.

Extracted GOOP.

The use of goal modeling in Ontology Engineering is recent. Therefore, we did not find any work exploring the use of such approach to support reuse. Hence, in this section we make some discussions comparing some works cited in Section 2 to GO-FOR.

First, we will consider the cited works devoted to reuse: Ruy et al. (2015b), Gangemi and Presutti (2009), and Caldarola and Rinaldi (2016). Our work has some similarities and also differences when compared to them. Regarding similarities, we can highlight the fact that all proposals help define and store ontology patterns or ontologies and provide a string-based search mechanism to retrieve them. As for differences, we point out the way the design rationale is expressed, the basis for the searches and the fact that none of the cited works define a process to create or use the patterns.

In the work presented by Ruy et al. (2015b), the authors argue that when a foundational pattern is reused, its design rationale is carried to the domain pattern. Thus, when the domain pattern is reused, the foundational and the domain design rationales are carried to the new ontology. However, the design rationale is not made explicit in the patterns’ definition, thus it is not clear how the design rationale is expressed to the ontology engineer. In the work presented by Gangemi and Presutti (2009), the design rationale comes from information associated with the patterns. However, it is not clear how reuse can be conducted based on this information. In the work presented by Caldarola and Rinaldi (2016), design rationale comes from domain experts that help the ontology engineers understand the domain of interest. However, information about design rationale is not recorded neither used as a basis for the searches, which are made in repositories in general. Regarding computational assistance, Gangemi and Presutti (2009) use a web portal to access the patterns repository; Ruy et al. (2015b) use an ontology framework defined in the work by Guerson et al. (2015) to support the definition of pattern libraries in OntoUML (Guizzardi, 2005). Caldarola and Rinaldi (2016) use tools to retrieve from broad search engines ontologies addressing the domain of interest.

Since none of the aforementioned works define a process to support reuse in the context of the ontology development process, we analyzed the GO-FOR ontology development process considering the works by Leung et al. (2011), Cuenca et al. (2017), Pinto and Martins (2001), Keet et al. (2013), Blomqvist et al. (2016), De Nicola and Missikoff (2016), Peroni (2017), and Keet and Ławrynowicz (2016) (here so-called, respectively, LLFT, CLC, PiM, FORZA, XD, Upon Lite, SAMOD, and TDDO).

Again, there are similarities and differences between these works and ours. Concerning similarities, the first five proposals define activities to reuse existing ontologies (or ontology fragments) when developing a new ontology and the last four are inspired by methods or practices from software engineering. As for differences, we highlight coverage to the ontology development process, search for ontologies (or ontology fragments) for reuse, the way requirements are elicited and computational assistance.

Concerning process coverage, like GO-FOR process, XD, LLFT, and CLC cover the ontology development process as a whole, also adding reuse activities to it. PiM, in turn, covers only activities related to the reuse process itself (particularly integration), without taking general ontology development activities (e.g., requirements elicitation) into account. Upon Lite and TDDO cover the development process in general, but they do not add detailed guidelines for reuse. SAMOD provides three general steps for ontology engineering that could be executed iteratively but it does not mention reuse-specific activities albeit having a principle for pattern use. FORZA provides general steps for ontology engineering and has principles for reuse. Only GO-FOR addresses development (thus prescribing specific activities) for reuse.

As for the search of ontologies for reuse, only GO-FOR suggests the use of goal models to support search activities. Moreover, besides GO-FOR, none of the proposals consider the need of enriching the selected ontologies before reuse. XD advocates the search of ODPs in repositories, but the search is not automated in a tool. CLC, Upon Lite, SAMOD and TDDO do not address search of ontologies for reuse. LLFT and PiM suggest searching in ontology libraries and semantic search engines. FORZA leaves it up to the ontology engineer to select the classes they want to use, and suggests the alignment between these classes and a foundational ontology (e.g., DOLCE (Masolo et al., 2003)). This alignment is different from enriching ontologies before the reuse, as addressed in GO-FOR, because in FORZA, it consists of aligning the already defined classes/concepts to the foundational ontology, instead of grounding on a foundational ontology the ontologies selected for reuse.

It is also important to mention the reuse selection criteria. On one hand, XD and TDDO consider competency questions as the main decision criteria. Analogously, CLC evaluates candidate ontologies considering the defined ontology requirements. On the other hand, FORZA preconizes the use of patterns extracted from foundational ontologies, specifically DOLCE. PiM describes a set of questions that help the ontology engineer to evaluate the candidate ontologies for selection. Upon Lite and SAMOD do not address ontology selection criteria. LLFT makes a comparison between key terms defined from competency questions and scenarios and the concepts from the candidate ontologies. The main difference of GO-FOR regarding this aspect is that although competency questions are still applied, goals are added as the main selection criteria, helping the ontology engineer to recognize common goals between the ontology-to-be and the found patterns.

With respect to requirements elicitation, XD uses stories and competency questions to define the ontology requirements, deriving the questions from the stories. It also uses the questions to derive contextual statements and reasoning requirements. LLFT uses scenarios and competency questions, while CLC defines functional and non-functional requirements. PiM and FORZA do not address requirements elicitation. SAMOD uses the so-called motivating scenarios and derives competency questions from them. TDDO advocates for the elicitation of competency questions and axioms, and the questions would be used to derive some ontology axioms as well. Upon Lite goes straight to the creation of a domain-specific terminology, not addressing requirements elicitation. Similar to LLFT, GO-FOR defines requirements by means of competency questions. However, GO-FOR uses goal models to derive the competency questions and to make explicit motivations for building the ontology.

Last, with respect to computational assistance, only CLC and LLFT present a system to aid the proposed processes. In LLFT there is a key-term system to identify equivalent concepts in candidate ontologies using string-based and linguistic source matching techniques. CLC uses an ontology mapper tool to semi-automatically select the concepts from the reused ontologies and detect duplicates among them. XD has embraced Protégé as its platform using a plug-in for support. FORZA only uses a reasoner that is implemented in a tool to compute properties of part-whole relations. TDDO provides a Protégé plugin to run the tests on the developed ontology. SAMOD does not provide a computational tool, relying on commonly used tools for OWL ontology engineering. Upon Lite suggests the use of spreadsheets for gathering resources for the ontology engineering and the use of plugins to transform the spreadsheets into OWL ontologies. PiM does not mention the use of tools in the methodology. Similar to XD and LLFT, GO-FOR presents a tool (GOOP-Hub) to aid the ontology development process. Different from these works, GOOP-Hub supports the search and storage of ontology fragments related to goals. In GOOP-Hub, the search for candidate GOOPs considers a standard terminology for goals. Moreover, advanced search is provided through a SPARQL end point.

Table 4 summarizes the main aspects analyzed in the works compared to GO-FOR.

In summary, in GO-FOR, design rationale is expressed by means of goals that reveal the reasons why concepts, relations and constraints are necessary. The use of goals can help in the identification of suitable patterns, since the ontology engineer can search based on the goals to be achieved. Moreover, goals composition can be explored to help in the search and selection of patterns for reuse. Differently from GO-FOR, none of the aforementioned approaches use goals or design rationale information to aid the search for patterns or ontologies. Goal-based search potentially brings better results because goals are in a higher level than concepts. Hence, it is easier to talk with ontology engineers about their goals than about concepts in the domain of interest. In addition, none of the approaches explicitly store design rationale information alongside the patterns or ontologies. Thus, when the ontology engineer follows these approaches, he/she must derive himself/herself the rationale behind the patterns or ontologies found. Finally, only GO-FOR addresses the ontology development process as a whole, considering development with and for reuse, enabling a virtuous reuse cycle.

In this work, we advocate the use of goals as the central elements to define and search for ontology patterns. We propose an evolution of GO-FOR, first introduced in the work by Reginato et al. (2019). GO-FOR is a goal-oriented and pattern-based framework for ontology reuse, aimed to aid ontology reuse by providing a mechanism for ontology engineers to create and search for ontology patterns based on their goals. By proposing GO-FOR, our intention is to build not only a library of shared, reusable, linkable knowledge, but also a structure to aid the understanding of the underlying rationale and in the reuse of this knowledge.

The main contributions of the work addressed in this paper are the framework itself, the goal-oriented and pattern-based process for ontology development reusing GOOPs and other ontology fragments, and the GOOP-Hub tool. Once the GOOP-Hub is properly populated, it can increase reuse, generating a virtuous cycle of ontology development with reuse and for reuse. A secondary contribution of this paper is the ontology built by using GO-FOR and that has been used to integrate healthcare data.

In GO-FOR, the selection of ontologies (more specifically GOOPs) is made by cognitive analysis (Carriero et al., 2020) and the requirements to be met by the reused ontologies are first defined by means of goals. By doing that, we use a higher level of abstraction than specific requirements (e.g., competency questions) to guide ontology selection. By using goal models, we also enable to address the relations among the patterns by considering the relations among the goals to which the patterns are associated. Thus, different from catalogues that do not promote the sense of connection among the available patterns, in GO-FOR, GOOPs can be combined according to the goals they to which they are related.

It is worth emphasizing that the purpose of GOOP-Hub is not to extract or consume ontology fragments randomly from ontology repositories, but to record GOOPs when there is a clear understanding of its goal. Thus, human interference is needed to define the goal and connect it to the ontology fragment. We are aware that, on one hand, this limits the reuse of existing repositories. However, on the other hand, by adding to the GOOP-Hub only ontology fragments related to the goals they are able to achieve and following the proposed standardization to record GOOPs, we contribute to the retrieval of GOOPs aligned to the ontology engineer goals and provide detailed information about each GOOP (e.g., description, conceptual model, OWL file).

Besides the project about healthcare data described in this paper, we have also used GO-FOR in previous projects to develop ontologies on water quality (Reginato et al., 2019) and crime (Santos et al., 2018). The effort demanded to create GOOPs was justified by the benefits of reusing them, and goals have shown to be a good reference to guide the searches. The results have indicated that the use of GO-FOR is viable and contributes to increase development productivity and improve the quality of the resulting ontology.

As limitations of our work, we highlight GO-FOR evaluation. GO-FOR was used by ontology engineers of our research group. Therefore, we have knowledge of the GOOPs that have been stored in the GOOP-Hub. Moreover, most of the ontology engineers that have used GO-FOR are familiar to GORE. Hence, new applications and studies are necessary to achieve a robust evaluation and increase confidence in the generality of the obtained results. In this sense, we intend to carry out studies, including controlled experimental studies with ontology engineers with different experience levels, as well as new case studies in which the authors will not be directly involved, to assess the usefulness and feasibility of the proposal and the effects of its use on the ontology engineering process (e.g., by evaluating the quality of the resulting ontology and the productivity in the development process, among others).

There are also limitations regarding GO-FOR components. Concerning the GO-FOR process, ontology evaluation must be carried out by the ontology engineer. Thus, it depends on the ontology engineer knowledge and available supporting tools (e.g., OLED (Guerson et al., 2015)). Concerning the definition of goals and goal models, in the GORE field, there are several guidelines on how to define goals and structure them in goal models. These guidelines are also valid when applying GORE to Ontology Engineering. Even so, we believe that some guidelines to help the GO-FOR user to define goals would be helpful. However, we have not defined specific guidelines for defining goals in GO-FOR yet.

As for the GOOP-Hub, up to now, the support we provide to the development of OWL ontology is very basic in terms of exploring the full potential of this language. However, our work focuses on going from the ontology requirements up to developing initial versions of the OWL ontology, placing strong emphasis on conceptual models (e.g., reference ontologies and goal-oriented models) as tools to improve the quality of the ontology under development. We hope that having an OWL draft ontology at hand allows that existing works within the Semantic Web community may be used from then on to improve the ontology’s reasoning capabilities.

Concerning the GOOP-Hub search algorithm, the GOOPs are returned based on a search string provided by the ontology engineer based on the goal he/she wants to achieve. Many times, the kind of knowledge is enough to determine that an ontology is appropriate for reuse; other times, however, non-functional requirements such as level of expressivity and reasoning capabilities should be taken into account as well. Thus, although the first criterion we consider to selecting candidate GOOPs is the goal to be achieved, this is not enough. For example, if many GOOPs are returned, it may be difficult for the ontology engineer to identify the one to be reused. Hence, we are working on establishing a set of properties to evaluate GOOPs. Our purpose is to define a set of characteristics (e.g., documentation, applicability, credibility, etc.) that can help the ontology engineer to identify, among several candidate GOOPs that meet the ontology engineer goal, which one best fits his/her needs. These characteristics can also be useful to estimate the reusability degree of a GOOP. Preliminary results of this study can be found in the work by Nogueira et al. (2021).

As we explained in Section 1, the work presented in this paper is part of a larger research project. In this paper we presented results obtained in the first part of the research project, which focused on proposing the framework as a whole. We still have a lot of work ahead. As future work, we intend to improve GO-FOR process by providing guidelines on how to define goals and GOOPs (which will also be helpful to evaluate the quality of the defined goals and GOOPs). As for the GOOP-Hub, we plan to populate the repository with new GOOPs and improve the search mechanism to consider different lexicalizations and synonyms. We will also evolve the new feature to assign properties to GOOPs (Nogueira et al., 2021) so that, when more than one GOOP is returned in a search, they can be ranked not only by coverage (how it currently works) but also by other attributes such as reuse rate. Alongside, we intend to provide a way for, as GOOPs are used, the user to make assessments of the GOOPs and give information about how they were used (i.e., add context information for reuse). We also plan to include functionalities in the tool to aid the integration of GOOPs to generate new GOOPs and help ontology engineers in the integration of GOOPs into their ontologies. Finally, we intend to integrate an ontology editor to GOOP-Hub, aiming to automatically generate code for ontology implementation from ontology models.

According to Fernández-López et al. (2019), since ontologies are not being maintained and updated by open communities, a candidate ontology to be reused may not reach minimal adoption requirements or it may not be always available online. A possible approach to lessen these problems could be the creation of communities similar to open software ones in charge of developing and maintaining ontologies. By proposing GO-FOR, we take a step towards this direction. Our intention is to make GOOP-Hub available for people creating, reusing, evaluating and evolving GOOPs.
